Excel G A NEW GENERATION OF SLIDES OPENING

FORMENTI & GIOVENZANA PROVIDES FUNCTIONAL SOLUTIONS FOR FURNITURE TO MEET THE REAL NEEDS OF A LARGE NUMBER OF CUSTOMERS.

All products are conceived and supplied with care and quality and are offered to the market at a competitive price. In this way, Formenti & Giovenzana contributes globally to increase the satisfaction of the customers buying furniture, giving access to pleasing features and improving the quality of life of the consumers.

2
01 Content 02 04 06 08 10 12 14 16 18 INTRO REASONS TO CHOOSE EXCEL G EXCEL G EXCEL G 515B EXCEL G 515H EXCEL G 550B EXCEL G 550H ONETOUCH + SYNCHRO EXCEL G ACCESSORIES

Excel G

CONCEALED MOUNTING

SINGLE EXTENSION

PLUG-IN OR EASY-FIX ASSEMBLY

SLOWMOTION DAMPING

ONETOUCH HANDLELESS OPENING

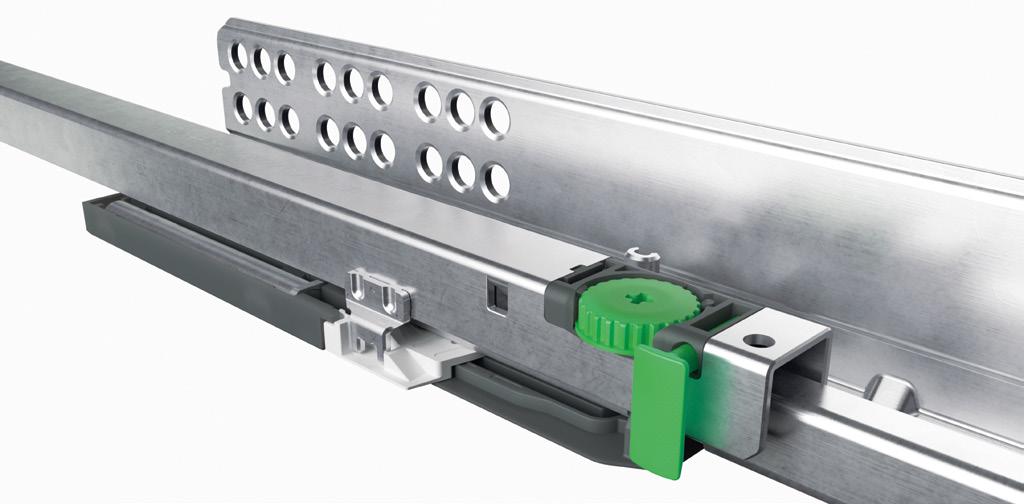

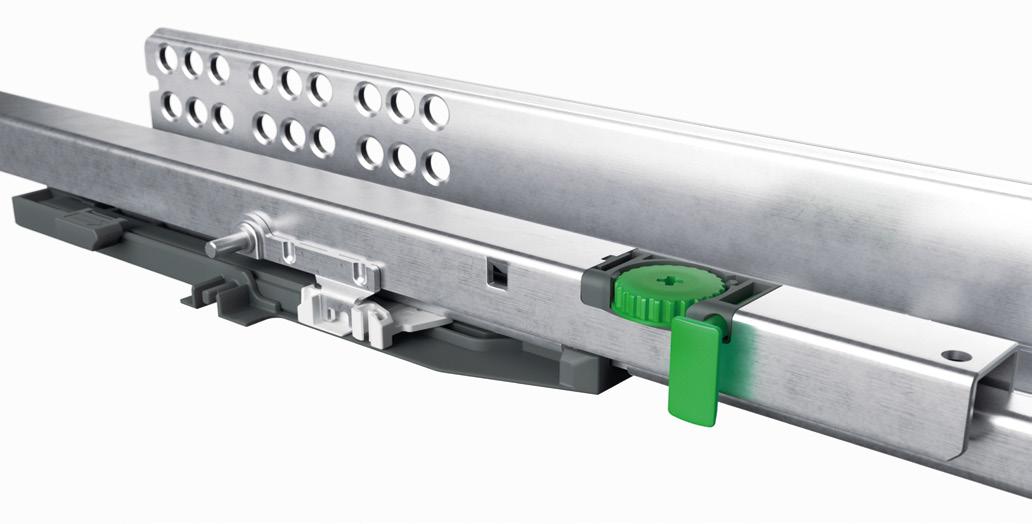

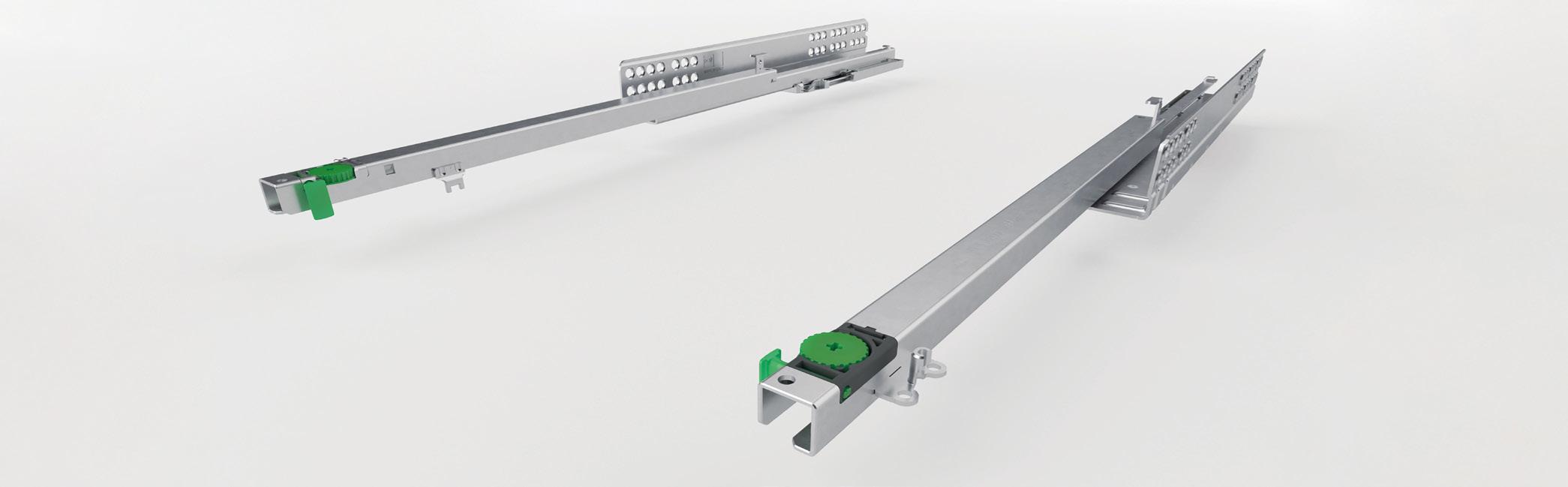

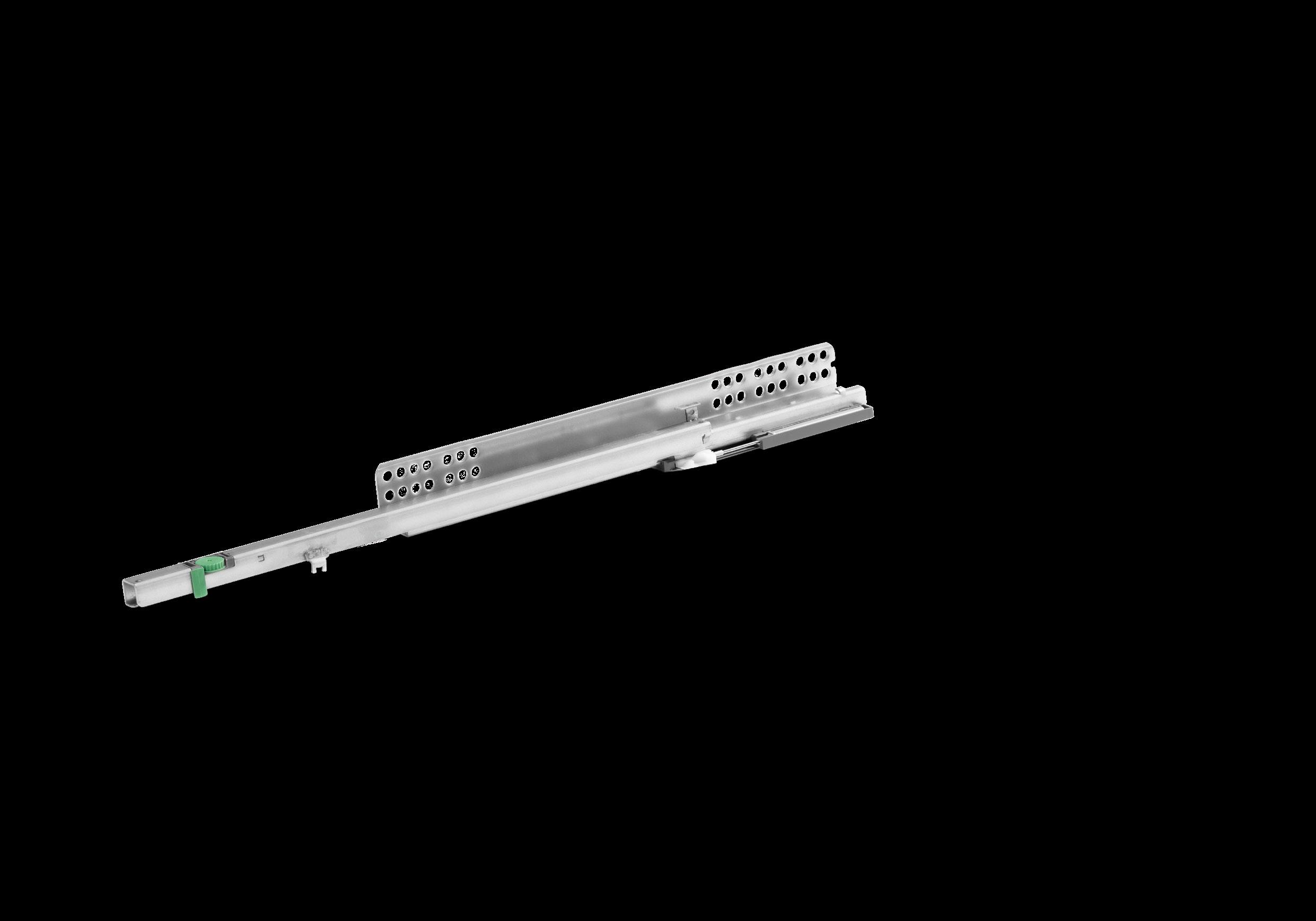

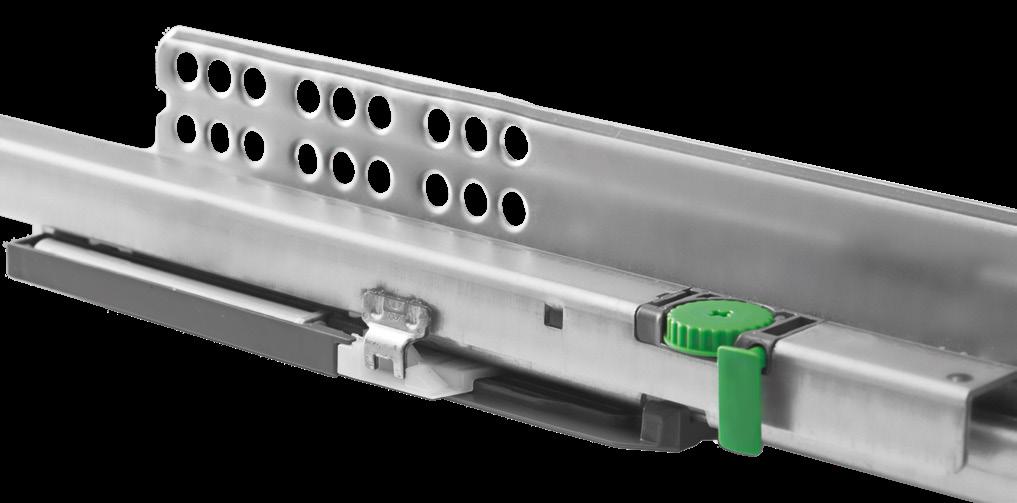

Excel G is the concealed sliding system for drawers developed and marketed by FGV. It boosts all the modern features of drawer sliding systems, thanks to cutting edge design, high quality of materials and automatic assembly processes. Excel G benefits from the latest SlowMotion damping technology with adaptive damping and feature for comfort and safety.

02
03

Reasons to choose Excel G

SIMPLICITY IN THE SHAPE

Thanks to the introduction of a “G-shaped” section into the structure and configuration of the profile, the slide acquires a greater mechanical strength in terms of dynamic load, increased to 30 kg, resistance and durability. The solidity is guaranteed in the shape and during the usage.

TINY DETAILS THAT MAKE THE DIFFERENCE

The slide structure has been improved with a range of technical details that enhance its reliability and performance:

· new bearings for a more silent sliding

· a stronger activator for a greater stability of the damped system

· increased resistance of the back hook for a highly stable slide-drawer coupling

04

A SOLUTION FOR ANY NEED

The Excel G slide responds to any market need, with a complete range of applications and standard dimensions available in two versions:

· Plug-In, with the pin and the Anti-Lift system, for the perfect fixing that leaves out any chance of potential overturning

· Easy-Fix, with fast hooking clips and built-in Anti-Lift system, absolute guarantee of stability and superior performance.

ELEGANCE OF THE MOVEMENT

The SlowMotion Technology, integrated in the Excel G slides, ensures a controlled and uniform closing under any condition and a smooth and soft drawer opening.

The OneTouch System, now also available in the Synchro version for larger bases, by simply pressing the fingers on any area of the front panel, allows the opening of the drawer with high lateral stability.

05
SlowMotion
Plug-In Plug-In Easy-Fix Easy-Fix
OneTouch

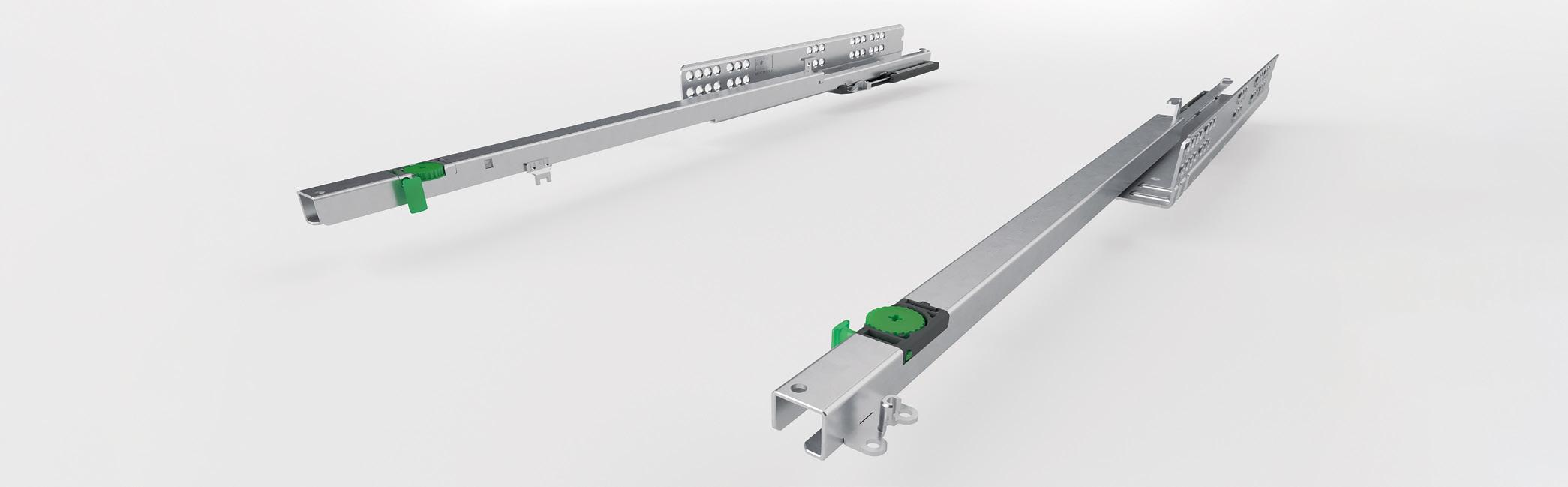

Excel G

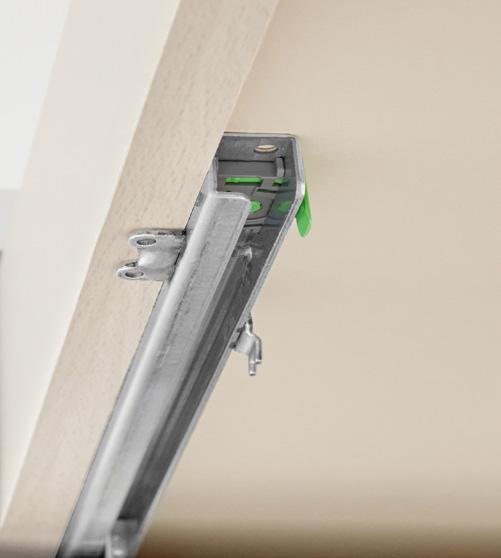

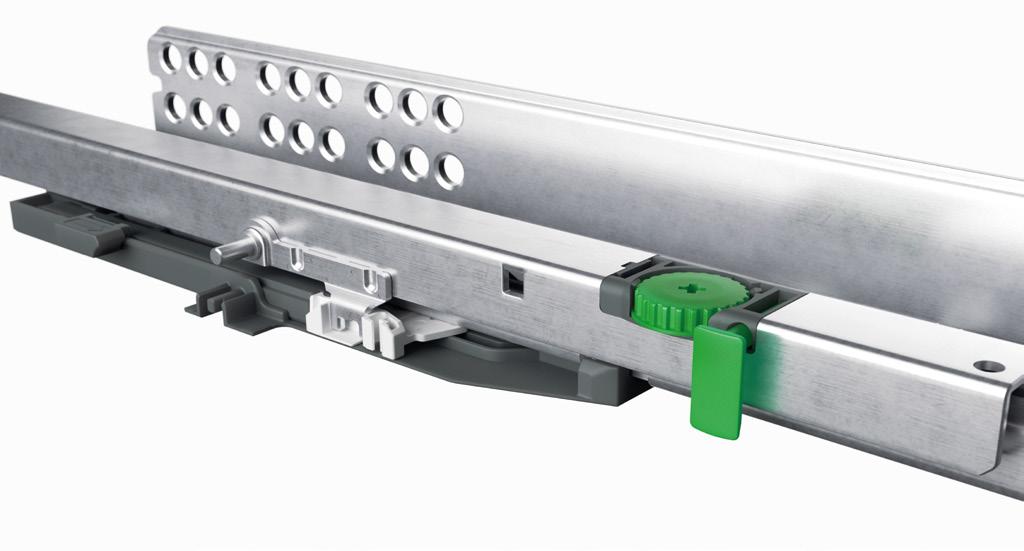

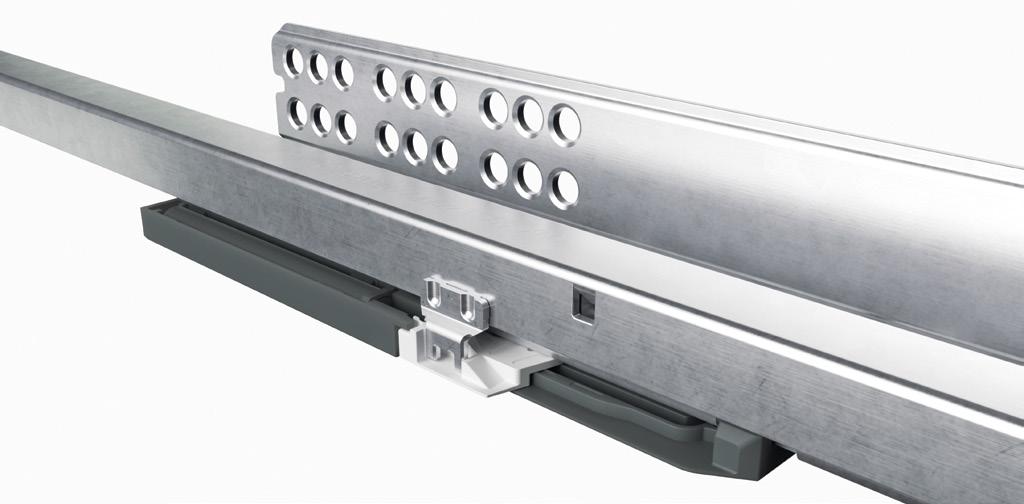

Anti-Lift for superior performance and stability

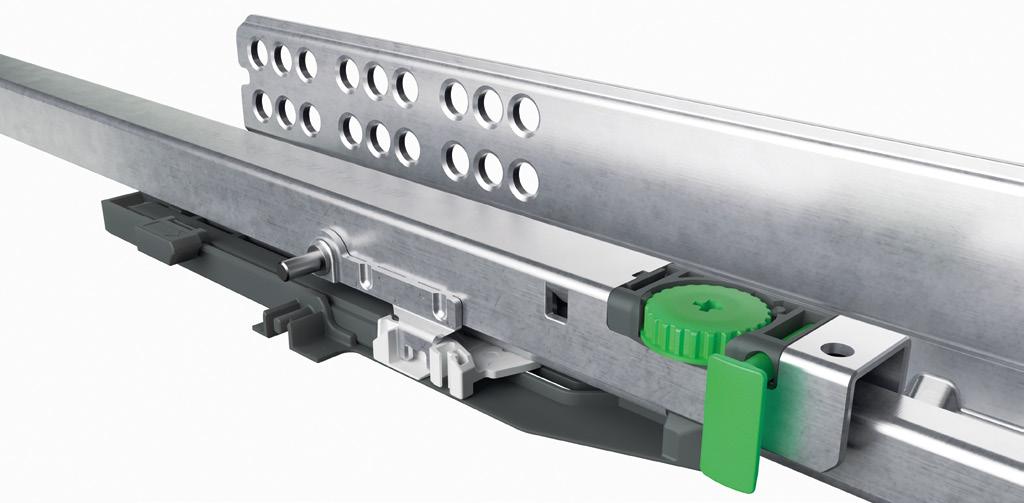

SlowMotion and OneTouch Technologies

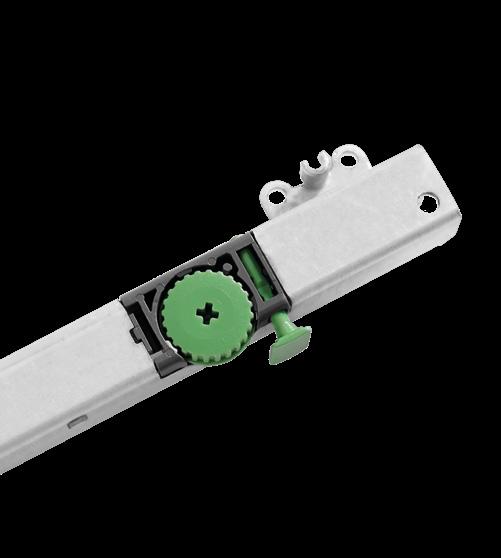

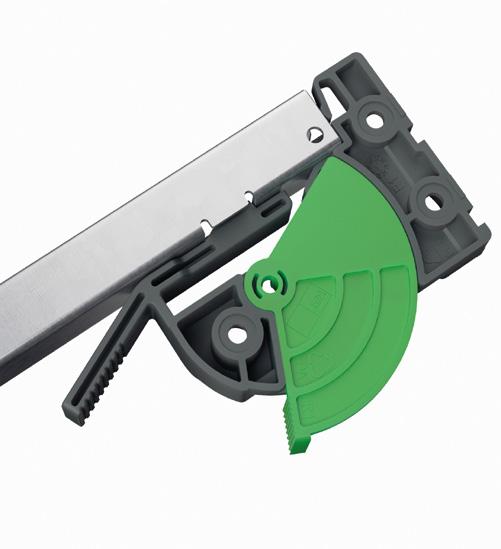

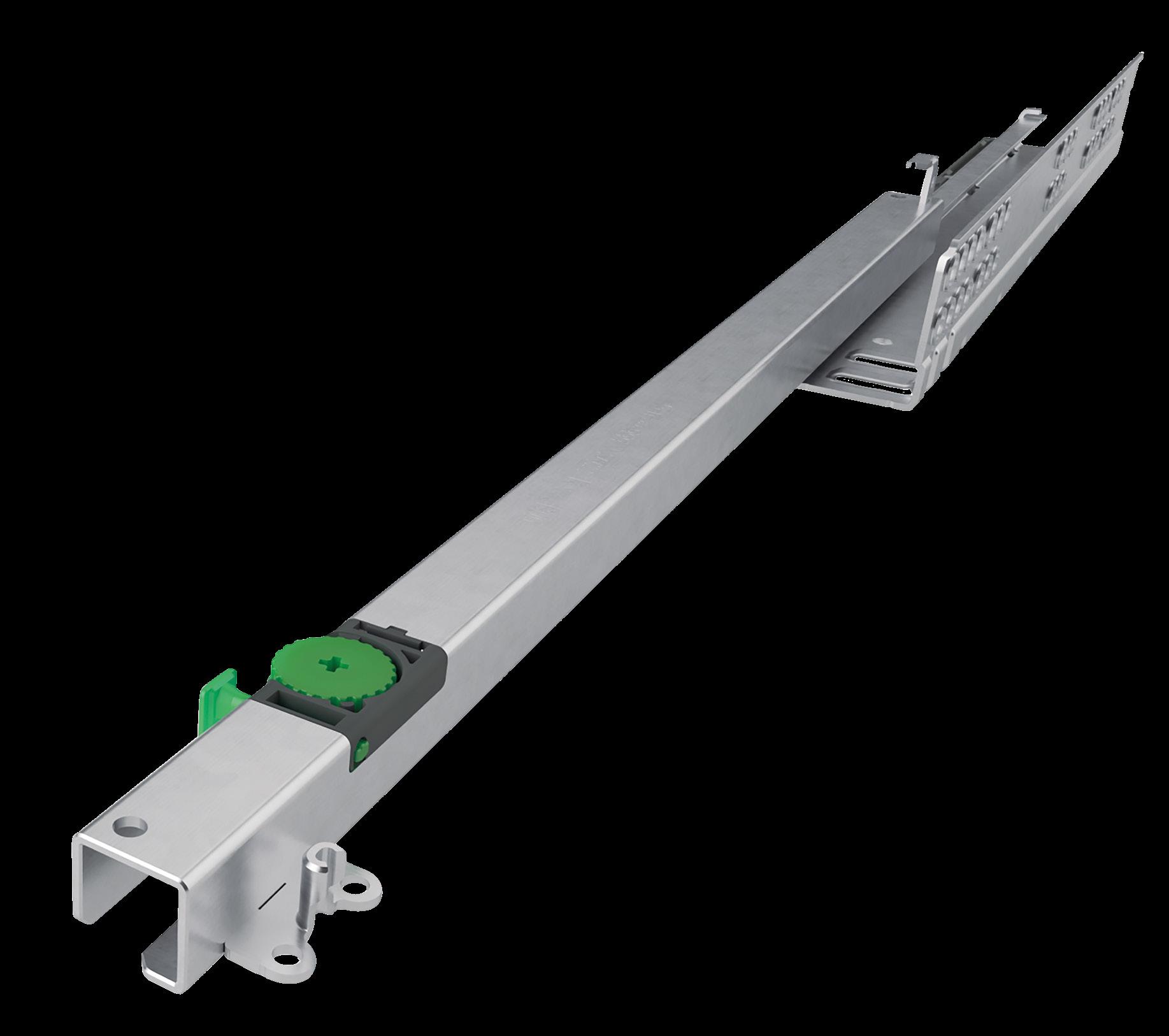

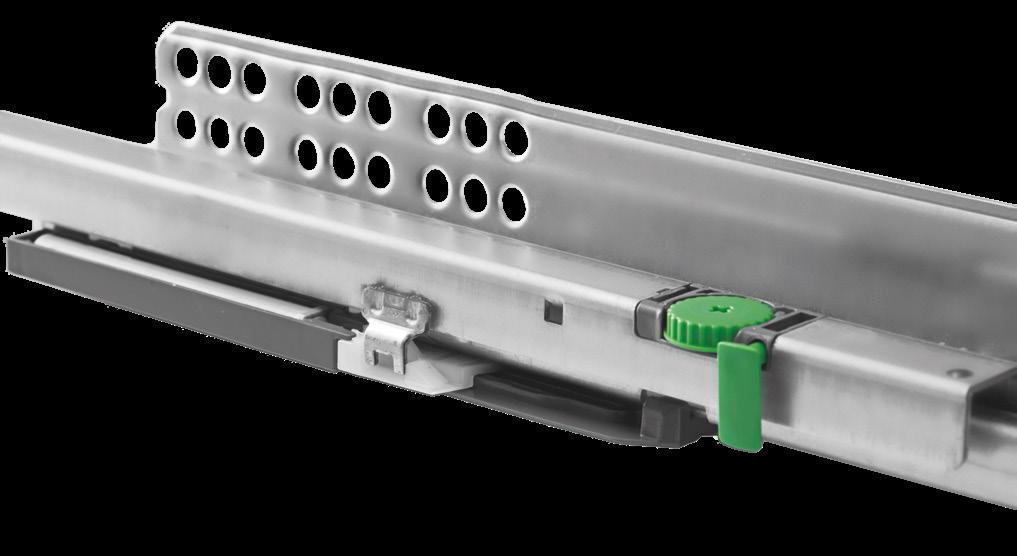

Stronger damper activator

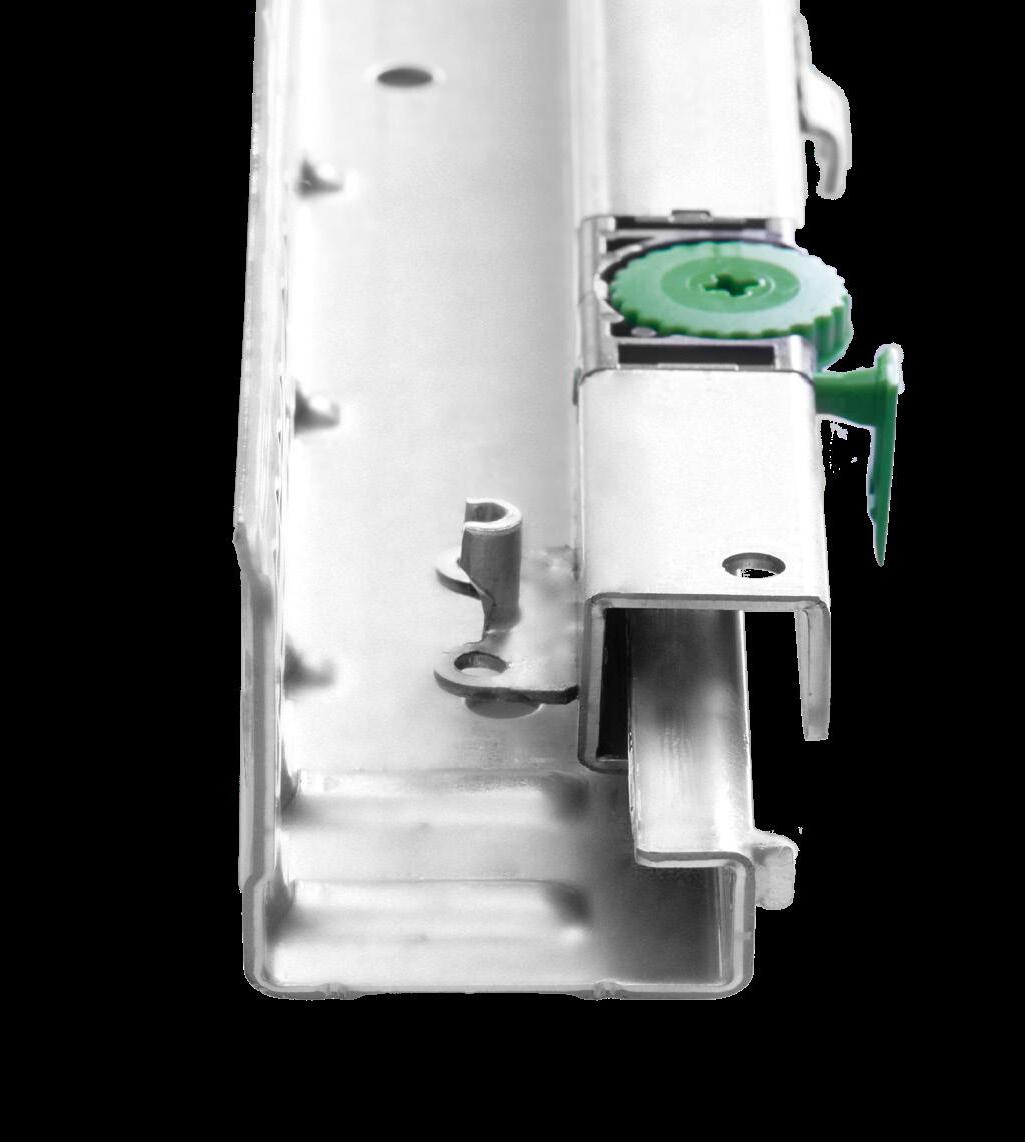

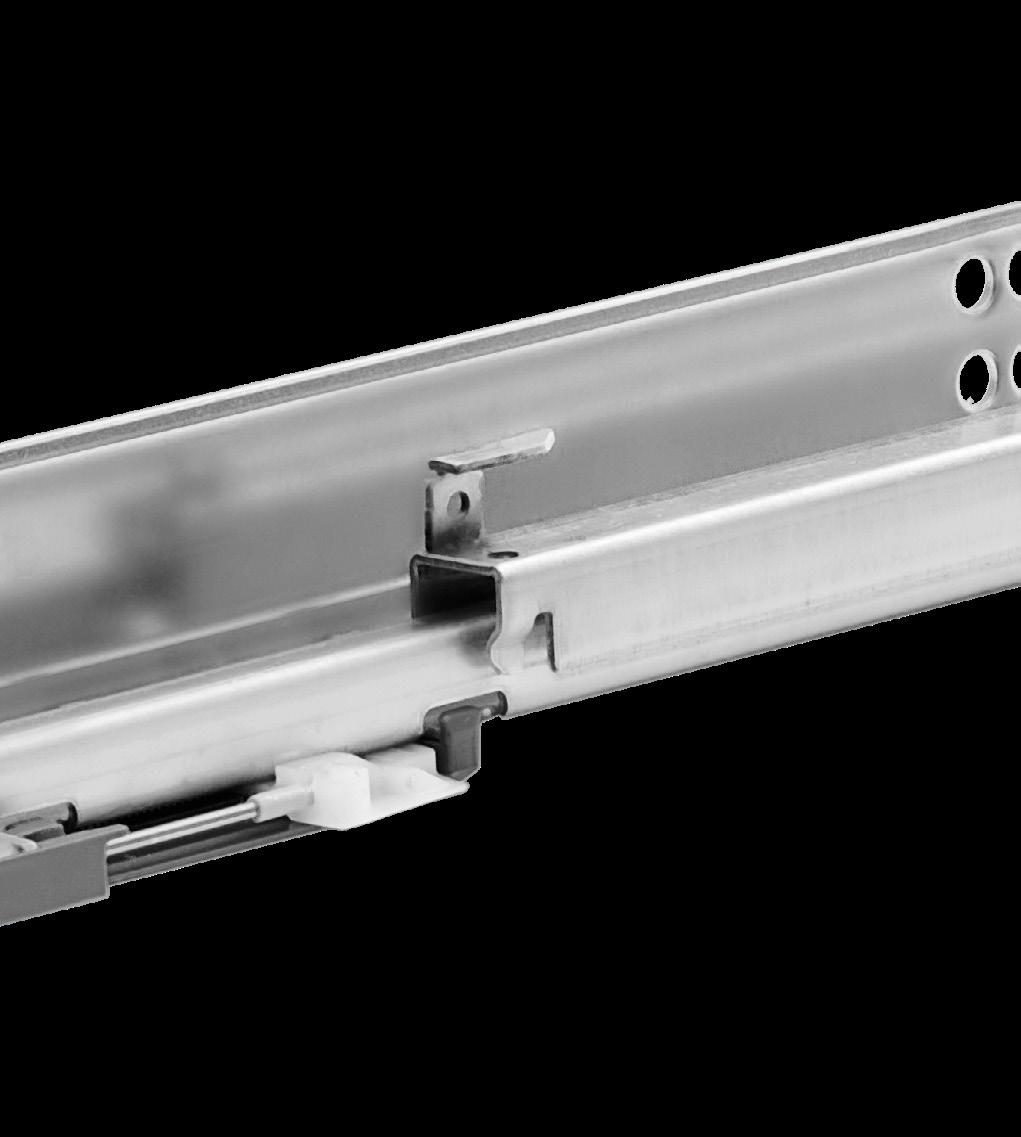

Back Hook for highly stable slide-drawer coupling

06

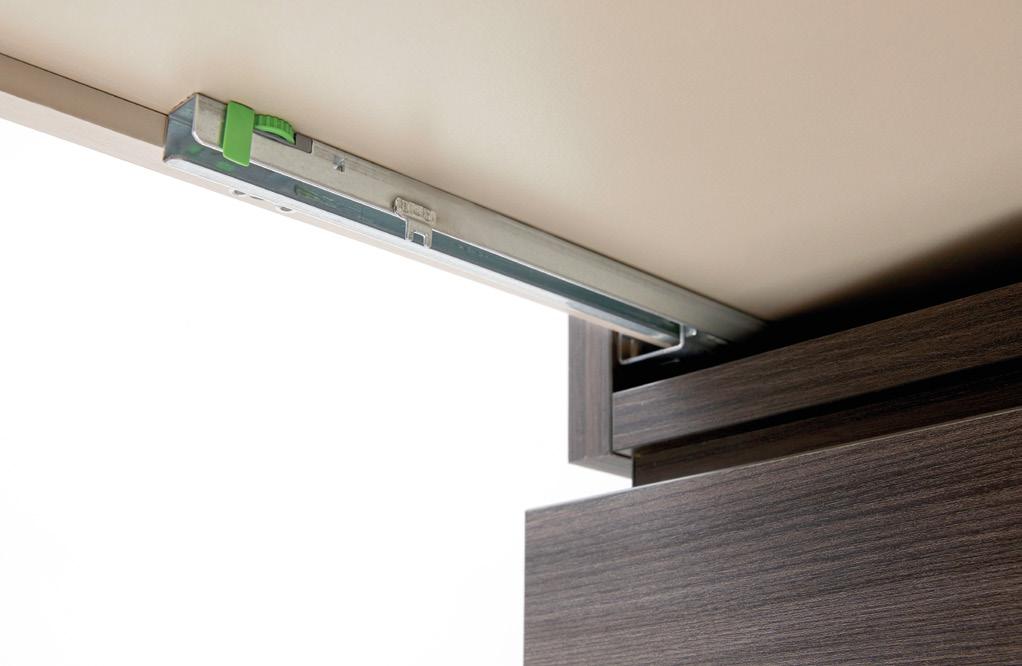

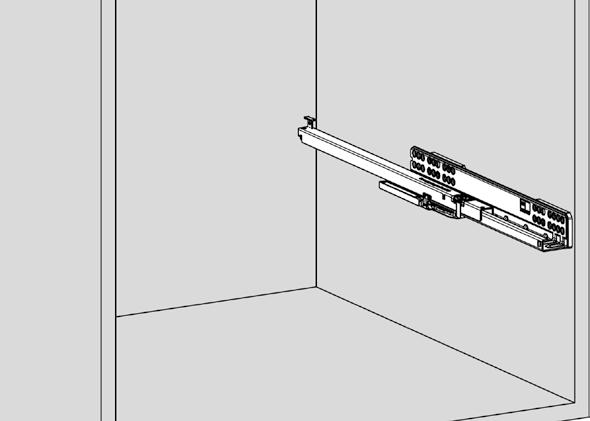

CONCEALED TECHNOLOGY

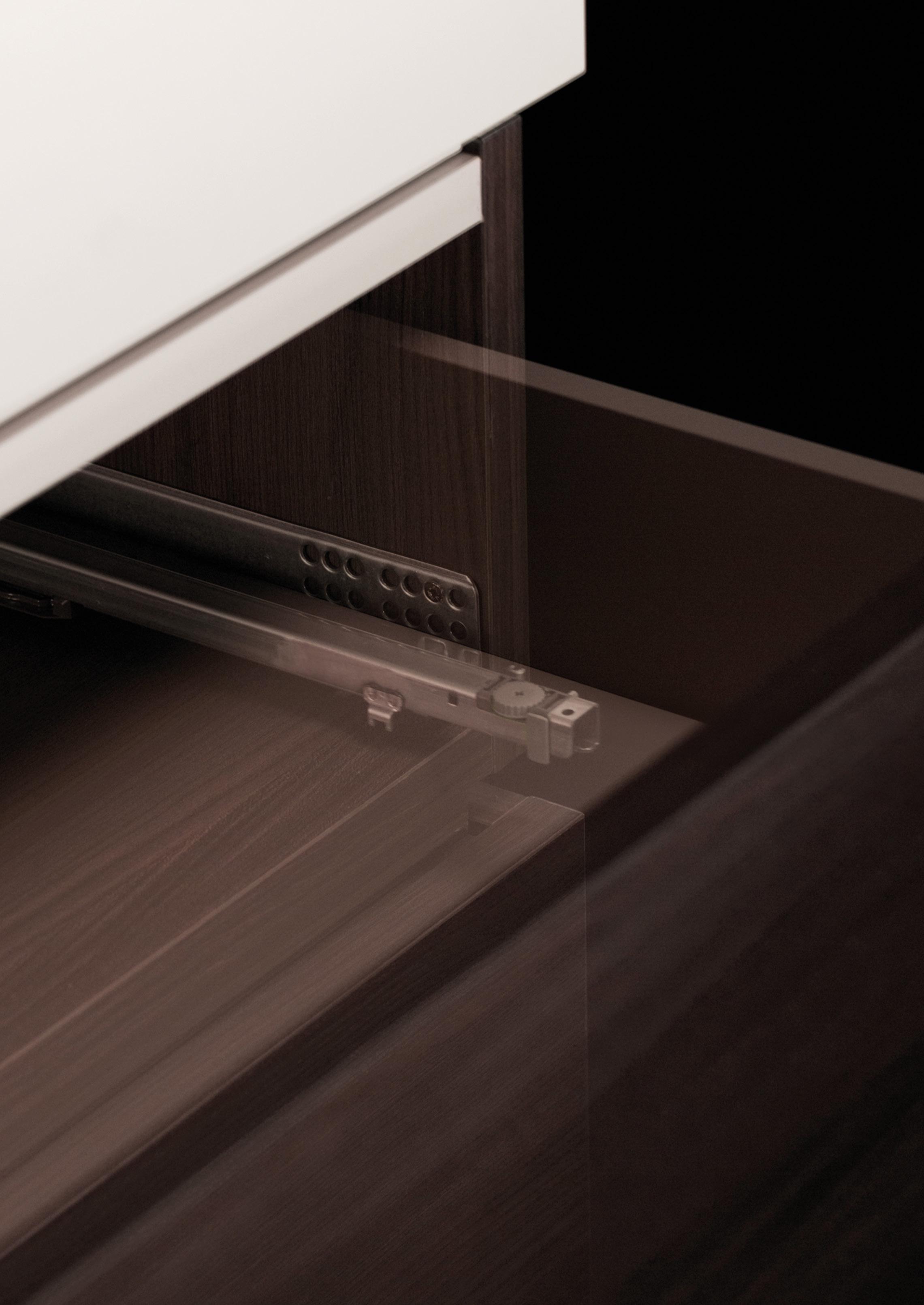

Furniture hardware needs to accomplish its function with discretion and efficiency and undermount slides are today a must. Excel under slung slides for single extension are technologically advanced solutions to move drawers over a life long period and to ensure a high comfort in complete discretion.

QUALITY AT ITS BEST

High quality materials for profiles and rollers, tight tolerances on each component in the assembly process and a constant care for every aspect are the conditions under which the Excel slide delivers the right feeling, when opening a drawer. Pull-out resistance, damping power and guaranteed closure are the result of design and grown technology of FGV.

07
PERFORMANCE
Excel G
OneTouch & Synchro handleless opening Greater stability Silent sliding SlowMotion controlled closing

Code Description

Packing

54.G515B.250*.^000 Excel G515B for 250 mm deep drawer 24 profiles

54.G515B.275*.^000 Excel G515B for 275 mm deep drawer 24 profiles

54.G515B.300*.^000 Excel G515B for 300 mm deep drawer 24 profiles

54.G515B.325*.^000 Excel G515B for 325 mm deep drawer 24 profiles

54.G515B.350*.^000 Excel G515B for 350 mm deep drawer 24 profiles

54.G515B.375*.^000 Excel G515B for 375 mm deep drawer 24 profiles

54.G515B.400*.^000 Excel G515B for 400 mm deep drawer 24 profiles

54.G515B.425*.^000 Excel G515B for 425 mm deep drawer 24 profiles

54.G515B.450*.^000 Excel G515B for 450 mm deep drawer 24 profiles

54.G515B.475*.^000 Excel G515B for 475 mm deep drawer 24 profiles

54.G515B.500*.^000 Excel G515B for 500 mm deep drawer 24 profiles

54.G515B.525*.^000 Excel G515B for 525 mm deep drawer 24 profiles

54.G515B.550*.^000 Excel G515B for 550 mm deep drawer 24 profiles

* closing system: Y = SlowMotion / P = OneTouch ^ profile: R = Right slide /

Technical Specifications:

• Large range of standard depths from 250 to 550 mm

• Small extraction loss due to compact build

• Very tolerant due to built in flexibility

• Simple Plug-In assembly for ease of manufacturing

• Comfortable large wheel height adjustment

• Excellent load ability with 30 kg dynamic standard capacity throughout the range

• Anti-Lift device pre-assembled

• SlowMotion damping to always guarantee silent drawer closure even under adverse conditions

• High-end OneTouch handle less operation

• Lasting quality thanks to optimised materials

08
Excel G515B

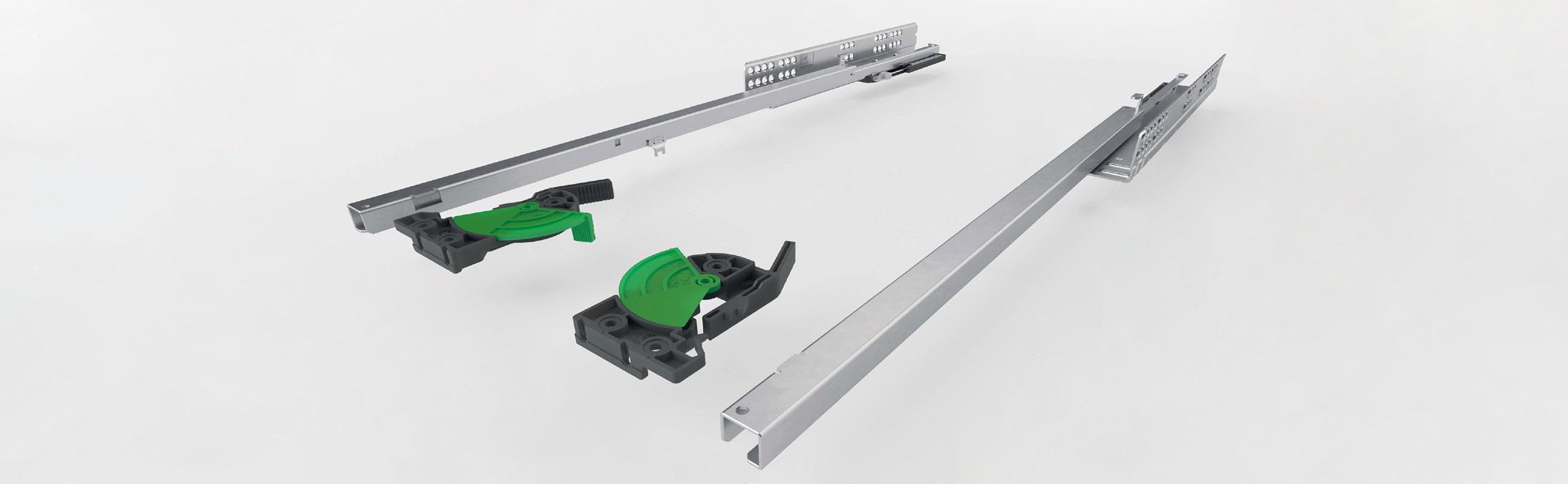

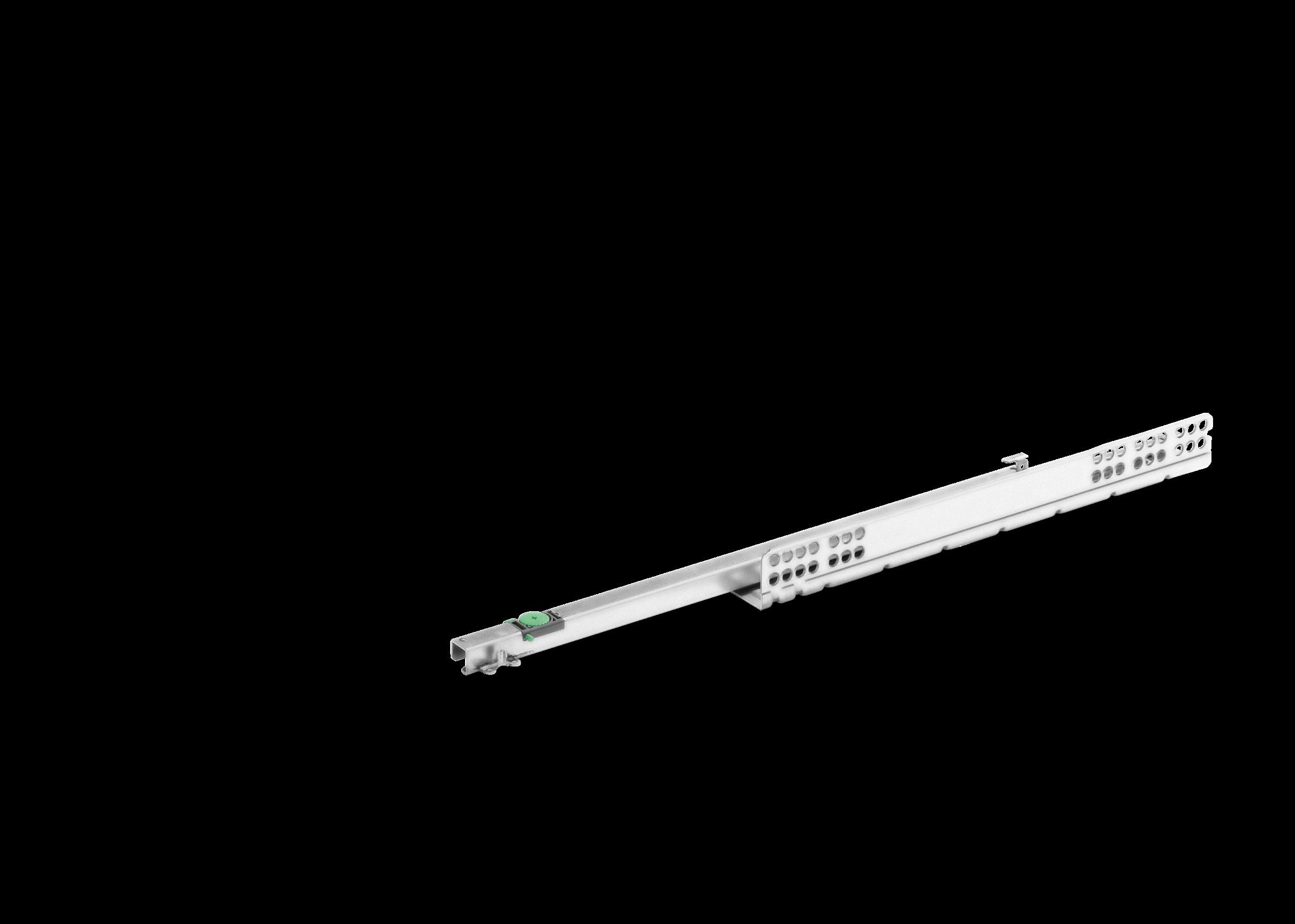

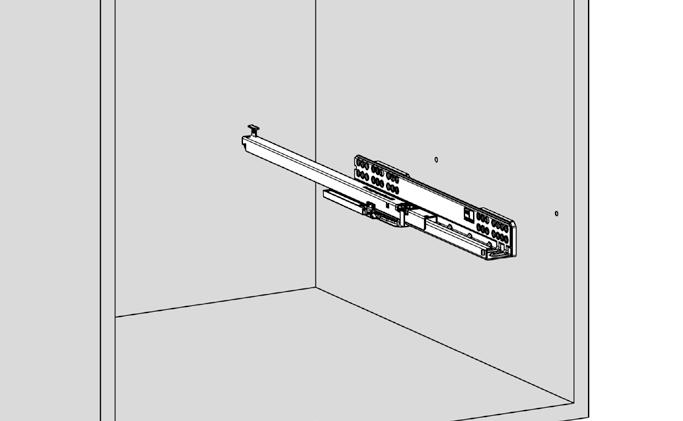

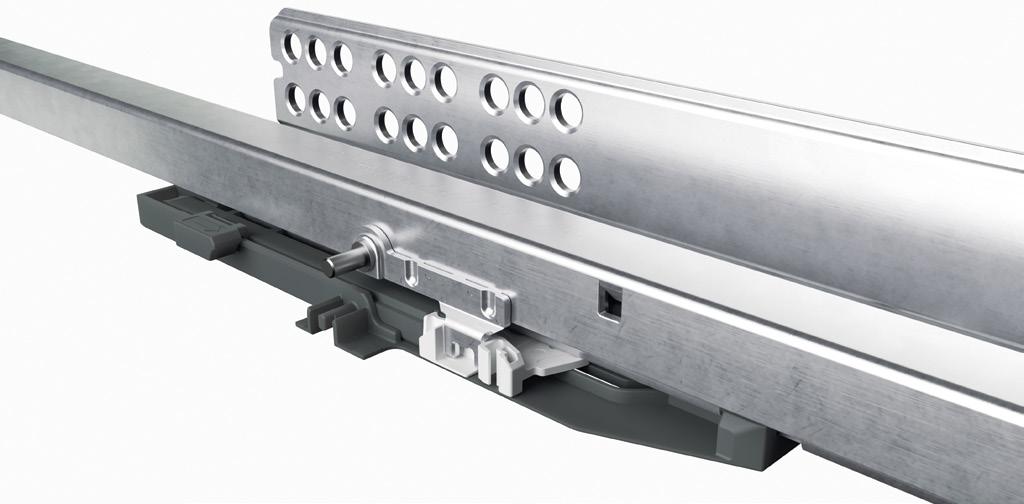

G515B Excel single extension Plug-In
L
Values given in mm
= Left slide

Technical Details

Drawer dimensions and drilling

26min.

Fixing holes positions

****26min. 33min. ** 26 min. without Synchronization Bar ** 33 min. with Synchronization Bar for OneTouch system

09
SLIDE LENGTH DRAWER DEPTH ANTI-LIFT HOLE PLUG-IN HOLE EXTENSION LOSS L A X Y AV 260 250 185 205 67 285 275 200 220 67 310 300 210 230 67 335 325 225 245 67 360 350 255 275 87 385 375 265 285 87 410 400 280 300 87 435 425 290 310 87 460 450 315 335 107 485 475 330 350 107 510 500 340 360 107 535 525 355 375 107 560 550 385 405 127 ø6x10 min. ø6x10 min.
A Y X
11 7 ø8x4 min. 5 6 AV+T 37+T AV 37 L B=L+3 Qmax=K-5 Z=K-42 11-16 9.5 34 min. 13 max. 24.5 min. 21 Z=K-42 K B=L+3+T T
Excel G515B
37 96 128 160 192 224 256 288 320 550 525 500 475 450 425 400 375 350 325 300 275 250 37 28 19 10 9 9 9 9 9 14 23 32 12 K Internal cabinet width L Slide nominal length A Drawer depth T Front thickness Z Internal drawer width B Internal cabinet depth Q Inner drawer front width AV Extension loss Values given in mm

Code Description

Packing

54.G515H.250*.^000 Excel G515H for 250 mm deep drawer 24 profiles

54.G515H.280*.^000 Excel G515H for 280 mm deep drawer 24 profiles

54.G515H.300*.^000 Excel G515H for 300 mm deep drawer 24 profiles

54.G515H.320*.^000 Excel G515H for 320 mm deep drawer 24 profiles

54.G515H.350*.^000 Excel G515H for 350 mm deep drawer 24 profiles

54.G515H.380*.^000 Excel G515H for 380 mm deep drawer 24 profiles

54.G515H.400*.^000 Excel G515H for 400 mm deep drawer 24 profiles

54.G515H.420*.^000 Excel G515H for 420 mm deep drawer 24 profiles

54.G515H.450*.^000 Excel G515H for 450 mm deep drawer 24 profiles

54.G515H.480*.^000 Excel G515H for 480 mm deep drawer 24 profiles

54.G515H.500*.^000 Excel G515H for 500 mm deep drawer 24 profiles

54.G515H.520*.^000 Excel G515H for 520 mm deep drawer 24 profiles

54.G515H.550*.^000 Excel G515H for 550 mm deep drawer 24 profiles

* closing system: Y = SlowMotion / P = OneTouch

^ profile: R = Right slide / L = Left slide

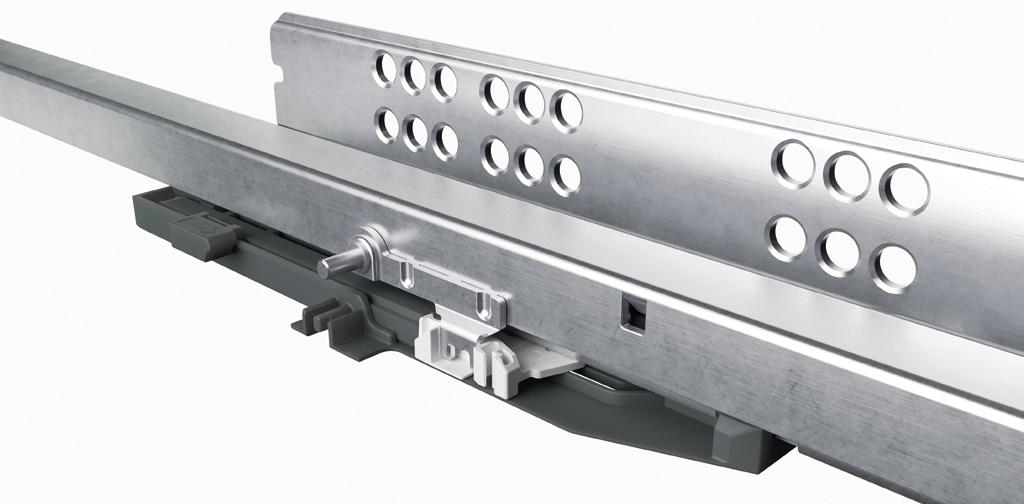

G515H Excel single extension Plug-In

Technical Specifications:

• Large range of standard depths from 250 to 550 mm

• Small extraction loss due to compact build

• Very tolerant due to built in flexibility

• Simple Plug-In assembly for ease of manufacturing

• Comfortable large wheel height adjustment

• Excellent load ability with 30 kg dynamic standard capacity throughout the range

• Anti-Lift device pre-assembled

• SlowMotion damping to always guarantee silent drawer closure even under adverse conditions

• High-end OneTouch handle less operation

• Lasting quality thanks to optimised materials

10 Excel G515H
Values given in mm

Fixing holes positions

11
and drilling SLIDE LENGTH DRAWER DEPTH ANTI-LIFT HOLE PLUG-IN HOLE EXTENSION LOSS L A X Y AV 260 250 212.5 188.5 67 290 280 212.5 188.5 67 310 300 212.5 188.5 67 330 320 245.5 221.5 67 360 350 245.5 221.5 87 390 380 273.5 249.5 87 410 400 273.5 249.5 87 430 420 307.5 283.5 87 460 450 307.5 283.5 107 490 480 333.5 309.5 107 510 500 333.5 309.5 107 530 520 362.5 338.5 107 560 550 362.5 338.5 127
Drawer dimensions
Excel G515H
Technical Details
ø6x10 min. ø6x10 min. 26min. A X Y ****26min. 33min. ** 26 min. without Synchronization Bar ** 33 min. with Synchronization Bar for OneTouch system 11 7 ø6x4 min. 6 4 AV+T 37+T AV 37 L B=L+3 Qmax=K-5 Z=K-40 11-16 9.5 34 min. 10 max. 24.5 min. 20 Z=K-40 K B=L+3+T T 37 96 128 160 192 224 256 288 320 550 520 500 480 450 420 400 380 350 320 300 280 250 37 28 19 10 14 23 32 12 K Internal cabinet width
Slide nominal length
Drawer depth
Front thickness
Internal drawer width B Internal cabinet depth Q Inner drawer front width AV Extension loss Values given in mm
L
A
T
Z

Code Description

Packing

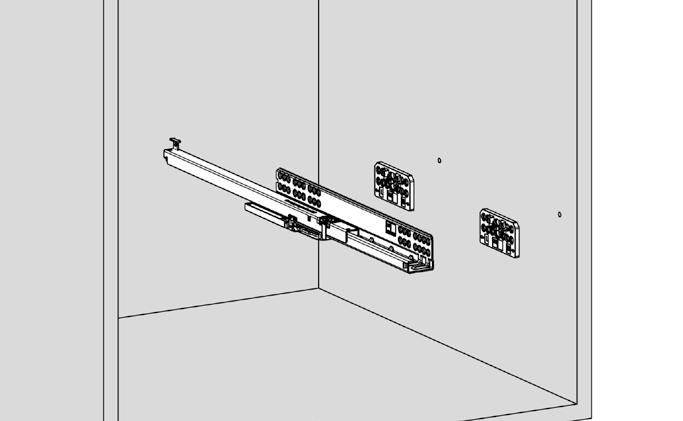

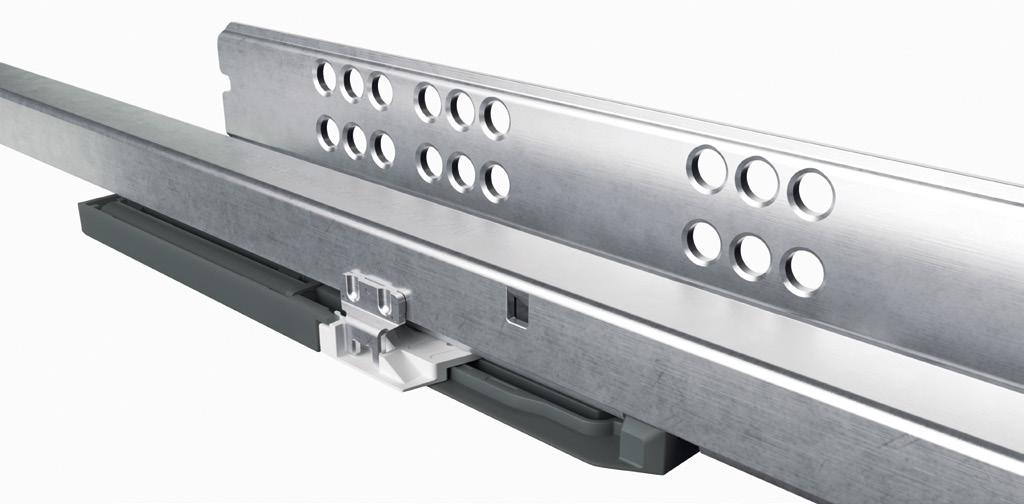

Excel G550B single extension Easy-Fix

Technical Specifications:

• Large range of standard depths from 260 to 540 mm

• Small extensions loss due to compact build

• Very tolerant due to built-in flexibility

• Easy-Fix rapid fixing for ease of assembly and integrated Anti-lift feature

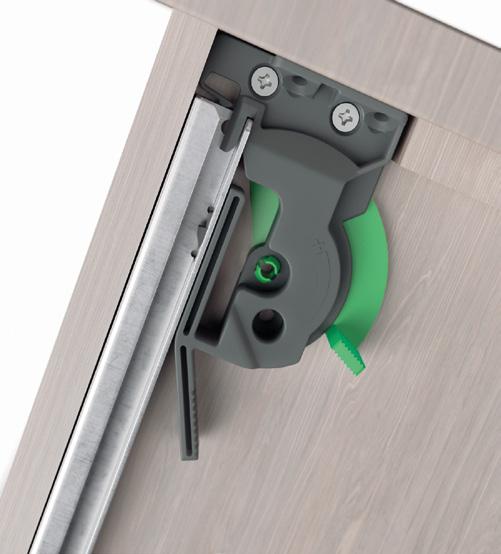

• Quick and easy front height adjustment without disassembly of the drawer

• Excellent load ability with 30 kg dynamic standard load capacity throughout the range

• SlowMotion damping to always guarantee silent drawer closure even under adverse conditions

• High-end OneTouch handle less operation

• Lasting quality thanks to optimised materials

Code Description

Packing

54.G550B.260*.^000 Excel G550B for 260 mm deep drawer 24 profiles

54.G550B.290*.^000 Excel G550B for 290 mm deep drawer 24 profiles

54.G550B.340*.^000 Excel G550B for 340 mm deep drawer 24 profiles

54.G550B.390*.^000 Excel G550B for 390 mm deep drawer 24 profiles

54.G550B.440*.^000 Excel G550B for 440 mm deep drawer 24 profiles

54.G550B.490*.^000 Excel G550B for 490 mm deep drawer 24 profiles

54.G550B.540*.^000 Excel G550B for 540 mm deep drawer 24 profiles

54.G55M.000000000 Easy-Fix device for Excel G550 24 sets * closing system: Y = SlowMotion / P = OneTouch

12 Excel G550B
R =
/ L =
Values given in mm
^ profile:
Right slide
Left slide

Technical Details

K

Fixing holes positions

L

A

33min.

** 20 min. without Synchronization Bar

** 33 min. with Synchronization Bar for OneTouch system

15
Excel G550B
SLIDE LENGTH DRAWER DEPTH EXTENSION LOSS L A AV 270 260 67 300 290 67 350 340 87 400 390 87 450 440 107 500 490 107 550 540 127
Drawer dimensions and drilling
AV+T 37+T AV 37 L B=L+3 Qmax=K-5 Z=K-42 11-16 9.5 34 min. 13 max. 24.5 min. 21 Z=K-42 K B=L+3+T T 37 96 128 160 192 224 256 288 320 260 290 340 390 440 490 540 37 28 19 10 9 9 9 9 9 14 23 32 12
ø6x10 min. A
55min.
****20min.
11 7
Internal cabinet width
Slide nominal length
Drawer depth
Front thickness
Internal drawer width
Internal cabinet depth
Inner drawer front width AV Extension loss Values given in mm
T
Z
B
Q

Code Description Packing

54.G55M.000000000 Easy-Fix device for Excel G550 24 sets

Code Description Packing

54.G550H.250*.^000 Excel G550H for 250 mm deep drawer 24 profiles

54.G550H.280*.^000 Excel G550H for 280 mm deep drawer 24 profiles

54.G550H.300*.^000 Excel G550H for 300 mm deep drawer 24 profiles

54.G550H.320*.^000 Excel G550H for 320 mm deep drawer 24 profiles

54.G550H.350*.^000 Excel G550H for 350 mm deep drawer 24 profiles

54.G550H.380*.^000 Excel G550H for 380 mm deep drawer 24 profiles

54.G550H.400*.^000 Excel G550H for 400 mm deep drawer 24 profiles

54.G550H.420*.^000 Excel G550H for 420 mm deep drawer 24 profiles

54.G550H.450*.^000 Excel G550H for 450 mm deep drawer 24 profiles

54.G550H.480*.^000 Excel G550H for 480 mm deep drawer 24 profiles

54.G550H.500*.^000 Excel G550H for 500 mm deep drawer 24 profiles

54.G550H.520*.^000 Excel G550H for 520 mm deep drawer 24 profiles

54.G550H.550*.^000 Excel G550H for 550 mm deep drawer 24 profiles

* closing system: Y = SlowMotion / P = OneTouch

^ profile: R = Right slide / L = Left slide

Excel G550H single extension Easy-Fix

Technical Specifications:

• Large range of standard depths from 260 to 540 mm

• Small extensions loss due to compact build

• Very tolerant due to built-in flexibility

• Easy-Fix rapid fixing for ease of assembly and integrated Anti-lift feature

• Quick and easy front height adjustment without disassembly of the drawer

• Excellent load ability with 30 kg dynamic standard load capacity throughout the range

• SlowMotion damping to always guarantee silent drawer closure even under adverse conditions

• High-end OneTouch handle less operation

• Lasting quality thanks to optimised materials

14 Excel G550H
Values given in mm

Technical Details

Fixing holes positions

** 20 min. without Synchronization Bar

33 min. with Synchronization Bar for OneTouch system

17
dimensions and drilling SLIDE LENGTH DRAWER DEPTH EXTENSION LOSS L A AV 260 250 67 290 280 67 310 300 67 330 320 67 360 350 87 390 380 87 410 400 87 430 420 87 460 450 107 490 480 107 510 500 107 530 520 107 560 550 107
Excel G550H Drawer
ø6x10 min. A ****20min. 33min.
11 7 AV+T 37+T AV 37 L B=L+3 Qmax=K-5 Z=K-40 11-16 9.5 34 min. 10 max. 24.5 min. 20 Z=K-40 K B=L+3+T T 37 96 128 160 192 224 256 288 320 250 280 300 320 350 380 400 420 450 480 500 520 550 37 28 19 10 9 9 9 9 9 14 23 32 12 K Internal cabinet width L Slide nominal length A Drawer depth T Front thickness Z Internal drawer width B Internal cabinet depth Q Inner drawer front width AV Extension loss Values given in mm
55min.
**

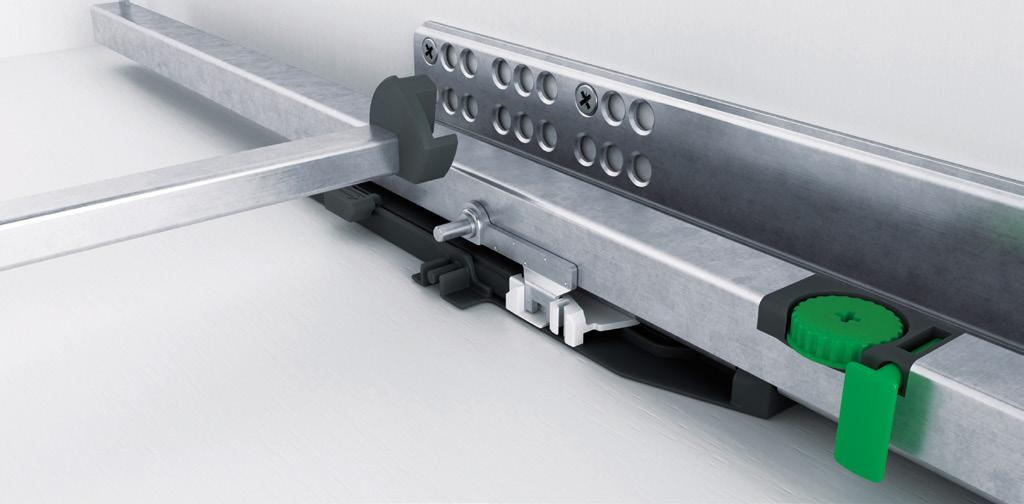

OneTouch + Synchro

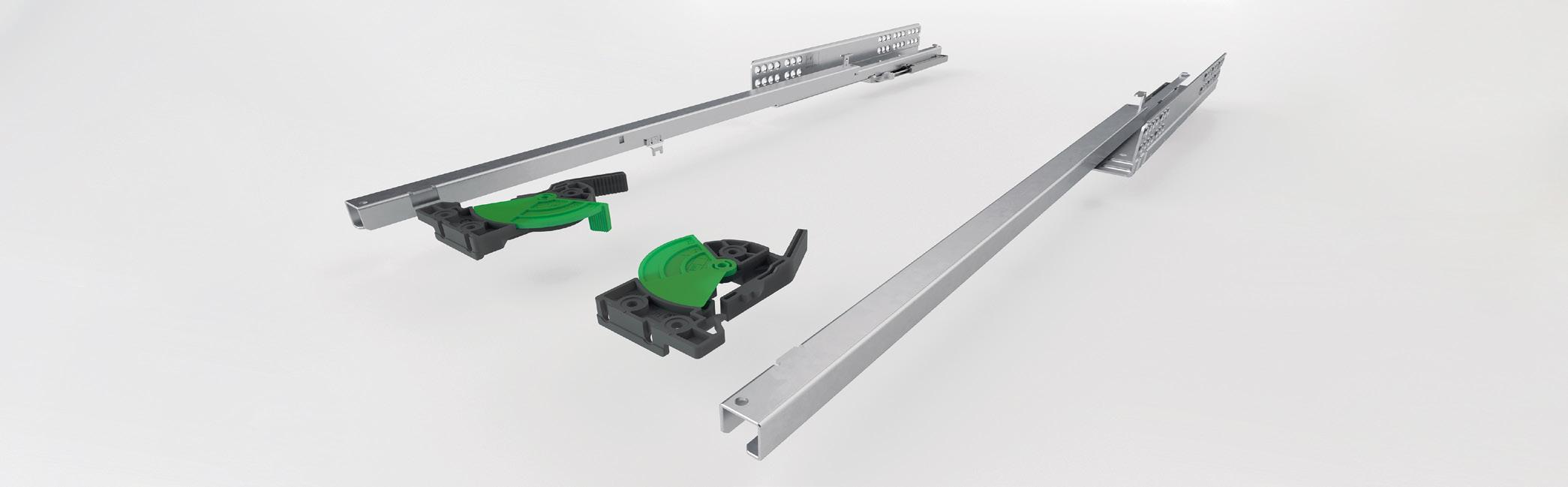

Set of right and left plastic clips

Technical Specifications:

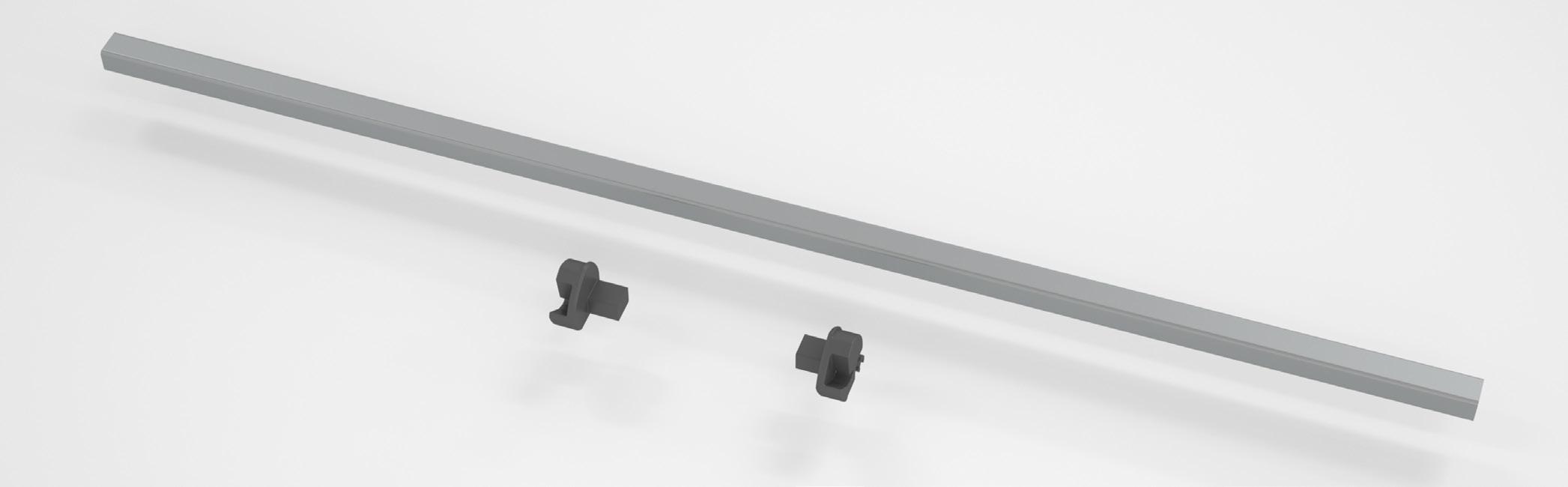

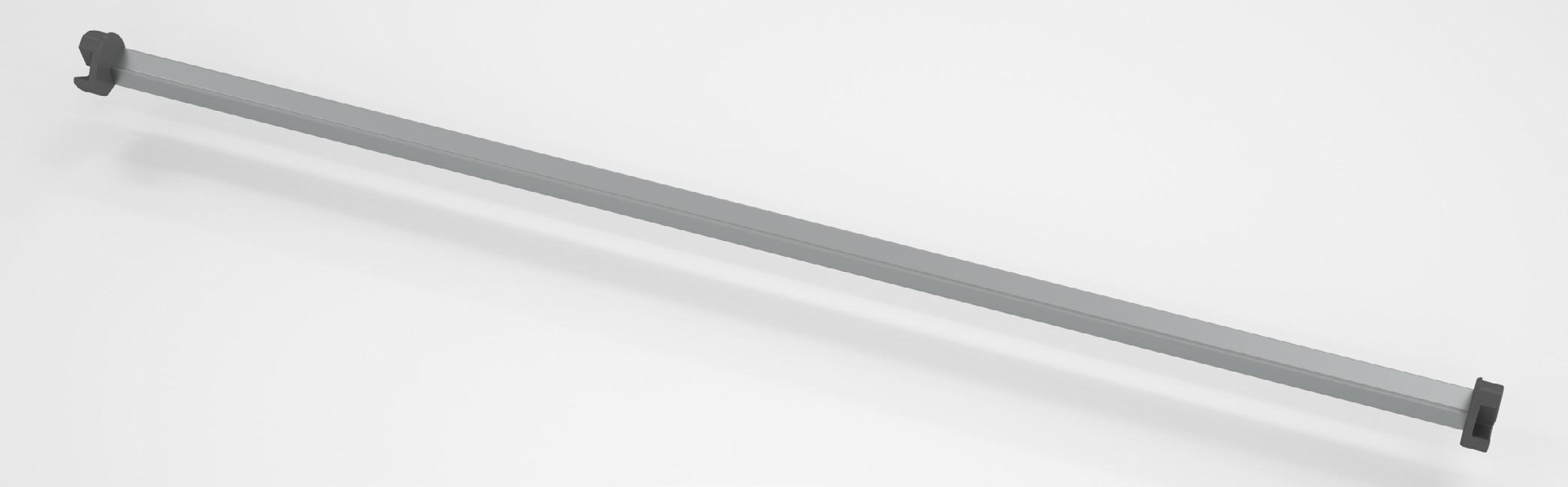

• Synchronization bar to be used on the complete range of Excel G OneTouch slides

• Ideal for wide drawer applications

• Recommended for drawer over 600 mm of width

• For excellent drawer performances

• Perfect drawer opening movement

• Discrete design for a non-invasive solution under the drawer

• Practical bar length of 1070 mm to be cut to size

• Left and right clips for easy coupling bar-slides

16
Code Description Packing 54.GPA.0S8.000K000
48
Code Description Packing 54.GPB.0A.107.00000 Synchronization
- 1070mm
48 bars Values given in mm
sets Colour Finish: S8 = Storm Grey
bar
length

OneTouch + Synchro

Plug-In application

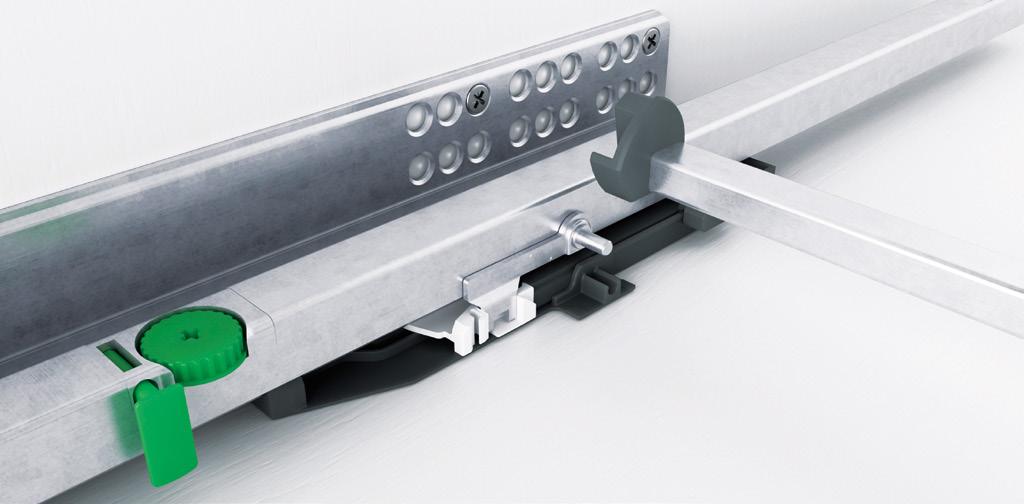

Synchronization Bar

Easy-Fix application

Synchronization Bar

B version

K Internal cabinet width

L Slide nominal length

A Drawer depth

T Front thickness

Z Internal drawer width

B Internal cabinet depth

Q Inner drawer front width

AV Extension loss

H version

K Internal cabinet width

L Slide nominal length

A Drawer depth

T Front thickness

Z Internal drawer width

B Internal cabinet depth

Q Inner drawer front width

AV Extension loss

17
AV+3+T AV+3+T 37+3+T 37+3+T AV AV 37 37 3 3 L L B=L+3 B=L+3 B=L+3+3+T B=L+3+3+T T Qmax=K-5 Qmax=K-5 Z=K-42 Z=K-40 11-16 11-16 9.5 9.5 34 min. 34 min. 13 max. 10 max. 24.5 min. 24.5 min. 21 20 51.75 50.75 S=K-103.5 S=K-101.5 S=K-103.5 S=K-101.5 Z=K-42 Z=K-40 K K Values given in mm

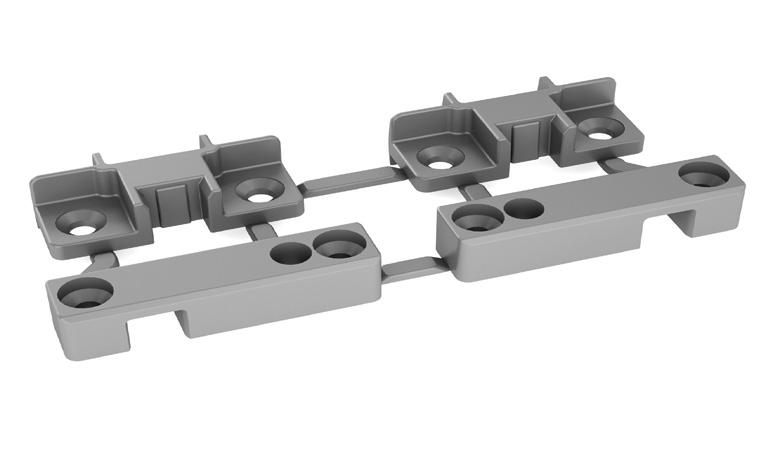

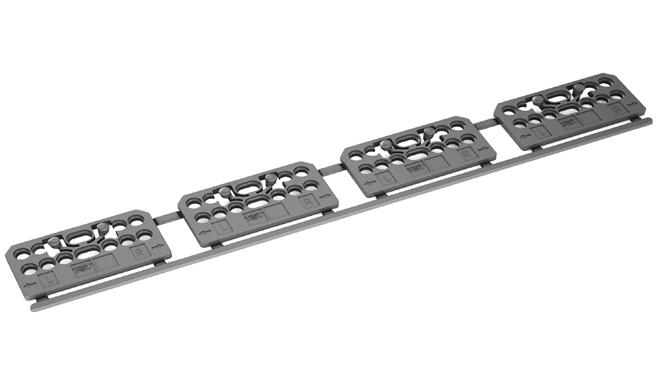

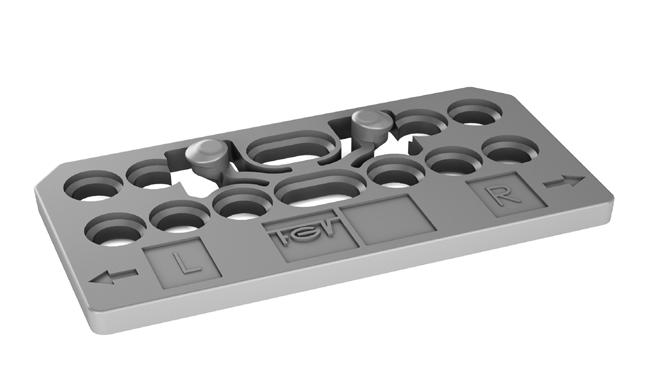

Excel Spacer Set

Technical Specifications:

• 5 mm spacer thickness to be mounted with G515 and G550 Excel slides

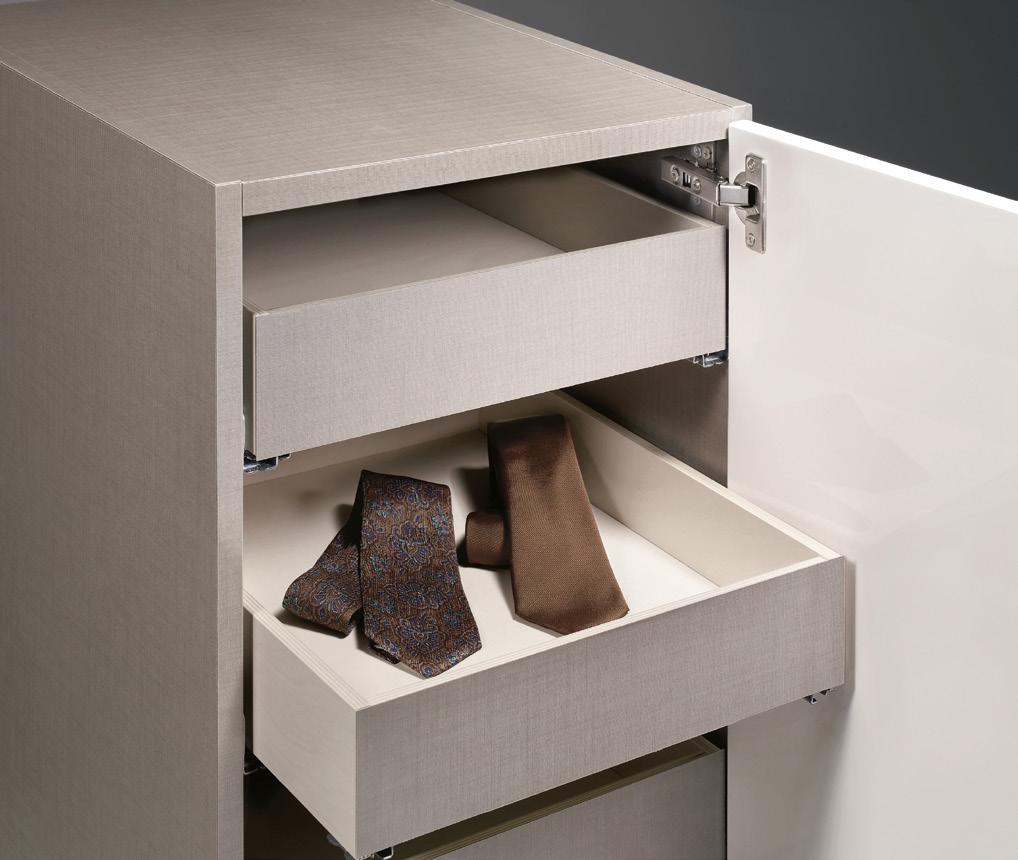

• Symmetrical solution to be applied to one or to both drawer slides

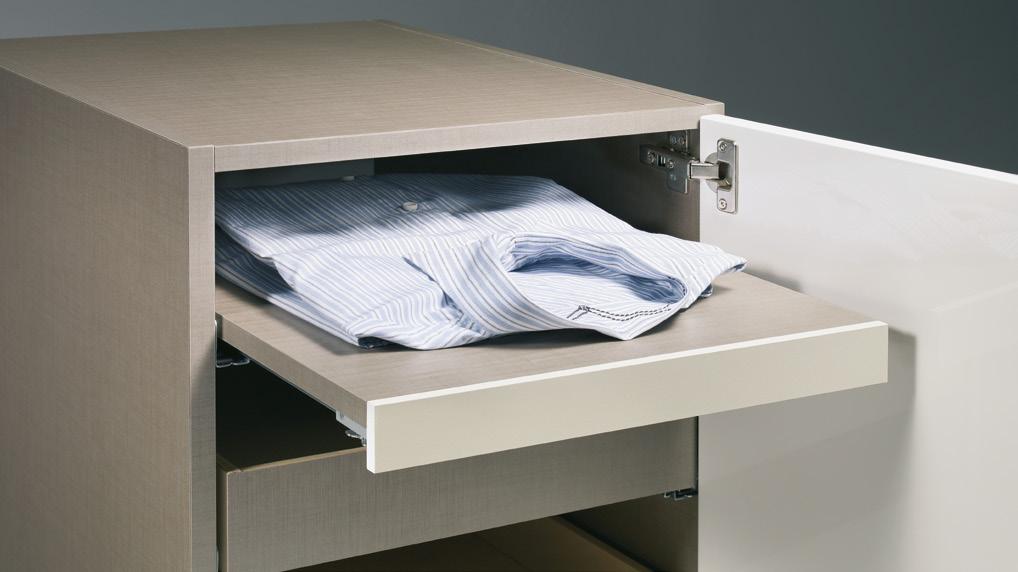

• Ideal application with interior drawers used on cabinets with hinged doors

• Supplied in a kit of 4 units to be separated manually

SPACER SET

Code

Colour Finish: S8 = Storm Grey

APPLICATION

18
Description Packing 54.GS00.S8.05.0K000 Set of 4 plastic spacers 100 sets
1 2 3 Values given in mm

Excel G515 Shelf Clips

Technical Specifications:

• Shelf Clips to be mounted with G515 Excel slides

• Solution for extracting tablet

• A set of 2 front and 2 rear clips is required for each shelf

54.GT00.S8.00.0K000 Set of 2 front and 2 rear clips 200 sets

Colour Finish: S8 = Storm Grey

With G515B Excel slide

With G515H Excel slide

19
Description Packing
Code
TABLET CLIPS SET
SLIDE LENGTH DRAWER DEPTH EXTENSION LOSS L A C D AV 260 240 209 171 57 290 270 209 171 57 310 290 209 171 57 330 310 242 204 57 360 340 242 204 77 390 370 270 232 77 410 390 270 232 77 430 410 304 266 77 460 440 304 266 97 490 470 330 292 97 510 490 330 292 97 530 510 369 321 97 560 540 369 321 117 SLIDE LENGTH DRAWER DEPTH EXTENSION LOSS L A C D AV 260 240 202.5 164.5 57 285 265 217.5 179.5 57 310 290 227.5 189.5 57 335 315 242.5 204.5 57 360 340 272.5 234.5 77 385 365 282.5 244.5 77 410 390 297.5 259.5 77 435 415 307.5 269.5 77 460 440 332.5 294.5 97 485 465 347.5 309.5 97 510 490 357.5 319.5 97 535 515 372.5 334.5 97 560 540 402.5 364.5 117 Rear Clip Rear Clip Front Clip Front Clip FRONT 15-(K-Z)/2 14-(K-Z)/2 15-(K-Z)/2 14-(K-Z)/2 38 38 29 29 8 8 BACKZZmin.=K-18 max.=K-10 ZZmin.=K-16 max.=K-10 A A C C D D FRONT BACK Values given in mm FRONT CLIP DRILLING FRONT CLIP DRILLING Z Shelf width K Internal cabinet width Z Shelf width K Internal cabinet width
Notes 20
Notes 21
FORMENTI & GIOVENZANA S.P.A. Via Concordia, 16 - 20837 Veduggio con Colzano (MB) - Italy T. +39 (0)362 9471 - F. +39 (0)362 998788 - info@fgv.it - www.fgv.it DISCOVER ALL THE OFFICES IN THE WORLD Edizione 10-2021 EN meneghinieassociati.it

Turn static files into dynamic content formats.

Create a flipbook

Articles inside

Reasons to choose Excel G

1min
pages 6-7
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
