Pumps, Placing & Consolidation
Vacuworx PHD Portable Vacuum System
The PHD vacuum lifting system weighs just 25 lbs. yet makes easy work of handling materials up to 2,500 lbs. • Connect PHD and Below-the-Hook Basket attachment to a boom, bucket or crane using a clevis hook • Mounting assemblies allow use on mini skid steers, compact excavators, forklifts, small cranes and demolition robots • Smart features include a remote control, lithium battery and dual pump design
Read more
https://CONC.me/my8fmm

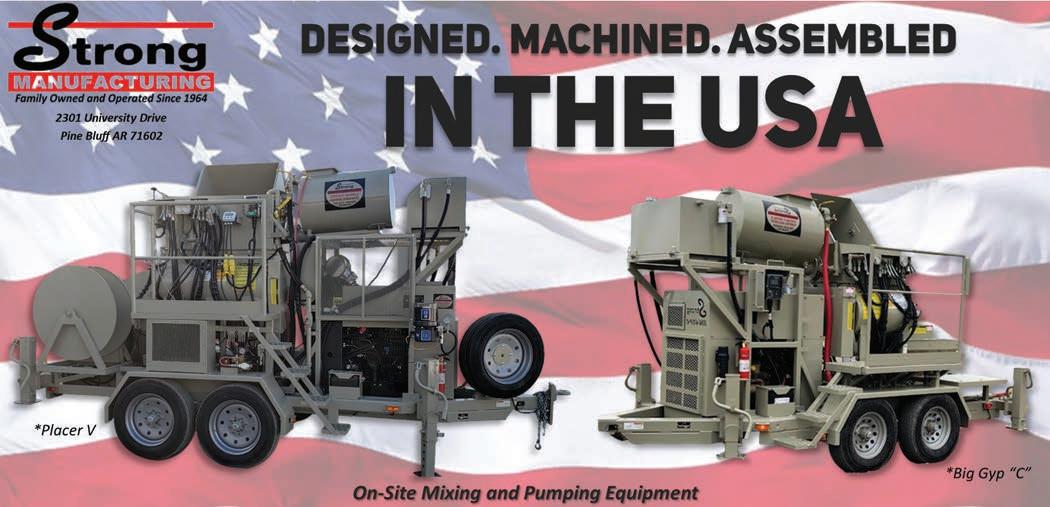

Strong Mfg.'s FloorMate80E Electric Mobile Mixer & Pump
Designed with the contractor in mind in addressing emission restrictions, Strong Manufacturing's FloorMate80E provides a fully electric-zero emissions mobile batch plant option. Powered by the partnership of Mitsubishi Motors, it provides pumping capabilities of over 12 stories with 220V single phase power. • Empties without tilting • Mixer and hopper capacities: 5 ft.3 • Adjustable output rate: 0-30 GPM • Dimensions: 6 ft. 9 in. wide, 2 ft. 9 in. tall • 1,350 lbs.
Read more
https://CONC.me/azvlog
Oztec Electric Motors
Oztec Electric Motors are manufactured to exacting specifications to withstand the rough day-to-day abuses associated with construction sites. Lightweight, compact and fitted with an Oztec Quick Disconnect system, this one-man power unit will speed through the stiffest concrete. All Oztec vibrators meet or exceed ACI specification # 309 and come standard with the Quick Disconnect “QD” system.
Read more
https://CONC.me/rd375w
Milwaukee Tool MX FUEL Backpack Concrete Vibrator
For optimal concrete consolidation—even in the stiffest concrete applications—the MX FUEL Backpack Concrete Vibrator provides consistent starts and the most reliable pours, with the power to push up to 2 1/2-in. heads at over 11,000 VPM. It provides instant power, requires no regular maintenance, runs 50% quieter than its gas counterparts, and produces zero emissions for a safer workspace indoors or outdoors.
The MX FUEL Backpack Concrete Vibrator consolidates up to 70 yds3 per charge with a 1 1/2-in. head and 7-ft. whip but can accept whips up to 21-ft. long without sacrificing power. • MX FUEL REDLITHIUM battery pack provides instant power with push-button start • Weighs 34.5 lbs. with battery • Kit includes wireless remote for operation from up to 30 ft. away, MX FUEL charger and two
MX FUEL REDLITHIUM XC406 batteries
Read more
https://CONC.me/nv1rwo
FEATURED PRODUCT
The E-Z Placer From Ligchine
The E-Z PLACER provides a portable, easy-to-operate, agile solution for efficiently and safely placing concrete in line pump applications. As a self-propelled, remote-operated concrete placer and line dragger in a single, easyto-transport unit, it provides a safe work environment by keeping the operator and machine out of the finishing area. The E-Z PLACER is remote operated with a full set of backup manual controls on the machine. At 60-in. wide and 4,000 lbs., this machine is easy to transport and maneuver on the job site. • 36 ft. 8 in. long • 4,000 lbs. • 27 ft. boom reach • 16 ft. main boom with a 360-degree left/right swivel • 11 ft. tip broom with a 360-degree continuous swivel • 4 ft. placement pipe diameter • 100% wireless remote control, with backup controls on-machine • Transportable with pickup truck and trailer
Read more
https://CONC.me/EZPlacer www.ligchine.com
Minnich Control Speed Concrete Vibrator
The Control Speed Vibrator (CSV) is a lightweight, durable, electric flex shaft concrete vibrator controlled through connectivity. • Operator can use Bluetooth and the Minnich app on an iOS or
Android device to choose between set speeds of 6,000, 8,000, 10,500 and open vpm • Maintains preset speed as the concrete load changes • 15-amp (115-volt) universal motor drives a full line of the company's shafts and heads and comes with a quick disconnect to adapt to many other vibrator brands
Read more
https://CONC.me/6saidv
Allen AW16-B Wheel Buggy
The 1,507-lb. AW16-B Power Buggy is powered by a rugged 7.4-hp Vanguard 48-volt lithium-ion power pack capable of reaching eight- to nine-hour run times. • 2,500-lb. payload with a bucket capacity of 16 cu. ft. • 90-degree dump angle • Limited-slip transaxle for enhanced mobility • Travel speeds up to 6 mph • Dynamic Electric Brake prevents the buggy from moving unless the throttle is engaged
Read more
https://CONC.me/itev28
Holcim's DYNAMax HighPerformance Concrete
Delivering high strength, durability, and rigidity with design freedom and sustainability, Holcim's DYNAMax is suitable for a broad range of applications, from complex infrastructure to highrise buildings. • High Strength: C60/75 - C120/135 MPa • Durability: Max. 750 Coulombs in the rapid chloride penetration test according to ASTM
C 1202 • Rigidity: 40 GPa2, minimum elastic modulus of 40 GPa determined by testing Designed for demanding construction projects, DYNAMax enables smart design, with thinner and longer structures and higher functionality. With optimal material use, it allows more usable space and greater variability in floor plans. Its durability minimizes maintenance and lifecycle costs of a building.
Read more
https://CONC.me/0uwe5a
Euclid Chemical's EUCON AWA-P20 anti-washout concrete admixture is ready-to-use and designed to modify the rheology of self-consolidating concrete and prevent the loss of cement and fine aggregate during the placement of underwater concrete, while not discoloring the concrete. Featuring thixotropic properties, it can also be used to reduce excessive bleeding and segregation of concrete or mortar during pumping.
Recommended for use with the PLASTOL line of polycarboxylate-based admixtures, EUCON AWA-P20 does not contain any added chlorides or chemicals known to promote the corrosion of steel. It also minimizes environmental impact by reducing concrete washout and eliminating the need for expensive de-watering during underwater construction.
EUCON AWA-P20 meets the ASTM C494 Type S standard specification for chemical admixtures for concrete applications, as well as the requirements of the CRD-C661-06 specification for anti-washout admixtures for concrete from the U.S. Army Corps of Engineers.
Read more
MudMixer Multi-use Mixer
MudMixer is fast, easy, lightweight, easily mobile (like a wheelbarrow), extremely consistent, and has the ability to chew through over 40 bags of premixed concrete, mortar, or stucco per hour.
MudMixer replaces the cumbersome barrel mixer and the wheelbarrow. Simply plug the mixer into a power source, attach the water hose, and you can mix as many bags as you need at the slump level you desire. The water dial provides tremendous variability in the water delivered. The machine features a chute that swivels 330-degrees to make delivery straight to your forms easy. Cleanup is a breeze.
Read more
https://CONC.me/hwo1tw
Overland Carts 1400 Series All-Electric Drivetrain Cart
The 1400 series carts operate on an all-electric drivetrain powered by a rechargeable 75-amphour battery pack that provides 14 to 16 hours of use or an estimated 18 to 19 miles on a single charge. • 36V 1,400W transaxle • Capable of hauling 1,200 lbs. on hard, flat surfaces and 1,100 lbs. on grassy inclines up to 15 degrees • 10-cu.-ft. wheelbarrow-style hopper made from a rust-proof, heavy gauge HDPE • Standard power dump feature uses an electric lifter to assist in dumping the contents of the hopper • Achieves speeds up to 3.5 mph
Read more
https://CONC.me/dphzdn
Toro Electric Ultra Buggy
Toro's electric Ultra Buggy features a compact design allowing contractors to place concrete easily for indoor construction and renovation projects. • 31.5 in. wide • Zero-turn-radius to navigate hard to access areas • Equipped with a fold-up platform so operators can choose to stand on or walk behind the unit • Powered by HyperCell, a battery system developed by Toro and delivers an 8-hour continuous runtime • Hauls up to 16 ft.3 or 2,500 lbs. of material • Mounted directional and dump switches ensure continuous movement while operating the machine
Read more
https://CONC.me/wgm9m2
Liebherr THP 80-LP Concrete City Pump
The THP 80-LP truck-mounted concrete city pump is designed for jobs in urban environments, residential jobs and compact jobsites where space is limited. The flexible boomless pump truck for line pumping application has a total length of around 28.4 ft. It is quick to set up and easy to control with an HBC option for the remote control. The truck features storage with wide spaces for the concrete tubes and accessories on the deck and plastic water tanks for saving weight. The unit is mounted on a two-axle flatbed truck chassis and weighs around 22,684 lbs. The pumping kit features an open loop hydraulic circuit that is the simple, reliable and powerful. A pumping kit option allows high-pressure application for extreme tasks.
Read more
https://CONC.me/dv3bpj
Blend Plant's A240 Mobile Mixing Plant
Featuring a high-production capacity and total hydraulic and electrical autonomy, the versatile Blend Mobile A240 Plant can be transported easily on a standard low-loader truck without additional mounting operations. The Blend A240 allows the installation of up to six aggregate hoppers on the machine with a capacity of 11-14 yd.3 for the production of concrete, cold asphalt, cementitious mixtures, roller compacted concrete, and recycled concrete. • Transportable on a standard low-loader truck • Maximum granulometry aggregate size: 2.3 in. • Onboard PLC with remote control system
Read more
https://CONC.me/afokdk
EUCOSHIELD Finishing Aid Admixture
An integral finishing admixture, EUCOSHIELD is a ready-to-use liquid admixture designed to be used as an integral finishing aid that prevents rapid moisture loss from the concrete surface by binding the internal water in the pore structure. It is especially effective when concreting operations must be performed in direct sun, wind, high temperatures or low relative humidity. EUCOSHIELD can also be used to reduce excessive bleeding and segregation of concrete or mortar. Containing no added chlorides or chemicals known to promote the corrosion of steel, EUCOSHIELD is compatible with most other admixtures commonly used in concrete, including air entraining admixtures, polycarboxylate-based HRWR admixtures (superplasticizers), conventional water reducers and retarders.
Read more
https://CONC.me/4pkowo
EUCON AM-10L Waterproofing Admixture
A liquid integral crystalline waterproofing admixture, Eucon AM-10L is formulated to interact with concrete capillary pore structures to provide a system that greatly reduces the permeability of concrete through the formation of tiny crystals that block the pores. Eucon AM-10L can be used in both above- and below-grade applications. • Permeability-reducing admixture for hydrostatic conditions • Interior or exterior applications • Liquid material that is easily dispensed with conventional equipment • Negligible affect on working time • Can seal hairline cracks up to 0.5 mm
Read more
https://CONC.me/lik6nx
The mobile KMA 240(i) cold mixing plant makes on-site production of high-quality mixes even more efficient. In addition to bituminous bound mixes, the plant is also a cost-effective solution for the production of cement-stabilized mixes. The KMA 240(i) mobile cold recycling mixing plant from Wirtgen enables continuous and resource-efficient production of high-quality mixes. The double trough technology made it possible to double the speed of the production of mix from various different construction materials. In addition to cold mixes for bituminous bound base layers, the plant can also produce mixes for cement-stabilized base layers and roller compacted concrete at rates of up to 240 t/h.
Read more
https://CONC.me/7hlpa8
Giatec Scientific Inc. Giatec's SmartHub remote monitoring device works in conjunction with the company's SmartRock wireless sensors for accurate concrete temperature, temperature differential, and strength monitoring. With this system, concrete temperature and strength data collected from your SmartRock wireless sensor is automatically synced to your mobile device, eliminating the need for you to be on the jobsite. Giatec says this combined technology can reduce labor costs and speed up a project by days, even weeks.
With the SmartHub, data can be collected remotely, eliminating the need to be on the jobsite to monitor the hardening of concrete. This allows users and their teams to not only optimize their project schedules by eliminating unnecessary time, money, and labor costs associated with collecting and analyzing concrete data, but also take advantage of the upgraded plug-and-play feature for effortless installation.
The SmartHub device works by automatically collecting concrete data recorded by wireless SmartRock sensors and uploading it to the Giatec 360 cloud via LTE connection where it is synced via the SmartRock app.
Read more
https://CONC.me/pmgfzf
