Nordic Outdoor PRO Panel
| Product information
| Product information
Nordic Outdoor PRO Panel The Nordic Outdoor PRO Panel is a weather-resistant, and aesthetic façade solution built from a high-performance stone wool board combined with premium ThermoWood slats. This construction provides minimal maintenance, and high durability against moisture, rot, and temperature fluctuations. The panel is designed for simple and efficient installation on both timber and steel structures using colour-matched façade screws. Its flexible installation makes it ideal for both new construction and renovation projects. With its durable and lightweight build, the Nordic Outdoor PRO Panel retains its elegant appearance for decades, while also contributing to an energy-efficient façade.
Features: •
Lightweight construction Easy to handle and quick to install.
•
Minimal tool use Requires only a few standard tools for installation.
•
Fast installation Designed for easy and efficient mounting – saving time on site.
•
High weather resistance Resistant to moisture, temperature changes, and UV radiation.
•
Impact-resistant and robust Durable construction ensures a long lifespan and low maintenance.
•
Flexible application Suitable for both new builds and renovation projects.
•
Compatible with multiple installation systems Can be fixed with screws, nails, or adhesive systems.
With our PRO Panel, you get: Quick and easy installation Requires no special tools and can be mounted directly onto timber structures. Long-lasting quality ThermoWood slats are resistant to moisture, rot, and pests. Low-maintenance façade The Nordic Outdoor PRO Panel requires minimal upkeep. Aesthetic versatility The combination of natural wood and modern design creates a timeless façade.
The wooden panels are made from PEFC-certified wood and other controlled materials.
DoP No. FV04-2025 ACU-Line Melamine Panel Acoustic wall panel EN 14915:2013 Emission: formaldehyde E1 Emission: carcinogenic <0,001mg/m3 Decorative acoustic panels for indoor use in buildings as wall linings. ThermoWood should be disposed of as clean wood for recycling, upcycling, or incineration.
2 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor PRO Panel

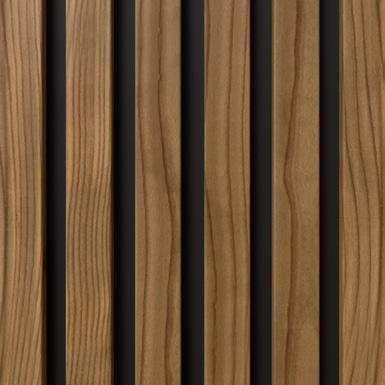

ThermoWood Pine
3 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
| Product information
Specifications m2
Variant
Dimensions
m2 - f2
Weight
ThermoWood Pine
2400 x 600 x 21 mm - 94 1/2” x 23 5/8” x 13/16” 3000 x 600 x 21 mm - 118 1/8” x 23 5/82 x 13/18”
1.44 - 15.5 ft² 1.80 - 19.4 ft²
14.18 kg - 31 1/4 lb 17.73 kg - 39 lb
Tolerances Tolerances: ± 2 mm (5/64”). Squareness: Length/width ± 2 mm (5/64”). Weight ± 10%
40,0 40 mm mm
40,0 40 mm mm
1 9/16”
40,0 mm
20 mm 20,0 mm
20,0 mm
13/16”
21,0 mm 21 mm
13/16”
40,0 mm
40,0 m
1 9/16” 20,0 mm
20,0 mm
15 mm 15,0 mm
19/32” 6,0 mm
6 mm 1/4”
40,0 40 mm mm
40,0 mm
40,0 40 mm mm
1 9/16”
20,0 mm
1 9/16”
20,0 mm 20 mm
13/16”
25,0mm mm 25 1”
6 mm 15/64”
4 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
2400 mm
22 mm
Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
15 mm
6 mm
AWAITING APPROVAL
22 mm
22 mm
6 mm
15 mm
600 mm
2400 mm 2400 mm
40 mm
600 mm
3000 mm 2400 mm
2 mm
40 mm
Approved by
Approved date
Art. no.
Page no. 1/1
20 mm
Buntmagervej 5, DK-7490 Aulum - CVR: 33 88 04 64
Nordic Outdoor Pro panel
Page size A4 Drawn by SOL
Version 1.2
Scale
Drawn date 08/04/25
40 mm
20 mm
Nordic Outdoor PRO Panel
600 mm 600 mm 23 5/8”
20 mm
5
| Product information
Installation Guide Max C/C 300 mm (11 13/16”)
Max C/C 300 mm (11 13/16”)
The Nordic Outdoor PRO Panel is designed for fast, secure, and long-lasting installation. Proper installation ensures optimal stability, ventilation, and durability. Substrate and Construction Requirements •
Panels are installed on a ventilated substructure of timber or steel.
•
Maximum batten spacing: max C/C 300 mm (11 13/16”).
•
Suitable for mounting on both vertical and horizontal battens.
•
Ensure good airflow behind the panels to reduce moisture build-up.
•
For timber structures, EPDM tape is usedbetween joints as a moisture barrier and seal.
•
Optional B, D, E or H profiles can be used for corner finishing.
Fastening •
Use Nordic Outdoor PRO façade screws (compatible with timber and steel).
•
A minimum of 10 screws per m² is recommended.
Step-by-Step Installation 1. Preparation: Clean and prepare the substrate.
Install a wind barrier if necessary.
2. Installing battens: Install battens at a max spacing Tools for Installation: Spirit level Ensures precise and straight mounting
of C/C 300 mm (11 13/16”). Ensure proper ventilation.
3. Panelfastening:Mountpanelsusingfaçadescrews,
with at least 10 screws per m².
4. Finishing: Check that all panels are properly
aligned. Optionally, install insect mesh at the top and bottom.
Power drill For fastening the panels Circular saw or plunge saw For accurate panel trimming
Final Checks and Control
Jigsaw For cut-outs around windows, corners, and installations
•
Ensure uniform installation and secure fixing.
•
Ventilation behind the panels must remain unobstructed.
6 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor PRO Panel
Maintenance Guide To ensure that the Nordic Outdoor PRO Panel retains its visual appeal and long lifespan, regular inspection and light maintenance are recommended. Thermally treated wood generally requires less maintenance than untreated wood, but external factors like weather, sunlight, and moisture can affect the surface over time. Regular Inspection of Façade Panels Routine checks are recommended to detect any changes in the wood surface or fastening. Pay extra attention to areas near the ground and joints. Cleaning the Panels The panels require no special maintenance but can be easily cleaned with water and mild detergent as needed to maintain appearance.
Over tid vil træets farve naturligt patinere og få en sølvgrå nuan ce, hvilket er en naturlig proces.

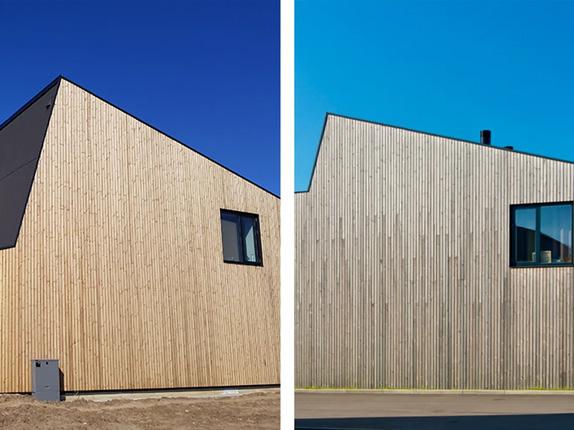

Natural Wood Patina and Optional Oil Treatment Over time, ThermoWood will naturally develop a silver-grey patina due to UV exposure. This patina does not affect the wood’s durability but provides a weathered look. The product must not be painted or surfacetreated, as this would alter its fire-resistant properties. With proper maintenance, the Nordic Outdoor PRO Panel delivers a durable and beautiful façade with minimal effort, preserving its exclusive appearance for many years to come.
7 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
| Product information
Accessories Outer Corner Profile D Dimensions A:
35 mm
B:
6,5 mm
b a
C: 15,8 mm Length:
c
3050 mm
Outer Corner Profile E Dimensions A:
35 mm
B:
6,8 mm
b a
C: 15,8 mm Length:
c
3050 mm
End Profile H Dimensions A:
11,9 mm
B:
9 mm
C:
19,8 mm
Length:
3050 mm
c
a b
8 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor PRO Panel
Horizontal Profile B Dimensions A:
71 mm
B:
32 mm
Length:
3050 mm
a b
ThermoWood Slat Loose ThermoWood slats can be purchased as accessories and used for custom adjustments and aesthetic details when installing the Nordic Outdoor Panel.
9 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
| Product information
Notes
10 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor PRO Panel
11 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Fog & Venø is a leading Danish manufacturer of acoustic and decorative panels with and without acoustic properties. These products are designed and manufactured with a focus on Danish craftsmanship and a constant pursuit of high quality. The panels are suitable for installation on both walls and ceilings. Fog & Venø has a strategic partnership with world-leading suppliers of materials such as wood veneer, linoleum, foil, and laminate, ensuring that all Fog & Venø products maintain a high standard and a wide range of options. This means that there is constantly reverberation in the room, and this is where our acoustic panels make a big difference. Our Danish-produced acoustic panels break the sound and absorb the sound wave, so it dies out when it hits the panels. This means that the sound wave is eliminated and the reverberation time is shortened, which will improve the indoor climate and the feeling of well-being in the room, whether it is private, commercial, or public buildings we are talking about.
Contact information Fog & Venø A/S Buntmagervej 5, DK-7490 Aulum Tel: (+45) 88 77 83 70 hello@fog-veno.com www.fog-veno.com
