Nordic Outdoor FR PRO Panel
| Product information
| Product information
Nordic Outdoor FR PRO Panel The Nordic Outdoor FR PRO Panel is a fire-safe, weather-resistant, and aesthetic façade solution made from a high-performance stone wool core (B-s2,d0) combined with premium ThermoWood slats. This construction ensures excellent fire resistance, minimal maintenance, and high resistance to moisture, rot, and temperature fluctuations. The panel is designed for easy and efficient installation on both timber and steel structures using colour-matched façade screws. Its flexible installation makes it ideal for both new builds and renovation projects up to 22 metres (72 ft 2 1/4 in) in height. Thanks to its durable and lightweight construction, the Nordic Outdoor FR PRO maintains its elegant appearance for decades while contributing to an energy-efficient and fire-safe façade. With our FR PRO Panel, you get: High fire safety B-s2,d0 according to PN-EN 13823+A1:202212 Quick and easy installation Requires no special tools and can be mounted directly on timber structures. Long-lasting quality ThermoWood slats are resistant to moisture, rot, and pests. Low-maintenance façade The Nordic Outdoor FR PRO Panel requires minimal upkeep. Aesthetic versatility The combination of natural wood and modern design creates a timeless façade.
Features:
• Lightweight construction
Easy handling and quick installation.
• Minimal tool usage
Only a few standard tools required.
• Fire certification
B-s2,d0 according to PN-EN 13823+A1:2022-12
• Fast installation
Designed for simple and efficient onsite mounting.
• High weather resistance
Resistant to moisture, temperature changes, and UV radiation.
• Impact-resistant and durable
Strong build ensures long life and minimal maintenance.
• Flexible application
Suitable for both new construction and renovation projects.
• Compatible with multiple installation systems Can be fixed using screws, nails, or adhesive systems.
Fire-approved B-s2,d0 in accordance with EU testing standards PN-EN 13823+A1:2022-12 The wooden panels are made from PEFR-certified wood and other controlled materials.
ThermoWood should be disposed of as clean wood for recycling, upcycling, or incineration.
2 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor FR PRO Panel

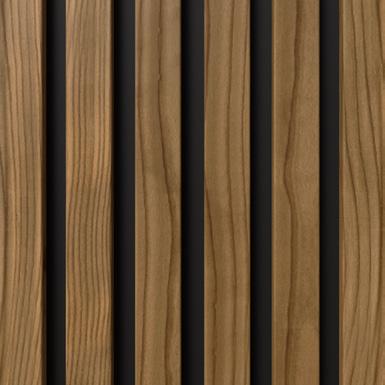

ThermoWood Pine
3 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
| Product information
Specifications m2
Variant
Dimensions
m2 - f2
Weight
ThermoWood Pine
2400 x 600 x 21 mm - 94 1/2” x 23 5/8” x 13/16” 3000 x 600 x 21 mm - 118 1/8” x 23 5/8” x 13/16”
1.44 - 15.5 ft² 1.80 - 19.4 ft²
14.18 kg - 31 1/4 lb 17.73 kg - 39 lb
Tolerances Tolerances: ± 2 mm (5/64”). Squareness: Length/width ± 2 mm (5/64”). Weight ± 10%
40 mm 40,0 mm
40 mm 40,0 mm
1 9/16”
40,0 mm
1 9/16”
20 mm 20,0 mm 13/16”
21 21,0mm mm 13/16”
20,0 mm
40,0 mm
20,0 mm
40,0 m
20,0 mm
15 mm 15,0 mm 19/32” 6,0 mm
6 mm 1/4”
40 mm 40,0 mm
40,0 mm
40 mm 40,0 mm 1 9/16”
1 9/16”
20,0 mm
20 mm 20,0 mm 13/16”
25 mm 25,0 mm 1”
6 mm 15/64”
4 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
2400 mm
22 mm
Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
15 mm
6 mm
AWAITING APPROVAL
22 mm
22 mm
6 mm
15 mm
600 mm
94 1/2”
2400 mm 2400 mm
40 mm
600 mm
118 1/8”
3000 mm 2400 mm
2 mm
40 mm
Approved by
Approved date
Art. no.
Page no. 1/1
20 mm
Buntmagervej 5, DK-7490 Aulum - CVR: 33 88 04 64
Nordic Outdoor Pro panel
Page size A4 Drawn by SOL
Version 1.2
Scale
Drawn date 08/04/25
40 mm
20 mm
Nordic Outdoor FR PRO Panel
600 mm 600 mm 23 5/8”
20 mm
5
| Product information
Installation Guide Max C/C 300 mm (11 13/16”)
Max C/C 300 mm (11 13/16”)
The Nordic Outdoor FR PRO Panel is designed for fast, secure, and long-lasting installation. Proper installation ensures optimal stability, ventilation, and durability. Substrate and Construction Requirements •
Panels are installed on a ventilated substructure of timber or steel.
•
Maximum batten spacing: max C/C 300 mm (11 13/16”).
•
Suitable for mounting on both vertical and horizontal battens.
•
Ensure good airflow behind the panels to reduce moisture build-up.
•
For timber structures, EPDM tape is usedbetween joints as a moisture barrier and seal.
•
Optional B, D, E or H profiles can be used for corner finishing.
Fastening •
Use Nordic Outdoor PRO façade screws (compatible with timber and steel).
•
A minimum of 10 screws per m² is recommended.
Step-by-Step Installation 1. Preparation: Clean and prepare the substrate. Install a wind barrier if necessary. Tools for Installation: Spirit level Ensures precise and straight mounting Power drill For fastening the panels
6
2. Installing battens: Install battens at a max spacing of C/C 300 mm (11 13/16”). Ensure proper ventilation. 3. Panelfastening:Mountpanelsusingfaçadescrews, with at least 10 screws per m².
Circular saw or plunge saw For accurate panel trimming
4. Finishing: Check that all panels are properly aligned. Optionally, install insect mesh at the top and bottom.
Jigsaw For cut-outs around windows,
Final Checks and Control •
Ensure uniform installation and secure fixing.
•
Ventilation behind the panels must remain
Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor FR PRO Panel
Maintenance Guide To ensure that the Nordic Outdoor FR PRO Panel retains its aesthetic appeal and long lifespan, regular inspection and light maintenance are recommended. Thermally treated wood generally requires less maintenance than untreated wood, but external factors such as weather, sunlight, and moisture may affect the surface over time. Regular Inspection of Façade Panels Routine inspection is recommended to identify any changes in the wood surface or screw fixation. Pay special attention to exposed areas such as those near the ground and at joints. Cleaning the Panels The panels require no special care but can be easily cleaned with water and mild detergent when needed to maintain their appearance.

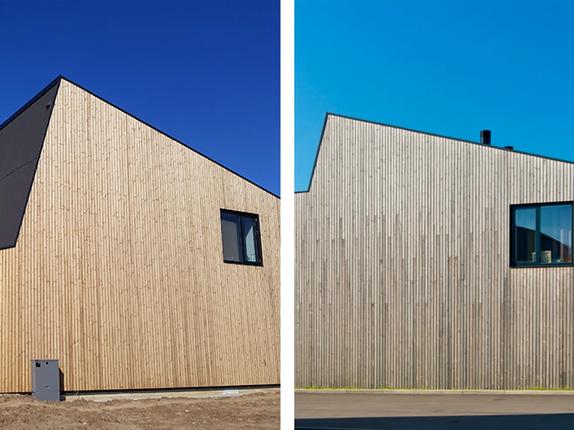

Over time, the wood will naturally develop a silver-grey patina – a completely natural process.
Natural Patina and Optional Oil Treatment Over time, ThermoWood will naturally develop a silver-grey patina due to UV exposure. This patina does not affect the wood’s durability but gives it a weathered aesthetic. The product must not be painted or surfacetreated, as this would compromise its fire classification. With proper maintenance, the Nordic Outdoor FR PRO Panel ensures a long-lasting and attractive façade with minimal effort, preserving its exclusive look year after year.
7 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
| Product information
Accessories Outer Corner Profile D Dimensions A:
35 mm
B:
6,5 mm
b a
C: 15,8 mm Length:
c
3050 mm
Outer Corner Profile E Dimensions A:
35 mm
B:
6,8 mm
b a
C: 15,8 mm Length:
c
3050 mm
End Profile H Dimensions A:
11,9 mm
B:
9 mm
C:
19,8 mm
Length:
3050 mm
c
a b
8 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor FR PRO Panel
Horizontal Profile B Dimensions A:
71 mm
B:
32 mm
Length:
3050 mm
a b
ThermoWood Slat Loose ThermoWood slats can be purchased as accessories and used for custom adjustments and aesthetic details when installing the Nordic Outdoor Panel.
9 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
| Product information
Notes
10 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Nordic Outdoor FR PRO Panel
11 Fog & Venø A/S | Buntmagervej 5, DK-7490 Aulum | Tel: (+45) 88 77 83 70 | hello@fog-veno.com | www.fog-veno.com
Fog & Venø is a leading Danish manufacturer of acoustic and decorative panels with and without acoustic properties. These products are designed and manufactured with a focus on Danish craftsmanship and a constant pursuit of high quality. The panels are suitable for installation on both walls and ceilings. Fog & Venø has a strategic partnership with world-leading suppliers of materials such as wood veneer, linoleum, foil, and laminate, ensuring that all Fog & Venø products maintain a high standard and a wide range of options. This means that there is constantly reverberation in the room, and this is where our acoustic panels make a big difference. Our Danish-produced acoustic panels break the sound and absorb the sound wave, so it dies out when it hits the panels. This means that the sound wave is eliminated and the reverberation time is shortened, which will improve the indoor climate and the feeling of well-being in the room, whether it is private, commercial, or public buildings we are talking about.
Contact information Fog & Venø A/S Buntmagervej 5, DK-7490 Aulum Tel: (+45) 88 77 83 70 hello@fog-veno.com www.fog-veno.com
