Light, darkness, and shades of light shape spaces.

With the power of light, we design and create pleasant, welcoming, and safe spaces where people thrive.

Design: Vilhelm Lauritzen Architects

Focus Lighting

Peter Olivarius Owner and CEO

Welcome to Focus Lighting, a Danish company designing and producing first-class sustainable lighting solutions for public spaces since 1975.

We design, engineer and manufacture luminaires, and advice on lighting solutions that are safe, comfortable, and durable for a variety of settings, from pathways and urban spaces to buildings and offices.

We are passionate about light and its potential to enhance the well-being of people and living spaces. We believe that light is not only a functional necessity, but also a key element of the overall experience of a space.

Working together with architects, engineers, installers, and building partners, we create innovative lighting products and solutions.

Our core principles include elegant and functional design, high quality, and a unique Take Back model, ensuring our products last and contribute to a sustainable future.

We invite you to explore and discover the essence of light with Focus Lighting.

Crafting pleasant

Sky Park

Aarhus Ø is a new and dynamic neighbourhood by the harbor in Aarhus, Denmark, where contemporary and cutting edge architecture rises and mixes with the old buildings and surroundings

light since 1975

Designed, Engineered and Manufactured by Focus Lighting in Denmark

From design to delivery, Focus Lighting handles every part of the process. Quality and low environmental impact are the priorities in every step – from raw materials to final luminaires. We combine experience and expertise with curiosity and innovation. The result is timeless, honest and thoughtful solutions. Aesthetics, functionality and sustainability are the goals.

Designed, Engineered and Manufactured by Focus Lighting in Denmark

In our design process, we work closely with well-known architects and designers to create luminaires that are functional and elegant.

Our aim is to strike the perfect balance between lighting that is both comfortable to the eyes and also efficient. Our luminaires add character and enhance the ambience of a room without overwhelming it.

Right from the design phase, we consider future maintenance and technology upgrades through a modular approach.

Many of our designs, even those from years ago, remain quite popular. We hold onto this design tradition as we continue to create new products.

The making and design process of Yoyo by C.F. Møller Architects

Engineered Designed, and Manufactured by Focus Lighting in Denmark

Our R&D team consisting of experts in lighting technology forms the backbone of our technical development process.

All our luminaires are modularly built and meticulously constructed with careful consideration of materials, surface treatments and components.

This deliberate approach allows for the possibility of repair, the replacement of worn parts, or seamless upgrades to the latest technology throughout the luminaire’s lifespan.

This means lifespan expectancy exceeding 25 years, and that we can adapt and tailor our lighting solutions to meet specific project needs.

For five decades, this dedication has consistently delivered innovative, durable and future-proof luminaires that suit any type of project.

Manufactured Designed, Engineered and by Focus Lighting in Denmark

We manufacture and thoroughly test our luminaires at our own facilities in Kokkedal, north of Copenhagen. We own all our production tools ourselves.

We strive to use local suppliers, and place great emphasis on the long-term cooperation with all our partners.

This allows us to control every step in the production process, and our assembly set-up and in-house facilities enable us to accommodate various customizations, small order sizes, and special products.

This is our foundation for delivering products of the highest quality, adaptable to evolving needs, and that we offer a 25 years service guarantee.

Quality and flexibility have been our hallmark for more than 40 years.

Responsibility and longevity are the starting point for all Focus Lighting luminaires

Multiple Nyx and Nyx mid-post Vårbergstoppen, in southern Stockholm in Sweden, is the city’s largest park – a green oasis with a vision for promoting ecology and biodiversity

Empowering sustainability

Nyx 330

Design: Vilhelm Lauritzen Architects

sustainability since 1975

Take Back Concept

Build to last over and over

Nyx 330 luminaire head disassembled into the modules it consists of. We design and build with service, replacement or upgrade in mind. We keep the same basic design, even when technology changes radically. New components are easily adapted and installed in an older luminaire.

Service Center

What we offer Upgrades Repair Service on-site and in-house 25 years service guarantee

Designed, Engineered and Manufactured by Focus Lighting in Denmark

What we offer

Timeless and modular design

Long-lasting materials

25 years service guarantee

Plus 40 years of experience and know-how

Take Back Concept

We collect old or damaged Focus Lighting luminaires and give them a second life. We refurbish them with new parts, reuse parts, or recover recyclable materials. All second life luminaires are tested and certified by Focus Lighting and come with the same warranty as new ones.

What we offer

Refurbish and upgrades

Reuse

Recycle

2nd Life (new CE labeling and warranty)

Service Center

What we offer Upgrades Repair Service on-site and in-house 25 years service guarantee

Long operational life

With our Take Back Concept and Service Center, we ensure that the luminaires we send to the market can be serviced continuously, materials recycled, parts reused in new luminaires or that old luminaires get a 2nd Life. Besides that we offer 25 years of service guarantee.

Service Center

In our Service Center located north of Copenhagen, our primary mission is to champion a circular and sustainable economy by focusing on repair, reuse and upgrade of our luminaires.

Our modular and flexible design enables us to replace defective components and adjust the luminaires to accommodate evolving needs and technologies.

Our dedicated Service Team is well equipped to carry out repairs or updates for our luminaires, both at our own facilities and on-site. Every repaired and returned luminaire undergoes a thorough analysis process to improve our future solutions.

Our ultimate objective is to prolong the lifespan of our luminaires and minimize their environmental footprint. Durability is the key to our sustainability strategy.

Transform spaces with endless possibilities of colours and materials

Yoyo profiles showcase playful colours, enabling creative mix-and-match

The power of colours and materials

Colours and materials are crucial for making an impact. We offer a wide range of options to meet different preferences and design needs. Our luminaires come in an array of standard colours for indoor and outdoor use, and thanks to our flexible manufacturing process, we can apply any desired colour. Additionally, we have elegant brass and copper luminaires that develop a beautiful patina over time.

For a raw and industrial look, we have our galvanized, Raw untreated and Raw anodized surfaces that display the metal’s texture and variations. Unlock a world of possibilities in colours and materials!

Raw

We use anodization to make our luminaires look stunning, last longer and be more sustainable.

Our Raw anodized luminaires have a beautiful bronze-like finish that varies slightly in each piece, creating a unique and charming look. Anodization also makes the aluminum more resistant to harsh environments, so our luminaires last longer.

Anodization is a low-energy process that thickens the oxide layer on aluminum, making it more recyclable and reducing CO2 emissions compared to other coating methods. Therefore, our Raw anodized luminaires offer beauty, durability and sustainability in one.

The Raw anodized surface has a natural beauty and a distinctive appeal

Sky Park Raw anodized

Nyx 330 Raw anodized

Raw untreated

Our Raw untreated surfaces have a timeless raw beauty that suits many purposes. They have character without being dominant. They patinate beautifully and have a lively surface, are durable and practical, because they develop a natural oxide layer that gives a matte and tactile appearance.

Raw untreated surfaces reduce the environmental impact because they do not undergo a treatment process. Which also means that the material can be reused or recycled without losing its properties. Beautiful, smart and functional.

Raw untreated has character and charm, and a lower environmental impact

Corrosion protection for long lasting, sustainable outdoor luminaires

Norre Vorupor during storm and heavy sea, Jutland, Denmark

We test severely for top performance and reliability

Focus Lighting is committed to providing high quality and durable outdoor luminaires that offer maximum corrosion protection. This means our products can withstand even the harshest environments, such as coastal areas. We achieve this by using top-quality aluminum with low copper content, a meticulous surface protection, and extensive testing in our own facilities and third-party laboratories.

Our sustainable approach extends the lifetime of our luminaires, reduces the need for replacements, and supports circular economy principles by allowing reusability of components.

We only use high-quality aluminum that can be used over and over

Extraordinary design requires extraordinary material understanding

Yoyo aluminum profile taking shape in the mold

Luminaires

Outdoor luminaires

Our wide range of outdoor luminaires is carefully designed to combine functionality, easy maintenance, durability, and a welcoming atmosphere.

Inspired by the Nordic style and made of high-quality materials, our products provide comfortable illumination for outdoor spaces. Explore our outdoor luminaires, where form meets function.

Sky

Design: AART Designers

Sky combines a minimalist and timeless design with a modernist interpretation of the conical shape. The name Sky reflects the vision of creating a subtle and almost invisible light from above, as the light source is hidden in the base of the luminaire and reflected by the arched roof in the top. The indirect light is diffused in a soft, pleasant non-glaring way.

Sky Park

Sky Park and Turn Spot Residential area Ängelholm, Sweden

Sky Park Cirkelbroen a notable pedestrian and bicycle bridge, Christianshavn Canal in Copenhagen, Denmark

Sky Bollards Residential area Ängelholm, Sweden

+ Pleasant light due to indirect lighting

+ Low and High lumen, from 275 to 6600 lm

+ 2200, 2700, 3000, 4000 K, CRI 80 or 90

+ Elegant transparency at daylight

+ Easy integration of Smart City solutions

+ Same design expression with and without light

+ Suitable for 2.5-5 meter poles

+ Pleasant light due to indirect lighting

+ Good light distribution and long distance between bollards

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Same design expression with and without light

+ Rooted or flanged base

Sky Bollard

Sky Park + Sky Wall

Sky Park

Sky Bollard

Sky Wall

Sky Wall Jysk housing center north of Copenhagen, Denmark

Space

Design: AART Designers

Space’s elegant design features sheer circular shapes that create a pleasant light effect. In addition, the luminaire combines direct, indirect and shielded light to spread the light evenly and avoid glare. Furthermore, Space with asymmetrical light distribution is an innovative solution that maintains the harmony and the perception of a round luminaire. As a result, Space is fully illuminated both with symmetrical and asymmetrical light distribution.

Space

Space DOLL Living Lab, Copenhagen, Denmark

Space and Sky Bollard Residential area Örebro, Sweden

+ Unique combination of direct, reflected, and shaded lighting

+ Various light distributions with unique uniformity

+ Low and High lumen, from 275 to 6600 lm

+ 2200, 2700, 3000, 4000 K, CRI 80 or 90

+ Easy integration of Smart City solutions

+ Elegant on high and low poles, 3-6 meter

Space is designed with symmetrical or asymmetrical light, and the two variants look nearly identical – both with and without light turned on.

The Space design is simple and powerful with circular forms and rings that expand light into the whole luminaire, underlining the circular form.

Space asymmetric features a unique design that gives the visual impression of a circular lit luminaire, while having an asymmetrical light distribution.

Space

Space

Symmetrical light distribution

Asymmetrical light distribution

Comfortable efficiency

by Morten Hove Lasthein, AART Designers

With the SPACE luminaire we attempted to take the LED technology a step further by expanding the small lighting point to a large and more comfortable lighting area. This was achieved by combining direct, indirect, and diffused light.

SPACE – new luminaire

AART Designers have developed a number of exterior park and street lighting luminaires for Focus Lighting. Different luminaires with their own field of function – from parks and squares to local roads and highways. One common point, however, is high standards in respect to lighting quality, sustainability, and design.

The latest product in the row is SPACE, which should meet a growing demand for an efficient, somewhat voluminous, round park luminaire with an appealing visual appearance. A luminaire to bridge the span between low and high poles, ie. light point heights from three to six meters.

Lighting quality and comfort

A decisive factor in lighting design is the lighting quality, which is highly influenced by the lighting distribution. Focus is often on a uniform distribution of light on the ground or other surfaces.

In general, you could say that the closer the luminaire is to the ground and consequently the line of sight, the more attention should be allocated to lighting comfort. The perceived discomfort glare can be a challenge in many ways. Apart from being unpleasant to perceive, discomfort glare can be very dangerous in traffic.

Thus it is highly relevant to look at this issue; an issue which has been not less intensified by the LED technology.

New lighting principle

The strong force of LEDs compared with previous light sources, is particularly their low energy consumption.

As is often the case when turning to new technology, there are new challenges to handle, and in the case of LED, discomfort glare is one of them. LEDs are extremely bright due to their small size and powerful light. A really hard contrast on the eye. To control and tame LEDs in order to make them less glaring can be a difficult but nevertheless essential and consequently rather exiting challenge to handle.

Considering many demands, parameters, and ambitions, we decided to develop a completely new lighting principle for SPACE. We attempted to take the LED technology a step further and challenge the glare issue, among others. Our target was to expand the small lighting point to a large and more comfortable lighting area by combining direct, indirect, and diffused light.

Design Expression

The solution is a design expression consisting of a number of more or less illuminated rings and circular elements, which interact to broaden out the light. An interrelated constellation with an elegant and dynamic expression of several layers and experiences – both during day and night. And everything encapsulated in a minimalistic, precise and harmonious main shape.

Classic and contemporary

A main shape that will be recognised in well-known historic references along with adding new aspects pointing forward. If you step backwards or see the luminaire from a distance, it will fit quietly and naturally into both classic and modern environments. The primary function of the luminaire being to illuminate the surroundings, without necessarily attracting attention to itself, this is an important parameter. For the same reason the design will allow many repetitions after each other, as for instance along streets and roads.

Flexibility via form

Furthermore, the main form is shaped due to the size of the luminaire. We attempted to make a design suitable for a relatively large span of pole heights, without it being perceived too big on low poles or too small on high poles. Due to the horizontal, lens-like main shape, the luminaire will look slim and light on low poles where the angle of sight is low. On high poles the luminaire will appear rather circular and more voluminous because of the open angle of sight. This results in a large degree of flexibility also in complex lighting projects requiring the same design expression. Moreover, the fact that one single luminaire has such a wide span makes it highly sustainable in the simplified and optimised production, procurement, and operation processes.

One design

The ability to keep the same design expression in lighting projects is supported by the possibility of selecting different lumen packages, i.e. the lighting power of the luminaire. You can use the same luminaire and design even with various demands for lighting power in the same project. The same applies to the design of the recent SPACE variants with asymmetrical light. They are nearly identical to the original SPACE with symmetrical light. This has been an important part of reaching the goal of a strong design identity across functions and demands.

Vision

All in all a vision to develop illumination of high quality and comfort, supporting and enriching human life and activity, as well as contributing to safe traffic and creating attractive and comfortable city spaces – hence the name SPACE.

Way

Design: AART Designers

Inspired by the larger Nordic cities, where classic, dense city centers coexist with modern, spacious road networks and historical and contemporary buildings. Way adapts to the different contexts and needs of the urban spaces, and combines a modern lightness and a classic weight in its design. The screen’s matte edge creates a glowing effect, which is a unique characteristic of Way. The luminous ring shields from glare, creates ambience and shows the way for traffic and pedestrians.

Way top entry

Way top entry and Sky Park Odengatan in Vasastaden in central Stockholm, Sweden with Gustaf Vasa Church in the background

Way top entry

Borups Allé ranks among Copenhagen’s busiest routes

Way side entry

Residential area Hoorn, Netherlands

Way with FastFlex

+ Unique shade for comfort and guidance

+ Excellent light distribution with unique uniformity

+ High lumen, up to 23950 lm

+ 2200, 2700, 3000, 4000 K, CRI 70 or 80

+ Easy integration of Smart City solutions

+ Wire suspension and Ø 48 or Ø 60 mm arm

Way with circular board

+ Unique shade for comfort and guidance

+ Excellent light distribution with unique uniformity

+ Low and High lumen, from 850 to 9950 lm

+ 3000, 4000 K, CRI 80

+ Easy integration of Smart City solutions

+ Wire suspension and Ø 48 or Ø 60 mm arm

Way

Nyx

Design: Vilhelm Lauritzen Architects

Nyx, derived from Greek mythology, pays homage to the goddess of night and the dawn she brings. Seamlessly blending minimalist design with advanced lighting technology. The shade’s visible edge beneath the luminaire housing on Nyx 330 and 190 provides clear directional cues, and enhances the comfortable lighting.

Nyx 330

Multiple Nyx 330 and Nyx 330

The Heart international school at Ikast-Brande, Denmark. A visionary environment for culture and learning

Nyx 330, Multiple Nyx 330 and Nyx Bollard

Using several variants of the Nyx luminaires, the Lytt landscape architects have succeeded in designing a beautiful light setting at the Innovation Campus

Nyx Bollard Sundbyøster Public School, Denmark

+ Same luminaire for wall and bollard

+ Various light distributions

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Frosted or opal shade with optical guidance

+ Two bollard heights; H1200 with fuse box

+ Various light distributions

+ Low and High lumen, from 375 to 4850 lm

+ 2200, 2700, 3000, 4000 K, CRI 70 or 80

+ Frosted shade with optical guidance

+ Suitable for 3-6 meter poles

+ Easy integration of Smart City solutions

+ Penetrated housing for mid-post mounting

+ Same luminaire for pole top as well as side entry

+ Street light with various optics

+ 2-4 LED boards, up to 19450 lm

+ 2200, 2700, 3000, 4000 K, CRI 70 or 80

+ Suitable for 6-12 meter poles

+ Easy integration of Smart City solutions

+ Penetrated housing for mid-post mounting

Nyx

Nyx Bollard

Wall

Nyx 190 Wall Housing Association Nydamsparken in Aarhus, Denmark

Peak

Design: AART Designers

Peak combines form and function in a powerful way. The name Peak reflects the high quality and performance. With both classic and modern features. This interplay between the old and the new makes Peak adaptable to many different environments. Peak provides effective illumination, while adding character to areas such as parking lots, streets, and pathway lighting along residential roads and trails.

Peak post top

Peak post top and Turn Spot Path lighting in residential neighbourhood near H.C. Ørsted Gymnasiet, Lyngby, Denmark. A new and modern technical high school that specializes in technology and science

Peak side entry Egedalsvej Fredensborg, Denmark

Peak 380

+ Same design expression on pole and arm

+ Street light with various optics

+ From 375 to 14600 lm

+ 2200, 2700, 3000, 4000 K, CRI 70 or 80

+ Shade in hardened glass, parallel to the ground

+ Suitable for 3-10 meter poles

+ Easy integration of Smart City solutions

Peak 320

+ Same design expression on pole and arm

+ Street light with various optics

+ From 280 to 4500 lm

+ 2200, 2700, 3000, 4000 K, CRI 70 or 80

+ Shade in hardened glass, parallel to the ground

+ Suitable for 3-10 meter poles

+ Easy integration of Smart City solutions

Peak 320 post top

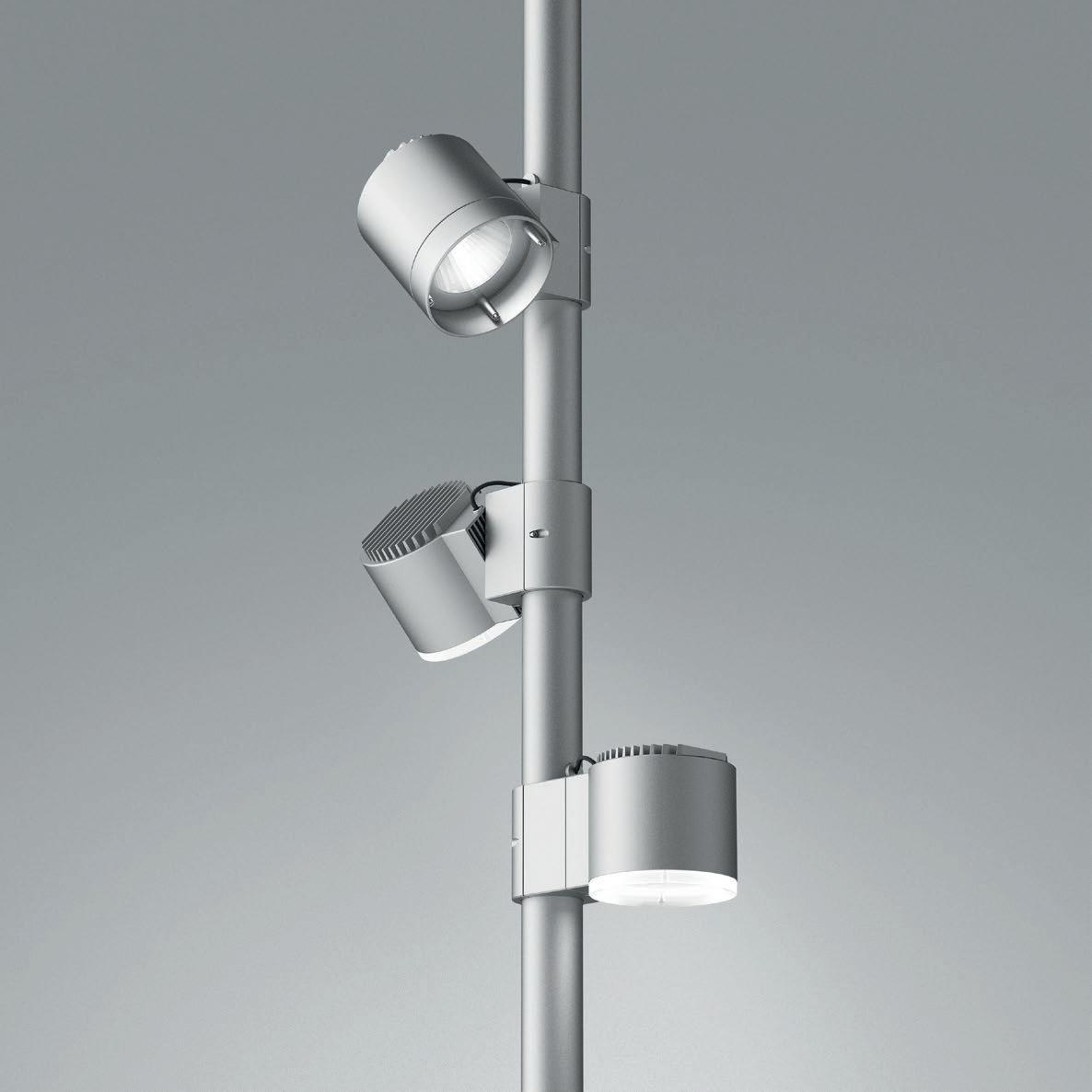

Turn

Design: Friis & Moltke Design

Turn is a series of sleek cylindrical spotlights that can rotate and adjust to create various effects and highlight architecture. They are offered with different beam angles. The Turn Halo has an opalized ring, which slightly marks the luminaire and provides pleasant optical guidance. Turn effortlessly enhances, illuminates, and transforms spaces into captivating atmospheres.

Turn Spot + Turn Spot Halo + Turn Street Halo

Turn Spot

Munkebjerg Park in Odense, Denmark

Turn Street

The old harbor area in Aarhus, Denmark, Aarhus Ø, is an urban area in renewal close to the water with striking and futuristic buildings that blend with the architecture of the past

Turn Spot Halo

Danske Bank, Jægergaardsgade in Aarhus, Denmark

Turn Spot

+ Adjustable in many directions

+ Three beam angles 38º, 19º or 12º

+ From 400 to 5100 lm

+ 2200, 2700, 3000, 4000 K, CRI 80 or 90

+ Vandal-proof design

+ Option for Zhaga socket

+ Ø 76 mm cylindrical pole, options for conical and Ø 60 mm poles

Turn Halo

+ Turn Street asymmetric T3

+ Turn Halo beam angles 38º, 19º or 12º

+ From 400 to 5100 lm

+ 2200, 2700, 3000, 4000 K, CRI 80

+ Vandal-proof design

+ Option for Zhaga socket

+ Ø 76 mm cylindrical pole, options for conical and Ø 60 mm poles

Turn Gobo

+ Compact design as the Turn Spot

+ Turn Gobo and Turn Spot at one pole

+ Various lens types, wide, narrow, standard

+ Black-and-white or coloured gobos

+ Exchangeable lenses

+ Ø 76 mm cylindrical pole, options for conical and Ø 60 mm poles

Dua

Design: Juul | Frost Architects

Dua is a sleek line of bollard luminaires with ridged shades that create a soft and ambient glow. It illuminates pathways and adds a pleasant atmosphere and a touch of glow to plants or paving with the backward light. Dua comes in three different sizes that can be mixed and combined to create a harmonious and cohesive look. Ideal for unifying and linking different outdoor spaces and buildings over a larger area. Blends well in and spreads light efficiently and atmospherically.

Dua Bollard

Dua Bollard

Munkebjerg Park, a new, lively and green neighbourhood in Odense, Denmark with beautiful plants and greenhouses

+ Anti-glare due to indirect lighting

+ Strong family resemblance across applications

+ 2200, 2700, 3000, 4000 K, CRI 80 or 90

+ Rooted or flanged base

+ Ø 120 mm regardless of height

Dua

Dua High

Dua Bollard

Dua Bollard Low

Dua High

Square

With a sleek and modern look, Square are a series luminaires that feature light slits and a simple minimalist design. The light is diffuse and soft, creating a pleasant atmosphere without glare. They blend in and highlight the architecture, but also stand out – alone or together. Square can be used both outdoors and indoors, and can have characters and symbols cut out in the front, making them ideal for clear signage especially at night.

Square 190

Design: Square 190 – Studio Hammer

Design: Square 250/270 – schmidt hammer lassen design

Square

Summer cottage by Cubo Architects near Aarhus, Denmark

Square Sports Academy Denmark, Odense

borough of Stockholm, Sweden

+ Laser cutting of digits in the front

+ Light upwards and downwards. Available with downward light only

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Option for bluetooth control with radar

+ Bollard rooted or flanged base

+ Copper, galvanized or painted

+ Can also be used indoor

Square Modet in Bagarmossen a

Quarto

Design: Torsten Thorup & Claus Bonderup

Quarto is a design from the 80s that still has a modern appeal with its simple, classic sphere shape. Quarto is unique in its prolonged form; it ends up cylindric. This creates a sense of harmony and balance in the design. Quarto is a timeless example of discreet elegance that can fit any environment.

Quarto 380

Quarto

On a salt marsh in Helsingborg, Sweden lies the children’s institution Råå Förskola in a building designed with the surrounding landscape of dunes and sea in mind

Copper on a terrace in Switzerland, where the untreated patina enhances beauty and character

+ Contemporary design

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Option for bluetooth control with radar

+ Bollard rooted or flanged base

+ Copper, brass, galvanized or painted

+ Can also be used indoor

Tema

Classic simplicity meets enduring design. Crafted with galvanized steel, Tema offers exceptional durability and minimal maintenance. The zinc coating protects the steel from rusting, even if damaged. The luminaires have a shiny appearance when new, but over time they develop a more subtle, matte, and deep tone.

Design Buen: Niels Enevold

Design Pullerten: Torben Rix, Leif Jensen, Ole Bruhn

Tema Buen

+ Consists of a bollard and a wall luminaire

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Vandal-proof design and execution

+ Rooted or flanged base

+ Galvanised

+ Tema Buen can also be used indoor

Tema

Tema Buen

Tema Bollard 1000

Tema Bollard

Modern residential area by the north riverbank after urban renewal of the old shipyard areas Eriksberg in Gothenburg, Sweden

Sky Park and Way top entry

Stockholm Public Library in Sweden, designed by Swedish architect Gunnar Asplund, and one of the city’s most notable structures

Our timeless luminaires are designed to complement and enhance any environment while embracing tomorrow’s technology

Indoor luminaires

Our indoor range features ceiling and wall luminaires, including pendants. All designed to blend in seamlessly with any space by balancing aesthetics, functionality and comfort. They have a minimalistic and simple design that adapts easily and meets high standards for light quality. Making spaces welcoming, comfortable, and atmospheric.

Pelée

Design: Cubo Architects

Pelée is a series of luminaires that feature a distinctive design with conical grooves on the inside, creating a pleasant and glare-free light distribution. The elegant finishing, along with the effective and comfortable lighting, makes Pelée suitable for a variety of applications in office and institutional buildings. By combining different Pelée models, a consistent aesthetic is achieved.

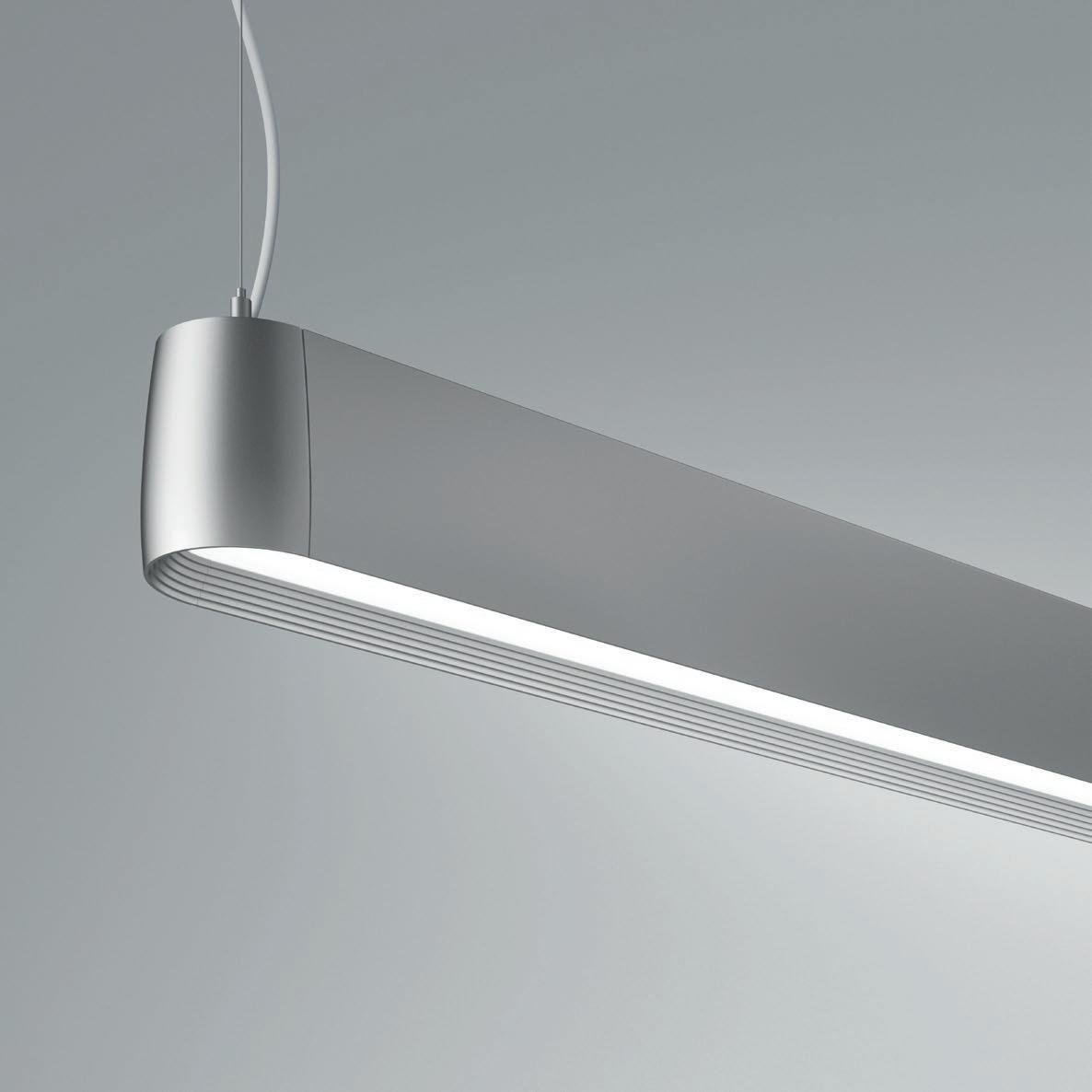

Pelée Line

Pelée wall mounted Kærvang, group home for adults with disabilities, Nykøbing Mors, Denmark

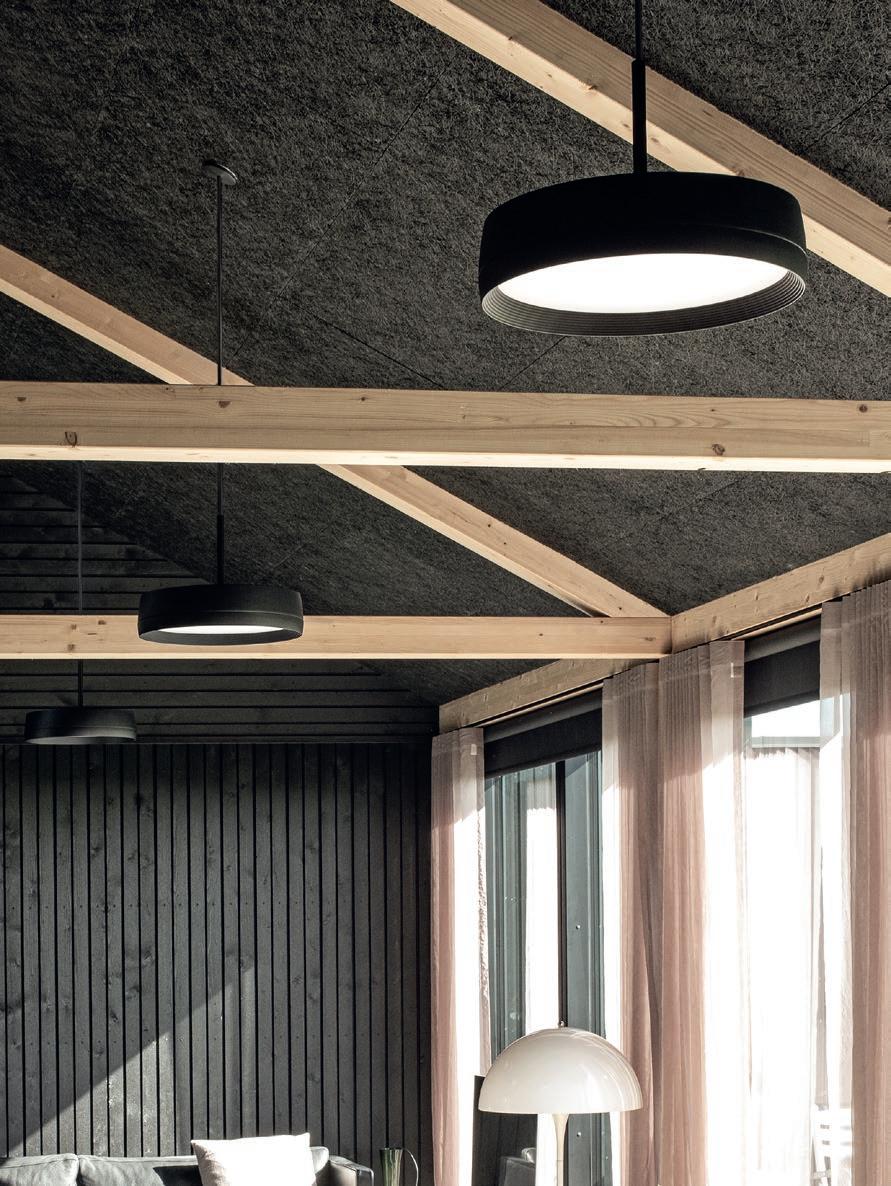

Pelée Line and Pelée Pendant

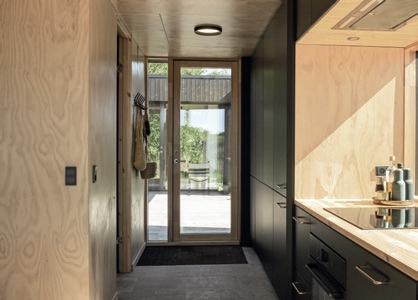

Summer cottage in Kysing, Jutland, Denmark

Pelée Wall

Den Gamle By welcomes visitors with its new main entrance, a blend of history and modernity, Aarhus, Denmark

Pelée Pendant and Pelée Line

Augustenborg slot, a former ducal residence and psychiatric hospital, now houses Landbrugsstyrelsen, the Danish Agricultural Agency, Southern Jutland, Denmark

+ Characteristic design across luminaire types

+ Comprehensive, covering most indoor applications

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Option for Tunable White

+ Recessed shade, opalised or microprismatic

+ Pendant available with uplight

+ Slim design

+ Optical guidance

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Option for bluetooth control with radar

+ Interior and exterior application, IP66

Yoyo

Design: C.F. Møller Architects

Yoyo is a playful and elegant series of indoor luminaires, inspired by the toy with the same name. They come in three sizes and many colours, and can be pendants or surface mounts. Yoyo has a very compact depth and height, making it versatile for various spaces. Yoyo’s design with slim profiles and curved surfaces adds lightness and elegance to the luminaire.

Yoyo surface mounted

Yoyo surface mounted Grønnegården in Gladsaxe is Denmark’s first carbon-neutral and Nordic SwanEcolabelled childcare institution, built with wood, recycled bricks, and solar panels

Yoyo Pendant

Stockholm Naturskyddsforeningen is a branch of Sweden’s largest environmental organization

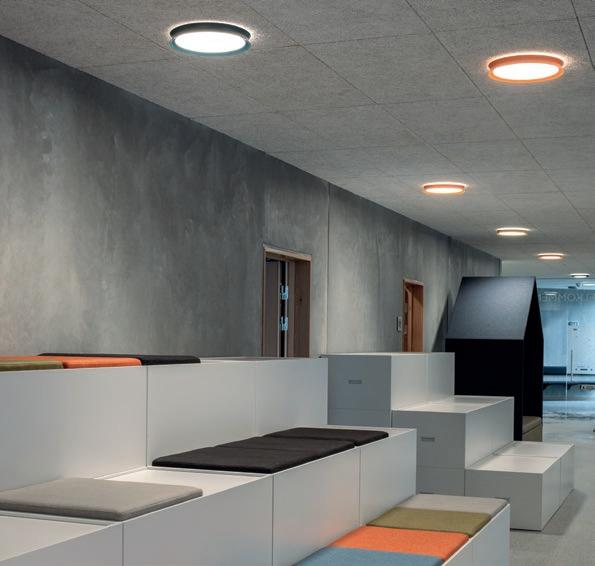

Yoyo surface mounted and Yoyo Pendant Sports Academy Denmark, Odense

+ Playful colours

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Option for Tunable White

+ Option for bluetooth control with radar

+ Microprismatic shade without visible patterns

+ UGR with microprismatic shade: <19

+ Option for uplight or backlight

+ Suspended and surface mounted

Yoyo

Yoyo 225/350/535 surface mounted + wall mounted

Yoyo 350/535 Pendant + Pendant Uplight

Yoyo Line

H+M

Design: Christian Hvidt Design

H+M, a stylish luminaire launched in the 1980s, is classic design at its best. It has been used by architects for years because of its simplicity and beautiful finish. The technology has been updated, so the H+M lamp still meets the market’s demand for comfortable light and high light output. It can be painted in various colours for a more striking expression. Suitable for lighting in all kinds of premises.

H+M Pendant

+ Contemporary luminaires for indoor applications

+ Suspended, recessed, and surface mounted luminaires

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Option for Tunable White

H+M recessed

Nørre Gymnasium is a Danish public upper secondary school in Copenhagen with a focus on intercultural understanding and the UN Sustainable Development Goals

Punkt Lamp

Design: Focus Lighting

The Punkt Lamp is a series of recessed luminaires that feature a mouth-blown glass diffuser and a pleasant downlight. They have a simple and elegant design, with a beautiful opal glass that provides a soft and glare-free light. They are classic lamps that have been popular for 40 years, and they have been enhanced with LED technology to improve their efficiency and performance, while preserving their original charm.

Punkt Lamp Ø 150

+ Downlight with glass diffuser

+ Non-visible LED

+ 2200, 2700, 3000, 4000 K, CRI 90

+ Five sizes

+ Cover any application

Punkt Lamp

Punkt Lamp

Zoolab – an educational section of the Copenhagen Zoo that offers various activities and exhibitions for children

With the power of light we shape new

Index | Outdoor luminaires

Post tops

Spots

Bollards

Wall

Index | Indoor luminaires

Recessed

Surface mounted

Pendants

Wall

Designed, Engineered and Manufactured by Focus Lighting in Denmark

We reserve the right for printing errors and omissions.

All information is subject to change without notice. Please check our website or contact us for the most up-to-date information.

No part of this publication may be copied or reproduced in any form or by any means, without the prior written permission.

© Focus Lighting A/S. All rights reserved.

Concept and design: keepitmoving.dk

Print:

Kandrups Bogtrykkeri A/S

Kokkedal Industripark 40

DK-2980 Kokkedal

+45 4914 8080

focus@focus-lighting.dk

focus-lighting.dk
