MINI REX MULTI

THE COMPACT DOUGH DIVIDING AND ROUNDING MACHINE

MINI REX MULTI DOUGH DIVIDER AND ROUNDER  Automatic dough dividing and rounding  Wide weight range from 8 to 330g (rounded up to 140g)  Dough yield between TA148 up to 162 (48 - 62% hydration content)  Capacity

 up to 4,800 pcs/hr. at 4 row operation  up to 3,600 pcs/hr. at 3 row operation  up to 2,400 pcs/hr. at 2 row operation  up to 1,200 pcs/hr. at 1 row operation

2

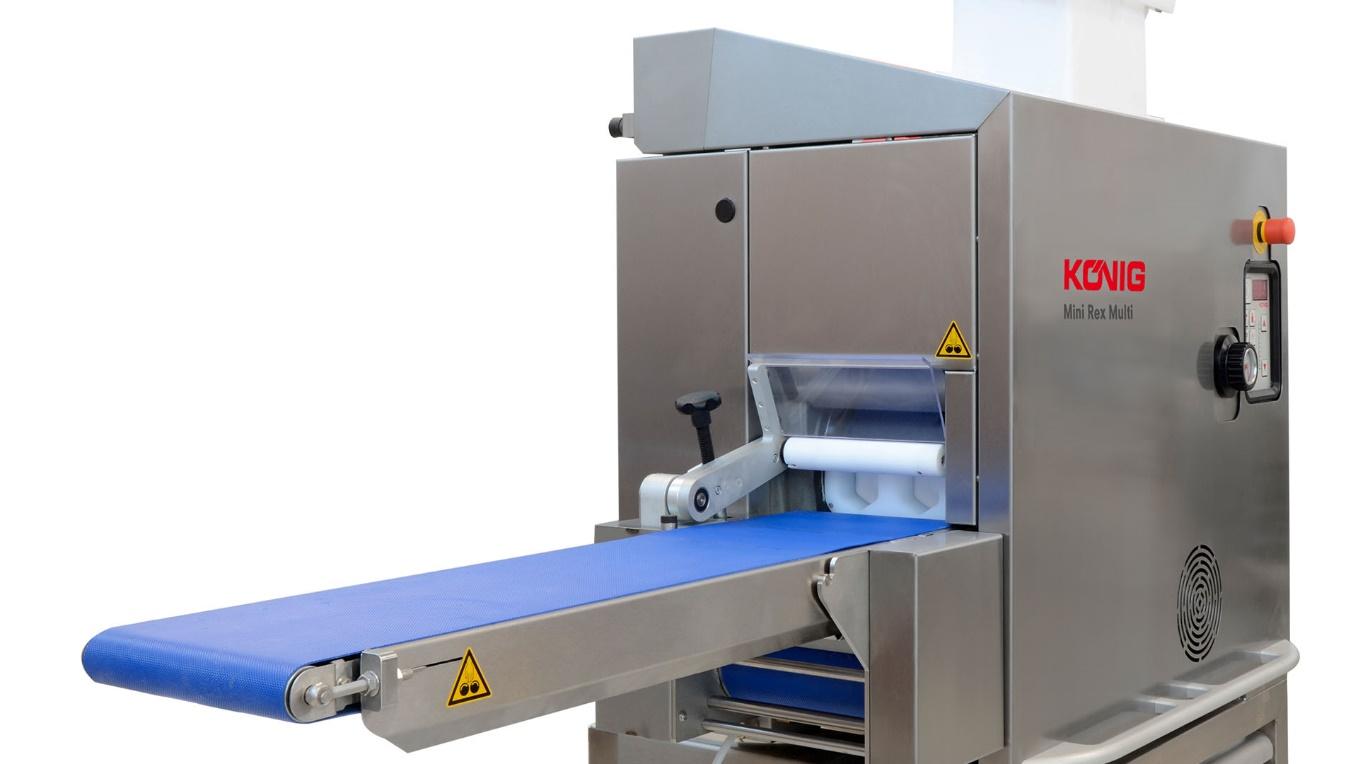

MINI REX MULTI DOUGH DIVIDER AND ROUNDER  easily changeable drum ledges for different weight ranges and number of rows  user-friendly panel with self-explanatory pictograms  roller feeding hopper for approx. 15kg dough  power supply: 0.75kW  machine weight approx. 300kg  stainless steel design

3

WEIGHT RANGES Weight range

Number of rows

Max. hourly capacity

8-12g

4

4800

12-20g

3

3600

15-30g

3

3600

23-60g

2

2400

25-68g

2

2400

30-80g

2

2400

40-95g

2

2400

55-108g

2

2400

75-120g

2

2400

85-140g

2

2400

100-250g

1

1200

190-330g

1

1200

4

EASY CHANGE OF WEIGHT RANGES For an exceptional weight range of 8 to 330g with one machine only!

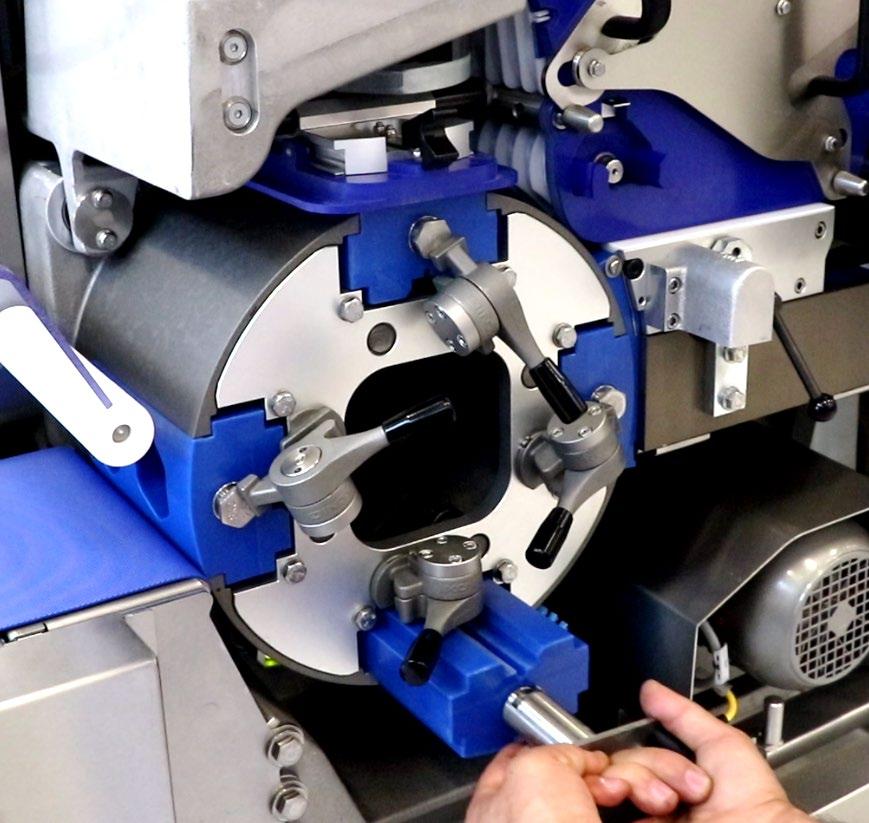

Easy change of piston ledges for changing to different rows and weights without additional tools

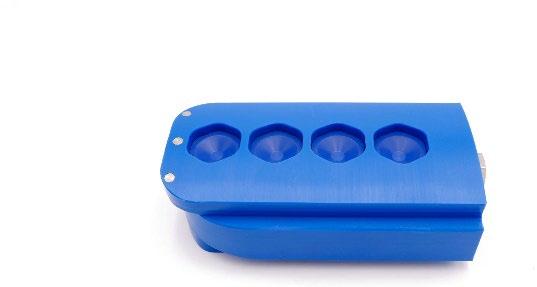

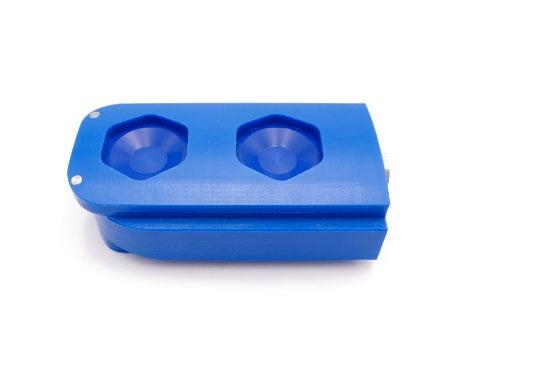

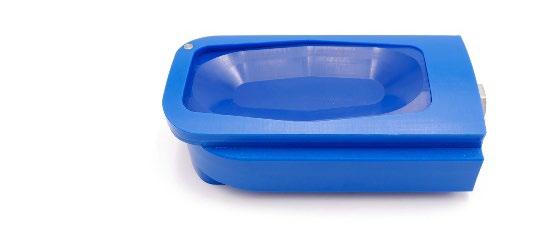

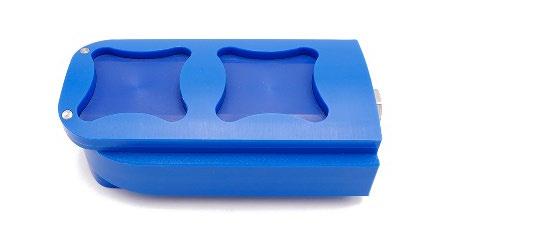

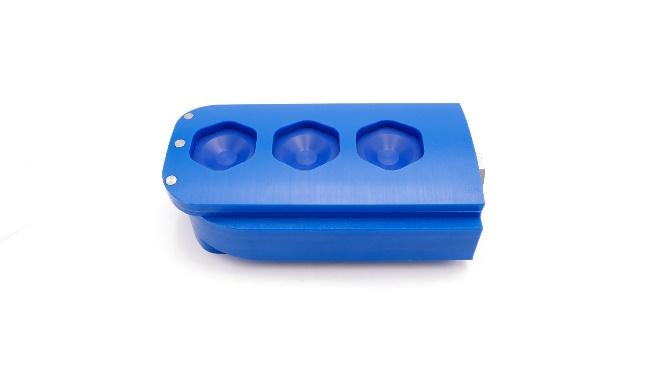

Piston ledges for various weight ranges

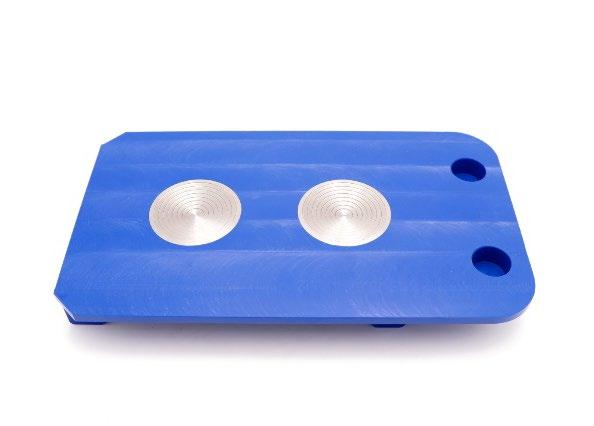

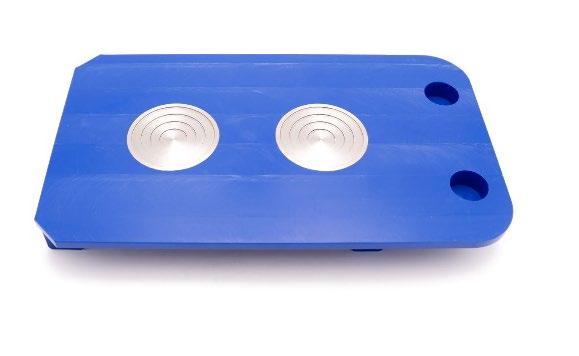

Rounding plates for different dough textures

5

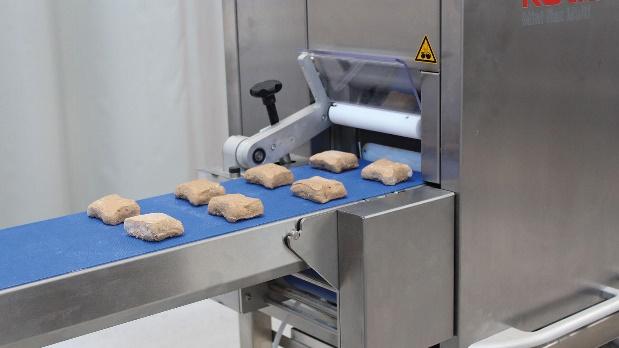

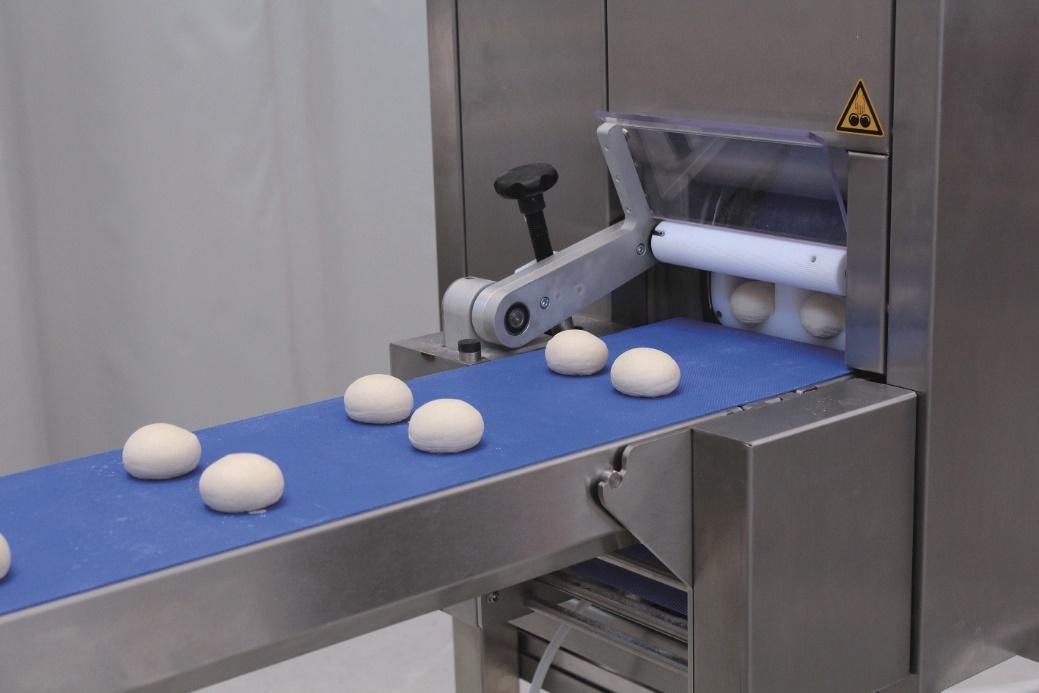

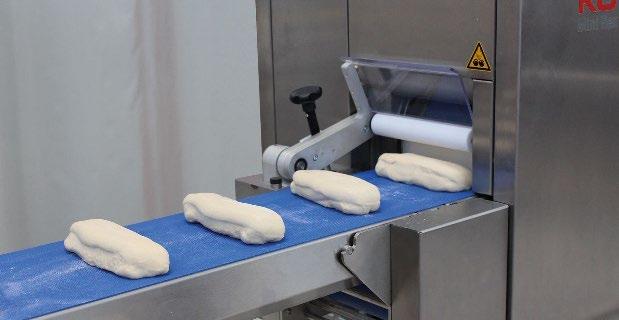

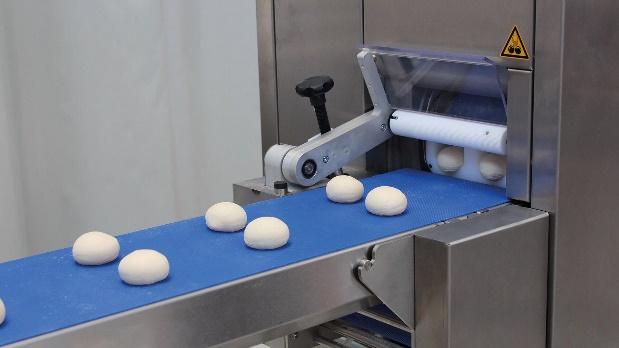

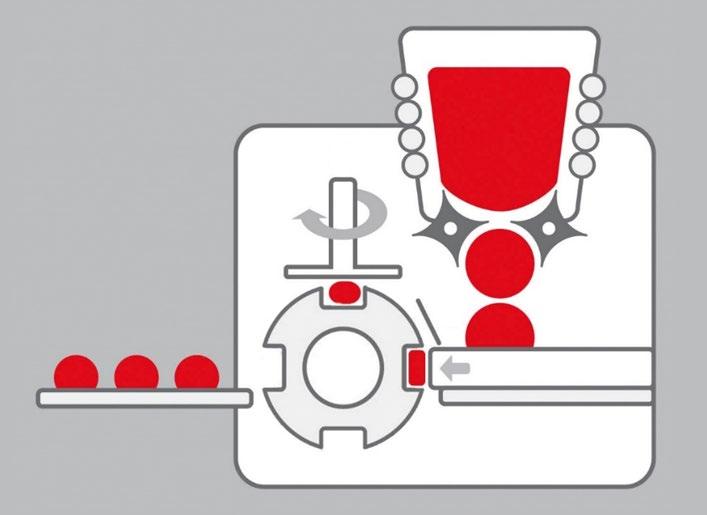

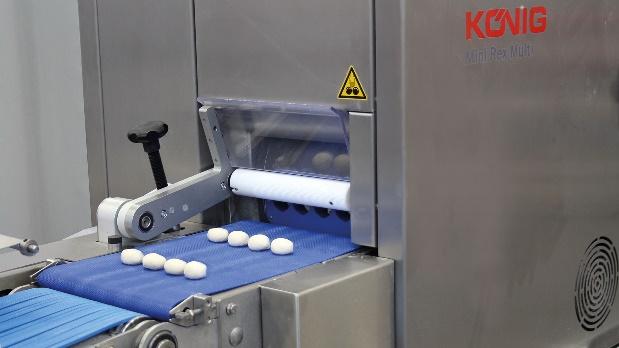

WORKING PRINCIPLE  Dough is manually filled into the roller hopper.  Dough portions are conveyed into the dividing area by means of rotating stars.  The horizontally moving slider presses the dough into the openings of the rotating dividing drum. The excess quantity of dough is conveyed back to the dividing area by a scraper ledge.  After an anti-clockwise rotation by 90°, the rounding of the dough pieces is performed by an oscillating rounding plate. The rounding eccentric can be set depending on the dough consistence and dough weight.  After another 90° rotation, the dough pieces are transferred to the discharge belt.

6

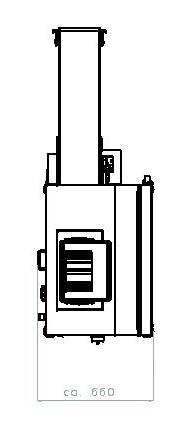

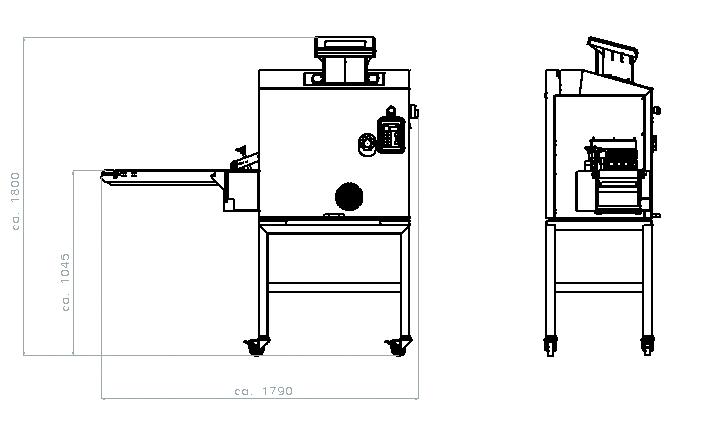

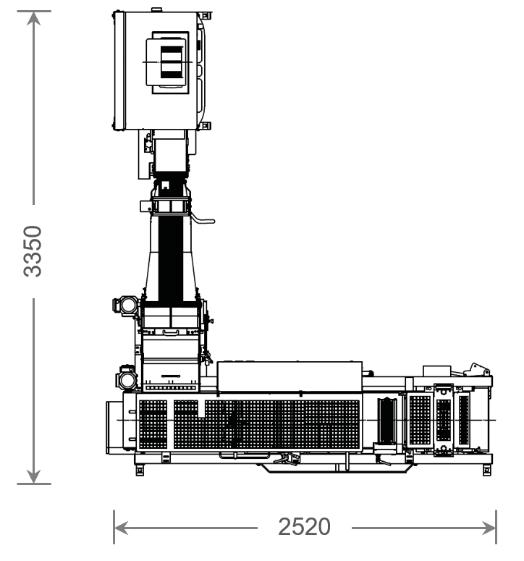

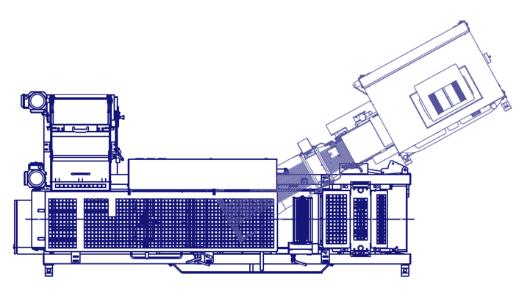

MEASUREMENTS

7

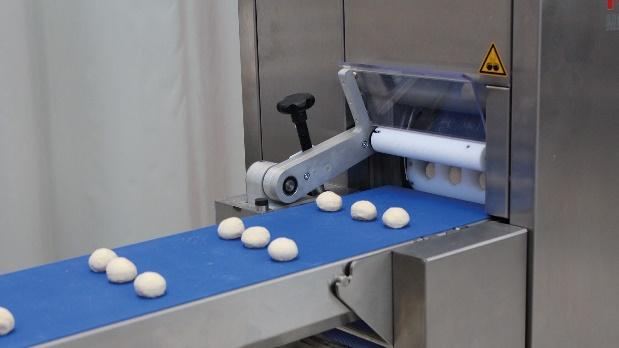

VIDEO

8

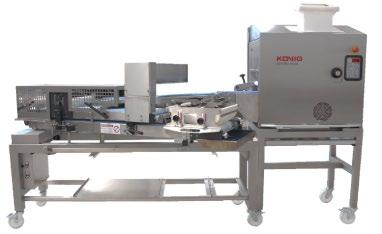

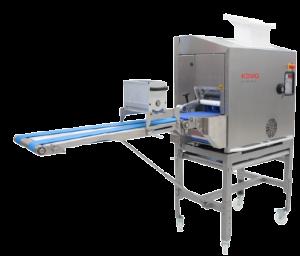

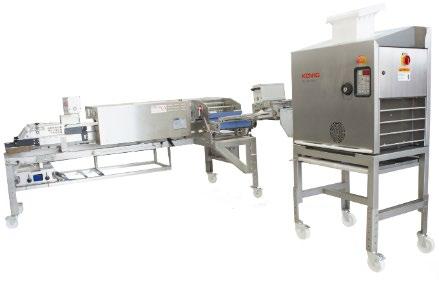

COMPACT ROLL LINE MINI REX MULTI WITH FORMING STATION

THE COMPACT LINE FOR YOUR BAKERY

10

PRODUCT VARIETY ROUNDED PRODUCTS

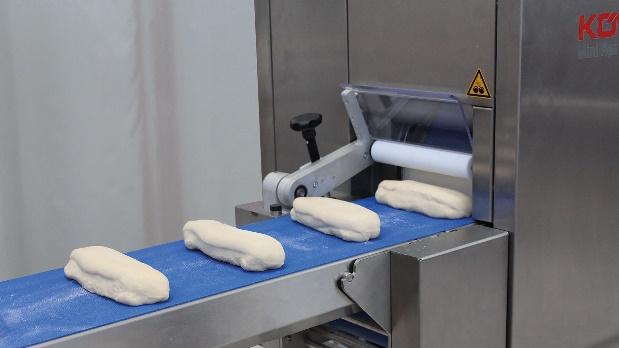

LONGROLLED PRODUCTS

FLATTENED PRODUCTS

LONGROLLED WITH POINTED ENDS

LONGROLLED, STAMPED PRODUCTS

BREADS & BAGUETTES

11

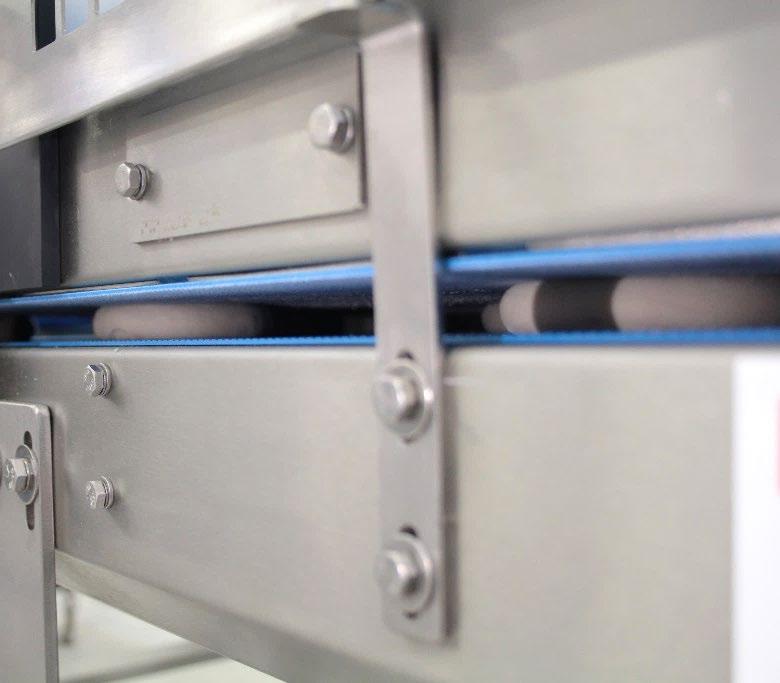

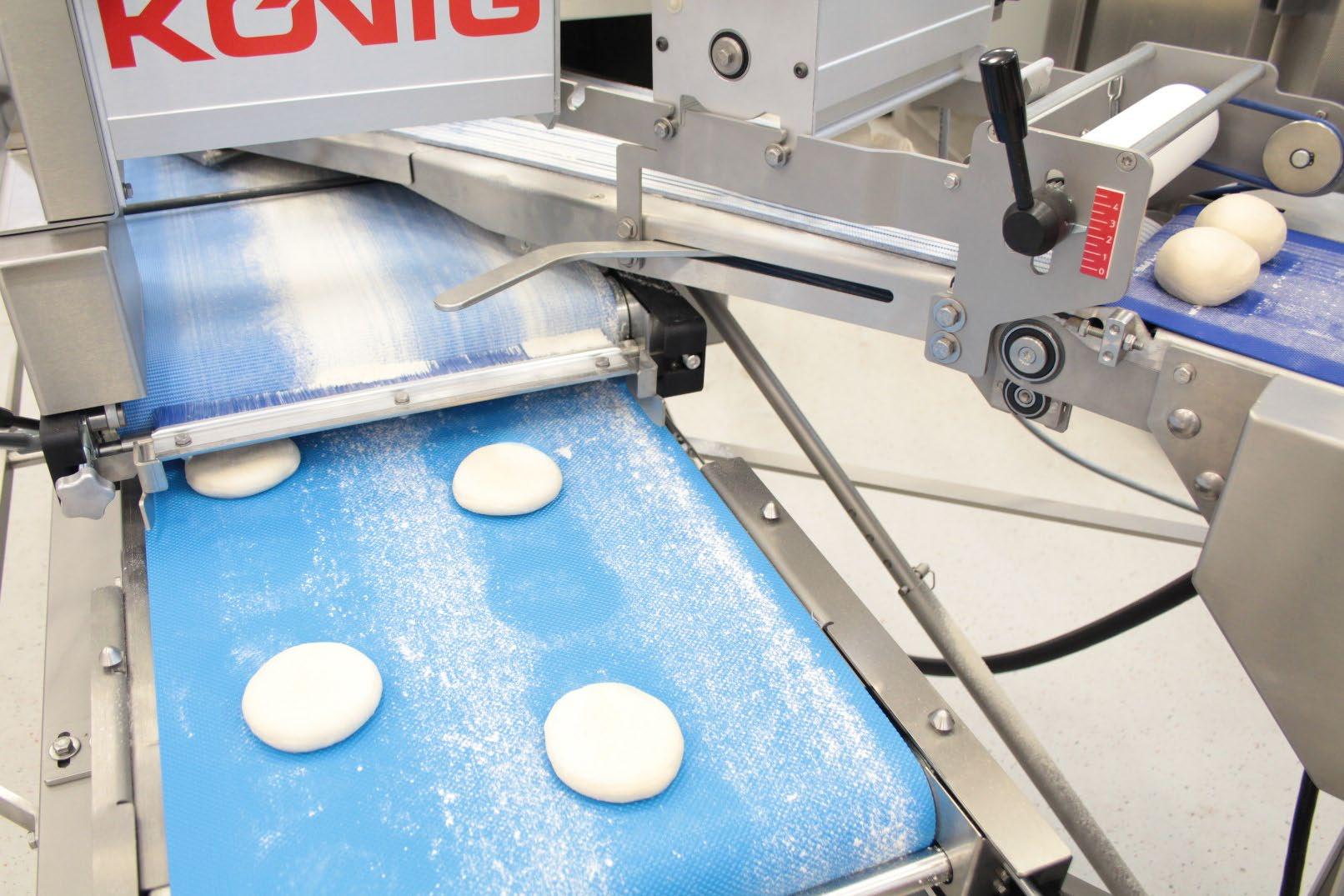

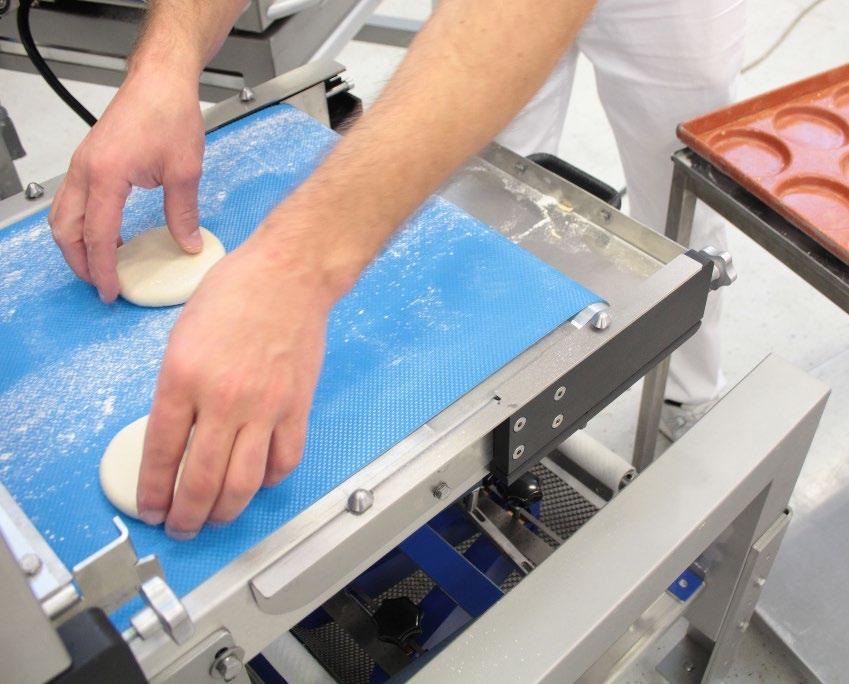

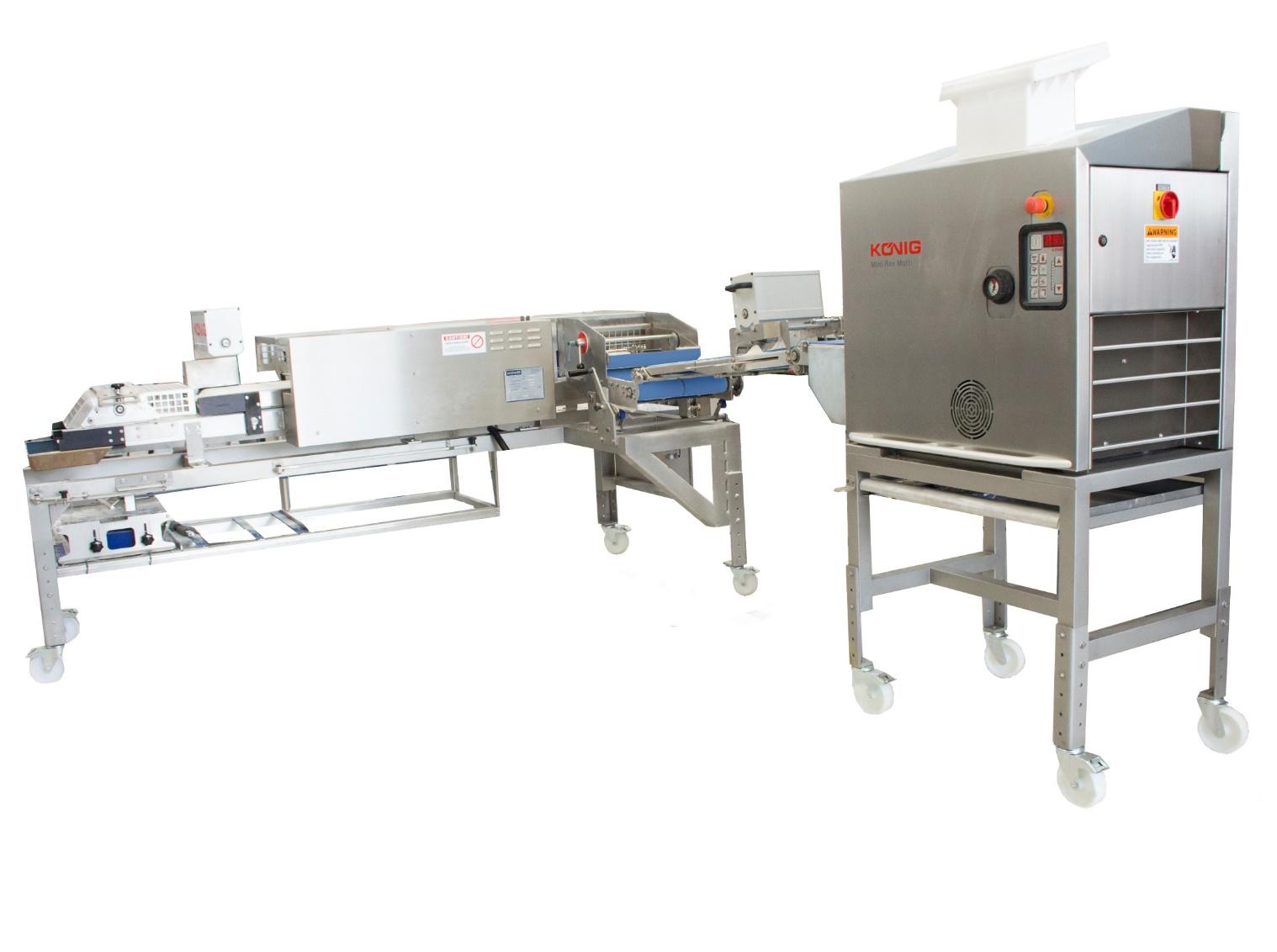

MINI REX MULTI WITH FORMING STATION  nominal width 400 mm  entire unit is height-adjustable for ergonomic operation  teflonized collecting drawer for manual product removal  quick and easy cleaning on account of plug-in elements  additional product variety with convoluting unit or seeding unit

12

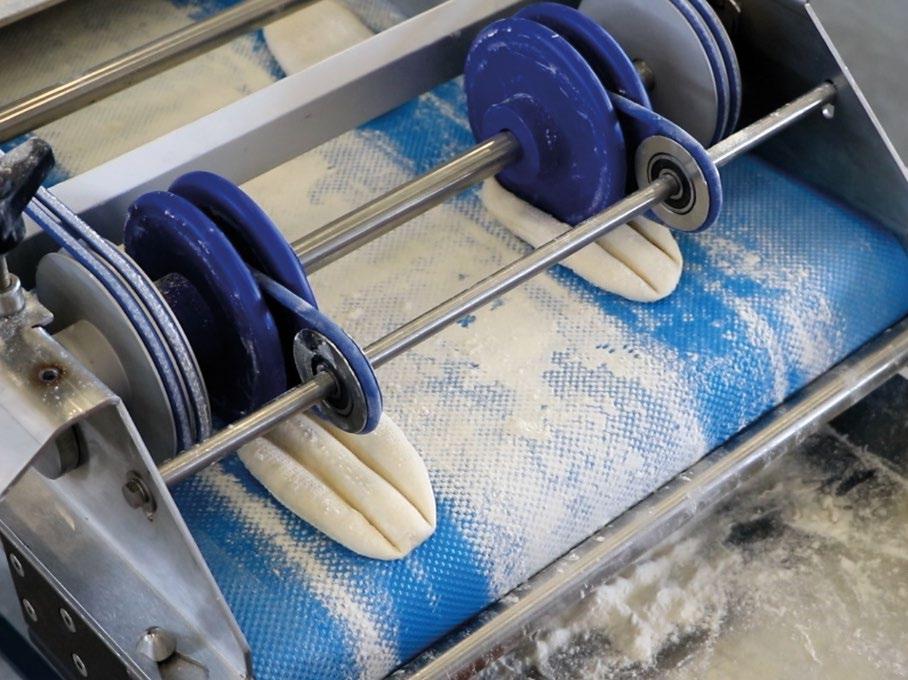

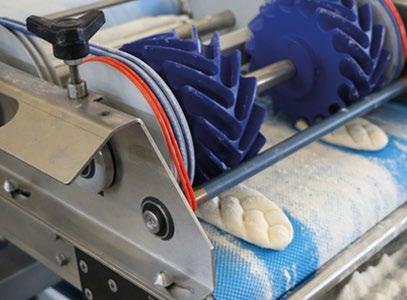

FORMING TOOLS FOR ENDLESS VARIETY  Bolillo

 Telera

 Housky / Plaited

 Tin bread

13

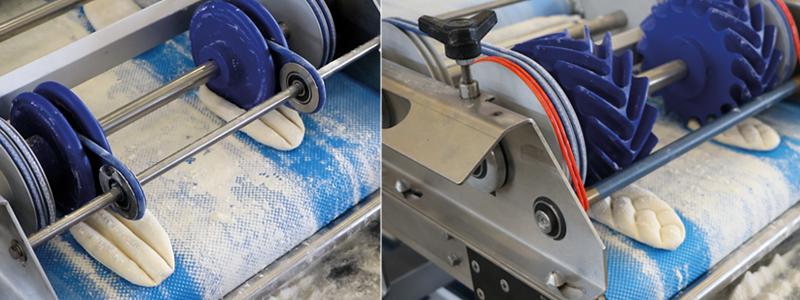

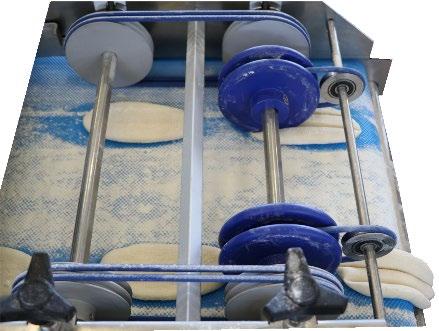

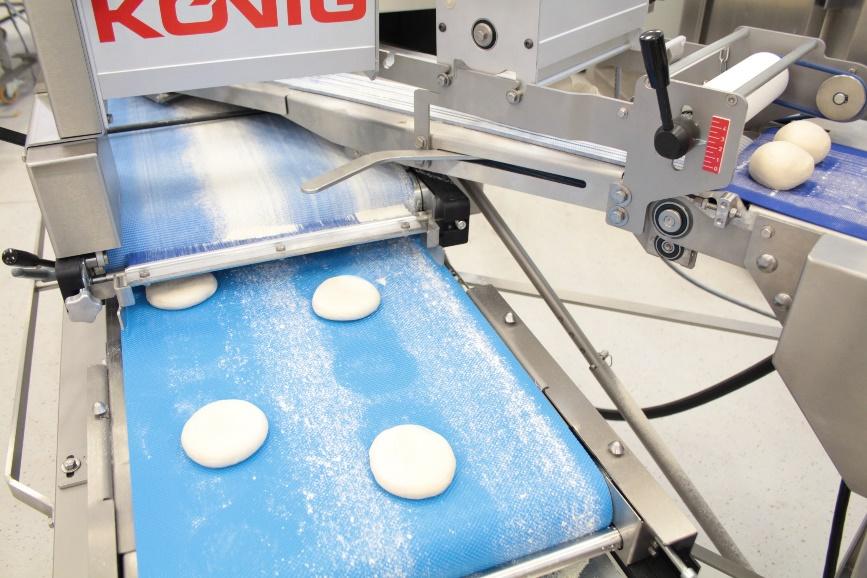

DIFFERENT SETTINGS OF FORMING STATION

14

VIDEO

15
