Quickship: Fast order processing and expedited shipping across North america for a wide range of made-to-order LED luminaires and options.

FastTrack: Don't see what you need on Quickship? Tell us what you need and when you need it. FastTrack expedites any of our products to meet your project schedule.

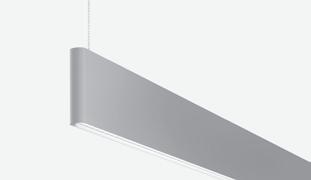

LINEaR SUSPENDED

ENDCAP (F) FLaT (B) BEVEL (B) BEaM (a) SaIL (R) RaDIUS (F) FLaT (R) RaDIUS (F) FLaT (S) SQUaRE (P) CaPSULE

DISTRIBUTION (a) 75 UP | 25 DN (a) 40 UP | 60 DN (a) 70 UP | 30 DN (W1) 100 DN (B) 100 DN (B) 100 DN (B)

(F) 65 UP | 35 DN (B) INDEP. UP | DN

ENERGY 4 FT (Z) 14 W (a) 17 W (a) 18-19 W (a) 9.5 W (B) 21 W (B) 22-23 W (B) 12 W (C) 26 W (C) 28-29 W (C) 15 W (D) 34 W (D) 36-38 W

CCT (35) 3500 K (40) 4000 K

FINISH (a) CLEaR aNODIZED (B) BLaCK POWDERCOaT (W) WhITE POWDERCOaT (W) WhITE POWDERCOaT

CEILING (D) DRYWaLL (G) GRID (S) STRUCTURE (R) REMOTE

DRIVER (F1) NON-DIM (F2) 0–10 V DIM 3%

(E1) ELDOLED ECO 0–10 V DIM 1%

VOLTAGE (M) 120–277 V

SUSPENSION (03) < 3 FT (06) < 6 FT (12) < 12 FT (25) < 25 FT

LENGTH (04) 4 FT (06) 6 FT (08) 8 FT (XX) 10 FT+ (in 2 FT increments)

OPTIONS (a) aLTERNaTE WIRING (2nd circuit for EM, NL or switching)

(B) BaTTERY PaCK

(C) ChICaGO CCEa

aDDER

STRaIGhTS: (02) 2 FT, (03) 3 FT, (04) 4 FT, (06) 6 FT, (08) 8 FT, (XX) 9 FT+ (in 1 FT increments)

fluxwerx.com/quickship

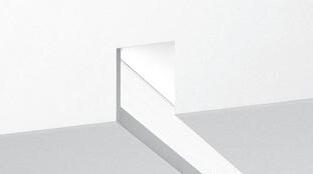

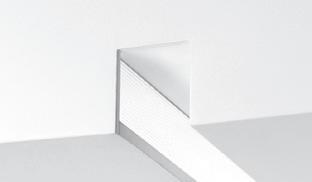

LINEaR RECESSED

NOTCH 2 (NT1) area NOTCH 1 (NN1)

CEILING (D2) DRYWaLL — TRIMLESS (G1) GRID — 9/16" OR 15/16" FLaT-T GRID — 9/16" TEGULaR BOLT — SLOT (W2) WaLL — TRIMLESS

DISTRIBUTION (a) aSYMMETRIC (B) SYMMETRIC ENERGY (a) 5 W / FT (a) 4.5 W / FT (B) 6 W / FT (B) 5.5 W / FT (C) 7.25 W / FT (C) 7 W / FT (D) 9.5 W / FT (D) 9 W / FT

(35) 3500 K (40) 4000 K

DRIVER (F1) NON-DIM (F2) 0–10 V DIM 3% (E1) ELDOLED ECO 0–10 V DIM 1%

VOLTAGE (M) 120–277 V

LENGTH (XX) 2 FT+ (increments: 1 FT in Drywall, 2 FT in Grid)

OPTIONS (a) aLTERNaTE WIRING (2nd circuit for EM, NL or switching) (B) BaTTERY PaCK (C) ChICaGO CCEa (P) CaPSULE ENDCaP (T) ThROUGhWIRE CIRCUIT
