Pipe Expansion Joints

HVAC/Plumbing Applications of Rubber Pipe Joints

DISCLAIMER

While the FSA makes every reasonable attempt to ensure that the information contained in this document is accurate and current, the FSA, its officers, directors, volunteers, and authorized agents are not responsible for any errors or omissions contained therein nor are they responsible for any results obtained from the use of or reliance upon its content. All information is provided “AS IS,” with no guarantee of completeness, accuracy, timeliness or of the results obtained, and without warranty of any kind, express or implied. In no event shall FSA or its officers, directors, volunteers, or authorized agents be liable to you or anyone else for any decision made or action taken in reliance on the information con tained herein or for any for any consequential, indirect, special, or similar damages, even if advised of the possibility of such damages. The informa tion contained in this document is for informational purposes only and does not constitute professional advice. It also includes references to certa in standards that may change over time and should be interpreted only in light of particular circumstances. It is your sole responsibility to confi rm the current state of any referred to standards. FSA reserves the right to modify or update the document content and to modify this Disclaimer at any t ime, effective upon posting of an updated version of this Disclaimer.

© (April, 2023), Fluid Sealing Association. All Rights Reserved.

HVAC/Plumbing Applications of Rubber Joints

▪ Expansion joints in HVAC/Plumbing systems are commonly installed for noise and vibration reduction

▪ Specified and detailed at pump and equipment connections:

HVAC/Plumbing Applications of Rubber Joints

▪ Installation at rotating or vibrating equipment:

Pump Isolation

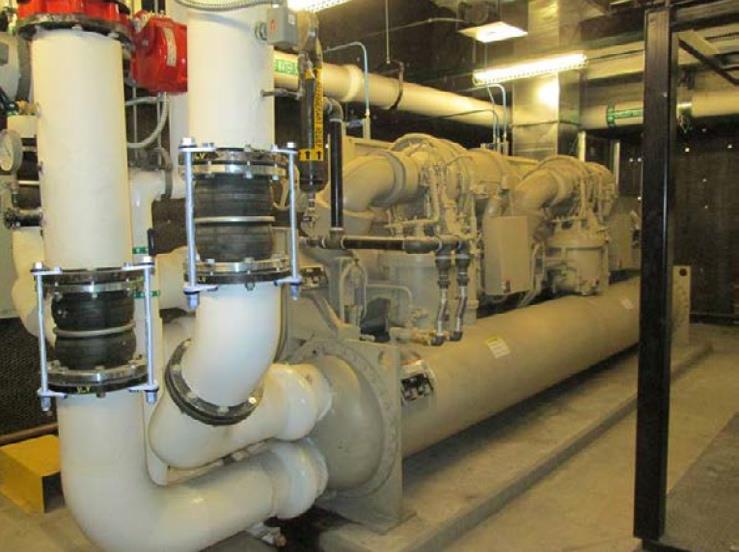

Chillers

Air Handler Coils

HVAC/Plumbing Applications of Rubber Joints

▪ Installation Considerations (follow the instructions!):

▪ Don’t use joints to compensate for pipe misalignments

▪ Tighten bolts to proper torque according to the manufacturer’s specifications

▪ Always include control units

▪ Check temperature and pressure limits against operating conditions

▪ Check material compatibility with medium in the pipes and environment of installation

HVAC/Plumbing Applications of Rubber Joints

▪ Common Questions:

▪ Other standard details show metal connectors – what’s better?

▪ Extensive testing has shown that rubber joints are superior to metal joints in noise and vibration reduction; however, the specifier must also consider temperature, pressure and fluid medium. There are applications that may be outside of the performance of rubber joints.

▪ Won’t the control rods “short circuit” the vibration and render the joint ineffective?

▪ No! Testing has shown that the control rods have little effect on vibration transmission.

HVAC/Plumbing Applications of Rubber Joints

Common Materials for HVAC/Plumbing Applications:

HVAC/Plumbing Applications of Rubber Joints

▪ Standards:

▪ Fluid Sealing Association (FSA)

▪ Piping Expansion Joints Technical Handbook

▪

▪

▪

FSA-PSJ-701-19 Hydro and Vacuum Testing

FSA-PSJ-702-19 Installation, Maintenance and Storage

FSA-PSJ-703-19 Guidelines for Elastomers

▪ ASTM

▪ F1123 Standard Specification for Non-Metallic Expansion Joints
