Solutions Catalog 2026

ABOUT FLEXQUBE.

WE HELP CUSTOMERS BUILD WORLD-CLASS PRODUCTS

FlexQube is a technology company that deliver state of the art material handling equipment through a patented modular concept. The company develops and designs customized solutions for both automated and manually operated intralogistics.

Through the company’s automation concept, self-driving robotic carts are offered. The main operations are in North America and Europe. FlexQube was founded in 2010 and has its headquarter in Gothenburg.

We exist to provide an ecosystem of modular material handling Carts, AGVs and AMRs that helps the worlds’ leading manufacturers to future-proof their factories.

CONTENTS

FLEXQUBES AUTOMATION CONCEPT FlexQube AMR System FlexQube AGV System

4 8

PRODUCT GUIDE AGV Carts

12

FLEXQUBES MECHANICAL CART CONCEPT FlexQube Cart System The Basics of FlexQube Carts The FlexQube Standard Module

14 16 18

PRODUCT GUIDE Pallet Tugger Carts Pallet Carts Flat Shelf Carts Extendable Shelf Carts Flow Shelf Carts Hanging Carts Mother Daughter Carts Kit Carts STILL LiftRunner Frames Carts for LiftRunner

20 24 28 32 36 40 44 48 52 56

CASE STUDIES AMR Heavy Truck Manufacturer, Sweden

60

AGV Signify, USA Siemens, USA Mitchell Plastics, USA

62 64 66

Cart Proterra, USA Eberspächer, Sweden Autoliv, Mexico

68 72 74

THE WORLD OF FLEXQUBE Contact Information

76

AMR System.

Safe, Smart, Scalable and Successful Material Handling.

DESIGNED FOR THE FUTURE OF MATERIAL HANDLING – we created a unique AMR based on the same flexibility as in all of our FlexQube carts to provide an autonomous solution that adapts to your operational needs.

This is a “one robot/multi-carrier” concept which means that one single Navigator AMR can couple to an ecosystem of different motorized Load Carriers. With the innovative and patented Navigator AMR System, FlexQube can offer customers an automated transport solution to move materials of different size, shape and weight based on the design of the Load Carrier.

4 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

SMART

SAFE

The FlexQube AMR System is a smart choice for streamlining internal logistics, improving workflows and ergonomics.

The FlexQube AMR System is a safe investment and a people friendly concept that will future-proof your factory for years to come.

SCALABLE

SUCCESSFUL

The FlexQube AMR System has a standardized interface and can easily be adapted to your factory’s varying needs.

The FlexQube AMR System is easy to implement, offers a hassle-free environment and has great ROI compared to other options.

CASE STUDY

FOR CASE, SEE PAGE 60

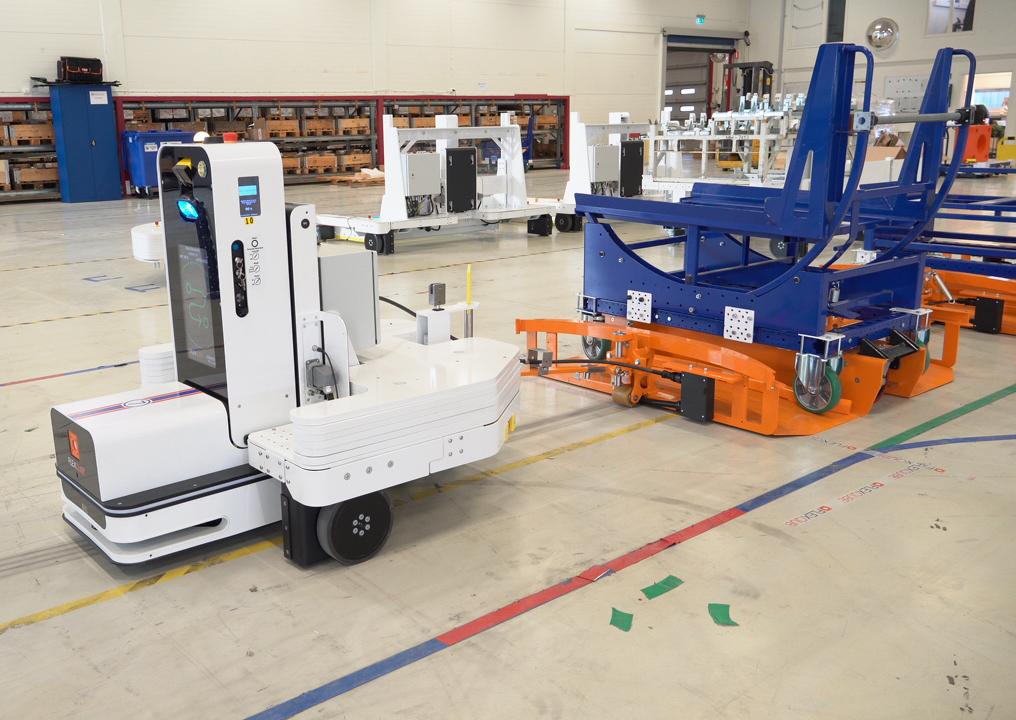

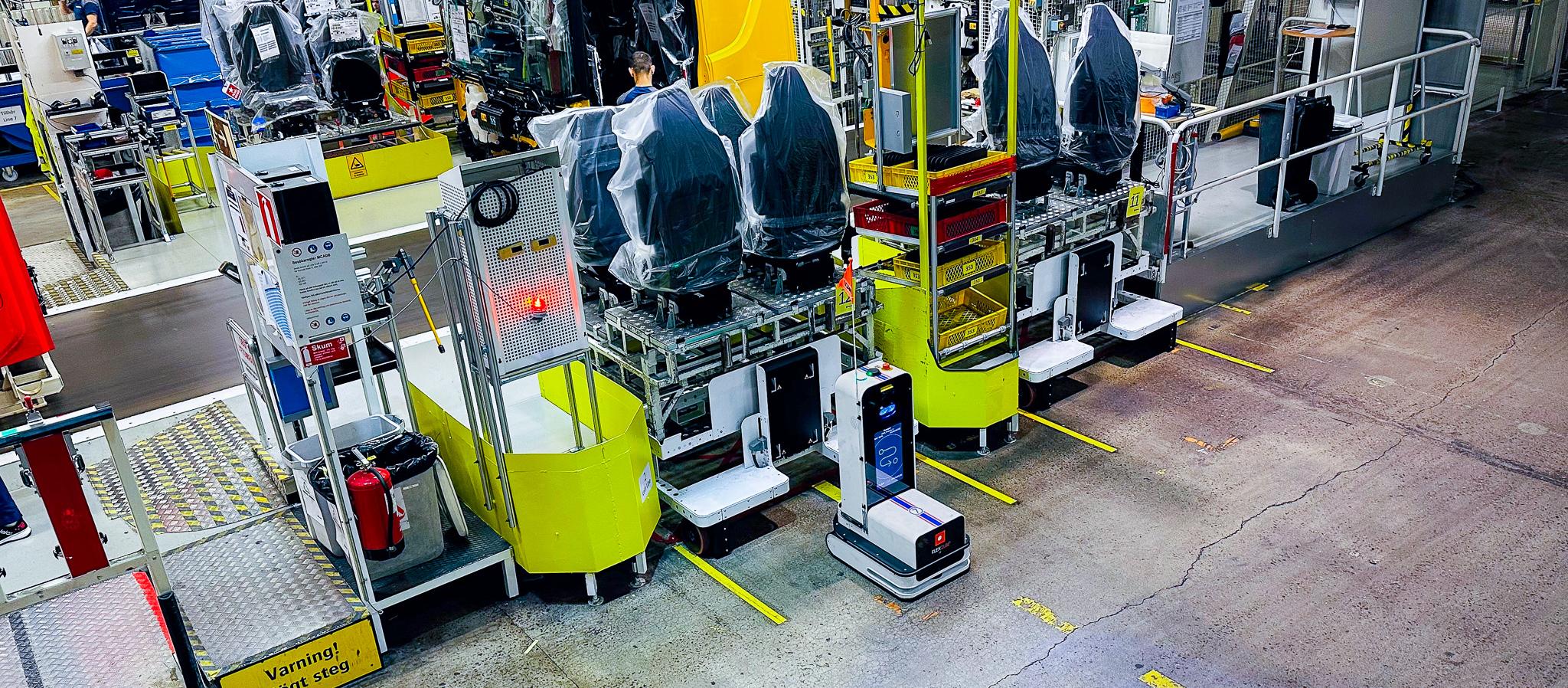

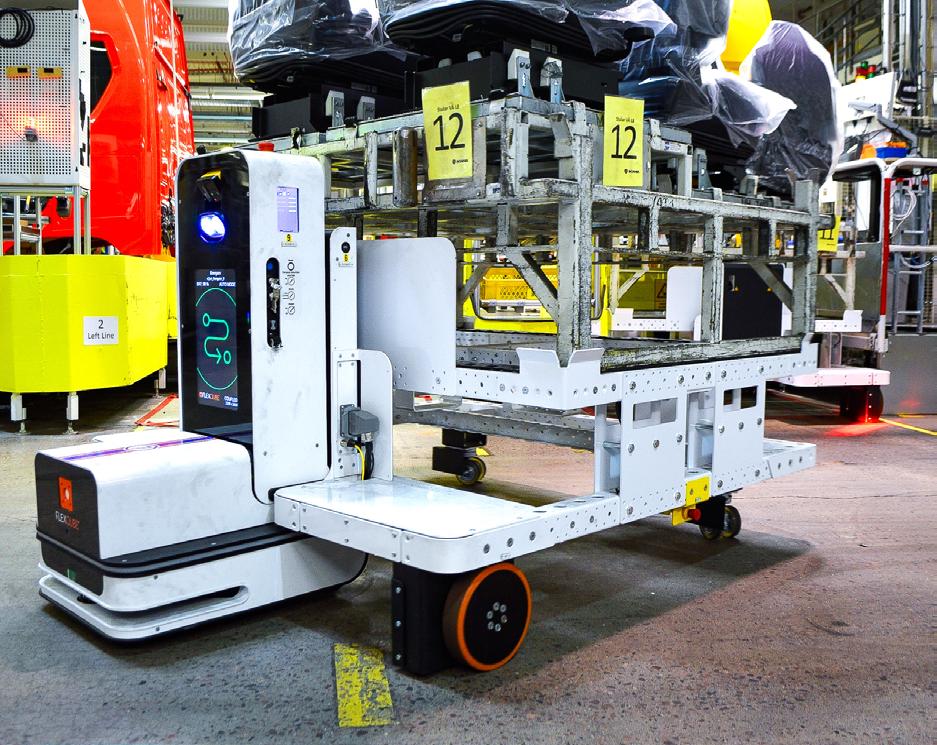

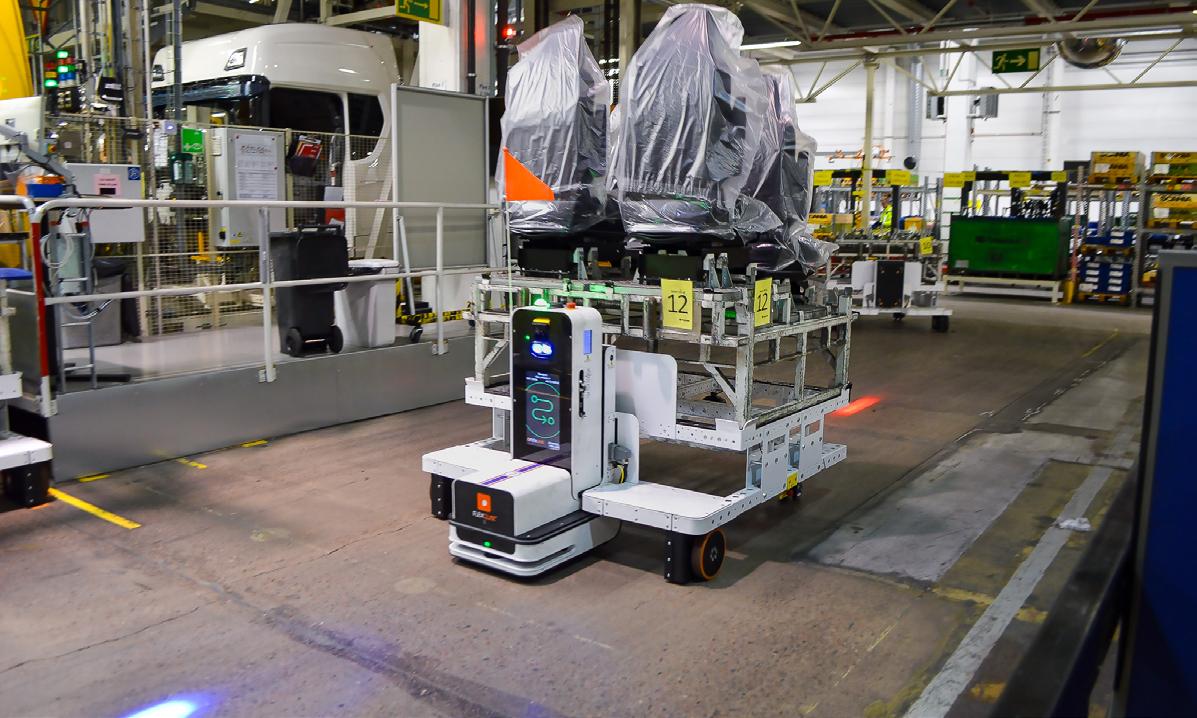

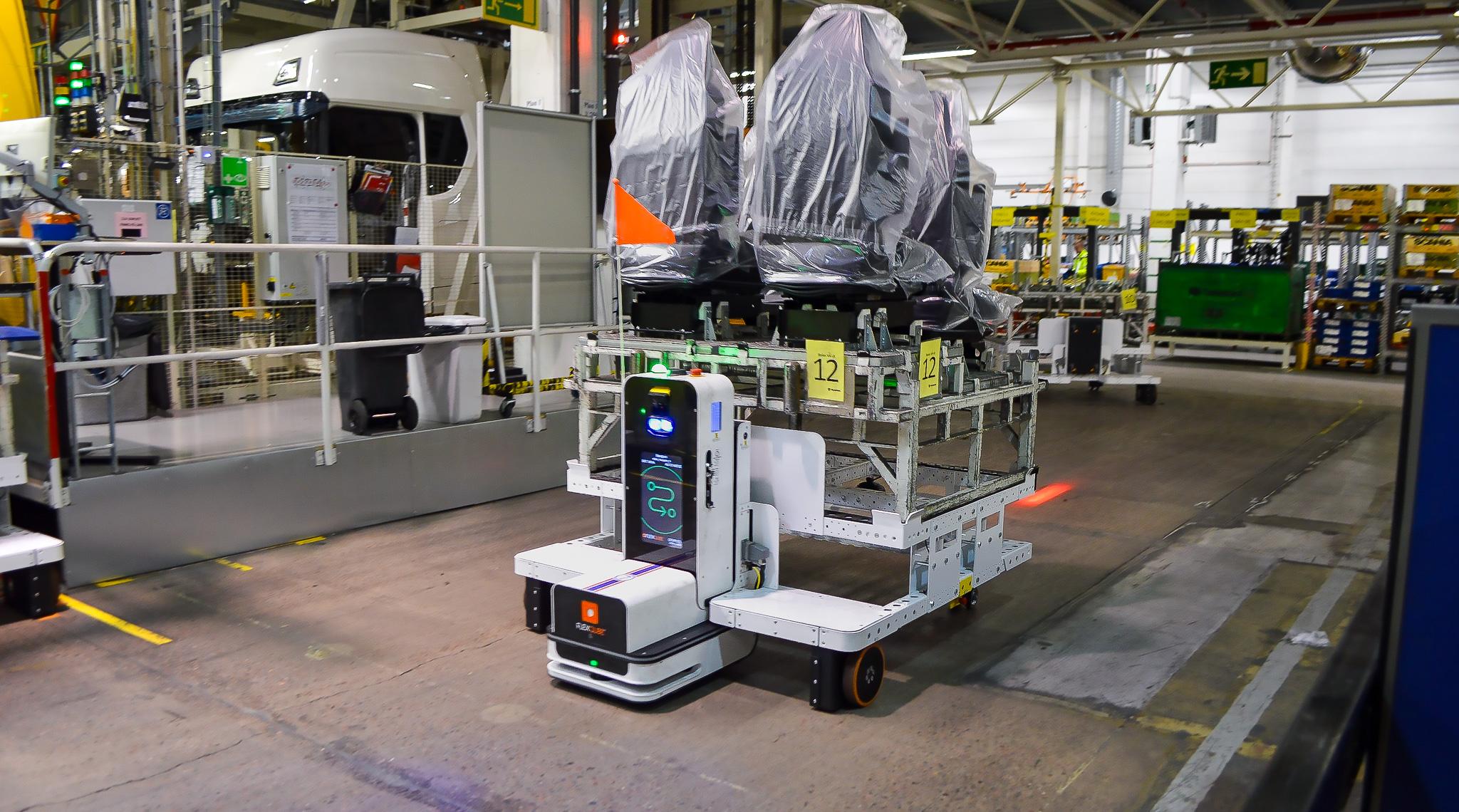

HEAVY TRUCK MANUFACTURER Automating Transport of Seats and Doors to Cab Assembly Line with an ROI Below 2 Years!

Page. 60

5 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

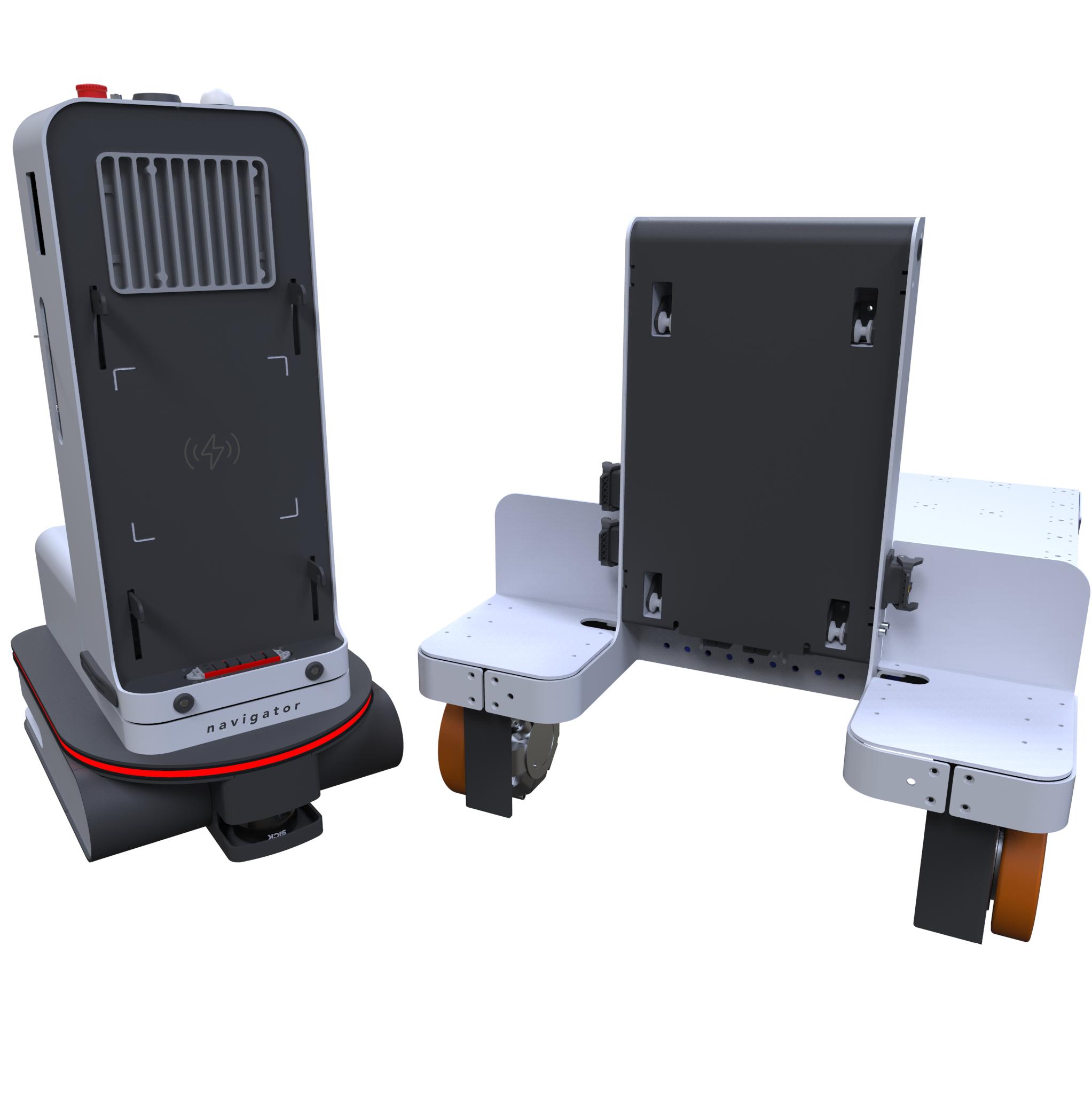

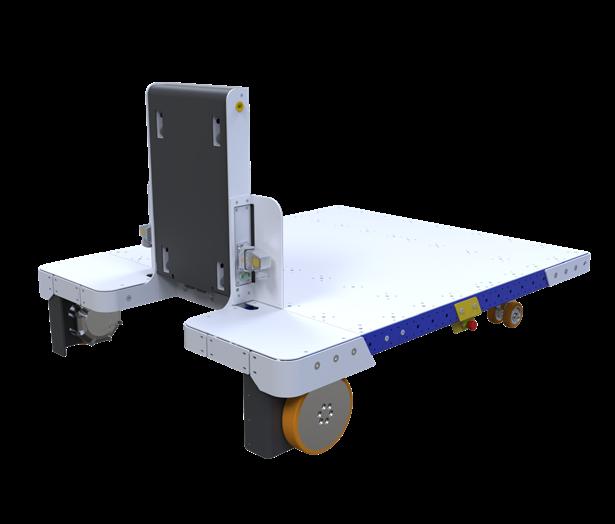

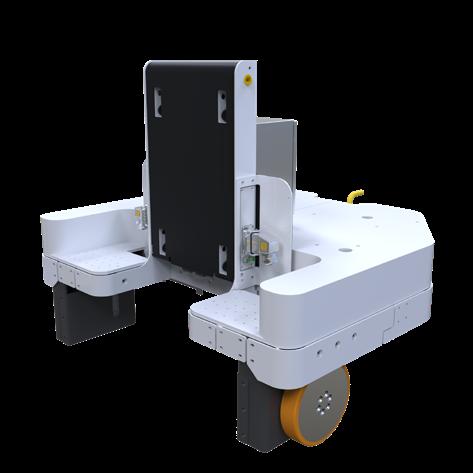

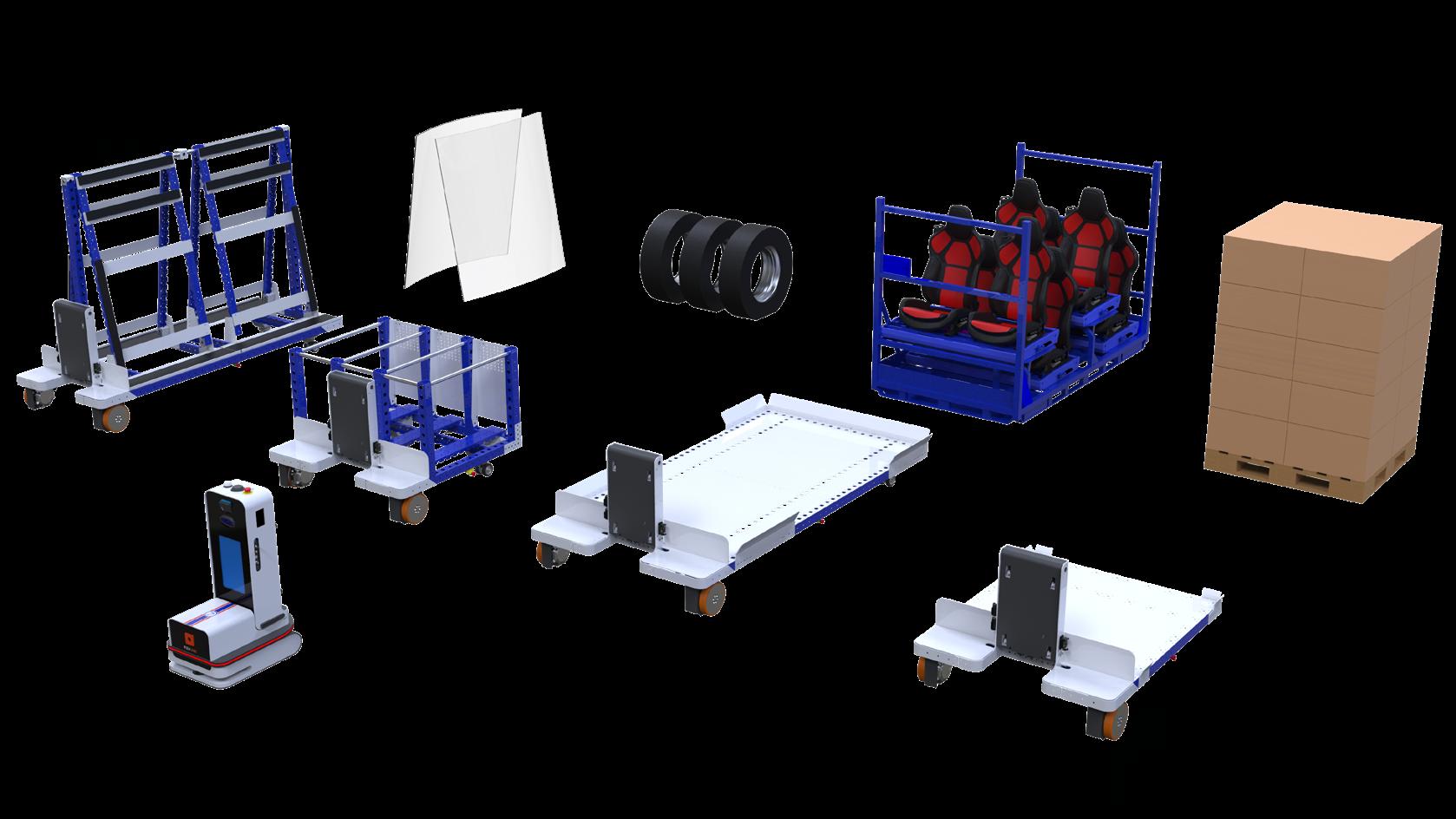

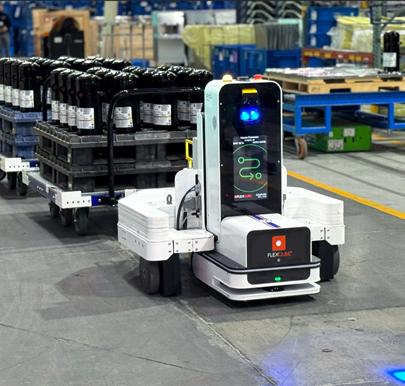

INTELLIGENT NAVIGATION ROBOT. By developing the principle of “one robot for multiple carriers”, we’ve created the flexibility to move anything anywhere, which is critical in today’s complex manufacturing environment.

 

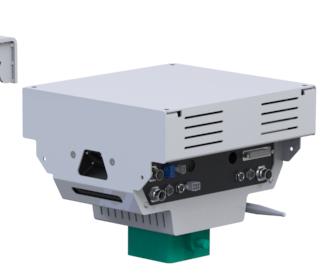

 1. Navigator AMR

2. Load Carriers

3. Materials

INOVATIVE SAFETY The AMR is is detecting the footprint of the Load Carrier in a PLd rated way, and automatically adapts the safety field around the Load Carrier.

ROLLER LOAD CARRIER

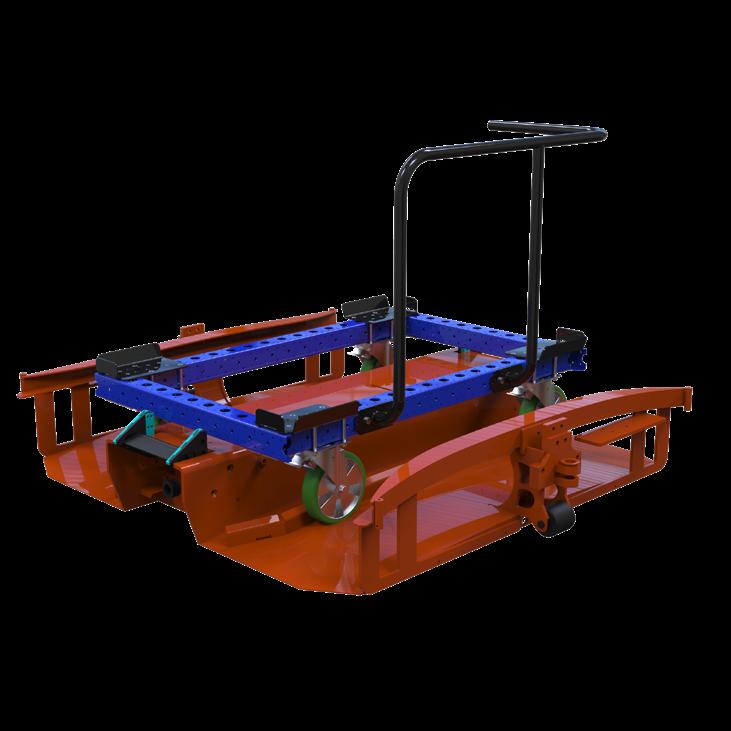

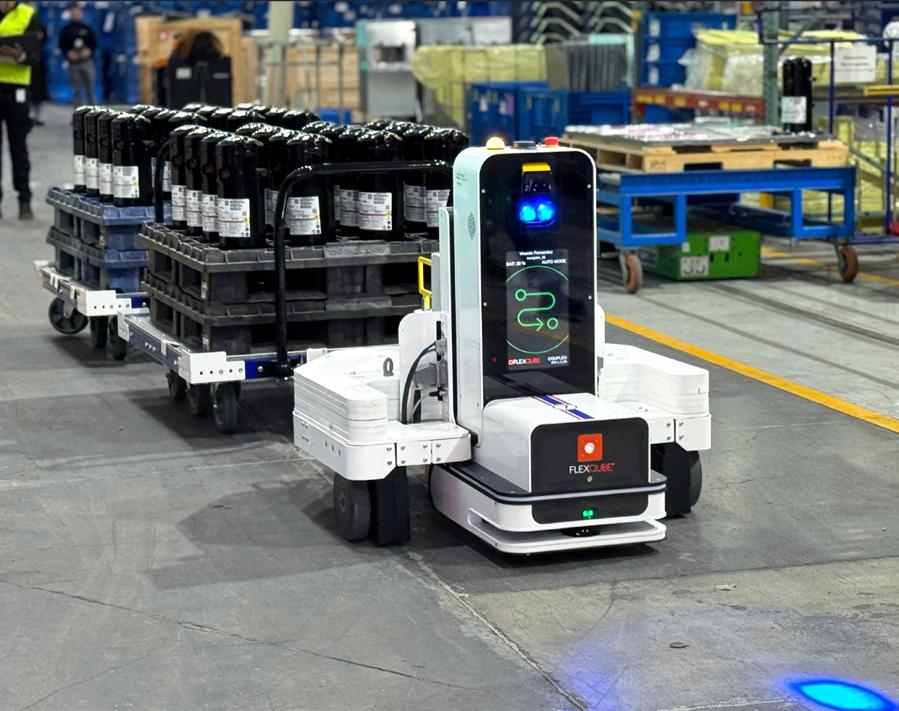

TOWING LOAD CARRIER

FLATBED LOAD CARRIER

This heavy-duty system is designed to autonomously move pallets and connect to a roller rack at the drop-off and pickup area. This system can move materials weighing up to 3300 lbs / 1500kg kg.

This heavy-duty system is designed to autonomously move carts that are equipped with a tow bar in manufacturing and warehouse environments. This system can move materials up to 5500 lbs / 2500 kg.

This heavy-duty system autonomously moves pallets, racks, and material kits in warehouses and factories, with load carriers ranging from 910 × 840 mm to 2520 × 2520 mm.

Q-100-8194

Q-100-8145

Q-100-6673

6 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

A standardized coupling interface lets you start small and expand as your operations grow, without needing to invest in multiple Navigator AMRs. Modular Load Carriers offer flexibility, making it easy and cost-effective to reconfigure as your needs change.

STANDARDIZED COUPLING INTERFACE - FLEXQUBEPLAY Through established partnerships with the leading technology providers in the industry, we have developed a safe and quick coupling interface, called FlexQubePLAY. When coupled, the AMR Navigator is raised from the ground.

Power and data is transferred from the Navigator AMR to the motorized Load Carriers, which transports the materials while being navigated by the AMR. 7 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

AGV System.

The World’s Most User-Friendly Automation.

OUR GOAL WITH THE AGV IS CLEAR – to provide manufacturers with the most user-friendly automation solution for internal logistics. With our flexible and modular concept, you’ll never have to compromise on your requirements.

Flexibility is key to modern factories and warehouses. FlexQube AGV System is an internal logistics automation solution that makes it simple. FlexQube AGV is a standalone system that offers unlimited customizable cart variations, and that can be up and running within 60 minutes. Designed to accommodate you, your processes and operators, with no need to change your existing infrastructure or material handling fleet, FlexQube AGV is automation you’re ready for.

LOOK FOR THIS MARK TO FIND OUR CUSTOMERS FAVOURITE SOLUTIONS

8 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

Simple

Effective

Flexible

NO COST FOR INFRASTRUCTURE

REDUCES MANUAL OPERATING

FLEXIBLE TO SELECT A TOP STRUCTURE

A low threshold to start with an AGV and scale it depending on needs.

AGV can replace trucks and trolleys, trains and manual driving, and can work multiple shifts.

The AGV can be adapted to various applications by complementing it with a top structure built using the FlexQube concept.

FROM BOX TO USE IN UNDER 30 MIN Automated recordings of routes help make a quick and easy implementation possible.

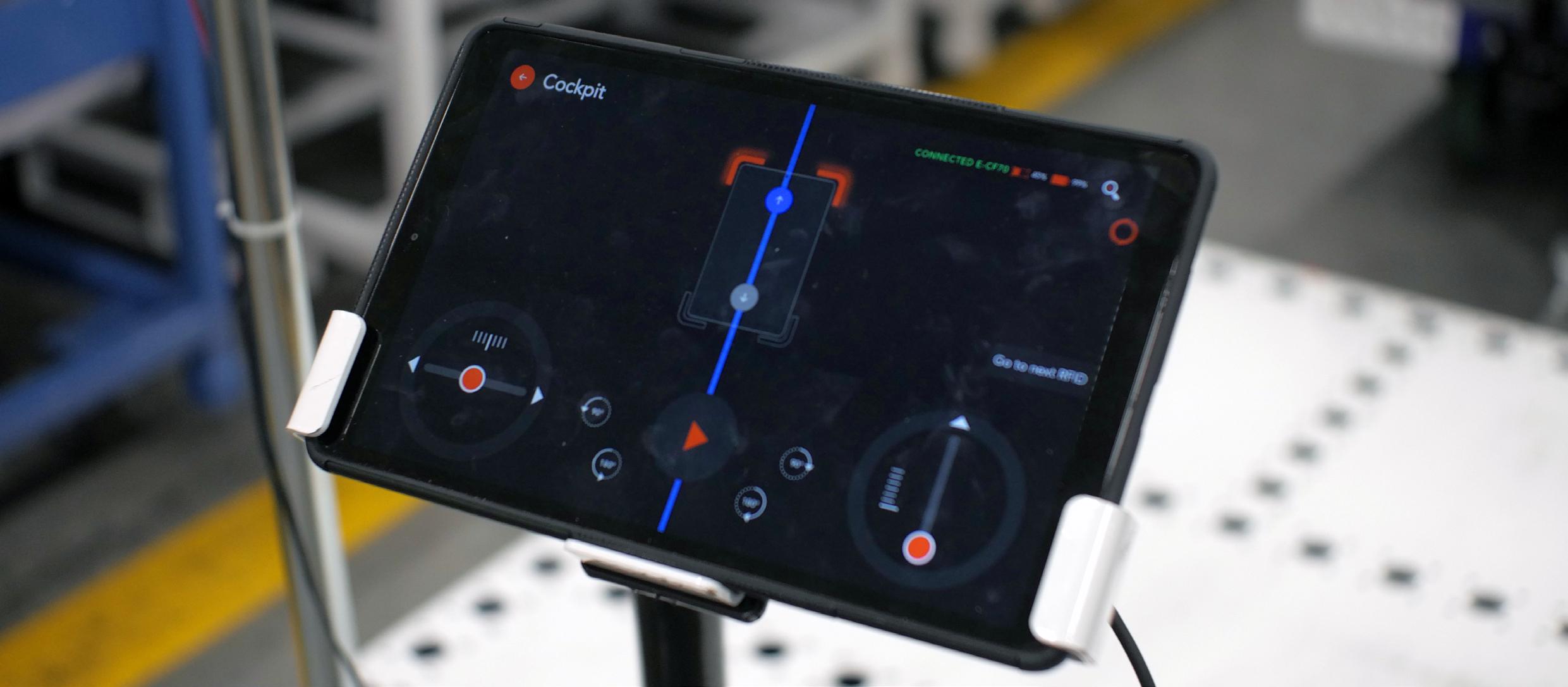

MINIMAL TRAINING REQUIRED A self-instructing digital interface with the ability to make local language adaptations.

WORKS WITHOUT WIFI All data is stored locally in the AGV and is updated via a 4G connection.

ATTRACTIVE COST LEVELS Focus on the development of the AGV has been to find the optimal balance between cost and transportation gain.

CAN BE REBUILT AS NEEDED

AN EASY PURCHASE MODEL

A SECURE FUTURE

Leasing with fixed monthly costs and free software updates, but also multiple other purchasing solutions will be offered.

The AGV is designed based on a modular architecture, which makes it possible to upgrade functionality and performance.

The AGV can be updated or rebuilt to a different size should the need occur.

A UNIQUE SIZE RANGE The AGV can be designed with a length of up to 2.5 metres.

CASE STUDIES

FOR CASES, SEE PAGES 62-67

SIGNIFY

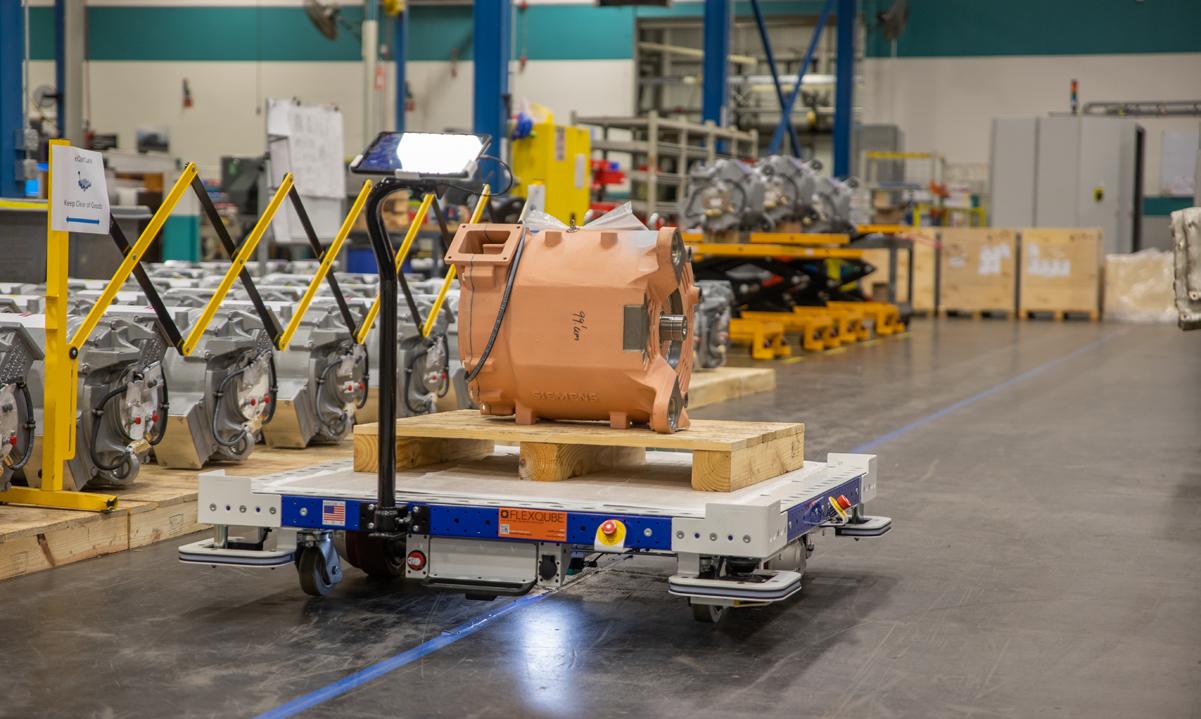

SIEMENS MOBILITY

MITCHELL PLASTICS

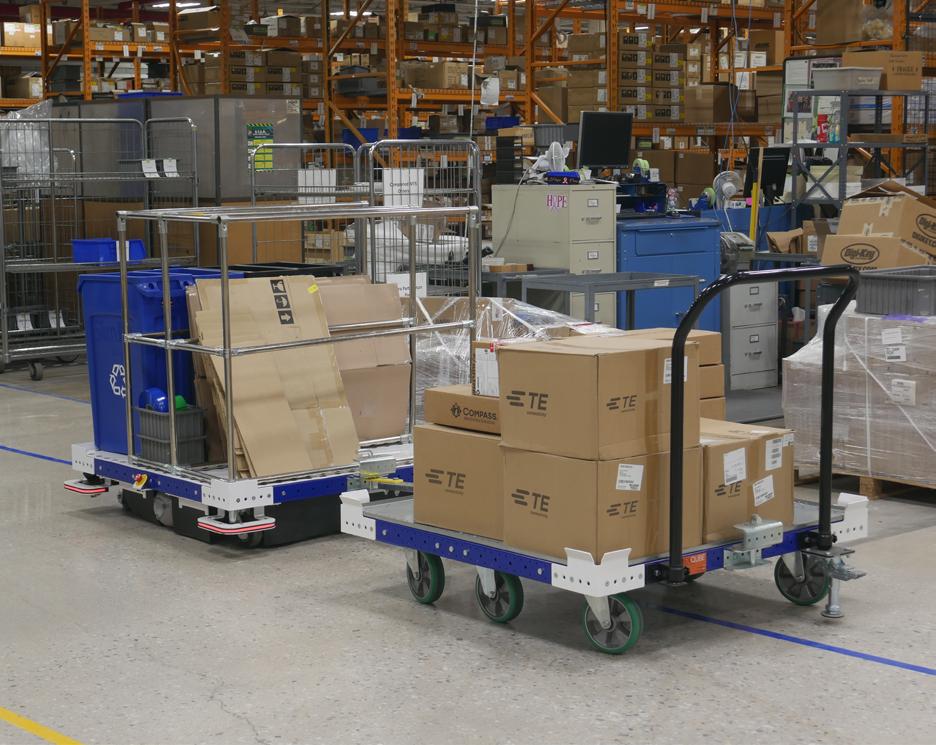

Eliminating foot traffic with accessible and user-friendly automation.

“We got started with a future factory.”

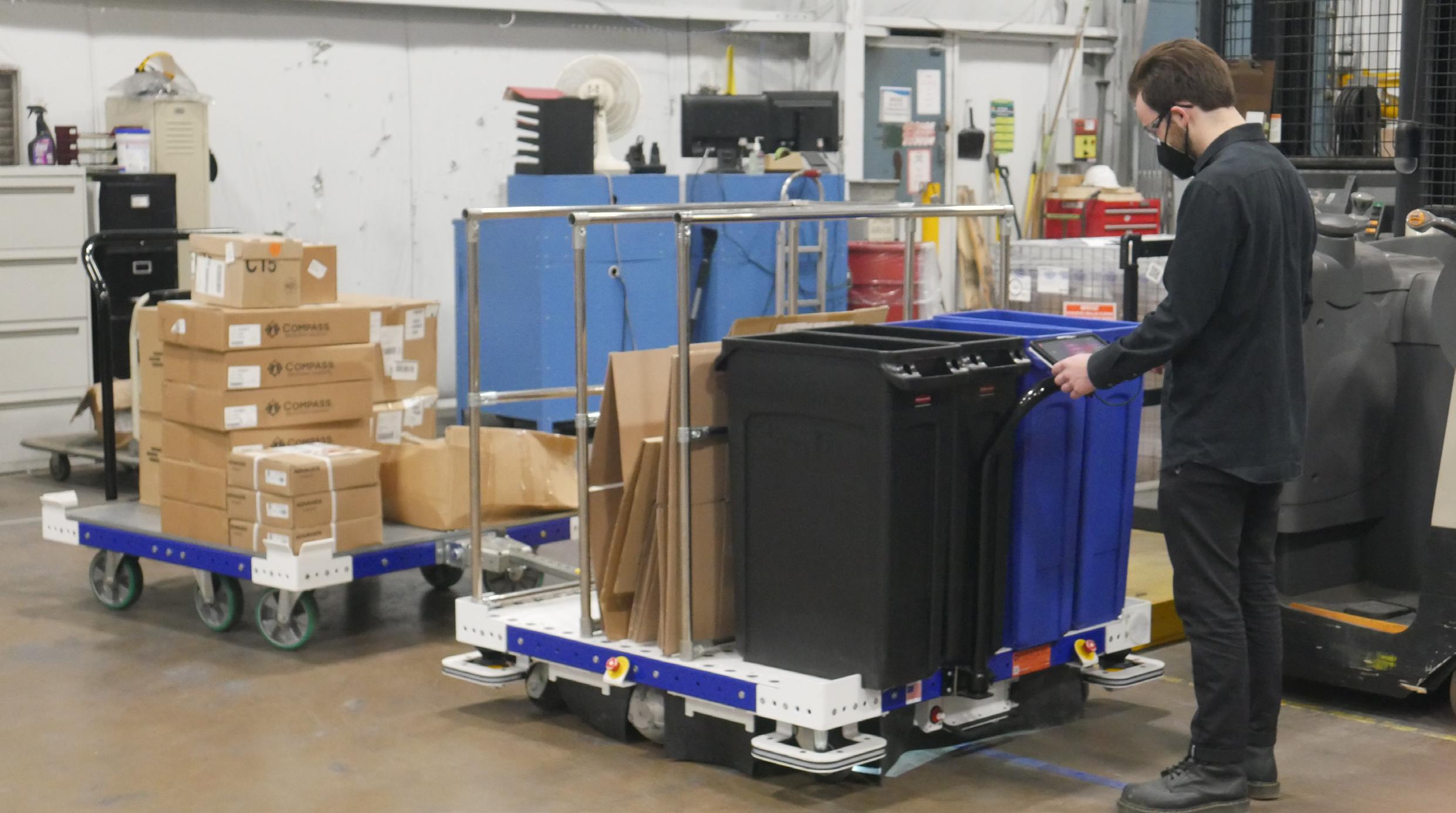

Mitchell Plastics prioritizes safety with FlexQube AGV

Page. 62

- Kim Howe, Logistics Manager, Siemens Mobility, Georgia, USA.

Page. 64

Page. 66 9

EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

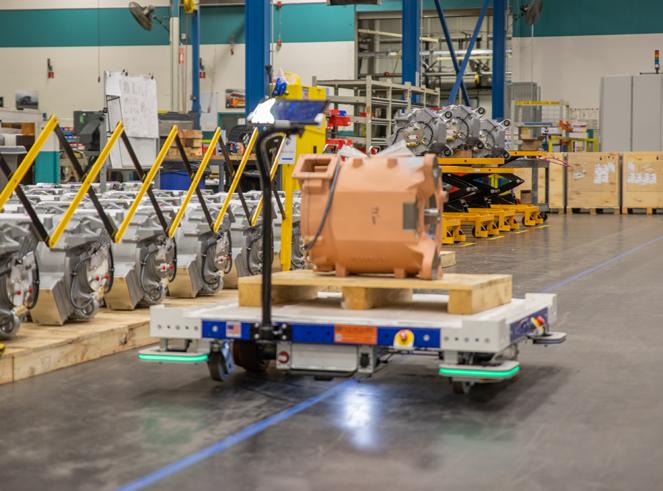

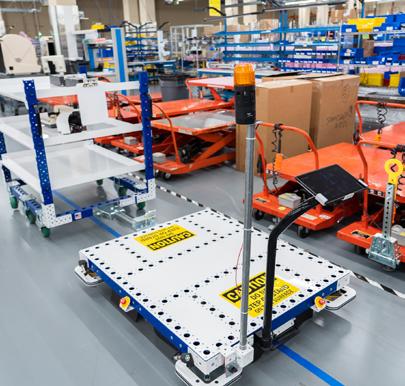

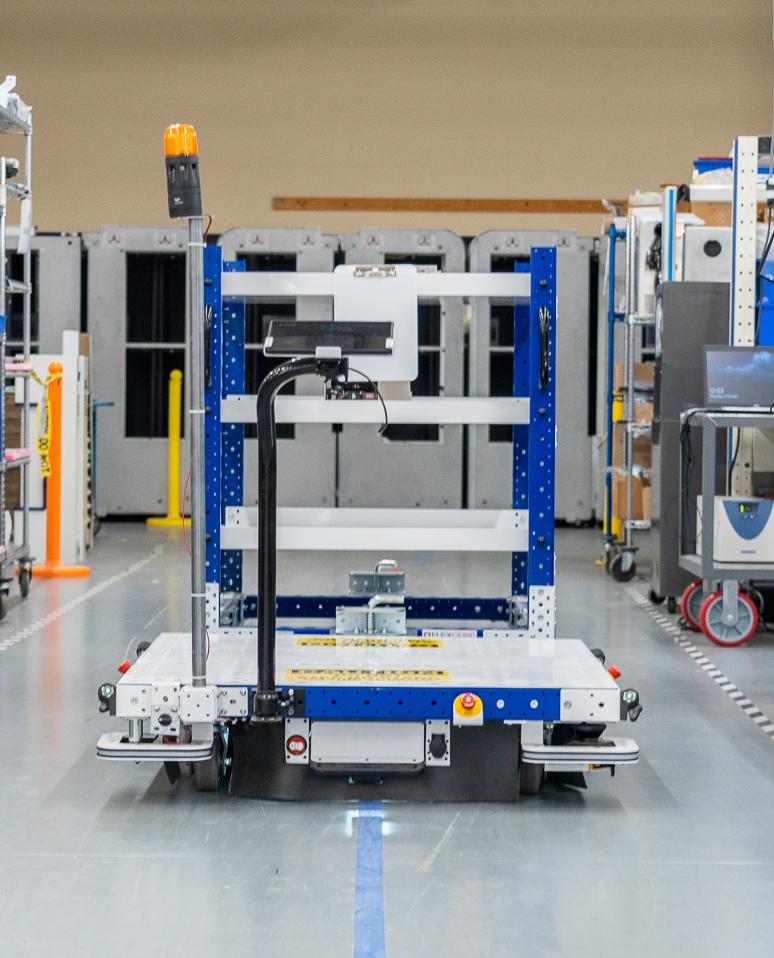

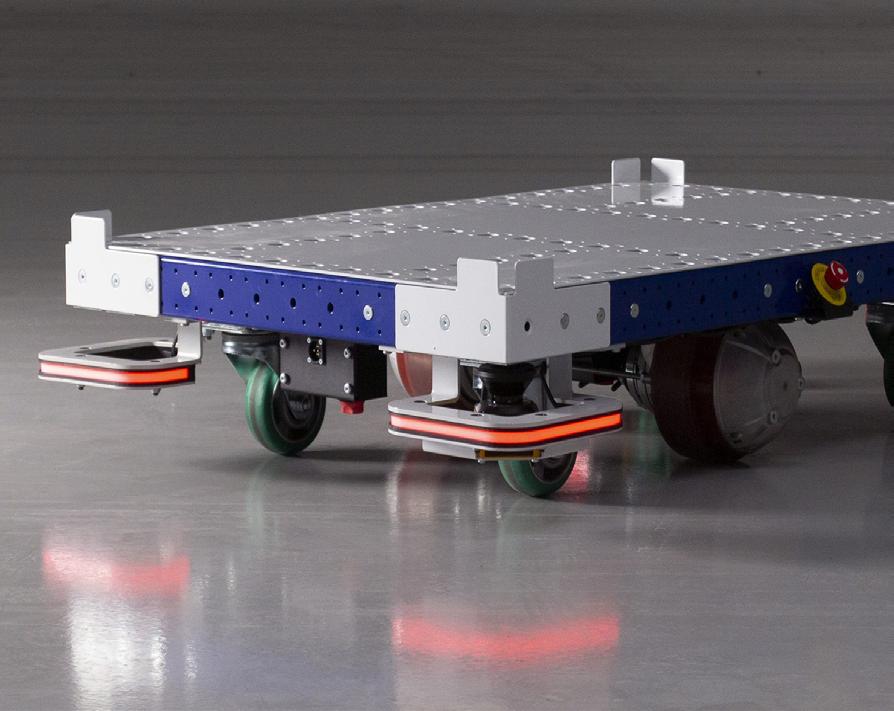

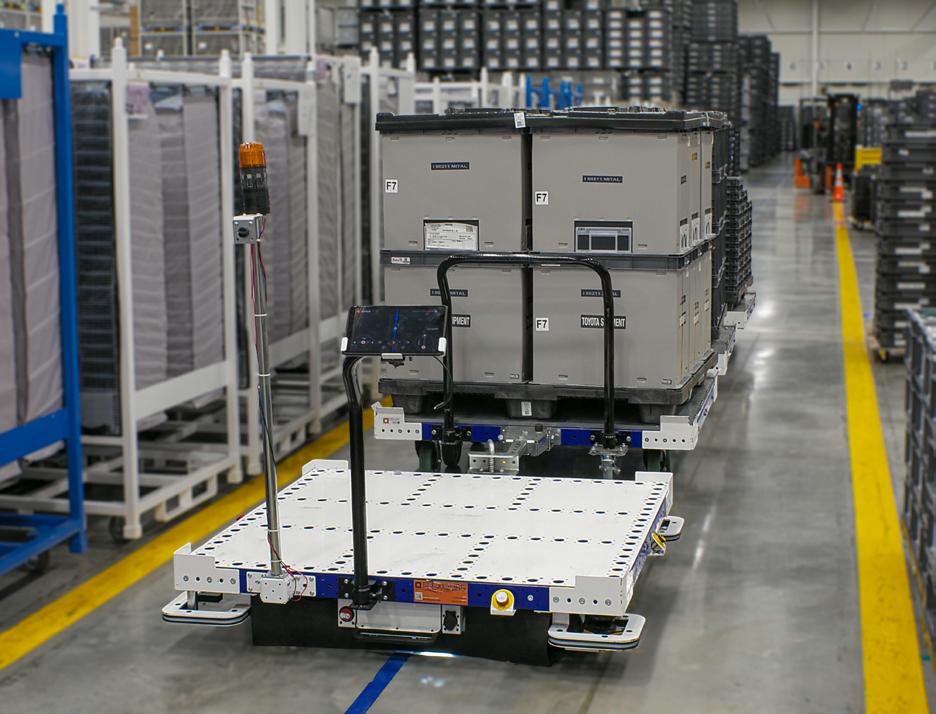

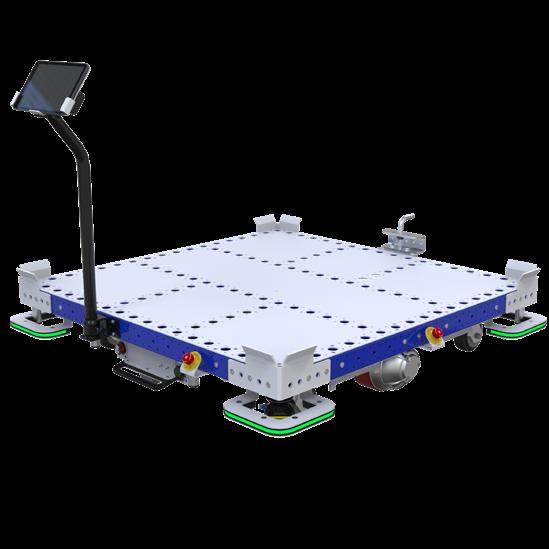

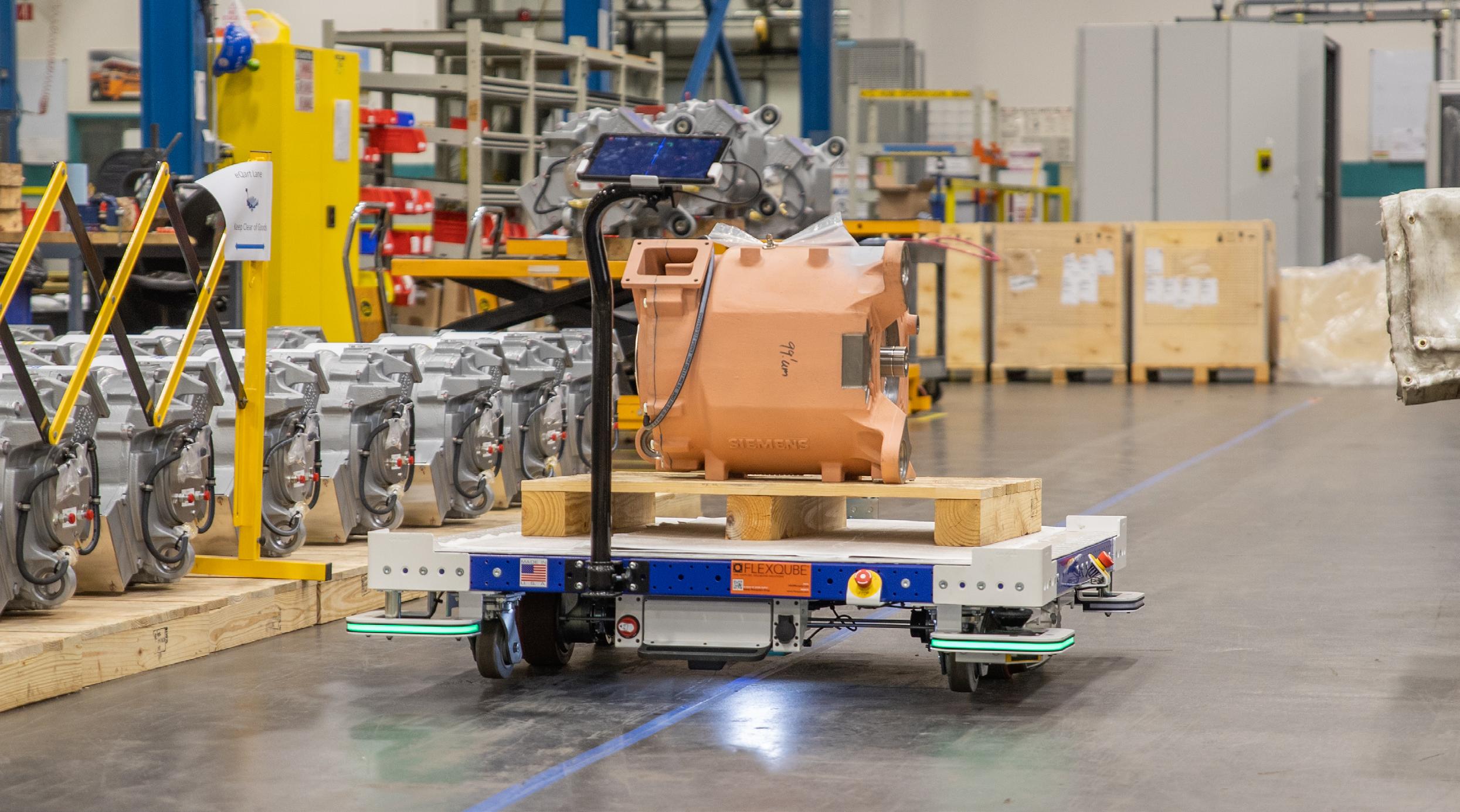

AGV SYSTEM. The FlexQube AGV is a smart and motorised FlexQube cart. They are designed to make automating your facility a simple and stress-free process. Motors, a battery and cameras are added to a regular FlexQube cart. The AGV is available in any size and shape.

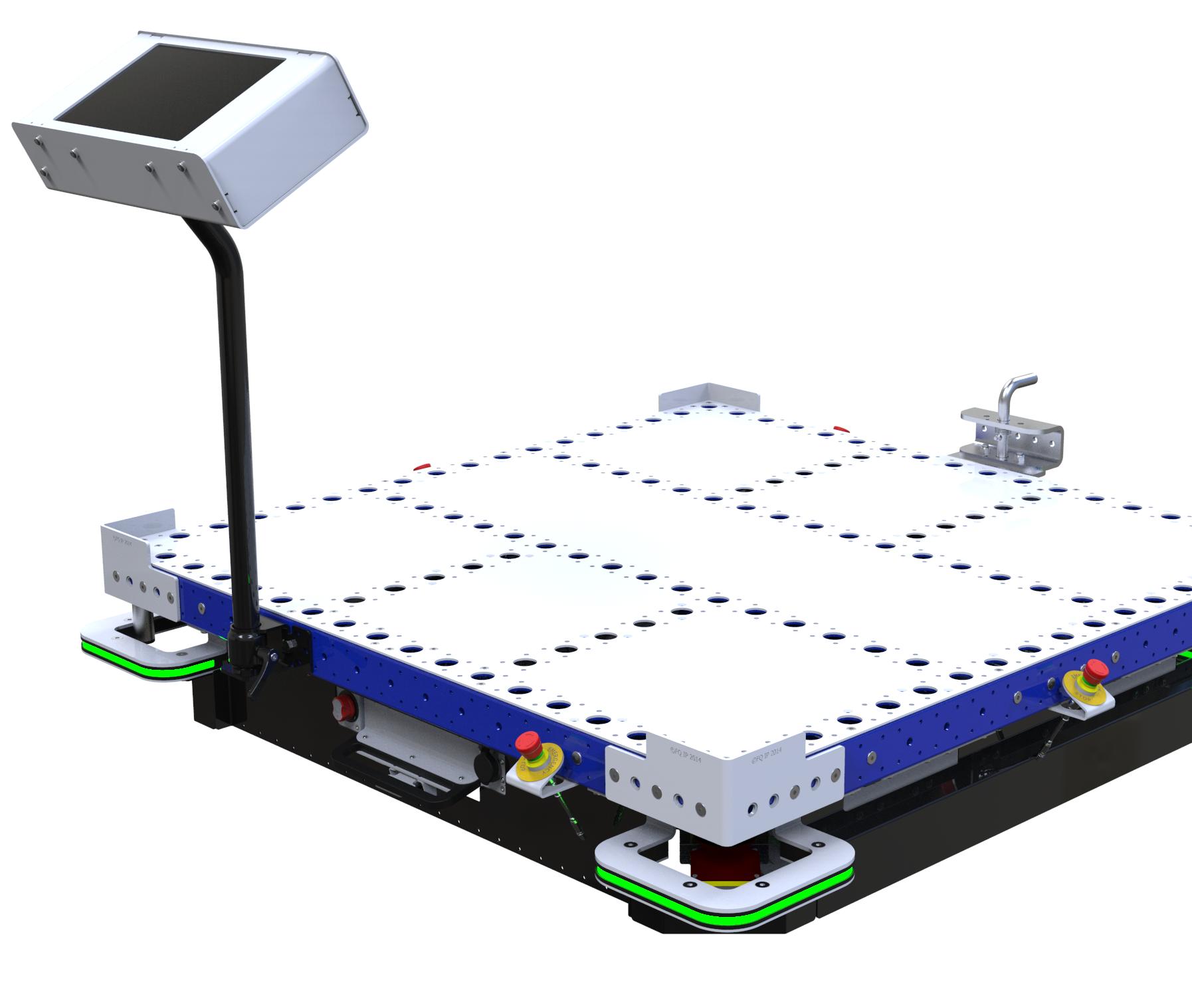

PALLET AGV

50 x 50 inch / 1260 x 1260 mm Q-100-6510

LOAD CAPACITY

TOW CAPACITY

2,200 lbs / 1000 kg

4,400 lbs / 2000 kg

Optical Camera for Line-follow Navigation (Located under the AGV ) Tablet

Battery

4x Emergency Stops

Hokuyo Laser Scanners Creates a 360º view with no blind spots

10 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

AGV SYSTEM

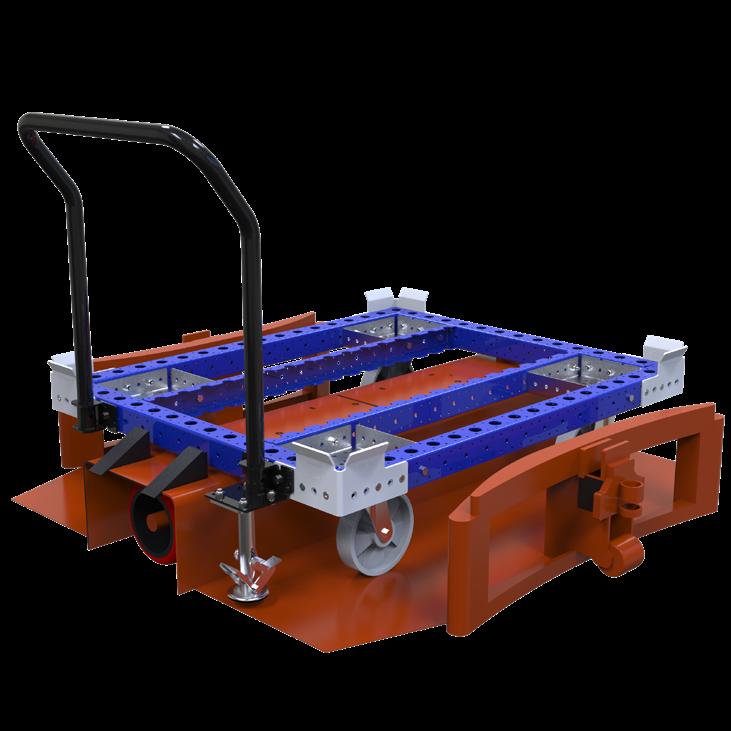

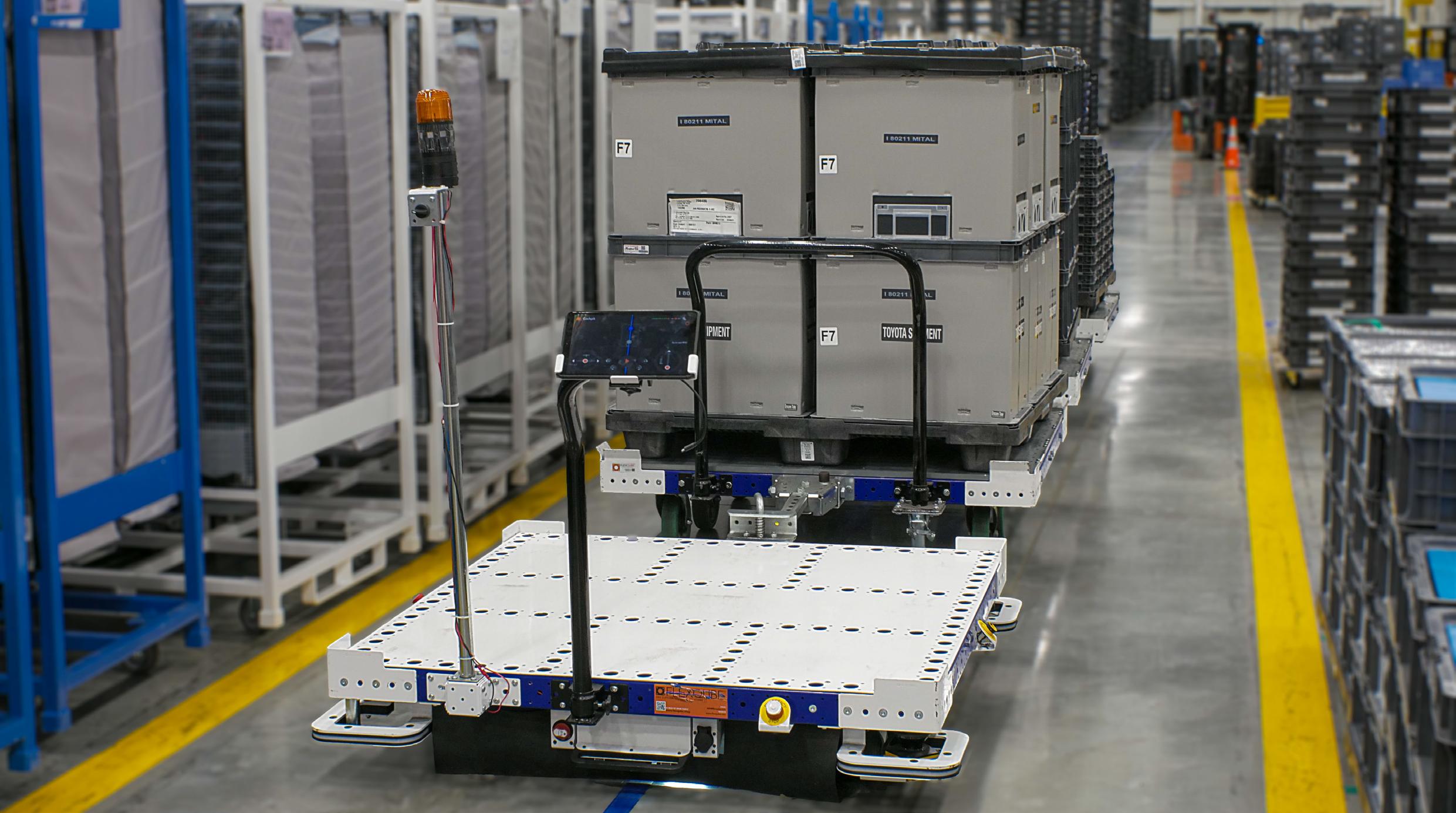

TOWING PALLET AGV 50 x 50 inch / 1260 x 1260 mm Q-100-4694

A customer favourite due to it’s user-friendliness and high tow capacity of 2,200 lbs / 1000 kg.

THE AGV CONCEPT - offers a fully customizable AGV with Vision-Based Navigation and 360° Safety.

Navigation: Vision Based Line Follow Charge Time: 2 h Safety: 360º Customization: You decide the size and top structure of the AGV.

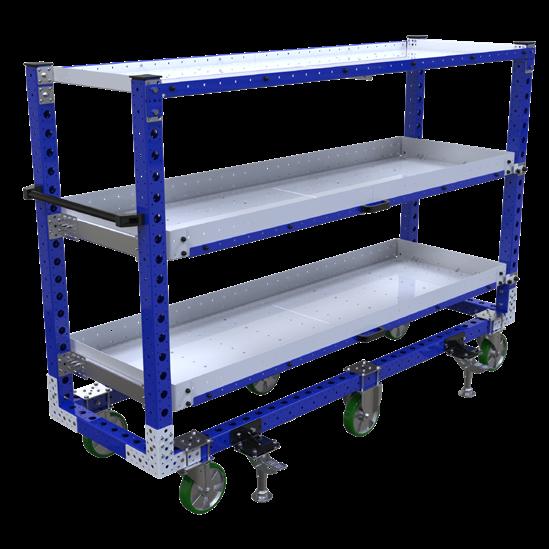

FLAT SHELF AGV

50 x 33 inch / 1260 x 840 mm Q-100-8109

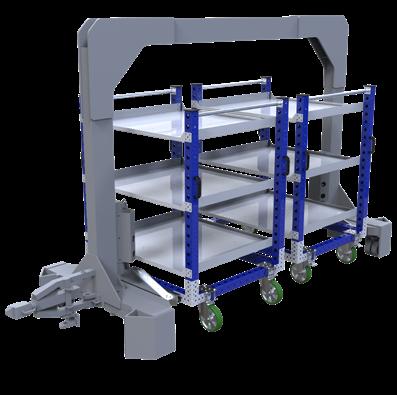

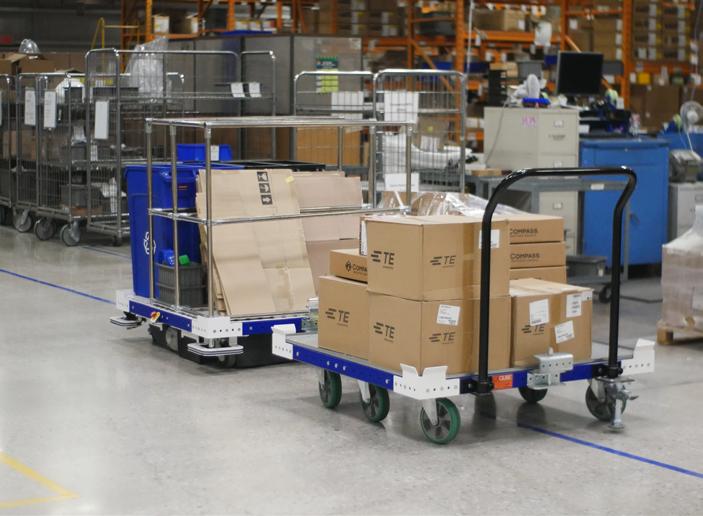

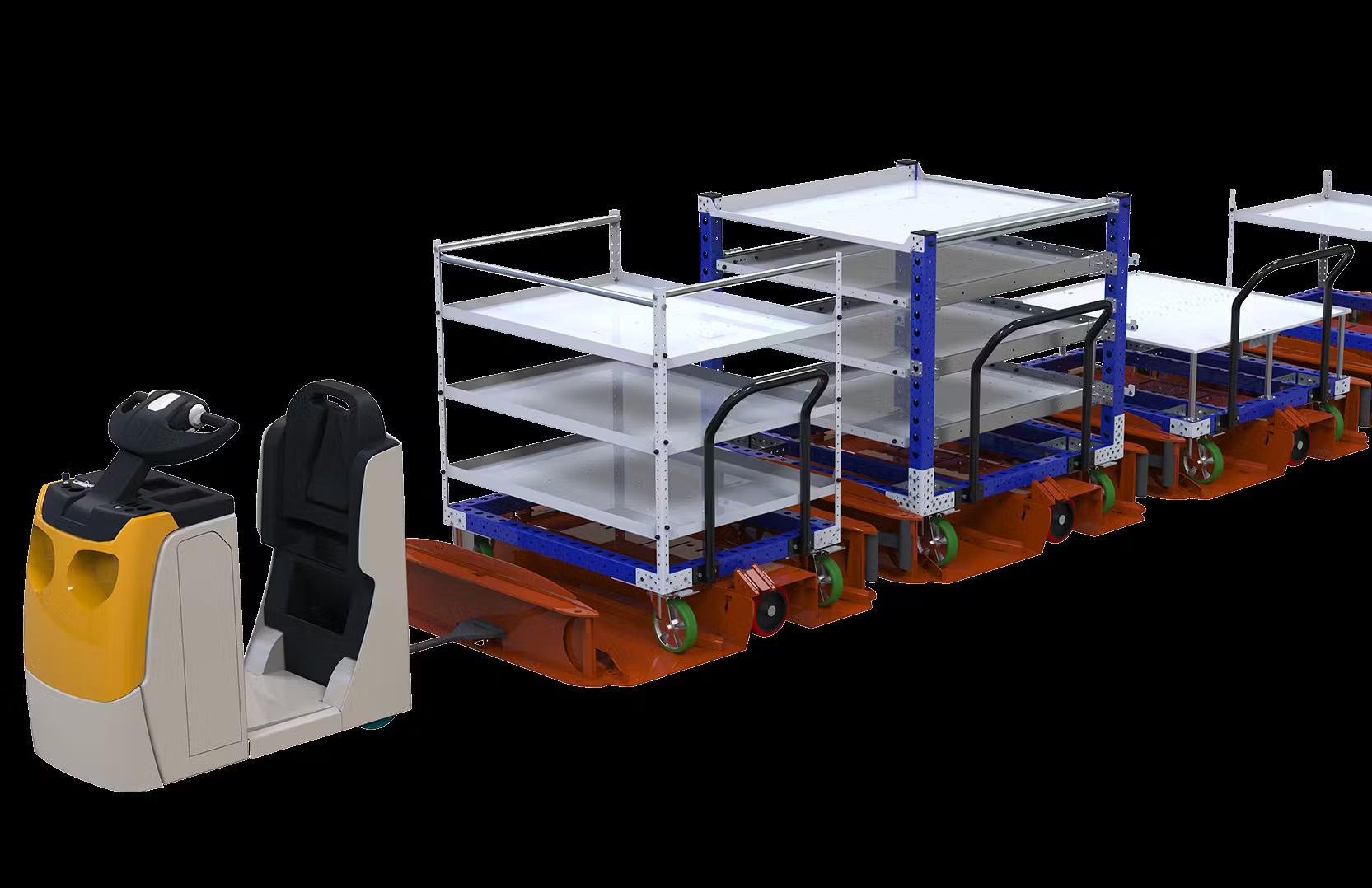

Flat-shelf AGV designed to tugg flexQube mechanical carts in a tugger train solution.

11 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

AGV CARTS Q-100-4694

TOWING PALLET AGV • • • •

Q-100-6694

• • •

A customer favourite due to it’s user-friendliness and high tow capacity of 2,2200 lbs / 1000 kg.

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Flatbed, Tugger Payload: Pallets, Containers

Product Information: Additional safety feature with a lamp that flashes while the AGV is in motion.

ROLLER AGV • • • •

Q-100-4414

Product Information:

TOWING PALLET AGV •

Q-100-5419

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Flatbed, Tugger Payload: Pallets, Containers

Size: 50 x 41 inch / 1260 x 1050 mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Conveyor Payload: Pallets, Containers

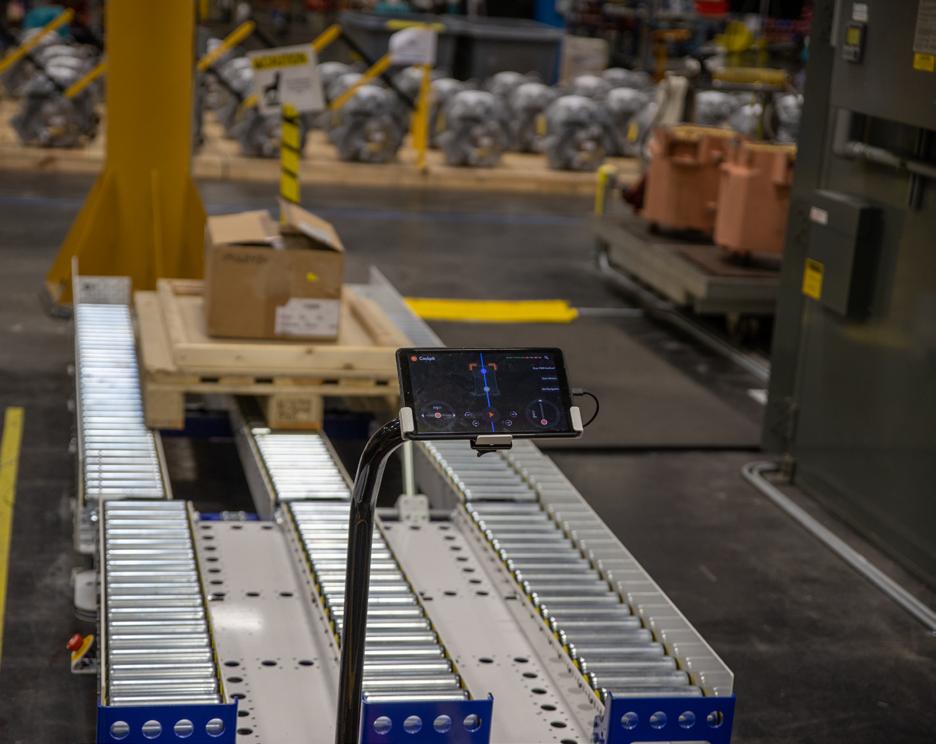

Product Information: Easy material transfer from and to roller rack.

The AGV transport materials to drop-off station where operator retreive the pallet.

Automatic rollers are also available.

PALLET AGV • • • •

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,200 lbs /1000 kg Transportation: Flatbed, Tugger Payload: Pallets, Containers

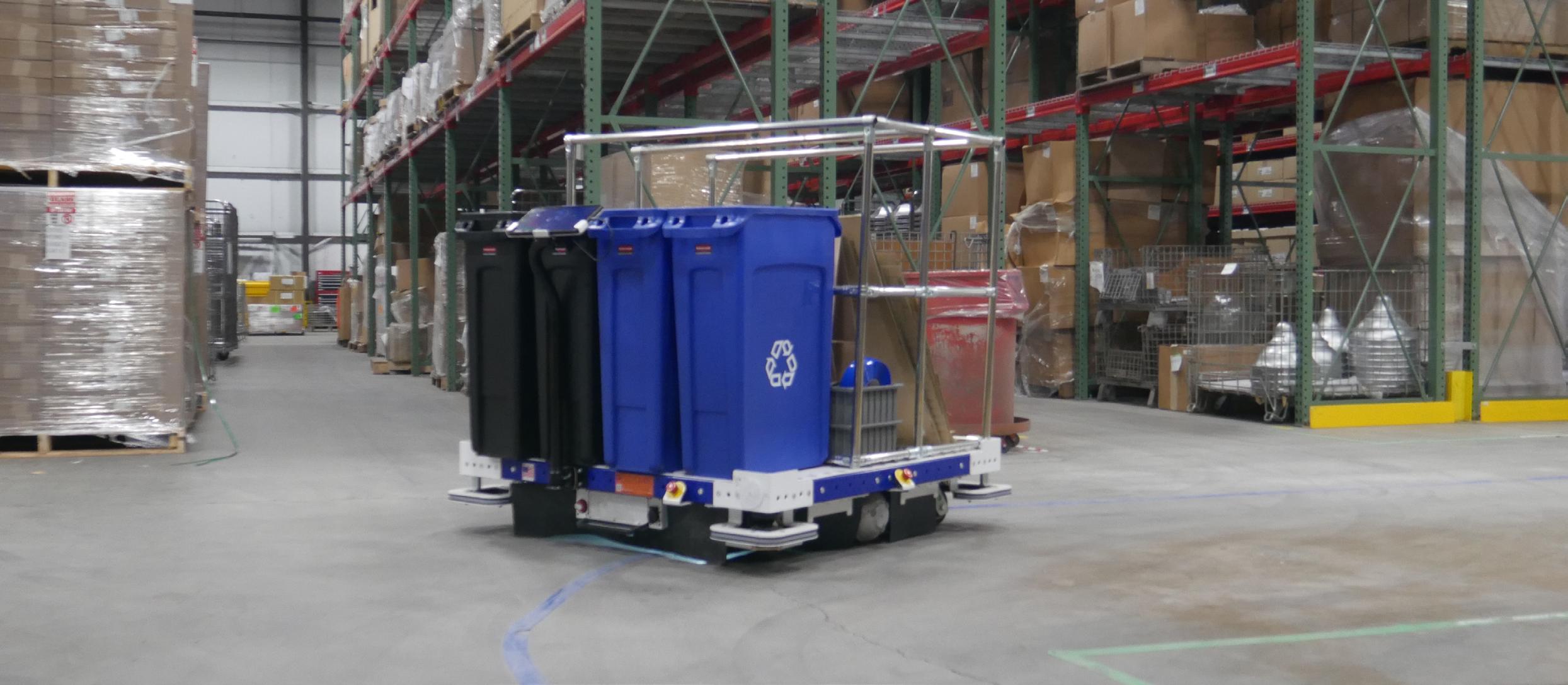

Product Information: Base structure implemented at Signify facility to transport bins and cartboards as well as tow mechanical carts in a tugger train. To see case study, go to page 62.

12 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

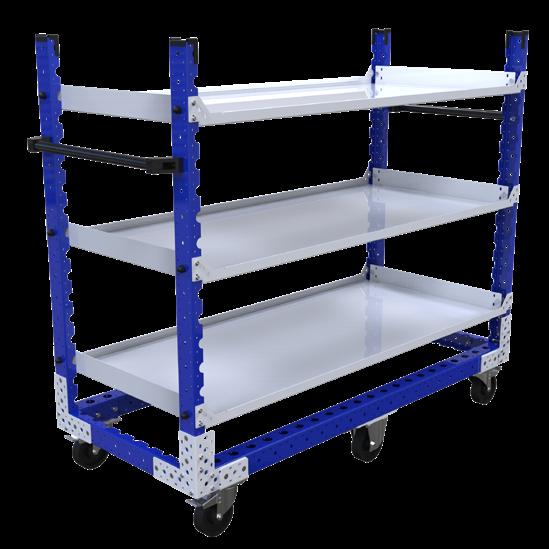

AGV CARTS FLAT SHELF AGV Product Information:

•

Flat-shelf AGV designed to transport lose materials and to be integrated in a tugger train solution together with FlexQubes mechanical carts.

• • •

Size: 50 x 33 inch / 1260 x 840 mm Load Capacity: 1,000 lbs / 450 kg Transportation: Shelf, Tugger Payload: Boxes, Totes, Misc Parts

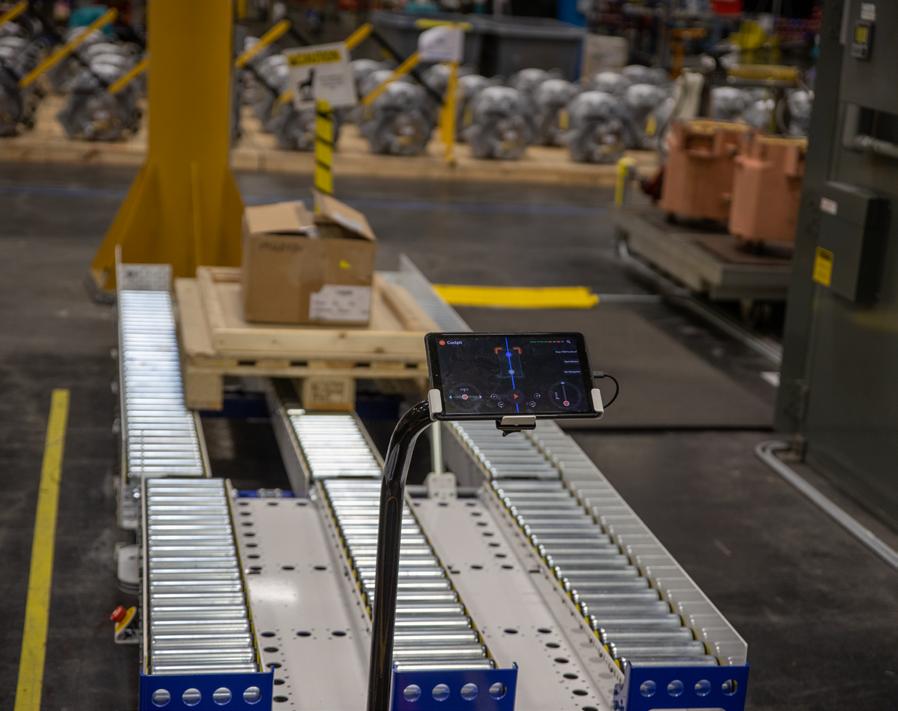

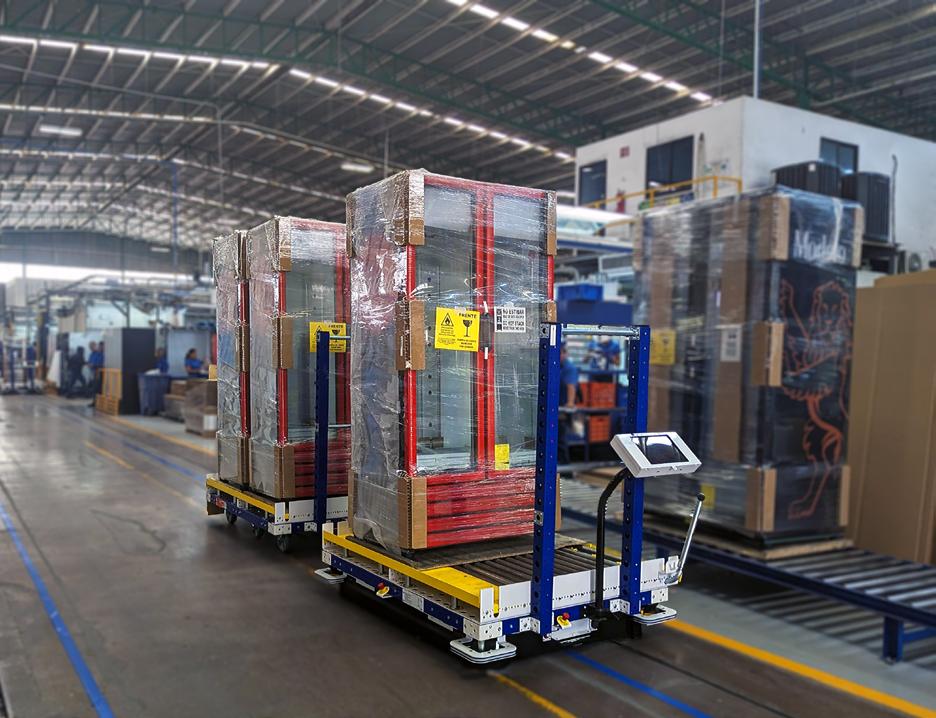

ROLLER AGV Product Information:

•

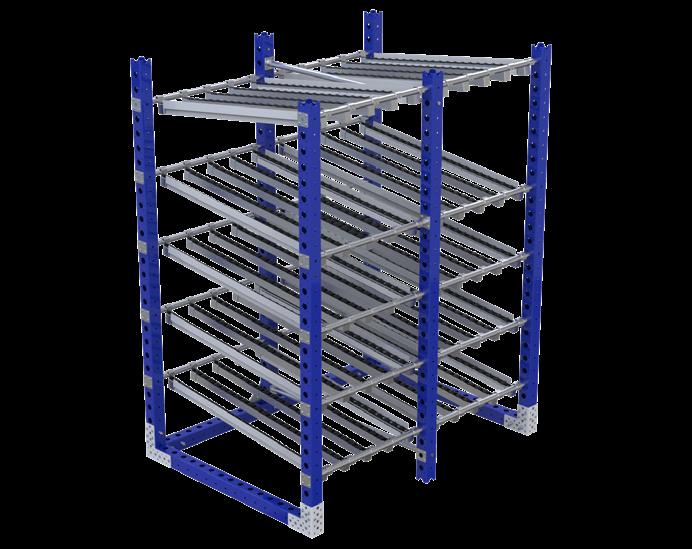

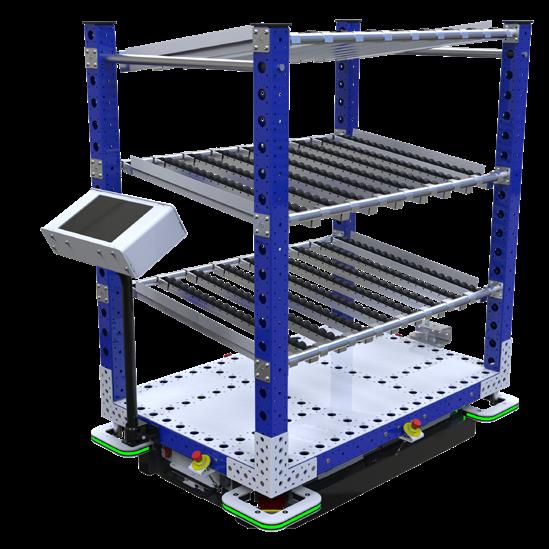

Three-level roller shelf AGV designed for transporting loose components in a FIFO setup. Each shelf is angled to accommodate specific drop-off and pickup points.

• • •

•

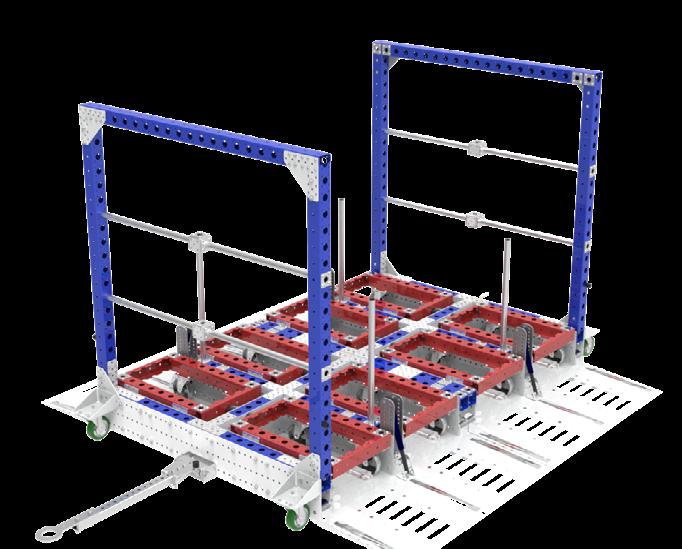

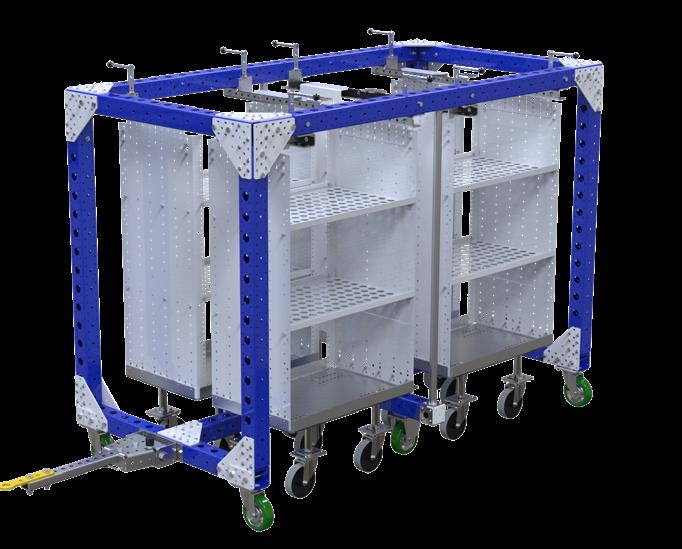

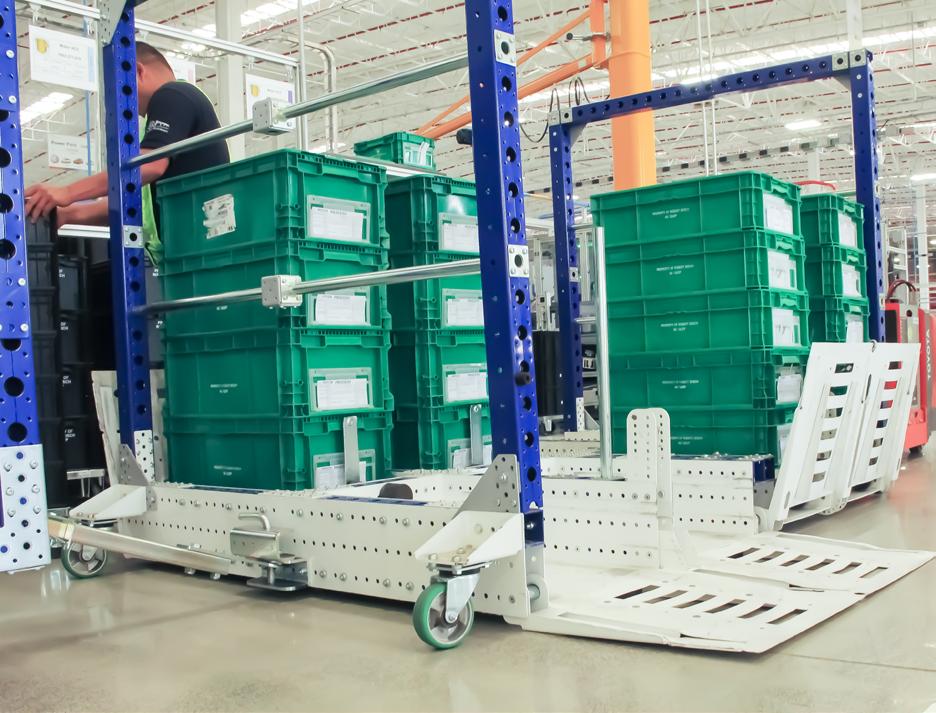

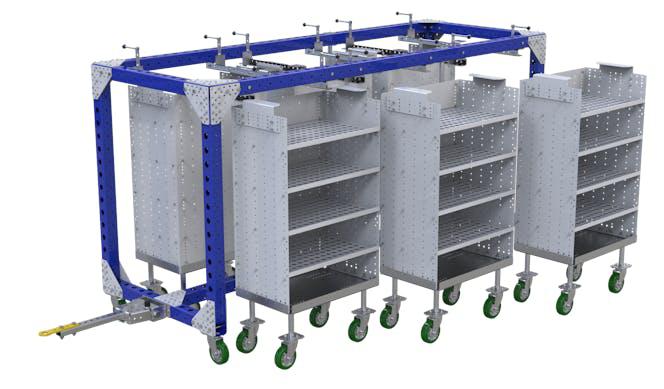

Mother-daughter cart designed to transport two daughter carts loaded with material. Designed for Q-100-4123 but can be customized for other carts.

• • •

•

AGV with a raised top structure designed for the safe transport of fully loaded pallets. Equipped with a drop pin, it can also tow mechanical carts in a tugger train configuration.

• • •

Q-100-4122

Size: 36 x 33 inch / 2550 x 1470 mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Mother-Daughter Payload: Daughter Carts

PALLET AGV Product Information:

Q-100-7100

Size: 50 x 33 inch / 1260 x 840 mm Load Capacity: 1,000 lbs / 450 kg Transportation: Flow, Tugger Payload: Boxes, Totes, Misc Parts

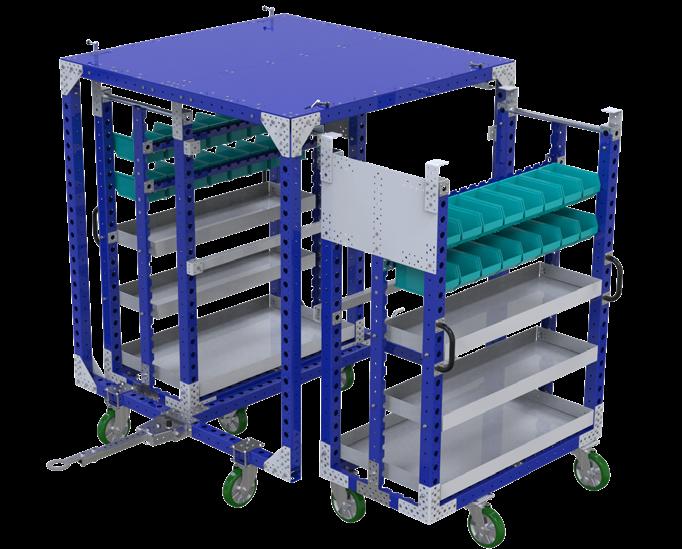

MOTHER AGV Product Information:

Q-100-8109

Q-100-6354

Size: 36 x 33 inch / 910 x 840 mm Load Capacity: 1,000 lbs / 450 kg Transportation: Flatbed, Tugger Payload: Pallets

13 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

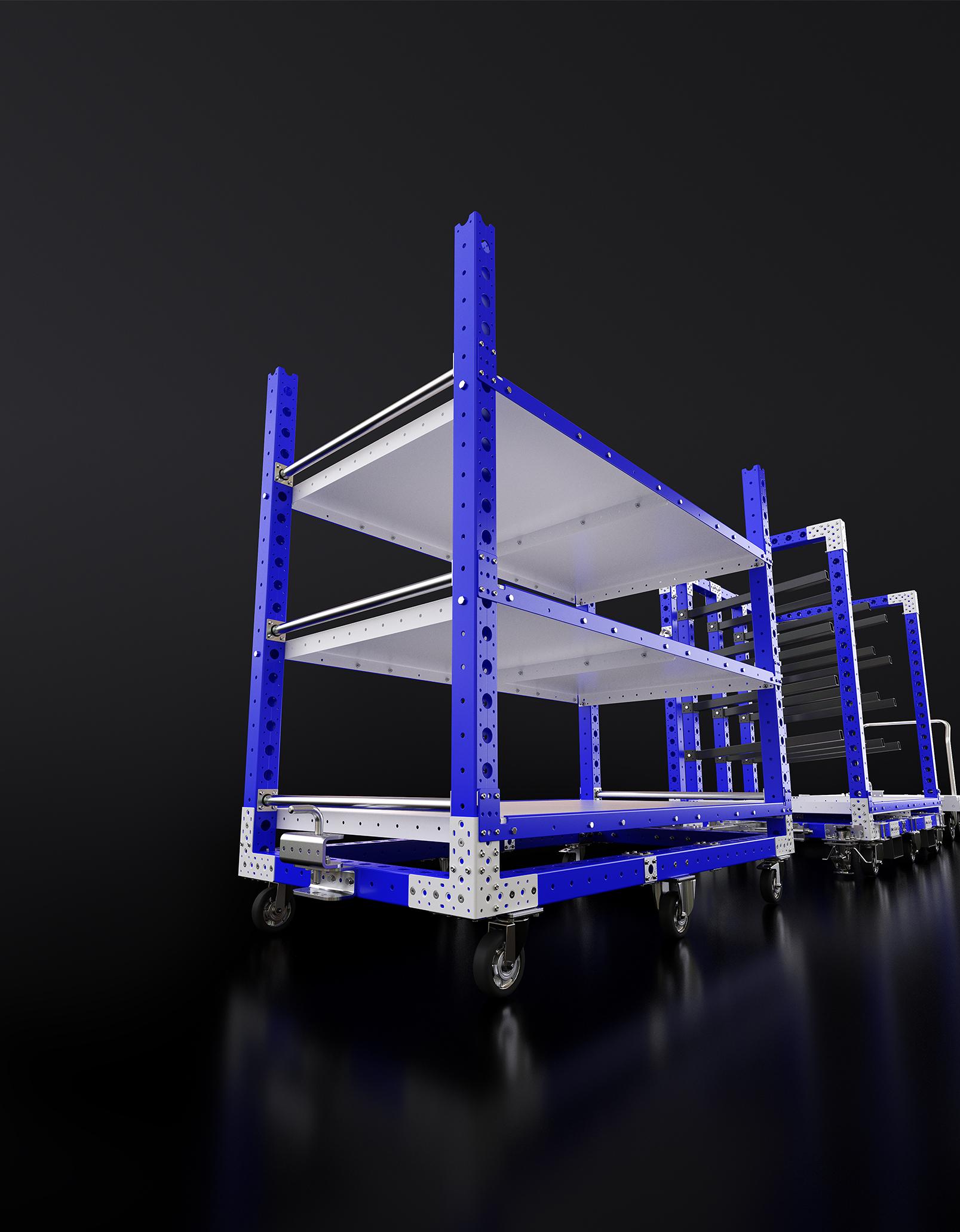

CART System.

The game-changer in flexible material handling.

THE WORLD’S FIRST MODULAR MECHANICAL CART SYSTEM – is based on standardized components, the carts can be customized for both transportation and presentation of material, improving work-flows, ergonomics and productivity at any assembly or picking station.

The carts can be taken apart, re-assembled and adjusted as needs change, offering a unique level of flexibility that boosts efficiency and saves time and money. Meet FlexQube Cart System, the game-changer in material handling.

LOOK FOR THIS MARK TO FIND OUR CUSTOMERS FAVOURITE SOLUTIONS

14 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

Durable

Customizable

BUILT TO LAST

MODULAR DESIGN

Engineered with premium, industrialgrade steel, FlexQube carts stand up to heavy loads and daily wear — no compromises, just long-lasting performance.

Based on standardized components, the carts can be customized for both transportation and presentation of material, improving work-flows, ergonomics and productivity at any assembly or picking station.

PROVEN PERFORMANCE From busy assembly lines to demanding warehouses across manufacturing, automotive, and logistics industries, FlexQube carts consistently deliver consistent, maintenance-free performance you can count on — day after day.

Page. 68

The carts can be taken apart, re-assembled and adjusted as needs change, offering a unique level of flexibility that boosts efficiency and saves time and money.

GROW WITH AUTOMATION

From heavy-duty tugger carts to kitting solutions, we create the perfect design for your material flow to solve your operational challenges.

Designed for the future of automation — FlexQube carts evolve with your technology, adapting seamlessly as your automated systems and intralogistics grow.

FOR CASES, SEE PAGES 68−75

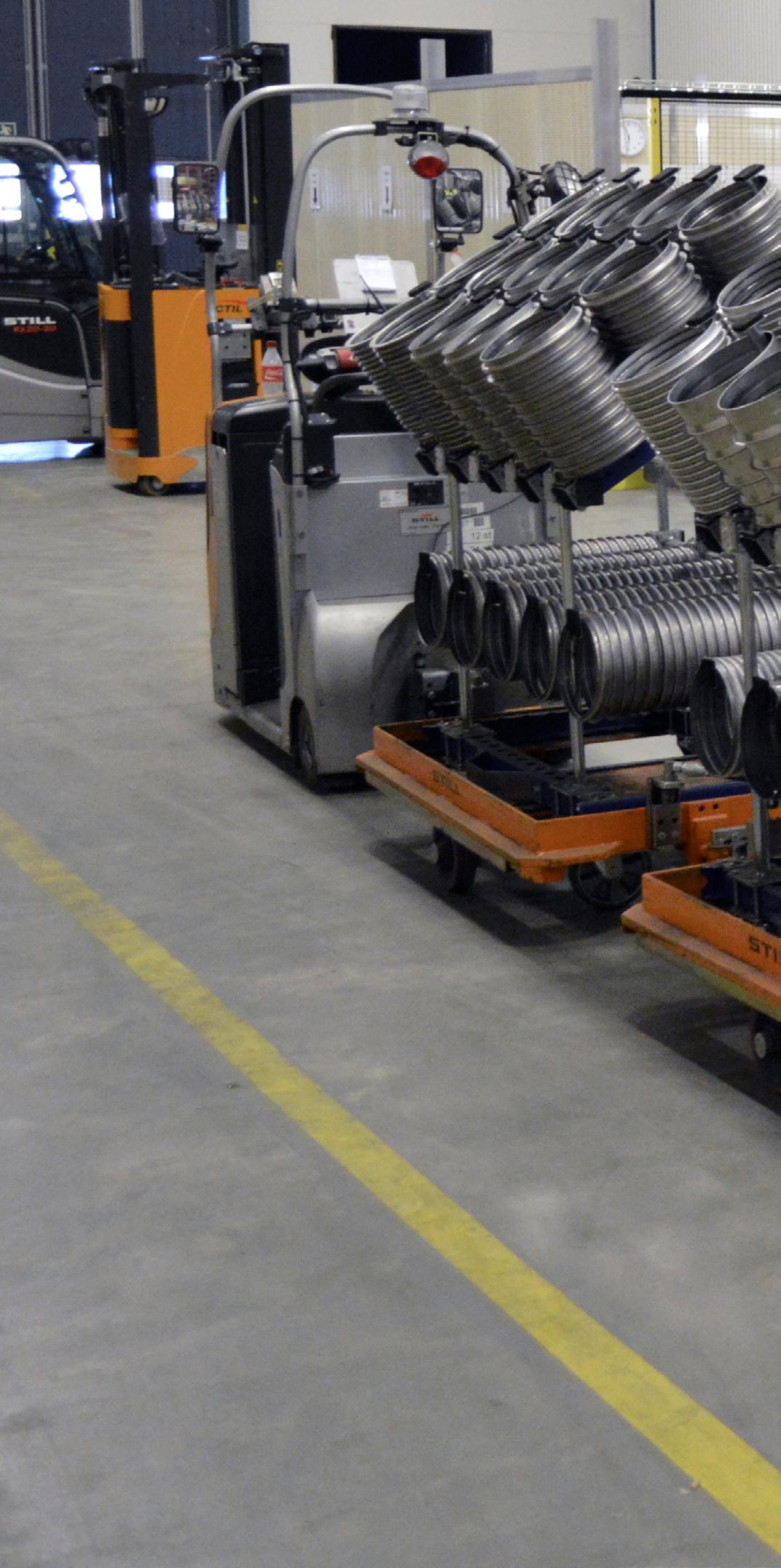

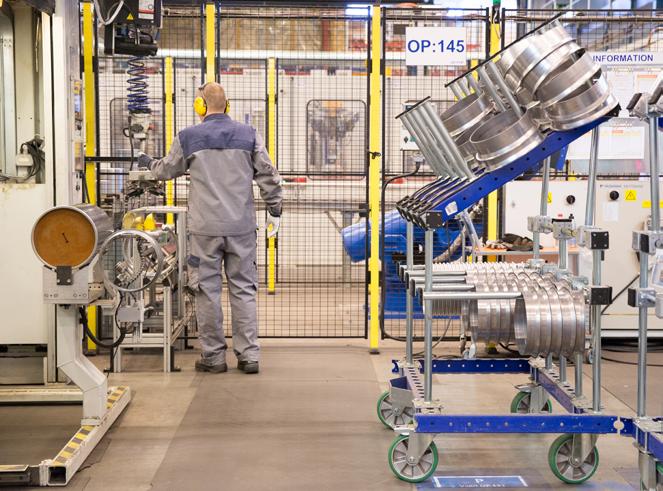

EBERSPÄCHER

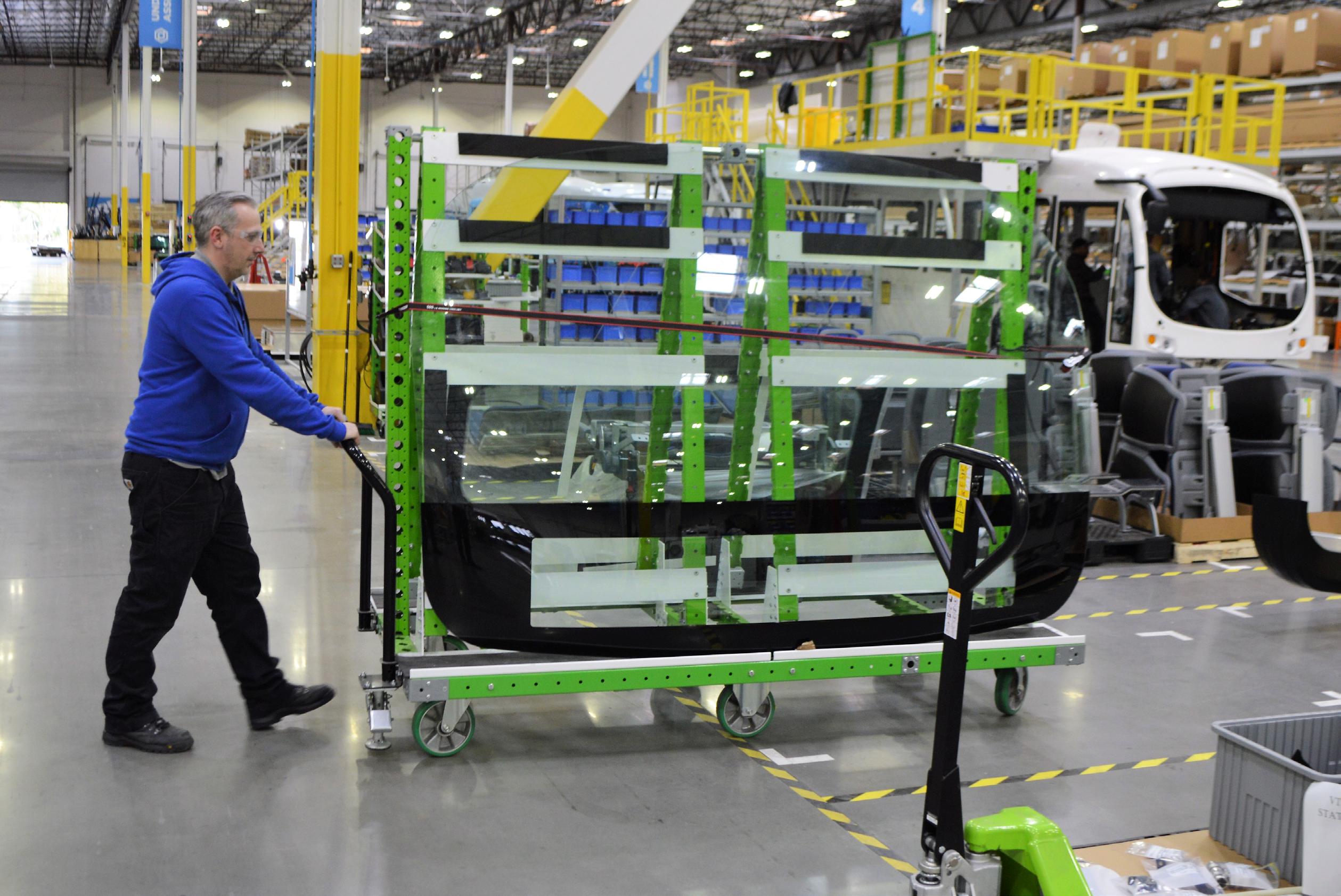

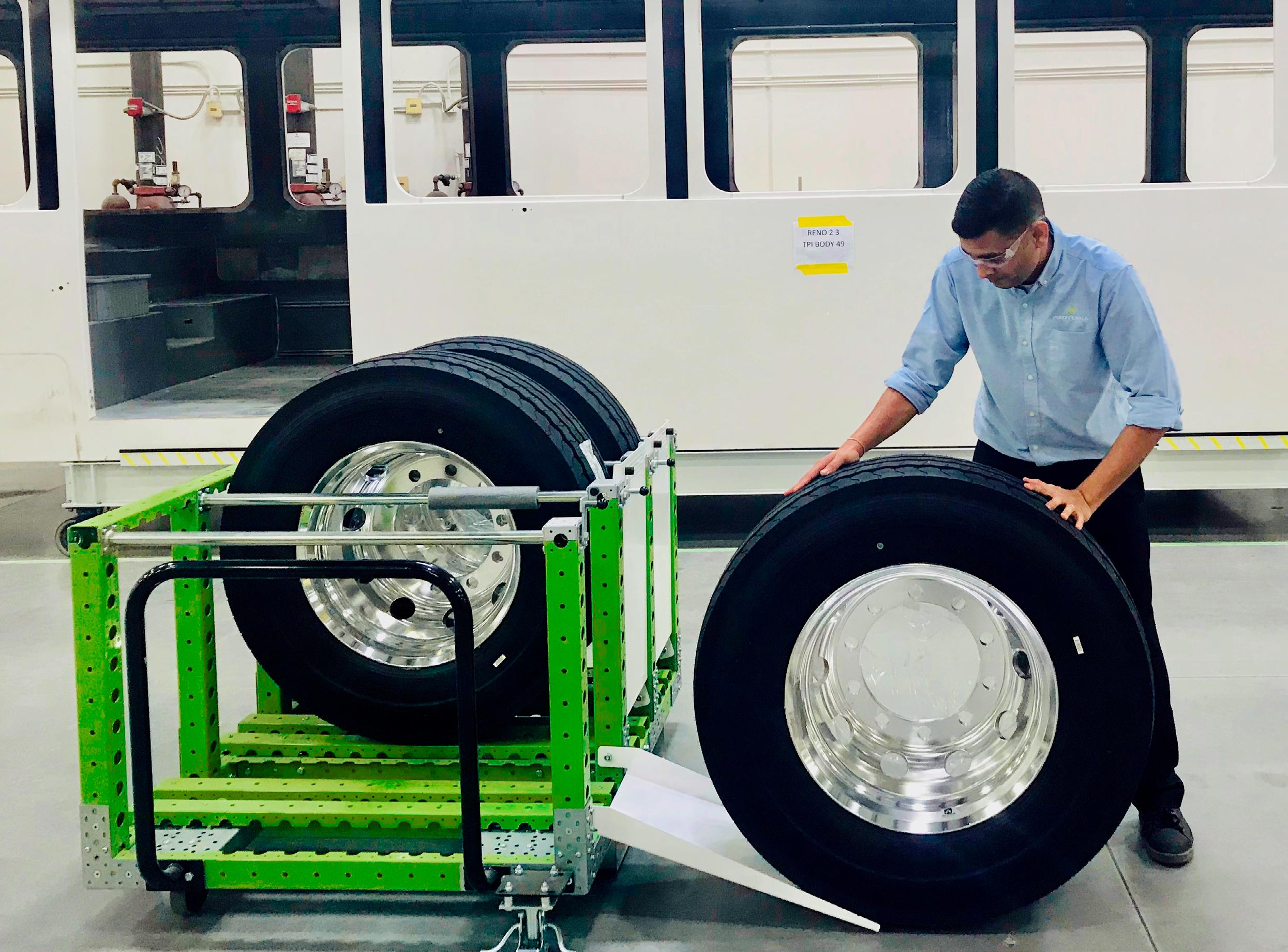

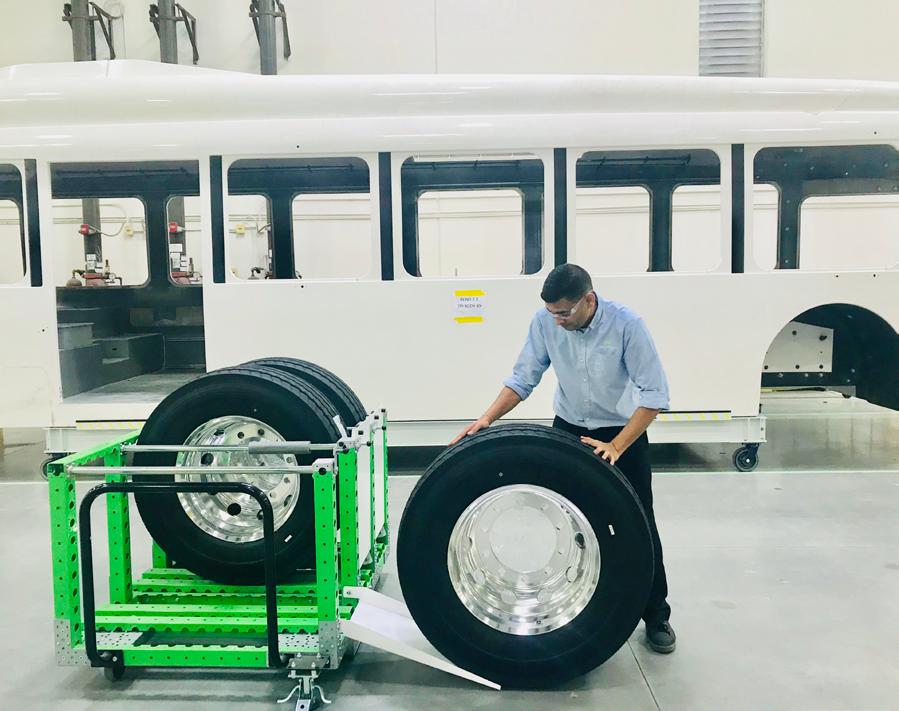

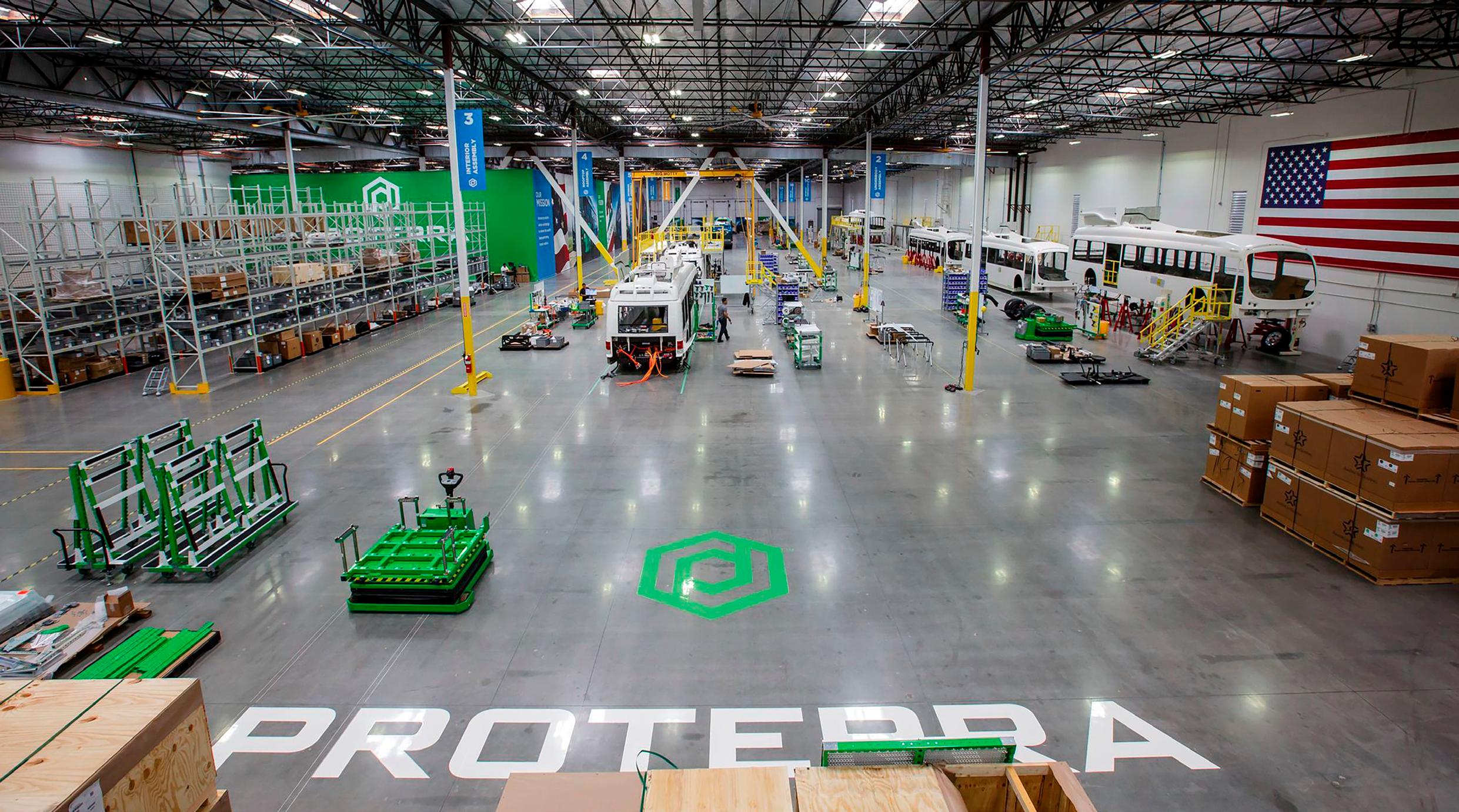

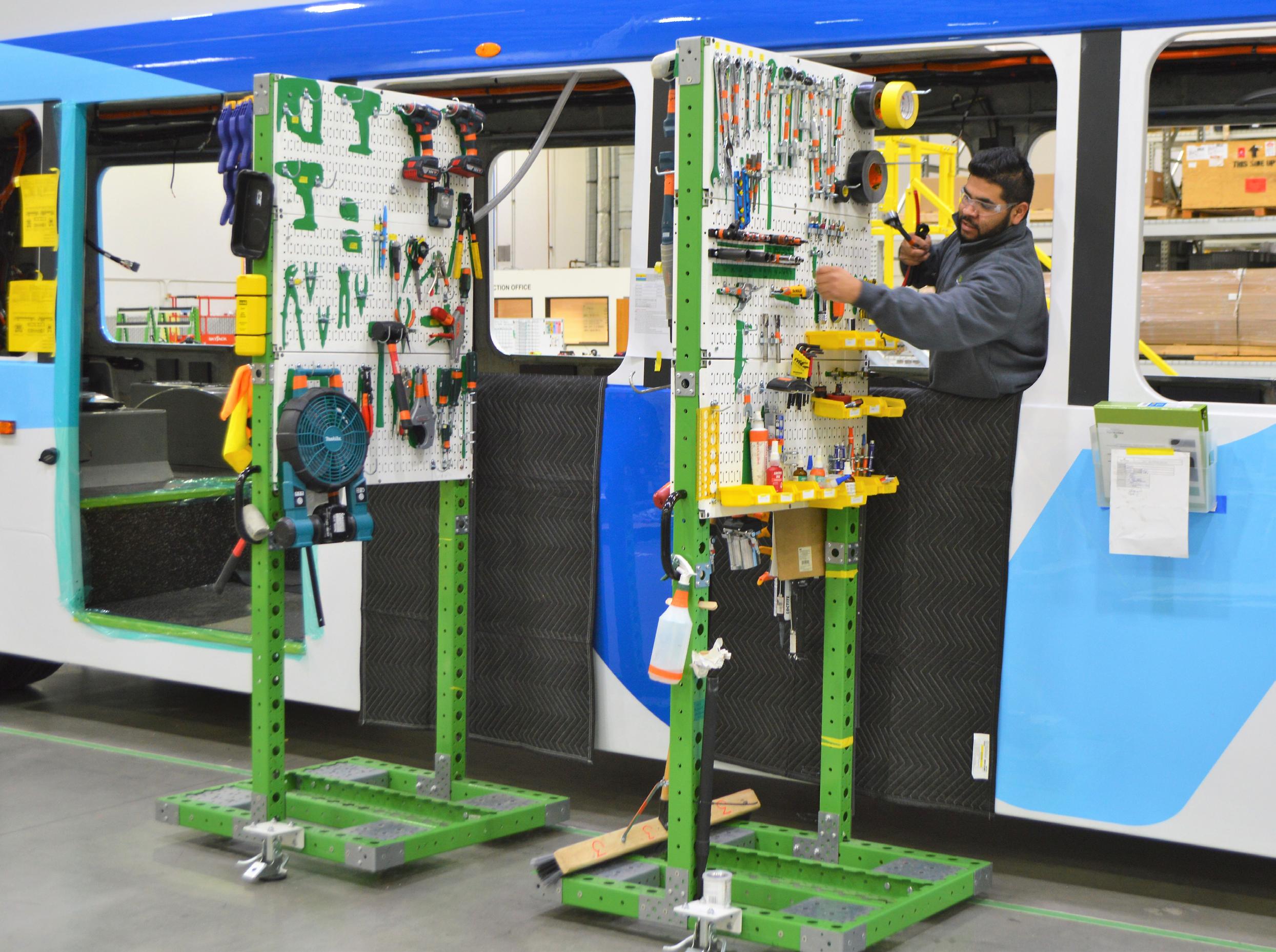

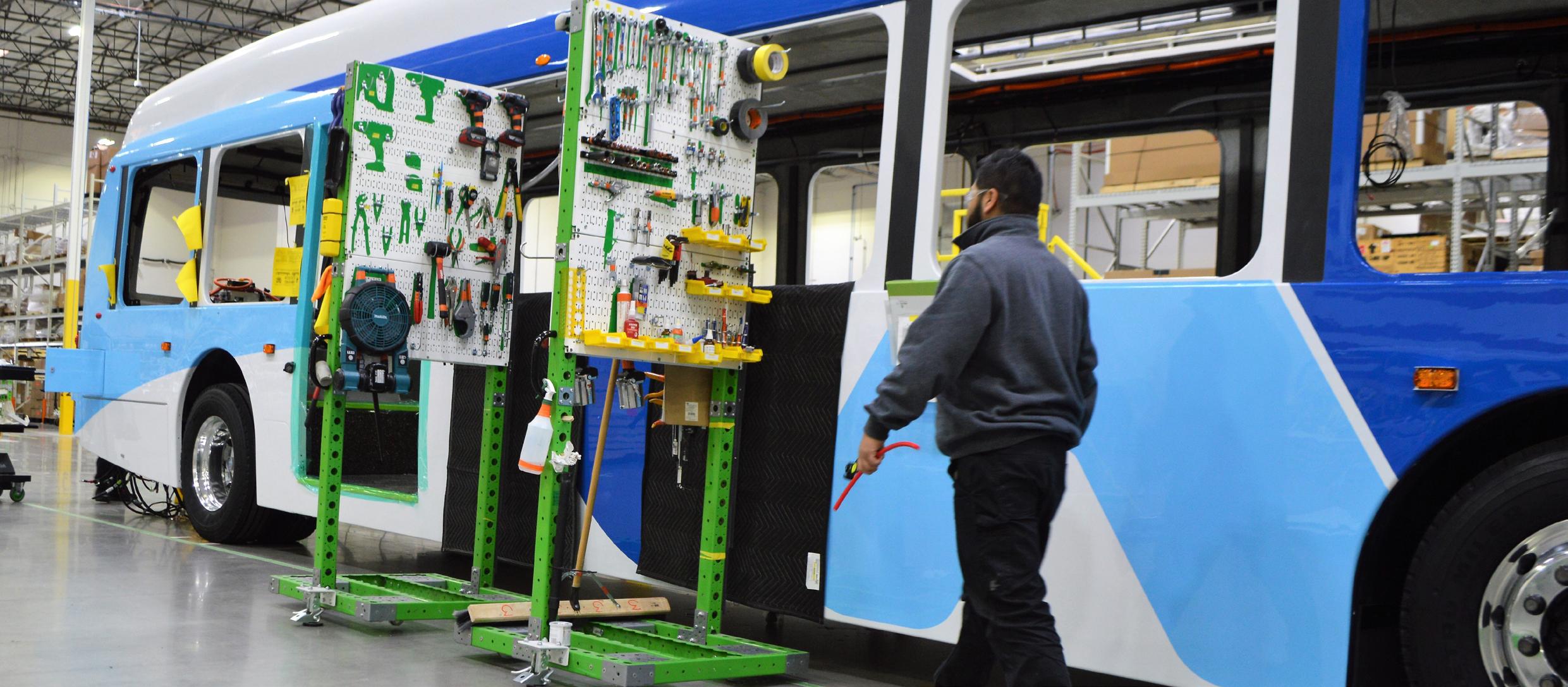

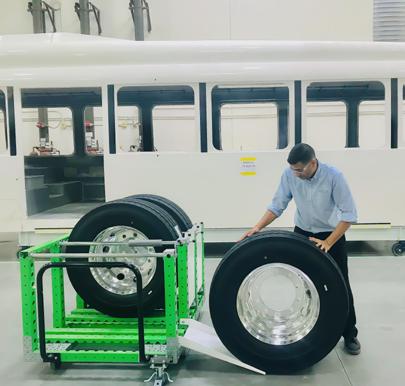

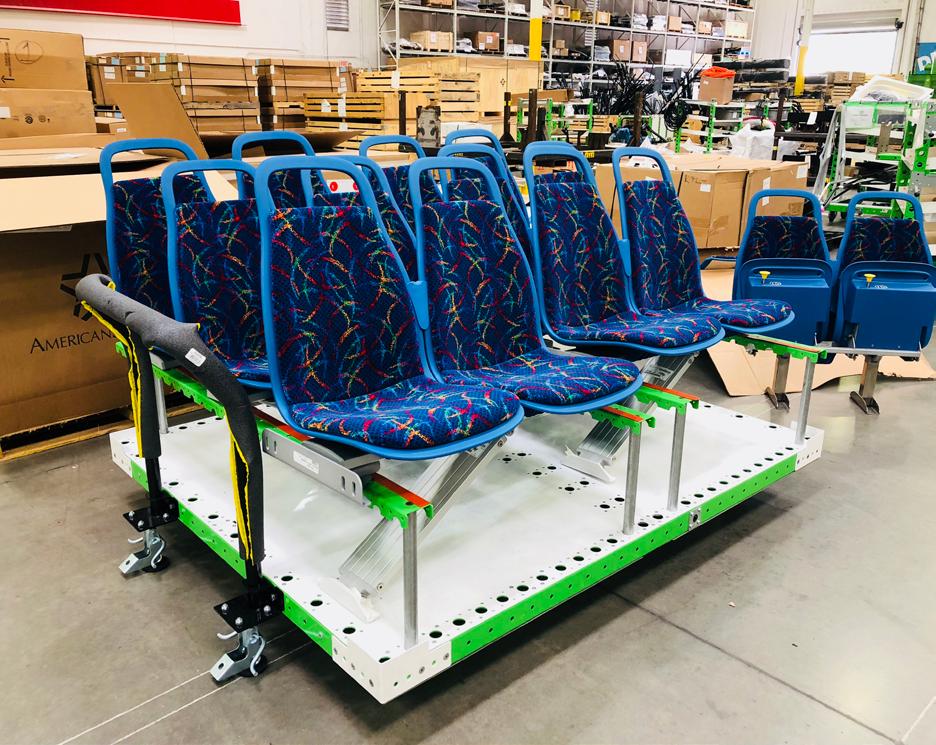

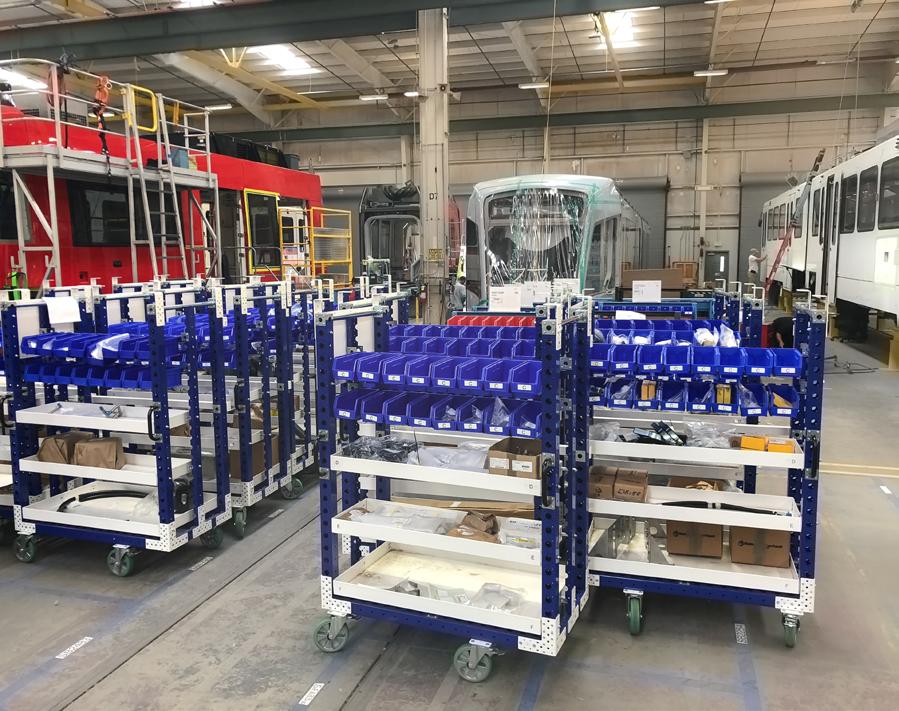

Proterra built two new plants with a focus on flexible material handling.

EASY TO ADAPT AND RECONFIGURE

TAILORED FOR YOUR NEEDS

CASE STUDIES

PROTERRA

Flexible

“The carts have been a huge improvement when it comes to ergonomics”

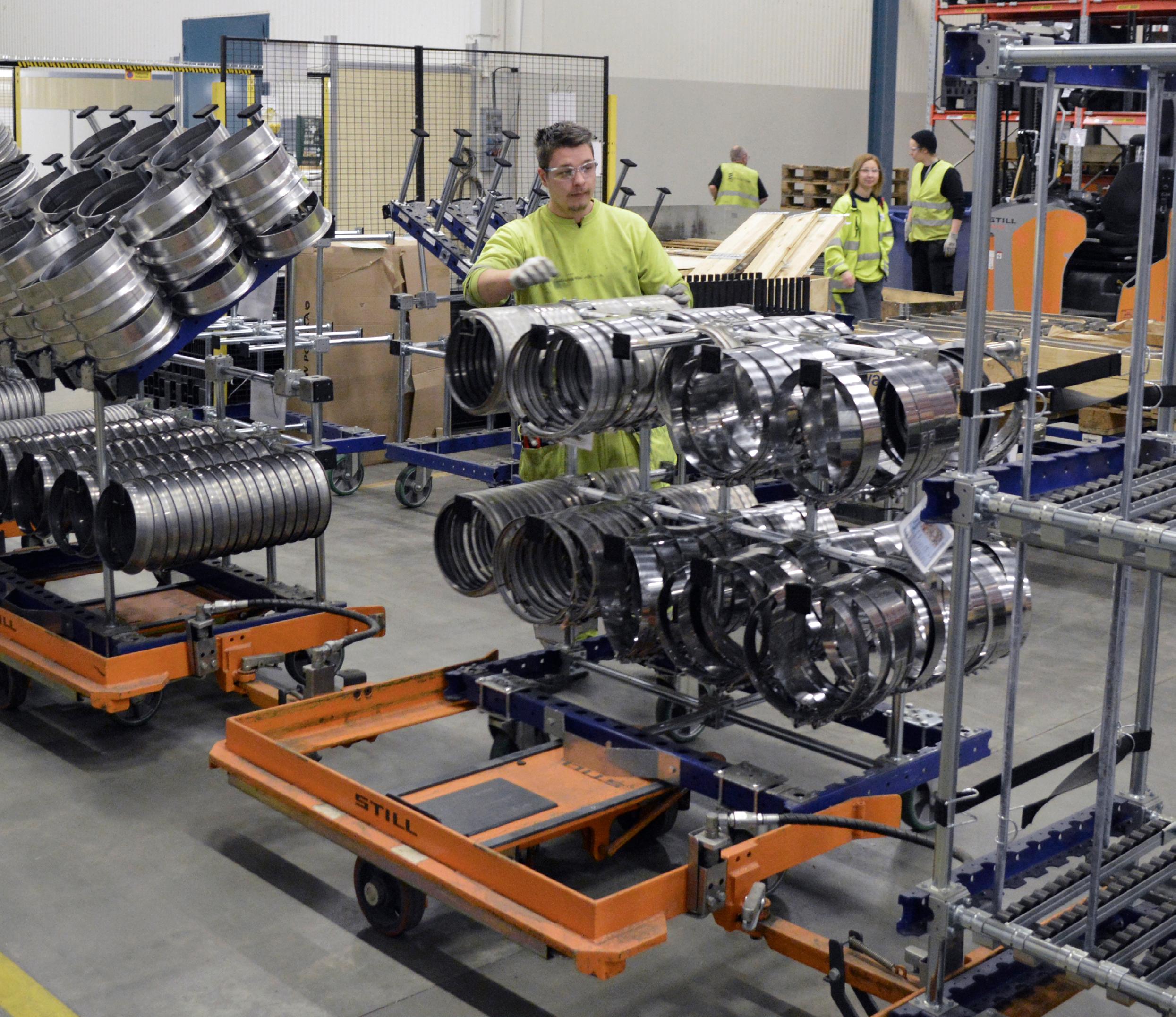

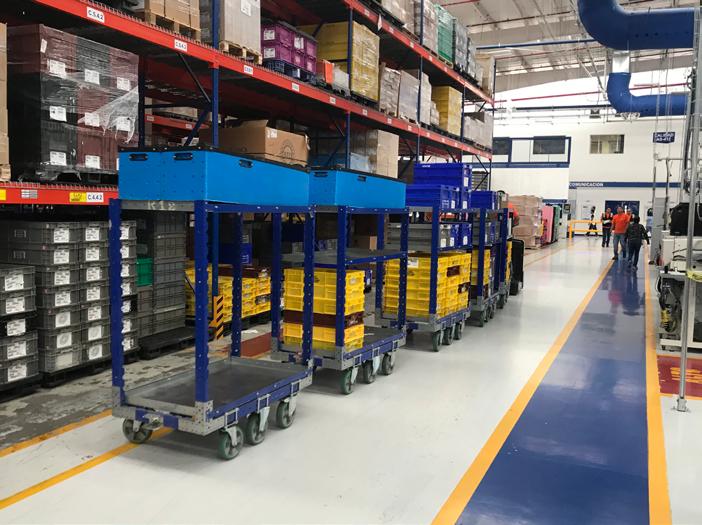

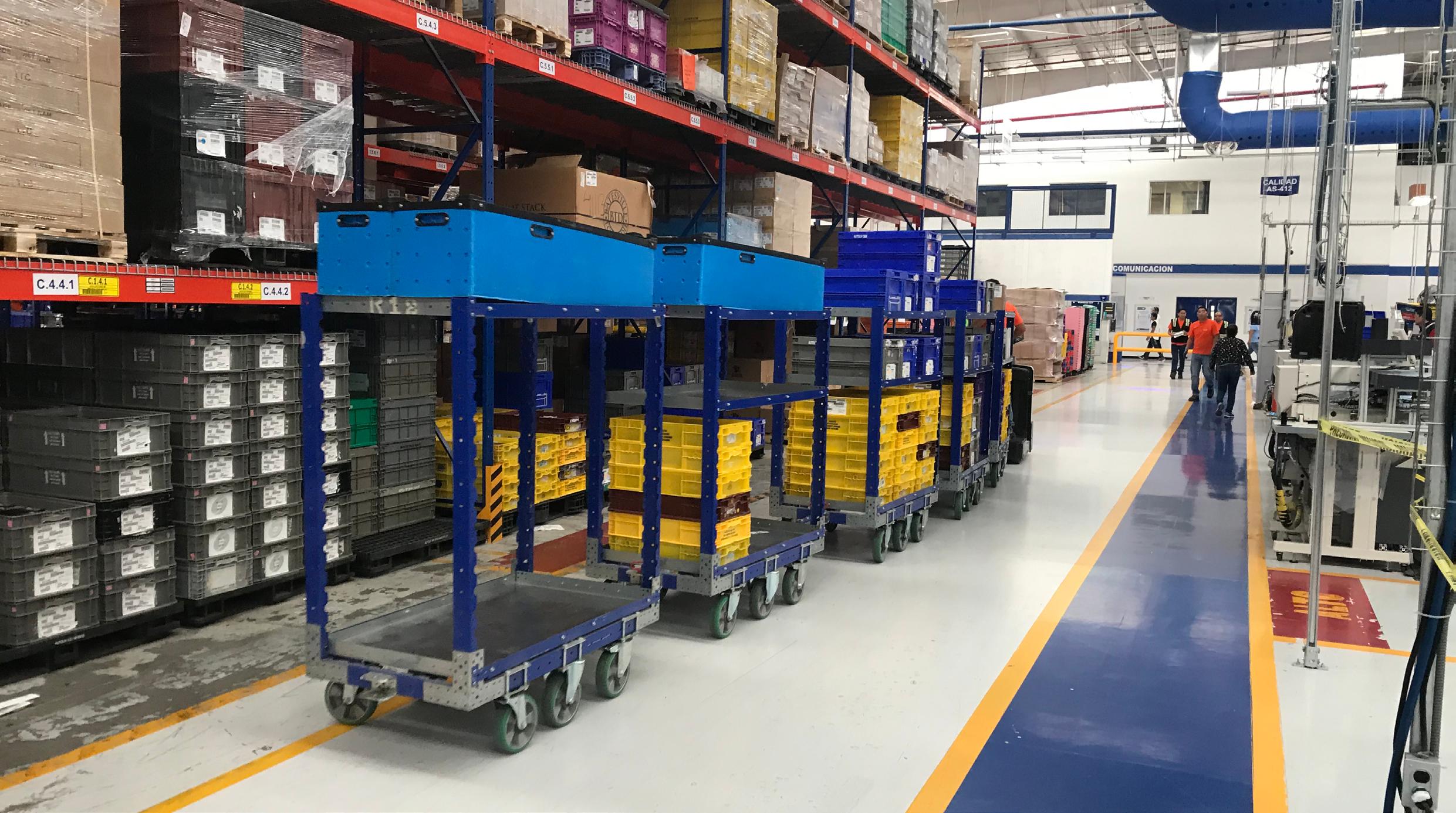

AUTOLIV Using high-quality carts to reduce downtime

- Maritza Zegovia, Eberspächer.

Page. 72

Page. 74 15

EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

The Basics of FlexQube Carts.

FlexQube carts can easily be optimized for the transportation of material and components, or for both the transportation and presentation of the material to the operator at the assembly station.

BASIC DESIGN

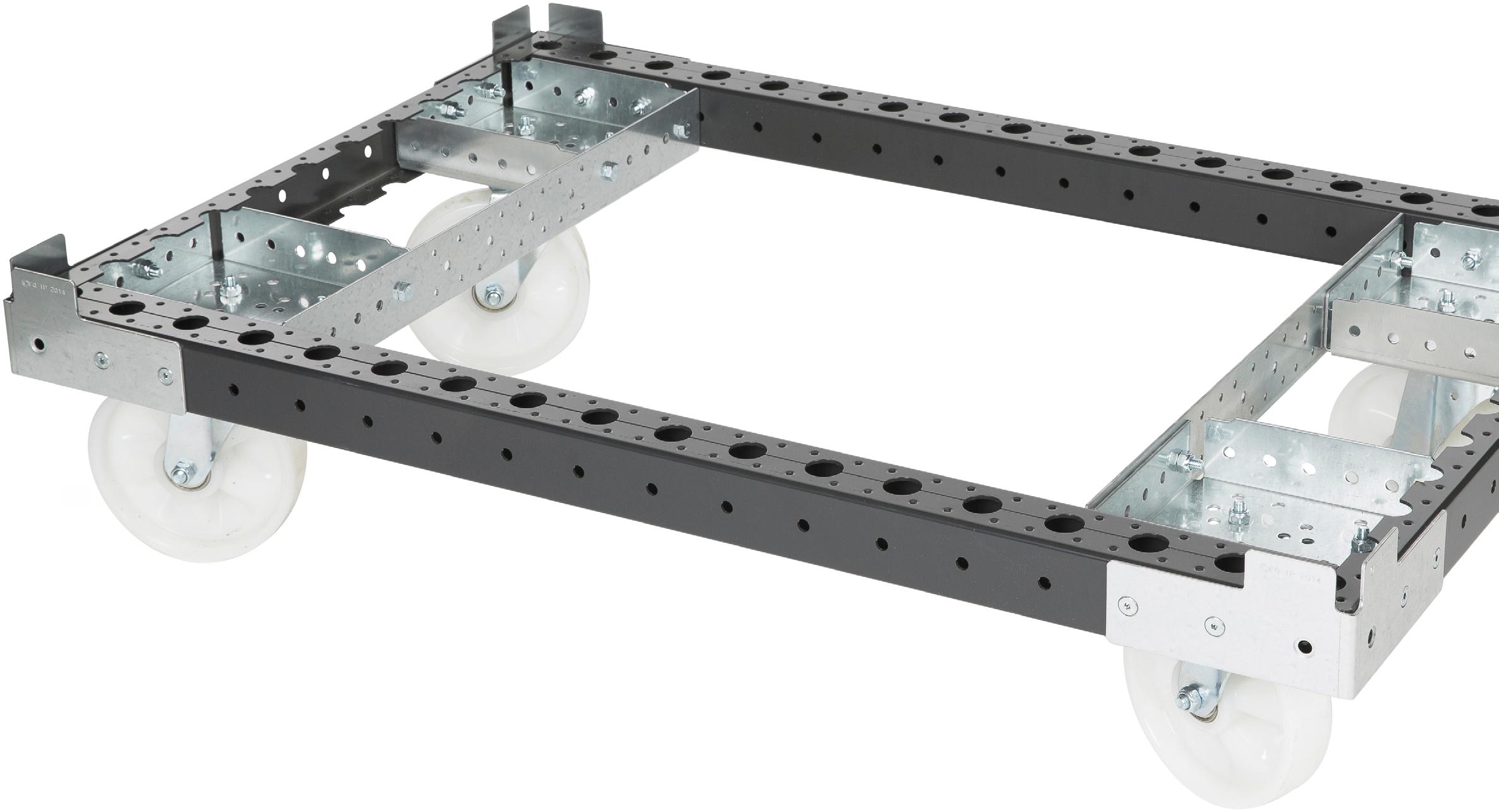

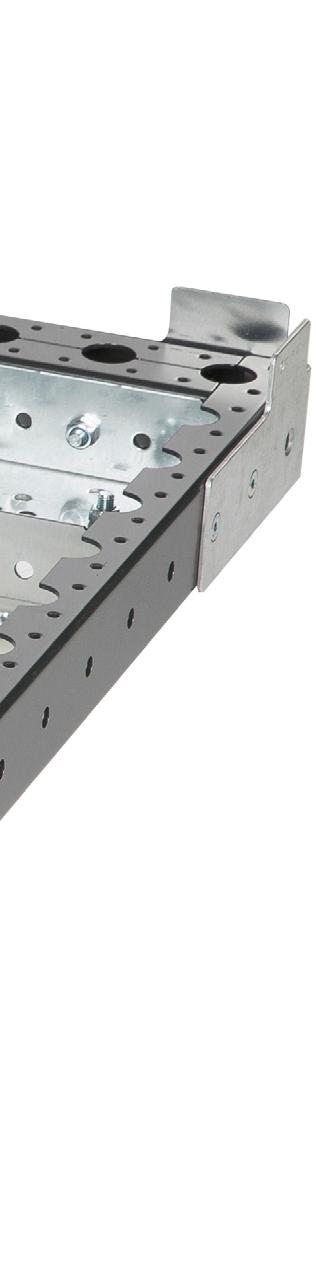

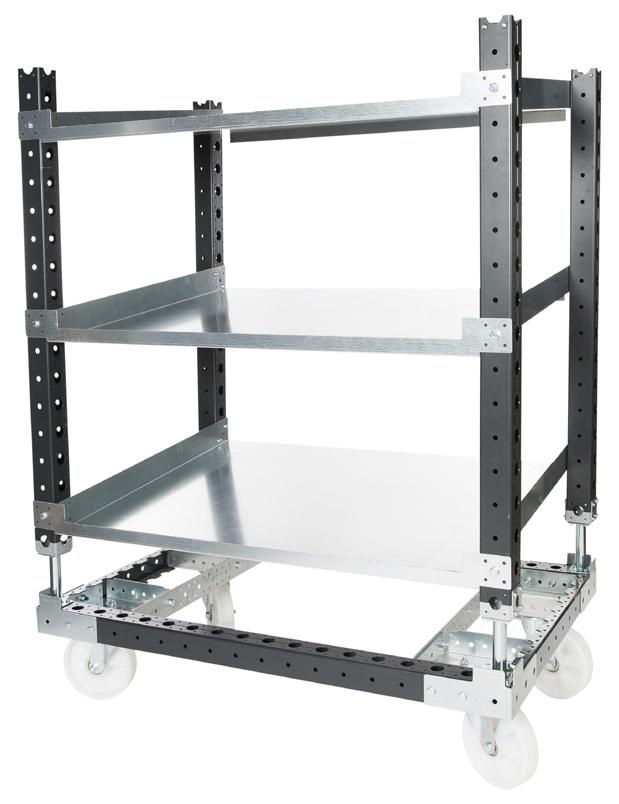

The basic design of a FlexQube cart is a bottom frame with a top structure attached to it. The bottom frame is usually equipped with a set of casters and swivels, handlebars and tow bars, and a brake.

Each of these attachments are specified and located optimally to suit the actual application and the ergonomic requirements. The dimensions of the bottom frame are adapted to your actual needs.

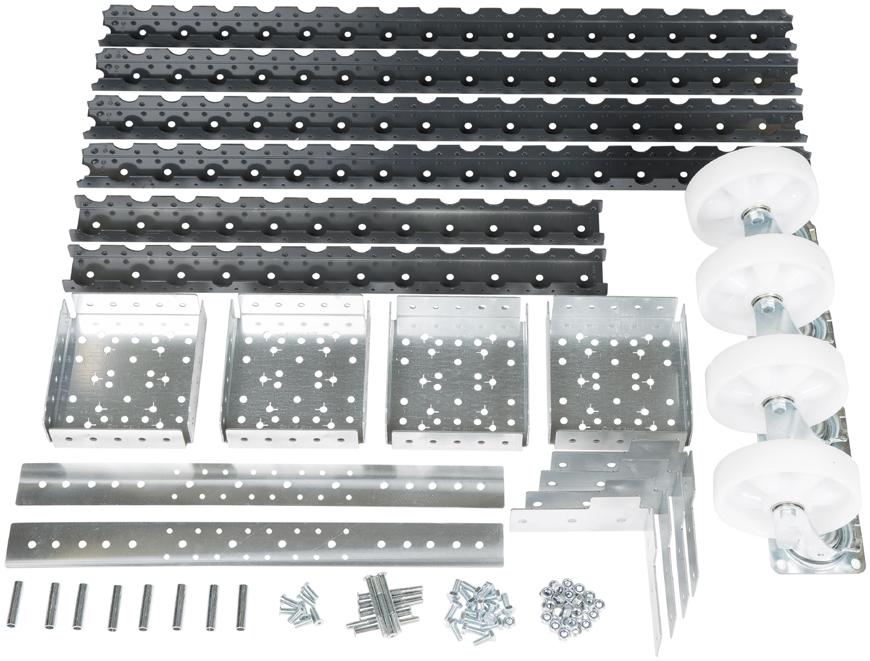

This is a standard collection of basic FlexQube components.

This includes the FlexBeam, casters, attachments, fasteners and bolts.

16 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

“FLEXQUBE HAS INCREASED OUR PRODUCTIVITY BY 25 PERCENT” Ted Tackeberry, Carcoustics

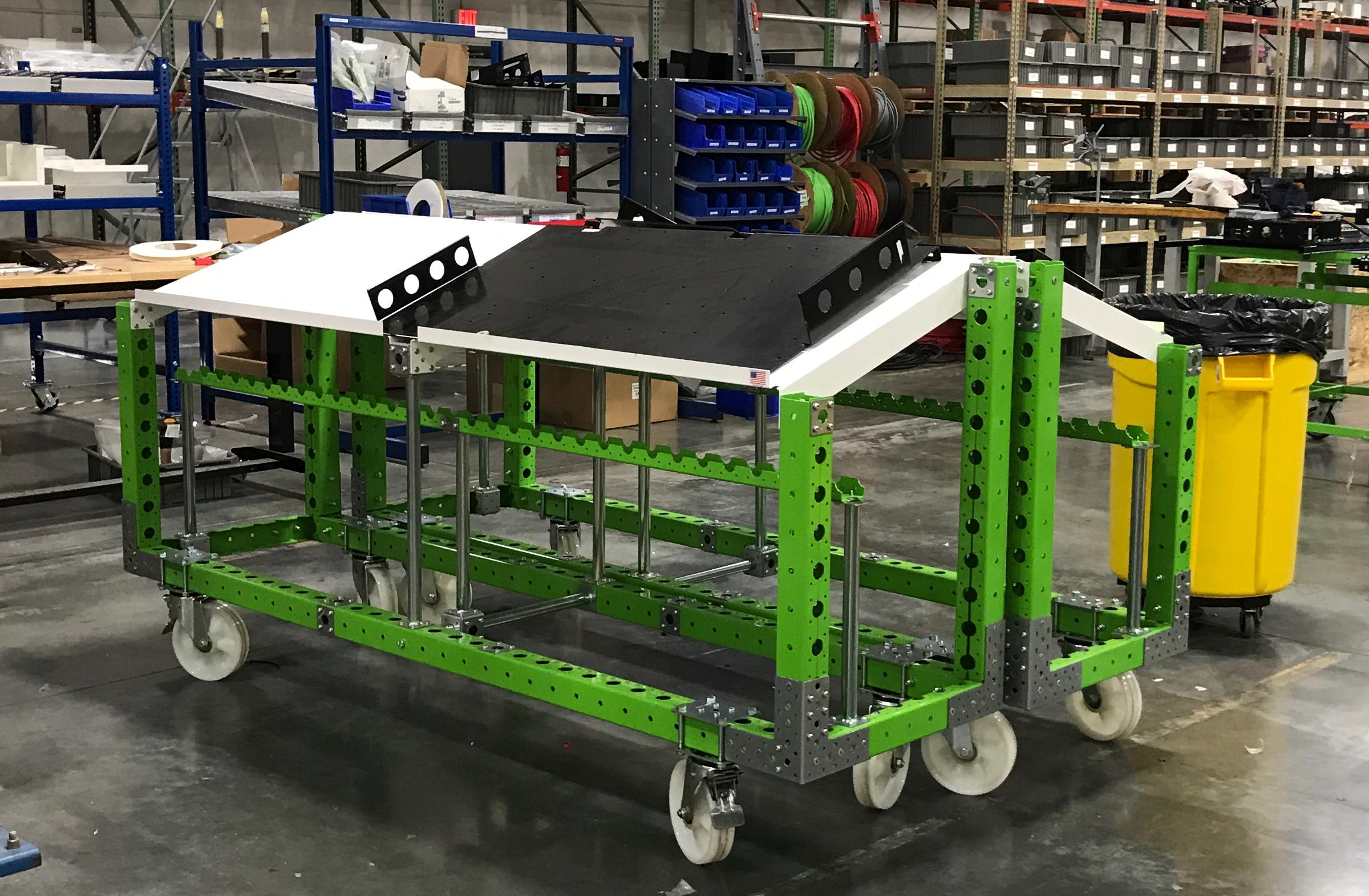

Industrial carts with built-in flexibility for future changes in component design and manufacturing mix.

CUSTOMIZATION The top structure is optimized for the type of cargo to be carried. It can be anything from a solid steel flatbed for heavy pallets, to an advanced rack for a modelspecific assembly kit.

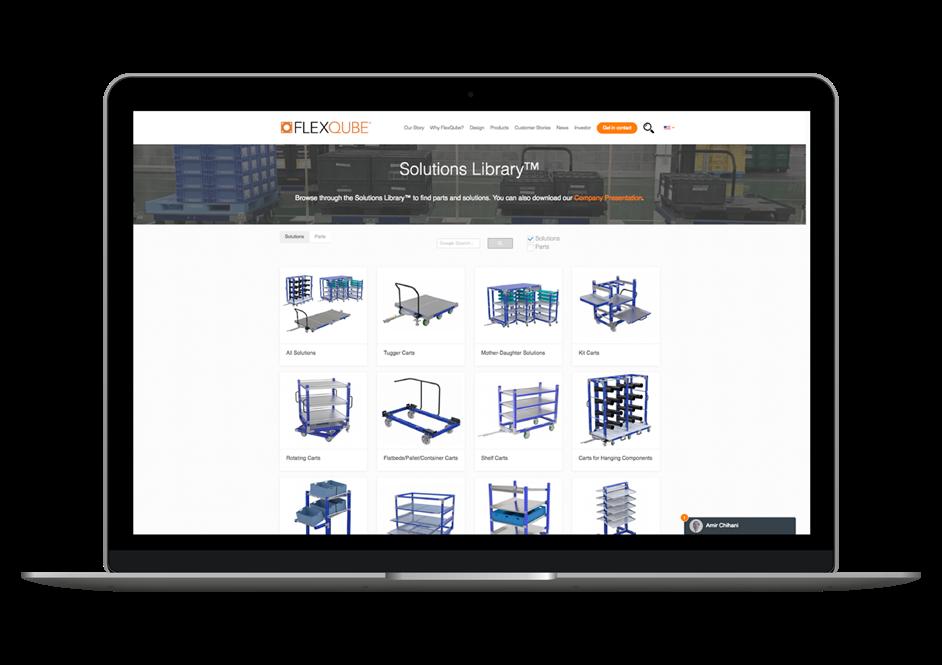

Check out our Solutions Library™ for inspiration! www.flexqube.com

17 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

The FlexQube standard module.

Seven says it all.

7 cm × 6

7 cm 7 cm

7 cm

FLEXBEAM™

7 cm × 24

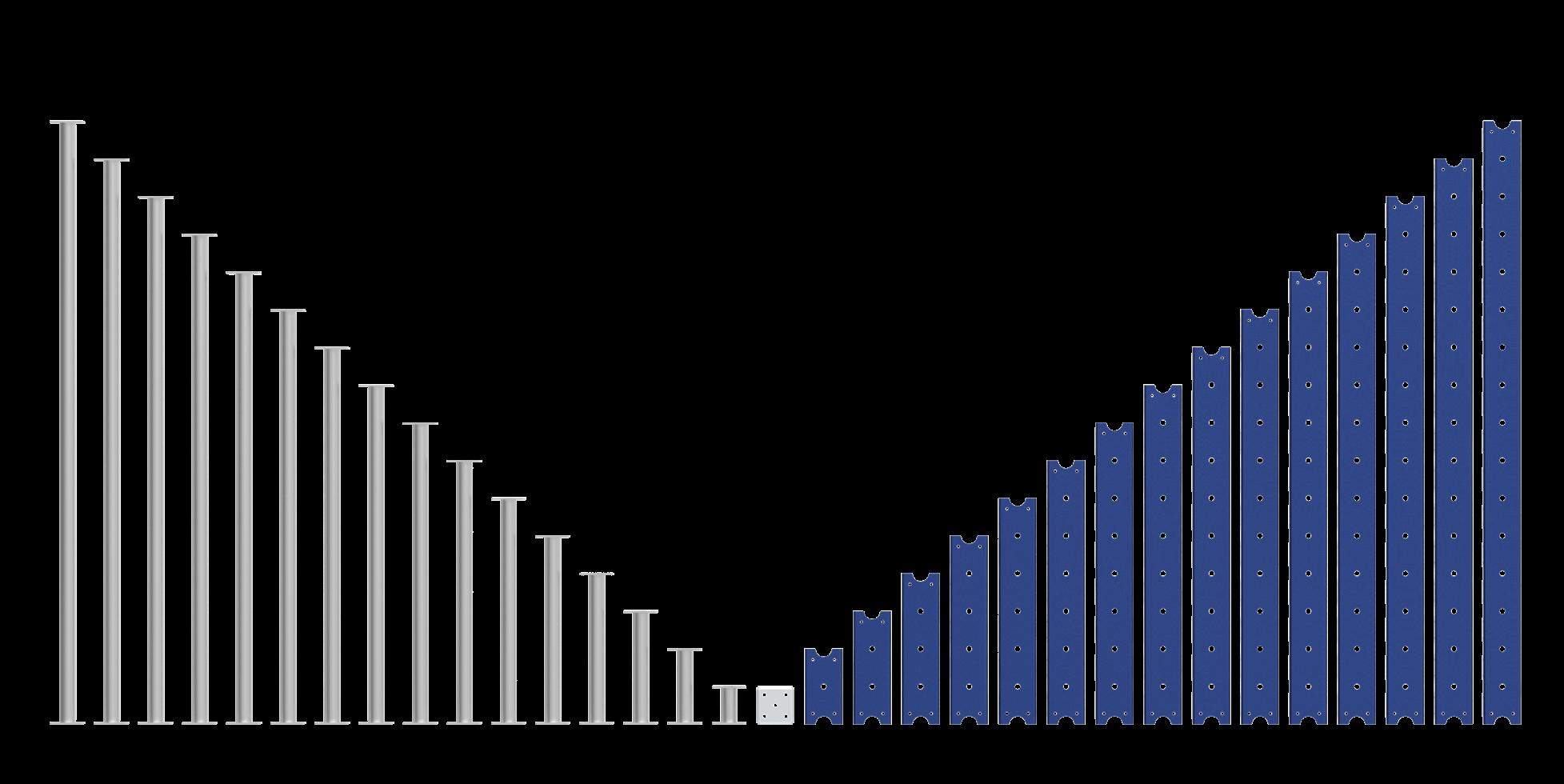

7CM DESIGN BASE The FlexQube system is based on the number 7. All FlexTubes and FlexBeams come in length intervals of 7cm and the distance between interfaces is 7cm.

Two FlexBeams create a 7×7cm square cross-section and two FlexQubes form a 7×7×7cm cube. FlexPlates and FlexQubes have the same interface and are therefore easily placed anywhere on FlexBeams and FlexTubes to connect them.

18 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FLEXQUBE®

The standard interface and intervals enable FlexQube to have a very efficient and quick design process, where the lead time from customer requirements to design draft can be cut down significantly.

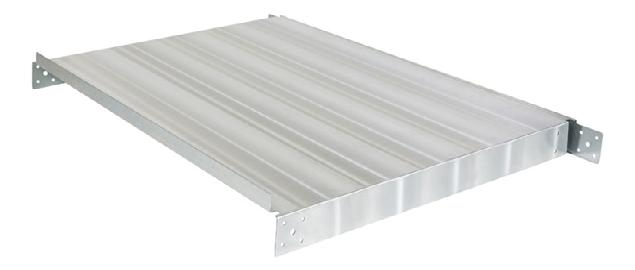

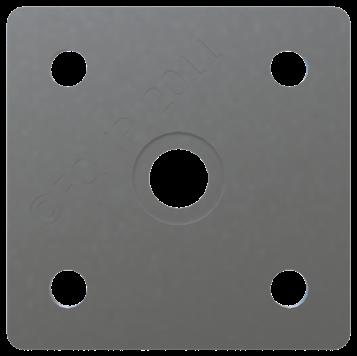

FLEXPLATE™

FLEXTUBE™

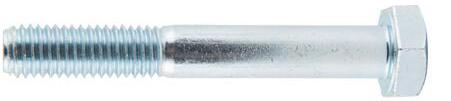

STANDARD FASTENERS – NO SPECIAL TOOLS NEEDED

M6

M10

Due to the homogeneous interface, virtually all connections are made using M6 bolts. The FlexBeam also has an M10-hole for heavy-duty connections and thus M10-bolts and nuts can also be used. This means that all connections can be done with a small number of tools.

19

EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

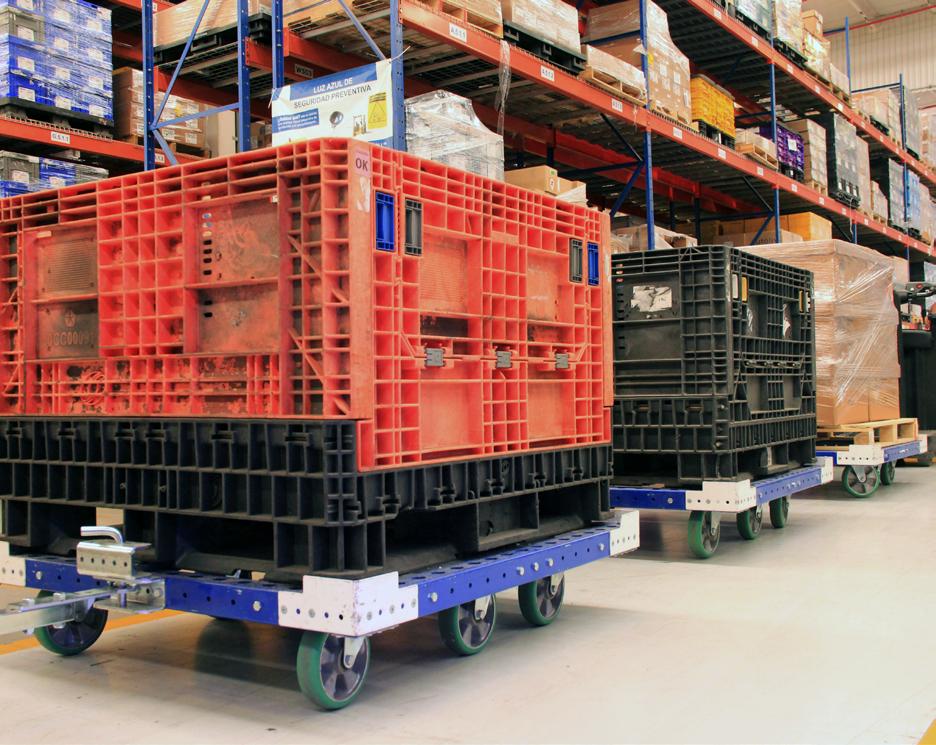

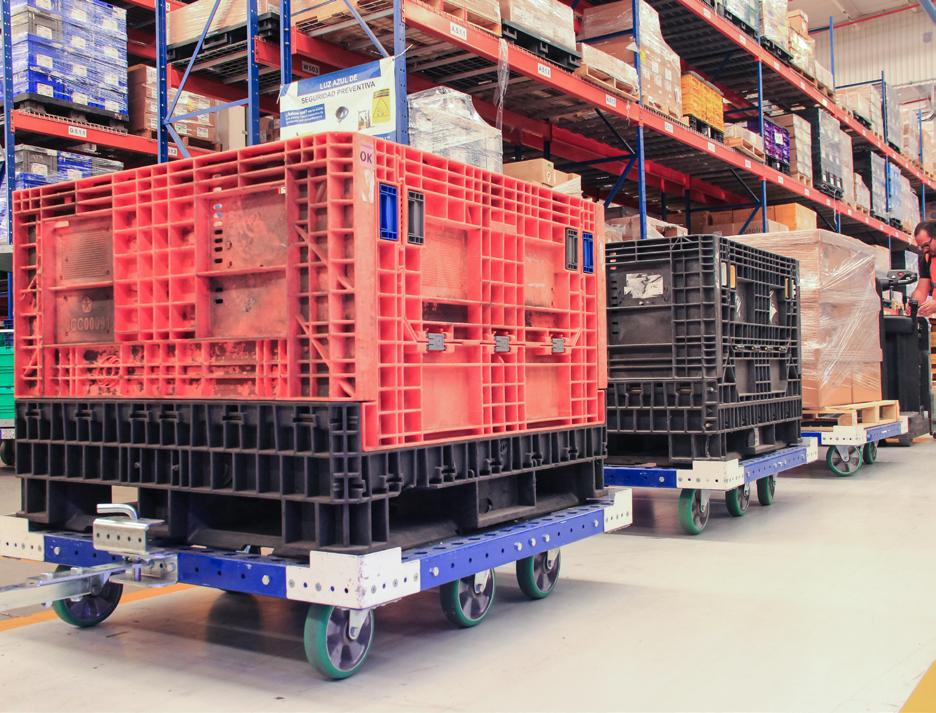

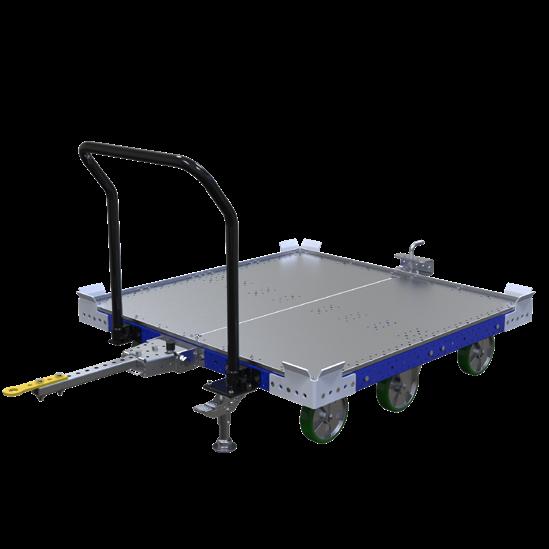

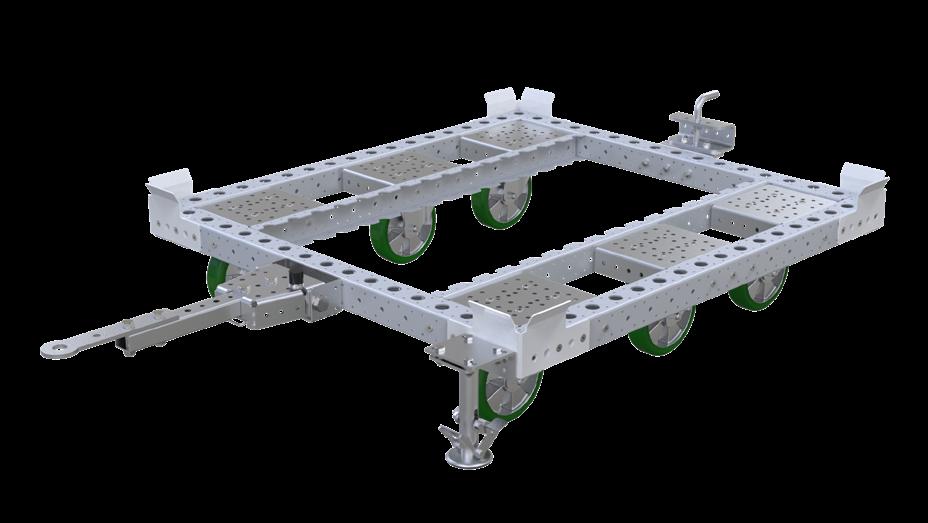

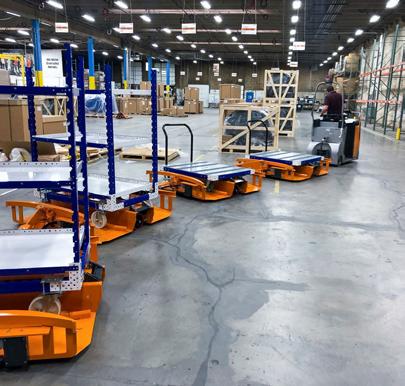

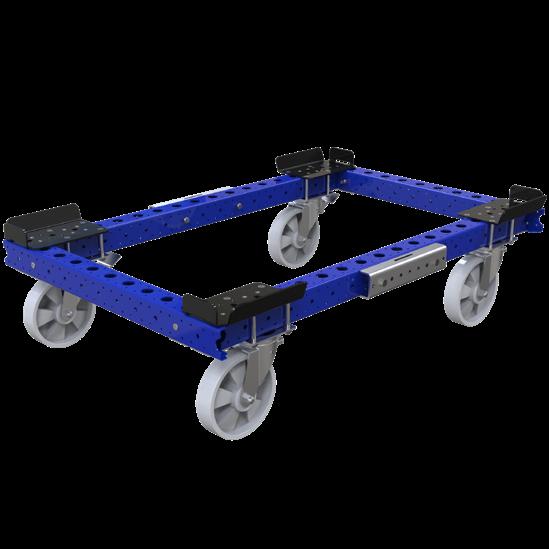

PALLET TUGGER CARTS. These industrial pallet carts for containers or pallets, are equipped with heavy-duty casters and can move up to 4,500 lbs / 2000 kg. They can be easily fitted into a tugger train system. The userfriendliness is further increased by the removable handle bar with floor lock brake. All standard pallet carts can be adapted to a tugger cart simply adding a tow bar. Each solution can be customized to suit your needs.

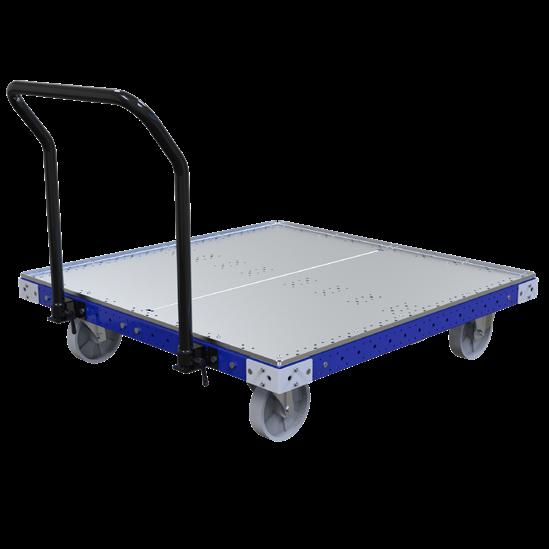

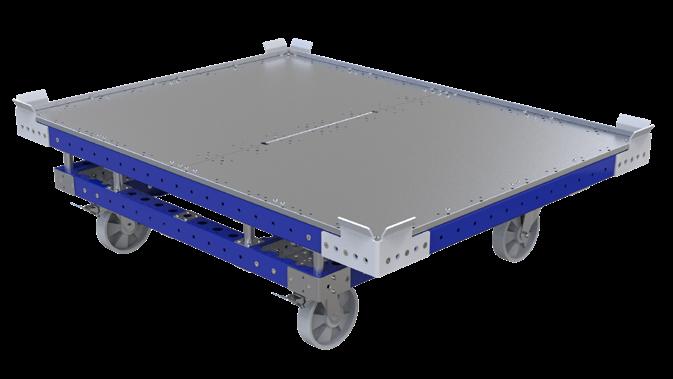

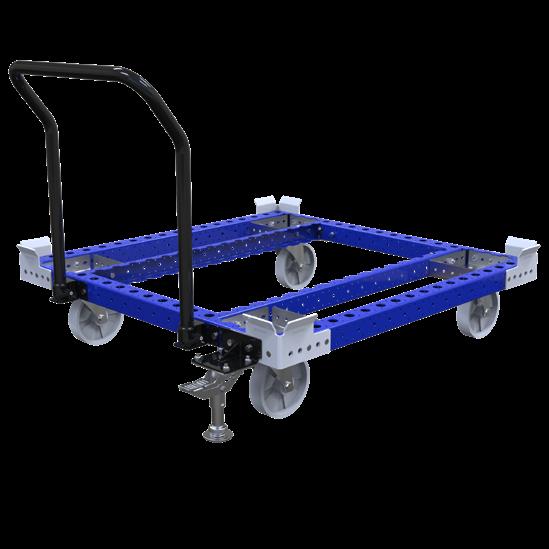

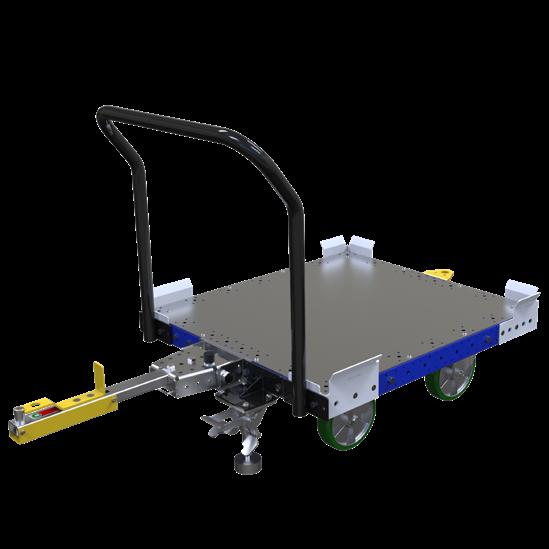

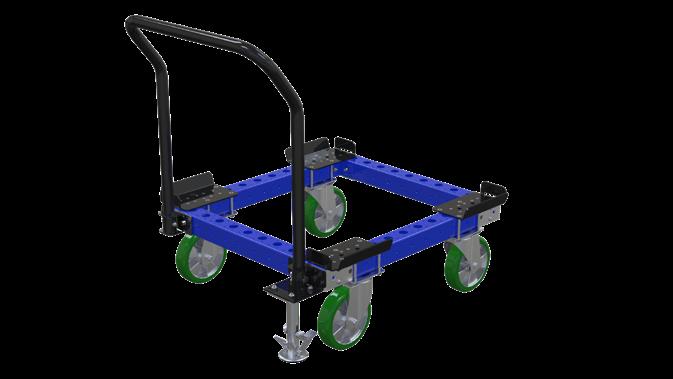

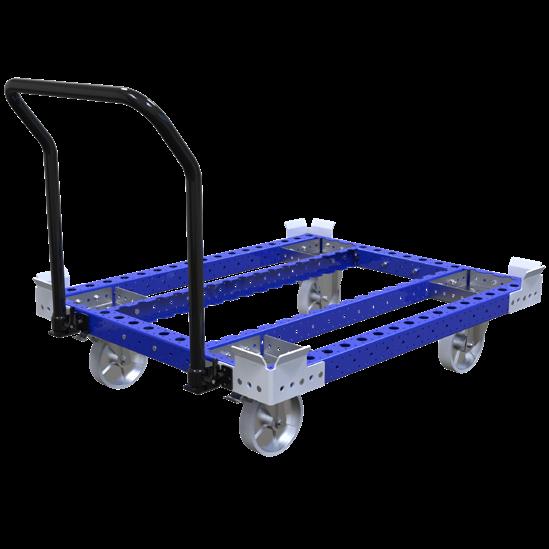

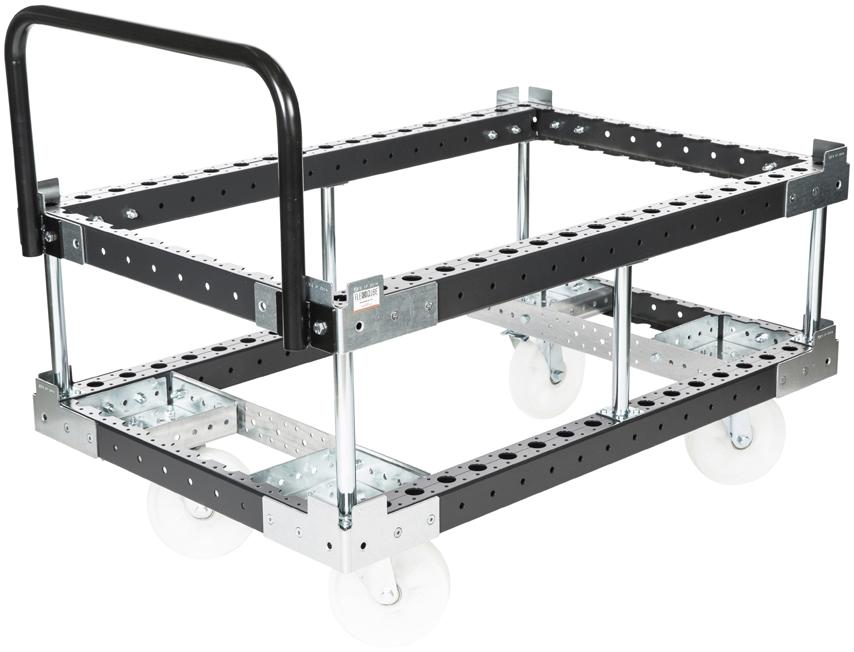

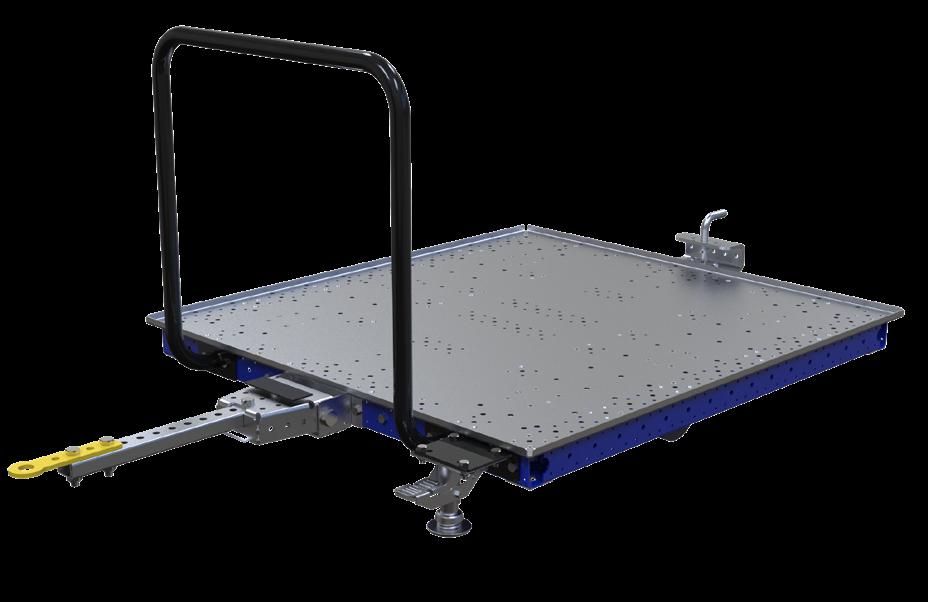

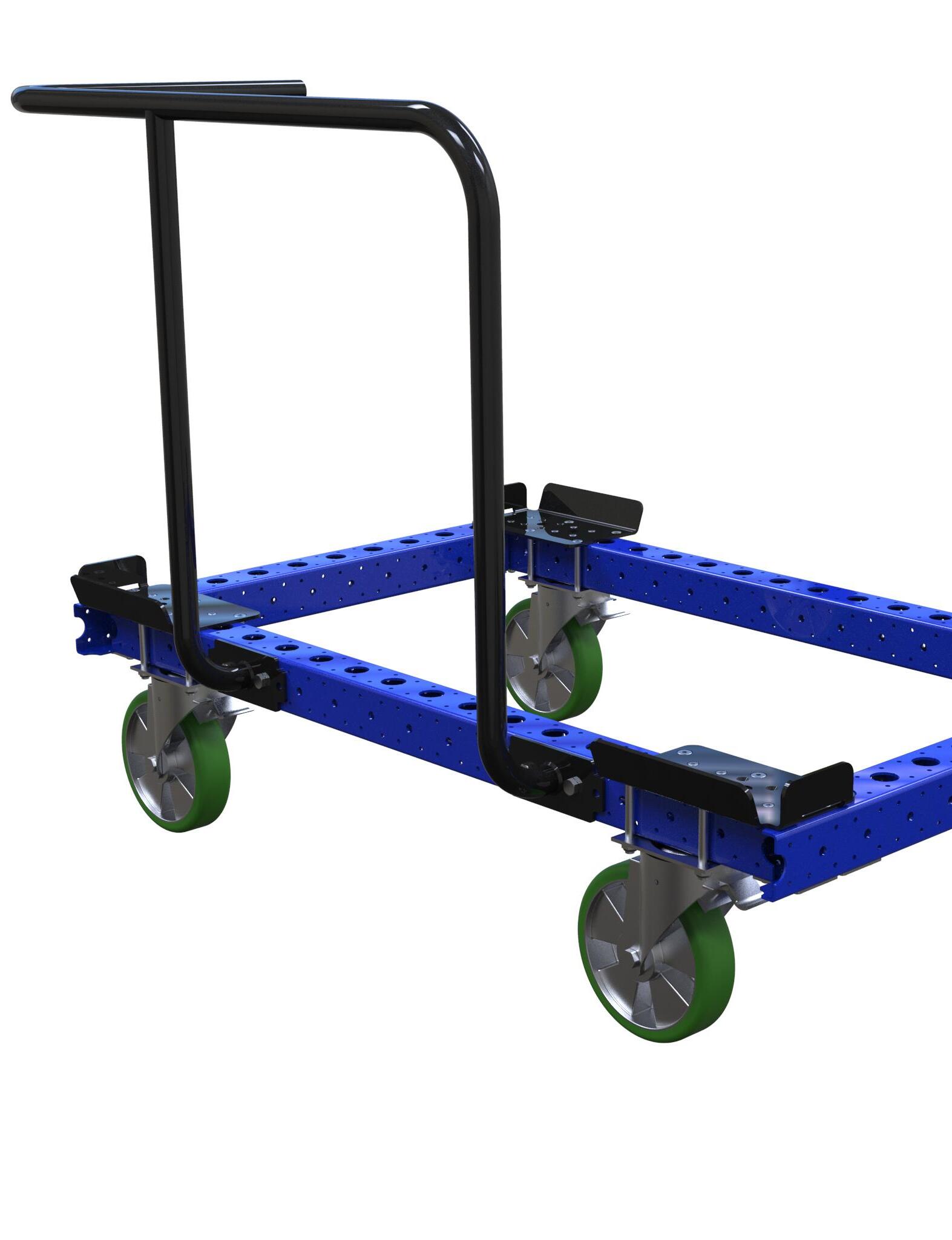

PALLET TUGGER CART 50 x 50 ‘‘ / 1260 x 1260 mm Q-100-0112

LOAD CAPACITY 2,200 lbs / 1000 kg

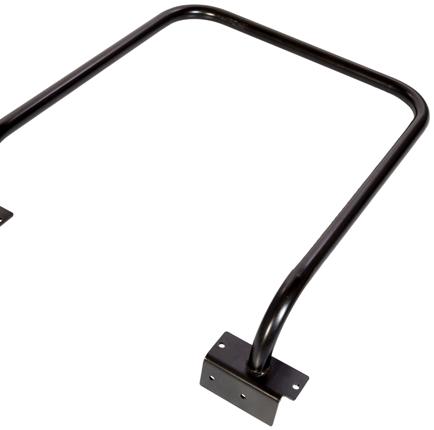

Ergonomic handlebar

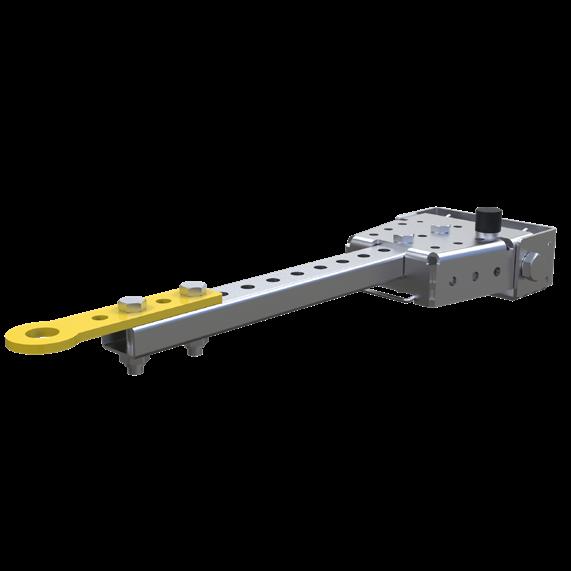

Different tow bar options available

Safe sorage with floor lock brake

20 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

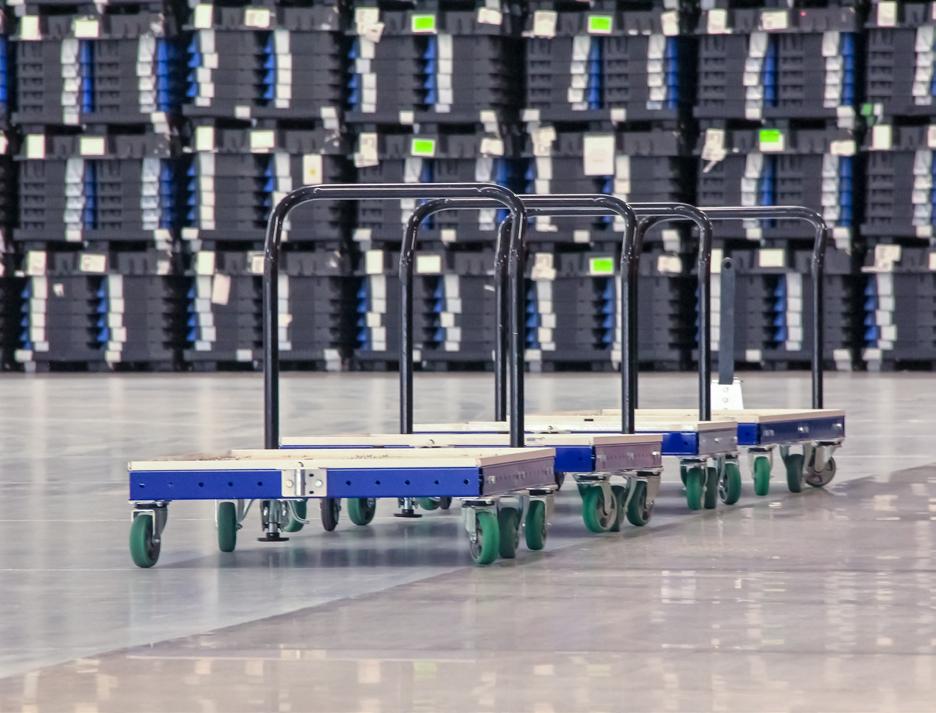

PALLET TUGGER CARTS

With or without steel deck

TUGGER CART

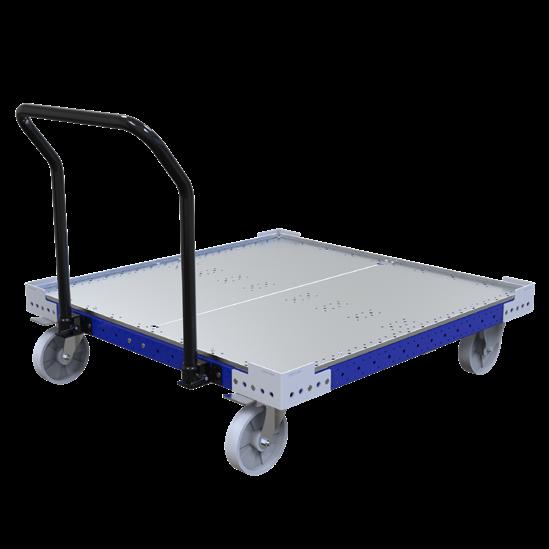

47 x 50 ‘‘ / 1190 x 1260 mm Q-100-1444

This cart can move five carts in a train, with a max load capacity of 2,200 lbs / 1000 kg per cart.

Heavy-duty polyurethane casters for optimal tracking

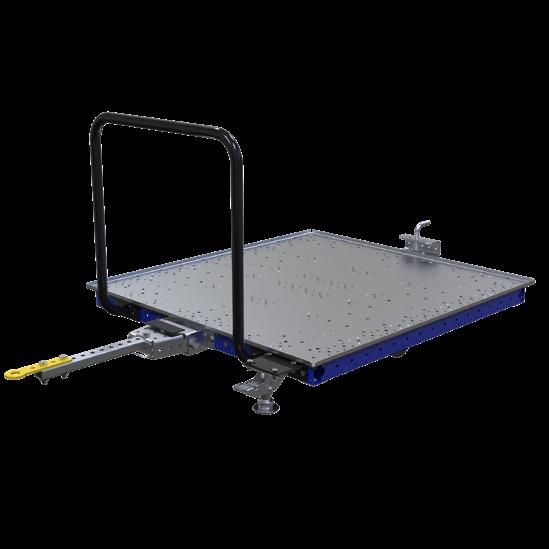

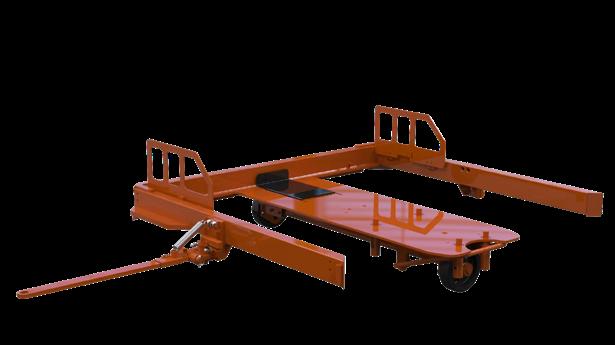

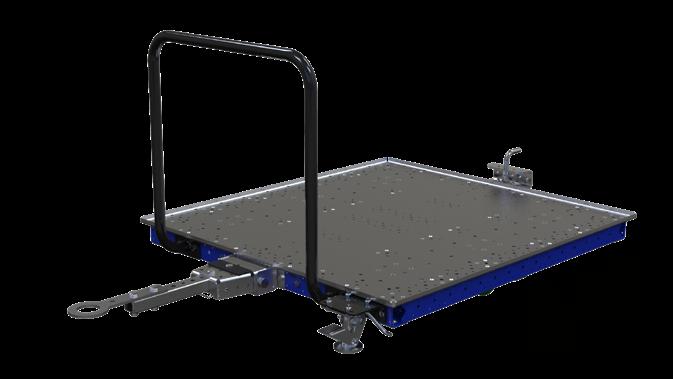

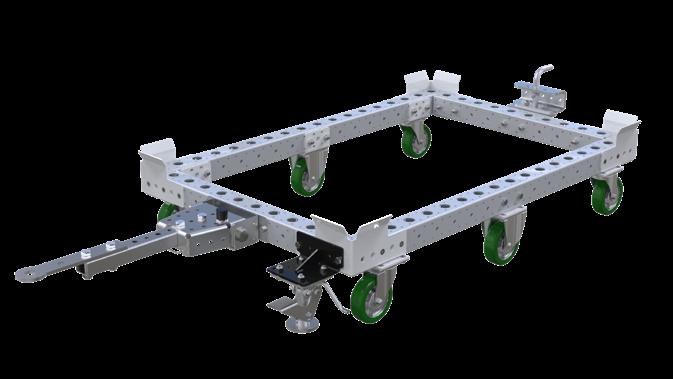

LOW RIDER TUGGER CART 47 x 44 ‘‘ / 1190 x 1120 mm Q-100-0595

This cart is built for minimal loading clearance. It can move four carts in a tugger train, with a max load capacity of 1,000 lbs / 450 kg per cart.

21 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

PALLET TUGGER CARTS Q-100-0112

PALLET TUGGER CART • • • • •

Q-100-1444

• • • •

Our most popular cart in the North American market, valued for its durability, simplicity, and easy manual or tugger-train transport.

Size: 47 x 50 inch / 1190 x 1260 mm Load Capacity: 2,200 lbs / 1000 kg Tugger Capacity: 5 in train Tow Bar: Tongue and Hitch Payload: Pallets, Containers

Product Information: Pallet tugger cart designed to transport one or more pallets simultaneously.

Equipped with raised corner plates to secure the pallet when being transported.

LOW RIDER TUGGER CART • • • • •

Q-100-0074

Product Information:

TUGGER CART •

Q-100-0595

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,200 lbs / 1000 kg Tugger Capacity: 4 in train Tow Bar: Tongue and Hitch Payload: Pallets, Containers

Size: 47 x 44 inch / 1190 x 1120 mm Load Capacity: 1,000 lbs / 450 kg Tugger Capacity: 4 in train Tow Bar: Tongue and Hitch Payload: Pallets, Containers

Product Information: Low rider cart designed to streamline the order picking process from warehouse to assembly or production area. The low deck height makes it easier to load and unload materials.

LOW RIDER PALLET CART • • • • •

Size: 46 x 49 inch / 1168 x 1245mm Load Capacity: 1,000 lbs / 450 kg Tugger Capacity: 4 in train Tow Bar: Tongue and Hitch Payload: Pallets, Containers

Product Information: Low rider cart designed to streamline the order picking process from warehouse to assembly or production area. The low deck height makes it easier to load and unload materials.

22 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

PALLET TUGGER CARTS PICKING CART Product Information:

•

This picking cart is designed to streamline the order picking process from warehouse to assembly or production area. The low deck height makes it easier to load and unload materials.

• • • •

Size: 47 x 77 inch / 1190 x 1960 mm Load Capacity: 1,500 lbs / 700 kg Tugger Capacity: 5 in train Tow Bar: Tongue and Hitch Payload: Pallets, Misc Parts

TUGGER CART Product Information:

•

Standard pallet tugger cart designed with to be transported in a tugger train with excellent tracking properties and silent movement.

Equipped with raised corner plates to secure the pallet when being transported.

• • • •

•

Pallet tugger cart designed with to be transported in a tugger train with excellent tracking properties and silent movement. Equipped with raised corner plates to secure the pallet when being transported.

• • • •

•

Pallet tugger cart designed with to be transported in a tugger train with excellent tracking properties and silent movement.

• • • •

Q-100-6573

Size: 36 x 33 inch / 910 x 840 mm Load Capacity: 2,200 lbs / 1000 kg Tugger Capacity: 4 in train Tow Bar: Foot Release Payload: Pallets

PALLET TUGGER CART Product Information:

Q-100-1330

Size: 33 x 50 inch / 840 x 1260 mm Load Capacity: 1,110 lbs / 500 kg Tugger Capacity: 5 in train Tow Bar: Tongue and Hitch Payload: Pallets

PALLET TUGGER CART Product Information:

Q-100-2257

Q-100-6023

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,200 lbs / 1000 kg Tugger Capacity: 3 in train Tow Bar: Foot Release Payload: Pallets, Containers 23

EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

PALLET CARTS. Industrial pallet carts are built for heavy-duty transport of US pallets (48x45 or 48x48 ) and EU standard pallets or containers and can move materials up to 3000 lbs / 1360 kg. Available with or without a steel deck, they can include ergonomic handlebars, floor brakes, and fixed or swivel casters. The FlexQube system lets you customize carts to your exact needs, and many models are compatible with the STILL LiftRunner Tugger Train System.

PALLET CART

50 x 33 ‘‘ / 1260 x 840 mm Q-100-0492

LOAD CAPACITY

1,100 lbs / 500 kg

Any shape and design with e.g. steel decks, corner guides and colors

Ergonomic handlebar

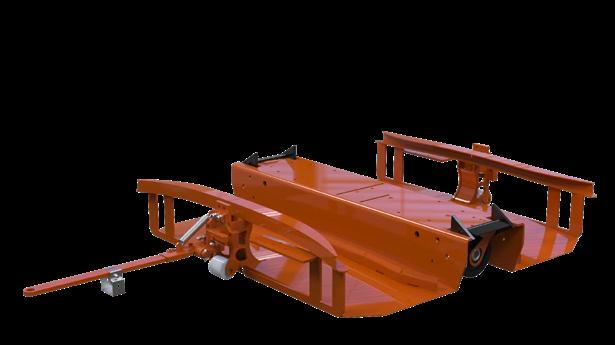

Compatible with B-frame in the STILL LiftRunner Tugger Train System

Flexible pallet carts with options to choose type of casters and handlebars

24 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

PALLET CARTS

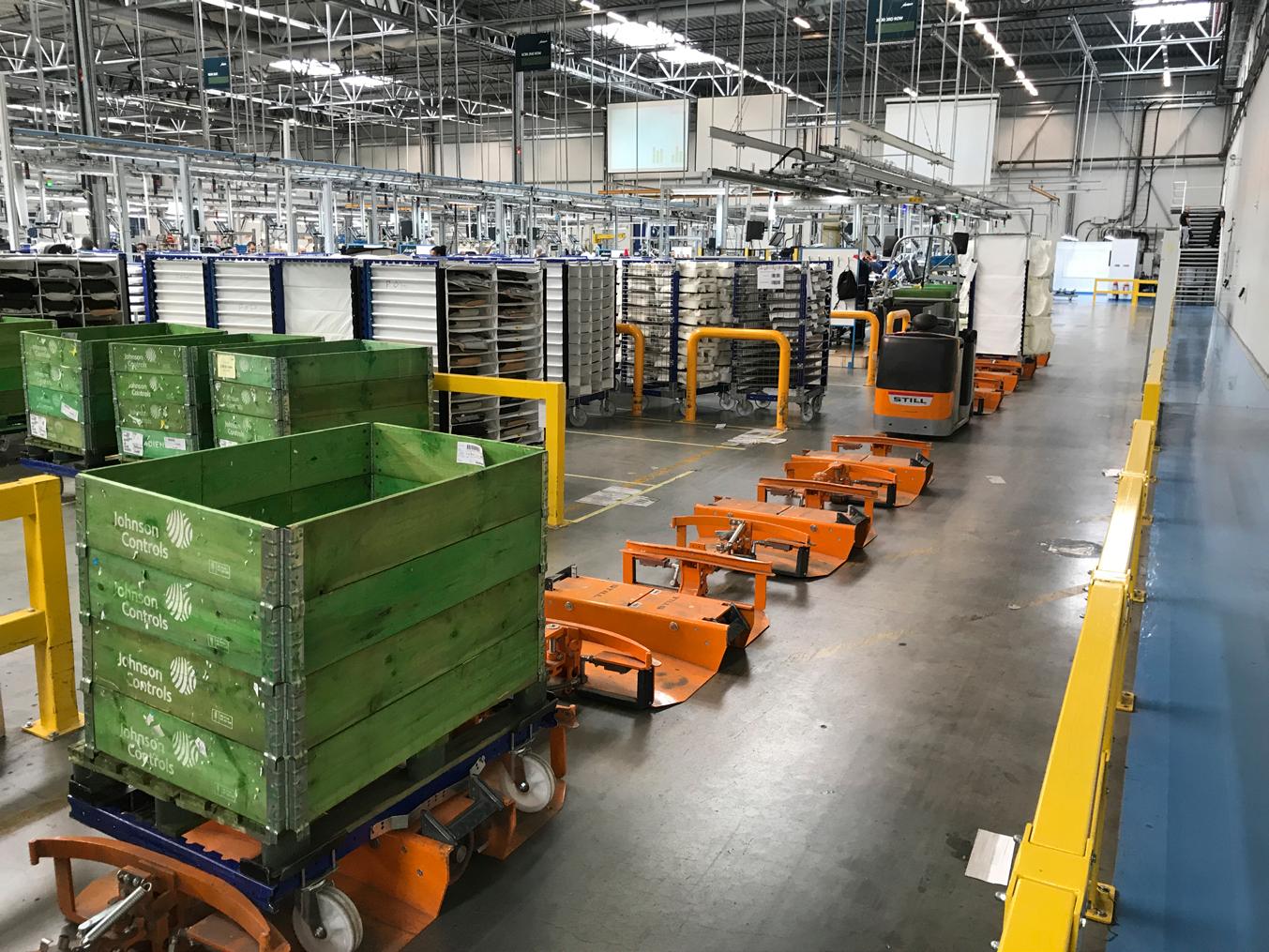

By adding a towbar attachments, all carts can be fitted in a tugger train solution

PALLET CART

50 x 50 ‘‘ / 1260 x 1260 mm Q-100-1079

This extra heavy-duty cart comes without a steel deck, and has a max load capacity of 3,000 lbs / 1360 kg.

Heavy-duty polyurethane casters for optimal tracking

FLAT DECK CART

50 x 50 ‘’ / 1260 x 1260 mm Q-100-2339

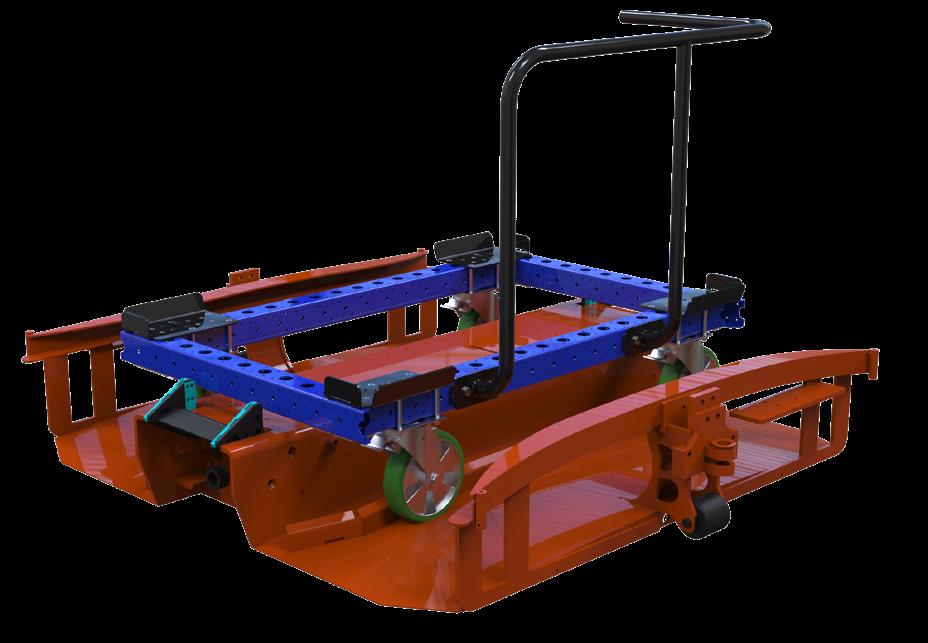

This cart is built to be integrated with a LiftRunner B-frame, with a max load capacity of 2,500 lbs / 1137 kg.

25 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

PALLET CARTS PALLET CART

Q-100-0492

• • • •

Size: 50 x 33 inch / 1260 x 840 mm Load Capacity: 1,100 lbs / 500 kg Transportation: Manual, LiftRunner Payload: Pallets

LiftRunner B-frame Compatible

Product Information: Standard pallet cart without steel flat deck designed to transport pallets in a STILL LiftRunner B-Frame or manually. Designed with raised corner plates to secure the pallet when being transported.

PALLET CART without steel deck

Q-100-2338

• • • •

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Manual, LiftRunner Payload: Pallets, Containers

Product Information: Pallet cart without steel flat deck designed to transport pallets in a STILL LiftRunner B-Frame or manually.

Designed with raised corner plates to secure the pallet when being transported.

LiftRunner B-frame Compatible Q-100-2339

FLAT DECK CART with steel deck • • • •

Q-100-1078

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,500 lbs / 1137 kg Transportation: Manual, LiftRunner Payload: Pallets, Containers

Product Information: Pallet cart with steel flat deck designed to transport pallets in a STILL LiftRunner B-Frame or manually.

Designed with raised corner plates to secure the pallet when being transported.

PALLET CART • • • •

Size: 50 x 50 inch / 1260 x 1260mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Manual, LiftRunner Payload: Pallets, Containers

Product Information: Sturdy pallet cart designed to transport heavy pallets in a STILL LiftRunner Frame or manually. Designed with raised corner plates to secure the pallet when being transported.

26 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

PALLET CARTS PALLET CART Product Information:

•

Sturdy pallet cart designed to transport heavy pallets in a STILL LiftRunner Frame or manually. Designed with raised corner plates to secure the pallet when being transported, and rubber bumbers preventing damage when parked.

• • •

Q-100-1079

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 3,000 lbs / 1360 kg Transportation: Manual, LiftRunner Payload: Pallets, Containers

EXTRA HEAVY DUTY PALLET CART

Product Information:

•

Sturdy pallet cart designed to transport heavy pallets in a STILL LiftRunner Frame or manually. Designed with a steel flatbed, and removable handlebar.

• • •

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,500 lbs / 1135 kg Transportation: Manual, LIftRunner Payload: Pallets, Containers

PALLET CART Product Information:

•

Standard pallet cart designed to transport pallets in a STILL LiftRunner Frame or manually.

Designed with raised corner plates to secure the pallet when being transported.

• • •

•

Pallet cart designed to transport pallets in a STILL LiftRunner Frame or manually.

Designed with raised corner plates to secure the pallet when being transported.

• • •

Q-100-1132

Size: 50 x 41 inch / 1260 x 1050 mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Manual, LiftRunner Payload: Pallets, Containers

PALLET CART Product Information:

Q-100-3750

Q-100-1165

Size: 50 x 50 inch / 840 x 770 mm Load Capacity: 1,000 lbs / 450 kg Transportation: Manual, LiftRunner Payload: Pallets, Containers

27 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

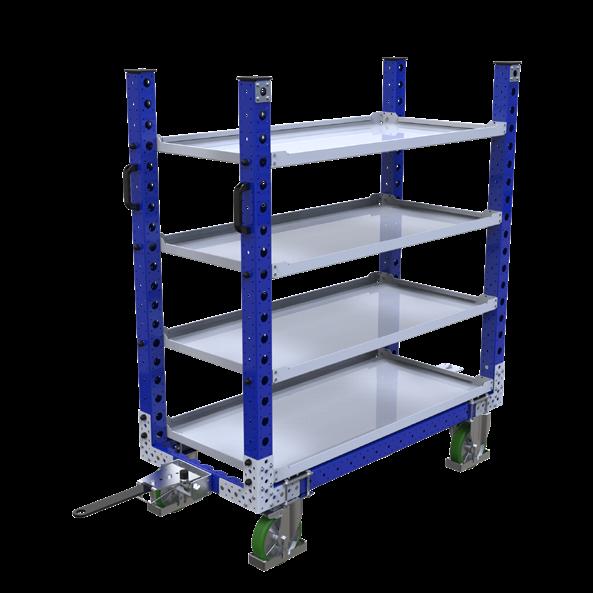

FLAT SHELF CARTS. The shelf cart is a versatile solution for transporting and presenting different materials. Thanks to its modular design, shelves can be added, removed or adjusted in position directly on-site without hassle.

Choose between flat, flow, or roller shelves depending on your need, and adjust the height for maximum operator comfort. The cart can also be equipped with wire mesh sides to keep parts secure, ergonomic handle bars, different towbar options and a floor brake are also available to make handling safe and efficient.

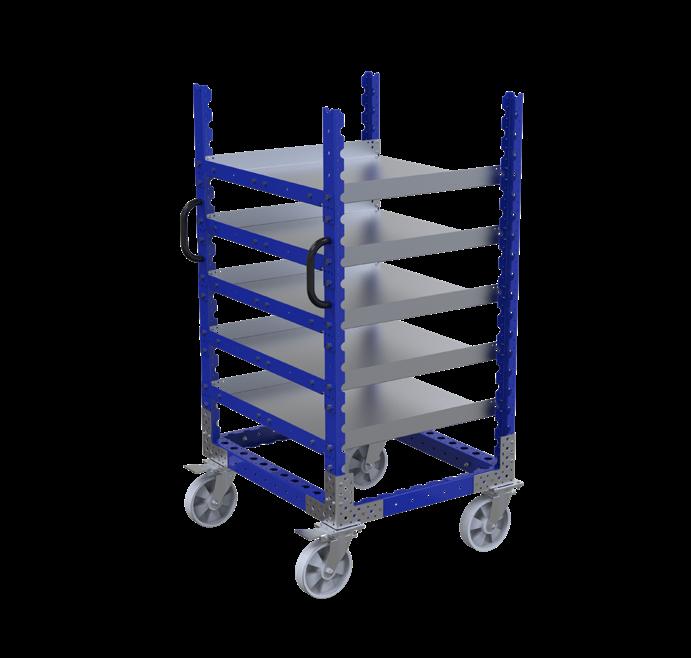

SHELF CART

25 x 50 inch / 630 x 1260 mm Q-100-2214

LOAD CAPACITY

Adjust position of shelves

600 lbs / 300 kg

Steel or composite material shelves

All standard shelf carts can be integrated into a tugger train system by adding a tow bar

Heavy-duty polyurethane casters for optimal tracking 28 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FLAT SHELF CARTS

Shelves can be added, removed or adjusted in position directly on-site without hassle

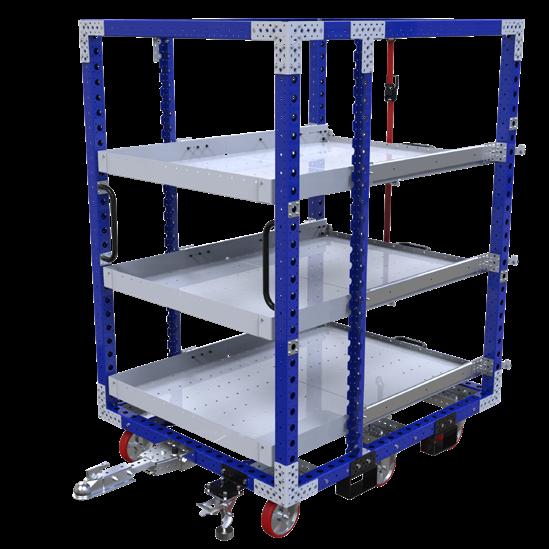

FLAT SHELF CART

63 x 33 inch / 1600 x 840 mm Q-100-1424

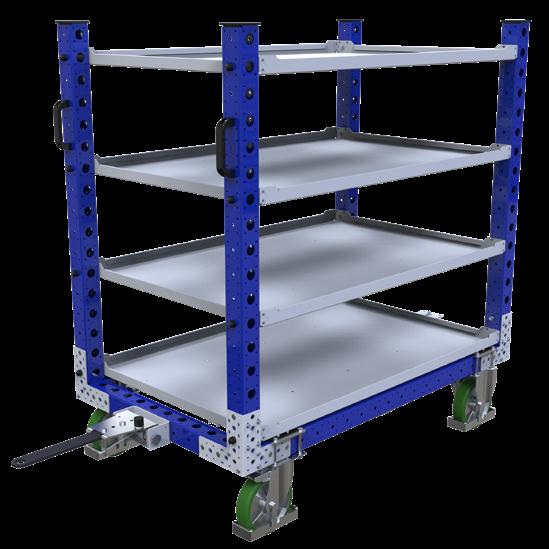

This sturdy three-level flat shelf cart is designed to move heavy materials up to 220 lbs / 100 kg per shelf.

“KLT” SHELF CART Several standard size shelf carts available with short lead time

55 x 25 inch / 1400 x 630 mm Q-100-8306

This cart is designed to move manually or in a tugger train, with a max load capacity of 1,102 lbs / 500 kg.

29 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FLAT SHELF CARTS Q-100-2214

SHELF CART • • • •

Q-100-6779

• • •

Tall shelf cart for material presentation, featuring three flat shelves and an angled top shelf - all with rubber protection. Transported manually or in a tugger train.

Size: 63 x 28 inch / 1610 x 700 mm Load Capacity: 375 lbs / 170 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Totes

Product Information: Three-level shelf cart with raised edges to ensure materials do not fall during transportaion.

FLAT SHELF CART • • • •

Q-100-7275

Product Information:

FLAT SHELF CART •

Q-100-4784

Size: 25 x 50 inch / 630 x 1260 mm Load Capacity: 600 lbs / 300 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Misc parts, Totes

Size: 63 x 28 inch / 1610 x 700 mm Load Capacity: 375 lbs / 170 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Totes

Product Information: Three-level shelf cart designed with forklift pockets and wire mesh for material protection.

FLAT SHELF CART • • • •

Size: 69 x 36 inch / 1750 x 910 mm Load Capacity: 1,000 lbs / 452 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Misc parts, Totes

Product Information: Four-level shelf cart designed with forklift pockets in the middle of the cart.

30 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FLAT SHELF CARTS FLAT SHELF CART Product Information:

•

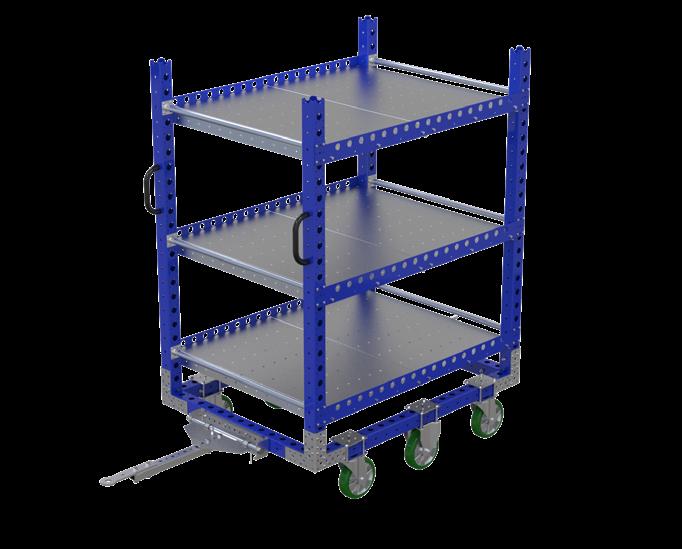

Three-level shelf cart designed to be transported in a tugger train solution.

• • •

Q-100-1424

Size: 63 x 33 inch / 1600 x 840 mm Load Capacity: 660 lbs / 300 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Totes

SHELF CART

Q-100-0609

Product Info:

Product Information: Sturdy three-level shelf cart designed to be transported in a tugger train solution.

• • • •

Size: 55 x 41 inch / 1400 x 1040 mm Load Capacity: 992 lbs / 450 kg Load Capacity per Shelf: 331 lbs / 150 kg Payload: Bins, Boxes, Misc parts, Totes

“KLT” SHELF CART Product Information:

•

Sturdy four-level shelf cart designed for heavy materials to be transported in a tugger train solution. The shelves can be adjusted in position and features raised edges to ensure materials do not fall during transportaion.

• • •

Size: 55 x 33 inch / 1400 x 840 mm Load Capacity: 1,102 lbs / 500 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Totes

“KLT” SHELF CART Product Information:

•

Sturdy four-level shelf cart designed for heavy materials to be transported in a tugger train solution. The shelves can be adjusted in position and features raised edges to ensure materials do not fall during transportaion.

• • •

Q-100-8305

Q-100-8306

Size: 55 x 25 inch / 1400 x 630 mm Load Capacity: 1,102 lbs / 500 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Totes

31 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

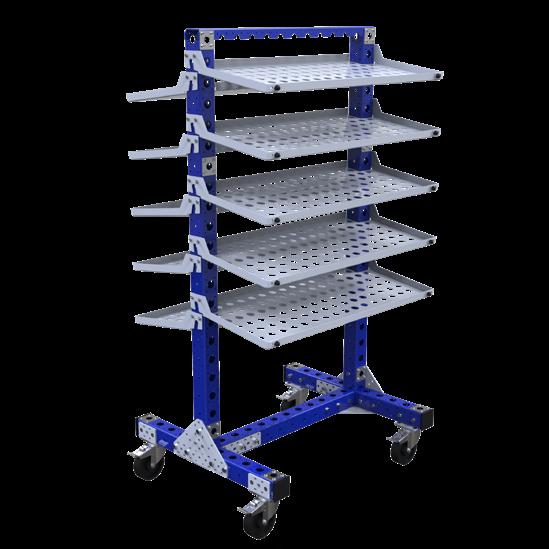

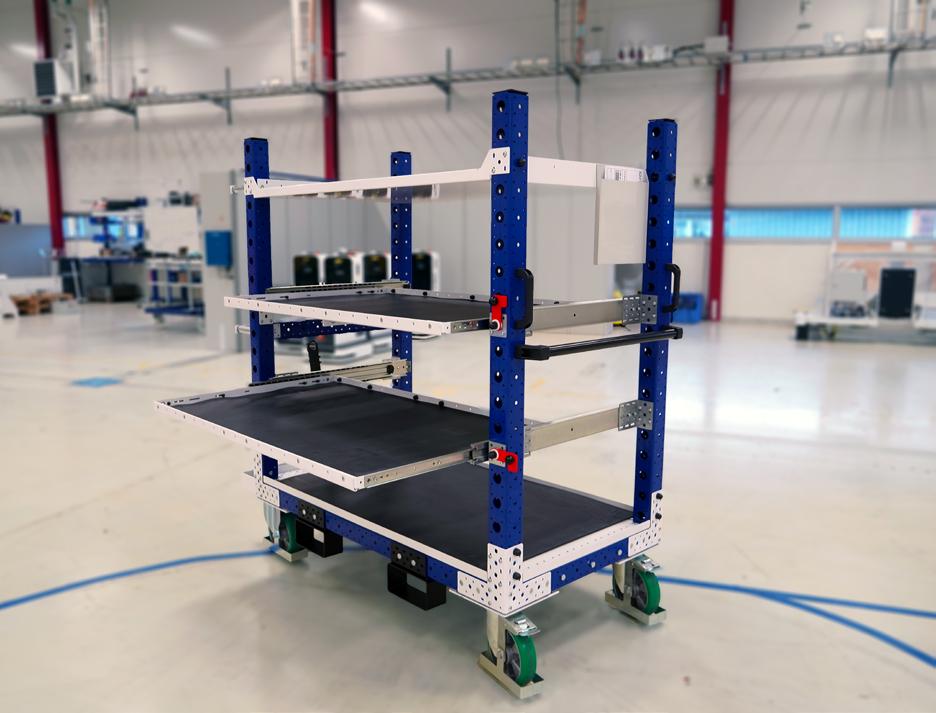

EXTENDABLE SHELF CARTS. For increased convenience and accessibility, extendable shelves can be added to almost any FlexQube cart configuration. The robust metal shelves can be extended 100 % from the base and feature a handle bar and a lock mechanism for increased safety during transportation. A telescopic shelf cart is used when you want to store lots of parts tightly packed and yet want an ergonomic and easy reach.

EXTENDABLE SHELF CART 33 x 40 inch / 840 x 980 mm Q-100-3101

LOAD CAPACITY

750 lbs / 340 kg

Adjust position of shelves

Steel or composite material shelves

All carts can easily be integrated into a tugger train system by adding a tow bar

Extendable shelves for ergonomic and efficient access to parts 32 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

EXTENDABLE SHELF CARTS

Shelves locked in place by easy lock function.

EXTENDABLE SHELF CART 36 x 55 inch / 910 x 1400 mm Q-100-2005

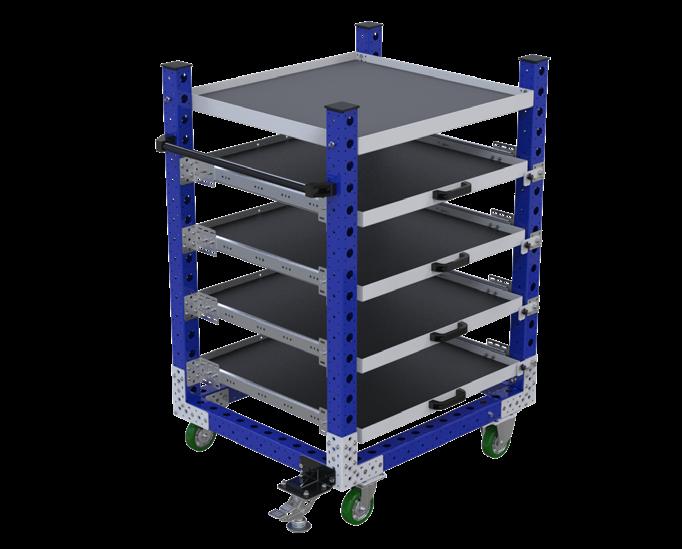

This five-level flat shelf cart with extendable shelves and dividers is designed to move materials up to 100 lbs / 45 kg per shelf.

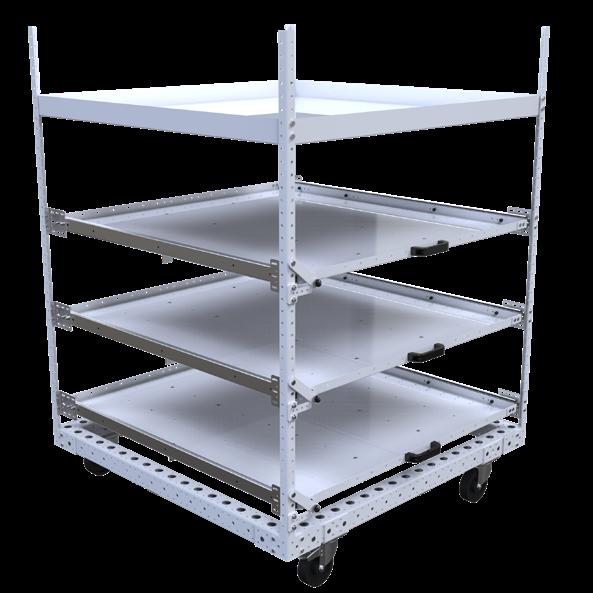

EXTENDABLE SHELF CART 50 x 50 inch / 1260 x 1260 mm Q-100-5929

This cart designed with one fixed and three extendable shelves can move materials up to 200 lbs / 90 kg per shelf.

33 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

EXTENDABLE SHELF CARTS Q-100-3101

EXTENDABLE SHELF CART • • • •

Q-100-4478

• • •

Extendable shelf cart with one fixed and four extendable shelves with additional lock pins.

Size: 22 x 36 inch / 560 x 910 mm Load Capacity: 450 lbs / 200 kg Load Capacity per Shelf: 45 lbs / 20 kg Payload: Bins, Boxes, Misc Parts, Totes

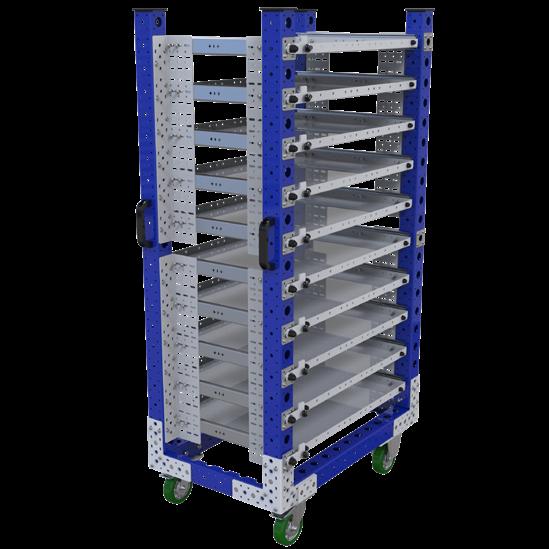

Product Information: Extendable shelf cart with ten extendable shelves with lock pins.

EXTENDABLE SHELF CART • • • •

Q-100-8100

Product Information:

EXTENDABLE SHELF CART •

Q-100-5929

Size: 33 x 40 inch / 840 x 980 mm Load Capacity: 750 lbs / 340 kg Load Capacity per Shelf: 150 lbs / 68 kg Payload: Bins, Boxes, Misc parts, Totes

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 795 lbs / 360 kg Load Capacity per Shelf: 200 lbs / 90 kg Payload: Bins, Boxes

Product Information: Extendable shelf cart with one fixed and three extendable shelves with lock pins.

EXTENDABLE SHELF CART • • • •

Size: 64 x 52 inch / 1610 x 1330 mm Load Capacity: 265 lbs / 120 kg Load Capacity per Shelf: 66 lbs / 30 kg Payload: Misc parts

Product Information: Extendable shelf cart with with three extendable shelves and forklift pockets.

34 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

EXTENDABLE SHELF CARTS EXTENDABLE SHELF CART Product Information:

•

Shelf cart designed with one fixed top shelf and two extendable shelves with lock pin.

• • •

Size: 91 x 28 inch / 2310 x 700 mm Load Capacity: 750 lbs / 340 kg Load Capacity per Shelf: 250 lbs / 113 kg Payload: Misc Parts

EXTENDABLE SHELF CART Product Information:

•

Designed with five extendable shelves with dividers. The shelves are equipped with foam on top of the shelves to ensure they don’t damage any of the parts.

• • •

•

Designed with one fixed and two extendable shelves with lock pins.

• • •

•

Designed with three extendable shelves with lock pins.

• • •

Q-100-5867

Size: 55 x 33 inch / 1260 x 630 mm Load Capacity: 1,000 lbs / 450 kg Load Capacity per Shelf: 300 lbs / 135 kg Payload: Bins, Boxes, Misc Parts, Totes

EXTENDABLE SHELF CART Product Information:

Q-100-2005

Size: 36 x 55 inch / 910 x 1400 mm Load Capacity: 500 lbs / 227 kg Load Capacity per Shelf: 100 lbs / 45 kg Payload: Bins, Boxes, Misc parts, Totes

EXTENDABLE SHELF CART Product Information:

Q-100-6055

Q-100-7890

Size: 55 x 33 inch / 1400 x 840 mm Load Capacity: 600 lbs / 272 kg Load Capacity per Shelf: 200 lbs / 91 kg Payload: Bins, Boxes, Misc Parts, Totes

35 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

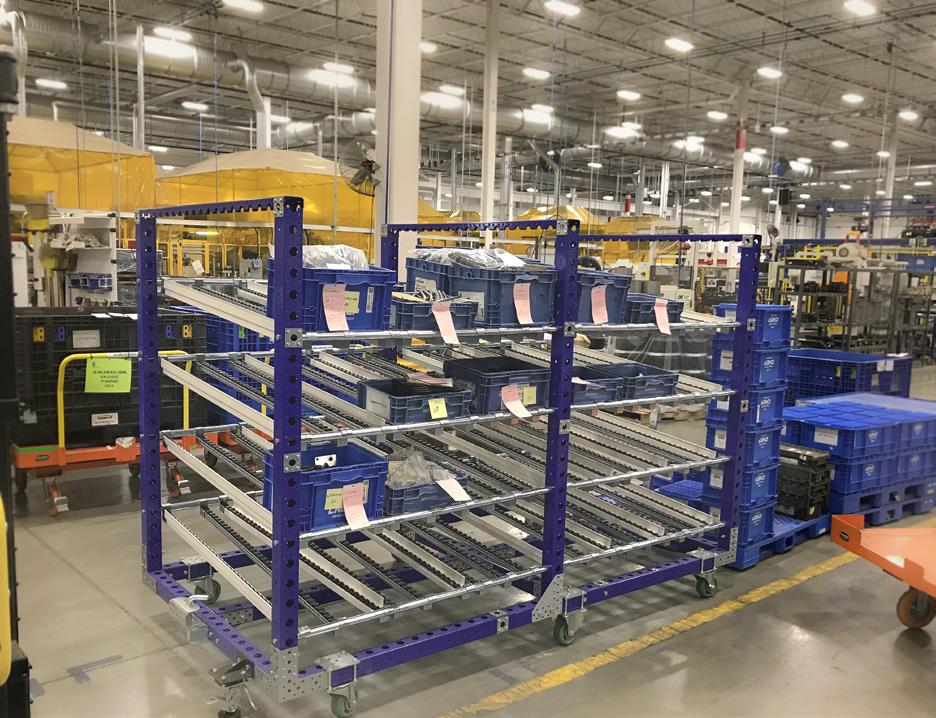

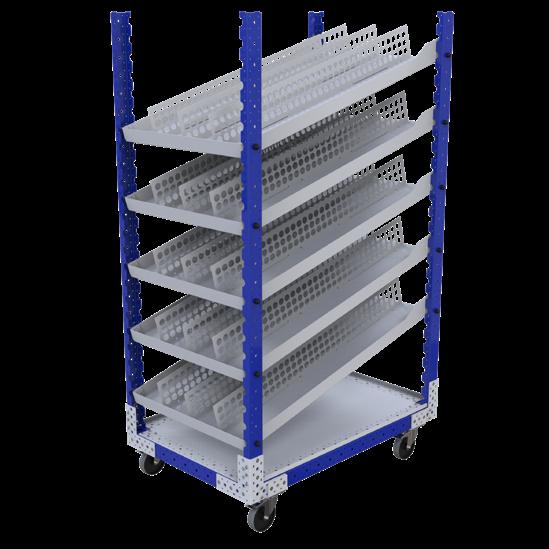

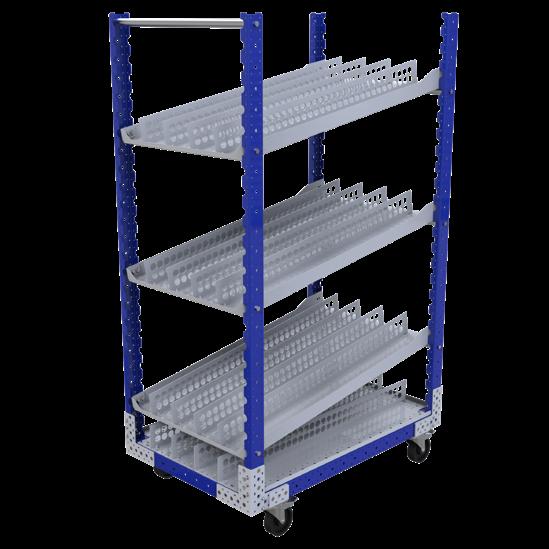

FLOW SHELF CARTS. A flow shelf cart or rack uses gravity to aid in the flow of materials, components, and tools stored within totes, bins, and boxes. The height of the shelves is easily adjusted and you can add a side and/or back fence to prevent parts from falling out.

FLOW SHELF CART

47 x 30 inch / 1190 x 770 mm Q-100-4441

LOAD CAPACITY

331 lbs / 150 kg

Flow racks that handle heaviser loads

Roller or flat flow shelves

Create your unique design for work stations or tugger carts

All standard shelf carts can be integrated into a tugger train system by adding a tow bar

Option of carts with caster or sturdy rack

Heavy-duty polyurethane casters for optimal tracking 36 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FLOW SHELF CARTS

Shelves can be added, removed or adjusted in position directly on-site without hassle.

FLOW SHELF CART 63 x 28 inch / 44 x 39 mm Q-100-6263

This four-level flow shelf cart is designed to move heavy materials up to 250 lbs / 113 kg per shelf.

FLOW RACK TUGGER CART 28 x 50 inch / 700 x 1260 mm Q-100-0768

This cart is equippes with three roller shelves, designed to move materials manually or in a tugger train, up to 185 lbs / 84 kg per shelf.

37 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FLOW SHELF CARTS Q-100-4441

FLOW SHELF CART • • • •

Q-100-6263

• • •

Three-level flow shelf cart with spacers on each shelf for efficient line-side presentation.

Size: 63 x 28 inch / 44 x 39 mm Load Capacity: 1,000 lbs / 454 kg Load Capacity per Shelf: 250 lbs / 113 kg Payload: Misc Parts

Product Information: Four-level flow shelf cart for transporting and presenting loose materials safely.

FLOW SHELF CART • • • •

Q-100-0768

Product Information:

FLOW SHELF CART •

Q-100-4442

Size: 47 x 30 inch / 1190 x 770 mm Load Capacity: 331 lbs / 150 kg Load Capacity per Shelf: 110 lbs / 50 kg Payload: Bins, Boxes, Misc parts, Totes

Size: 30 x 47 inch / 770 x 1190 mm Load Capacity: 551 lbs / 250 kg Load Capacity per Shelf: 110 lbs / 50 kg Payload: Bins, Boxes, Misc parts, Totes

Product Information: Five-level flow shelf cart with spacers on each shelf for efficient line-side presentation.

FLOW RACK TUGGER CART • • • •

Size: 28 x 50 inch / 700 x 1260 mm Load Capacity: 550 lbs / 250 kg Load Capacity per Shelf: 185 lbs / 84 kg Payload: Bins, Boxes, Misc parts, Totes

Product Information: This flow rack features three roller shelves, presenting materials on the bottom two and returning items on the top. Perfect to improve material presentation to the operators.

38 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FLOW SHELF CARTS FLOW SHELF RACK Product Information:

•

Sturdy rack with three flow shelves. The position and angle of the flow shelves can be adjusted to match presentation to the operators.

• • •

Size: 28 x 50 inch / 700 x 1260 mm Load Capacity: 330 lbs / 150 kg Load Capacity per Shelf: 110 lbs / 50 kg Payload: Bins, Boxes, Misc parts, Totes

FLOW SHELF CART Product Information:

•

Five-level flow shelves with easily adjustable shelves on both side of the cart. Perfect for material presentation.

• • •

•

This flow rack features five roller shelves, presenting materials on the bottom four and returning items on the top. Perfect to improve material presentation to the operators.

• • •

•

Four-level shelf cart perfect optimal to be transported in a tugger train, with excellent tracking properties and silent movement.

• • •

Q-100-0846

Size: 63 x 47 inch / 1610 x 1190 mm Load Capacity: 1,650 lbs / 750 kg Load Capacity per Shelf: 330 lbs / 150 kg Payload: Bins, Boxes, Misc parts, Totes

FLOW SHELF WITH TUGGER Product Information:

Q-100-6873

Size: 36 x 30 inch / 910 x 770 mm Load Capacity: 400 lbs / 180 kg Load Capacity per Shelf: 80 lbs / 36 kg Payload: Misc parts

FLOW RACK Product Information:

Q-100-2013

Q-100-4546

Size: 55 x 33 inch / 1400 x 840 mm Load Capacity: 705 lbs / 320 kg Load Capacity per Shelf: 176 lbs / 80 kg Payload: Bins, Boxes, Misc parts, Totes

39 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

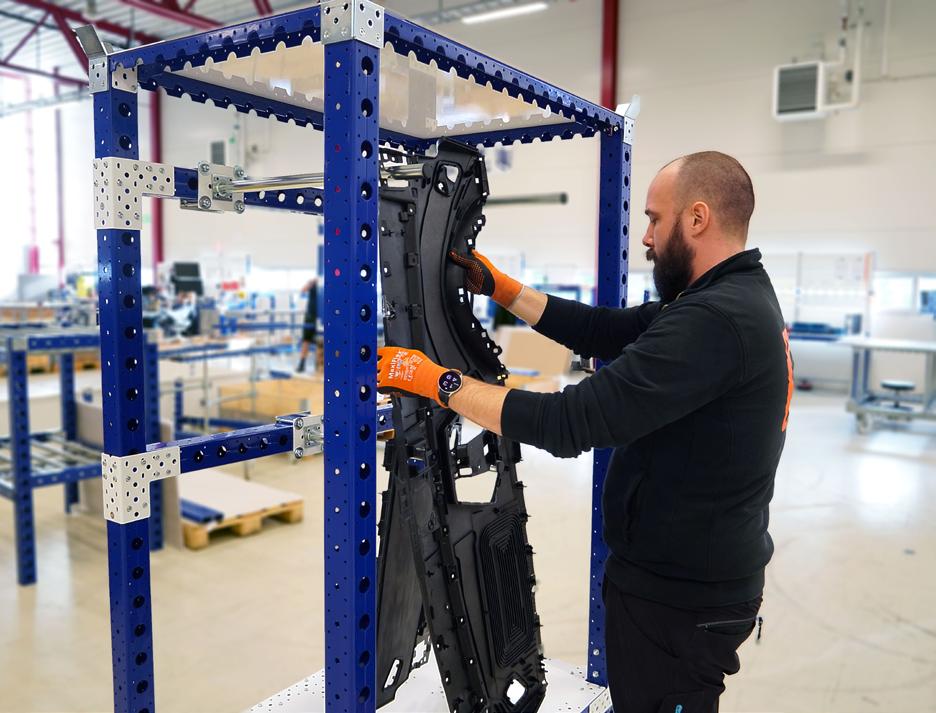

HANGING CARTS. The hanging cart is designed for transporting and displaying materials that need to be hung up such as ropes, cables, wires, cylinders etc. The adjustable hangers allows for quick and easy repositioning to best suit the operator’s needs.

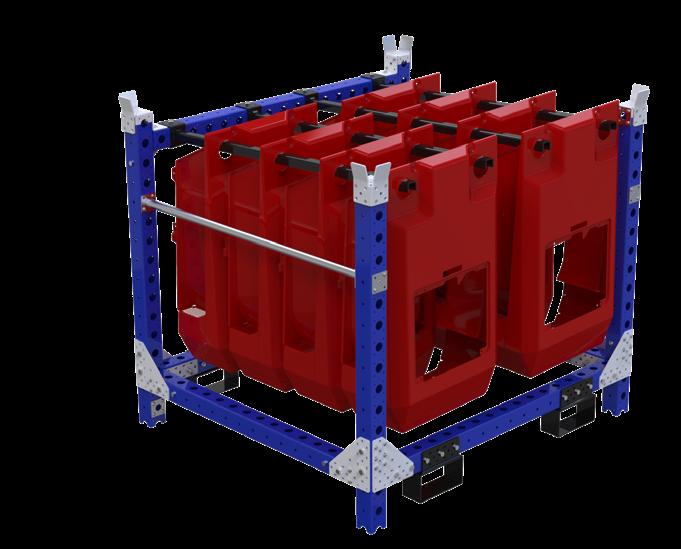

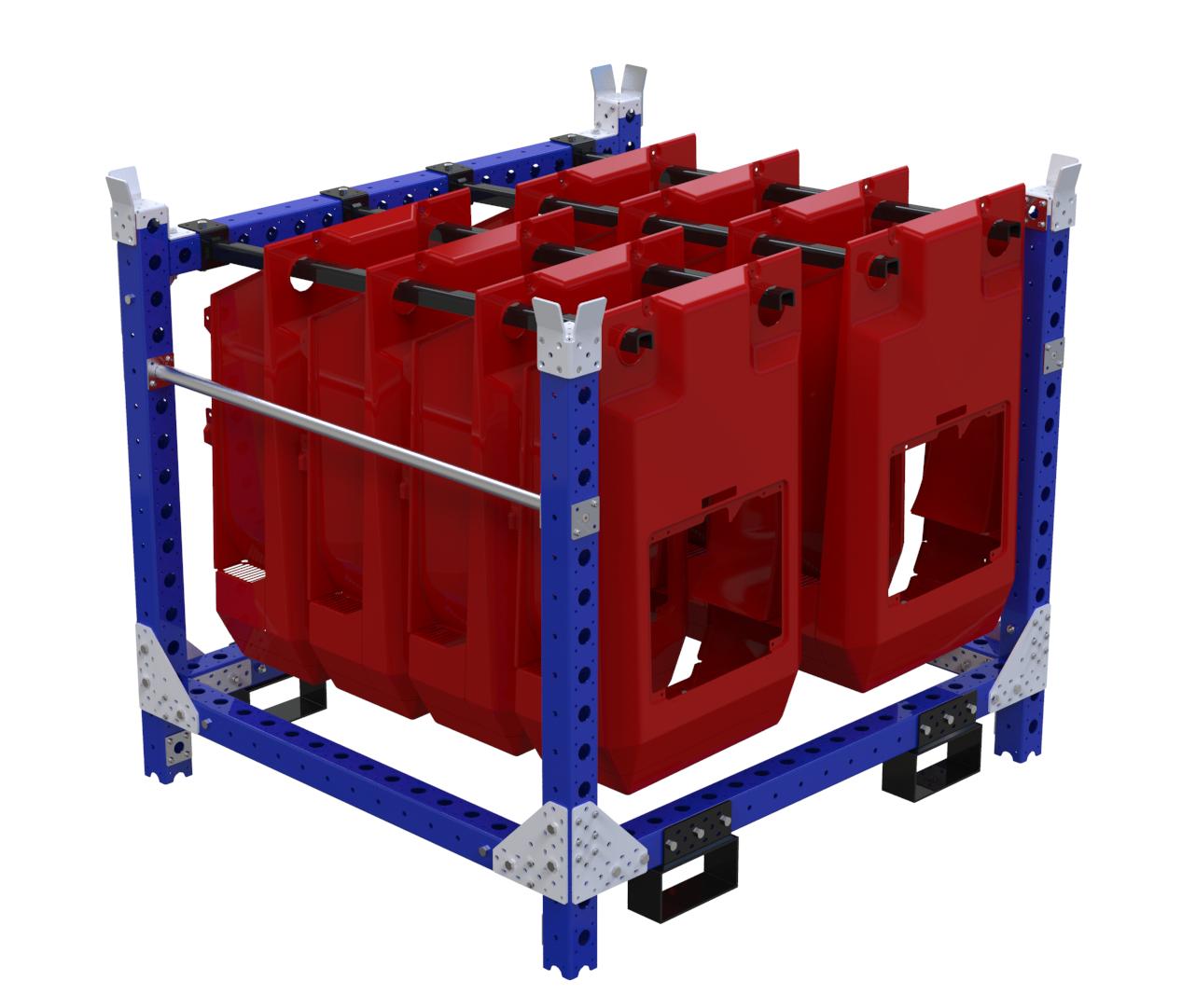

RACK FOR HANGING

52 x 47 inch / 1330 x 1190 mm Q-100-1144

Adjust position of hangers

LOAD CAPACITY

265 lbs / 120 kg

All hanging carts can be integrated into a tugger train system by adding a tow bar

Casters can be added on hanging rack for easy transportation

40 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

Forklift pockets

HANGING CARTS

Hangers can easily be adjusted in position directly on-site without hassle.

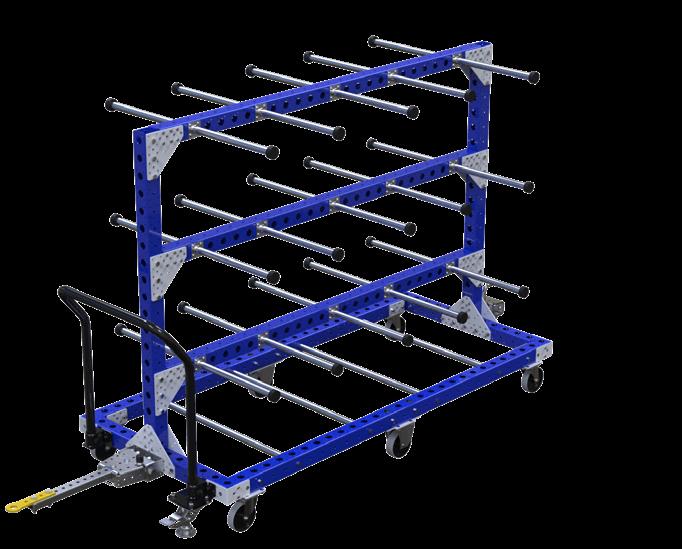

CART FOR HANGING 36 x 99 inch / 910 x 2030 mm Q-100-2504

This cart is designed with end-cap protected tubes to safely move materials up to 22 lbs / 10 kg per hanger.

Each cart is designed with hangers optimized for the type of payload.

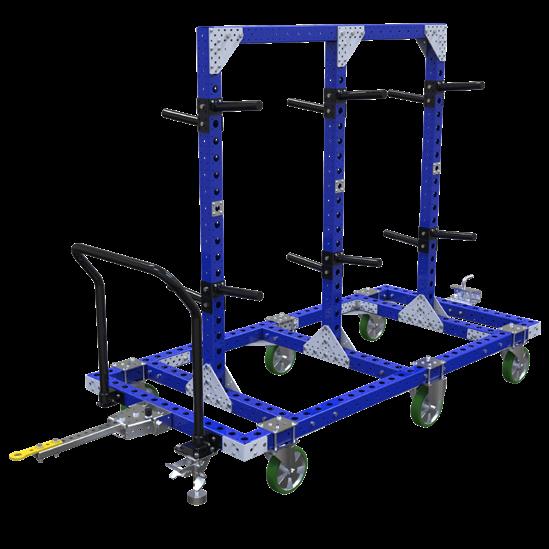

HANGING CART

55 x 25 inch / 1400 x 630 mm Q-100-8517

This cart is designed to move manually or in a tugger train, with a max load capacity of 1,102 lbs / 500 kg.

41 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

HANGING CARTS Q-100-1144

RACK FOR HANGING • • • •

Q-100-8517

• • •

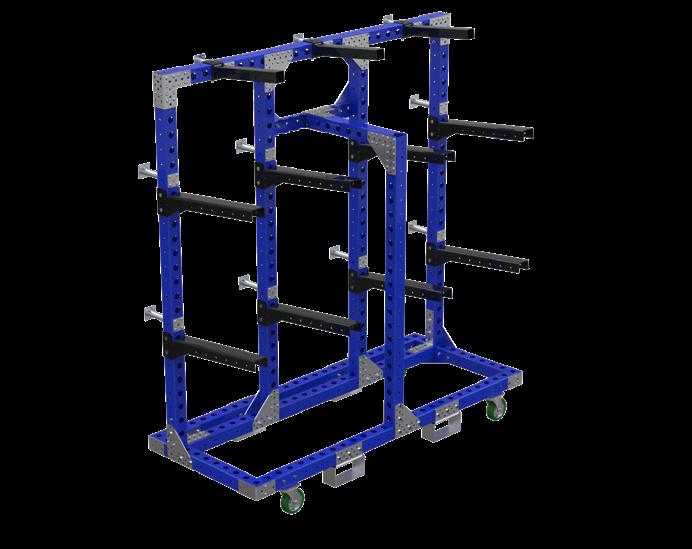

Rack designed for forklift transport of heavy panels, with angled hangers to prevent falling and vertical guides allowing up to three racks to be stacked.

Size: 85 x 41 inch / 2170 x 1050 mm Load Capacity: 1,855 lbs / 840 kg Load Capacity per Hanger: 155 lbs / 70 kg Payload: Hoses, Tubes, Wires, Misc Parts

Product Information: Simple hanging cart featuring twelve hanging tubes. Transported manually or in a tugger train.

HANGING CART • • • •

Q-100-1049

Product Information:

HANGING CART •

Q-100-0817

Size: 52 x 47 inch / 1330 x 1190 mm Load Capacity: 265 lbs / 120 kg Load Capacity per Hanger: 66 lbs / 30 kg Payload: Roofs, Hoses, Tubes, Wires

Size: 77 x 41 inch / 1960 x 1050 mm Load Capacity: 2,600 lbs / 1180 kg Load Capacity per Hanger: 150 lbs / 68 kg Payload: Hoses, Tubes, Wires, Misc Parts

Product Information: Ideal hanging cart for heavier materials due to the reinforced hangers. It also comes equipped with forklift pockets. Transported manually or in a tugger train.

CART FOR HANGING Product Info:

Product Information:

•

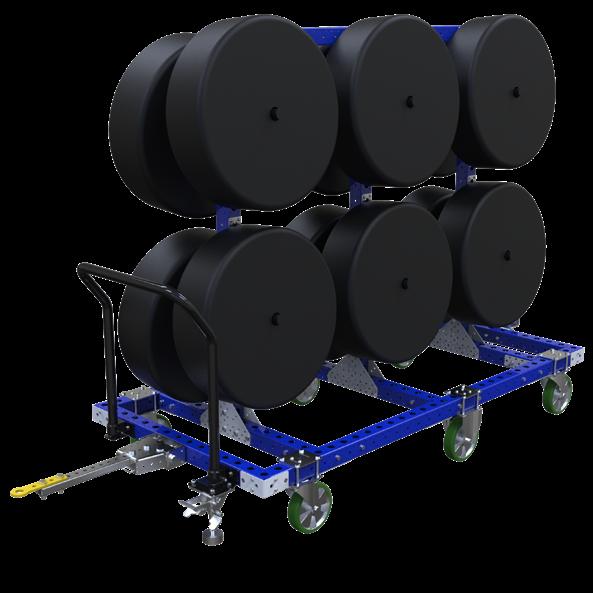

Specially designed for cylinders with five wheeld to support the load and two flooe brakes to secure the cart when no in use.

• •

Size: 102 x 41 inch / 2590 x 1050 mm Load Capacity: 150 lbs / 70 kg Payload: Misc parts, Cylinders

42 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

HANGING CARTS CART FOR HANGING Product Information:

•

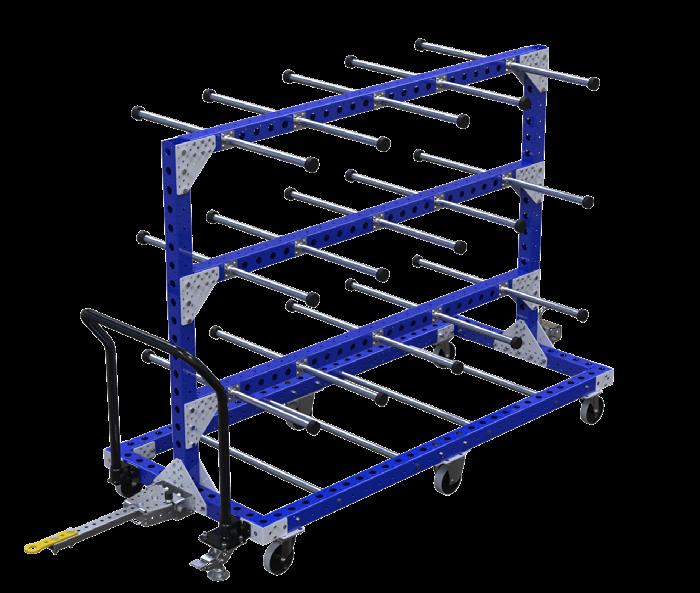

Three-level hanging cart featuring horizontal tubes with end caps to prevent materials from falling.

Transported manually or in a tugger train.

• • •

Size: 36 x 99 inch / 910 x 2030 mm Load Capacity: 661 lbs / 300 kg Load Capacity per Hanger: 22 lbs / 10 kg Payload: Hoses, Tubes, Wires, Misc Parts

HANGING CART Product Information:

•

Large hanging cart featuring horizontal hangers, with end locks to prevent materials from falling as well as forklift pockets. Transported manually or in a tugger train.

• •

•

Robust hanging cart perfect for heavy materials, featuring eleven robust hangers and tubes along with forklift pockets.

• • •

Product Information:

Product Info:

Light-weight hanging cart with five tubes featuring end locks to prevent materials from falling.

•

•

Q-100-0942

Size: 74 x 30 inch / 1890 x 770 mm Load Capacity: 2,000 lbs / 997 kg Load Capacity per Hanger: 150 lbs / 68 kg Payload: Misc parts

KIT HANGING CART

•

Q-100-7470

Size: 196 x 33 inch / 4970 x 840 mm Load Capacity: 770 lbs / 350 kg Payload: Misc parts

HANGING CART Product Information:

Q-100-2504

Q-100-3031

Size: 63 x 22 inch / 1610 x 560 mm Load Capacity: 200 lbs / 91 kg Payload: Wire coil, Misc Parts

43 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

MOTHER DAUGHTER CARTS. With the FlexQube intuitive mother-daughter cart solutions, smaller carts are transported to relevant work stations in the easiest and most practical way through the use of the mother unit. The size of both carts is customizable to fit the requirements at the assembly line. The mother cart is equipped with a drop pin, wire- or foot release tow bar and is easily connected to tugger trains.

MOTHER CART 2 in 1

66 x 63 inch / 1680 x 1610 mm Q-100-4043 LOAD CAPACITY

O ne o

2 Daughter Carts

Perfect for kit-carts and shelf carts

Create your own custommade design Heavy-duty polyurethane casters for optimal tracking 44 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

r d ua l

side lo

ading

MOTHER DAUGHTER CARTS

Quick and easy locking of daughter carts in mother unit.

MOTHER CART 4 in 1 39 x 74 inch / 980 x 1890 mm Q-100-3020

Tuggable mother cart designed to transport four daughter carts Q-100-0132.

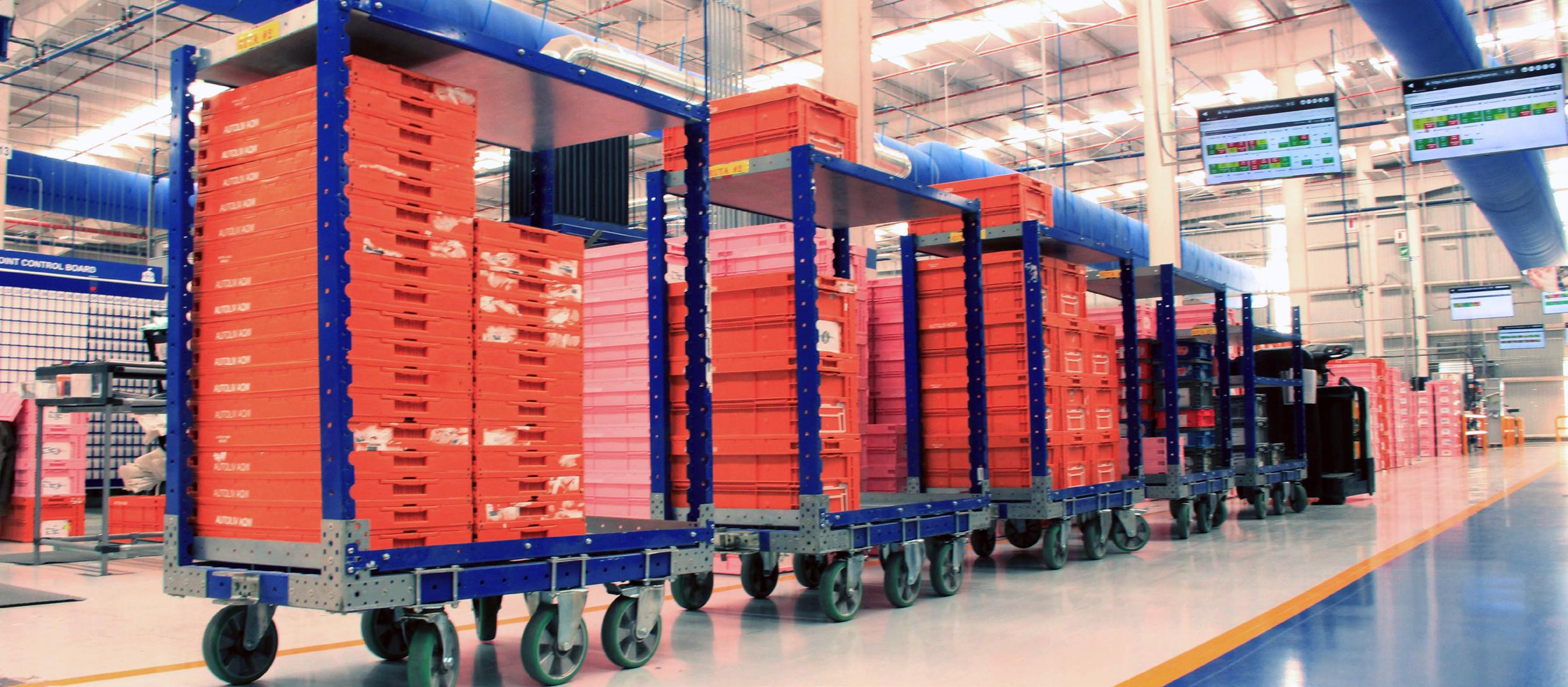

THE MOTHER DAUGHTER CONCEPT - is commonly used in a milk run system meaning you use the mother cart to carry daughter carts filled with material from warehouse to assembly line and picking up empty daughter carts on the way back.

MOTHER CART 8 in 1

88 x 58 inch / 2240 x 1470 mm Q-100-0986

Tuggable mother cart designed to transport eight dollies with electric ramp.

45 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

MOTHER DAUGHTER CARTS Q-100-4043

MOTHER CART 2 in 1 • • • •

Q-100-3020

• • •

Designed to carry two daughter carts which are locked in frame during transportation. Transported manually or in a tugger train.

Size: 39 x 74 inch / 980 x 1890 mm Load Capacity: 4 Daughter Carts Daughter Cart: Q-100-0132 Payload: Daughter Carts

Product Information: Designed to carry four daughter carts which are locked in frame during transportation. Transported manually or in a tugger train.

MOTHER CART 8 in 1 for Dollies • • • •

Q-100-1002

Product Information:

MOTHER CART 4 in 1 •

Q-100-0986

Size: 66 x 63 inch / 1680 x 1610 mm Load Capacity: 2 Daughter Carts Daughter Cart: Q-100-1042 Payload: Daughter Carts

Size: 88 x 58 inch / 2240 x 1470 mm Load Capacity: 2,200 lbs / 1000 kg Load Capacity per Hatch: 220 lbs / 100 kg Payload: Dollies

Product Information: Large mother frame designed to carry eight daughter carts in frame to be transported to different work stations.

Transported in a tugger train.

MOTHER CART 4 in 1 • • • •

Size: 80 x 50 inch / 2030 x 1260 mm Load Capacity: 4 Daughter Carts Daughter Carts: Q-100-1000 Payload: Daughter Carts

Product Information: Designed to carry four small daughter carts in frame. The carts are locked in during transportation to different work stations. Transported manually or in a tugger train.

46 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

MOTHER DAUGHTER CARTS MOTHER CART 6 in 1 Product Information:

•

Perfect for high-capacity material transport. Mother frame designed to be loaded with six daughter carts on each side of the frame.

Transported in a tugger train.

• • •

Size: 39 x 105 inch / 980 x 2660 mm Load Capacity: 6 Daughter Carts Daughter Cart: Q-100-2617 Payload: Daughter Carts

MOTHER CART 4 in 1 Product Information:

•

Designed to carry four daughter carts to different work stations throughout the facility. Transported in a tugger train.

• • •

•

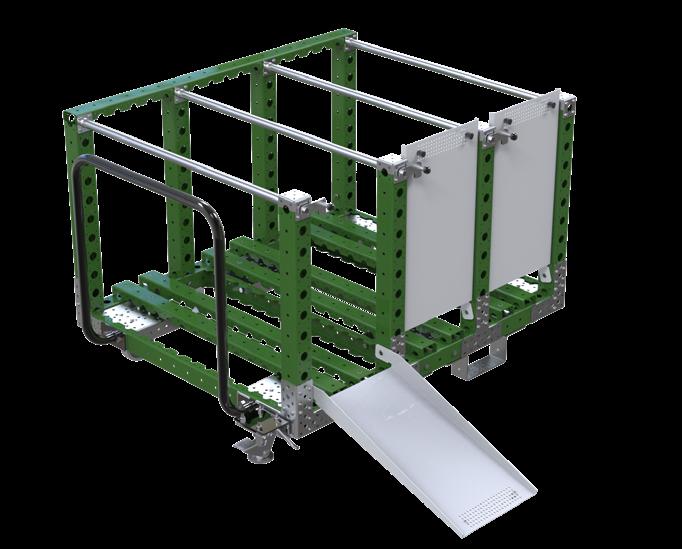

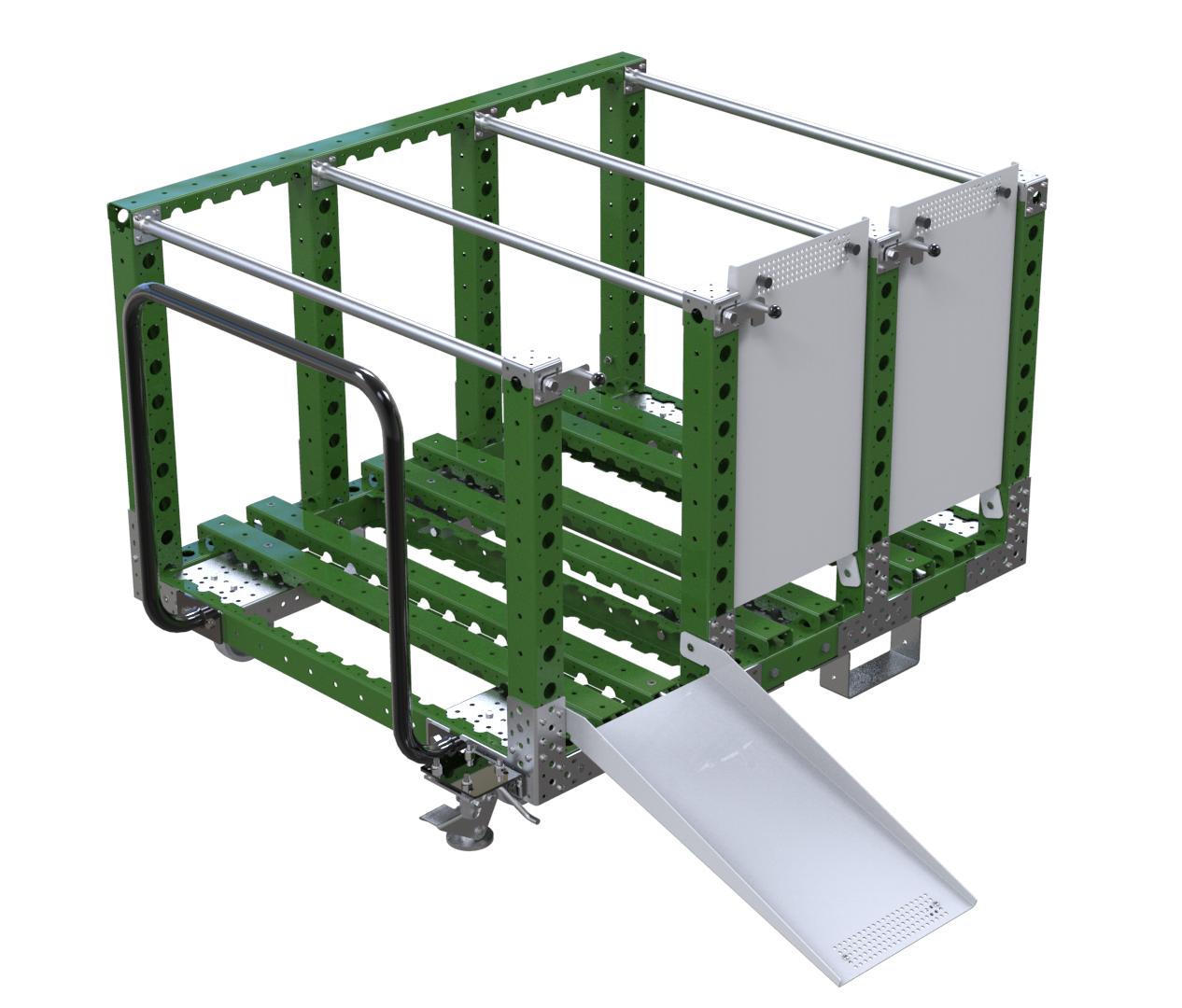

Designed to carry two daughter carts. Features lock bars for hatch doors, enabling efficient transport between assembly stations.

Transported in a tugger train.

• • •

•

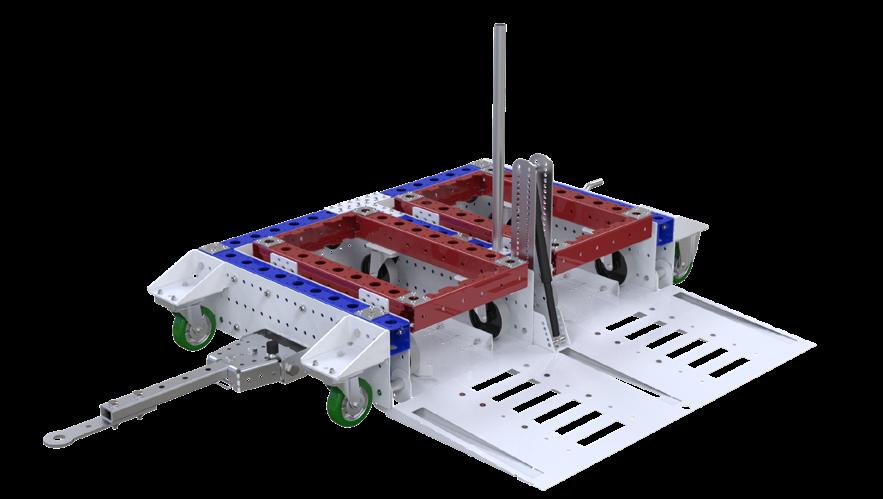

This 2-in-1 mother-daughter cart comes with an electric ramp and remote for easy loading and unloading of daughter carts. Tansported in a tugger train.

• • •

Q-100-5049

Size: 80 x 41 inch / 2030 x 1050 mm Load Capacity: 1,500 lbs / 680 kg Load Capacity per Hatch: 750 lbs / 340 kg Payload: Daughter Carts

MOTHER CART 2 in 1 Product Information:

Q-100-1919

Size: 44 x 58 inch / 1120 x 1470 mm Load Capacity: 1,000 lbs / 450 kg Load Capacity per Hatch: 220 lbs / 100 kg Payload: Dollies

MOTHER CART 2 in 1 Product Information:

Q-100-2618

Q-100-1118

Size: 44 x 30 inch / 1120 x 770 mm Load Capacity: 440 lbs / 200 kg Load Capacity per Hatch: 220 lbs / 100 kg Payload: Dollies

47 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

KIT CARTS. Kit carts are specialized solutions designed customized to your special material handling needs. They are most commonly used for material presentation along assembly lines, workstations and service areas.

FlexQube carts can be modified for the presentation of any components. They can, for example, be prepared for tires, with a flip ramp where the tires can easily roll up and be placed in the rack. They’re also easily equipped with a floor brake and handlebar.

KIT CART FOR TIRES

44 x 53 inch / 1118 x 1346 mm Q-100-0520

LOAD CAPACITY

500 lbs / 226 kg

We’ll create the right cart for you based on your operational needs

Present the parts in an ergonomic and efficient way to the operators

Designed with casters, foot-brakes and handlebars or your choice Ramp to easily load and unload tires 48 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

KIT CARTS

KIT TUGGER CART

70 x 47 inch / 1750 x 1050 mm Q-100-0650

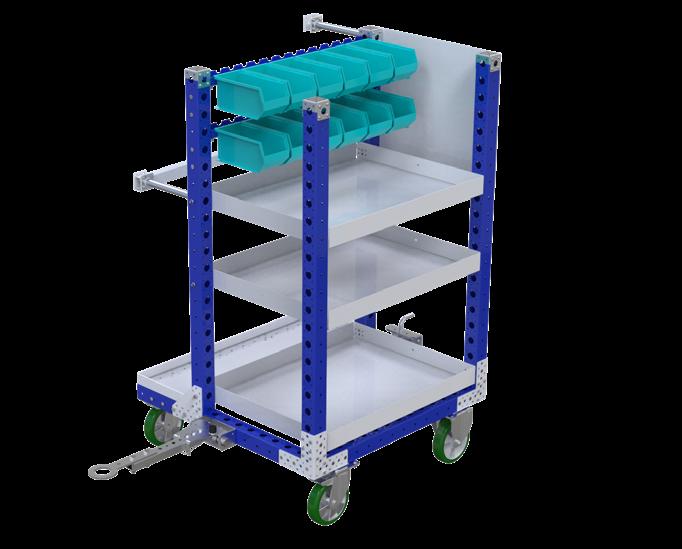

Tuggable kit cart designed to transport different types of materials.

WINDSHIELD CART

91 x 50 inch / 2310 x 1260 mm Q-100-0446

Kit cart designed specifically to transport windshields for trucks.

49 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

KIT CARTS Q-100-0520

KIT CART FOR TIRES • • • •

Q-100-0363

• • •

Designed to load and transport tires. This cart can hold three tires. Equipped with flip ramp to easily load and unload tires.

Size: 41 x 47 inch / 1050 x 1190 mm Load Capacity: 800 lbs / 363 kg Transportation: Manual Payload: Plates, Panels, Long Parts

Product Information: Designed with 17 slots for storage area, with rubber protection at the bottom.

KIT TUGGER CART • • • •

Q-100-0446

Product Information:

KIT CART FOR PLATES •

Q-100-0650

Size: 44 x 53 inch / 1118 x 1346 mm Load Capacity: 500 lbs / 226 kg Transportation: Manual Payload: Tires

Size: 70 x 47 inch / 1750 x 1050 mm Load Capacity: 1,000 lbs / 453 kg Load Capacity per Shelf: 249 lbs / 113 kg Payload: Bins, Boxes, Misc parts, Totes and parts to be hung

Product Information: Large kit-cart designed to hang large tubes as well as other items that can be stored on the shelves.

Transported manually or in a tugger train.

WINDSHIELD CART • • • •

Size: 91 x 50 inch / 2310 x 1260 mm Load Capacity: 1,100 lbs / 500 kg Transportation: Manual Payload: Windshields for trucks

Product Information: Push cart designed for windshields to rest on the rubber deck, leaning against a foam-padded top.

50 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

KIT CARTS KIT CART Product Information:

•

Designed to improve the presentation of materials at the assembly line. The backside is designed to hold longer parts, secured with a safety lock. Transported manually or in a tugger train.

• • •

Size: 47 x 47 inch / 1050 x 1050 mm Load Capacity: 1,000 lbs / 453 kg Load Capacity per Shelf: 220 lbs / 100 kg Payload: Bins, Boxes, Misc parts, Totes

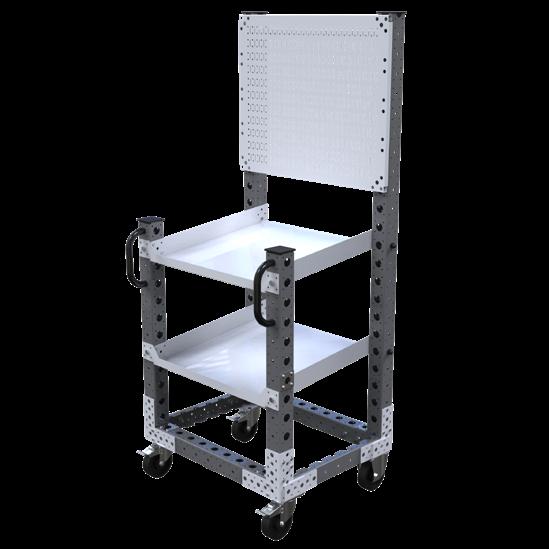

TOOL KIT CART Product Information:

•

Cart to store materials on shelves and hang tools on peg board.

• • •

•

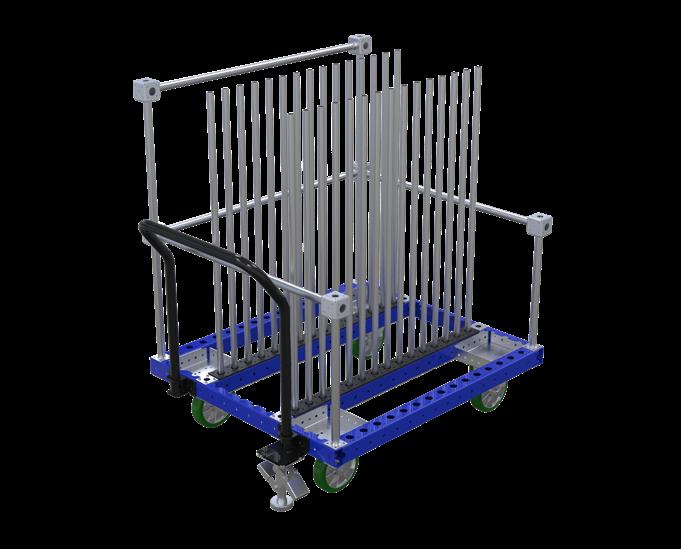

Vertical guide tubes holding cardboards in place, with wire mesh around cart for extra material protection.

• • •

•

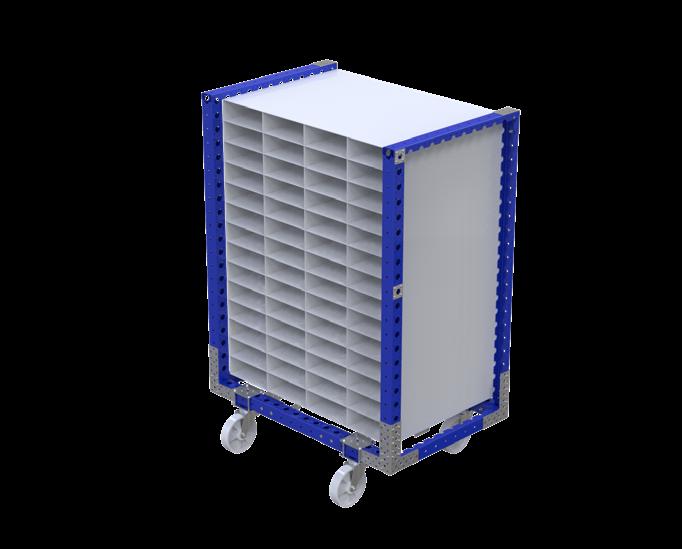

Custom designed cart to store smaller materials in 25 compartment pockets. This makes it easy for operators to access materials along the assembly line.

• • •

Q-100-0912

Size: 49 x 32 inch / 1240 x 820 mm Load Capacity: 440 lbs / 200 kg Transportation: Manual Payload: Cardboards

COMPARTMENT CART Product Information:

Q-100-6672

Size: 25 x 30 inch / 630 x 770 mm Load Capacity: 250 lbs / 110 kg Load Capacity per Shelf: 125 lbs / 55 kg Payload: Misc parts

CARDBOARD KIT CART Product Information:

Q-100-0843

Q-100-0771

Size: 50 x 33 inch / 1260 x 840 mm Load Capacity: 370 lbs / 168 kg Load Capacity per Shelf: 26 lbs / 12 kg Payload: Bins, Boxes, Misc parts, Totes

51 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

STILL LIFTRUNNER FRAMES. Together with STILL Liftrunner ® tugger train system, FlexQube has developed mother-daughter cart solutions that vastly help your industrial material handling needs. The heavy-duty carts and trolleys are customized for containers and can be made to fit any kind of frame and can also be fitted with a removable handlebar for increased convenience and ergonomic handling.

LIFTRUNNER BX FRAME Optimised for different carts.

LOAD CAPACITY

Q-100-1580

BUILT TO MOVE HEAVY MATERIALS SMOOTHLY AND EFFICIENTLY.

2200 lbs / 1000 kg

Load and unload materials on both sides of the frame.

US SIZE FRAMES

LIFTRUNNER B-FRAME (US)

LIFTRUNNER E-FRAME (US)

LIFTRUNNER C-FRAME (US)

This frame is highly flexible, with loading and unloading from both sides of the frame.

This frame is a perfect match for our cart solutions, and can be designed with different lengths, widths and loads.

Q-050-1046

Q-050-1062

This frame is designed to effectively transport heavy loads, and large material handling carts. Mostly used outdoors.

Q-050-1038

52 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

LIFTRUNNER FRAMES

Frames compatible with more or less any FlexQube cart thanks to the flexible design.

EUR SIZE FRAMES

LIFTRUNNER B-FRAME (EUR)

LIFTRUNNER E-FRAME (EUR)

This frame is highly flexible, with loading and unloading from both sides of the frame.

This frame is a perfect match for our cart solutions, and can be designed with different lengths, widths and loads.

Q-050-1089

Q-050-1053

53 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FlexQube carts in perfect match with STILL Liftrunner® system.

Since 2019, FlexQube has been the exclusive distributor of the Liftrunner products in North America and South Africa. The Liftrunner tugger train solution from STILL is a market leading solution for transportation of industrial carts at production plants. In cooperation with STILL, FlexQube has created a unique, modular and flexible cart concept that together with the Liftrunner® system forms an industryleading combination and a state-of-the-art material handling solution.

54 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

LIFTRUNNER FRAMES

Autonomous Tugger Train Solution.

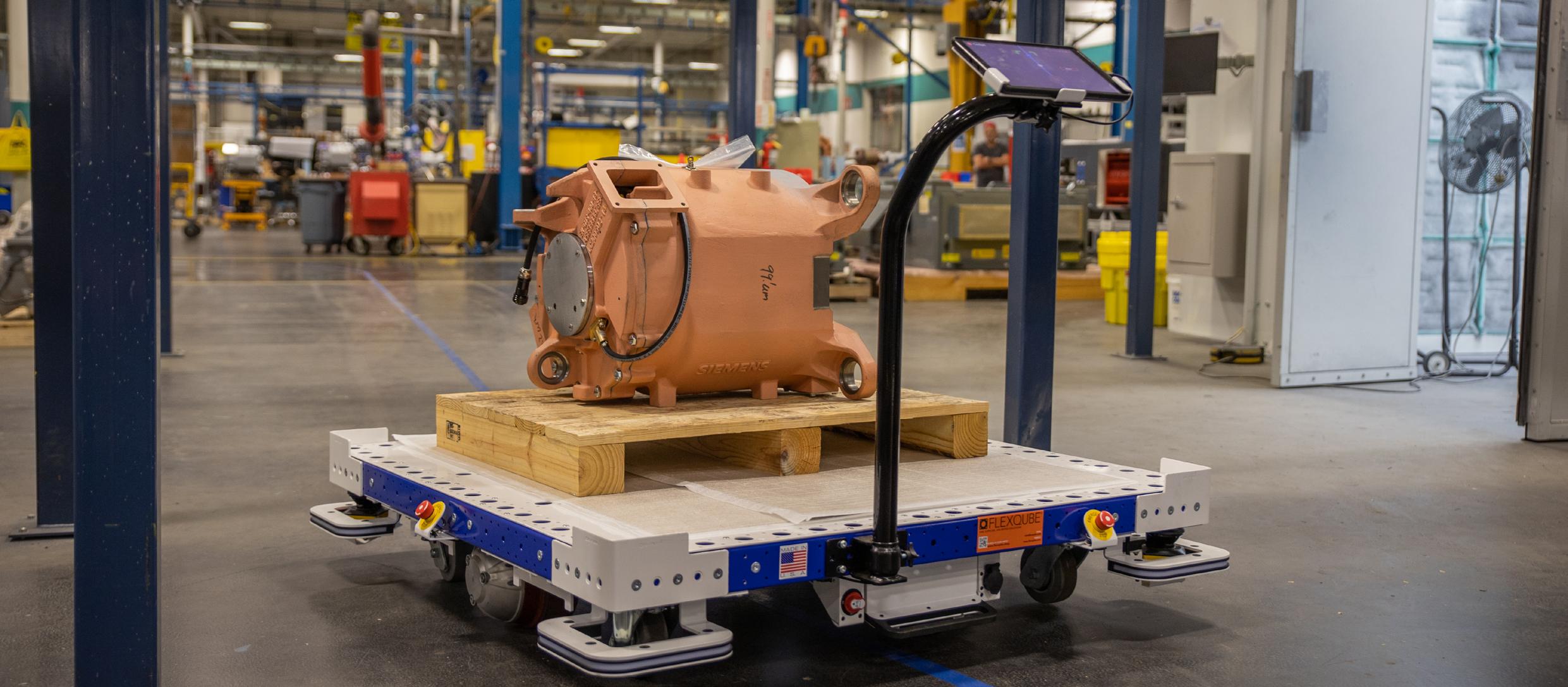

The Still LiftRunner is compatible with the FlexQube Navigator AMR, meaning that you don’t need to rely on operators to transport the materials. Instead, replace your manual tuggers with the autonomous FlexQube Navigator AMR and towing Load Carrier for an automated tugger solution.

55 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CARTS FOR LIFTRUNNER Q-100-0234

EUR PALLET CART FOR E-FRAME • • • •

Q-100-0492

• • •

Standard palllet cart designed to transport pallets manually or with a STILL LiftRunner E-frame.

Size: 50 x 33 inch / 1260 x 840 mm Load Capacity: 1,102 lbs / 500 kg Transportation: Manual, LiftRunner B-frame Payload: Pallets

Product Information: Standard push-cart with a bent-top handlebar. The cart is also designed to be transported with a STILL LiftRunner B-frame.

TILT PALLET CART • • • •

Q-100-1133

Product Information:

PALLET CART •

Q-100-0758

Size: 50 x 33 inch / 1260 x 840 mm Load Capacity: 1,102 lbs / 500 kg Transportation: Manual, LiftRunner E-frame Payload: Pallets

Size: 50 x 33 inch / 1260 x 840 mm Load Capacity: 990 lbs / 450 kg Transportation: Manual, LiftRunner Frames Payload: Pallets

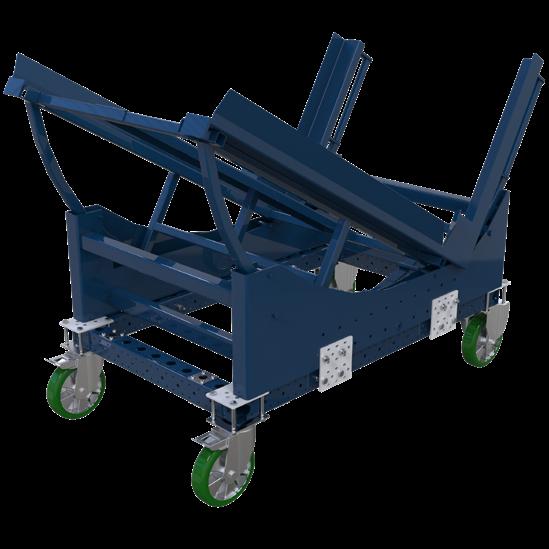

Product Information: Tilt cart designed to improve access to materials for the operators, ensuring high ergonomic standards. The cart is also designed to be transported with a STILL LiftRunner Mother Frame.

PALLET CART • • • •

Size: 66 x 50 inch / 1680 x 1260 mm Load Capacity: 2,000 lbs / 907 kg Transportation: Manual, LiftRunner B-frame Payload: Pallets

Product Information: Pallet cart with a larger raised top to carry larger pallets and still fit the STILL LiftRunner Frame.

Designed to be transported with a STILL LiftRunner B-frame.

56 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CARTS FOR LIFTRUNNER PALLET CART Product Information:

•

Perfect to carry heavy pallets and containers. The cart is also designed to be transported with a STILL LiftRunner B-frame.

• • •

Size: 50 x 50 inch / 1060 x 1060 mm Load Capacity: 2,500 lbs / 1135 kg Transportation: Manual, LiftRunner B-frame Payload: Pallets, Containers

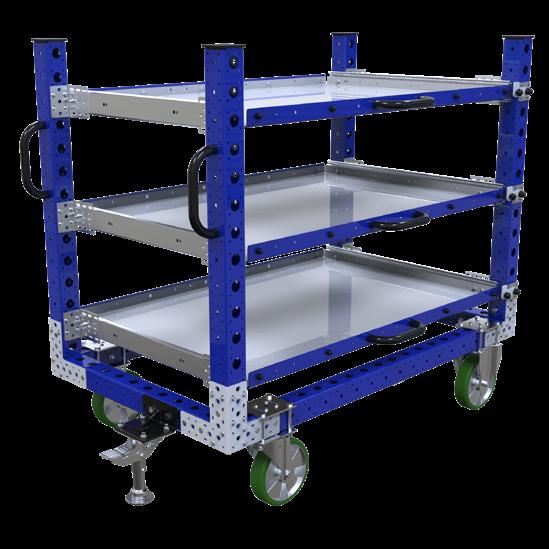

SHELF CART Product Information:

•

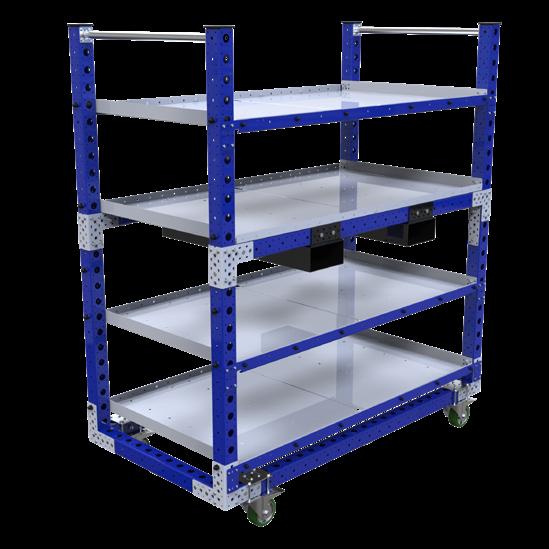

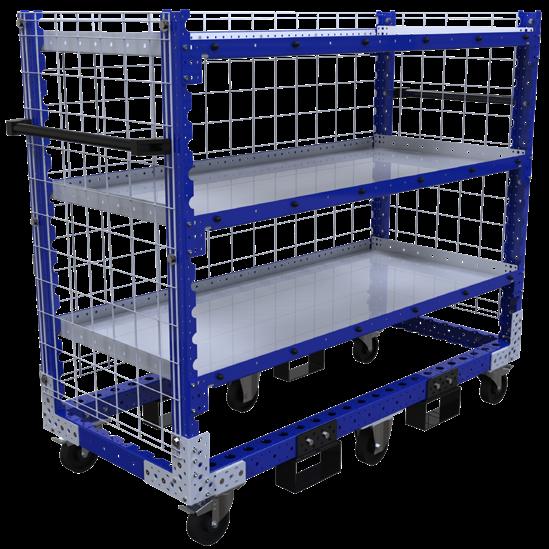

Four-level shelf cart with dividers to keep materials from falling off. The cart is also designed to be transported with a STILL LiftRunner E-frame.

• • • •

•

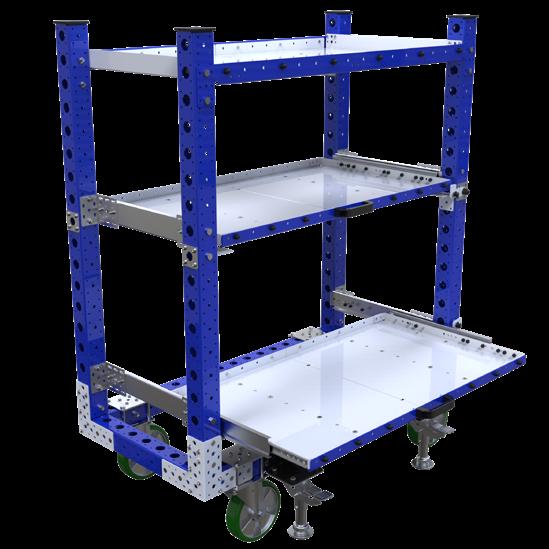

Five-level shelf cart with shelves in ergonomic position. The cart is also designed to be transported with a STILL LiftRunner E-frame.

• • • •

•

One of the most popular • solutions for the LiftRunner system due to its capacity • to carry heavy-duty pallets.

The cart is also designed to be transported with a STILL • LiftRunner B-frame.

Q-100-0240

Size: 30 x 65 inch / 770 x 1643 mm Load Capacity: 500 lbs / 227 kg Load Capacity per Shelf: 100 lbs / 45 kg Transportation: Manual, LiftRunner E-frame Payload: Totes, Misc parts

PALLET CART Product Information:

Q-100-3816

Size: 28 x 33 inch / 700 x 840 mm Load Capacity: 1,240 lbs / 560 kg Load Capacity per Shelf: 310 lbs / 140 kg Transportation: Manual, LiftRunner E-frame Payload: Misc parts

SHELF CART Product Information:

Q-100-3750

Q-100-7354

Size: 50 x 50 inch / 1260 x 1260 mm Load Capacity: 2,200 lbs / 1000 kg Transportation: Manual, Tugger, LiftRunner B-Frame Payload: Pallets, Containers 57

EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CASE STUDIES. Proven Solutions in Action.

Discover how companies across industries have improved safety, efficiency, and flexibility with FlexQube.

Each case highlights a unique challenge and the modular solution that made a measurable impact.

58 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

FlexQube Solutions Across Industires.

WHY CHOOSE FLEXQUBE? FlexQube delivers modular solutions that fit every operational need. From robust mechanical carts to fully automated AGVs and AMRs, our systems help companies:

STREAMLINE WORKFLOWS across production and logistics

IMPROVE SAFETY for operators and goods

INCREASE FLEXIBILITY for changing operational needs

FROM CHALLENGE TO SUCCESS Challenge Each case begins by highlighting the challenge our customers faced, whether it was manual material handling inefficiencies, complex production flows, or adapting to new product lines.

Achievement

Each case demonstrates the tangible achievements — improved efficiency, enhanced safety, and increased operational flexibility — showing the real-world impact of our modular solutions.

Solution Highlighting the FlexQube solution in action, whether it’s mechanical carts, AGVs, or AMRs, designed to perfectly fit the customer’s unique requirements.

59 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CASE: Heavy Truck Manufacturer, Sweden

AUTOMATING TRANSPORT OF SEATS AND DOORS TO CAB ASSEMBLY LINE RAPID ROI, OPERATIONAL SAVINGS, OUTSTANDING SAFETY WITH AUTOMATIC SAFETY FIELDS AND A MODULAR LOAD CARRIER DESIGN.

To improve safety and efficiency, the company partnered with FlexQube to replace forklifts, one of the leading causes of workplace accidents, with the innovative and patented Navigator AMR System.

An automated system with a non-loadcarrying robot which couples with an

ecosystem of modular and motorized Load Carriers through a standardized coupling.

This “one robot, multi-carrier” concept allows the AMR to move racks of various sizes and weights, replacing forklifts in the assembly line with a flexible, safe, and fully automated transport solution.

60 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

THE CHALLENGE

ACHIEVEMENT

The customer needed to reduce forklift traffic and efficiently move materials of varying sizes. High product variation and limited line-side storage required prekitting and precise delivery, while forklifts replenished seat and door racks every 10 minutes, creating complexity and safety risks.

FlexQube’s patented AMR System replaced forklifts, transporting modular seat and door racks of varying sizes and weights directly to the assembly line. This improved safety, reduced forklift traffic in high-density areas, ensured 99% uptime, and enhanced picking ergonomics for assemblers.

THE SOLUTION Two Load Carriers were designed for seats (1610×1610 mm) and doors (1880×2450 mm) using the FlexQube building block system. The standalone Navigator AMR can transport both rack types via a standardized coupling interface, despite their size differences.

᾽᾽

An autonomous system developed for smart, safe, scalable and successful material handling

61 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CASE: SIGNIFY, USA

ELIMINATING FOOT TRAFFIC WITH ACCESSIBLE & USER-FRIENDLY AUTOMATION “SO ON AVERAGE, WE ARE LOOKING AT ABOUT A 10-15 MINUTE SAVINGS FOR EACH LINE, HAVING 10 LINES OUT THERE THAT CAN MEAN UP TO 150 MINS OR 2.5 HOURS.” - Sturgis Kyle, Engineering Manager, Pennsylvania, USA Signify aimed to give employees more time for core tasks by eliminating singlepart transportation. Implementing the AGV automated material movement across the facility, saving 10–15 minutes per line per day - a significant cumulative time gain across 10 lines.

An unexpected benefit was the AGV’s quick and easy deployment. From unboxing to operation, setup was seamless, and its Android-based interface allowed operators to quickly adapt, making the system both efficient and user-friendly.

62 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

THE CHALLENGE

ACHIEVEMENT

Signify sought to reduce unnecessary foot traffic on the manufacturing floor.

Operators often left their stations to move single parts or materials between warehouses. The goal was to eliminate these inefficient, one-off transport tasks.

Signify deployed FlexQube carts and an AGV to automate material movement between production areas and warehouses. The setup reduced manual handling, and by adding rubbish and recycling units to the AGV, waste removal was also automated.

THE SOLUTION Signify began by leasing 2 AGVs and 4 tugger carts. The AGVs automated material transport, reducing foot traffic, while the tugger carts enabled movement of larger volumes. An added benefit was reclaiming employees’ time previously spent on these transport tasks.

᾽᾽

Over the course of a week when you begin adding all of that up, you start to see how an operator’s expertise isn’t being leveraged how it should be.

- Sturgis Kyle, SIGNIFY

63 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CASE: SIEMENS, USA

SIEMENS GETS STARTED WITH AUTOMATION! “WE HAVE AUTOMATION NOW IN OUR FACTORY, AND WE CAN BUILD ON IT; BRING IN MORE ROBOTS AND BE INNOVATIVE WITH HOW WE USE THIS TECHNOLOGY IN OUR FACTORY ” - Kim Howe, Logistics Manager, Georgia, USA

Siemens successfully launched their first fully automated AGV project, taking the crucial first step in their automation journey. The implementation allowed them to map out their needs and deploy a solution that is both robust and reliable, providing consistent transport for every

task. With minimal setup time and no additional IT infrastructure required, the AGVs simplified what can often be a complex and daunting process, giving Siemens a strong foundation to build on for future automation initiatives.

64 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

THE CHALLENGE

ACHIEVEMENT

Siemens, recently added new lines requiring updated processes and material transport. Previously, operators moved materials between stations using pallet jacks, forklifts, or push carts. Siemens aimed to keep gearbox technicians at their workstations by eliminating these manual transport tasks.

Siemens deployed two AGVs, fully automating multiple material transport tasks across the facility. This eliminated human handling, streamlined processes, and delivered a rapid return on investment while achieving 100% automated transports.

THE SOLUTION Siemens implemented two AGV designs and a roller transfer station: a flat-deck AGV for forklift-loaded parts and a rollertopped AGV that used gravity and a shooter mechanism to automatically transfer pallets to the station.

᾽᾽

We got started with a future factory.

- Kim Howe, SIEMENS

65 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CASE: Mitchell Plastics, USA

MITCHELL PLASTICS PRIORITIZES SAFETY WITH FLEXQUBE AGV “IT’S ALLOWED THE MATERIAL HANDLERS TO NOT HAVE TO TOUCH THE MATERIAL - SO THERE ARE LABOUR SAVINGS THERE.” - Dwayne Maust, Materials Manager, Alabama, USA

Mitchell Plastics improved both safety and efficiency by automating their material flow with the FlexQube AGV system. The AGV’s defined paths have encouraged a cleaner, more organized workspace, eliminating blocked routes and reducing risks linked to manual tugger driving.

Initially, Mitchell Plastics had not planned

for automation, but after adopting FlexQube tugger carts, they discovered the potential of combining them with the AGV solution. With FlexQube’s flexible financing options, including short-term leasing programs, automation became an achievable and valuable step forward for the company.

66 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

THE CHALLENGE

ACHIEVEMENT

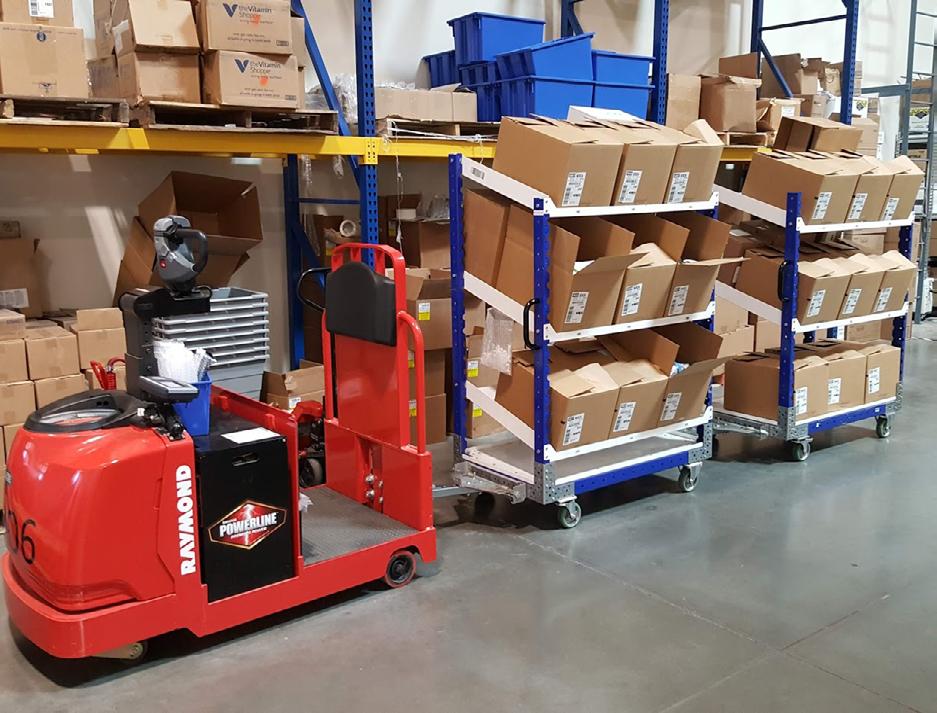

Mitchell Plastics relied on tugger carts and a driver to move totes throughout their facility. They sought to reduce the labor required for this process while ensuring that safety and ergonomic standards for employees were maintained.

FlexQube provided an AGV capable of towing multiple fully-loaded tugger carts, replacing the need for a driver and allowing staff to focus on higher-value tasks.

The AGV follows its route safely and consistently, enhancing workplace safety while marking Mitchell Plastics’ first step into their automation journey.

THE SOLUTION Mitchell Plastics took their first step into automation by leasing a 50 x 50-inch AGV with a tow bar, combined with existing FlexQube tugger carts, creating an efficient automated tugging solution with flexible financing.

᾽᾽

This allows for a much safer environment.

- Dwayne Maust, Mitchell Plastics

67 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CASE: PROTERRA, USA

PROTERRA BUILT TWO NEW PLANTS WITH A FOCUS ON FLEXIBLE MATERIAL HANDLING “SEAMLESS AND TRANSPARENT PROCESS FROM DESIGN TO IMPLEMENTATION” – Lalit Savalia, Proterra, South Carolina, USA

FlexQube developed 25 customized carts tailored to Proterra’s needs, ensuring the design aligned with their brand. Using FlexQube’s web-based DesignOnDemand™, Proterra actively collaborated in the creation of carts for tires, batteries, windshields, tools, hoses, and cables.

The shift from forklifts to cart-based handling streamlined assembly and boosted efficiency. Soon after delivery, Proterra needed modifications, which were quickly implemented thanks to FlexQube’s modular concept and DesignOnDemand™, allowing on-site adjustments with ease.

68 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

THE CHALLENGE

ACHIEVEMENT

Proterra is the largest manufacturer of electric buses in the U.S. When developing and planning for two new plants, they wanted to create both a sustainable yet effective material handling flow.

In order to create a more efficient and sustainable manufacturing process in the new facilities, Proterra saw the benefits of leaving welded and unflexible carts behind. The FlexQube concept made it possible for Proterra to achieve this.

THE SOLUTION Through FlexQube’s unique web-based DesignOnDemand™, over 25 different applications were designed for Proterra!

This included applications to improve the presentation and transportation of components throughout the two facilities. The ability to harmonize these more efficient and more ergonomic designs to match their branding created a winning formula.

᾽᾽

Reducing the number of forklifts paved the way for a more efficient assembly process.

69 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

CASE: PROTERRA

PEG BOARD CART These carts allow the Proterra operators to actually assemble the bus from the inside, without having to leave the bus. This is a huge improvement in assembly efficiency for Proterra.

ANGLED WORK TABLES These work tables are custom designed alongside the engineers at Proterra to aid in the development of material transportation.

70 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

WINDSHIELD CART This cart is specifically designed with ergonomics in mind, to make it easier for the operator to move large and odd-sized items such as windshields.

TIRE KIT-CART These carts are custom-built to enable pushing the cart up to the assembly station and roll the tyre straight off the cart and into the assembly area.

71 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

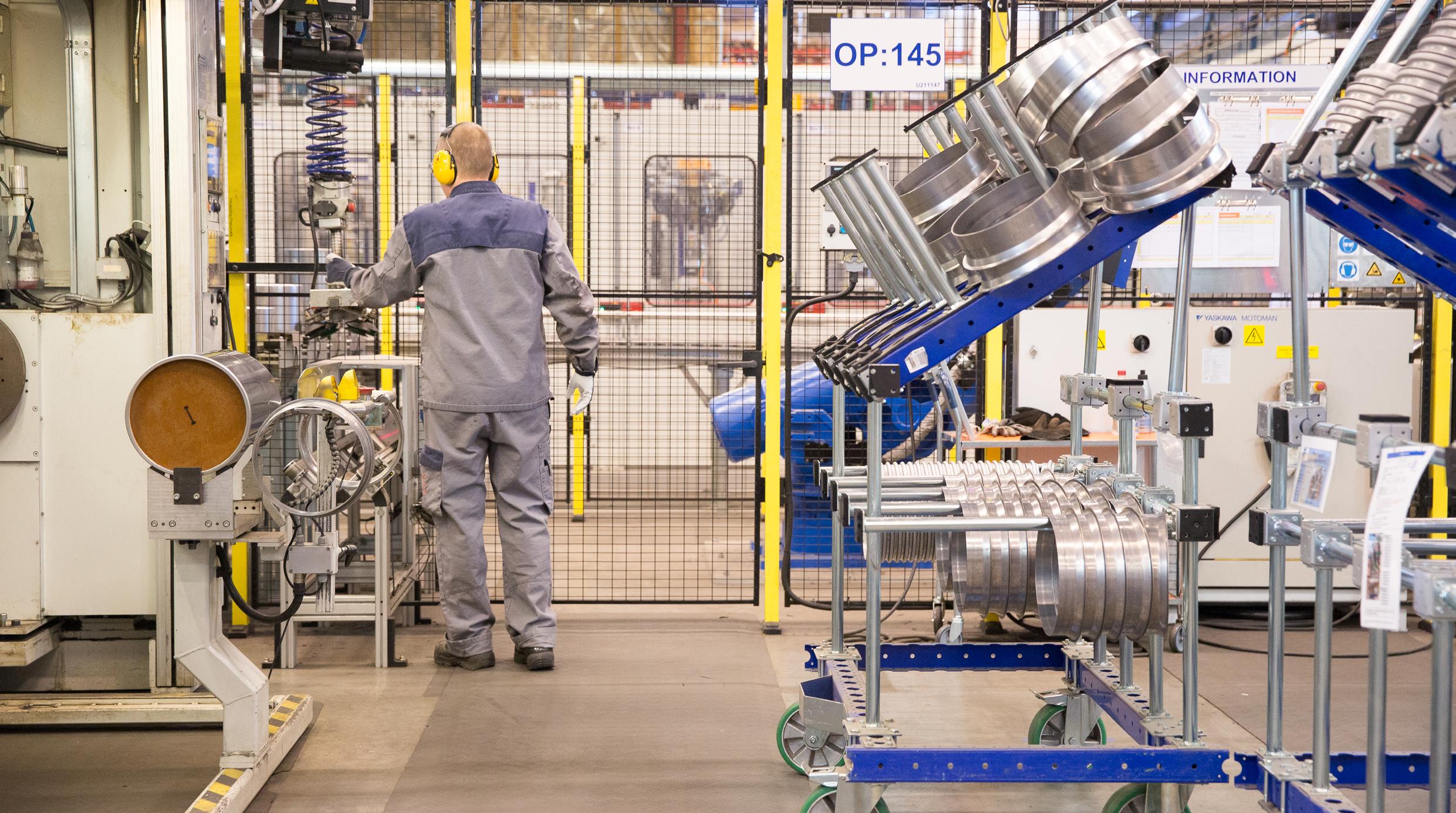

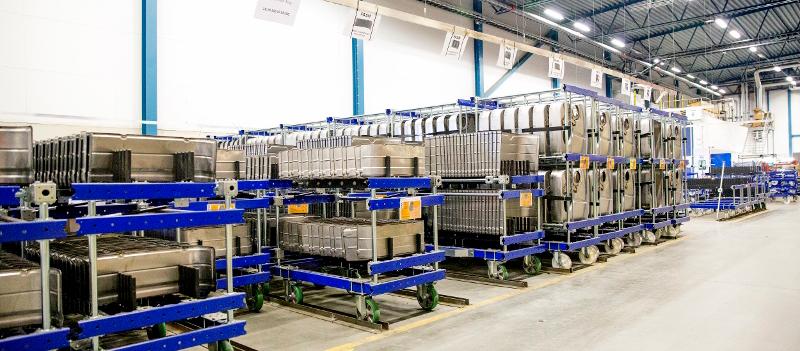

CASE: Eberspächer, Sweden

FORKLIFT REDUCTION AND ERGONOMIC IMPROVEMENT “THE CARTS HAVE BEEN A HUGE IMPROVEMENT WHEN IT COMES TO ERGONOMICS.” – Maritza Zegovia, Eberspächer, Trollhättan, Sweden

Eberspächer set out to eliminate forklifts and improve material flow in production, partnering with FlexQube in 2012. Since then, the company has continuously adapted and refined its carts based on operator feedback and evolving needs.

By introducing a mother-daughter tugger train system, Eberspächer now transports up to four carts at a time, boosting efficiency and reducing forklift traffic.

The modular FlexQube concept allows upgrades without waste, making it a sustainable long-term solution. Designed in close collaboration with operators, the carts have greatly improved ergonomics and usability. Today, Eberspächer operates over 300 robust FlexQube carts in 15 different versions—reflecting a decade of continuous improvement and satisfied engineers.

72 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

THE CHALLENGE

ACHIEVEMENT

The challenge was to cut forklift traffic, which created safety risks and disrupted flow, while managing parts of varying size and weight in narrow aisles that limited efficient transport.

FlexQube’s solutions cut material travel distance by 60%, improved ergonomics, and reduced forklift use, streamlining production.

THE SOLUTION Customized kit carts were built using FlexQube’s standard components and integrated with the LiftRunner tugger train from STILL, creating a common, flexible platform that serves as the base for all kit carts.

᾽᾽

I am extremely satisfied with the carts. I feel proud when I see them at the production lines.

- Mariza Zegovia, Eberspächer

73 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

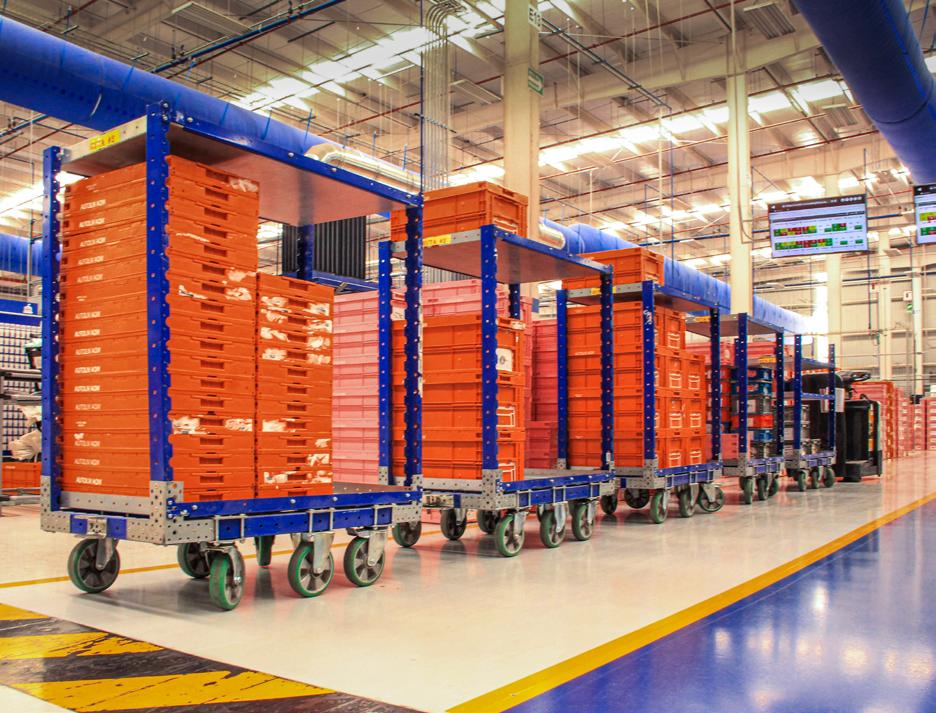

CASE: Autoliv, Mexico

USING HIGH-QUALITY CARTS TO REDUCE DOWNTIME Since 2015 FlexQube has delivered almost 250 carts to the different Autoliv plants in Mexico with more to come.

Autoliv purchased a variety of FlexQube applications, including shelf carts, mother-daughter (4-in-1) systems for small boxes and totes, and container carts for sizes ranging from 32×30 inches to 1600×1200 mm. Their previous quad-steer system tracked well behind tuggers but

was difficult to move by hand and had poor casters, causing downtime and noisy rides. FlexQube’s modular system offered flexibility for building a long-term cart fleet, extending investment lifetime while improving material flow, productivity, and quality.

74 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

THE CHALLENGE

ACHIEVEMENT

The carts that Autoliv had prior to the FlexQube carts were of low quality & caused a lot of downtime for the manufacturing plant and needed a lot of maintenance. The facility was also experiencing changes in their container sizes due to new demands from OEMs.

Using FlexQube carts led to us increasing productivity by reducing the downtime and drastically reducing the need for maintenance. Our FlexQube carts also led to the reduced noise levels in the facility and using only one concept reduced the complexity when needed to change the container sizes.

THE SOLUTION Autoliv went with a six caster setup which improved the tracking and maneuverability of the material handling carts.

The carts were also more user-friendly due to a fixed caster set up in the center.

We helped the facility implement a 4 in 1 tugger train system which improved productivity.

᾽᾽

FlexQube carts boosted productivity, cut downtime and reducing maintenance needs.

75 EVERY FLEXQUBE SOLUTION CAN BE TOTALLY CUSTOMIZED TO SUIT YOUR NEEDS

Welcome to the world of FlexQube!

FlexQube is building a global footprint in order to follow and support all our customers around the world. To provide the best and most cost efficient, material handling and robotics equipment.

Duncan, USA Head office FlexQube Inc Distribution center and manufacturing

Aguascalientes, Mexico

Sales office Warehouse

USA FLEXQUBE INC. 317 Tucapau Rd, Duncan, SC 29334, +1 (864) 749 1021

MEXICO FLEXQUBE (MX).

20907 Jesus Maria, Aguascalientes, +52 (1) 449 138 9198

Gothenburg, Sweden Head office FlexQube AB, Distribution Center and Manufacturing

Birmingham, England FlexQube UK Ltd, Sales Office

Munich, Germany FlexQube GmbH, Sales Office

SWEDEN FLEXQUBE AB. Neongatan 8 43153 Mölndal, + 46 (0) 72 711 1477

www.flexqube.com

GERMANY FLEXQUBE GmBH. Feldbergstrasse 27-29 61440 Oberursel, +49 (160) 243 6305

CONTACT sales@flexqube.com

BOOK A LIVE OR VIRTUAL DEMO.
