RIDING SCHOOL OF PORTO ALEGRE - 2018
R I D I N G S C H O O L O F P O R T O A L E G R E
PORTO ALEGRE - RIO GRANDE DO SUL - BRASIL
Advertisement
FINAL GRADUATION PROJECT - 2018

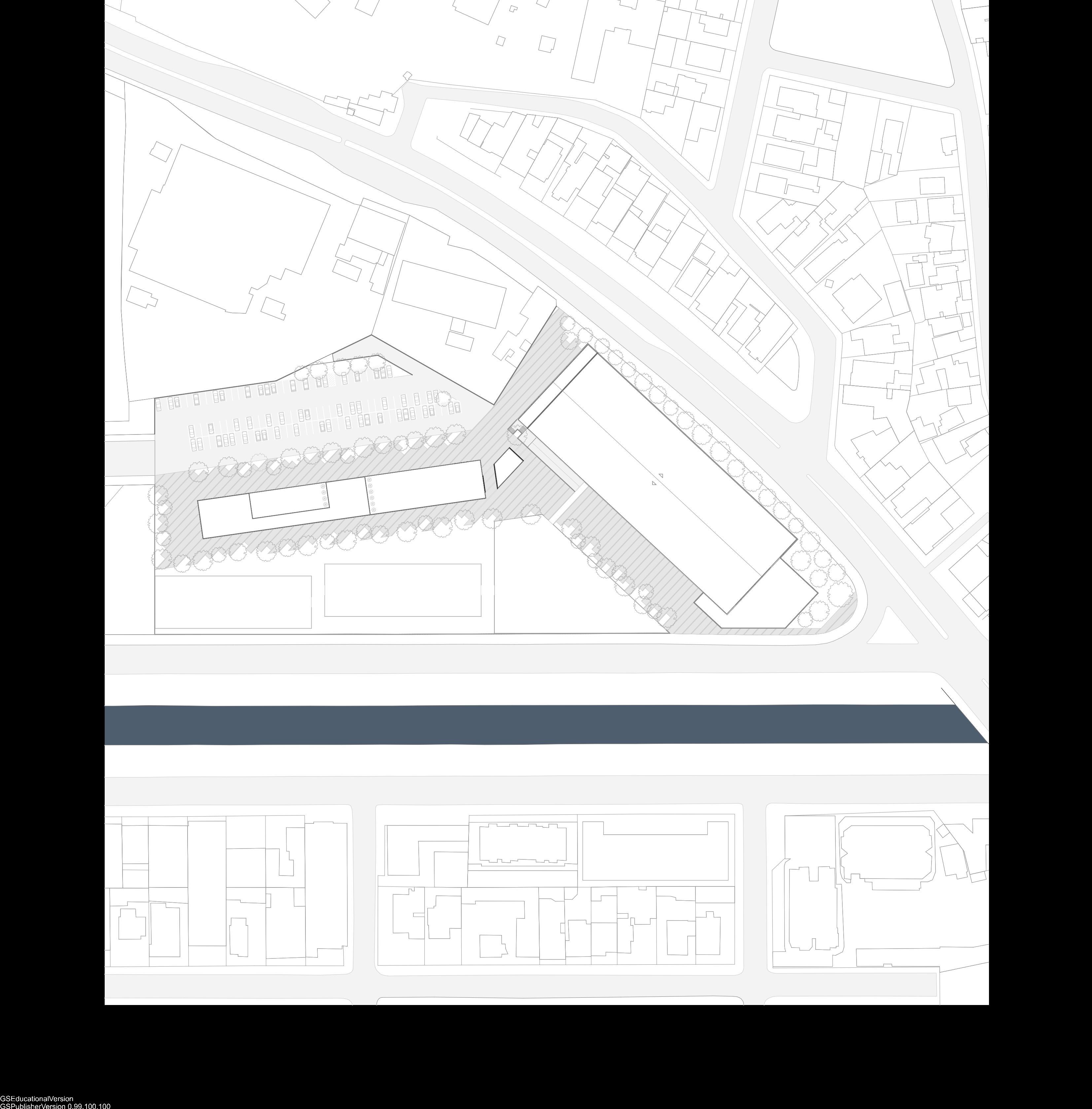

The chosen land is located in Jardim Carvalho neighborhood and is bounded by Ipiranga Avenue and Antônio de Carvalho Avenue. It is an urban void. Thus, the present work sees in the region the potential to implement programs aimed at activities that require free areas, since low density will be maintained. In addition, it is a space close to urban life, allowing people with an interest in horse riding to avoid having a hindrance in the distance.
Goals of the project: 1 - Implement a partnership with universities, like Physical Education courses, so during the graduation, students can develop knowledge about equestrian activities, since there is a need for a diploma in this area, 2 - Teach courses, training professionals with a college degree, with priority for training and jump, 3 - To provide an equipped environment to assist patients with special needs, who need a multidisciplinary approach, especially hippotherapy, 4 - Create a qualified spacial arrangement to host any events related to equestrian sports.

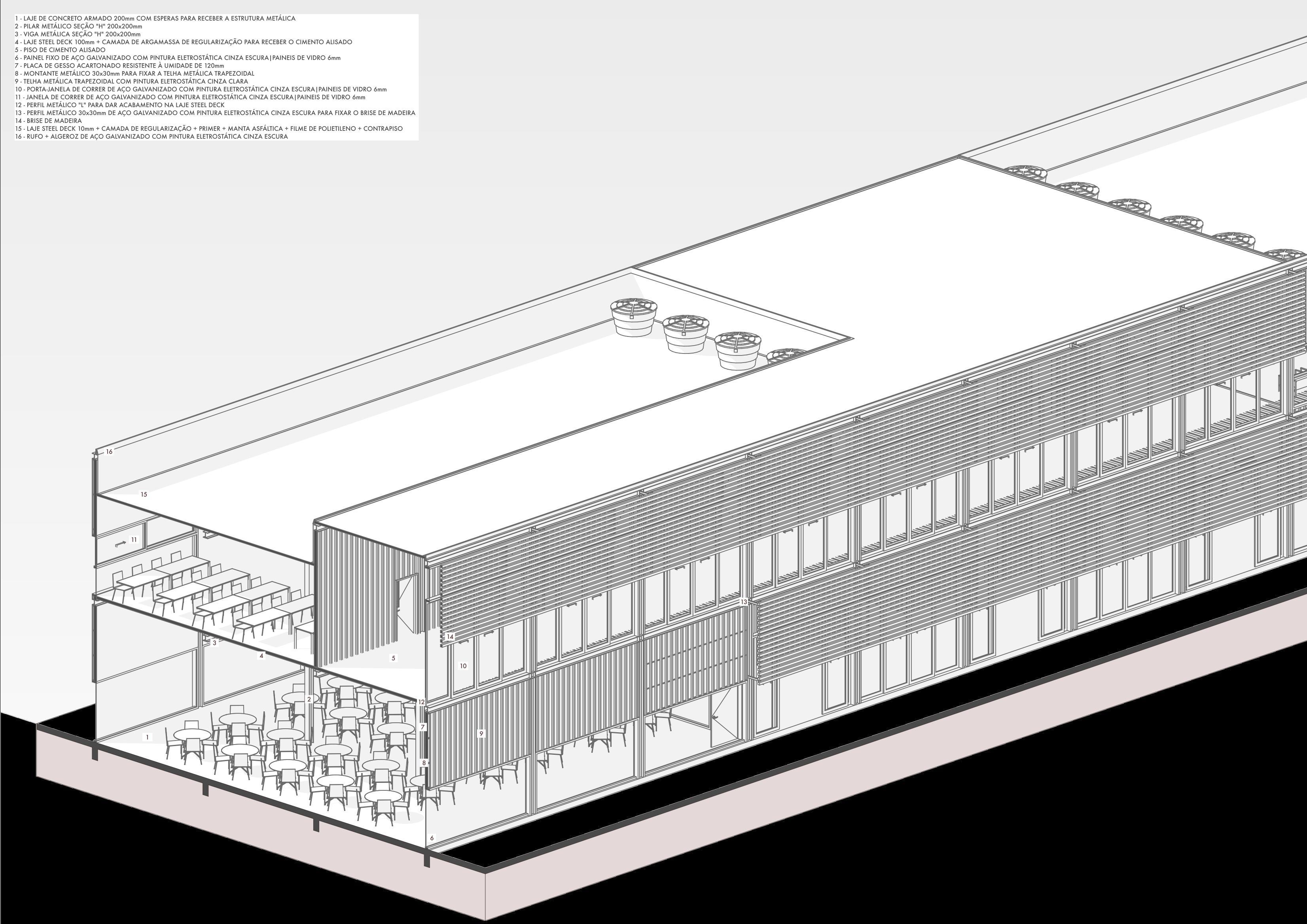

13 - PERFIL METÁLICO 30x30mm DE AÇO GALVANIZADO COM PINTURA ELETROSTÁTICA CINZA ESCURA PARA FIXAR O BRISE DE MADEIRA 14 - BRISE DE MADEIRA
15 - LAJE STEEL DECK 10mm + CAMADA DE REGULARIZAÇÃO + PRIMER + MANTA ASFÁLTICA + FILME DE POLIETILENO + COTRAPISO 16 - RUFO + ALGEROZ DE AÇO GALVANIZADO COM PINTURA ELETROSTÁTICA CINAZ ESCURA

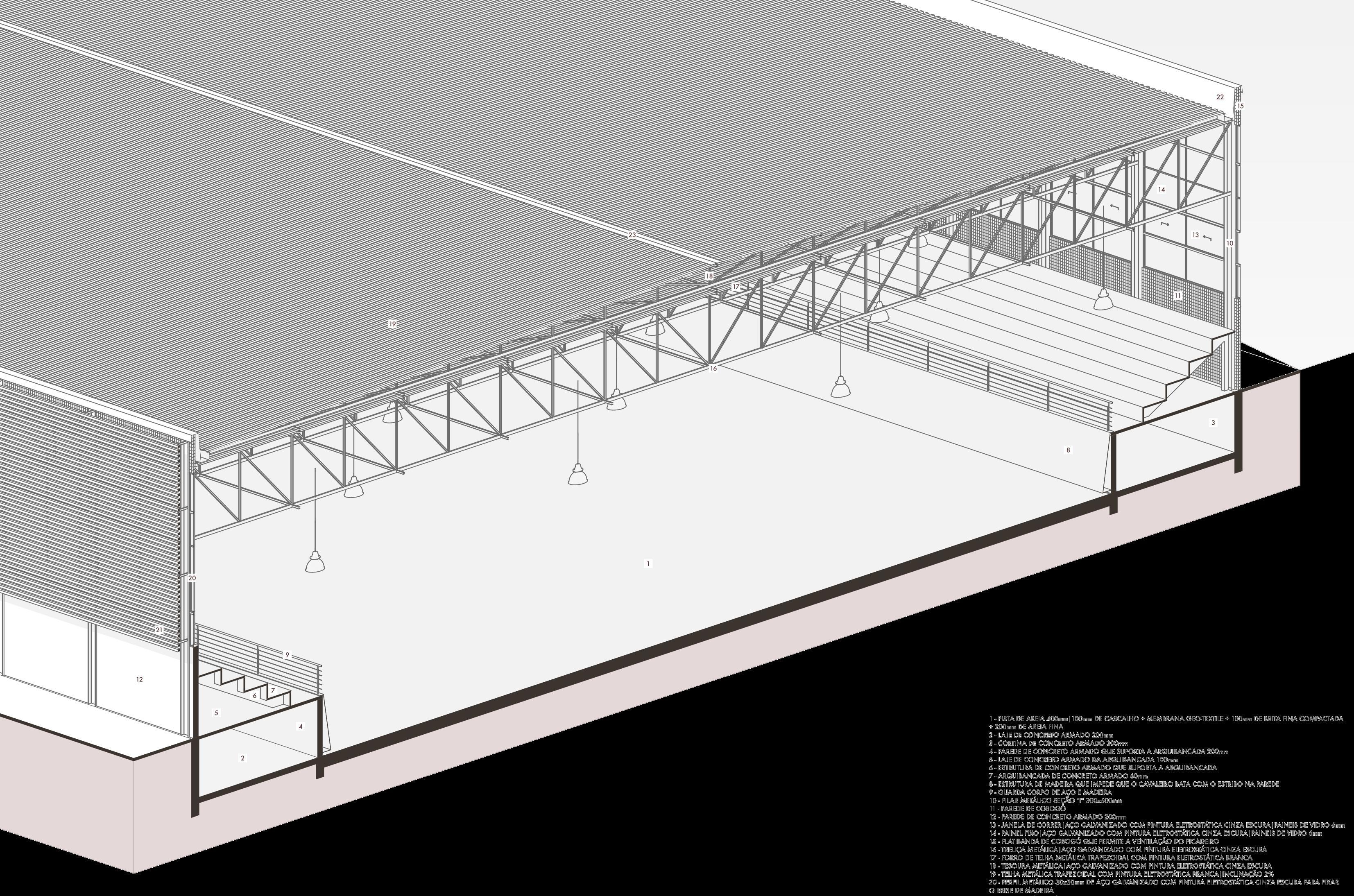

1 - PISTA DE AREIA 400mm|100mm DE CASCALHO + MEMBRANA GEO-TEXTILE + 100mm DE BRITA FINA COMPACTADA + 200mm DE AREIA FINA 2 - LAJE DE CONCRETO ARMADO 200mm
3 - CORTINA DE CONCRETO ARMADO 300mm
4 - PAREDE DE CONCRETO ARMADO QUE SUPORTA A ARQUIBANCADA 200mm
5 - LAJE DE CONCRETO ARMADO DA ARQUIBANCADA 100mm
6 - ESTRUTURA DE CONCRETO ARMADO QUE SUPORTA A ARQUIBANCADA
7 - ARQUIBANCADA DE CONCRETO ARMADO 60mm
8 - ESTRUTURA DE MADEIRA QUE IMPEDE QUE O CAVALEIRO BATA COM O ESTRIBO NA PAREDE
9 - GUARDA CORPO DE AÇO E MADEIRA 10 - PILAR METÁLICO SEÇÃO "I" 300x600mm 11 - PAREDE DE COBOGÓ
