Focus_Acoustic_EN

FOCUS

Acoustic

Sound-absorbing textiles that serve as functional and decorative elements

A range of Fischbacher 1819‘s innovative textiles have been specifically developed to be used for acoustic solutions. Depending on the room and usage, they can help reduce background noise and long echoes, helping to create excellent room acoustics.

The sound-absorbing fabrics can be used in offices, meeting pods, room-in-room systems, hotels, conference rooms or private homes. Made into curtains, blinds, acoustic panels, wall coverings, textile room dividers and stage curtains, they help to create the ideal level of acoustics for every setting.

Soft and fibrous surfaces convert sound waves, whereas hard materials and smooth surfaces made from glass, stone, steel or aluminium reflect them. Sound-absorbing materials are required if rooms are particularly noisy, have a lot of hard surfaces that reflect sound, or create an echo. Using the right materials, you can reduce sound intensity and dramatically improve the acoustics in a room.

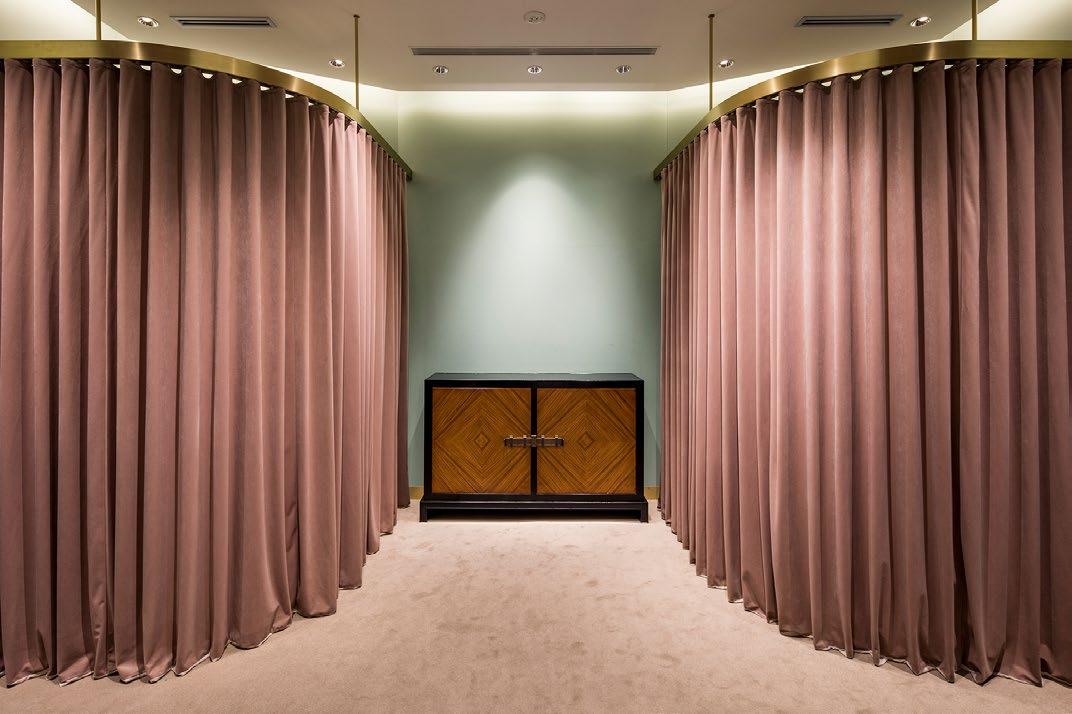

FABRIC - VIP 14470 United Arrows, Japan Architect: Wonderwall Inc. ©Hirokazu Touwaku

2 -3

Each fabric has its own sound absorption features depending on weight, composition, surface, design and weave.

Fischbacher 1819 fabrics are tested for sound absorption in the lab according to EN ISO 354. The sound absorption coefficient is classified from A to E as per ISO 11654: A

extremely absorptive

sound absorption coefficient αw 0.90...1.0

B

very highly absorptive

sound absorption coefficient αw 0.80...0.85

C

highly absorptive

sound absorption coefficient αw 0.60...0.75

D

absorptive

sound absorption coefficient αw 0.30...0.55

E

less absorptive

sound absorption coefficient αw 0.15... 0.25

not classified

sound absorption coefficient αw 0.00...0.10

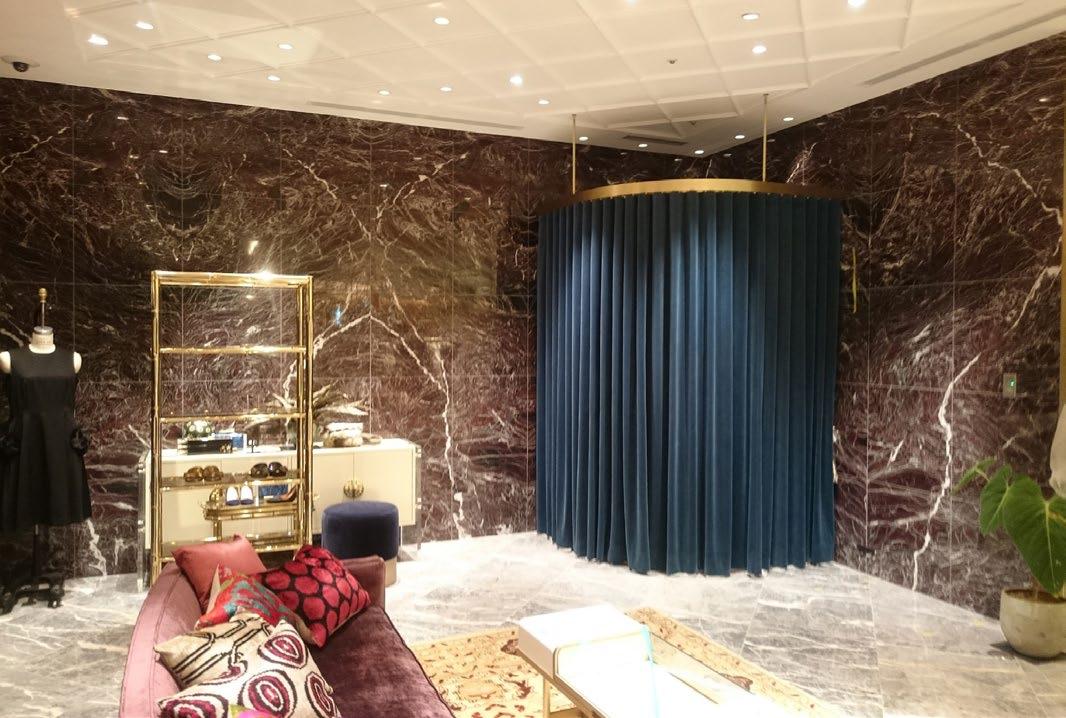

FABRIC - VIP 14470 United Arrows, Japan Architect: Wonderwall Inc. ©Hirokazu Touwaku

BENU OSCAR RECYCLED FR 14497

ACOUSTICS

Acoustic Light FR 14716 ACOUSTIC LIGHT FR combines function and aesthetics.

This very light plain sheer with a soft handle and modern, versatile colour palette is made of Trevira CS. Flame retardant, this sound-absorbing sheer boasts acoustic qualities as good as a heavy velvet curtain and offers an effective solution for improved room acoustics without the use of heavy-weight drapery.

Dimension 305 cm Composition 78% PES Trevira CS, 22% PES FR Weight 91 g/m2 Shrinkage ca.

1% Colours 17 Colours

600

607

617

627

637

647

603

601

611

604

605

615

625

635

αw 4 -5

Flat

Draped 0,60

C

613

602

612

ACOUSTIC LIGHT FR 14716

ACOUSTICS

BENU Remix Recycled 14454

BENU REMIX RECYCLED is a finely mottled, heavy wool fabric that resembles a cavalry cloth. It can serve both as a drapery and as an upholstery fabric. Additionally, BENU REMIX RECYCLED has good acoustic values and is suitable for interior schemes needing acoustic solutions. In an environmentally friendly process, BENU REMIX RECYCLED is woven from yarn from recycled fashion industry waste.

Dimension Composition Weight Shrinkage Colours

150 cm 70% WO, 20% PES, 5% PA, 5% PAN 353 g/m2 ca. 2% 25 Colours

407

417

427

437

447

457

467

403

402

412

422

432

408

401

411

421

409

419

404

414

424

434

405

415

425

60.000 Martindale

αw 6 -7

Draped

Flat 0,55

D

0,85

B

BENU Oscar Recycled FR 14497 The flame-retardant BENU OSCAR RECYCLED FR is a granular drapery fabric with a dry touch. In an environmentally friendly process, the fabric is made from recycled polyester.

Dimension 140 cm Composition 100% PES FR Weight 340 g/m2 Shrinkage ca.

3% Colours 15 Colours

60.000 Martindale 700

707

717

727

737

702

712

711

721

705

715

725

735

706

701

αw

Draped

Flat 0,50

D

0,60

C

BENU Sand Recycled FR 14745 The flame-retardant BENU SAND RECYCLED FR is a softly draping curtain fabric in double-width, with a wavy and soft texture. Made from post-consumer PET bottles, its slightly mottled ondé yarns give the fabric a woolly character.

Dimension 315 cm Composition 70% PES Recycled FR, 30% PES FR Weight 275 g/m2 Shrinkage ca.

1% Colours 6 Colours

507

517

537

505

515

525

αw

Flat

Draped 0,60

C

BENU TALENT FR 14619

8 -9

BENU Talent Recycled FR 14619

The flame-retardant BENU TALENT RECYCLED FR is a recycled velvet derived from post-consumer PET bottles. Due to its high lightfastness, mold and mildew resistance and other qualities, BENU TALENT RECYCLED FR also works as a great outdoor fabric. In order to produce recycled polyester yarn, discarded PET plastic bottles are collected, cleaned, ground into small pieces and then melted down before being spun into high-quality monofilament yarns.

The production of BENU recycled polyester yarn requires approximately 90% less energy and 60% less water than the production of regular polyester.

Dimension 140 cm Composition 100% PES FR Weight 405 g/m2 Shrinkage ca.

1% Colours 30 Colours

900

907

917

927

937

947

957

967

903

913

923

902

912

922

932

942

908

901

911

921

931

909

904

914

924

934

905

915

925

906

100.000 Martindale

αw

Draped

Flat 0,60

C

0,65

C

ACOUSTICS

Valery FR 2851

The flame-retardant VALERY FR is a knitted, soft-flowing, double-width velvet that can be used in both private and public areas as a drapery or upholstery fabric.

Dimension 300 cm Composition 100% PES FR Weight 333 g/m2 Shrinkage ca.

1% Colours 30 Colours

100

107

117

127

137

147

157

167

103

113

123

102

112

122

132

142

108

101

111

121

109

104

114

124

134

144

105

115

125

106

80.000 Martindale

αw 10 -11

Flat

Draped 0,60

C

Vip 14470

VIP is a knitted velvet drapery and upholstery fabric with a matte, cotton-like surface.

Dimension 150 cm Composition 100% PES Weight 290 g/m2 Shrinkage ca.

1% Colours 47 Colours

107

117

127

137

147

157

167

177

103

113

123

133

143

153

102

112

122

132

142

152

162

172

108

118

128

138

101

111

121

131

141

151

161

171

181

109

104

114

124

134

144

105

115

125

135

145

106

100.000 Martindale

αw

Draped

Flat 0,40

0,65

D

C

Vitus 14404 407

417

427

437

447

457

467

477

487

403

413

402

412

422

432

408

418

428

438

401

411

421

431

409

419

429

404

414

424

405

415

406

VITUS is a knitted velvet drapery and upholstery fabric with an elegant luster.

Dimension 145 cm Composition 100% PES Weight 393 g/m2 Shrinkage ca.

2% Colours 32 Colours

100.000 Martindale

αw

Draped

Flat 0,40

D

0,65

C

ACOUSTICS

Apollodor 14300 100

107

117

127

137

147

157

103

113

123

133

143

153

102

112

122

132

142

108

118

128

101

111

121

131

109

104

114

124

134

105

115

125

135

106

304

305

The flame-retardant APOLLODOR is an elegant, heavy-weight velvet, ideal for curtains and upholstery which needs to be hard-wearing in both private and public places.

Dimension 140 cm Composition 100% PES Trevira CS Weight 589 g/m2 Shrinkage ca.

1% Colours 35 Colours

50.000 Martindale

αw

Draped

Flat 0,55

0,80

D

B

Aletsch 14683 307

317

327

302

301

A coloured chenille yarn and a smooth white warp in a plain weave make for the flame-retardant ALETSCH’s beautiful, textured surface. The compact, soft fabric has a voluminous drape.

Dimension 300 cm Composition 100% PES Inherent FR Weight 390 g/m2 Shrinkage ca.

2% Colours 7 Colours

12 -13

αw

Flat

Draped 0,65

C

Ammirato 14513

The flame-retardant AMMIRATO is an elegant, heavy velvet with a silk-like luster that can be used as a drapery or upholstery fabric in both private and public places.

Dimension 140 cm Composition 100% PES FR Weight 504 g/m2 Shrinkage ca.

3% Colours 20 Colours

50.000 Martindale

αw

Draped

Flat 0,45

D

0,60

C

300

307

317

327

337

347

357

303

313

323

302

312

301

311

304

314

324

305

315

306

ACOUSTICS

Andrin 14703 | Andrin Stripe 14704

ANDRIN is a very natural looking, linen-like curtain fabric woven in an inherently flame-retardant polyester quality. The use of different yarn counts gives the surface of the plain weave a structured and natural look and touch.

ANDRIN STRIPE is the same fabric as described with a stripe woven every 8 cm /3 inches in the same colour as the base fabric.

Dimension Composition Weight Andrin Weight Andrin Stripe Shrinkage ca.

Colours

αw 14 -15

Flat

300 cm 100% PES FR 400 g/m2 430 g/m2 1% 11 Colours

Andrin

300

307

317

327

337

301

311

305

315

325

335

400

407

417

427

437

401

411

405

415

425

435

Andrin Stripe

Draped 0,60

C

Lino CS Cover 14530 The flame-retardant LINO CS COVER is a durable upholstery fabric with a linen-look. The Trevira CS fiber is dyed in a wide spectrum of shades which are woven into a jacquard with an uneven weave. The similarity to linen is enhanced further by the grey tones which are blended into the fabric.

Dimension 135 cm Composition 100% PES Trevira CS Weight 378 g/m2 Shrinkage ca.

1% Colours 3 Colours

32.000 Martindale 107

105

115

αw

Flat

Draped 0,70

C

Lino CS Heavy 14348 The flame-retardant LINO CS HEAVY successfully imitates a heavy linen fabric in Trevira CS. In LINO CS HEAVY, the natural linen look is achieved through a yarn dying process, in which fibers are dyed in different shades before being spun together.

Dimension 140 cm Composition 100% PES Trevira CS Weight 385 g/m2 Shrinkage ca.

2% Colours 4 Colours

40.000 Martindale 800

807

817

805

αw

Flat

Draped 0,60

C

ACOUSTICS

Adam 14538 The matte, natural surface of this flame-retardant dimout fabric is accentuated by a subtle blend of tonal yarn.

Woven in a plain weave, ADAM is 295 cm wide.

Dimension 295 cm Composition 100% PES FR Weight 259 g/m2 Shrinkage ca.

1% Colours 11 Colours

807

817

827

815

825

806

837

847

857

802

805

αw

Flat

Draped 0,65

C

Adele 14539 ADELE is a softly lustrous, flame-retardant dimout fabric with a smooth, supple surface created by its satin weave.

Finely shaded yarns give the fabric its blended appearance.

ADELE is 150 cm wide; the reverse of the fabric is colour-coordinated.

Dimension 150 cm Composition 100% PES FR Weight 277 g/m2 Shrinkage ca.

2% Colours 4 Colours

900

907

905

915

αw 16 -17

Flat

Draped 0,65

C

ADELE 14539 | ADAM 14538

ACOUSTICS

Aretha 2782 207

217

227

237

247

202

212

222

208

201

211

204

214

205

215

206

The soft-flowing double-width ARETHA is a dimout fabric made from inherently flame-retardant polyester yarn. The small chevron pattern is available in 16 warm colours.

Dimension 295 cm Composition 100% PES FR Weight 315 g/m2 Shrinkage ca.

1% Colours 16 Colours

αw

Draped

Flat

0,70

C

Alakazam 2781 100

107

117

127

137

147

157

167

103

102

112

122

108

101

111

121

109

119

104

114

105

115

125

106

The flame-retardant ALAKAZAM is a soft-flowing dimout fabric with an elegant luster.

Dimension 293 cm Composition 100% PES FR Weight 235 g/m2 Shrinkage ca.

1% Colours 24 Colours

18 -19

αw

Flat

Draped 0,60

C

Alibi 14534 400

407

402

405

415

The flame-retardant ALIBI is a dimout fabric in a Panama weave.

The fabric is 295 cm wide and the reverse of the fabric is colour-coordinated with the front.

Dimension 295 cm Composition 100% PES FR Weight 325 g/m2 Shrinkage ca.

1% Colours 5 Colours

αw

Draped

Flat

0,80

B

Cronos 13810 | 13950 200

207

217

227

237

257

277

203

223

222

232

242

272

238

248

211

221

231

241

224

244

205

225

216

337

CRONOS is a softly shimmering, flame-retardant dimout fabric in a satin weave and is available in both 147 cm and 295 cm widths.

Dimension 147 cm (13810) | 295 cm (13950) Composition 100% PES FR Weight 210 g/m2 Shrinkage ca.

1% Colours 25 Colours

αw

Draped

Flat 0,40

D

0,60

C

Fischbacher 1819 is a globally successful Swiss purveyor of furnishing fabrics, carpets, and wallcoverings for both private and public spaces.

Our collections are meticulously crafted with care, passion, and creativity.

With a legacy spanning over two centuries since our foundation in 1819, our company remains family owned. Today, Michael Fischbacher and Camilla Douraghy Fischbacher lead the company into its 6th generation with the same dedication and passion as their predecessors. Michael serves as CEO, while Camilla holds the role of Creative Director, overseeing the creative development of our collections.

Headquartered in St. Gallen, Switzerland, a historic textile center since the 13th century, we draw inspiration from our surroundings and heritage to innovate and deliver exceptional products.

For more information about our products visit our website at www.fischbacher1819.com or come see us at one of our showrooms: Amsterdam, Pedro de Medinalaan 11, +31 20 647 22 66, info.nl@fischbacher1819.com Como, Alzate Brianza, Via Roggia Lubiana, 141, +39 031 557801, info.it@fischbacher1819.com London, DCCH, Unit 108-110, +44 20 7351 9332, london@fischbacher1819.com Milan, via del Carmine 9, +39 02 50041664, milano@fischbacher1819.com Moscow*, Gusyatnikov Per., 11 of. 508, +7 985 7680841, moscow@fischbacher1819.com Munich, Gabelsbergerstraße 9, +49 89 51503693, muenchen@fischbacher1819.com Paris, Rue du Mail 20, +33 1 42 36 97 00, paris@fischbacher1819.com Tokyo, 1F, 2-7-28 Minami Aoyama, Minato-ku, +81 3 5775 0607, info@fisba.co.jp St. Gallen, Mövenstrasse 18, +41 71 314 66 66, info.ch@fischbacher1819.com Wuppertal, Simonshöfchen 27, +49 202 739090, info.de@fischbacher1819.com Zurich*, TMC Room 657, Thurgauerstr. 117, +41 71 314 66 66, zuerich@fischbacher1819.com *by appointment only
