ODEON CINEMA GROUP

Signature Seats

Ferco Seating

Ferco Seating Systems was established in 1983 by CEO, Tim Barr. We have grown into one of the world's largest manufacturers of auditorium, cinema, education and sports spectator seating.

At Ferco, our commitment to friendly, professional customer service and unwavering attention to detail is reflected in everything we do. In-house design and manufacturing capability means we deliver design-led, world class seating and enables us to set trends rather than follow them.

Our state-of-the-art facility incorporates the latest technology and manufacturing methods with rigorous quality control.

Our designers are creative problem solvers - they arrive at seating solutions that best fit our customer's venues. We love to talk design, aesthetics, solutions and functionality. This is our passion, and it runs throughout our whole company.

We’re most proud of our people. All of them live by the belief that nothing is impossible. They’re here to inspire you. To help you create a space that in turn inspires and entertains your audiences.

SIGNATURE SEATS

Signature seats – Specification

Recliner Mechanism

• Single-motor recline system.

• Magnetic footrest sensor.

• Kill switch safety feature.

• Lift-up seat pan for maintenance access.

Tables / Centre Console

• Two (2) sets of Swivel Table 3.0, without cupholders.

• Rectangular tabletops integrated into the lateral panels.

• Centre console incorporating one (1) illuminated shelf.

• Two (2) integrated wireless charging units.

• Upper oval-shaped wooden feature incorporating integrated standard cupholders.

• Removable armrest with diamond stitching.

Safety and Protection

• Metal finger guard panels.

• Magnetic footrest safety sensor.

• Kill switch.

• Lighting and Identification

• LED round seat numbering.

Electrical

• Powerlink cable system (daisy chained).

• Electrical requirements for integrated lighting, wireless charging, and recliner operation to be coordinated with the project electrical design.

Upholstery

• Fabric finish to be confirmed. Sample fabric shown is Biella leatherette, Crib 5 compliant.

• Diamond stitching detail to backrest, seat cushion, armrests, lateral panels, and centre console, as per approved renderings.

• All finishes, stitching patterns, and material colours to match approved project renderings and final material selections.

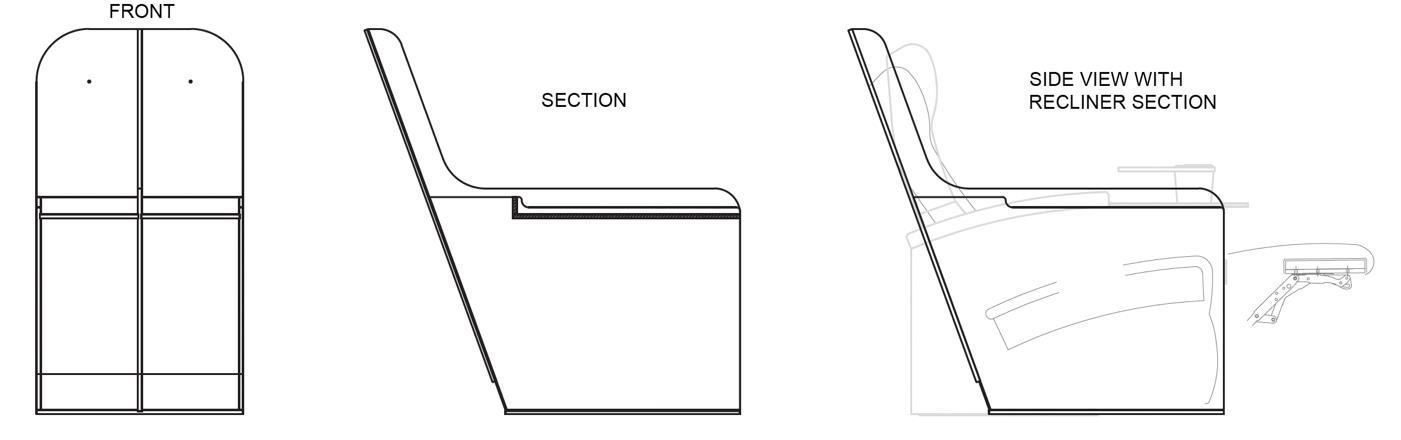

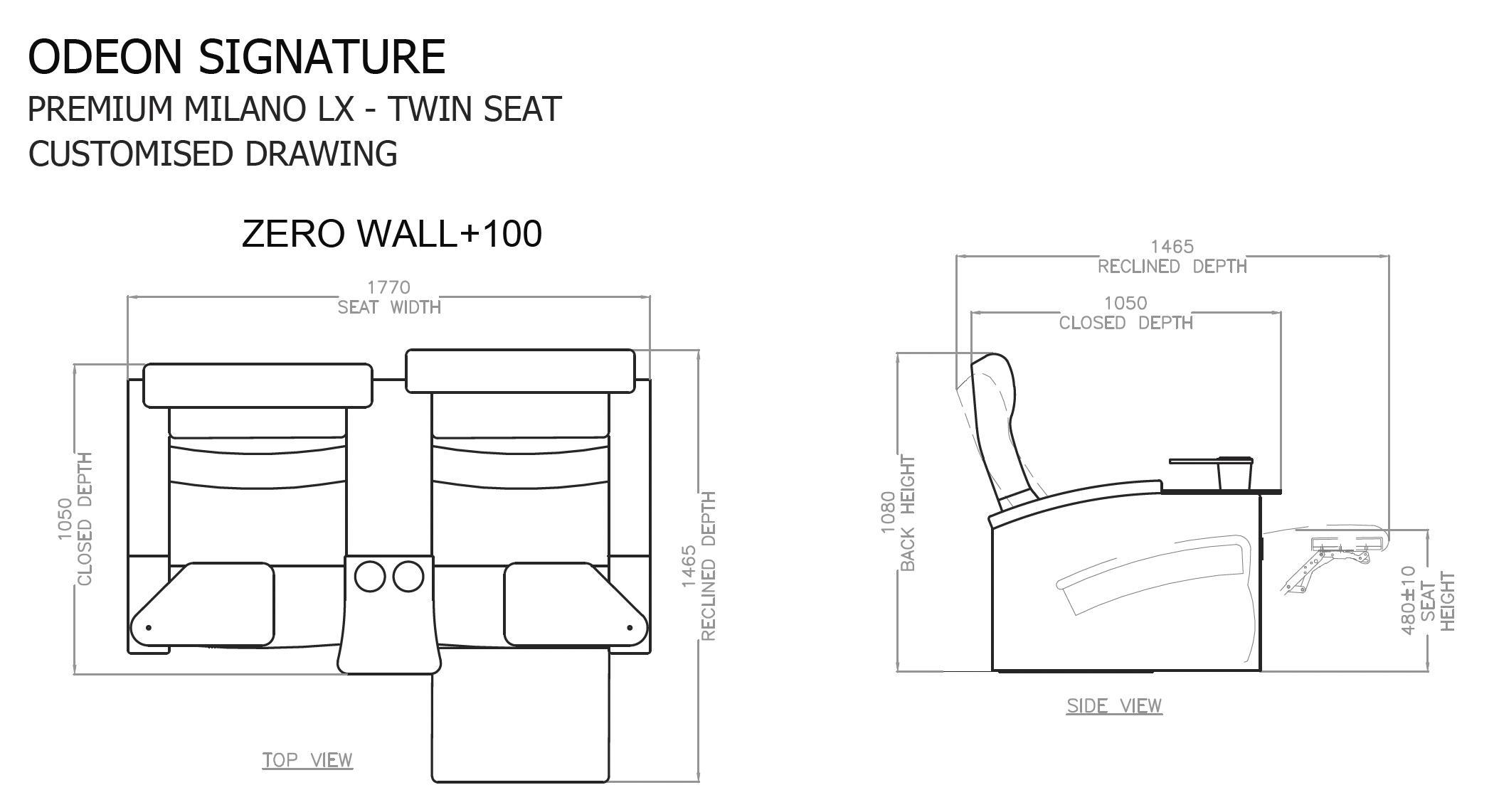

Signature seats – Dimensions

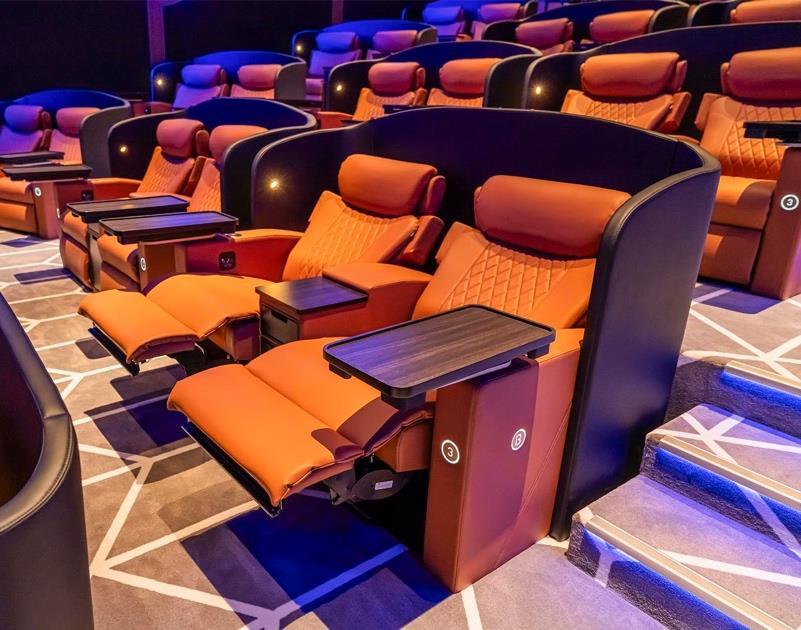

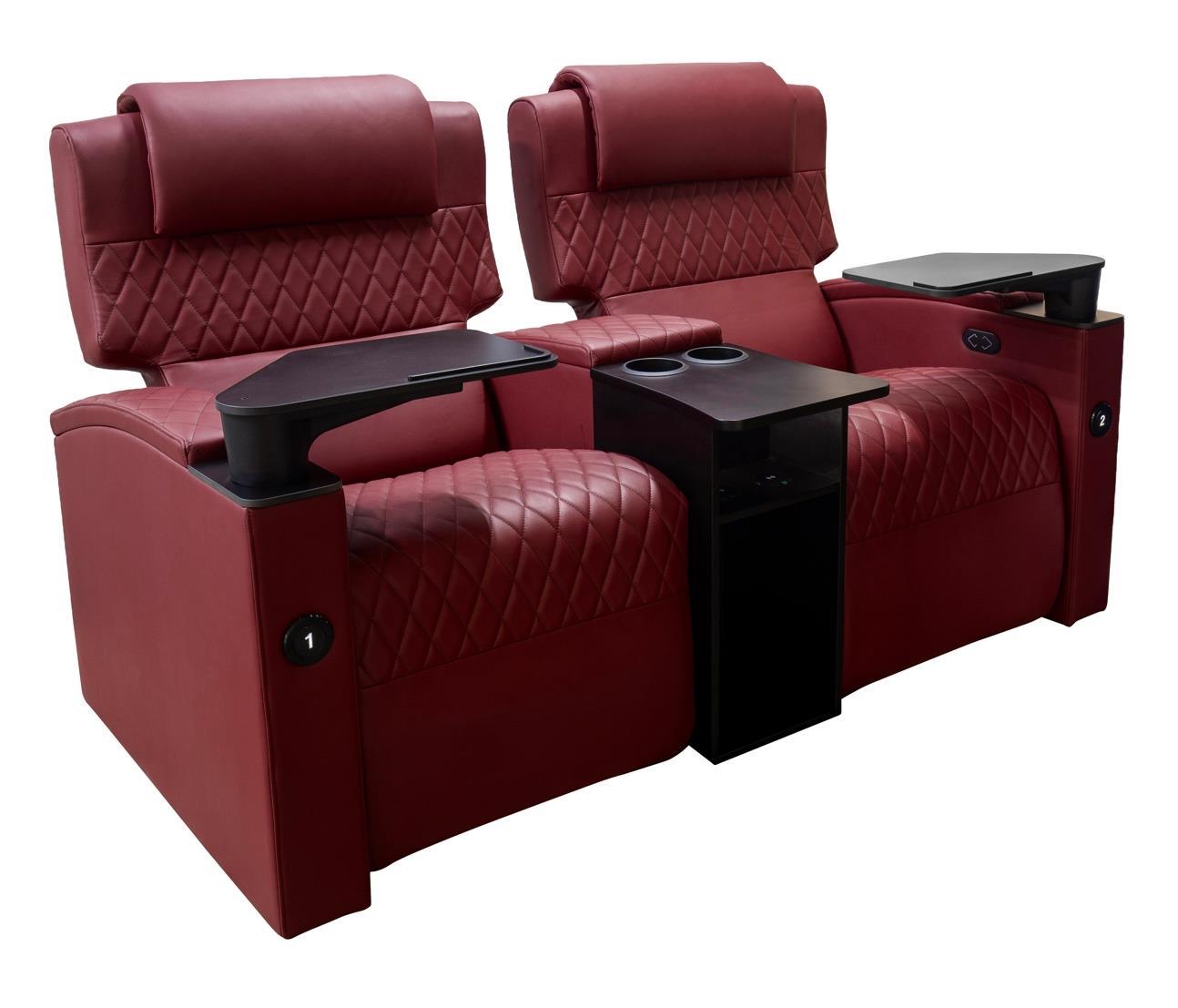

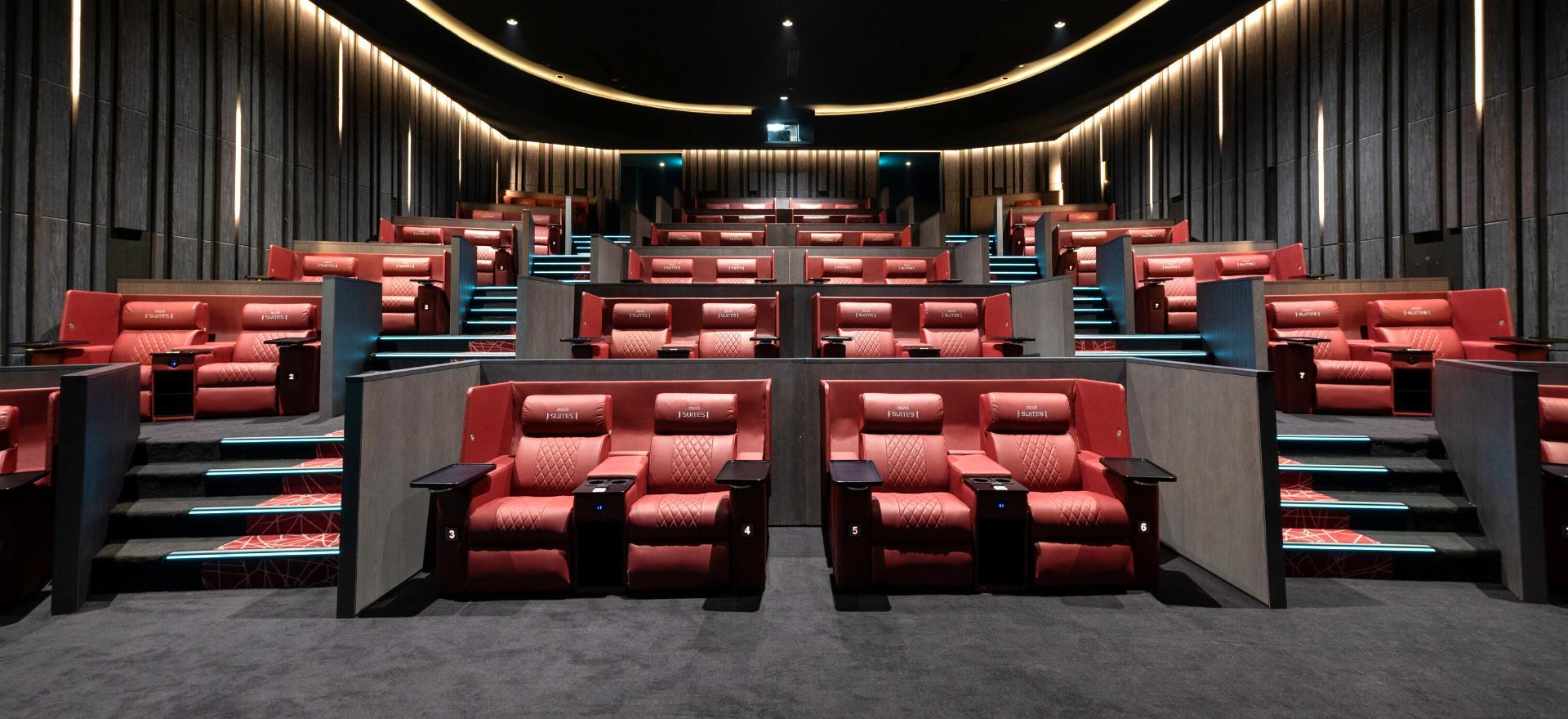

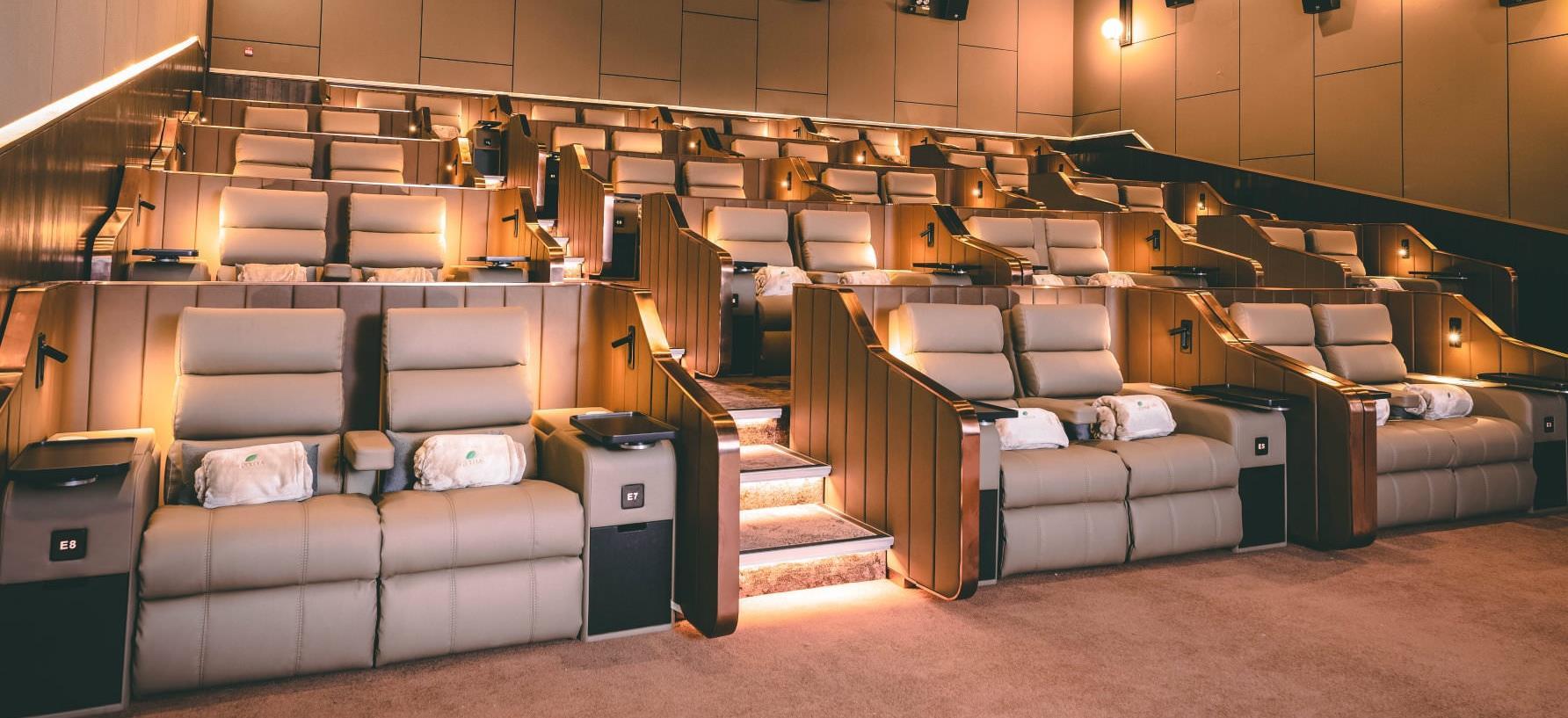

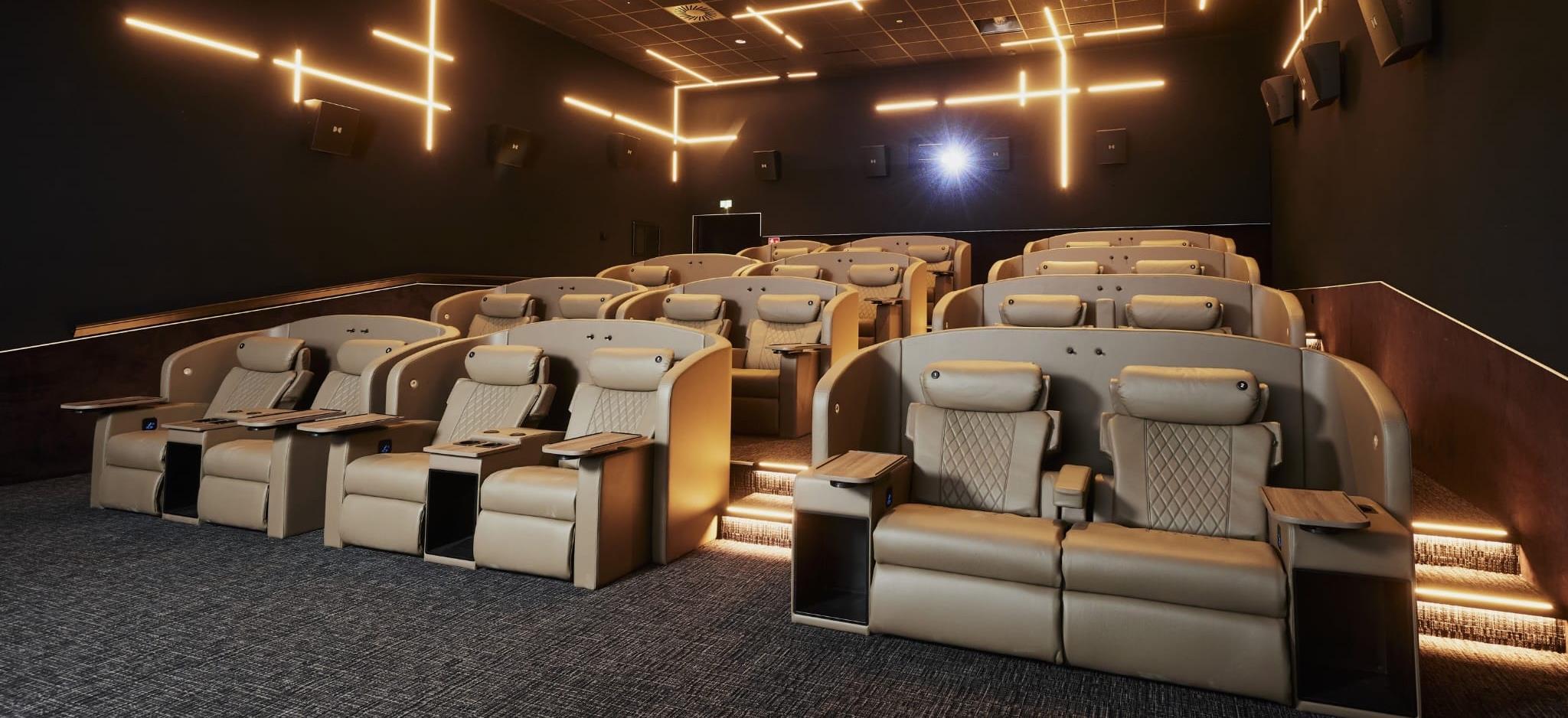

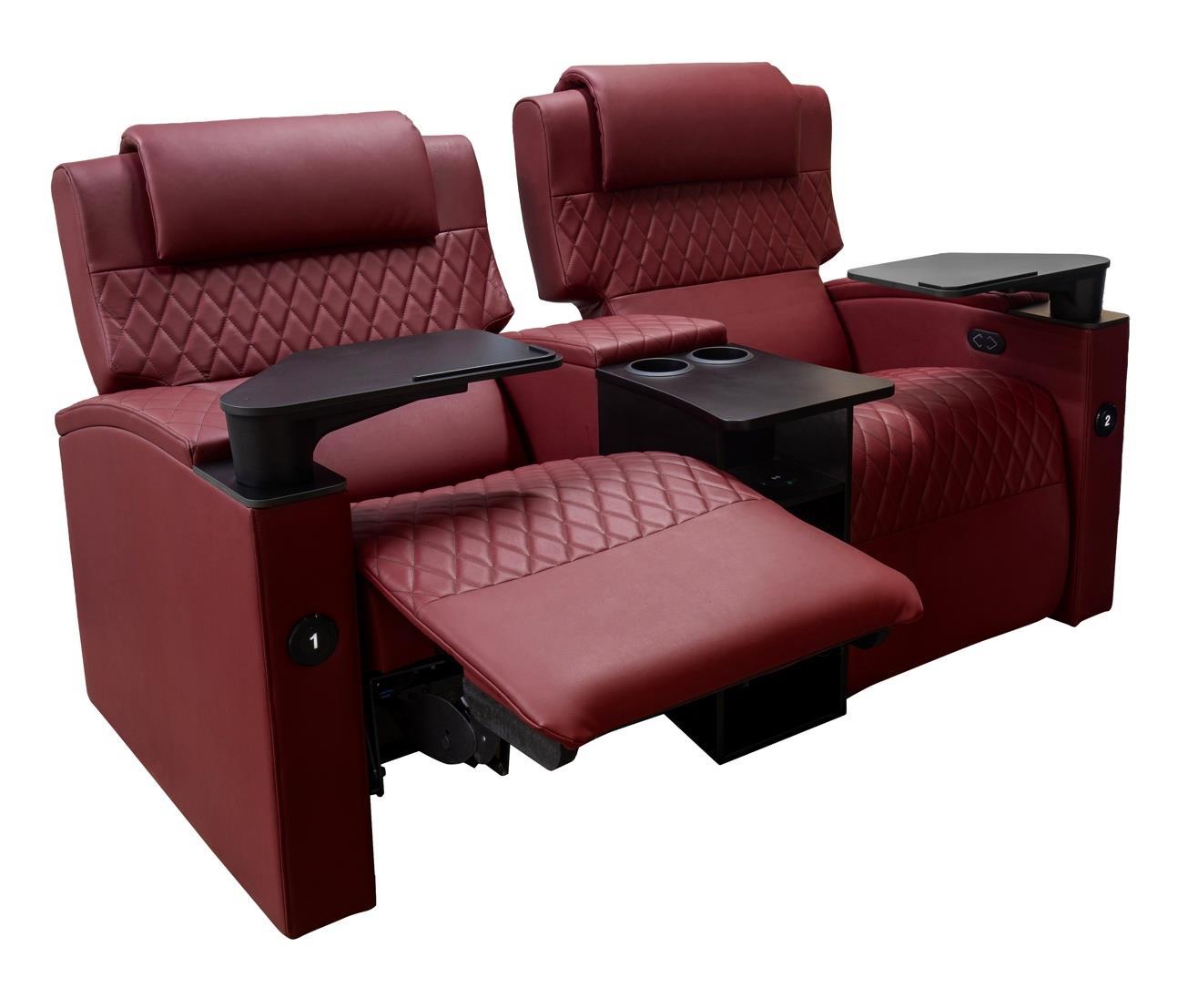

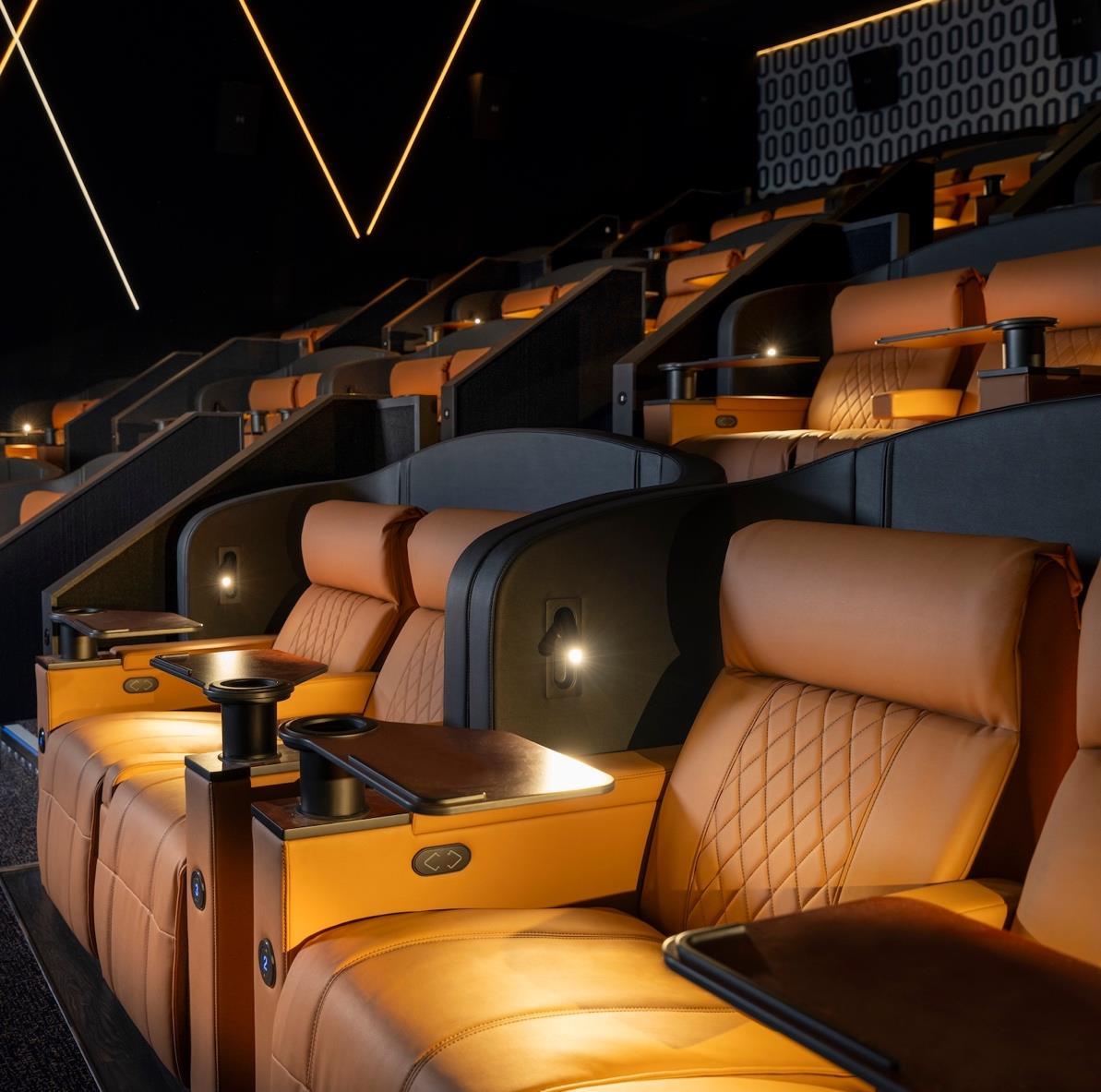

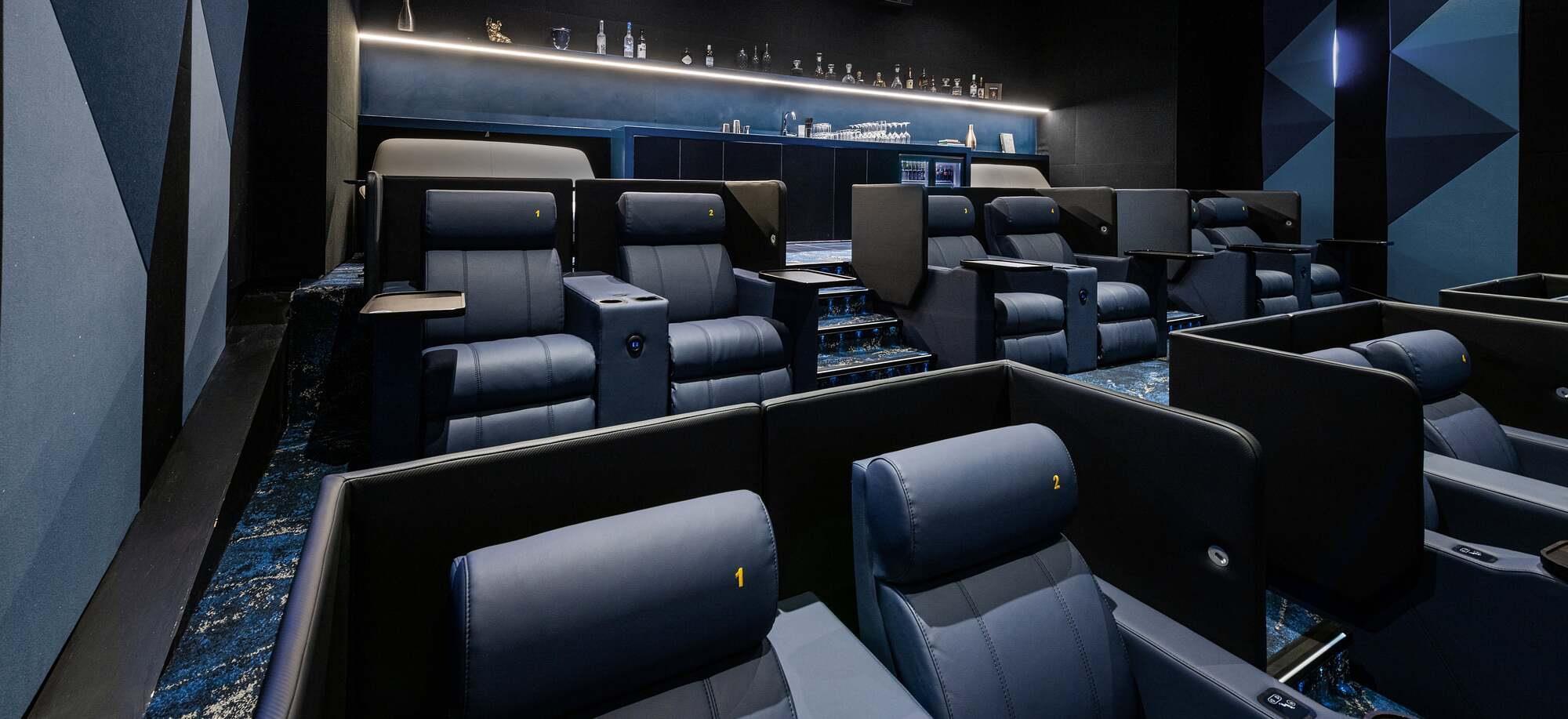

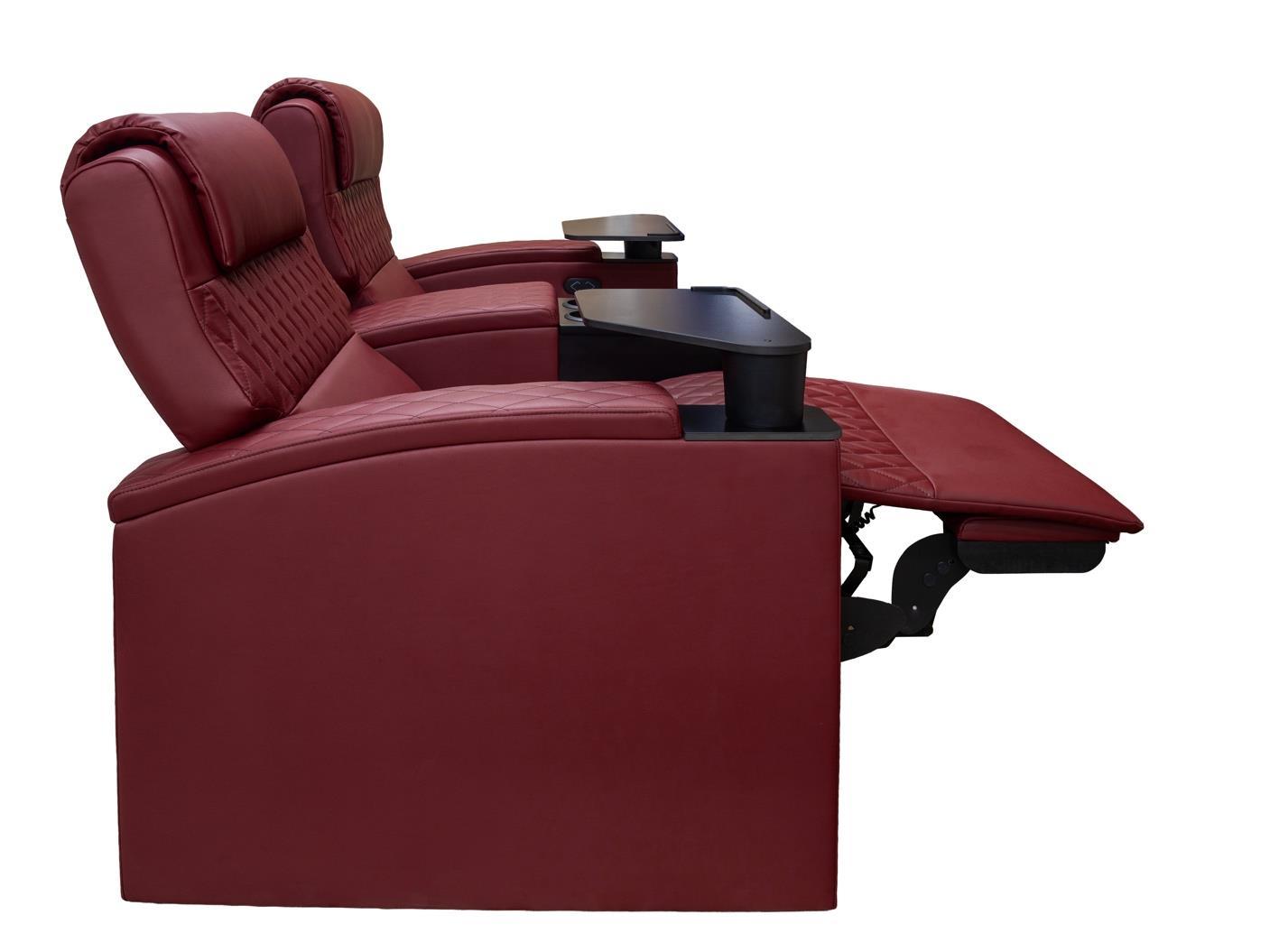

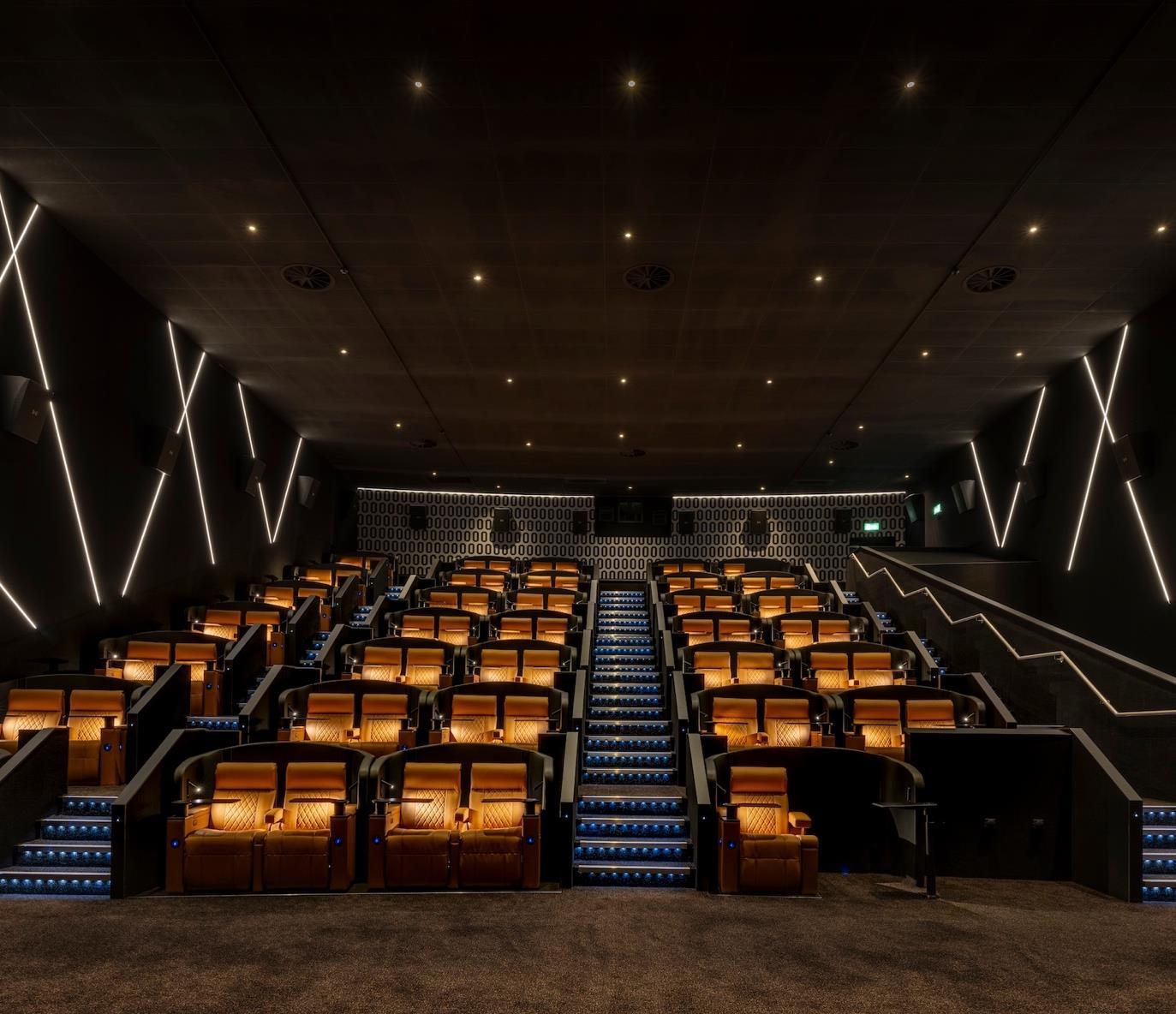

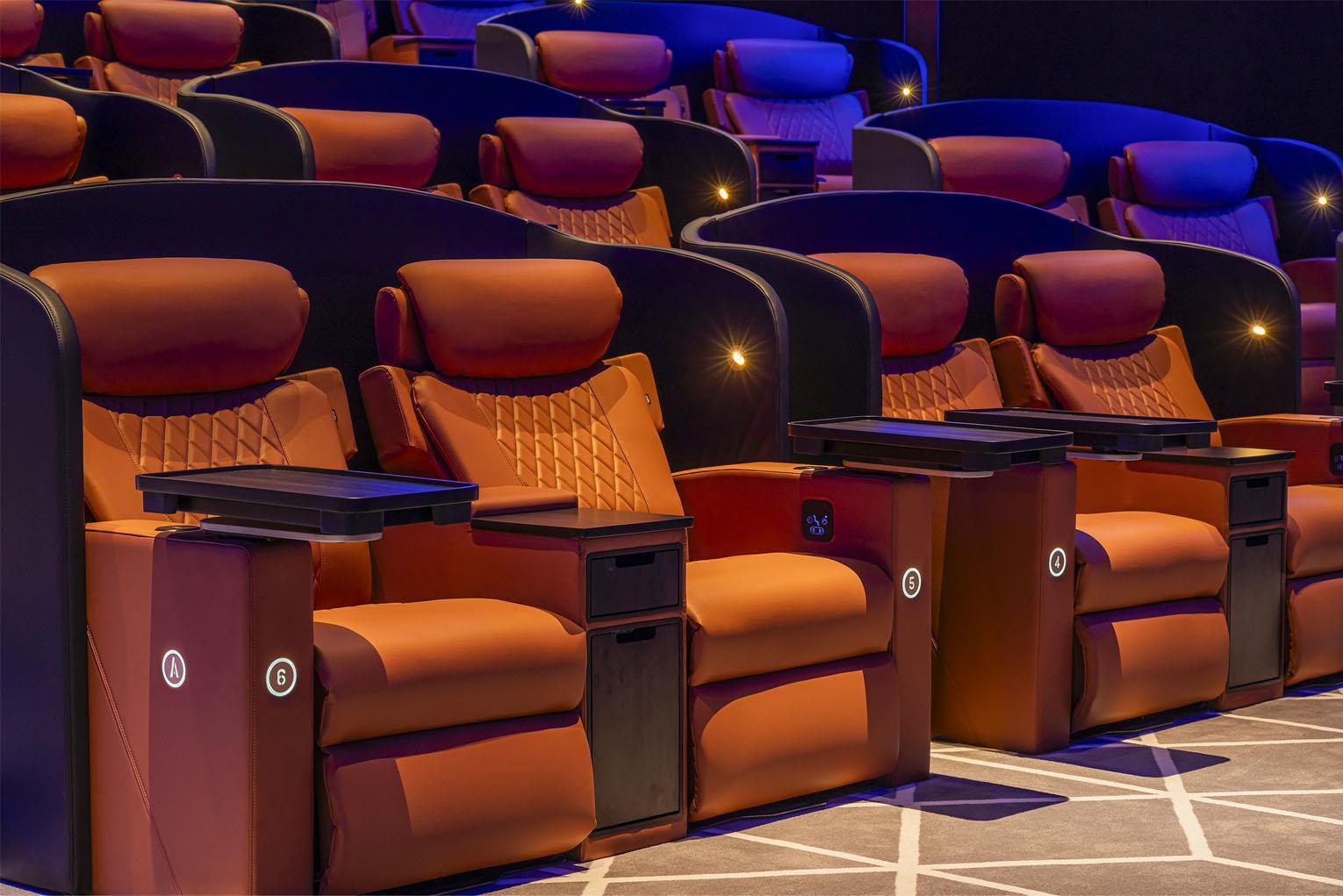

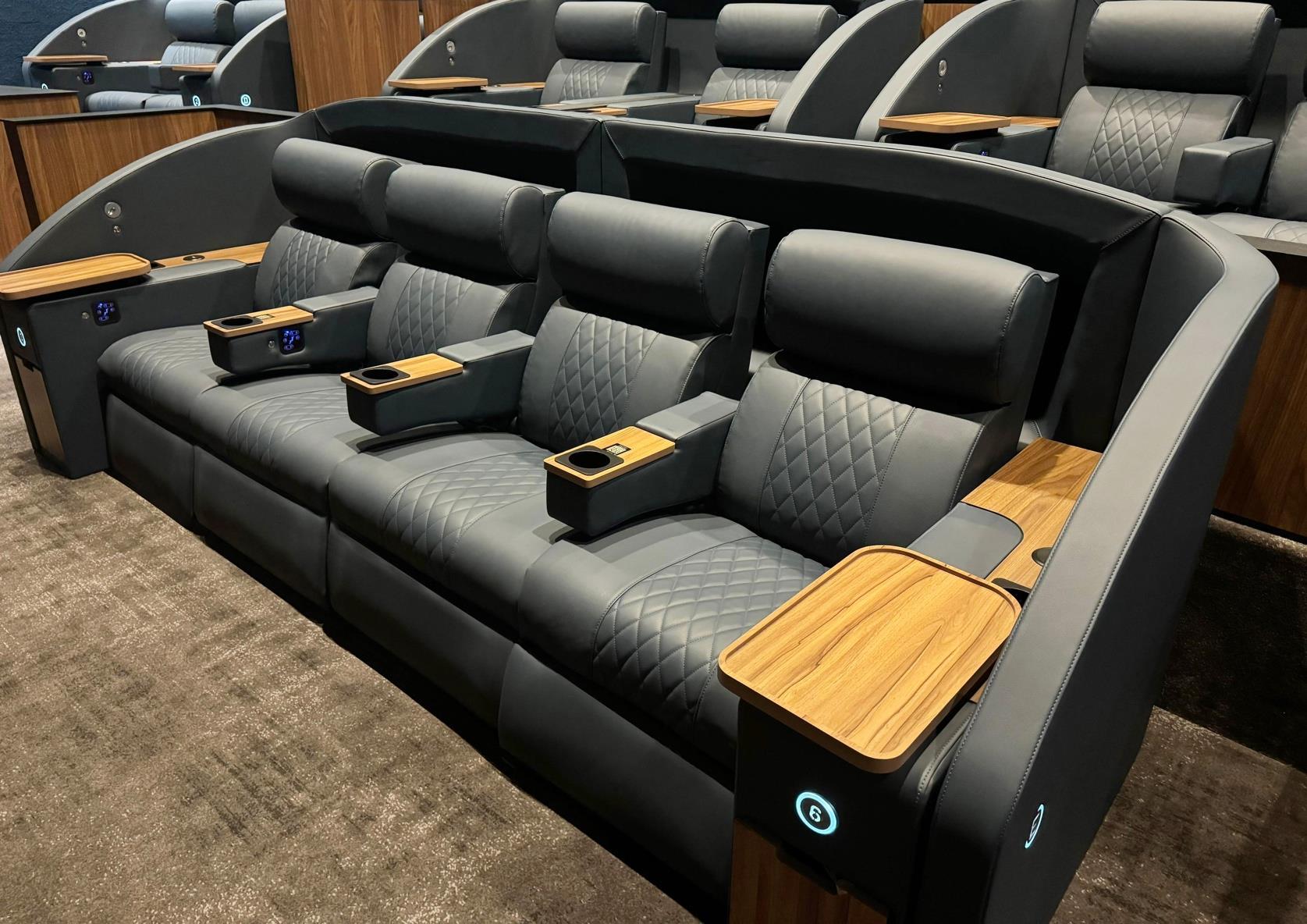

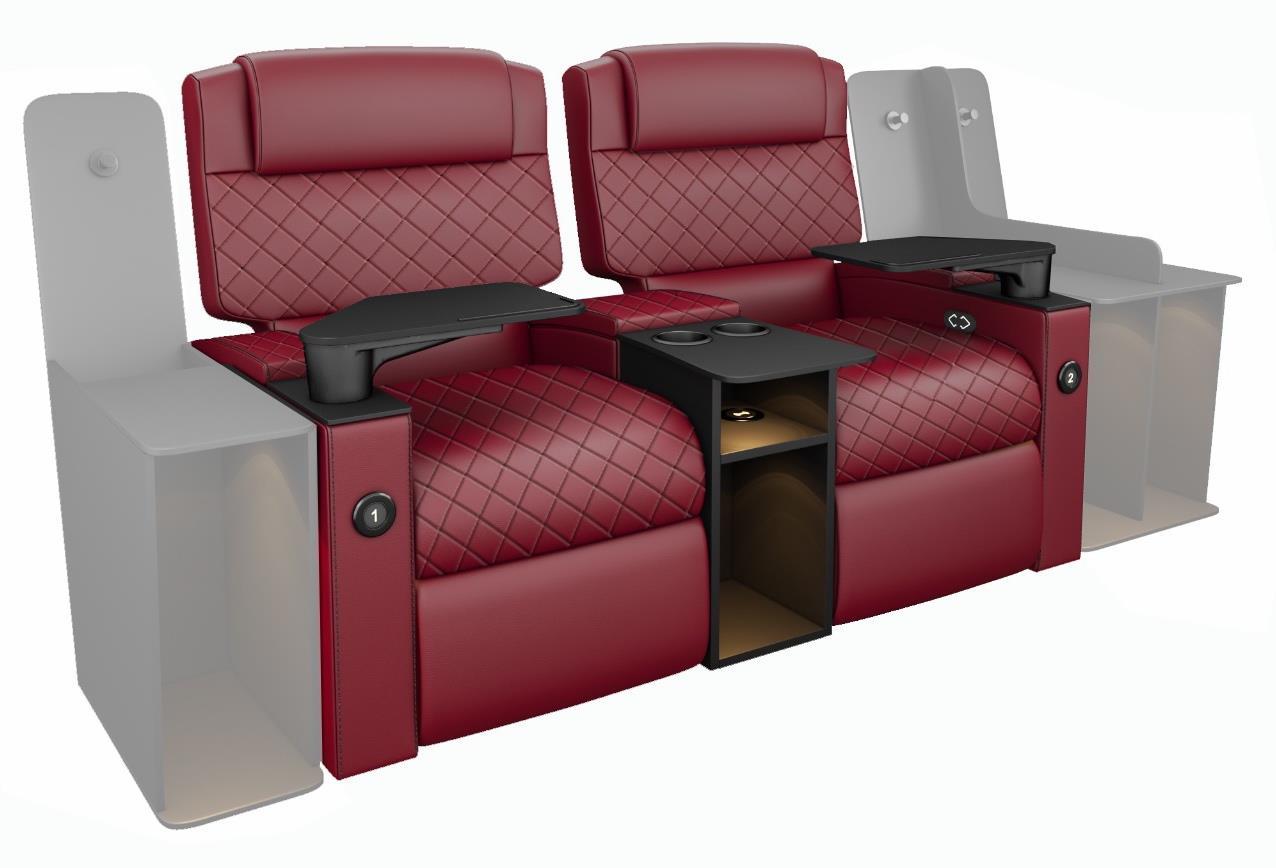

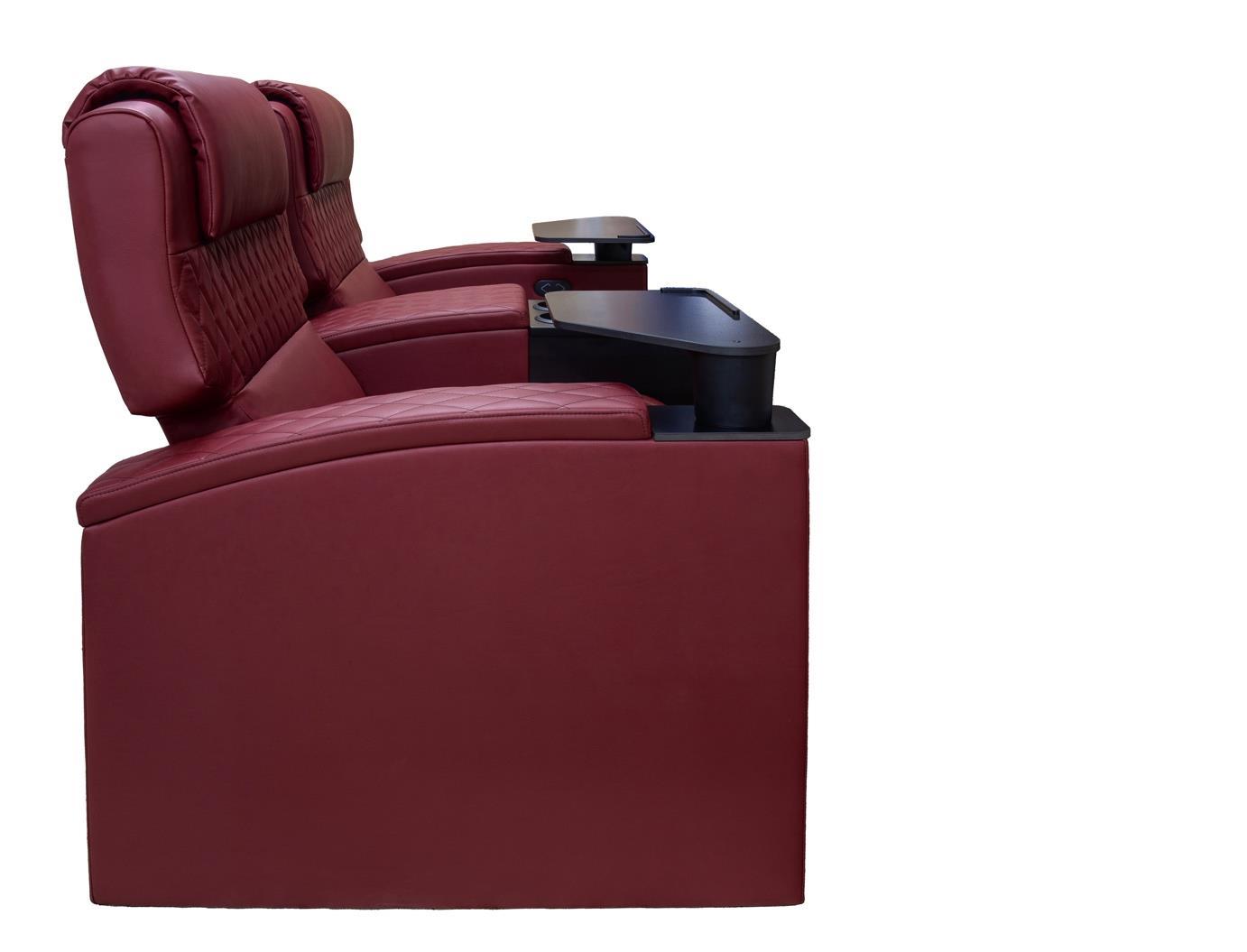

Signature seats – Sample images

Signature seats – Features

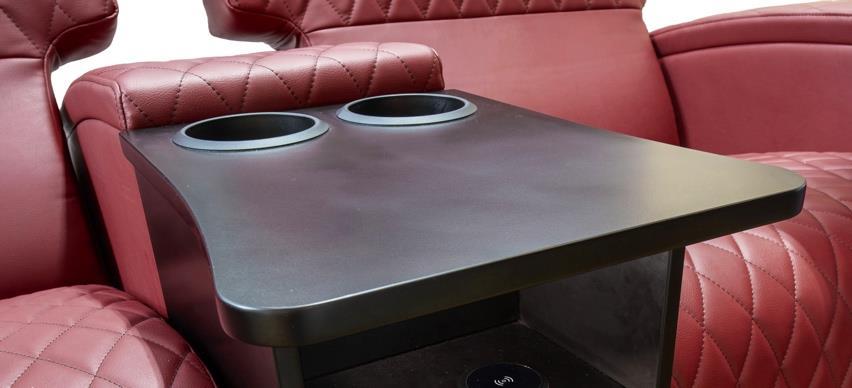

Centre console table with built-in cupholders

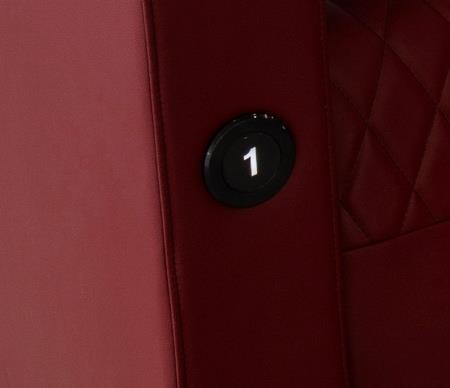

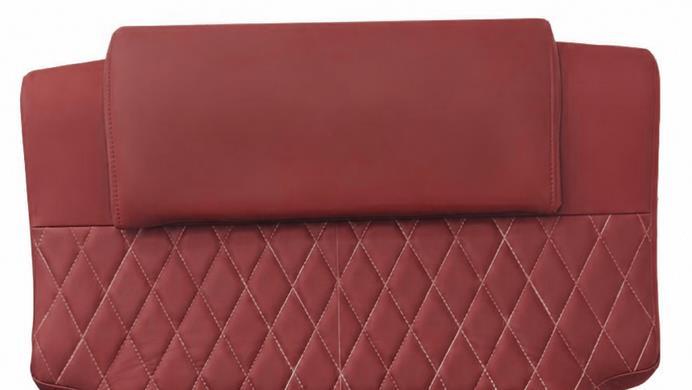

LED Seat Numbering Backrest removable padding

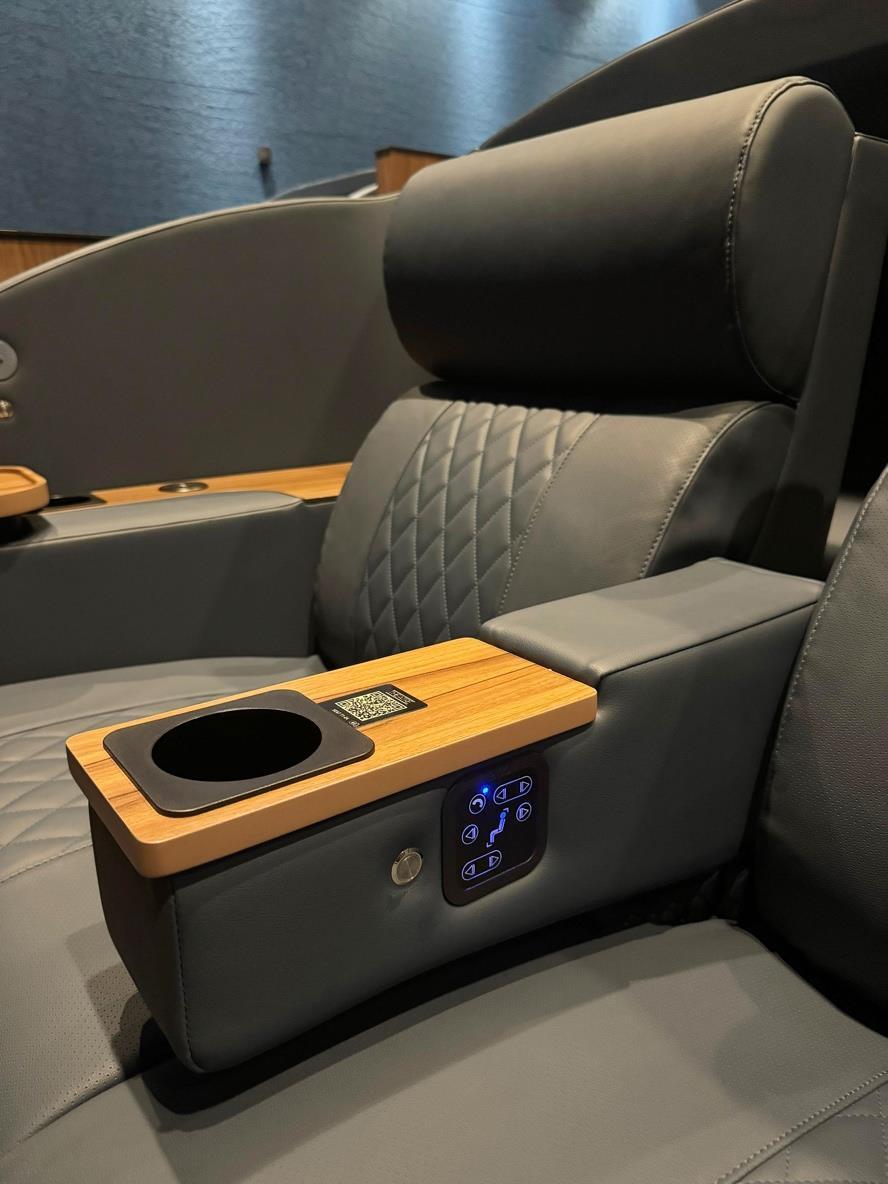

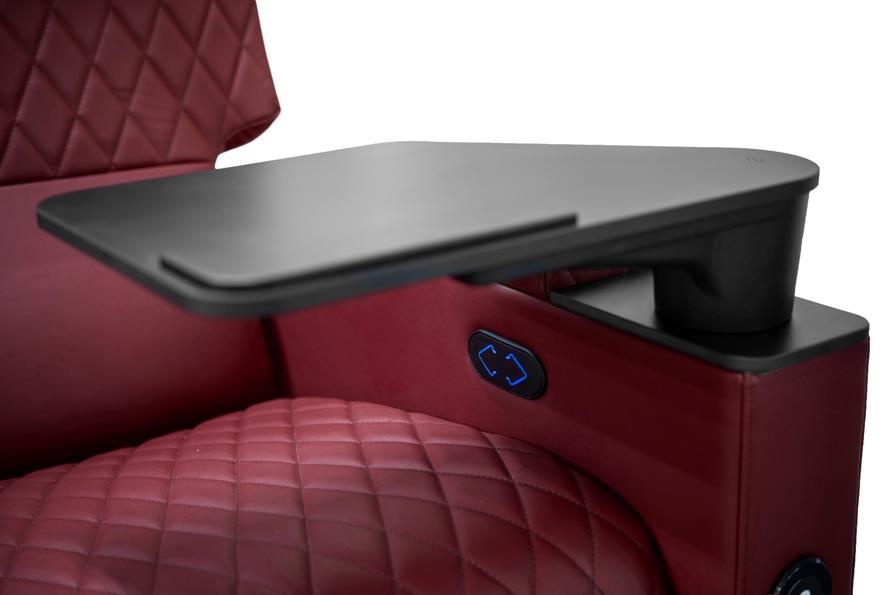

Swivel table + Flat Built-in table in arm / Control button

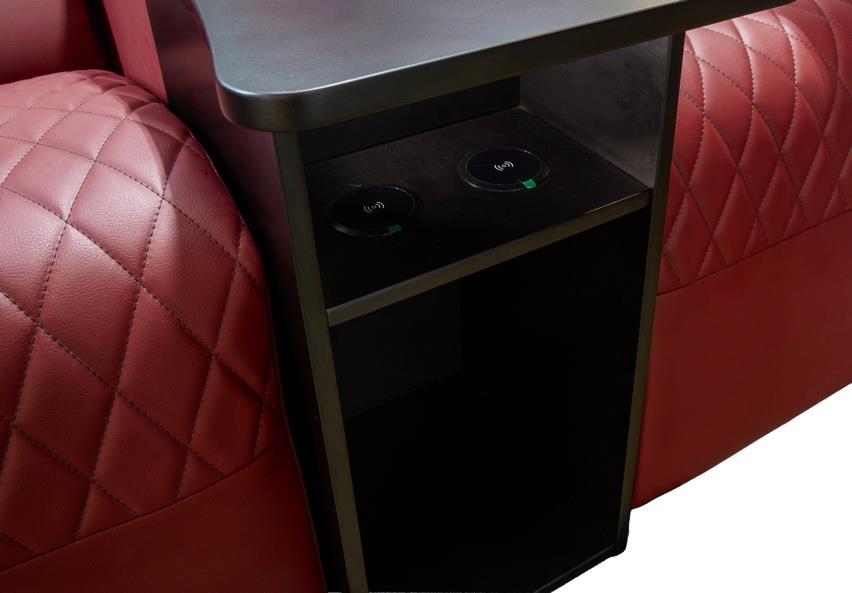

Centre console LED shelfs with wireless chargers

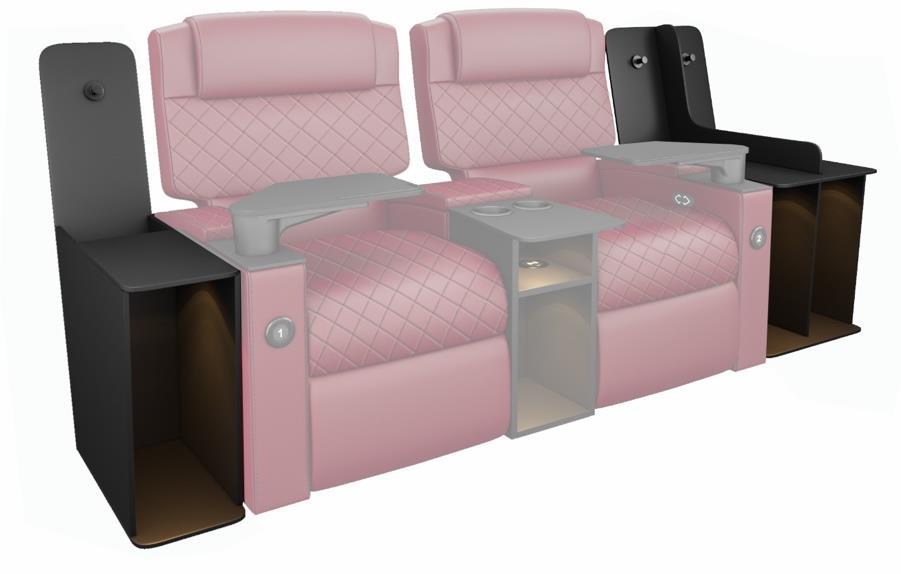

STORAGE FURNITURE

Storage Furniture – Specification

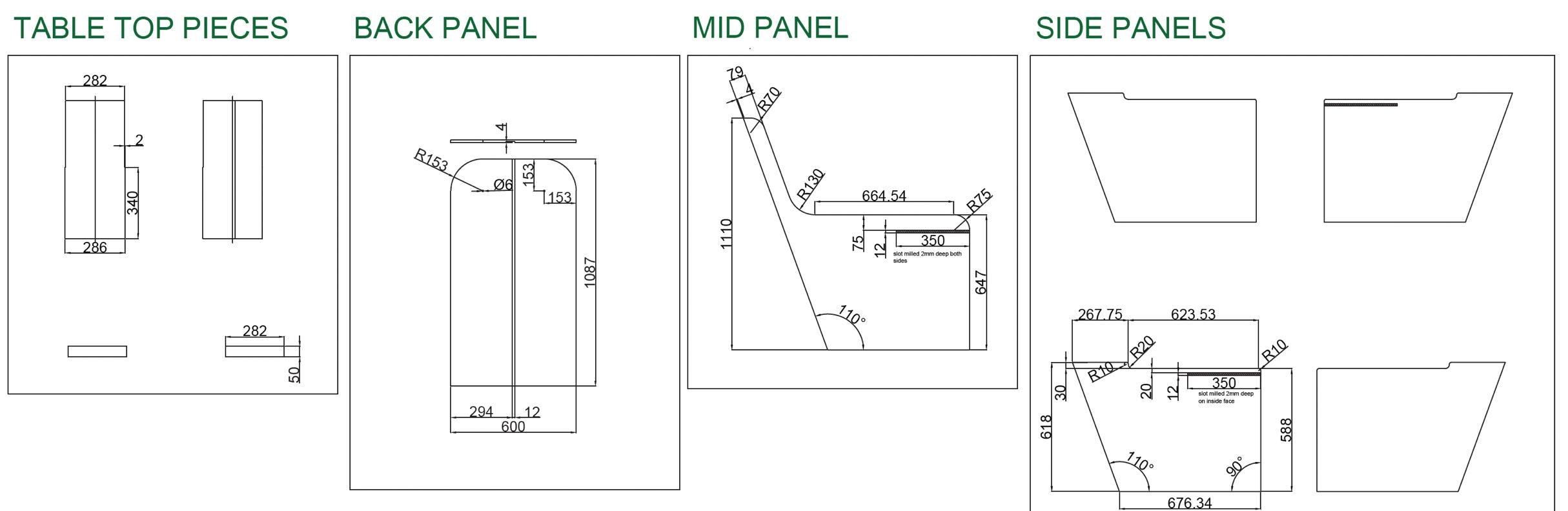

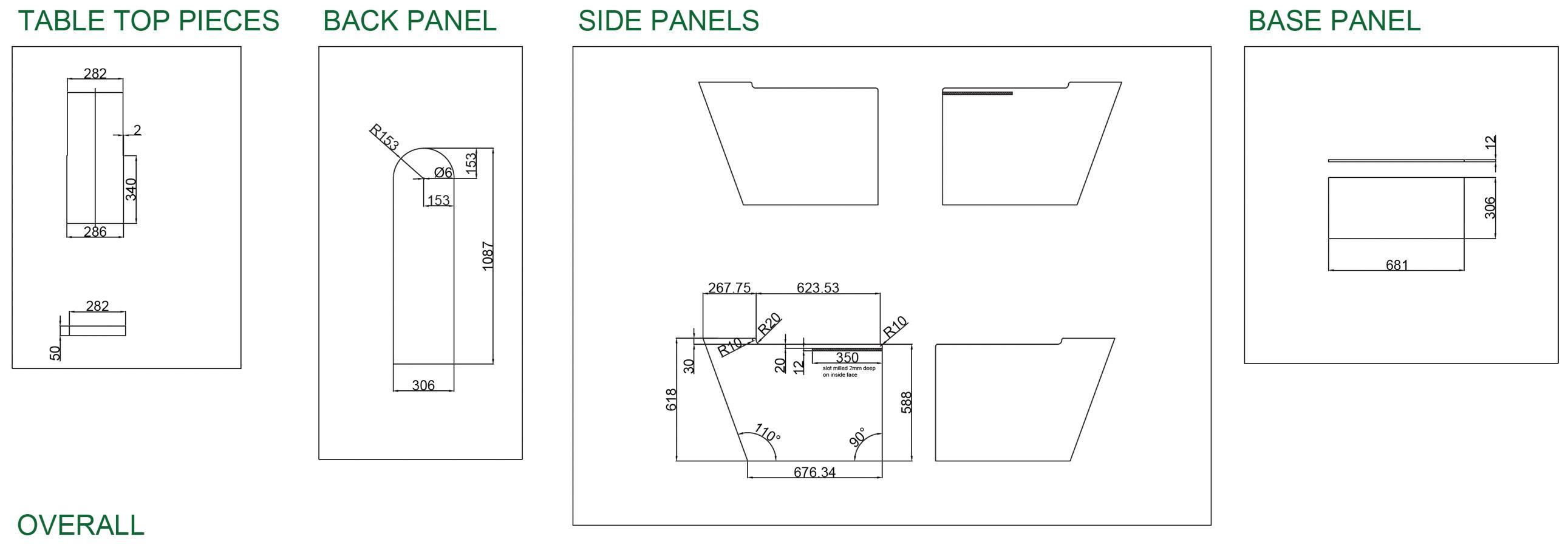

Furniture Specification – Compact Laminate Cabinet Unit

• Constructed from 12mm solid-grade compact laminate, waterproof grade, with a black finish throughout.

• To include metal hanger as indicated on the drawings.

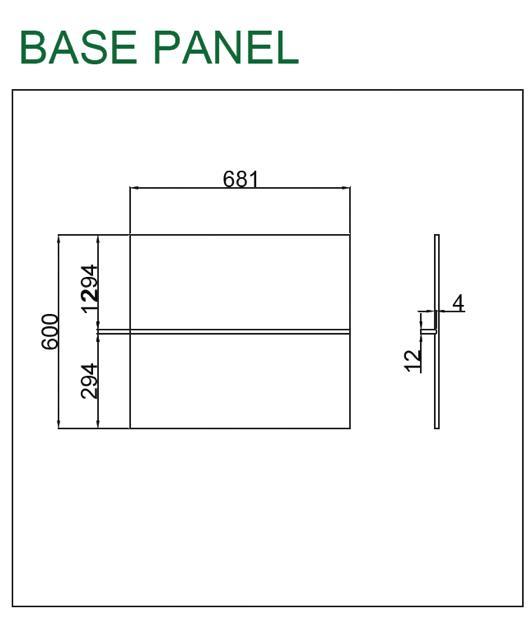

• Dimensions to be as shown on the following slide/drawing package.

• Units to be supplied in flat-pack form for transportation and handling.

Assembly and Installation

• Assemble and install each unit (single and double configurations) from flat-pack components.

• Securely fix units to timber flooring in accordance with the project requirements and manufacturer's recommendations.

Electrical Requirements

• Provide and install LED downlighter to the underside of each cabinet.

• Downlighter to be wired to the auditorium dimmer circuit.

• Seat number illumination to be connected to the same dimmable circuit as the cabinet downlighter.

• Provide a dimmer control unit and appropriately rated LED driver to each row, sized in accordance with the seat/furniture quantities and required electrical load.

• Provide a 6-point distribution box to each seat position.

• Final electrical specification, LED wattage, and power requirements to be confirmed following sample review and approval.

• Include all necessary cabling, cable management systems, conduits, connectors, and associated accessories required for a complete installation.

Finish

Black finish throughout to match adjacent seating components, including swivel tables, centre console tables, and shelves.
