TRANSPLANT SYSTEMS
Transplant Systems Proven performance. New energy.
EARLY DAYS
Since 1990, Transplant Systems has earned the trust of growers through innovation in nursery trays, automation and productivity systems. The focus has been clear: healthier plants, stronger root systems, and efficient nursery operations.
A NEW CHAPTER
In September 2025, Transplant Systems Australia became part of PrimeHort. The Transplant Systems name remains, along with the trays and expertise growers rely on.
PrimeHort is a leading, family-owned horticultural supplier operating in New Zealand since 2002. Our role is simple: build on the strong foundation already in place and ensure growers continue to receive reliable products, expert advice, and responsive support.
LET’S GROW
With this transition complete, we are ready to help customers grow. What does this mean for you?
✓Continued access to the full Transplant Systems nursery tray range.
✓Stronger nursery automation solutions through exclusive partnership with Da Ros.
✓Extensive benching systems to improve productivity.
✓Excellent customer service and aftersales support, competitive pricing.
Working together to support nurseries grow.

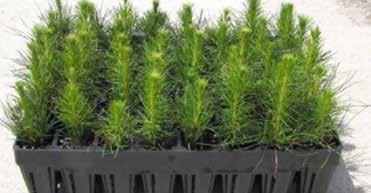

TS Trays Stronger roots & better results
Transplant Systems TS Trays are trusted globally for high-quality seedlings and cuttings with uniform results.
✓Designed for automated handling, stacking/ destacking, and washing
✓Manufactured in Australia from durable high-density polyethylene
✓Proven air-pruning cell design to reduce root deformation
✓Strong, uniform root systems that establish quickly in the field
✓15 to 20 year lifespan under normal use (helping to reduce plastic use)
These trays have been refined over decades of nursery use and are widely adopted by commercial forest nurseries, vegetable and flower producers, and specialist tree growers.
THE SCIENCE BEHIND THE CELL
The objective is simple: healthier plants in the nursery and better survival in the field.
Each cell features:
✓Concave arcs and side slots direct roots toward air-pruning points
✓Venting across the tray surface to improve airflow and reduce fungal risk
✓Sharp upper slot edges to shear fibrous hair roots at extraction
✓Slots are tapered and side walls polished to ease plant removal
When planted the lateral roots will advance quickly seeking nutrients and moisture. The result is a fibrous, natural root structure that anchors well and supports strong canopy development.
Media washed out to clearly show root development from side slot cells.
BUILT FOR MODERN NURSERIES
The objective is simple: healthier plants in the nursery and better survival in the field.
✓Compatible with nursery automation
✓Common tray length across the TS F series program

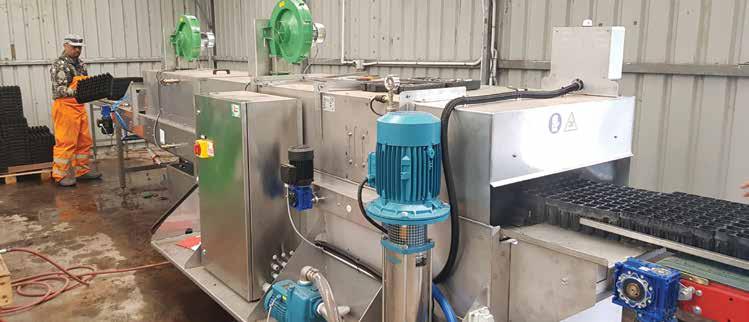

✓Designed for mechanical movement, washing, and stacking and destacking
✓Traceable batch production with strict quality control
✓Manufactured under recognised quality systems
Durability reduces long-term tray replacement and supports lower plastic use over time.
Originally developed in response to growers asking for an air root pruning tray to replace the old Hiko 40 tray while fitting existing benching and handling systems.
The TS-45 delivers:
✓12 percent more seedlings per tray movement
✓Square cells with air pruning of lateral and bottom leader roots
✓Proven long-term durability
The efficiency gains and lifespan mean the tray cost is quickly recovered, while delivering strong biological benefits.
REQUEST A FREE SAMPLE TODAY.

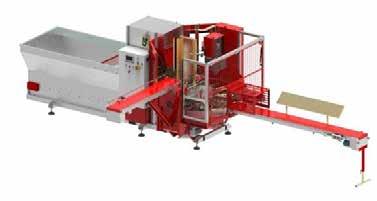

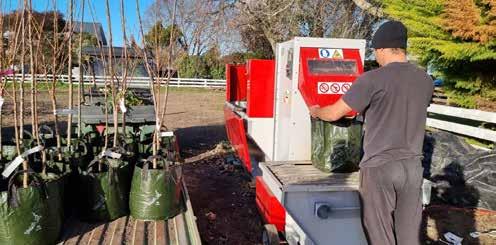

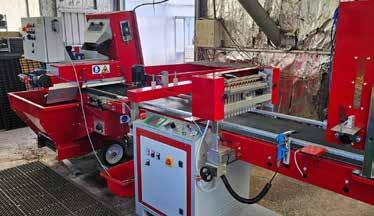

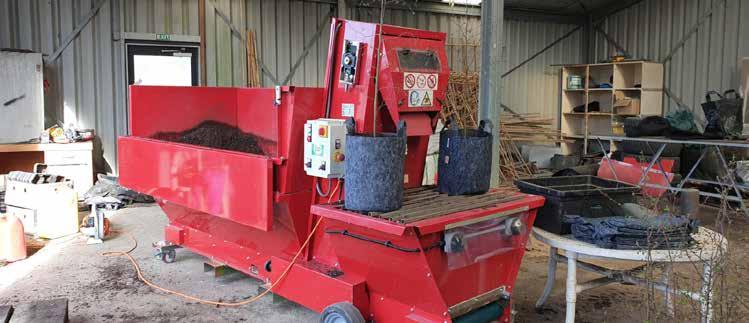

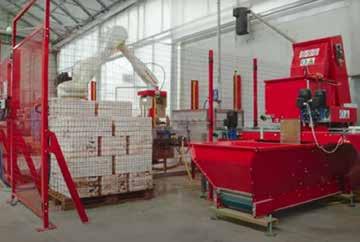

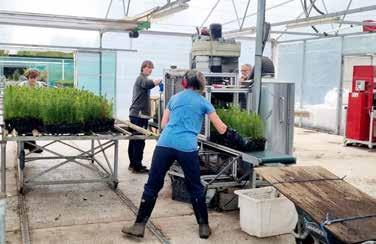

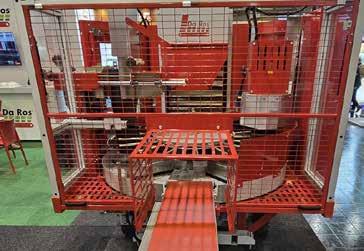

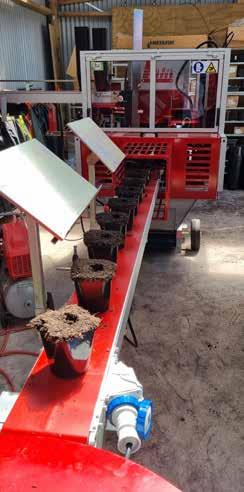

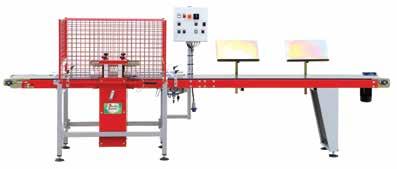

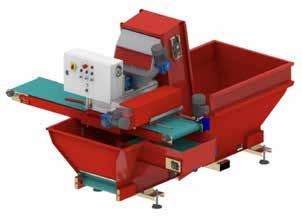

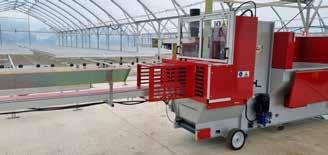

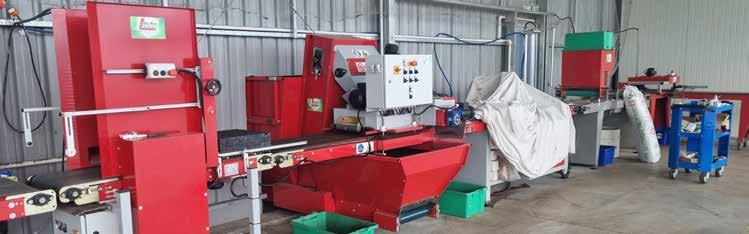

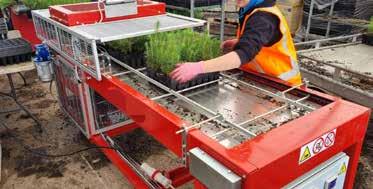

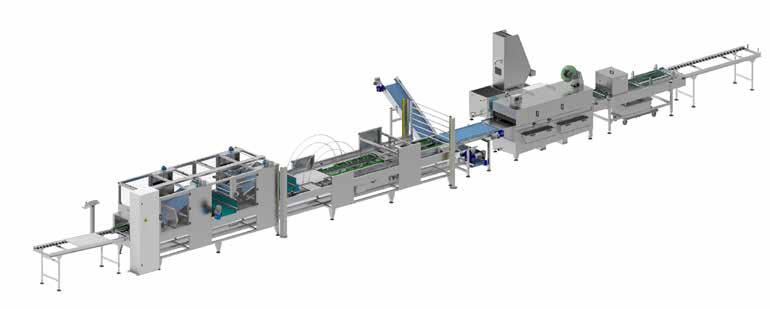

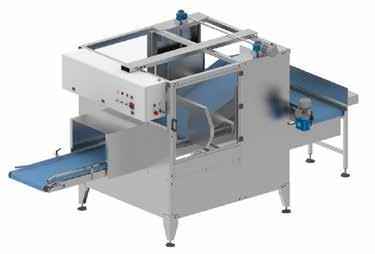

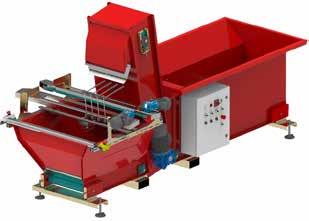

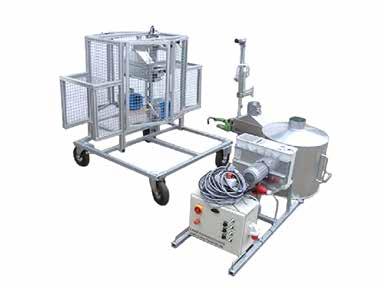

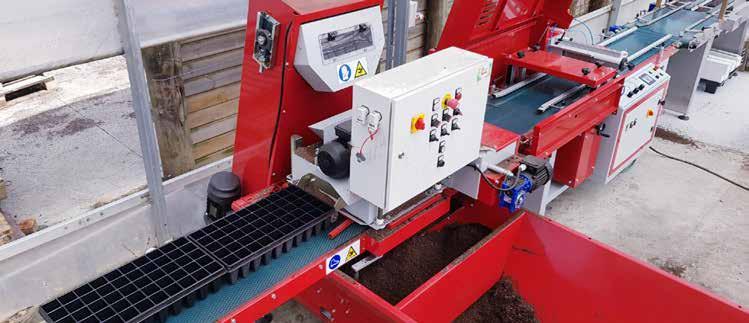

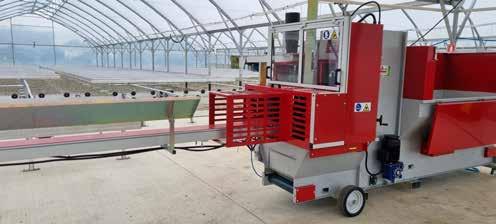

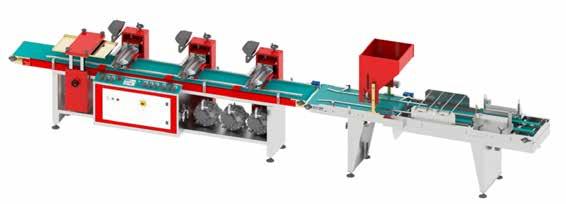

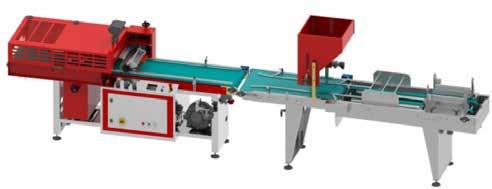

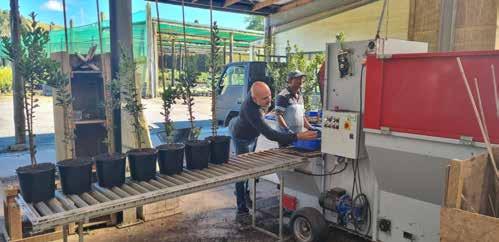

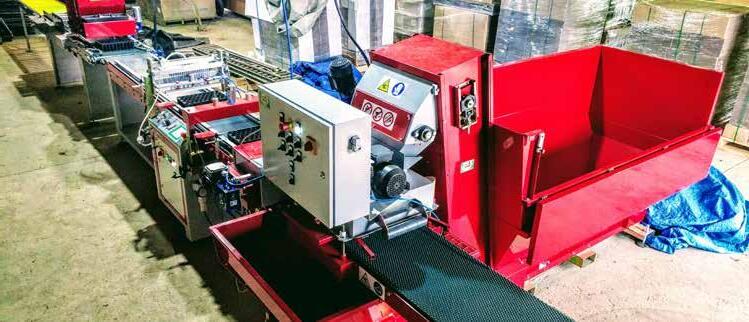

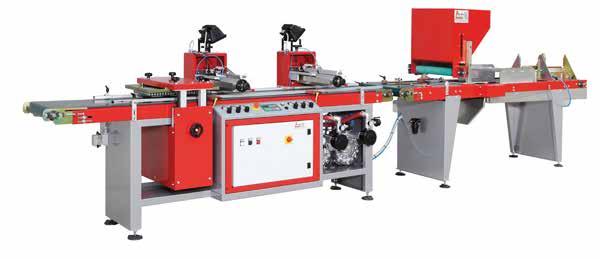

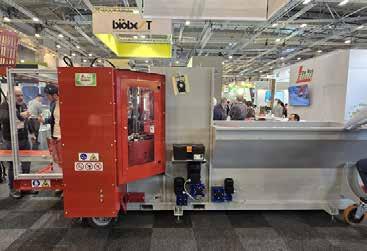

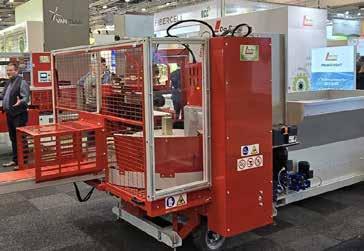

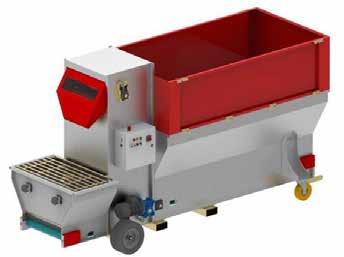

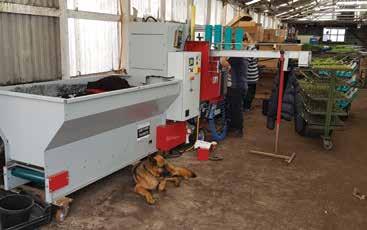

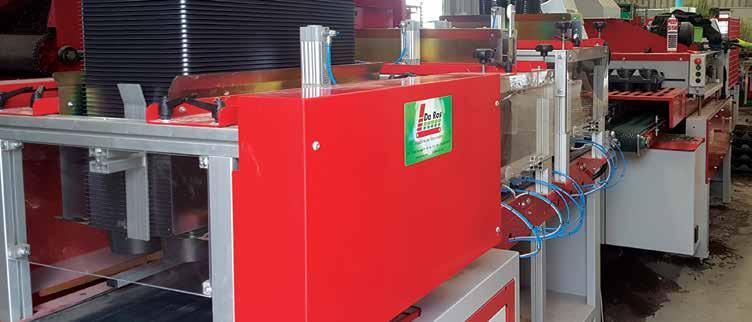

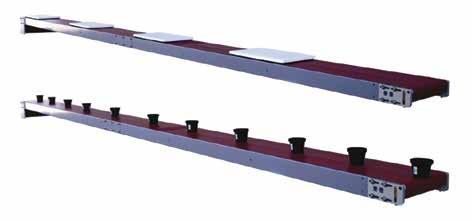

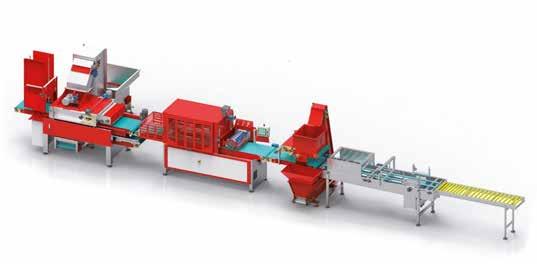

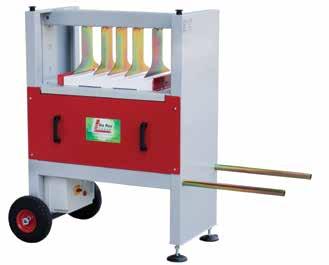

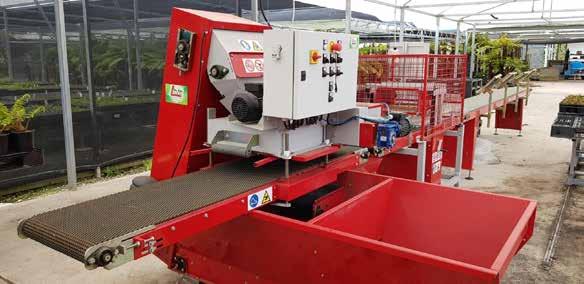

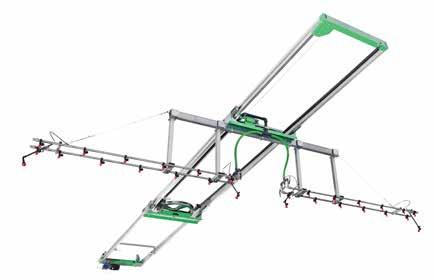

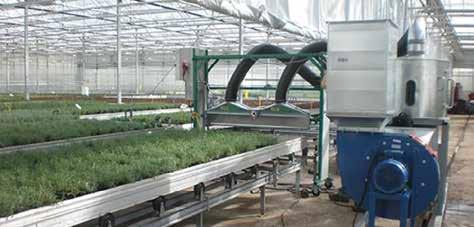

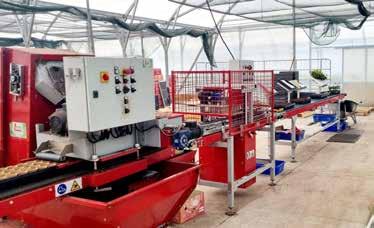

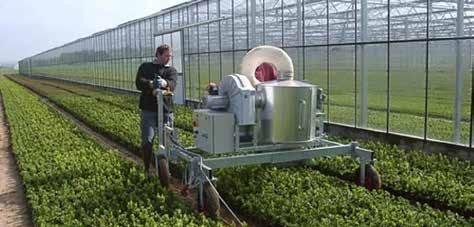

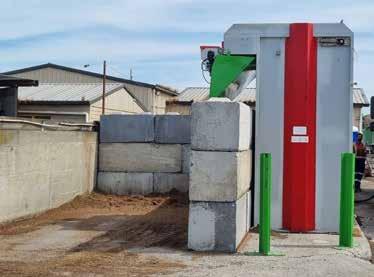

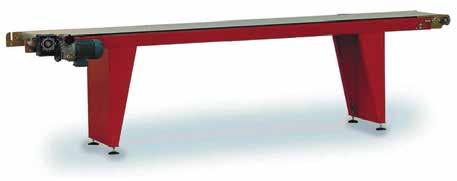

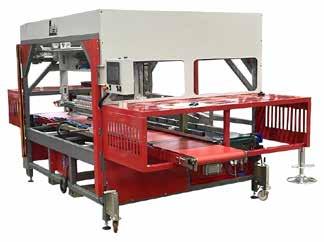

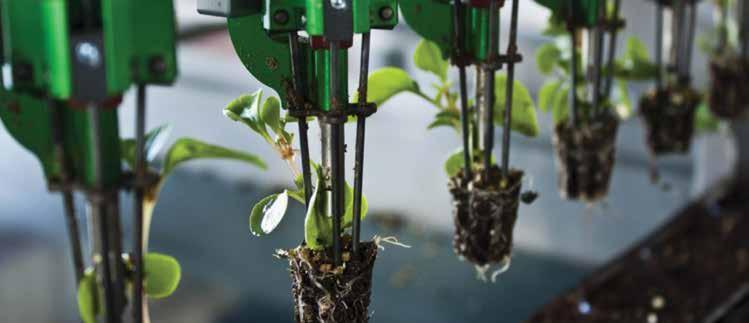

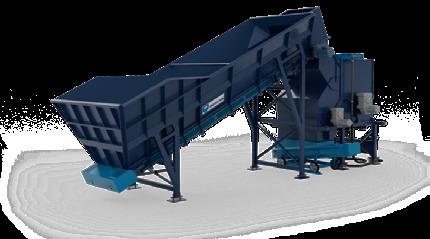

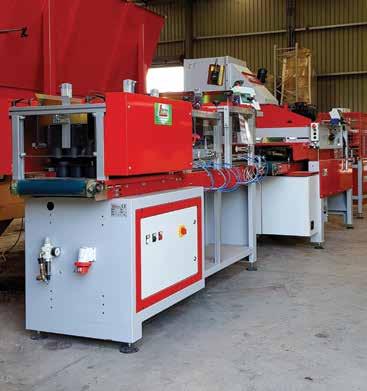

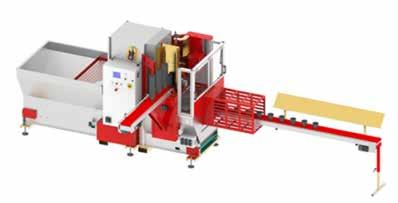

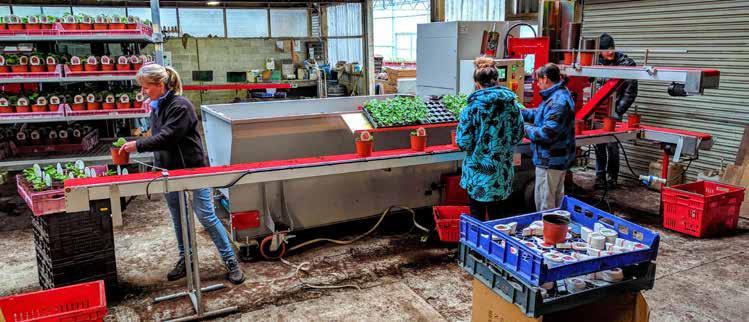

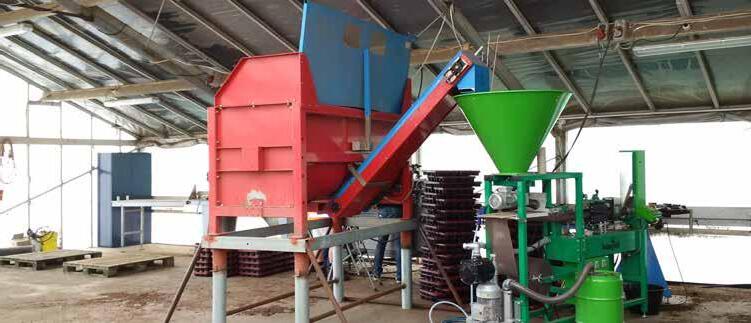

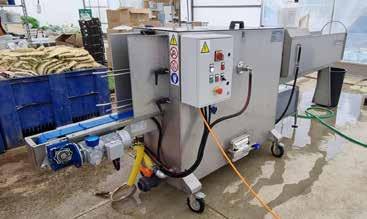

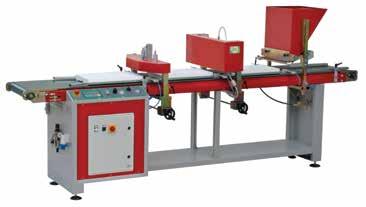

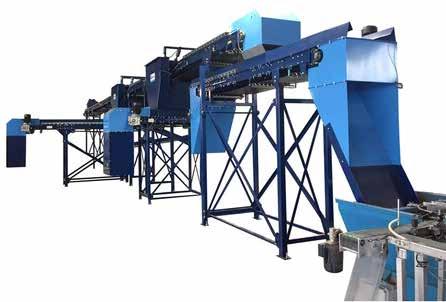

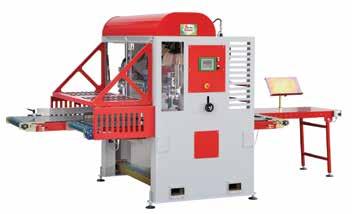

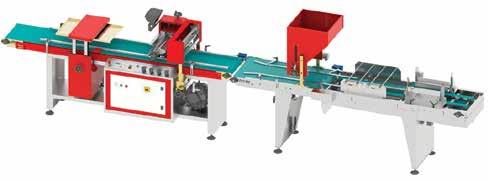

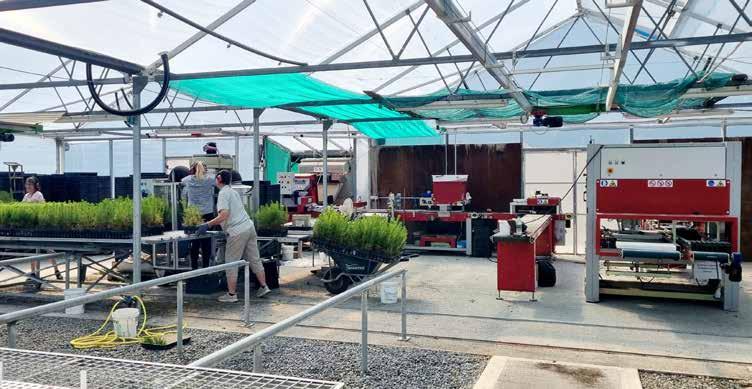

Meet Da Ros Engineered for performance.

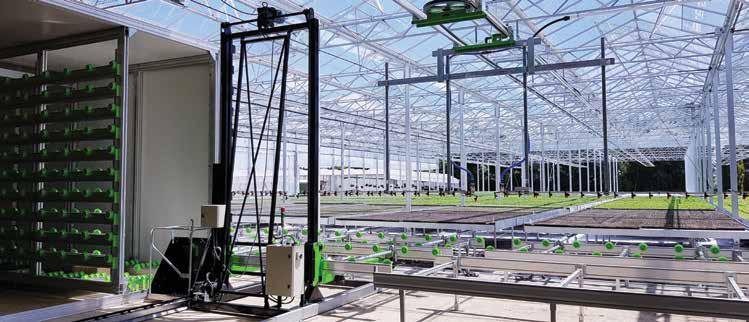

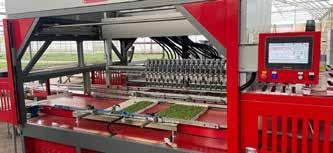

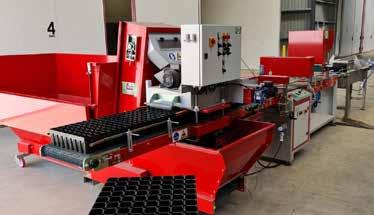

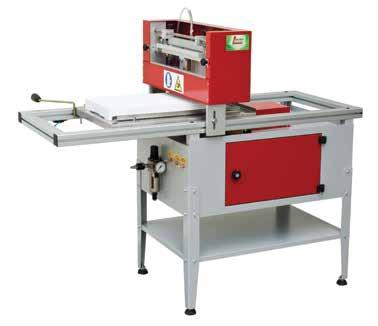

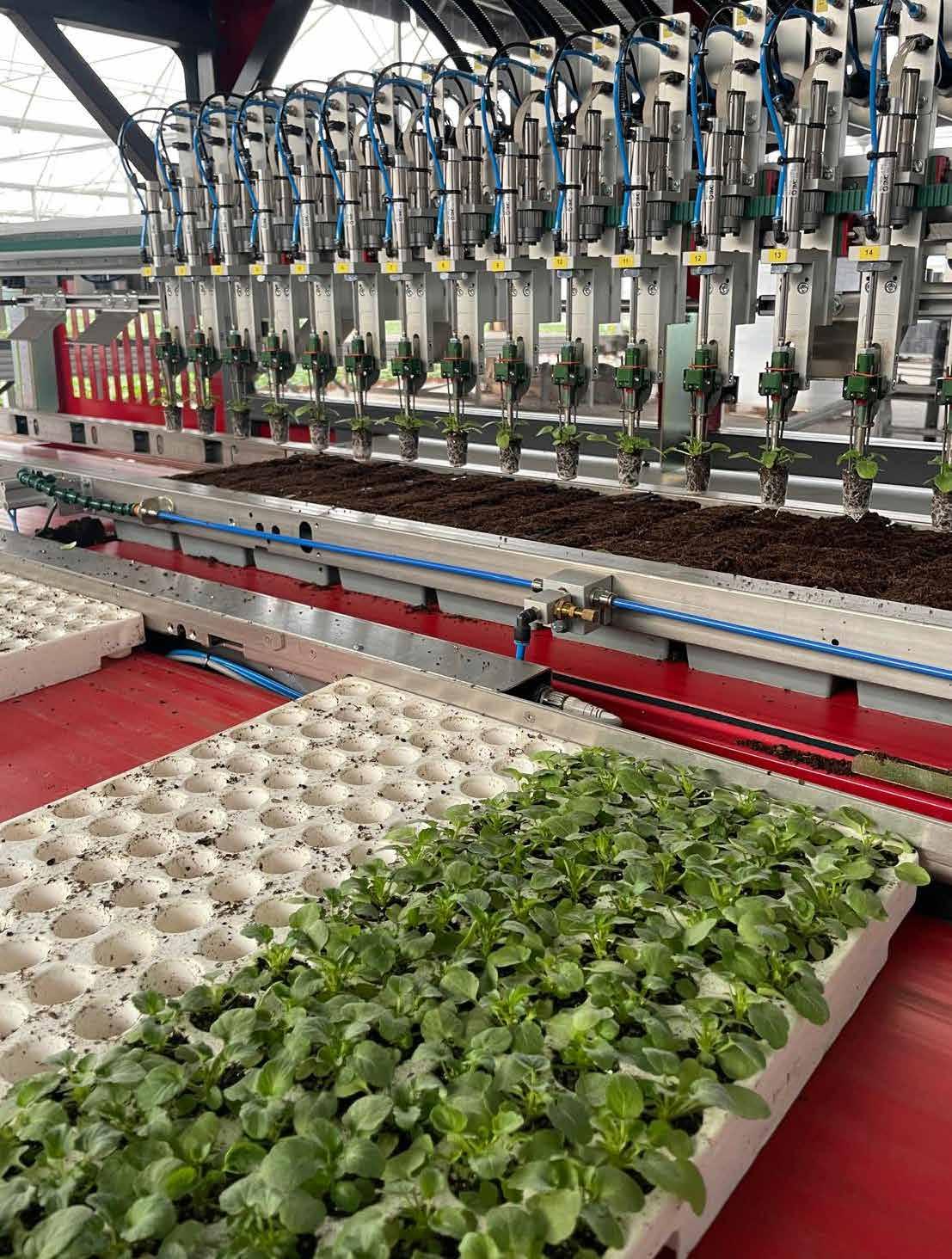

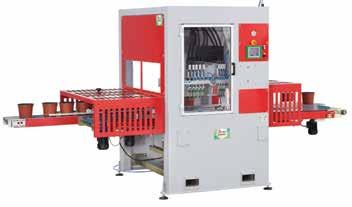

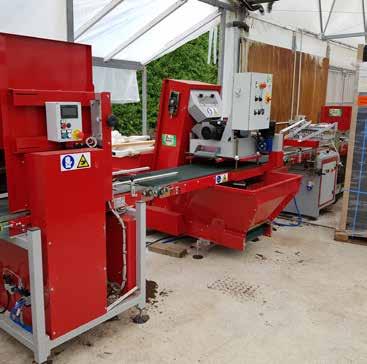

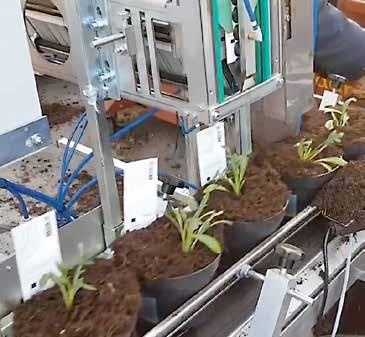

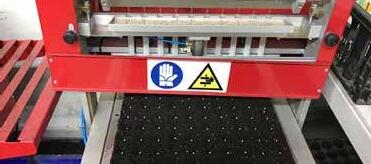

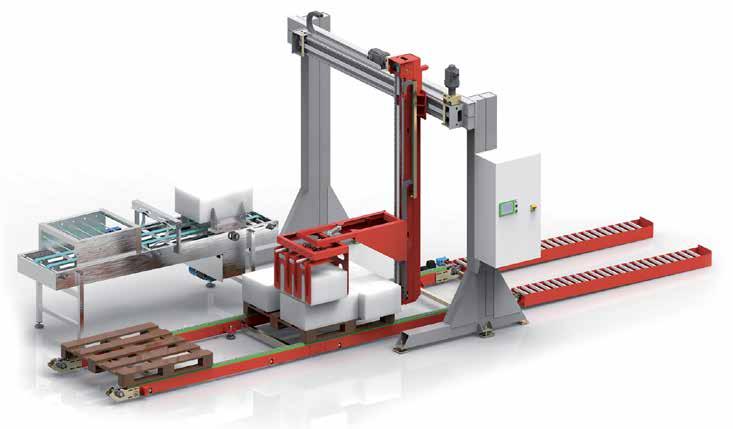

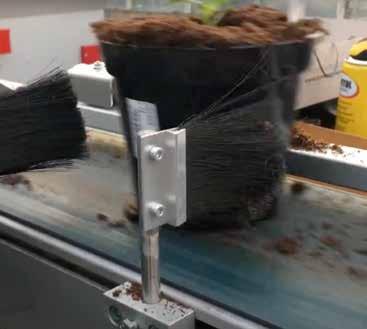

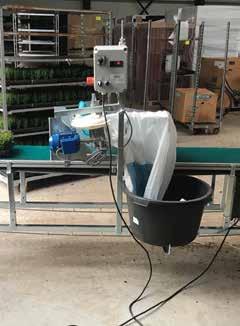

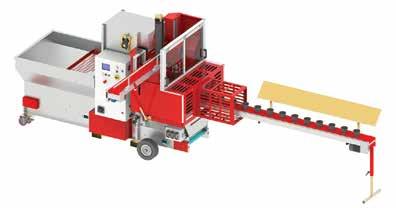

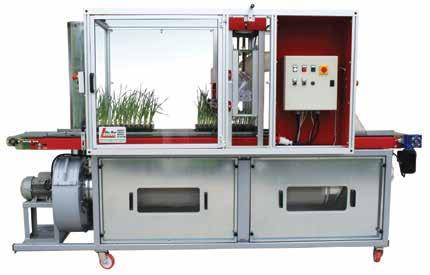

We are excited to introduce Da Ros, a true pioneer in nursery automation.
Da Ros has specialised in nursery automation since 1986, designing and manufacturing machinery in Northern Italy for growers worldwide.
Our legacy business PrimeHort has successfully represented the brand in New Zealand since 2013, and now Australian growers have exclusive access to Da Ros too.
The team at Da Ros stand by our customers with strong support and customisation of machinery to suit all conditions, scale and scope.
WHAT SETS DA ROS APART?
• Complete in-house manufacturing: CNC machining, laser cutting, robotic welding and software development are all completed in-house. Originally, Da Ros also manufactured for brands like Urbinati, but now solely dedicate their efforts on the Da Ros brand, ensuring precision, quality control and faster innovation.
• Customisation: full control of the production process allows for customisation to suit different crop types, work flows and scale. Unlike Da Ros, many competitors outsource parts of their manufacturing and risk losing quality control and manufacturing lead times.
• Global experience: operating in more than 40 countries, Da Ros have supplied some of the largest forestry nurseries and hydroponic growers in Europe, including Planet Farm, Agricola, Moderna, ZERO, Hydronov, Life4Food and more.
• Remote connectivity & support: Machines can be connected back to headquarters for software updates and troubleshooting, reducing costly downtime.

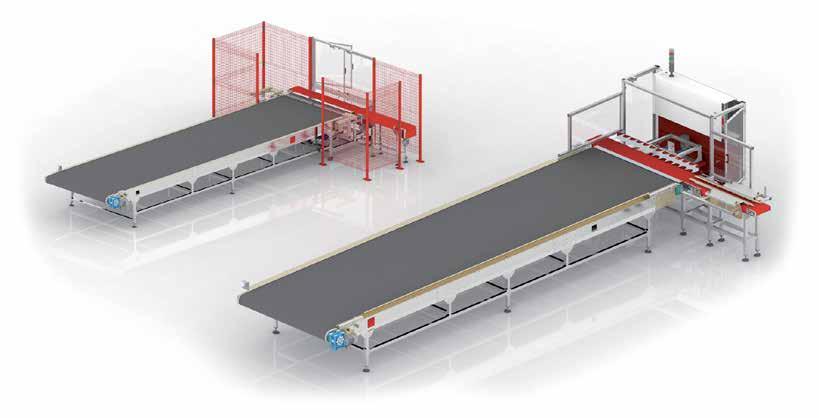

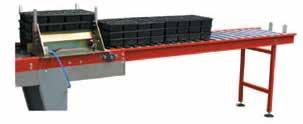

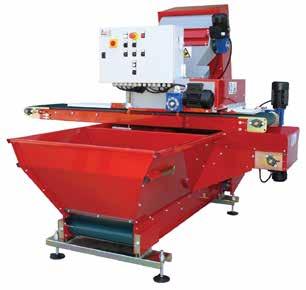

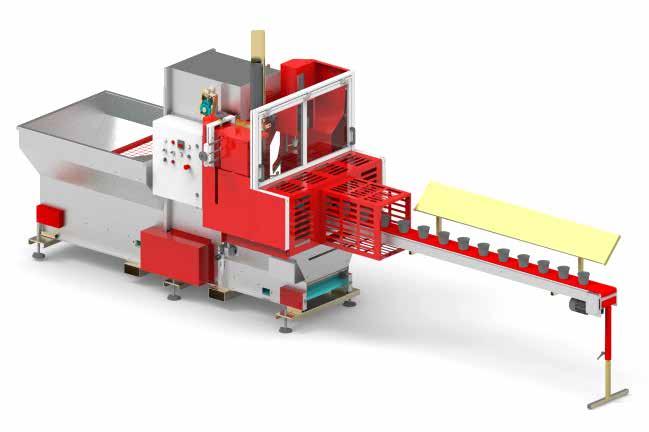

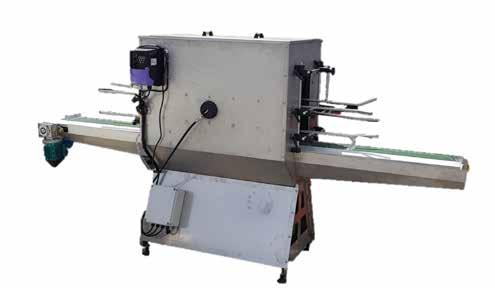

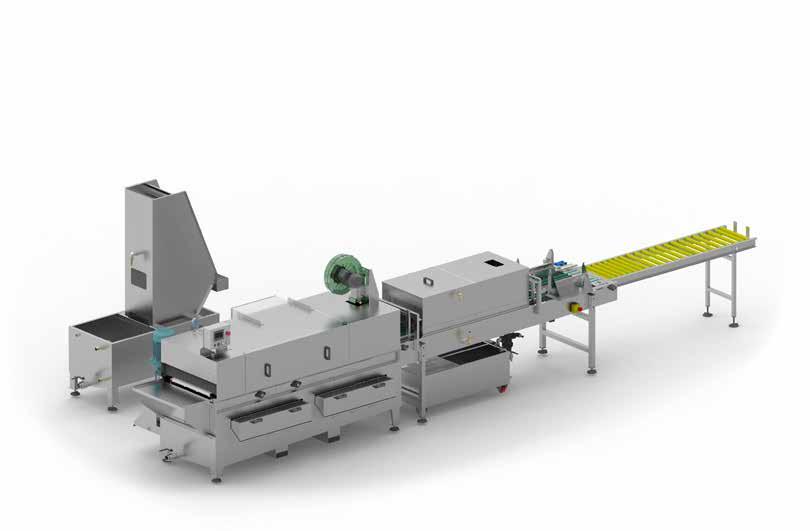

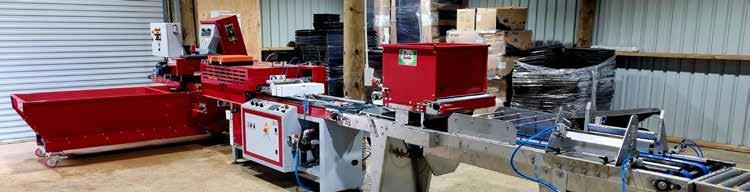

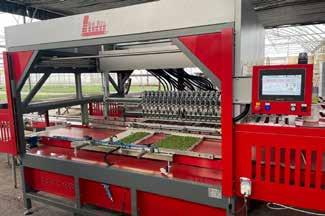

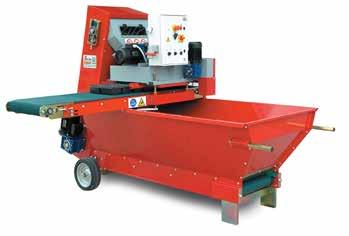

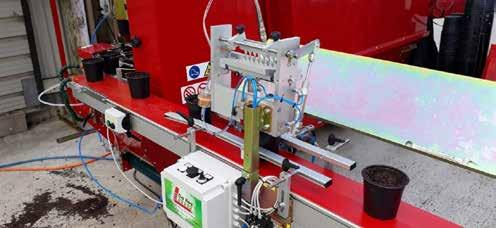

Together with Da Ros, we bring automation solutions designed to increase productivity, reduce labour costs, and improve results.
Nursery Trays

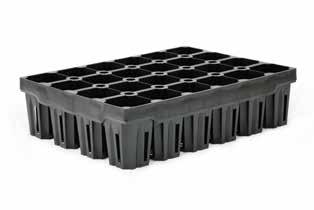

TS-24F
24 Cell Seedling Tray
Well suited for producing natives. Designed to improve plant health while in the nursery and enhance growth and survival in the field.
KEY BENEFITS
• Complex internal wall structure and side slots allow for air root pruning and reducing root spiralling
• Stronger root systems, higher number of young, vigorous roots, improves transplant performance
• Strong, precise, and automation-friendly
• UV-stabilised virgin HDPE
• Nests securely for stable stacks and saves valuable space
• Long-lasting up to 20 years if handled correctly
• Cell taper and side slots makes plant extraction easier
• Holes between cells improve airflow, reducing fungal disease
TS-45F
45 Cell Seedling Tray
CODE
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
SCAN TO CHECK!
Developed in response to foresters seeking an air-root pruning alternative to the generic Hiko 40 tray. Designed for both softwood and hardwood seed and mini-cuttings.
KEY BENEFITS
• Same width as Hiko, with extra end row of five cells = 385mm tray length, for 12% increase in seedlings per tray movement
• Directs roots toward side-slot openings for effective air pruning
• Manufactured from UV-stabilised virgin HDPE
• Ideal for propagating high-value woody plants
• Integrates seamlessly with existing benching. Automation-friendly
• Square cells for efficient air-pruning of lateral roots and taproot
• Tapered slots make plant extraction easier and reduces root damage
• Internal form and openings encourage a balanced, natural root form
• Sharp edges at top of each wall slot shear off fibrous roots during extraction, improving plant quality
TS-48F
48 Cell Seedling Tray
Years of R&D, originally developed for Radiata Pine cuttings, and suited for softwood cuttings and seed. Very popular throughout Australasia.
KEY BENEFITS
• Vigorous roots controlled in the cell reduces root deformity, leads to excellent transplanting, early establishment and growth
• HDPE virgin resin with UV protection
• Square formed root mass with 4 lower protrusions to minimise root spiralling around internal lower lip of the cell, encourages developing roots to break away to seek nutrients and ground moisture
• Compatible with nursery automation
• Stackable and use less room than many trays
• Durable design of approx. 20 years if looked after
3-TS24F
DESCRIPTION 24 Cell Seedling Tray
CELL VOLUME 292 cc
TRAY DIMENSIONS 385mm x 289mm x 100mm
CELL DIMENSIONS 62mm x 62mm x 100mm
PLANT DENSITY 218 per m2
PALLET QTY 360
CODE
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
SCAN TO CHECK!
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
SCAN TO CHECK!
3-TS45F
DESCRIPTION 45 Cell Seedling Tray
CELL VOLUME 93 cc
TRAY DIMENSIONS 385mm x 216mm x 85mm
CELL DIMENSIONS 41mm x 41mm x 85mm
PLANT DENSITY 540 per m2
PALLET QTY 480
CODE
3-TS48F
DESCRIPTION 48 Cell Seedling Tray
CELL VOLUME 125 cc
TRAY DIMENSIONS 385mm x 289mm x 100mm
CELL DIMENSIONS 42mm x 42mm x 100mm
PLANT DENSITY 431 per m2
PALLET QTY 376

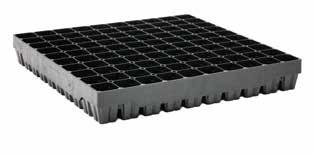

TS-100V
100 Cell Vegetable Seedling Tray
Designed to produce larger seedlings for commercial vegetable and cut flower growers. The square, flat rootball is shaped for both open furrows and NFT hydroponic systems.
KEY BENEFITS
• Small round vents between cells allow vertical airflow, reducing fungal disease risk during high humidity
• Engineered base prevents root spiralling, encourages natural root pruning and a neat, fibrous plug
• Circular base hole enables quick, reliable transplanting
• Produces a rootball that sits flat in nutrient flow systems
• Built for repeated cycles in vegetable and flower nurseries
• Robust, long-service life, smooth edges for safe manual handling
• Stackable and compatible with tray-handling nursery automation
• Designed for long service life under intensive nursery conditions
TS-100
100 Cell Forestry Seedling Tray
DO YOU
QUALIFY FOR POT LEVY EXEMPTION?
CODE
3-TS100V
DESCRIPTION 100 Cell Vegetable Seedling Tray
CELL VOLUME 55 cc
TRAY DIMENSIONS 383mm x 383mm x 55mm
CELL DIMENSIONS 38mm x 38mm x 55mm
PLANT DENSITY 676 per m2
SCAN TO CHECK!
Widely used in forestry nurseries for raising seedlings. Designed for professional growers raising hardwood and softwood seedlings as well as small cuttings.
KEY BENEFITS
• High-efficiency propagation, delivering 23% more plants per m2 than earlier 81-cell trays
• Over a three-year period, consistently achieved 674 plants per m2
• Ideal for manual handling and nursery automation
• Can carry 25mm paper pots, with air pruning of roots penetrating the paper
• Square cell with raised internal sections direct roots toward side-slot openings for effective air pruning
• Air pruning on all four sides = clean, fibrous root plug
• Corner air vents improve canopy airflow and reduce fungal disease risk
• Inter-cell vents allow vertical air movement in high humidity
• Robust, built for repeated nursery cycles
• Uniform seedlings with well-formed root systems
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
SCAN TO CHECK!

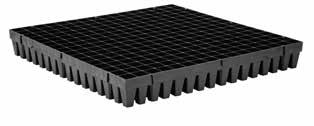

TS-144V 144 Cell Vegetable Seedling Tray
Widely adopted by large-scale vegetable seedling producers worldwide.
KEY BENEFITS
• Square, symmetrical tray supports manual and automated handling
• Virgin HDPE resin with built-in UV protection for exceptional durability
• Optimised cell volume-to-depth ratio for uniform growth
• Large drainage holes for well-aerated, active, and homogeneous root systems
• Root deflection fins at base prevent root curl and stimulate rapid root advancement into soil after planting. Within 24 hours, seedlings show significantly stronger root growth compared with non-finned cells
• Easy extraction, minimising stem and root damage
• Designed for straightforward cleaning, stacking, and separation
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
SCAN TO CHECK!
PALLET QTY 324
CODE
3-TS100F
DESCRIPTION 100 Cell Forestry Seedling Tray
CELL VOLUME 73 cc
TRAY DIMENSIONS 383mm x 383mm x 73mm
CELL DIMENSIONS 38mm x 38mm x 73mm
PLANT DENSITY 676 per m2
PALLET QTY 330
CODE
3-TS144V
DESCRIPTION 144 Cell Vegetable Seedling Tray
CELL VOLUME 26 cc
TRAY DIMENSIONS 395 mm x 395 mm x 40mm
CELL DIMENSIONS 32mm x 32mm x 40mm
PLANT DENSITY 927 per m2
PALLET QTY 660
TS-192V
192 Cell Vegetable Seedling Tray
Optimised for vegetable seedlings that thrive at 1,200 plants per m2, including tomato (processing varieties), celery, and most brassicas.
KEY BENEFITS
• Oblong cell design and square tray format supports both manual and automated handling throughout the nursery.
• Virgin HDPE resin with UV protection
• Long-lasting durability in commercial nursery environments.
• A highly cost-effective alternative for seedlings compared with the TS-144 tray while maintaining top quality.
TS-256F 256 Cell Seedling Tray
Designed for small forest seedlings destined for open-field nursery beds.
KEY BENEFITS
CODE
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
• Virgin HDPE resin with UV protection for long-lasting
• Specifically engineered for certain transplanters, enquire for details.
• Square, uniform cells with air-pruning bases produce healthy, fibrous root systems without root curl, ensuring robust seedlings ready for transplanting.
• Ideal for raising seedlings to a high standard of root and shoot development for bare-root planting.
• After formative growth, seedlings are manually lifted, root pruned, and transported for planting
• Ensures uniform spacing and planting density, improving plantation establishment and growth.
TS144 Plug Popper
Maximise nursery efficiency with this easy-to-use Plug Popper. Designed to use with TS-144 seedling trays, this clever tool allows the dibbles to do the work for you when it’s time to transplant.
KEY BENEFITS
• Easy to use, simply place tool directly underneath seedling trays and press downwards, let the dibbles gently push the seedlings out from the tray, ready to be transplanted
• Virgin HDPE resin with built-in UV protection
• Durable and long-lasting service life
SCAN TO CHECK!
3-TS192V
DESCRIPTION 192 Cell Vegetable Seedling Tray
CELL VOLUME 18 cc
TRAY DIMENSIONS 395mm x 395mm x 45mm
CELL DIMENSIONS 32mm x 24mm x 45mm
PLANT DENSITY 1200 per m2
PALLET QTY 918
CODE
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
SCAN TO CHECK!
3-TS256F
DESCRIPTION 45 Cell Seedling Tray
CELL VOLUME 16 cc
TRAY DIMENSIONS 395mm x 395mm x 50mm
CELL DIMENSIONS 24mm x 24mm x 50mm
PLANT DENSITY 1600 per m2
PALLET QTY 588
DO YOU QUALIFY FOR POT LEVY EXEMPTION?
CODE
SCAN TO CHECK!
3-TS144PP
DESCRIPTION 144 Cell Plug Popper
PALLET QTY 1

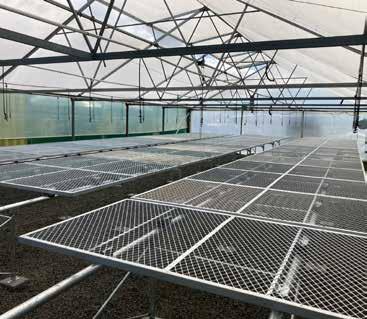

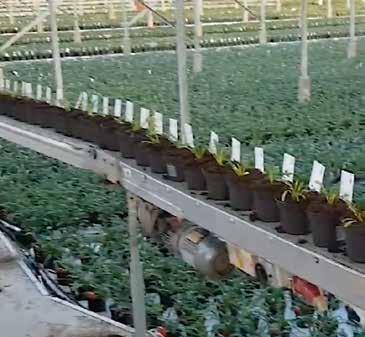

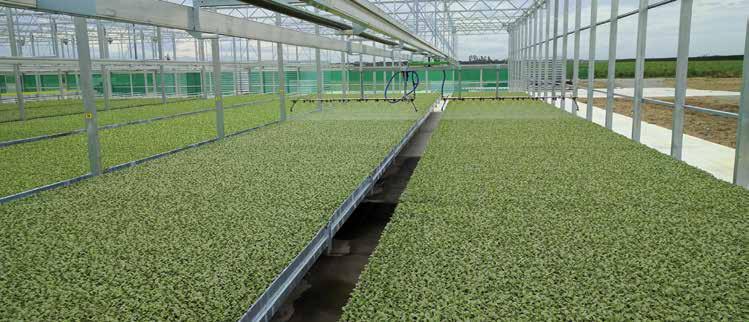

SmartGro Benching System
A low-cost, portable solution designed to boost plant health, productivity and workflow efficiency. Versatile enough to suit most nursery layouts, trays, and pots, the SmartGro system is lightweight and modular, and easy to move, dismantle and store. It’s also simple to clean, supporting a more hygienic growing environment. Use directly on the ground (without legs) for a slightly elevated growing surface, or mount on steel framed legs for a comfortable working height.
CODE 15-BEN1254L
SIZE 1.2 x 5.4 Plastic Bench on Legs

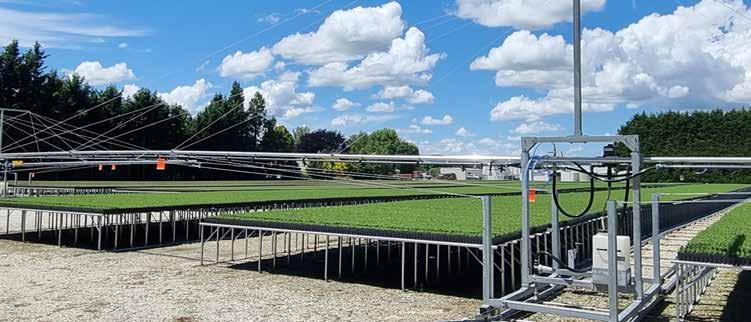

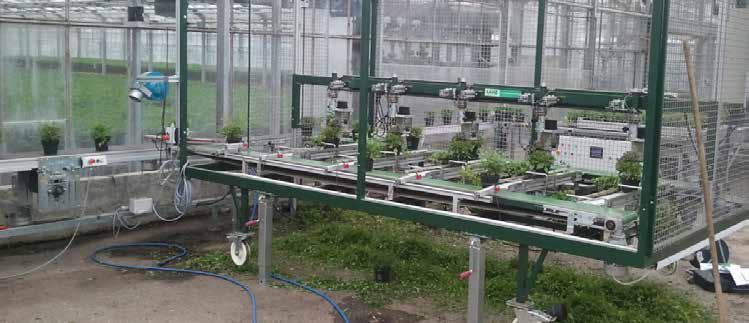

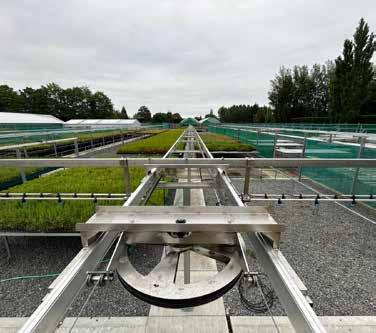

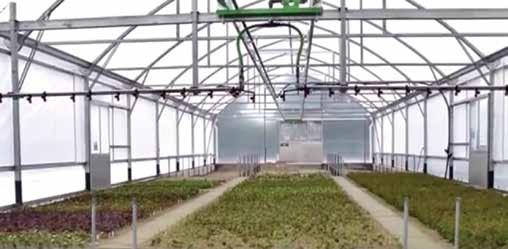

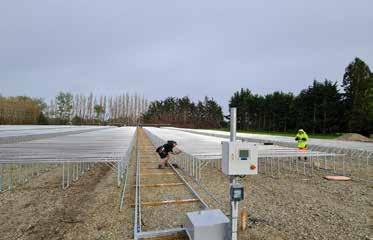

Rolling Bench System
The most versatile and productive system for medium and large surfaces is our Rolling Nurseries Bench System. Containers in welded aluminium profiles with rollers and roller bearings protected from water and dust, all for a high degree of safety and durability. They are provided pre-welded or to be assembled in various lengths and sizes.

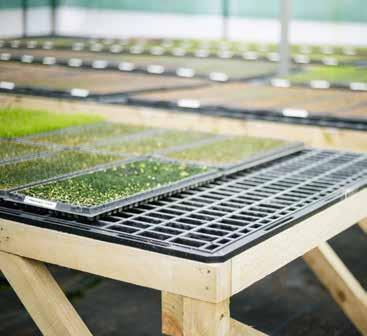

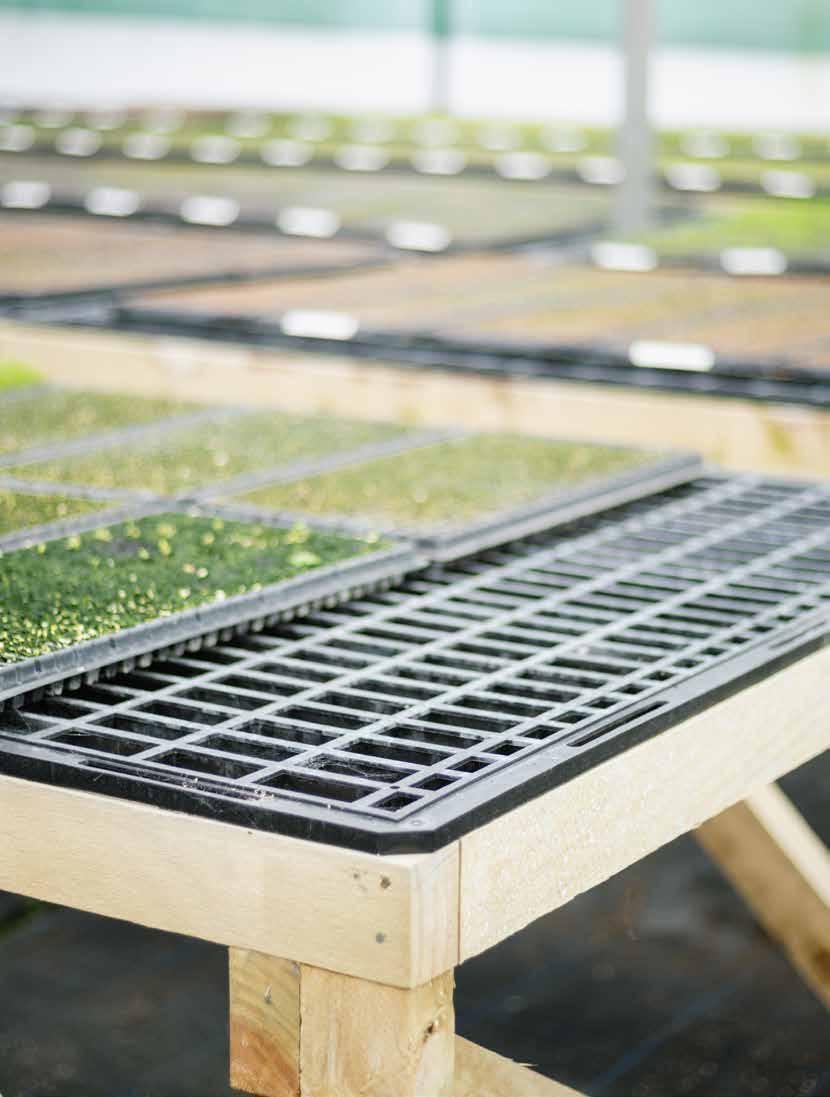

Plastic Bench Tops
• Interlocking edges so no clips required
• No protruding wires or jagged metal edges
• Easy to clean and disinfect
• UV protected- durable plastic
• The 1.2m width is 18mm thick with rectangular grid mesh.
• The 0.955m width is 19mm thick with a square grid mesh.
• Sizes available on indent in the below widths:
1.5m x 1.2m 1.5 x 0.955m
1.7m x 1.2m 1.7 x 0.955m 1.2 x 0.955m 1.8 x 0.955m
CODE 16-BT1812
DESCRIPTION 1.8m x 1.2m

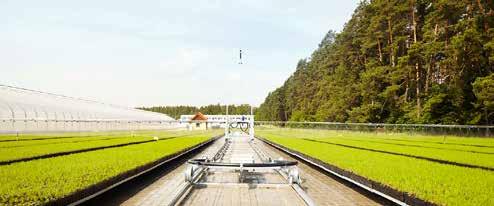

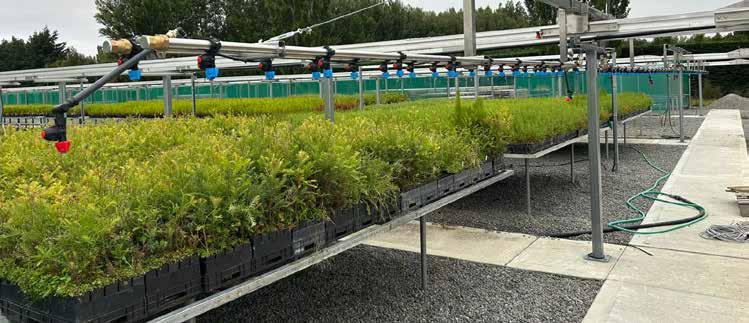

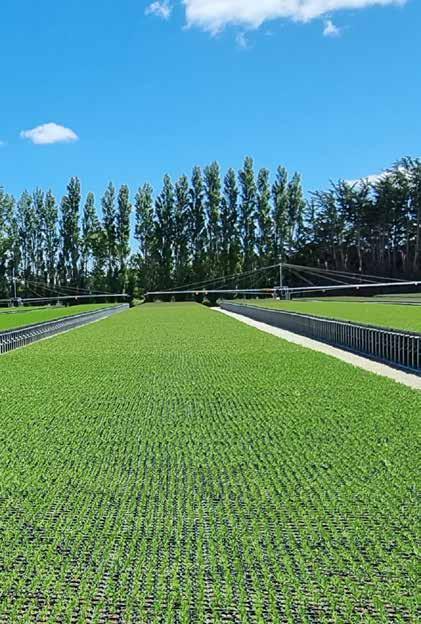

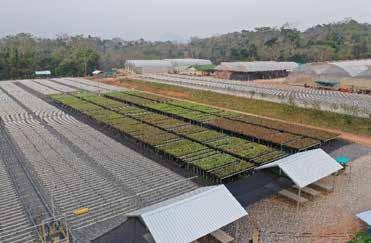

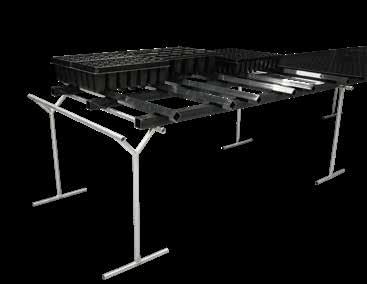

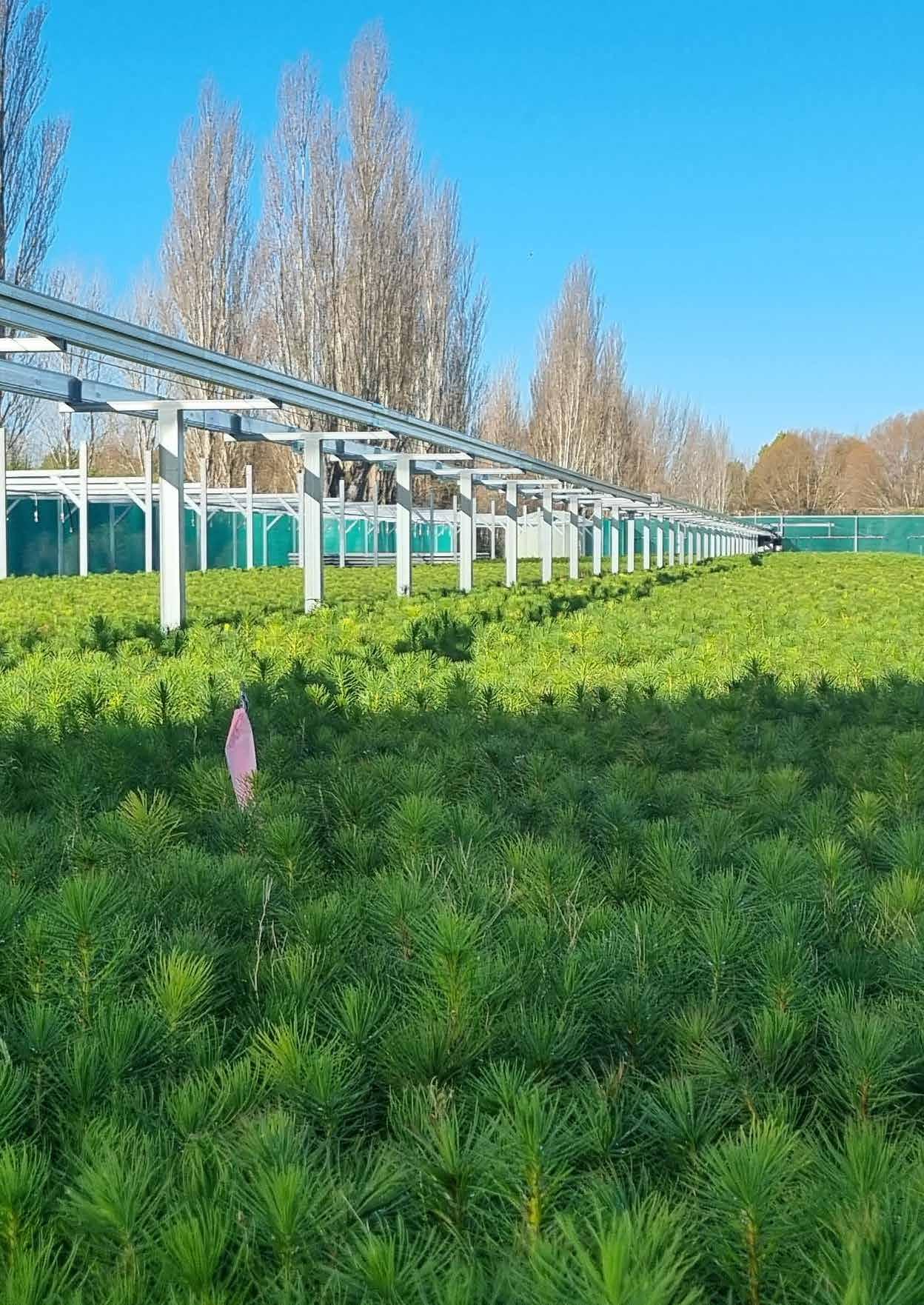

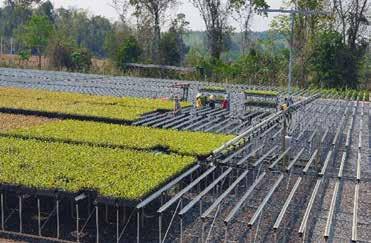

Forestry Benching System
Benching System for Forestry Trays
This simple yet effective benching system for forestry trays is custom designed and built to match your forestry trays. The system is weight rated according to your specific trays and comes flat-packed for DIY installation, or can be installed by our installation team. This system is one of the best benching options for growers who are looking for a quick installation and best price per m2
CODE 15-TRAILB
DESCRIPTION Custom Benching System

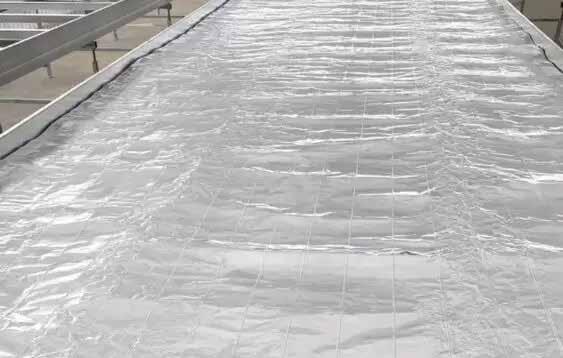

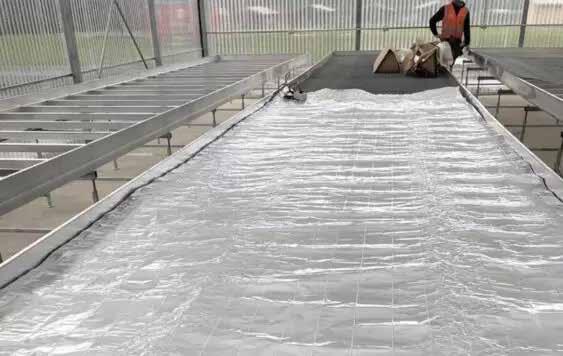

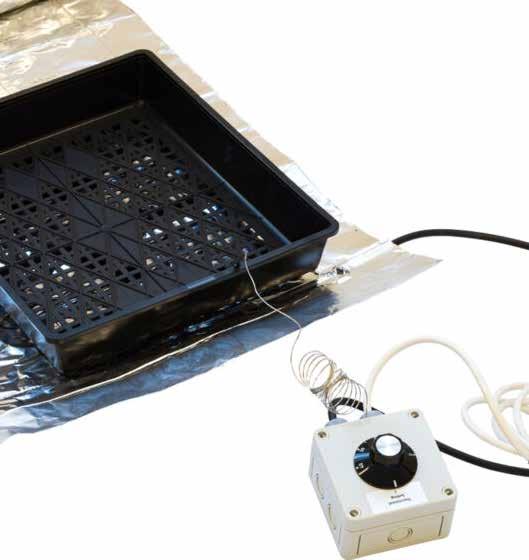

Heat Mats

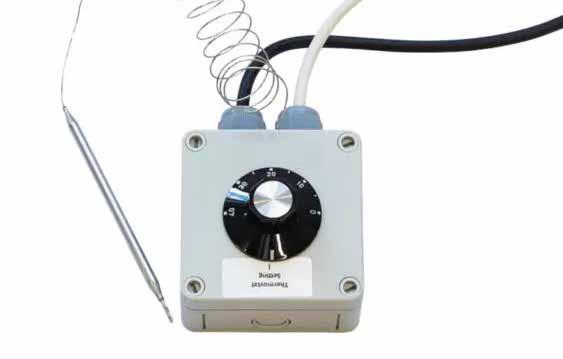

PrimeHort Heat Mats are thermostat-controlled and designed to warm the roots of plants which encourages germination, propagation and growth of seedlings by delivering constant, uniform heat to the base of seed trays and plant pots. If you require a made-to-measure option, please contact us directly. The product is easily installed onto a growing bench or flat grow surface.
Our Heat Mats are energy efficient, making them inexpensive to run. The heating element is laminated in sheets of foil, resulting in even temperatures across the entire surface. No more cold spots or wasted space!
These Heat Mats have been tried and tested for over 25 years in 45 countries.
• Optimum growing temperature with precise thermostat control, adjustable from 6°C - 38°C
• Comes with soil sensor temperature probe & thermostat.
• Permanent installation and easy to install, just plug in & plant up!
• Durable, long-life construction
• Flexible to operate more than 1 Heat Mat per thermostat, up to a maximum of 20m2
• Power draw is 150watts per m2 (standard 3pin plug).
• Made with aluminium foil base with PTFE heating elements.
• Available in multiple sizes to suit your requirements
• Contact us about made-to-measure options, availability and pricing.
Note: Capillary matting is optional.
Destackers
Destacker A5
An electronically controlled, electro-pneumatic machine designed to automatically destack packs or pots into shuttle trays with speed and precision. Trays are accurately positioned using mechanical stops, ensuring consistent alignment throughout the destacking process.
The A5 can handle different tray types, including trays with staggered holes, and is configured specifically to suit the packs or pots being processed. With its high production capacity and electronic speed control, it can directly feed seeding or transplanting lines, eliminating unnecessary tray handling and interim storage.
CODE 16-DARDESA5
TECHNICAL DATA
PRODUCTION CAPACITY
MAXIMUM TRAYS SIZE
MAXIMUM PACKS SIZE
MACHINE COMPOSITION
• Tray transport belt
• Tray destacker
• Single or double pots or packs destacker
ACCESSORIES
• Connection belt (for filler with crosspieces) mod. R2
• Stacker with belt mod. IN
• Unloading system of stacks on rolling table mod. SSP
• End rolling table mod. RS
200/1000 trays/hour
600x400x80 mm
200x200x80 mm
DIAMETER OF POTS from 8 up to 14 cm
INSTALLED POWER 0,5 kW, 400 V, 3PH+N+E, 50Hz
AIR CONSUMPTION
WEIGHT
100/200 l/min
300/400 Kg
Destacker DC500
An automatic unstacker of plastic trays. Installed directly onto the conveyor belt of a tray filling machine, it supports continuous tray feeding while reducing manual handling. Also suited to retrofitting to existing equipment, offering flexibility to improve automation without replacing current equipment. Modifications are also available for high trays (for tree nurseries and forestry applications).
CODE 16-DARDEDC500
ACCESSORIES
Automatic de-stacking of plastic trays (e.g. seed crates). The destacking unit is placed on the existing conveyor belt of the tray filling machine. It unstacks stacked plastic trays.
A5 tray and pot destacker at Kauri Park Nurseries.
WATCH THE A5 IN ACTION
Tray Destacker A5+DC500
A stand-alone tray destacker designed for de-nesting thermoformed shuttle or carry trays. This tray destacker is designed to fit in-line with any pre-existing tray filling, seeding or transplanting line. It has a fixed speed conveyor and sensors determine when a new tray can drop. It is suitable for most thermoformed tray types.
TECHNICAL DATA
MAX TRAY SIZE
600x400x80mm (other high trays on demand)
PRODUCTION CAPACITY 400 – 1200 trays per hour
INSTALLED POWER 0.5kW, 400V, 3PH+N+E, 50Hz
AIR CONSUMPTION 100L/min
WEIGHT 180kg
DIMENSIONS 950W x 1460H x 1330L
Heavy Tray Destacker DP-5
• High capacity tray destacker, suitable for various heavy plastic forestry trays.
• Works in-line with RC2 or RC7 Tray Filler.
• Inclusive of own control board.
• Max tray dimensions: 700mm long x 500mm wide.
A5 Tray and Pot Destacker inline with the new RC1200 trayfiller at Kauri Park Nursery.
LeaderBrand South Island
Labelling Machines
Labelling Machine NE2
Labelling belt with thermal transfer printer that allows to print and apply labels on passing pots. The versatile programming, the use of touch screen, the absence of a PC and the easy adjustment allows to quickly adapt the label machine to the different types of pots. The machine also allows to store many types of labels with Various graphic inputs (text, pictures, fixed and variable texts, barcodes).
TECHNICAL DATA
PRODUCTION CAPACITY
500/6000 labels/hour
LABEL SIZE from 25x25 mm up to 60x40 mm
INSTALLED POWER
WEIGHT 90kg CODE 16-DARLABELNE2
0,7 kW, 230 V, Single Phase, 50Hz

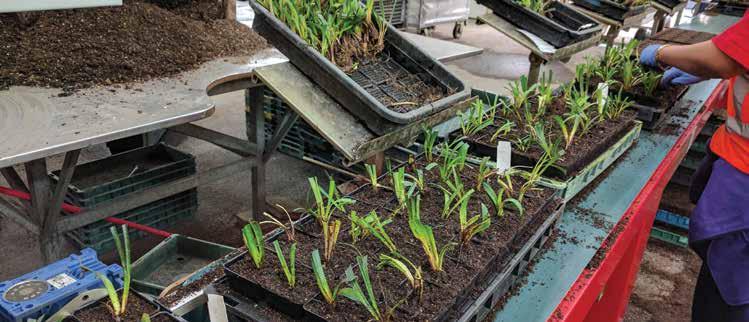

I5 Potting Machine at Rural Design Nursery
Big Bale Breaker
Big Bale Breaker CT2
Designed for busy nurseries, this vertical bale breaker efficiently breaks down and doses compressed turf from big bales, helping you keep media flowing smoothly and consistently through your production line.
KEY FEATURES
• Big bales can be loaded easily using a forklift or manual lifter, making it practical for everyday use.
• Once loaded, the system automatically feeds growing media into other equipment e.g. seeding lines, transplanting lines, potting machines, and soil blockers.
• Electronic controls ensure a reliable supply, reducing manual handling
NOTE: Suitable for 5000L Compressed Peat Bale.
CODE 16-DARCT2ALTO
TECHNICAL DATA
MAX PRODUCTION
5 cycles/hour
MACHINE COMPOSITION
• Big Bale lifting platform
• Chains with crosspieces
• Unloading outlet with level sensor
• Doors with safety switch
ACCESSORIES
• Watering system mod. Bagnatura
• Granular fertiliser single or double dispenser mod. GRG
• Belt for feeding more machines mod. NS-CT
• Euro pallet adaptors
MAX DIMENSION OF BIG-BALE 1200x1150x2400/2650mm
INSTALLED POWER
2,7 kW, 400 V, 3PH+N+E, 50Hz
WEIGHT 1350 Kg
OPTIONS AVAILABLE FOR BALES 2.0, 2.4, & 2.65m high
CT2 Bale Breaker Feeding TV5 Machine
Coir Processing
A compact, mobile machine designed to quickly rehydrate and loosen 5kg coir blocks with minimal water use. Delivers consistent, ready-to-use material directly onto a conveyor, with gentle handling to maintain structure and quality.
FEATURES
Efficient: processes up to 10m³ per hour
• Controlled: adjustable moisture levels
Clean: closed system, no dust or dirty water spillage
• Gentle: maintains coir structure and volume
Smart: automatic start/stop with conveyor sensor
• Reliable: European-built quality
CODE 16-CM100
A fully automated mixing line designed for highcapacity substrate production, with the ability to store up to 1,000 recipes. Custom-built to suit your space, it mixes a wide range of raw materials and additives for consistent, high-quality output while reducing reliance on external suppliers.
FEATURES
High capacity: processes up to 90m³ per hour
• Precise: consistent, perfectly mixed substrates
Flexible: stores up to 1,000 recipes
Efficient: just-in-time production reduces waste
Cost saving: lowers spend on raw materials and supply
Custom: tailored to layout, materials and workflow
CODE 16-MIXMLT

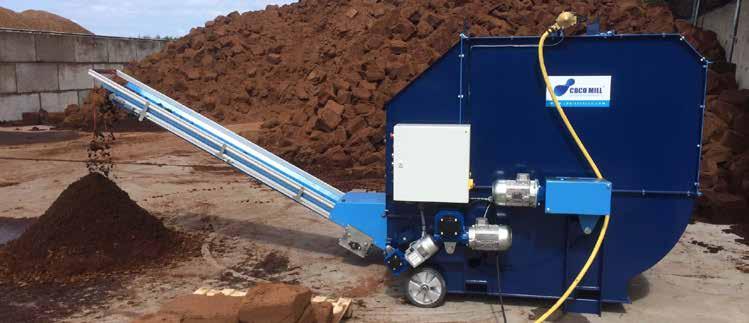

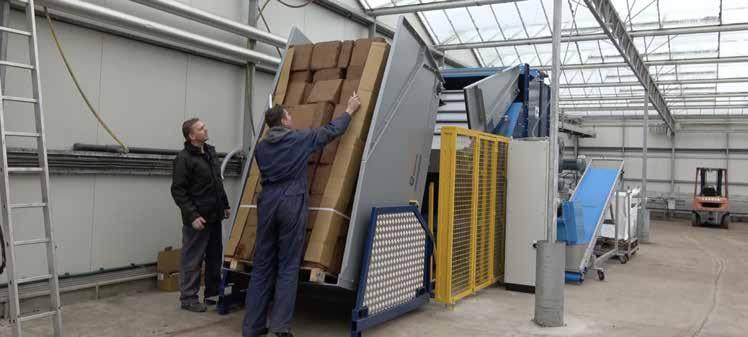

Coco Mill CM100
Coco Mixing Line ML-T
Coco Mill CM200 Pallet Infeed System
A compact, semi-automatic system designed for high-volume coir processing, with automatic pallet infeed for continuous operation. Mounted on load cells, it maintains optimal fill levels for efficient, hands-off performance while delivering consistent, ready-to-use material.
FEATURES
• High capacity: processes up to 23m³ per hour
Automated: pallet infeed with load cell control
• Efficient: continuous fill and processing cycle
Controlled: adjustable moisture levels
Clean: closed system, no dust or water waste
Gentle: maintains coir structure and volume CODE 16-CM200PALLET
Coco Mill CM200 Bulk Infeed System
A compact, fully automatic machine designed for processing bulk coir blocks with minimal water use. Equipped with an incline hopper for controlled filling, it delivers consistent, ready-to-use material while maintaining structure and volume.
FEATURES
High capacity: processes up to 25m³ per hour
• Automated: incline hopper with pre-set fill levels
Efficient: low water use, high output volume
• Controlled: adjustable moisture levels
Clean: closed system, no dust or water spillage
• Gentle: maintains coir structure and quality CODE 16-CM200
Mixers
Mixer MX1000
A safe and easy-to-use Soil Mixer, suitable for mixing most media types. It has a 1000L hopper designed for rapid mixing. 3 – 5 minutes per cycle. The mixer comes with a powerful 6.2kW, 400V motor to drive its internal mixing screw. It has a touch screen control panel where adjustments can be made to mixing time, substrate hydration and automatic/manual unloading. It comes with a 2300mm long soil exit conveyor to unload directly into other machines such as
CODE 16-DARMX1000
TECHNICAL DATA
TUB CAPACITY 1m3
TIME OF MIXING from 3 to 5 min
INSTALLED POWER
(Paperpot machines, Tray Fillers, Potting Machines, Soil Bunkers, etc).
It has an internal soil hydration pipe which can be controlled automatically to moisten the substrate (if you choose). The mixer can be moved easily, being mounted on two wheels and a hand tow hitch.
4,7 kW, 400 V, 3PH+E, 50Hz
WEIGHT 740 Kg
Bark Topper CA1-TR1
Bark Topper Machine for applying bark/sawdust to the top of potted plants. Normally used in conjunction with a potting machine. The Bark Topper works by turning the pot as it distributes the bark to the top of the pot. This machine is suitable for pots between 16 – 30cm diameter.
STANDARD MACHINE COMPOSITION
700L Hopper
Adjustable unloading bark chute
Mounted on feet (wheels optional)
• Installed power: 2.3kW, 400V, 3PH+N+E, 50Hz
• Weight: 600kg
CODE 16-DARCA1TR5
TECHNICAL DATA
WEIGHT 600 kg
INSTALLED POWER 2.3kW, 400V, 3PH+N+E, 50Hz
CAPACITY 700L Hopper
MX1000 Mixer at Superb Herb
Trayfiller RC2
Designed for filling trays and pots inside shuttle trays, with growing substrate. Operators can fine-tune performance to suit different tray formats and growing media. Mechanical speed adjustment of the transport belt, rotary filling system and vibrator allows simple control of substrate density within the cells. A level sensor feeds substrate to the filling head, ensuring smooth work cycles and uniform filling. The machine can directly feed a seeding line or a transplanter, reducing handling and storage of trays.
Trayfillers
MACHINE COMPOSITION
Soil hopper
• Transport belt for trays
• Filling head
• Brush group
ACCESSORIES
Destacker for polystyrene trays and trays with inserted packs mod. DC2L
• Adjustable destacker for polystyrene trays and trays with inserted packs mod. DC2R
• Automatic thermoformed tray destacker mod. DC500 Automatic pot destacker mod. DV500 Vibrating table
CODE 16-DARRC2
TECHNICAL DATA
PRODUCTION CAPACITY up to 600 trays/hour
HOPPER CAPACITY 700/1000 l
MAXIMUM TRAYS SIZE 600x400x130 mm
INSTALLED POWER 2,3 kW, 400 V, 3PH+N+E, 50Hz
WEIGHT 470/525 Kg
Dibbling line at Fern Factor.
Machine includes RC7
Tray Filler and NR4FR
Dibbling Unit and 6m planting conveyor.
Seeding Line at Rupex Nursery.
NURSERY AUTOMATION
Trayfiller RC7-TR41
A versatile tray filling machine designed for filling plastic trays and pots inside shuttle trays. The RC7 delivers uniform filling across a wide range of tray formats, including small cell sizes.
The advanced filling system ensures even media distribution, while electronic speed adjustment of the compaction rotor, transport belt and vibrator allows precise control over substrate density. An integrated level sensor automatically loads peat into the filling head for smooth, and the machine can feed directly into a seeding line or transplanter, eliminating unnecessary tray handling and storage.
MACHINE COMPOSITION
Hopper
Soil outlet with mill
Tray transport belt
• Vibrator
• Filling head
• Rotating brush group
Bottom belt to recover excess of soil
ACCESSORIES
Destacker for polystyrene trays
and trays with inserted packs DC2L
• Adjustable destacker for polystyrene trays and trays with inserted packs DC2R
Automatic thermoformed tray destacker DC500
Automatic pot destacker DV500
Vibrating table
Air cleaning nozzles and brushes
CODE 16-DARRC7TR41N-M
TECHNICAL DATA
PRODUCTION CAPACITY up to 800 trays/hour
HOPPER CAPACITY 700/1000 l
MAXIMUM TRAYS SIZE
600x400x130 mm
INSTALLED POWER 2,7 kW, 400 V, 3PH+N+E, 50Hz
WEIGHT 590/665 Kg
Trayfiller RC7-TR5N
The RC7-TR5N handles trays and pots in shuttle trays with fast and uniform filling results. Electronically controlled, operators can fine-tune the speed of the soil distributor, conveyor belt and vibration to achieve the desired substrate density. Excess soil is recovered and returned to the hopper via an integrated conveyor, keeping the process clean and reducing waste.
The machine can feed directly into seeders or transplanters, eliminating manual tray handling and storage.
TECHNICAL DATA
PRODUCTION CAPACITY up to 600 trays/hour HOPPER CAPACITY 700/1000 l
MAXIMUM TRAYS SIZE
600x400x130 mm
MACHINE COMPOSITION
Soil hopper
Trays transport belt
• Vibrator
Filling head
Rotating brush group
• Bottom belt to recover excess soil
ACCESSORIES
• Mask belt according to the tray
INSTALLED POWER 2,3 kW, 400 V, 3PH+N+E, 50Hz
WEIGHT 470/525 Kg
Hopper is in the front of the machine.
LR650 Drum Seeder at Grow HQ
Hopper is in the back of the machine.
Trayfiller RC1200
A high-capacity trayfiller designed for precise and efficient operation, featuring easy-to-adjust settings to ensure uniform filling and optimal compaction across all container types. The control panel includes a touch-screen display for seamless electronic adjustments throughout various working phases. Nearly silent in operation, this machine can fill up to 1,200 trays per hour.
TECHNICAL DATA
MAXIMUM TRAYS DIMENSION 700x480x180 mm
PRODUCTIVITY from 200 up to 1200 trays/hour
HOPPER CAPACITY 700L - 3000L
INSTALLED POWER 3,7kW 400V 3PH+N+E 50Hz
AIR CONSUMPTION from 50 up to 100 L/min
WEIGHT 1200 kg
Trayfiller Accessories
A5-1
Automatic destacker for thermoformed trays on belt (shuttle tray, seedling trays etc.)
MAXIMUM TRAY SIZE
600x400x80mm
DC2L
Destacker for trays and shuttle trays, reducing manual handling.
MAXIMUM TRAY SIZE
700x500x80mm
DC500
Automatic destacker for thermoformed trays (shuttle tray, seedling trays etc.)
MAXIMUM TRAY SIZE
600x400x80mm
DV500
Automatic destacker for plastic pots directly into the shuttle tray.
POT DIAMETER from 8 up to 11cm
DC2R
Destacker for trays and pots, ideal for new installations or retrofitting onto existing seed drills.
MAXIMUM TRAY SIZE
600x400x80mm
DP-5
High capacity pneumatic tray destacker for heavy plastic forestry trays. Inclusive of electric control panel. Suitable for RC2 and RC7 Tray Fillers.
MAXIMUM TRAY SIZE
700 x 500 x 160mm
Riempitore
at Kauri Park Nursery.
Seeders
Seeder LS7-3
Ensures efficient use of small seed quantities (naked or pelleted). Its automated row-by-row seeding enhances accuracy and overall planting results.
Designed to significantly improve productivity and crop yields, workers can substitute the seeding bars and nozzles to allow for different seed types. The machine pre-dibbles the tray, sows the seed, covers the tray (with Vermiculite/ Agriperlite), waters and stacks the sown trays. The independent sowing unit allows you to set the number of seeds per hole, seeding speed and number of trays to seed. All adjustments and belt speed can be programmed via the touch screen control panel.
MACHINE COMPOSITION
Support frame
• Tray advancement belt
• Dibbling group
• Bar seeding group
Vibration covering group
Watering group seeds
ACCESSORIES
• Seeding bar mod. BFB
• Nozzles mod. UG
• Drum covering group (Vermiculite, Agriperlite) mod. GRR
Belt covering group (peat) GRTS
Watering and stacking unit in stainless steel mod. LBI
• End rolling table mod. RS
CODE 16-DARSEELR7-3
TECHNICAL DATA
PRODUCTION CAPACITY
MAXIMUM TRAYS SIZE
50/200 trays/hour
7600x400x130 mm
INSTALLED POWER 0,5 kW, 230 V, Single Phase, 50Hz
AIR CONSUMPTION 50/150 l/min
WEIGHT 730 Kg

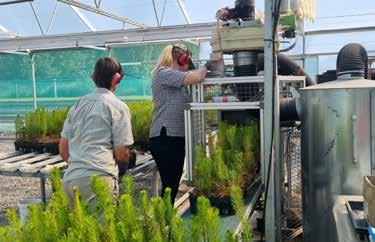

LS7-3 Nozzle Seeder in-line at ArborGen
Edendale Nursery Eucalyptus, Pinus Radiata, Hybrid Pine and Douglas Fir are among some of the seed sown on this machine.
Leithfield Nursery
The Treehouse Horticulture
Seeder SEM100
A small semi-automatic nozzle seeder, suitable for almost all seed types. Don’t be fooled by the size of this seeder. It is currently used by commercial vegetable growers and can sow 2 trays a minute at 99% accuracy, with pelleted seed. It can also be used for sowing irregular native seeds. A range of different nozzle sizes are available to match your seed type.
MACHINE COMPOSITION
• Support frame
Movable tray holder
Seedling head
• Suction jar for leftover seeds
ACCESSORIES
• Seeding bars mod. BFK
Nozzles mod. UG
Wide body version for trays
700x500x130 mm mod. SEM100S
CODE 16-DARSEM100
TECHNICAL DATA
SEEDING CAPACITY max 30 rows per minute
MAXIMUM TRAYS SIZE
600x400x130 mm
AIR CONSUMPTION 50/100 l/min
WEIGHT 70 Kg
Seeder LR400
An integrated electronic drum seeder with rowby-row sowing while efficiently handling small quantities of valuable or difficult seed.
With speed control of both the drum and tray transport belt, operators can increase seed deposit per cell without changing the drum. Row-by-row system makes it ideal for naked or pelleted seed, maximising seed use and reducing waste.
The machine performs dibbling, sowing, covering (with Vermiculite or Agriperlite), watering and stacking in one process. All operational adjustments: belt speed and sowing settings, are controlled from the touchscreen control panel.
Easy setup and changeover of drums, seeding bars and nozzles allow the LR400 to adapt quickly to different tray formats and seed types, and it can also be fed by a tray filler (without electrical connections).
MACHINE COMPOSITION
• Support frame
• Tray advancement belt
Flat dibbling unit
Drum unit
Bar unit
Sub-silent vacuum pump
Drum covering group
• Watering group
• Tray stacker
ACCESSORIES
• Kit (drum) mod. LRK
• Kit (bar) mod. BFL Nozzles mod. UG
Belt covering group (sand or peat) mod. GRTS
Automatic unloading system of stacks on rolling table mod. SSP
• End rolling table mod. RS
Includes a drum and needle sowing head.
CODE 16-DARLR400
TECHNICAL DATA
PRODUCTION CAPACITY 50/400 trays/hour
MAXIMUM TRAYS SIZE 600x400x130 mm
INSTALLED POWER 1.2 kW, 400 V, 3PH+N+E, 50Hz
AIR CONSUMPTION 50/150 l/min
WEIGHT 570 Kg
WATCH THE SEM100 IN ACTION
Seeder LR650
Drum seeder with an independent electronic speed control of transport belt and drum, which enables the depositing of multiple seeds per hole without changing the drum. The machine dibbles, seeds, covers (with Vermiculite/Agriperlite), waters and stacks. The adjustment of these operations and the speed of the belt are controlled from the touch screen control panel.
The easy adjustment and the simplicity in changing the drums allows for different types of trays and a variety of seeds. The machine can be fed by a trayfiller without requiring electric connections.
MACHINE COMPOSITION
Support structure
Tray transport belt
Flat dibbling unit
Drum unit
Sub-silent vacuum pump
• Drum covering unit
• Watering group
• Tray stacker
ACCESSORIES
Kit (drum) mod. LRK
Belt covering group (sand or peat) mod. GRTS
• Automatic unloading system of stacks on rolling table mod. SSP
• End rolling table mod. RS Drums holder mod. PR
CODE 16-DARLR650
TECHNICAL DATA
PRODUCTION CAPACITY 150/600 trays/hour
MAXIMUM TRAYS SIZE 600x400x130 mm
INSTALLED POWER 2,1 kW, 400 V, 3PH+N+E, 50Hz
AIR CONSUMPTION 50/150 l/min WEIGHT 550 Kg
Seeder LR602
An integrated seeding system featuring a drum seeder with a row-by-row sowing system, designed to deliver high productivity while efficiently handling small quantities of valuable or difficult seed.
With adjustable speed control for both the drum and transport belt, the LR602 allows operators to increase seed deposit per cell without changing the drum. The row-by-row system makes it ideal for working with naked or pelleted seed, helping maximise use of limited seed stock.
This fully integrated unit performs dibbling, sowing, covering (with vermiculite or agriperlite), watering and stacking in one streamlined process. All operational adjustments, including belt speed and sowing settings, are controlled via the touchscreen control panel, ensuring consistent results.
CODE 16-DARLR602
TECHNICAL DATA
PRODUCTION CAPACITY
MAXIMUM TRAYS SIZE
MACHINE COMPOSITION
• Support frame
• Tray advancement belt
Flat dibbling unit
Drum unit
Bar unit
Sub-silent vacuum pump
Drum covering group
• Watering group
• Tray stacker
ACCESSORIES
• Kit (drum) mod. LRK
• Kit (bar) mod. BFL Nozzles mod. UG
Belt covering group (sand or peat) mod. GRTS
Automatic unloading system of stacks on rolling table mod. SSP
• End rolling table mod. RS
Single drum. With two drums.
150/600 trays/hour
600x400x130 mm
INSTALLED POWER 3 kW, 400 V, 3PH+N+E, 50Hz
AIR CONSUMPTION 100/200 l/min
WEIGHT 600 Kg
Seeder LR603
A precision electronic sowing system for delivering highly accurate seed placement and improved germination consistency. The process begins with a dibbler punching a trough for optimal seed positioning. Seed is then held by vacuum on the roller and released from a minimal drop height directly into the trough, ensuring precise placement.
Following sowing, trays are electronically covered with vermiculite and irrigated before being stacked and transferred onto a roller track for collection.
The LR603 column is equipped with three independent seeding units for flexibility and increased efficiency. All tray data is stored and easily recalled by the operator, enabling fast changeovers between tray types and seed varieties. When connected to the RC7 Tray Filler, the LR603 takes control of the filling process, significantly improving sowing efficiency.
MACHINE COMPOSITION
• Frame with electronic control
• Conveyor belts
• Dibbler plate
• 3 x roller sander
• Vermiculite or sand spreader
• Irrigation system
ACCESSORIES
• Punching die mod. LRP
• Saw roll mod. LRR
• Spreader with roller (vermiculite, perlite) mod. GRR
• Dispenser with belt (peat, sand) mod. GRTS
• Stacking system mod. SSP
• Roller track for collecting mod. RS2
NEW OPTIONS
• Modification for forestry applications
CODE 16-DARLR603
Seeder LR1200
3 drums.
High capacity electronic sowing line suitable for sowing up to 1200 trays per hour. All the main working adjustments of the line are controlled from the central touch-screen display. The special software installed allows the storage of sowing preferences according to seed type and sowing quality. Changes made at the central touch-screen pad can control all equipment, including tray de-stacking, tray filling speed, sowing preferences, covering, watering and tray stacking.
STANDARD LINE COMPOSITION
• Tray Destacker (for polystyrene trays)
• RC1200 Trayfiller with 650L hopper LR1200 Drum Seeder
Covering Unit with automatic recycling. (Suitable for Perlite, Vermiculite, seedling mix)
Watering Unit with 6 x watering tubes
• Tray Stacking Unit
• 3m Stainless Roller Conveyor
CODE 16-DARLR1200
TECHNICAL DATA
OPTIONAL
Multiple sowing kits (for different tray types)
Tray Destacker for heavy plastic trays 3m In-feed conveyor to feed tray destacker
Trayfiller with 900L or 2000L hopper
• Covering Unit suitable for sand or pumice
• Other options are available on request.
MAX TRAY DIMENSIONS 700x480x180mm
PRODUCTION CAPACITY 200 – 1200 trays per hour (depending on tray & seed type)
INSTALLED POWER 9.5kW, 400V, 3PH+N+E, 50Hz
AIR CONSUMPTION 100L/min
WEIGHT 2730kg
High capacity drum seeder. Up to 1200 trays per hour.
With
WATCH THE LR1200 IN ACTION
Trayfiller & Seeder Accessories
BFK/BFB
Bars for equipping the machine (SEM100/SEM200/LS7) based on the tray to be seeded.
LRP
Flat dibbler to equip the machine based on the tray to be seeded.
LRS
Bars for equipping the machine (LR400) based on the tray to be seeded.
UG
Nozzles with holes of various diameters to equip the machine based on the seed.
SSP
System for unloading stacks onto rolling table.
BFL
Bars for equipping the machine (LR400) based on the tray to be seeded.
GRR
Drum covering group for trays, suitable for Vermiculite and Agriperlite.
PR
LRD
Rows seeding drum to equip the machine based on the tray to be seeded.
GRNS
Belt covering group for trays, suitable for sand and peat.
Mini Gravity Seeder
RS2
Used in the final seed cleaning process for removing impurities and dust from the seed lot.

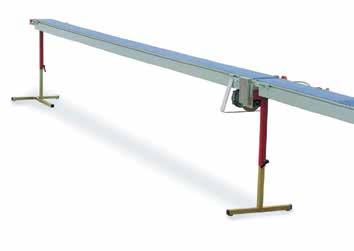

End rolling table 2m long mod. RS2
Plug Popper
Electric Plug Popper EPE
Designed for the gentle removal of young plants from their trays. Its electric system adjusts the pin heights gradually, ensuring a smooth ejection process while minimizing root damage. The effortless tray insertion makes the EPE highly practical, and by changing the EPE plate (PE), the machine can accommodate various tray types.
MACHINE COMPOSITION
• Big Bale lifting platform
• Chains with crosspieces
• Unloading outlet with level sensor
• Doors with safety switch ACCESSORIES
• Ejector plate mod. PE
CODE 16-DARDEPOPE
TECHNICAL DATA
MAXIMUM TRAYS SIZE
INSTALLED POWER
600x400x100 mm
0,6 kW, 230 V, Single Phase, 50Hz
WEIGHT EPE 120 Kg
338 cell plug poppers available in stock.
AM
Manual equipment to expel plants from the tray. Weight: 15 kg
338 cell manual plug poppers available in stock.
CODE 16-DARDEPOPM338
PE
Ejector plate.
“As we grow many pot plants from the 338 plug tray we would pop out the seedling plugs with a little bamboo stick for many hours, which is quite expensive with today’s wages. So compared with not even one minute per tray the cost of the popper (its name is Ferrari because it is so fast and red) is a no brainer.”
Ingo - Striks Azaleas
Using the AM Model Plug Popper.

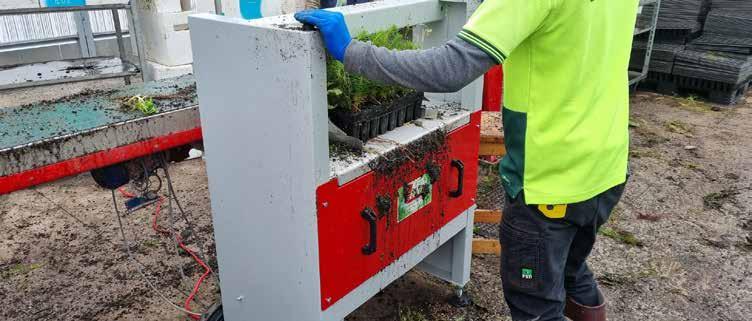

EPE Electric Plug Popper for Pine Seedlings.

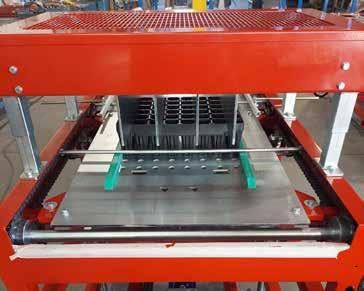

Fully Automatic Plug Popper
The Automatic Plug Popper makes de-popping seedling plugs from their trays quick and hassle free. Production capacity is from 200/600 trays per hour.
For the professional containerised nursery interested in labour saving, there is no better way to automatically extract pine seedling trees from forestry trays.
MACHINE COMPOSITION
1. Double motorised chain with adjustable speed, with crossbeams for tray feeding, positioned transversely for the insertion onto the extraction plate;
AUTOMATIC PLUG POPPER
2. Extraction unit by an interchangeable special plate with pegs, electromechanical handling and extraction height regulation by a handle;
3. Stationary exit conveyor for unloading of finished trays
4. Electric controls for the various working phases.
Transplanters
Transplanter TP-M
The DaRos Transplanter TP-M is a smart investment for nursery efficiency, precision planting, reduced labour costs, and overall improvements to productivity.
This innovative electronic machine can be equipped with up to 16 self-driving, double movement fingers, which allows customers to achieve uniformity in plant spacing and depth, leading to consistent, healthier growth.
Compatible with a wide range of nursery trays, the quality Da Ros Transplanter TP-M allows growers to handle larger volumes of plants and scale-up their operations for greater profitability.
MACHINE COMPOSITION
Support frame
• Finger group holding axle
• Independent self-driven double-movement fingers
Tray transport belt in pick up, 700mm width
Tray transport belt in deposit, 700mm width
Plate to collect transplanted trays
ACCESSORIES
Tray inserter mod. ICR
Tray inserter mod. IC2
Watering belt mod. NB4
TECHNICAL DATA
TRANSPLANTING CAPACITY up to 1200 plants/hour each finger
NUMBER OF FINGERS up to 16
MAXIMUM TRAYS SIZE
IN PICK-UP AND IN DEPOSIT
INSTALLED POWER
AIR CONSUMPTION
700x500x130 mm
1.2kW 230V 1PH 50Hz
100 L/min ca.
WEIGHT 600 Kg
Transplanter TP-MT
The benefits of a Da Ros Transplanter TP-MT are compelling for efficiency, precision planting, reduced labour costs, and improvements to productivity. Customers using this innovative machine to streamline the planting process are gaining uniformity in plant spacing and depth, leading to consistent, healthier growth. A quality Da Ros Transplanter TP-MT allows growers to handle larger volumes of plants and scale-up their operations. Our specialised Nursery Automation team can install, provide staff training and strong after-sales care. Get in touch to find out more.
MACHINE COMPOSITION
Support frame
Finger group holding axle
Independent self-driven double-movement fingers
Tray transport belt in pick up 700mm width
• Tray or pots transport belt in deposit
ACCESSORIES
• Pot spacer
TP-M Transplanter at Kericell Nursery.
Can plant over 19,000 plants per hour.
Transplanter TP-24
One of the industry’s most advanced transplanters. This innovative machine delivers precision planting, reduced labour costs, and greater production capacity of up to 26,000 plants per hour. Equipped with up to 32 self-driving, double movement fingers allows customers to achieve uniformity in plant spacing and depth, leading to consistent, healthier growth.
Easily adapted to a wide range of nursery trays, and the in-feed and out-feed belts can be installed with an existing trayfiller or potting machine.
The intuitive 10” colour touch screen control panel makes it possible to create new programs or modify various settings. All-new finger technology with (brushless motors) have a quick magnetic connection for fast and easy maintenance, and boast a lifespan 5 x that of competitor machines.
The TP-24 can be connected remotely, via a SEVIO router for quick & easy trouble shooting and software upgrades.
MACHINE COMPOSITION
Support Frame
Finger group holding axle
Maximum width of containers in pick up side of 500mm
• Maximum width of containers in deposit side of 750mm
Maximum container height 180mm
Maximum total passage height 350 mm
ACCESSORIES
• Air cleaning blower for fingers, keep debris-free while working Disinfection tank for fingers. Optional magnetic rack for storing unused fingers.
CODE 16-DARTP-24
TECHNICAL DATA
TRANSPLANTING CAPACITY up to 26,000 plants/hour
NUMBER OF FINGERS up to 24
MAXIMUM TRAYS SIZE IN PICK-UP AND IN DEPOSIT
Pick up: 500 x 1000 x 180 Deposit: 750 x 1000 x 180
INSTALLED POWER 5kW 400V 3F+N+E, 50Hz
AIR CONSUMPTION 150-200 L/min
WEIGHT 1400kg
Transplanter Accessories
ICR
Belt with station that allows the feeding of a transplanter with straight or crossed trays.
ICR is powered at 400 V, 3PH+N+E, 50Hz, installed power is 0.3 kW and it also requires pneumatic supply.
MACHINE MEASURES
1800x800x1600 mm
IC2
Belt with 90° pusher that allows feeding two lines: one with straight trays and one with crossed trays.
IC2 is powered at 400 V, 3PH+N+E, 50Hz installed power is 0,4 kW
MACHINE MEASURES
3000x700x1300 mm
NB4
Watering belt to be connected to the exit of the trayfiller or transplanter.
Machine is powered at 230 V, Single Phase, 50Hz, installed power is 0.2 kW.
MACHINE MEASURES
1650x750x1600 mm
Transplanting with Planting Conveyor
Transplanter Belt with Dibbling Station NR4FR-2
The Dibbling Station ensures consistent and precise planting depths, spacing, and gentle arrangement of seedlings into the holes. This uniformity supports healthy plant growth. The NR4FR-2 will significantly increase productivity, reduce labour cost and contribute to higher survival rates for transplanted seedlings. The speed of the trays can be controlled electronically and the number of work stations depends on the length of the belt (various lengths available). Dibbling heads can be swapped out quickly to allow for potting up in a range of trays.
MACHINE COMPOSITION
• Tray transport belt
• Pneumatic flat dibbler
• Work station
ACCESSORIES
• Dibbling plate with fix pins mod. PF
• Dibbling plate with rotating pins mod. PFR
• Tray holder for young plants to be transplanted mod. PC1
CODE 16-DARTRANR4FR-4
TECHNICAL DATA
PRODUCTION CAPACITY 130/500 trays/hour
MAXIMUM TRAYS SIZE 600x400x130 mm
INSTALLED POWER 0,37 kW, 230 V, Single phase, 50Hz
AIR CONSUMPTION 20/50 l/min
BELT LENGTH 2,3m / 3,3m / 4,3m / 5,3m / 6,3m
WORK STATIONS from 1 to 5
WEIGHT 180/280 Kg
338 cell plug poppers available in stock.
Transplanting line at Restore Native Nursery.
Transplanting Line at Beaumont Nurseries.
NR4FR-2 IN ACTION

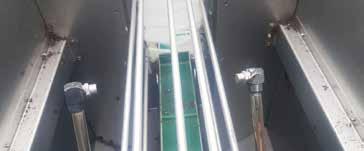

Watering Tunnels
Watering NB3

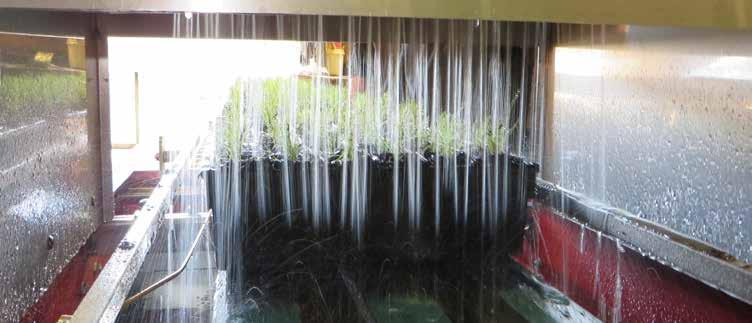

Electrically controlled irrigation system for trays which can be connected, for example, to a filling or transplanting machine. The irrigation system NB3 can be equipped with two irrigation groups.
TECHNICAL DATA
MAXIMUM WIDTH OF TRAYS 42cm
INSTALLED POWER 0,18 kW
SUPPLY VOLTAGE 230V single-phase 50Hz
WEIGHT 146 kg
Watering NB4
Electrically controlled irrigation system for trays which can be connected, for example, to a filling or transplanting machine.
TECHNICAL DATA
MAXIMUM WIDTH OF TRAYS 42cm
INSTALLED POWER 0,18 kW
SUPPLY VOLTAGE 230V single-phase 50Hz
WEIGHT 120 kg CODE 16-DARWATBE

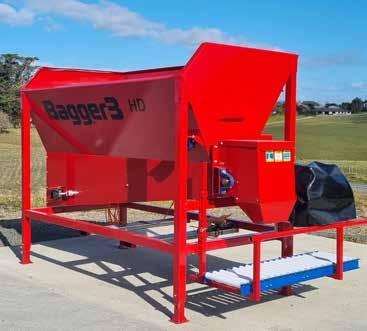

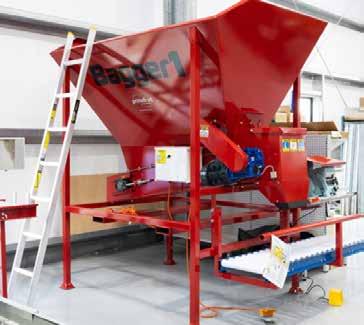

Bagging Machines

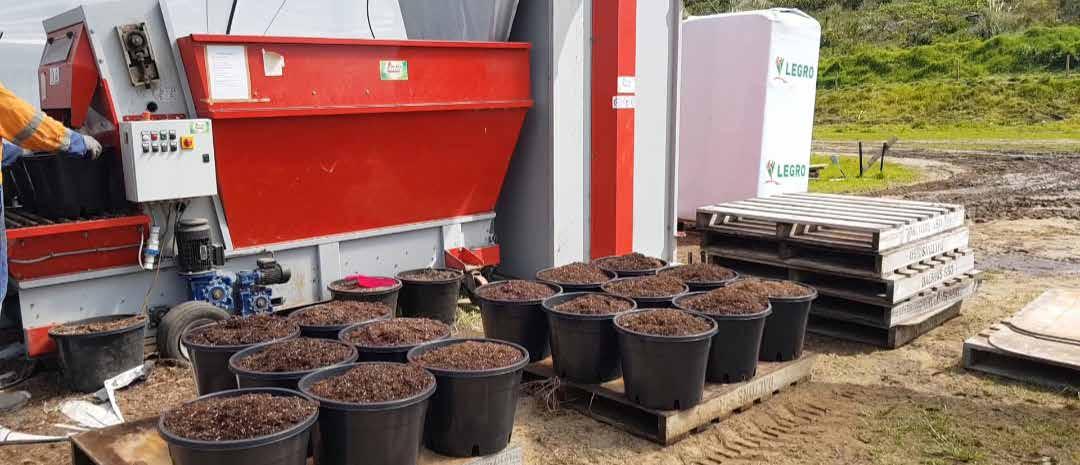

Bagging Machine TV3
A cost-effective pot filling machine designed for efficient nursery production. Suitable for larger pot sizes between 10–35cm, the TV3 offers reliable, consistent soil filling with a simple operation and solid performance.
With a generous peat storage capacity and a discharge rate of up to 100 litres per minute, this machine ensures smooth, steady output for medium to large potting applications. The integrated vibrating table helps settle soil evenly while returning excess soil to the hopper, improving consistency and reducing waste.
Soil output 100L/min.
CODE 16-DARTR72N
TECHNICAL DATA
DIAMETER OF POTS from 10 up to 35 cm
HOPPER CAPACITY 1800 l
PEAT DISCHARGE CAPACITY 100 l/min
MACHINE COMPOSITION
Soil hopper with discharge outlet
• Vibrating table with return of excess soil
ACCESSORIES
• Double opening sidewalls
• Control foot pedal
INSTALLED POWER 1,6 kW, 400 V, 3PH+E, 50Hz
WEIGHT 600 Kg

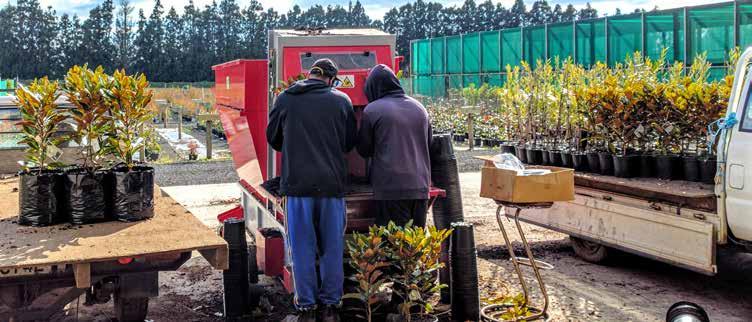

“The TV3 has worked really well for us – we are really happy. We were potting up 16,000, 2.5L pots a day. That’s with 10 people, deflasking, potting and laying out. But we have potted up 100,000, 2.5L pots in 2 weeks, so we are pretty stoked.”
Dr. Jo Stephens Select Breeding Solutions
Bagging Machine TV5
Equipped with a single or double discharge outlet, the TV5 ensures fast, uniform pot filling. Adjustable vibration intensity allows fine-tuning based on pot size and media type.
MACHINE COMPOSITION
• Soil hopper with discharge outlet
Vibrating table with return of excess soil
ACCESSORIES
• Control foot pedals
• Rotating vibrating base mod. BVR
• Unloading rolling table mod. R2BVR
• Fertiliser dosing unit
• Multiple soil chutes
• Single phase power available on order confirmation
TECHNICAL DATA
DIAMETER OF POTS from 10 up to 40 cm
HOPPER CAPACITY 3000 l
PEAT DISCHARGE CAPACITY 250 l/min
INSTALLED POWER 2 kW, 400 V, 3PH+N+E, 50Hz
985 Kg

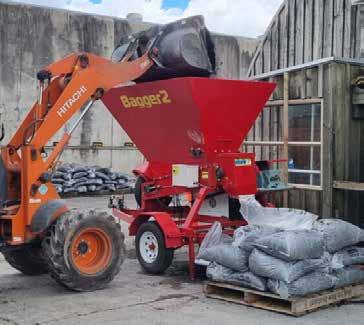

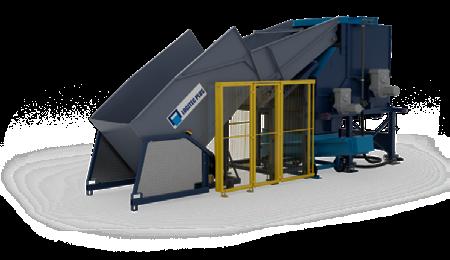

Mobile Bagger Machine
Proven mobile bagging machines with flexible options to suit your needs.
• Road-registerable trailer-mounted
• Operator comfort due to ergonomic design
• Fully welded steel construction
• High torque drive roller and self cleaning idler
• Heavy duty European built gearbox and motor
• Tough chevron belt
• Nylon wear material for less friction
• High toque Drive system for heavy loads
• Pneumatic foot pedals for safety
• 160-240 bags/hour, depending on setup and product
• Conveyor drive or roller table
• Timing 1/100 sec
MACHINE COMPOSITION
• 2m3 Hopper
Bag Heat Sealing Unit
Height adjustable Sealer Unit
Height adjustable Roller Table
2.2kW motor, 1phase motor Heavy-duty Helical Gearbox,
• Trailerised
• Filling timer
• Spare wheel
ACCESSORIES
• Optional Foot Pedal filling control
• Site mirror to view fill level
• Access ladder on the side
• Roll out awning over working area
• Cover for Heat Sealer
• Customised Soil Exit Chute
• Extra Roller Conveyors
• Generator
Bagger 1 Machine
An innovative entry-level bagging machine with all the same features as larger machines, including a height adjustable roller table. This free-standing bagging unit is ideal for garden centres, big tree growers (for filling large pots or bags), sawmills, quarries, farms, and landscape yards for filling retail bags of potting mix, bark, sand, pebbles and more.
The Bagger 1 is also highly useful for DOC or in civil emergency situations as it can rapidly fill sand bags. Strong, fast, powerful, the bin size is 2 cubic metres and features a gate for controlling the flow, along with an electronic adjustable timer to suit your workplace.
Bagger 3 HD Machine
The Bagger3 is a versatile bagging machine for growers, garden centres, farms and landscape suppliers. Handles potting mix, bark, pebbles and sand, filling up to 350+ bags per hour. Also suitable for emergency sandbagging.
KEY FEATURES
Capacity: 3m3 hopper, with options for 5m3 or larger.
• Efficiency: Fills 170–350+ bags/ hour, with an adjustable electronic timer for precision.
Construction: Fully welded steel, high-torque drive roller, and dust-proof bearings.
Ease of Use: Minimal training required, quick setup, and forklift points for mobility.
• Power: 2.2kW 3-phase motor (230V single-phase available).
CODE 16-BAG3
MACHINE COMPOSITION
2m3 Hopper
Bag Heat Sealing Unit
Height adjustable Sealer Unit
• Height adjustable Roller Table
• 2.2kW motor, 1phase motor
• Heavy-duty Helical Gearbox, Forklift insert pockets Filling timer
Height adjustable leg stands
ACCESSORIES
• Optional Foot Pedal filling control
• Site mirror to view fill level
• Access ladder on the side
• Roll out awning over working area
• Cover for Heat Sealer
• Customised Soil Exit Chute
• Extra Roller Conveyors
MACHINE COMPOSITION
3m3 Hopper
Bag Heat Sealing Unit
Height adjustable Sealer Unit
Height adjustable Roller Table
• 2.2kW motor, 3phase motor
• Heavy-duty Helical Gearbox,
• Forklift insert pockets
Filling timer
Height adjustable leg stands
ACCESSORIES
• Optional Foot Pedal filling control
• Site mirror to view fill level
• Access ladder on the side
• Roll out awning over working area
• Cover for Heat Sealer
• Customised Soil Exit Chute
• Extra Roller Conveyors
Potting Machines
Potting Machine I3-P
The I3-P Potting Machine is a popular potting machine for growers.
The 1800L hopper has two fold-down sides (for loading from either side). Soil feed speed can be adjusted via a speed dial according to the soil demand of the pot. It comes with stainless steel soil elevator paddles for long-life wear and tear. Adjustable conveyor belt speed has a tray holder mounted for quick and easy planting. It comes with an automatic pot in-feed conveyor which loads the pot magazine as the machine continues to use its pots.
The machine de-nests pots between 8-20cm, fills with soil and drills a hole ready for the worker to plant as it travels past. Drill hole size and depth easily adjusted.
KEY FEATURES
• 1800L hopper
• Pneumatic pot de-nester
• Easy pot adjustment
• Drill kit (3 to 9cm)
• 3m pot take-off conveyor with 1200mm long tray holder
• 1.2m pot in-feed conveyor
CODE 16-DAR13-P
TECHNICAL DATA
POT DIAMETER 8 - 20 cm
POTTING CAPACITY 2500 pots/hour
LENGTH OF TRANSFER
HOPPER
3.0 - 6.0m
- 2000 L
13-P Potting Machine at Growing Spectrum.
Potting Machine I3-E
Electronic Potting Machine featuring a colour touch screen control panel for automatic setting of potting and transplant speed, soil quantity speed, drill direction and depth. The pot take-off conveyor can be positioned left, right (or parallel as per in the image). Pot change-over is very simple by means of replacing 1 x plate to match the desired pot size. This machine is designed with operator protection in mind with extra safety guards and alarms. It features a pneumatic pot dispenser which works very well for most pot types up to 22cm/6L size.
This machine is simple to use, fast, quiet when operating; and built for medium to large nurseries.
MACHINE COMPOSITION
• 650L hopper
• Pneumatic pot de-nester
• Pot plate disks (for each pot size)
• Drill kit (3 – 9cm)
• 3m pot take-off conveyor with 1900mm long tray holder
• 1.6m pot in-feed conveyor
OPTIONAL
• 1000L or 1500L hopper
• Pot take-off conveyor between 3 – 6m
• Pot accumulation table at the end of the conveyor
• Wheels for short displacement
• Other options on demand
CODE 16-DAR13-E
TECHNICAL DATA
SUITABLE FOR ROUND POTS between 8 - 22cm/ 0.3 – 6L
SUITABLE FOR SQUARE POTS between 7 - 15cm
PRODUCTION CAPACITY 500 – 3000 pots per hour (depending on pot type)
AIR CONSUMPTION 100L/min
INSTALLED POWER 2.3kW, 400V, 3PH+N+E, 50Hz
WEIGHT 750kg
Potting Machine I5
The Da Ros Potting Machine I5 is a compact, high-performance potting machine and the go-to choice for nurseries where speed, accuracy and operator safety are critical. Designed for medium to large operations, the I5 delivers consistent potting with minimal setup time and effortless changeover between pot sizes.
An electronic interface control panel allows operators to create and store programs for different pot sizes, set pot counts, adjust potting speed, conveyor speed, soil feed volume, drill depth and drill direction. Built-in alarms alert operators if soil levels or the pot denester are running low, helping maintain continuous production and reduce unnecessary stoppages.
The I5 is engineered for precision, making it ideal for accurately feeding follow-on equipment such as transplanters. With health and safety front of mind, the machine features an enclosed potting carousel and guards on moving parts to maximise operator protection.
Suitable for both round and square pots from, the I5 can achieve
production rates of up to 4,000 pots per hour (based on 8cm pots). Requiring no pneumatic input and operating almost silently, it’s a powerful yet operator-friendly solution for high-demand nursery environments.
MACHINE COMPOSITION
• 750L Hopper
• Suitable for pots between 10 – 24cm/ 0.5 – 9L
• Production capacity: 4000 pots per hour (depending on pot type)
• 2.6m automatic pot in-feed conveyor
• 3m pot take-off conveyor with 1900mm long tray holder
• Spare drills 3, 4, 5, 6, 7, 8 & 9cm
• Stainless steel soil elevator paddles
• Mounted on adjustable feet
• Weight: 1150kg
OPTIONAL
• Large drill set 10, 12 & 14cm
• Soil exit door at rear of hopper with conveyor reverse function
• Wheels for short displacement
• Other pot take-off conveyor up to 6m long
• Large pot accumulation table 1800mm diameter
• Pot watering tunnel
13-E Potting Machine at Oderings Nurseries
I5 Potting Machine in action at Hayes Wholesale Nursery.
Potting Machine I7
The I7 Potting Machine is a newly released model from Da Ros and is one of the most advanced in their range. As the larger counterpart to the I5 version, it is designed for serious growers handling larger pot sizes, accommodating round pots up to 36cm in diameter.
Featuring fully electronic controls, the I7 allows for quick and effortless changeovers between different pot sizes, ensuring efficiency and ease of use.
MACHINE COMPOSITION
• 1500L Hopper
• Suitable for round pots 14 – 36cm diameter
• Suitable for square pots 14 – 25cm diameter
• Production capacity: 3000 pots/ hour (depending on pot size)
• Automatic Pot In-feed Conveyor
• Pot take-off conveyor 300mm width x 3m length
• Tray holder for seedling plugs
• Spare drills: 3, 4, 5, 6, 7, 8, 9 & 10cm diameter.
• Stainless steel soil elevator paddles
• Mounted on feet
• Weight 1850kg
OPTIONAL
• Hopper capacity up to 3000L
• Air cleaning blowers on pots
• Large drill set: 10, 12 & 14cm diameter
• Soil exit door at rear of hopper
• Machine on wheels
• Other pot take-off conveyors up to 6m in length
• Other options on demand
CODE 16-DARI7
TECHNICAL DATA
SUITABLE FOR ROUND POTS 14-36cm diameter
SUITABLE FOR SQUARE POTS 14-25cm diameter
PRODUCTION CAPACITY up to 3,000 pots per hour
INSTALLED POWER 5kW, 400V, 3PH+N+G, 50Hz
WEIGHT 1850kg
Potting Machine Accessories
DM
Automatic destacker for soft square or round pots.
T100
Device for temporary collection of pots.
CODE 16-DART100
Pot Watering NB2.2
DV2N
Automatic destacker for plastic round pots of diameter from 8 to 22 cm with a height adjustable support via hand wheel.
S4
Blade seeder suitable for seeding herbs (basil, etc).
CODE 16-DARS4
D01
Fertiliser dispenser with outlets of various diameters (15-20-25-30 mm) to dispense the fertiliser in pots.
S6
Watering belt for individual pots to connect to a potting machine, transplanter or transport belts line.
CODE 16-DARWATTUNNB2
Bar seeder with mechanical stop to seed on passing pots.
CODE 16-DARS6
TR5C Potting Machine and S6 Seeder for sowing direct into pots at Persson’s Nursery.
13-P Potting Machine at Amber Garden Centre
Drill Bits
Steel Drill Bits
TECHNICAL DATA
CODE 16-DRILLI4DR 16-DRILLI5DR
DESCRIPTION 4cm Steel 5cm Steel
CODE 16-DRILLI6DR 16-DRILLI7DR
DESCRIPTION 6cm Steel 7cm Steel
CODE 16-DRILLI8DR 16-DRILLI9DR
DESCRIPTION 8cm Steel 9cm Steel
Nylon Drill Bits
TECHNICAL DATA
CODE 16-DRILLN3DR 16-DRILLN4DR 16-DRILLN5DR
DESCRIPTION 3cm 4cm 5cm
POT SIZE 3cm 4cm 5cm
CODE 16-DRILLN6DR 16-DRILLN7DR 16-DRILLN8DR
DESCRIPTION 6cm 7cm 8cm Aculon
POT SIZE 6cm 7cm 8cm
CODE 16-DRILLN9DR 16-DRILLN10DR
DESCRIPTION 9cm 10cm
POT SIZE 9cm 10cm
“The new potting machine is performing really well - it is simple to operate and we are really pleased to have made the move to automating our potting lines giving us scope to increase production further - and meet our clients’ requirements.”
Eden Worsfold Director and Operations Manager - Rural Design
Aluminium Drill Bits
TECHNICAL DATA
CODE 16-DARDIBB50MM 16-DARDIBB60MM
DESCRIPTION 50mm 60mm
CODE 16-DARDIBB70MM 16-DARDIBB80MM
DESCRIPTION 70mm 80mm
Buffer Belt System
Transporter Belt
Transporter Belt NS
Transport belt suitable for moving trays, available with feet or wheels. The speed of the conveyor can be adjusted using the electronic speed control.
ACCESSORIES
• Wheels NOTE: Belts available in 2, 3, 4, 5 & 6m lengths.
TECHNICAL DATA
BELT SPEED 5-16 m/min
INSTALLED POWER 0,37 kW, 400 V, 3PH+E, 50Hz
BELT LENGTH from 1,3 m to 6,3 m
BELT WIDTH 315mm / 460mm / 560mm / 700mm
WEIGHT 100/200 Kg
Transporter Belt NL
Self-driven transport belt in metal sheet for transport of pots or trays. The frame holds a belt tension equaliser.
ACCESSORIES
• Belt tension equalizer
TECHNICAL DATA
BELT SPEED 11 m/min
INSTALLED POWER 0,25 kW, 400 V, 3PH+E, 50Hz
BELT LENGTH from 1,10 to 6,10 m
WEIGHT 65 Kg
Conveyor Belt
Conveyor Belt NT
Modular system of belts in aluminium profile, simple and easy to transport pots or trays. Each module is self-driven and available in various lengths. The frame holds a belt tension equaliser. The fixedspeed belt is provided complete with support leg and connection wire. The speed control can be supplied on demand.
TECHNICAL DATA
ACCESSORIES
• Starting leg mod. GSI
• 90° pot diverter mod. CV90
• 90° pot and tray self-driven diverter mod. CC1/CC2
• Pot distance adjustment system mod. RV1
• Fork for loading/unloading pots from belts mod. FORCHE
• Control Panel for remote control of belts mod. QSS
• Final stop sensor mod. QSF
• Mechanical or electronic speed control
DIAMETER OF POTS from 10 up to 22 cm
BELT SPEED 10 m/min
INSTALLED POWER 0,18 kW, 400 V, 3PH+E, 50Hz
BELT LENGTH from 1 to 6 m
BELT WIDTH 180mm
WEIGHT 42 Kg
Starting leg.
Pots distance adjustment system for belts.
90° pot diverter, module hook included.
Accessory for picking up pots (at regular distances) from the belt and setting them on the floor. The number of pots which can be picked up varies based on the diameter.
90° pot and tray self-driven diverter.
Control panel for conveyors start/stop inclusive of remote control. End switch (Optional QSF)
PalletRobotLoading

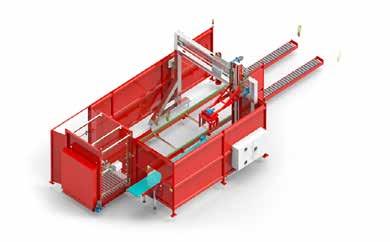

MF Palletiser
Pallet loading robot for use at the end of a seeding line, tray filling line, tray washing line, etc. This robot can be programmed to pickup single trays or stacks of trays. It can load direct onto pallets, trolley carts, or multi-tiered shelves according to the customers demands.
ACCESSORIES
• Depends on customer demands

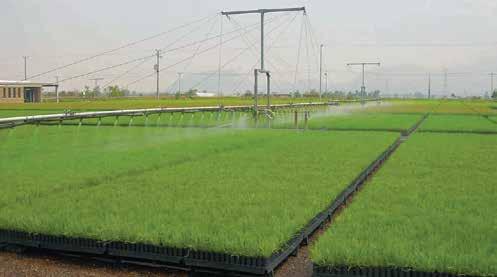

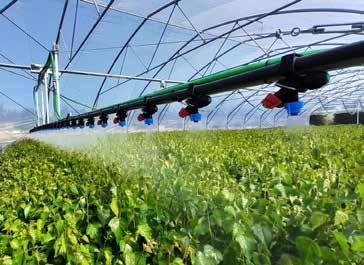

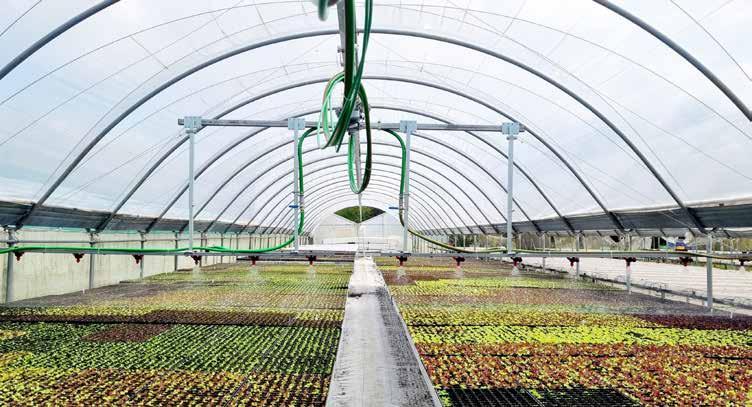

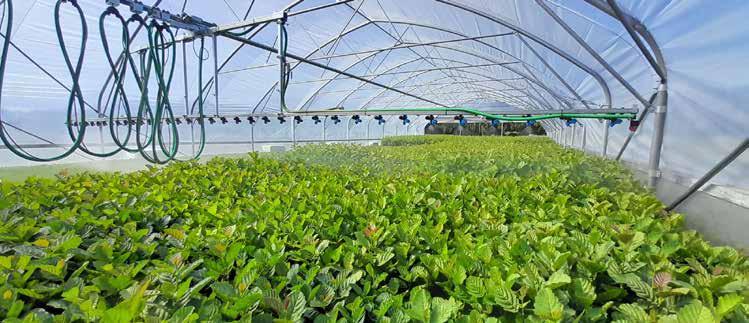

Monorail Irrigation Boom

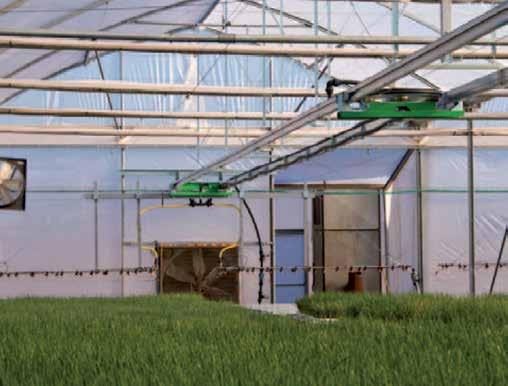

Monorail Irrigation Boom
The Monorail Irrigation Boom is the most cost-effective option for greenhouse irrigation booms and helps you optimise your work and save water. This low-cost irrigation boom should pay itself off within the first year of installation! Suitable for small to medium sized greenhouses, the Monorail Irrigation Boom is not heavy or stressful on the greenhouse frame. Basic programming includes, speed adjustment 1 - 10m/min, watering date & times, number of watering passes, pre-drain setting, and creation of watering zones.
FEATURES:
• Quick to install.
• Water supply: hose-fed.
• Tri-Jet nozzles for 3 different spray options.
• Filter & solenoid valve included.
• 230V, single phase power input.
• Hand-held Remote Control (optional).
• Heavy duty galvanised steel monorail.
• Custom-built to fit greenhouse structure.
• Zone-watering capabilities.
• Dosatron venturi (optional).

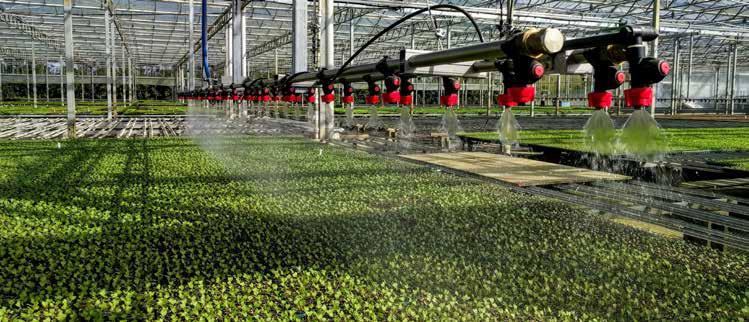

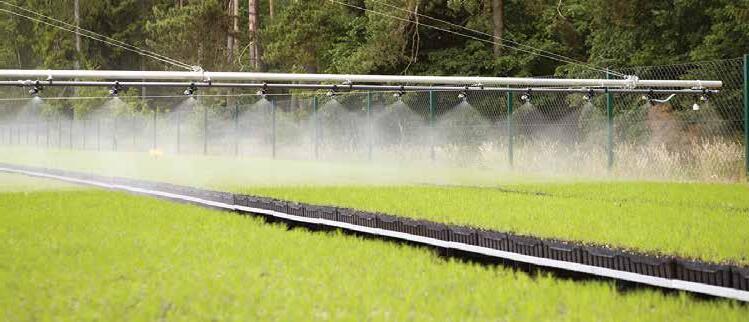

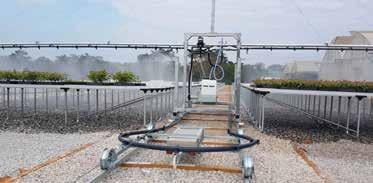

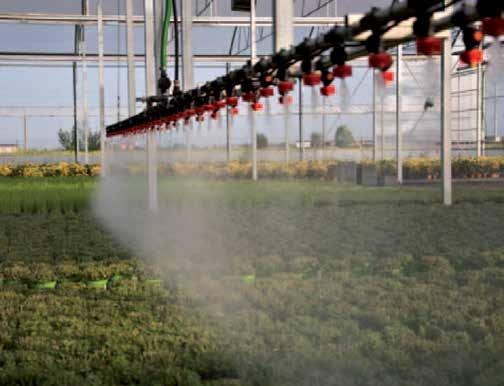

Double Rail Irrigation Boom

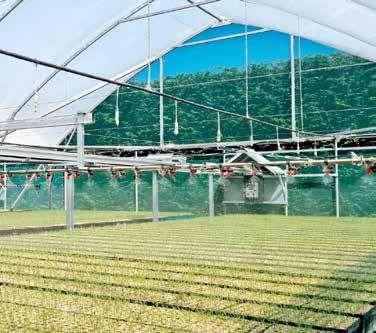

Double Rail Irrigation Boom CI3
Watering booms consist of modular aluminium profiles with standard height of 120mm to avoid any possible bending, independent from the step of greenhouse construction.
The booms run safely inside the profile without noise due to the special Vulkollan wheels. Thanks to the aluminium profiles, the system is light and easy to install.

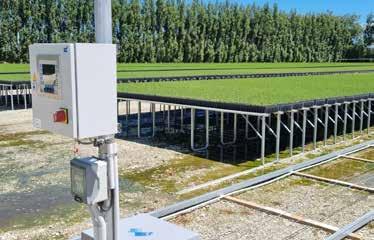

The full optional control panel with touch screen is graphically intuitive and allows immediate programming.
MACHINE COMPOSITION
• Double rail in aluminium with internal wheels running cavity
• Recoil system cart in steel complete with 4 Vulkollan coated bearings
• Irrigation bar pulling bar in steel complete with 4 Vulkollan coated bearings
• Self-driven head (Motor 0,37 kW) that activates the steel cable for cart’s pulling
• Watering system with double pipe in stainless steel, adjustable height
• Main water pipe diam. 40mm
• Recoil unit with pulleys
• End switch on both greenhouse and walls
• Manual valves for left and right irrigation
• Self cleaning solenoids
• Extra nozzles on sides
• Control panel with touch-screen display
ACCESSORIES
• Remote control
• Multiple remote control
• Dosing unit arrangement
• Independent and adjustable sides nozzles
• Treatment pipe 16 bar max
• Double solenoid for automatic left and right irrigation
FEATURES AND BENEFITS
• Boom structure made of strong, modular 120mm deep aluminium runners which are not heavy or stressful on the greenhouse structure
• Water pipe movement is more uniform with the use of the big wheel / recoil system
• The water pipe is barely visible and there is no pipe hanging down affecting access or walkways
• No components or other materials that can cause oxidising in the water
• There is no sideways swinging movement, giving a very even watering and no sound when the boom is in operation
• Option of mobile dosing/fertigation unit for each boom and individual spray nozzle that reach the edges of the greenhouse and internal walkway
• Ability to operate remotely (however, this must be specified prior to ordering)
Control Panel
• Manual and automatic operating modes
• Setting of watering direction, speed and number of watering cycles each zone
• Automatic pre-discharge on programmable position
• N. 20 independent zones settable in metres or graphically
• Zones or steps irrigation for benches
• N. 8 daily timing
• N. 5 solenoids control nozzles
• Treatment pipe 16 bar max
• Double solenoid for automatic left and right irrigation
“I have been in Oregon/USA (the hub of horticulture in America) and I didn’t see anything as good as the Da Ros booms. Would not do anything differently or go to any other boom other than Da Ros!!”
Keith Roberts Appletons Tree Nursery Using Da Ros Watering booms.
Inverted Outside Irrigation Boom
DaRos Inverted Outside Irrigation Boom
The innovative DaRos Outside Irrigation Boom delivers precision watering, uniform coverage, and efficient resource use. These booms have programmable settings to enable tailored irrigation schedules, reducing water waste and encouraging healthier plant growth.
Adjustable spray patterns make the boom compatible for a variety of crops, perfect for nurseries and horticultural operations. Automation ensures consistent results and significant time savings. Best of all, it helps plants thrive while optimising water and energy use - essential for sustainable and profitable growing.
• Sturdy design for outdoor durability.
• Flexible installation on a “T-bar” or “Corridor” frame.
• Long-lasting stainless steel parts and protective covers for motors and control panel.
• Compatible with Dosatron for chemical or spray applications.
User-friendly software with options to:
• Water specific zones. Schedule watering days, times, and speed.
• Add an electro valve for left-and-right watering control (optional).
• Includes a double spray boom for irrigation and spraying chemicals.
• Can connect to a weather sensor for weather-responsive watering.
OPTIONAL EXTRAS
• 3-way nozzles for additional spray options.
• Mobile app and hand-held remote control for convenience.
T-Bar style
Corridor style
Holding Area Boom
Holding Area Boom
The Holding Area Booms fulfil the above water application requirements for containerised forest nurseries, while guaranteeing flexible and reliable functioning.
To ensure optimum growth and uniform development of plants, it is essential that each individual plant receives the correct amount of water throughout its propagation period. Since the surface area of each tray cell is relatively small, the quality of application is even more vital. Further, the limited volume of moisture reserves in small containers also means that critical moisture stresses can develop quickly.
OPERATIONAL BENEFITS & KEY FEATURES
• Floor-mounted or suspended rail systems.
• Hot-dipped galvanized rail systems.
• Robust galvanized carriage.
• Nylon wheels fitted with sealed ball bearings.
• Boom carriages feature a walk-through design.
• Swivel arm for water hose fitted to carriage.
• Nylon-coated wire ropes connecting the boom arms with the carriage ensure stability.
• Light-weight aluminium boom arms adjustable for height above seedlings.
• Single PVC spray line fitted with at spray pattern nozzles (2.3 litres/minute at 1.5Bar) mounted to boom arms at intervals of 600mm to ensure sufficient overlap of the spray fan.
• Direct water application to plants ensuring even coverage for optimum growth and uniform development.
• The water supply line on the carriage is equipped with a cartridge filter.
• The drive unit has a variable speed geared motor.
• The cable return wheel and drive units, including the geared motor, are protected
by galvanized sheet-metal hoods.
• Central control panel for easy boom operation
• Hose car system makes irrigation area longer (approx 190m)
• Long lasting hose in system
ACCESSORIES
Options available: like pressure regulators, water filters, pressure gauges and safety functions like emergency stops and pressure drop sensors for detection of hose breakage are available as options.
Tray Washers
Washer LC1
If nursery trays are not carefully washed and sanitised, plant disease, pests, viruses and other nasties can thrive. By cleaning the trays the next seedlings are given a healthy start. When done manually, tray washing is a slow process and lacks quality control.
The complete Tray Washing line model LC1 is entirely built in stainless steel and is suitable for cleaning seedling trays made in polystyrene, hard plastic and thermoformed plastic (an extra version is available to process hydroponic growing trays to a maximum size of 600 x 1000 mm).
Each tray is moved in a horizontal position by a double transport belt with adjustable speed. Inside the washing tank a minimum of eight high pressure nozzles are positioned, in which at least 2 nozzles are rotating nozzles. Note, the number of nozzles depends on the type of tray
to process. The water is supplied at the nozzles with a pressure between 10-12 bar. The water is continuously recycled through a large external water filter and replaced every 6-8 operating hours. The washing tank is provided with a water input fitting, two drains and an overflow outlet.
A disinfection unit is installed after the drying fan; it holds two fixed nozzles, a collecting basin and recycling pump. All electric devices are fixed in a waterproof stainless steel panel.
For certain uses, it is also possible between the de-stacker and washing tank to fit a shaker to eliminate as much peat and vegetal residues as possible from the tray walls so that the washing and filtering of recycled water is more efficient (this feature is optional). Intensity of shakes and number of shakes can be automatically set on the control board.
ACCESSORIES
• Tray destacker
• Rotating cleaning brush
• Fan for drying
Comes with water recycling unit.
CODE 16-DARLC1
TECHNICAL DATA
PRODUCTION CAPACITY
trays/hour
Maxi Tray Washer
The Maxi Tray Washer is a high quality washer that can process up to 400 trays per hour. These machines are becoming more & more popular as growers seek to optimise their seedling growing processes in the nursery.
WHY USE A TRAY WASHER?
Plant diseases, pests, viruses and all sorts of other nasties can thrive in the breeding ground of moist soil. The best solution is to wash the trays through a high pressure washing system followed by a sanitising treatment. This ensures that the next seedlings to be grown in the re-usable trays have a clean
1. Tray Washer built entirely in 304 stainless steel.
2. Tray advancement notched belt with the possibility of adjusting the washing speed by means of a mechanical variator.
3. Double rotating spinning jet washers.
and healthy start to life. As most growers would know, seedlings grown on a commercial scale that are stricken with health problems cost a great deal of money and valuable labour resource as you try and rectify the problem.
These machines are becoming more & more popular as growers seek to optimise their seedling growing processes in the nursery.
Why use a Tray Washer?
Plant diseases, pests, viruses and all sorts of other nasties can thrive in the breeding ground of
The best solution is to wash the trays through a high pressure
treatment. This ensures that the next seedlings to be grown in
PrimeHort have worked hard to develop a basic and streamlined tray washing process to make it easy as possible for the operator to efficiently get the job done with minimum fuss. Just a single pass through the high pressure spray jets and treatment spray is all that is required to leave trays thoroughly cleaned and ready to be re-used.
start to life. As most growers would know, seedlings grown on a commercial scale that are stricken with health problems cost a great deal of money and valuable labour resource as you try and rectify the problem.
Primehort have worked hard to develop a basic and streamlined tray washing process to make it easy as possible for the operator to efficiently get the job done with minimum fuss.
5. Filter inside the tank for filtering the washing water for recycling.
6. Wash water filter inspection hatch.
Just a single pass through the high pressure spray jets and tre thoroughly cleaned and ready to be re-used.
7. Electrical control panel
8. Spray treatment tank
Specifications
9. Spray treatment tunnel
4. Multi-stage pump for water supply to the washing nozzles.
Production capacity: 400 trays per hour
Power input required: 400V, 3PH, 4kW, 50Hz
1) Tray Washer built entirely in 304 stainless steel.
CODE 16-TRWASHMAXI
TECHNICAL DATA
PRODUCTION CAPACITY
2) Tray advancement notched belt with the possibility of adjusting the washing speed by means of a mechanical variator
3)Double rotating spinning jet washers.
400 trays per hour
POWER INPUT REQUIRED 400V, 3PH, 4kW, 50Hz
4) Multi-stage pump for water supply to the washing nozzles.
5) Filter inside the tank for filtering the washing water for recycling.
6)Wash water filter inspection hatch.
7) Electrical control panel
8)Spray treatment tank
treatment tunnel
Mini Tray Washer
The Tray Washer Mini is suitable for virtually all types and sizes of trays.
The Tray Washer Mini is built in 316 marine grade stainless steel, simple to use, and maintenance free.
The tray cleaner has 2 fast rotating spray arms which are driven by a high pressure pump (not included). In a separate chamber the trays can be sterilised with a treatment spray. The continuous moving conveyor belt has special profile (cleats) and (optional) adjustable speed.
Growing smarter together
rotating spinning jet washers. 4) Multi-stage pump for water supply to the washing nozzles.
5) Filter inside the tank for filtering the washing water for recycling.
6)Wash water filter inspection hatch.
7) Electrical control panel
8)Spray treatment tank 9)Spray treatment tunnel
46 sales@primehort.co.nz | www.primehort.com
SPECIFICATIONS
• Equipped with 1 single phase 230V motor
2 x internal rotating spray arms with 2 jet nozzles per arm
Standard water blaster connection point
• Adjustable tray supports
• Water drainage hose
• Fixed speed conveyor
Inspection lid cover
OPTIONAL
Variable speed conveyor
Spray treatment and treatment tank
• Water blaster available on request
TECHNICAL DATA
SUITABLE FOR virtually any type & size of tray
CAPACITY Up to 400 trays per hour (depending on tray type)
DIMENSIONS 2965L x 660W x 1480H
INSTALLED POWER 230V, single phase power
OPERATING PRESSURE 2800 psi, 20Lpm
The Small Tray Washing Machine is a high quality washer that can process up to 400 trays per hour.
moist soil.
The Small Tray Washing Machine is a high quality washer that can process up to 400 trays per hour.
Maxi Tray Washer at Longkeeper Farms
Harvesters & Harvesting Line
Baby Leaf Harvester TE41
A food grade harvesting unit suitable for a wide variety of baby leaf and microgreen cut product. Adaptable to most tray types including hydroponic systems in polystyrene trays and gutter systems. Working speed and cutting height are easily adjustable from a simple to use control board. The high speed cutting blade allows a very clean cut without damaging the plant stem to avoid the onset of rotting.
MACHINE COMPOSITION
100% Stainless steel frame
• Cutting head with high-speed blade
• Food grade transport belts suitable for use with water
Cut-leaf unloading belt (into bins)
Operator control board
OPTIONAL
• Automatic in-feed conveyor for trays
• Automatic unloading conveyor for empty trays
Complete LT5 cutting line and tray cleaning system (as per image below)
TECHNICAL DATA
MAX TRAY DIMENSIONS
PRODUCTION CAPACITY
INSTALLED POWER
600mm wide
400 – 600 trays per hour (depending on tray length)
400 V, 3PH+N+E, 50Hz
Complete Harvesting Line & Tray Cleaning LT5
Trimmers
Trimmer CP800
Machine for plant trimming (onions, celery, fennel, salads, aromatic plants) in trays, fitted with extractor to collect the cuttings to prevent mould from forming on the finished trays.
The belt speed and the shear blade can be adjusted electronically. The easy regulation of the cutting height and all the different types of trays make this machine extremely practical and adjustable in a few seconds.
MACHINE COMPOSITION
• Transport belt
• Cutting group
• Extracting hopper Collection tanks
TECHNICAL DATA
PRODUCTION CAPACITY from 200 up to 800 trays/hour
TRAY SIZE max width 50cm
CUTTING HEIGHT from 3 up to 25 cm
INSTALLED POWER 400 V, 3PH+N+E, 50Hz
Kg
EazyCut 400
A lightweight, one-person fine-cut trimmer with a 41cm blade and built-in blower to collect cuttings as you go. Delivers clean, consistent results with self-sharpening blades and minimal clean-up. Ideal for nurseries, hedging and general garden maintenance. Powered by a reliable 25cc Mitsubishi engine. Compatible with the EazyLift Ergo harness, with an optional adjustable handle for easy low-level work.
FEATURES
• Fast: Double-acting blades and strong airflow for high output
Light: Easy to carry and operate for longer periods
• Efficient: Cuttings collected during trimming, |no clean-up
Quality finish: Suitable for reusing cuttings
• Compact: One-person operation
Powerful: Ventilator directs all cuttings into the bag
EazyCut 600 Electric Trim Tray Machine
EazyCut 400 + ErgoLift
The EazyCut 400 pairs with the ErgoLift harness to shift weight from arms to hips, reducing strain and fatigue. A built-in pulley supports smooth, controlled movement, while adjustable straps ensure a comfortable fit. Work longer with better comfort, control and efficiency.
A cost-effective electric trimming system delivering clean, consistent results with full collection of cuttings. The 51cm blade trims efficiently while cuttings are blown sideways into a collection box. Available as a DIY kit or complete system with conveyor options, including adjustable knife speed and belt control. Compact, easy to use, and designed for fast return on investment.
FEATURES
Fast: Double-acting blades and strong airflow for high output
• Electric system with integrated transport belt Light: Easy to position over conveyors or benches
• Clean: Keeps crops tidy, helping reduce disease risk
Efficient: Cuttings collected during trimming
• Flexible: Multiple system setups to suit different operations
EazyCut 600 Mobile Trim Tray System
A cost-effective trimming solution with a 51cm blade and full collection of cuttings into a bag. The backpack-mounted Honda GX35 4-stroke engine and flexible hose provide excellent mobility, making it easy to work across uneven terrain while delivering clean, consistent results.
FEATURES
• Mobile: Compact backpack system for easy movement
Engine: Reliable Honda GX35 4-stroke with CE handles
• Flexible: Hose allows smooth operation around the field
Efficient: All cuttings collected during trimming
• Light: Trimmer and bag move easily over plants
Versatile: Suitable for varied terrain and tasks
• Compatible: Works with hedgetrimmer AM-5A
EazyCut 1201 / 1601 – Professional Shrub & Bush Trimmer
High-capacity trimming system with wide cutting widths (120cm or 160cm) for fast, efficient results and full collection of cuttings. Designed for hand-held use by 2–3 operators or as a frame-integrated solution for single-user control. Lightweight, powerful and built for large-scale nursery, shrub and herb trimming.
FEATURES
Wide cut: 120cm or 160cm for high productivity
• Clean finish: Integrated blower collects all cuttings
Powerful: Reliable 41cc Zenoah-Komatsu engine
Efficient: Self-sharpening hardened steel blades
• Flexible: Hand-held or frame-mounted operation
Light: Easy to handle for extended use
• Versatile: Suitable for shrubs, herbs, nurseries and harvesting
Low maintenance: Simple, cost-effective operation
EazyCut 1200 Curved – Lavender & Tea Harvester
A specialised harvesting system designed to follow the natural shape of plants, delivering fast, clean cuts with full collection of trimmings. The curved blade and blow duct maximise efficiency, making it ideal for lavender, tea and other aromatic crops. Compact, lightweight and easy to operate by hand or with frame and tractor-mounted options.
FEATURES
Curved design: Follows plant shape
Clean results: 100% collection of trimmings
High quality: Self-sharpening steel blades
• Efficient: Reduces labour and operating costs
Flexible: Handheld, frame or tractor-mounted
• Powerful: 41cc Zenoah engine, with electric options available
Lightweight: Easy to handle with minimal maintenance
• Proven: Good for lavender, tea and similar crops
EazyFrame 1201 / 1601 –Modular Pruning Frame
A robust, modular frame system designed for precision pruning and harvesting in greenhouse environments. Built from fully galvanized steel, it offers adjustable height and width to suit different crops and setups, delivering consistent results with long-term durability.
FEATURES
• Durable: fully galvanized, maintenancefree frame
Precise: spindle-adjustable working height
• Flexible: modular design with adjustable width
Stable: engineered for consistent cutting results
• Mobile: smooth manoeuvrability with swivel wheels
Efficient: supports faster, uniform operation
• Adaptable: configurable for multiple crops and layouts
EazyTable 1201 / 1601 Table Trimmer
A flexible, cost-effective system for trimming tables up to 160cm wide. Lightweight and easy to handle by two people, with mobile or stationary options to suit any greenhouse setup. Delivers clean, consistent results with full collection of cuttings.
FEATURES
• Faster: high-speed trimming with strong airflow Smarter; keeps crops clean to reduce disease risk
• Lighter: easy to move with two people
Flexible: mobile or stationary use
• Cost effective: cuttings collected during trimming
Eazy Battery 2.0 lectric Power System
A quieter, zero-emission power option for EazyCut 1200 and 1600 models. The 48V lithium battery delivers up to 50 minutes runtime, with quick charging and easy swap-over for continuous use. Designed for improved balance, reduced noise and cleaner operation.
FEATURES
Cleaner: zero exhaust emissions
Quieter: low noise operation
• Flexible: fits EazyCut 1200 & 1600 Efficient: quick-charge and swap batteries
• Balanced: improved weight distribution Practical: upports all-day operation
Venti V003 / V004
Nursery Trimmer
A high-performance trimming system combining precision cutting with powerful vacuum collection. Designed for nurseries, it delivers clean, consistent results across trays, young plants and mature crops, with adjustable settings for maximum flexibility.
FEATURES
Faster: high-speed trimming with strong vacuum
• Smarter: keeps crops clean to reduce disease risk
Flexible: suits trays, young and mature plants
• Adjustable: control airflow, speed and height Efficient: up to 700 trays per hour
• Mobile: easy to move and position
Venti V005
Nursery Trimmer
A versatile trimming system designed to improve crop development through precise pinching, with strong vacuum collection for clean results. Suitable for indoor and field use, it handles trays, young plants and mature crops with adjustable settings for efficient operation.
FEATURES
Faster: high-speed trimming with strong vacuum
• Smarter: keeps crops clean to reduce disease risk
Flexible: indoor and field use
Adjustable: control airflow, speed and height
• Efficient: up to 700 trays per hour
Practical: separate collection bin for easy handling
Venti V006
Table Trimmer
A stationary trimming system designed for greenhouse use, ideal for pruning shrubs on mobile tables. Delivers precise, high-quality cuts with integrated vacuum collection, lifting branches before trimming for a clean, consistent finish.
FEATURES
Faster: high-speed trimming with strong vacuum
Smarter: lifts branches for cleaner, accurate cuts
• Clean: cuttings collected and suitable for reuse
Flexible: works with mobile table systems
• Adjustable: electric blade height and setup
Efficient: up to 350 tables per hour
Venti V008
Field Combi –
Modular Trimmer
A versatile trimming system designed for both field and indoor use, with modular frames to suit different applications. Combines precision cutting with strong vacuum collection for clean, consistent results across young and mature plants.
FEATURES
Faster: high-speed trimming with strong vacuum
• Smarter: keeps crops clean to reduce disease risk
Flexible: field or indoor frame options
• Modular: adaptable setup for multiple uses
Adjustable: control height, airflow and speed
• Efficient: covers large areas quickly
NURSERY AUTOMATION
Venti SBO 50 / 70 Conveyor Pot Trimmer
A flexible trimming system designed for onveyor belts, with strong vacuum collection into a box for clean, undamaged cuttings. Available in multiple widths to suit trays, tables and beds, delivering efficient, consistent results across young and mature plants.
FEATURES
Faster: high-speed trimming with strong vacuum
• Lighter: easy to adjust and position
Smarter: keeps crops clean to reduce disease risk
Flexible: suits trays, tables and conveyor systems
• Efficient: cuttings collected cleanly in box
Adjustable: variable height and sizing options
RAP 10
Field Trimmer
A compact, entry-level field trimmer designed for shaping small shrubs with speed and consistency. Easy to transport and operate, it delivers adjustable form trimming from 15–55cm, making it ideal for small fields and lower-growing plants.
FEATURES
Faster: high-speed rotating knives for quick output
Smarter: adjustable diameter for precise shaping
• Lighter: compact frame, easy to move and transport
Flexible: trims round and shaped forms
• Efficient: up to 600 plants per hour
Cost effective: low running and maintenance costs
RAP 205
Field Trimmer
A high-performance field trimmer designed for medium-sized operations, offering adjustable width and a sliding inner frame for flexible use across a wide range of nursery setups. Ideal for consistent, efficient form trimming of larger plants and pots.
FEATURES
Faster: high-speed rotating knives for strong output
• Smarter: adjustable diameter for precise shaping
Flexible: adjustable frame and sliding inner system
• Versatile: suits a wide range of nursery setups
Durable: built for regular field use
• Efficient: ideal for medium-scale operations
RAP 206 Field Shape Trimmer
A fully hydraulic, high-end shape trimmer designed for large shrubs and shrubs on stems. Features an integrated gripper system for precise control, delivering consistent shaping with strong performance in field conditions.
FEATURES
• Faster: high-speed rotating knives for strong output
Smarter: adjustable diameter for precise shaping
• Hydraulic: full hydraulic drive and traction
Controlled: integrated gripper for shrubs on stem
• Versatile: suited for large shrubs and advanced shaping
Durable: built for demanding field use
RAP XRL
A high-capacity automatic trimmer built for medium-sized pots and shrubs, delivering fast, consistent shaping with minimal labour. Features an integrated three-belt system and RAP knife technology for efficient, high-speed operation across greenhouse environments.
FEATURES
Faster: high-speed trimming up to 1,000 pots/hour
Smarter: adjustable diameter with RAP knife system
Lighter: aluminium frame with easy mobility
Automated: integrated three-belt system for flow
• Efficient: simple loading with plant forks Flexible: suits a range of pot sizes and shapes
• Cost effective: reduces labour and improves output
LANZ Single / Double Flexible System Trimmer
A highly flexible, entry-level trimming system designed for efficient shaping of small to medium batches. Available in single or double configurations, it delivers consistent results with fast output and easy adjustment for different plant shapes.
FEATURES
Faster: high-speed trimming up to 600 pots/hour
• Smarter: adjustable shape with one knife system
Lighter: easy to move across beds or work areas
• Flexible: single or double system options
Consistent: uniform trimming profile every time
• Efficient: ideal for smaller lot sizes and varied work
LANZ Multi Automated Trimming
System
A fully automated, high-capacity trimming system designed for fast, precise shaping across a wide range of plants. Configurable with multiple stations, it integrates easily with existing conveyor systems to deliver consistent, high-speed results.
FEATURES
Faster: trims up to 3,000 pots/hour
• Smarter: adjustable diameter with one knife system
Flexible: 2–4 station configurations available
• Automated: integrates with transport belts
Versatile: suits shrubs, topiary and conical shapes
• Efficient: consistent, high-quality finish at scale
LANZ BF01
Automatic Form Trimmer
A cost-effective automatic trimmer with conveyor belt system, designed for shaping shrubs and plants on stem. Handles ball and cone forms from 10–60cm, delivering consistent, igh-speed results with adjustable settings for optimal performance.
FEATURES
Faster: trims up to 1,500 pots/hour
Smarter: adjustable diameter and shape control
Flexible: suits balls, cones and stem plants
• Automated: conveyor belt for continuous flow
Efficient: blower lifts branches for clean cuts
• Cost effective: low investment, high output
Doing our bit to help out.
Driven by our core value of generosity, we’re striving for a safer, healthier, greener world – one humble act at a time.
Voluntary Planting Days. Starship Foundation. Rapid Relief Team.
Northland Rescue Helicopter. Ronald McDonald House. Local Fire Brigades.
Our values Support your success
OUR VALUES. OUR CULTURE. At Transplant Systems, an extensive product range is just the beginning. We’ve gathered some of the best people in our field. Together as a team, we are united by a strong set of values and a commitment to your success.
Integrity Good character, driven by honesty.
Team Spirit On the same team, working alongside you.
Focus
Practical decisions that boost productivity.
Service
Loyal to your success, it’s ours too.
Generosity
Sharing knowledge and success.
Communication
Responsive, clear and easy to deal with.
CONTACT US TODAY. Nursery trays & general enquiries: Ernie Wearmouth ernie@primehort.com.au
Nursery automation: Joel Wearmouth joel@primehort.com.au
Customer service: AUS 03 9769 9733
NZ +64 9 431 1000 sales@primehort.com.au
We look forward to working alongside growers as PrimeHort continues the Transplant Systems story.
