MOWERSSAMASZ Best quality Best value Best warranty Buy direct & save New products released Spare parts - fully stocked FARMSHOP DIRECT IMPORTS IN-STOCK NOW... EY ARWARRAN EYYT ARWARRAN YT WE CARRY A FULL INVENTORY OF GENUINE SAMASZ PARTS 1 Valid 1st Sep - 31st Dec 2022. Subject to Farmshop Terms & Conditions. Prices exclude GST. Information is correct at time of printing. While stocks last. LAST2021SEASONSTOCKRUNOUTSALE See page 2 for details 2022MASZaS sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz / 2168 State Highway 1, Kaiwaka, New Zealand. Purchase a SaMASZ Mower before November 30 and get up to $1000 worth of spare parts FREE* * Includes; Set of blades, 1 complete quick change module, 1 x keyway breakaway, set of knife holders, pins + nuts - excludes 2021 stock sale mowers. SPECIAL OFFER EY ARWARRAN EYYT ARWARRAN YT

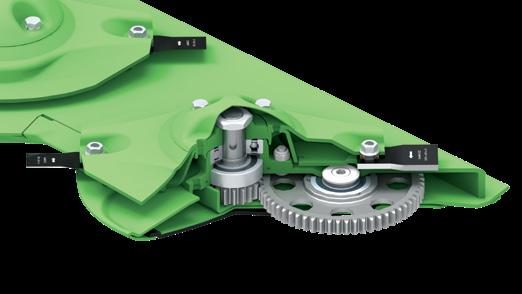

Tough By Design • robust, strong and durable • fully welded • thick, 6 mm / 15/64’’ steel shell Hardened knife holder pins • long service life • easy to replace • thick, 6 mm / 15/64’’ steel shell Hardened discs • special shape improves smooth crop flow and reduces workload • high abrasion and wear resistance, • easy to replace 25 mm / 1’’ thick spur gears • protected with system • higher abrasion resistance ensure accurate power transfer perfect 4 tooth fitting low-noise operation low-noise, sealed 2RS bearings 360° Replaceable inserts • additional cutterbar protection Quick Changesystemmodule • additional protection for gears inside the cutterbar • strong, sealed bearings • quick and easy module replacement even in the field • reusable after key replacement Keyway Breakaway • Protection system • Safety feature Hardened sliding plate • additionally pressed plates are tougher • protects the slide against the wear • exchangeable with topping plates/double topping plates quick and easy replacement Hardened slides • bottom protection of the cutterbar • the body of the bar does not have contact with the ground • reduce work resistance force • cleaner fodder thanks to streamlined shape of the disc levermountingKnife • quick and easy replacementknife Topping plates (option) • rise of cutting height, 9 / 12 cm / 4’’ (double plate) • hardened, made of high class steel • quick and easy replacement • used instead of sliding plate Hardened knives (L=110 mm / 4 9/64’’) • Quick knife replacement with special mounting lever Central knife holder • improved shape of the holder enables thorough cleaning of the cutterbar made of high quality hardened steel 360* range of rotation quick and easy replacement Superior Cutter Bar, Tough by Design Maximising farm yields & reducing downtime / sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz2 SaMASZ Rear Direct Gear Driven Disc Mowers MODEL KT261 KT301 KT301S Working width m 3.00 3.00 3.00 LAST SEASON PRICE (ex GST) $23,700.00 $26,600.00 $35,995.00 Only 1 Available Only 1 Available Only 1 Available SaMASZ Basket Rake TWIST 600 Working width m 6.00 LAST SEASON PRICE (ex GST) $29,600.00 / Only 2 Available SaMASZ Double Rotor Rake - Z2-840 Working width m 8.40 LAST SEASON PRICE (ex GST) $46,350.00 / Only 1 Available SaMASZ Belt Driven Mower - KDT300 Working width m 3.00 LAST SEASON PRICE (ex GST) $22,995.00 / Only 3 Available LAST SEASON STOCK RUN OUT SALE Self Cleaning
Maximising farm yields & reducing downtime / sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz 3 Bevel gears • low-noise and stable operation Vertical drive shaft • made of high-class steel • supported in 5 bearing points - high stability even in most demanding conditions Sliding disc • strong and durable design - 5 mm thick • made of wear and abrasion resistant steel Cutting height adjustment • with distance rings (optional extra) 2 double-row ball bearings • durability and extended life Knife holder and knives straight knife: • Z 010, Z 010/1 and Z 010/2- 102 mm • made of hardened steel • quick knife replacement • additional knife holder mounting holes Mowing drum section overview EY ARWARRAN EYYT YT 2022 TECHNICAL DETAILS XT 390 Working width [m / ft] 3,90 / 12’1” Transport width / height [m / ft] 2,60 // 8’6” / 13’ Swath width [m / ft] 2,40 - 2,65 / 7’10” - 8’8” Necessary hydraulic couplers 1 x double acting Working capacity [ha/h / ac/h] ~ 4,50 / ~ 11,00 Number of discs [pcs.] Number of knives [pcs.] 9 / 18 Power demand [HP] 1000 3 point hitch cat. II/III Weight [kg ] 1290 PTO shaft tractor - mower: with overrunning clutch + friction; built-in: no clutch Single rubber swath guide [pcs.] 1 RRP (ex GST) $36,995.00 NEW PRODUCT SCAN THE CODE TO SEE IT IN ACTION • High level of ground following: + / - 24 degrees Central Suspension Mower XT390 With a 3.9 metre cutting width! Rear Drum Mowers Z 010/2 Drum mowers 1.65m (5’5’’) to 2.1 Tough, resistant gearbox is the most essential part of all Samasz mowers. Special mowing drums transport cut material and lay it down into a smooth swath. • With Hydraulic folding system • Solid and tough design • Additional knives and mounting lever TECHNICAL DETAILS Z 010/2 Working width [m / ft] 2,10 / 6’11” Swath width [m / ft] 0,90 / 2’11” Working capacity [ha/h / ac/h] ~ 2,50 / 6,2 Number of knives [pcs.] 8 Power demand [HP] from 70 RPM 540 Dimensions w / l / h [ft] 13,45 / 5,75 / 3,50 Weight [kg / lbs] 555 / 1225 RRP (ex GST) $15,995.00 SCAN THE CODE TO SEE IT IN ACTION EY ARWARRAN EYYT ARWARRAN YT EY ARWARRAN EYYT ARWARRAN YT EY ARWARRAN EYYT ARWARRAN YT SPECIAL OFFER FARMSHOP DIRECT IMPORTSAvailable*FINANCE SPECIAL OFFER PURCHASE A SAMASZ MOWER BEFORE NOVEMBER 30 GET UP TO $1000 WORTH OF SPARE PARTS FREE*

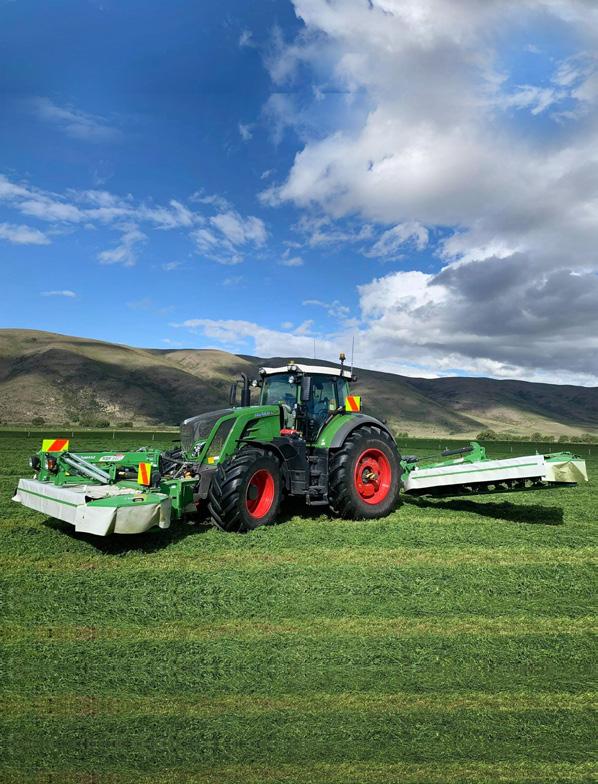

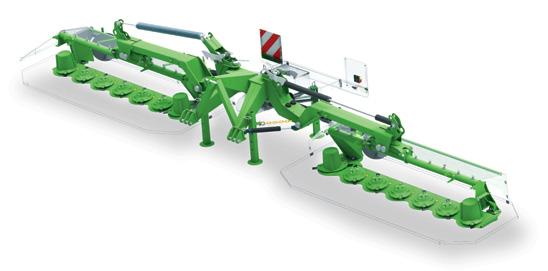

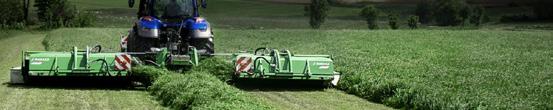

Maximising farm yields & reducing downtime / sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz4 4 support legs • support legs enable parking of the machine in transport position • saves space considerably KENNFIX hydraulic connector Cutterbar Central suspension • work unit located in the center of gravityeven support across the whole cutterbar width, • perfect ground following enabling work on uneven ground. Ground pressure relief system • adjustable work unit supporthigh level of ground following, • spring-type as standard, • hydropneumatic type (option) Safety guard • lifted for easier maintenance • safety curtainprotects against stones • resistant to weather conditions • lifted side guard decreases transport height Warning plates with rear road lights • standard MegaCUT Double Rear Mower KDD 941, KDD941S Centre hung, contour following, gear driven The MegaCUT set of mowers, is the perfect solution for large farms and contractors who value their time and money. Thanks to their high productivity and working width, cutting of large areas does not take a great deal of time. 2022 TECHNICAL DETAILS KDD 941 KDD 941 S Conditioner Mower Working width [m / ft] 9,40 / 30’10” 9,40 / 30’10” Transport width / height [m / ft] 3,00 / 4,00 // 9’8’’ / 13’2’’ 3,00 / 3,95 // 9’8’’ / 13’ Swath width [m / ft] 2 x 2,30 - 2,70 / 2 x 7’7” - 8’10” 2 x 2,30 - 2,70 // 2 x 7’7’’ - 8’1’’ Necessary hydraulic couplers 3 x single acting (with panel 1 x single acting) Working capacity [ha/h / ac/h] ~ 11,00 / 27,00 ~ 11,00 / 27,00 Number of discs [pcs.] / Number of knives [pcs.] 16 / 32 16 / 32 RPM 1000 3-point hitch cat. III Power demand [HP]* from 140 from 180 Weight [kg / lbs] - Weight with „H” [kg / lbs] 2290 / 5050 - 2190 / 4830 3120 / 2950 // 6880 / 6500 PTO shaft tractor - mower: no clutch, built-in: with overrunning friction clutch RRP (EX GST) $73,400.00 $106,500.00 SCAN THE CODE TO SEE IT IN ACTION FARMSHOP DIRECT IMPORTSAvailable*FINANCE EY ARWARRAN EYYT YT * S = Conditioner Mower EY ARWARRAN EYYT YT SPECIAL OFFER PURCHASE A SAMASZ MOWER BEFORE NOVEMBER 30 GET UP TO $1000 WORTH OF SPARE PARTS FREE*

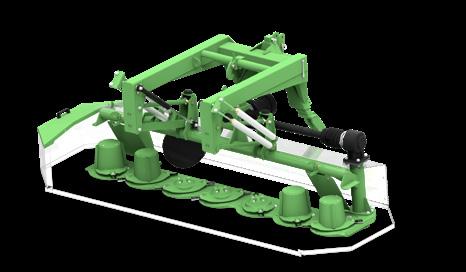

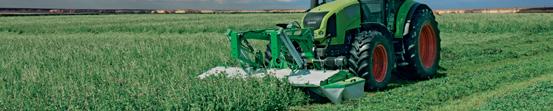

TECHNICAL DETAILS KDF 300 KDF CONDITIONER301S* Working width [m / ft] 3,00 / 9’10” 3,00 / 9’10” Transport width [m / ft] 3,00 / 9’10” 3,00 / 9’10”” Swath width [m / ft] ~ 1,30 - 1,50 / ~ 4’4” - 4’11” ~ 1,20 - 2,00 / ~ 4’11” - 6’7” Necessary hydraulic couplers 1 x single acting Working capacity [ha/h / ac/h] ~ 3,50 / 8,70 ~ 3,50 / 8,70 Number of discs [pcs.] / Number of knives [pcs.] 7 / 14 7 / 14 RPM 1000 3-point hitch cat. II Power demand [HP] from 80 from 100 Weight [kg / lbs] 940 / 2075 1260 / 2775 RRP (EX GST) $32,720.00 $35,440.00 2022 FARMSHOP DIRECT IMPORTSAvailable*FINANCE Good alternative to rear mowers, with better visibility during operation and transport. Extended frame and coil springs of long travel enable very good ground following and proper ground pressure. Can be successfully combined, with KDD rear unit, making a very economic set. Support springs • even support across the whole working width - regulated pressure on the ground • lesser resistance during work even with high velocity - turf protection and cleaner fodder Pull-type hitch • the highest range of ground following in 3-dimensions according to German agricultural magazine PROFI (PROFI - Test 01/2017) • mechanic transport lock • mounted on front 3-point linkage triangle: tractor’s triangle in standard equipment Rubber swath guides • easier swath forming between tractor wheels - cleaner fodder, • swath width adjustment as needed Safety guard • lifted for easier maintenance • safety curtain - protects against stones • resistant to weather conditions • lifted side guard decreases transport height Intersecting axis gear • drive transmission through PTO shafts, • change of rpm direction by rotating main gearbox 180º, • low-noise operation Front Contour Following Disc Mower KDF 300, KDF 301 S EY ARWARRAN EYYT ARWARRAN YT Maximising farm yields & reducing downtime / sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz 5 EY ARWARRAN EYYT ARWARRAN YT * S = Conditioner EY ARWARRAN EYYT YT SPECIAL OFFER PURCHASE A SAMASZ MOWER BEFORE NOVEMBER 30 GET UP TO $1000 WORTH OF SPARE PARTS FREE*

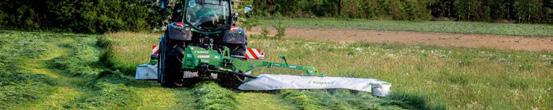

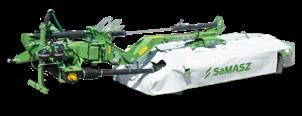

Maximising farm yields & reducing downtime / sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz6 2022 FARMSHOP DIRECT IMPORTSAvailable*FINANCE Rear Direct Gear Driven Disc Mowers KT 261, KT 301, KT 301(S), KT 341, KT 341(H) Centre hung, contour following, direct gear driven, rear disc mowers Quick change blades All Models TECHNICAL DETAILS KT 261 KT 301 KT 341 KT 301 S Conditioner Mower KT341H Working width [m / ft] 2,60 / 8’7” 3,00 / 9’10” 3,40 / 11’2” 3,00 / 9’10” 3,40 / 11’2” Transport width / height [m / ft] 2,00 / 6’7’’/10’2’’3,10 2,00 / 6’7’’/11’6’’3,50 2,00 / 6’7’’/13’8’’4,20 2,00 / 6’7’’/11’6’’3,50 2,00 / 6’7’’/13’8’’4,20 Swath width [m / ft] 1,50 - 1,90 / 4’11” - 6’4” 1,90 - 2,30 / 6’4’’ - 7’7’’ 2,30 - 2,80 / 7’7’’ - 9’2’’ 1,90 - 2,30 / 6’4’’ - 7’7’’ 2,30 - 2,80 / 7’7’’ - 9’2’’ Necessary hydraulic couplers 2 x single action + 1 x double action Working capacity [ha/h / ac/h] ~ 2,80 / ~ 7,00 ~ 3,50 / ~ 8,70 ~ 4,00 /~ 10,00 ~ 3,50 / ~ 8,70 ~ 4,00 /~ 10,00 Number of discs [pcs.] / Number of knives [pcs.] 6 / 12 7 / 14 8 / 16 7 / 14 8 / 16 RPM 540 (1000 - option) 1000 1000 3-point hitch cat. II Power demand [HP] from 70 from 80 from 90 from 100 from 90 Weight [kg / lbs] 1000 / 2205 1060 / 2335 1130 / 2490 1350 / 2975 1130 / 2490 Weight with “H” [kg / lbs] 955 / 2105 1015 / 2235 1090 / 2405 1420 / 1310 3130 / 2890 1090 / 2405 PTO shaft tractor - mower: with friction overrunning clutch, built in: no clutch Single rubber swath guide [pcs.] 1 2 Metal swath guides in conditioner RRP (EX GST) $27,500.00 $31,400.00 $33,300.00 $40,010.00 $35,250.00 Belt Driven Rear Disc Mowers KDT 260, 300 KDT is the most frequently purchased range from SaMASZ offer.TECHNICAL DETAILS KDT 260 KDT 300 Working width [m / ft] 2,60 / 8’7” 3,00 / 9’10” Transport width / height [m / ft] 2,15 / 3,40 7’1’’/11’2’’ 2,15 / 3,75 7’1’’/12’3’’ Swath width [m / ft] 1,20 - 1,80 / 3’11” - 5’11” 1,30 - 1,90 / 4’4” / 6’3” Necessary hydraulic couplers 1 x single acting Working capacity [ha/h / ac/h] ~ 3,00 / ~ 7,40 ~ 3,50 / ~ 8,70 Number of discs [pcs.] / Number of knives [pcs.] 6 / 12 7 / 14 RPM 540 3-point hitch cat. II Power demand [HP] from 70 from 80 Weight [kg / lbs] 725 / 1600 785 / 1730 PTO shaft tractor - mower: with overrunning clutch Single rubber swath guide [pcs.] 1 Double rubber swath guide [pcs.] 1 2 RRP (EX GST) $28,125.00 $28,800.00 SCAN THE CODE TO SEE IT IN ACTION One of the most frequently purchased mowers from the SaMASZ range. SCAN THE CODE TO SEE IT IN ACTIONEY ARWARRAN EYYT YT EY ARWARRAN EYYT ARWARRAN YT * S = Conditioner * H = Hydropneumatic suspension EY ARWARRAN EYYT YT SPECIAL OFFER PURCHASE A SAMASZ MOWER BEFORE NOVEMBER 30 GET UP TO $1000 WORTH OF SPARE PARTS FREE*

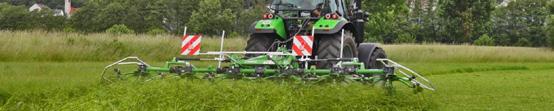

Maximising farm yields & reducing downtime / sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz 7 FARMSHOP DIRECT IMPORTSAvailable*FINANCE 2022 Indent in June for a Spring Delivery!! Rotary Tedder 6.5 metre TECHNICAL DETAILS P6 - 651 Working width [m / ft] 7,00 / 21’4” Transport width / height [m / ft] 3,00 / 3,60 // 9’8’’ / 11’8” Number of rotors [pcs.] 6 Necessary hydraulic couplers 1 x double acting Working capacity [ha/h / ac/h] ~ 7,80 / 19,30 Number of arms [pcs.] 6 Rotor diameter [cm / ft] 160 / 5’3’’ RPM 540 3-point hitch cat. II Power demand [HP] from 50 Tires (with inner tubes) 16 x 6,5-8 Weight [kg / lbs] 915 / 2020 PTO shaft tractor - tedder: with friction clutch PRICE (ex GST) $32,200.00 SCANCODETHE TO SEE IT IN ACTION TECHNICAL DETAILS Z - 470 Working width [m / ft] 4,70 / 15’5” Windrow width [m / ft] Transport width [m / ft] 3,80 / 12’8” Transport width without arms [m / ft] 2,30 / 7’7” Working capacity [ha/h / ac/h] ~ 5,60 / 14,00 Number of arms [pcs.] 13 Rotor diameter with arms [m / ft] 3,80 / 12’8” Number of tines [pcs./arm] 4 3-pointRPM*hitch cat. II Power demand [HP] from 50 Tires (with inner tubes) Weight [kg / lbs] 820 / 1810 PTO shaft RRP (EX GST) $23,070.00 TECHNICAL DETAILS Z 2 - 840 Working width [m / ft] 7,60 – 8,40 / 24’11’’-27’7’’ Windrow width [m / ft] 1,20 - 2,00 / 3’11’’-6’7’’ Transport width / height [m / ft] 3,00 / 3,75 // 9’8”/ 12’3’’ Working capacity [ha/h / ac/h] ~ 9,00 / 22,00 Number of arms per rotor [pcs.] 11 Number of dismountable arms per rotor for transport pcs.] 4 RPM* 540 Power demand [HP] from 80 Tires (with inner tubes) 16 x 6,5 - 8 / 340/55-16 Weight [kg / lbs] 2330 / 5130 RRP (EX GST) $61,800.00 Double Rotor Rake Z2-840Single Rotor Rake Z-470 TOSCANTHECODESEEITINACTION TOSCANTHECODESEEITINACTION TECHNICAL DETAILS TWIST 600 Working width [m / ft] 6,00 / 19’ 9’’ Windrow width [m / ft] 1,30 / 4’ 4’’ Transport width [m / ft] 2,35 / 7’7’’ Transport height [m / ft] 3,50 / 11’5” Necessary hydraulic couplers 2 x double acting Working capacity [ha/h / ac/h] 6,00 / 15,00 Working drums [pcs.] 2 Raking bar [pcs.] 5 Number of tines [pcs.] 18 Tires (with inner tubes) [pcs.] 15x6,5 Drive type Hydraulic Pump capacity [l/min] 30 / 7 Nominal pressure [bar / MPa] 160 / 16 Weight [kg / lbs] 770 / 1700 RRP (EX GST) $37,000.00 Basket Rake TWIST 600 Bale and rake in one pass! TWIST 600 is a center delivery rake designed for a fast, efficient and clean raking of forage. It can be mounted to the front or rear of the tractor. With front mounting, you can simultaneously rake and work, e.g. with a baler. The rake consists of two working systems driven by tractor’s hydraulics using hydraulic motors. The machine does not need the tractor’s PTO shaft for operation. The rake has low weight in comparison to its extensive working width. SCAN THE CODE TO SEE IT IN ACTION High purity of the collected fodder assures satisfaction. EY ARWARRAN EYYT ARWARRAN YT EY ARWARRAN EYYT ARWARRAN YT EY ARWARRAN EYYT ARWARRAN YT

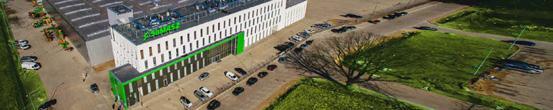

360˚ 5 Reasons to choose a SaMASZ mower... Eliminate Striping with Excellent Blade Overlap. Thickercutterbar,PerfectCUTwithGears. 23 Enjoy the benefits of the SaMASZ 2 Year Warranty: 1 Quickchange modules and blades = Zero downtime. Direct Import - up to 50% cost benefit on initial purchase and parts. 4 5 EY ARWARRAN EYYT ARWARRAN YT EY ARWARRAN EYYT ARWARRAN YT 2022 FARMSHOP DIRECT IMPORTSAvailable*FINANCE • SaMASZ held a Guinness World Record for the largest area of grass mowed by a triple-disc mower in acres).(237hours8 • The plant is about the size of 4 ½ rugby fields. • They iswhereofentire(more1000+employworkersthanthepopulationKaiwakaFarmShopbased) • 36,188 2022).(assincebeenmowersdischaveproduced1984at27July • The 2021.mowersreleasedfactory4,087in • SaMASZ are active in 50+ (andworldwidemarketsgrowing). 36,188 4,087 50+1,000+X 4.5237 acres SaMASZ in numbers:SaMASZ... by the numbers SaMASZ HQ in Northern Poland Vs FarmShop Facilities in Kaiwaka, Northland. SaMASZ plant is 3.4 hectares & employs 1000+ staff (more than the entire population of Kaiwaka). 8 Valid 1st Sep - 31st Dec 2022. Subject to Farmshop Terms & Conditions. Prices exclude GST. Information is correct at time of printing. While stocks last. sales@farmshop.co.nz / 0800 00 22 09 / www.farmshop.co.nz / 2168 State Highway 1, Kaiwaka, New Zealand.
