Ninfa 50-N, the compact glass railing ideal for walls

Ninfa 50-N on wall, residential balcony, corten effect finish

WHY NINFA 50-N

The ideal profile for walls

ADVANTAGES:

1. Profile only, no casing

2. Fast assembly in 3 moves

3. Passes the static load tests required by regulations

Faraone informs Ninfa

INTENDED USE

RESIDENTIAL

- private home

- indoor/outdoor

HOSPITALITY

- hotels - restaurants - chalets

CONDOMINIUMS

- balconies - terraces

TYPES OF ASSEMBLY

Faraone

With fall into the void

NINFA 50-N

The NINFA 50-N glass balustrade is the new technology from Faraone, ideal for residential and wall installations. It passes all static load tests required by regulations.

TECHNICAL SPECIFICATIONS:

- Glass thickness: single pane thickness 8.8.

- Glass height: max. 600 mm from wall

For uncrowded environments: category C2 -> 200 kg/m (tested at 300 kg/m)

SINGLE PROFILE, WITHOUT CASING

50-N

TECHNICAL DETAILS

This datasheet has the complete list of main components.

Unlike the other profiles in the Ninfa 6 series, the Ninfa 50-N profile does not use the RS system for to adjust the glass, but rather a register with a polycarbonate presser.

N50: (Ninfa 50-N profile)

N6-REG10: L-shaped glass-holding plastic (4/metre pieces)

M13-AR/G-2: Rubber washer, 2 per fastening (10 pieces per metre)

N6-REG11: Presser (4 pieces per metre)

N6-G1: External threaded gasket (TPV black)

BF-05: Internal pressure gasket (TPV black)

M13-AC-11: Galvanised rod M8x130 including nut and flat washer (5 pieces per metre)

Ninfa 50-N on residential balcony wall, external view

Ninfa 50-N on residential balcony wall, internal view

Faraone informs Ninfa 50-N

Ninfa 50-N, terrace interal view

Ninfa 50-N, terrace external view

SYSTEMS TESTED EXTENSIVELY FOR YOUR SAFETY

We carry out rigorous strength tests for all balustrade models. Static load and impact tests required by regulations to ensure maximum safety.

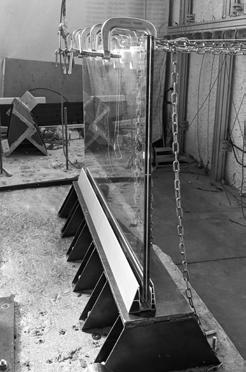

Testing at the Faraone laboratory 1 2 Test at the Politecnico di Milano

Every product begins passing through laboratory tests.

During the development process, Ninfa 50-N also underwent several tests in the Faraone LAB.

Having passed the tests at Faraone, certificates were also obtained at the Politecnico di Milano.

INDICATED HARDENED-INDURITE GLASS: cat C2 static load resistance of 200 kg/m + 50% (safety factor)

h 600 mm / 8+8+1,52 PVB/EVA

Ninfa 50-N on wall, terrace for a public facility
