AIRPORTS AS LIMINAL SPACES KING HUSSAIN TERMINAL RE-DESIGN DESIGN 6 SECOND PROJECT PROPOSAL By : Farah Othman Nsour 0191855

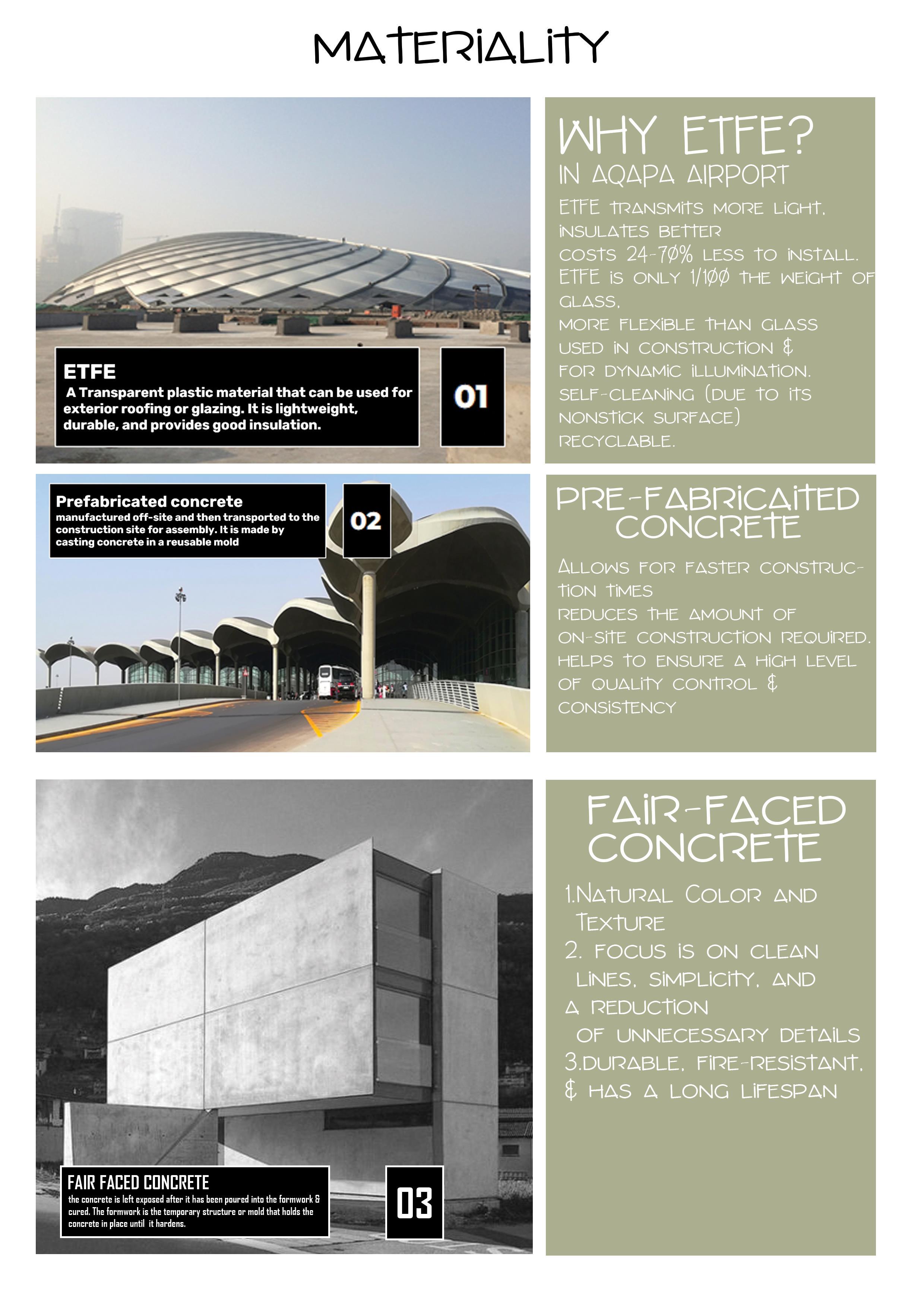

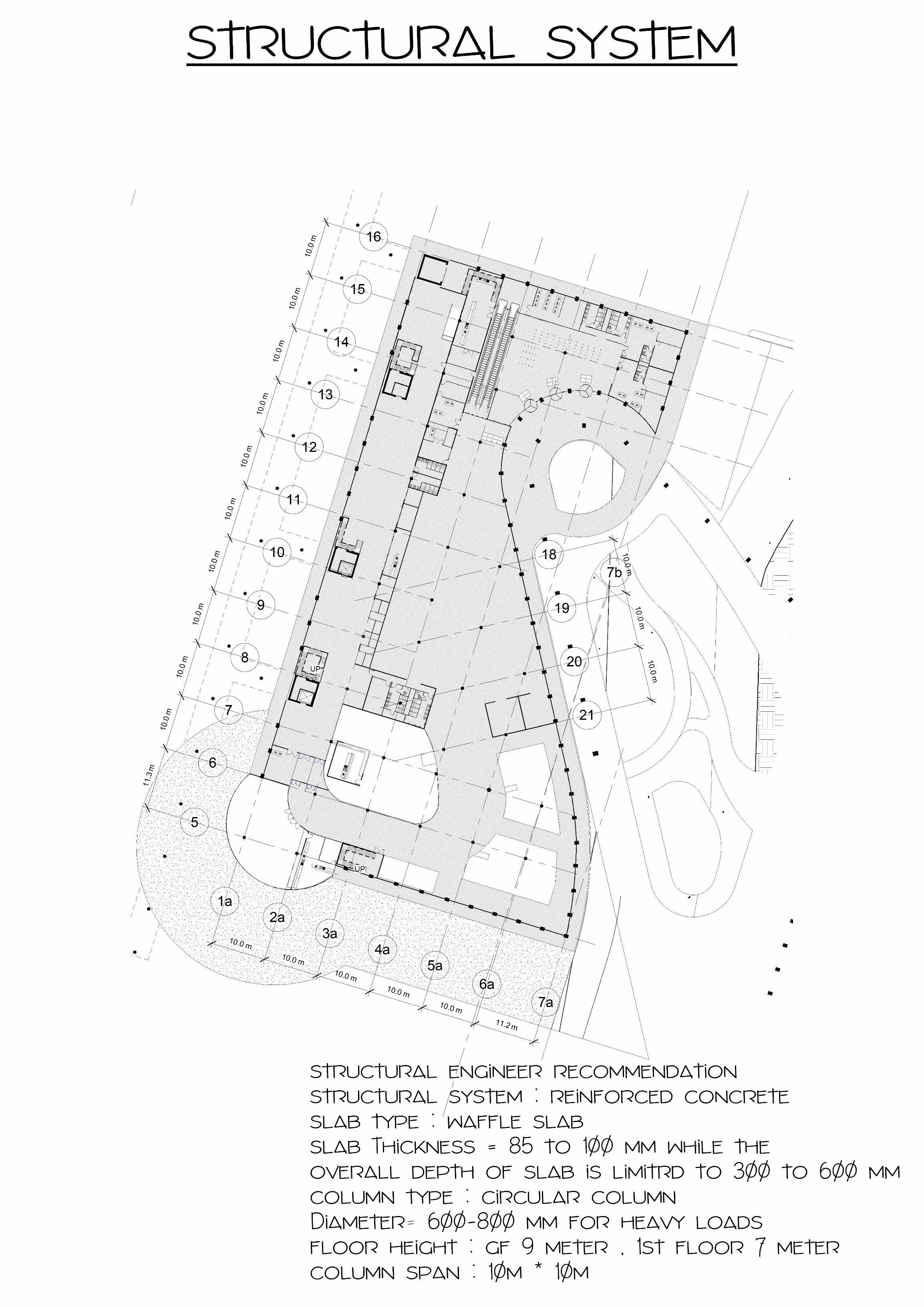

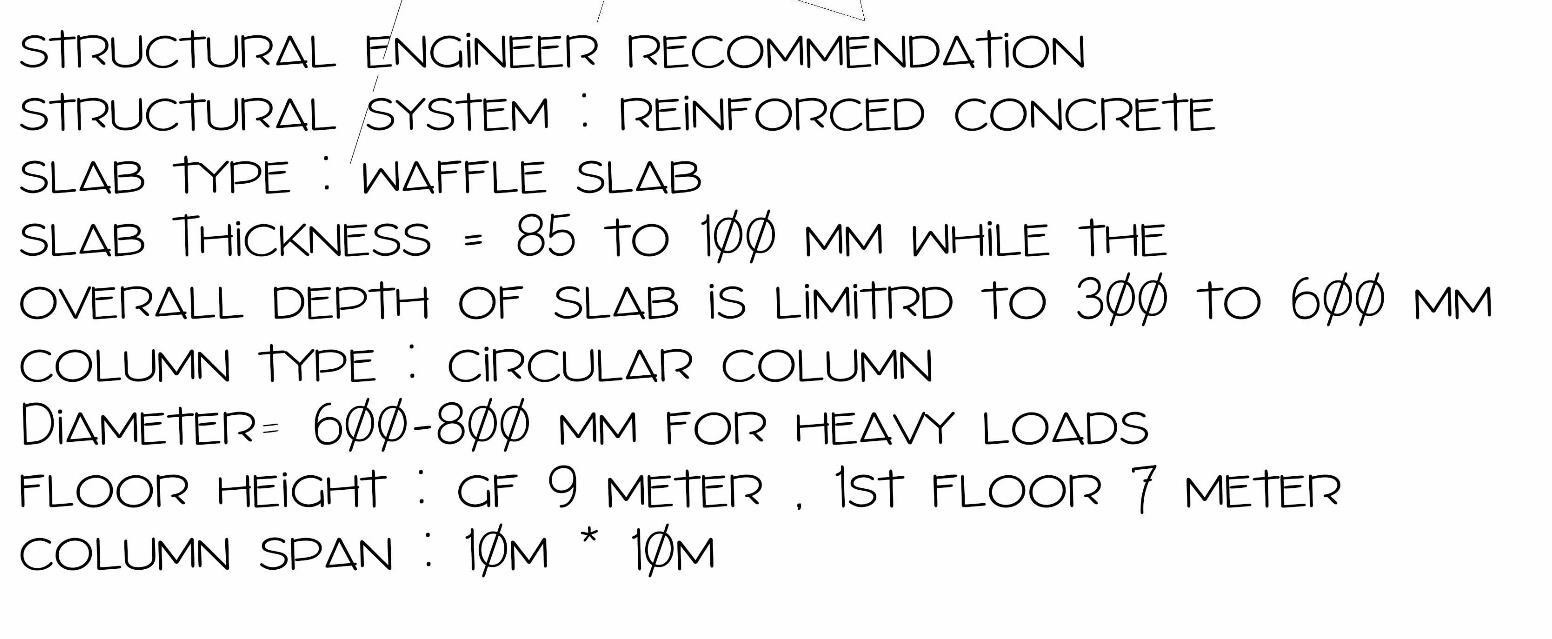

Table of content 1. Site analysis conclusion 2. Standards & guidelines conclusion 3. Study cases conclusion 4. structural system & materiality

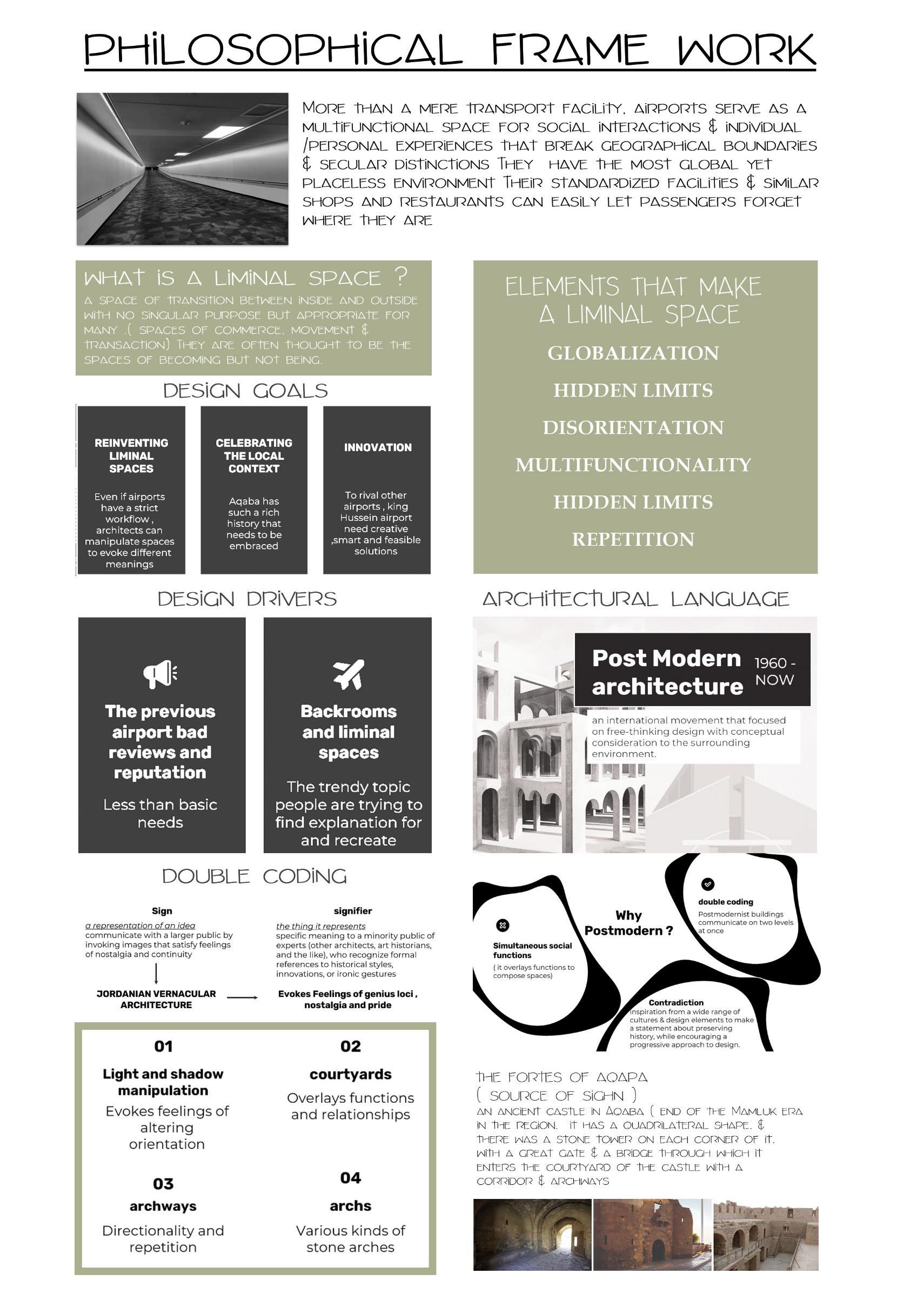

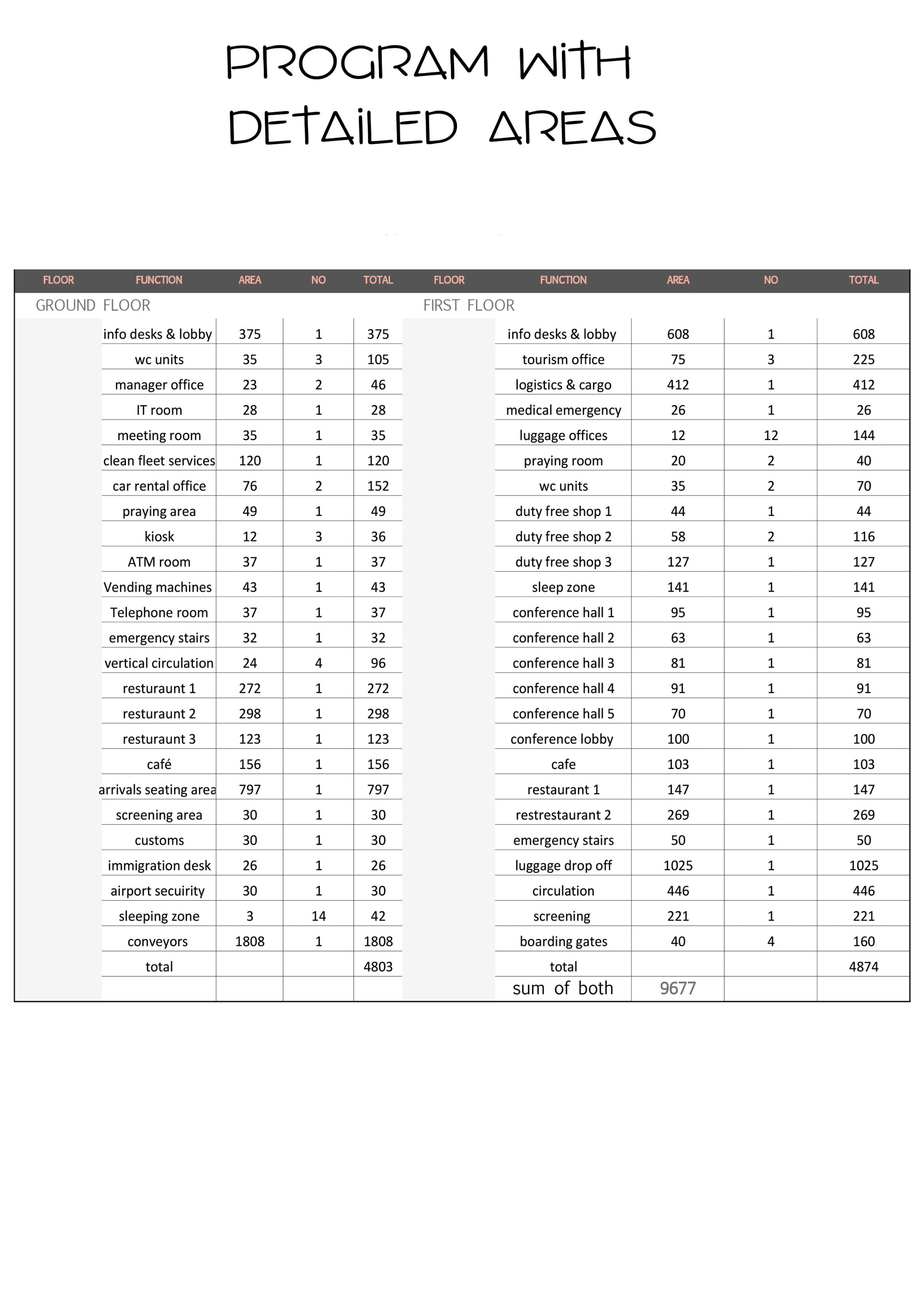

5.philosophical framework 6.Design approach 7.Project programme 8.Design morphology 9.Technical drawings 10.3d shots

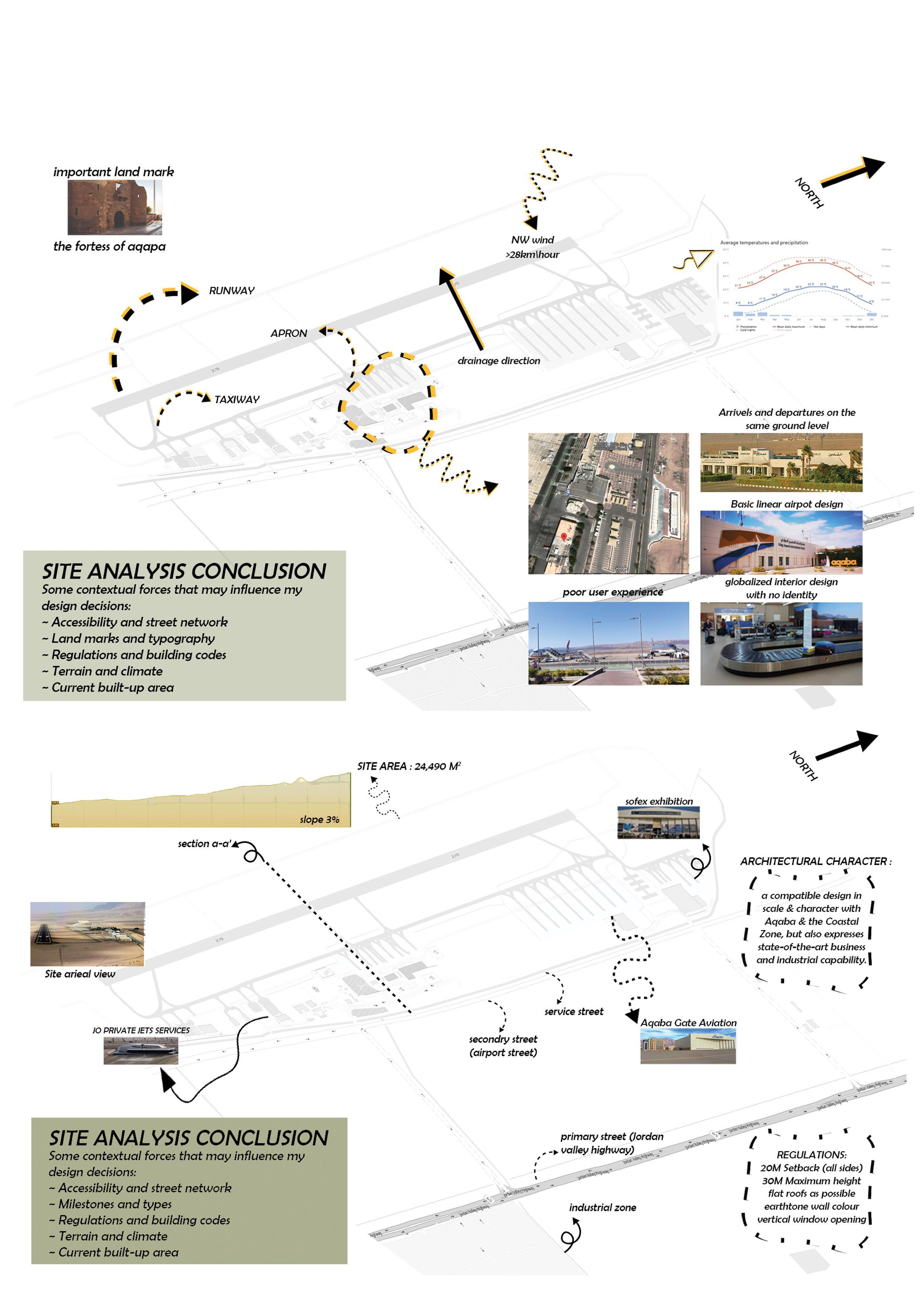

Site analysis

Standards & guide lines small airport components

Operational Performance evaluation

Capacity

the capability of accommodating future activity levels

This figure contains the facilities required to accommodate airside , landside and terminal components and their relations with the users circulation Source : Airport Engineering, Design, & Construction. (n.d.). Federal Aviation Administration. https://www.faa.gov/airports/engineering

Baggage handling system

square footage for major functional elements •such as ticket counter/kiosk areas, security screening checkpoints, aircraft gates and holdroom/departure lounges, concessions, airline operations, baggage makeup, baggage claim

capability

efficiency

meeting specific functional objectives

how well the alternatives work as a system by examining combined alternative elements

Productive passenger wait time strategies

Access to airport facilities and circulation flow

•As it may improve the passenger experience and perceptions of convenience.

Amenities should be shown as appropriate to a level of detail to determine rough blocked-out areas for these functions

•evaluate parking , curbside capacity and designated areas for travelers waiting for their next mode of transportation. Access to shuttles, buses, trains, and automated people movers

Terminal section selection Double level terminals with elevated access road This type of circulation concept is used in large terminals alse, and provides two-level design as well.

It it used to separate access and exit points of departures and arrivals.

Security system

●

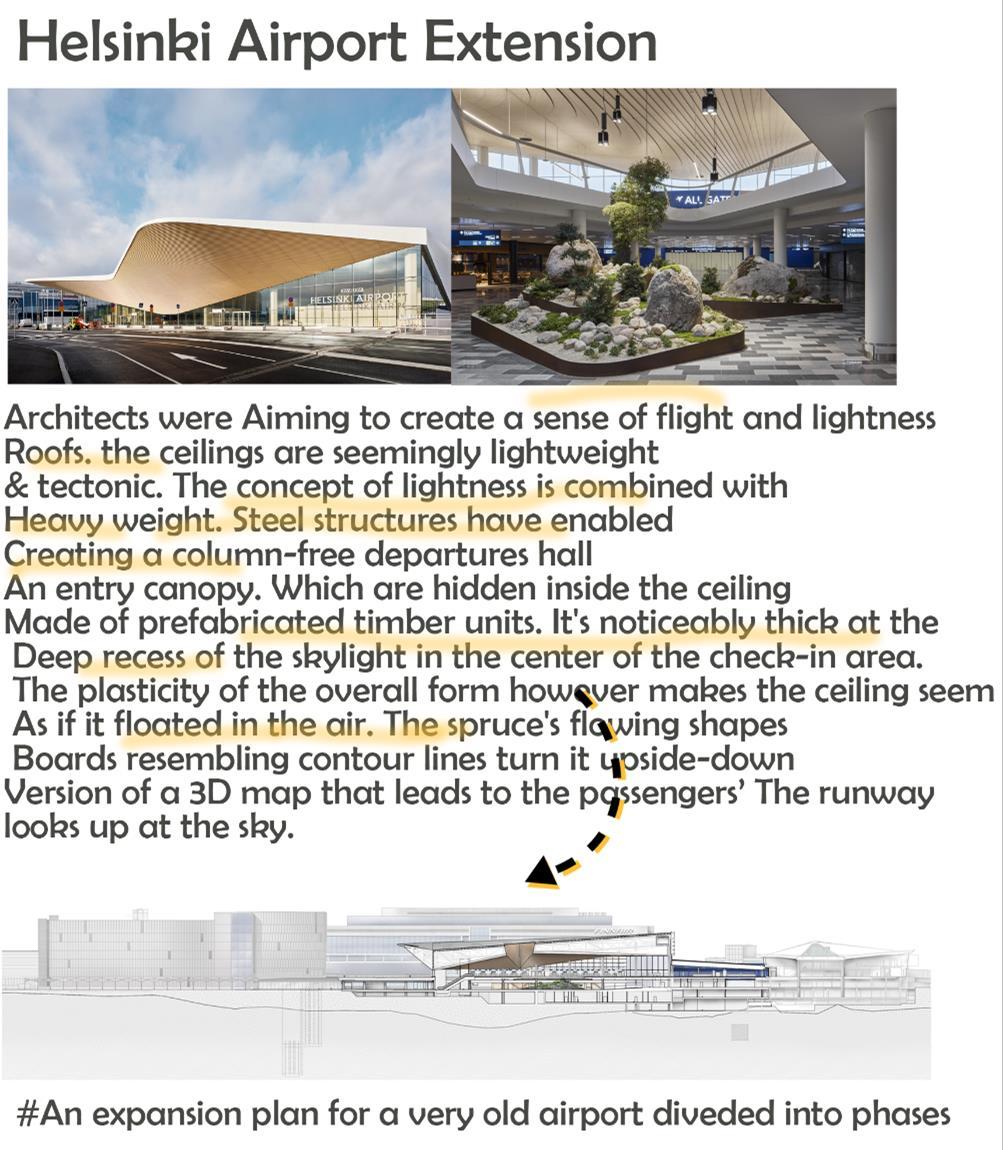

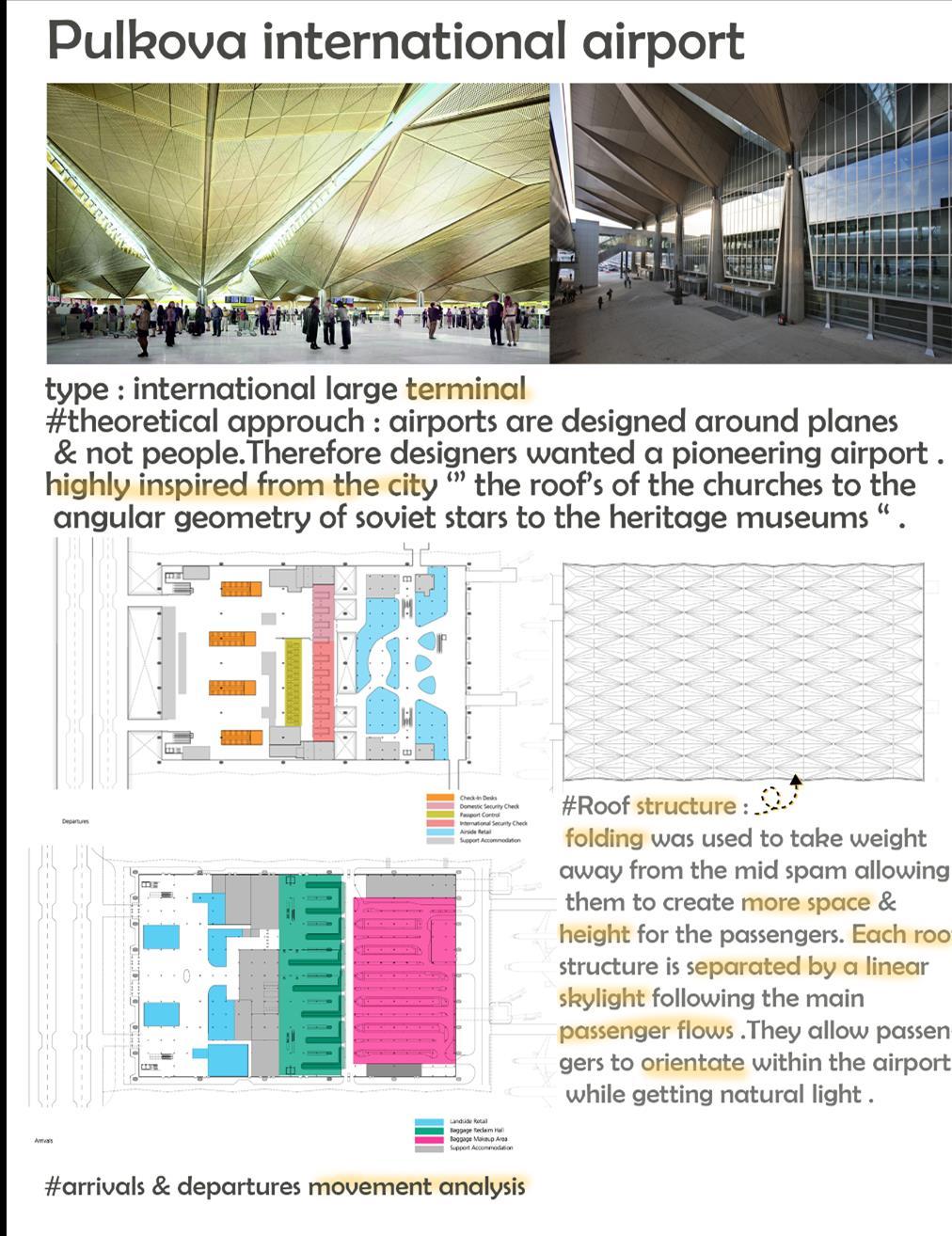

Study cases

Study cases

Scale 1:400

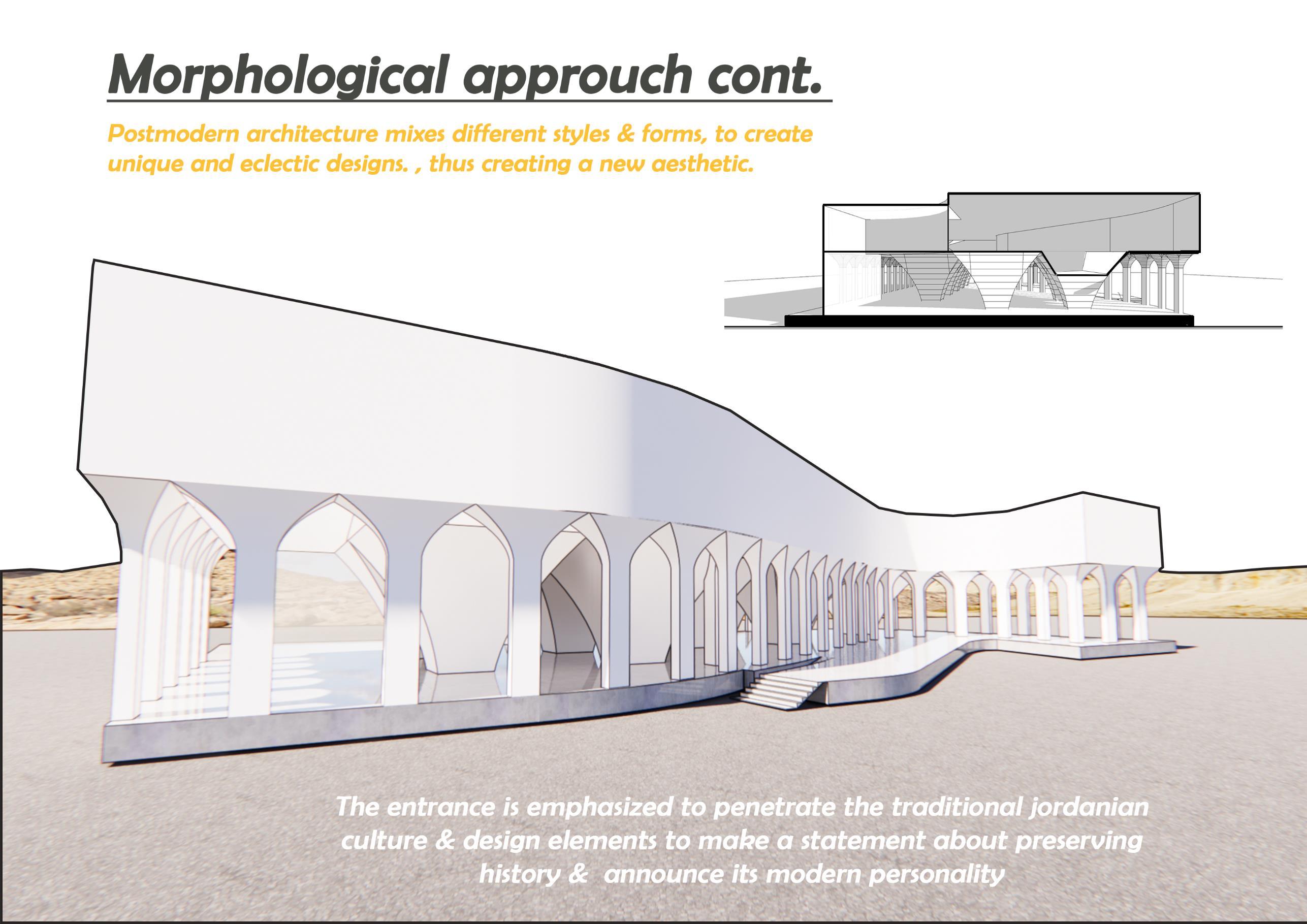

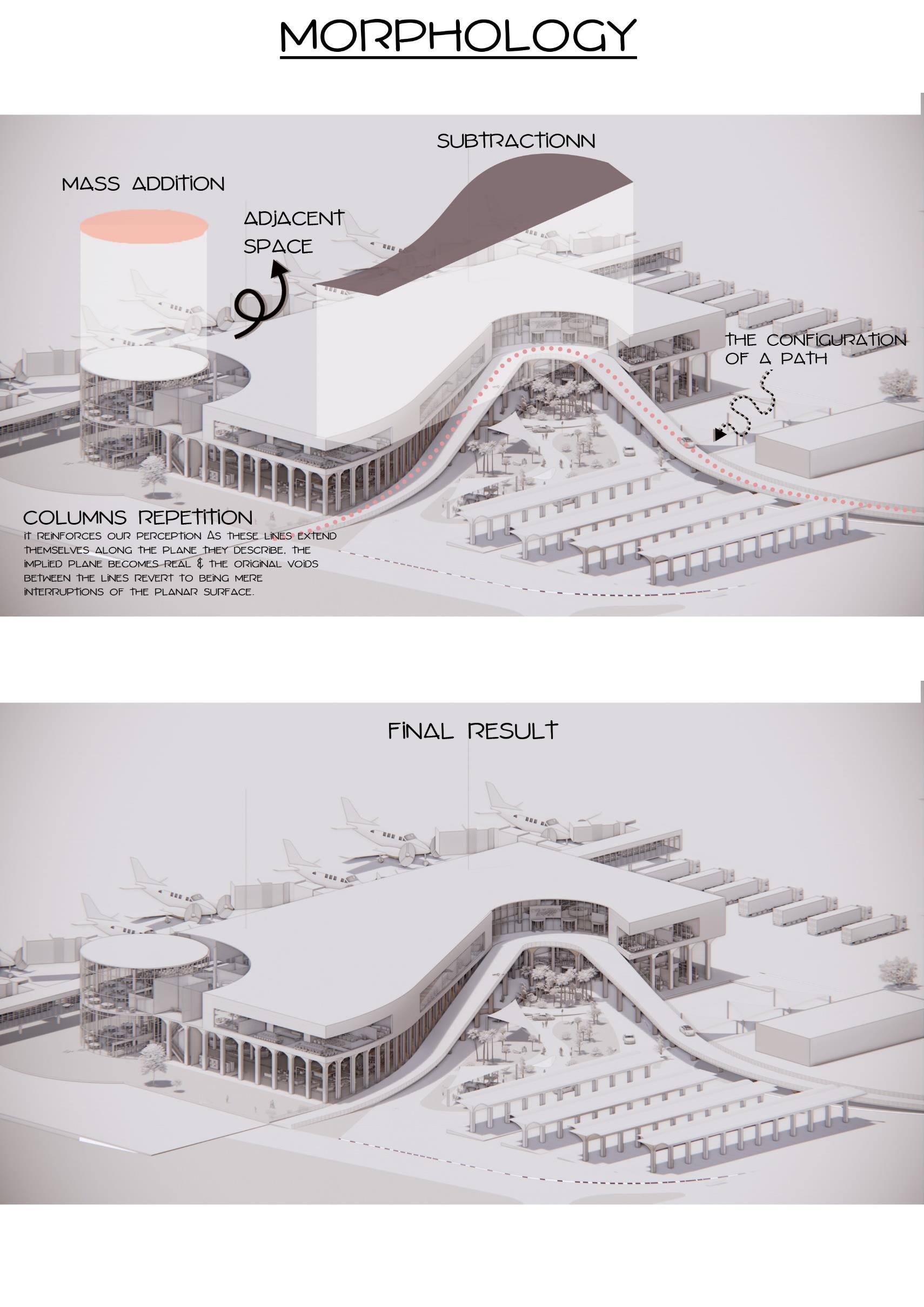

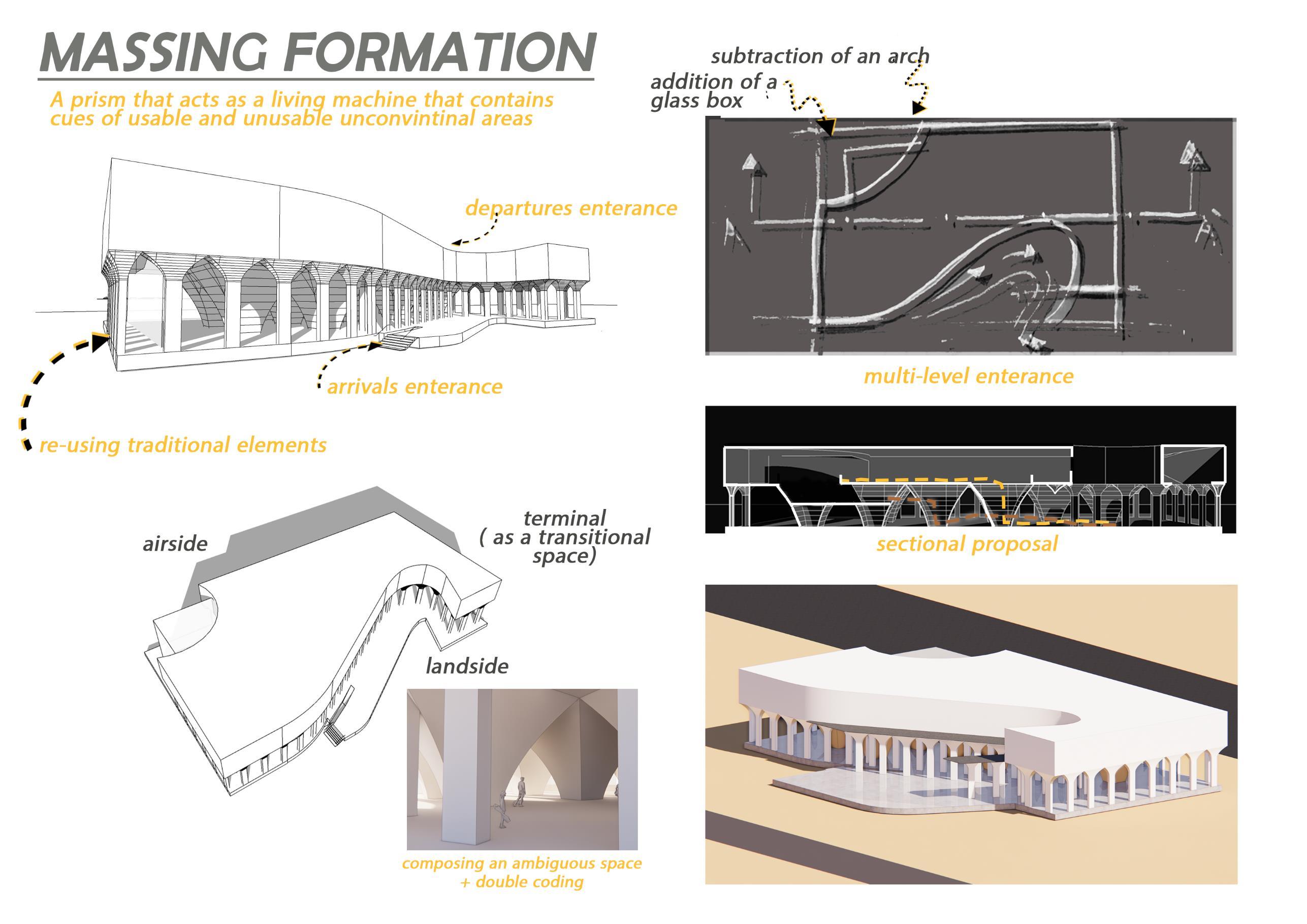

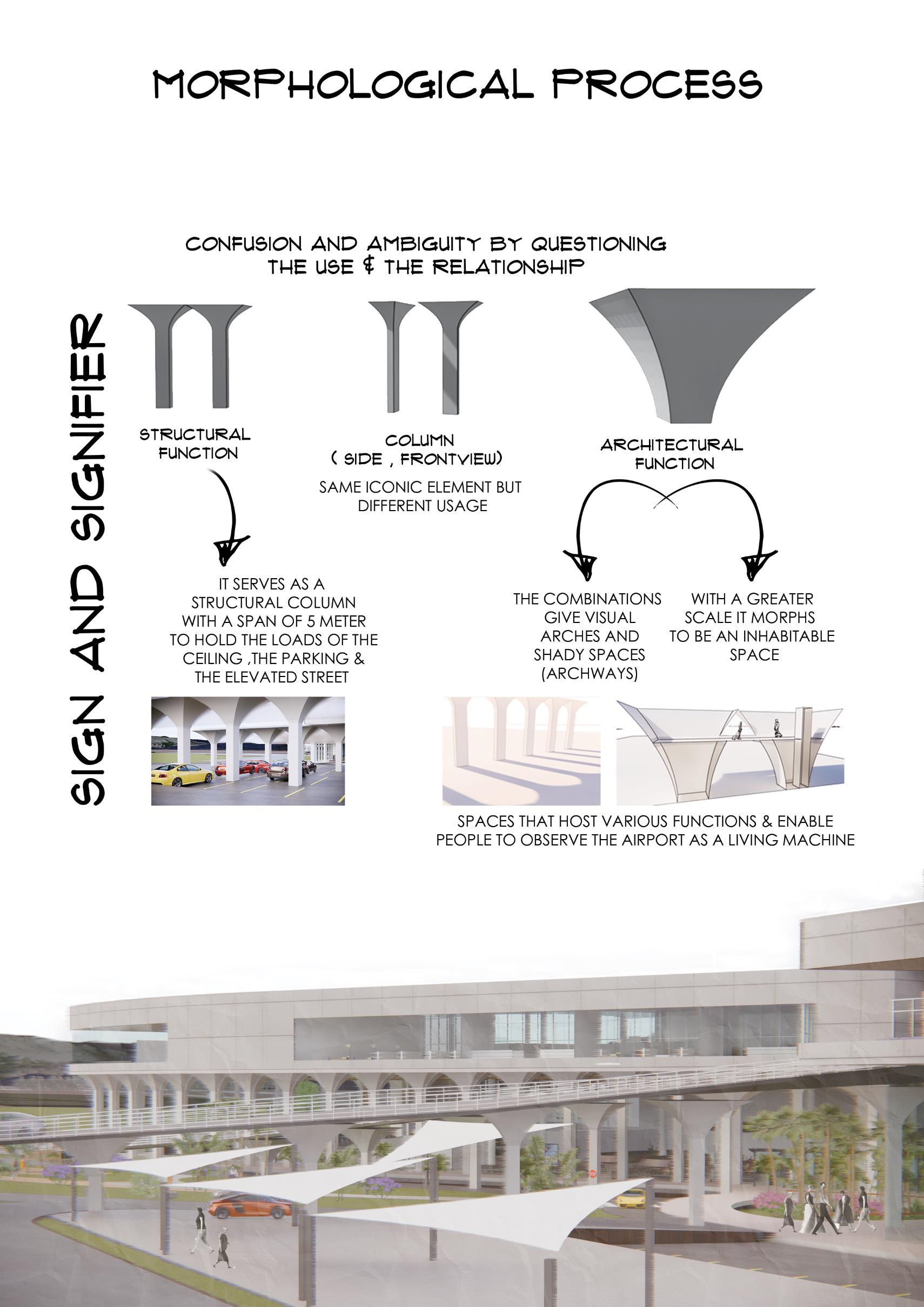

Morphological process

PROCESS

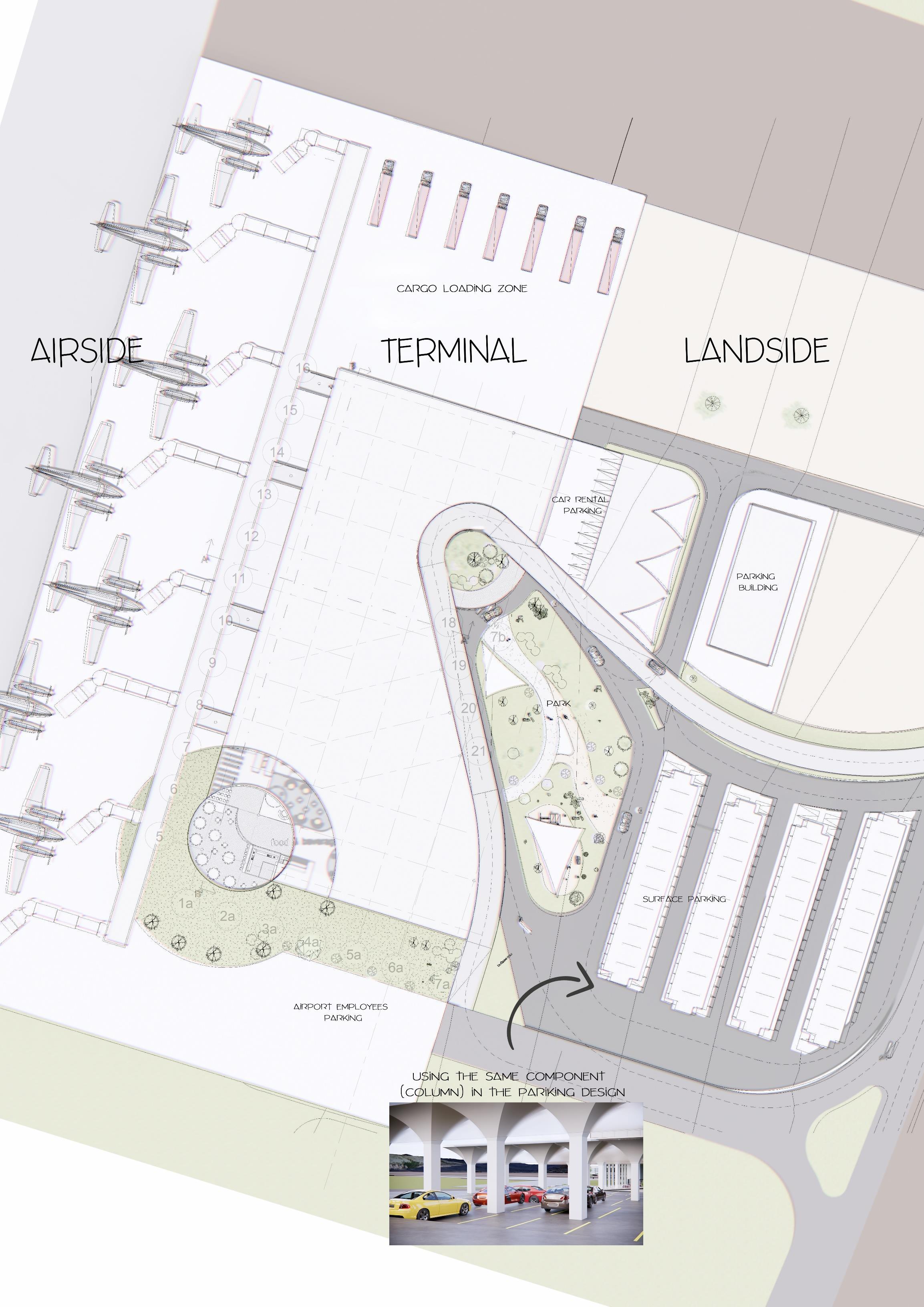

Site plan

Scale 1:500

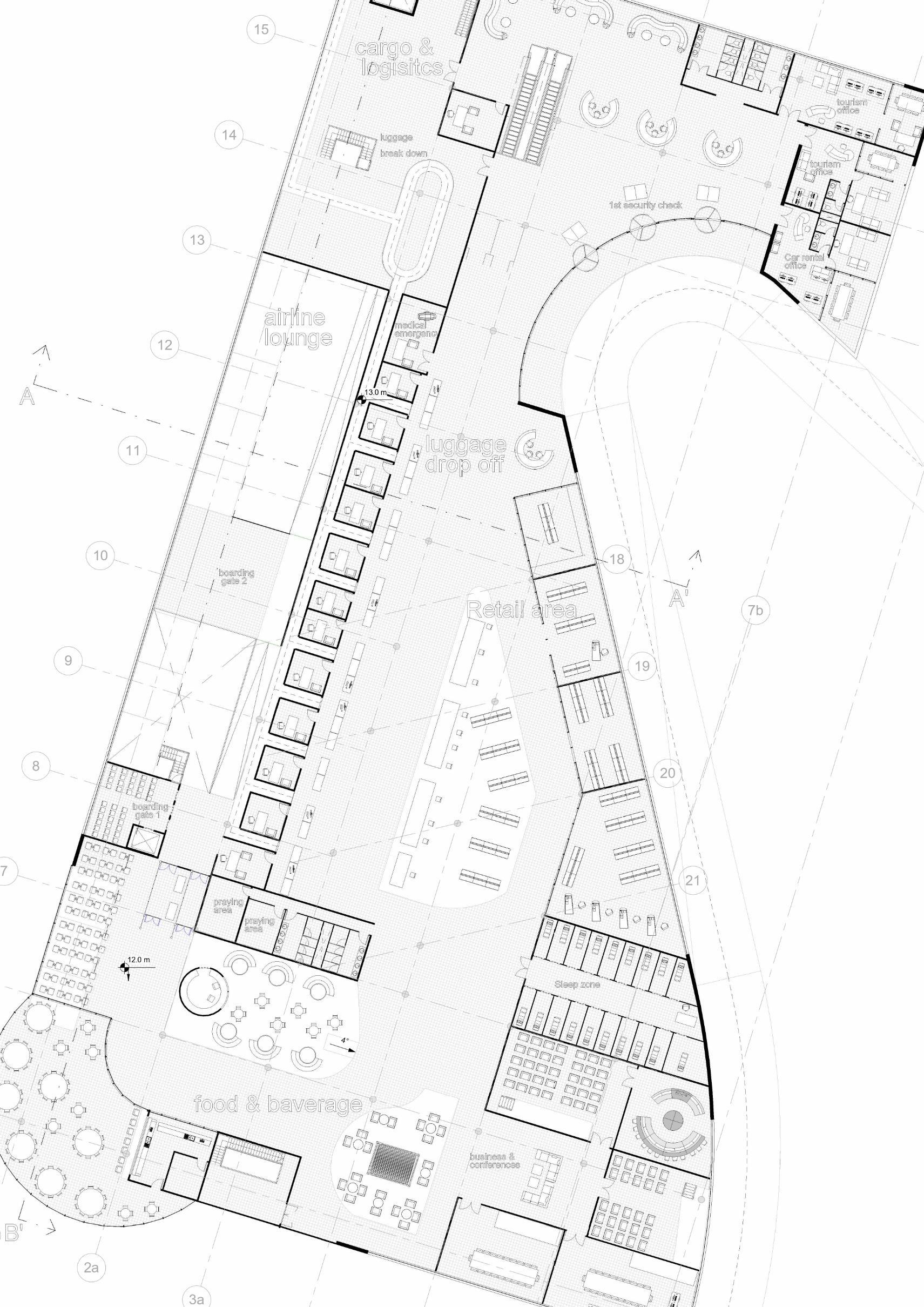

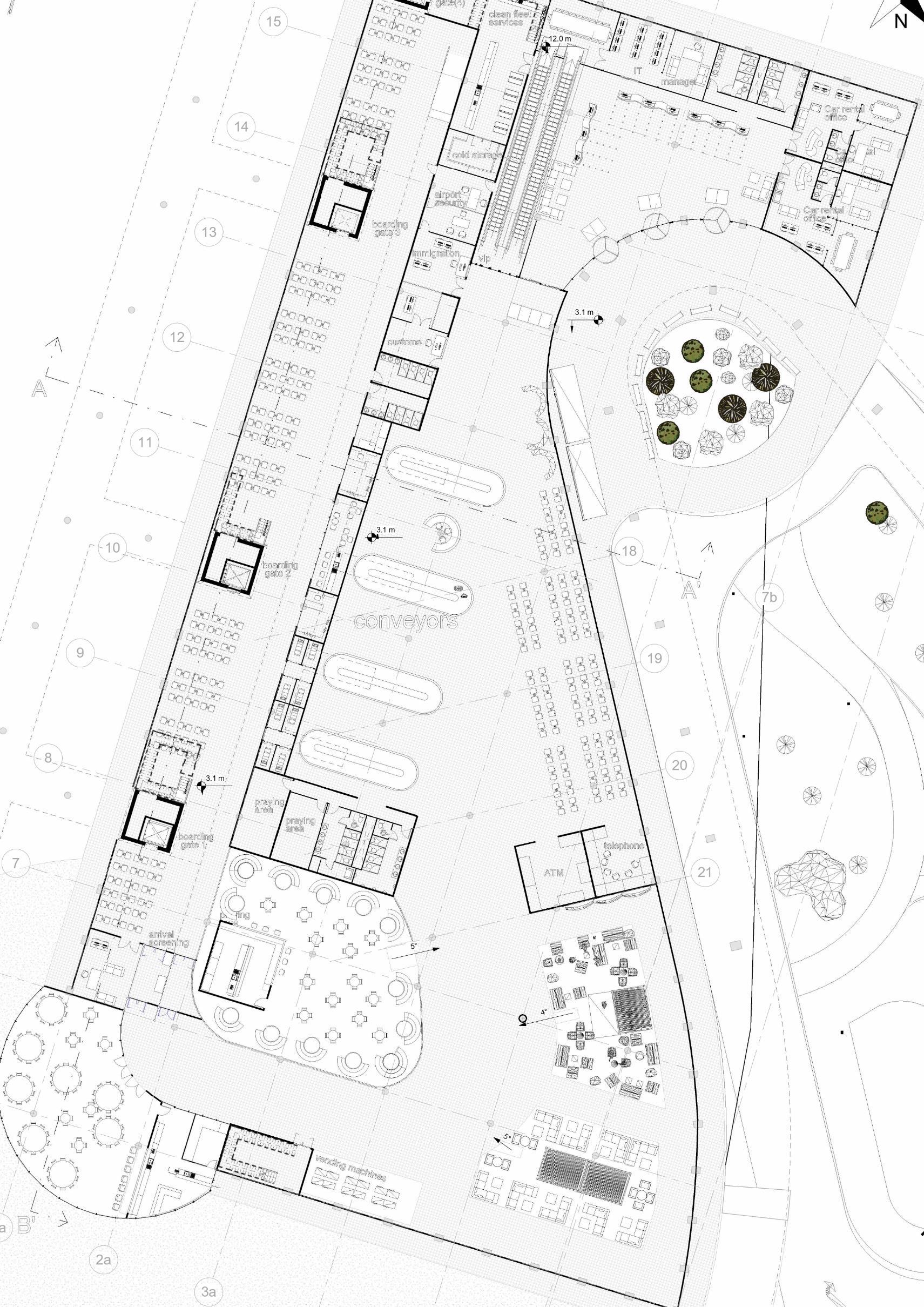

Ground floor Arrivals

Scale 1:200

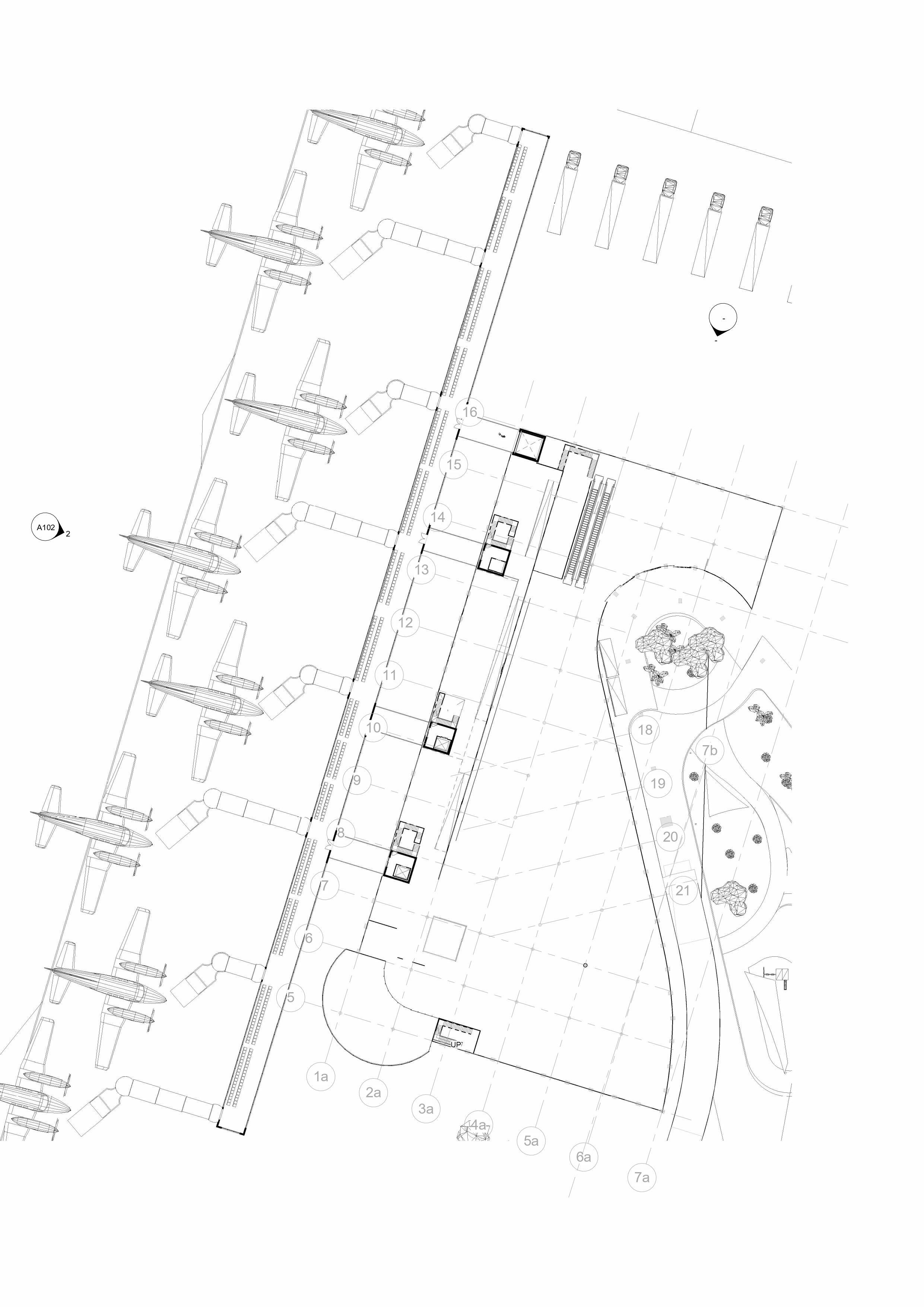

Transitional floor Boarding gates

Scale 1:400

First floor Departures

Scale 1:200

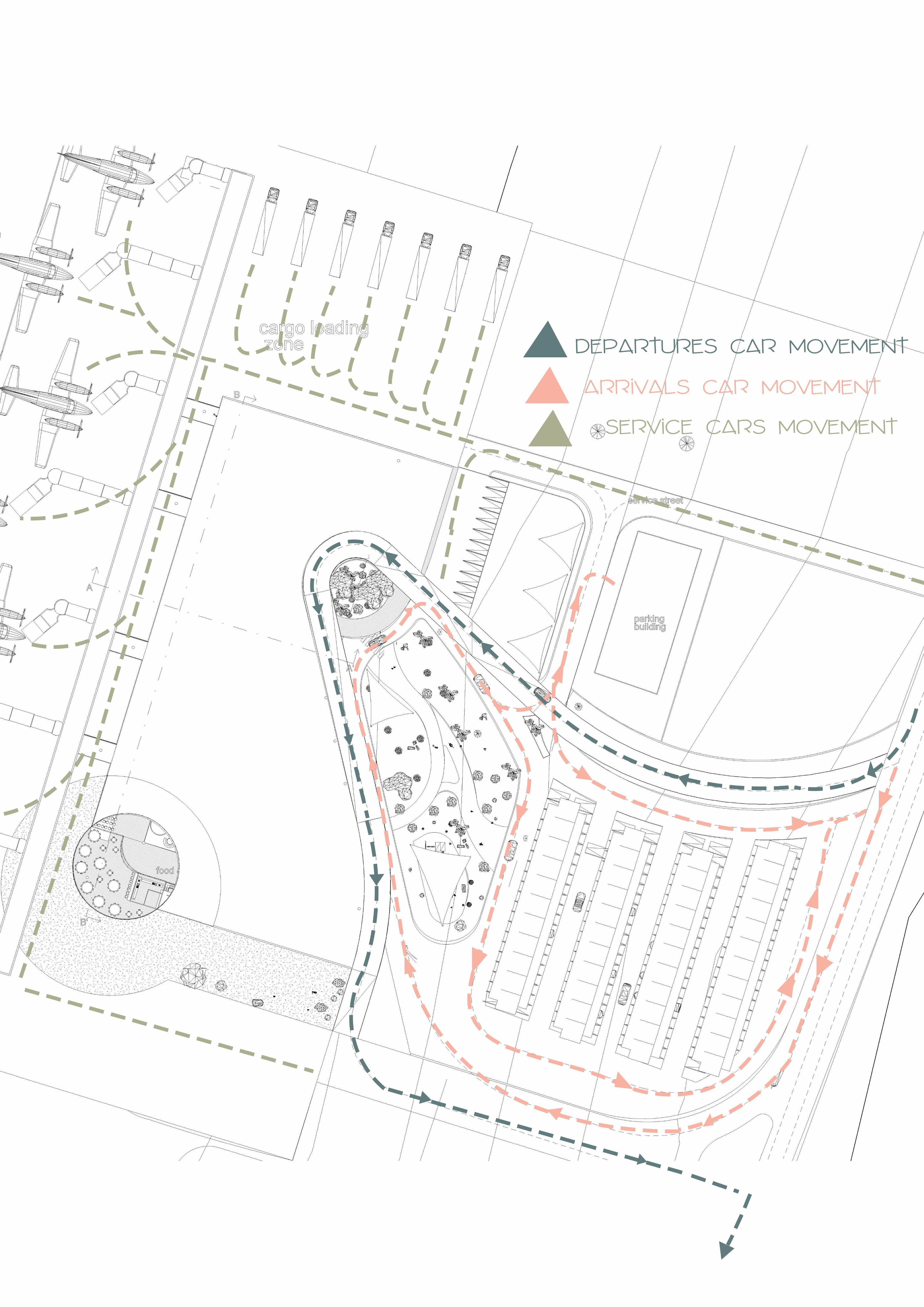

Movement analysis map

Scale 1:500

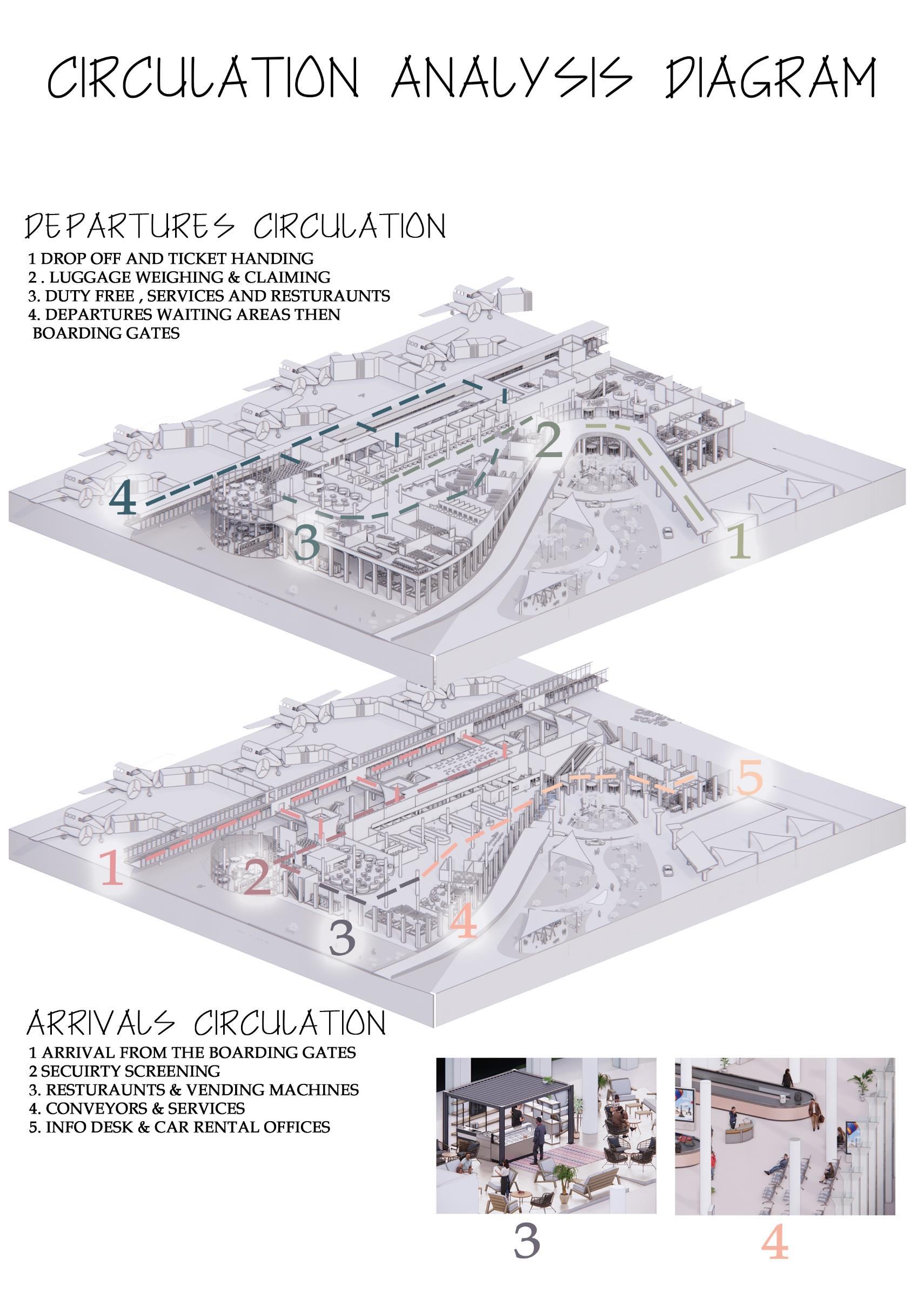

Circulation Analysis Diagram

sections

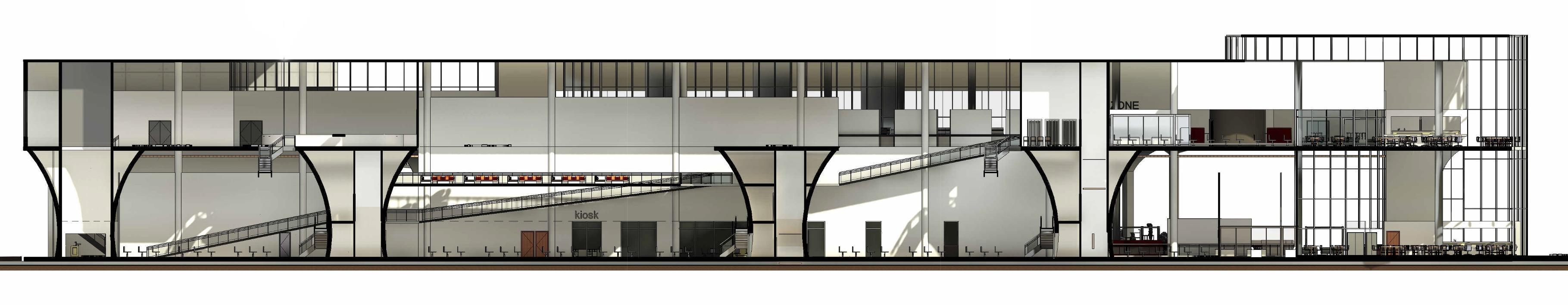

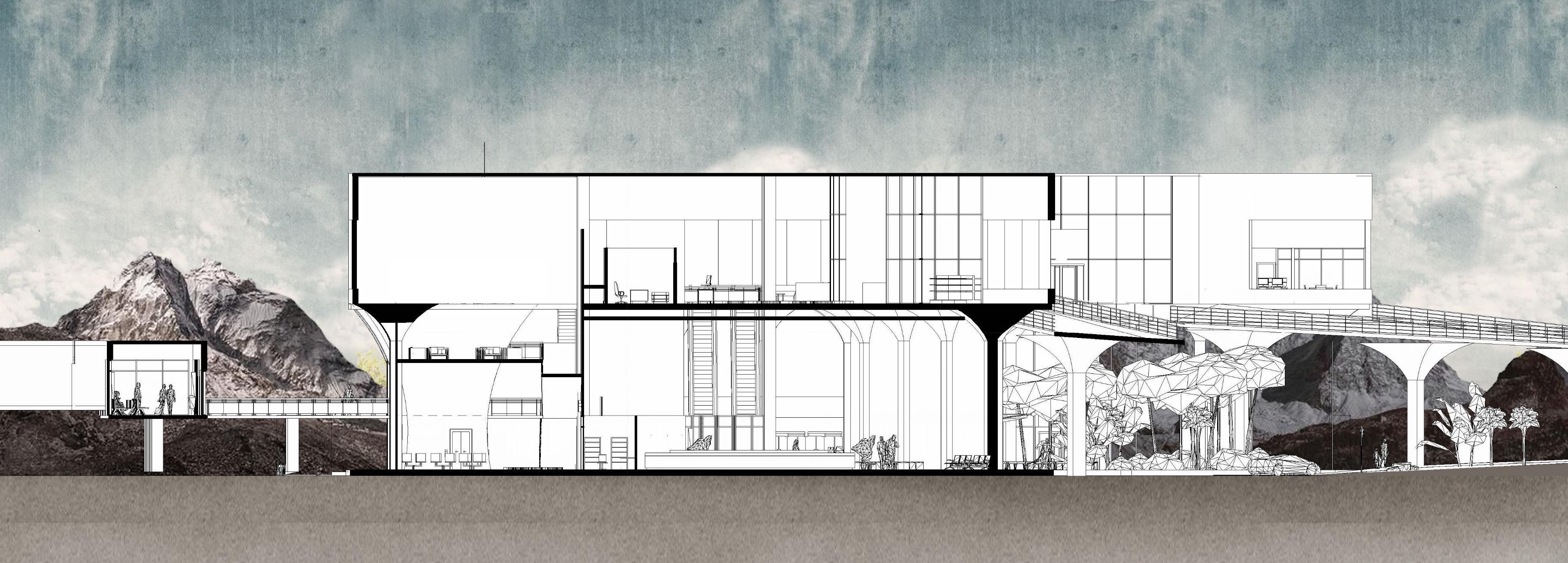

Section a-a’ scale 1:200

Section b-b’ scale 1:300

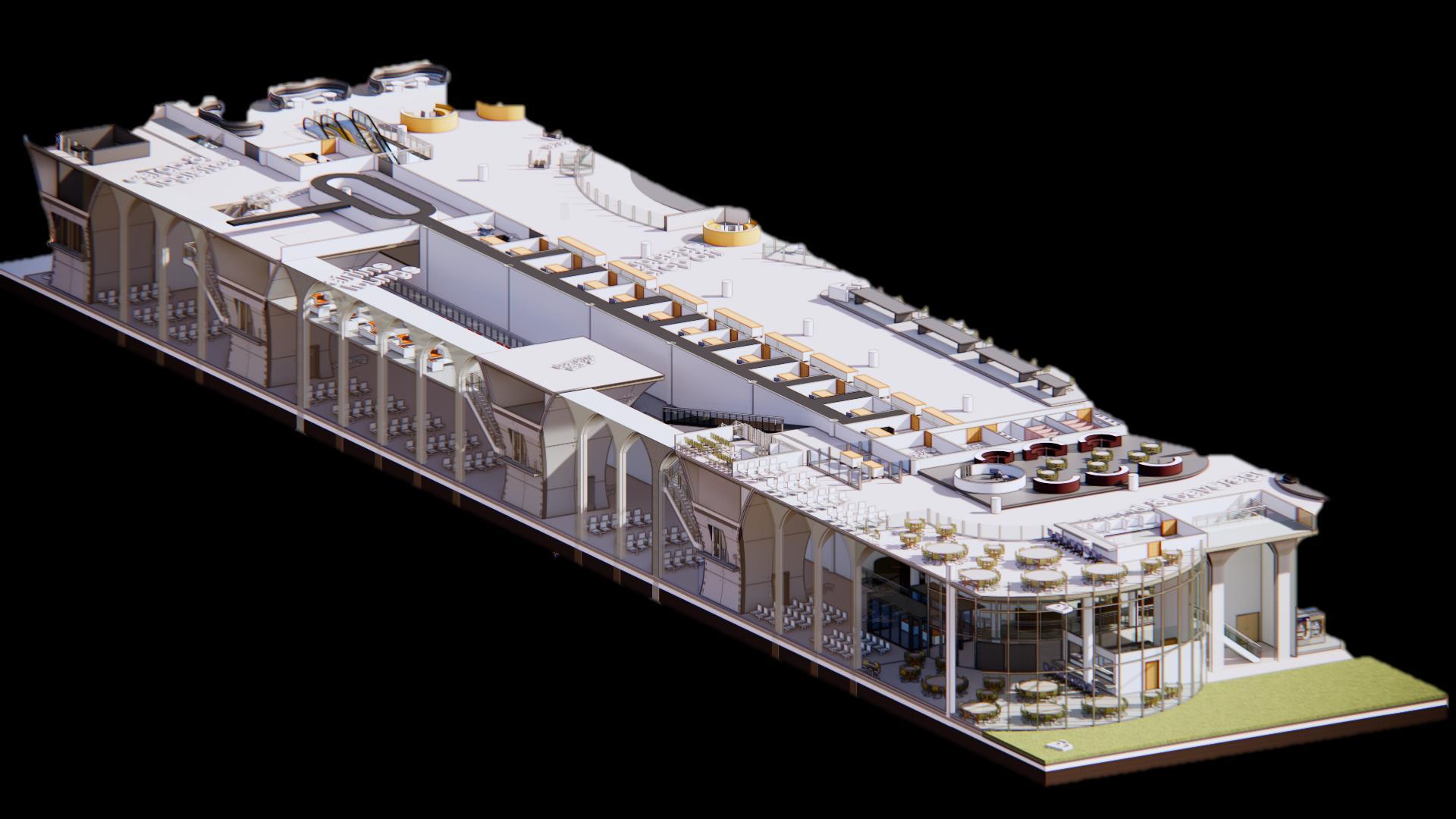

Circulation core 3d section

elevations

West elevation

north elevation

Scale 1:300

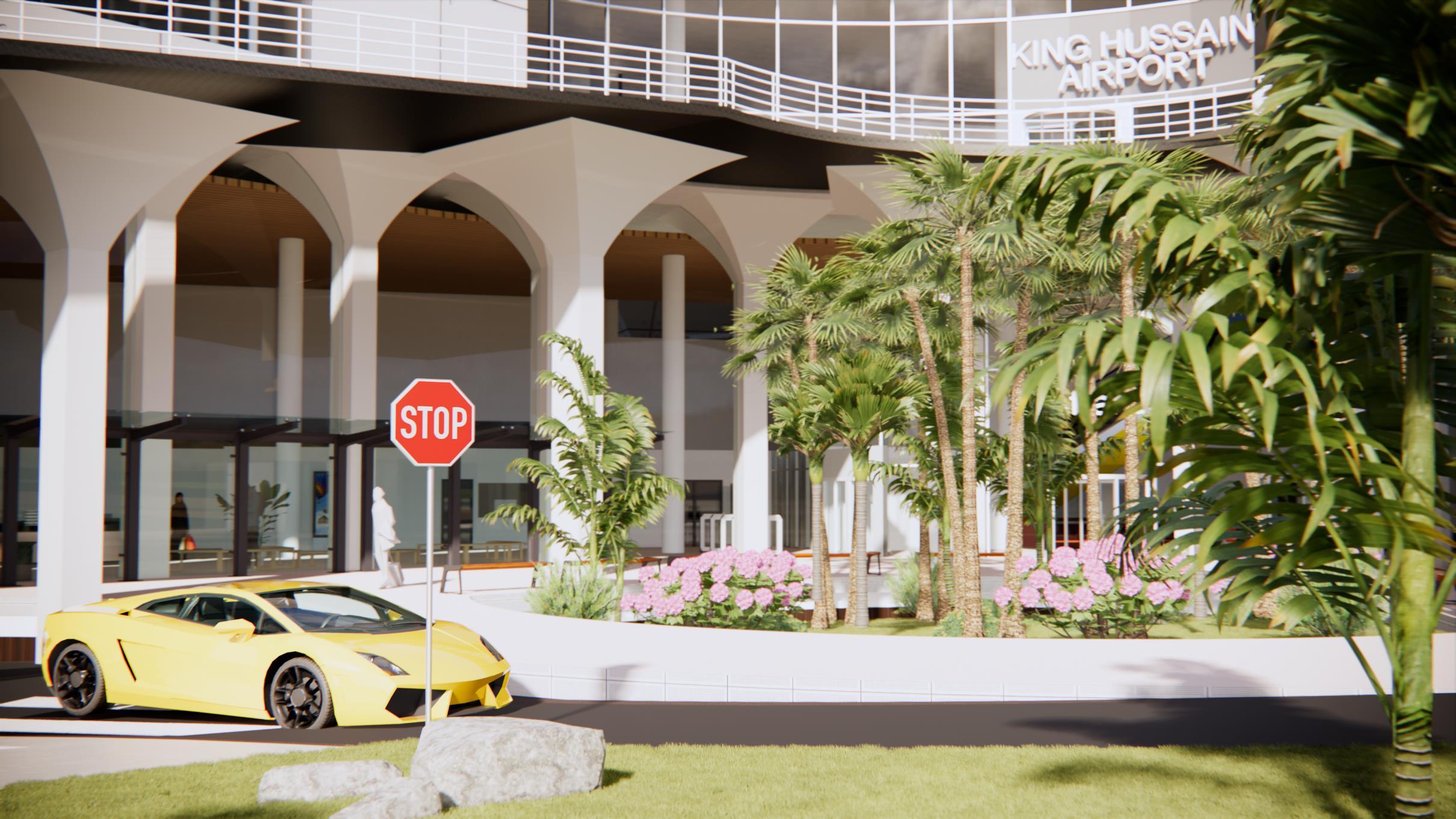

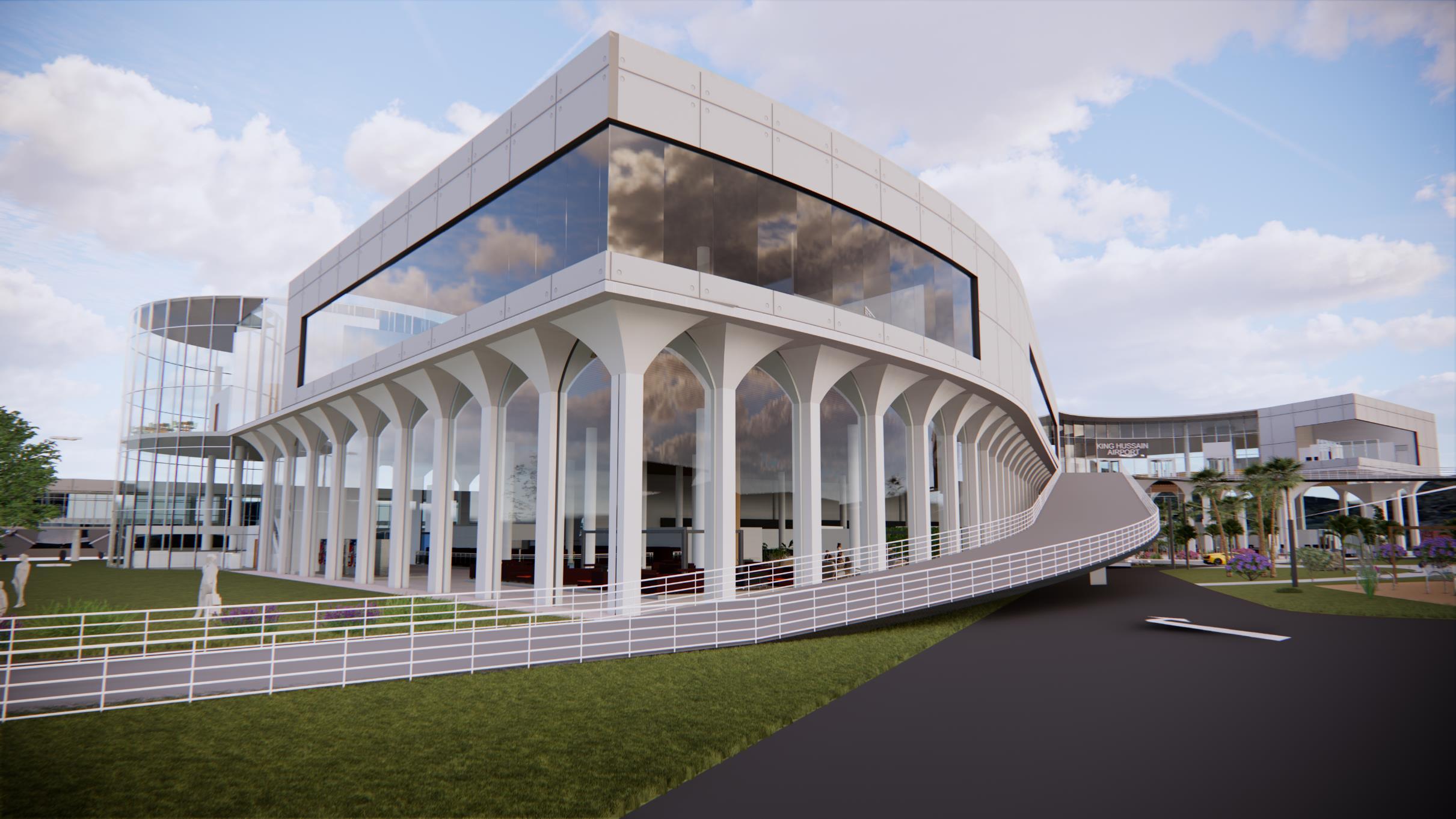

Exterior shots Arrivals Entrance

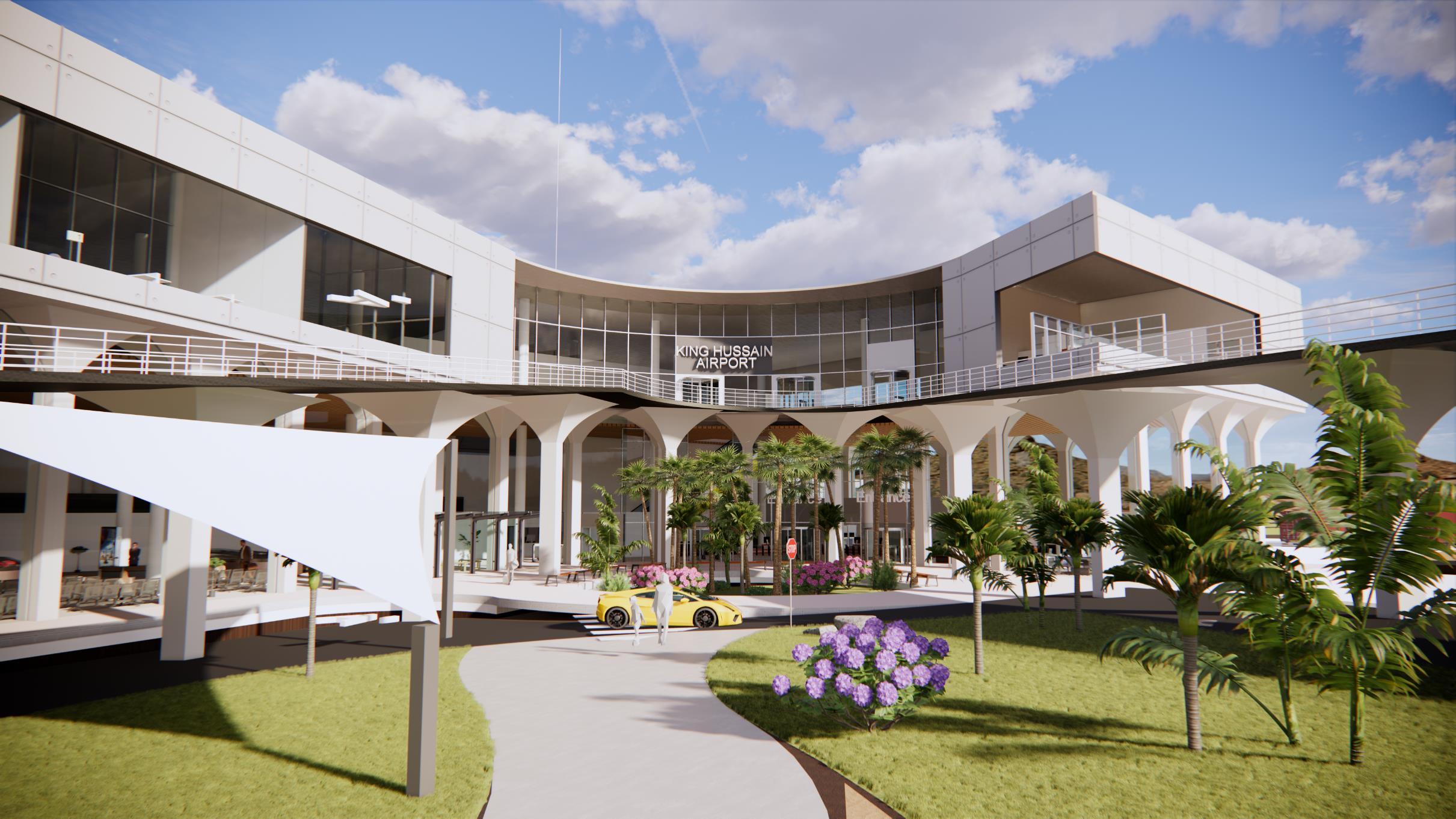

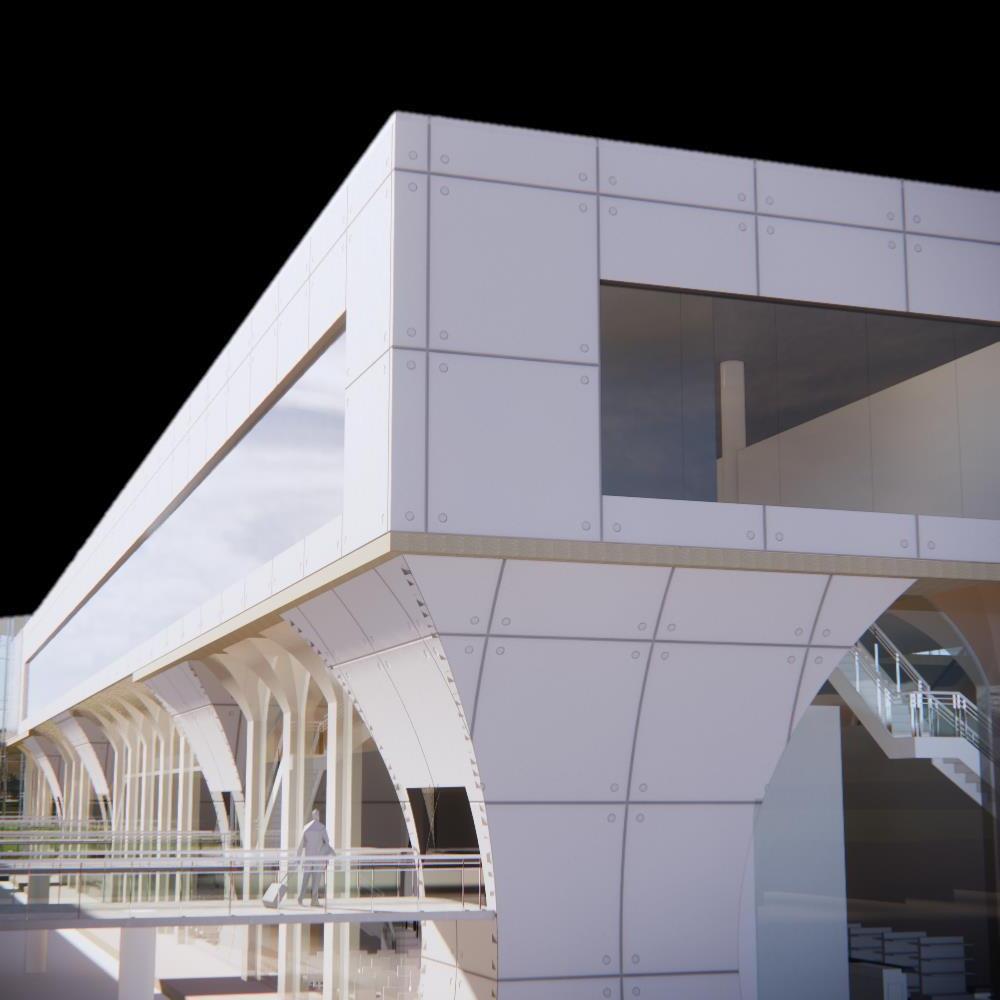

Exterior shots

Interior shots Small cafe

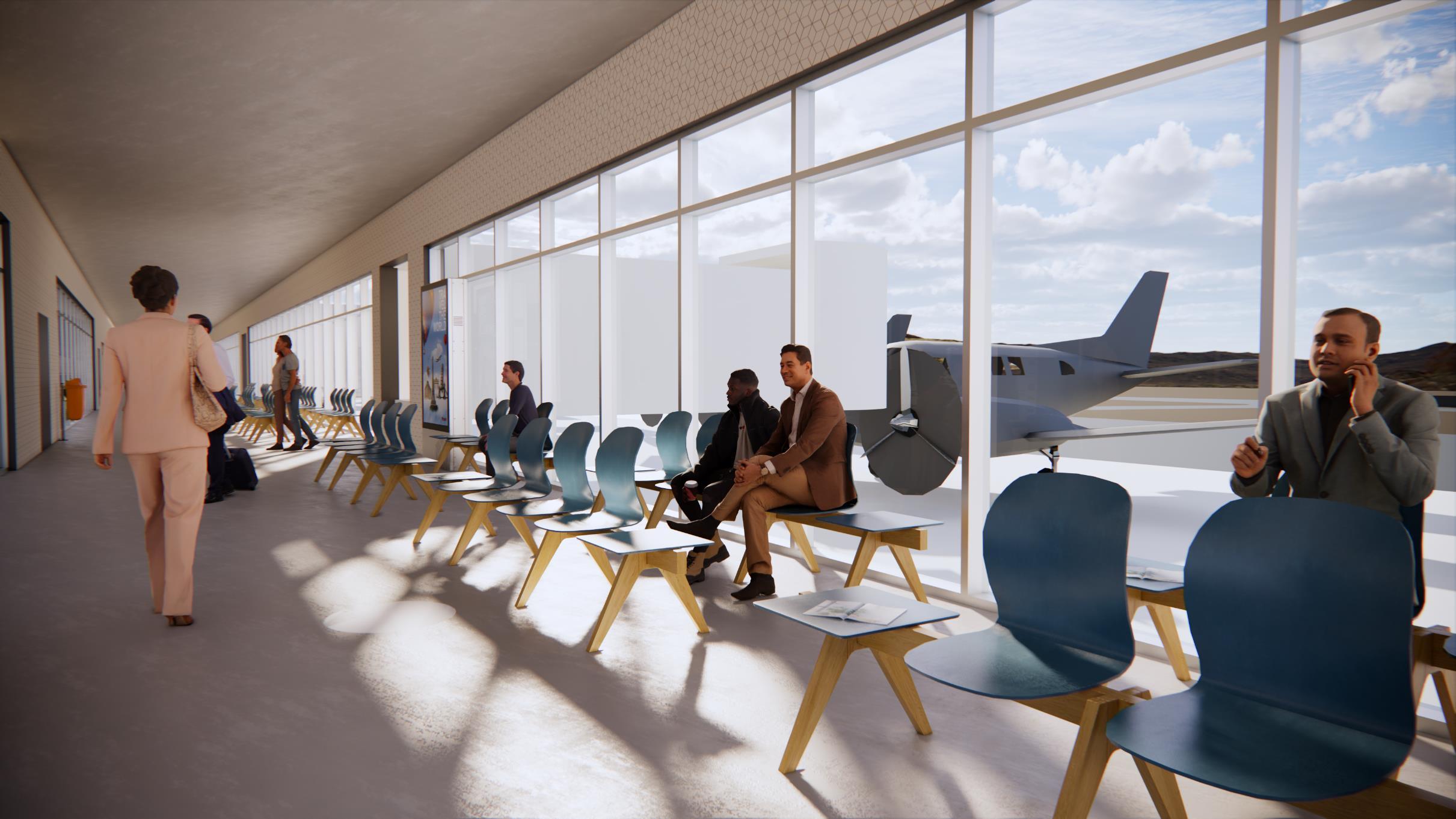

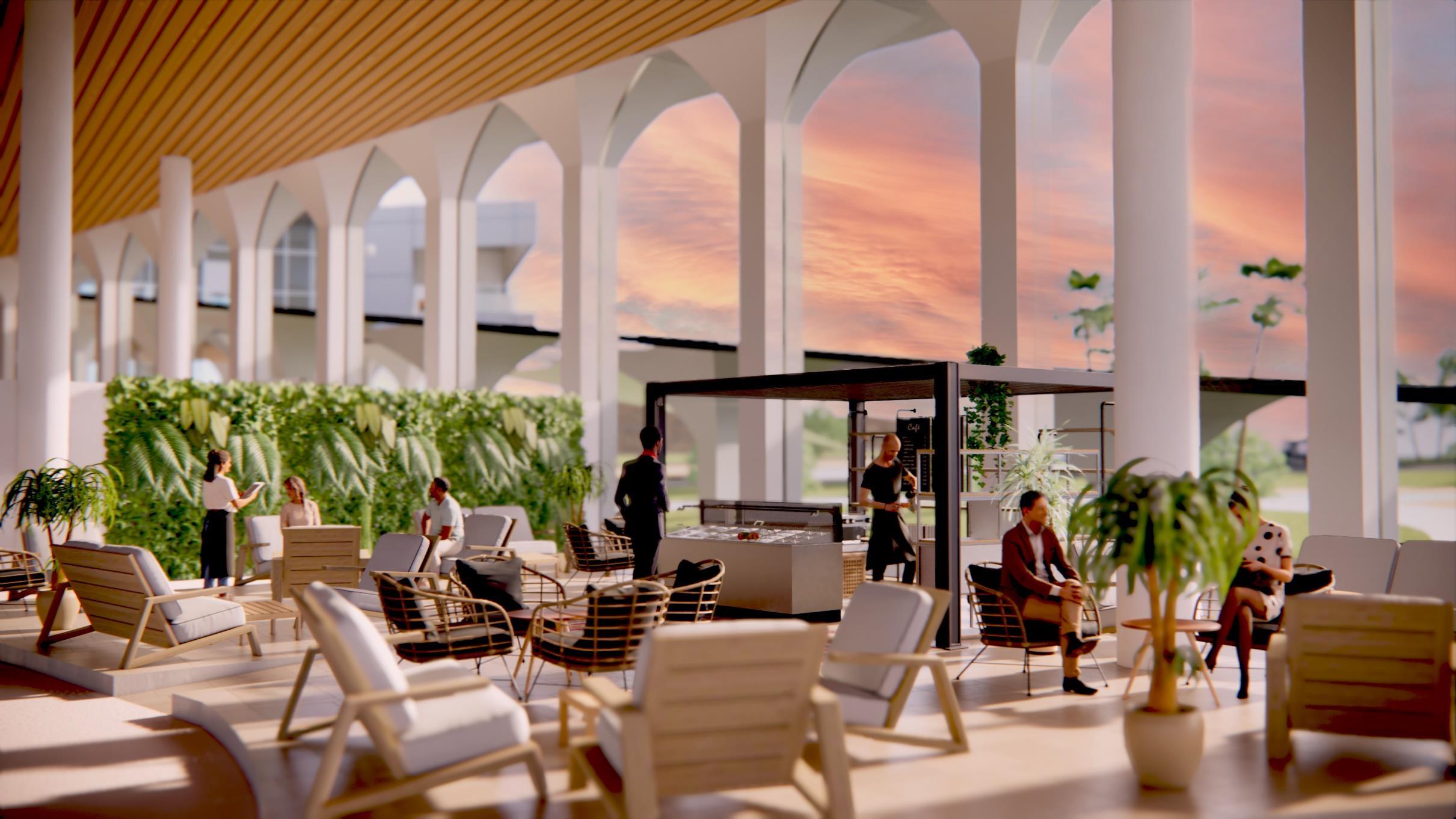

ACTUAL SHOT

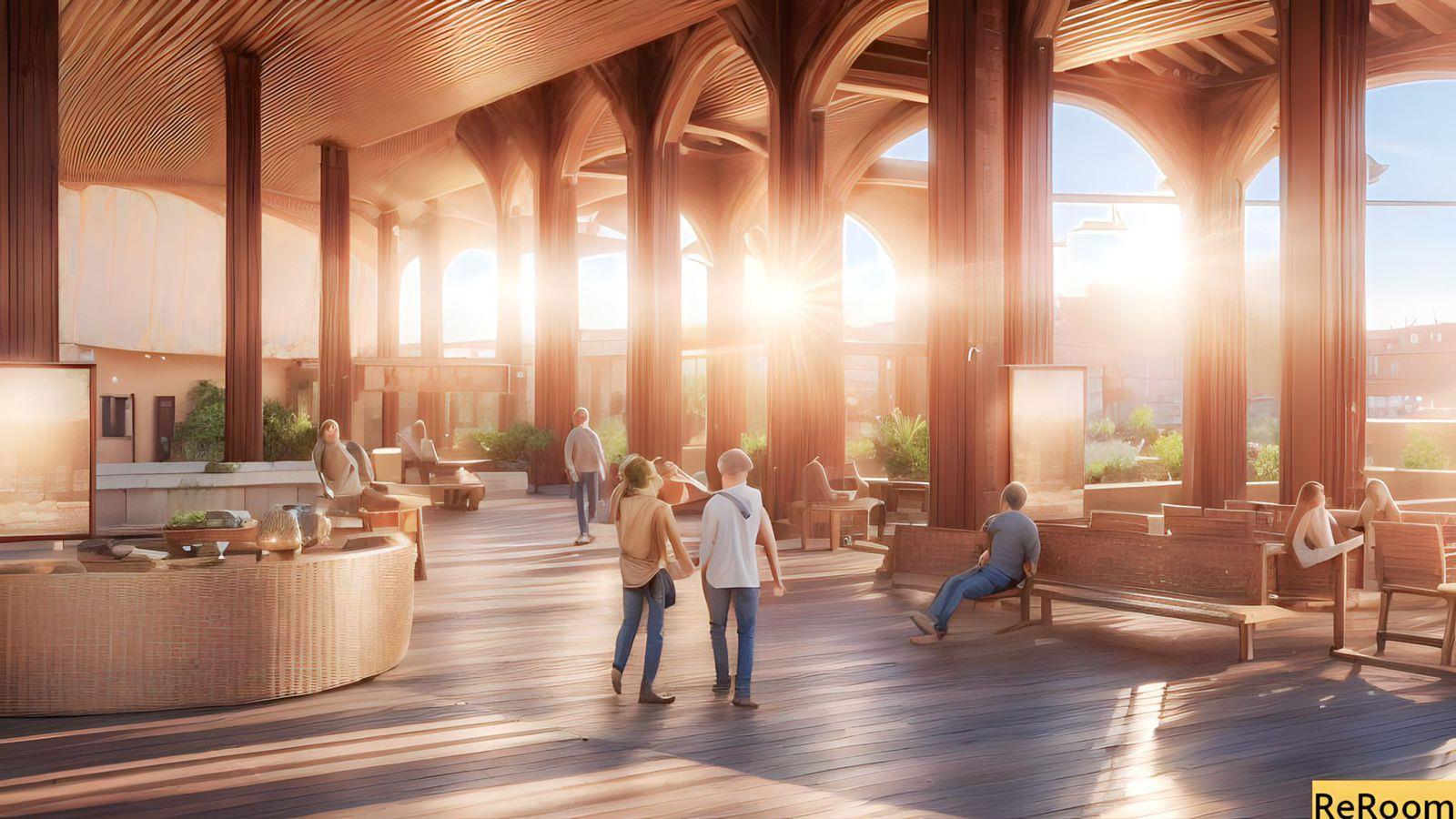

AI GENERATED

Interior shots Conveyors

ACTUAL SHOT

AI GENERATED

Interior shots Conveyors

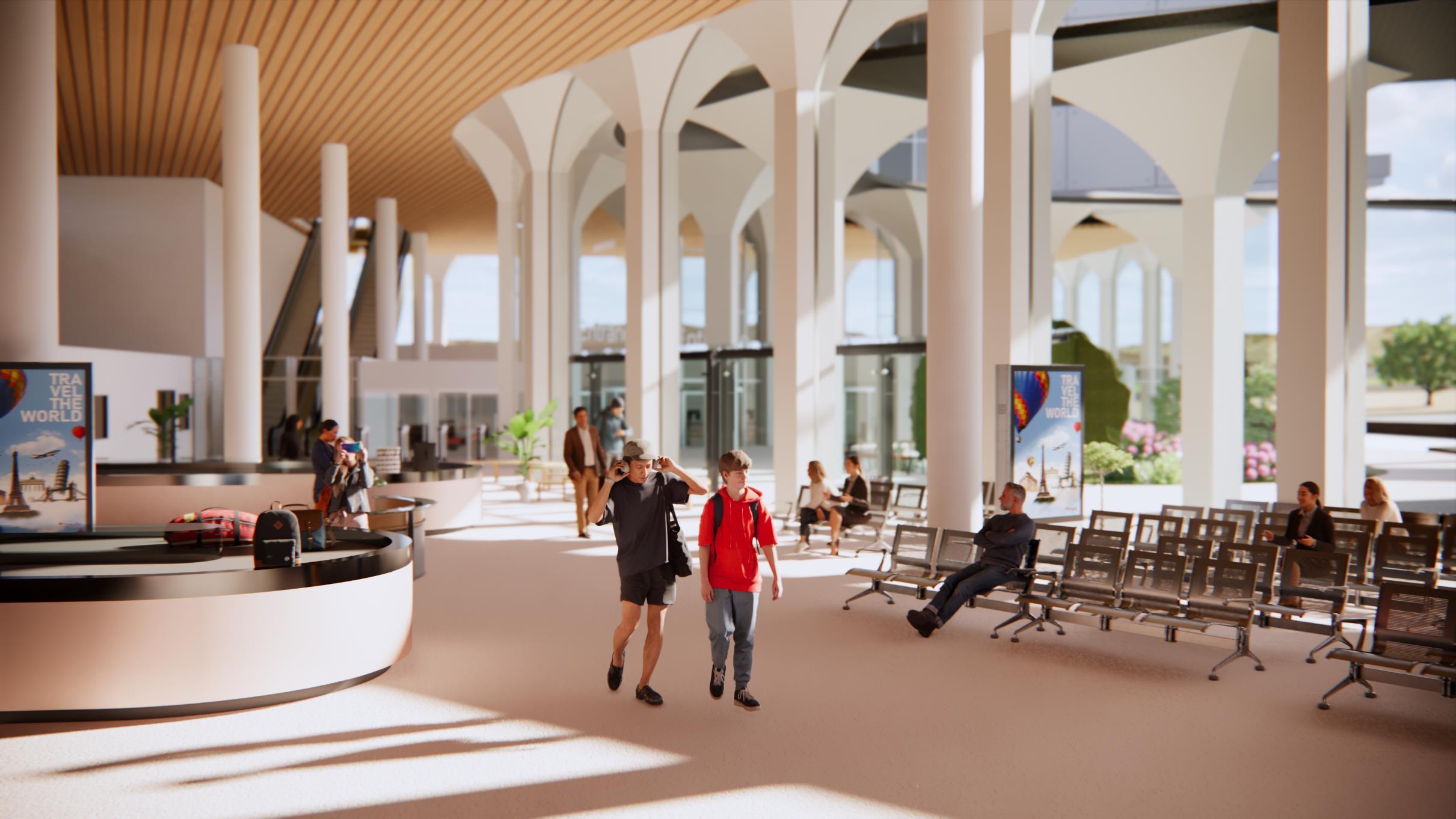

ACTUAL SHOT

AI GENERATED
