Cycle PitStop Cycle PitStop
CycleP tStop fu fil s various functions, nclud ng providing a resting spot for passersby, offering secure bicyc e parking, enhancing the aesthetic appeal with a planter box
Material: meranti wood with matte vanished finished
Introducing CyclePitStop, a unique design specifically tailored for single-seat seater. One notable feature of this design is the presence of a planter box and a bicycle park at the end side. CyclePitStop's bicycle park is meticulously crafted to accommodate a wide range of bicycle tyre heights, precisely ranging from 400mm to 600mm.it accommodates various tyre sizes, ensuring a secure and snug fit for your beloved bike. Additionally, the wide range of tyre diameters ensures compatibility with different bike models, making it a haven for all cyclists. CyclePitStop is more than just a pit stop; it's an oasis of convenience, style, and ecoconsciousness.
Sitting
Planter Box
0352297
Bicycle Park Farahin Athirah binti Mohd Nidzam

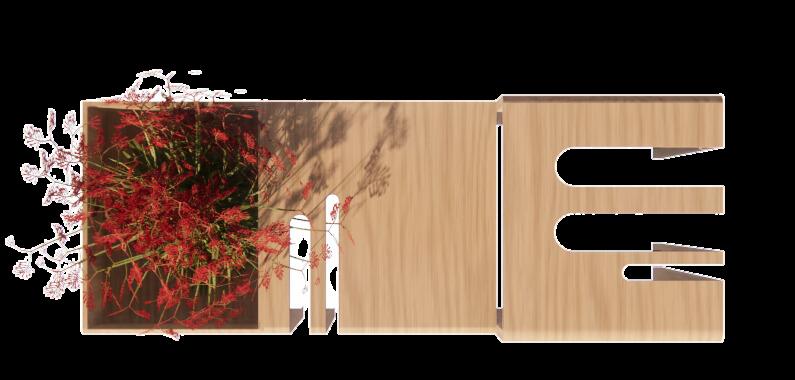

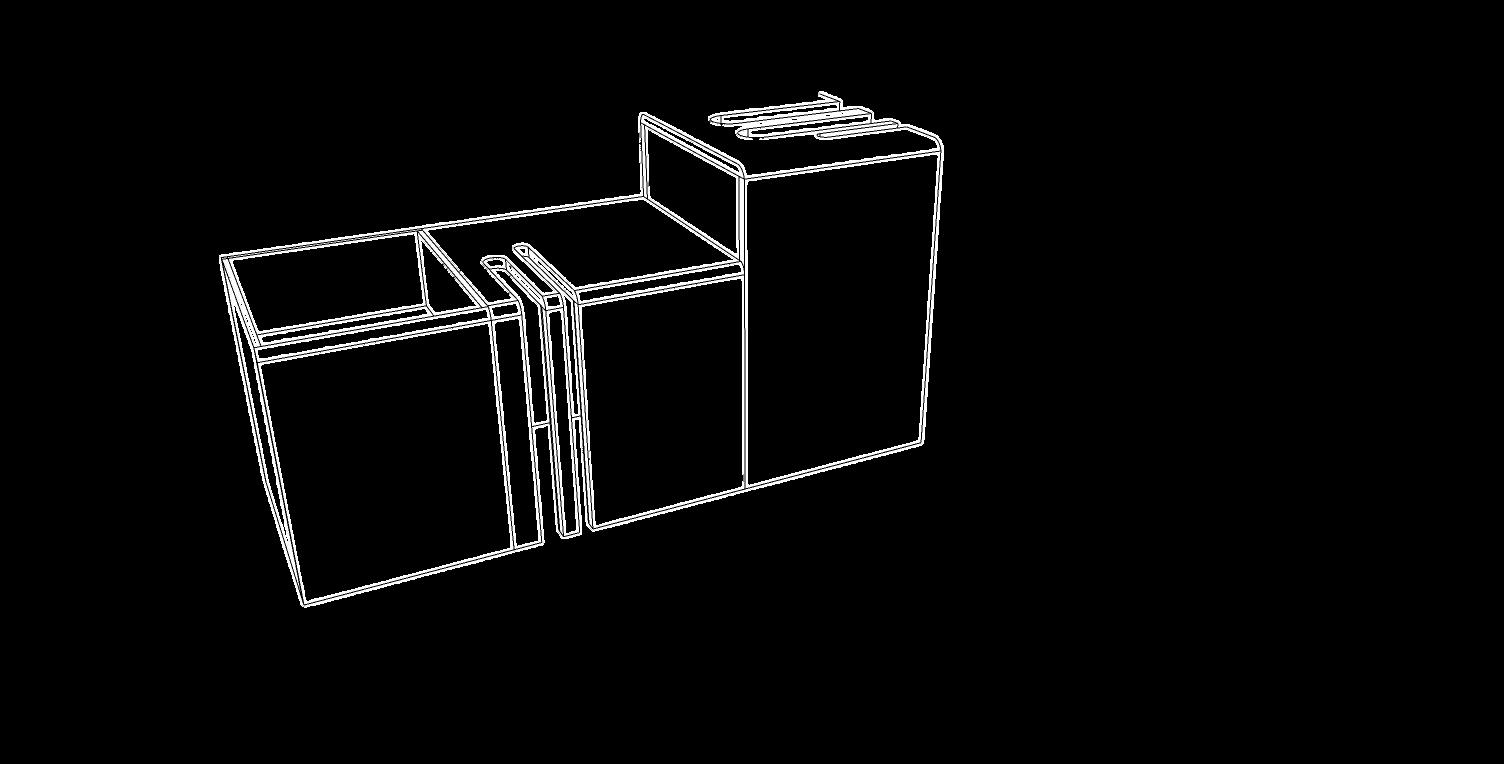

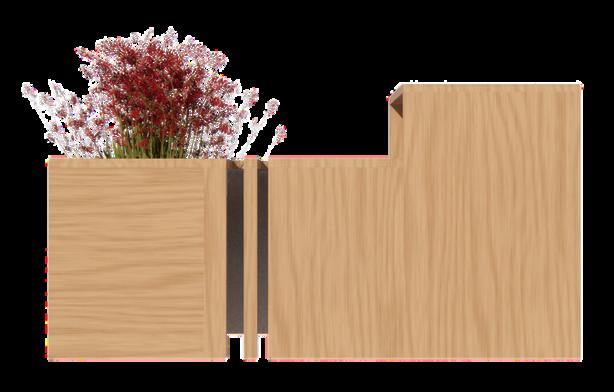

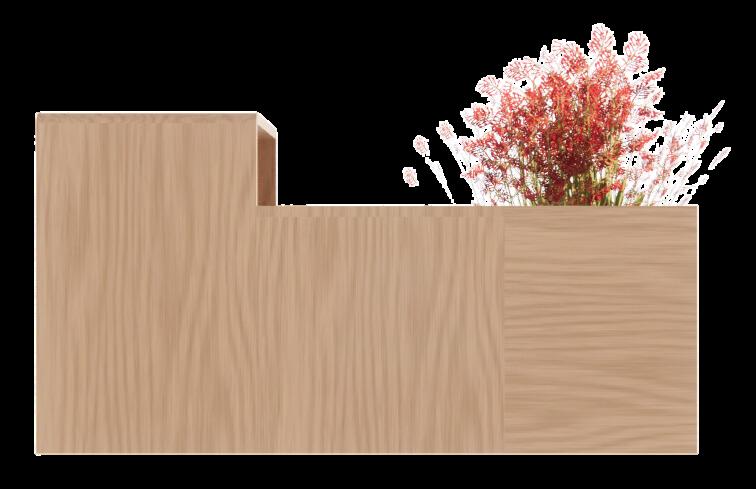

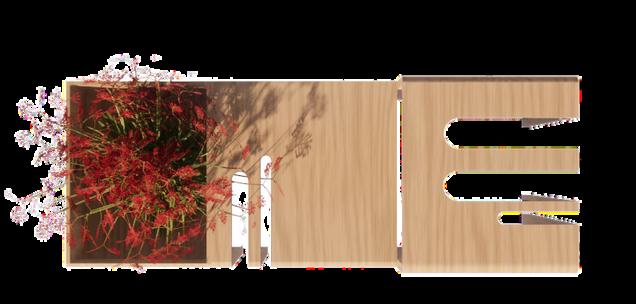

Perspective Top view Back view Right view (planter
s de)
box
Planter Box Sitting space B cycle Park
P anter Box Sitting space B cycle Park
CyclePitStop
CyclePitStop
Planter Box Sitting space Bicycle Park
Planter Box Sitting space

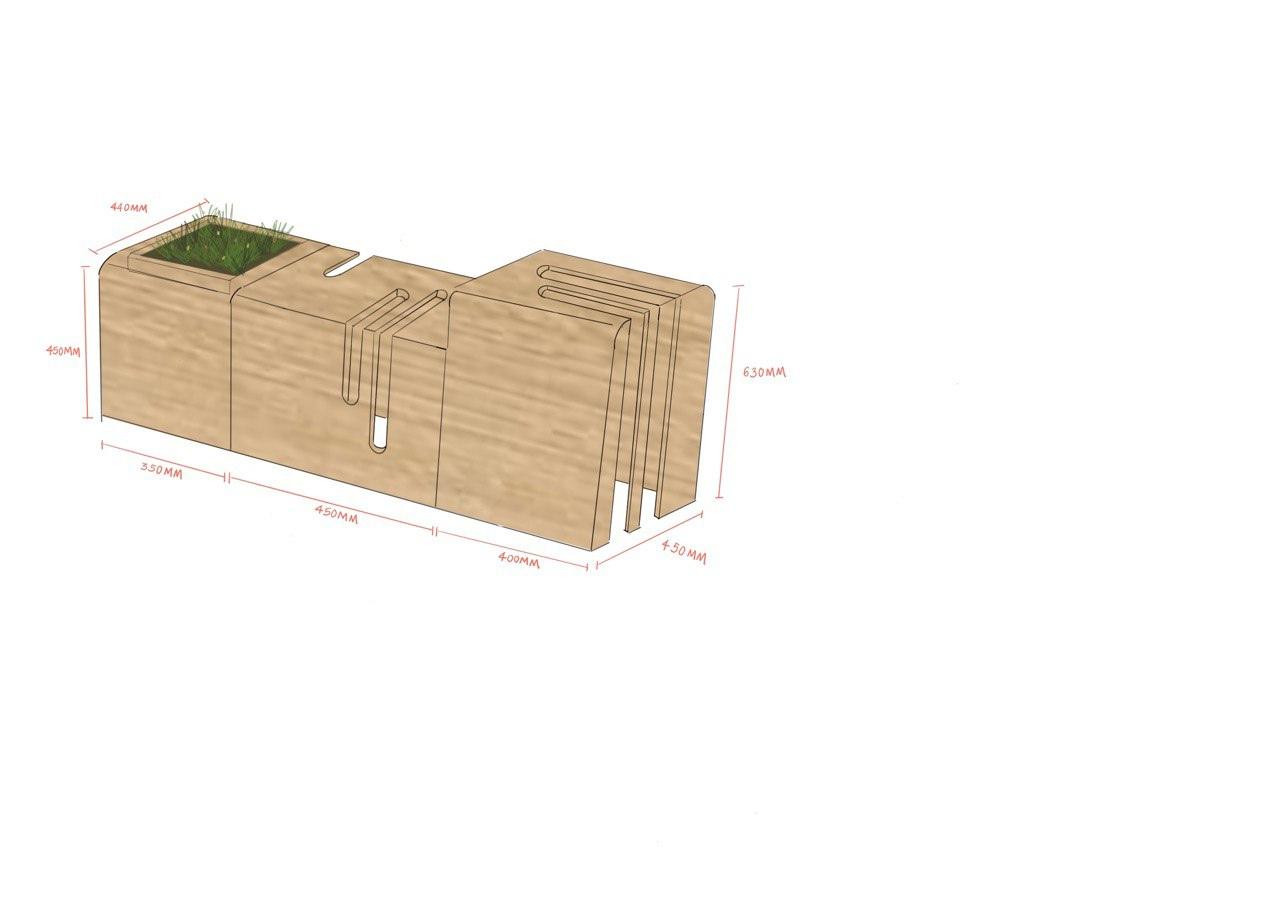

Bicycle Park 1200MM 600MM 450MM
FARAHIN ATHIRAH BINTI MOHD NIDZAM 0352297
MATERIAL & TOOLS

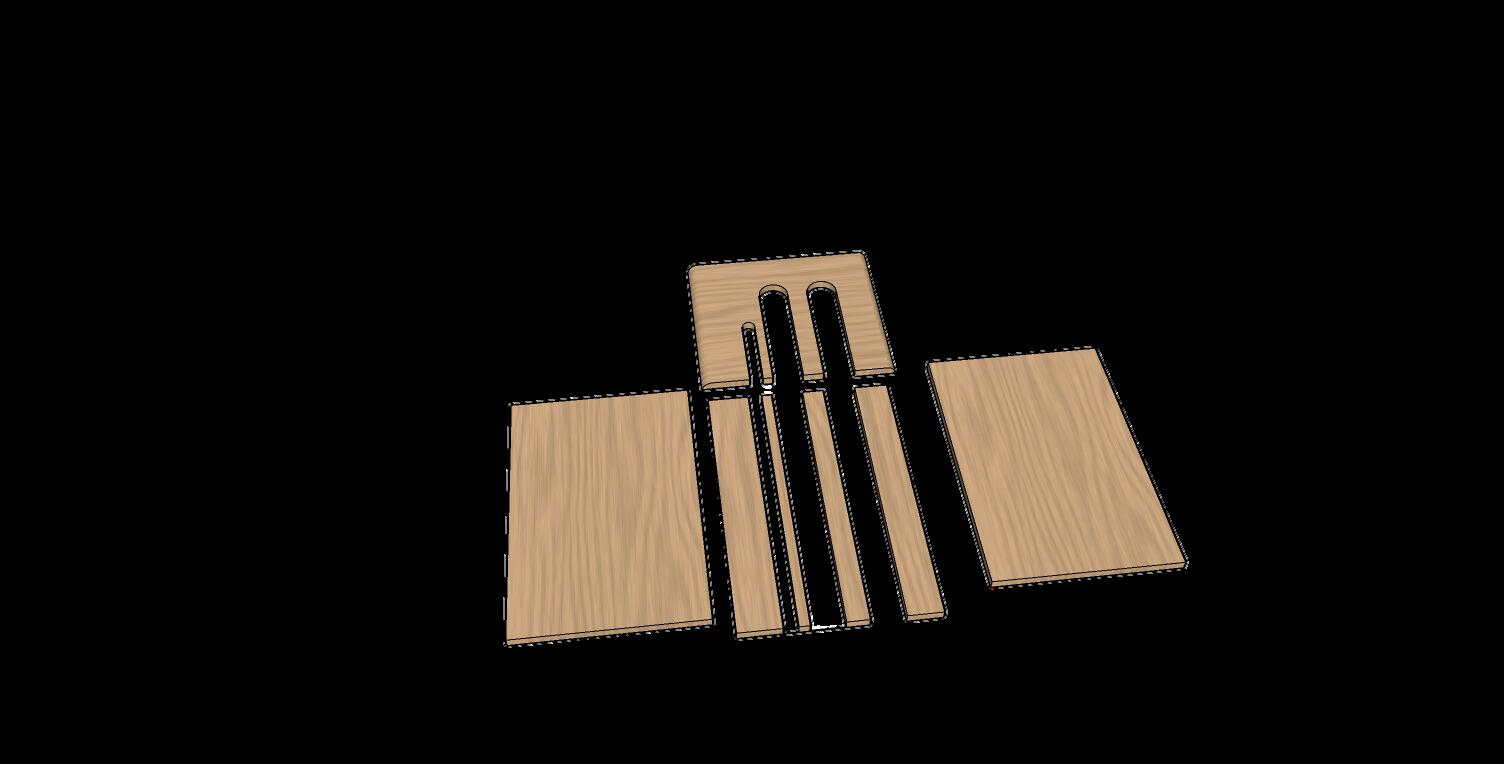

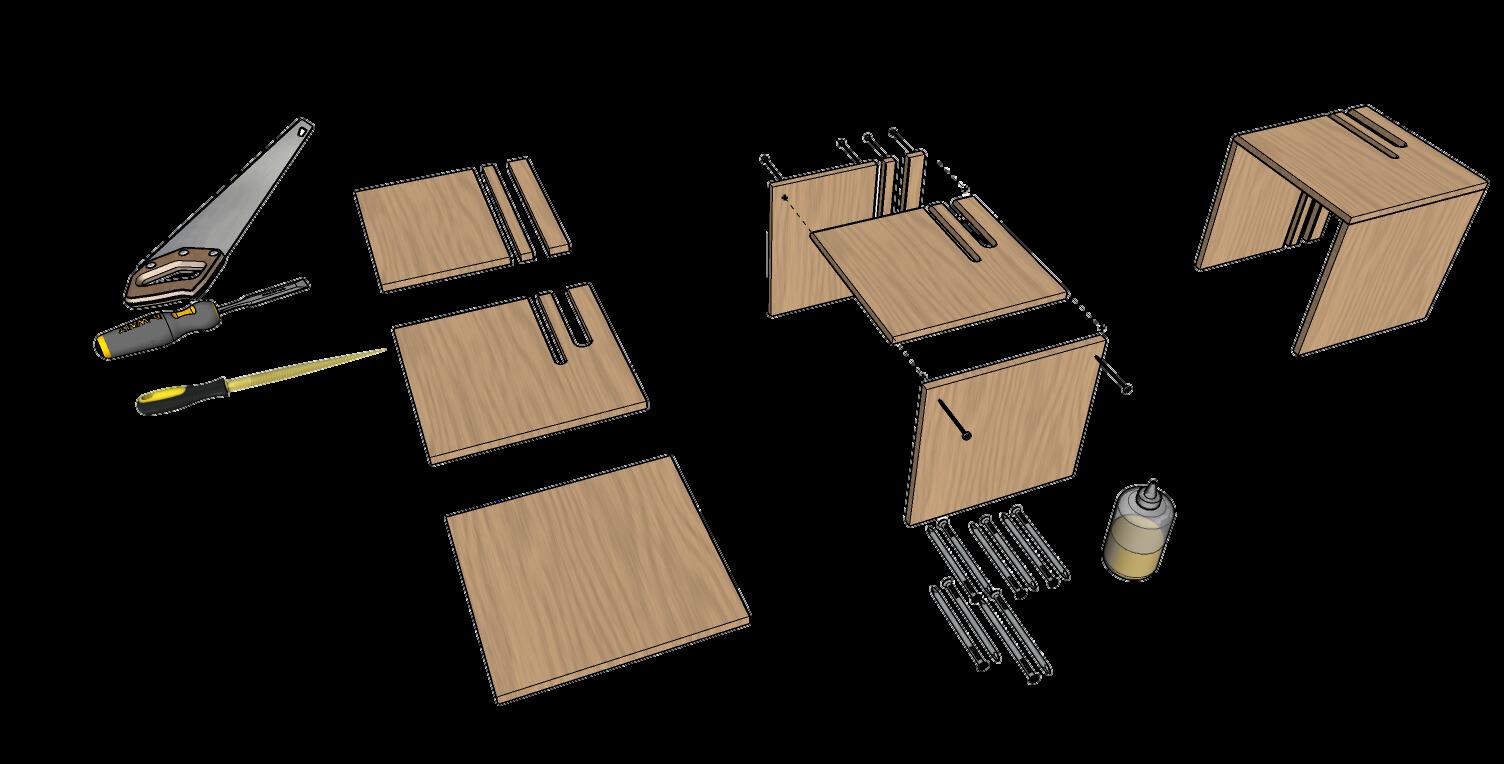

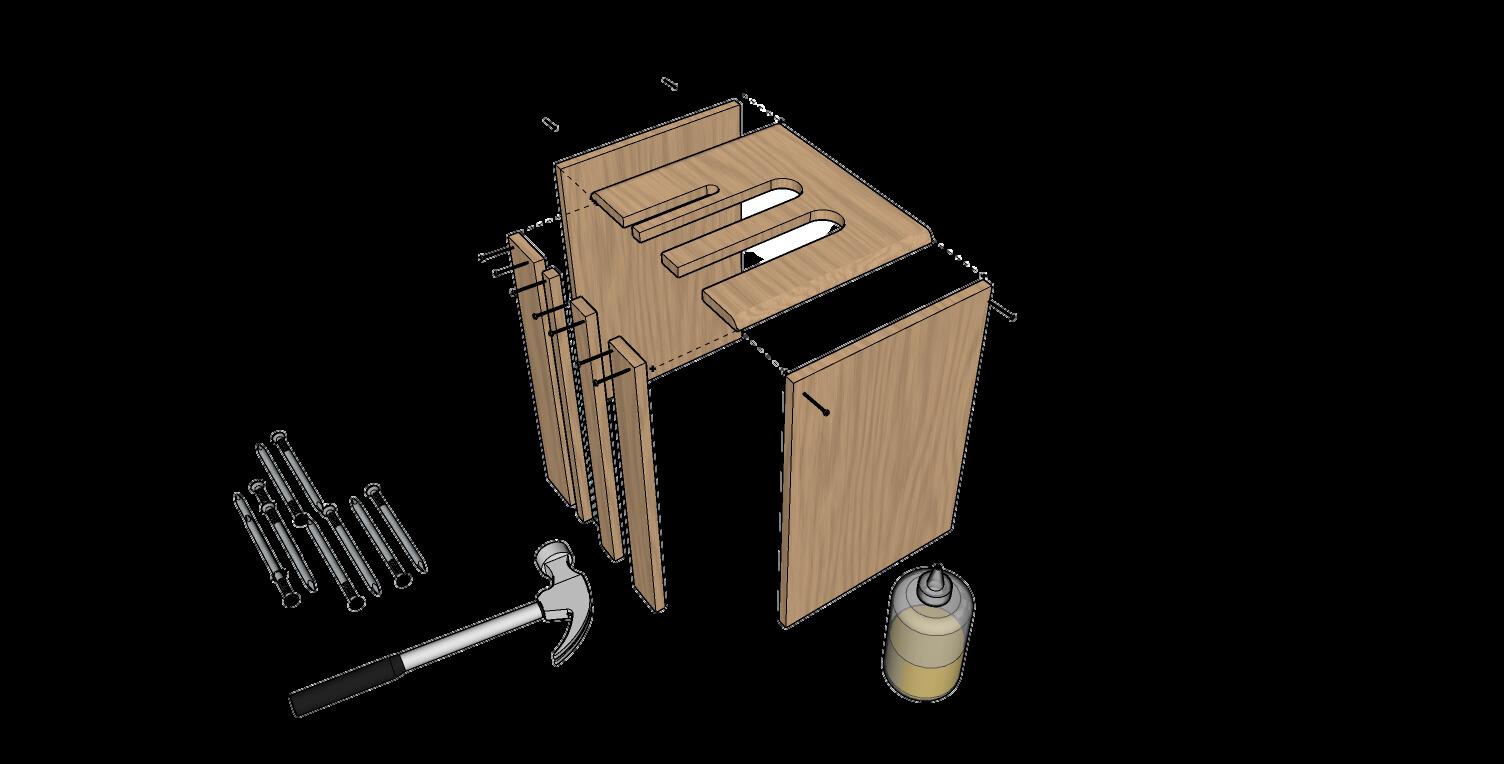

BICYCLE PARK ASSEMBLE
This two are being cut in between according to the measurement shown
Thisspace in betweensuit withrangeof bicycletyre
All the woods are attach together using nail and glue
400MM(L)X
600MM(H)
600MM(L)
410MM(W)
UNIT
450MM(L)
UNIT 450MM(L) X 450MM(H)
1UNIT

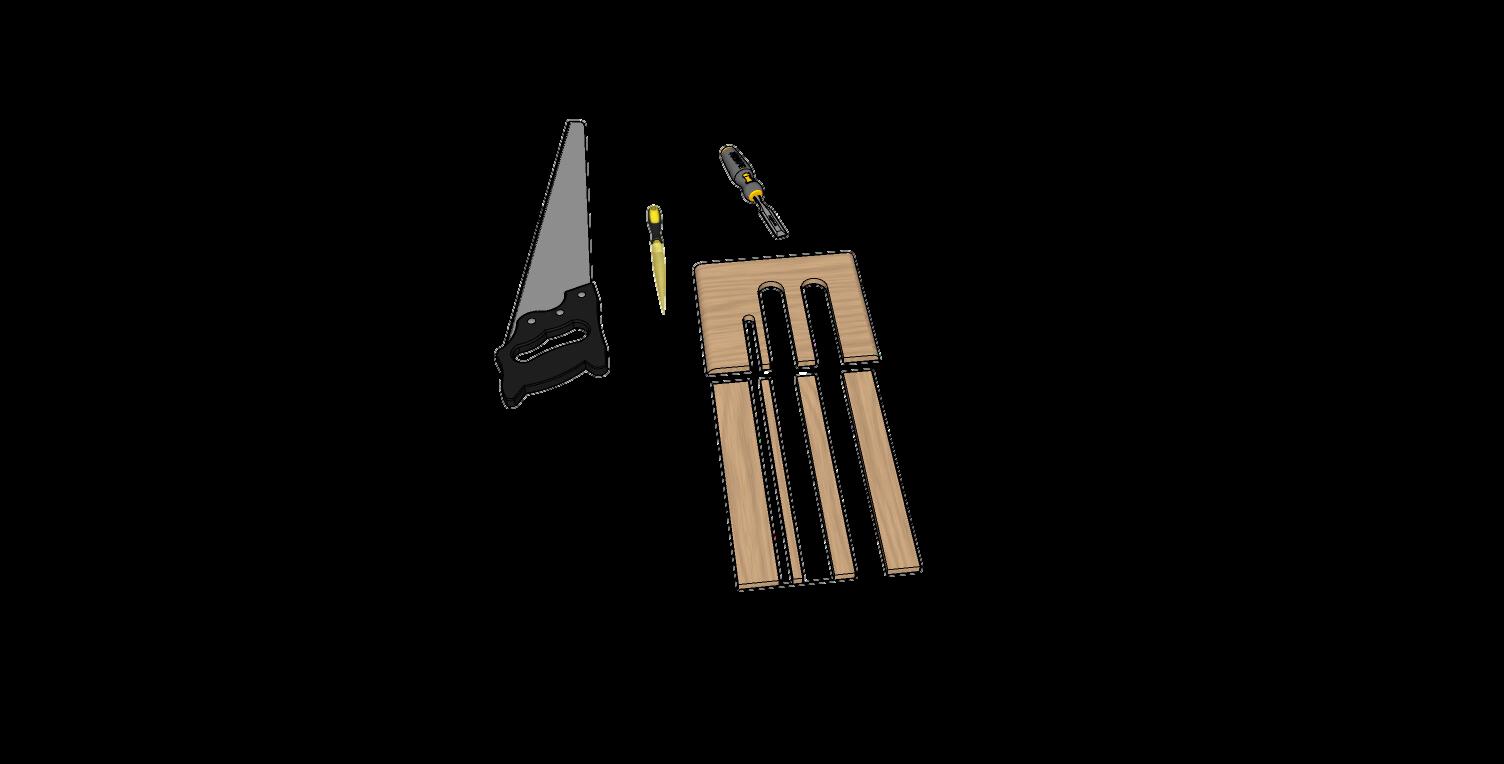

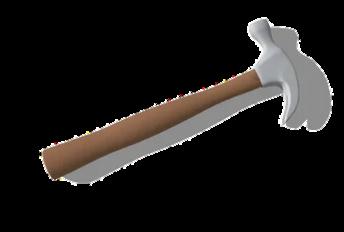

BOX COMPONENT 350MM(L) X 450MM(H)X 10MM THK X 2 UNIT 450MM(L) X 430MM(W) X10MMTHK X 2UNIT 430MM)L) X 340MM(W) X 20MM THK x 1 UNIT HAMMER SAW NAILS GLUE CHISEL WOOD RASP
BICYCLE PARK COMPONENT
450MM(H) X 20MMTHK X 1 UNIT
X 400MM(W) X20MM THK X 2 UNIT
X
X 20MM THK X 1
SITTING COMPONENT
X 430MM(H) X 20MM THK X 2
X

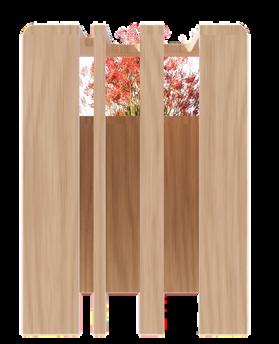

PLANTER
TOPPART 400MM(L)X450MM(H)X20MMTHK 600MM(L)X410MM(W)X20MMTHK----
70MM 80MM 30MM ---- ---- ----
TOPPART 400MM(L)X450MM(H)X20MMTHK
600MM(H) X 400MM(W) X 20MM THK 600MM(H)X400MM(W)X 20MMTHK
600MM(L)X410MM(W)X20MMTHK
SITTING SPACE ASSEMBLE
The wood is being cut in between according to the measurement shown 40MM ---- ---20MM
---450MM(L) X 430MM(H) X 20MM THK
Those space in between just for aesthetics purposes
---450MM(L) X 450MM(H)
--450MM(L) X 430MM(H) X 20MM THK
The woods are combine using glue and nail

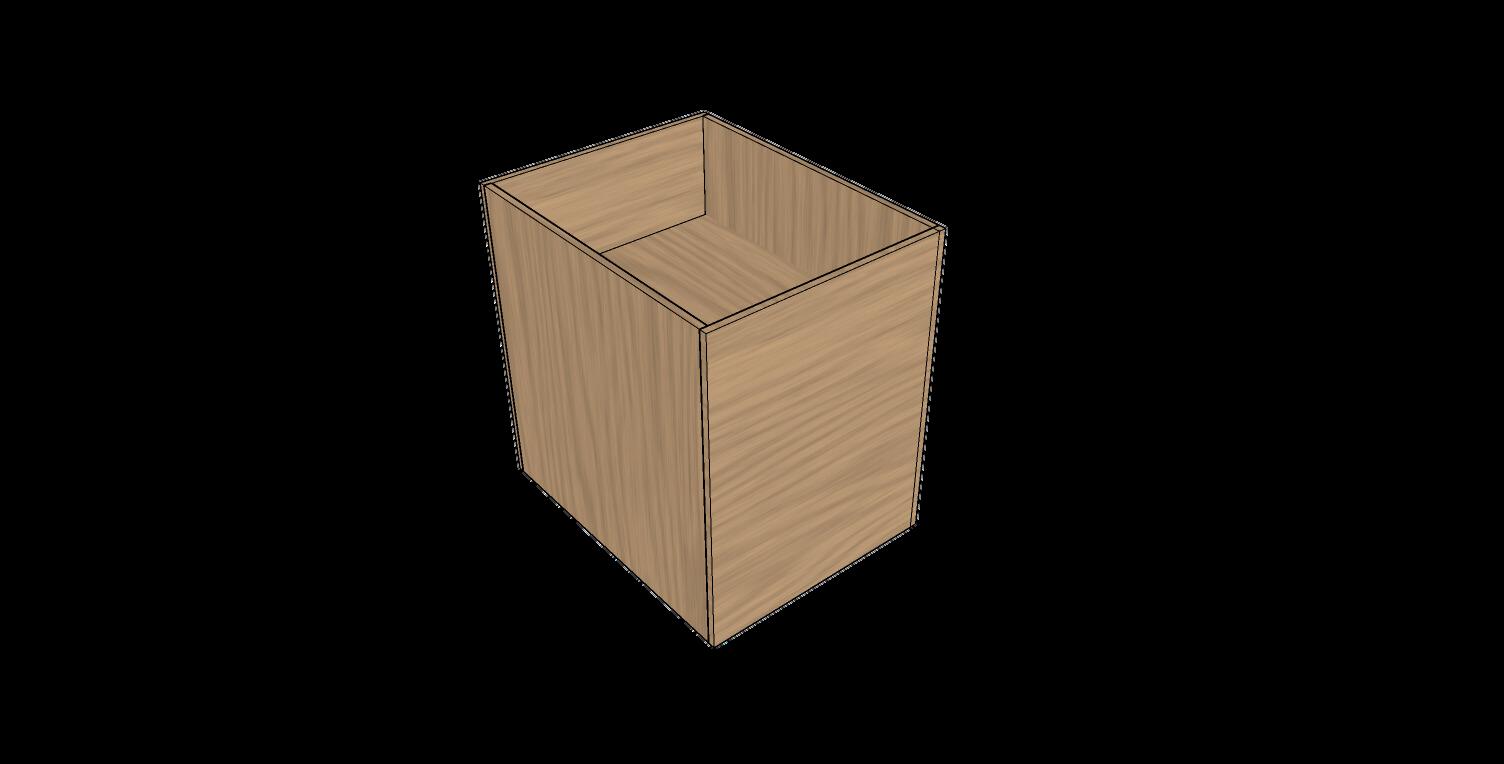

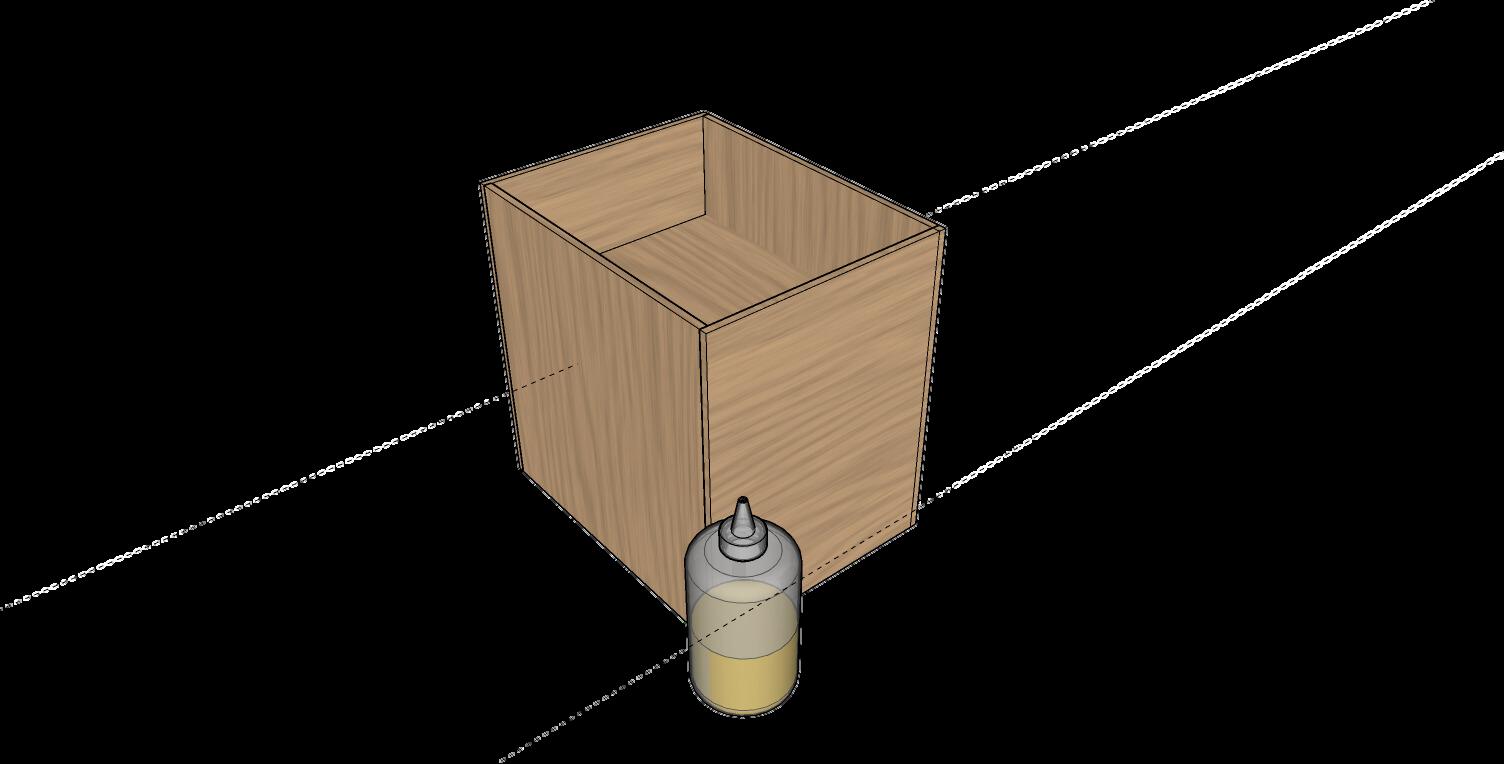

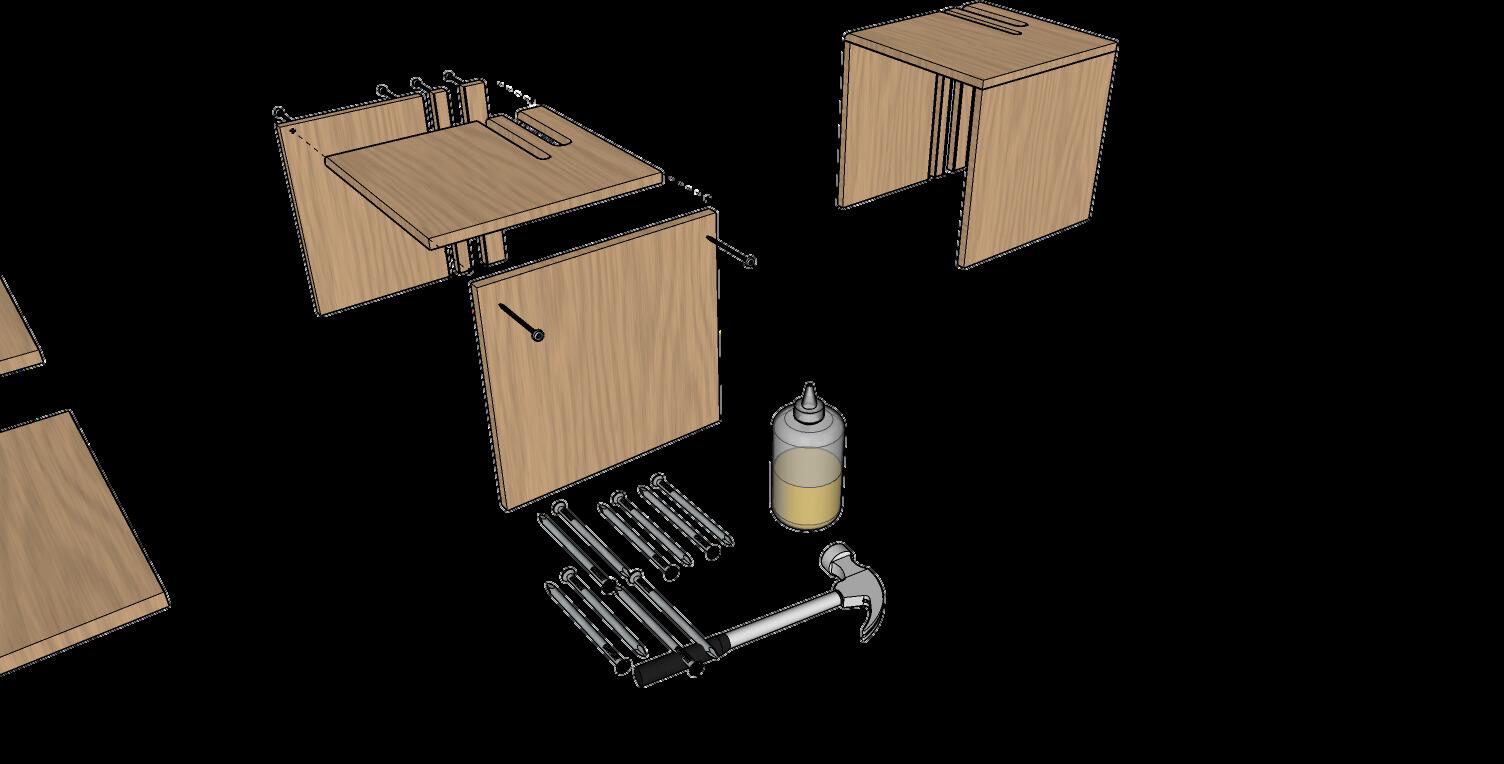

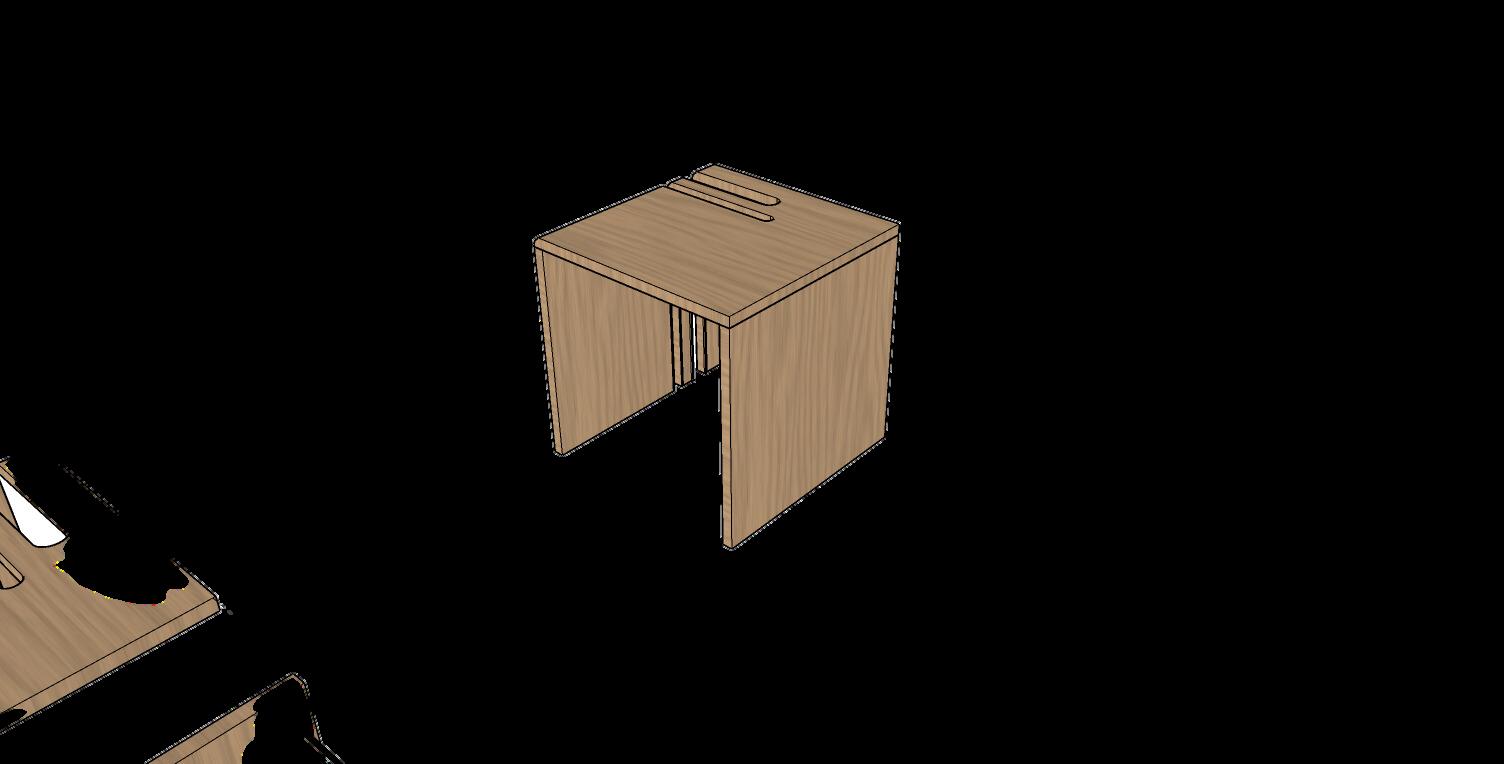

PLANTER BOX ASSEMBLE
All the wood is attach together using nail and glue
All the wood is attach together using nail and glue

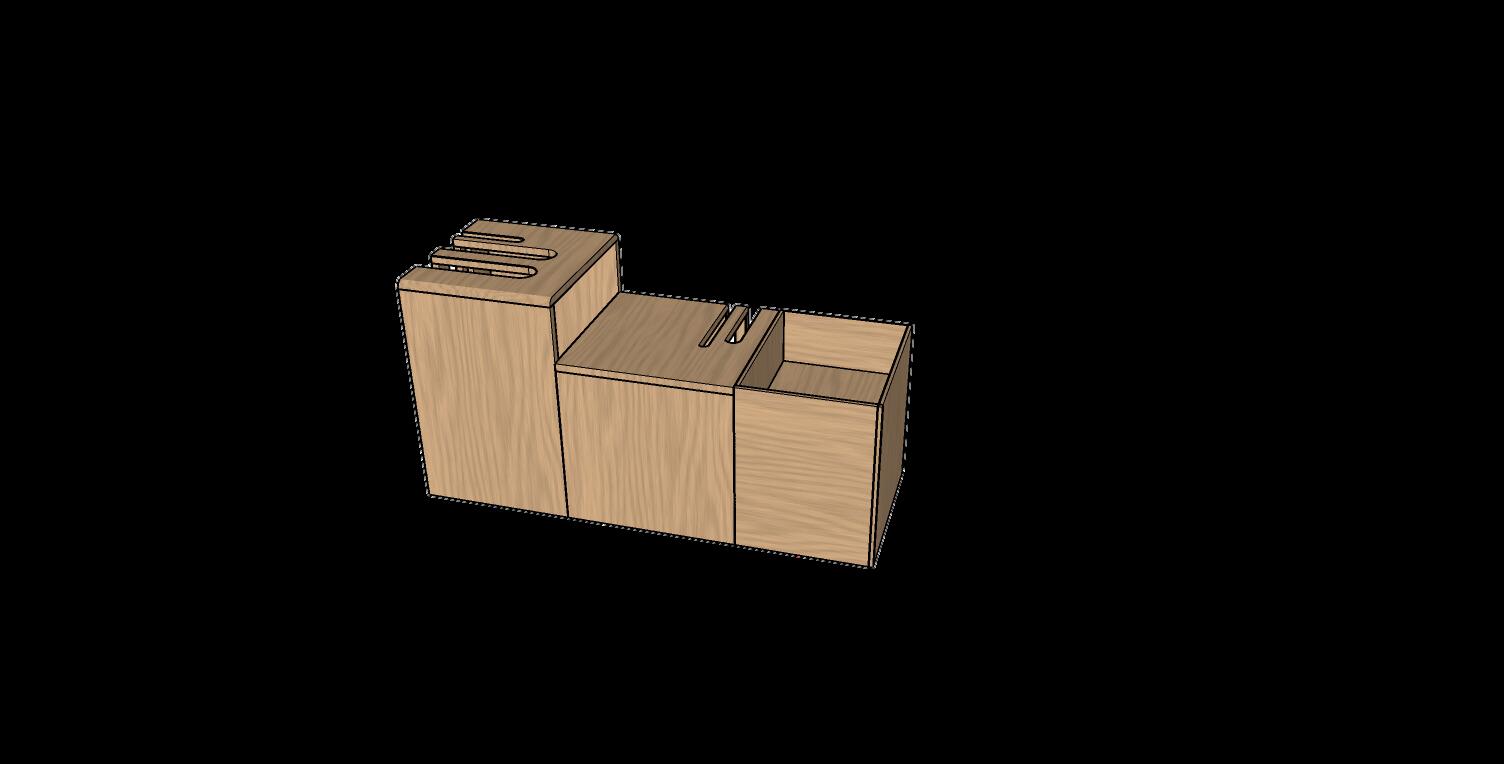

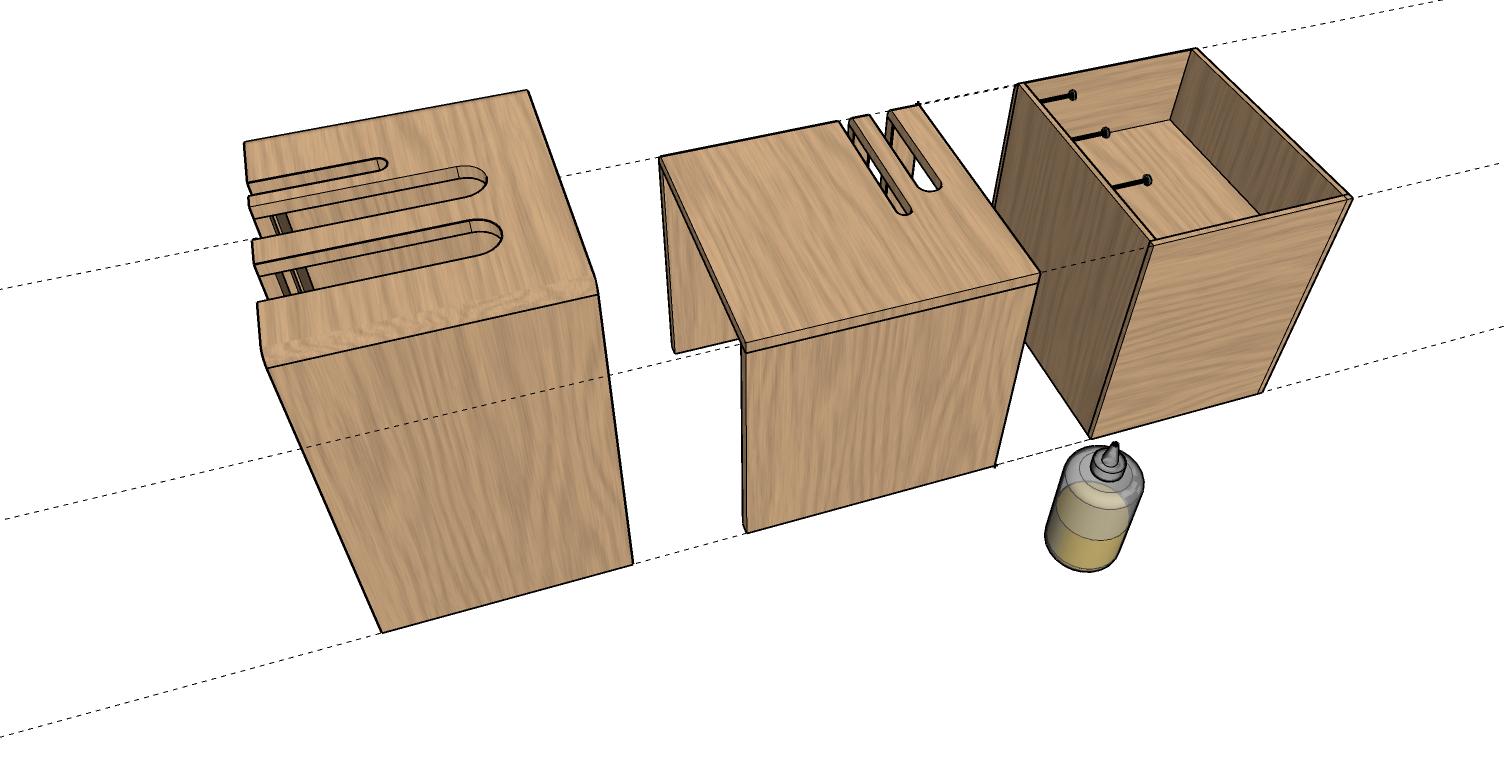

CYCLEPITSTOP ASSEMBLE
Bicyclepark component Sitting component Planterbox

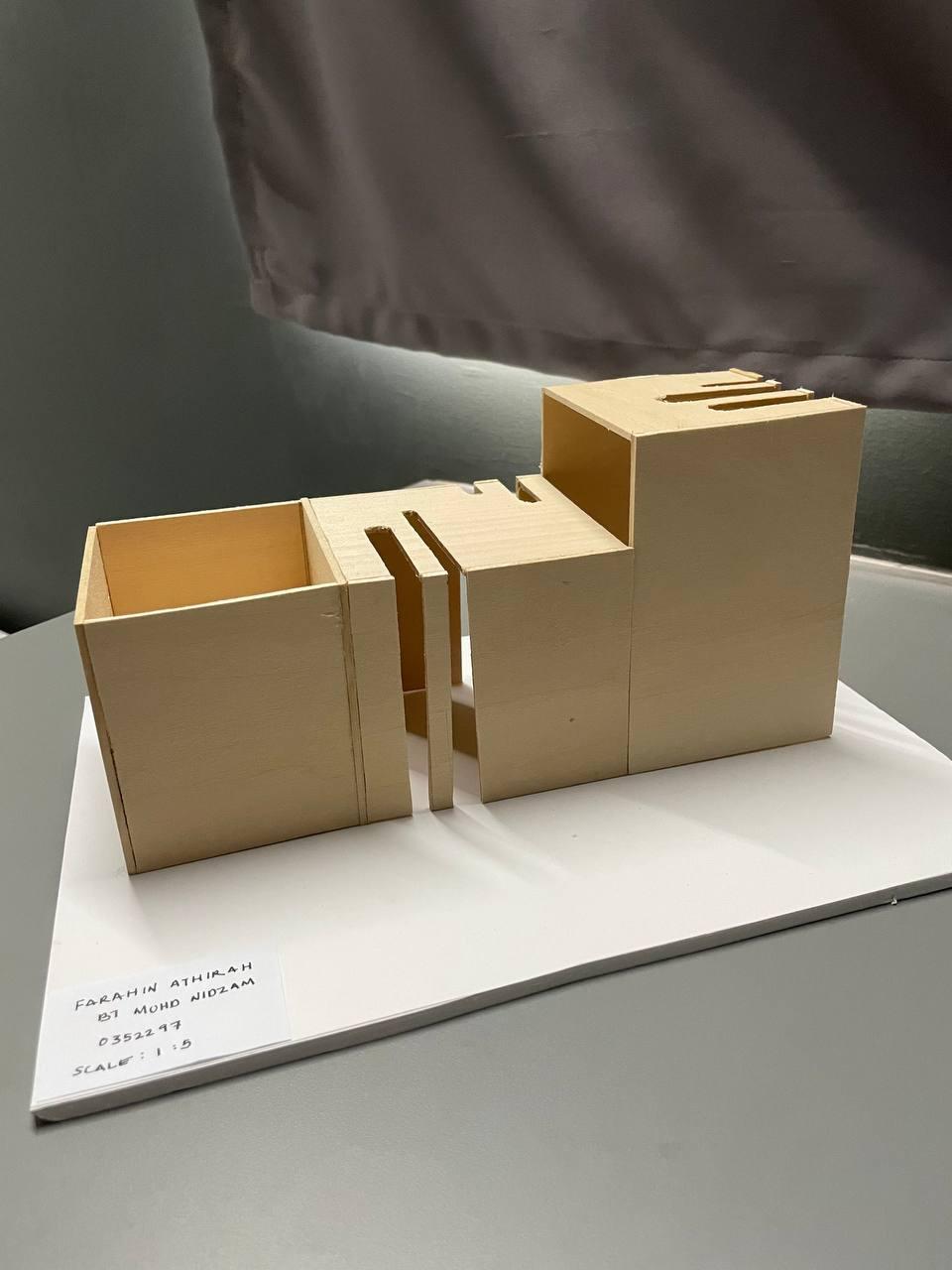

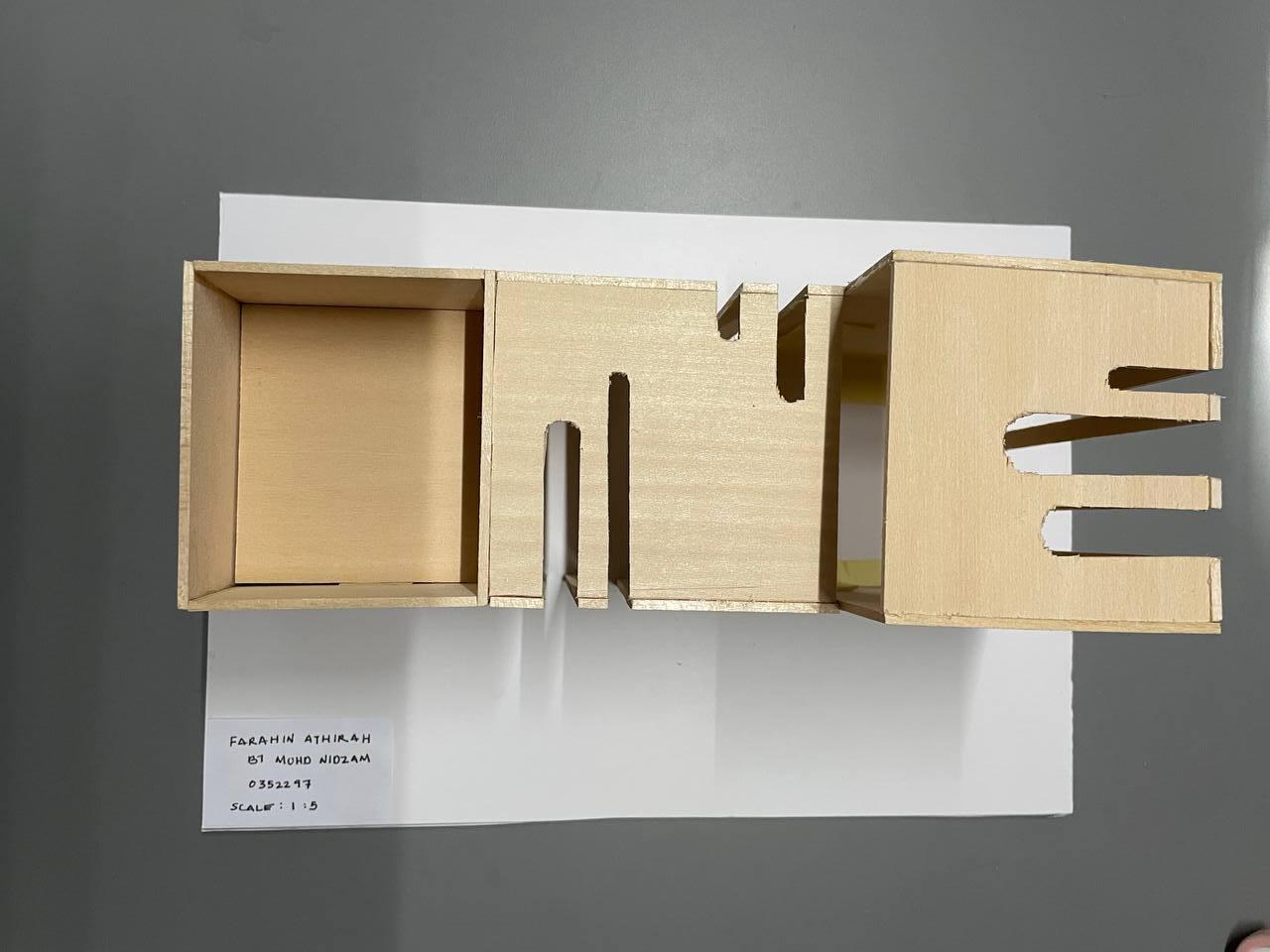

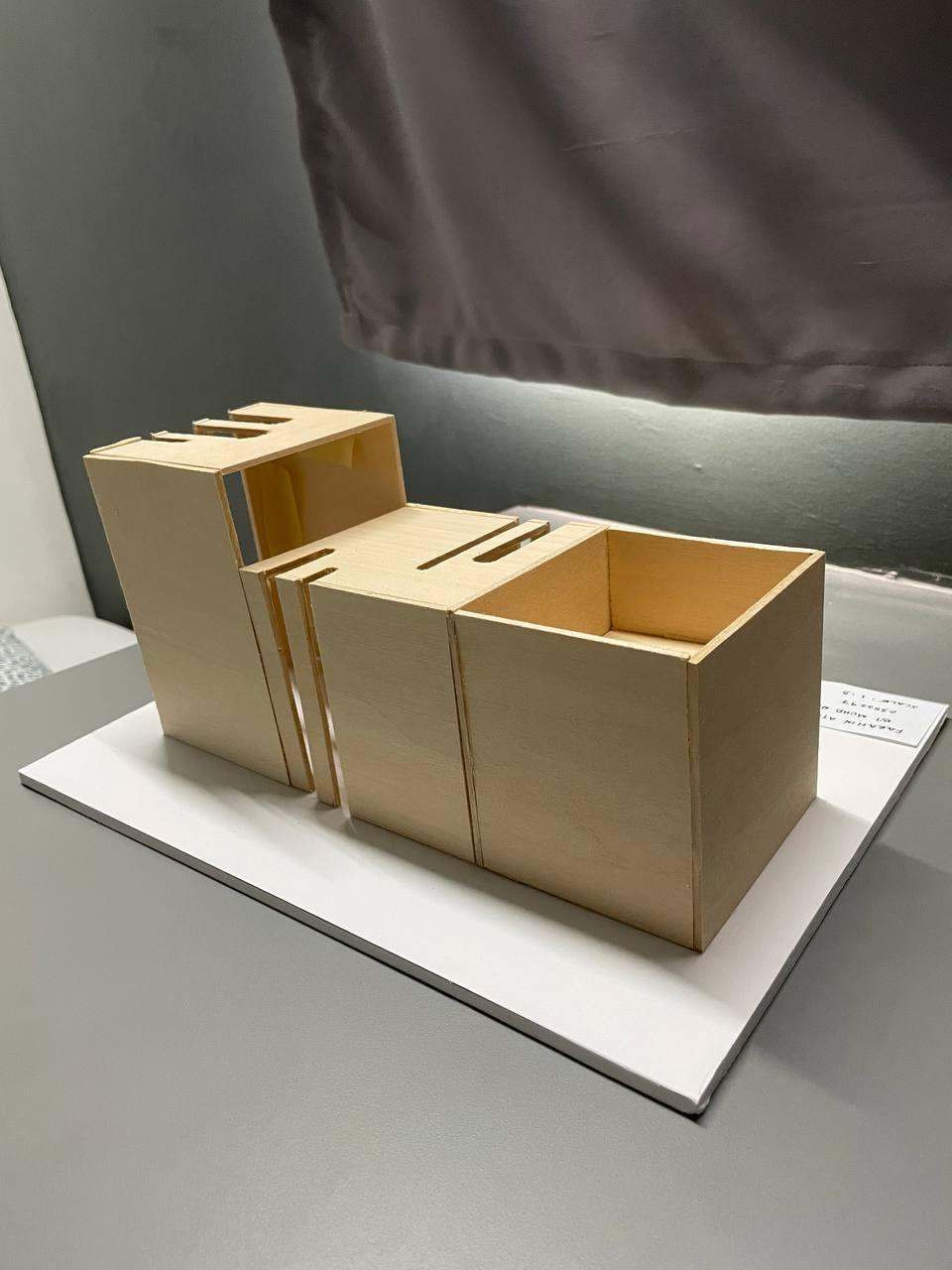

LOCATION MODEL
FURNITURE DESIGN. DST 60104
CYC-GO
Farahin Athirah Binti Mohd Nidzam
0352297

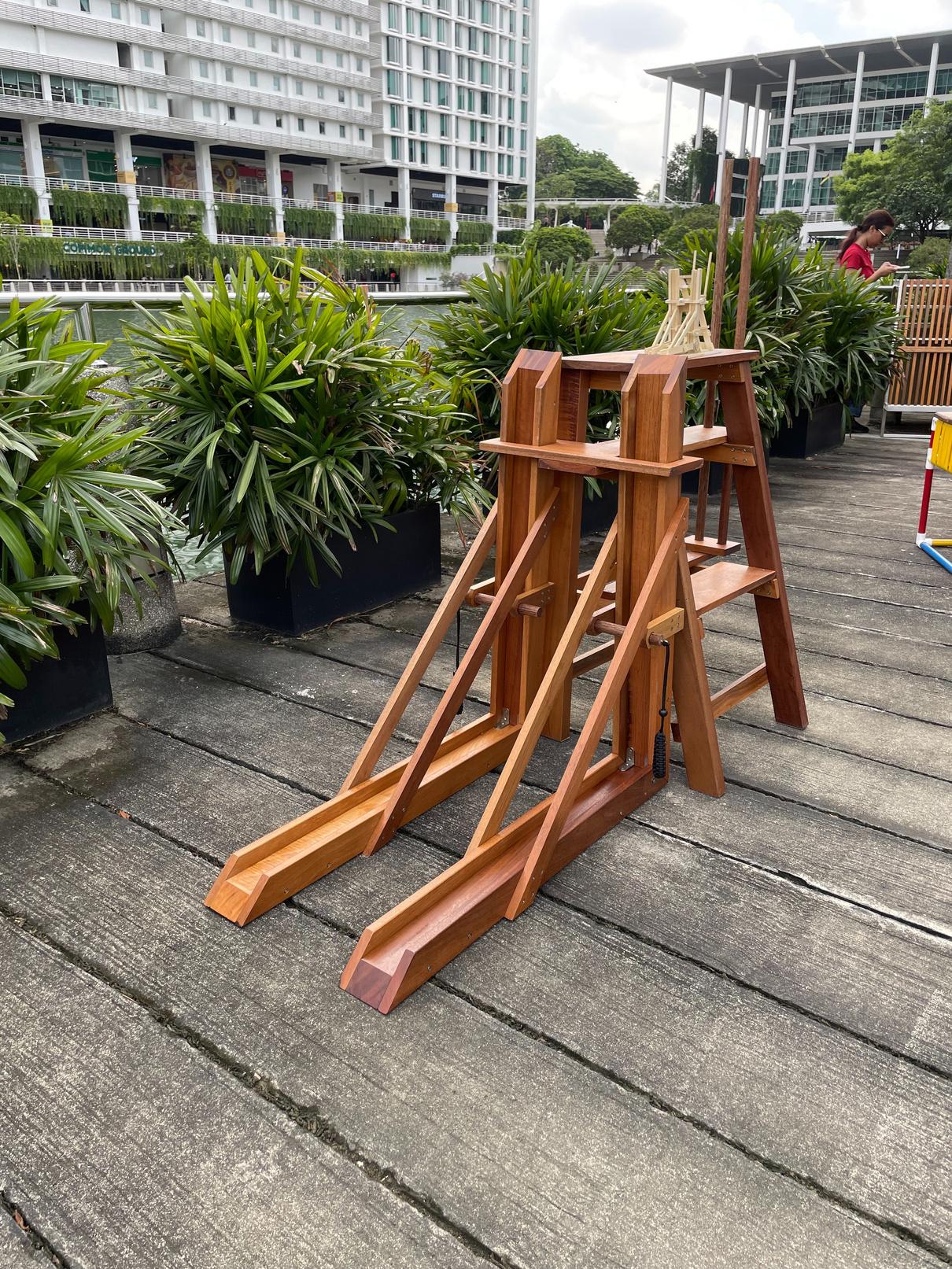

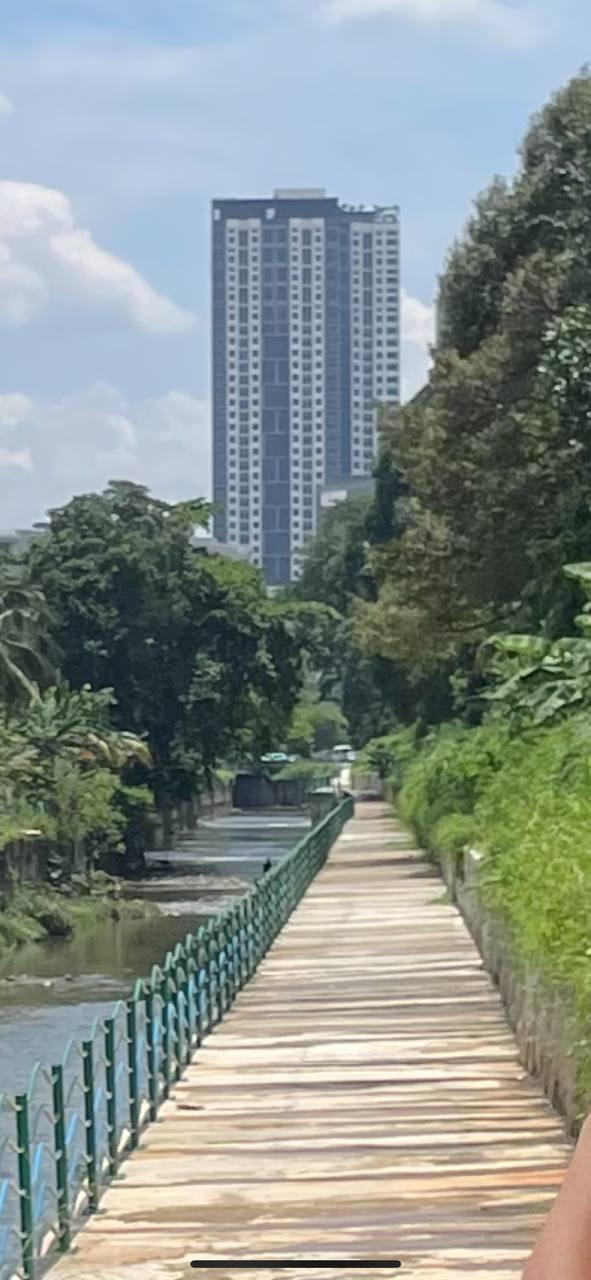

Site: Sungai Penchala
Collaboration with Global Environment Centre
CYC-GO

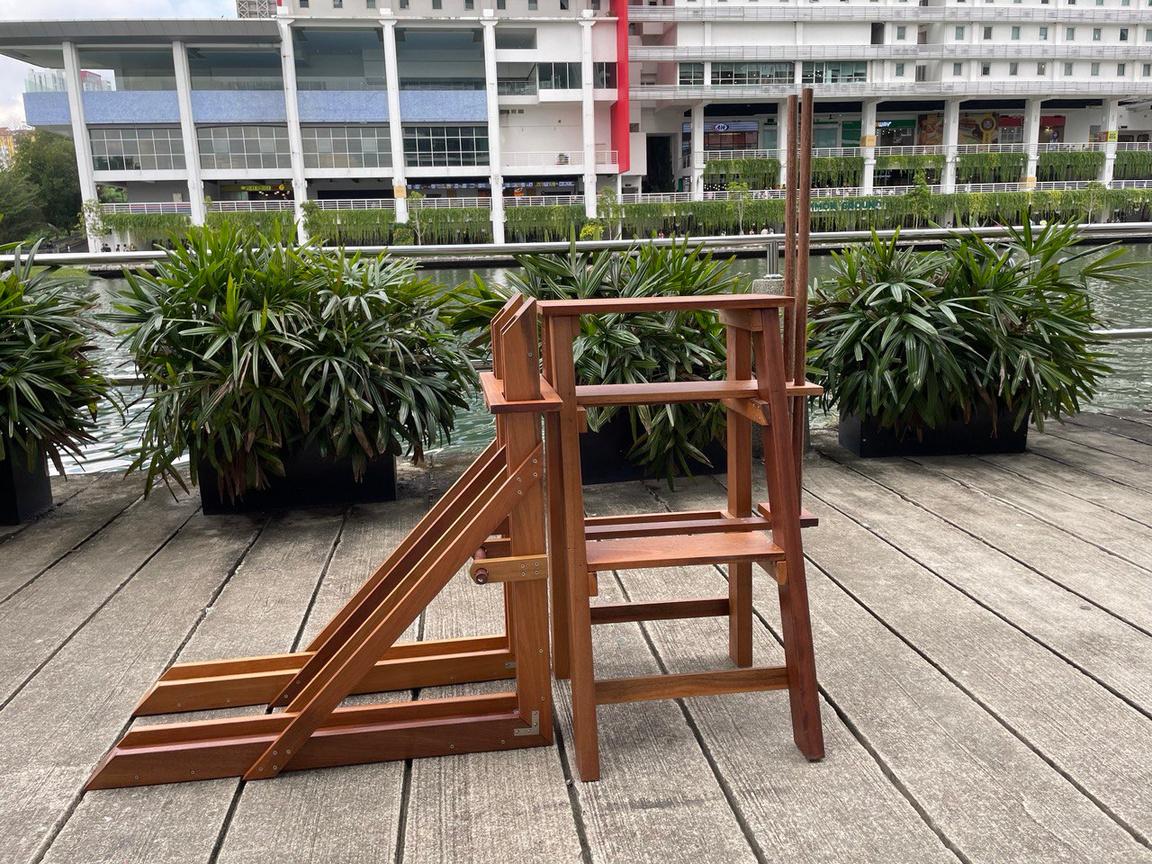

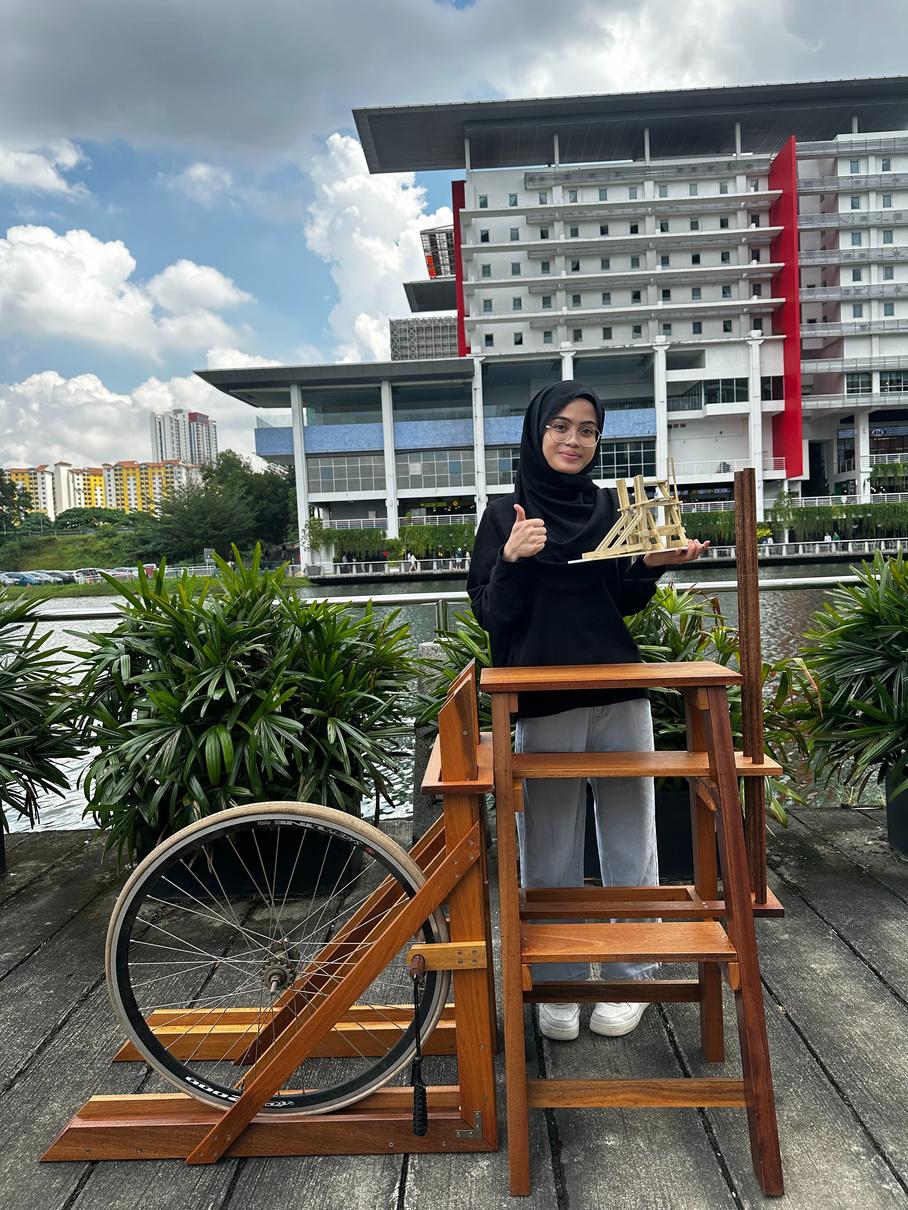

One of the key advantages of this furniture serves a dual purpose by providing a secure parking space for bicycles while also offering a comfortable seating option. Cyclists can easily park and lock their bikes in the stand. At the same time, the stand provides a convenient seating area for individuals who may need to take a break or wait for someone at Sungai Pencala.
Balau
In addition to its practical benefits, the bicycle stand with a seat also contributes to the aesthetics of its surroundings. With customizable design options, it can be seamlessly integrated into the environment. The use of durable and weather-resistant wood
ensures that the stand can withstand different climatic conditions and maintain its functionality and appearance over time.
Overall, a bicycle stand with a seat and boot holder is an innovative solution that addresses the needs of cyclists and pedestrians alike.
（
）
FUNCTION
For seating
Boot holder
To park bicycle
