FV Technical Product Manual - 2025

FAIRVIEW ARCHITECTURAL

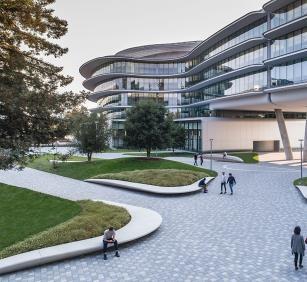

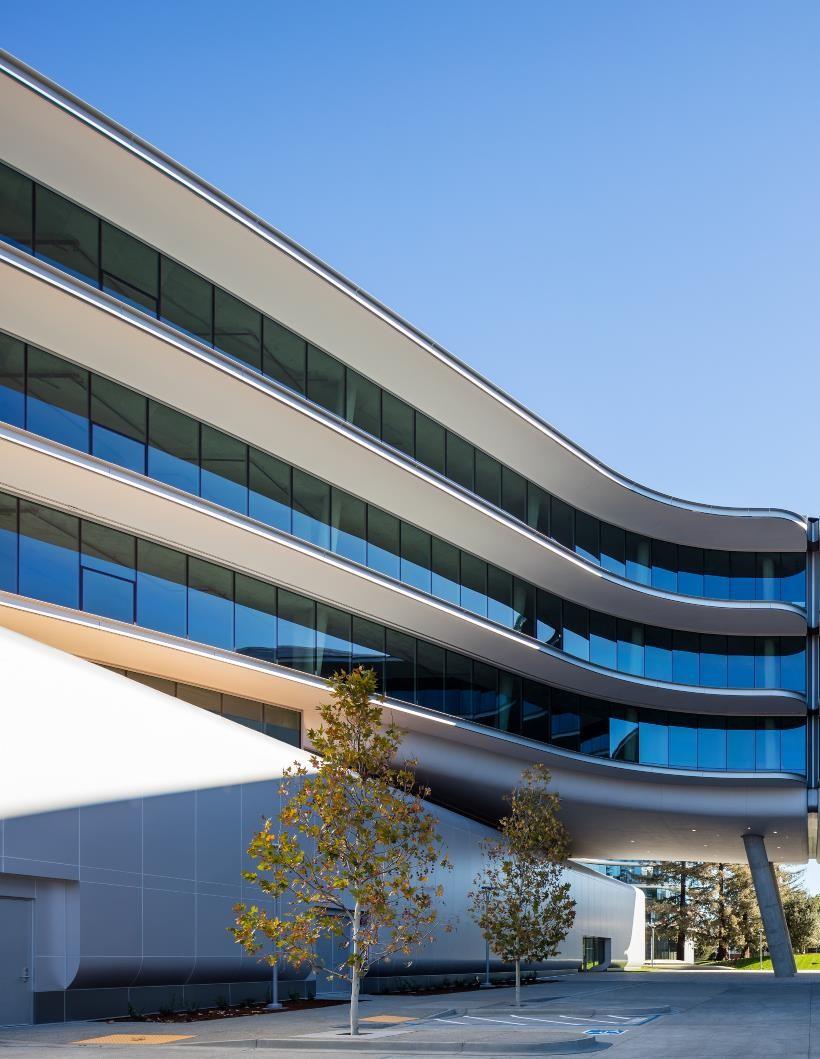

TECHNICAL PRODUCT MANUAL Project: Apple Central & Wolfe Campus Product: Vitrabond FR Finishes: Custom Pewter and Renaissance Silver

An American Family Owned Company Fairview Architectural North America is family owned and operated, like many of our clients.

We understand how hard you work to build your business, or maybe to expand the legacy begun by your grandparents.

With generations of experience, let us become a trusted partner in your success story!

The Fairview Product Ecosystem Vitranar®

Flexible Resin Coatings

Vitrabond FR®

Fire Resistant Metal Composite Material

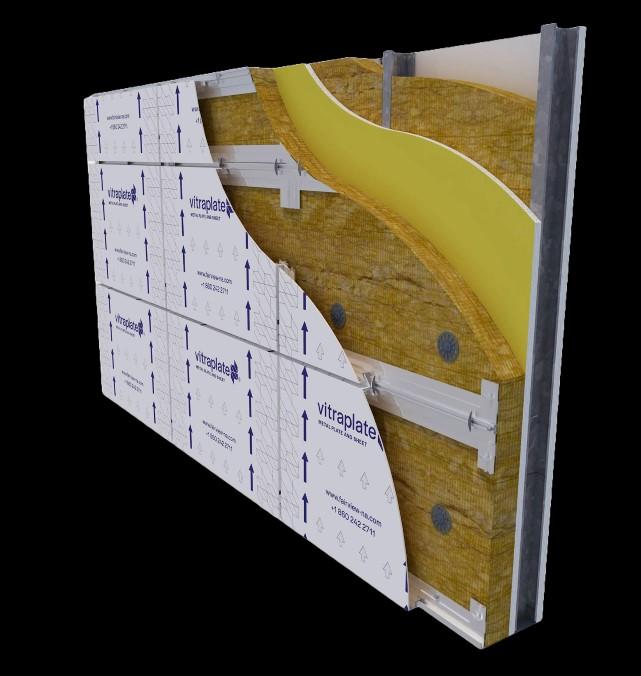

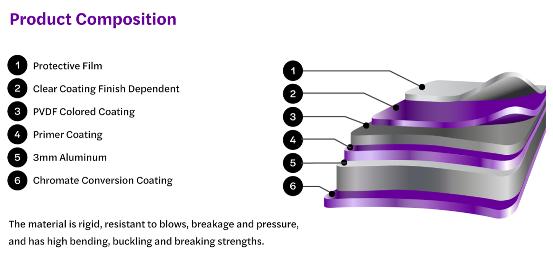

Vitraplate®

Prefinished 3mm (1/8”) Aluminum Plate

RapidWrapCI®

Continuous Insulation Systems

Arrowhead®

Panel Installation Systems

Edgeline®

Color Matched Flashing Material

2

Fairview Architectural https://fairview-na.com/ | 860-242-2711

page 4 page 10 page 22 page 28 page 38 page 42

Rev. 4/23/2026

MISSION Spreading success through quality business relationships and being structured to respond to market demands.

VISION The most convenient source for premium building façade products, bringing material safety and innovation to the industry.

BRAND PROMISE The only customer-success focused building façade manufacturer that drives industry innovation for construction professionals in North America in an era of sustainability and technological advancements.

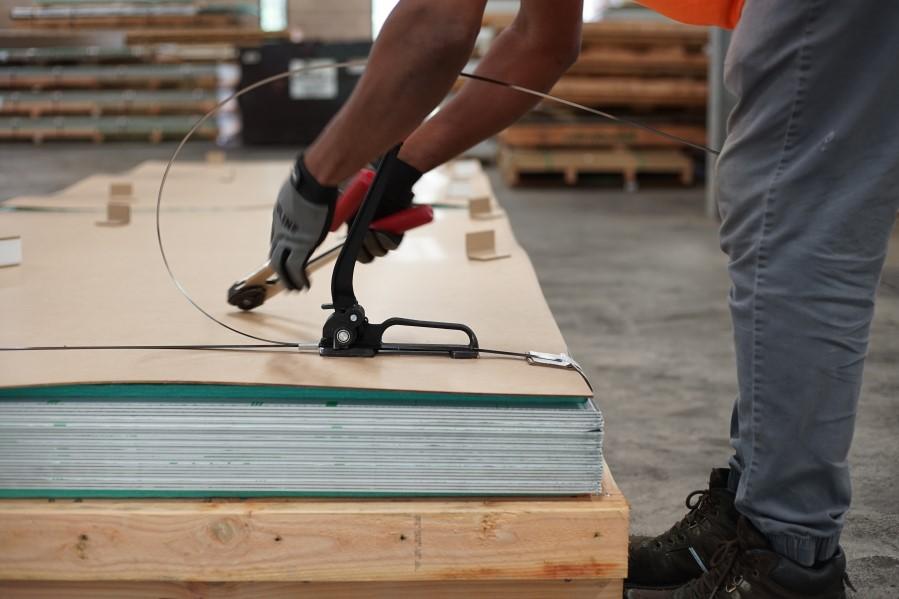

STOCK STORAGE PROGRAM •

Bill your client for stored materials!

•

Ensure batch consistency!

Ask our Customer Service Team for more details.

PALLET RETURN PROGRAM •

We pick them up at no cost to you!

•

You earn FREE FREIGHT!

Ask our Customer Service Team for more details.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

3

What is Vitranar®?

Vitranar® is a flexible resin coating developed specifically for formed aluminum applications in architecture.

This high quality coating technology allows the resins to flow and flex when aluminum is folded or bent to reduce or even eliminate cracking or crazing, depending on the forming methods used. Eliminating the post-painting process saves time, money, and labor.

4

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

VITRANAR® Pre-Finished Aluminum DURABLE PRE-FINISHED ALUMINUM TO STREAMLINE MANUFACTURING AND FABRICATION • • •

Flexible Resin Coating Technology withstands forming and fabrication.

Increase project throughput by reducing manufacturing steps.

Increase the performance of your finished product with a higher quality finish.

PRE-FINISHED VS. POST-PAINTED Comparison between using pre-finished aluminum in manufacturing, compared to manufacturing first and then applying the finish.

Manufacture using Vitranar® Pre-Finished Aluminum

Manufacture uncoated aluminum, followed by spray painting or powder coating

The resins used in coil coatings are formulated to be elastic and bendable, allowing many forming and bending methods to be used without cracking or peeling the paint.

Spray-applied coatings do not have flexible resins and therefore crack when material is bent or formed after painting.

Processes

Manufactured goods are immediately ready for shipping.

Complex Designs

Form complex shapes and intricate designs with the assurance of uniform and accurate coating of the entire manufactured component.

Manufactured goods need to go through a painting process, and often require further manufacturing steps after painting.

Cost

Coil coating is a high-volume automated process, and it reduces additional manufacturing costs.

Flexibility

Environmental Impact

Durability

Consistency

Color Options Rev. 4/23/2026

Low environmental impact due to controlled, high-efficiency process, leading to minimized waste, lower VOC emissions, and improved energy efficiency.

Due to the higher quality resins and controlled application methods, Vitranar® pre-finished aluminum can be backed by warranties as high as 40 years, even in coastal environments.

Precision controlled automated uniform application system ensures consistency in coating thickness and color.

The Vitranar® Pre-Finishing process allows for endless colors, finishes and patterns.

Uniform coverage may not be achieved in the difficult to access features of complex shapes.

Spray coating is often manually applied, or when machine applied it can require manual touch up to ensure full coverage.

High environmental impact with high VOC emissions due to overspray, less efficient recapture systems, high waste Lower quality ingredients and inconsistent application methods result in a less durable finish with a lower warranty.

Manual or semi-automatic application has variety in thickness resulting in variation in color and inconsistencies.

Spray-Painting can only achieve monolithic colors.

Fairview Architectural https://fairview-na.com/ | 860-242-2711

5

Vitranar® Typical Applications CURTAIN WALL •

Shadow Boxes

•

Infill Panels

•

Spandrel Panels

•

Back Pans

•

Fins

BUILDING FACADES •

Column Covers

•

Slab Edge Covers

•

Rainscreen Panels

•

3D Panels

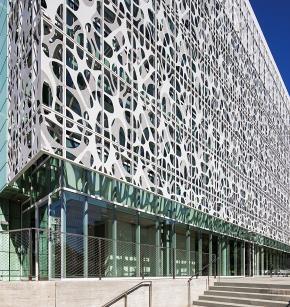

ARCHITECTURAL DETAILS

6

•

Perforated Screen Walls

•

Louvers

•

Sun Shades

•

Parapet Caps

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Vitranar® Buying Guide PURCHASING TIPS • Use custom widths and lengths to optimize your purchase • Choose any finish you need — there are no standard finishes on solid aluminum plate and sheet material

AVAILABILITY MATRIX SOLID/MICA/METALLIC/CHROMATIC Aluminum: 3003 H14, 5052 H32

MATERIALS NOMINAL THICKNESS:

Steel: 24GA, 26GA 0.020” up to 0.125” (Typical for this application is 0.032” and 0.040”) Custom nominal thicknesses may be available upon request

WIDTHS:

STANDARD:

50”, 62”

CUSTOM:

36” to 62” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

PATTERNED ALLOYS

3003 H14, 5052 H32 (other alloys may be available upon request)

NOMINAL THICKNESS:

0.020” up to 0.125” (Typical for this application is 0.032” and 0.040”) Custom nominal thicknesses may be available upon request

WIDTHS:

STANDARD:

50”, 62”

CUSTOM:

48” to 62” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

NOTE: Separate sheet widths may be from separate coating runs, and in some cases could results in a perceivable color difference.

MINIMUM ORDER QUANTITIES NOMINAL THICKNESS

SOLID/MICA/METALLIC

PATTERNED

0.125” (3.0mm)

2,500 sf

5,000 sf

0.080” (2.0mm)

4,000 sf

8,000 sf

0.063” (1.5mm)

5,000 sf

10,000 sf

0.040” (1.0mm)

6,000 sf

12,000 sf

0.032” (0.8 mm)

7,000 sf

14,000 sf

NOTE: Minimum order quantity per color, width and thickness.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

7

Vitranar® - A Greener Choice, Vibrant Results Reduce your environmental footprint while achieving superior finishes.

Vitranar® uses a precision controlled application process to minimize waste, emissions, and energy use compared to traditional spray methods.

Lower VOC emissions

|

Reduce waste

|

Increased efficiencies

Unlimited Colors & Finishes Flawlessly translate your vision onto aluminum cladding.

Here's how our exceptional color matching empowers your designs:

•

Unparalleled Versatility: Match any color, finish, or texture imaginable.

•

Seamless Design Continuity: Achieve flawless color consistency across your entire facade, even for complex geometries or large-scale projects.

•

Unleash Creativity: Explore a wider design palette than ever before and go beyond conventional options

Partner with us and unlock the full potential of your architectural facades with our industry-leading color matching technology.

8

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Vitranar® Technical Data STANDARD

TEST

TEST STANDARD

RESULT

Fire Performance of 3003 Aluminum

ΔT< 86°F

PASS

PROPERTIES ASTM E136

THERMAL PERFORMANCE ASTM D696

13.8x10-6 in/in/°F (Aluminum)

Coefficient of Linear Expansion

AAMA 2605 STANDARD PVDF COATING PVDF Coating

Descriptions

Test

Test Result

ASTM B117

Salt Spray Resistance

5% salt fog at 95°F

Passes 4000 hrs. Less than 1/16” avg creepage from scribe. None or few #8 blisters

ASTM D523

Specular Gloss Test

Standard @ 60°

Varies per finish

ASTM D1308

Alkali Test

10%, 25% NaOH, 1hr

No Effect

ASTM D714

Blistering of Paint Test

100% Relative Humidity @ 95°F

Passes 4000 hrs.

ASTM D2244

Exterior Exposure

10 years @ 45° South Florida

PASS - Max. 5 fade

ASTM D2247

Water Resistance

100% Relative Humidity @ 95°F

No #8 blisters

ASTM D2794

Reverse Impact

1.5 x metal NOMINAL THICKNESS (Aluminum)

No cracking or adhesion loss

ASTM D3359

Adhesion

Reverse impact 1/16” crosshatch

No adhesion loss

ASTM D3363

Film Hardness

Pencil Test F - 2H

PASS

ASTM D4145

Flexibility

T - Bend

0 - 2 T - Bend, No pick off

ASTM D4214

Chalk Resistance

10 years @ 45° South Florida

Pass - Max. 8 Chalk

VITRANAR COATED ALUMINUM LEED DATA ½ Pre-Consumer + Post-Consumer Recycled Content

Up to 32.5%

Warranty A standard finish warranty of up to 20 years is available on all Vitranar ® coated products, with an extended warranty of up to 40 years available.

Our unwavering commitment to quality ensures superior products by following strict ISO9000 standards, guaranteeing consistency and continuous improvement

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

9

What is Vitrabond®?

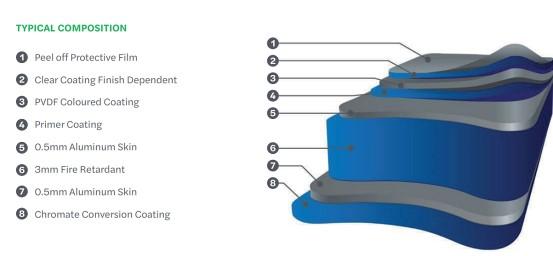

VitrabondFR is a 4mm Aluminum Composite Panel that is comprised of a fire resistant core sandwiched between two 0.020” aluminum skins, or other natural metal sheets such as zinc, copper, or stainless steel. Versatility in finish options and workability allows it to exceed any design intent

10

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

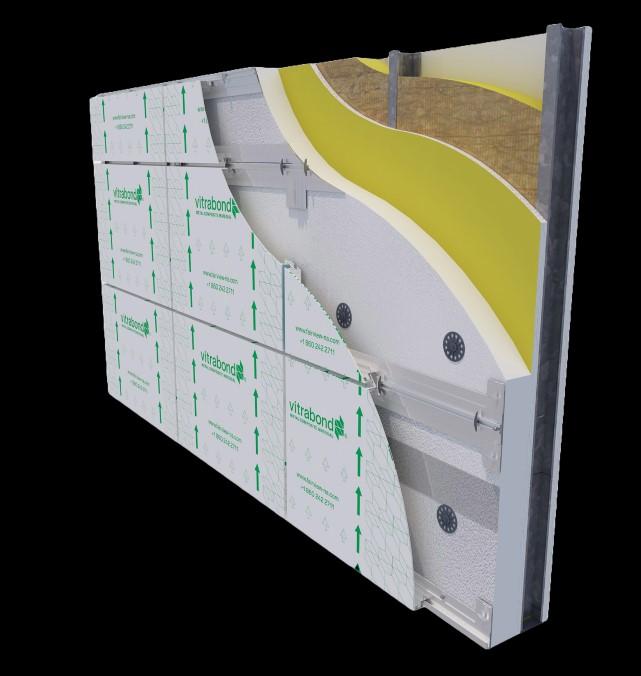

VITRABOND® Metal Composite Material Vitrabond FR is a metal composite panel that is comprised of a fire-resistant core sandwiched between two aluminum sheets or other natural metal sheets such as zinc, copper, or Stainless steel. This product composition results in outstanding surface flatness and a high strength to weight ratio.

Vitrabond FR’s versatility also extends to its workability in that it can be easily curved, folded or shaped to be used for rainscreen panels, fascia, soffits, column covers, interior cladding applications and much more.

BENEFITS OF USING VITRABOND FR SUPERIOR FINISH

REDUCE WASTE

UNLIMITED FINISHES

PVDF KYNAR 500® or FEVE paints known for their high durability, optimum weather resistance and industrial pollution protection.

Carry less waste and order less material by taking advantage of the 110% Stock and Color Program.

See page 18 for more details.

Fairview can match any color, even if it is from a police officer’s uniform (and yes, true story).

IN STOCK

VERSATILE

QUICK INSTALLATION

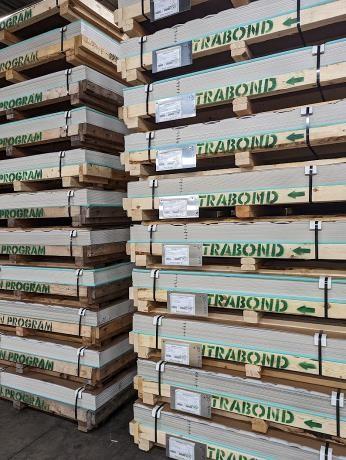

Millions of square feet of Vitrabond FR material are in-stock and ready to ship in just 2-5 days.

Vitrabond sheets can be routed, cut, roll-bended, folded, and perforated to turn any vision into a reality.

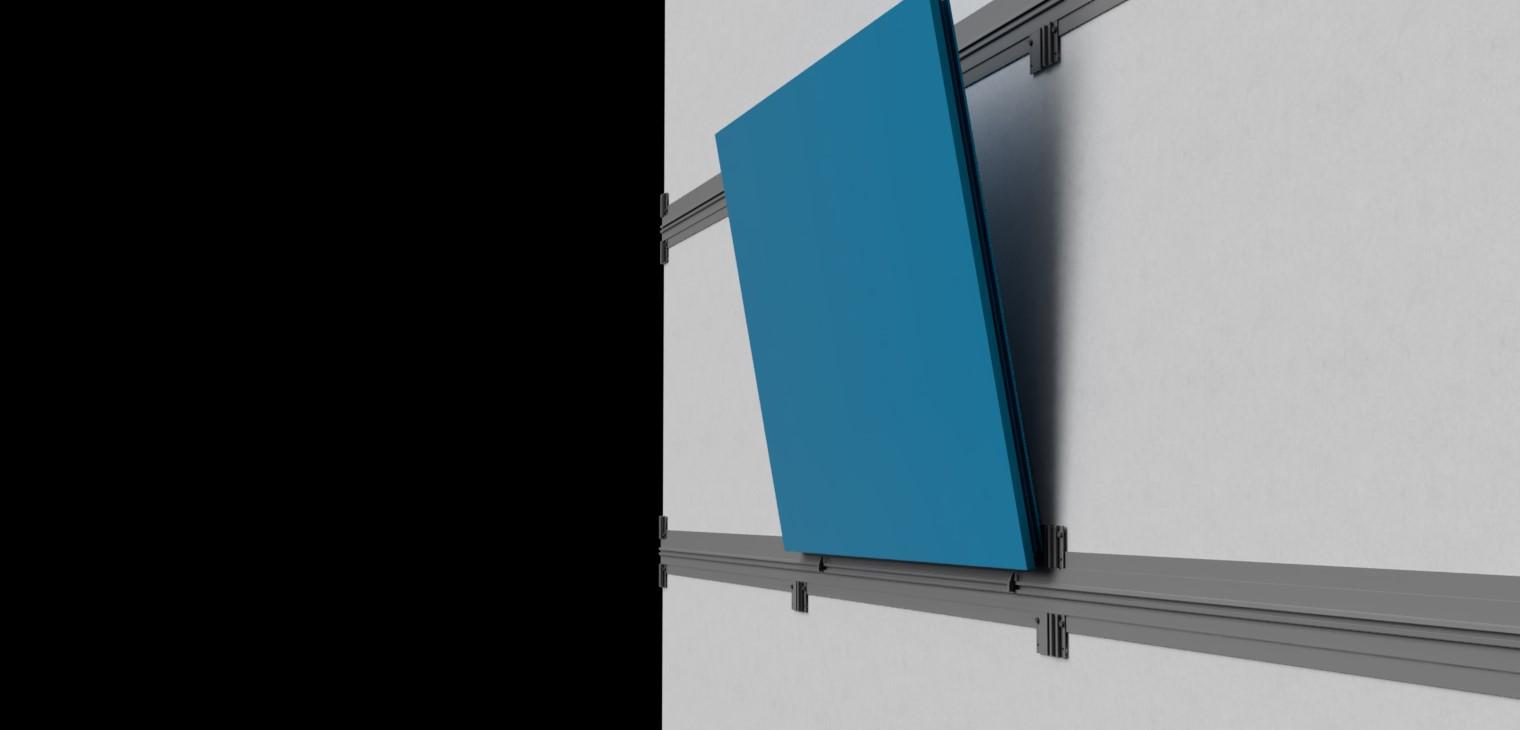

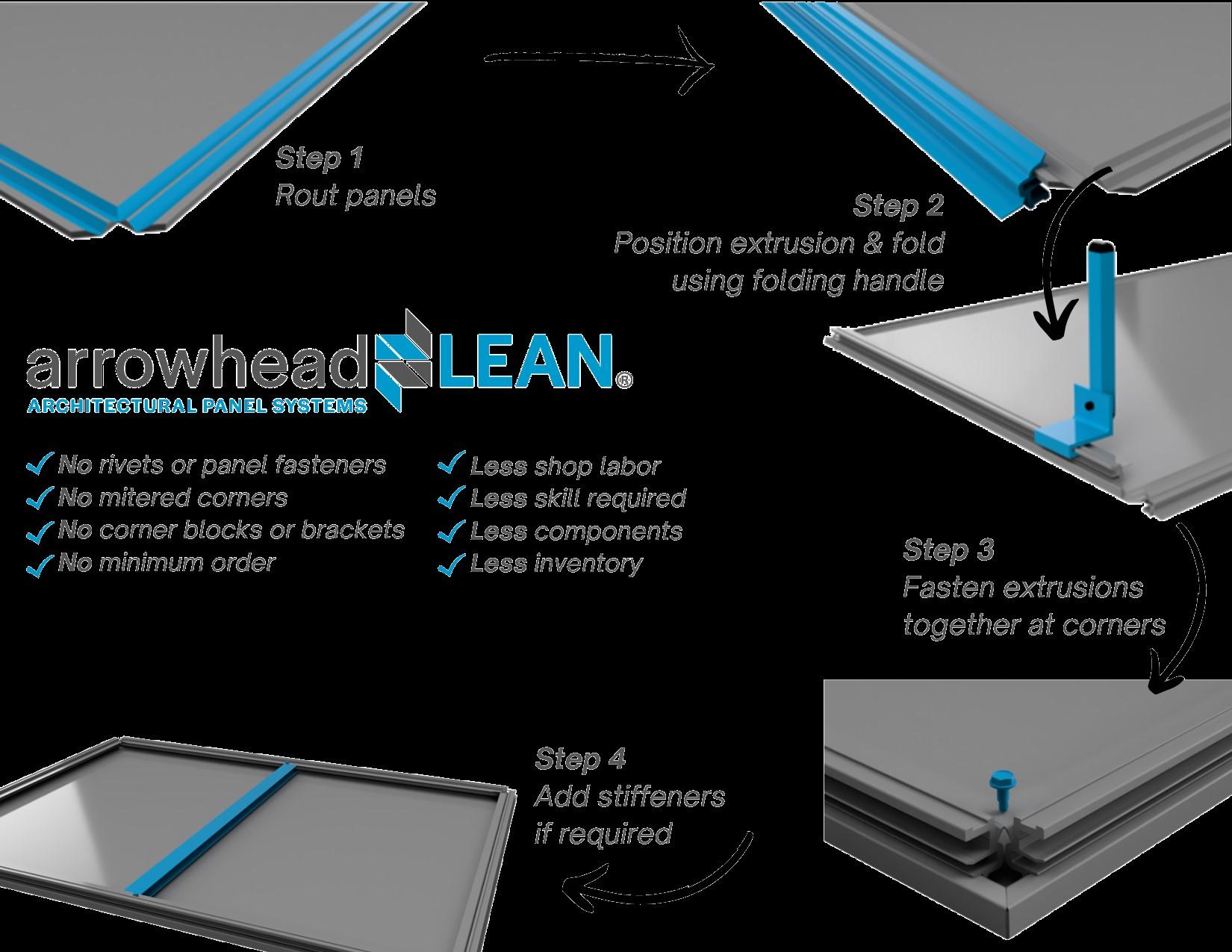

Easy to form and assemble into panels using our Arrowhead® Rainscreen Panel Installation Systems

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

11

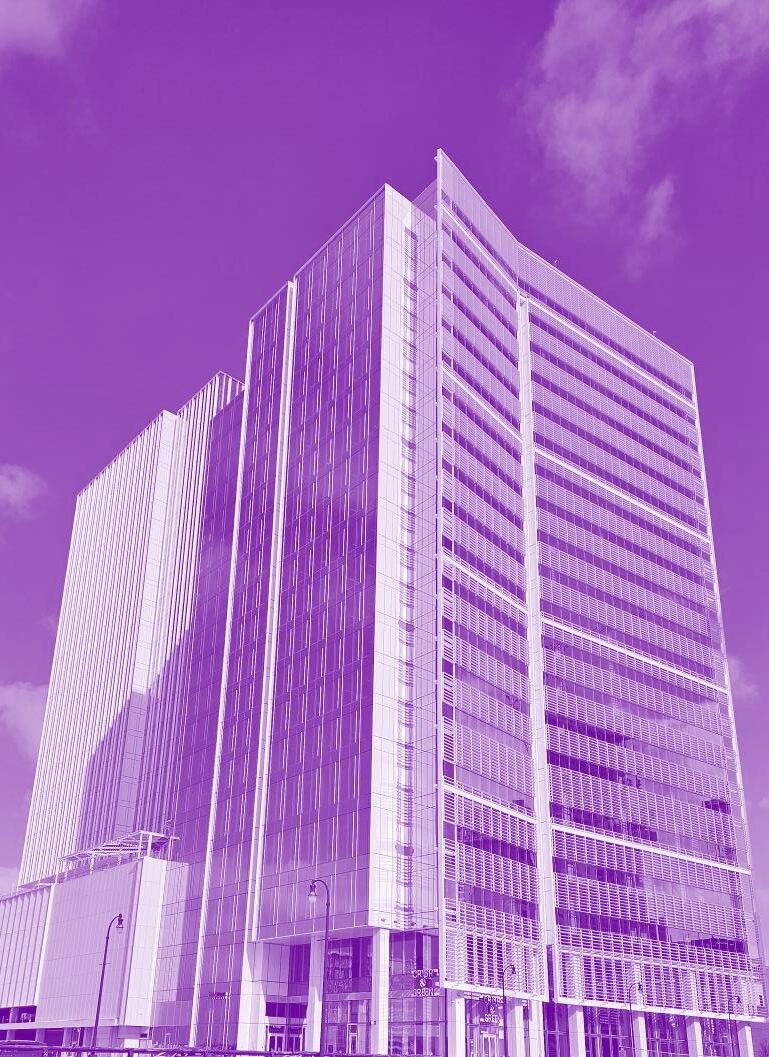

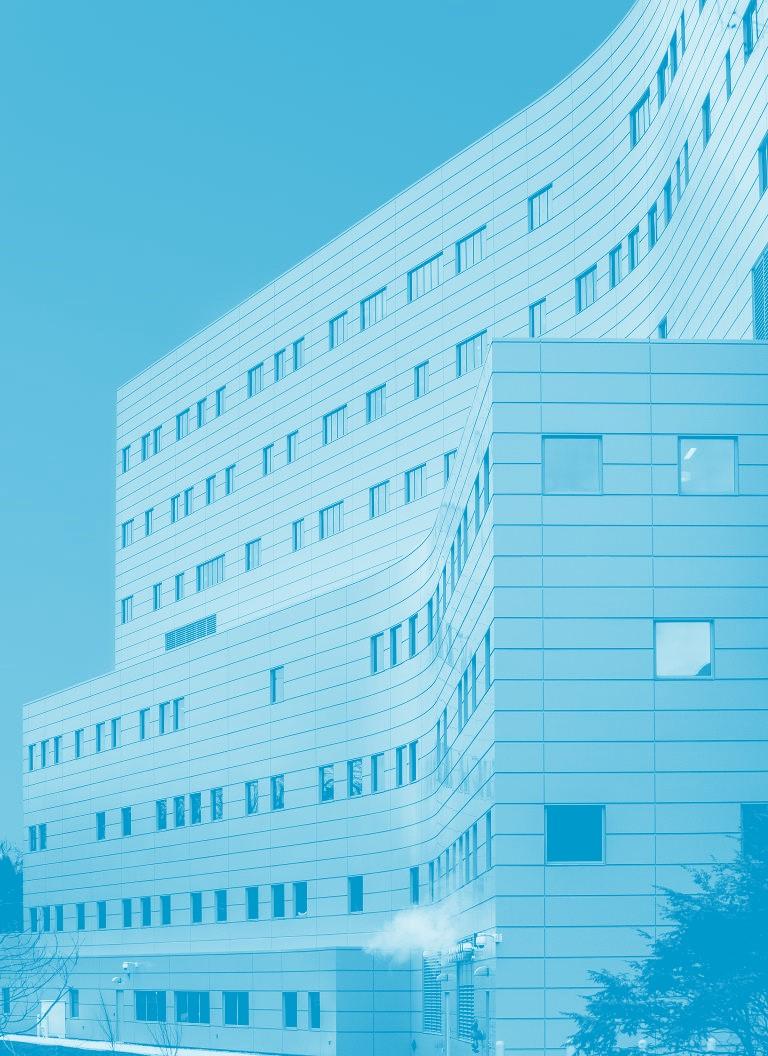

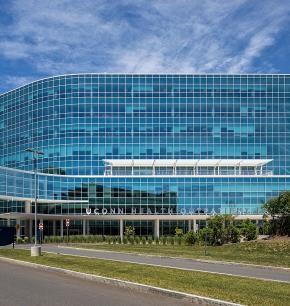

Vitrabond® Markets Served

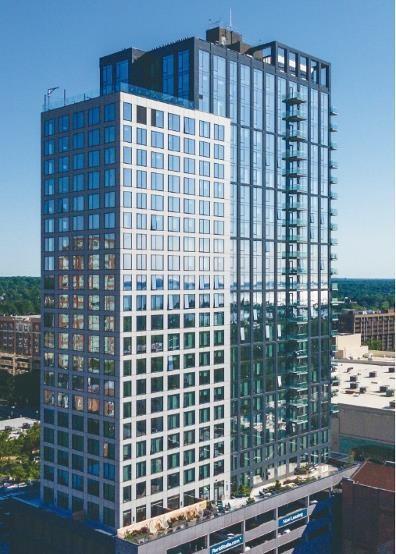

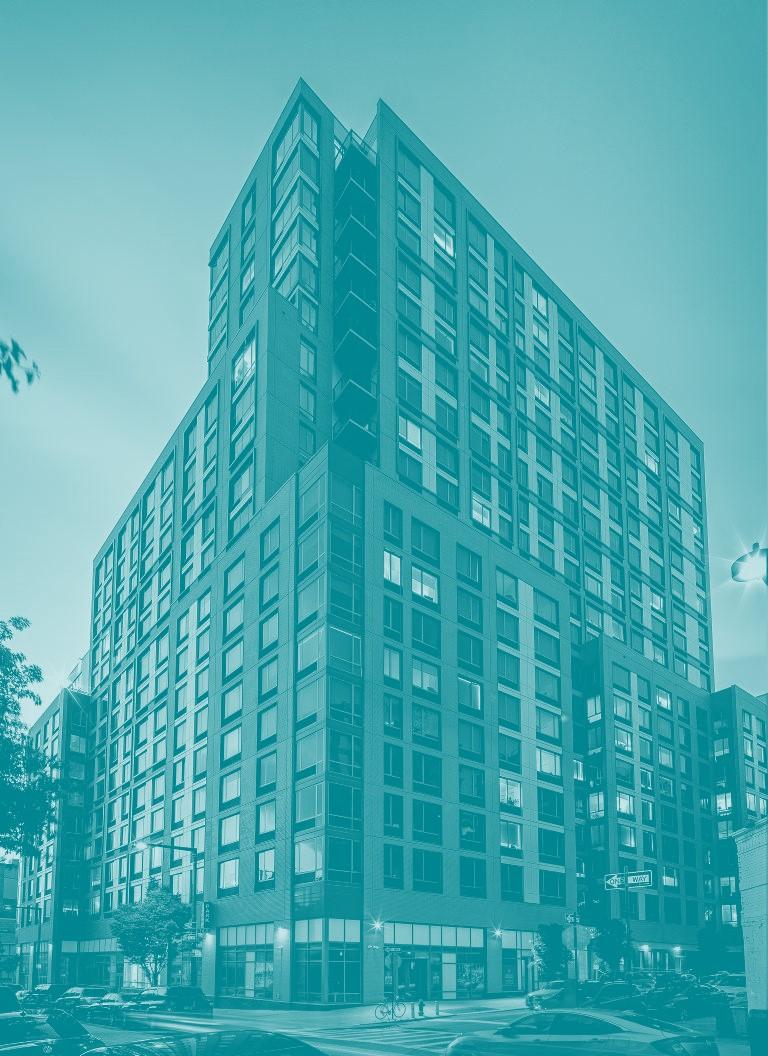

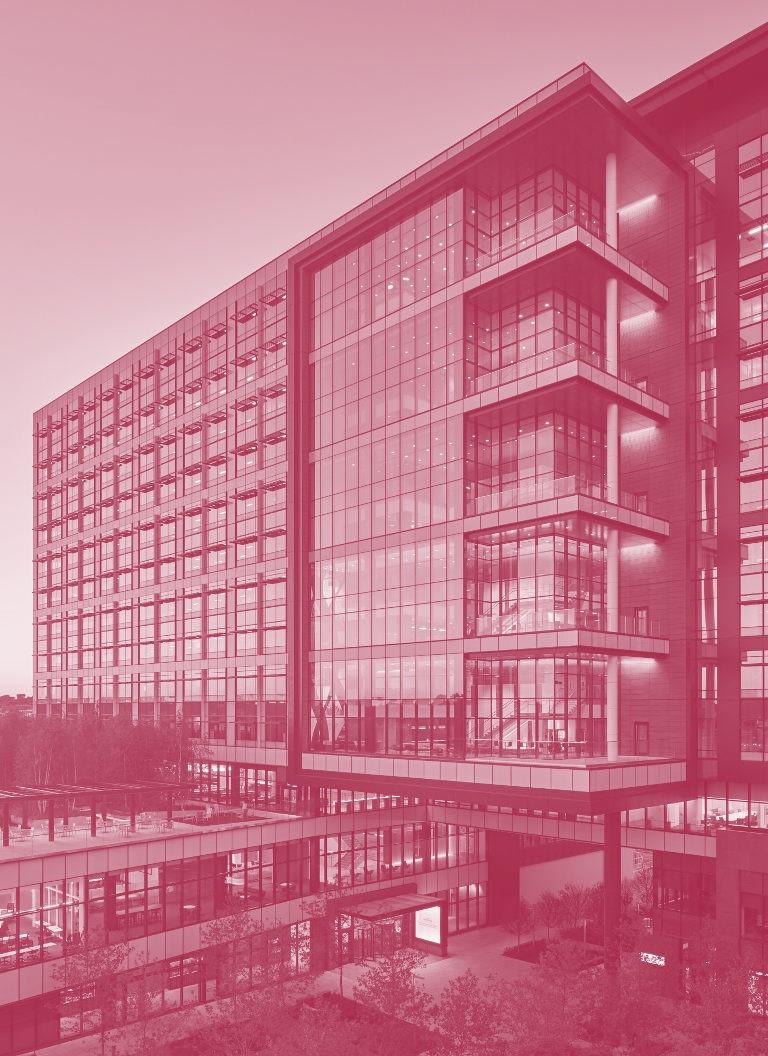

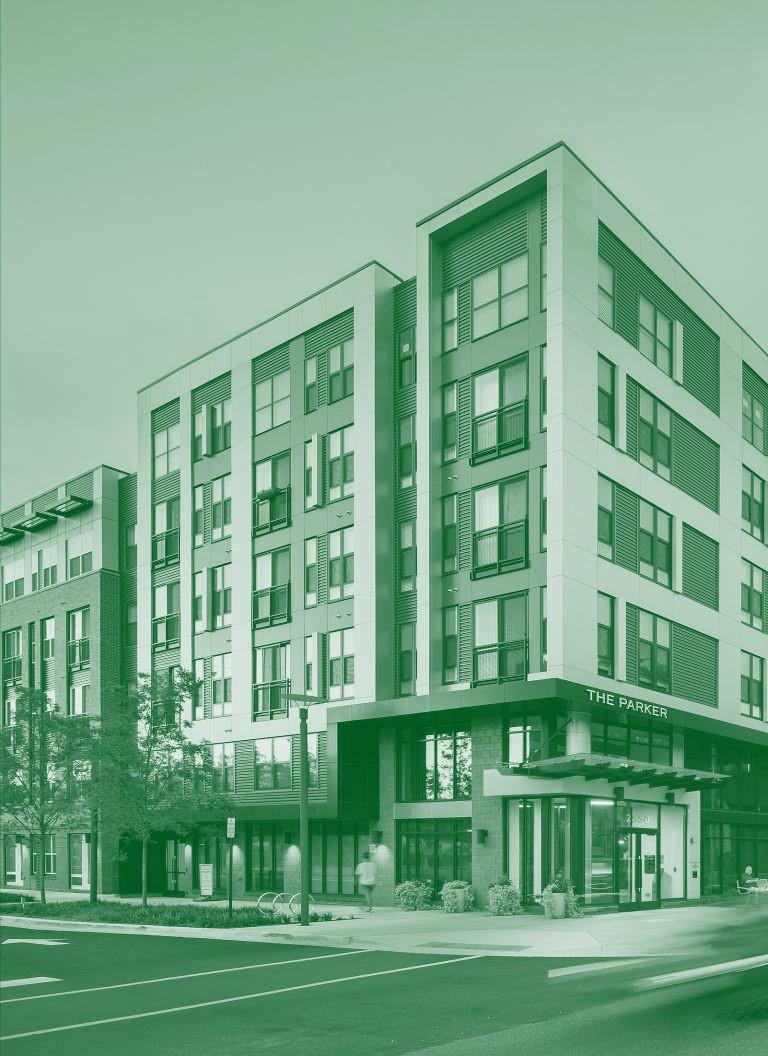

HIGH-RISE DEVELOPMENTS MIXED-USE | RESIDENTIAL | CORPORATE HQ

SPORTS & ENTERTAINMENT STADIUMS | CONVENTION CENTERS | CASINOS

CORPORATE BUILDINGS CORPORATE CAMPUS | DEALERSHIPS | FRANCHISES

MID-RISE CONSTRUCTION UNIVERSITIES | HOSPITALS | RESEARCH LABS

12

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

13

Vitrabond® Solid Finishes

14

These Samples are Made-To-Order

QUAKER BRONZE

BROWN COAL

WARM WHITE

OFF WHITE

BEIGE

FV1385

FV9108

FV1035

FV9702

FV1310

PURE WHITE

PEARL WHITE GLOSS

AIRPORT WHITE SATIN

RAILWAY OFF WHITE

IVORY

FV1012

FV1025

FV1005

FV1090

FV1093

ASCOT WHITE

ARCTIC WHITE

CASTLE GRAY

DOVE GREY

BONE WHITE

FV9210

FV1400

FV9202

FV1721

FV9902

LAKE FROME

FASHION GREY

DARK GREY

ANTHRAZIT GREY

BLACK

FV9504

FV1729

FV1770

FV1255

FV9130

ENIGMA BLACK

UMBRA GREY

THRILLER GREY

GREYSTANES

BOAT HARBOR

FV9145

FV1791

FV1266

FV9304

FV9207

BELLEREVE BAY

ULTRAMARINE BLUE

DEEP OCEAN

BAKOS BLUE

STRONG SAGE

FV9107

FV1460

FV1467

FV1490

FV1585

VINTAGE GREEN

FAIRVIEW GREEN

PURE APPLE

LEMON YELLOW

BRIMSTONE

FV1530

FV9212

FV1550

FV1120

FV9011

Colors may vary slightly between screens, print, and physical samples. Request physical samples for accurate color representation.

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

These Samples are Made-To-Order

LIGHT PINK

CORAL

PATRIOT RED

CAPSICUM RED

RUBIS RED

FV1634

FV1633

FV1669

FV1690

FV1685

BRIGHT ORANGE

TOFFEE

PACKARD SPICE

GRAPHITE RED

WINE RED

FV1190

FBC6548-01

FBC6548-06

FV9477

FV1692

Vitrabond® Mica and Metallic Finishes

BRIGHT SILVER METALLIC

ANODIC CLEAR MICA

ANODIC SATIN BLACK

DARK GREY METALLIC

SMOKE SILVER METALLIC

FV9801

FV5282

FV5292

FV9137

FV9134

SILVER METALLIC

HAZELNUT METALLIC

SNOW CLOUD METALLIC

CHAMPAGNE METALLIC

BRONZE METALLIC

FV4020

FV9205

FV9308

FV9601

FV9314

GOLD METALLIC

AGED GOLD

COPPER METALLIC

FV9409

ALMANDINE GARNET

ROYAL BLUE METALLIC

FV4150

FV9809

VBC11701-14

FV4475

AMETHYST METALLIC

PEWTER METALLIC

GREEN METALLIC

JADE GREEN METALLIC

LIGHT BLUE METALLIC

FV4460

FV4265

FV4540

FV9031

FV4435

Colors may vary slightly between screens, print, and physical samples. Request physical samples for accurate color representation.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

15

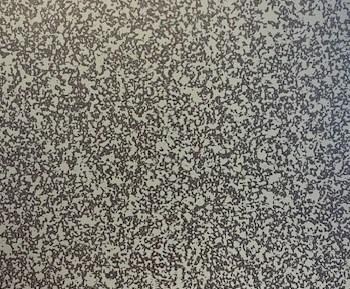

Vitrabond® Patterned Finishes

16

These Samples are Made-To-Order

BAMBOO WHITE

BAMBOO SILVER

BAMBOO CHAMPAGNE

BAMBOO ZINC

BAMBOO BRONZE

FV5015

FV5730

FV5753

FV5268

FV5150

FAUX ZINC LIGHT

FAUX ZINC DARK

FAUX ZINC CHARCOAL

FAUX ZINC BLUE

FAUX ZINC GREEN

FV5790

FV5220

FV5260

VBC12480-09

VBC12480-08

RHINO SLATE

RHINO NICKEL

CARRARA MARBLE

PORTORO MARBLE

NERO PORTORO MARBLE

FV0728

FV0735

VBC13363-01

VBC13363-02

VBC13520-01

PROGRESSIVE GREEN

IVORY CONCRETE

DUNE

TERRACOTTA TILE

TERRA COTTA

PATINA VBC12484-01

VBC8648-03

VBC13270-01

VBC11481-01

VBC10564-02

SONORA STEEL

AUTUMN RUST

MESA RUST

EGYPTIAN COPPER

AZTEC RUST

FV5385

FV5360

FV5110

FV5373

FV5155

OLD DIRTY

SIERRA RUST

DESERT RUST

LONGHORN RUST

MOJAVE RUST

BRONZE

FV5361

FV5362

FV5118

FV5322

BLACKENED STEEL

COSMIC BLACK

AZURE PATINA

NIMITZ BLUE

NEBULA BLUE

FV5295

FV5270

VBC8829-15

FV5484

VBC8829-14

Colors may vary slightly between screens, print, and physical samples. Request physical samples for accurate color representation.

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Vitrabond® Patterned Finishes

These Samples are Made-To-Order

SILVER BEECH

BEACHWOOD

ROUGH SAWN OAK

ZEBRAWOOD LIGHT

ZEBRAWOOD

VBC10244-02

FV8719

FV8340

VBC12480-07

FV8390

LIGHT MAPLE

GUNSTOCK MAPLE

MODERN TEAK

BLACK WALNUT

CONTEMPORARY OAK

VBC8685-01

FV8379

FV8332

FV8349

FV8724

AUTUMN CHERRY

ROYAL TIMBER

DOUGLAS FIR

SILVER MAPLE

CALIFORNIA REDWOOD

VBC13274-07

VBC10244-01

VBC6527-01

FV8123

FV8723

Vitrabond® Natural Metals

Zinc Composite | Stainless Steel Composite | Copper Composite | Anodized

SLATE ZINC

BLUE GREY ZINC

STAINLESS STEEL

STAINLESS STEEL

STAINLESS STEEL

FV5210

FV5740

OPAQUE | FV5755

MIRROR | FV5800

HAIRLINE | FV5850

GRAPHITE ZINC

CHARCOAL ZINC

PROGRESSIVE BLUE

PROGRESSIVE GREEN

CLEAR ANODIZED

FV5225

FV5290

COPPER PATINA FV5565

COPPER PATINA FV5560

FV5860

BLUE ZINC

RED ZINC

SOLID BLUE COPPER

SOLID GREEN COPPER

FV5460

FV5674

PATINA | FV5445

PATINA | FV5550

ANODIZED BRILLIANT MIRROR | FV5801

Colors may vary slightly between screens, print, and physical samples. Request physical samples for accurate color representation.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

17

Vitrabond® Buying Guide PURCHASING TIPS • Use custom widths and lengths to optimize your purchase • Fairview has millions of square feet in stock—check inventory for other finishes that may not be in this manual!

AVAILABILITY MATRIX IN-STOCK FINISHES MINIMUM ORDER QUANTITY:

No minimum order

AVAILABLE THICKNESSES:

4mm, 6mm

WIDTHS:

STANDARD:

62”

CUSTOM:

LENGTHS:

STANDARD:

196”

CUSTOM:

Other sheet sizes may be available, depending on the finish being requested.

NON-STOCK FINISHES MINIMUM ORDER QUANTITY:

2,500 sf (per width and color)

NOMINAL THICKNESS:

4mm, 6mm

WIDTHS:

STANDARD:

39”, 49”, 62”

CUSTOM:

39” to 62” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

COIL ANODIZED MINIMUM ORDER QUANTITY:

10,000 sf (per width and color)

NOMINAL THICKNESS:

4mm, 6mm

WIDTHS:

STANDARD:

49”

CUSTOM:

49” to 62” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

NOTE: Separate sheet widths may be from separate coating runs, and in some cases could results in a perceivable color difference.

Natural metal finishes have different coil widths and minimum quantities than what is published. Contact Fairview for more details.

Warranty Vitrabond® has one of the highest warranties in the ACM market. A product warranty of up 20 years is provided when installed by a licensed installer. An MCM coating warranty is issued on a project specific basis and is available up to 30 years per Fairview architectural approval.

Warranty details and length can change depending on finish type, number of finish layers, gloss level, and sustainability requirements. If you have any questions regarding warranties on your project, our team will be glad to discuss that with you.

PRODUCT WARRANTY UP TO 20 YEARS 18

FINISH WARRANTY UP TO 30 YEARS

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Vitrabond® Technical Data For data specific to Natural Metal finishes, please contact Fairview directly.

STANDARD

TEST

TEST STANDARD

RESULT

ASTM E136

Fire Performance of 3003 Aluminum

ΔT< 86°F

PASS

ASTM C393

Core Shear Ultimate Stress

>150 psi [1.03 MPa] (Test Specimen Average)

PASS

ASTM C393

Flexure Stress

>15695 psi [108.21 MPa] (Test Specimen Average)

PASS

PASS/FAIL

PASS

PROPERTIES

IMPACT RESISTANCE ANSI FM4473

Severe Hail Exposure Test

THERMAL PERFORMANCE ASTM D696

Coefficient of Linear Expansion

13.8x10^-6 in/in/°F (Aluminum)

BOND INTEGRITY ASTM C297

Flatwise Tensile Strength

>400 psi [2.76 MPa]

PASS

ASTM D1781

Climbing Drum Peel Test

>22.5 in-Ib/in [100 mm-N/ mm]

PASS

ASTM D1002

Peak Shear Strength

>515 psi [3.55 MPa]

PASS

FIRE PERFORMANCE ASTM E84

Flame Spread

<25

PASS

ASTM E84

Smoke Development

<450

PASS

NFPA 285

Fire Propagation Characteristics

PASS/FAIL

PASS

CAN/ULC – S134

Fire Test of Exterior Wall Assemblies

PASS/FAIL

PASS

Warranty A product warranty of up 20 years is provided when installed by a licensed installer.

An MCM coating warranty is issued on a project specific basis and is available up to 30 years per Fairview architectural approval.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

19

Vitrabond® Technical Data AAMA 2605 STANDARD PVDF COATING PVDF Coating

Descriptions

Test

Test Result

ASTM B117

Salt Spray Resistance

5% salt fog at 95°F

Passes 4000 hrs. Less than 1/16” avg creepage from scribe. None or few #8 blisters

ASTM D523

Specular Gloss Test

Standard @ 60°

Varies per finish

ASTM D1308

Alkali Test

10%, 25% NaOH, 1hr

No Effect

ASTM D714

Blistering of Paint Test

100% Relative Humidity @ 95°F

Passes 4000 hrs.

ASTM D2244

Exterior Exposure

10 years @ 45° South Florida

PASS - Max. 5 fade

ASTM D2247

Water Resistance

100% Relative Humidity @ 95°F

No #8 blisters

ASTM D2794

Reverse Impact

1.5 x metal NOMINAL THICKNESS (Aluminum)

No cracking or adhesion loss

ASTM D3359

Adhesion

Reverse impact 1/16” crosshatch

No adhesion loss

ASTM D3363

Film Hardness

Pencil Test F - 2H

PASS

ASTM D4145

Prepainted Metal Coating Flexibility

T - Bend

0 - 2 T - Bend, No pick off

ASTM D4214

Chalk Resistance

10 years @ 45° South Florida

Pass - Max. 8 Chalk

VITRABOND FR LEED DATA

TER REPORT 1809-01

½ Pre-Consumer + Post-Consumer Recycled Content Vitrabond FR 4mm

12.75%

Access the most recent Vitrabond Technical Evaluation report by DrJ Engineering by scanning the QR code.

VITRABOND FR CORE MATERIAL MINERAL FILL AS PERCENTAGE OF CORE MATERIAL

20

Vitrabond FR

>70%

PRODUCT WEIGHT

1.5 lb/ft^2

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Vitrabond® Technical Data Vitrabond® complies to AAMA 508 and AAMA 509 when installed with Arrowhead and meets the test protocols TAS201, 202, and 203 in accordance with the Florida building code for high velocity hurricane zone and Miami Dade County requirements.

AAMA 508 PRESSURE EQUALIZED ARROWHEAD RAIN SCREEN Standard

Test

Test Standard

Result

ASTM E238

Air Leakage of Test Buck (without panel system installed)

0.11 cfm/ft² min.

0.13 cfm/ft² max.

PASS

ASTM E1233

Cyclic Static Air Pressure Differential (pressure cycling)

Cycle Time Lag 0.08 sec max.

Cycle Pressure Difference 12.5 psf max.

PASS PASS

ASTM E331

Static Water Penetration

3.20 ft²

PASS

AAMA 501.1

Dynamic Water Penetration

3.20 ft²

PASS

ASTM E330

Uniform Load Deflection and Uniform Load Structural

L/175 of Stiffener Length

PASS

AAMA 509 DRAINED AND BACK VENTILATED ARROWHEAD RAIN SCREEN Arrowhead LEAN Results

Standard

Test

ASTM E283

Air Leakage

ASTM E331

Static Water Penetration

AAMA 501.1

Dynamic Water Penetration

Vitrabond® using the Arrowhead Flex system meets TAS 201, 202, and 203 test protocols in accordance with the Florida building code for the high velocity hurricane and Miami Dade County requirements.

Arrowhead FLEX Results

V1____

V3____

W1____

W1____

VITRABOND FR PANEL OVER ARROWHEAD Standard

Test

Test Results

Result

TAS 202 - 94

Uniform Static Air Pressure

(+100/-150 psf)

PASS

TAS 201 - 94

Large Missile Impact Procedures

(+100/-150 psf)

PASS

TAS 203 - 94

Cyclic Winds Pressure Loading

(+100/-150 psf)

PASS

Quality Control Our dedication to fulfilling our customer ’s expectations is reflected in our superior quality control system, beginning at the point of specification and continuing through to delivery of our guaranteed products. All activities are carried out in a manner that: • Uses the framework of ISO9000 Quality Standards to verify the quality of our systems • Ensures that our products and services are of the highest standards • Create continuous improvements to our product through the application of the best quality practices Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

21

What is Vitraplate®?

Vitraplate ® is a 3mm (1/8”) thick, non-combustible aluminum panel manufactured in the United States.

It comes pre-finished, eliminating the need for post-painting, saving time, labor and money.

22

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

VITRAPLATE® Prefinished Aluminum Plate Vitraplate® is a pre-finished 100% solid aluminum cladding panel product that is coated with any finish using Vitranar flexible resin coating technology. This flexible resin coating allows panels to be fabricated without the need for costly post-finishing after fabrication as the sheets come pre-finished with protective film applied. This helps reduce lead times and risk associated with each project.

BENEFITS OF USING VITRAPLATE® SUPERIOR FINISH

FAST

UNLIMITED FINISHES

PVDF KYNAR 500® or FEVE paints known for their high durability, optimum weather resistance and industrial pollution protection.

With an industry-leading lead time as low as 4 weeks, Vitraplate® allows you to meet the tightest deadlines.

Vitraplate® can be coated in any finish, from solids and metallics, to patterns and anodized.

NON-COMBUSTIBLE

VERSATILE

QUICK INSTALLATION

Our Vitraplate® solid aluminum is certified non -combustible to meet or exceed the everchanging fire codes.

Optimize your project costs with custom widths, lengths, and low minimums.

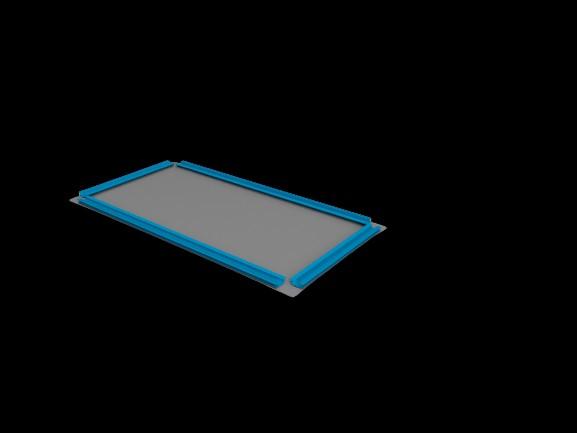

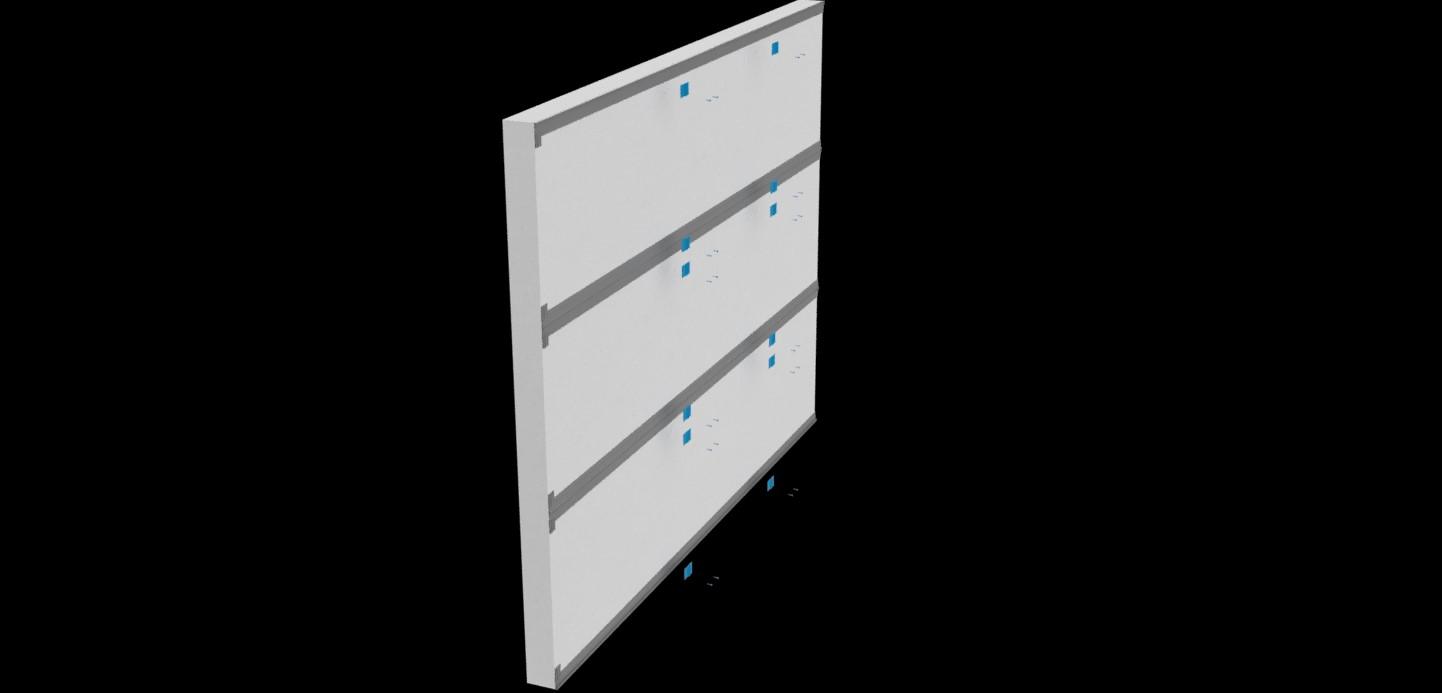

Easy to from and assemble into panels using our Arrowhead® Rainscreen Panel Installation Systems

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

23

Vitraplate® Markets Served

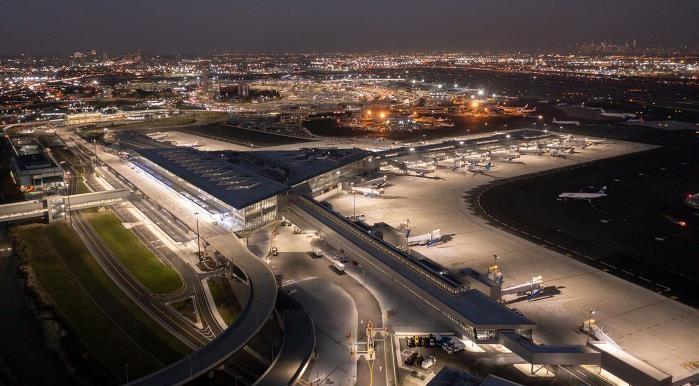

TRANSPORATION HUBS AIRPORTS | TERMINALS | PORTS OF ENTRY

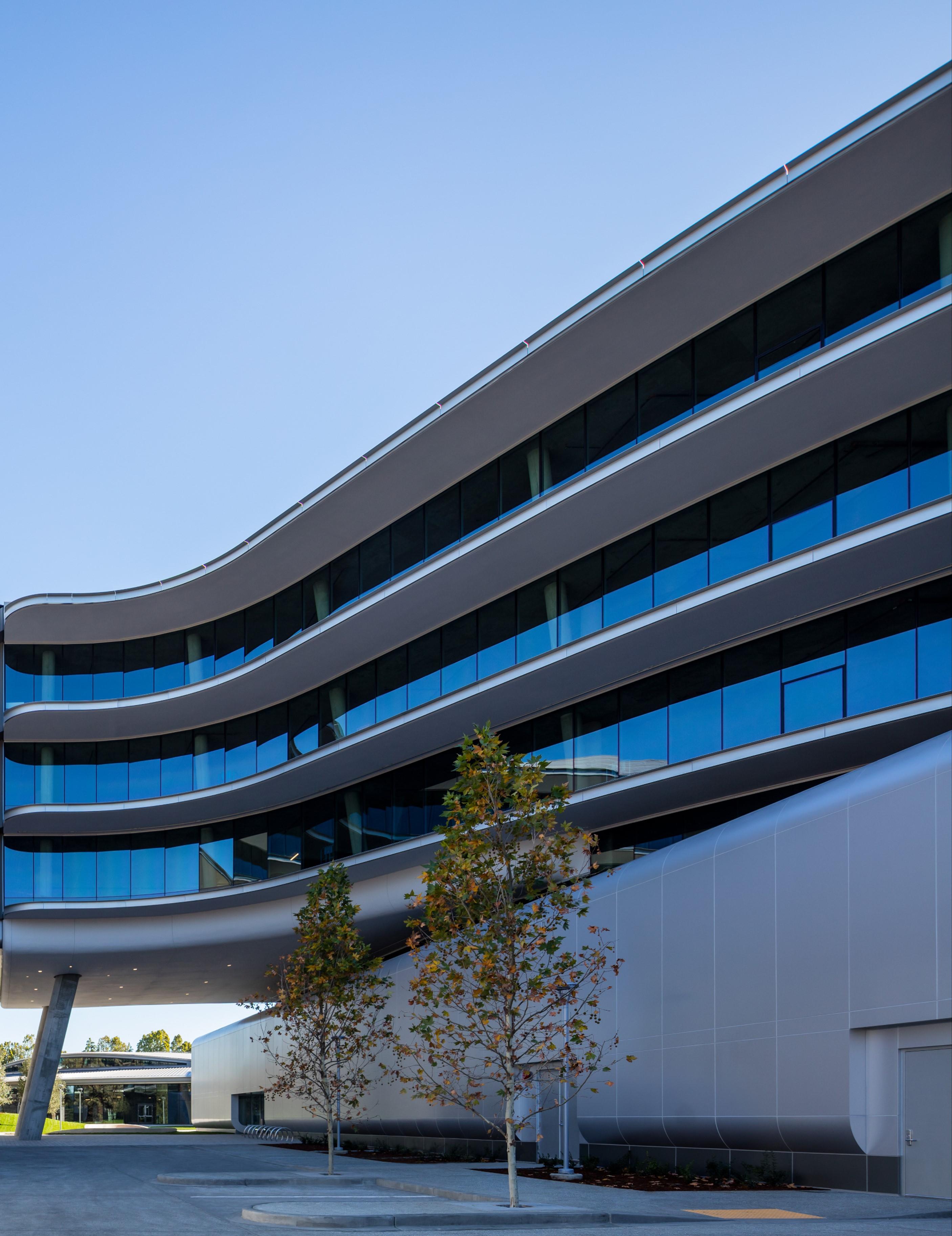

SPORTS & ENTERTAINMENT STADIUMS | ARENAS | CONVENTION CENTERS

ENERGY & INFRASTRUCTURE WASTEWATER | POWER PLANTS | BRIDGES

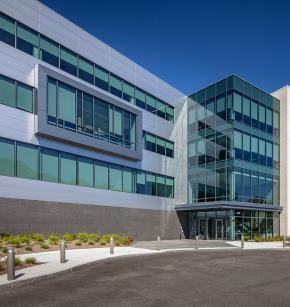

HIGH-RISE CONSTRUCTION MIXED USE | RESIDENTIAL | CORPORATE

24

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Vitraplate® Buying Guide PURCHASING TIPS • Use custom widths and lengths to optimize your purchase • Choose any finish you need — there are no standard finishes on solid aluminum plate and sheet material • Specify whether your project requires 3003 H14 or 5052 H32 aluminum plate. Both alloys are available for Vitraplate and offer different mechanical properties for strength, corrosion resistance, and formability.

AVAILABILITY MATRIX SOLID/MICA/METALLIC MINIMUM ORDER QUANTITY:

2,500 sf (per width and color) 7,500 sf (applies to custom widths only)

NOMINAL THICKNESS:

3mm (1/8”) nominal (for other nominal thickness see Vitranar®)

WIDTHS:

STANDARD:

50”, 62”

CUSTOM:

36” to 62” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

PATTERNED MINIMUM ORDER QUANTITY:

5,000 sf (per width and color) 7,500 sf (applies to custom widths only)

NOMINAL THICKNESS:

3mm (1/8”) nominal (for other nominal thickness see Vitranar® )

WIDTHS:

STANDARD:

50”, 62”

CUSTOM:

48” to 62” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

COIL ANODIZED MINIMUM ORDER QUANTITY:

9,000 sf (per width and color)

NOMINAL THICKNESS:

3mm (1/8”) nominal (for other nominal thickness see Vitranar® )

WIDTHS:

STANDARD:

50”, 62”

CUSTOM:

48” to 78” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

MILL FINISH MINIMUM ORDER QUANTITY:

No minimum order (in-stock sheets) 2,500 sf (per width)

NOMINAL THICKNESSES:

3mm (1/8”)

WIDTHS:

STANDARD:

50”, 62”

CUSTOM:

39” to 78” (+-1/4” Tolerance)

LENGTHS:

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

NOTE: Separate sheet widths may be from separate coating runs, and in some cases could results in a perceivable color difference.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

25

Vitraplate® Technical Data STANDARD

TEST

TEST STANDARD

RESULT

FIRE RESISTANCE ASTM E136

Fire Performance of Aluminum

ΔT< 86°F

Non-Combustible

ASTM E84

Flame Spread

<25

PASS

ASTM E84

Smoke Development

<450

PASS

NFPA 285

Not Applicable to Non-Combustible products

ASTM E119

Not Applicable to Non-Combustible products

THERMAL PERFORMANCE ASTM D696

13.8x10-6 in/in/°F (Aluminum)

Coefficient of Linear Expansion

AAMA 2605 STANDARD PVDF COATING PVDF Coating

Descriptions

Test

Test Result

ASTM B117

Salt Spray Resistance

5% salt fog at 95°F

Passes 4000 hrs. Less than 1/16” avg creepage from scribe. None or few #8 blisters

ASTM D523

Specular Gloss Test

Standard @ 60°

Varies per finish

ASTM D1308

Alkali Test

10%, 25% NaOH, 1hr

No Effect

ASTM D714

Blistering of Paint Test

100% Relative Humidity @ 95°F

Passes 4000 hrs.

ASTM D2244

Exterior Exposure

10 years @ 45° South Florida

PASS - Max. 5 fade

ASTM D2247

Water Resistance

100% Relative Humidity @ 95°F

No #8 blisters

ASTM D2794

Reverse Impact

1.5 x metal NOMINAL THICKNESS (Aluminum)

No cracking or adhesion loss

ASTM D3359

Adhesion

Reverse impact 1/16” crosshatch

No adhesion loss

ASTM D3363

Film Hardness

Pencil Test F - 2H

PASS

ASTM D4145

Prepainted Metal Coating Flexibility

T - Bend

0 - 2 T - Bend, No pick off

ASTM D4214

Chalk Resistance

10 years @ 45° South Florida

Pass - Max. 8 Chalk

VITRAPLATE LEED DATA ½ Pre-Consumer + Post-Consumer Recycled Content

26

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Up to 32.5%

Rev. 4/23/2026

Vitraplate® Technical Data Quality Control Our dedication to fulfilling our customer ’s expectations is reflected in our superior quality control system, beginning at the point of specification and continuing through to delivery of our guaranteed products. All activities are carried out in a manner that: • Uses the framework of ISO9000 Quality Standards to verify the quality of our systems • Ensures that our products and services are of the highest standards • Create continuous improvements to our product through the application of the best quality practices

System Test-Tested Solutions Complies to AAMA 508 and 509 when installed with Arrowhead and meets the test protocols TAS201, 202, and 203 in accordance with the Florida building code for the high velocity hurricane zone and Miami Dade County requirements.

AAMA 508 PRESSURE EQUALIZED ARROWHEAD RAIN SCREEN Standard

Test

Test Standard

Result

ASTM E238

Air Leakage of Test Buck (without panel system installed)

0.11 cfm/ft² min.

0.13 cfm/ft² max.

PASS

ASTM E1233

Cyclic Static Air Pressure Differential (pressure cycling)

Cycle Time Lag 0.08 sec max.

Cycle Pressure Difference 12.5 psf max.

PASS PASS

ASTM E331

Static Water Penetration

3.20 ft²

PASS

AAMA 501.1

Dynamic Water Penetration

3.20 ft²

PASS

ASTM E330

Uniform Load Deflection and Uniform Load Structural

L/175 of Stiffener Length

PASS

AAMA 509 DRAINED AND BACK VENTILATED ARROWHEAD RAIN SCREEN Standard

Test

ASTM E283

Air Leakage

ASTM E331

Static Water Penetration

AAMA 501.1

Dynamic Water Penetration

Arrowhead LEAN Results

Arrowhead FLEX Results

V1____

V3____

W1____

W1____

Warranty A standard product warranty of up to 20 years is available on coil -coated or coil-anodized Vitraplate ® , with an extended warranty of up to 40 years available on select finishes.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

27

What is RapidWrapCI®?

RapidWrapCI® is a fully engineered wall assembly that allows you to eliminate vertical furring and standoffs.

28

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

RapidWrapCI® Wall Assemblies RapidWrapCI® is available in 2 different wall assemblies, and is designed to be used on any project where there is continuous insulation requirements behind the metal composite or metal plate panel system.

NON-COMBUSTIBLE

NFPA 285 COMPLIANT

See page 32

See page 34

Life Safety

Risk

Financial

Non-Combustible and NFPA285 Compliant Wall Assemblies available

Minimize Risk with Guaranteed Compatible Components

Eliminate Furring and Thermally Broken Standoffs

Integrated Products Tested Together in one Assembly

Free-Floating Panels with Easy Panel Replacement

Reduce Energy Costs with an ASHRAE 90.1 Compliant Continuous Insulation

High Velocity Hurricane Zone (HVHZ) Compliant

Third Party Evaluation with Product Tracing

Reduced Time and Material Costs

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

29

RapidWrapCI® Wall Assembly - Non-Combustible

COMPONENTS 20 GA. STEEL STUDS, 24” O.C. ½” MIN. EXTERIOR GYPSUM SHEATHING RAPIDWRAPCI® MINERAL WOOL INSULATION ARROWHEAD FLEX PANEL SYSTEM

VITRAPLATE® PREFINISHED METAL PLATE 30

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

RapidWrapCI® Buying Guide PURCHASING TIPS • •

Use custom widths and lengths to optimize your purchase.

Consider bundle sizes for the insulation and RapidWrapCI® Anchors INCREASE

  

DECREASE

  

INSTALLATION CAPACITY PRODUCTIVITY ENERGY EFFICIENCY

MATERIAL PURCHASES NUMBER OF FASTENERS PROJECT SPECIFIC ENGINEERING

ELIMINATE

 

VERTICAL FURRING & STANDOFFS FURRING INSTALLATION LABOR

BUNDLE SIZES RAPIDWRAPCI® MINERAL WOOL MOQ for in-stock insulation is 1 pallet.

Thickness 1.5”

2.0”

2.5”

3.0”

3.5”

4.0”

Board Size

SF / Pallet

MINIMUM ORDER QUANTITY (MOQ):

24”x48”

1,024

1 pallet (1,024 sf)

48”x72”

1,536

17 pallets (26,112 sf)

24”x48”

768

1 pallet (768 sf)

48”x72”

1,152

17 pallets (19,584 sf)

24”x48”

576

26 pallets (14, 976 sf)

48”x72”

864

17 pallets (14,688 sf)

24”x48”

512

26 pallets (13,312 sf)

48”x72”

768

17 pallets (13,056 sf)

24”x48”

448

26 pallets (11,648 sf)

48”x72”

648

17 pallets (11,016 sf)

24”x48”

384

1 pallet (384 sf)

48”x72”

576

17 pallets (9,792 sf)

RAPIDWRAPCI® ANCHORS MINIMUM ORDER QUANTITY (MOQ):

1 Box

INSULATION THICKNESS

QUANTITY PER BOX

1.25” 1.5” 2” 2.5”

FASTENER LENGTH 4”

5”

500 pcs

3” 3.5”

6”

4”

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

31

RapidWrapCI® Wall Assembly - NFPA 285 Compliant

COMPONENTS 20 GA. STEEL STUDS, 24” O.C. ½” MIN. EXTERIOR GYPSUM SHEATHING RAPIDWRAPCI® POLYISO INSULATION ARROWHEAD FLEX OR ARROWHEAD LEAN PANEL SYSTEM

VITRABOND® METAL COMPOSITE MATERIAL 32

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

RapidWrapCI® Buying Guide PURCHASING TIPS • •

Use custom widths and lengths to optimize your purchase.

Consider bundle sizes for the insulation and RapidWrapCI® Anchors INCREASE

  

DECREASE

  

INSTALLATION CAPACITY PRODUCTIVITY ENERGY EFFICIENCY

MATERIAL PURCHASES NUMBER OF FASTENERS PROJECT SPECIFIC ENGINEERING

ELIMINATE

 

VERTICAL FURRING & STANDOFFS FURRING INSTALLATION LABOR

BUNDLE SIZES RAPIDWRAPCI® POLYISO ACCEPTABLE POLYISO BRANDS

DuPont Thermax

AVAILABLE THICKNESSES

1.55”, 2”, 2.5”, 3”

RAPIDWRAPCI® FLASHING TAPE MINIMUM ORDER QUANTITY (MOQ):

12 rolls

ROLL SIZE

4” x 50’

RAPIDWRAPCI® ANCHORS MINIMUM ORDER QUANTITY (MOQ):

1 Box

INSULATION THICKNESS

FASTENER LENGTH

QUANTITY PER BOX

1.55”

4”

2” 2.5” 3”

Rev. 4/23/2026

5”

500 pcs

6”

Fairview Architectural https://fairview-na.com/ | 860-242-2711

33

RapidWrapCI® Product Composition Base Wall Steel Studs

20 ga. (min.)

Stud Spacing

24” o.c. (max.)

Exterior Sheathing ½” Exterior Gypsum Sheathing ⅝” Exterior Gypsum Sheathing

Approved sheathing Insulation NFPA 285 Wall Assembly

RapidWrapCI® Polyiso Insulation

Non-Combustible Wall Assembly

RapidWrapCI® Mineral Wool Insulation

Water-Resistive Barrier NFPA 285 Wall Assembly

4” RapidWrapCI® Flashing Tape Installed at Polyiso Seams

Non-Combustible Wall Assembly

Approved WRB per Arrowhead TER 2006-02

Arrowhead Installation System Approved fastener

RapidWrapCI® Anchor

Fastener spacing along base extrusions

At each stud, 24” o.c. (max.)

Maximum cladding assembly weight*

5 psf

Arrowhead T-Clips

16” o.c. horizontally (max.)

1 at each vertical corner

Exterior Cladding Approved exterior cladding materials

Vitrabond® FR metal composite material Vitraplate® prefinished solid aluminum plate

Color match flashing material

Edgeline® metal flashing material

CAN I USE SUBSTITUTE PRODUCTS? RapidWrapCI® is a fully tested and compliant wall assembly containing components that have been tested and/or engineered together as one assembly. As such, Fairview recommends securing all components through Fairview or a RapidWrapCI® certified fabricator to ensure product test compliance. Using products not purchased from Fairview is at your own risk.

34

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

RapidWrapCI® Markets Served

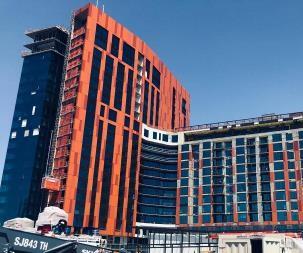

HIGH-RISE CONSTRUCTION MIXED USE | RESIDENTIAL | CORPORATE

EDUCATION PUBLIC | HIGHER EDUCTION | SPECIALTY

CORPORATE ID DEALERSHIPS | RESTAURANTS

HOSPITALITY & HEALTHCARE HOSPITALS | OSC/ASC | SPECIALTY

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

35

RapidWrapCI® Technical Data THERMAL DATA RAPIDWRAPCI® MINERAL WOOL INSULATION “k” @ 75º [24ºC] BTU.in/hr. sq. ft. ºF

0.24

“R” value per inch of NOMINAL THICKNESS

4.2

Combustibility

Non-combustible

Available Thicknesses

1.25”, 1.5”, 2”, 2.5”, 3”, 3.5”, 4”

Standard Dimensions

48”x72”

Recycled Content

Minimum 70%

RAPIDWRAPCI® POLYISO INSULATION

“R” Values

1” 1.55” 2” 2.5” 3”

6.9 10.2 13 16 19

Surface Burning Characteristics, ASTM E84 for both foam core and finished product

Class A

Available Thicknesses

1”, 1.55”, 2”, 2.5”, 3”

Standard Dimensions

48”x96”, 48”x144”

WHAT IS ASHRAE 90.1?

Continuous insulation, otherwise known as CI, is when insulation continuously wraps the exterior of a building to improve the performance of the building envelope. It is also defined in American Society of Heating, Refrigerating and Air-conditioning Engineers 90.1 (ASHRAE 90.1) as: “Continuous Insulation is insulation that is uncompressed and continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior or exterior or is integral to any opaque surface of the building envelope.”

Based on the above definition of CI, it is questionable if even using thermally broken standoffs would constitute an ASHRAE 90.1 compliant CI system. In contrast, the only penetrations through the insulation in the RapidWrapCI® system are service openings and the RapidWrapCI® Anchors, which makes RapidWrapCI® a truly ASHRAE 90.1 compliant system.

DO RAPIDWRAPCI® ANCHORS CREATE A THERMAL BRIDGE? RapidWrapCI® Anchors do not create any more of a thermal bridge than the fasteners that already hold the insulation to the wall of the building. Both polyiso and mineral wool insulation are fastened directly into the studs, and as RapidWrapCI® Anchors use the exact same method of attachment, there is no additional thermal bridging created.

36

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

RapidWrapCI® Technical Data RapidWrapCI® meets the voluntary test standards of AAMA 508 (pressure equalized rainscreen) and AAMA 509 (drained and back ventilated rainscreen). RapidWrapCI is an NFPA 285 compliant wall assembly or is non-combustible when installed using Vitraplate and mineral wool insulation. Further details can be found in our Technical Evaluation Report produced by Dr J Engineering AAMA 508 PRESSURE EQUALIZED ARROWHEAD RAIN SCREEN Standard

Test

Test Standard

Result

ASTM E238

Air Leakage of Test Buck (without panel system installed)

0.11 cfm/ft² min.

0.13 cfm/ft² max.

PASS

ASTM E1233

Cyclic Static Air Pressure Differential (pressure cycling)

Cycle Time Lag 0.08 sec max.

Cycle Pressure Difference 12.5 psf max.

PASS PASS

ASTM E331

Static Water Penetration

3.20 ft²

PASS

AAMA 501.1

Dynamic Water Penetration

3.20 ft²

PASS

ASTM E330

Uniform Load Deflection and Uniform Load Structural

L/175 of Stiffener Length

PASS

AAMA 509 DRAINED AND BACK VENTILATED ARROWHEAD RAIN SCREEN Standard

Test

ASTM E283

Air Leakage

ASTM E331

Static Water Penetration

AAMA 501.1

Dynamic Water Penetration

RapidWrapCI® using the Arrowhead Flex system meets TAS 201, 202, and 203 test protocols in accordance with the Florida building code for the high velocity hurricane and Miami Dade County requirements.

Rev. 4/23/2026

ArrowheadLEAN Results

ArrowheadFLEX Results

V1____

V3____

W1____

W1____

VITRABOND FR PANEL OVER ARROWHEAD Standard

Test

Test Results

Result

TAS 202 - 94

Uniform Static Air Pressure

(+100/-150 psf)

PASS

TAS 201 - 94

Large Missile Impact Procedures

(+100/-150 psf)

PASS

TAS 203 - 94

Cyclic Winds Pressure Loading

(+100/-150 psf)

PASS

Fairview Architectural https://fairview-na.com/ | 860-242-2711

37

What is Arrowhead®?

Arrowhead is a non-sequential metal panel installation system that is engineered to increase productivity and capacity without increasing overheads.

38

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

ARROWHEAD® Panel Installation Systems The Arrowhead® metal panel installation systems are designed to simplify the process of fabricating and installing metal composite and solid aluminum plate panels. There are three distinct panel systems within the Arrowhead® brand, and are all compatible with each other.

Arrowhead® panels can be installed in any order using two methods of installation.

The grid method is the fastest, as it eliminates the need to level and shim each panel, while the clip method is designed to reduce materials without compromising the nonsequential characteristics of the system.

ARROWHEAD FLEX • • • •

ARROWHEAD LEAN

Most traditional, yet versatile system HVHZ Compliant Minimum 1” panel return Compatible with Vitrabond® and Vitraplate®

• • • •

Fast and simplest fabrication No rivets, corner brackets, or mitered corners 5/8” panel return Compatible with Vitrabond®

ARROWHEAD FLUSH • • •

Clean, modern look Coped and hemmed 4mm panel return Compatible with Vitrabond®

BENEFITS OF USING ARROWHEAD® QUICK LEAD TIMES

REPLACING PANELS

EASY TO INSTALL

Arrowhead is in stock at our warehouse in Connecticut and available for immediate delivery to anywhere in North America or Canada.

Easily remove and replace damaged panels without compromising the quality, fit, or integrity of the system.

Arrowhead eliminates the need for laser scanning as final panel measurements come directly from the grid.

TIME SAVING

NON-SEQUENTIAL

VERSATILE

Shorten your project schedule by up to 50% by reducing stages in the drafting process and eliminating re-verification of field measurements.

Panels can be installed in any order, which reduces the risk of being stalled by other trades on-site.

All Arrowhead systems use the same mounting components, allowing for varied panel types and depths in the wall design.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

39

Arrowhead® Fabrication Arrowhead® Flex is a traditional rout-and-return system that uses a standard 1” panel return. Deeper panels can be fabricated by creating a return greater than 1”.

Arrowhead® Flush utilizes a coped-and-hemmed edge instead of a panel return to achieve 4mm deep reveal. The metal composite material is attached to the perimeter extrusions using 3M VHB tape. This system is best suited for ground level or interior applications.

Arrowhead® Lean is designed to reduce the amount of time spent on fabrication, by utilizing a patented double route-and-return system that eliminates the need to use any fasteners to connect the perimeter extrusion to the metal composite material. Only 1 fastener is required at each corner to fasten the perimeter extrusions to each other.

40

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Arrowhead® Installation All 3 Arrowhead® panel systems can be installed adjacent to each other using either the Clip or Grid installation methods.

GRID INSTALLATION The Grid Installation method can be used to reduce levelling and shimming when installed over a solid substrate or girts, or is used as part of the RapidWrapCI® Wall Assembly.

Step 1 Level, shim, and install horizontal extrusions.

Step 2 Attach vertical clips to horizontal extrusions.

No shimming required.

Step 3 Attach panels in any order, and insert reveal pieces as required.

CLIP INSTALLATION The Clip Installation reduces the number of components without changing the non-sequential attributes of the Arrowhead® system, by replacing the horizontal extrusions with individual clips. See the manuals below for more details.

FABRICATION & INSTALLATION MANUALS

FLEX FABRICATION MANUAL Rev. 4/23/2026

LEAN FABRICATION MANUAL

CLIP INSTALLATION MANUAL

Fairview Architectural https://fairview-na.com/ | 860-242-2711

GRID INSTALLATION MANUAL

41

Arrowhead® Technical Data AAMA 2605 STANDARD PVDF COATING PVDF Coating

Descriptions

Test

Test Result

ASTM B117

Salt Spray Resistance

5% salt fog at 95°F

Passes 4000 hrs. Less than 1/16” avg creepage from scribe. None or few #8 blisters

ASTM D523

Specular Gloss Test

Standard @ 60°

Varies per finish

ASTM D1308

Alkali Test

10%, 25% NaOH, 1hr

No Effect

ASTM D714

Blistering of Paint Test

100% Relative Humidity @ 95°F

Passes 4000 hrs.

ASTM D2244

Exterior Exposure

10 years @ 45° South Florida

PASS - Max. 5 fade

ASTM D2247

Water Resistance

100% Relative Humidity @ 95°F

No #8 blisters

ASTM D2794

Reverse Impact

1.5 x metal NOMINAL THICKNESS (Aluminum)

No cracking or adhesion loss

ASTM D3359

Adhesion

Reverse impact 1/16” crosshatch

No adhesion loss

ASTM D3363

Film Hardness

Pencil Test F - 2H

PASS

ASTM D4145

Prepainted Metal Coating Flexibility

T - Bend

0 - 2 T - Bend, No pick off

ASTM D4214

Chalk Resistance

10 years @ 45° South Florida

Pass - Max. 8 Chalk

Quality Control

TER REPORT 2006-02

Our dedication to fulfilling our customer’s expectations is reflected in our superior quality control system, beginning at the point of specification and continuing through to delivery of our guaranteed products. All activities are carried out in a manner that: • Uses the framework of ISO9000 Quality Standards to verify the quality of our systems • Ensures that our products and services are of the highest standards • Create continuous improvements to our product through the application of the best quality practices

42

Access the most recent Vitrabond Technical Evaluation report by DrJ Engineering by scanning the QR code.

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Arrowhead® Technical Data Vitrabond® complies to AAMA 508 and AAMA 509 when installed with Arrowhead and meets the test protocols TAS201, 202, and 203 in accordance with the Florida building code for high velocity hurricane zone and Miami Dade County requirements.

AAMA 508 PRESSURE EQUALIZED ARROWHEAD RAIN SCREEN Standard

Test

Test Standard

Result

ASTM E238

Air Leakage of Test Buck (without panel system installed)

0.11 cfm/ft² min.

0.13 cfm/ft² max.

PASS

ASTM E1233

Cyclic Static Air Pressure Differential (pressure cycling)

Cycle Time Lag 0.08 sec max.

Cycle Pressure Difference 12.5 psf max.

PASS PASS

ASTM E331

Static Water Penetration

3.20 ft²

PASS

AAMA 501.1

Dynamic Water Penetration

3.20 ft²

PASS

ASTM E330

Uniform Load Deflection and Uniform Load Structural

L/175 of Stiffener Length

PASS

AAMA 509 DRAINED AND BACK VENTILATED ARROWHEAD RAIN SCREEN Arrowhead LEAN Results

Standard

Test

ASTM E283

Air Leakage

ASTM E331

Static Water Penetration

AAMA 501.1

Dynamic Water Penetration

Vitrabond® using the Arrowhead Flex system meets TAS 201, 202, and 203 test protocols in accordance with the Florida building code for the high velocity hurricane and Miami Dade County requirements.

Arrowhead FLEX Results

V1____

V3____

W1____

W1____

VITRABOND FR PANEL OVER ARROWHEAD Standard

Test

Test Results

Result

TAS 202 - 94

Uniform Static Air Pressure

(+100/-150 psf)

PASS

TAS 201 - 94

Large Missile Impact Procedures

(+100/-150 psf)

PASS

TAS 203 - 94

Cyclic Winds Pressure Loading

(+100/-150 psf)

PASS

ARROWHEAD LEED DATA ½ Pre-Consumer + Post-Consumer Recycled Content

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Up to 44.5%

43

What is Edgeline®?

Edgeline is a premium Architectural Grade flashing material, the same quality as metal façade cladding materials.

44

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Premium Color Matched Flashing Material Fairview’s Edgeline premium metal flashing material is a pre-finished product available in 0.032” and 0.040” thicknesses. Unlike typical flashing material, Edgeline has an architectural grade fade resistant finish that will outperform other flashing products.

When Edgeline flashing materials are used together with our Vitrabond® and Vitraplate® cladding materials on a building façade, they will look the same not only from project completion but also for years to come thanks to their architectural grade coating.

• • •

All Edgeline products are available in the exact color as your building facade.

Our Edgeline products are high quality, lightweight and easy to install.

Edgeline materials are easy to fabricate to fit the exact needs of your project.

Single-sourcing You can buy your panels and flashing material (flat sheets) from one supplier which enables you to benefit from bundled pricing, one lead time, one delivery schedule and more.

Uses for Edgeline We are always developing and adding to our product range in order to meet the needs of our customers. Below is an outline of what Edgeline can be used for:

PARAPET CAP

SLAB EDGE COVER

BEAM WRAP

A parapet cap is a barrier that forms an extension of the wall at the edge of a roof, balcony , terrace, walkway or other structure.

Slab edge covers are used to hide the balcony slab edge. They create a design feature on the facade.

Beam wraps provide a variety of solutions to integrate building design elements and enhance the look of a project.

SILL FLASHING

DRIP EDGE

J-CHANNELS

Our high-performance sill flashing designs enable flashing to be installed prior to framing.

A drip edge is a nonstaining and noncorroding material applied to a roof’s edge to allow water to filter out of the roof system.

Our J-Channels provide a secure fit and support for aluminum soffit channels.

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

45

Edgeline® Buying Guide PURCHASING TIPS • •

Order with Vitrabond® or Vitraplate® to have color consistency on your project Most common thicknesses are 0.032” and 0.040”

AVAILABILITY MATRIX SOLID/MICA/METALLIC/PATTERNED ALLOYS

3003 H14, 5052 H32 (other alloys may be available upon request)

NOMINAL THICKNESS:

0.020” up to 0.125” (Typical for this application is 0.032” and 0.040”) Custom nominal thicknesses may be available upon request

WIDTHS:

STANDARD:

48”, 60”, 62”

CUSTOM:

36” to 62” (+-1/4” Tolerance)

STANDARD:

122”, 146”, 196”

CUSTOM:

100” to 240” (min 20 sheets each)

LENGTHS:

COIL ANODIZED ALLOYS

5005 (other alloys may be available upon request)

NOMINAL THICKNESS:

0.020” up to 0.125” (Typical for this application is 0.032” and 0.040”) Custom nominal thicknesses may be available upon request

WIDTHS:

48”, 60”, 62”

STANDARD:

CUSTOM:

48” to 62” (+-1/4” Tolerance)

122”, 146”, CUSTOM: 100” to 240” (min 20 sheets each) 196” NOTE: Separate sheet widths may be from separate coating runs, and in some cases could results in a perceivable color difference.

LENGTHS:

STANDARD:

MINIMUM ORDER QUANTITIES Edgeline® has no minimum order when purchased from existing inventory unless it is ordered as an Accessory Purchase or a Production Run as described below: ACCESSORY PURCHASE (Purchased with Vitrabond® or Vitraplate® in the same finish) When purchased as an accessory product with Vitrabond® or Vitraplate®, there is no minimum order quantity for Edgeline if it is in stock.

When Edgeline® is not in stock as an accessory to your Vitrabond® or Vitraplate® purchase: NOMINAL THICKNESS

PURCHASED WITH VITRABOND®

PURCHASED WITH VITRAPLATE®

0.040”

6,000 sf

1,000 sf

0.032”

7,000 sf

1,000 sf

0.020”

(Same width as Vitrabond® only) - 200sf

1,000 sf

NOTE: Minimum order quantity per color, width and thickness.

PRODUCTION When produced to order as a stand-alone product, the following minimum order quantities apply: NOMINAL THICKNESS

SOLID/MICA/METALLIC

PATTERNED

0.040”

6,000 sf

12,000 sf

0.032”

7,000 sf

14,000 sf

0.020”

10,000 sf

20,000 sf

NOTE: Minimum order quantity per color, width and thickness.

46

Fairview Architectural https://fairview-na.com/ | 860-242-2711

Rev. 4/23/2026

Edgeline® Technical Data STANDARD

TEST

TEST STANDARD

RESULT

Fire Performance of 3003 Aluminum

ΔT< 86°F

PASS

PROPERTIES ASTM E136

THERMAL PERFORMANCE ASTM D696

13.8x10-6 in/in/°F (Aluminum)

Coefficient of Linear Expansion

AAMA 2605 STANDARD PVDF COATING PVDF Coating

Descriptions

Test

Test Result

ASTM B117

Salt Spray Resistance

5% salt fog at 95°F

Passes 4000 hrs. Less than 1/16” avg creepage from scribe. None or few #8 blisters

ASTM D523

Specular Gloss Test

Standard @ 60°

Varies per finish

ASTM D1308

Alkali Test

10%, 25% NaOH, 1hr

No Effect

ASTM D714

Blistering of Paint Test

100% Relative Humidity @ 95°F

Passes 4000 hrs.

ASTM D2244

Exterior Exposure

10 years @ 45° South Florida

PASS - Max. 5 fade

ASTM D2247

Water Resistance

100% Relative Humidity @ 95°F

No #8 blisters

ASTM D2794

Reverse Impact

1.5 x metal NOMINAL THICKNESS (Aluminum)

No cracking or adhesion loss

ASTM D3359

Adhesion

Reverse impact 1/16” crosshatch

No adhesion loss

ASTM D3363

Film Hardness

Pencil Test F - 2H

PASS

ASTM D4145

Prepainted Metal Coating Flexibility

T - Bend

0 - 2 T - Bend, No pick off

ASTM D4214

Chalk Resistance

10 years @ 45° South Florida

Pass - Max. 8 Chalk

EDGELINE LEED DATA ½ Pre-Consumer + Post-Consumer Recycled Content

Up to 32.5%

Warranty A standard product warranty of up to 20 years is available on coil -coated or coil-anodized Edgeline ® , with an extended warranty of up to 40 years available on select finishes.

Our unwavering commitment to quality ensures superior products by following strict ISO9000 standards, guaranteeing consistency and continuous improvement

Rev. 4/23/2026

Fairview Architectural https://fairview-na.com/ | 860-242-2711

47

Fairview Architectural North America (860)-242-2711 | helpdesk@fairview-na.com www.fairview-na.com 75 Peters Rd., Bloomfield, CT 06002 Revision Date: 5/13/2024
