The Ministry of Social Affairs – The Hague by FABRICations

MINISTERIE VAN SOCIALE ZAKEN DEN HAAG

.FABRIC

2 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Content

1 - CONTEXT

Urban Context

Current Building

2 - STRATEGIES

Different Strategies

Urban Greenscape

Routing

Re-Programming

Volumetry

Circulation

Uses

Program Content

Parking

Ground Floor

Evolution of the Shape

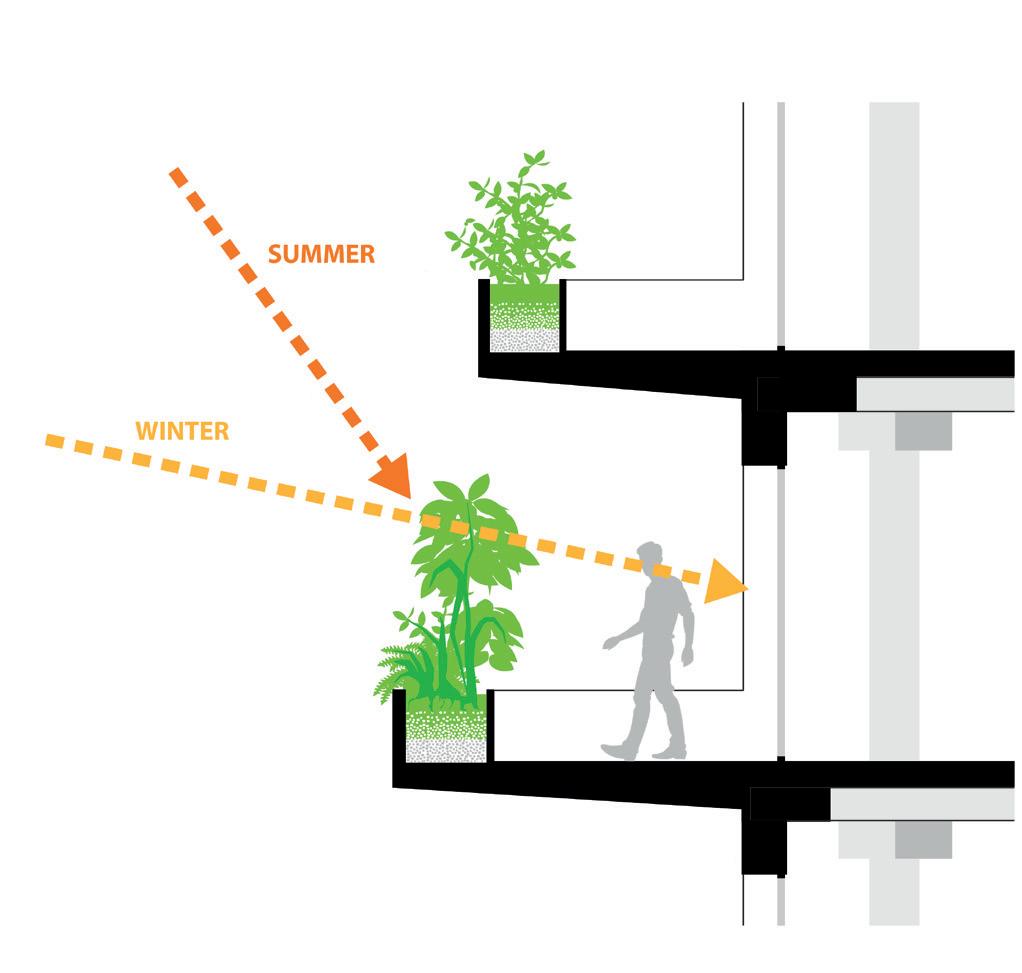

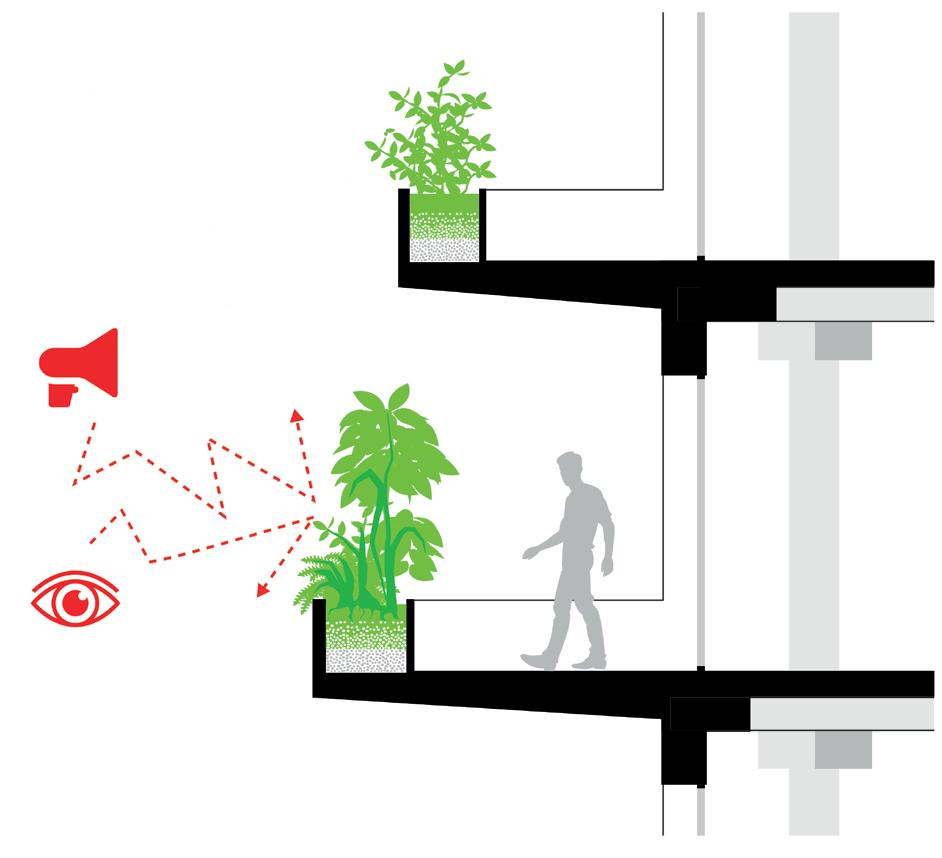

Terraces Performances

References

3 -DWELLING TYPOLOGIES

Dwelling Typologies

Towers Development

Areas Gross and Net

4-RE-USE & SUSTAINABILITY

Re-Use Overview

Demolition

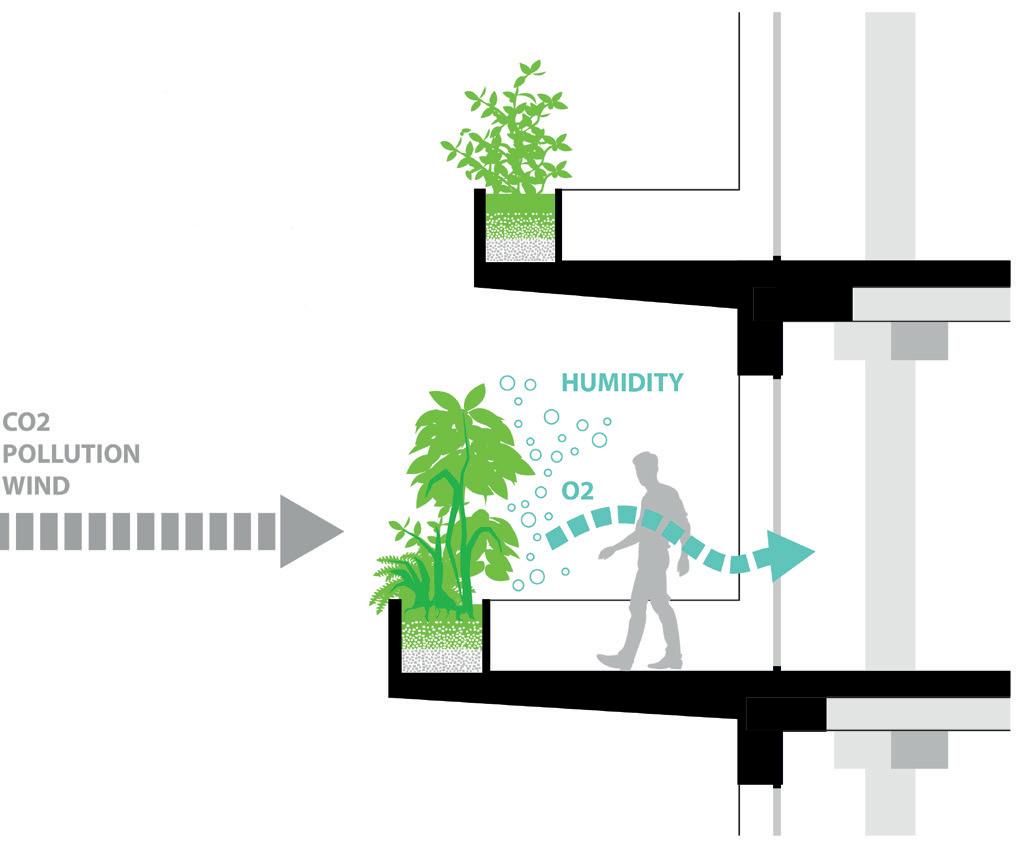

Water Green Energy

5-VISUALIZATIONS

3 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

4 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

CONTEXT

5 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

6 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 Zoning

Residential + Shops Offices + Industry Shops + Offices Residential + Offices

Residential

Sport https://bagviewer.kadaster.nl

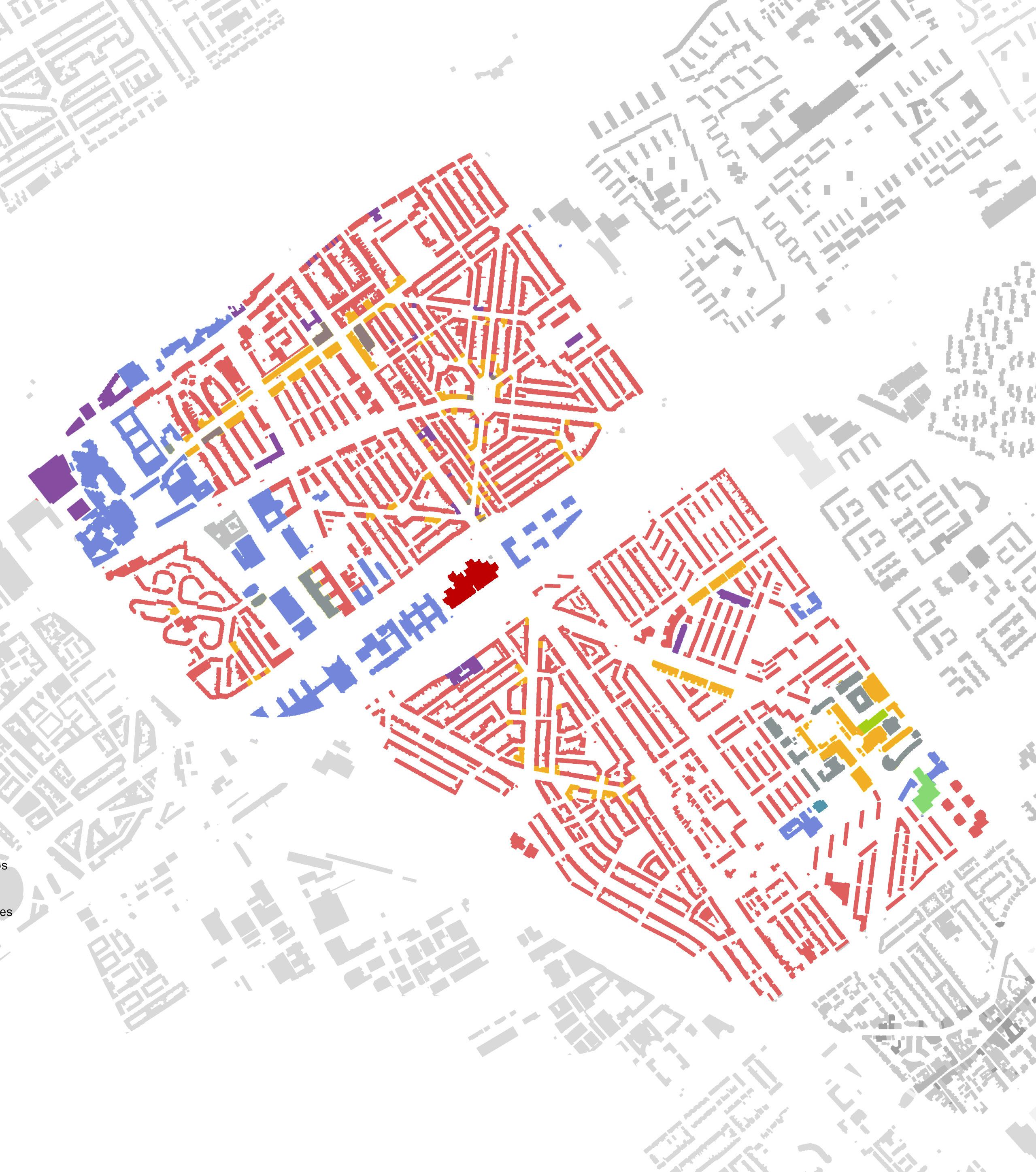

Urban Context

DEN HAAG CS LAN VAN NOI Cent re Cour t Prinseho f 32.000 m2 Mona rch 85.000 m2 BE A TRIXK W A R TIERZ 60.000 m2 Siemens 36.500 m2 Rijks gebouwendiens t 61.000 m2 Groene Toren 28.000 m2 Ha agse Poor t 68.000 m2 11 min 5 min 22 min 12 min Population 3550 Women 3325 Men 56% 44% Age Distibution 9% 15-25 Years 33% 25-45 Years 26% 45-65 Years 17% 0ver 65 years 15% Under 15 years 53% 47% Dwelling Ownership Rental Owner Occpied Population 3550 Women 3325 Men 56% 44% Age Distibution 9% 15-25 Years 33% 25-45 Years 26% 45-65 Years 17% 0ver 65 years 15% Under 15 years 53% 47% Dwelling Ownership Rental Owner Occpied 51% 26% 23% Single Couple Family Households 88% Flats 12% Row Houses Dwelling Types 7 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

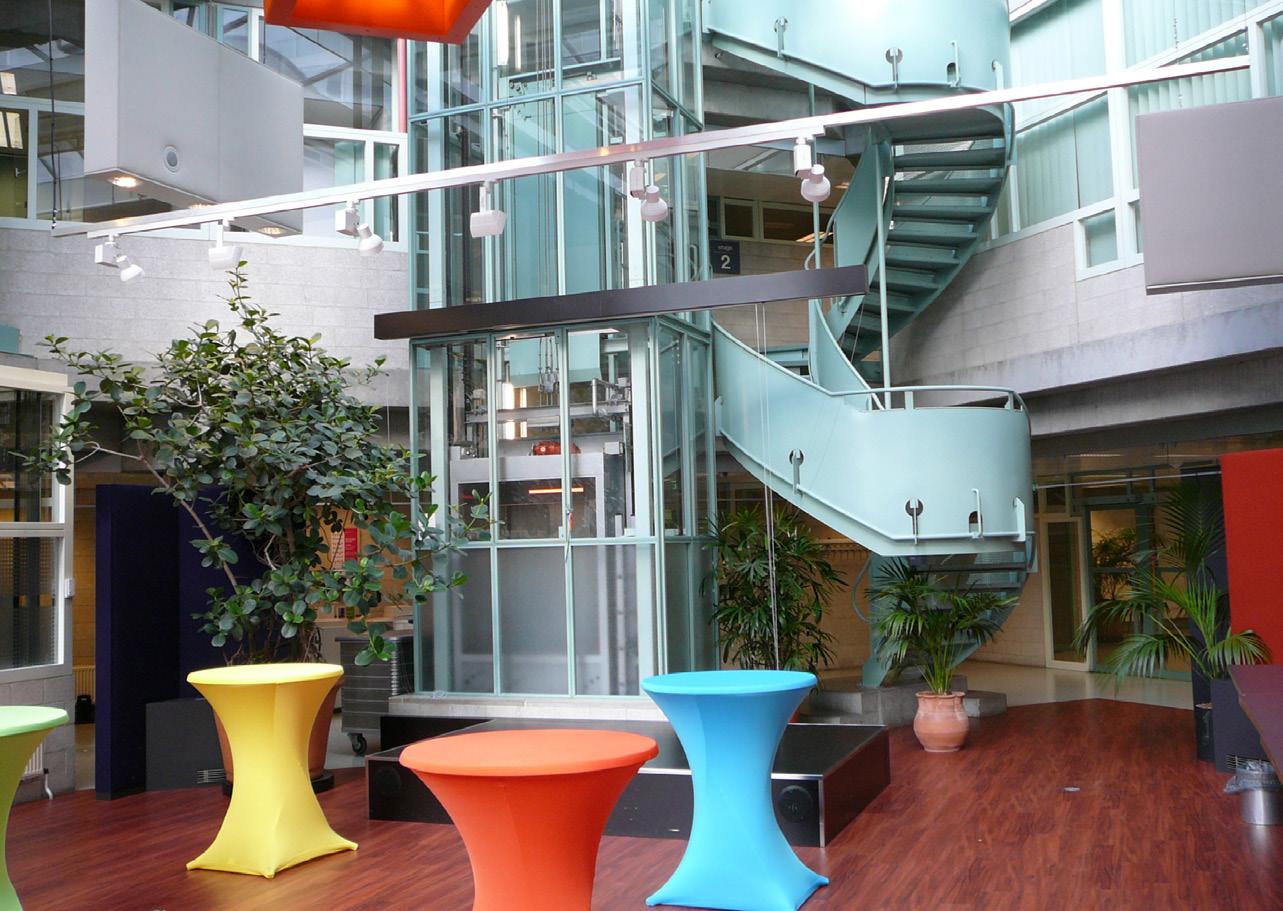

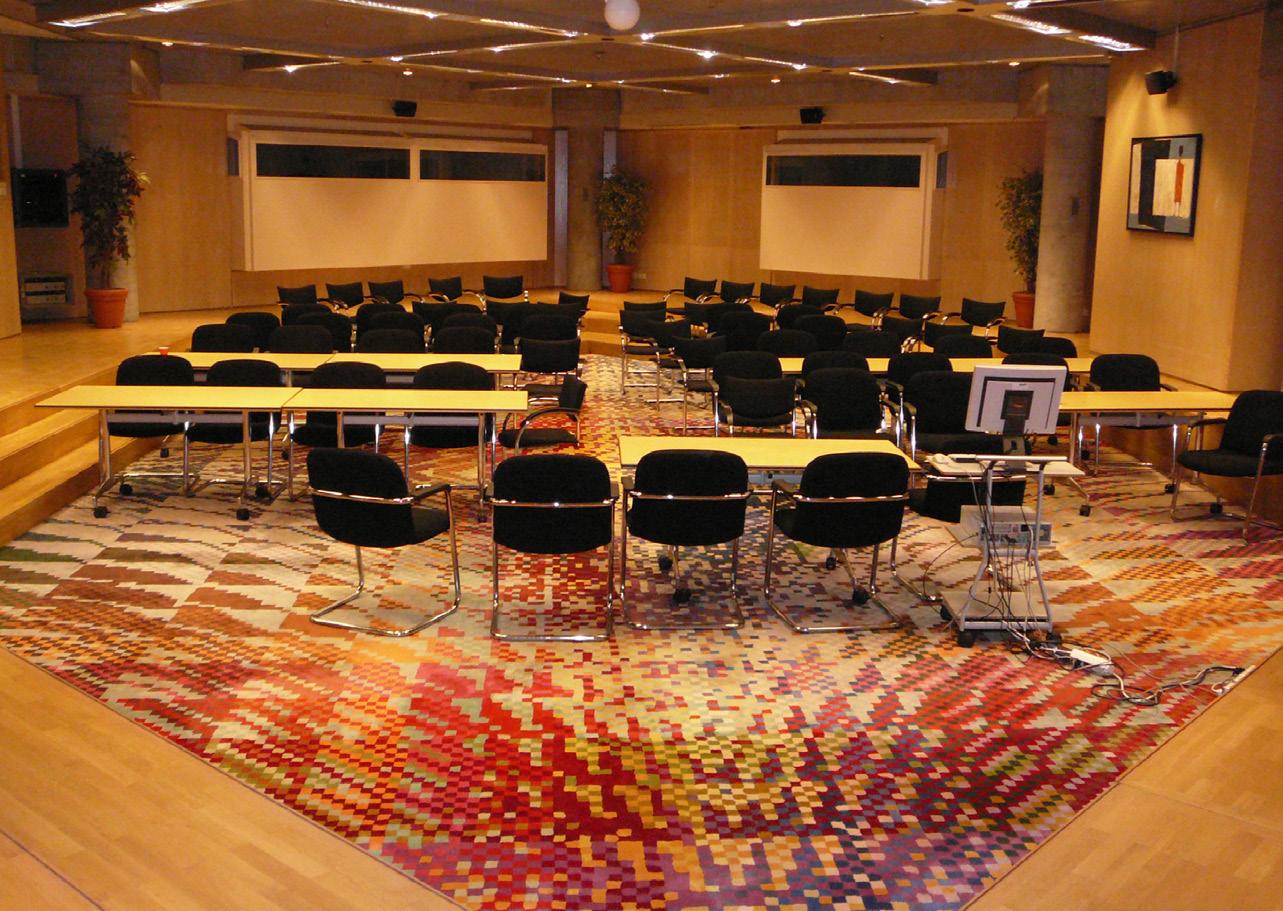

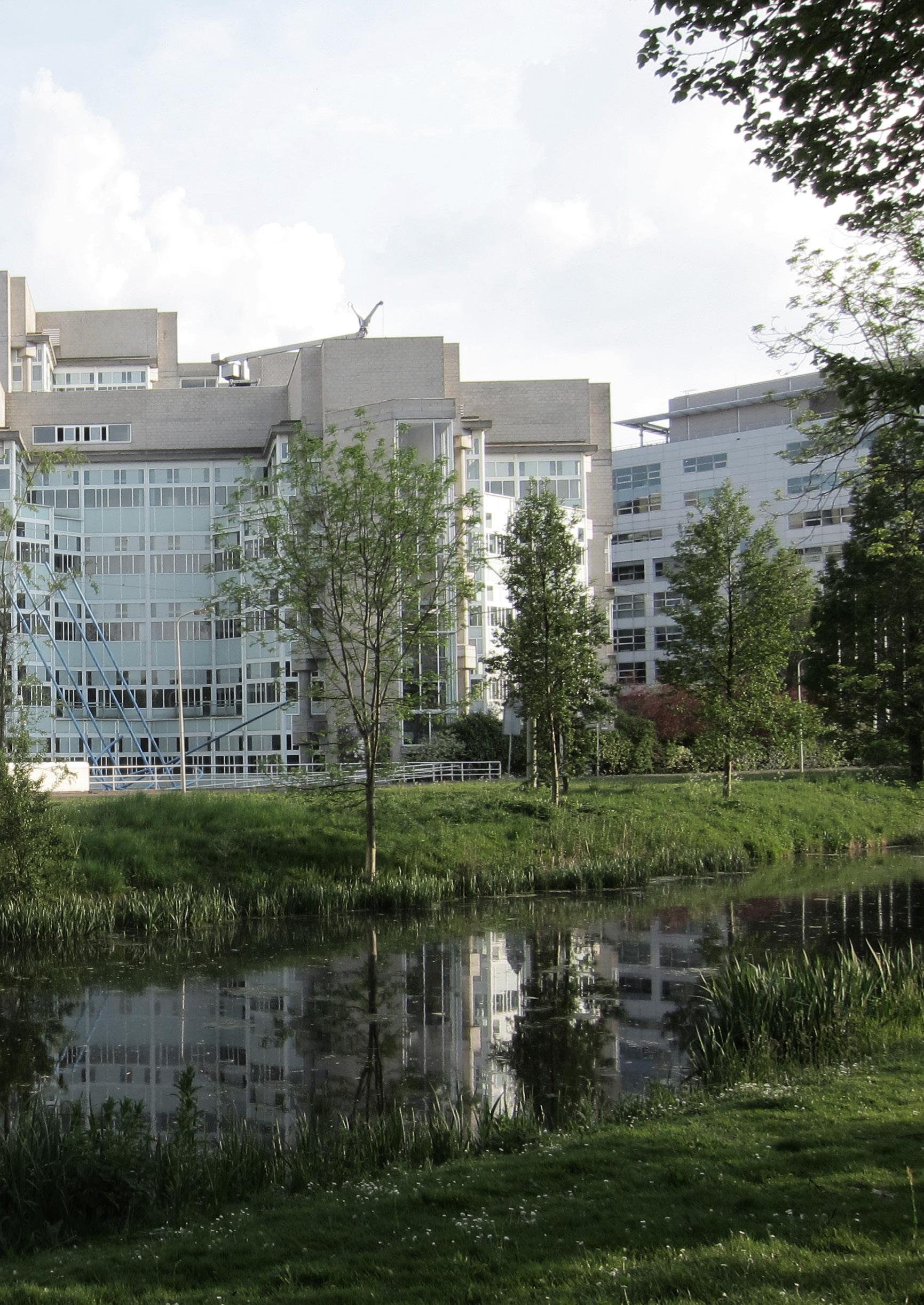

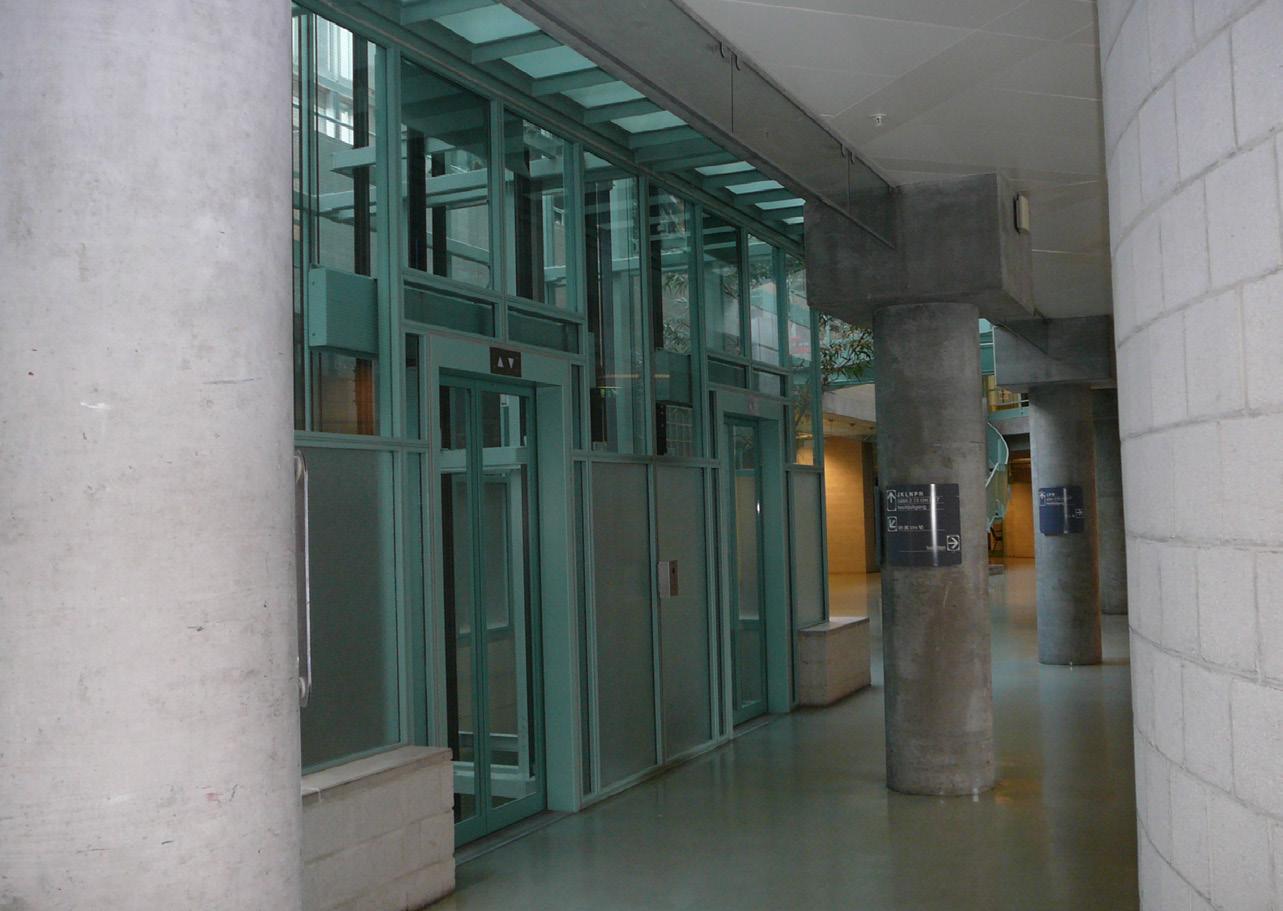

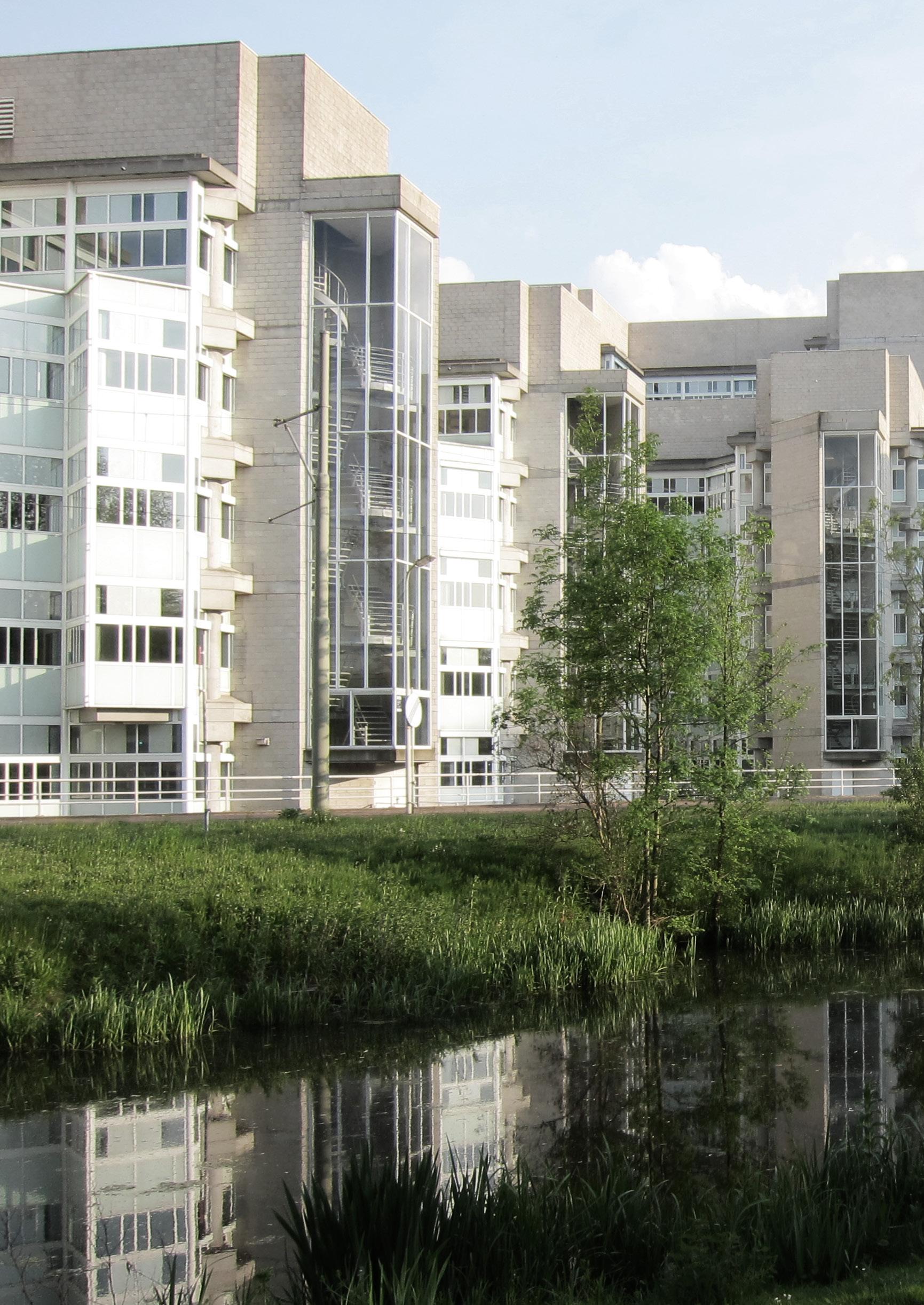

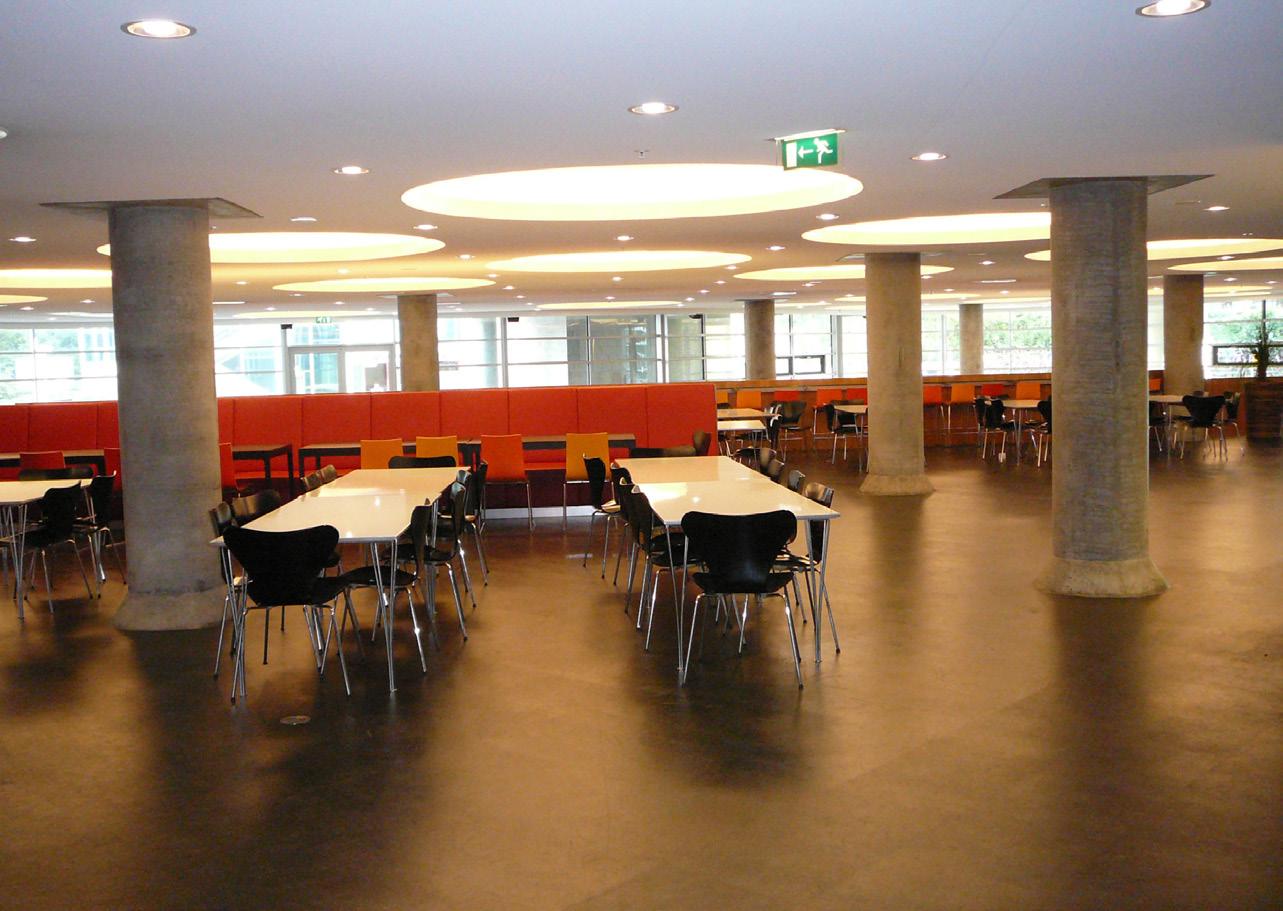

Building Current Situation

10 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 Levels -3,-2,-1 Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7

Level 3

Columns: 177

Floor Surface: 7874m²

Ceiling Height: 3.3m

Number of Stairs: 22

Number of Elevators: 10

Level o (Ground floor)

Columns: 217

Floor Surface: 10364m²

Ceiling Height: 3.3m

Number of Stairs: 16

Number of Elevators: 5

Level -3 (Parking)

Columns: 33

Floor Surface: 2726m²

Ceiling Height: 2.2m

Number of Stairs: 7

Number of Elevators: -

Building Current Situation

Level 4

Columns: 130

Floor Surface: 3466m²

Ceiling Height: 3.3m

Number of Stairs: 16

Number of Elevators: 8

Level 1

Columns: 211

Floor Surface: 9437m²

Ceiling Height: 3.3m

Number of Stairs: 24

Number of Elevators: 12

Level -2 (Parking/Offices)

Columns: 127

Floor Surface: 7871m²

Ceiling Height: 3.3m

Number of Stairs: 12

Number of Elevators: 5

Levels 5 and 6

Columns: 130

Floor Surface: 5044m²

Ceiling Height: 3.3m

Number of Stairs: 16

Number of Elevators: 8

Level 2

Columns: 195

Floor Surface: 8925m²

Ceiling Height: 3.3m

Number of Stairs: 24

Number of Elevators: 10

Level -1 (parking)

Columns: 26

Floor Surface: 2511m²

Ceiling Height: 2.2m

Number of Stairs: 7

Number of Elevators: 5

11 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

12 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

General Cross Section

13 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

14 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

General Longitudinal Section

15 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

16 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

STRATEGIES

17 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Existing

Urban Connection

Beat rixkwa r t ier Pa rk LAAN VAN NOI 18 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Different Strategies

Beat rixkwa r t ier Pa rk LAAN VAN NOI Beat rixkwa r t ier Pa rk LAAN VAN NOI Beat rixkwa r t ier Pa rk LAAN VAN NOI 19 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Architectenbureau HH, Herman Hertzberger De Zwarte Hond Architectuur

.Fabric

Existing New Connection

New Greenscape

Park LAAN VAN NOI Park LAAN VAN NOI Park LAAN VAN NOI 20 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Urban Greenscape

Existing

Routing

New Connection

New circulation

21 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

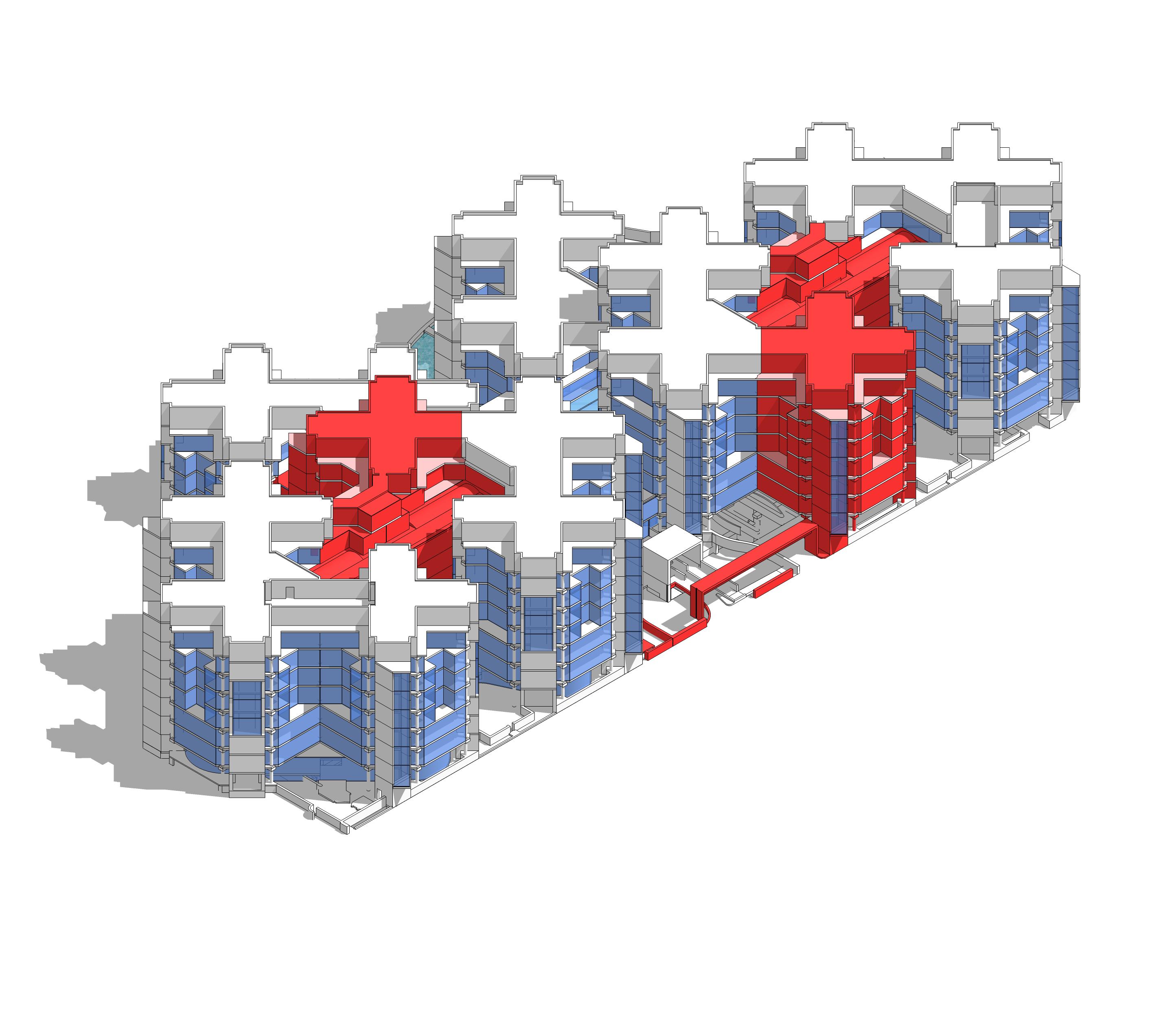

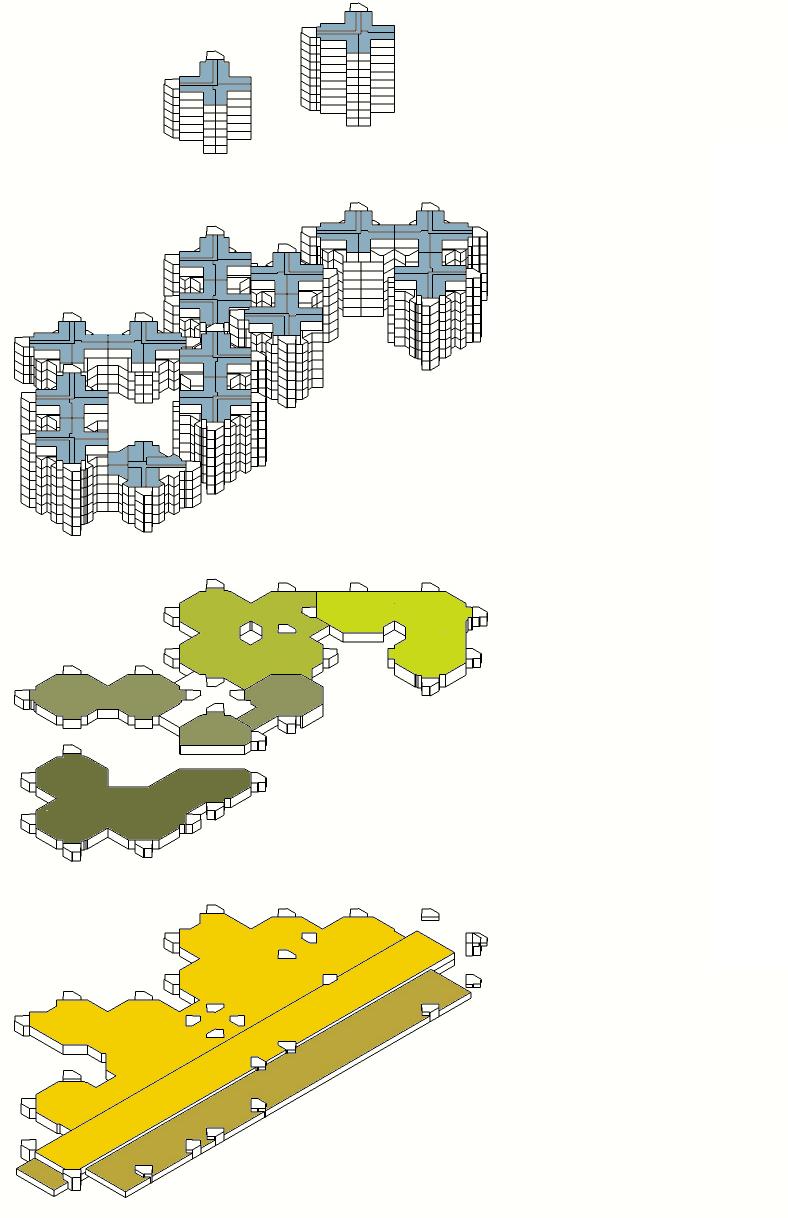

Building Re-Programming

Existing Demolition and Addition

New Buildings

22 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Existing

New spaces - Squares

Additional levels

23 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

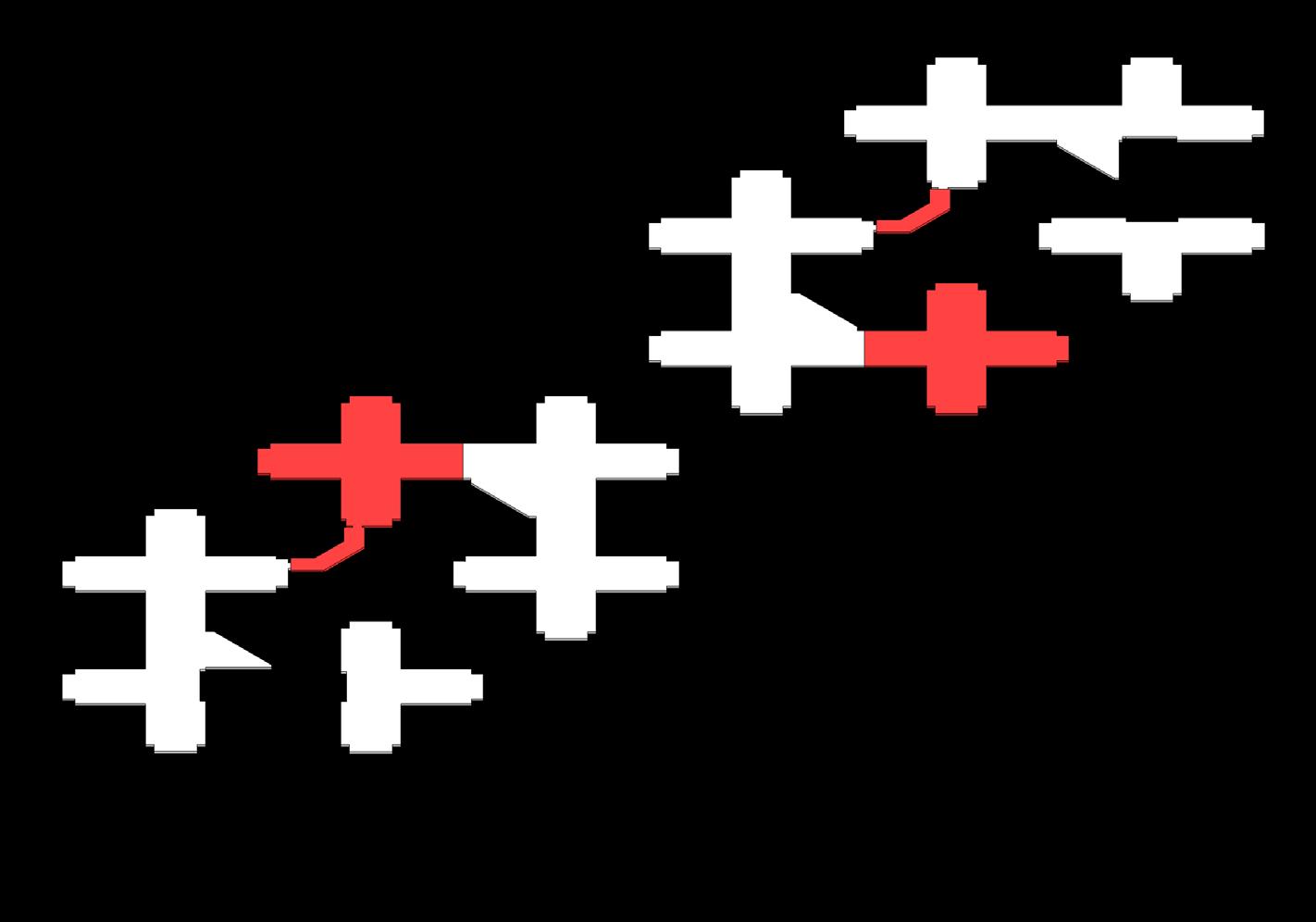

Volumetry

7 Levels Roof

2 Levels Roof

Demolition (16 Levels) 7040m2

7 Levels Roof

Demolition 16 Levels 7040m2

24 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Re-Programming

New Addition 16 Levels

New addition (16 Levels)

New exterior spaces

Addition 6 Levels Addition 10 Levels Residential Demolition 12 % 65 % Preserved 88 % 25 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

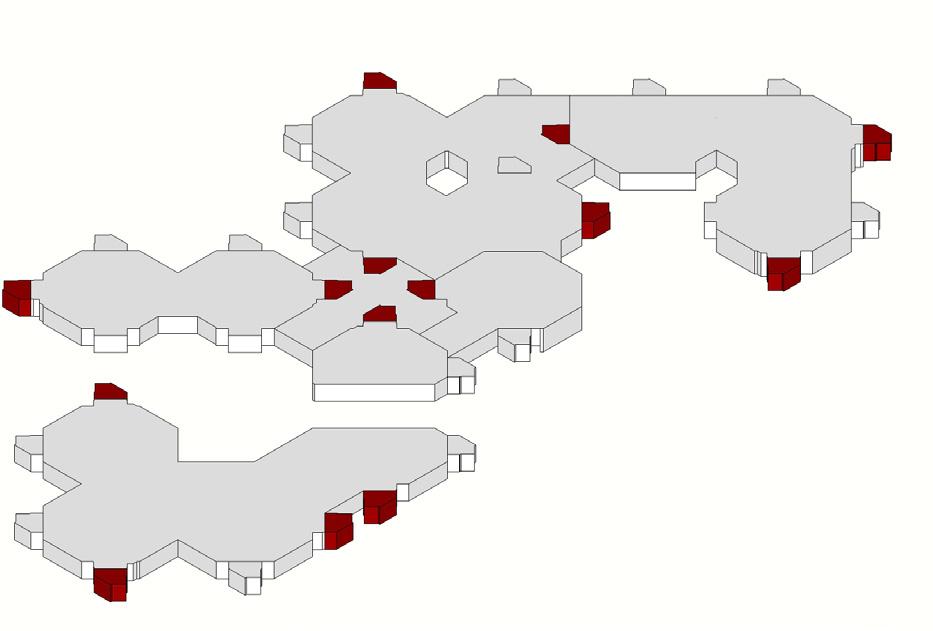

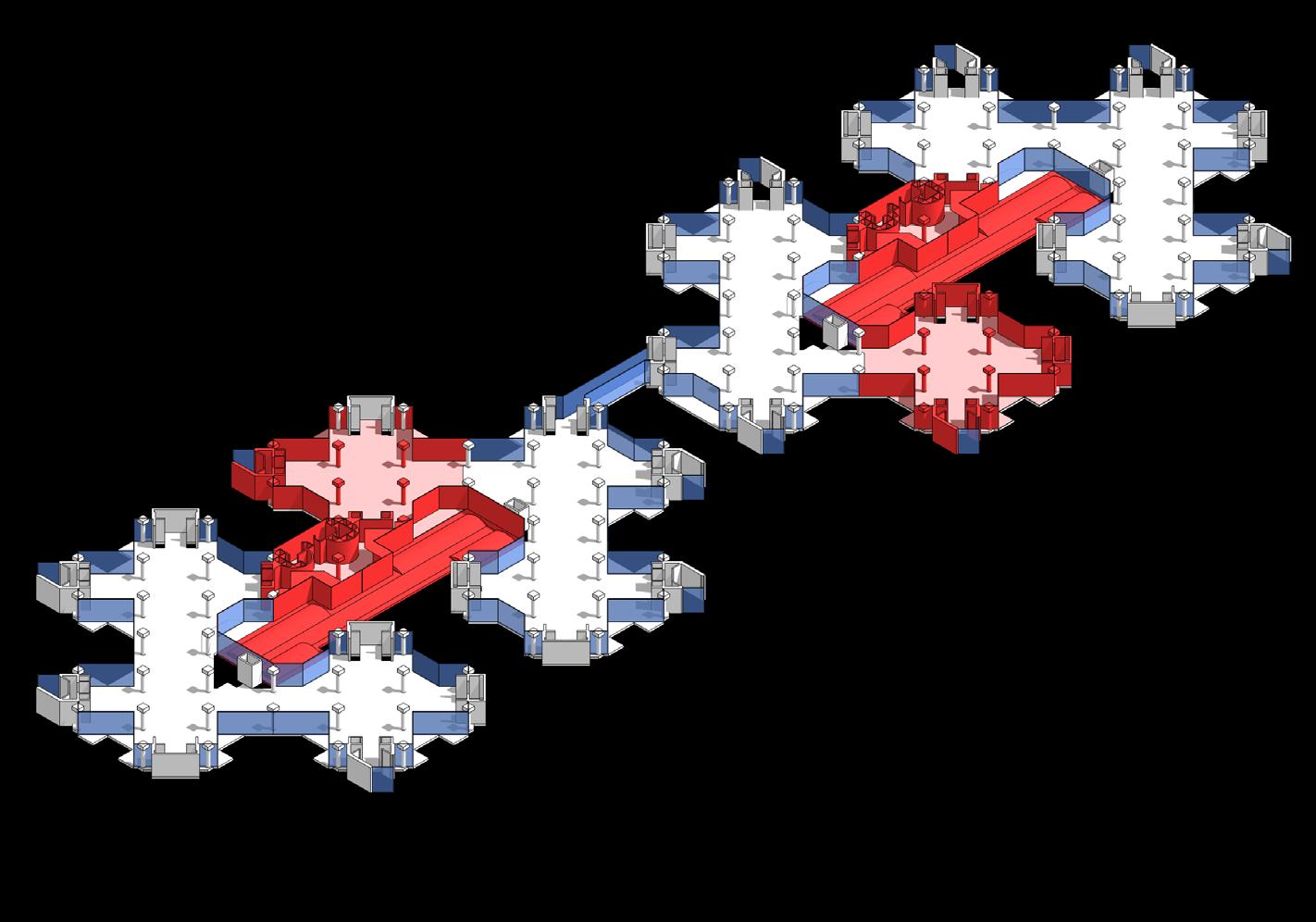

Re-Programming

Fire Stairs

Lifts

Internal Circulation Current Fire Stairs Current Lifts 26 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 Current Internal Circulation

Current

Current Stairs + additional levels

New Lifts

New Internal Circularion, more e cient

Current Stairs + additional levels

27 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

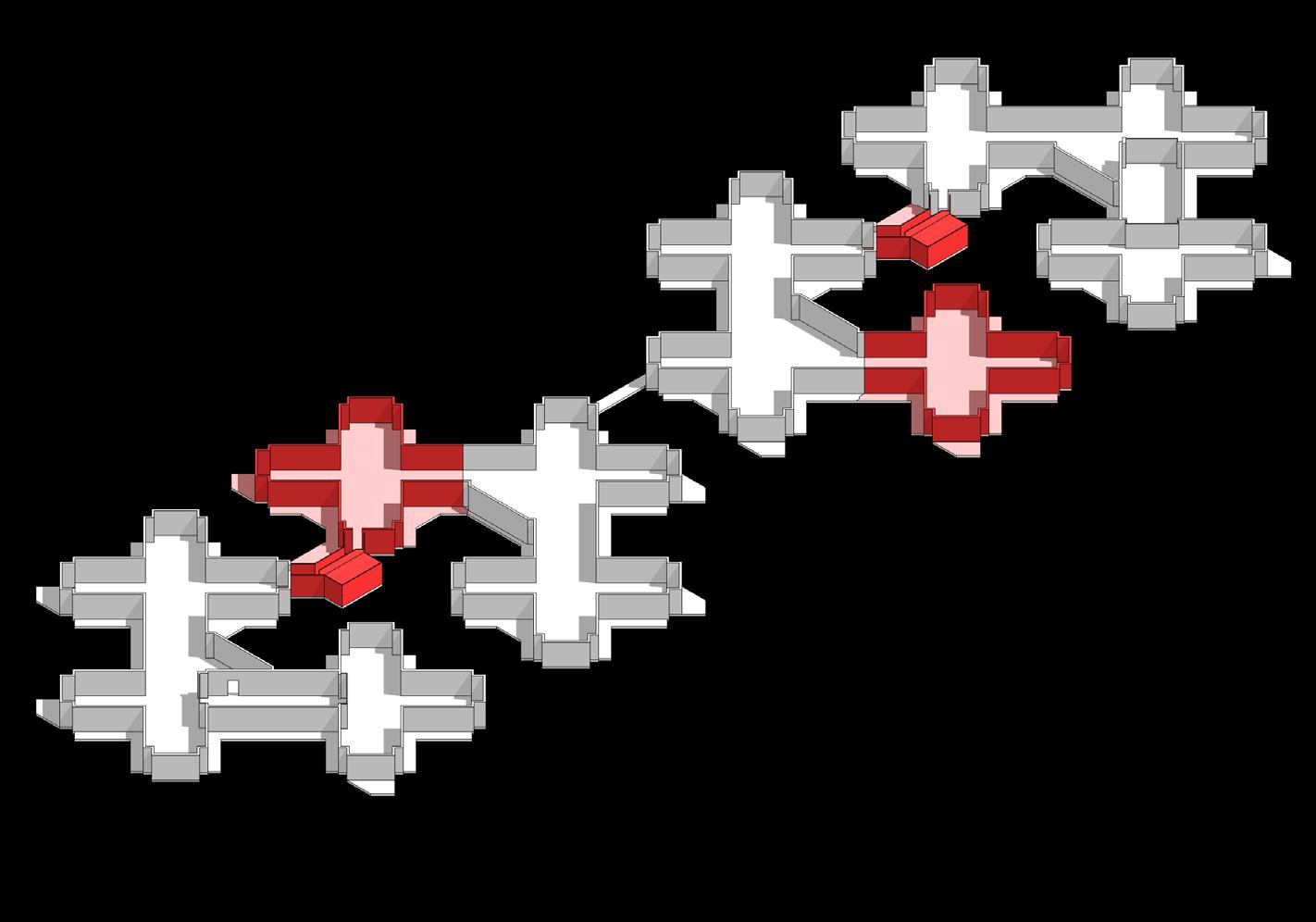

Internal Circulation

New Lifts

New-Additional

28 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Apartments Commercial Working Spaces Parking

Uses

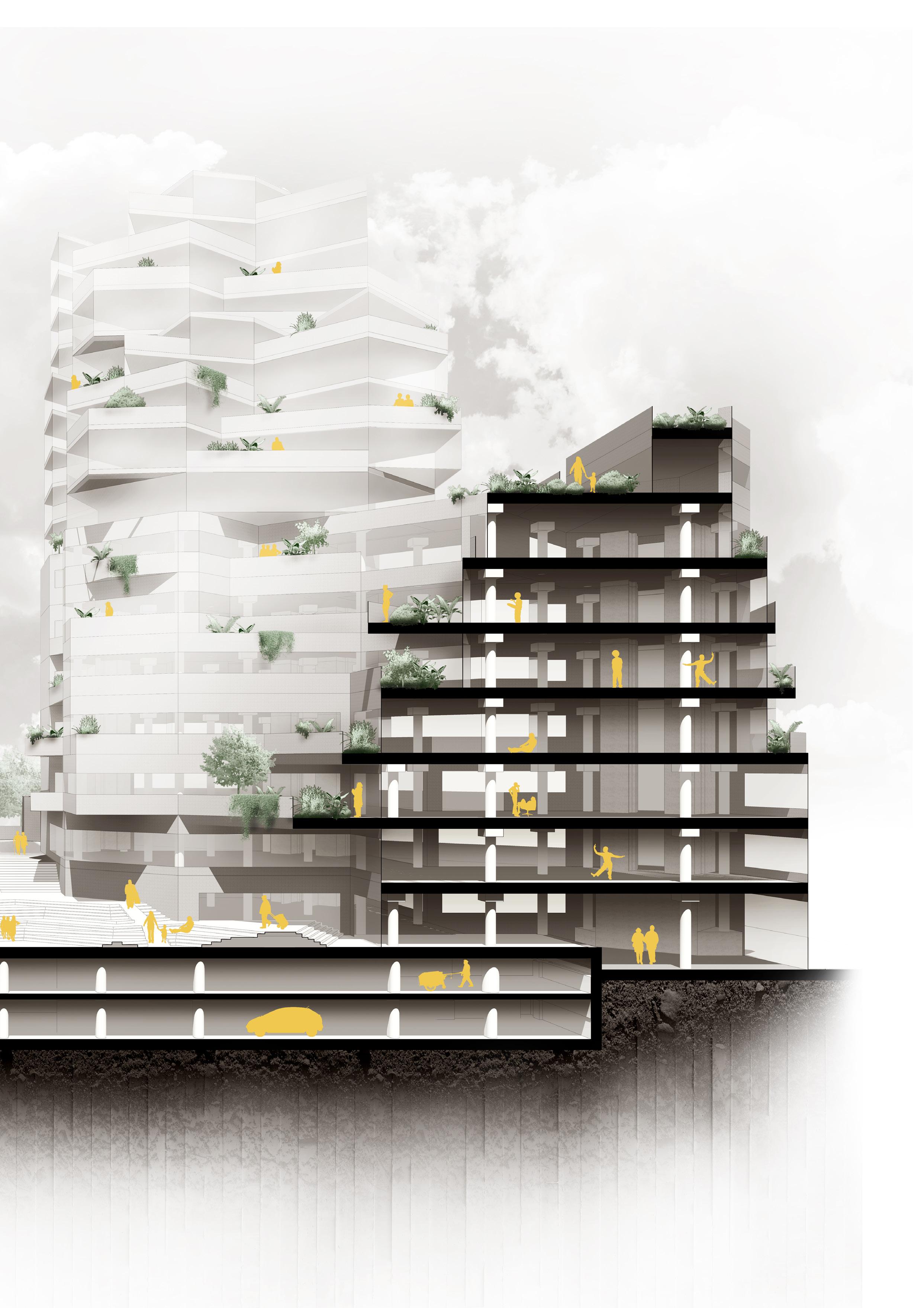

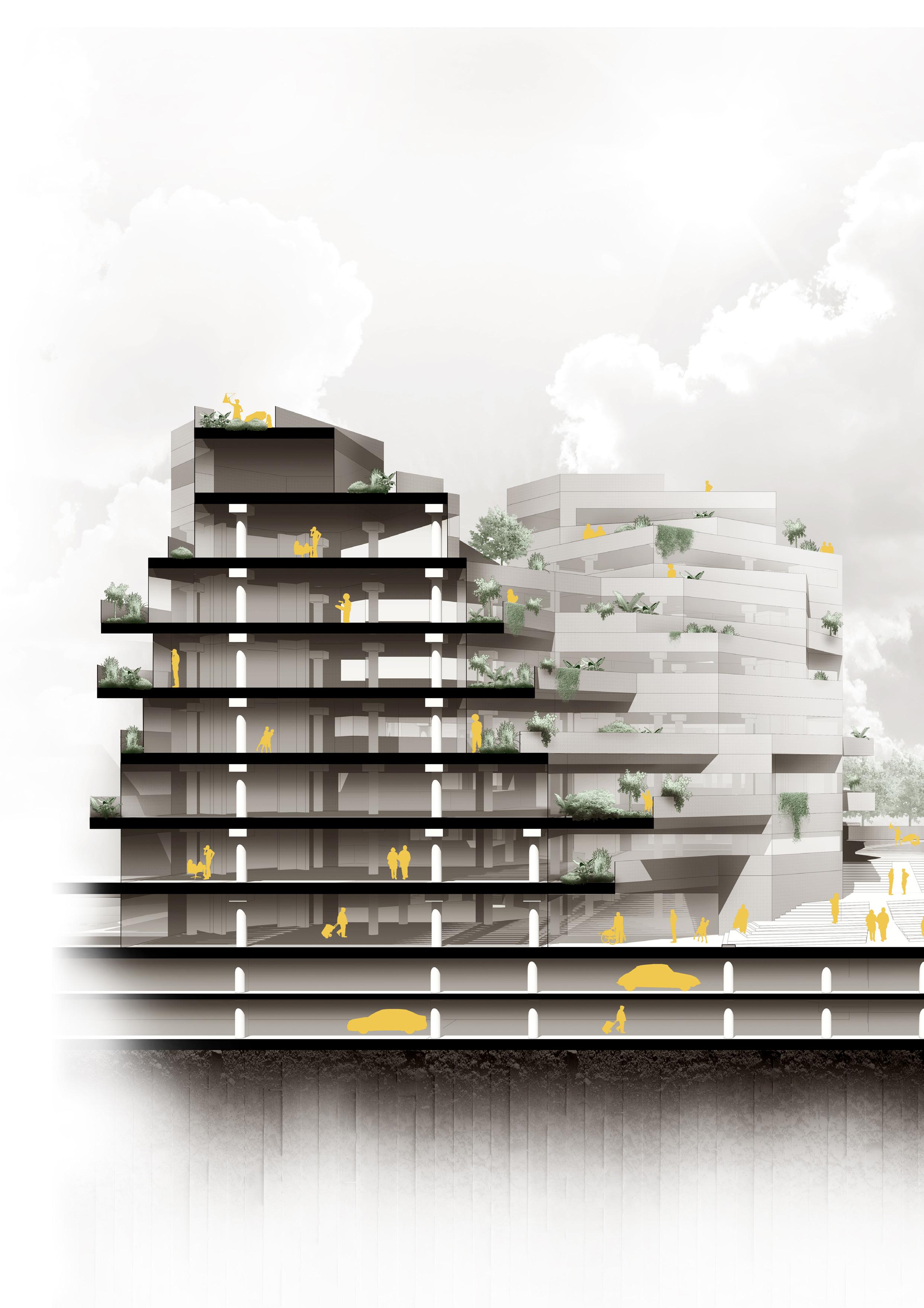

Section Diagram

Ground Floor

Uses

Big Apartments

Standard Apartments

Working spaces

Cafeteria/Restaurant

Small Shops

Supermarket

Public Parking

Private Parking Bike’s Parking

29 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Program Content

Parking Commercial/Working spaces Residential 23 % Demolition 12 % 12 % 65 % 30 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Program Content

Totals Units sqm % Total Buidling 100 60099 Surface 12 7040 Demolition 88 53059 Preserved Parking Private 7870 194 Parking Public 5600 166 Parking 2096 Supermarket Commercial Small 1843 Shops 1534 Cafeteria/Restaurant Working 1935 Spaces Residential Standard Apartments 540 25783 Big 8235 112 Apartments 4673 Corridors Total Buidling 100 60099 Surface 23 13470 360 Parking Commercial+Working spaces 7408 12 65 38691 652 Residential Bike’s Parking 1000 530 31 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Maximum Capacity

Level -1

Public Parking 77 Parking Spaces

Basement -2

Public Parking 89 Parking Spaces

Private Parking 117 Parking Spaces

Bike´s Parking 1000 Parking Spaces

Basement -3

Private Parking 77 Parking Spaces

Ramps New Ramps New Ramps 32 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Parking

Parking of Bikes

Average recommended 1,5 bikes per dwelling = 978 spaces (1000 spaces)

1 bike= 2000x650mm (parking double level at 2,40m height)

530m2 (500 bikes) x 2 Levels= 1000 bike spaces

33 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

34 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

N 0 10 20 50m 35 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Ground Floor Plan

36 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Accessibility

Residentials

Pedestrians

Additional Circulation

37 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

38 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Supermarket Shops Shops

Entrances O ces Cafe Cafe Outdoor 39 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 Functionality

40 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

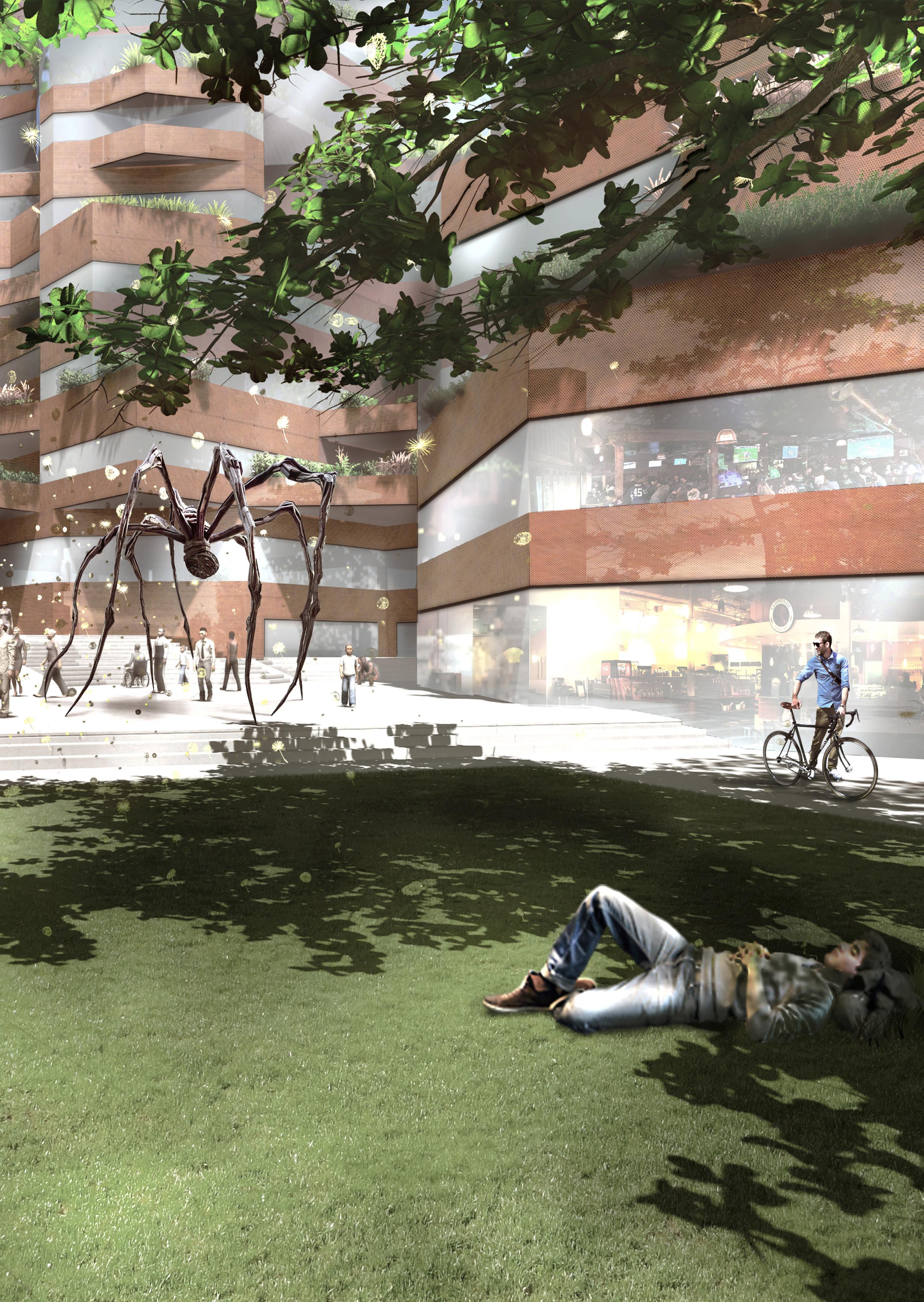

Landscape

41 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

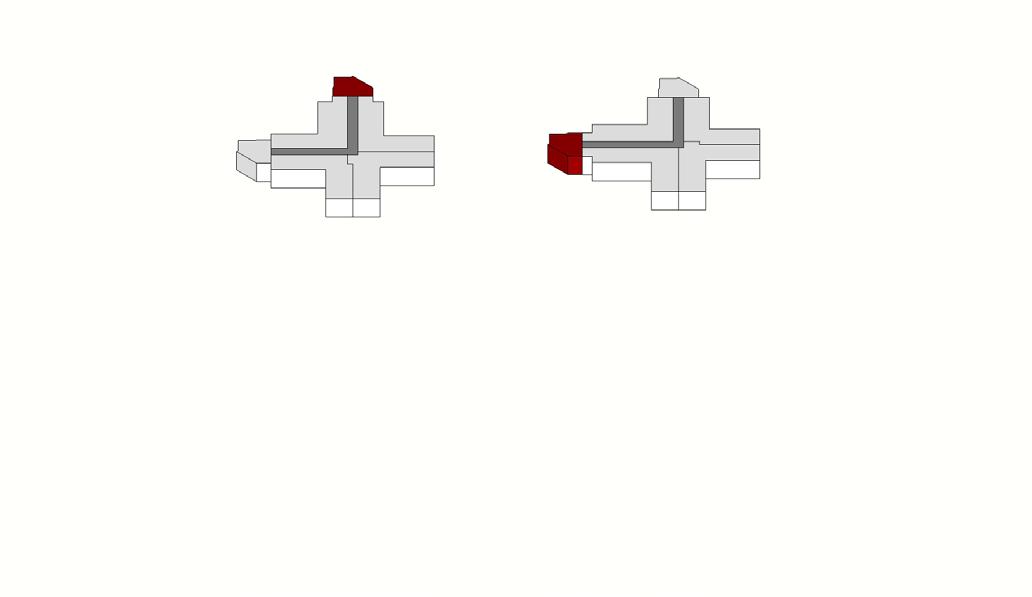

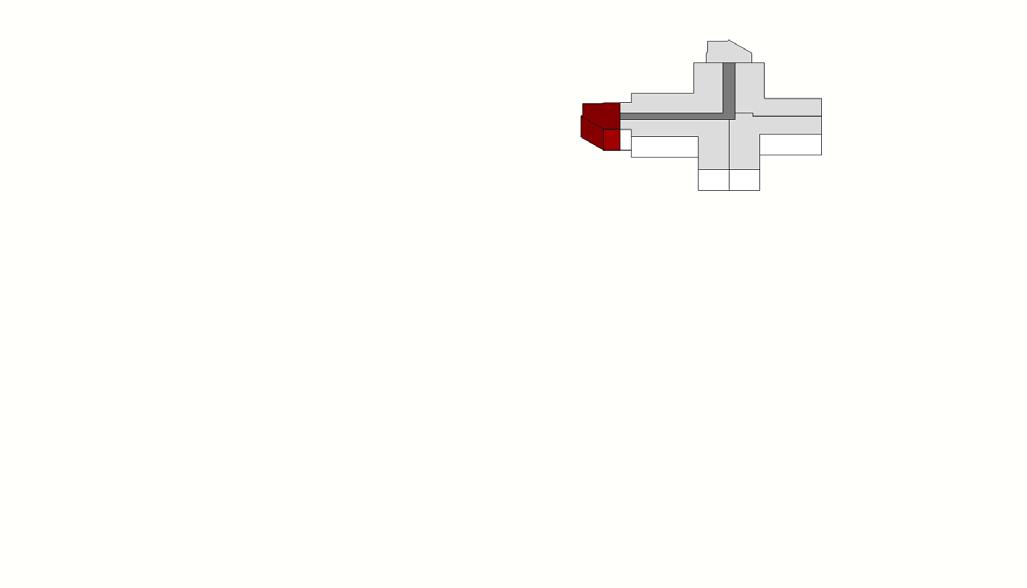

Evolution of the Shape

Addition Extraction

Existing Shape

Addition Balconies and Lift

Simple volume

Addition and Extraction of Balconies

More surface and exterior spaces

42 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

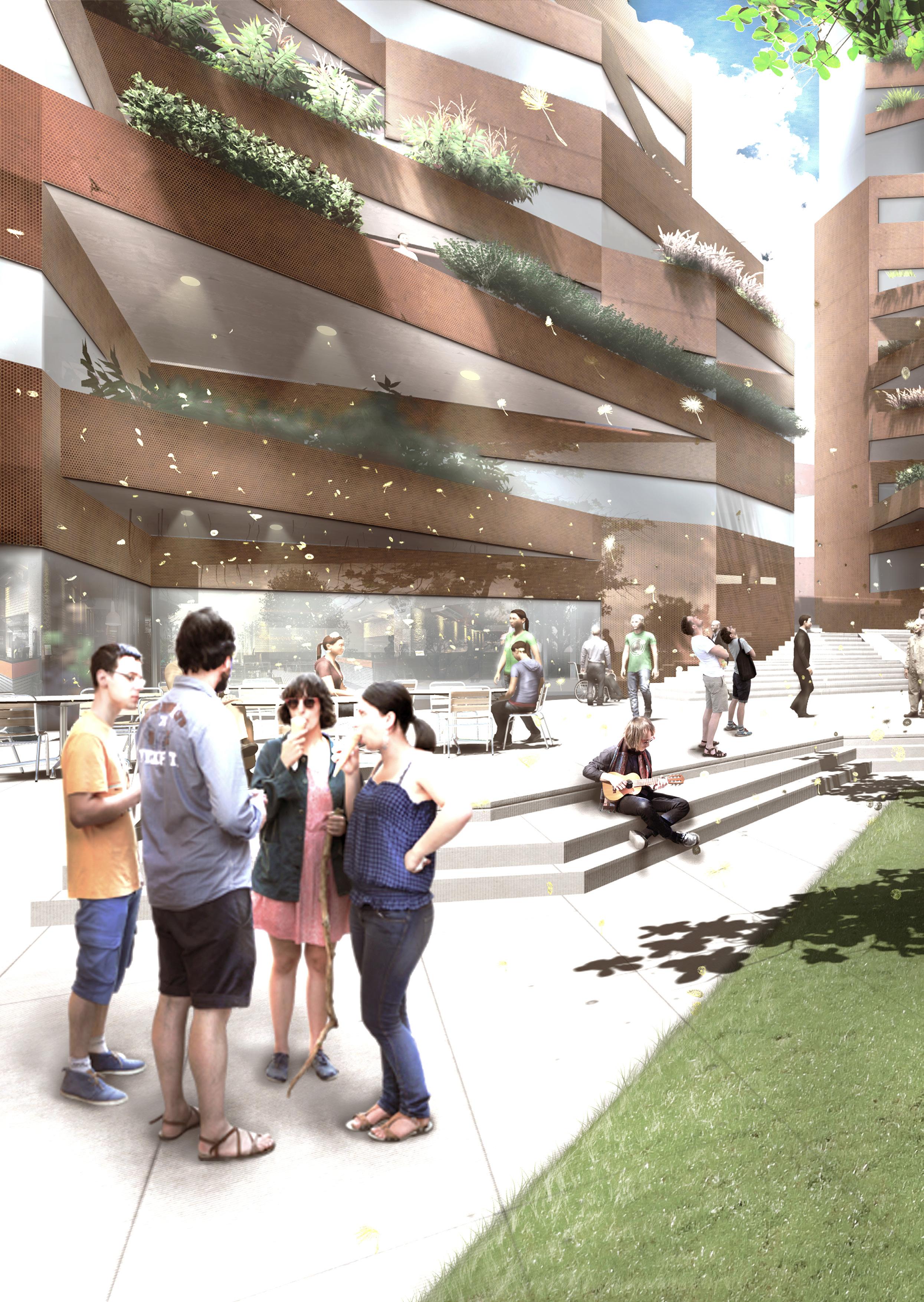

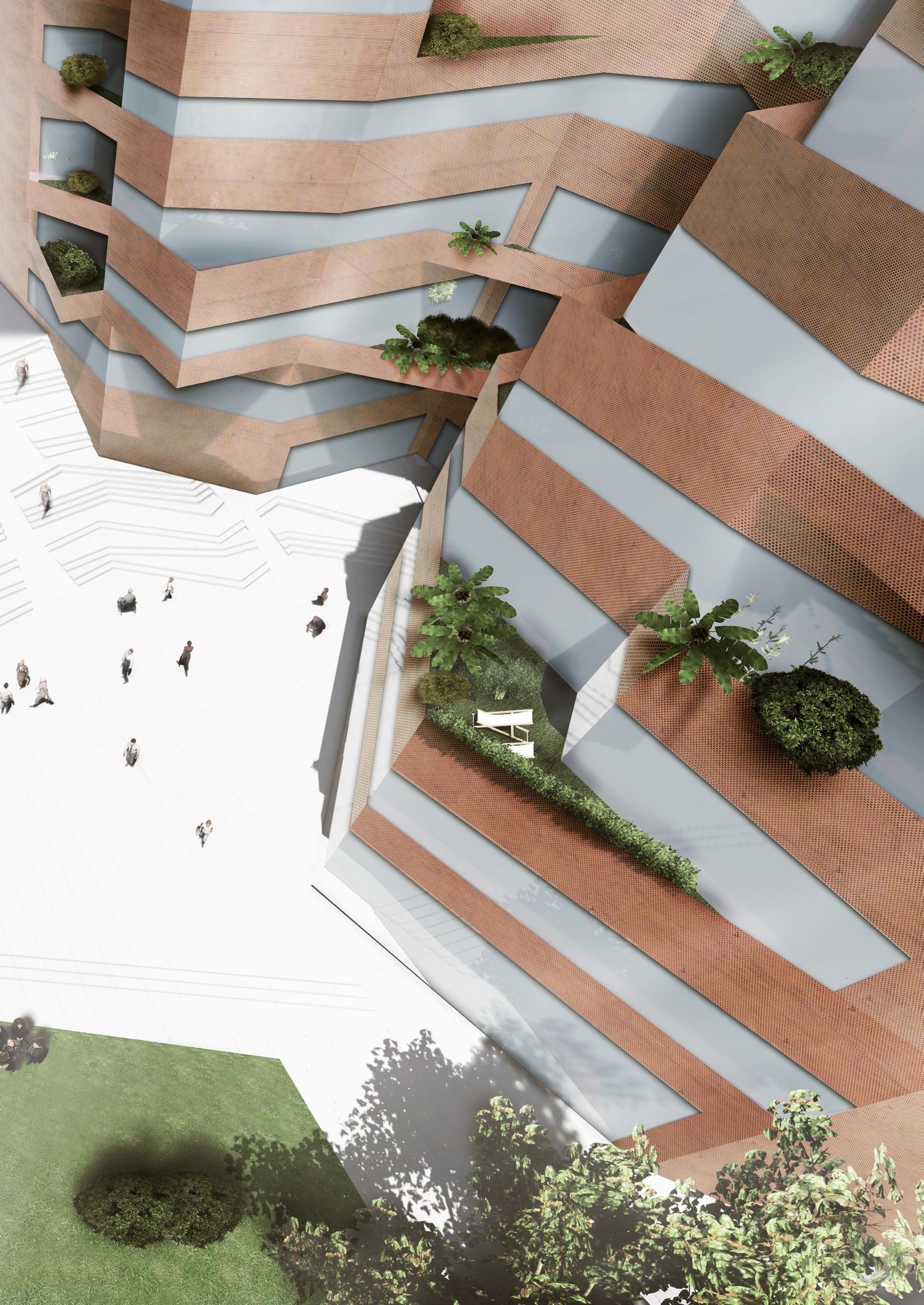

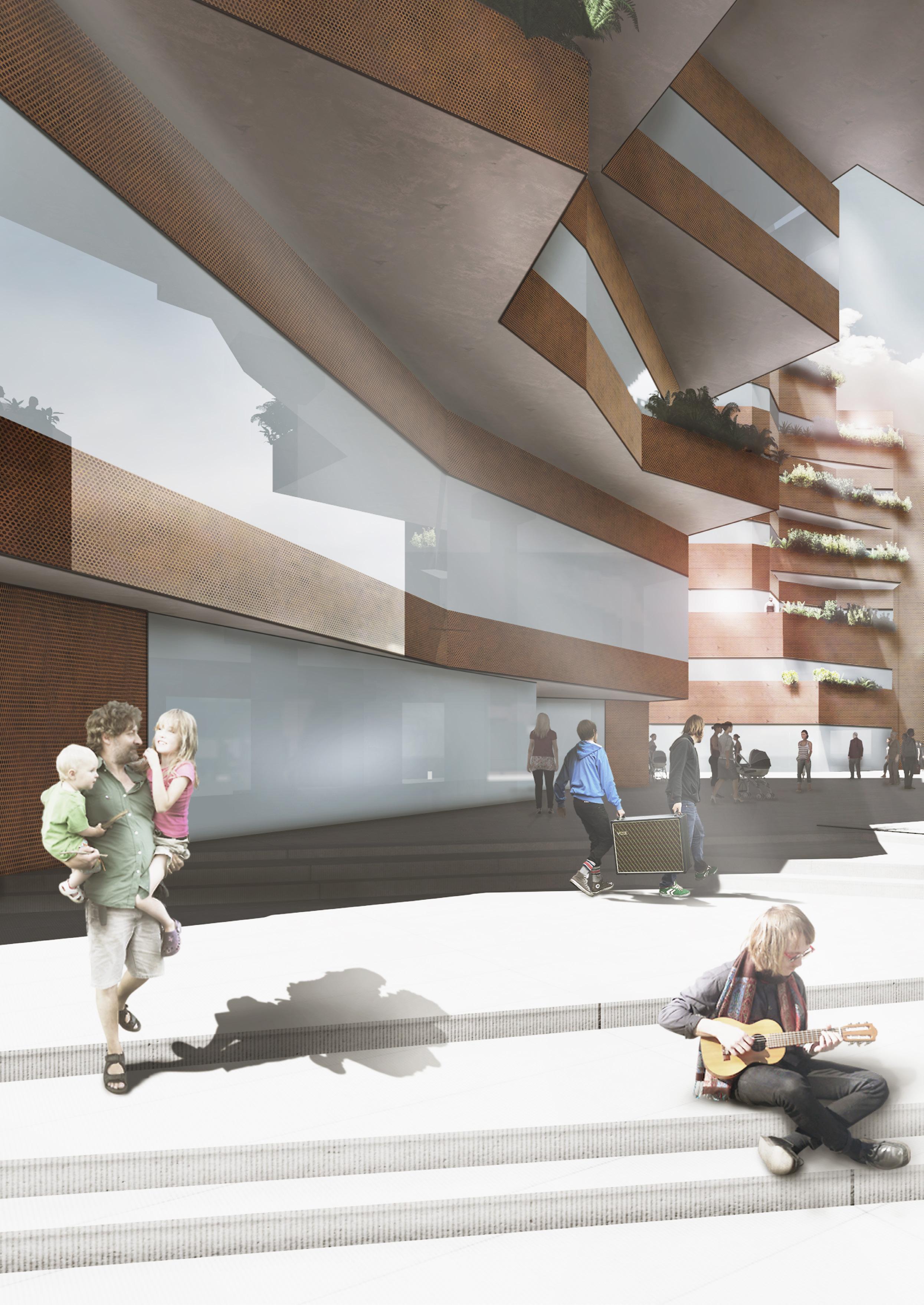

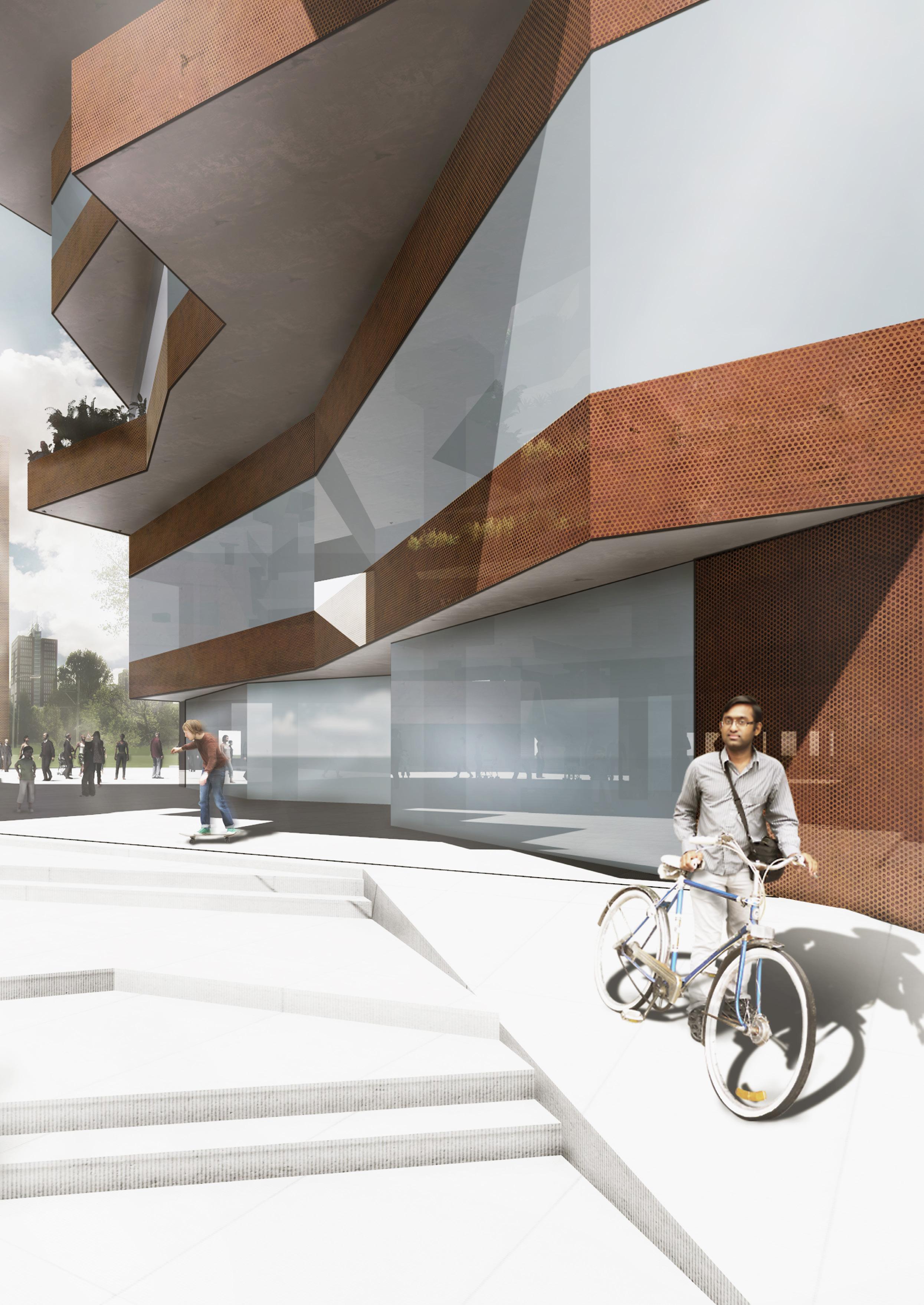

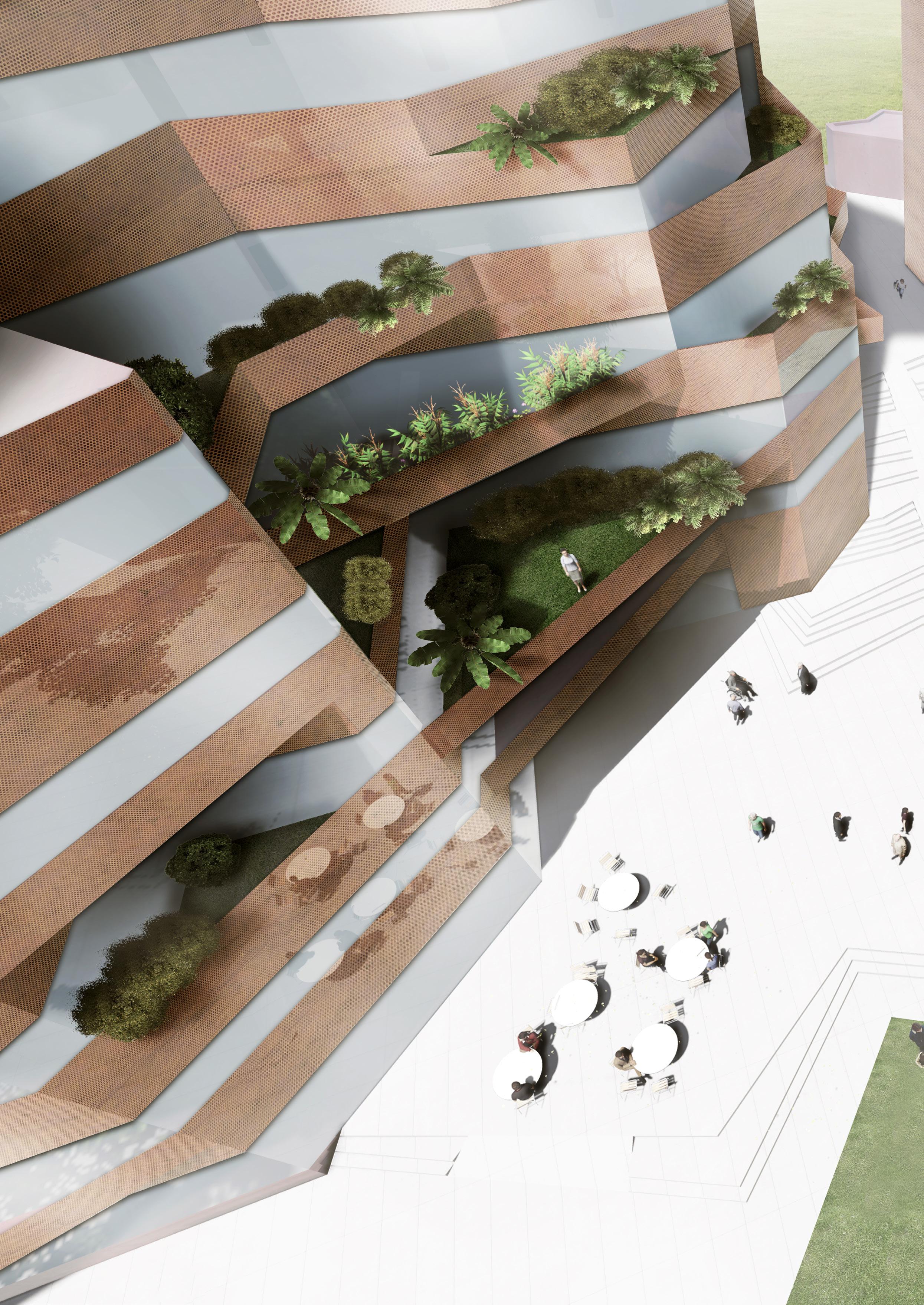

43 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 Terraces / Balconies Performances Sun Control Pollution Control Water Control Privacy - Sound Control

44 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

45 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

46 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

47 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

48 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

49 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

50 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

51 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

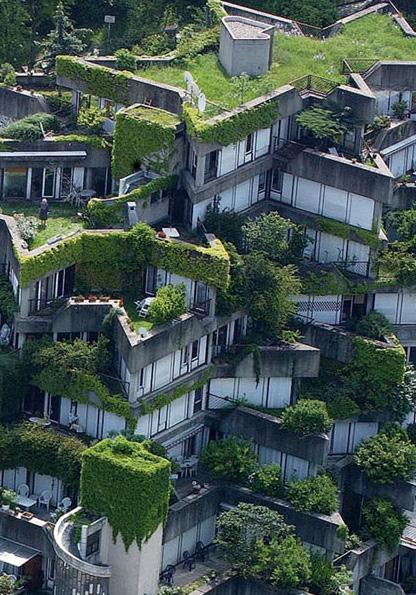

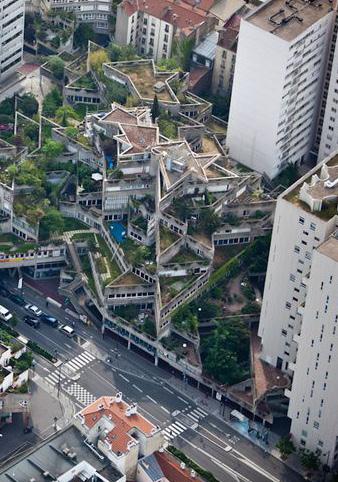

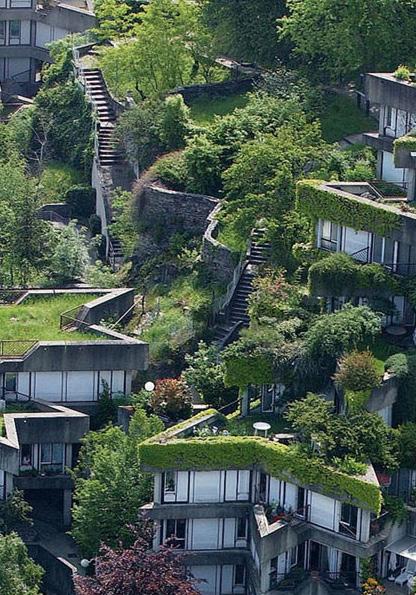

Cité des Etoiles - Jean Renaudie

52 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

53 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

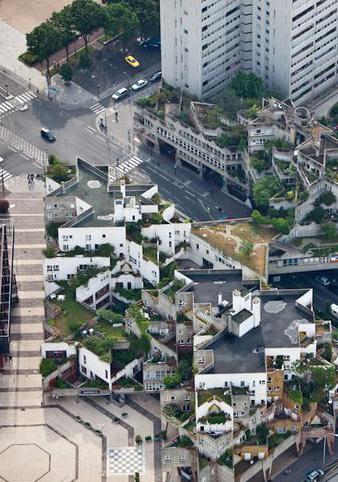

Cité des Etoiles - Jean Renaudie

54 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

55 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

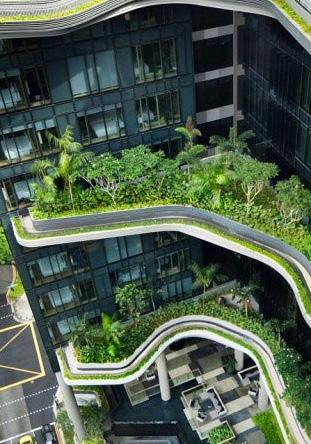

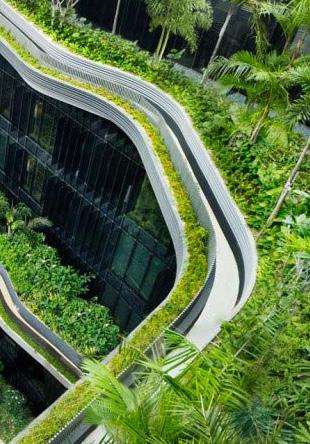

Park Royal - WOHA Architects

56 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

57 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

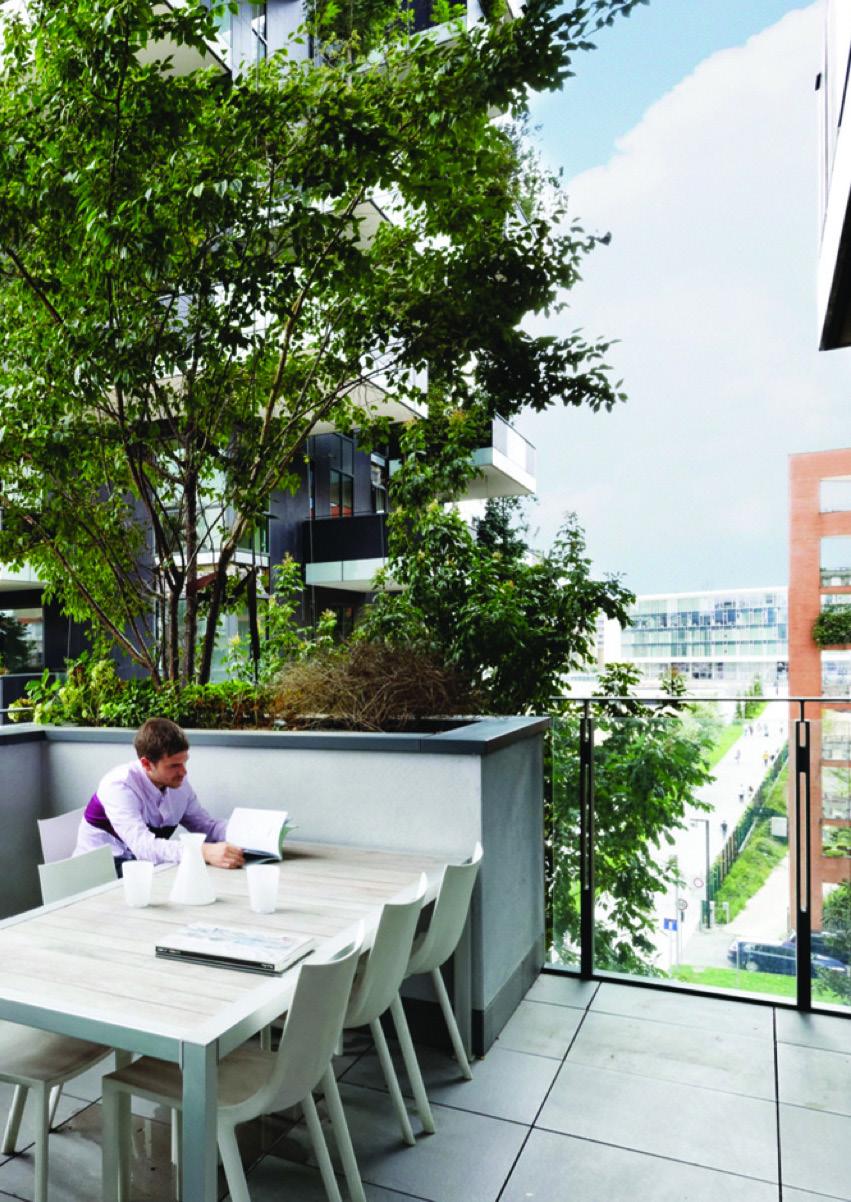

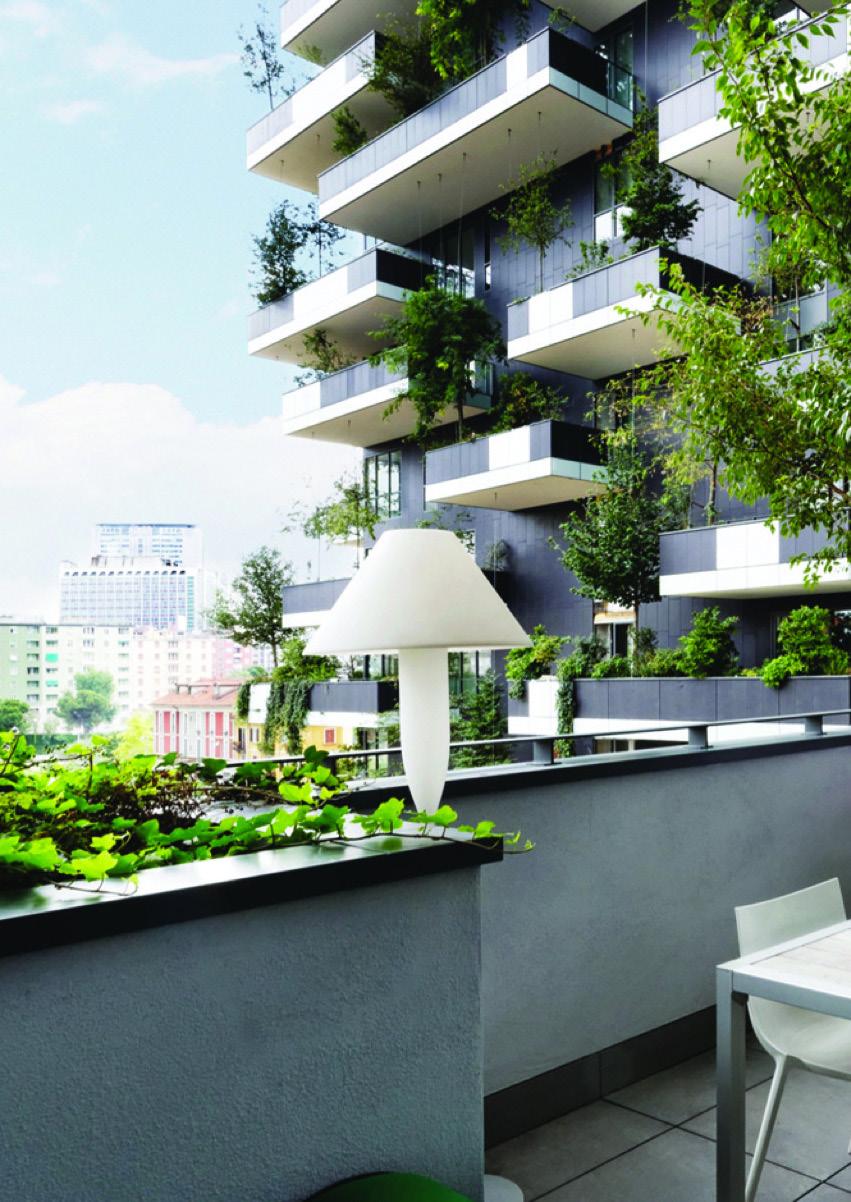

Vertcial Forest - Boeri

58 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

DWELLINGS TYPOLOGIES

59 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

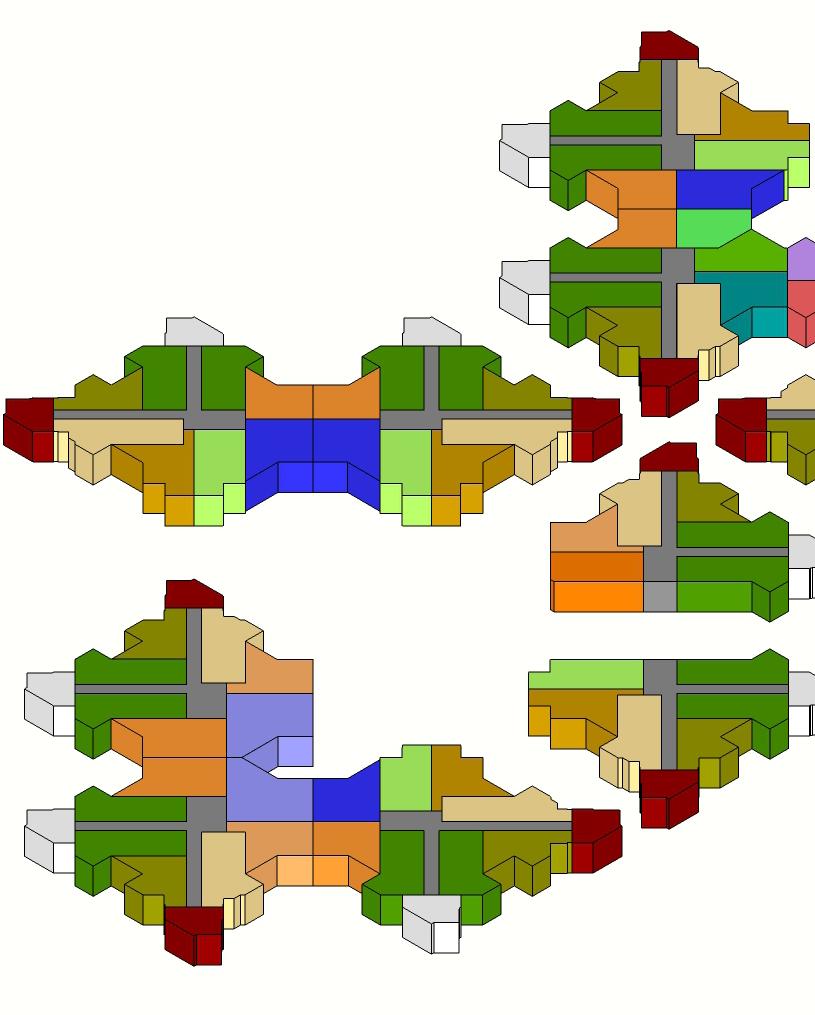

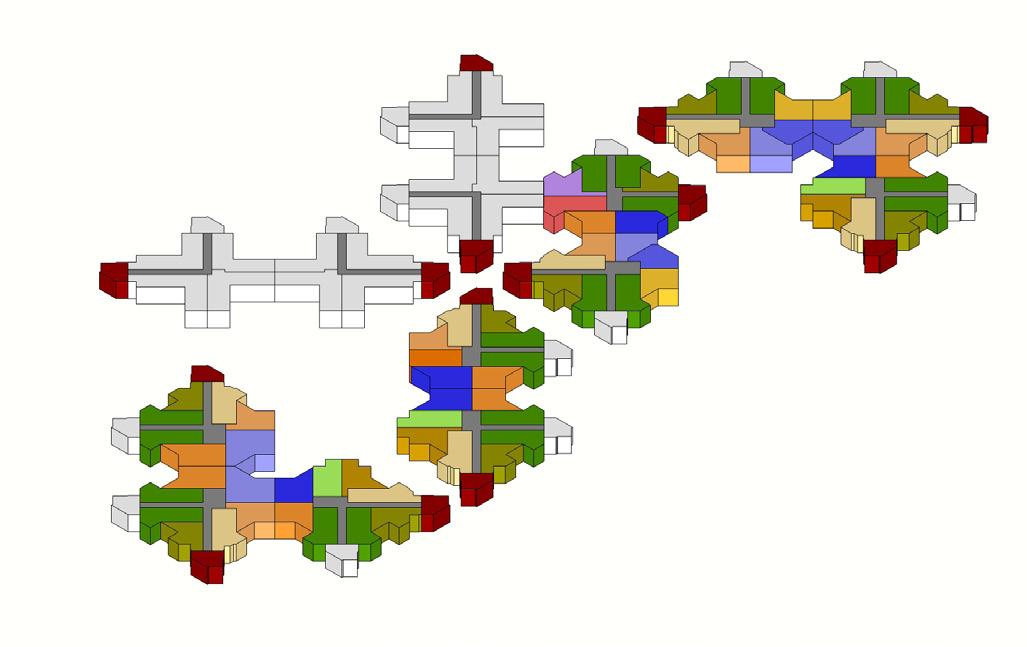

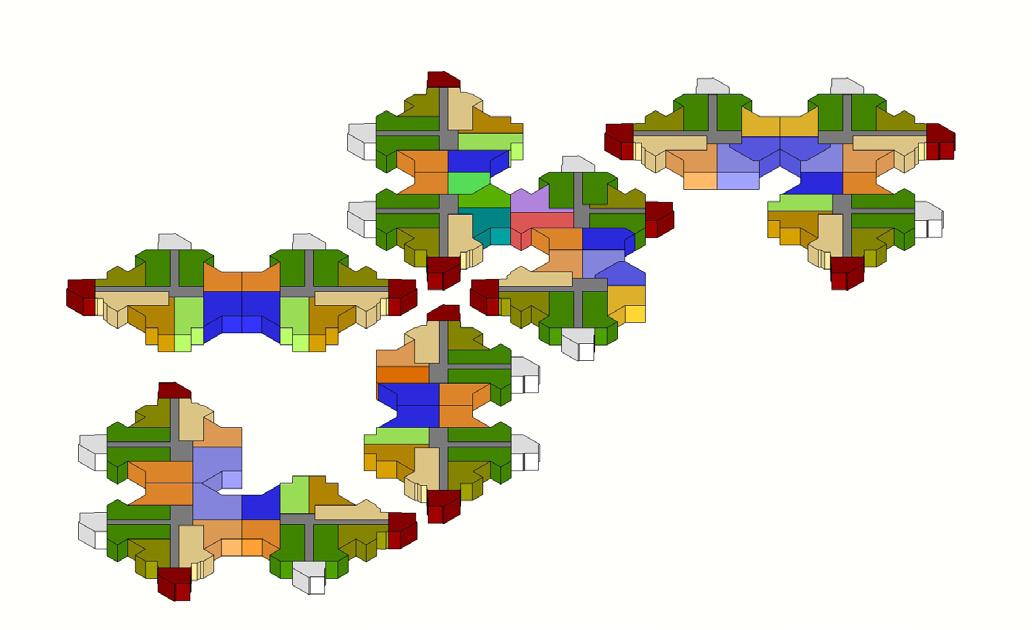

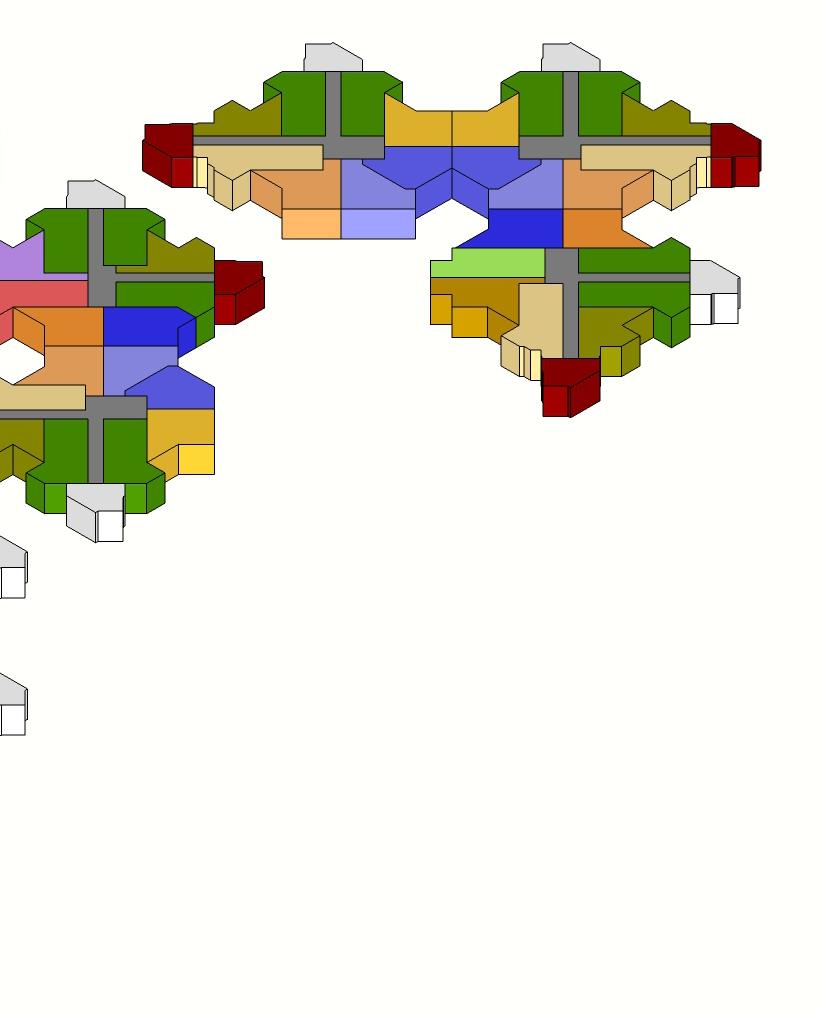

Dwelling Typologies

Level 01

60 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

F1 F4d F2b F4c F11 F3 F6 F4b F5 F4 F2 F10b F8 F7 F13 F2c F1c

Dwelling Typologies

Residential - 5789m2 / 23 different typologies

F1 - 49.1m2 (x27)

F1b - 43.8m2 (x2)

F1c - 51.8m2

F2 - 40.2m2 (x13)

F2b - 40m2

F2c - 49.1m2

F3 - 53.2m2 (x13)

F4 - 45.8m2 (x6)

F4b - 42.2m2 (x7)

F4c - 57.9m2 (x2)

F4d - 45.1m2

F5 - 51.2m2 (x6)

F6 - 45.5m2 (x5)

F6b - 40m2

F7 - 42.5m2

F8 - 46.1m2

F9 - 43.9m2 (x3)

F10 - 50.5m2

F10b - 52.5m2 (x5)

F11 - 72m2 (x2)

F11b - 43.7m2 (x3)

F12 - 42.8 m2 (x3)

F13 - 48.7m2

61 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

F2c F10 F1b F6b F12 F11b F9 F1c

Level 00

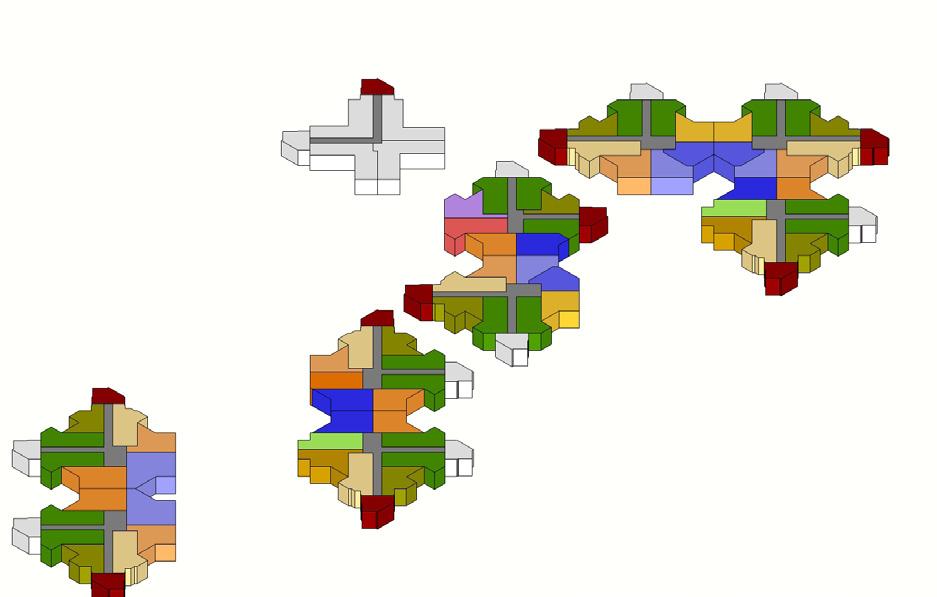

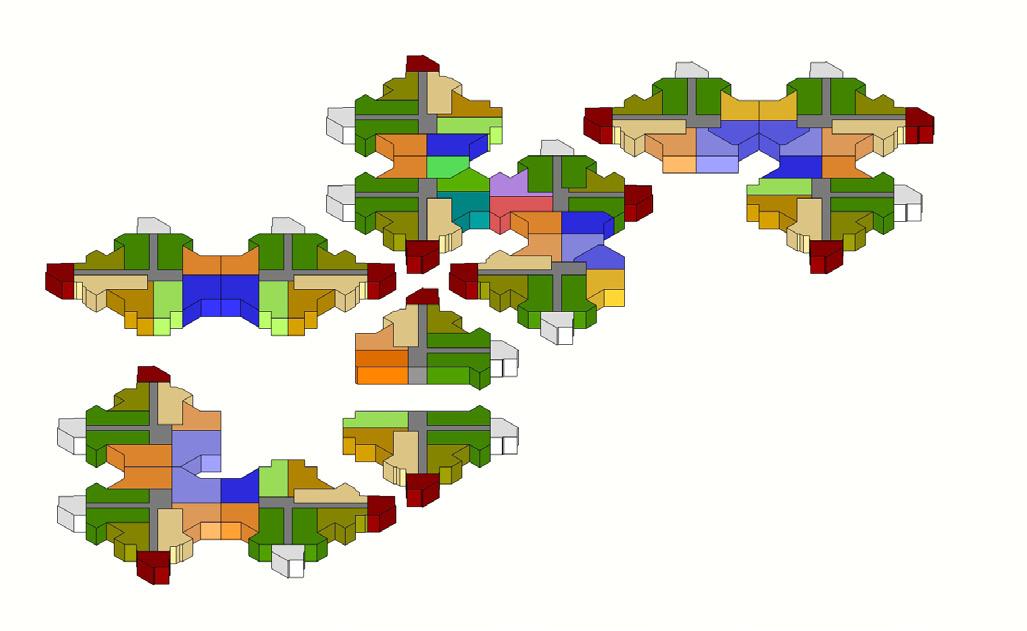

Dwelling Typologies

Levels 01, 02

Commercial - 7813m2

Residential - 5789m2 23 typologies

Levels 05, 06

Level 07

Residential - 4133m2 24 typologies

Residential - 3319m2 4 typologies

62 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Level 03

Dwelling Typologies

Level 04

Residential - 5979m2 23 typologies

Residential - 5566m2 24 typologies

Levels 08, 09, 10, 11

Levels 12, 13, 14, 15, 16

Residential - 664m2 4 typologies

Residential - 332m2 4 typologies

63 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Principal of Dwellings in the Current Towers

Gross floor area = 523.5m2

Net internal area = 473.5m2

C - corridor = 71.9 m2

M=1:100 64 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

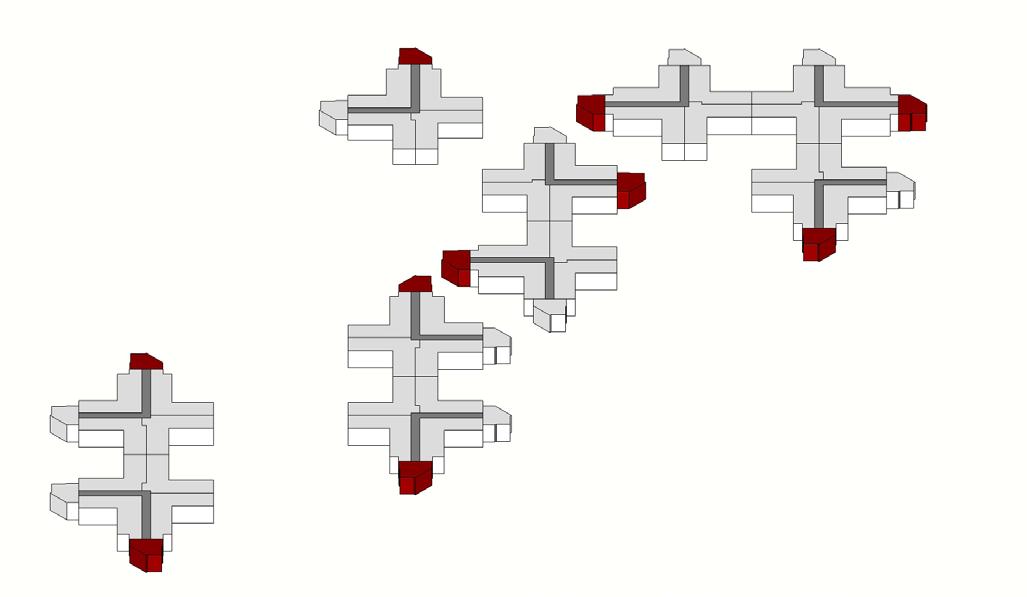

Evolution of the Dwellings in the Current Towers

65 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Gross and Net Floor Areas

M=1:100 M=1:100 66 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 1.1 1.2 C 1.3 1.4 1.5 1.6 1.7 1.8

hallway 6.8m2 kitchen+dining space 13.8m2 living room 12.4m2 bedroom 13.1m2 toilet+bathroom 4.6m2 hallway 7.2m2 kitchen+dining space 9m2 living room 9.85m2 bedroom 15.8m2 toilet+bathroom 5.6m2 terrace 8.1m2 APARTMENT 1.1 APARTMENT 1.2 net internal area 50.7m2 net internal area 55.5m2 APARTMENT 1.3 APARTMENT 1.4 hallway 6.6m2 kitchen+dining space 7.8m2 living room 7.9m2 bedroom 11.6m2 toilet+bathroom 6.6m2 terrace 5.2m2 net internal area 45.7m2 hallway 6.4m2 kitchen+dining space 7.1m2 living room 8.5m2 bedroom 10.5m2 toilet+bathroom 6m2 terrace 9.5m2 net internal area 48m2

Gross and Net Floor Areas

67 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

APARTMENT 1.5 hallway 6m2 kitchen+dining space 11m2 living room 10.8m2 bedroom 9.1m2 toilet+bathroom 4.8m2 terrace 5m2 net internal area 46.7m2 APARTMENT 1.6 hallway 6m2 kitchen+dining space 10.8m2 living room 10.6m2 bedroom 11.2m2 toilet+bathroom 4.8m2 terrace 8m2 net internal area 51.4m2 APARTMENT 1.7 APARTMENT 1.8 hallway 5.5m2 kitchen+dining space 8.7m2 living room 13.2m2 bedroom 7.5m2 toilet+bathroom 6.7m2 terrace 14m2 hallway 5m2 kitchen+dining space 8.9m2 living room 13.3m2 bedroom 7.8m2 toilet+bathroom 6.7m2 terrace 6.1m2 net internal area 55.6m2 net internal area 47.8m2

Principal of Dwellings in the New Towers

68 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

2.1 2.2 2.3 2.4 C

Gross floor area = 416.6 m2 Net internal area = 379m2 C - corridor = 46.2m2

Gross and Net Floor Areas

M=1:100 M=1:100 69 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 APARTMENT 2.1 APARTMENT 2.3 APARTMENT 2.2 APARTMENT 2.4 hallway 9.5m2 kitchen+dining space 13.6m2 living room 15m2 bedroom 9.8m2+16.7m2 toilet+bathroom 5.9m2 terrace 10m2 hallway 12m2 kitchen+dining space 10.3m2 living room 10.5m2 bedroom 7.1+14.9m2 toilet+bathroom 6.2m2 terrace 4.8m2 hallway 7.6m2 kitchen+dining space 13.5m2 living room 18.1m2 bedroom 8.9m2+16.7m2 toilet+bathroom 6m2 hallway 8.3m2 kitchen+dining space 12.6m2 living room 13.9m2 bedroom 8.4m2+8.4m2+15.5m2 toilet+bathroom 6.2m2 terrace 4.8m2 net internal area 80.5m2 net internal area 65.8m2 net internal area 70.8m2 net internal area 78.1m2

70 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

RE-USE & SUSTAINABILITY

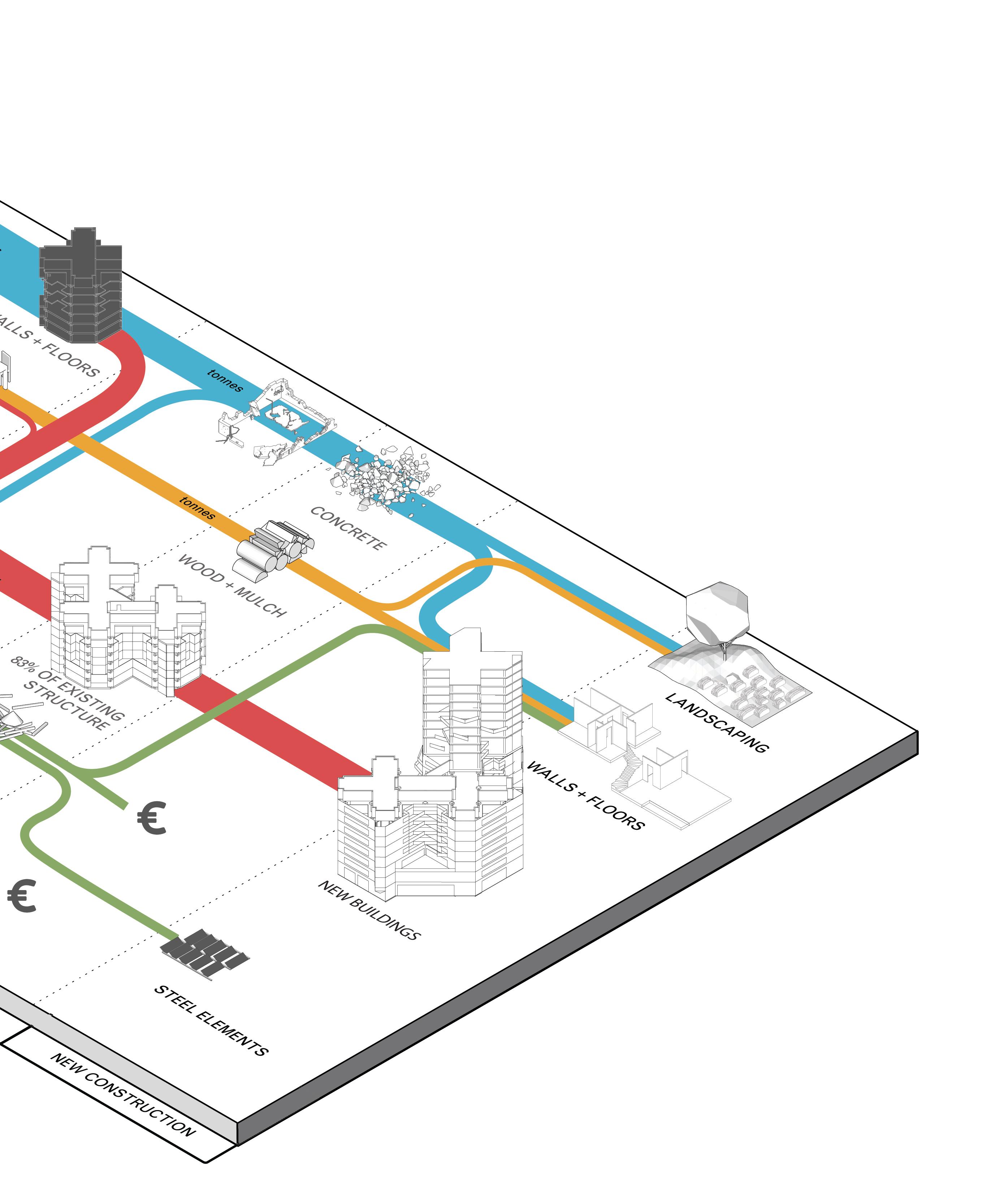

71 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

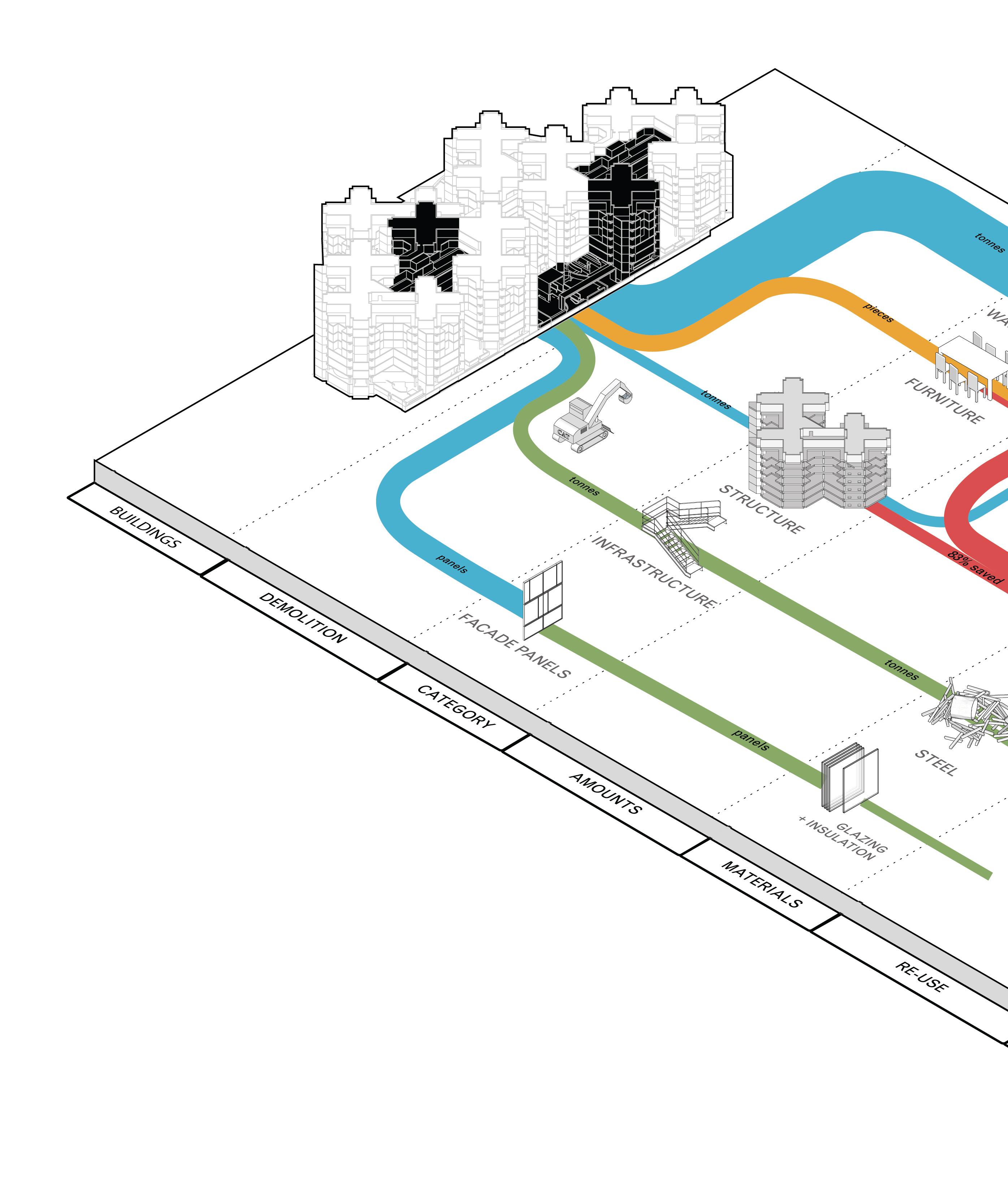

STRUCTURE

WALLS + FLOORS

72 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 Re-Use

FACADE PANELS Re-Use

FURNITURE

INFRASTRUCTURE 73 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

74 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

75 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016 GLASS INFRASTRUCTURE FACADE energy recovery export unknown ? emissions waste INSULATION & FRAME land ll recycled concrete 7630 tonnes STRUCTURE WAL S & CEILING DECONSTRUCTION 2 towers ) RECOVERY 95% FLOORS + WALLS FURNITURE & FIXTURES concrete 586 tonnes concrete tonnes AGGREGATE GLASS PAVEMENT metal tonnes other tonnes glazing panels RECOVERY 98% 92% RECOVERY 70% RECONSTRUCTION 92.5% LANDSCAPE Re-Use Materials

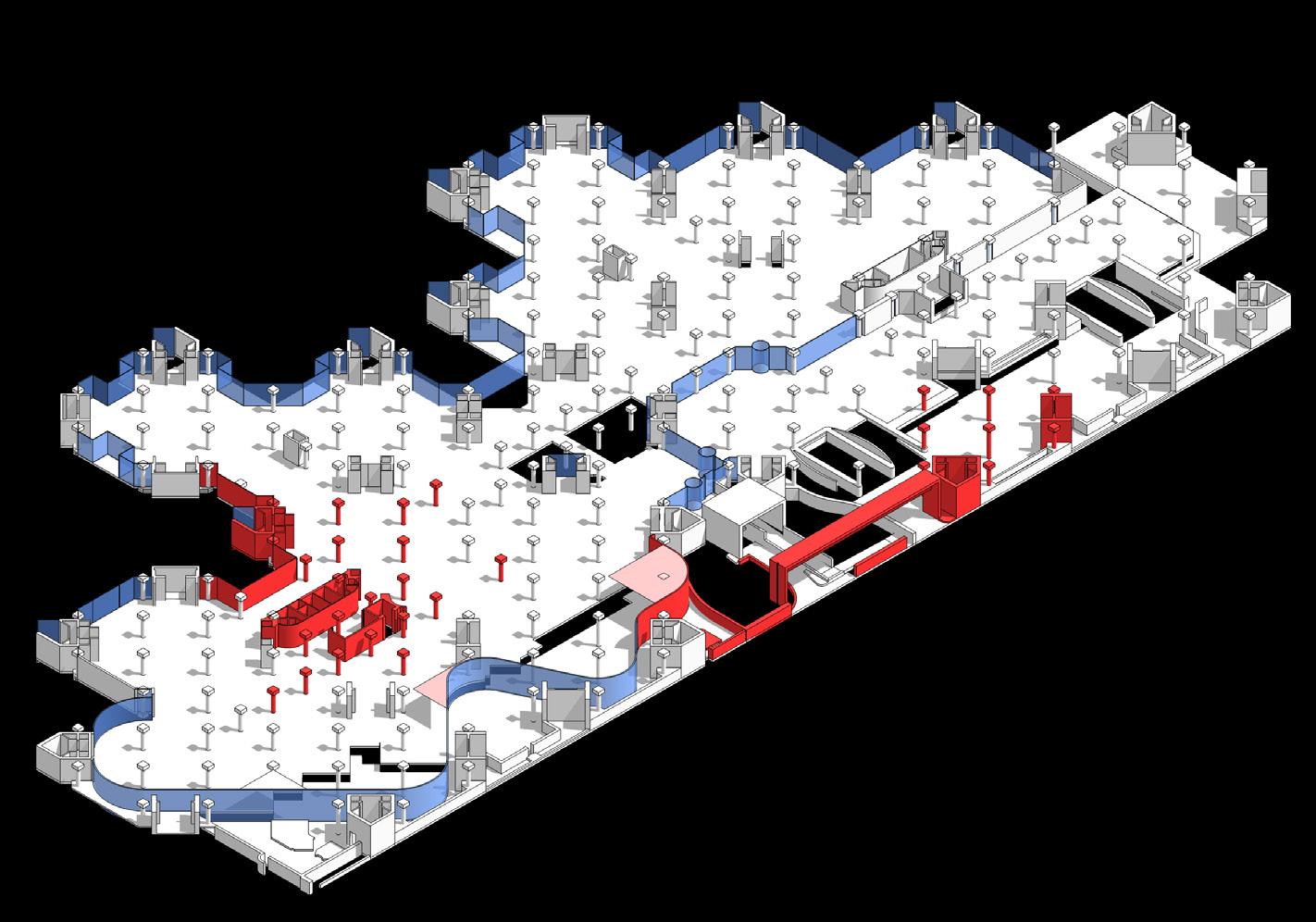

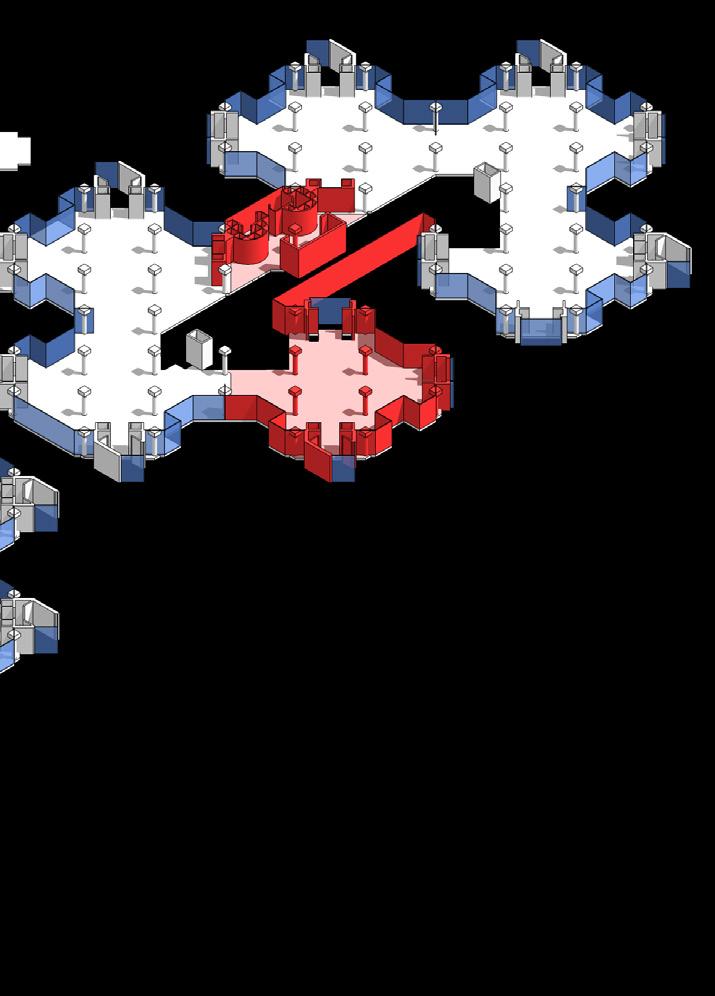

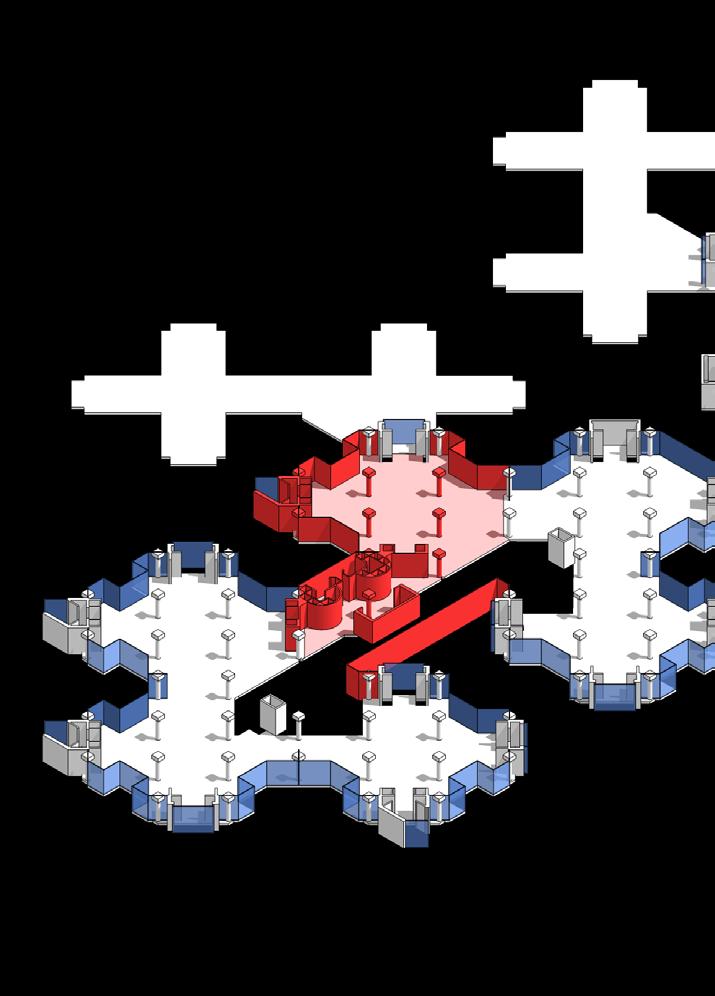

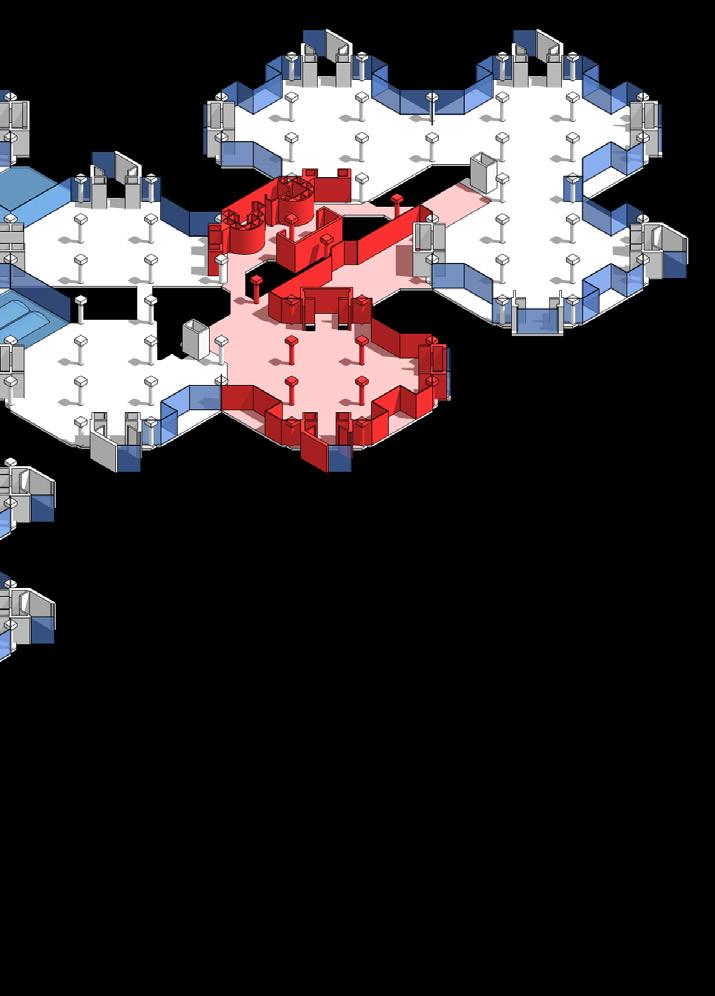

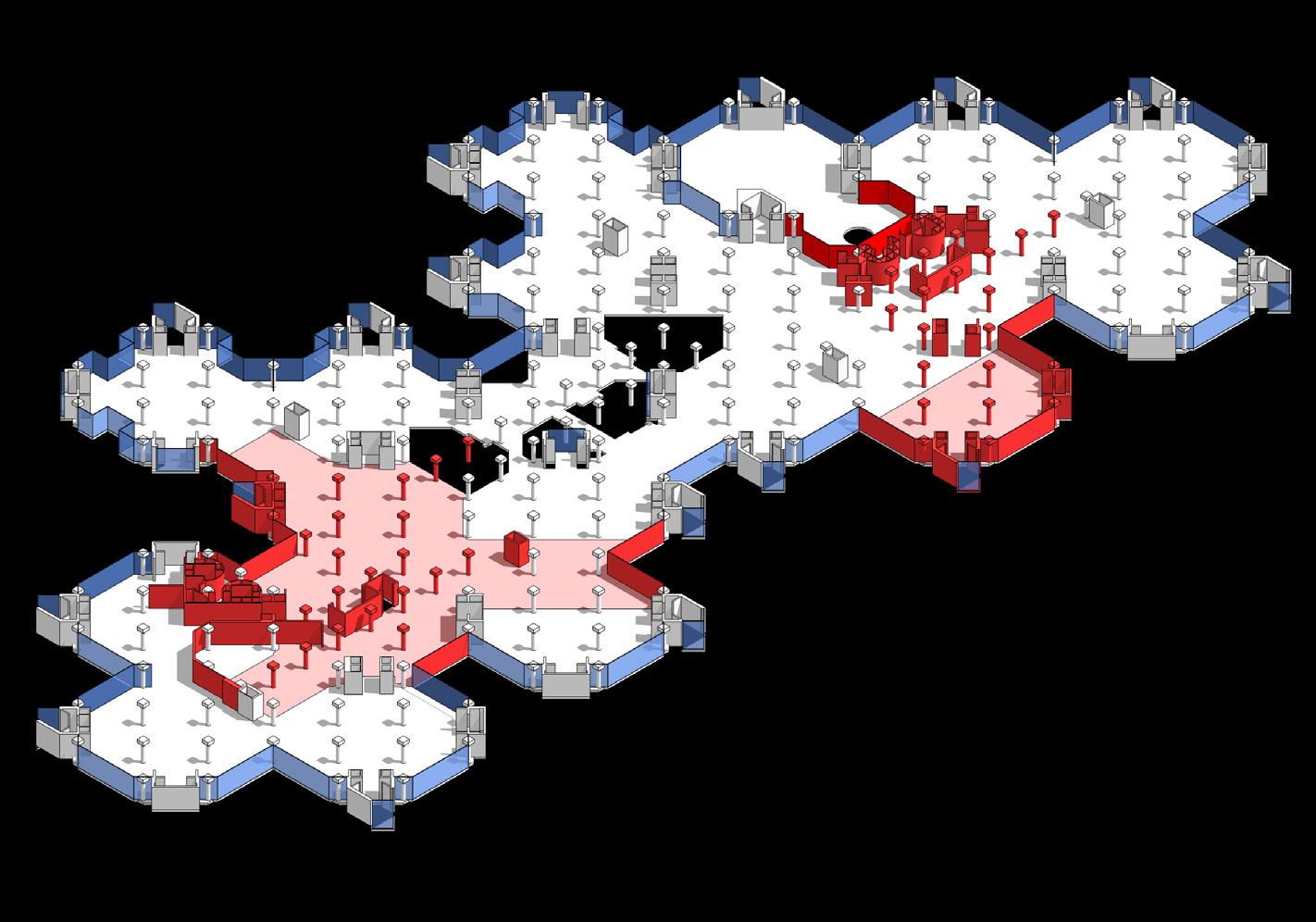

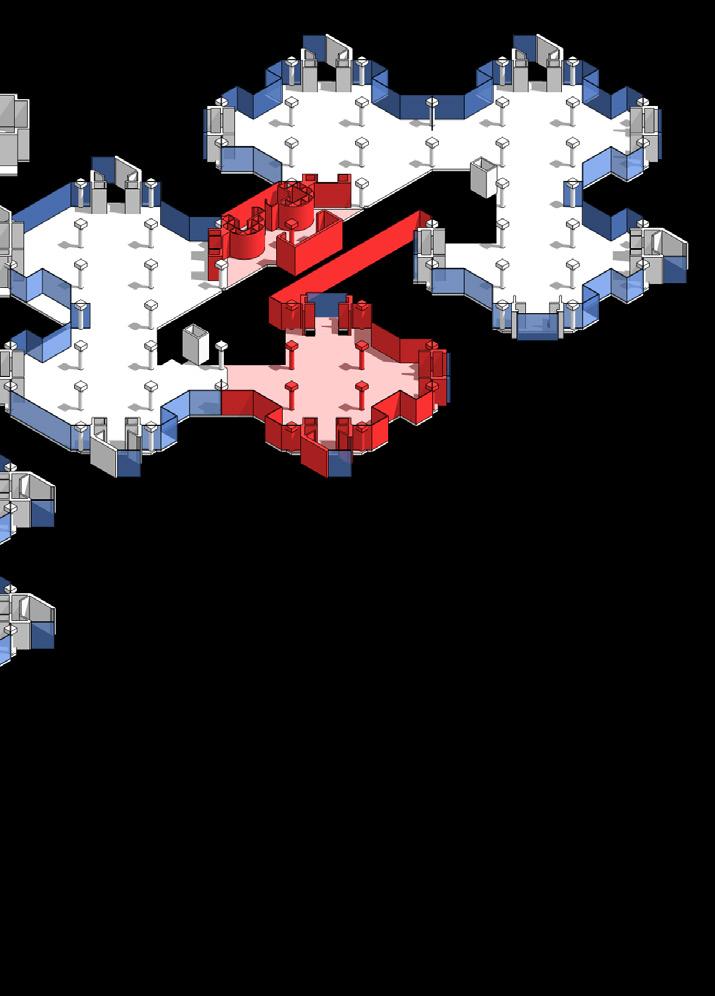

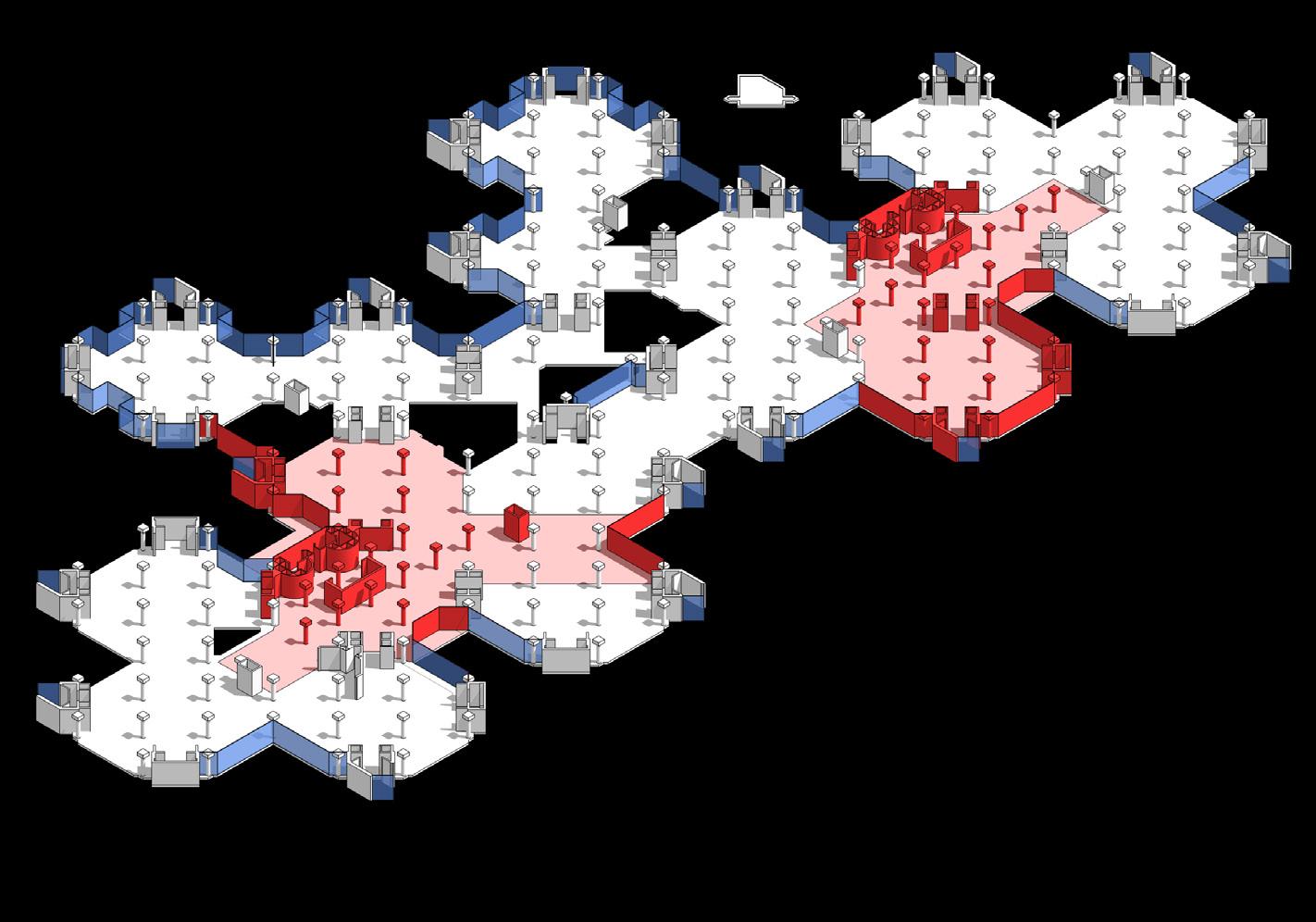

Structure Re-Use / Demolition Plan

Ground Floor

First Floor

Second Floor

76 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

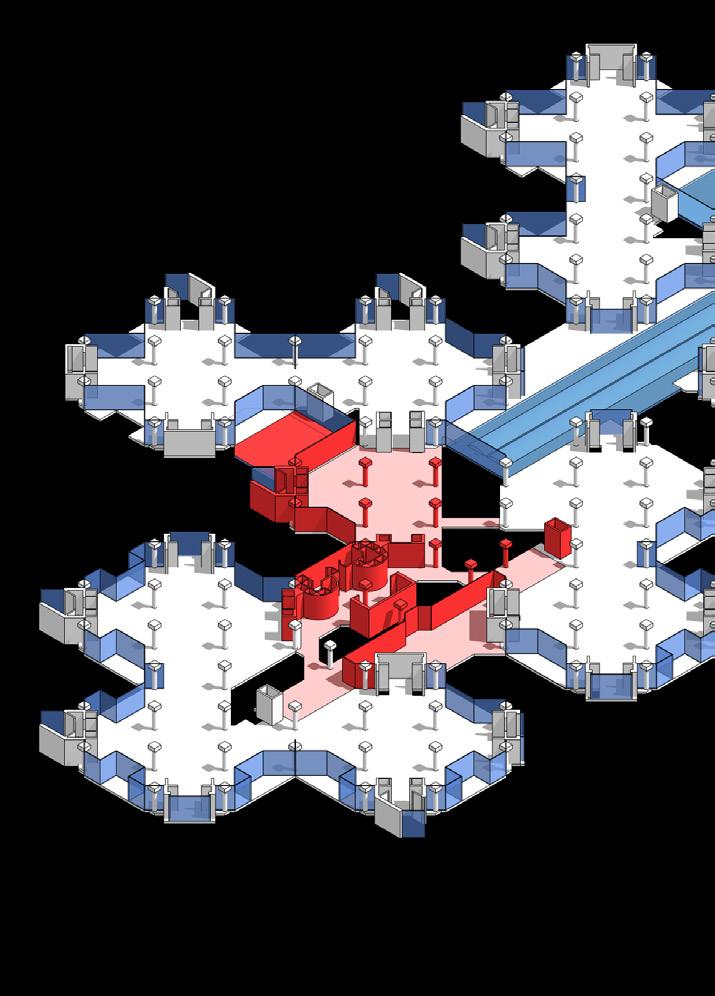

Structure Re-Use / Demolition Plan

77 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Third Floor Fourth Floor Fifth Floor Sixth Floor Seventh Floor Roof

Structure Re-Use / Demolition Plan

Total

Demolished Columns - 196

Weight demolished columns - 586 tonnes

Demolished Floor - 10598m²

Weight demolished floor - 7630 tonnes

Remaining Floor - 42981m²

78 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Structure Re-Use / Demolition Plan

HOUSEHOLD CONSUMPTION (per year) LIGHTING HEATING VENTILATION & COOLING TAP TOILET PERSONAL electricity 3500 kwh water 109500 L fuel 48,2 bbl Food 2,5 million kcal gas 1500 m3 HOME COOKING CAR SHARING PROMOTE BIKES RAINWATER GEOTHERMAL STORAGE SOLAR PANELS BIODIGESTER COOKING ELECTRIC CAR USEABLE WASTE (rough estimate) BIOGAS energy recovery export unknown ? UNUSABLE waste land ll recycled COMMUNAL HEAT HUB WATER TREATMENT 10000m2 SURFACE COMMUNITY FARM 66% Energy Requirement 95% Gas Requirements 50% CO2 Reduction 88% Non Potable water 50% Food Requirements 79 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

80 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

81 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Water

Area public space : 9.300 m2

Area roof + balconies : 10.180 m2

Store & Delay System

Area water pond : 1.800 m2

In lltration

82 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

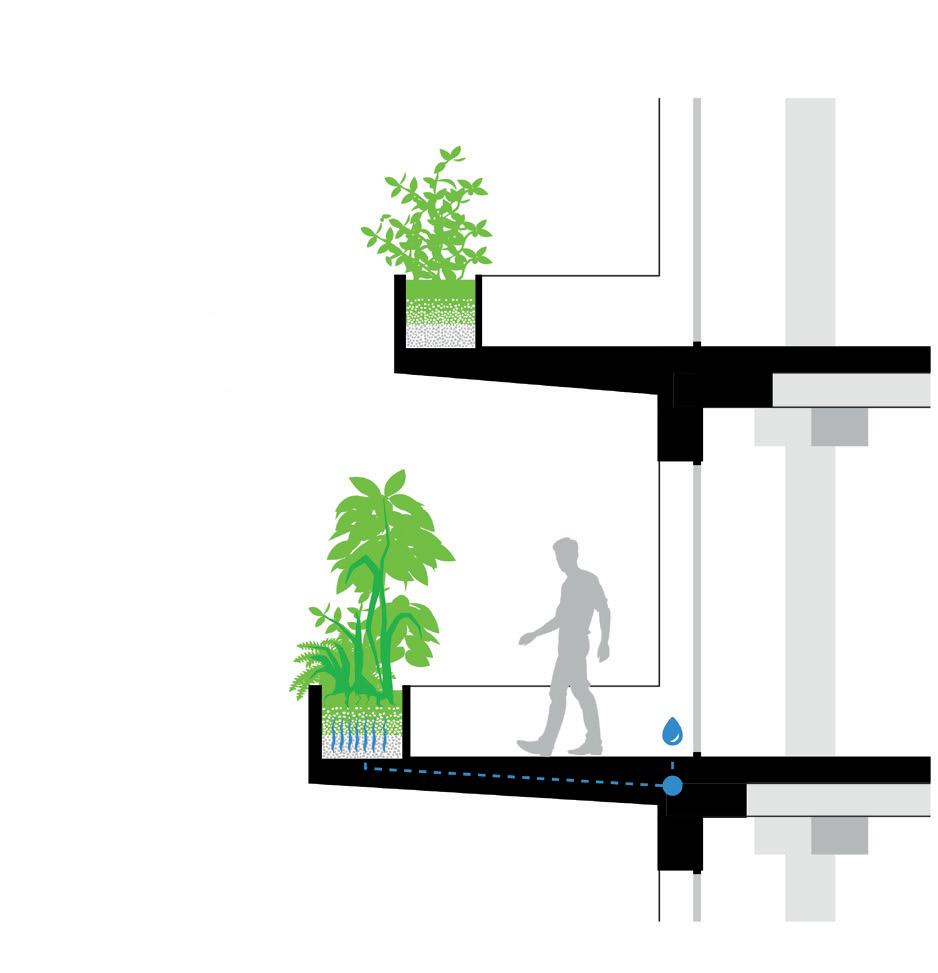

Store & Reuse Store & Reuse

House cleaning + washing machine

%63 64% 5 0 % Toilet

CONSUMPTION PRODUCTION

Consumption: 25.912.762 L/year

Production: 13.325.780 L/year 83 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Area public space : 5.184 m2

Balconies: 3.880 m2 84 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Green

85 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Area roof: 6300 m2 3.540 solar panels 51.000 kWh 652 households Electricity 25 % 86 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

Regular households Solar supplied 0 8 500€/year 1500€ - 1st year Free - 7th year Y E A R 0 8 Y E A R 87 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016

88 Ministerie van Sociale Zaken en Werkgelegenhied FABRIC . May 2016
