MONO Standard Shelters

MONO SHELTERS

Contents MONO Standard Shelters

2

Real Time Passenger Information (RTPI)

5

MONO Haven - Green Living Roof

7

MONO Cycle

9

Shelter Refurbishment

10

Our Clients

12

The Mono Concept

13

Sustainability & Social Value

15

Contact Us

16

Together, we can deliver sustainable solutions that contribute positively to society and create a healthier, cleaner and greener world.

We understand that making public transport better is the single best way to increase its use. Safe, well-maintained bus shelters with clear passenger information are an important step in making sustainable journeys a viable alternative to private vehicles. Our experience as bus shelter manufacturers and innovators, supplying, installing, maintaining and managing bus stop infrastructure means we are uniquely well-placed to understand the priorities of the modern passenger and transport system. We have created the MONO Shelter to be easy to install, simple to maintain and to last for a generation. We believe it is the best bus shelter of its type offering ultimate passenger comfort, safety and convenience: a modern, sustainable, practical, scalable & sustainable transport hub.

1

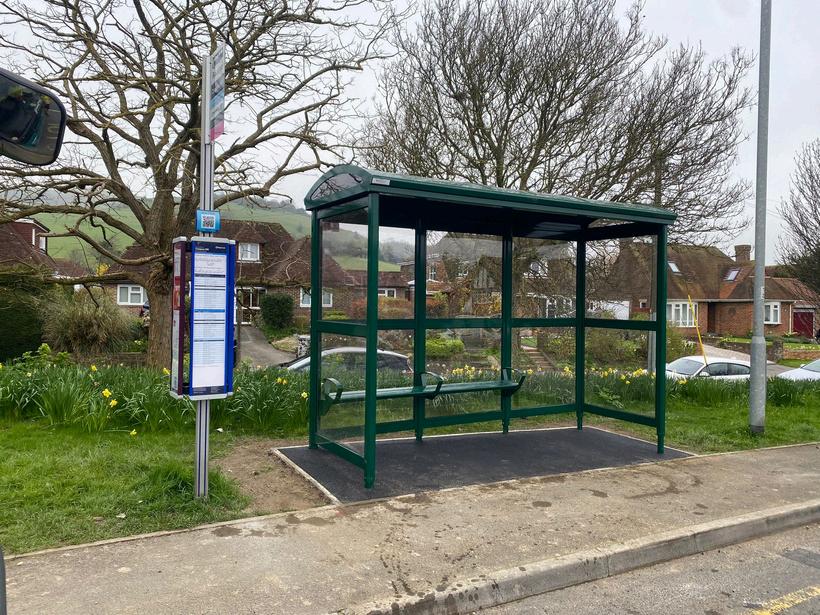

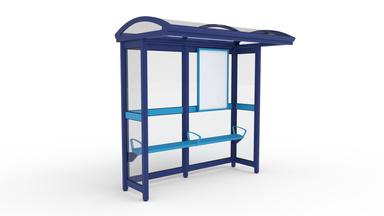

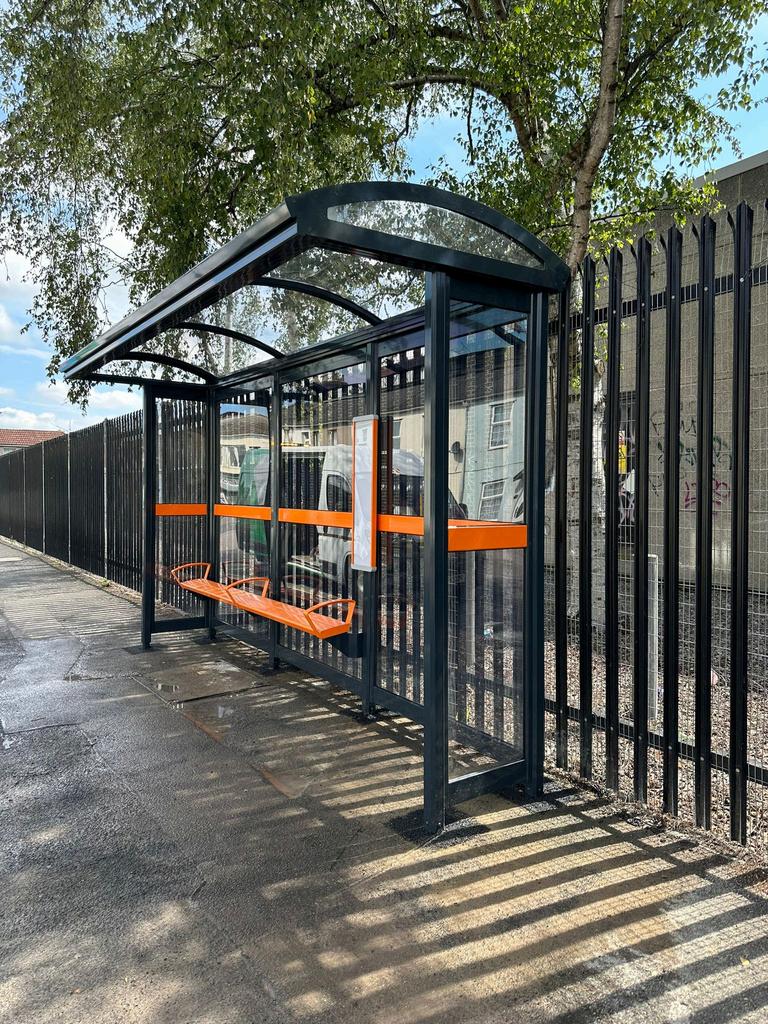

MONO Standard Shelter The Mono Standard shelter can be fitted with three different roof types. It is designed to be easily installed and maintained, and accessories can be fitted at the time of installation or retrofitted. Available in cantilever and enclosed formats, with 2 to 5 bays, you can choose from a wide range of options, including side protection panels, glazing, lighting, solar panels, seating, information displays, and real time passenger information. It can be supplied with a green living roof.

2

Easy to configure for any location, style or transport scheme.

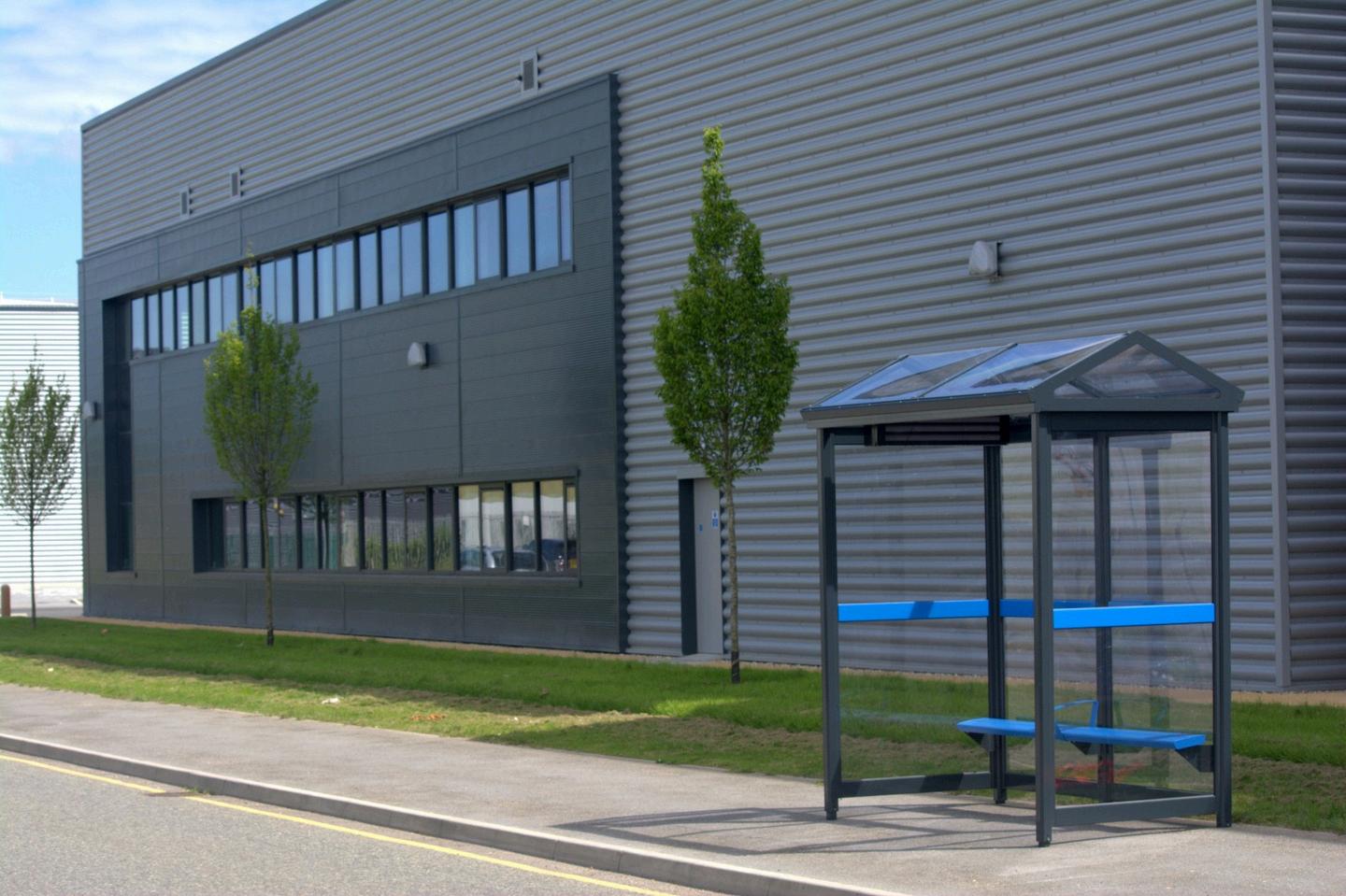

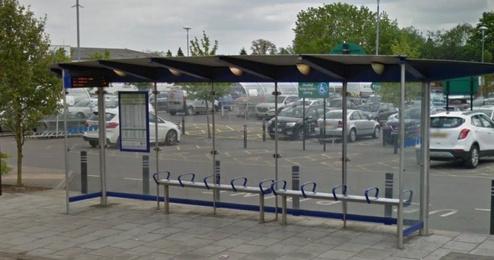

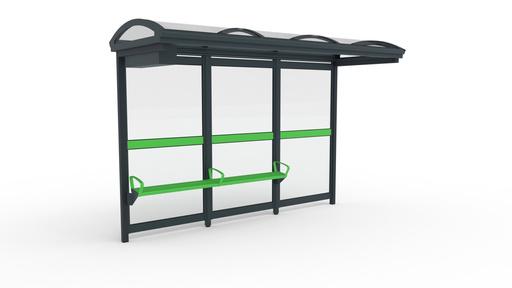

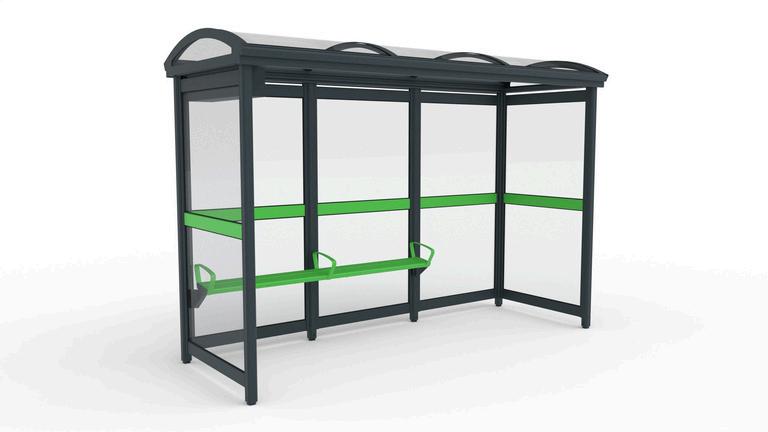

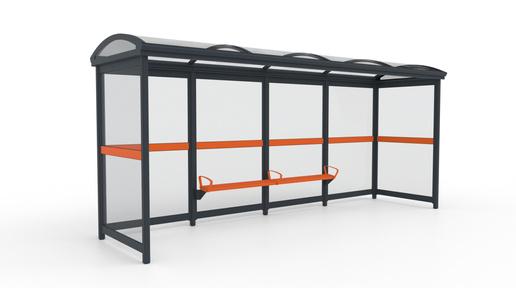

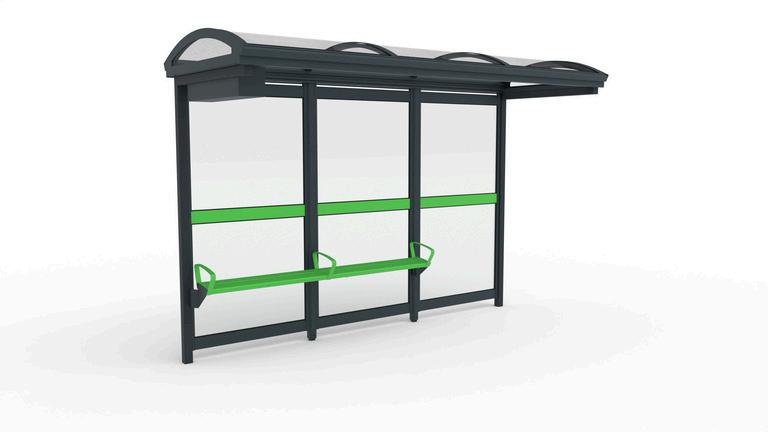

MONO Shelter 3 Bay Barrel Vault Roof

3

MONO Shelters configurable to the exact requirements of each bus stop

4

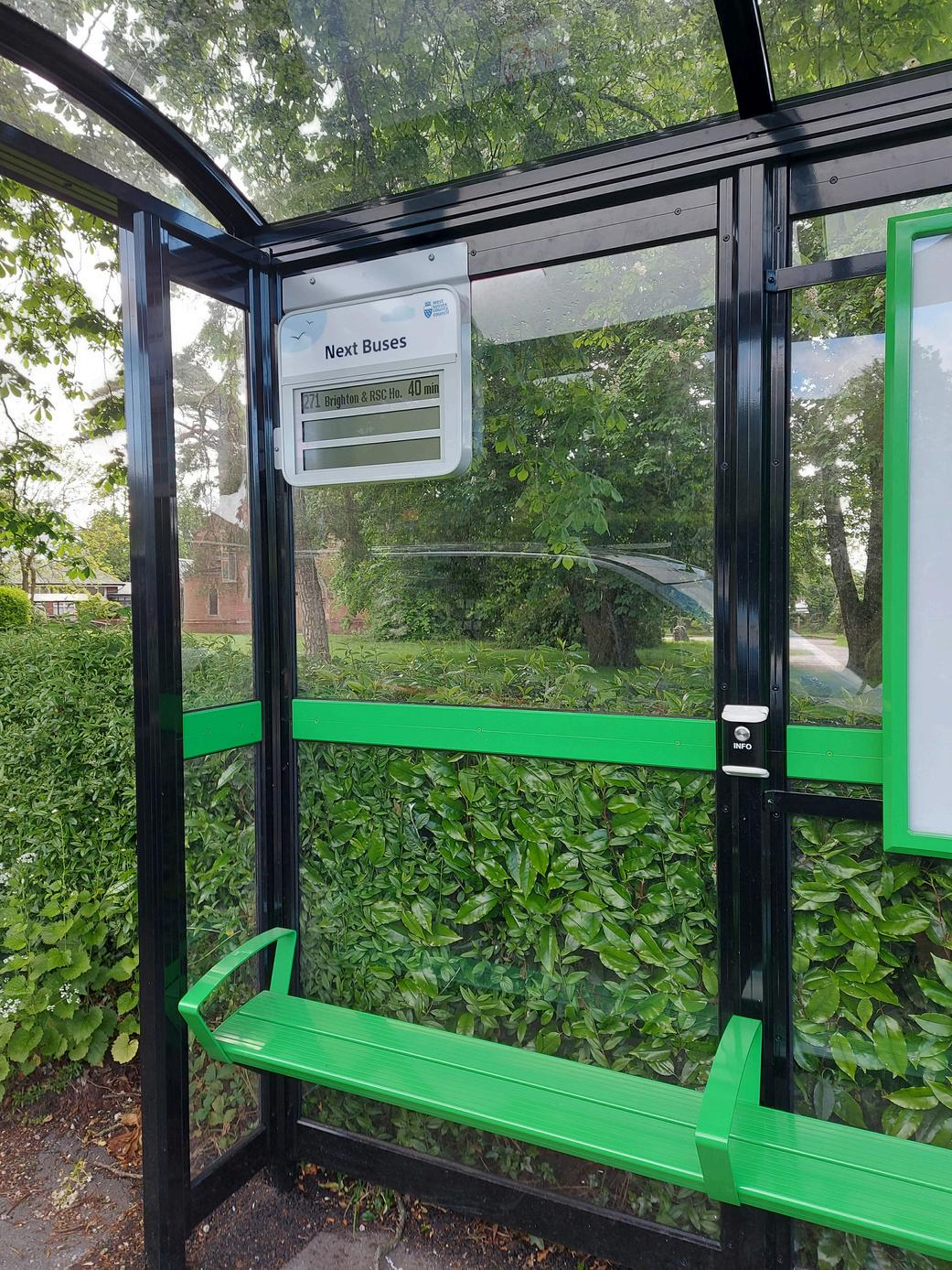

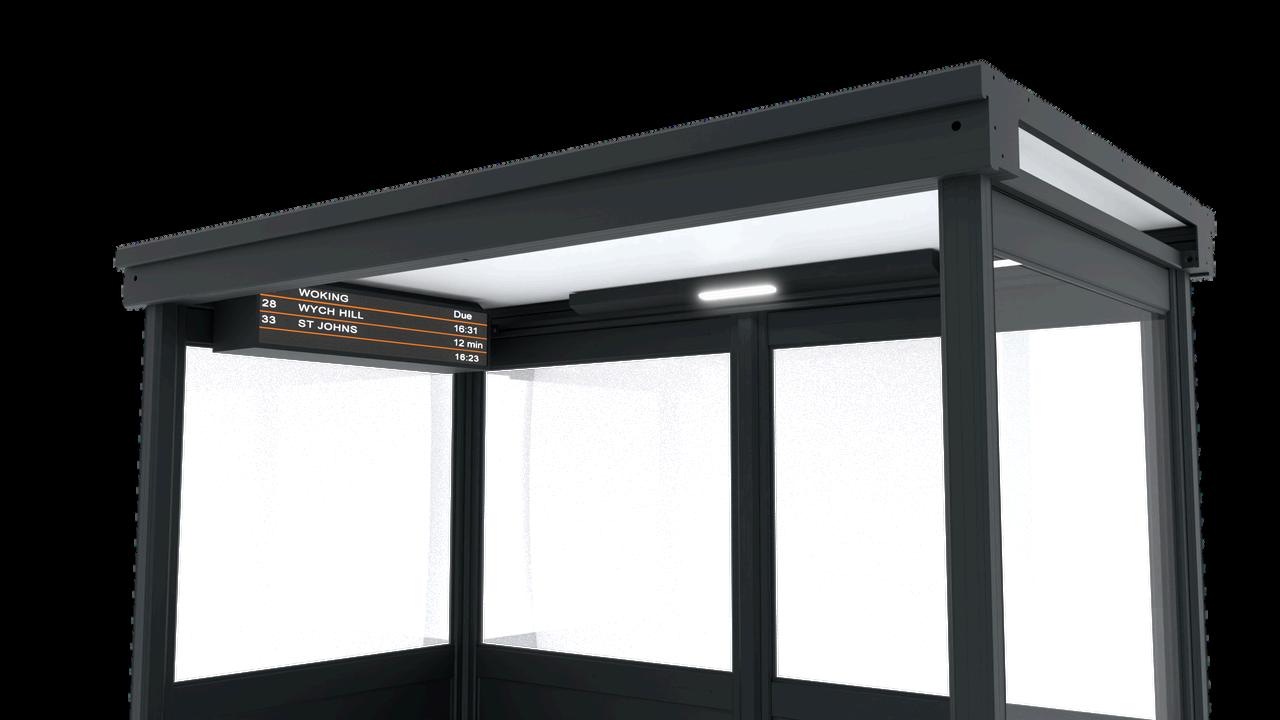

RTPI Real Time Passenger Information

Battery or mains powered RTPI displays can be fitted to MONO shelters.

Mains powered The distance from the underside of the display is 2.1m from finished ground level or 2.4m if on a shared use footway.

All cabling is hidden within the structure.

RTPI is on a separate circuit with an isolator on an internal feeder pillar located under the seat.

Universal RTPI brackets with 700mm hole centres are fitted to the approach gantry so the display is perpendicular to the kerb On larger shelters the displays can be located back to back centrally Battery operated They can be located on the approach gantry however as they are so slim they can also be located on a rear upper panel

5

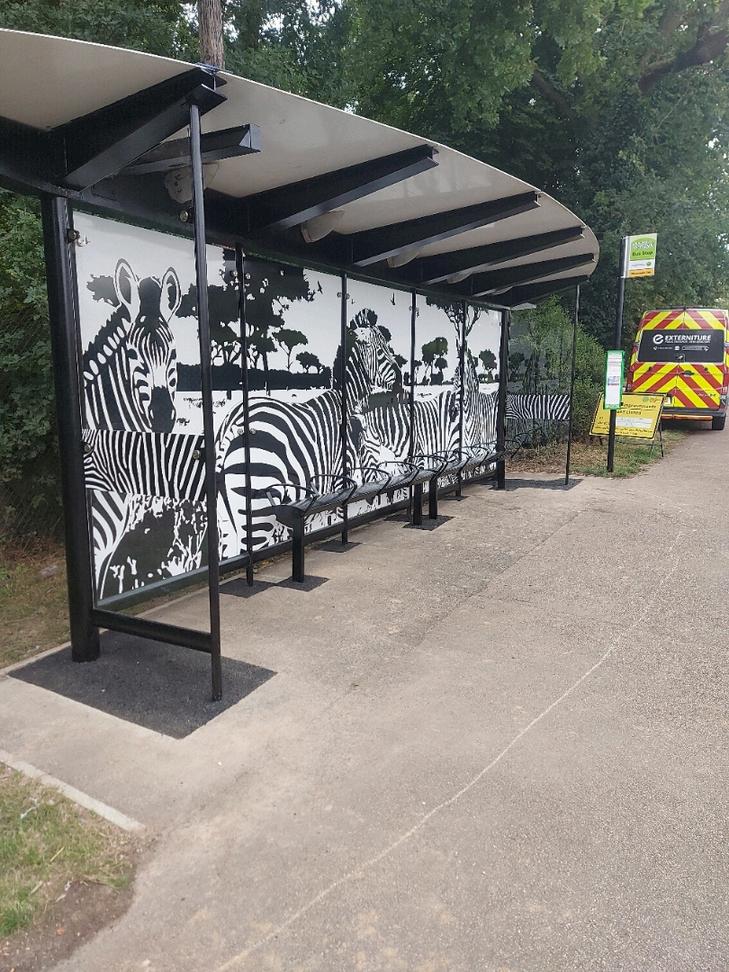

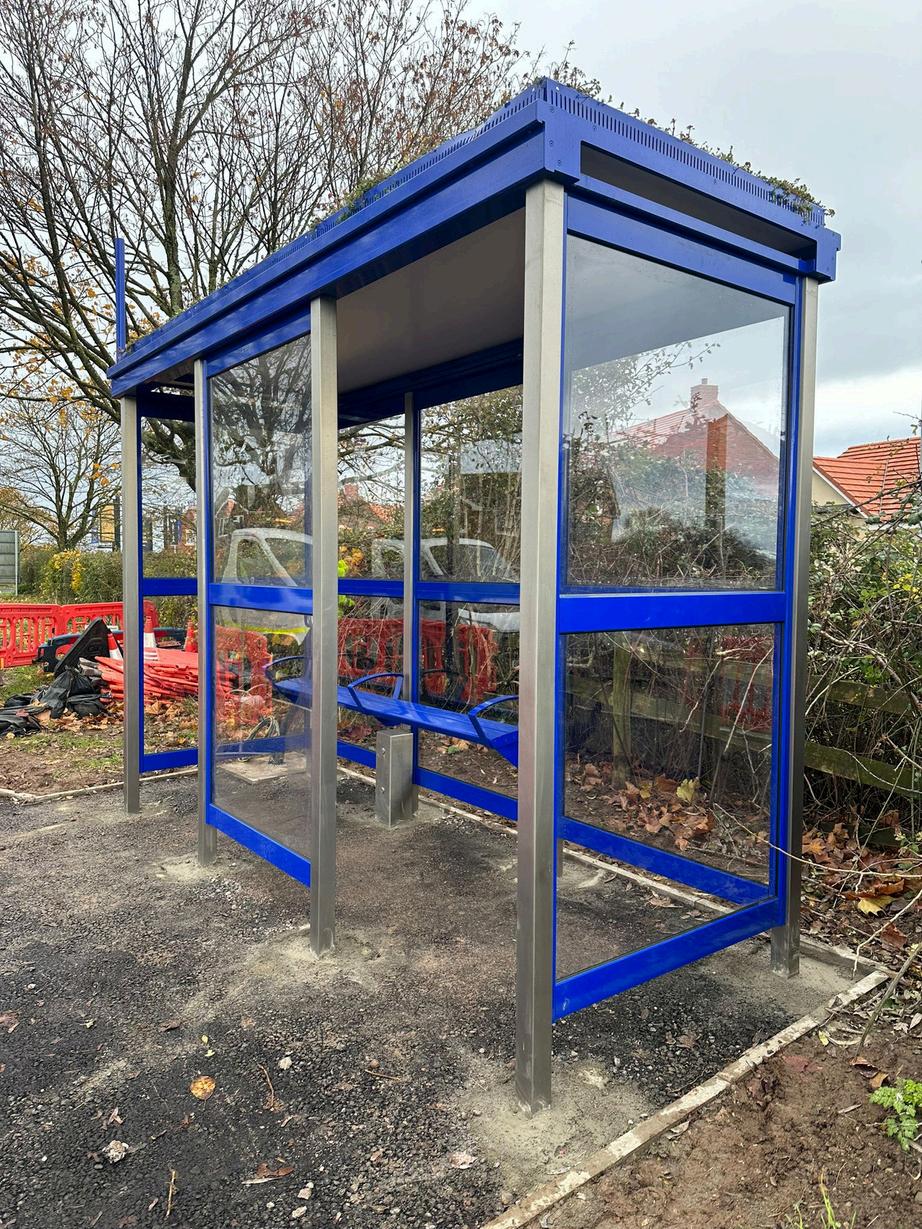

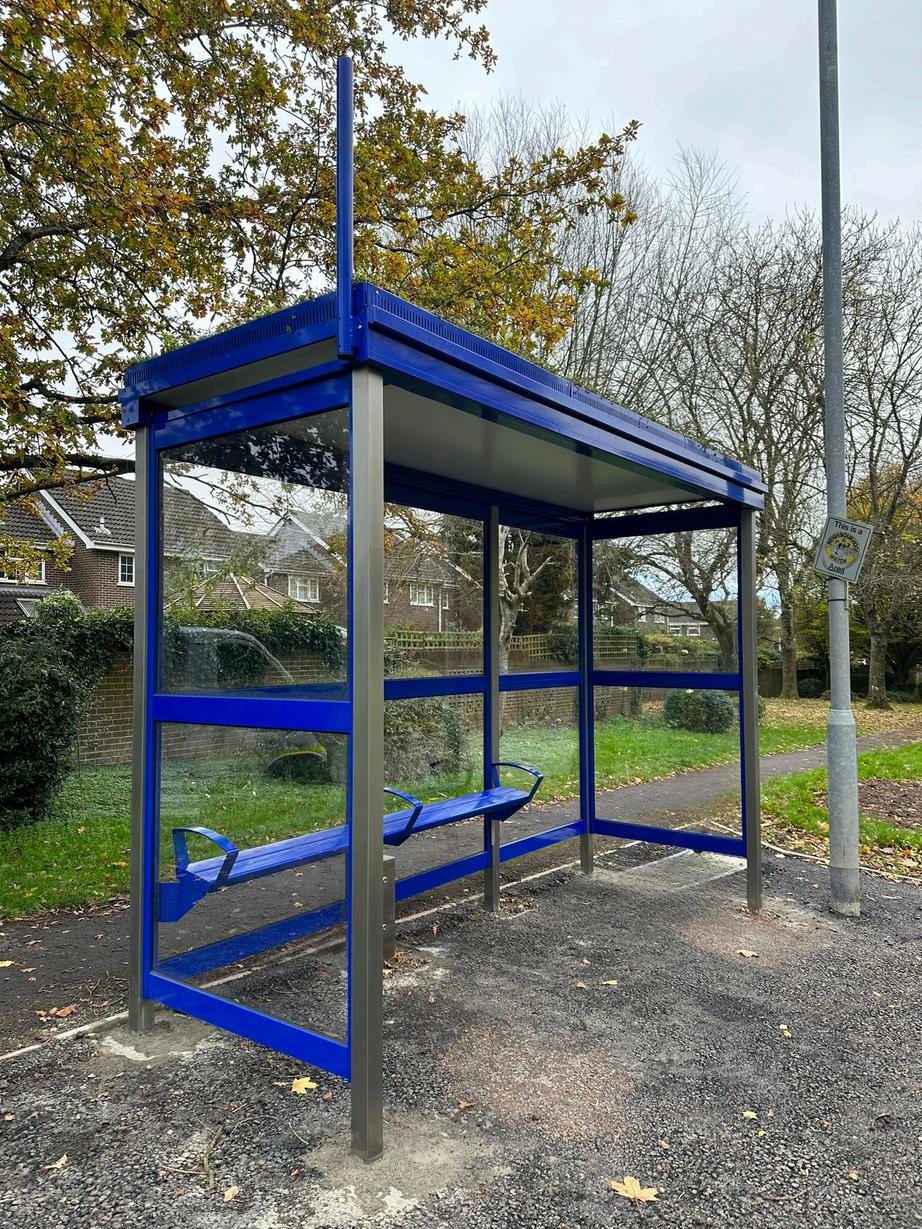

MONO Standard Shelter finished with

stainless steel legs Premium upgrade option on the MONO standard shelter All the flexibility and quality of a standard MONO shelter, finished with premium brushed stainless steel legs

6

7

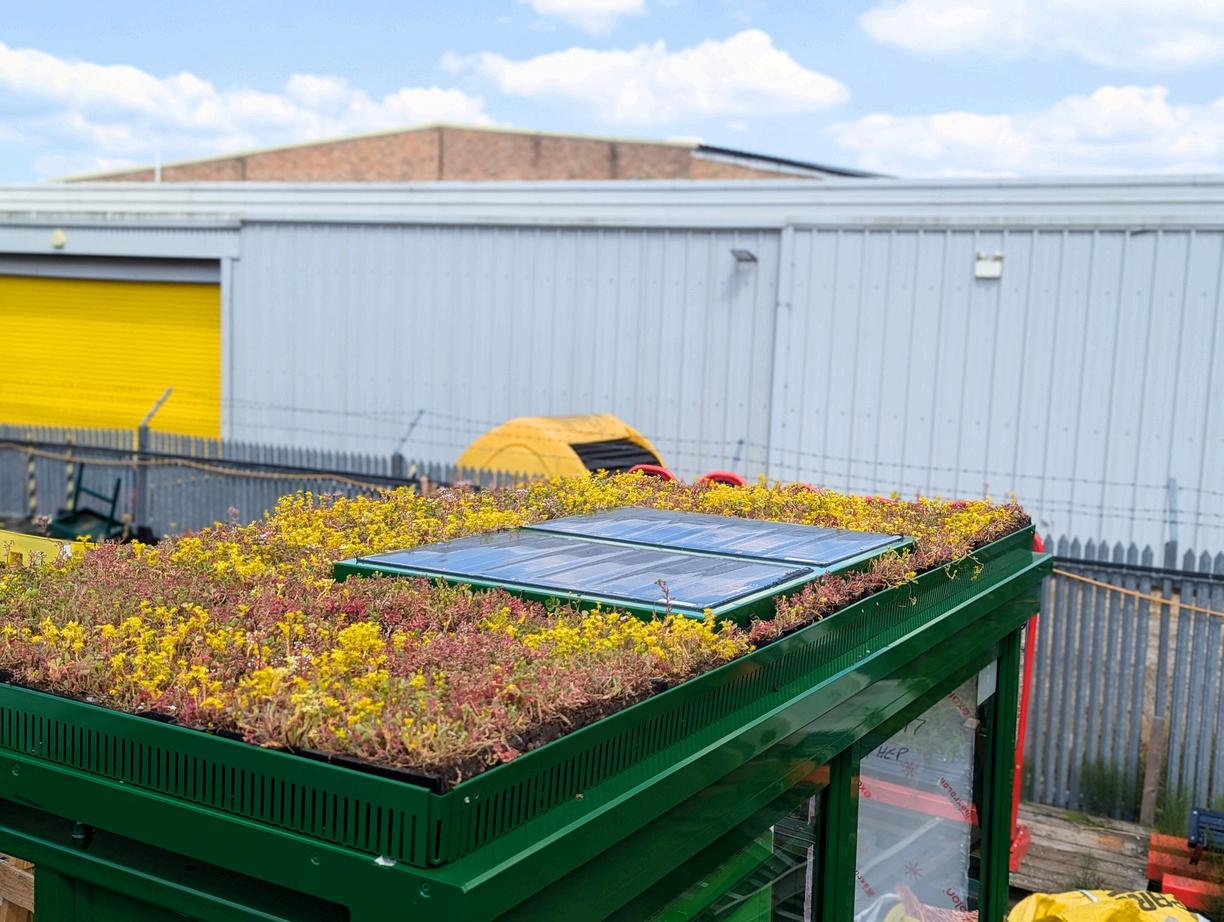

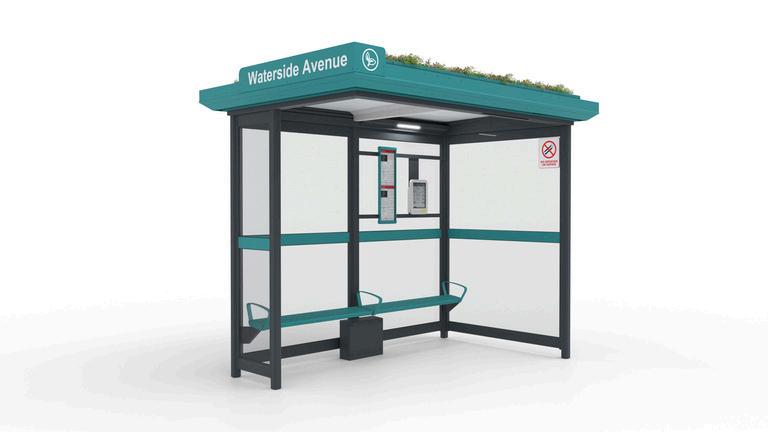

MONO Haven Green living roofs offer a multitude of benefits to local communities By installing sedum green living roofs on bus shelters, local authorities can make a meaningful impact on their cities, paving the way for a greener, healthier, and more sustainable future. Green roofs not only enhance the visual appeal of urban spaces but also offer a range of environmental, social, and economic benefits.

Furthermore, they align seamlessly with the sustainability targets of local authorities, making them a strategic choice for councils aiming to meet their green objectives.

The MONO Haven can feature a standard flat roof or our innovative Hub roof design which allows for enhanced branding and route finding. The integration of solar panels powers LED lighting as well as enhancing the sustainability and social value credentials of your public transport infrastructure.

Refurbishing shelters is the ideal time to retrofit a living green roof.

After a survey to confirm the structural integrity of the shelter, a ‘green’ roof can be retrofitted to suitable shelters, improving air quality and contributing positively to your environmental and sustainability goals. Read our article on the environmental, financial and social benefits of green living roofs for your transport scheme.

7

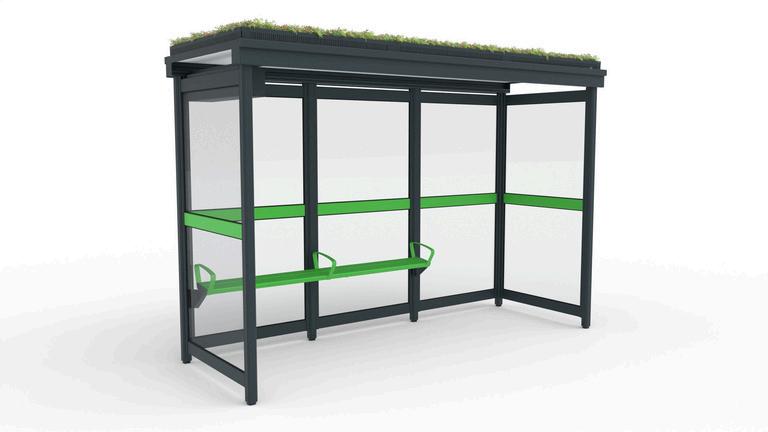

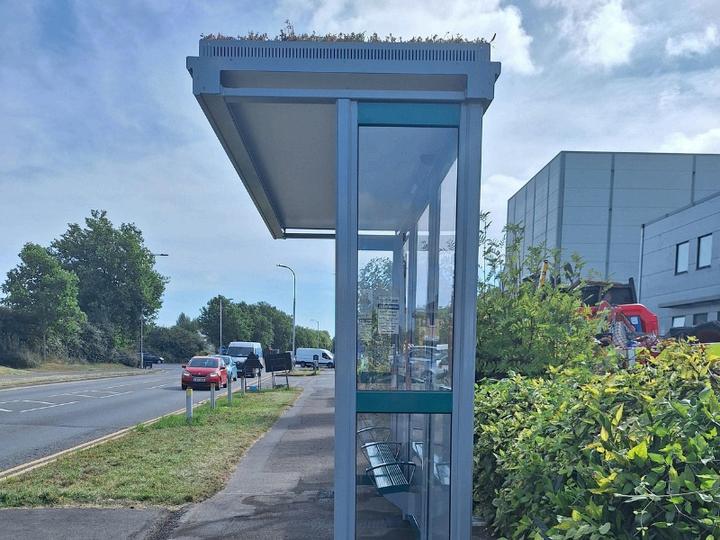

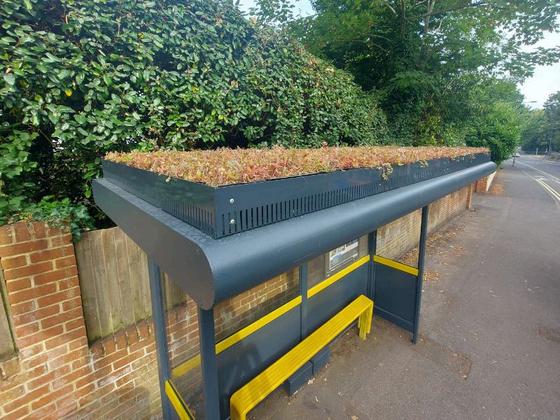

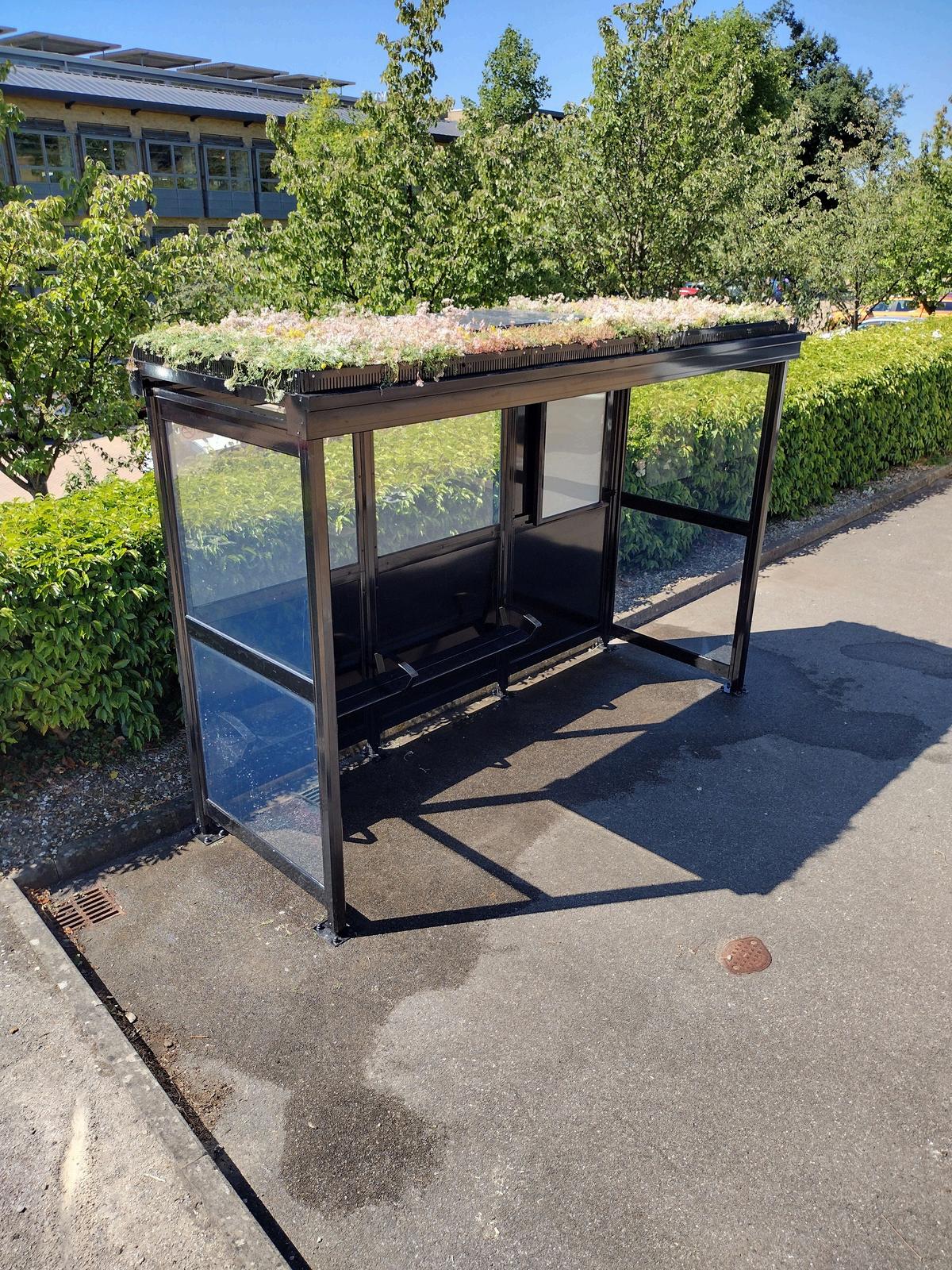

MONO Shelters with Green ‘Living’ Roof

8

7

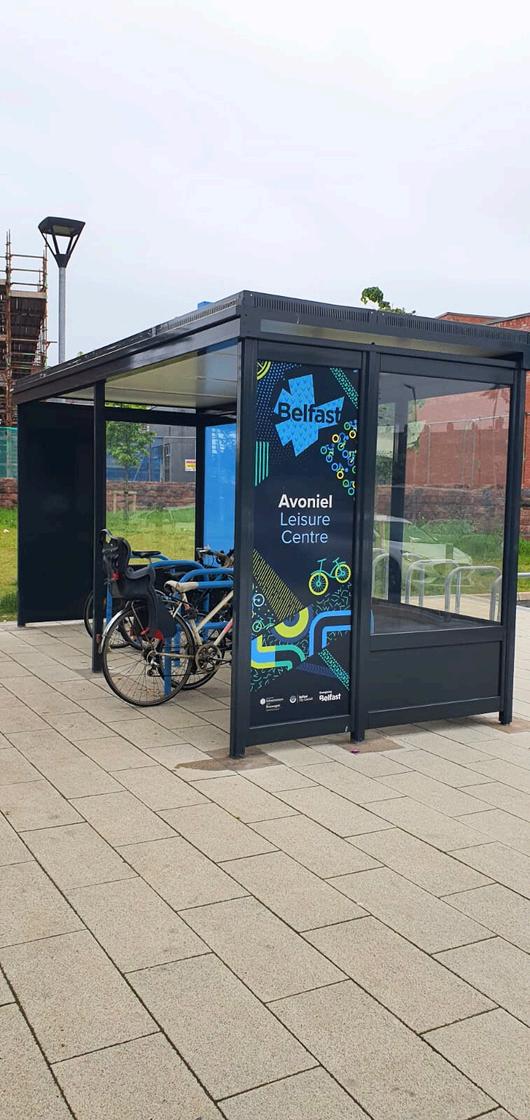

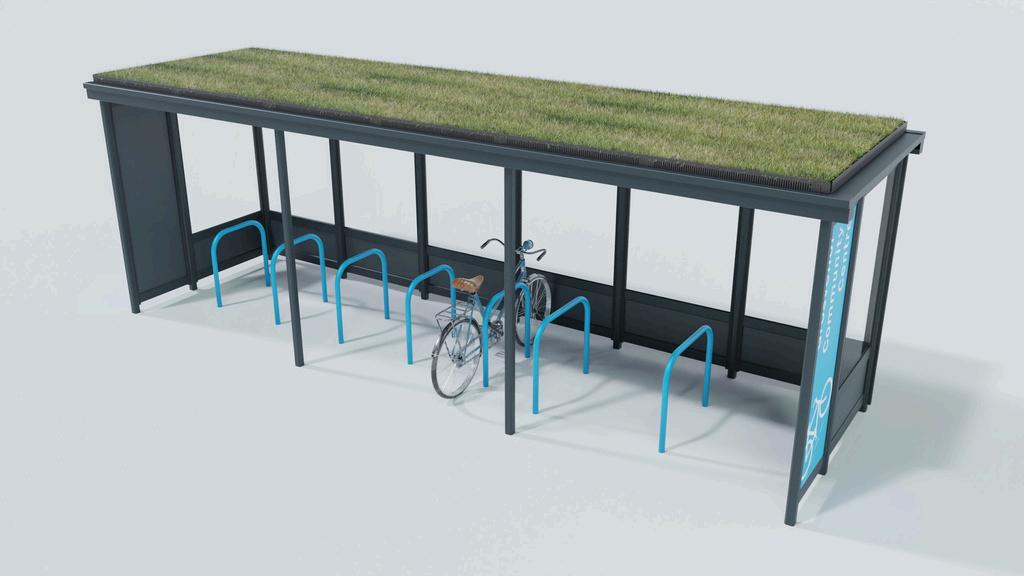

MONO Cycle

For sustainable, active travel schemes and cycle networks.

Robust, durable and high quality, our Mono Cycle shelters are designed to support sustainable, active travel schemes in any location, and especially city and town centres where bicycle theft and vandalism can be a serious deterrent to adoption. Our Mono Cycle shelters provide safe bike parking where it’s needed most. Features include: Secure cycle parking to lock both frame and wheel.

A range of stand options including Sheffield stands and M profile stands, which can accommodate a wide variety of cycle shapes and sizes, including children’s cycles.

Bicycle and scooter e-charging points.

Protection from the elements including a range of options for roof, side and end panels.

Solar panels (and associated infrastructure – roof or pole mounted).

Ecological features such as a green ‘living’ roof (sedum planted) or planters.

9

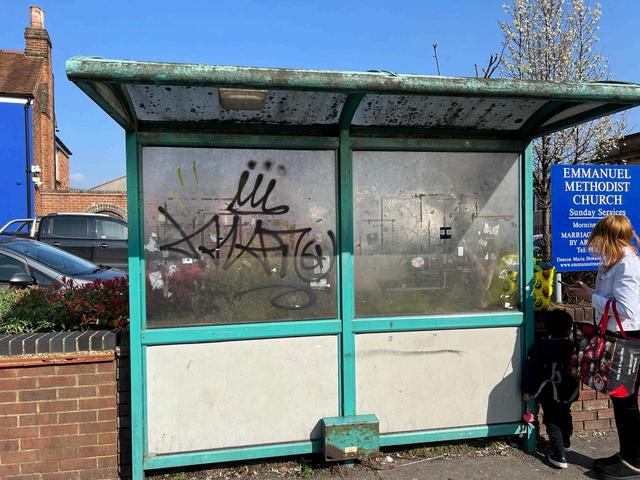

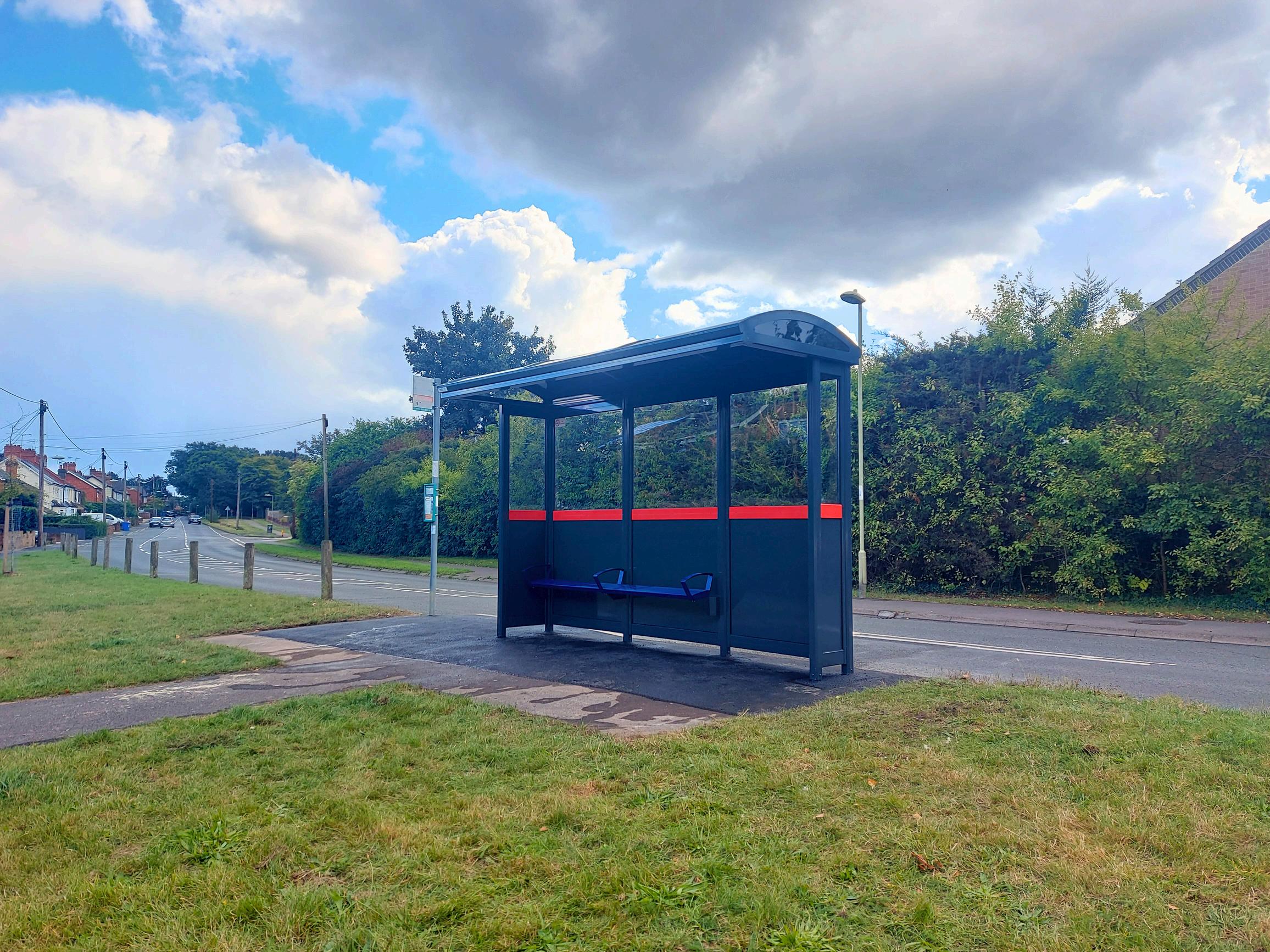

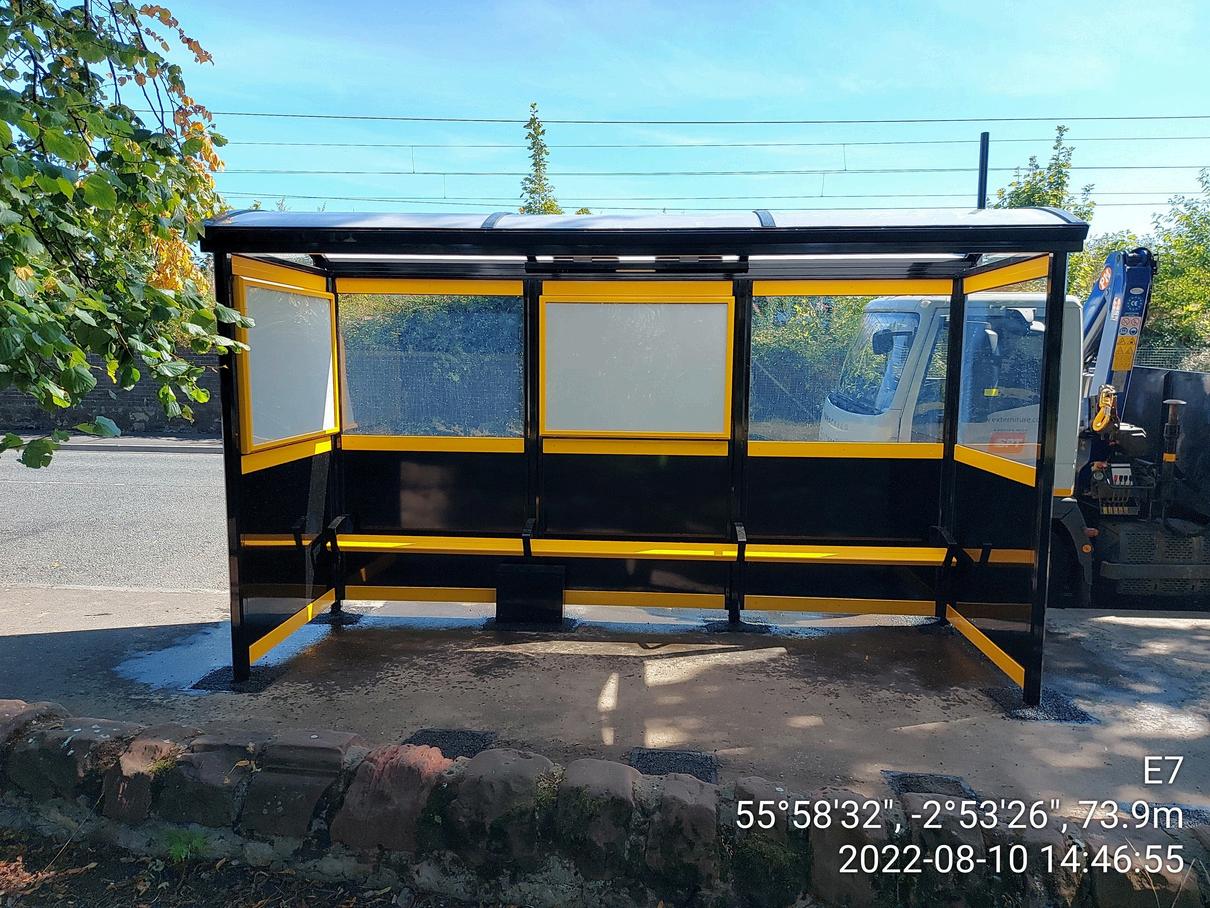

Bus Shelter Refurbishment

The results will be clear to see - for passengers & your bottom line

Refurbishing bus shelters is more than just a practical solution; it’s a step toward environmental, economic, and community advancement. We can work together to modernise your transit infrastructure – sustainably and affordably. We have a specialist bus shelter refurbishment team that delivers stunning results without the need for full replacement. Our approach is both environmentally friendly and financially savvy, helping local authorities and organisations save costs while making a positive impact on the planet.

Why Choose Refurbishment?

1.Like New Appearance: Our expert treatments can restore your shelters to look as good as new.

2.Eco-Friendly: Reduce waste, conserve resources, and lower your carbon footprint by choosing refurbishment over replacement.

3.Significant Cost Savings: Avoid the high expense of purchasing and installing new shelters.

4.Extended Lifespan: Increase the durability and functionality of your existing structures.

Enhance with a Green Living Roof We can also retrofit bee-friendly green roofs, where suitable, to contribute to biodiversity and promote sustainability.

10

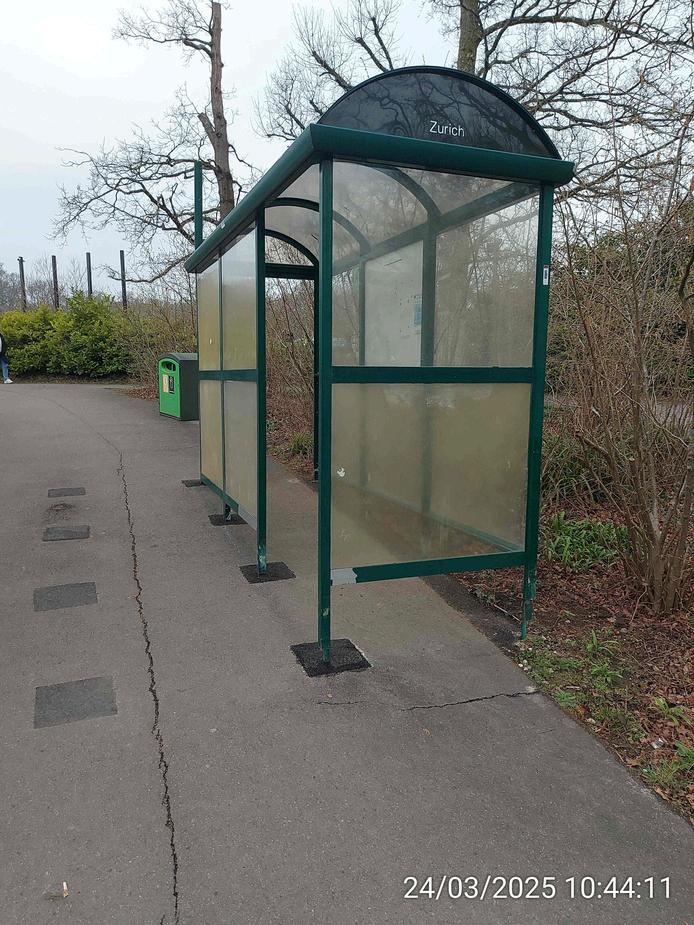

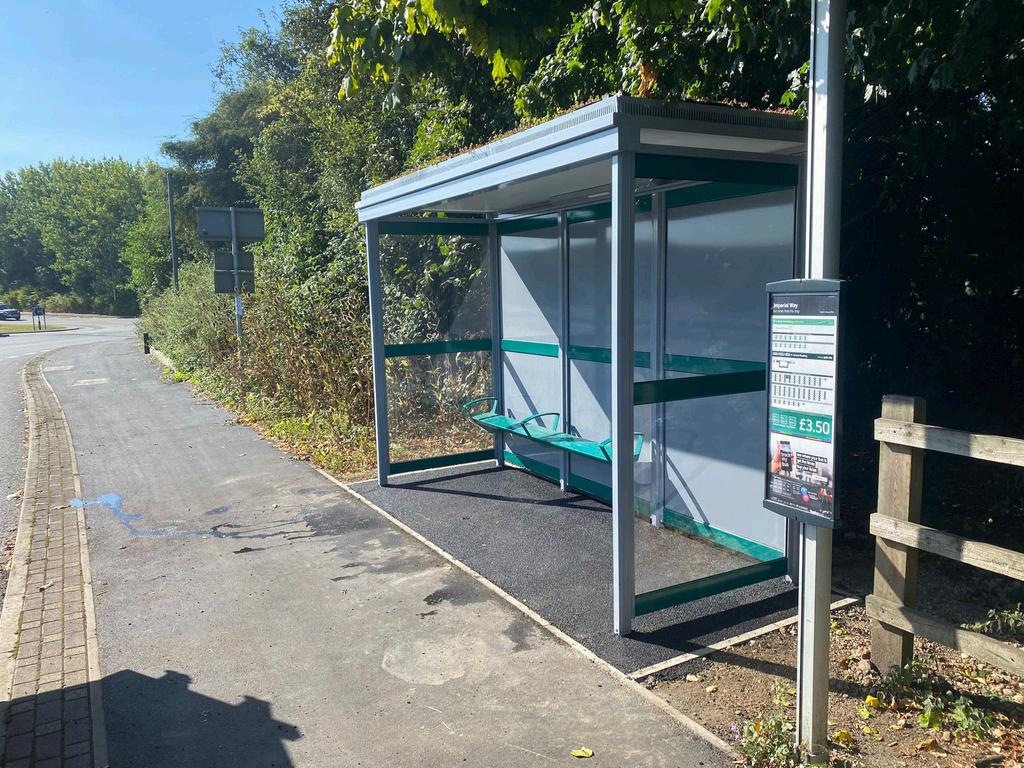

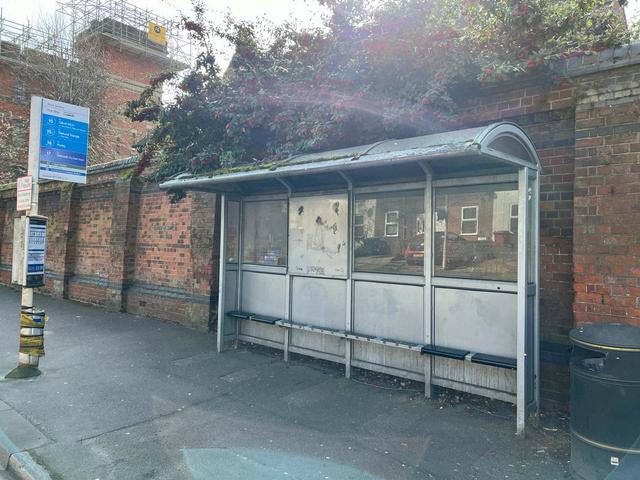

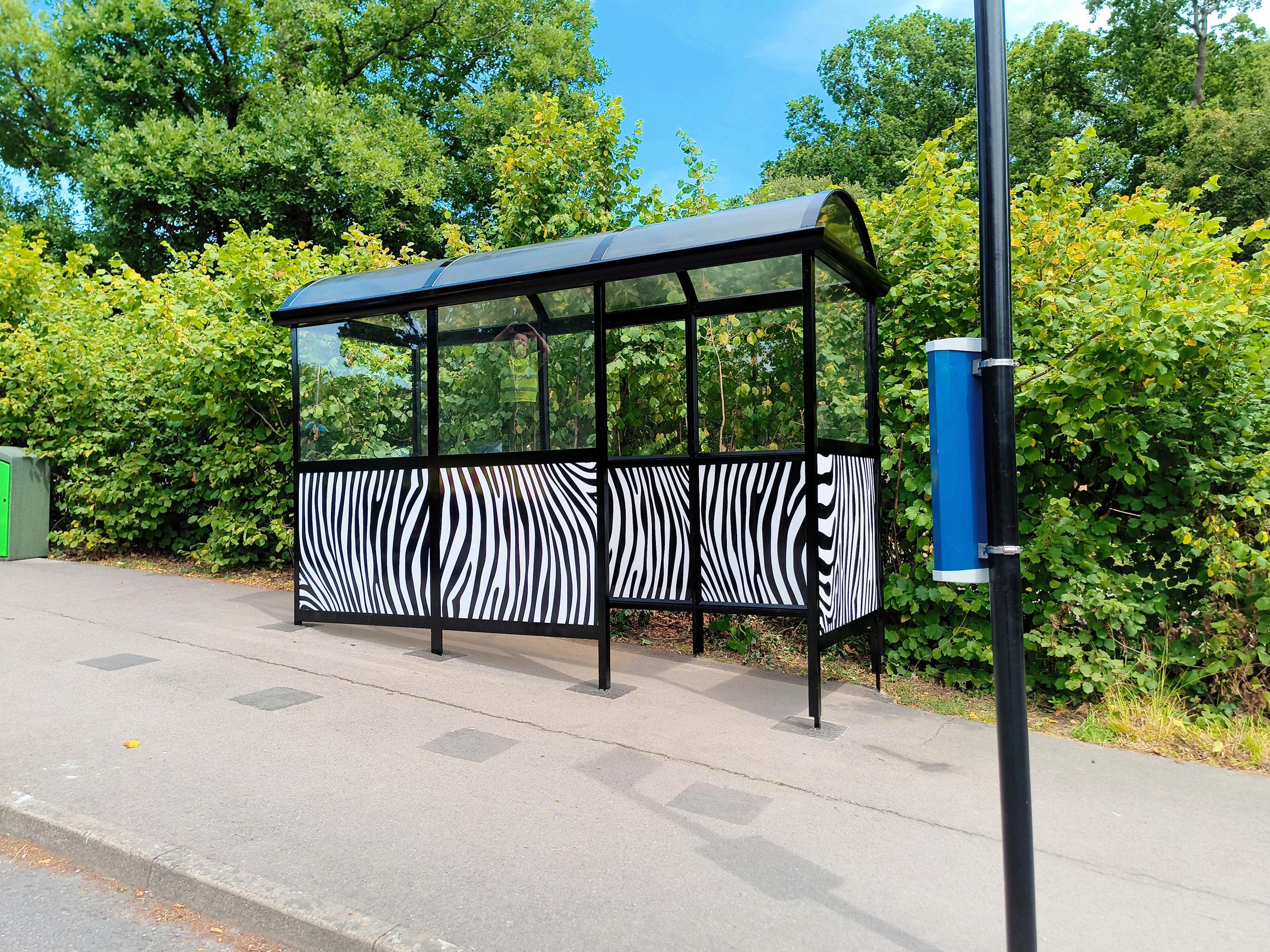

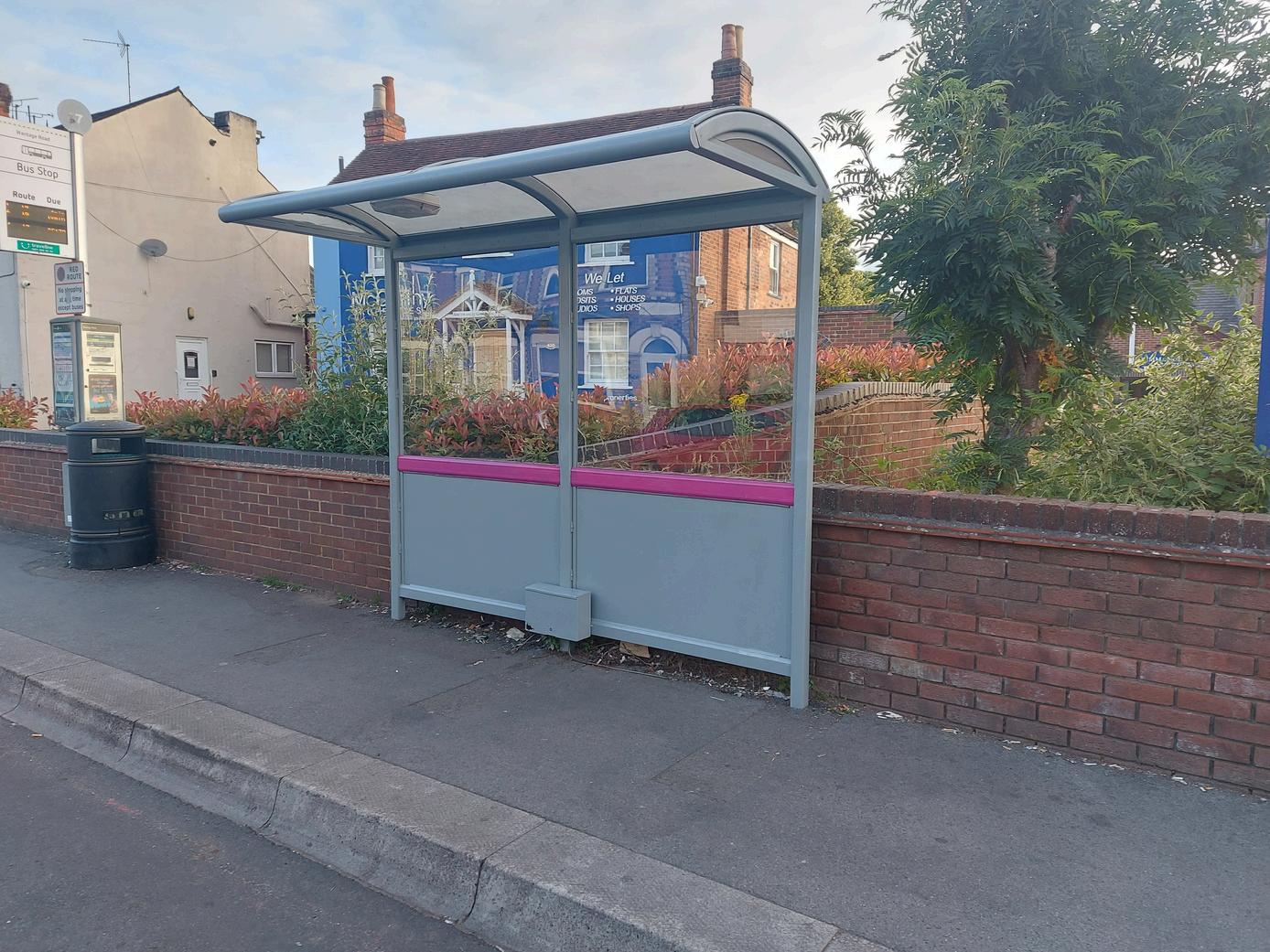

Bus Shelter Refurbishments

11

“

Oxfordshire County Council recently asked Externiture to assist on a multiple-site install of bus shelters and associated works. From the initial conversation with the team through to the delivery of the final shelters, the service and communication have been second to none. With an ongoing programme of S106 works and other maintenance matters to work through, having a supplier we can rely on helps immeasurably.

Technical Lead – Bus Infrastructure

12

Our Clients

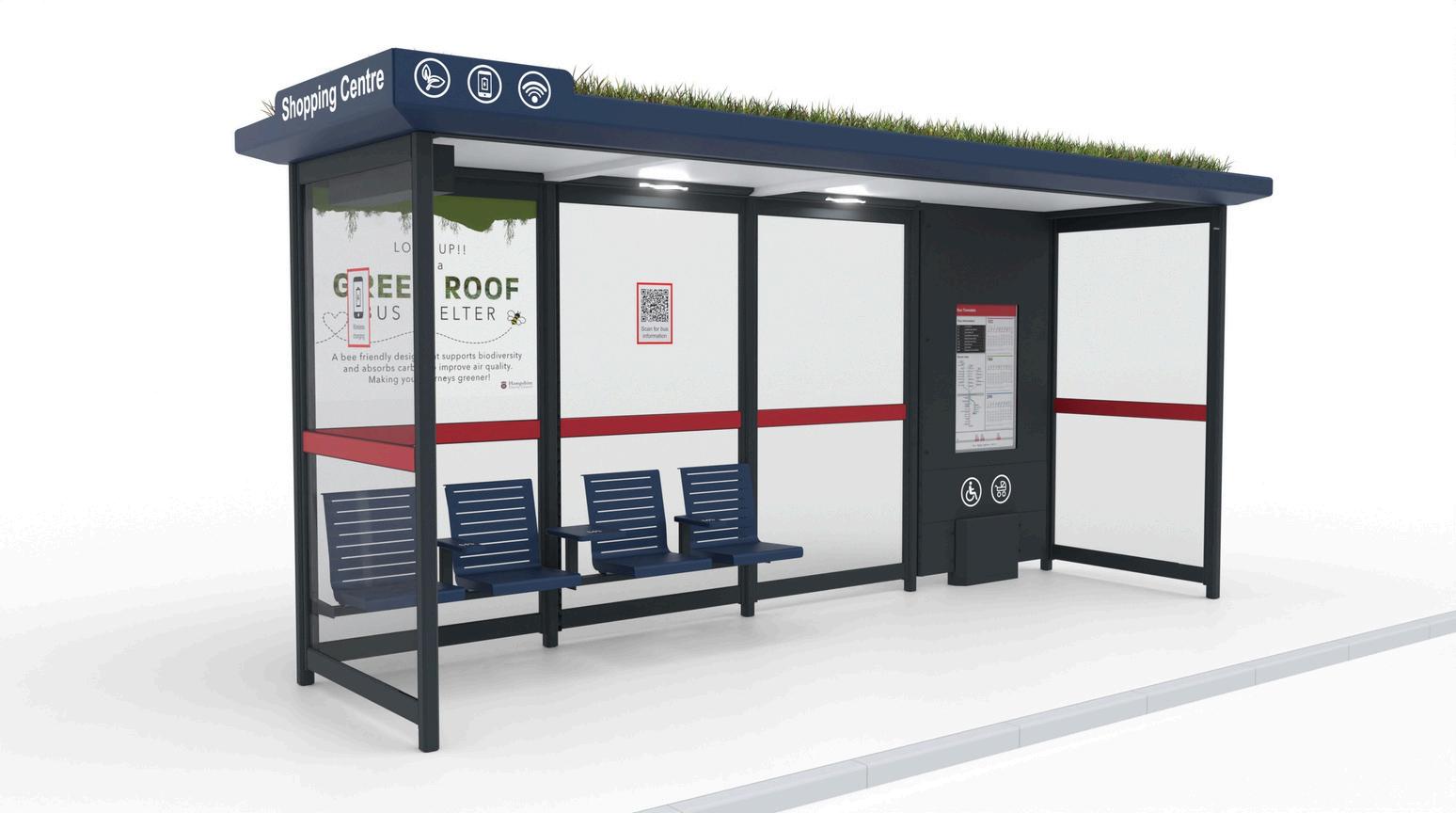

MONO Neighbourhood 4-Bay with green living Hub roof, individual seats with wireless charging tables and integrated poster case

The MONO Concept A modular, adaptable shelter system designed with eco DNA to provide improved passenger comfort & experience, for any passenger, for any journey, for any transport scheme. The system can take a standard form or be enhanced to the Hub design providing more passenger functionality & information options. All options use the same key components.

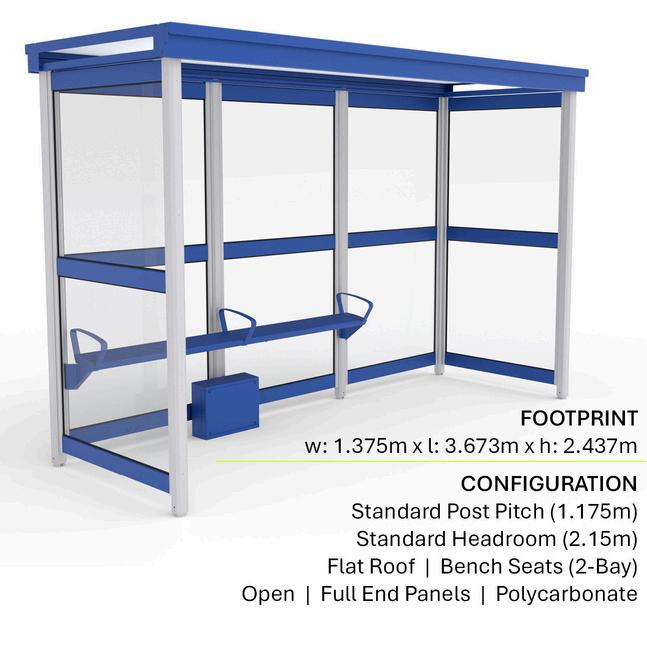

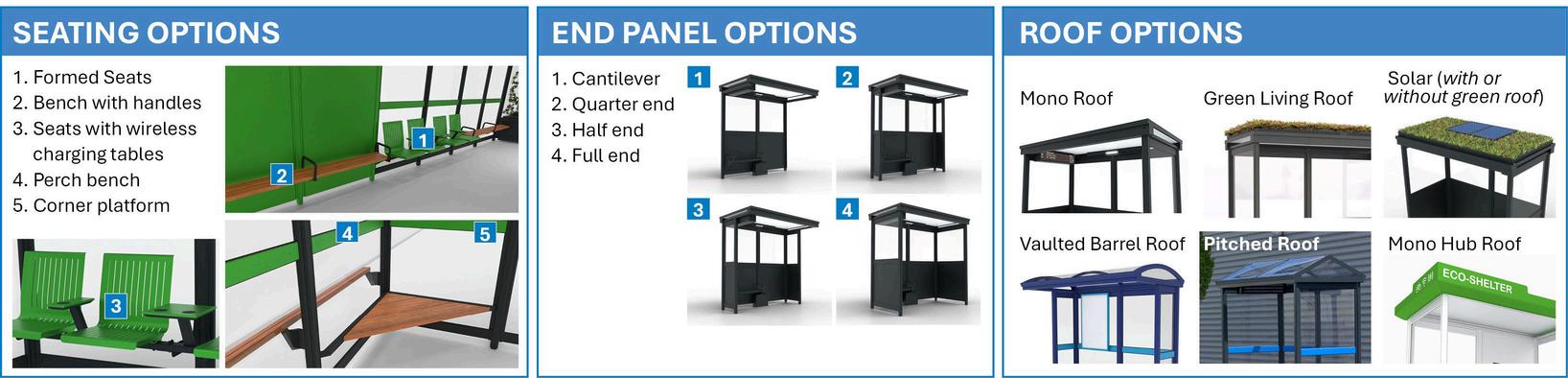

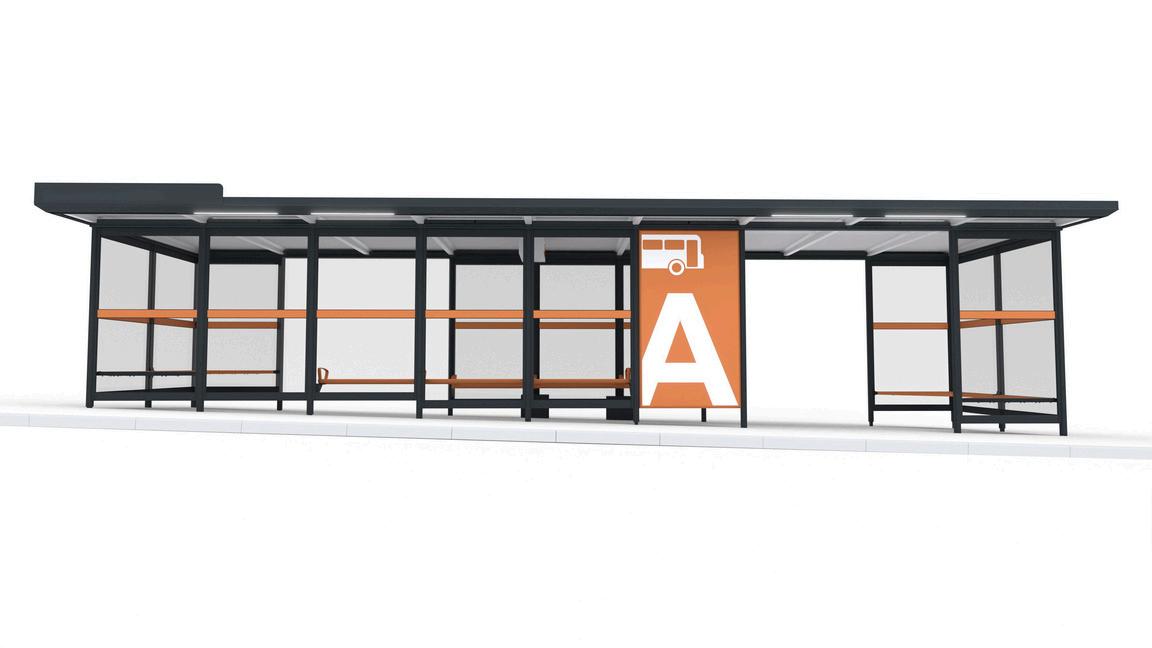

MONO Standard Shelter - 2-5 bay, 4 roof type (flat, flat green, barrel vault, pitched) MONO Neighbourhood - 2-4 bay, advanced Hub roof MONO Superhub - multi-bay for bus stations/interchanges MONO Cycle & MONO Haven Green Living Roofs

Two post pitches - standard (1.175m) and wide (1.375m) Two Headroom heights - standard (2.1m) and cycle (2.4m) Four Panel Types - polycarbonate, aluminium (solid or perforated) & glass Configurable access options - open/enclosed, front & rear entry, cantilever, quarter, half and full end panels.

13

Example - 3-Bay Flat, Green Living Roof

Blueprint of a MONO

OR PANELS

OR PANELS

OR PANELS

OR PANELS

OR PANELS

OR PANELS

OR PANELS

OR PANELS

Modern design with subtly superior features.

Our Mono shelters not only look outstanding but have an outstanding build quality and all the features needed to satisfy the needs of the modern public transport network - passenger comfort, security and convenience - whilst protecting your investment and supporting your aspirations: Connected and intelligent features such as sensor-lighting, WiFi, wireless charging, e-charging for bikes scooters and Real Time Passenger Information (RTPI).

Colour-matched enhanced branding options, and contrasting mid-rails and seat to assist visually impaired passengers Futureproofing built in with cabling channels & universal-fit options to retrofit.

Sustainability and eco-credentials that align with local authority Net Zero and Social Value targets.

Low-maintenance, concealed fixings which are less susceptible to vandalism, thoughtfully configured for each location and every location.

Revenue generation options such as digital advertising panels.

14

Sustainability & Social Value We are actively working towards Net Zero by 2050 and choose to work with suppliers who share this commitment. We aim to reduce the overall carbon footprint of our products and operations alongside working towards establishing the embodied carbon status of our products.

SUSTAINABLE MATERIALS AND LONGEVITY Our shelters and bus stop poles are constructed from durable extruded aluminium billett, designed for long life and ease of maintenance. From 2025, they will exclusively be made using 100% recycled aluminium from one of Europe’s leading sustainable aluminium mills, whose goal by mid-2025 is for 100% of power used in their production to come from renewable energy sources - mainly solar).

WASTE REDUCTION & CIRCULAR ECONOMY PRACTICES We prioritise recycling and modular design. Our manufacturing facility and offices send zero waste to landfill, metal waste is re-used or recycled and in the past 2 years we have reduced packaging by 40%, including a 62% reduction in single-use plastics. Shelters are modular, allowing components to be reused or repurposed, supporting circular economy goals.

ENERGY EFFICIENCY AND RENEWABLES Many of our shelters operate entirely on renewable energy and battery power, incorporating solar panels, PIR sensor lighting, and wireless charging for mobile phones. By 2025, all our facilities will be powered by renewable energy.

BIODIVERSITY AND CONSERVATION We integrate green roof technology to enhance biodiversity, support pollinators, and contribute to climate change mitigation. Additionally, a percentage of contract values from long-term projects is allocated to local and national conservation initiatives.

EMISSION REDUCTION & SUPPLY CHAIN IMPROVEMENTS We source materials locally (UK and European suppliers), use Euro 6 diesel vehicles. We are also preparing to conduct Scope 3 Carbon Auditing for our value chain.

SOCIAL VALUE We are committed to increasing the social value our business creates in our local area and in the communities served by our customers.

15

Building Better Journeys Bus Stop Infrastructure Bus, Cycle & Multi-Modal Shelters Transport Hubs and Major Developments RTPI & Digital Displays Timetable Printing & Posting

Installation & Groundworks Maintenance & Cleaning Refurbishments Asset Surveys Infrastructure Management Software

Unit 3 Daytona Drive Thatcham Berkshire, RG19 4ZD Tel: 01635 862100 Email: shallwetalk@externiture.com
