Whether you are looking to upgrade your existing infrastructure or install new stops - we can design, manufacture, supply, install and maintain a range of high quality products.
Warranty
Look out for these badges as an indication of the warranty period we can offer on our products and services. T’s & C’s apply.
We pride ourselves on our excellent customer service, both before and after an order is placed. We’re often complimented on our responsiveness and attention to detail, from preparing the work through to getting the job done.
Price Communication & Service
Our range includes both premium and budget products which can be supplied in low to large volumes at prices which reflect the quantity ordered. We will always aim to match or better any quote from a competitor (for a similar product).
Posts

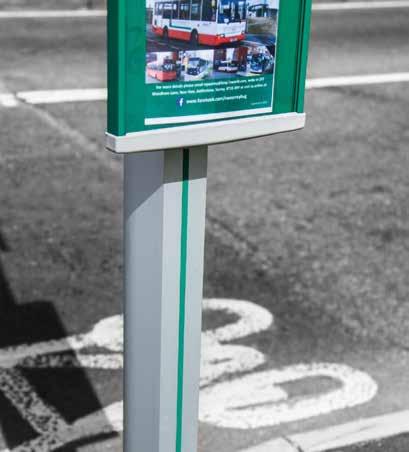

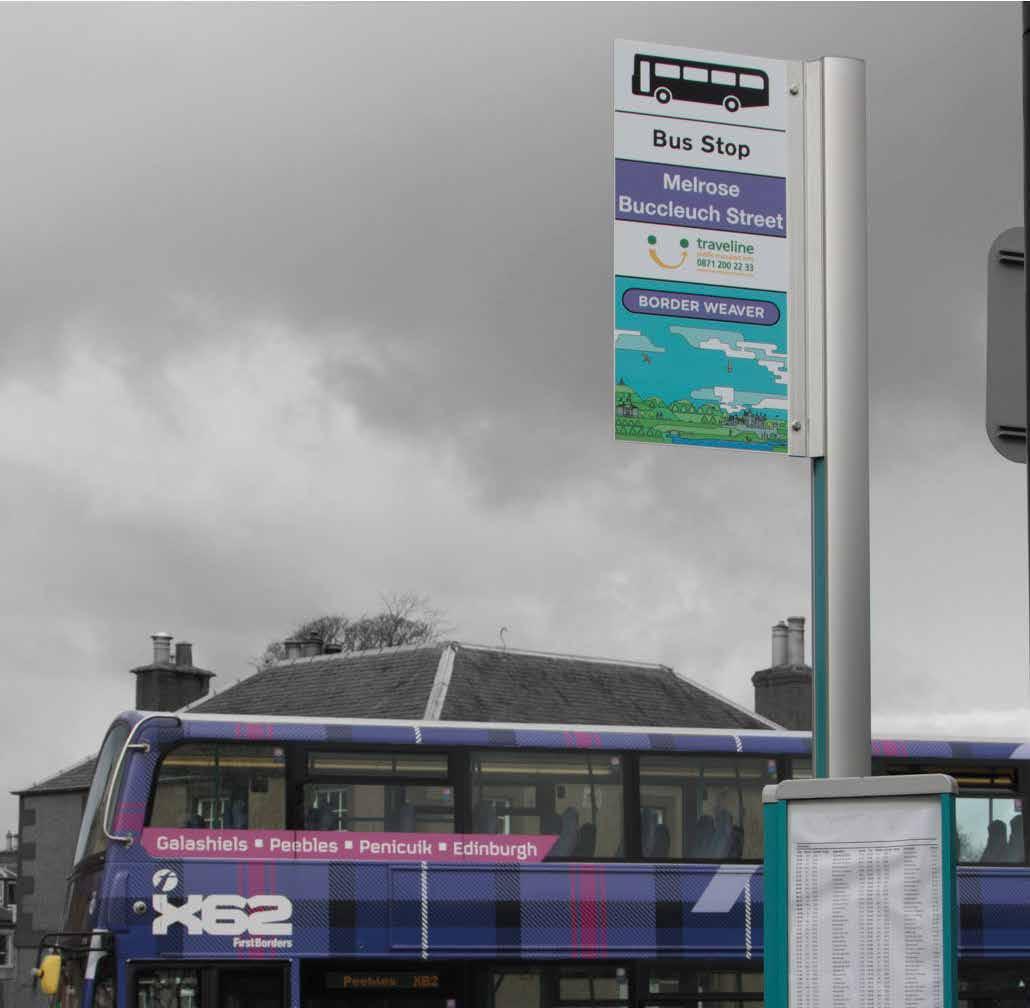

The versatile VX-O post is an extruded aluminium post, designed with a wide channel on one face to fit seamlessly with Trueform infrastructure and a double channel on the opposite face to fit Bissell infrastructure.
Supplied as standard in a silver anodised (AA25) finish, available in lengths from 3.6m to 4m. We can also supply posts painted to match any RAL colour*. Our aluminium posts meet highway requirements for breakaway. The VX-O post can accommodate electrical and data wiring looms for solar and real time solutions and is ideal for both premium and non premium routes and services.
We also offer a 76mm diameter steel post (TSP’s) in a standard galvanised finish. These can also be painted any RAL colour* and supplied in lengths from 3.6 to 4.0m.
The VX-O System is designed to fully integrate with your existing Trueform or Bissell infrastructure and is available with a range of accessories.
The VX-O System
Request a sample to try for yourself!
Tubular Steel Post
Tubular Steel Posts (TSP’s) galvanised.
Order Notes
*Minimum order quantity is required for custom colour selection. Custom colour selections will carry a 4-6 week lead time for production and delivery.
Side A Side B
Foundation Sockets
An alternative to installing directly into the ground or pavement, the VX-O foundation socket offers the benefit of quickly changing damaged infrastructure.
The socket is installed flush with the footway so there is no trip hazard. The VX-O Post is slotted into the socket and securely fixed with a machined block and stainless steel fixings.
If a post is damaged and needs to be replaced, the entire operation takes less than 3 minutes.
The VX-O post and socket also allows you to remove the post and rotate through 180 degrees to change the direction of the flag and timetable case faces if required.This offers significant cost savings for maintenance operations as no installation crew or street works permits are required.
If a stop needs to be closed down, the post can be removed and a blanking plate attached to cover the socket.
Foundation sockets offer significant cost savings for maintenance operations and will not require a specialist installation crew or street works permits.
Other Forms of Installation
For installations where a socket is not required, we can supply a flat plate which fixes to the bottom of a VX-O post for added stability and security.
If you have another type of retention socket that you would prefer to use, please get in touch to discuss your requirements.
Post Accessories
Post accessories are a great way to embellish your infrastructure and help your users to differentiate between services, operator stands and regions.
Roundels
Emphasise your operator branding or highlight features relating to a service by using a roundel. Customised to suit individual requirements with digitally printed, screen printed* or cut vinyl graphics.
A two piece aluminium fabricated roundel with a laser cut base to match your post profiles. Profiles include the VX-O, Tubular Steel Post, Trueform Elite, Trueform Slimline and Bissell Desire Post. Roundels can also be fitted to lighting columns.
Post Caps
Made from aluminium and laser cut to match your post profile. Profiles include the VX-O Post, Tubular Steel Post, Trueform Elite, Trueform Slimline and Bissell Desire Post.
Infill Strips
Colour coded strips designed to slot into both the wide and double channels on the VX-O post.
The wide channel infill strip will also fit into the Trueform Elite & Trueform Slimline post. The double channel infill strips will fit into the Bissell Desire post.
Order Notes
* Screen printing requires an minimum order quantity.
Order a RAL booklet today, from us!
Choose from our stock range of RAL colours or from the standard RAL colour chart.
We offer two types of flag which are ideal for your premium & non-premium routes. We have the MetroSlide & the Linear flat flag in a range of sizes, both of which are designed to fit our VX-O posts & tubular steel posts. They can also fit to the Trueform Elite, Slimline & Bissell Desire posts. This offers you complete flexibility for future upgrades & changes. Refer to the compatibility chart below.
Where a direct fit between a flag and a post cannot be made, the flag is supplied with Universal Extrusion to join the components together. This also offers a convenient solution for wall mounting flags, if required.
Flag Sizing
Widths from: 300 - 450mm
Lengths from: 435 - 880mm
We carry a range of stock sizes. Custom flag sizes* are available upon request. Sample mock-up only
Compatibility Chart

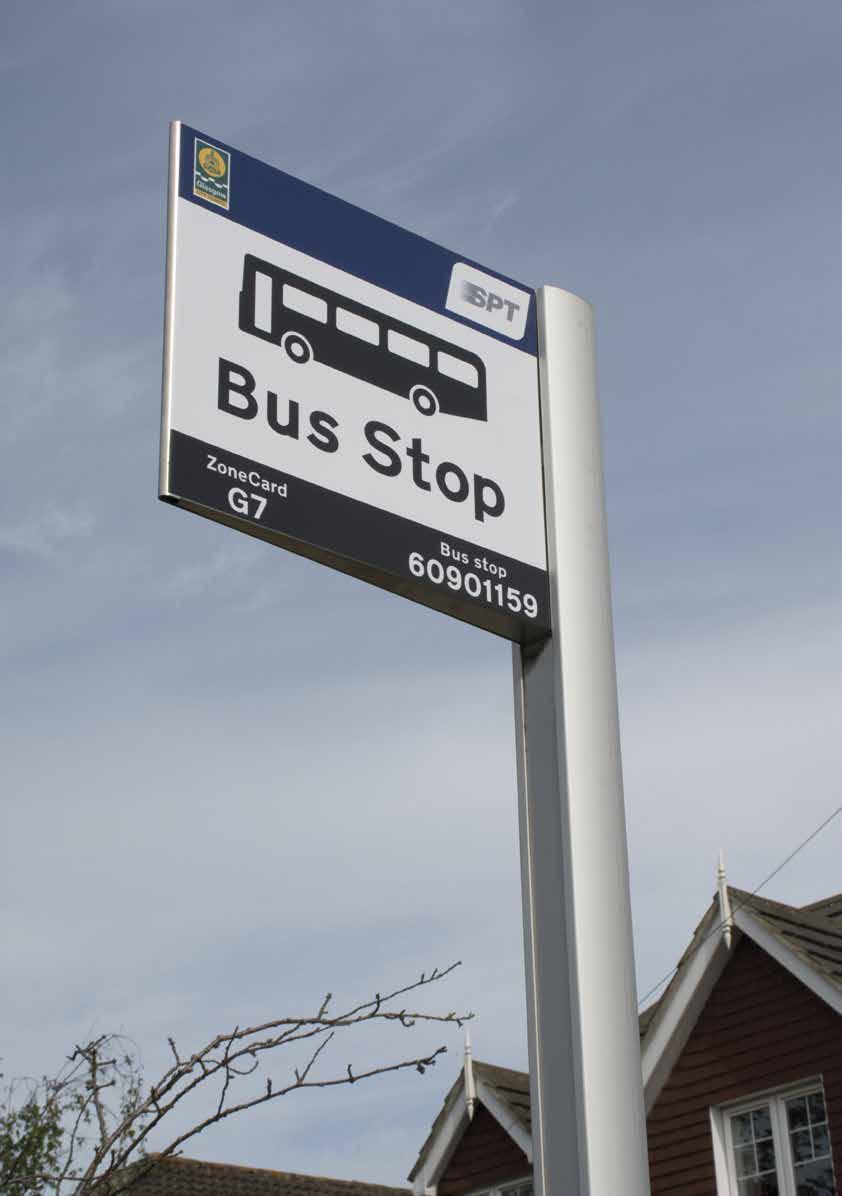

MetroSlide Flag The Premium Flag

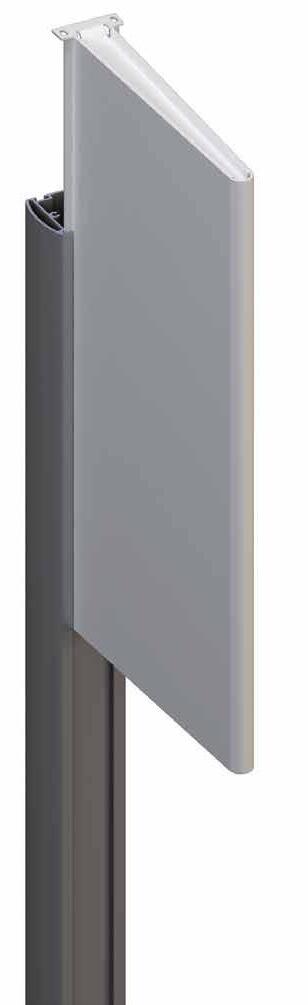

The MetroSlide is a strong and lightweight fully welded hollow aluminium flag.
The flag slides into the wide channel of the VX-O Post and features an oversized ledge at the top to rest over the edge of the post, which is then secured using a post cap. All screws used are tamper proof and stainless steel.
The MetroSlide Flag also fits into the wide channel of the Trueform Elite and Slimline Posts as well as the Bissell Post, via universal extrusion
The MetroSlide is available in three stock widths; 300mm, 400mm and 450mm. The 450mm width flag is comparable to the Trueform Tiled Flag. Lengths range from 435mm to 880mm, depending on the information required on the flag.

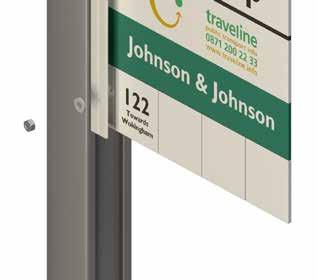

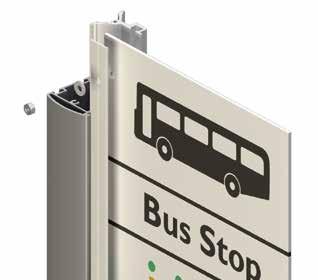

Linear Flat Flag
The Linear Flat Flag is a universal design that can fit to both sides of the VX-O Post. It can also fit to the double channel of the Trueform Elite & Trueform Slimline Posts and the Bissell Desire Posts, as well as any Tubular Steel Post or lightning column.
The design consists of a Y-shaped extrusion, a flat plate made from aluminium or composite panel together with a cover strip.
The Y-shaped extrusion is permanently fixed to a post. The flat plate can be installed and removed without adjusting the Y-shaped extrusion. This makes flag changes very quick and simple.
As the Y-shaped extrusion is formed of two parts that nest around the flag plate, any flag plate thickness can be used.
Notes
The Universal Flag
All of these features allow the Linear Flat Flag to be truly versatile. This replaces the need for varied types of flag, giving you the advantage of carrying less stock so maintenance becomes a breeze.
Stock sizes are available in widths from 300mm to 450mm and lengths of 440mm to 880mm.
All of these features allow the Linear Flat Flag to be truly universal and fully compatible with existing infrastructure.

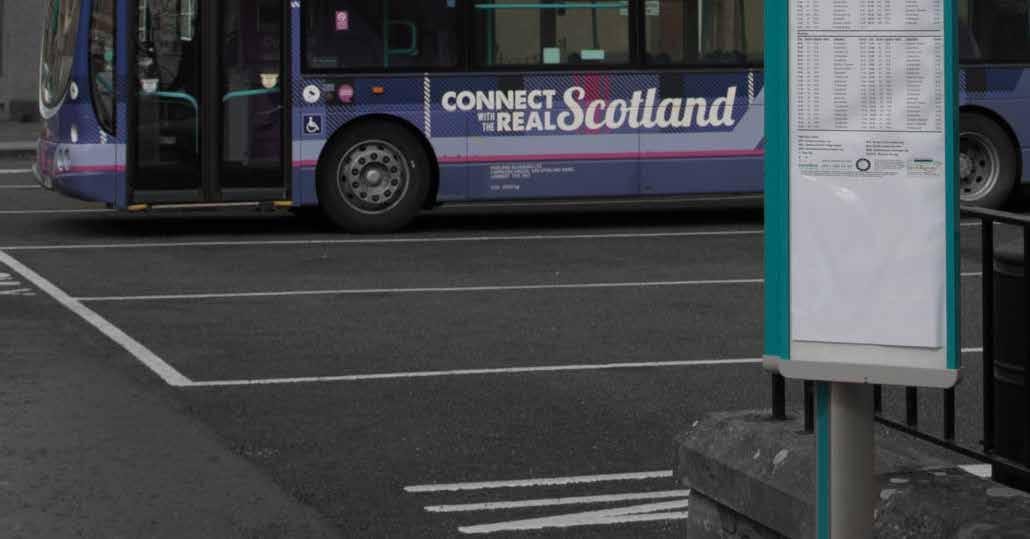

Timetable Cases
We have three core types of timetable cases available with visible widths ranging from 210mm to 284mm.
Cases are supplied in kit form with one assembled case as an example or all cases can be supplied fully assembled, upon request.
Finishes are available in your corporate colours, with a minimum of 80 micron external grade polyester powder coating for longevity.
All our cases have been designed to ensure compatibility of fixings and components with Trueform and Bissell timetable case systems.
Timetable Case Comparison Chart
Timetable Case Sizing
We can print & post all of publicity!your
Pressure Board
Timetable Case
Graphic / Media
Polycarbonate Facing

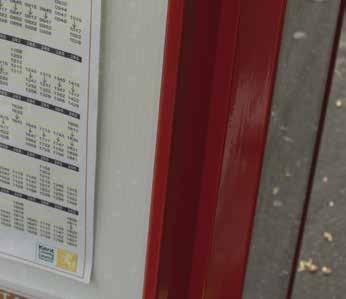

Timetable Cases

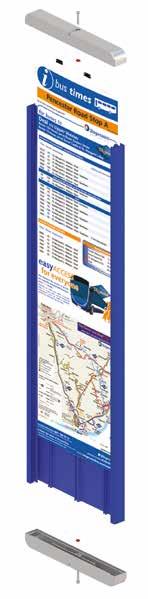

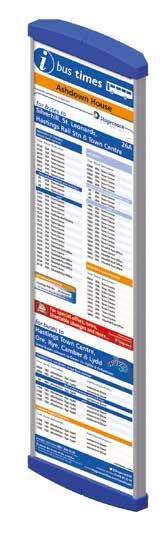

RX210 & RX260 Cases
Each part of the RX case has been carefully designed to make them easy to install and maintain.
By matching the visible width of Trueform and Bissell cases and making our cases the same visible lengths, we can offer a direct replacement to your existing cases. As the visible width and length are the same, you can exchange the polycarbonate and backing panels. This ensures that it ís easy for you to maintain all of your infrastructure without the need for an extensive range of spares and tools. It’s also compatible for roadside publicity.
The RX range will match the visible length and width of Bissell cases.
Key Features:
The RX range is supplied in lengths varying from A4 (300mm) - AAA4+ (1020mm). Choose from widths of A4 Portrait (210mm) and B5 Landscape (260mm).

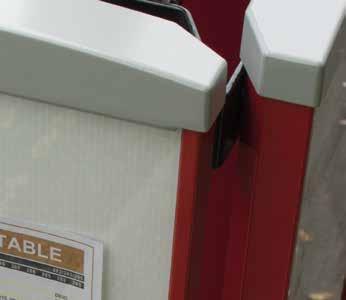

Cap design significantly reduces water ingress. The bottom cap features drainage holes to keep media dry and the case clear of condensation.
3mm UV stable polycarbonate & white pressure board are supplied as standard.
Polycarbonate panels are secured by a discreet clip inside the top cap.
All fixings are stainless steel and tamper proof.

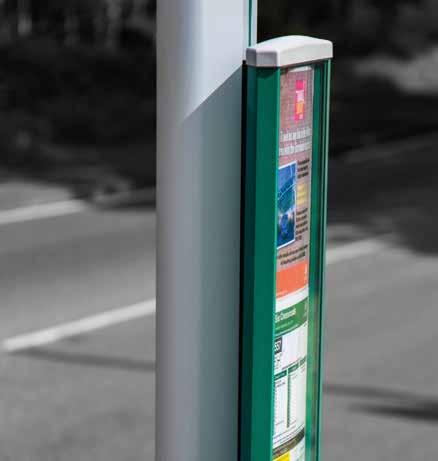

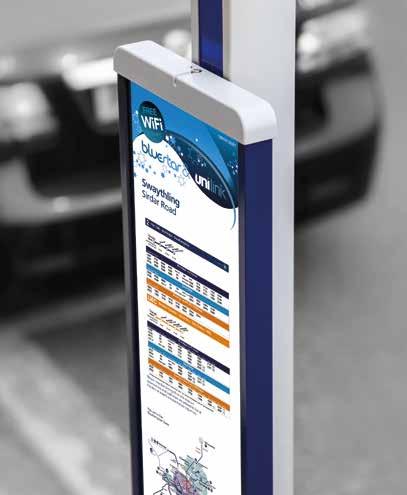

EX-O Cases
EX-O Cases are supplied in lengths varying from A4 (300mm) - AAA4+ (1020mm). The vision width is 270mm, with a maximum media width of 280mm.
Built from robust cast aluminium caps and extruded aluminium body, the EX-O case is a classic design with access from either the top or the bottom cap. The caps have been designed to significantly reduce water ingress to keep the media dry and the bottom cap features drainage holes to keep the case clear of condensation.
The case comes with a white pressure board and 3mm UV stable polycarbonate front panel as standard. The polycarbonate is secured in place by a discreet clip inside the top cap. All fixings are stainless steel and tamper proof.
RX and EX-O Cases are both compatible with all of Externiture bracket options which fit to any post type. Up to four cases can be grouped around a single post.
Our RXH297 case has been designed to offer an alternative to the standard top / bottom opening case.
The RXH297 case is supplied in an A4 width (landscape / 297mm) and is available in lengths varying from A4
Made from stainless steel, with a side opening door fitted with a security key or standard fixing. The RXH297 is supplied with 3mm polycarbonate panel
Media is secured in place by two spring steel clips.
Cases are designed to fit both Trueform and Bissell
If you need a bigger size, the RXH297 allows for the design to be easily scaled to suit your requirements.
Easy Access Cases
An easy-access hinged solution complete with a security lock.
Timetable Case Connectors
We offer a variety of mounting options for your timetable case. All mounting options are designed and engineered to fit our VX-O Post and TSP’s along with all Trueform and Bissell Posts.
All of our brackets are made to last with stainless steel fixings is used throughout and are developed to be as simple as possible, to install and maintain.
Wing Brackets
Made from mild steel and zinc primed with a polyester powder coated finish, our wing brackets offer the best value solution for mounting more than one case around a post or lighting column, including double, triple or quadruple configurations.
Our wing brackets feature a variety of screw fitting options and are designed to take the largest cases on the market to enable you to carry less stock.
Timetable cases of all shapes and sizes can be arranged using
Externiture’s universal brackets and connectors.
Case Fittings
A range of brackets are available to display 1 to 4 cases on any type of post.
Roadside
To go with our range of timetable cases we can also offer a full roadside printing service.

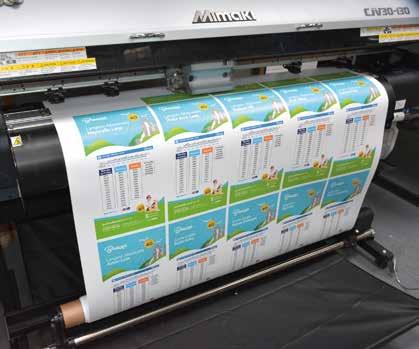

Printed on our Mimaki Digital printer onto a PVC substrate, these waterproof timetables provide exceptional quality both initially and for the duration.
Capable of printing up to 1250mm wide we can offer a low cost, and high quality option for any of your publicity needs. From A4 notices all the way to six sheets for advertising panels there isn’t a size combination we can’t print.
We are also pleased to offer a new roadside generation engine you supply the timetable, we add the artwork you need around it, including maps or advertising, then print it and send it out to you.
Temporary Bus Stops

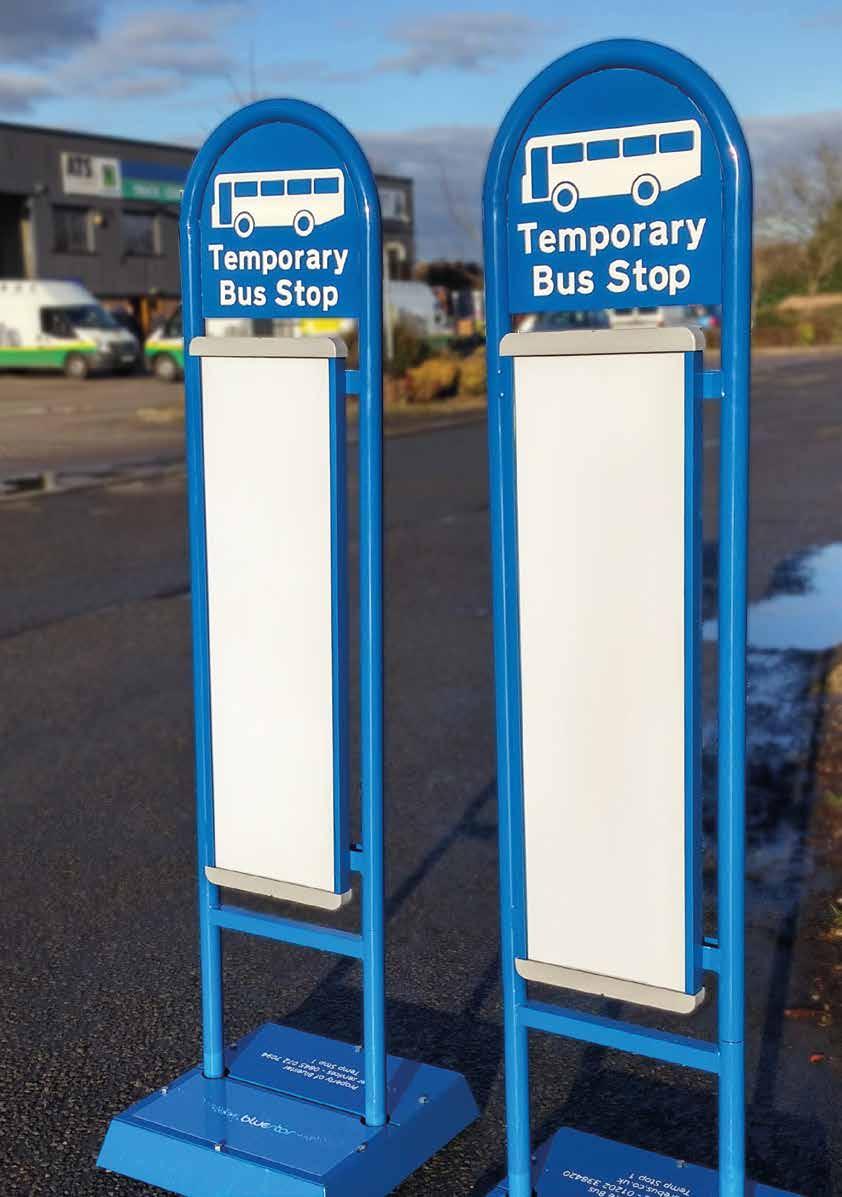

Premium Temporary Stop
Our Premium Temporary Stop makes a professional statement when used to close a premium stop for a prolonged period of time. Larger in size than the standard temporary stops. The premium alternative comes as standard with an RX260 AA4 case for timetable or passenger notices. The header panel incorporates a vinyl cut graphic header. The base can have bespoke graphics applied too, If required, you can order the Premium Temporary Stop in any RAL colour.
The base features an aperture in which sand or concrete can be filled for stability. The stop stands 1800mm high with a 500mm sq base. All stops are supplied with a security lock to reduce chance of theft.

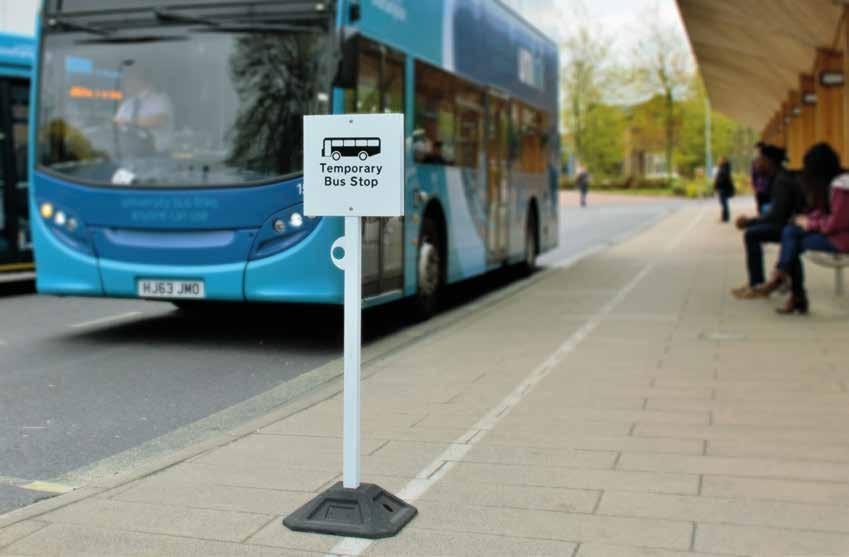

Standard Temporary Stop
A simple but robust temporary stop, sized to fit into a small van and engineered to allow one person to carry, the Standard Temporary Stop is ideal for short term closures.
The Standard Temporary Stop features a weighted rubber base for stability with a single post and a double sided flag panel.

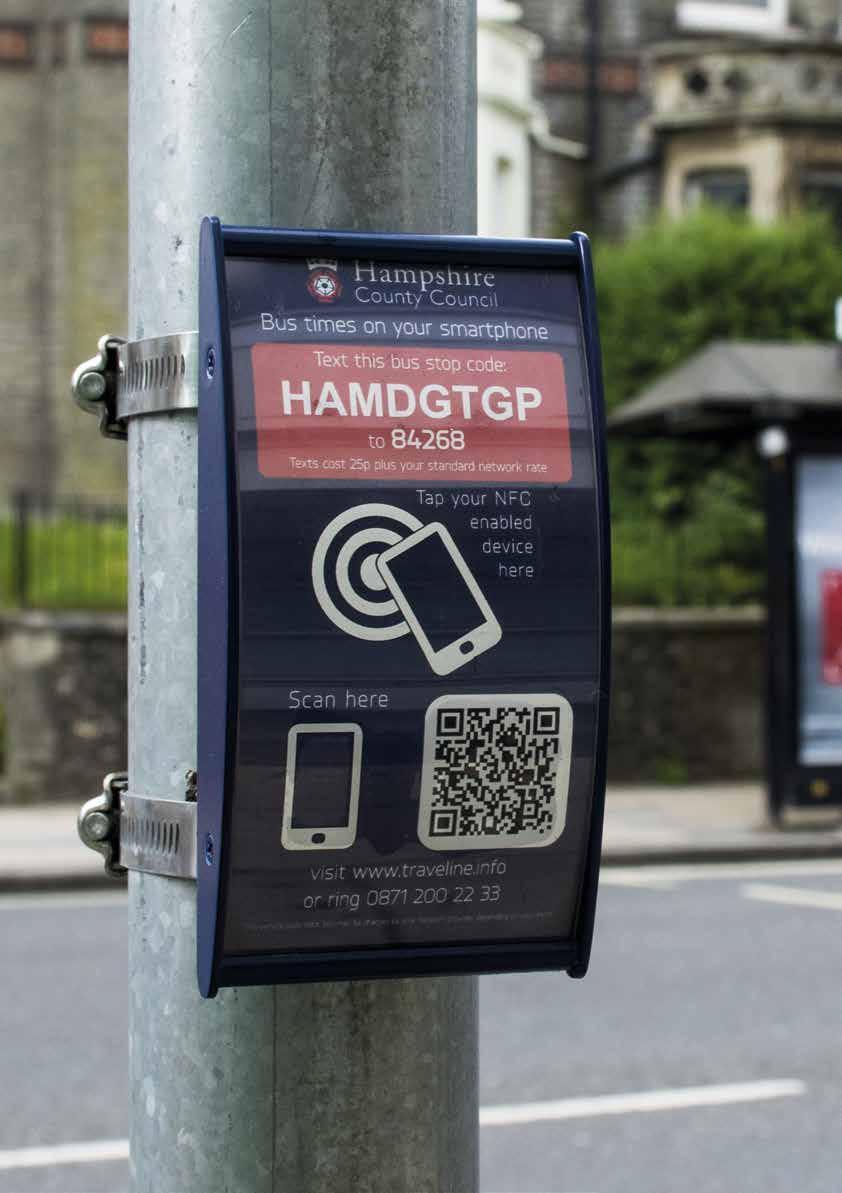

Communication plates are a great way to advertise alternative ways to access bus service and timetable information.
With technological developments in Near Field Communication tags and Quick Response codes, you can easily direct smart phone users to more exact and detailed information about a bus service.
We have developed software that can be used to record when an NFC tag or QR code is scanned, to give feedback regarding user numbers, user journeys and travel habits.
More traditional information can be shown like stop identifiers, SMS codes, Traveline information and general contact details.
We have a range of products to fit on to all posts, poster cases and timetable cases. These can be generic or site specific.
We have the ability to check signal strength of the major mobile networks at each site before these plates are installed to prevent plates being installed where their features may not be accessible.
NFC & QR
NFC tags and QR codes are a great way to make using public transport that much easier for your customers.
NFC offers a valuable way of monitoring and offering up to date travel information with the benefit of very low maintenance requirements and no power requirements.
QR codes are a popular choice for many retailers, brands and companies to interact with the general public.
Using either of these solutions, anyone with a smart phone is able to quickly access and personalise the information they need to get around.
TRO Plates
Clearway Plates
We offer a range of traffic regulation order plates complying with Diagrams 974, 975 and Schedule 19.
Plates are made from a composite aluminium panel, making them lightweight, strong and easy to work with. Every plate features dual rails and are supplised with a black face and grey reverse side as standard.
Reflective vinyl media
TRO Brackets
TRO Brackets are a popular choice as they fit any Trueform or Bissell post (front or back) as well as the Externiture VX-O Post. Made from stainless steel and supplied with appropriate fixings.
Common Plate Sizes
Choose from common plate sizes or request a custom design*. Text variations are available.
No stopping except buses
Plate size: 181 (L) x 278 (W) mm
No stopping except local buse s
Plate size: 220 (L) x 278 (W) mm
No stopping Monday - Sunday 7am - 7pm except buses
Plate size: 335 (L) x 360 (W) mm
We also stock a clearway plate size: 395 (L) x 445 (W) mm
Poster Cases
Finishing
Publicity Cases
Our poster cases are available in either stainless steel or aluminium, in a range of finishes from polyester powder coating in any standard RAL colour or anodised (aluminium cases only).
Our poster cases are available in A1, Double Royal and A0 sizes. Bespoke sizes are available upon request.
All cases can be mounted in portrait or landscape formats.
Publicity can be mounted using poster clips inside the case.
Cases come as standard with 2 barrel locks with security keys.
Choose from any RAL colour to match your corporate identity.
Externiture Spares
CASE CAPS
VX-O Post Roundel
Branded with either a site identifier or your own logo.
VX-O Post Cap
Laser cut from 3mm aluminium and polyester powder coated to RAL 9006 grey.
VX-O Post Strips
Made from composite panel, these are available in a range of RAL colours to suit your corporate branding. Choose from any Standard RAL colour.
RX Aluminium Cap
Tough cast aluminium cap, featuring useful drill bit guide to help gain access to screws.
Available for all Externiture
RX Timetables; RX210, RX260.
TIMETABLE SPARES
Pressure Board
Used to support the publicity inside a timetable case, made from corrugated light weight plastic sheeting.
Available for VX-O, Trueform Elite, Trueform Slimline and Bissell posts.
EX-O Aluminium Cap
High grade cast aluminium cap to fit the EX-O case. Features useful drill bit guide to help access to screws.
Polycarbonate Facing
We offer a choice of 2mm or 3mm UV stable polycarbonate to suit all of our timetable case sizes.
INFILL STRIPS
Miscellaneous Spares
BRACKETS & CONNECTORS
Twist Lock Bracket
Fixing bracket to attach cases and other accessories to VX-O and other post systems.
U-Clips
Stainless steel brackets for fixing TRO plates to round posts such as TSP’s and lighting columns.
Banding Bracket
Designed to locate single timetable cases on to TSP’s. Banding Brackets are made from stainless steel and secured in place using Tamtorques.
Tamtorque
Tamtorque sign fixing clamps are designed for clamping signs of all types to round or unusually shaped posts, giving a quick and reliable fix. Can be easily reused or adjusted.
BSW Mounting Bracket
Mild Steel bracket designed to be fixed to BSW post. This provides a flat face for mounting timetable cases and other infrastructure.
Timetable Spacer
Aluminium spacer is designed to space the case off of the post to ensure you are able to remove the timetable cap.
Lighting Column
Mounting
Brackets
Designed to fit the 3 most common sized lighting columns, these brackets enable us to correctly position and mount timetable cases.
TRO Bracket
Stainless steel bracket to fix channel signs to VX-O and other post systems, supplied with appropriate fixings
Trueform Spares
POST CAPS
TIMETABLE CASE CAPS
Trueform Elite & Slimline Post Cap
Laser cut from 3mm
aluminium plate and powder coated to required standard RAL colours.
Bissell Spares
Trueform Elite & Slimline Roundel
Two piece replacement roundel with laser cut base and bolt-in laser cut plate
Digitally printed graphics included.
Trueform Elite 210mm
Aluminium Timetable Cap
Our cast aluminium caps are designed to take repeated impacts without deforming. These caps have an added extruded rubber gasket to limit water ingress.
Bissell Desire Post Cap
Laser cut from 3mm
aluminium plate and powder coated to required standard RAL colours.
Aluminium 4 Wide Tile
Robust replacement tile system, fabricated from 3mm plate aluminium. Holds 4 route number stickers. Multiple tiles can be slotted vertically for larger flags.
Bissell Desire Roundel
Two piece replacement roundel with laser cut base and bolt-in laser cut plate
Digitally printed graphics included.
Bissell Desire TRO Plate
Two part aluminium TRO plate designed to fit on either side of the Bissell Desire Post. The rear part has mounting holes, to secure it to the post to prevent it from moving.
POLYCARBONATE & PRESSURE BOARDS
We can offer a range of sizes of both corrugated light weight plastic pressure boards and 2mm / 3mm UV stable polycarbonate to suit Trueform and Bissell timetable case sizes.
KEYHOLE FLAG TILES
TRAFFIC PLATE
Product Specification
FOUNDATION SOCKET
FLAGS
Product Specification
TIMETABLE CASES (CONTINUED)
RX260 CASES
Product Specification
TRO PLATES
POSTER CASES
TIMETABLE CASE SPARES
TEMPORARY BUS STOPS
Product Specification
TIMETABLE POLYCARBONATE
TIMETABLE PRESSURE BOARDS
Product Specification
MISCELLANEOUS SPARES
TRUEFORM SPARES
BISSELL SPARES
Bissell
Glossary of Terms
Term Also known as Definition
Anodising Plating
TRO Plate Time Plate, Sign Plate, Traffic Plate, Clearway Plate
Roundel Finnial, Stand ID Plate
A surface treatment to aluminium that hardens the surface and prevents oxidisation. Commonly gives a bright silver finish.
A sign fitted to the bus stop post or nearby and used in conjunction with clearway markings. Has to conform with DfT drawing no 974 for Bus Stops or 975 for Bus Stands.

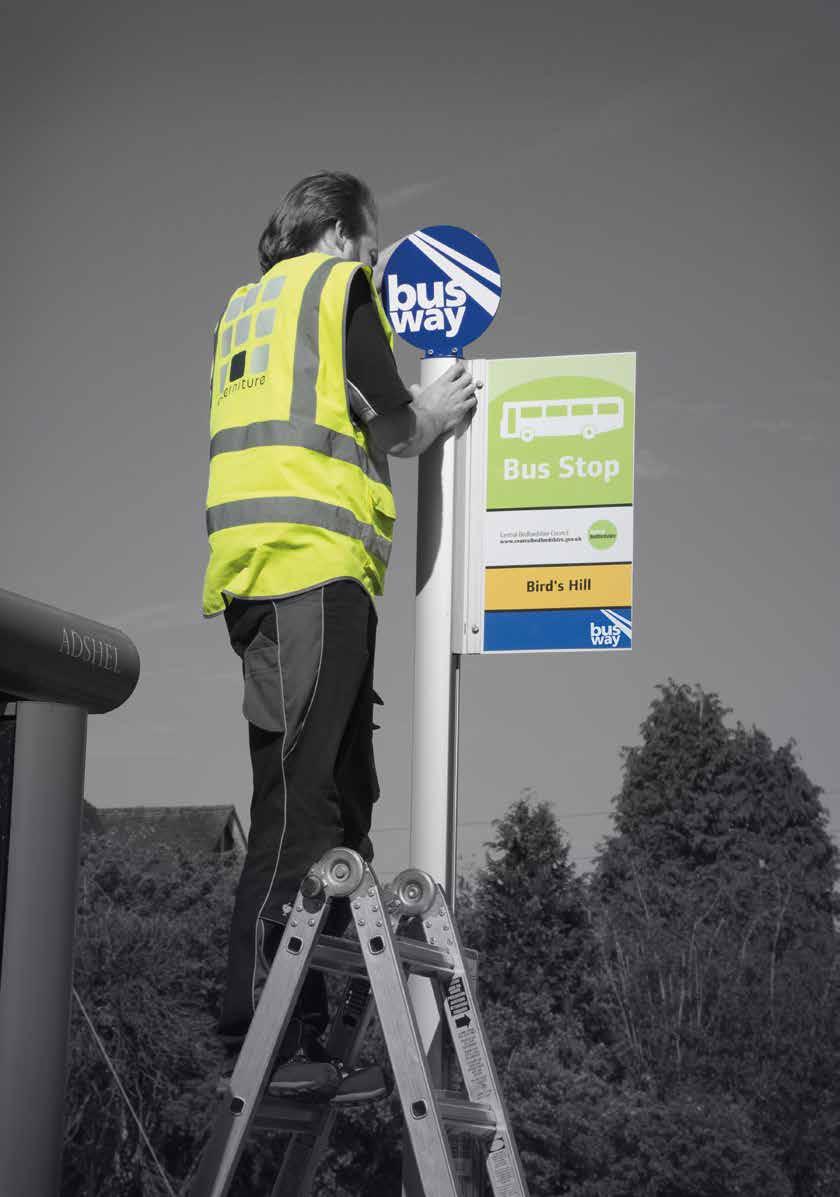

Typically a round plate at the top of a post which highlights a specific route number or letter.
Flag Bus Flag, Bus Stop Flag, Plate Can be a Linear Flat or a hollow, fabricated.
RAL Reichs-Ausschuß für Leferbedingungen und Gütesicherung
Route Number Grid RNG, Service Numbers
Security Screw Tamper Proof Fixing
Tile Route Tile, E-Tile
Timetable Housing Timetable Cluster
Wing Bracket Case Fitting
Visible Height
Visible Width
An extrusion that is set in the ground, finishing at ground level. The bus stop post is fitted and bolted securely into the socket. The post can be removed without removing the socket.
Used on steel, galvanising is a protective zinc coating formed by dipping the metal into molten zinc. Greatly extends the lifespan of steel. Works best on bigger sections as heat in the galvanising process can warp thinner gauge steel.
A powder coated strip of aluminium or plastic that fits a channel in a bus stop post. Used as a contrast between the popular bright silver anodised finish.
The maximum printed size for media used in a timetable case.
Near field communication is a set of standards for smartphones to establish communication with each endpoints by touching them together or bringing them into proximity, usually no more than a few inches.
Actually the name of the material, this is the front screen in a timetable case. Generally available in a 2mm or 3mm thickness. Normally specified as UV stable both sides, meaning the material is resistant to yellowing.

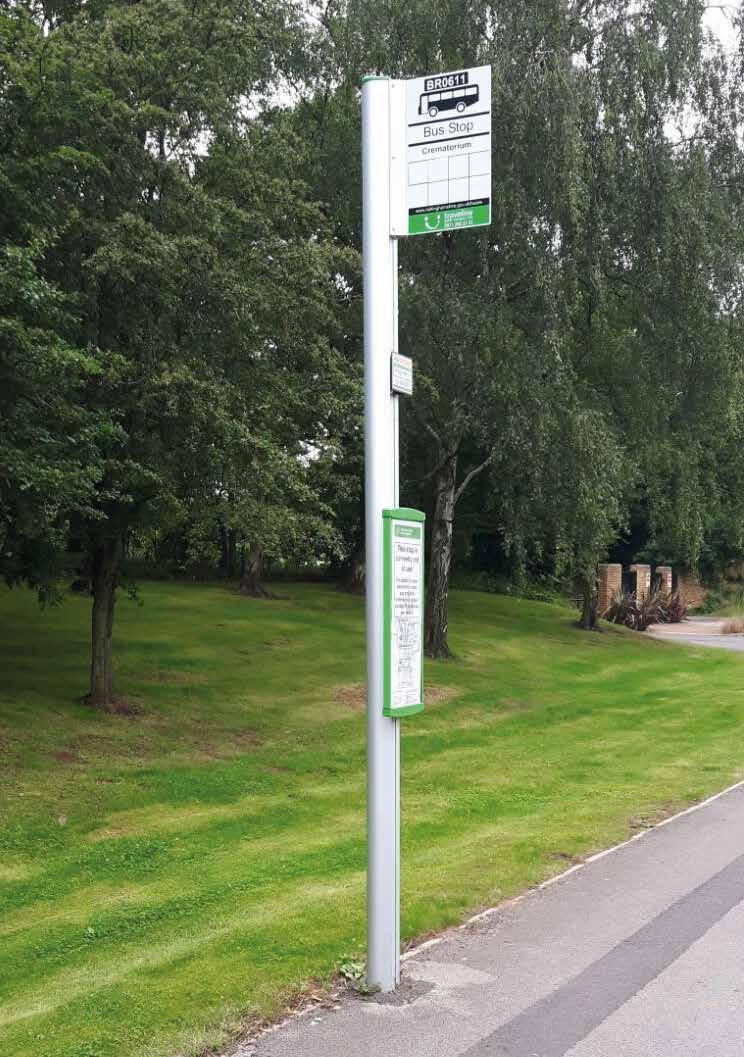

A tubular structure made from aluminium or steel. Many posts are custom designed extrusions with channels to fix other components to.
A surface treatment applied electrostatically to metal using a dry powder. Finishes can be any colour but the most common colours are from the RAL powder coating range or the BS series. Thickness’s vary but 100 microns is common for external use. Finishes can last 1 to 15 years.
A generally flat piece of material that fits between a timetable case extrusion and the polycarbonate screen. Printed timetables are fixed to the pressure board.
To achieve adhesion for powder coating, metals are first primed. The type of priming depends on the type of metal, but is often zinc-rich. Essential to ensure longevity of the powder coating.
A Quick Response Code is a type of matrix barcode, it is more commonly used because of its fast readability and greater storage capacity compared to standard barcodes.
A colour matching system for powder coating. RAL colours have 4 digits e.g. RAL 1234, the digits denoting a specific colour. Close matches can be made with other colour matching systems but it is unlikely that a perfect match can be made.
A printed grid showing numbers of all routes that serve a bus stop. Usually digitally printed and applied to the face of a flag.
A stainless steel machine screw with a head that has a central pin or unique shape which stops regular Allen keys from opening. There are many types of security heads common in bus stop infrastructure. Examples include hex pins or trilobal heads.
A square or rectangular display that is fitted into slots in a flag. Route numbers stickers are applied to the face of the display.
Describes 2 or more timetable cases that are fitted to a separate bracket that is fitted to the post. Mostly available in 2-way, 3-way or 4-way configurations. Lengths vary according to the timetable cases.
A metal bracket fixed to the post to locate two or more timetable cases.
The height within a timetable case or on a bus stop flag where the graphics can be seen. This is commonly narrower than the physical height of the timetable case or flag.
The width within a timetable case or on a bus stop flag where the graphics can be seen. This is commonly narrower than the physical width of the timetable case or flag.
