MONO SHELTERS

Mono Standard Shelter

Mono Neighbourhood

Mono SuperHub

Mono Haven - Green Living Roof

Mono Cycle

Shelter Refurbishment

Shelter Options & Features

Comfort & Convenience

&

We understand that making public transport better is the single best way to increase its use. Safe, well-maintained bus shelters with clear passenger information are an important step in making sustainable journeys a viable alternative to private vehicles. Our experience as bus shelter manufacturers and innovators, supplying, installing, maintaining and managing bus stop infrastructure means we are uniquely well-placed to understand the priorities of the modern passenger and transport system. We have created the MONO Shelter to be easy to install, simple to maintain and to last for a generation. We believe it is the best bus shelter of its type offering ultimate passenger comfort, safety and convenience: a modern, sustainable, practical, scalable & sustainable transport hub.

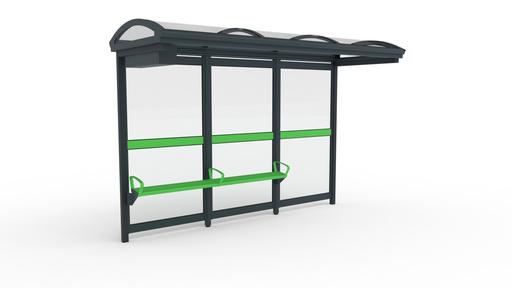

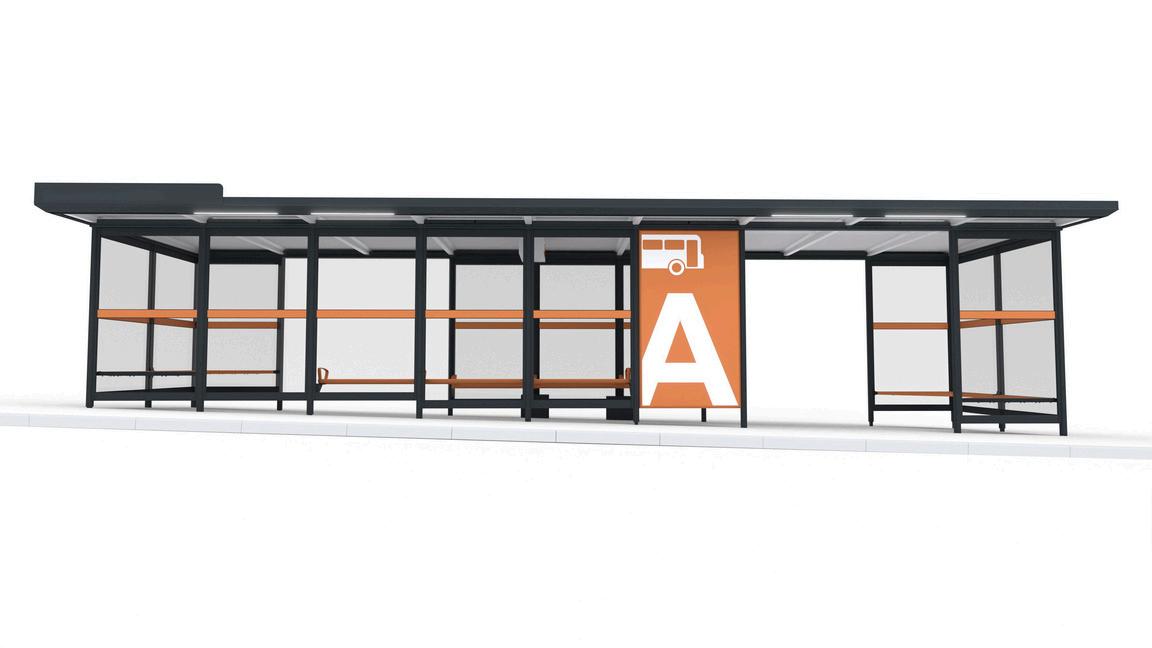

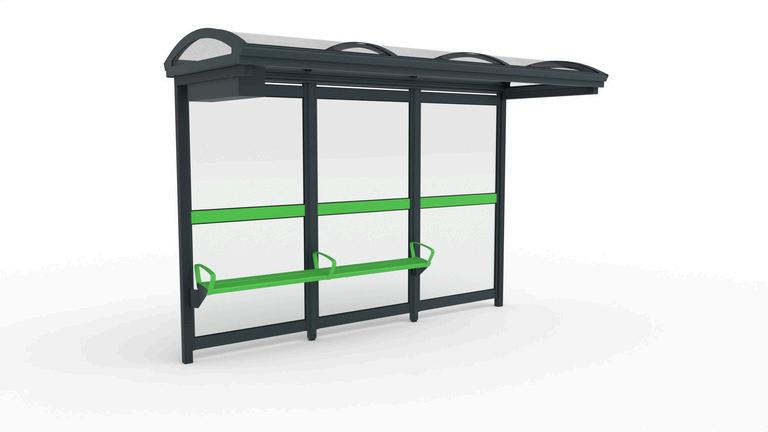

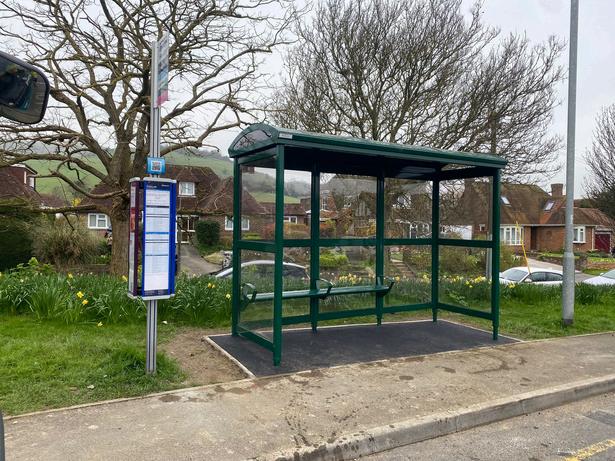

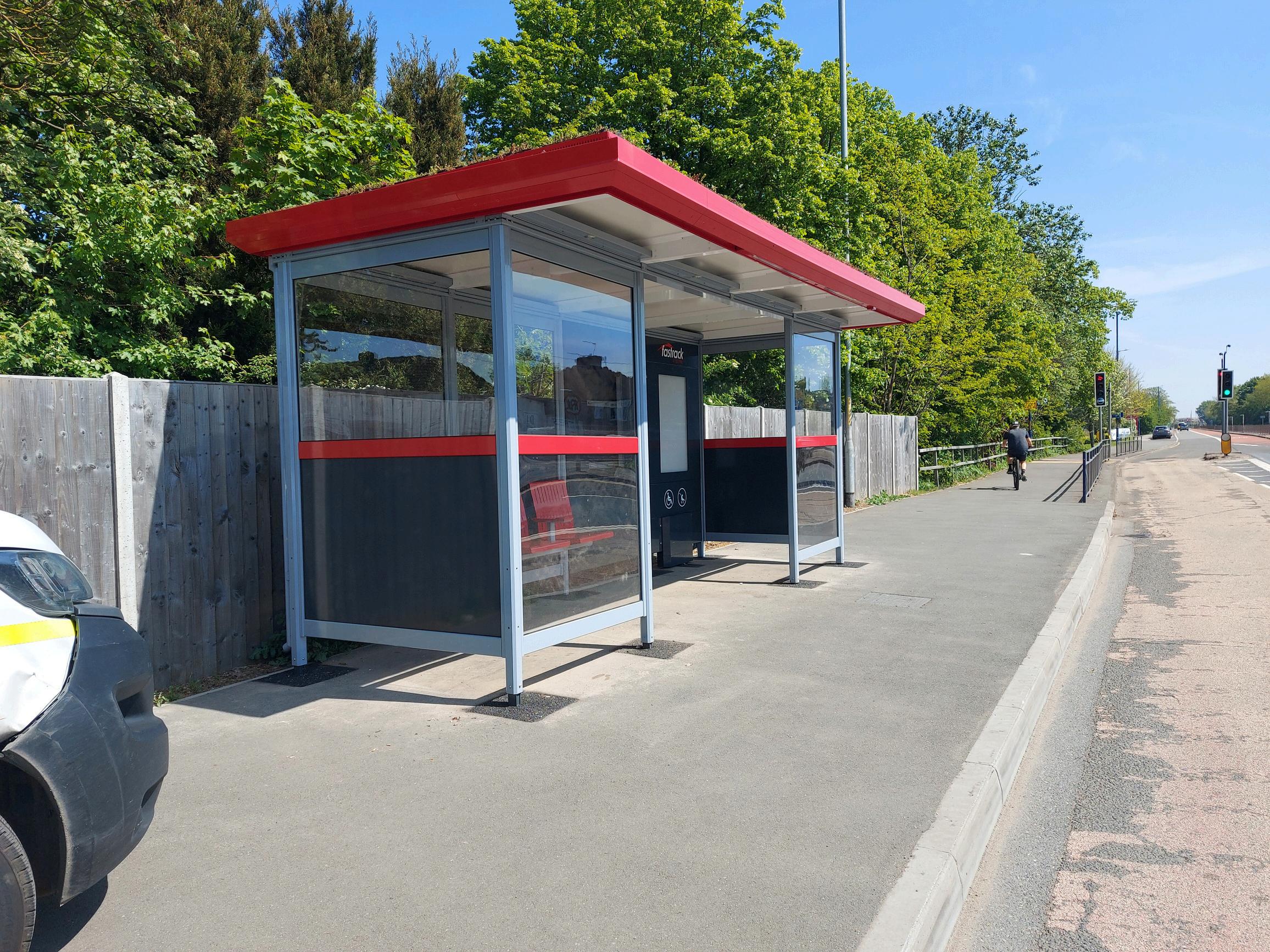

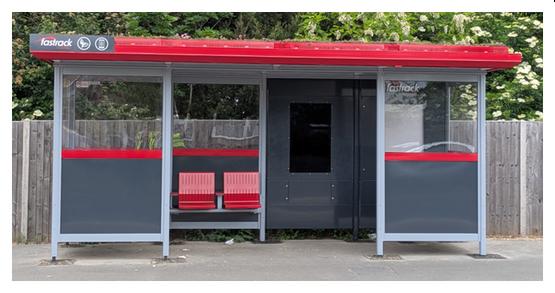

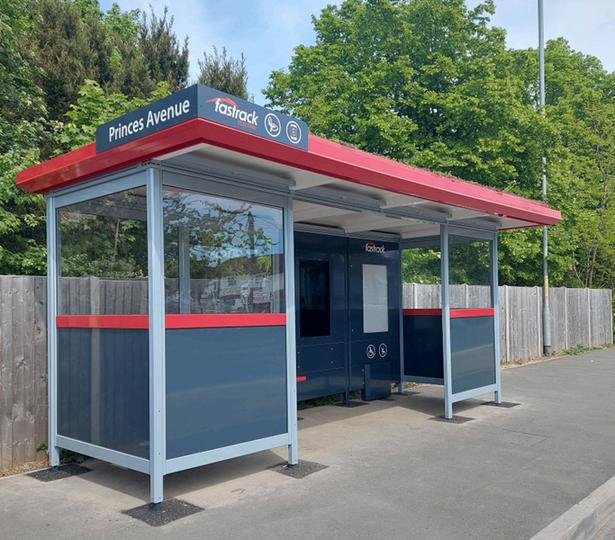

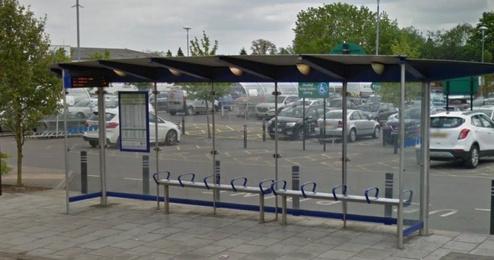

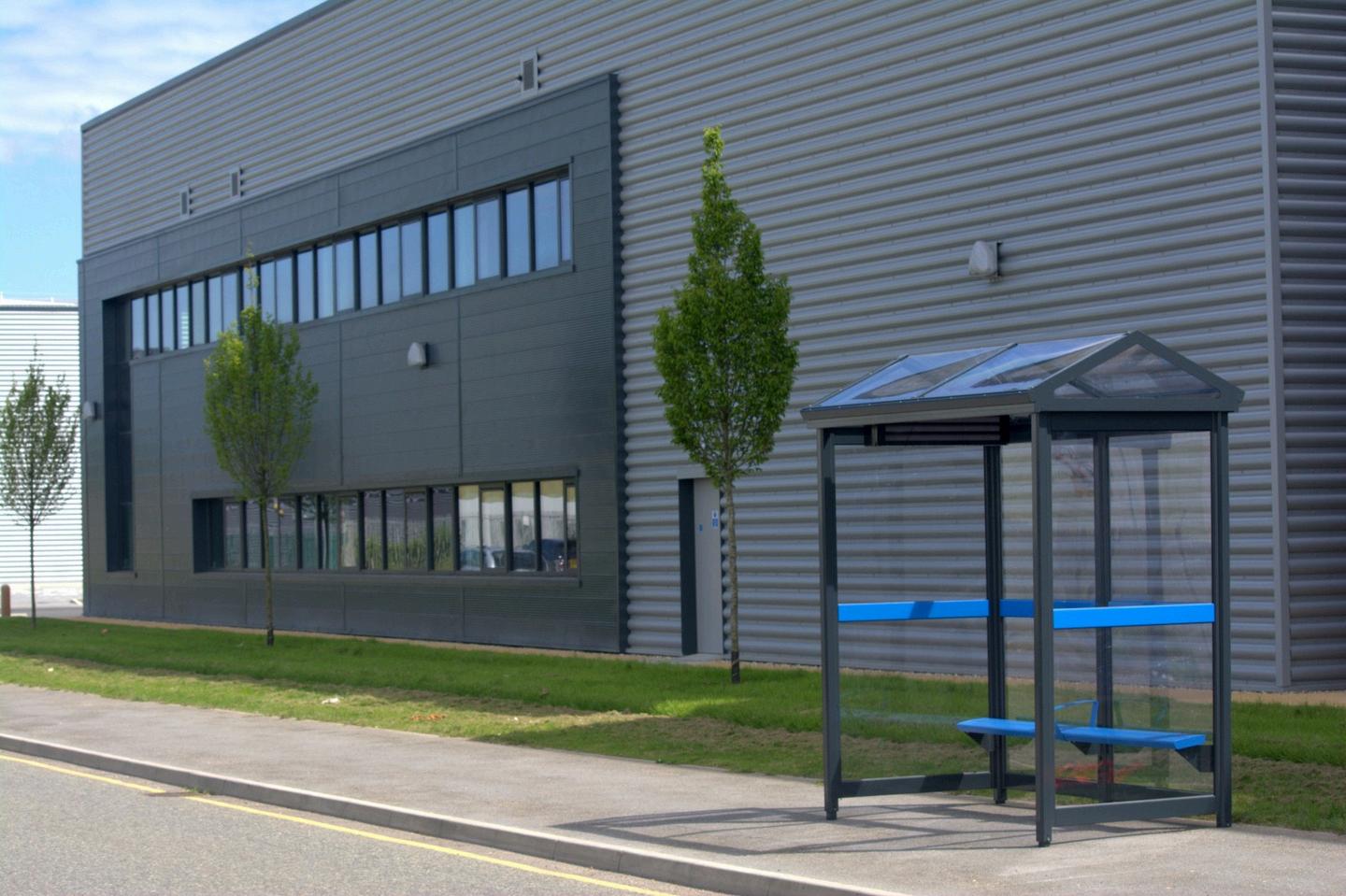

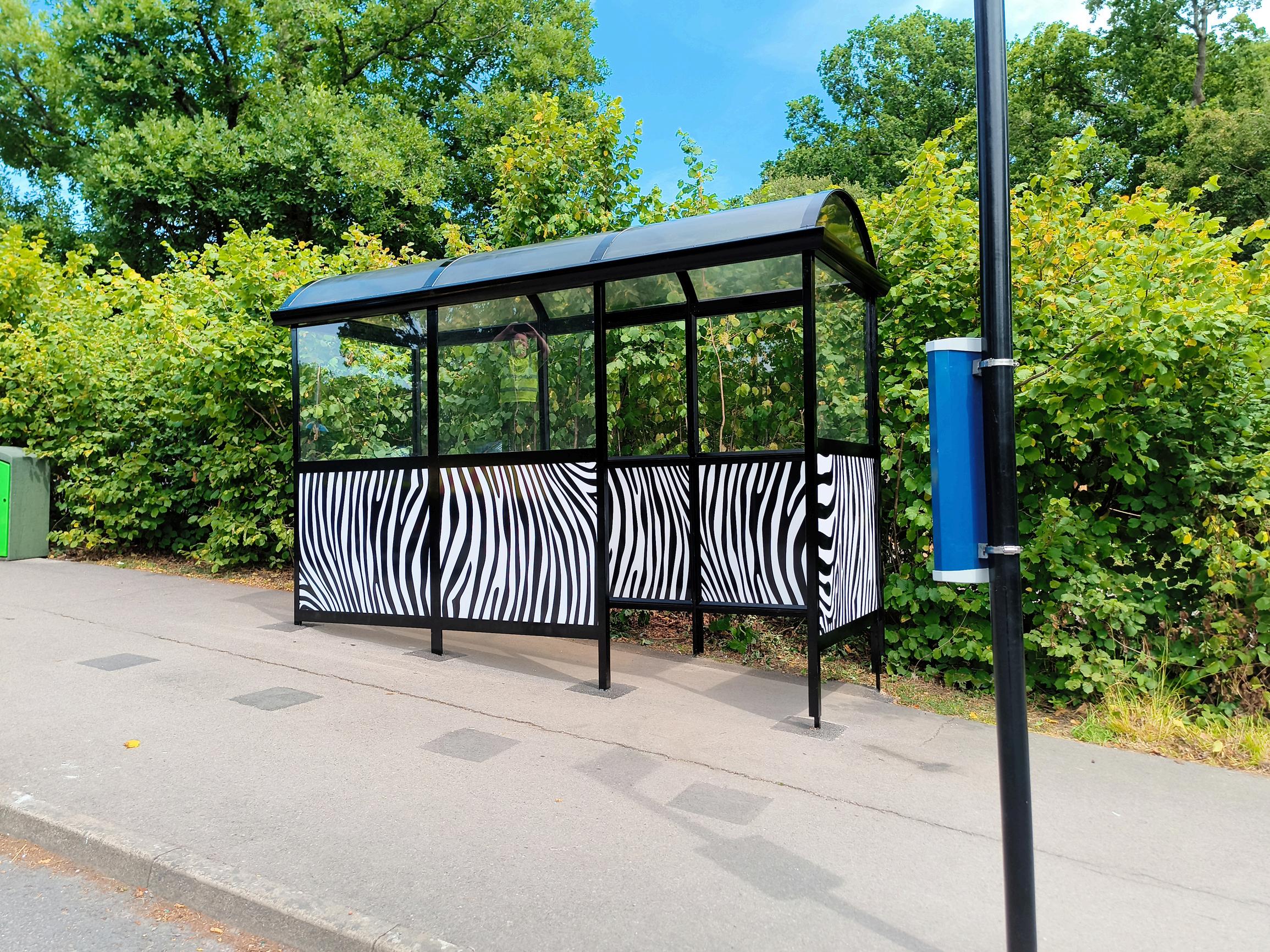

MONO Standard Shelter

The Mono Standard shelter can be fitted with three different roof types. It is designed to be easily installed and maintained, and accessories can be fitted at the time of installation or retrofitted. Available in cantilever and enclosed formats, with 2 to 5 bays, you can choose from a wide range of options, including side protection panels, glazing, lighting, solar panels, seating, information displays, and real time passenger information. It can be supplied with a green living roof.

Easy to configure for any location, style or transport scheme.

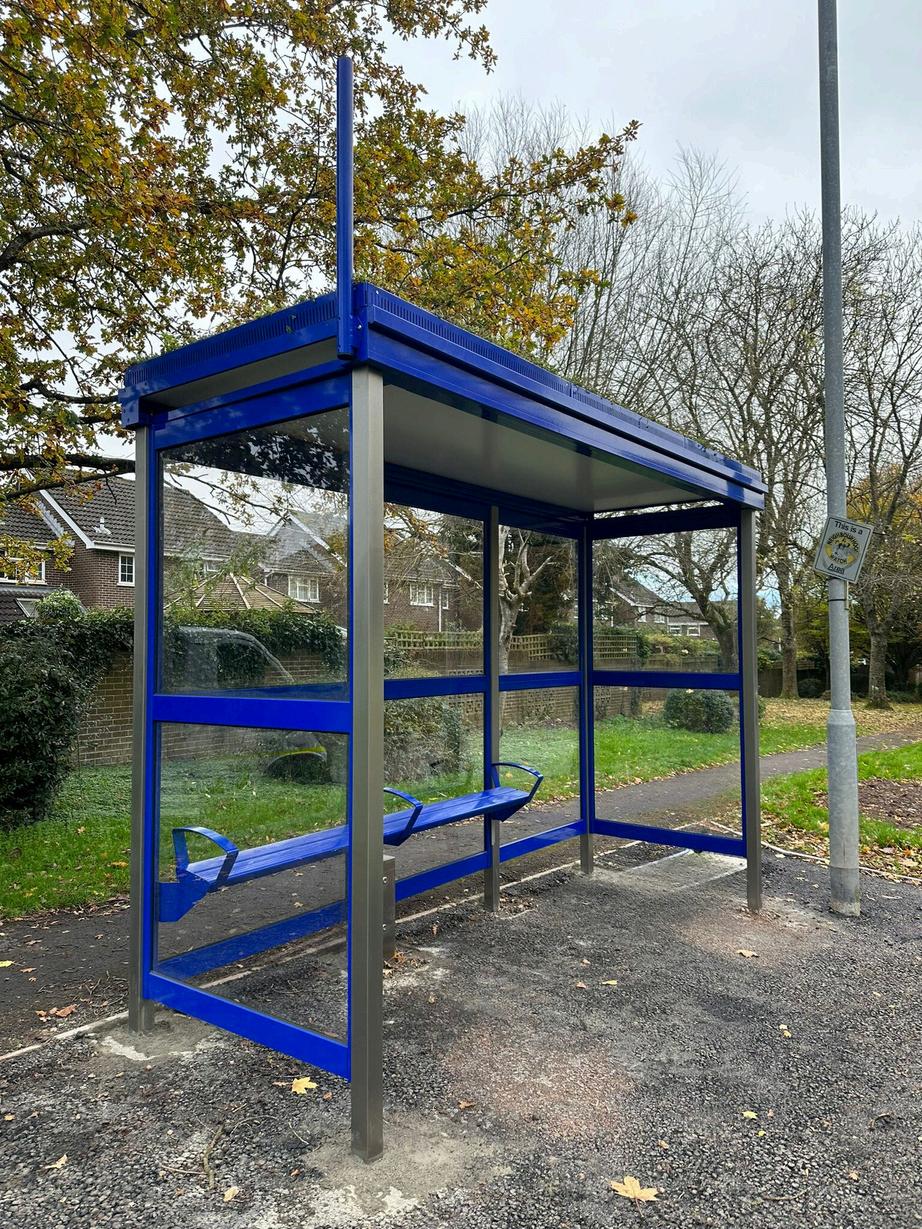

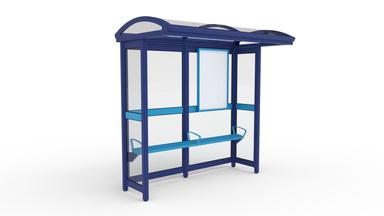

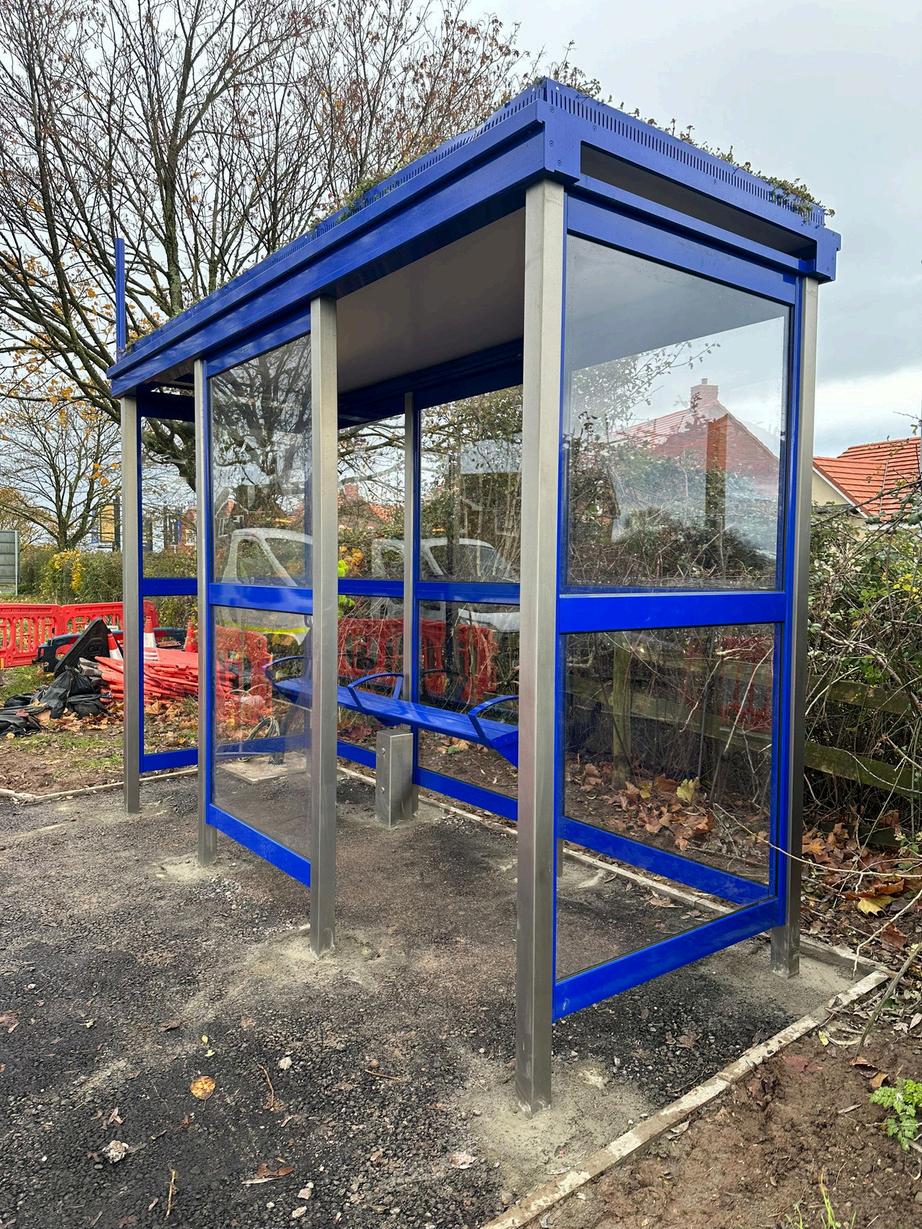

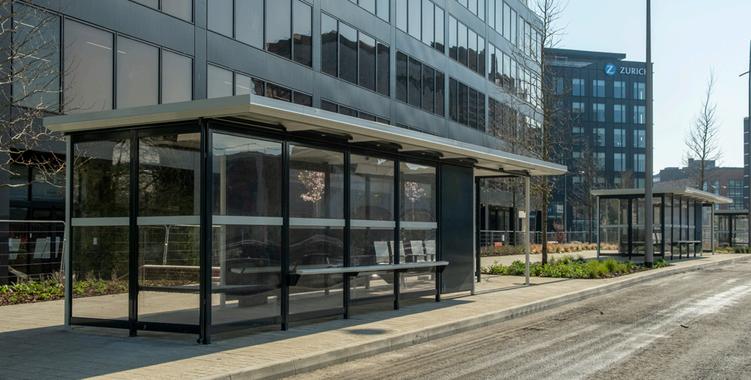

MONO Standard Shelter finished with stainless steel legs

Premium upgrade option on the MONO standard shelter

All the flexibility and quality of a standard MONO shelter, finished with premium brushed stainless steel legs

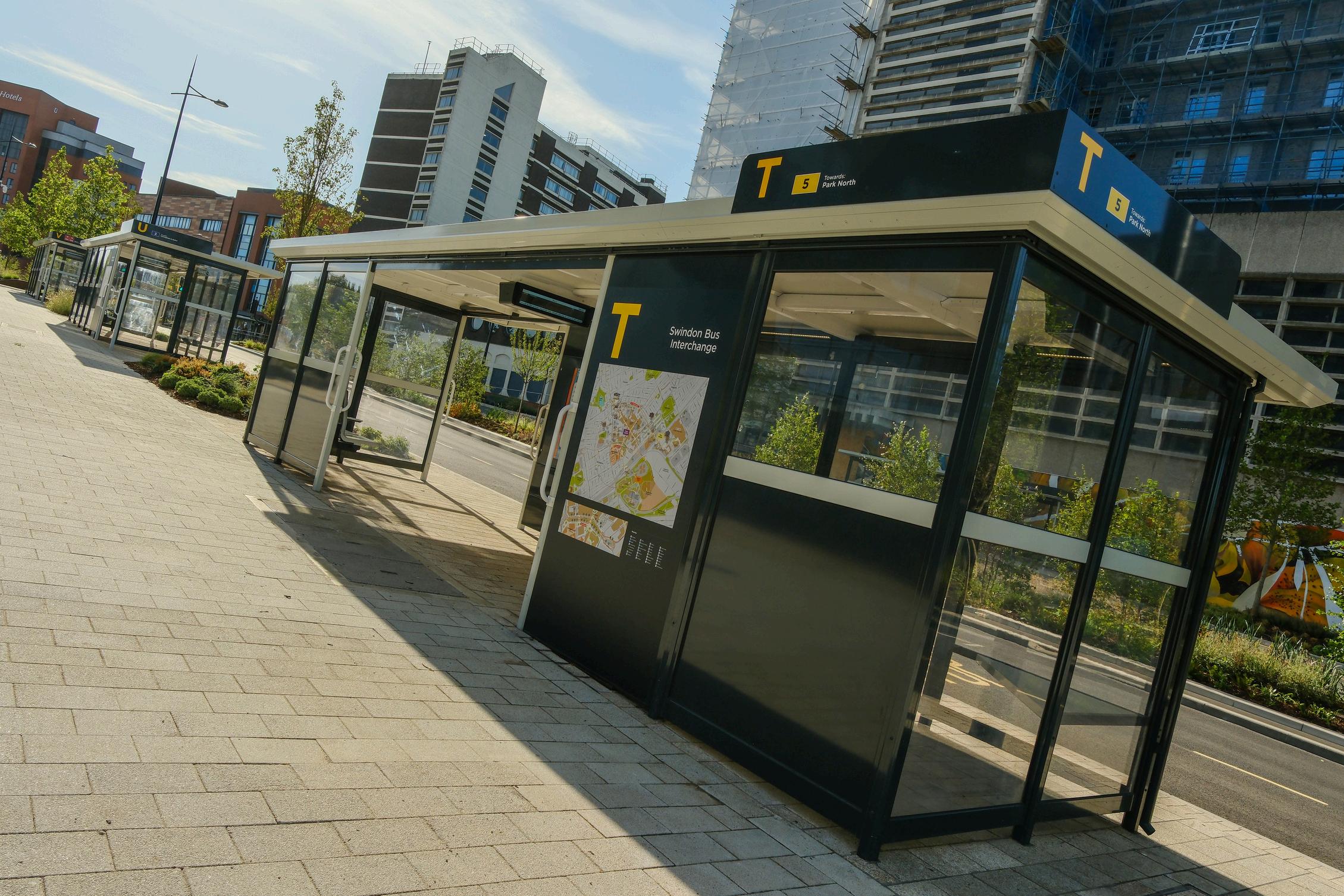

MONO Neighbourhood

Configured for multi-service urban locations and central community bus stops in the heart of suburbs, small towns & villages.

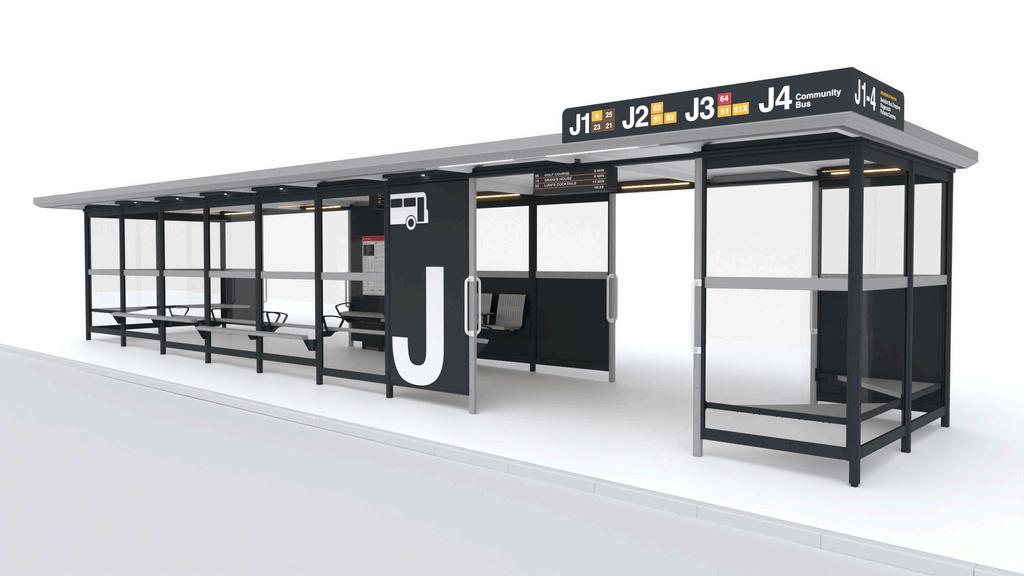

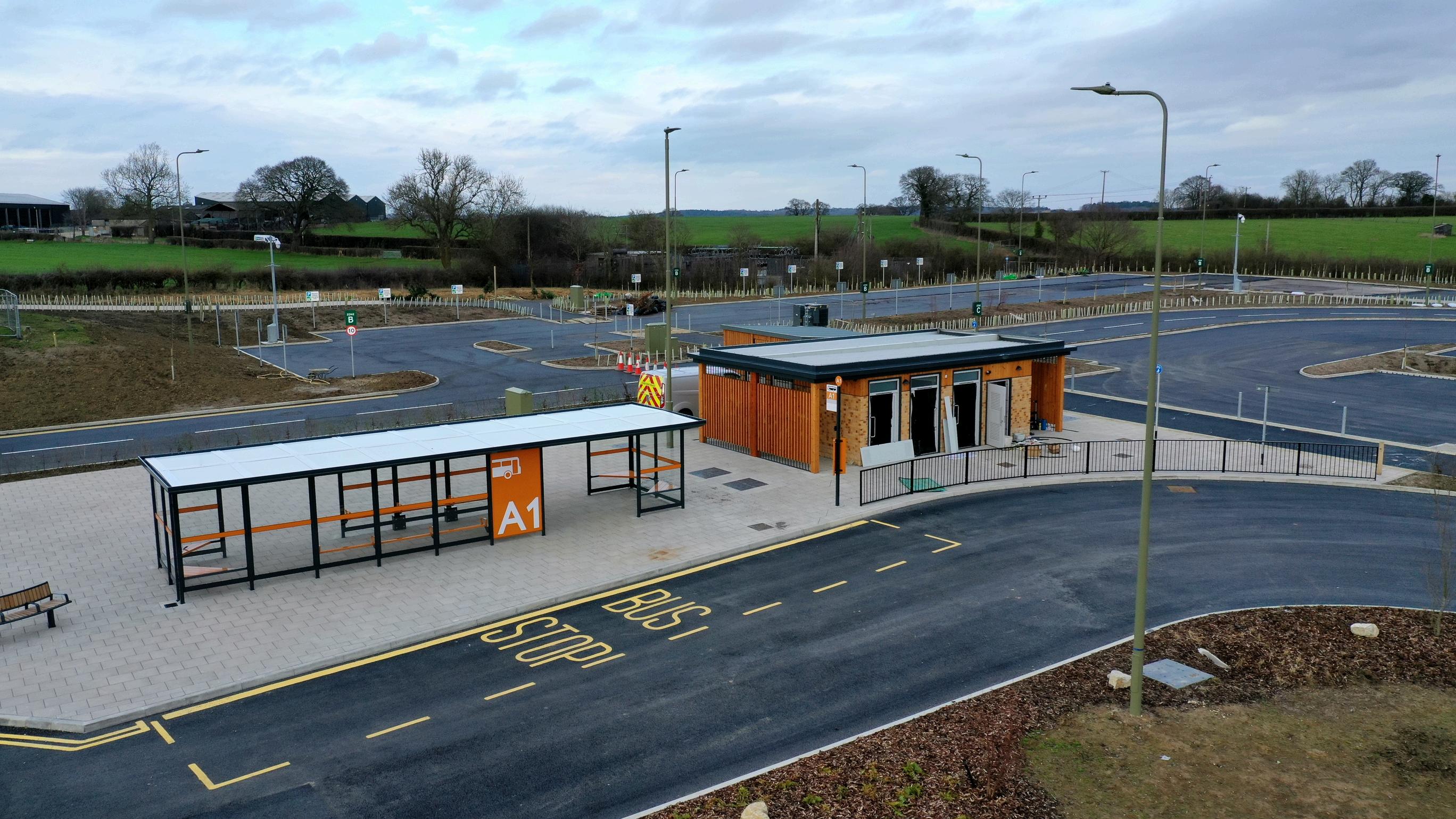

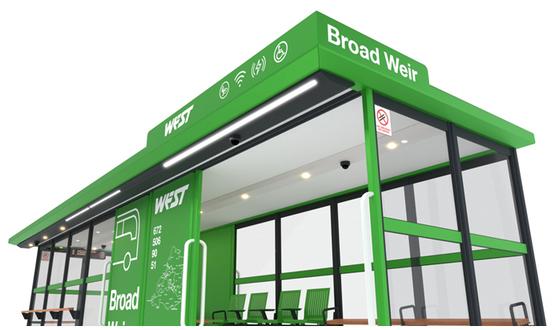

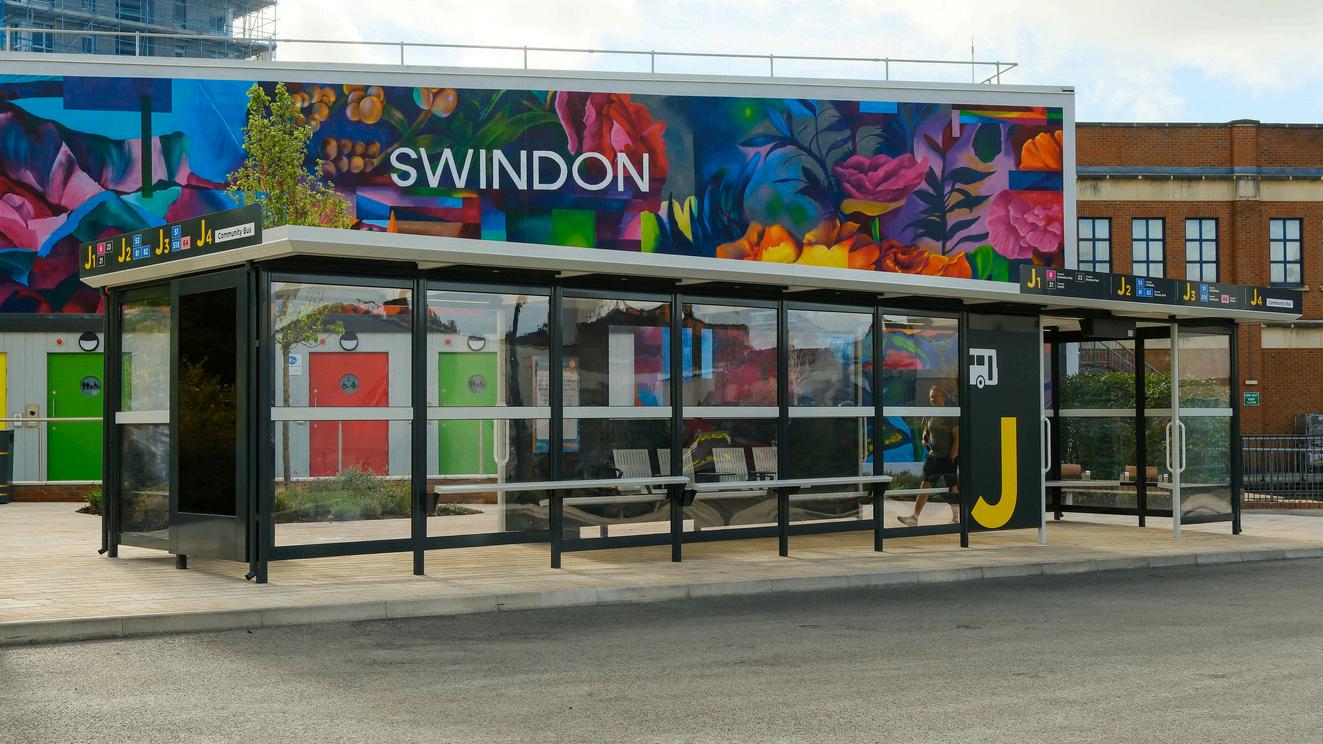

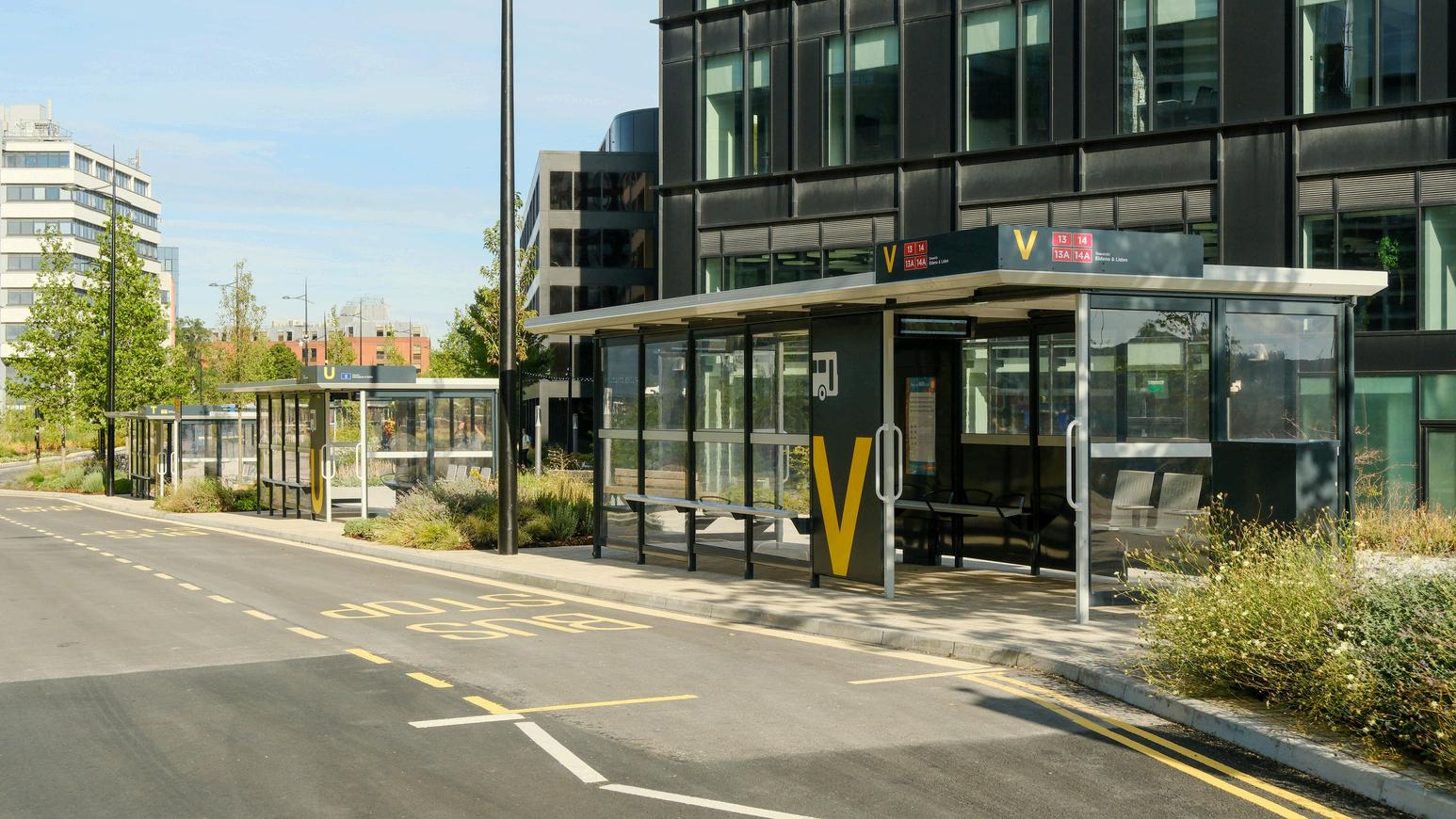

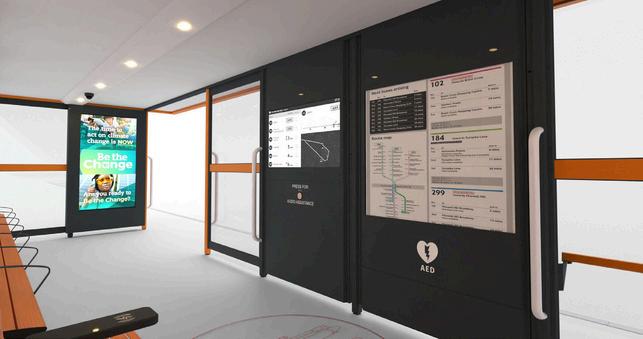

MONO SuperHub

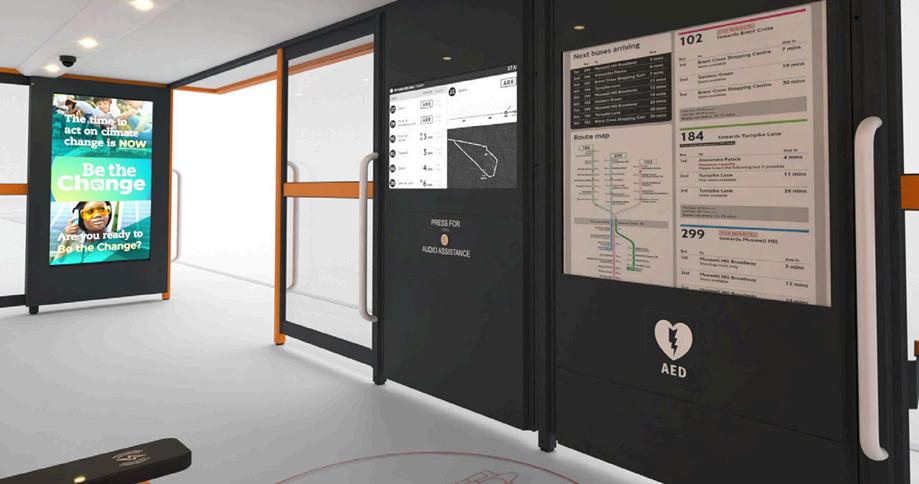

Next generation multi-modal, onwards journey hub ideal for bus stations, main interchange locations & high-traffic premium stops in major towns & cities.

Individually configured, SuperHubs benefit from the very latest innovations to ensure they meet the demands and priorities of modern passengers and transport systems. It’s highly scalable and each design and footprint can be configured to make the switch from active travel to public transport as easy as possible. The SuperHub expands in width and length to create shelters for every possible location to create a common, clear identity from major hubs to minor hubs. The shelter can be customised to suit the requirements of any individual site or bus station. It also allows for enhancement and improvement following its installation, so further amenities can be included as behaviour changes and/or budget becomes available.

From standard cycle parking to e-bike charging, e-scooter banks, and electric car charging facilities, the SuperHub has all the convenience of a Standard or Neighbourhood, including connectivity and intelligent features including Wi-Fi, wireless charging ports, sensor-controlled lighting.

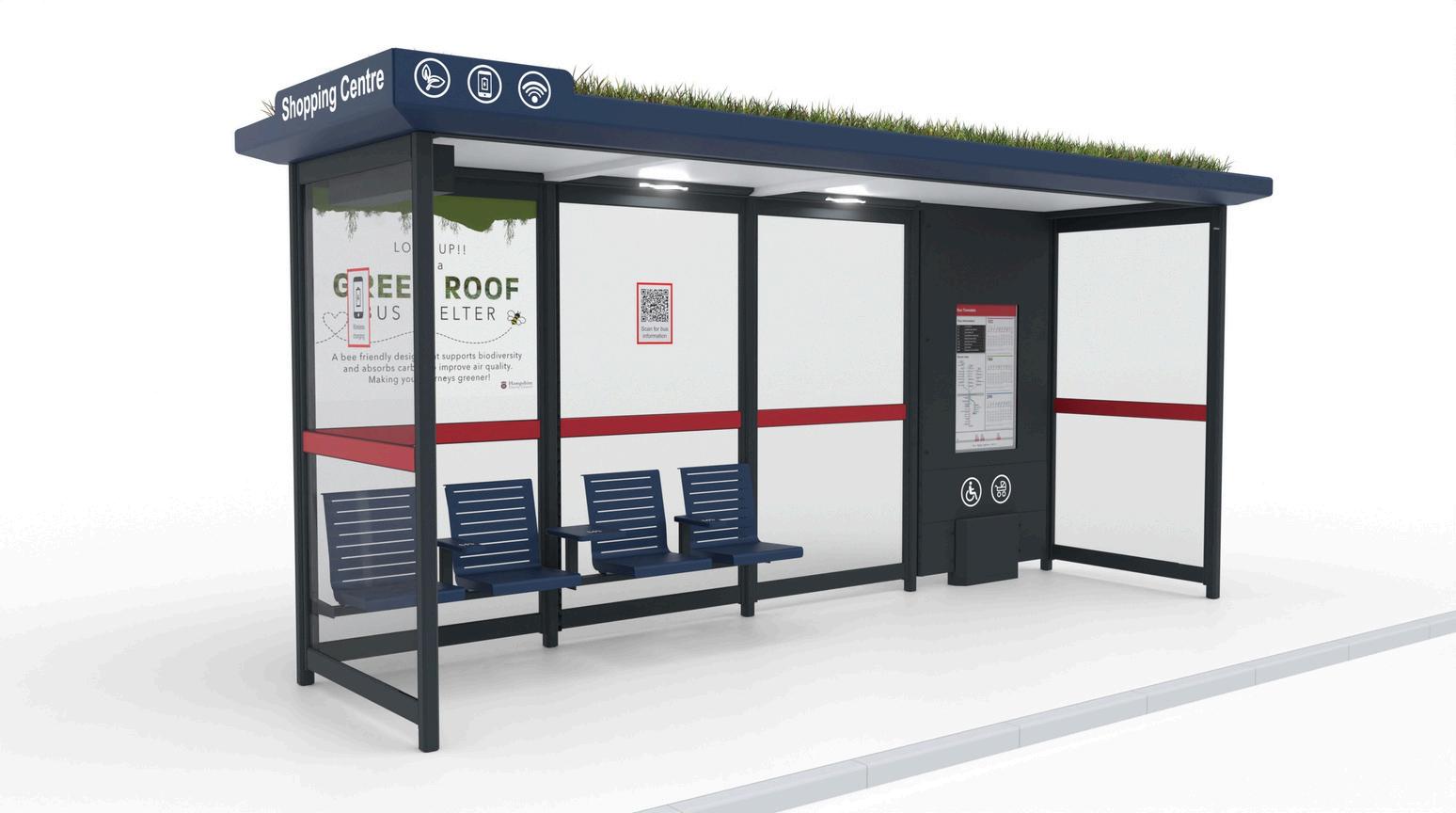

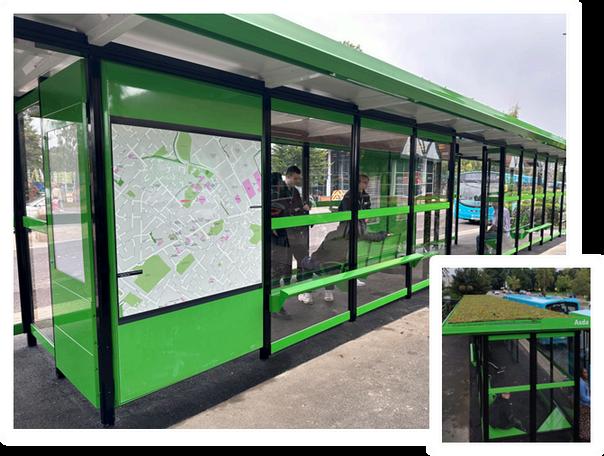

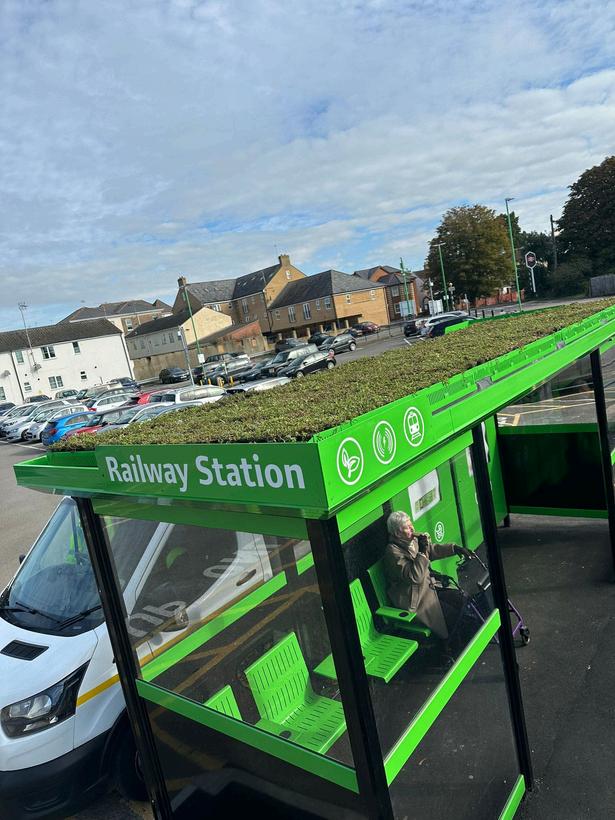

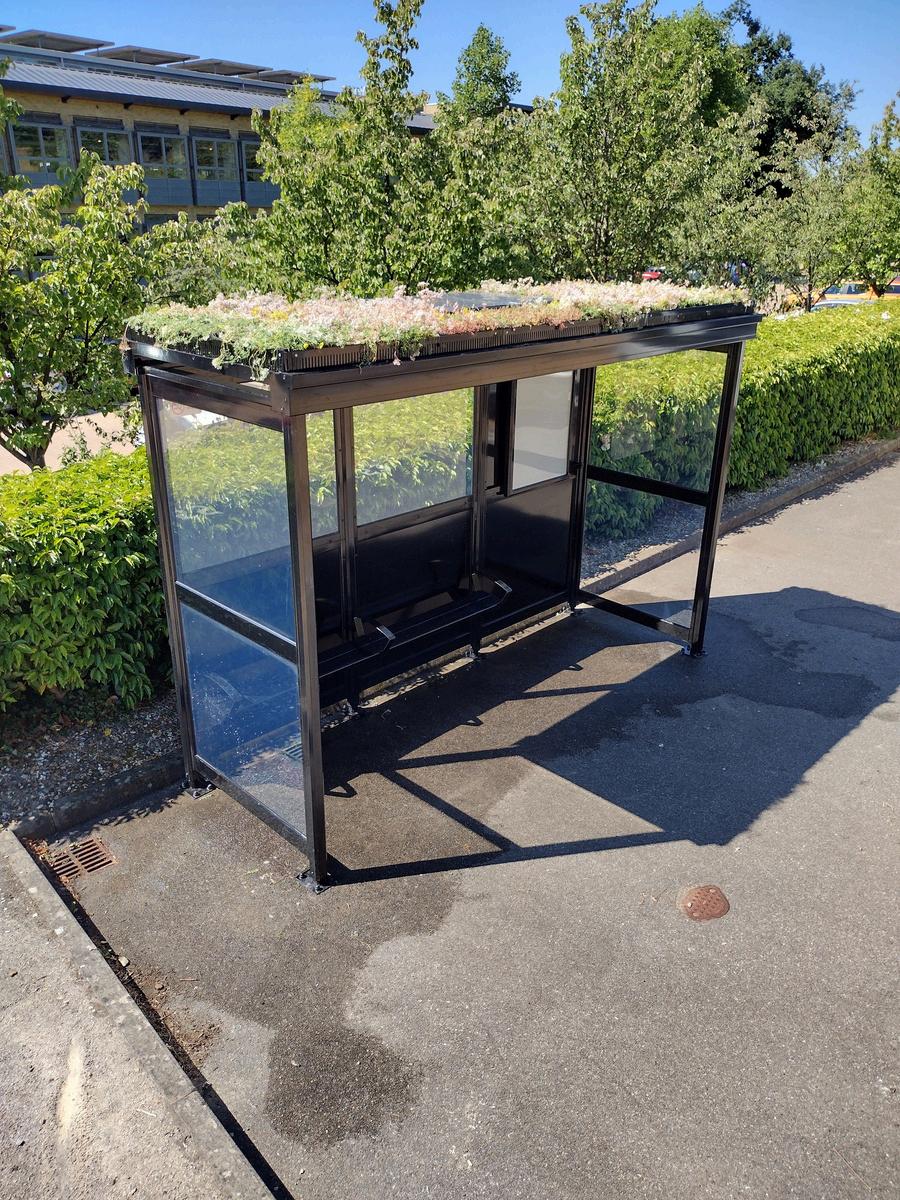

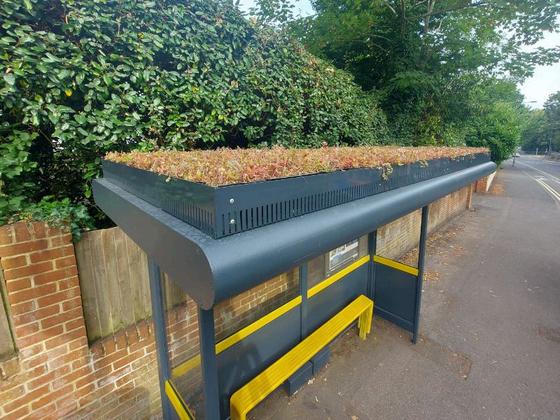

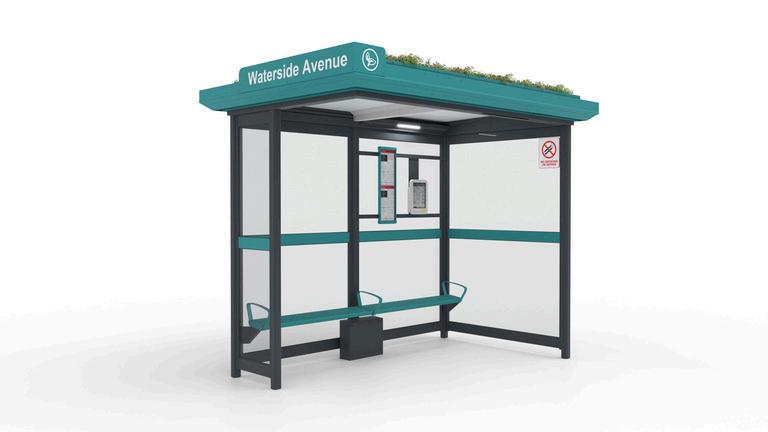

MONO Haven

Green living roofs offer a multitude of benefits to local communities

By installing sedum green living roofs on bus shelters, local authorities can make a meaningful impact on their cities, paving the way for a greener, healthier, and more sustainable future. Green roofs not only enhance the visual appeal of urban spaces but also offer a range of environmental, social, and economic benefits. Furthermore, they align seamlessly with the sustainability targets of local authorities, making them a strategic choice for councils aiming to meet their green objectives.

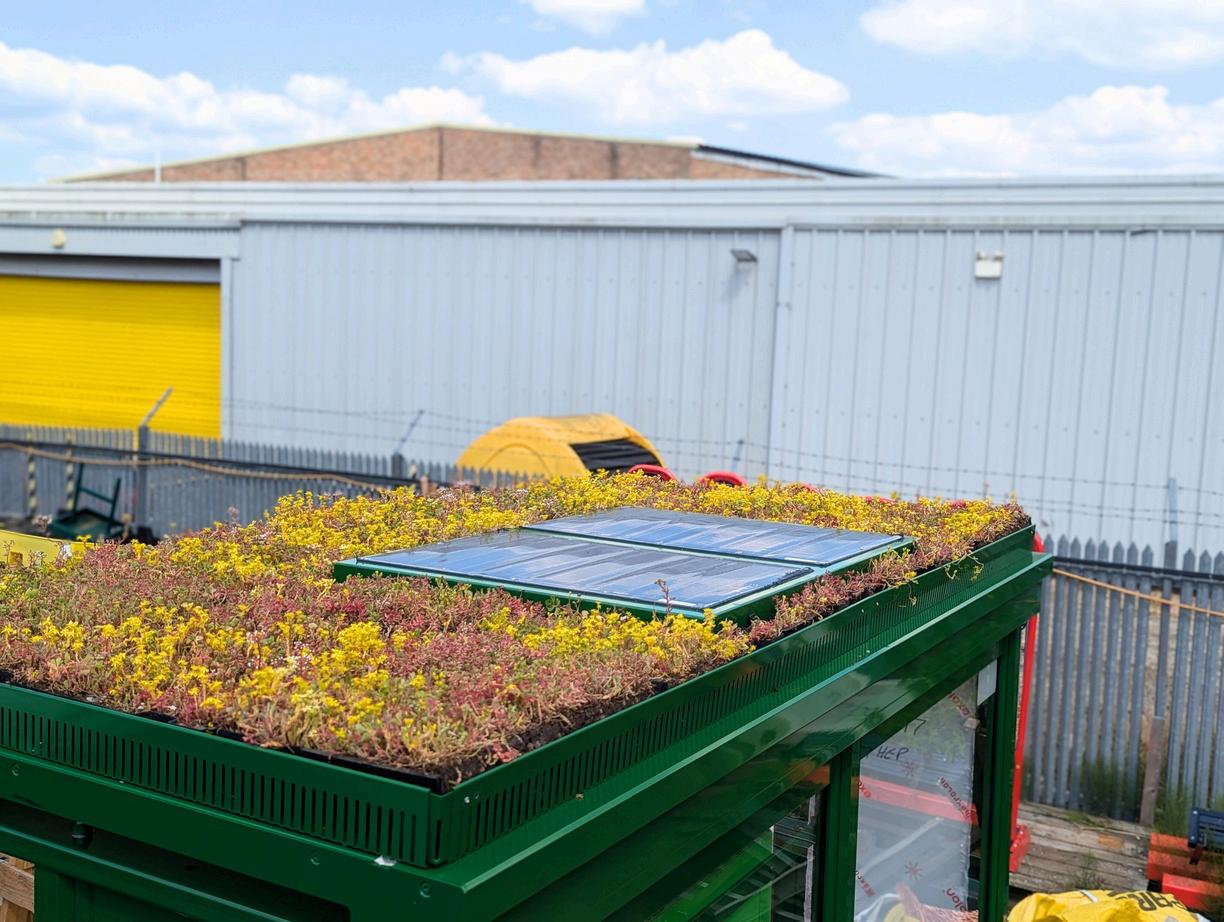

The MONO Haven can feature a standard flat roof or our innovative Hub roof design which allows for enhanced branding and route finding. The integration of solar panels powers LED lighting as well as enhancing the sustainability and social value credentials of your public transport infrastructure.

Refurbishing shelters is the ideal time to retrofit a living green roof. After a survey to confirm the structural integrity of the shelter, a ‘green’ roof can be retrofitted to suitable shelters, improving air quality and contributing positively to your environmental and sustainability goals. Read our article on the environmental, financial and social benefits of green living roofs for your transport scheme.

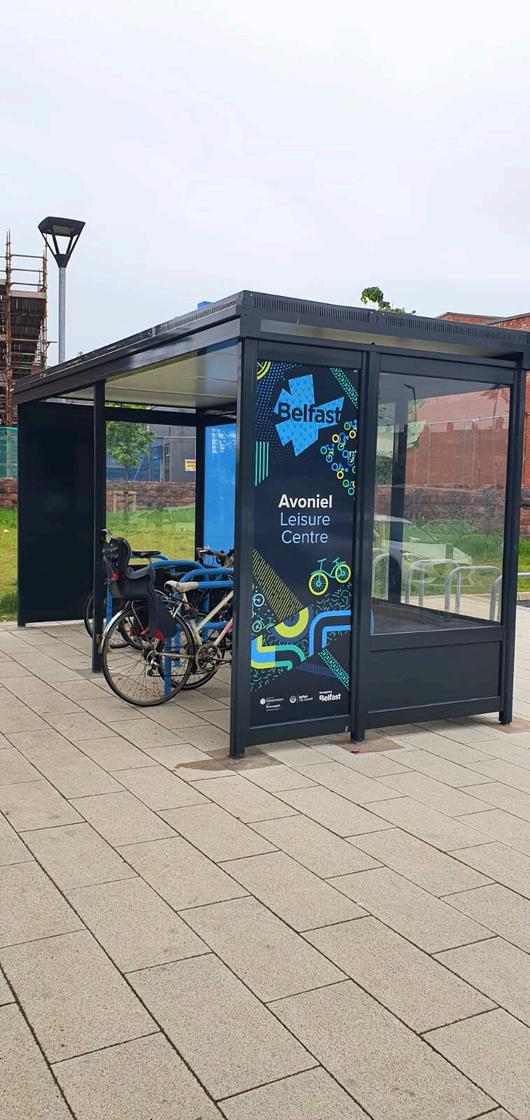

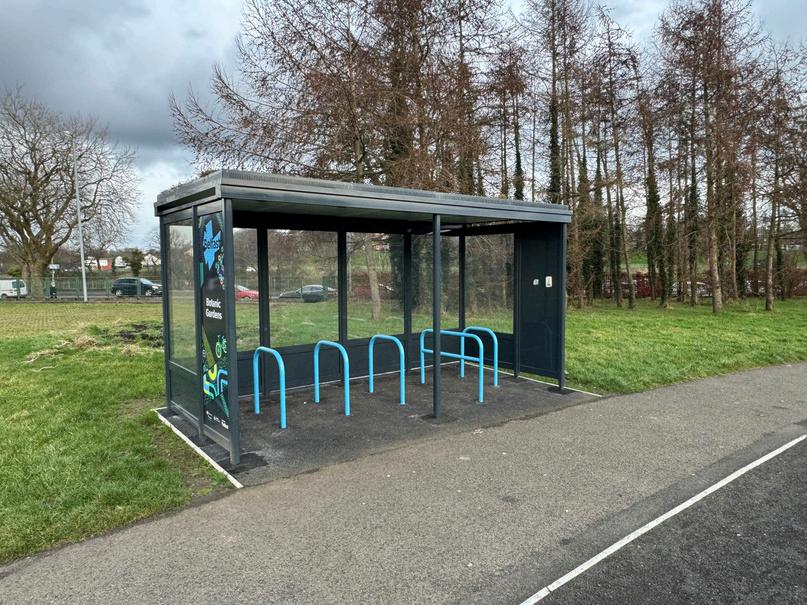

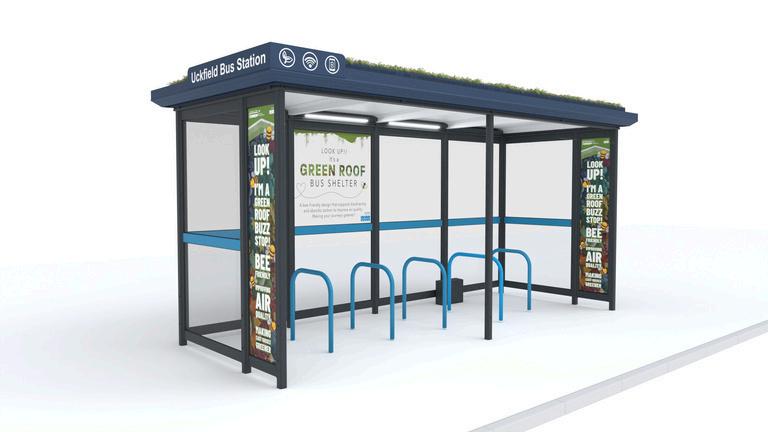

MONO Cycle

For sustainable, active travel schemes and cycle networks.

Robust, durable and high quality, our Mono Cycle shelters are designed to support sustainable, active travel schemes in any location, and especially city and town centres where bicycle theft and vandalism can be a serious deterrent to adoption. Our Mono Cycle shelters provide safe bike parking where it’s needed most. Features include:

Secure cycle parking to lock both frame and wheel.

A range of stand options including Sheffield stands and M profile stands, which can accommodate a wide variety of cycle shapes and sizes, including children’s cycles.

Bicycle and scooter e-charging points.

Protection from the elements including a range of options for roof, side and end panels.

Solar panels (and associated infrastructure – roof or pole mounted).

Ecological features such as a green ‘living’ roof (sedum planted) or planters.

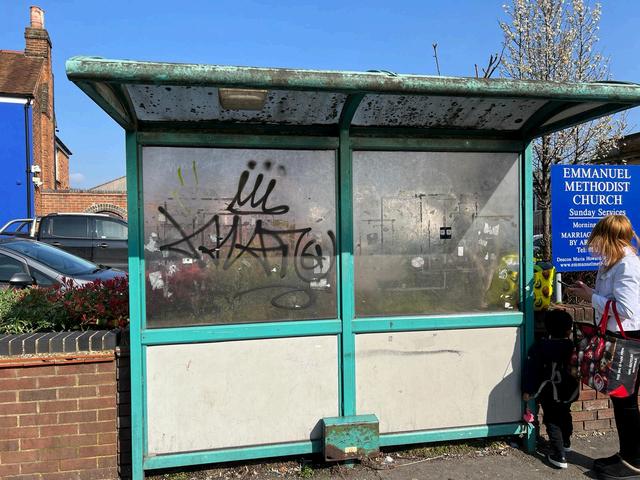

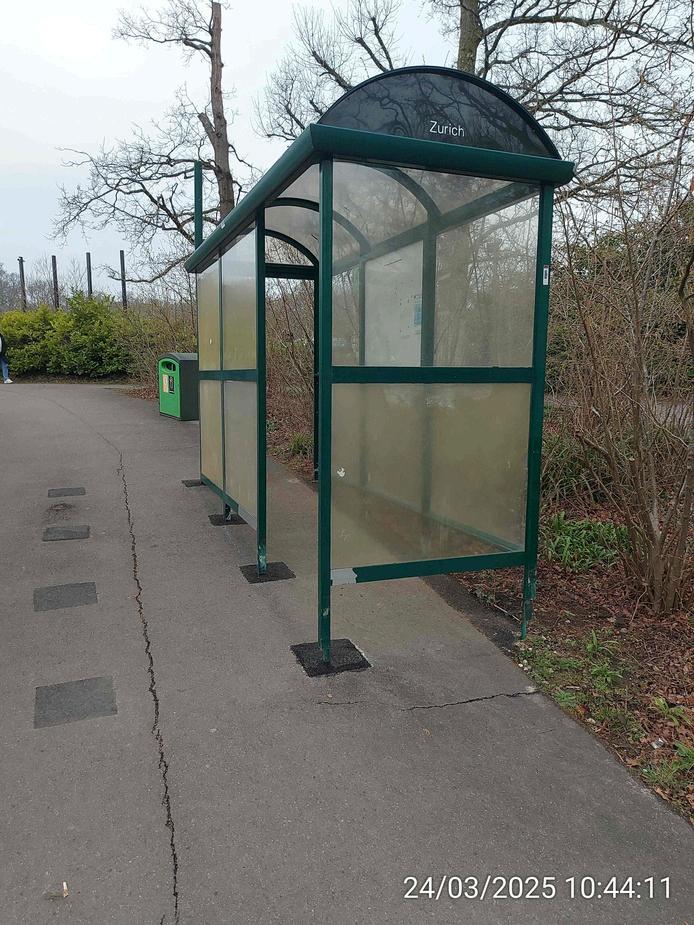

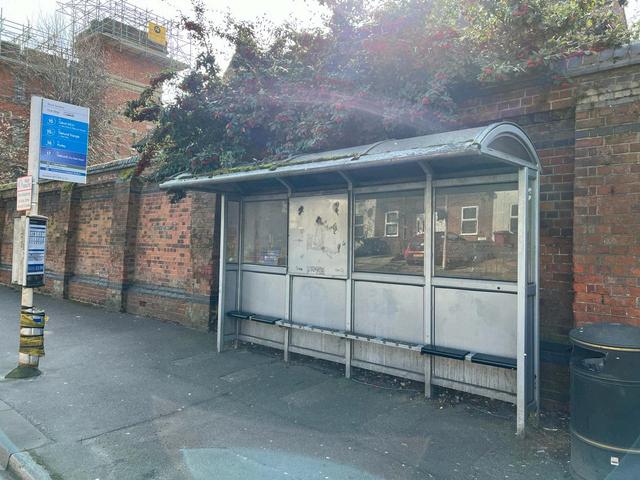

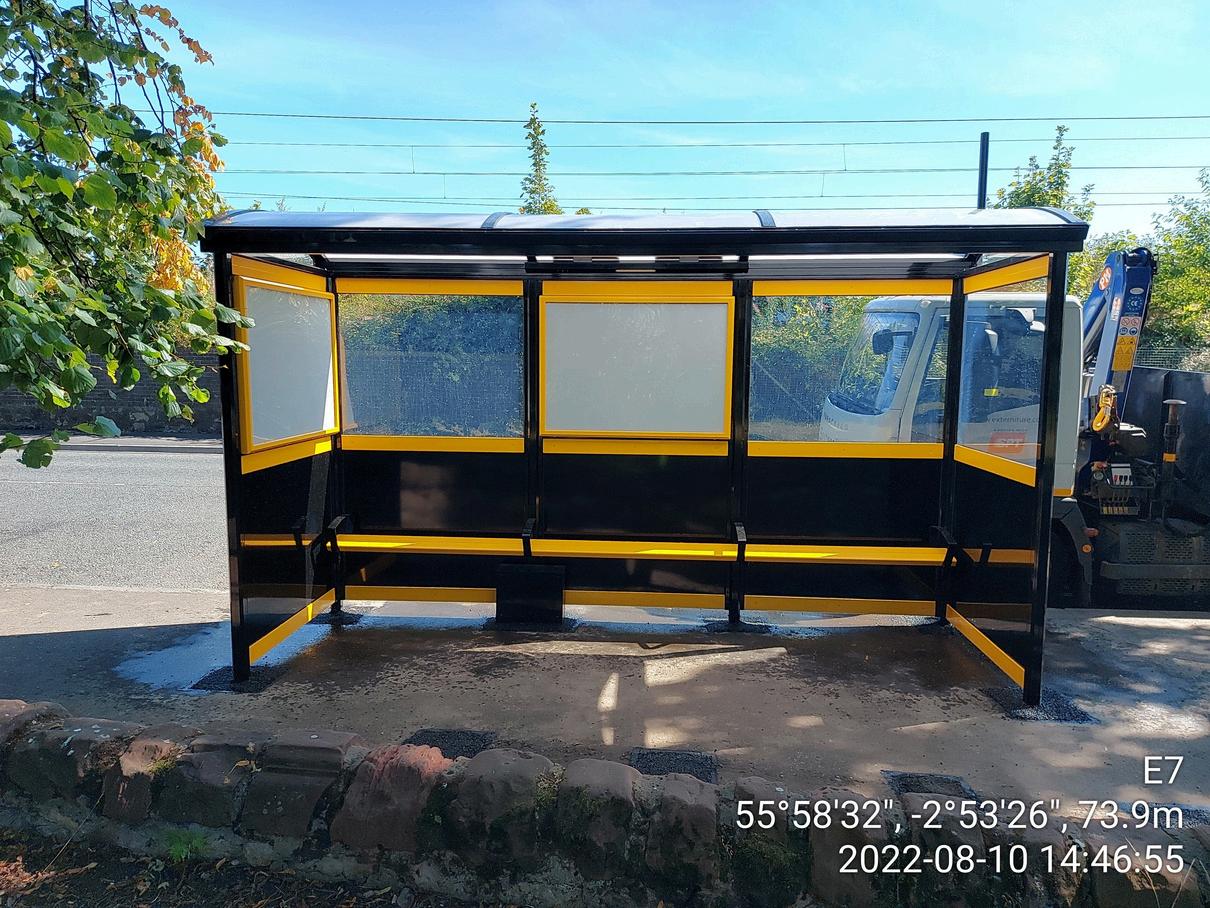

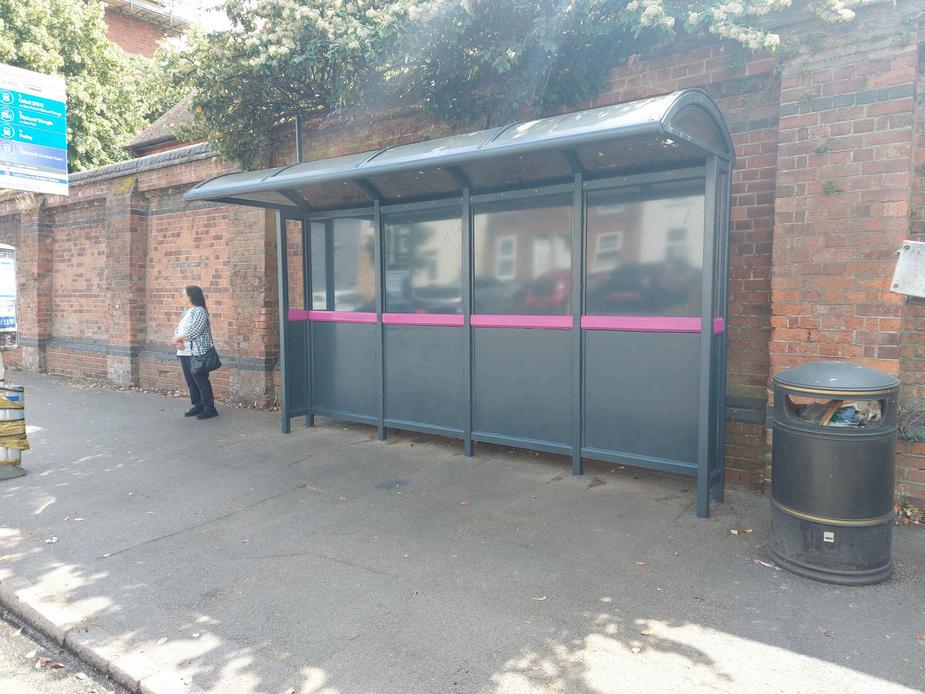

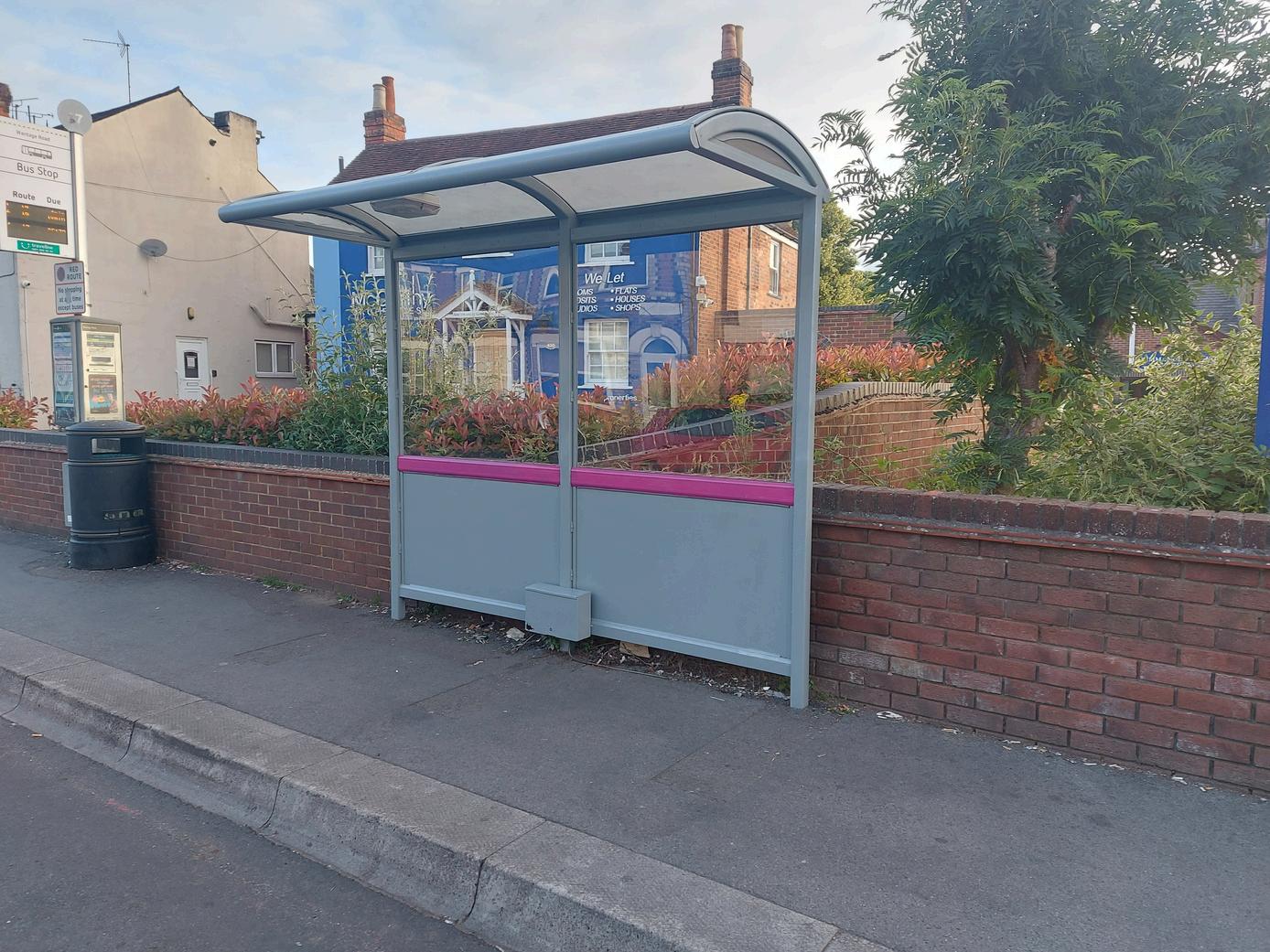

Bus Shelter Refurbishment

The results will be clear to see - for passengers & your bottom line

Refurbishing bus shelters is more than just a practical solution; it’s a step toward environmental, economic, and community advancement. We can work together to modernise your transit infrastructure – sustainably and affordably. We have a specialist bus shelter refurbishment team that delivers stunning results without the need for full replacement. Our approach is both environmentally friendly and financially savvy, helping local authorities and organisations save costs while making a positive impact on the planet.

Why Choose Refurbishment?

1.

Like New Appearance: Our expert treatments can restore your shelters to look as good as new.

2.

Eco-Friendly: Reduce waste, conserve resources, and lower your carbon footprint by choosing refurbishment over replacement.

Significant Cost Savings: Avoid the high expense of purchasing and installing new shelters.

4.

3. Extended Lifespan: Increase the durability and functionality of your existing structures.

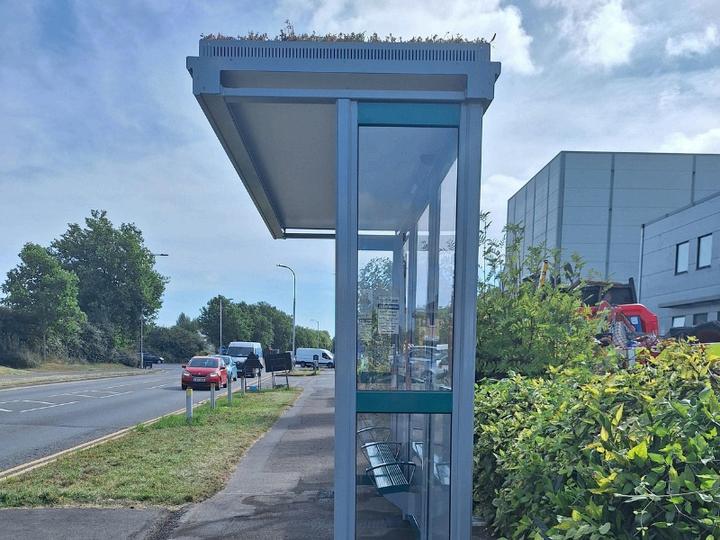

Enhance with a Green Living Roof

We can also retrofit bee-friendly green roofs, where suitable, to contribute to biodiversity and promote sustainability.

ELEVATE YOUR PUBLIC TRANSPORT NETWORK WITH ENHANCED OPTIONS

& FEATURES

Passenger Comfort and Convenience

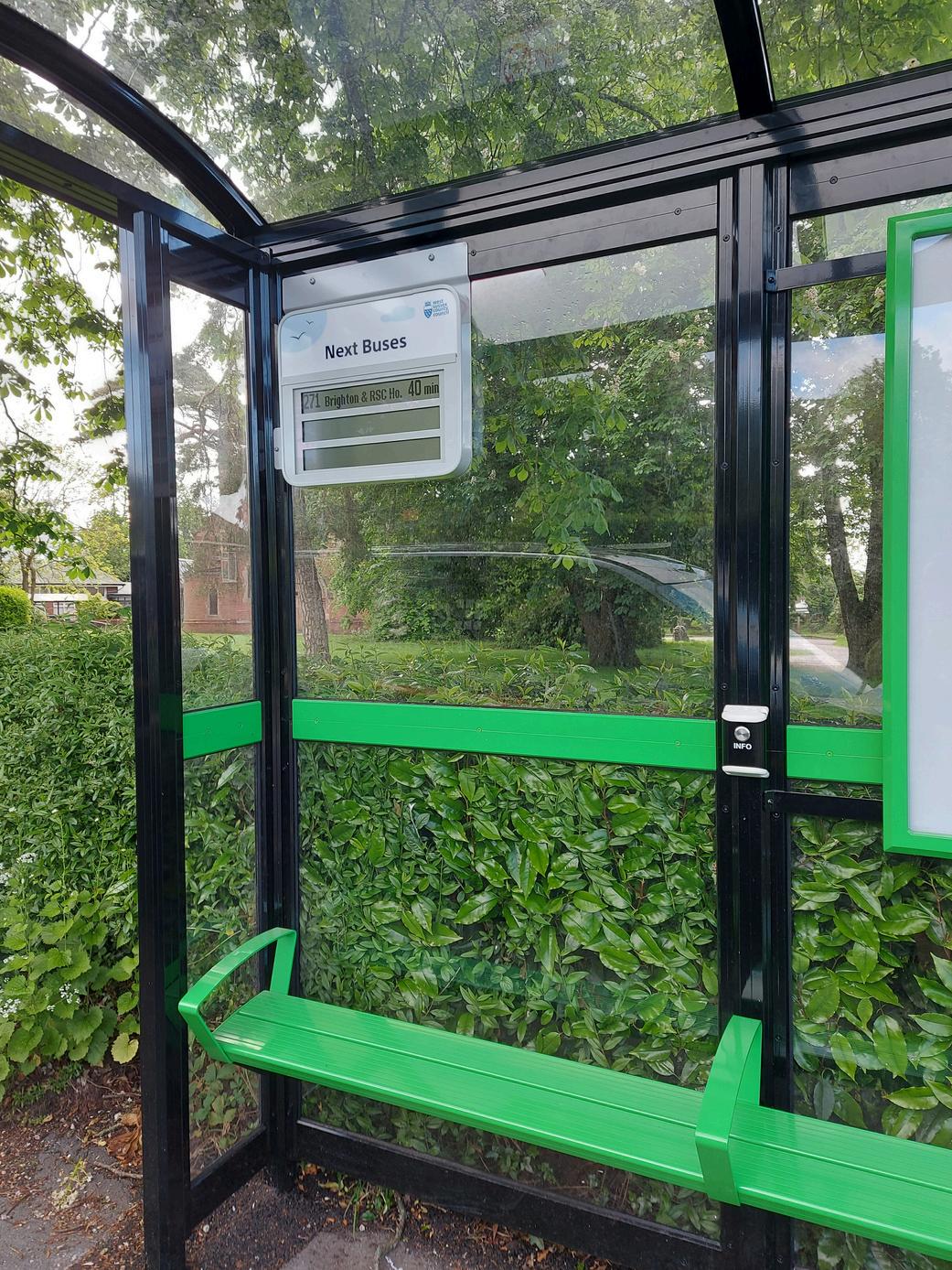

RTPI, Timetables and Route Finding

Connectivity, Power & Sustainability

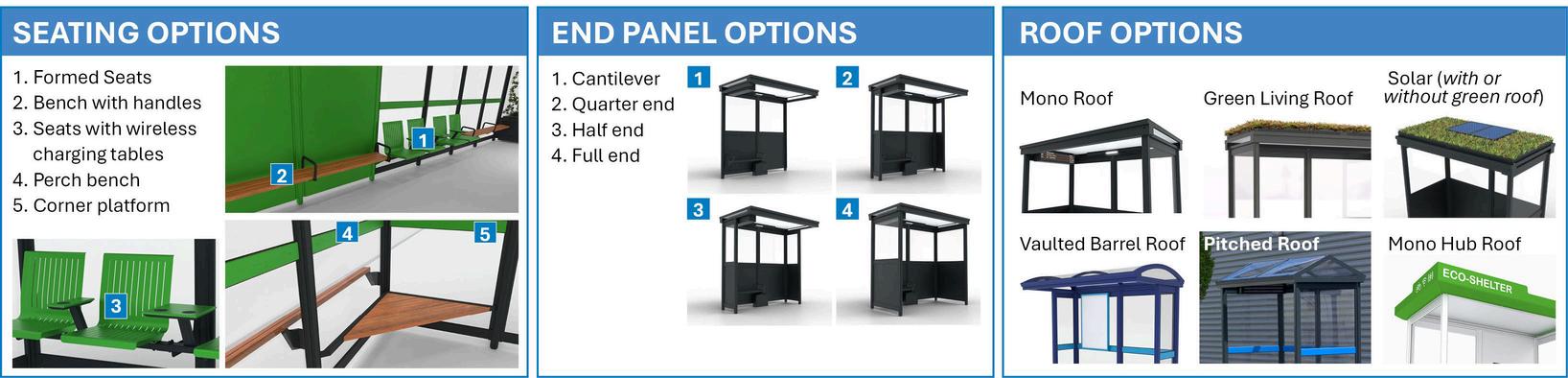

Passenger Comfort & Convenience

Lighting Options

Standard mains lighting

Premium mains lighting

Mains or solar powered

Strip, spot & backlighting

Sensor-controlled - ambient & PIR motion triggered

Internal and external options

Seating Options

Individual seats with armrests/tables

With or without wireless charging

Bench seating with handles

Corner platform seating

(ideal for parents with small children)

Perch seating (internal or external)

RTPI, Timetables & Route Finding

RTPI shelter or pole mounted*

Double Royal display case

Timetable cases (210mm & 260mm)

Integrated poster display case

Backlit or overhead lighting

Stand-alone advertising monoliths

Enhanced route-finding on Hub roof

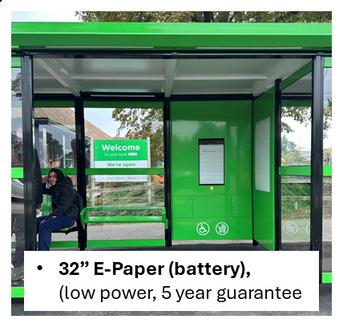

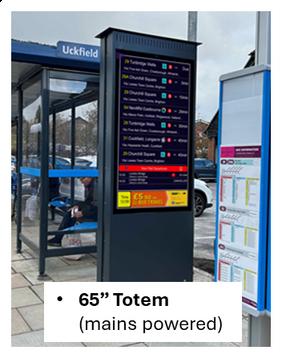

Integrated digital displays Real Time Passenger Information

Backlit timetable display cabinet

Audio and QR code information

Living ‘green’ roofs

WiFi and wireless charging tables

Lighting, RTPI and digital display features

Solar power - roof or pole-mounted

e-Bike & e-Scooter charging

Discrete electrical distribution board

Mains & battery power options

Connectivity, Power & Sustainability

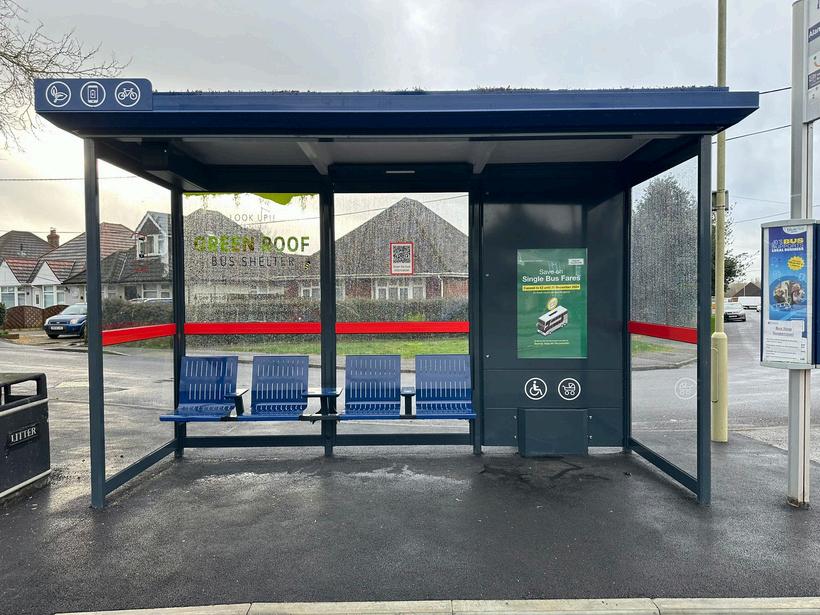

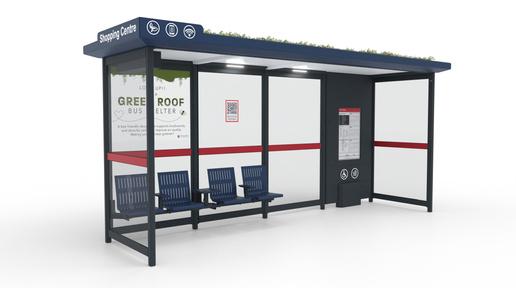

MONO Neighbourhood

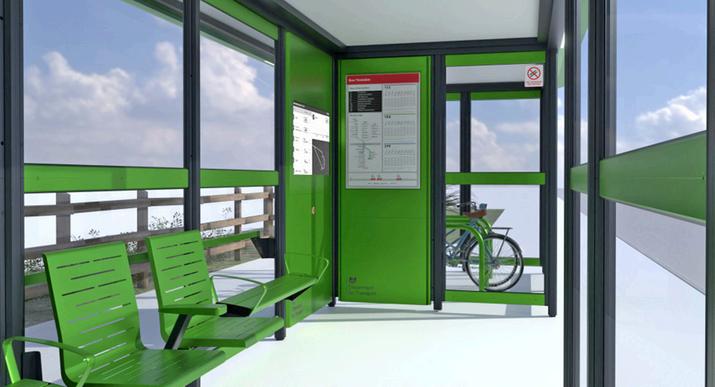

4-Bay with green living Hub roof, individual seats with wireless charging tables and integrated poster case

The MONO Concept

A modular, adaptable shelter system designed with eco DNA to provide improved passenger comfort & experience, for any passenger, for any journey, for any transport scheme. The system can take a standard form or be enhanced to the Hub design providing more passenger functionality & information options. All options use the same key components.

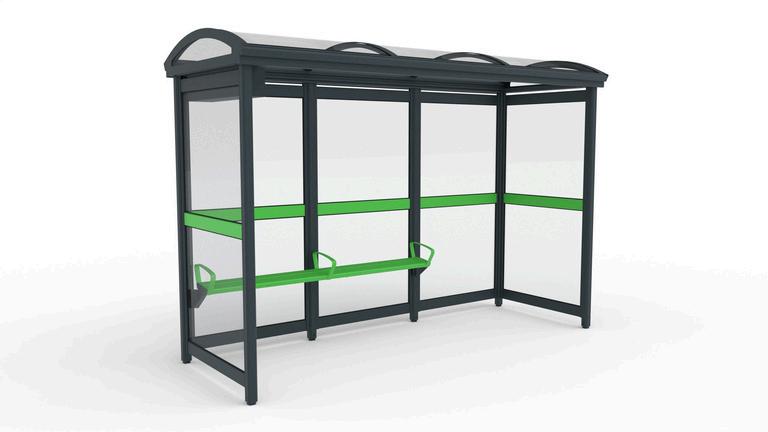

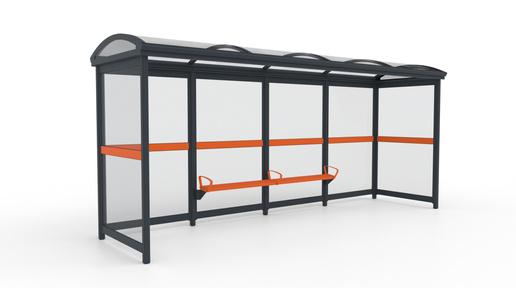

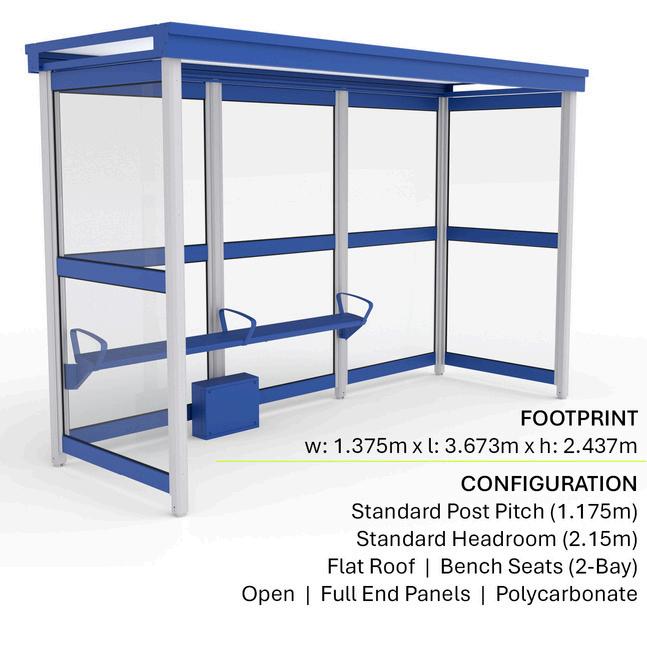

MONO Standard Shelter - 2-5 bay, 4 roof type

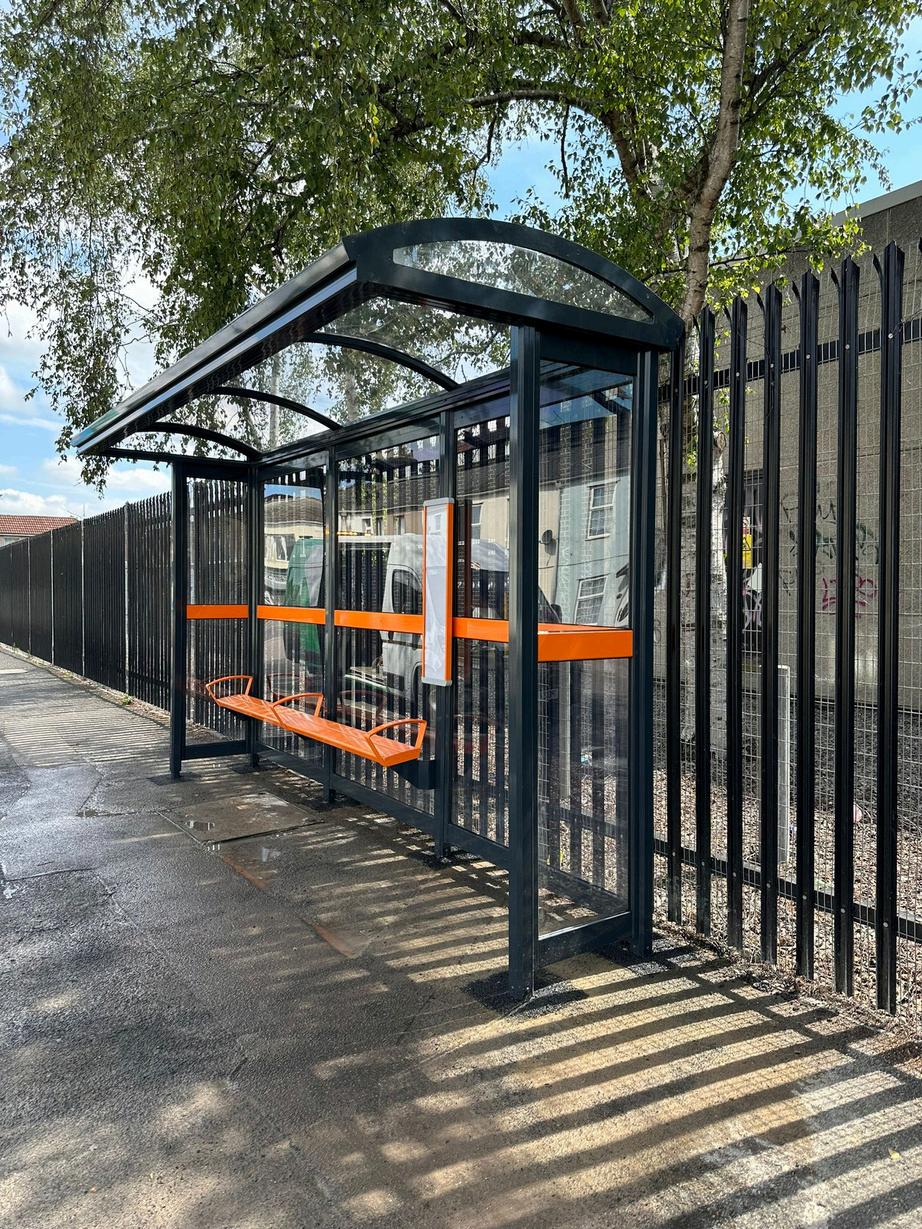

(flat, flat green, barrel vault, pitched)

MONO Neighbourhood - 2-4 bay, advanced Hub roof

MONO Superhub - multi-bay for bus stations/interchanges

MONO Cycle & MONO Haven Green Living Roofs

Two post pitches - standard (1.175m) and wide (1.375m)

Two Headroom heights - standard (2.1m) and cycle (2.4m)

Four Panel Types - polycarbonate, aluminium (solid or perforated) & glass

Configurable access options - open/enclosed, front & rear entry, cantilever, quarter, half and full end panels.

Blueprint of a MONO

Modern design with subtly superior features. Our Mono shelters not only look outstanding but have an outstanding build quality and all the features needed to satisfy the needs of the modern public transport network - passenger comfort, security and convenience - whilst protecting your investment and supporting your aspirations:

Connected and intelligent features such as sensor-lighting, WiFi, wireless charging, e-charging for bikes scooters and Real Time Passenger Information (RTPI).

Colour-matched enhanced branding options, and contrasting mid-rails and seat to assist visually impaired passengers

Futureproofing built in with cabling channels & universal-fit options to retrofit. Sustainability and eco-credentials that align with local authority Net Zero and Social Value targets.

Low-maintenance, concealed fixings which are less susceptible to vandalism, thoughtfully configured for each location and every location.

Revenue generation options such as digital advertising panels.

Configurable & Customisable

MONO shelters are built on the same blueprint, with standard size and width ‘bay’ options which means you can configure the length & width to suit the scale of your requirements, as well as adapting the functionality to meet the needs of passengers in any location and any stage of their journey.

Universal-fit accessories and options are built to the same high-quality standards. Our designers can configure shelters that meet your exact requirements and if your needs change after installation, you can easily modify or upgrade shelters with accessories and options from our range - all designed for retrofitting onto the MONO framework.

Futureproof &

Sustainable

Built from long-lasting extruded aluminium, our shelters are designed for ease of maintenance and with a prolonged life. Flexible channels, connection plates and hidden cabling in every shelter makes upgrades and integrating new technology simple at any time.

From sedum green living roofs that encourage biodiversity to integrated solar panels and battery technologies, and charging points for e-bikes and scooters, our roadmap to achieve Net Zero by 2030 aligns with local authority’s sustainability goals.

Creating Social Value

At the heart of our business lies a desire to make people’s lives better and contribute to the overall wellbeing of communities. We are committed to increasing the social value our business creates in our local area and in the communities served by our customers. Read about our Social Value and Sustainability commitment.

Your Trusted Partner

For the Journey

Bus Stop Infrastructure

Bus, Cycle & Multi-Modal Shelters

Transport Hubs and Major Developments

RTPI & Digital Displays

Timetable Printing & Posting

Installation & Groundworks

Maintenance & Surveys

Refurbishments

Infrastructure Management
