Excellent product catalogue 2023 by excellent-press

Product catalogue

v.01

2023

Your bathroom your dreams

ACRYLIC BATHTUBS

p. 8

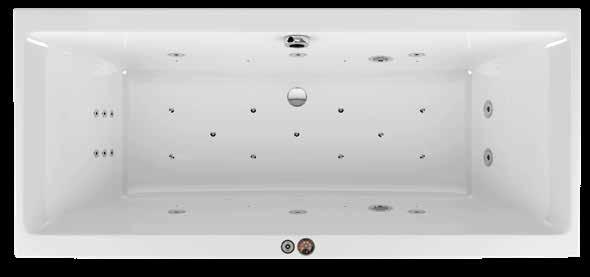

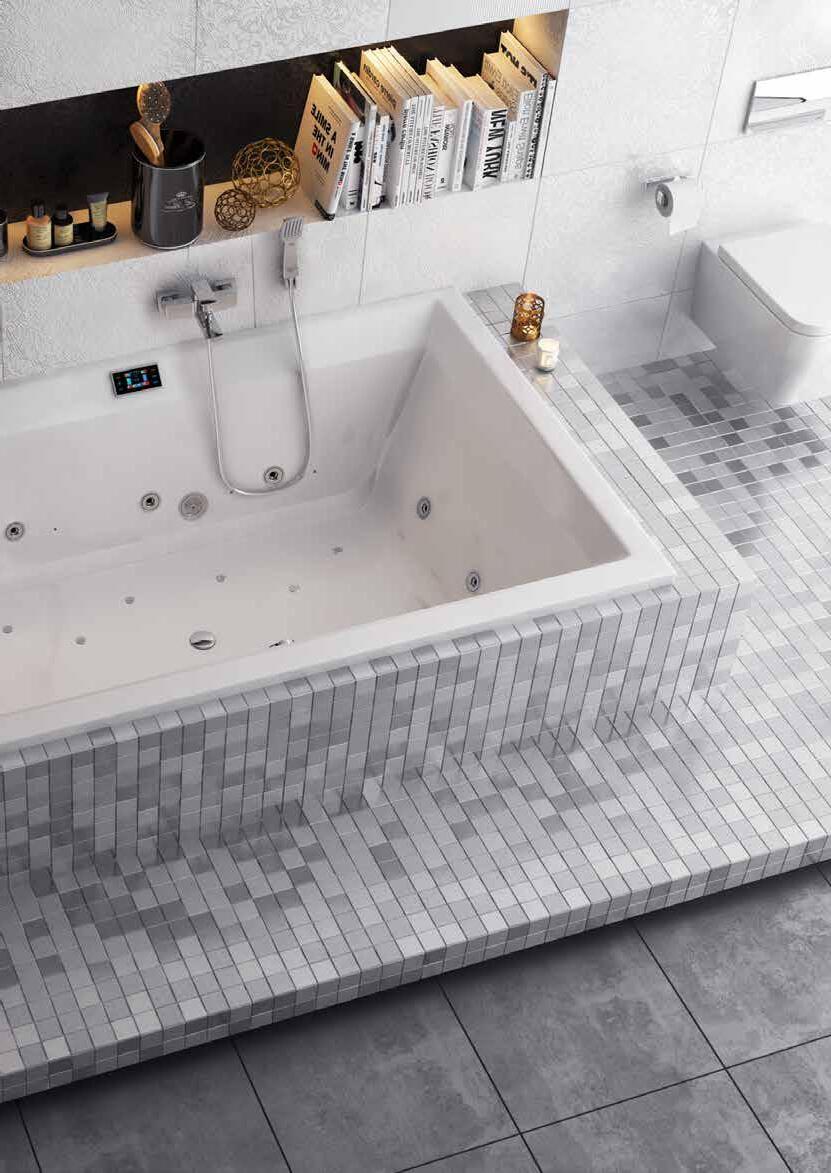

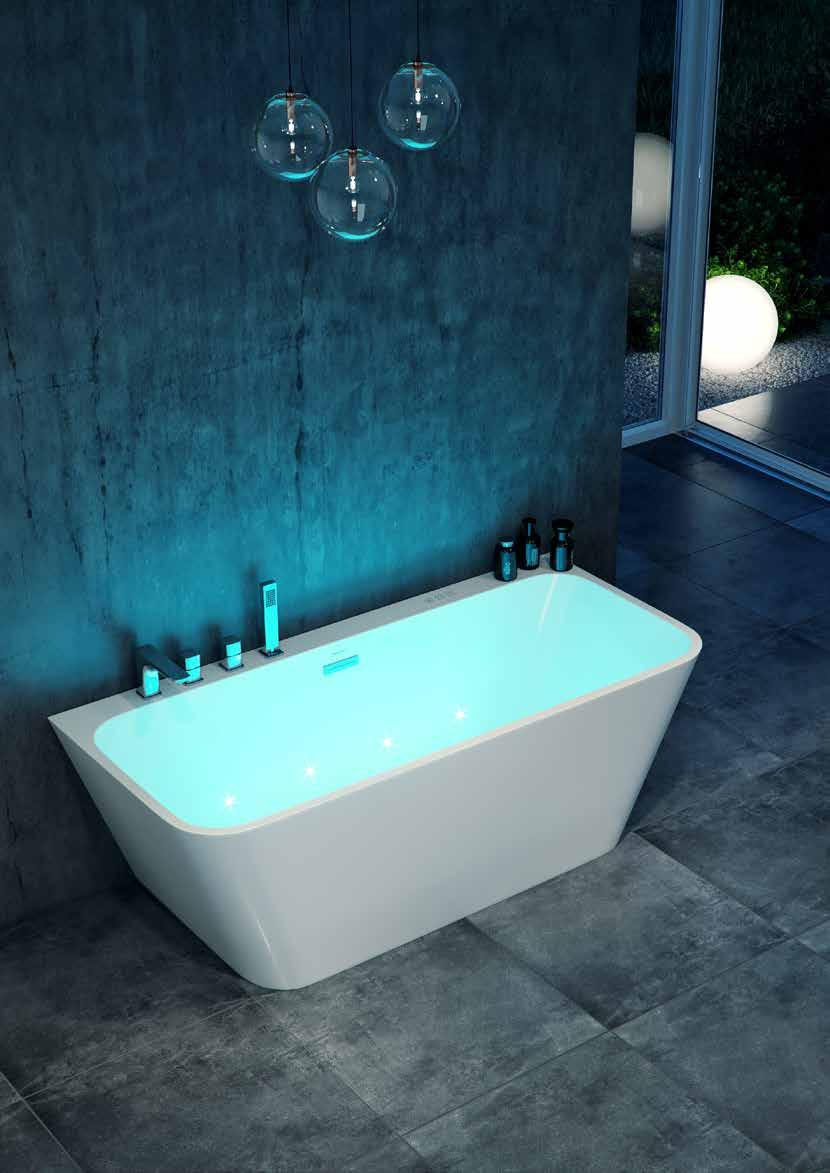

HYDROMASSAGE & CHROMOTHERAPY

p. 64

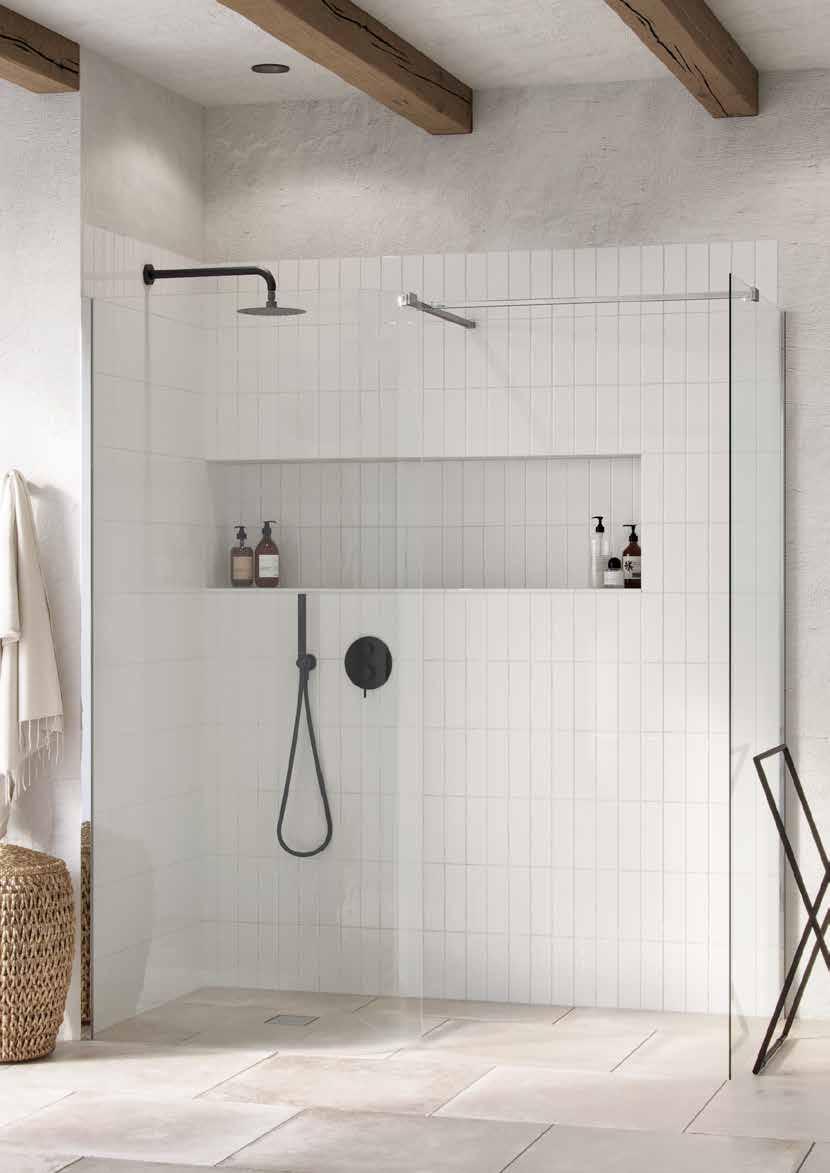

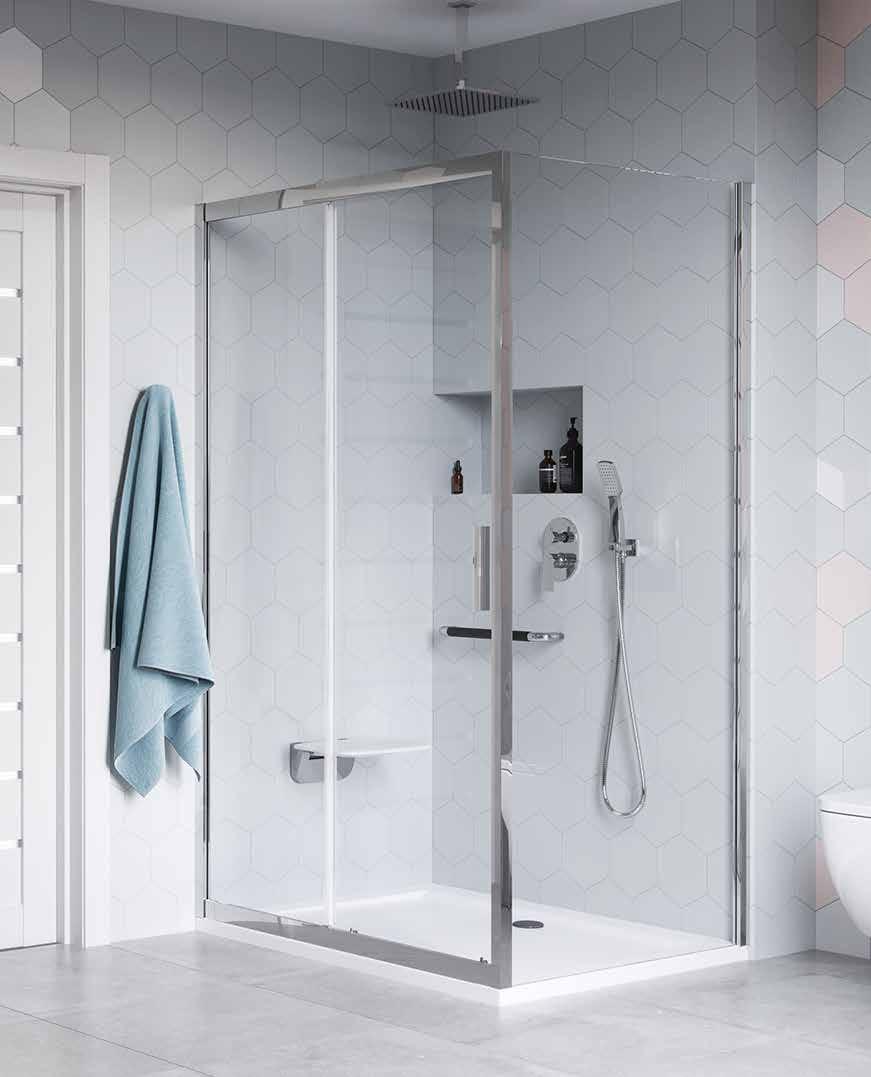

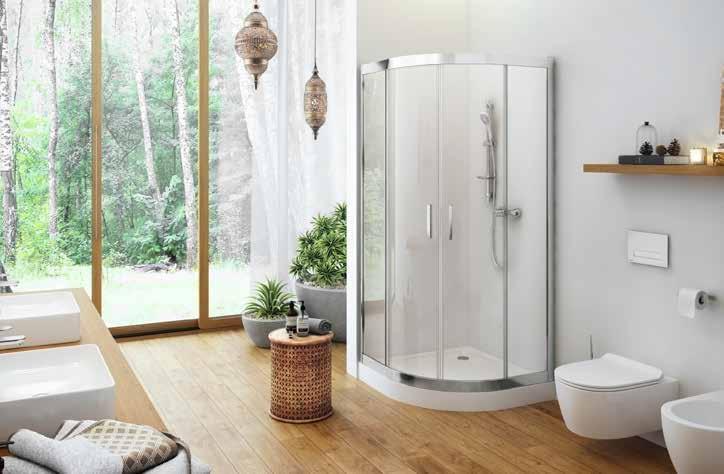

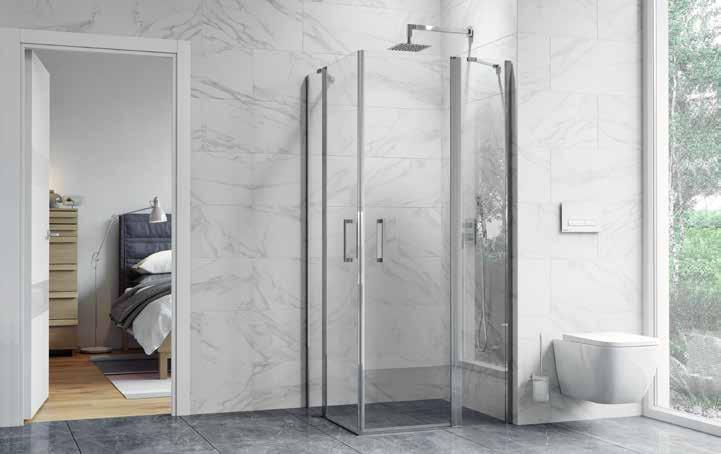

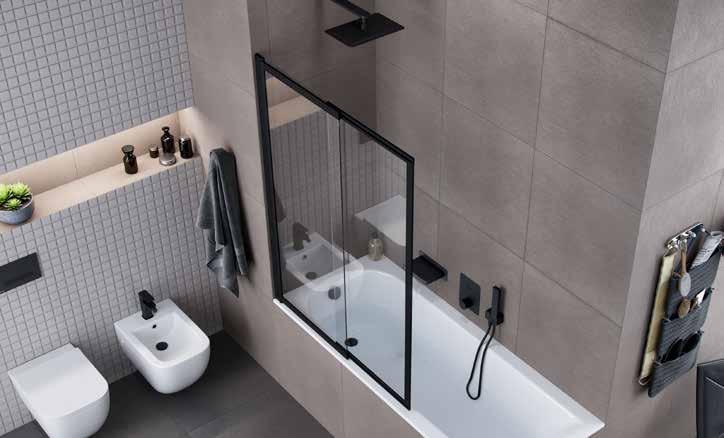

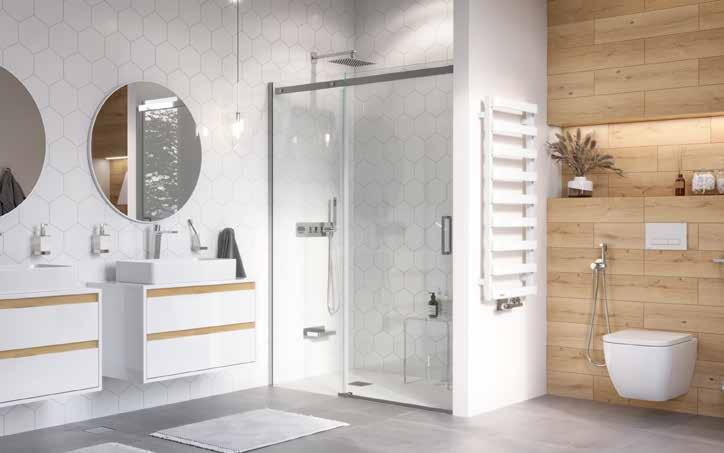

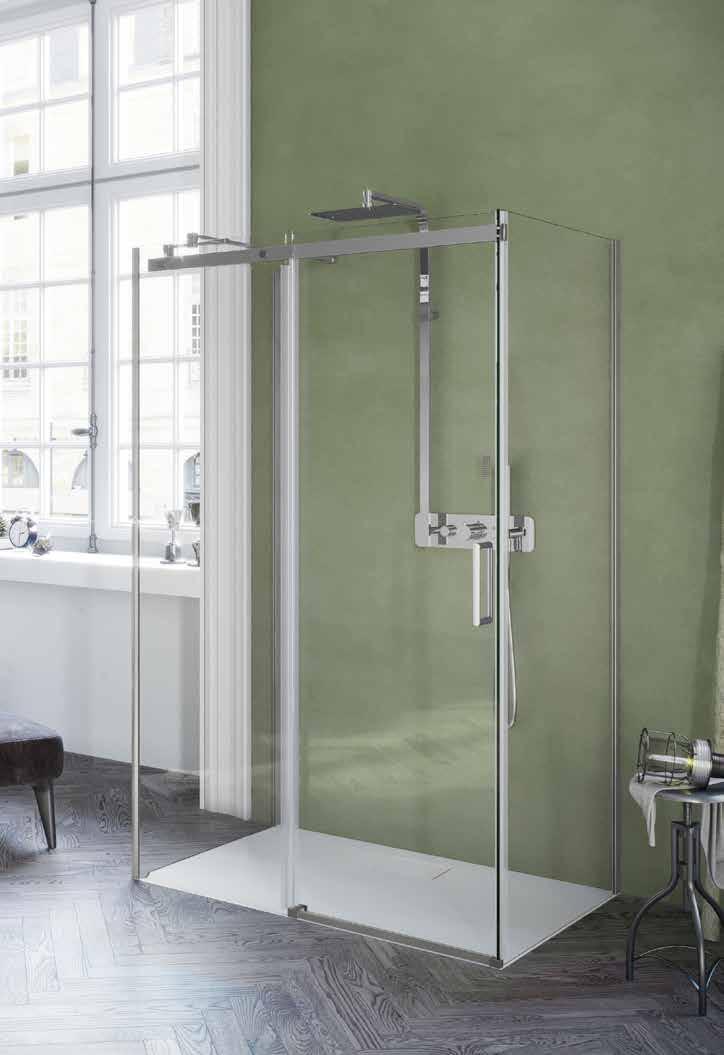

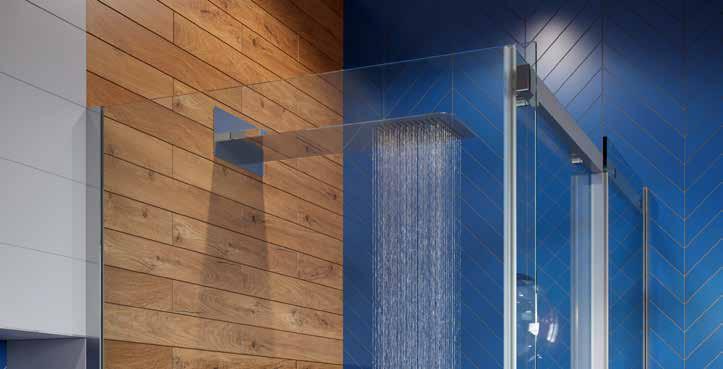

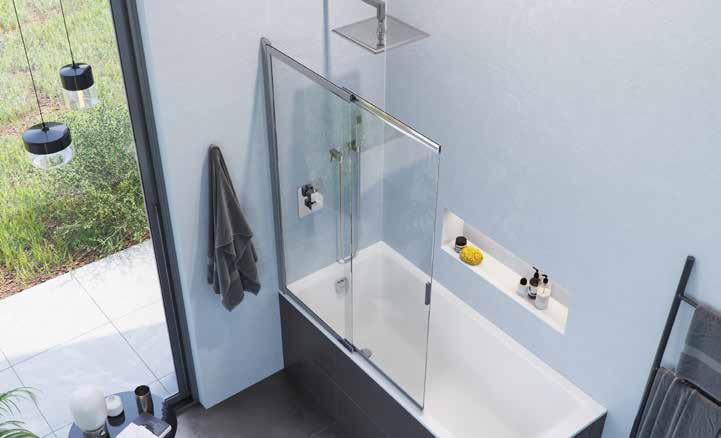

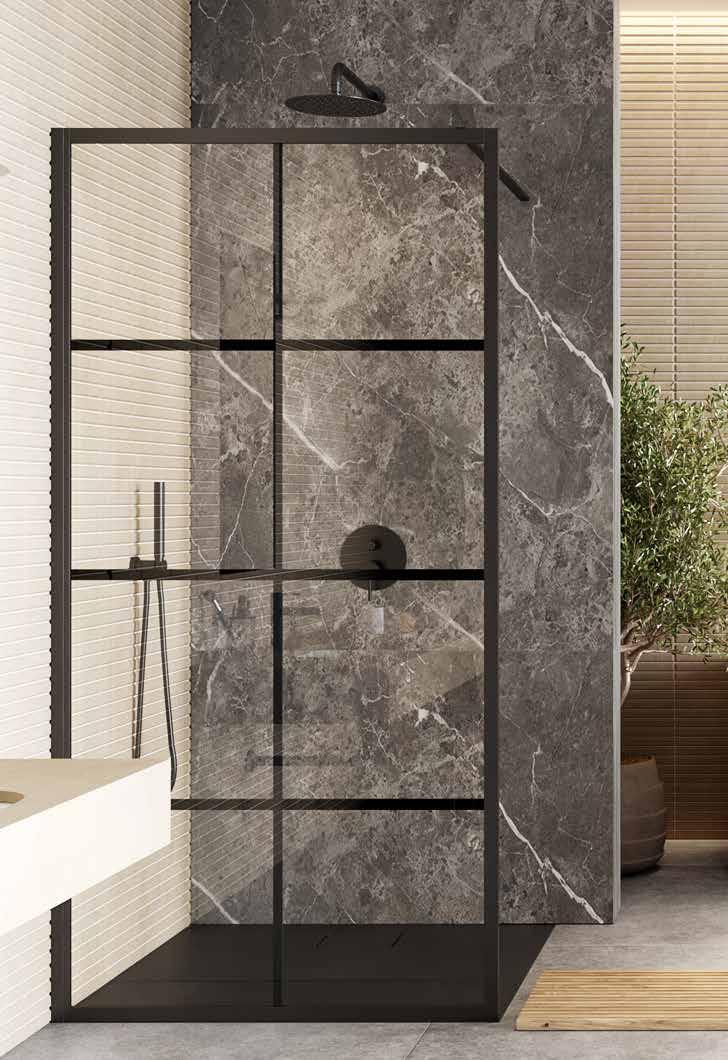

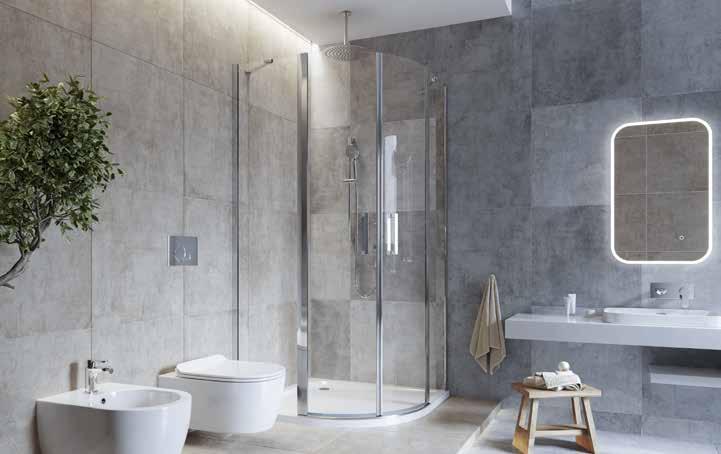

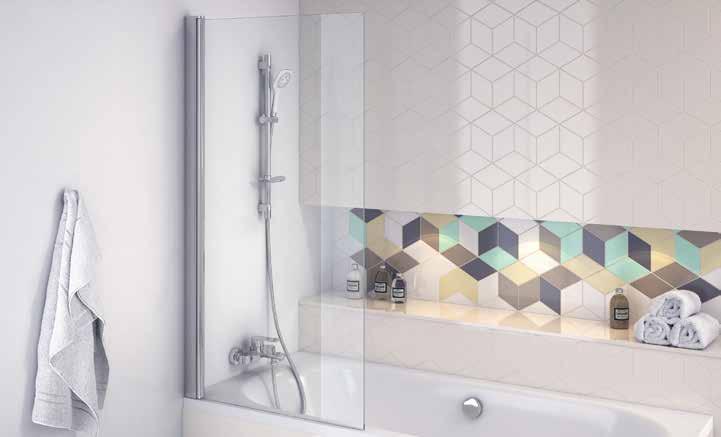

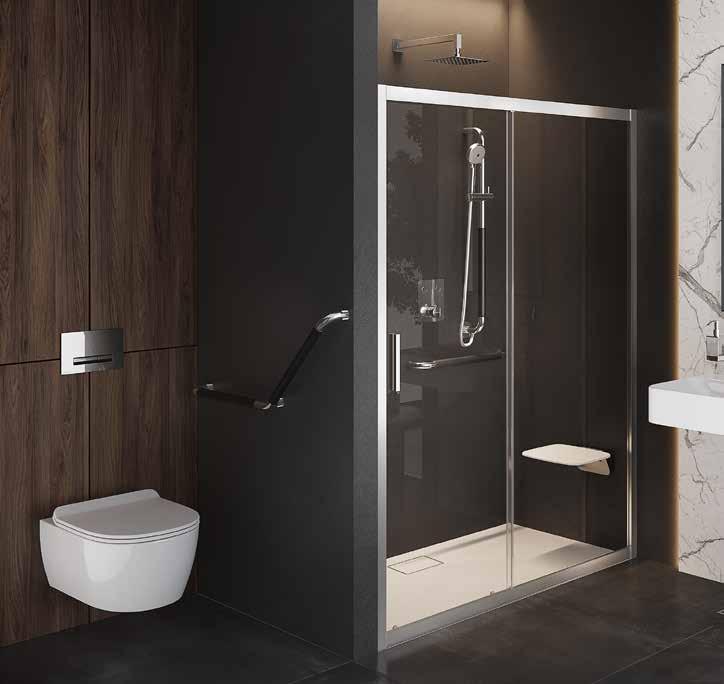

SHOWER ENCLOSURES & BATHSCREENS

p. 88

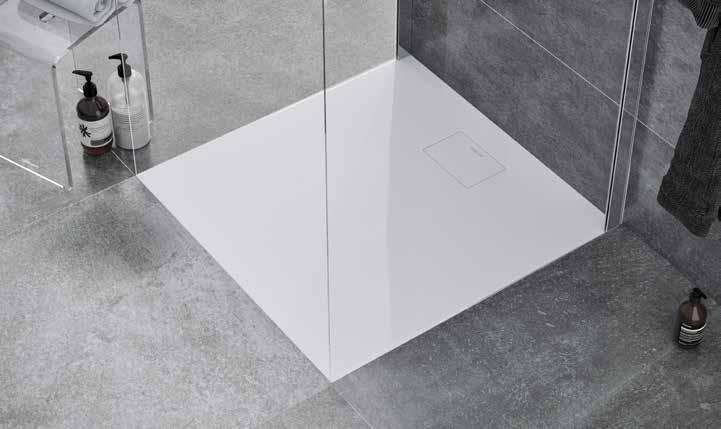

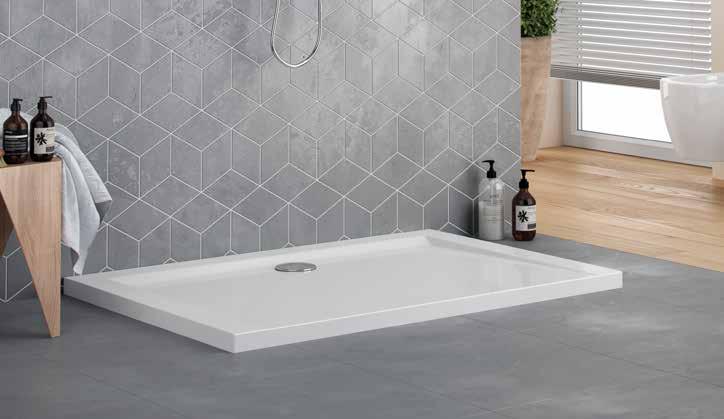

SHOWER TRAYS

p. 138

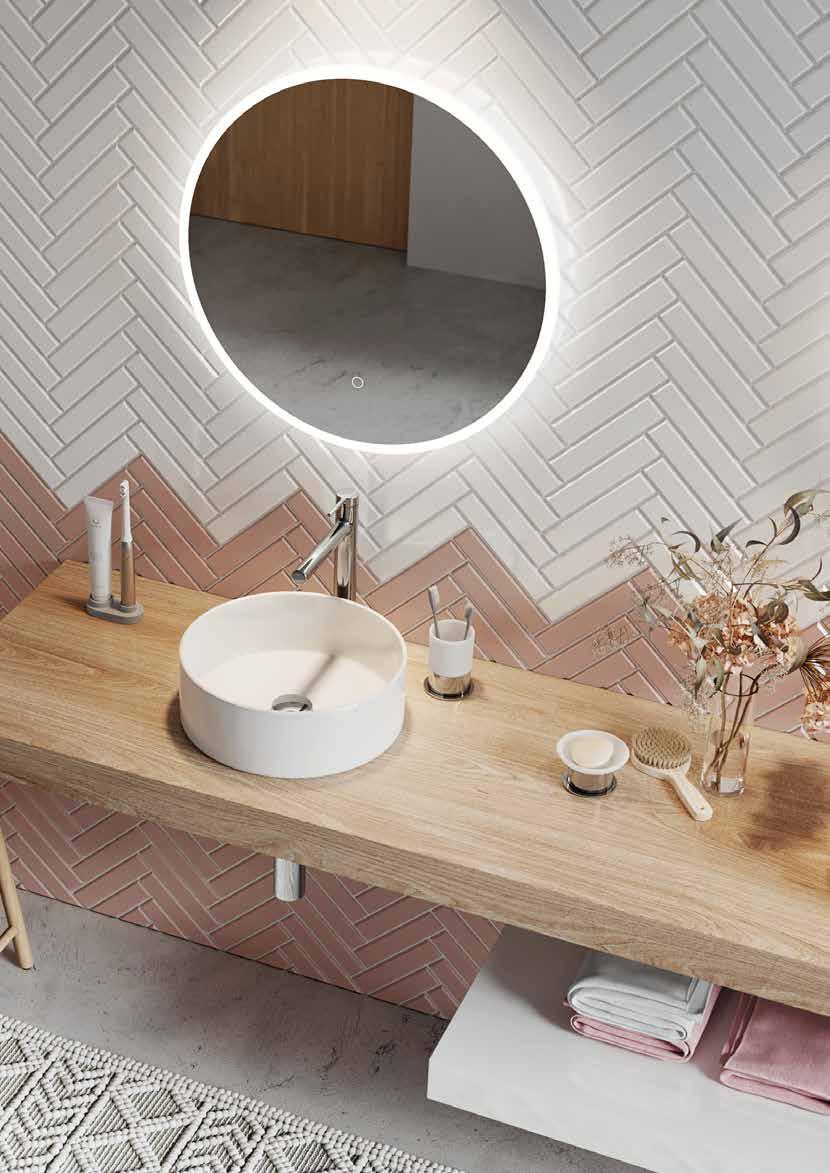

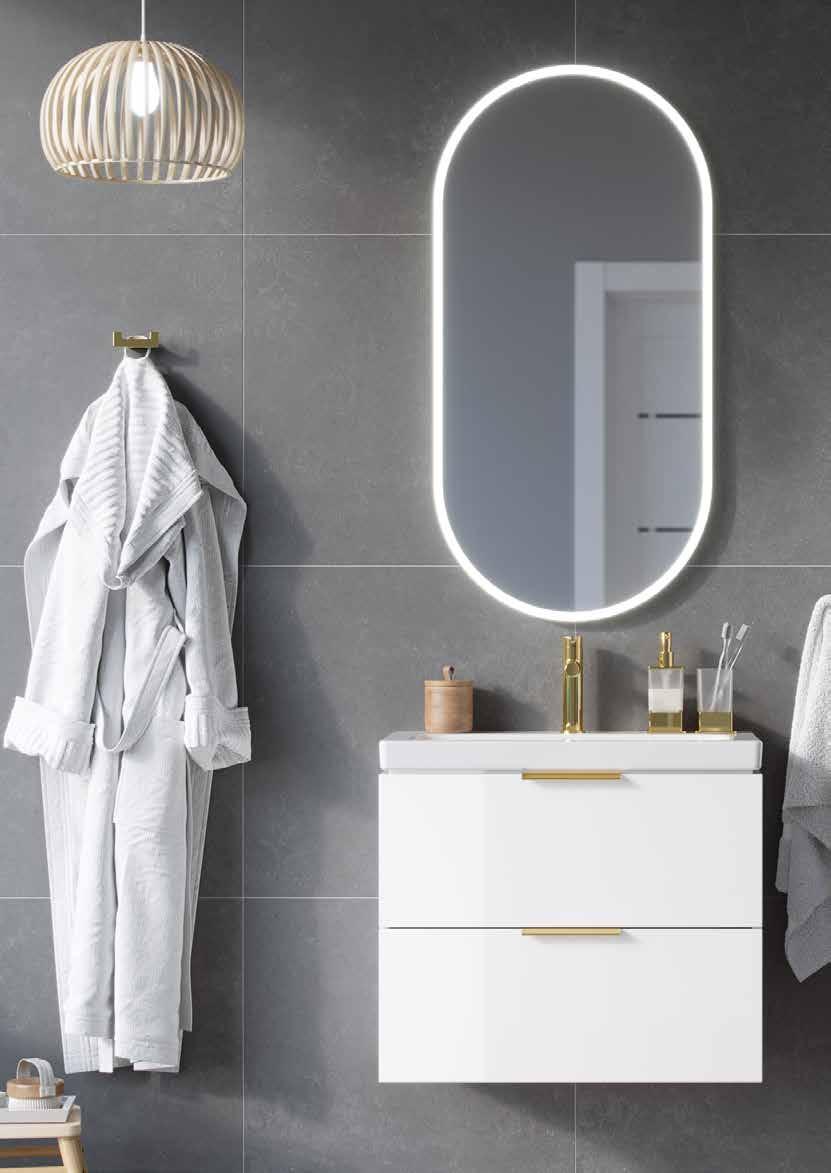

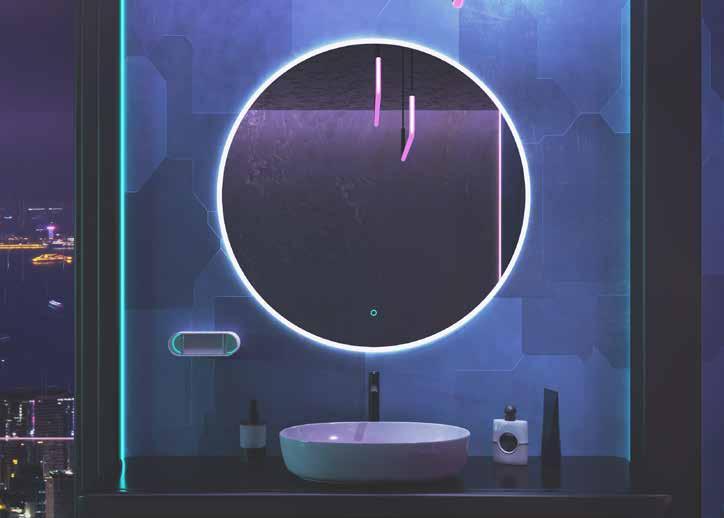

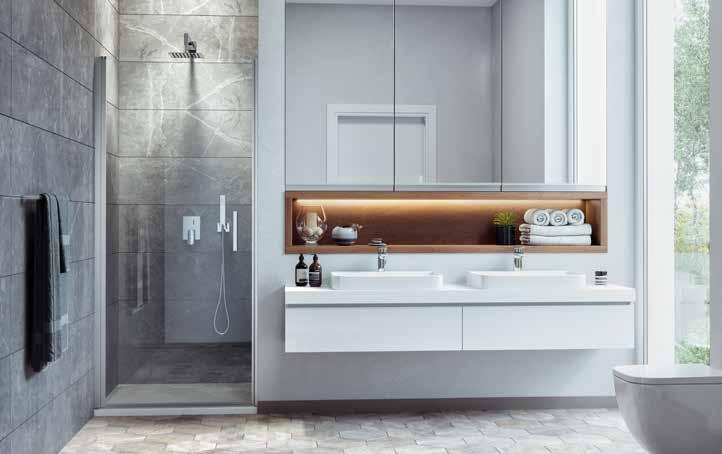

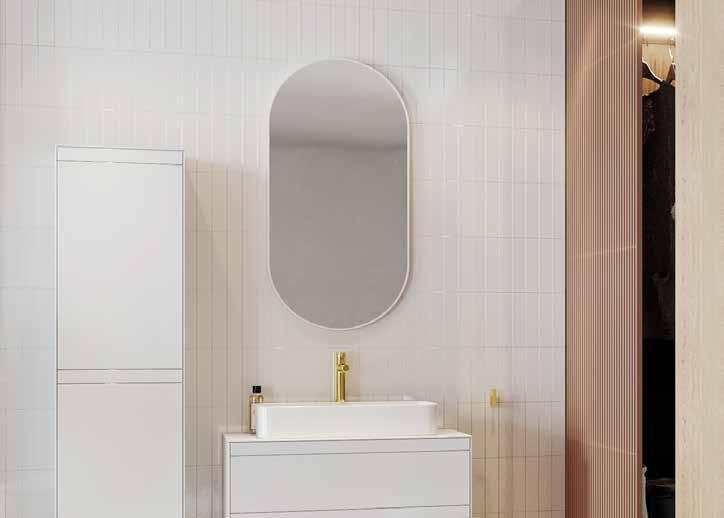

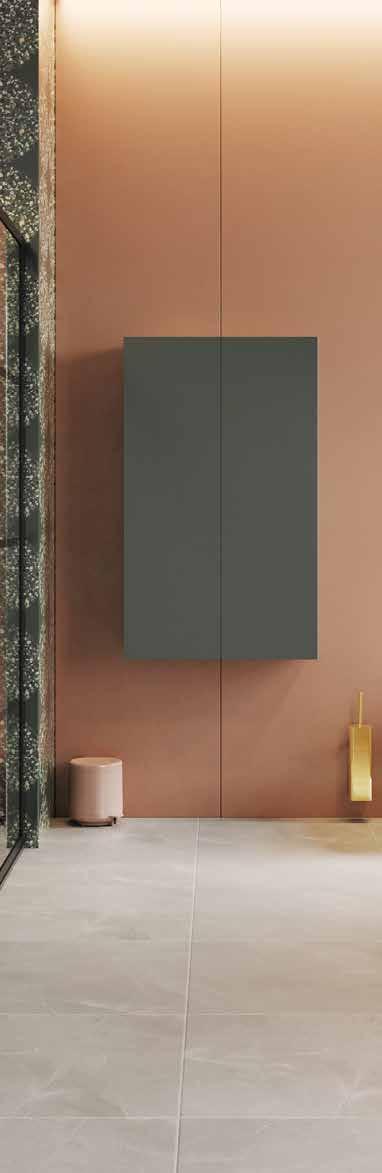

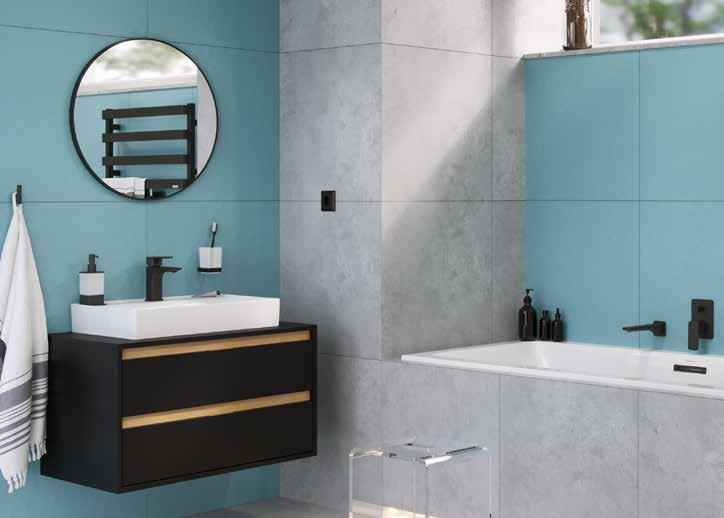

BATH FURNITURE & MIRRORS

p. 166

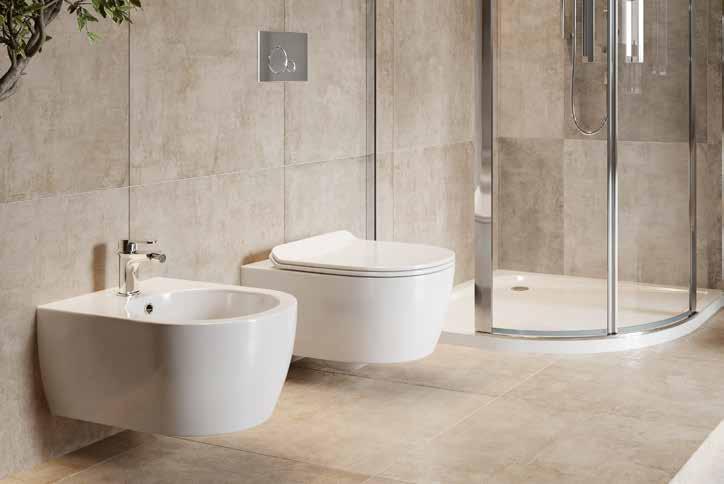

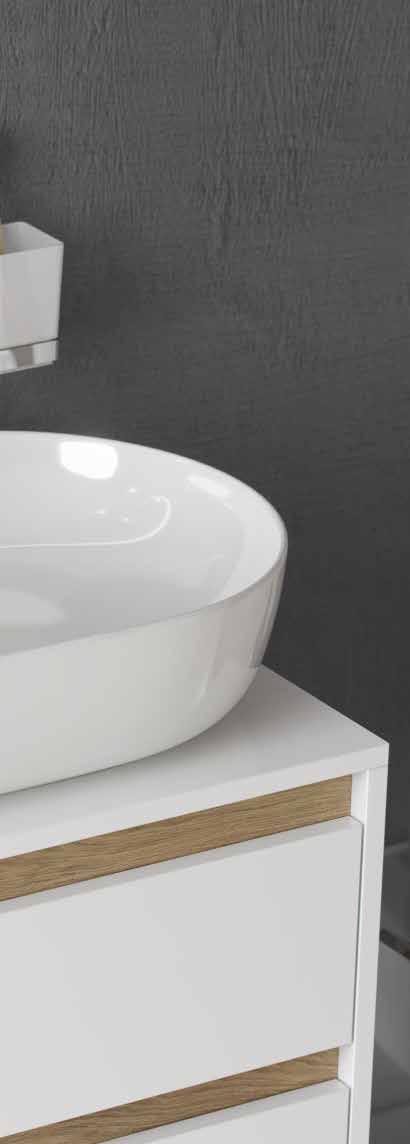

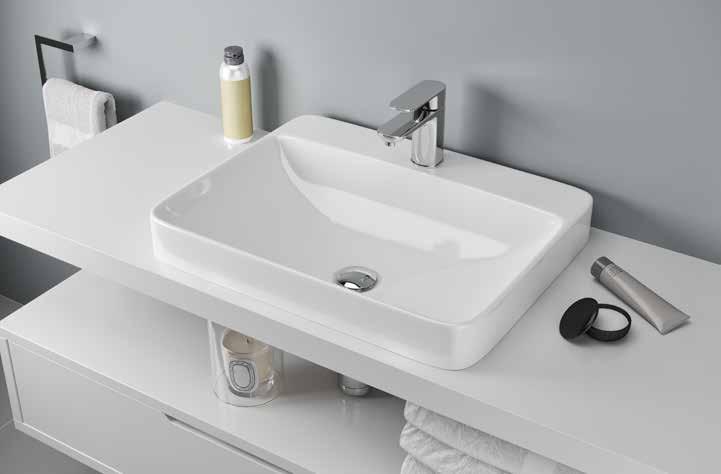

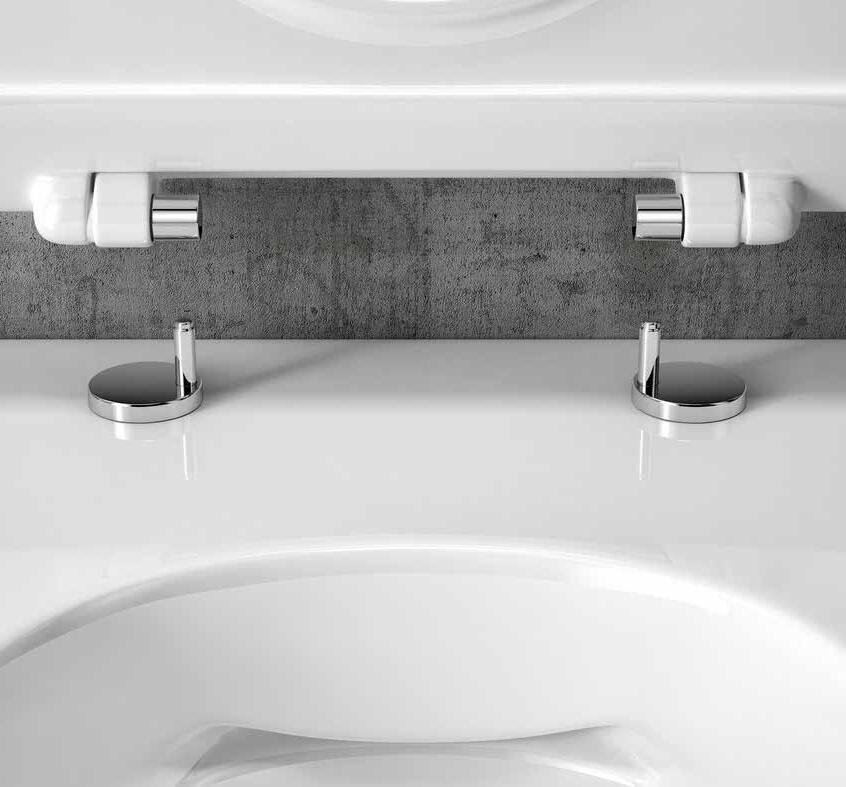

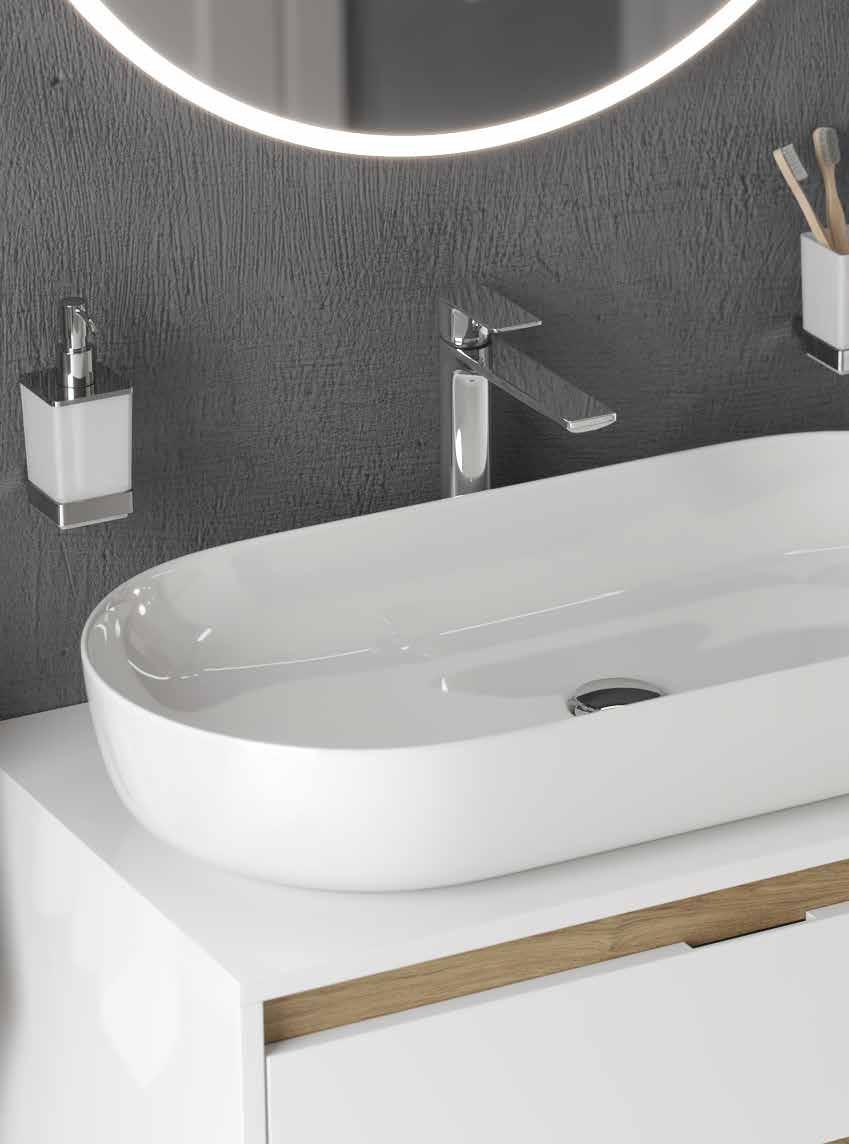

CERAMICS

p. 192

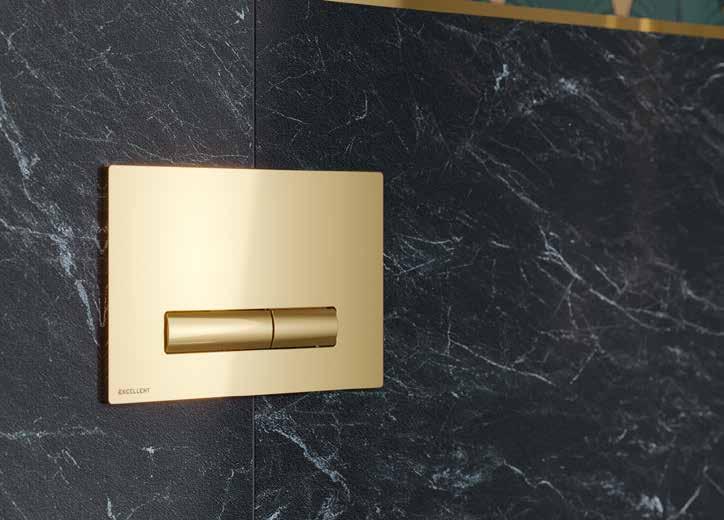

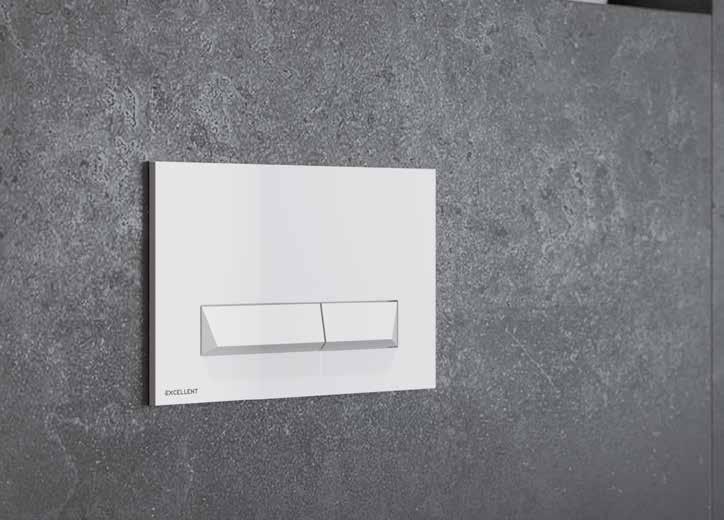

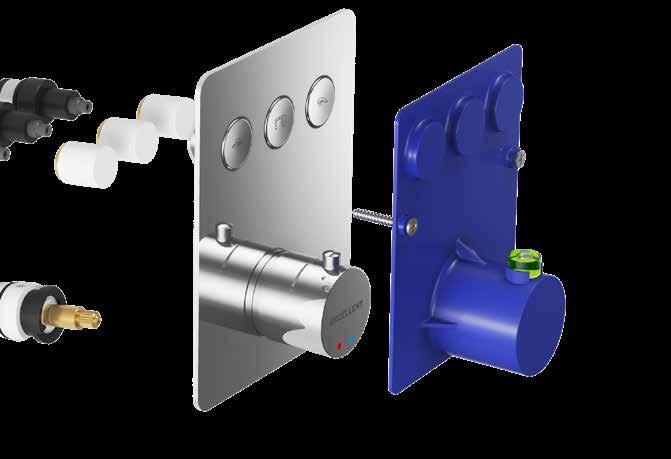

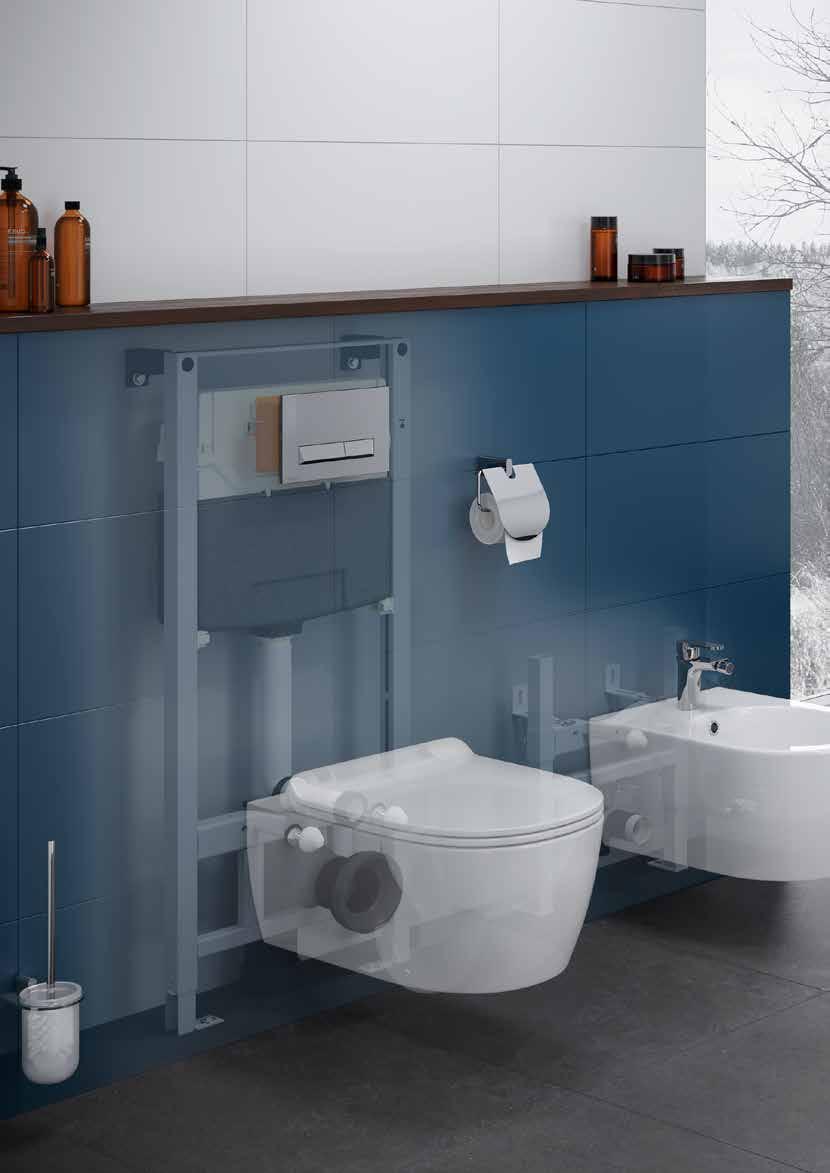

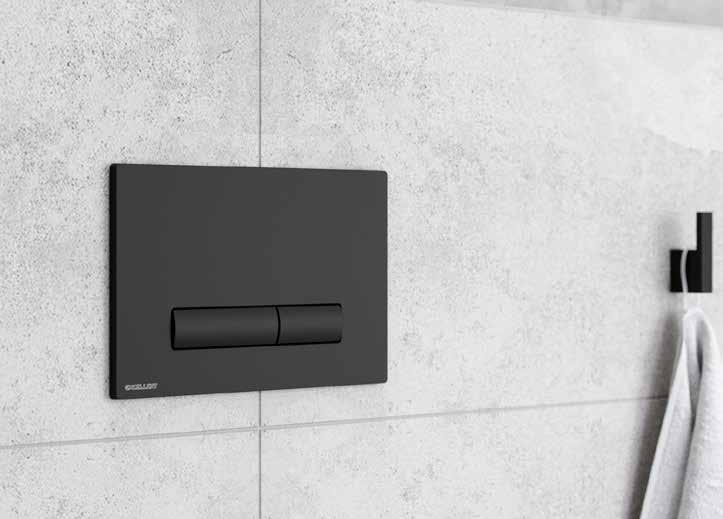

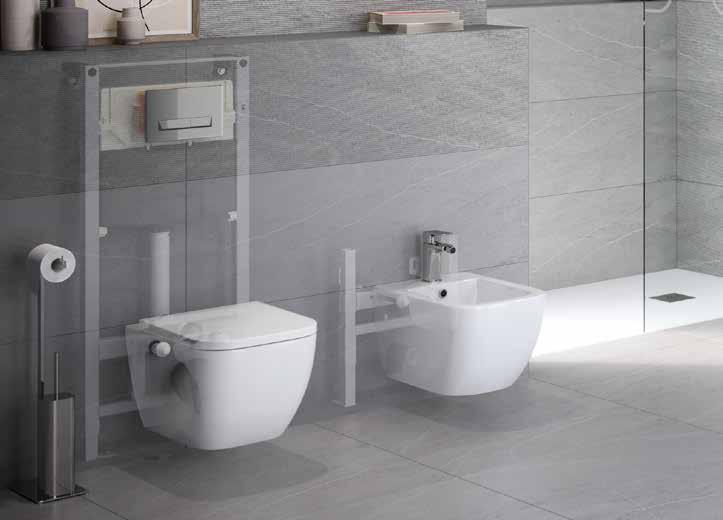

CONCEALED SYSTEMS & FLUSH PLATES

p. 228

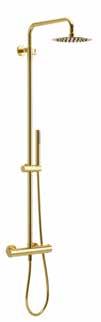

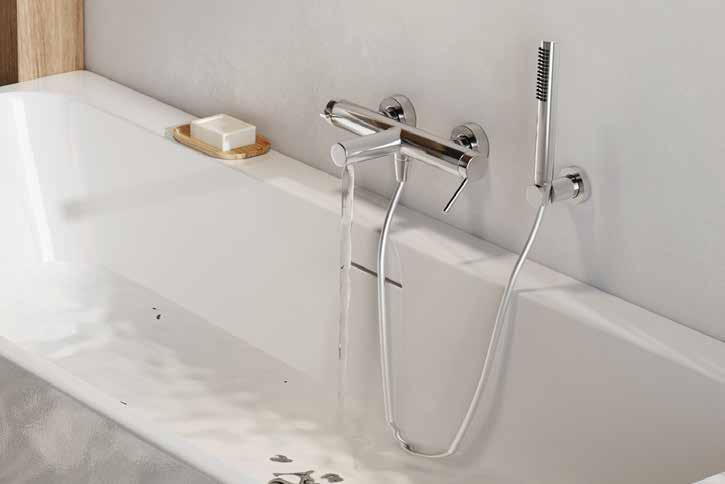

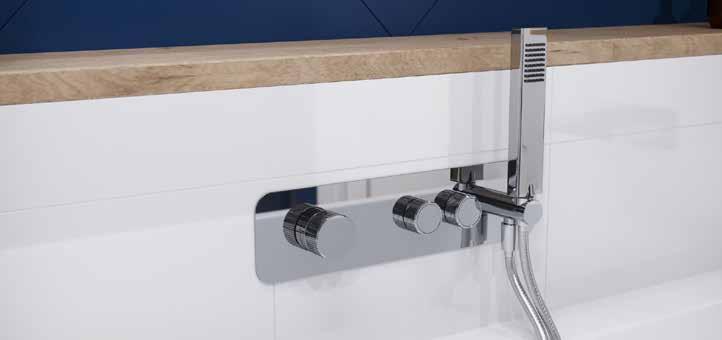

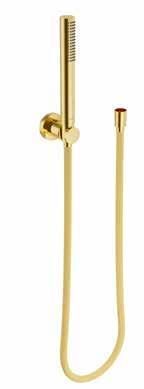

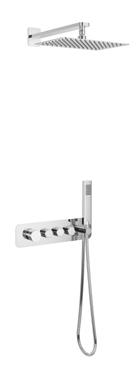

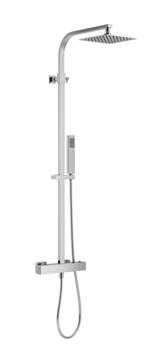

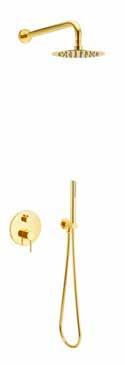

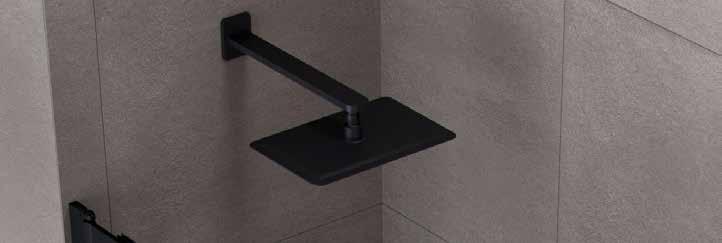

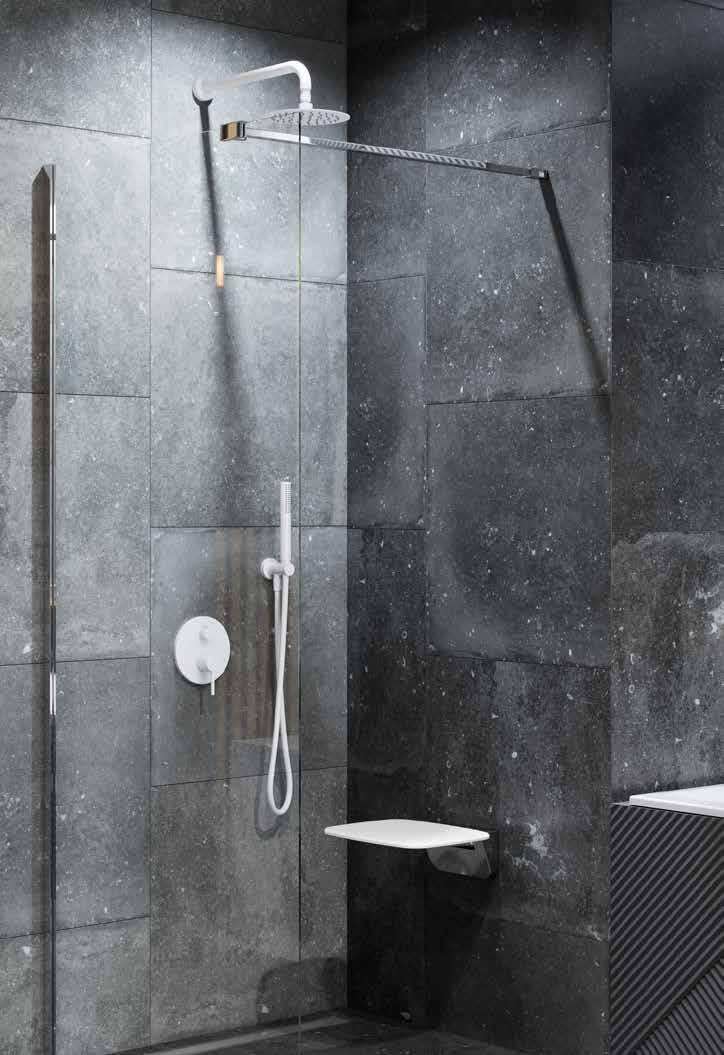

FITTINGS

p. 240

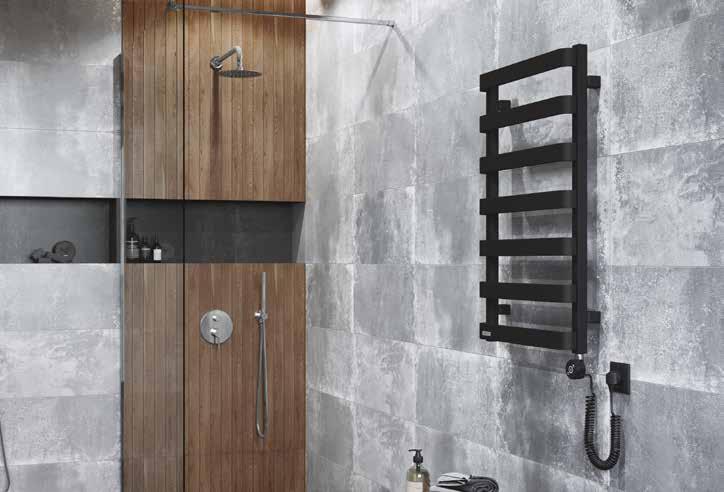

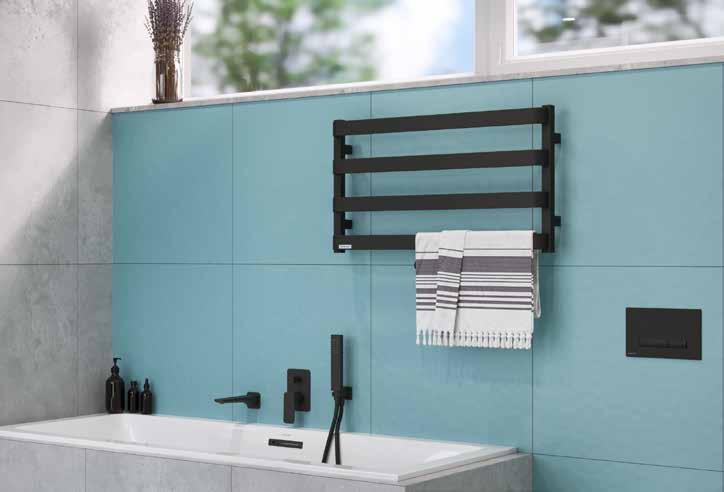

BATHROOM RADIATORS

p. 334

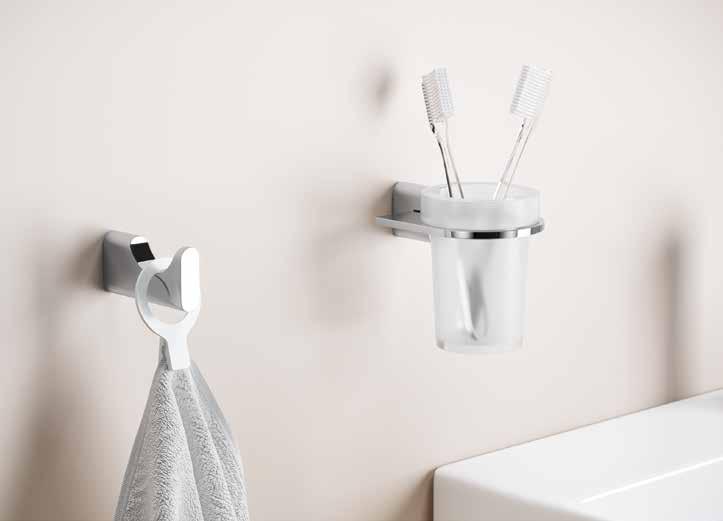

BATHROOM ACCESSORIES

p. 348

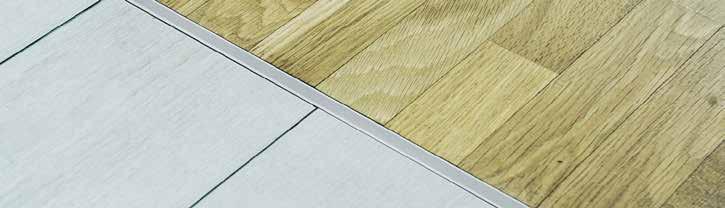

PROFILES

p. 372

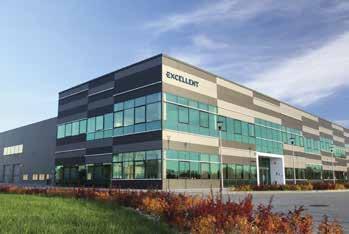

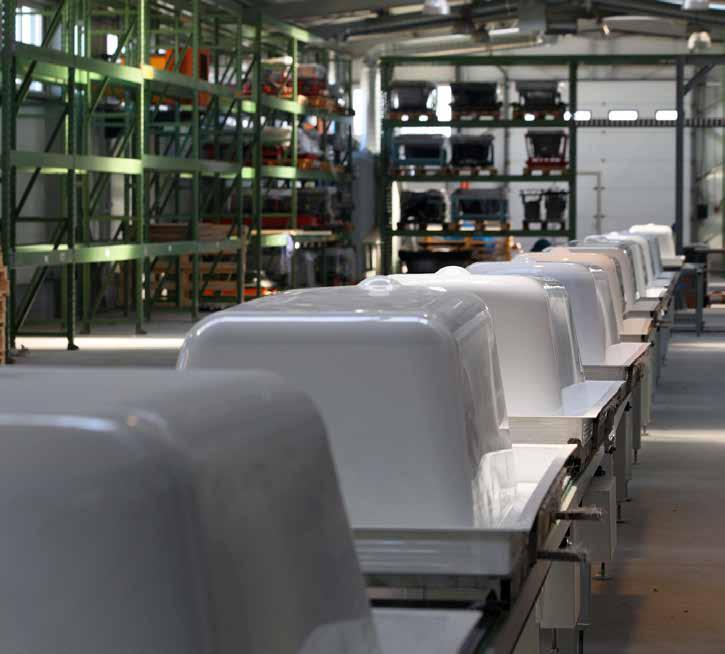

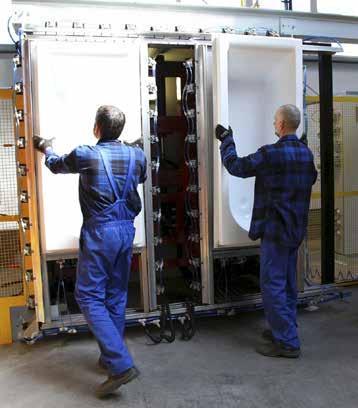

Production in the heart of Europe

We are a Polish company that focuses on industries related to construction and bathroom equipment. Our position on the market highlights 33 years of history, 400 employees, own warehouses, and the company showroom, over 70 Excellent showrooms, over 150 Authorized Excellent showrooms and a nearly 1000 contractors outlets all across Poland. Our products are selected to flats and houses in Poland, but you can also meet them in high-class hotels and luxury apartments throughout Europe. We cooperate with many customers in 20 countries around the world.

Leader in bathroom industry Highest quality

We expanded our offer in 1996. At that time, Excellent S.A. began activities related to the design, production and sale of bathroom products in Krakow. Market success allowed for systematic development, extended also by further locations; in 2017 we launched, among others a new production plant in Tarnobrzeg. Currently Excellent is a leader in the production of the highest quality acrylic bathtubs and hydromassage systems.

Our brand is usually chosen by demanding customers looking for reliable, functional products with a trendy design. Excellent pay extra attention to the quality of raw materials and components that guarantee durability and reliability of use for many years. Owing this approach, we were awarded with distinction numerous times: including Bathroom Selection of the Year, Quality of the Year, Market Leader, EuroLider.

Novelities

Blanko Lumiro FREESTANDING

BATH

p. 10 p. 156 p. 170-171 p. 185

p. 62 Bath

Savia Moli, Hover Forma

Torvi Stilio Corido Corido Lumiro Candera Dakota 2.0 Doto S BATH LEGS SET BUILT-IN BATHTUBS BATHTUB SIPHON SHOWER ENCLOSURES POP-UPS BATH SCREENS SHOWER TRAYS POINT DRAIN LINEAR DRAIN BATH MIRRORS

SYSTEMS p. 17 p. 25 p. 60, 61 p. 157-159 p. 162 p. 164 p. 182 p. 183 p. 184 p. 194 p. 218 p. 221 Vidoq Liner Gold Arda p. 94-97 p. 128 p. 147

Holi 2.0 Sense X, Sense Compact X

BATHTUBS

FURNITURE

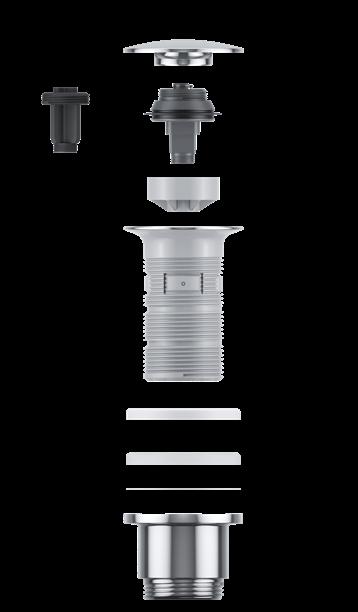

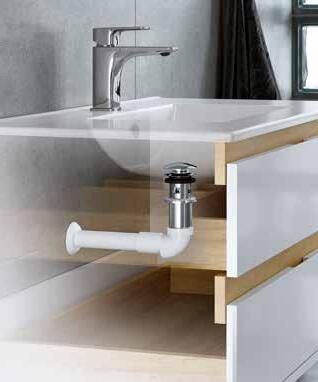

Pop-ups

legs set

X, Forma Compact X

CERAMICS CONCEALED

Flaro Expert

IN-WALL SYSTEMS RADIATOR VALVES

Volaro 2.0

p. 256

p. 230

284

Keria

Premium

FLUSH PLATES FITTINGS

ACCESSORIES

258

p. 346 Keria p.

Gravio

Aurro Fresh, Aurro

Pi Seduro

Riko Gold

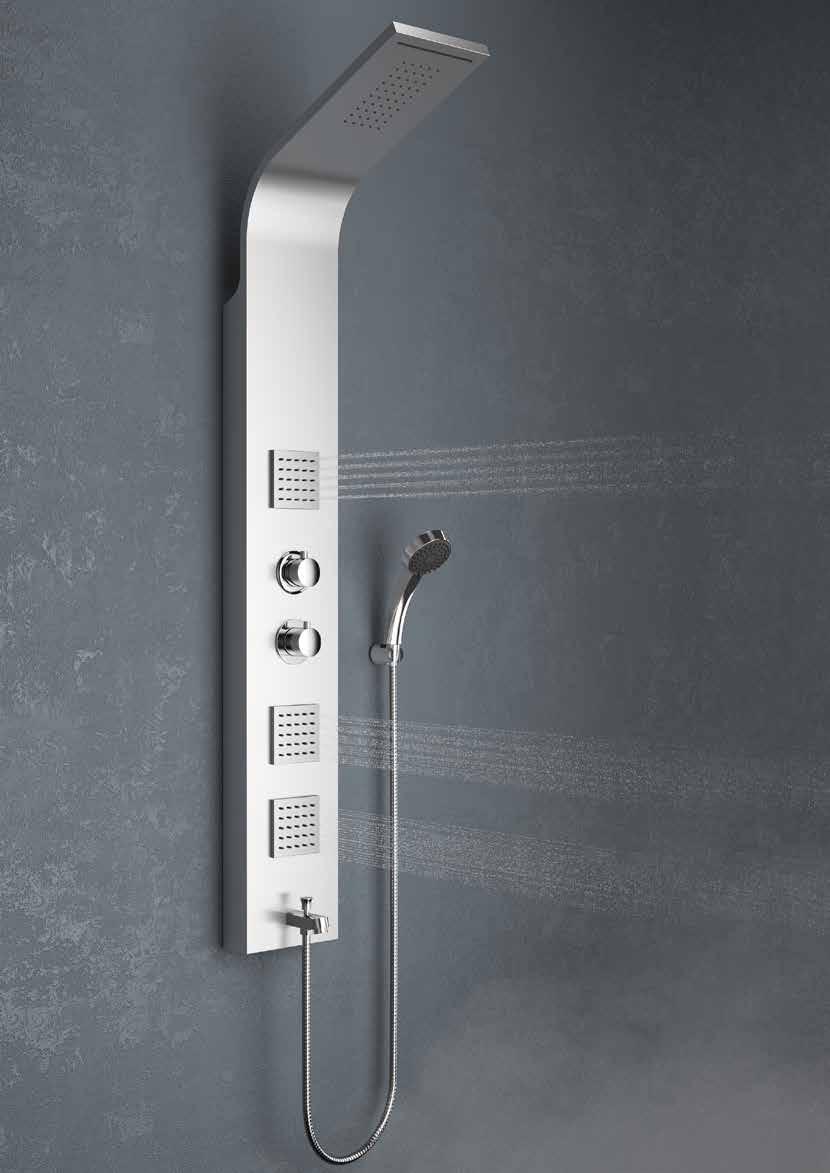

SHOWER

p. 231 p.

343

p. 236, 237 p. 282 p. 248 p. 350 p. 356 Altar Black Meteor Side Horos Set Horos p. 306 p. 342 p.

p. 344-345 BATHROOM RADIATORS

Acrylic bathtubs

10 18 35 46 48 56

Freestanding bathtubs Rectangular bathtubs Corner bathtubs Oval bathtubs Bathtub panels Bathtub accessories

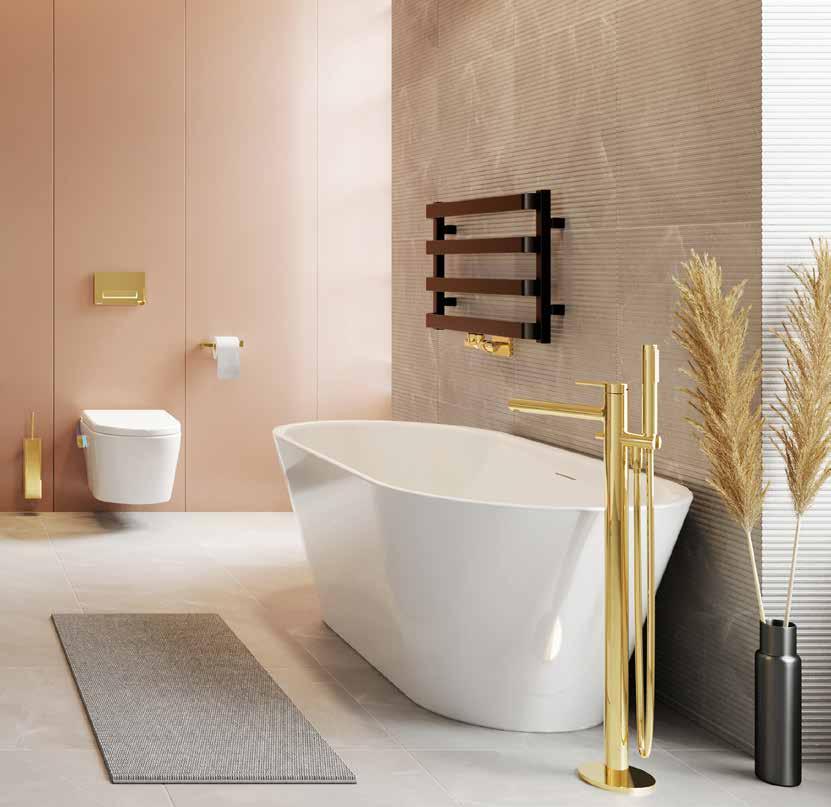

Freestanding bathtubs

Holi 2.0

Freestanding white acrylic bathtub

NEW W L4 L3 H1 H L2 H2 G G1 G G1 H3 W W1 L1 W2 L L4 L3 H1 H L2 H2 G G1 G G1 H3

Size (mm) Capacity below overflow (l) Code 1600 × 760 260 WAEX.HOL2.16WH 1700 × 760 280 WAEX.HOL2.17WH Detailed dimensions according the schemes (mm) For size L L1 L2 L3 L4 W W1 W2 H H1 H2 H3 G G1 1600 × 760 1600 1120 1155 1155 120 760 460 35 590 460 5 63 R50 R20 1700 × 760 1700 1220 1250 1245 120 760 480 35 590 460 5 63 R50 R20 Built-in overflow Features: We recommend: Integrated bathtub panels Freestanding mixers Frame and legs included Pop-up plug included Bathtub pop-up with Click-Clack, 4 coulours

Freestanding bathtubs

Lila 2.0

Freestanding white acrylic bathtub

Size (mm) Capacity below overflow (l) Code 1600 × 730 240 WAEX.LIL2.160.WHW Built-in overflow Pop-up plug included Frame and legs included Features: We recommend: Integrated bathtub panels Freestanding mixers 1170 580 1190 1130 430 580 430 62,5 1465 1600 100 230 100 230 62,5 100 730 595 485 730 595 485 1465 1600 1100 1600 1530 1190 1130 580 430 62,5 100 230 730 595 485 1100 1600 1530 D D1 H H1 Z1 W W1 W2 R Z L1 L Wanna wolnostojąca L2 1170 580 1190 1130 430 580 430 62,5 1465 1600 100 230 100 230 62,5 100 730 595 485 730 595 485 1465 1600 1100 1600 1530 1190 1130 580 430 62,5 100 230 730 595 485 1100 1600 1530 D D1 H H1 Z1 W W1 W2 R Z L1 L wolnostojąca L2 Detailed dimensions according the schemes (mm) For size L L1 L2 W W1 W2 H H1 D D1 R R2 Z Z1 1600 × 730 1600 1530 1100 730 595 485 430 580 1190 1130 100 100 230 62,5 Headrests Bathtub shelf Hydromassage Lila 2.0 Pearl Chromeotherapy Lila 2.0 Light Bathtub pop-up with Click-Clack, 4 coulours

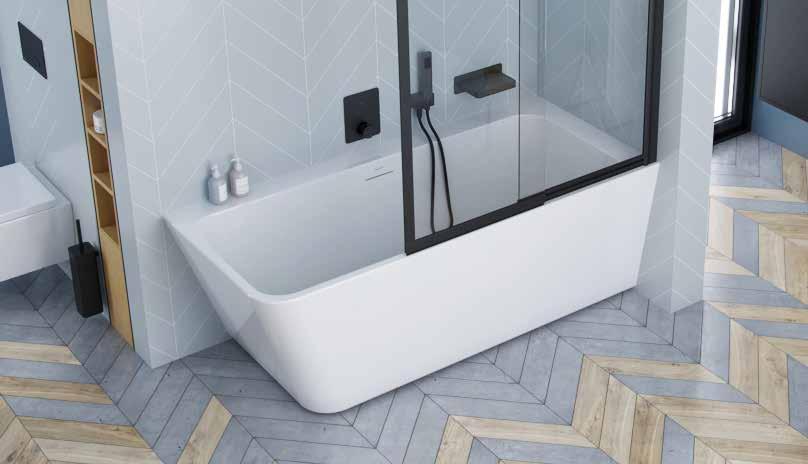

Freestanding bathtubs

Lila 2.0

Freestanding wall-mounted white acrylic bathtub

Size (mm) Capacity below overflow (l) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 720 220 180 4 WAEX.LIL2.150.WHP 1600 × 730 240 180 4 WAEX.LIL2.160.WHP 1700 × 750 270 180 4 WAEX.LIL2.170.WHP Features: We recommend: P H W2 Z D L L1 L2 D1 W W1 W2 L1 L D R Z Z1 H1 H W1 W R 1100 1060 720 585 475 1430 1500 1140 100 230 62,5 430 560 L2 1100 720 585 475 1430 1500 1140 100 230 62,5 430 560 1060 62,5 100 230 580 430 730 595 485 Wanna narożna prawa Wanna przyścienna P H W2 Z D L L1 L2 D1 W W1 W2 L1 L D R Z Z1 H1 H W1 W R 1100 1060 720 585 475 1430 1500 1140 100 230 62,5 430 560 L2 1100 720 585 475 1430 1500 1140 100 230 62,5 430 560 1060 62,5 100 230 580 430 730 595 485 Wanna narożna prawa Wanna przyścienna Detailed dimensions according the schemes (mm) For size L L1 L2 W W1 W2 H H1 D D1 R Z Z1 1500 × 720 1500 1430 1060 720 585 475 430 560 1100 1140 100 230 62,5 1600 × 730 1600 1530 1100 730 595 485 430 580 1130 1190 100 230 62,5 1700 × 750 1700 1630 1200 750 615 505 430 580 1230 1290 100 230 62,5 Deckmounted bath mixer Freestanding mixers Hydromassage Inspire Air Chromotherapy 4-points Bathtub pop-up with Click-Clack, 4 coulours Built-in overflow Pop-up plug included Frame and legs included Integrated bathtub panels Wall mounting Bathtub shelf Headrests

Freestanding bathtubs

Lila 2.0

Freestanding corner white acrylic bathtub, left/right

1060 720 585 475 1430 1500 100 230 62,5 430 560 1140 62,5 100 100 230 580 1205 165 430 730 595 485 62,5 1170 100 100 230 580 1205 165 430 1465 1600 730 595 485 Z1 R R1 Z H1 D D1 H L1 L W W1 W2 580 430 100 230 62,5 100 730 595 485 H1 D H R Z Z R1 L1 L W W1 W2 Wanna narożna lewa Wanna narożna prawa L2 L2 1100 1060 720 585 475 1430 1500 1140 100 230 62,5 430 560 62,5 100 100 230 580 1205 165 430 730 595 485 62,5 1170 100 100 230 580 1205 165 430 1465 1600 730 595 485 Z1 R R1 Z H D D1 H1 L1 L W W1 W2 1170 580 1205 430 100 230 62,5 100 730 595 485 H D H1 R Z Z1 R1 L1 L W W1 W2 Wanna narożna lewa Wanna narożna prawa L2 L2 Size (mm) Capacity below overflow (l) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1600 × 730 left 240 180 4 WAEX.LIL2.160L.WHN 1600 × 730 right 240 180 4 WAEX.LIL2.160P.WHN Detailed dimensions according the schemes (mm) For size L L1 L2 W W1 W2 H H1 D D1 R R1 Z Z1 1600 × 730 left 1600 1465 1170 730 595 485 430 580 1205 165 100 100 230 62,5 1600 × 730 right 1600 1465 1170 730 595 485 430 580 1205 165 100 100 230 62,5 Built-in overflow Features: E D R G P H Z 1 L Z W 1 W F F1 F2 F3 S S 1 We recommend: Bathtub shelf Headrests Screens Deckmounted bath mixer Hydromassage Inspire Air Chromotherapy 4-points Bathtub pop-up with Click-Clack, 4 coulours Pop-up plug included Frame and legs included Integrated bathtub panels Wall mounting

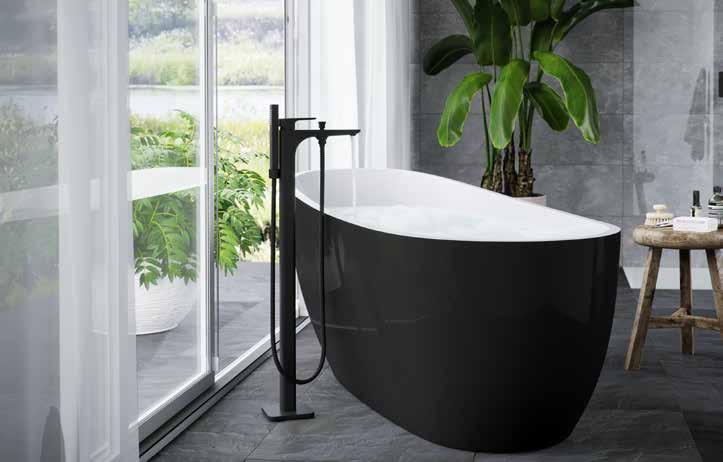

Freestanding bathtubs

Comfort 2.0

Freestanding acrylic bathtub white or black & white

Size (mm) Colour Capacity below overflow (l) Code 1740 × 750 white 280 WAEX.CMP2.17WH 1740 × 750 black-white 280 WAEX.CMP2.17WB H1 H G D E G1 W F Z L Detailed dimensions according the schemes (mm) For size L W G1 G2 H1 H2 E F D Z 1740 × 750 1740 750 70 480 600 715 1620 520 1200 290 Features: We recommend: Freestanding mixers Bathtub pop-up with Click-Clack, 4 coulours Built-in overflow Pop-up plug included Frame and legs included Integrated bathtub panels Available in 2 colours

Freestanding bathtubs

Olia 2.0

Freestanding white acrylic bathtub

H H P P H2 H1 W2 W W W1 L2 L L1 L Z Size (mm) Colour Capacity below overflow (l) Code 1500 × 730 white 183 WAEX.OLI2.15WH Detailed dimensions according the schemes (mm) For size L L1 W W1 H H1 P 1500 × 730 1500 983 730 475 430 140 570 Features: We recommend: Freestanding mixers Bathtub pop-up with Click-Clack, 4 coulours Built-in overflow Pop-up plug included Frame and legs included Integrated bathtub panels

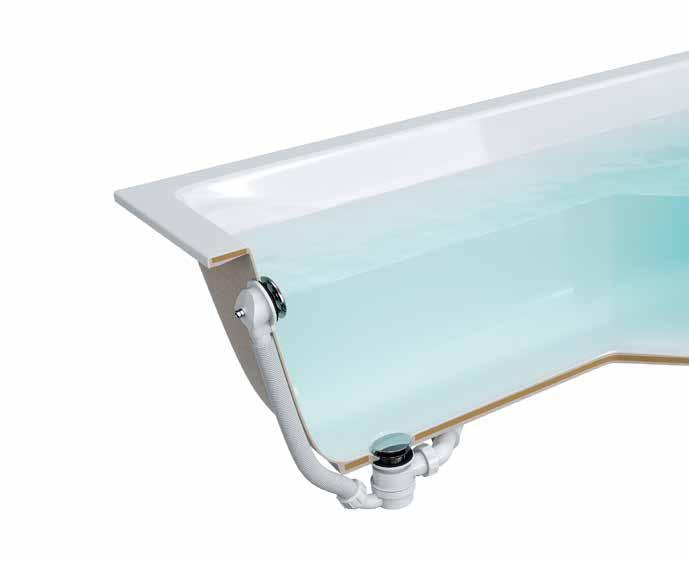

Acrylic bathtubs for long years

Acrylic bathtubs are very popular and highly reliable. They are made of a suitable quality material (sanitary acrylic sheets), which ensures high product usability. Owing to the used technology, they remain their quality features for many years.

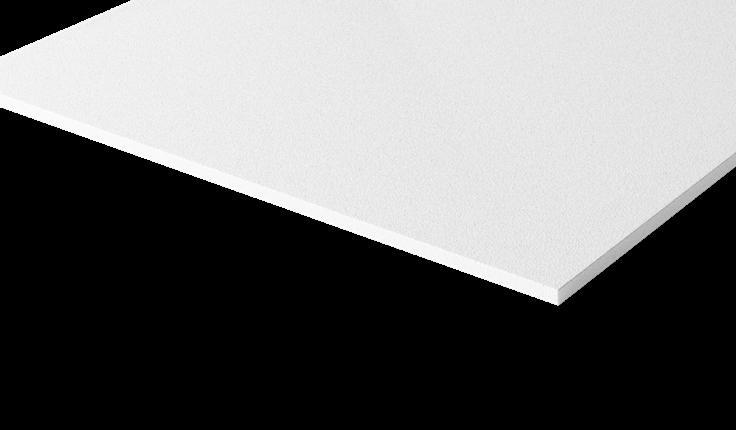

ACRYLIC LAYER

Our baths are made of a single sanitary acrylic sheet. It is the highest quality material.

REINFORCED STRUCTURE

The bottoms of our bathtubs are reinforced sheets, which provide adequate stability and resistance of products.

100% of sanitary acrylic

acrylic prevents the spread of bacteria, mould, etc., makes it easy to keep clean, it is resistant to most household chemicals and cosmetics, owing to the application of a unique thermal technology, acrylic is warmer in touch than enamelled steel, acrylic bathtubs are more resistant to scratching and easier to renovate than the acrylic coated bathtubs,* we are sure of quality. Excellent provides 20 years of warranty for durability of the colour of acrylic bathtubs.

Super Slim low profile rim

The low profile rim bathtub has an attractive and smooth appearance, particularly when accompanod by tiles. The minimalist effect delivered by the solution also brings improved usability which allows rim mounted mixers without necessity of further reinforcement.

STANDARD RIM SLIM RIM *Acrylic coated material has just a thin layer of acrylic imposed on the ABS sheet.

New quality of built-in bathtubs installation

The highest quality of our products is the most important aspect of our production. New bathtub legs set is specially designed for extra strange, moreover this solution is universal for different size of bathtubs. The use of our bathtub legs set ensures comfort and durability of using the bathtub for years.

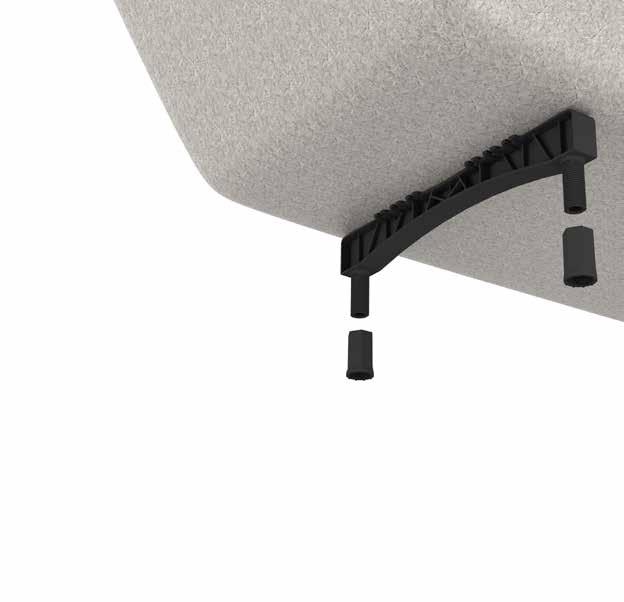

Bathtub leg set

Set for built-in bathtub installation

Set includes: leg set with height regulation frame for bathtub legs · full installation set

1. Height regulation between 128-180 mm

2. High load capacityx

3. Universal for built-in bathtubs

4. Legs that guarantees bathtub stability

5. Made of reinforced material

1 4 5 2 3 128180 500 59,5 Size (mm) Material Quantity Code 500 × 59,5 Reinforced plastic 2 WAIN.NWT50

NEW

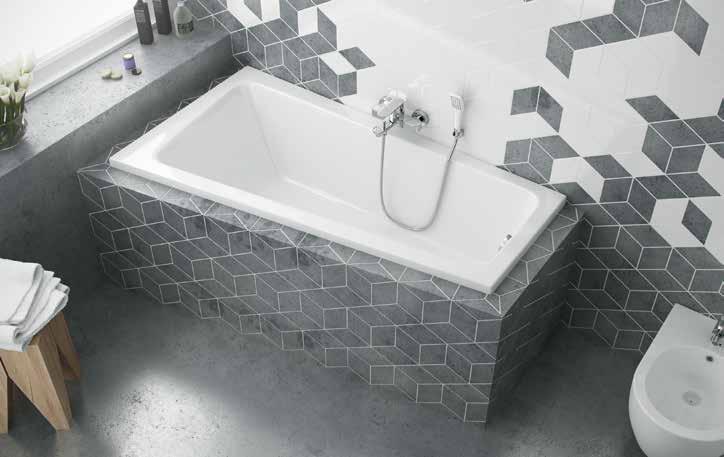

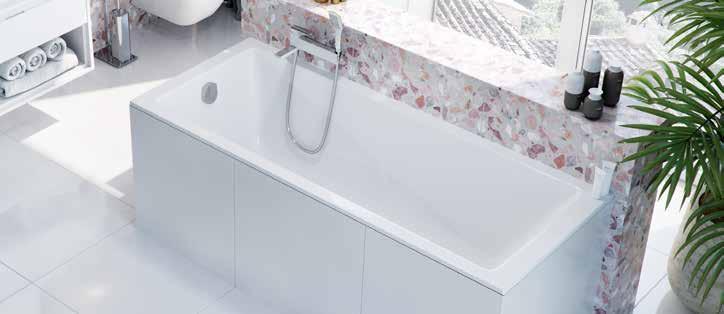

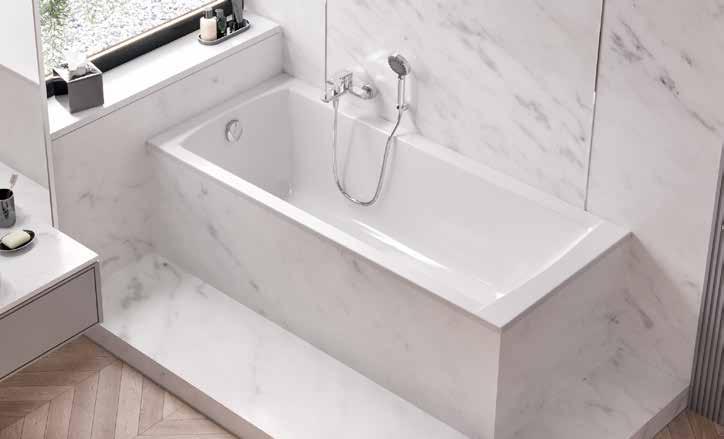

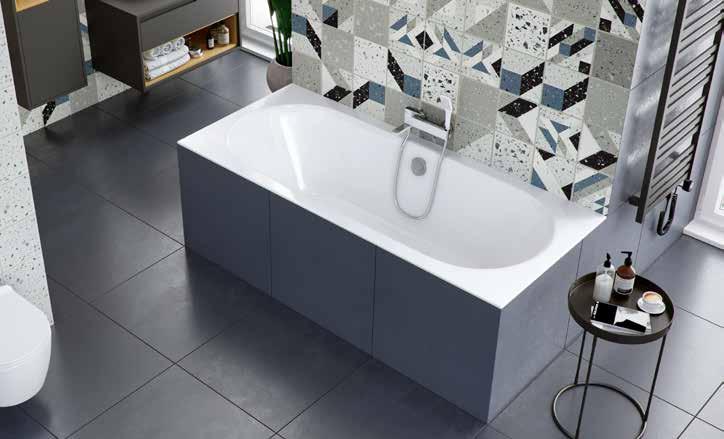

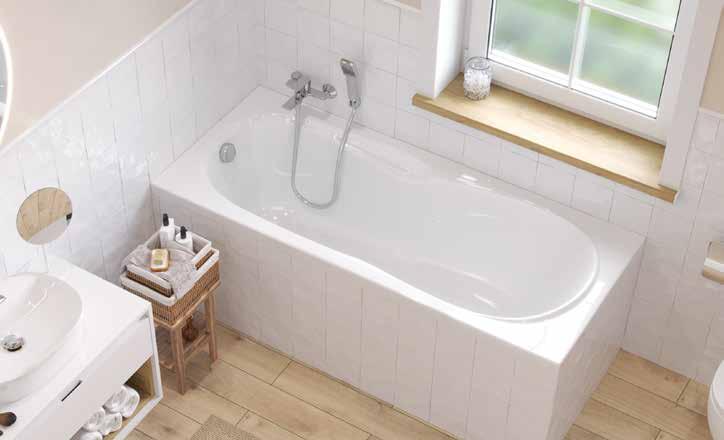

Rectangular bathtubs

Heaven Slim

Rectangular

white acrylic bathtub with Flow system

System - Black

Flow System - White

Gold

For each bathtub, choose Flow System in one of the available colours:

Size (mm) Capacity to overflow (l) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Flow SystemChrome Code 1600 × 750 * 190 200 4 ARIN.FLOW.CR WAEX.HEV16WHS 1700 × 750 * 215 200 4 ARIN.FLOW.CR WAEX.HEV17WHS 1800 × 800 170 200 4 ARIN.FLOW.CR WAEX.HEV18WHS Size (mm) Capacity to overflow (l) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Flow System - Gold Code 1600 × 750 * 190 200 4 ARIN.FLOW.GL WAEX.HEV16WHS 1700 × 750 * 215 200 4 ARIN.FLOW.GL WAEX.HEV17WHS 1800 × 800 250 200 4 ARIN.FLOW.GL WAEX.HEV18WHS Z 2 P E L2 R1 L1 L W W1 W2 R D G H R2 Detailed

For size L L2 L3 W W2 W3 H G D E R R1 R2 P1 1600 × 750 * 1060 1465 1595 475 595 750 445 330 1060 1465 75 65 18 570 1700 × 750 * 1160 1565 1695 475 595 750 445 330 1160 1555 75 65 18 570 1800 × 800 1230 1665 1795 520 645 795 445 360 1230 1665 75 65 18 570

dimensions according the schemes (mm)

chrome, white gloss, black matt, gold PVD. + + Pop-up plug included Features: We recommend: Top access for cleaning Screens Headrests Panels Flex-system Deckmounted bath mixer Bathtub shelf * Chromotherapy Hydromassage Inspire (except XL) Slim rim Built-in overflow Handle Flow System - Chrome Flow System -

Size (mm) Capacity to overflow (l) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Flow System - Black Code 1600 × 750 * 190 200 4 ARIN.FLOW.BL WAEX.HEV16WHS 1700 × 750 * 215 200 4 ARIN.FLOW.BL WAEX.HEV17WHS 1800 × 800 250 200 4 ARIN.FLOW.BL WAEX.HEV18WHS +

Size (mm) Capacity to overflow (l) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) System Flow - White Code 1600 × 750 * 190 200 4 ARIN.FLOW.WH WAEX.HEV16WHS 1700 × 750 * 215 200 4 ARIN.FLOW.WH WAEX.HEV17WHS 1800 × 800 250 200 4 ARIN.FLOW.WH WAEX.HEV18WHS +

Flow

HEAVEN SLIM acrylic

bathtub

Flow system

Bathtub overflow with drain set with top-access for cleaning with a pop-up plug, is a perfect combination of functionality and unique design. It's available in 4 colour versions: chrome, shiny white, matt black and shiny gold PVD.

Slim bathtub edge

This solution of minimalistic bathtub edge with thickness 18 mm +/-2 allows to get elegant and gentle style of the bathroom. Slim edge is additionally reinforced.

Reinforced bottom Frame & leg set

Reinforcement of the bottom of bathtub is a guarantee of safety, stability and comfort of use.

All the additional parts of bathtub are made of the highest quality raw materials.

100% Acrylic

Bathtub made of 100% sanitary acrylic sheet with increased thickness.

Rectangular bathtubs

Aurum Slim

Rectangular white acrylic bathtub

Please note!

This model is not available with hydromassage systems: Optima Relax, Inspire XL and Discovery Premium

20 Headrests Panels Flex-system Screens

Detailed dimensions according the schemes (mm) For size L W H G D R P1 S E F F1 Z 1495 × 700 1495 700 445 330 1040 18 580 400 1400 580 60 240 1595 × 700 1595 700 445 330 1140 18 580 400 1500 580 60 240 1695 × 695 1695 695 455 340 1230 18 580 400 1600 540 80 210 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1495 × 700 170 135 570 200 4 (2+2) WAEX.AUR15WHS 1595 × 700 200 140 570 200 4 (2+2) WAEX.AUR16WHS 1695 × 695 205 140 570 200 4 (2+2) WAEX.AUR17WHS Slim rim Features: We recommend: L R G P H E D Z S F1 F W Deck-mounted bath mixer

Rectangular bathtubs

Oceana Slim

Rectangular white acrylic bathtub

Detailed dimensions according the schemes (mm)

Please note! Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage.

For size L W H G D R P1 S E F F1 Z 1600 × 750 1600 750 450 330 1010 18 580 435 1480 630 60 255 1700 × 750 1700 750 450 320 1150 18 580 445 1590 630 60 255 1795 × 795 1795 795 465 330 1210 18 600 465 1680 670 60 270 F 1 Z L W F H G E R P D S

Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1600 × 750 200 150 570 180 4 (2+2) WAEX.OCE16WHS 1700 × 750 210 155 570 180 4 (2+2) WAEX.OCE17WHS 1795 × 795 220 180 570 180 4 (2+2) WAEX.OCE18WHS Headrests Features: We recommend: Handle Bathtub shelf Panels Flex-system Screens Slim rim Deck-mounted bath mixer

Rectangular bathtubs

Pryzmat Slim

Rectangular white acrylic bathtub

Please note!

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage. It is possible to make a bathtub with a double system of Shiatsu nozzles (2x4 Slim nozzles).

Detailed dimensions according the schemes (mm) For size L W H G D R P1 S E F F1 Z 1605 × 755 1605 755 445 330 1080 18 580 470 1520 595 80 265 1700 × 755 1700 755 445 330 1190 18 580 470 1620 595 80 265 1800 × 805 1800 805 475 345 1200 18 580 475 1705 635 85 285 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1605 × 755* 215 120 570 180 5 WAEX.PRY16WHS 1700 × 755* 230 130 570 180 5 WAEX.PRY17WHS 1800 × 805 250 130 570 180 5 WAEX.PRY18WHS H G R E P D W L S F Z F1

Headrests Features: We recommend: Handle Bathtub shelf* Screens Slim rim Panels Flex-system Deck-mounted bath mixer

Rectangular bathtubs

Wave Slim

Rectangular white acrylic bathtub

Detailed dimensions according the schemes (mm)

Please note!

This model is not available with systems: Optima Relax, Inspire XL, Discovery Premium. Slim rim

Features: We recommend:

Headrests *Bathtub shelf Screens

Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1195 × 700 128 - 570 200 5 WAEX.WAV12WHS 1295 × 700 140 - 570 200 5 WAEX.WAV13WHS 1395 × 700 165 105 570 200 5 WAEX.WAV14WHS 1495 × 700 180 118 570 200 5 WAEX.WAV15WHS 1595 × 700 195 129 570 200 5 WAEX.WAV16WHS 1595 × 790 250 171 570 200 5 WAEX.WAV160.80WHS 1695 × 700 205 125 570 200 5 WAEX.WAV17WHS 1695 × 750 * 205 125 570 200 5 WAEX.WAV170.75WHS 1795 × 795 287 160 570 200 5 WAEX.WAV18WHS

For size L W H G D R P S E F F1 F2 Z 1195 × 700 1195 700 375 280 870 18 - 435 1075 570 60 60 260 1295 × 700 1295 700 380 280 970 18 - 435 1175 570 60 60 285 1395 × 700 1395 700 435 320 970 18 560 410 1250 550 70 70 290 1495 × 700 1495 700 435 320 1060 18 580 410 1360 555 70 70 290 1595 × 700 1595 700 435 320 1160 18 580 410 1450 550 75 75 305 1595 × 790 1595 800 465 345 1140 18 580 500 1455 650 75 75 285 1695 × 700 1695 700 435 320 1260 18 580 410 1555 550 75 75 300 1695 × 750 1695 700 435 320 1260 18 580 410 1555 550 75 75 300 1795 × 795 1795 795 465 345 1340 18 580 510 1650 650 75 75 295 F3 H S F1 F2 G F W Z L R P E D Panels Flex-system Deck-mounted bath mixer

Rectangular bathtubs

Lamia Slim

Rectangular white acrylic bathtub

Please note!

This model is available with Joy max, Inspire systems. The control panel appears only in the corner behind the back.

Z L E W F H G P D S F1 R Bathtub shelf Screens

Detailed dimensions according the schemes (mm) For size L W H G D R P1 S E F F1 Z 1500 × 750 1500 750 440 320 1010 22 580 460 1380 640 55 270 1600 × 750 1600 750 460 320 1110 22 580 460 1400 600 75 270 1700 × 750 1700 750 465 320 1210 22 580 460 1490 600 75 270 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 750 165 125 570 200 4(2+2) WAEX.LAM15WHS 1600 × 750 190 140 570 200 4(2+2) WAEX.LAM16WHS 1700 × 750 210 150 570 200 4(2+2) WAEX.LAM17WHS Slim rim Features: We recommend: Panels Flex-system

Rectangular bathtubs

Savia

Rectangular white acrylic bathtub

Detailed dimensions according the schemes (mm)

25 Bathtub shelf Screens We recommend: Panels Flex-system W1 W W2 L Z F2 F F1 P R L1 D H1 H W1 W W2 L Z F2 F F1 P R L1 D H1 H

For size L L1 W W1 W2 F F1 F2 H H1 D P R Z 1495 × 700 1495 1320 700 565 340 65 65 65 425 315 1010 685 40 280 1605 × 700 1605 1420 700 640 335 65 65 65 405 290 1065 780 40 280 1695 × 700 1695 1505 700 565 360 65 65 65 425 315 1205 780 40 280 1700 × 750 1700 1565 750 615 440 65 65 65 385 315 1210 780 40 280 Size (mm) Capacity (l) to overflow Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Code 1495 × 700 250 570 150 WANL.SAV15WH 1605 × 700 250 570 150 WANL.SAV16WH 1695 × 700 270 570 150 WANL.SAV17WH 1700 × 750 270 570 150 WANL.SAV170.75WH

NEW

Rectangular bathtubs

Canyon II

Rectangular white acrylic bathtub

Please note!

Switch of the Discovery Premium system mounted in the corner behind the back.

P E R H G L S F Z W D

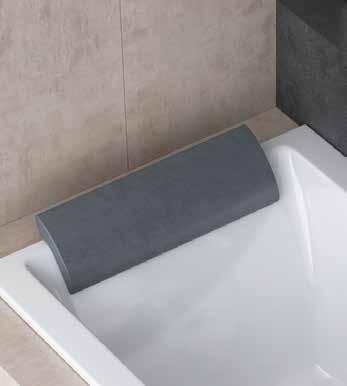

Headrests

chrome handles included Panels Detailed dimensions according the schemes (mm) For size L W H G D R P S E F Z 1690 × 750 1690 750 475 340 1215 40 560 340 1600 640 235 1785 × 800 1785 800 475 325 1300 40 560 390 1680 675 240 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1690 × 750 210 125 570 120 3 WAEX.CNN17WHC 1785 × 800 235 150 570 120 3 WAEX.CNN18WHC Deck-mounted bath mixer

Features: We recommend:

Rectangular bathtubs

Crown Lux

Rectangular white acrylic bathtub

Detailed dimensions according the schemes (mm)

Please note!

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage. It is possible to make a bathtub with a double system of Shiatsu nozzles (2x4 Slim nozzles in the following layouts: side by side or alternately, to be consulted with the production department). Crown Lux bathtub is not available with the Actima systems, except from Joy Air. Additional payment to the hydro-massage systems for Crown Lux bathtubs.

We recommend:

For size L W H G D R P S E F1 Z 1900 × 1200 1900 1200 510 410 1230 40 650 780 1730 100 600 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1900 × 1200 530 300 1000 230 5 WAEX.CRO19WH F Z L W S H G D E P R

Headrests

Handle Panels Screens Deck-mounted bath mixer

Rectangular bathtubs

Crown Grand Rectangular white acrylic bathtub

Please note!

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage. It is possible to make the bathtub with a double system of Shiatsu nozzles (2x4 slim nozzles).

Detailed dimensions according the schemes (mm) For size L W H G D R P S E F1 Z 1895 × 900 1895 900 480 365 1085 40 580 435 1730 105 445 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1895 × 900 265 120 800 230 5 WAEX.CRG19WH Z W L S F R H G E D P

Headrests We recommend: Handle Panels Screens Deck-mounted bath mixer

Rectangular bathtubs

Pryzmat

Rectangular white acrylic bathtub

Detailed dimensions according the schemes (mm)

Please note!

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage. It is possible to make the bathtub with a double system of Shiatsu nozzles (2x4 slim nozzles). 2000 x 900 Pryzmat bathtub is not available with the Actima system with the exception of Joy Air. An additional payment to the assembly in the 2000 x 900 Pryzmat bathtub shall apply.

For size L W H G D R P S E F F1 Z 1500 × 755 1500 755 445 330 980 40 560 465 1420 595 80 265 1605 × 755 1605 755 445 330 1080 40 560 470 1520 595 80 265 1695 × 745 1695 755 445 330 1190 40 560 470 1620 595 80 265 1800 × 805 1800 805 475 345 1200 40 560 475 1705 635 85 285 1900 × 900 1900 900 500 380 1400 40 580 610 1780 720 90 265 2000 × 900 2000 900 500 380 1500 40 580 610 1880 720 90 265 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 755* 205 110 570 180 5 WAEX.PRY15WH 1605 × 755* 215 120 570 180 5 WAEX.PRY16WH 1695 × 745* 230 130 570 180 5 WAEX.PRY17WH 1800 × 805 250 130 570 180 5 WAEX.PRY18WH 1900 × 900 350 130 570 180 5 WAEX.PRY19WH 2000 × 900 380 130 570 180 5 WAEX.PRY20WH W L S F F1 Z H G R E D P

Headrests

recommend: Handle *Bathtub shelf Panels Screens Deck-mounted bath mixer

Rectangular bathtubs

Arana

Rectangular wall-mounted white acrylic bathtub

Please note!

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage.

Detailed dimensions according the schemes (mm) For size L W H G D R P S E F F1 F2 1790 × 845 1790 845 475 330 1245 40 580 510 1695 705 45 90 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1790 × 845 260 150 800 220 5 WAEX.ARA18WH F 1 S F W L F 2 E P D G H

Headrests

recommend: Handle Panels Deck-mounted bath mixer

Rectangular bathtubs

Aquaria

Rectangular white acrylic bathtub

Please note!

This model is not available with systemsi: Optima Relax, Inspire XL and Discovery Premium - 1395 x 700, Discovery Premium1500 x 700, 1600 x 705. Switch of the Optima Relax, Discovery Premium system and Optima Relax chromotherapy systems is mounted in the corner behind the back.

Detailed dimensions according the schemes (mm) For size L W H G D R P S E F Z 1395 × 700 1395 700 440 320 950 40 560 415 1265 565 255 1500 × 700 1500 700 445 315 1050 40 560 405 1365 565 255 1600 × 705 1600 705 445 320 1150 40 560 415 1470 575 250 1700 × 750 1700 750 455 355 1180 40 560 435 1530 600 270 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1395 × 700 180 105 570 120 4 (2+2) WAEX.AQU14WH 1500 × 700 200 115 570 120 4 (2+2) WAEX.AQU15WH 1600 × 705 210 125 570 120 4 (2+2) WAEX.AQU16WH 1700 × 750* 220 135 570 120 4 (2+2) WAEX.AQU17WH W L Z S F H R G E D P

Headrests We recommend: Handle *Bathtub shelf Panels Deck-mounted bath mixer

Rectangular bathtubs

Aquaria Lux

Rectangular white acrylic bathtub

Detailed dimensions according the schemes (mm)

Please note!

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage. Switch of the Optima Relax, Discovery Premium system and Optima Relax chromotherapy systems is mounted in the corner behind the back.

We recommend:

32 E D P G R H W L S F F1 Z

For size L W H G D R P S E F Z F1 1795 × 795 1795 795 490 375 1180 40 580 460 1645 655 275 70 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1795 × 795 275 180 800 180 5 WAEX.AQU18WH

Headrests

Handle Panels Deck-mounted bath mixer

Rectangular bathtubs

Sekwana

Rectangular white acrylic bathtub

Please note!

Control switches for chromotherapy and hydromassage are installed on the back side of bathtub.

Detailed dimensions according the schemes (mm) For size L W H G D R P S E F Z 1495 × 710 1495 710 445 310 1020 40 560 350 1325 575 245 1595 × 705 1595 705 445 310 1130 40 560 360 1430 590 250 1700 × 755 1700 755 460 340 1195 40 560 365 1535 610 290 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1495 × 710 140 95 570 150 4 (2+2) WAEX.SEK15WH 1595 × 705 160 100 570 150 4 (2+2) WAEX.SEK16WH 1700 × 755 190 120 570 150 4 (2+2) WAEX.SEK17WH Z W L F S R H G D E P Headrests

Panels Deck-mounted bath mixer

We recommend:

Rectangular bathtubs

Ava

Rectangular white acrylic bathtub

Please note!

For bathtub size 1500 x 705 Discovery Premium system is not available.

Detailed dimensions according the schemes (mm) For size L W H G D R P S E F Z 1500 × 705 1500 705 430 305 1020 40 560 390 1325 570 295 1600 × 705 1600 705 430 310 1115 40 560 375 1415 575 295 1700 × 705 1700 705 450 330 1185 40 560 370 1510 580 285

Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 705 190 120 570 120 5 WAEX.AVA15WH 1600 × 705 210 140 570 120 5 WAEX.AVA16WH 1700 × 705 230 160 570 120 5 WAEX.AVA17WH W L S F Z H G R E D P Headrests We recommend: Handle Bathtub shelf Panels Screens Deck-mounted bath mixer

Sfera Slim Corner white acrylic bathtub

Please note!

Control switches for chromotherapy and hydromassage are installed at bathtub overflow side.

E D R G P H Z 1 L Z W 1 W F F1 F2 F3 S S 1 Detailed dimensions according the schemes (mm) For size L W1 W2 H G D R P1 S1 S2 E F1 F2 F3 F4 Z1 Z2 1700 × 1005 1700 1005 675 485 370 1185 18 600 565 345 1525 45 125 45 125 880 500 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1700 × 1005/left 270 150 570 180 5 WAEX.SFL17WHS 1700 × 1005/right 270 150 570 180 5 WAEX.SFP17WHS Headrests Features: We recommend: Handle Slim rim Deck-mounted bath mixer

Panels Flex-system Corner bathtubs

Corner bathtubs

M-Sfera Slim Corner white acrylic bathtub

Please note!

This model is not available with systems: Optima Relax, Inspire XL, Discovery Premium

Features: We recommend: Slim rim Panels Flex-system Handle Deck-mounted bath mixer

Headrests

Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1600 × 950/left 230 130 570 180 4 WAEX.MSL16WHS 1600 × 950/right 230 130 570 180 4 WAEX.MSP16WHS Z Z Z 2 W 2 W 1 S 2 S 1 Z1 P1 2 3 Detailed dimensions according the schemes (mm) For size L W1 W2 H G D R P1 S2 S1 E F1 F2 F3 F4 Z1 Z2 1600 × 950 1600 950 620 450 355 1170 18 580 390 590 1470 80 50 50 80 860 550

Corner bathtubs

Kameleon

Corner white acrylic bathtub

Detailed dimensions according the schemes (mm) For size L W H G D R P S E Z1 Z2 1700 × 1100 1700 1100 490 345 1170 40 560 495 1520 1330 400 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1700 × 1100/left 235 130 570 180 5 WAEX.KML17WH 1700 × 1100/right 235 130 570 180 5 WAEX.KMP17WH Z 1 L Z W S H R G D E P We recommend: Panels Deck-mounted bath mixer

Corner bathtubs

Magnus

Corner white acrylic bathtub

dimensions according the schemes (mm)

Detailed

For size L W1 W2 H G D R P S E F Z1 Z2 1500 × 855 1500 855 565 475 375 990 40 560 485 1355 685 1180 360 1600 × 950 1600 950 605 475 365 1035 40 560 590 1455 780 1280 395 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 855/left 250 130 570 150 5 WAEX.MGL15WH 1500 × 855/right 250 130 570 150 5 WAEX.MGP15WH 1600 × 950/left 270 145 800 150 5 WAEX.MGL16WH 1600 × 950/right 270 145 800 150 5 WAEX.MGP16WH S F H G R E D P L W W 1 Z 1 Z Headrests We recommend: Panels Handle Deck-mounted bath mixer

Corner bathtubs

Vesper

Corner white acrylic bathtub

Detailed dimensions according the schemes (mm) For size L L2 L3 W1 W2 H G D R P S E F F1 F2 Z1 Z2 1600 × 1000 1600 780 870 1000 670 450 350 1100 40 560 500 1470 590 70 85 700 850 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1600 × 1000/left 180 250 570 250 5 WAEX.VEL16WH 1600 × 1000/right 180 250 570 250 5 WAEX.VEP16WH

S F E L2 L1 D W1 Z1

Panels Flex-system Deck-mounted bath mixer Headrests

We recommend:

Corner bathtubs

Aquaria Comfort

Corner white acrylic bathtub

Detailed dimensions according the schemes (mm)

For size L W H G D R P S E Z1 Z2 1500 × 955 1500 955 450 320 1060 40 560 450 1365 1175 285 1600 × 1000 1600 1000 445 310 1135 40 560 495 1480 1275 305 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 955/left 180 110 570 180 3 WAEX.AQL15WH 1500 × 955/right 180 110 570 180 3 WAEX.AQP15WH 1600 × 1000/left 215 135 570 180 3 WAEX.AQL16WH 1600 × 1000/right 215 135 570 180 3 WAEX.AQP16WH W Z Z 1 L S P E D G H R Headrests We recommend: Panels Deck-mounted bath mixer

Corner bathtubs

Newa Plus

Corner white acrylic bathtub

Detailed dimensions according the schemes (mm)

* 570 mm for bathtubs with hydromassage system.

Please note! This model is not available with systems: Optima Relax, Discovery Premium

We recommend:

Panels Deck-mounted bath mixer

For size L W H G D R P S E Z1 Z2 1500 × 950 1500 950 450 330 1150 40 560* 440 1390 905 515 1600 × 950 1600 950 470 335 1205 40 560* 475 1490 965 515 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 950/left 200 125 570 120 2 WAEX.NEL15WH 1500 × 950/right 200 125 570 120 2 WAEX.NEP15WH 1600 × 950/left 225 135 570 120 2 WAEX.NEL16WH 1600 × 950/right 225 135 570 120 2 WAEX.NEP16WH

E D P R G H Z 1 L Z W S

Corner bathtubs

Ava Side

Corner white acrylic bathtub

Please note!

Only Actima hydromassage system is available for this model.

Detailed dimensions according the schemes (mm) For size L W1 W2 H G D R P S E F Z1 Z2 1500 × 805 1500 805 555 425 330 1090 40 540 380 1375 530 1230 305 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1500 × 805/left 200 130 570 120 2 WAEX.AVL15WH 1500 × 805/right 200 130 570 120 2 WAEX.AVP15WH S F H G R E D P L W W 1 Z 1 Z

Headrests

Handle Panels Screens Deck-mounted bath mixer

We recommend:

Corner bathtubs

Glamour

Corner symmetric white acrylic bathtub

Please note!

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage. It is possible to make the bathtub with a double system of Shiatsu nozzles (2x4 slim nozzles).

We recommend:

Detailed dimensions according the schemes (mm) For size L A B H G D R P S E Z ZL 1405 × 1405 1405 1420 1970 490 320 1110 40 600 520 1700 1120 795 1500 × 1500 1500 1560 2110 500 330 1190 40 600 585 1870 1225 875 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1405 × 1405 190 130 570 170 5 WAEX.GLA14WH 1500 × 1500 225 160 570 170 5 WAEX.GLA15WH Z A S Z1 L H R G D P E B

Panels Deck-mounted bath mixer

Rectangular bathtubs

Clesis Lux

Rectangular white acrylic bathtub

Please

Control panel of hydromassage and chromotherapy systems installed behind the back on bathtub edge.

Detailed dimensions according the schemes (mm) For size L W H G D R P S E F Z 1695 × 755 1695 755 460 335 1205 40 560 385 1530 645 260 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1695 × 755 220 115 570 150 4 (2+2) WAEX.CLE17WHC E D P G R H L S F W Z chrome handles included Headrests Features: We recommend: Bathtub shelf Panels Screens Deck-mounted bath mixer

note!

Corner bathtubs

Be Spot

Corner white acrylic bathtub

Detailed dimensions according the schemes (mm)

Please note!

Only Actima hydromassage system is available for this model. It is possible to use standard overflows.

The product line of the Be Spot series is addressed to customers who, having a small space in bathroom, want to be able to yese a bath in the bathtub but do not want to resign from daily use of the shower.

For size L W1 W2 H G D R P S1 S2 E F1 F2 F3 Z1 Z2 I J K 1600 × 800 1600 800 650 430 360 1140 40 560 570 420 1500 695 550 50 575 280 840 275 525

Shower area Bath area

Oval bathtubs

Lumina

Oval white acrylic bathtub, white

Detailed dimensions according the schemes (mm)

* 610 mm

Please note!

bathtubs with hydromassage

Symmetric bathtub. It is necessary to determine the position of the nozzles for back massage. In case of ordering a bathtub with a hydro-massage system, the assembly of the bathtub-mounted mixer after consultation with the technical department. It is possible to make the bathtub with a double system of Shiatsu nozzles (2x4 Slim nozzles). In a hydro-massage bathtub there is no possibility to level tiles with the bathtub edge.

We recommend:

Panels Deck-mounted bath mixer

For size L W H G D R P S E F Z 1900 × 955 1900 955 490 365 1205 40 600* 530 1750 770 480 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1900 × 955 260 150 800 200 4 WAEX.LUM19WH

W H G R E D P F S Z L

for

Great Arc

Round white acrylic bathtub, white

Detailed dimensions according the schemes (mm)

Please note!

It is possible to make the bathtub with a double system of Shiatsu nozzles (2x4 Slim nozzles). The Great Arc bathtub is not available with the Actima systems, except from Joy Air. Additional payment to the hydro-massage systems for Great Arc bathtubs.

We recommend:

Round bathtubs

For size L D H G P1 R S1 S2 E Z 1600 Φ Φ 1600 1095 490 350 min. 580 40 565 1030 1505 700 Size (mm) Capacity (l) to overflow Capacity (l) min. for hydro. Length of the overflow drain (mm) Wall mixer (min. spout length, mm) Bath mounted mixer (max. no. of holes) Code 1600 Φ 340 225 1000 230 5 WAEX.GRE16WH Z L S1 S P E R H G D

Headrests

Handle Panels Deck-mounted bath mixer

Bathtub panels

Flex System

Bathtub panels

Possibly adjusting to the required length Connectors included Material XPS XPS Features: Dimensions of element 1 (length × height, mm) Dimensions of element 2 (length × height, mm) Dimensions of element 3 (length × height, mm) Accessories included (Quantity) Code 1 1800 × 600 850 × 600 - 2 OBEX.P.18X85WH 2 2000 × 600 900 × 600 - 2 OBEX.P.20X90WH 3 2500 × 600 - - - OBEX.N.250WH 4 2500 × 600 450 × 600 450 × 600 4 OBEX.ARA.18WH 5 1950 × 600 650 × 600 - 2 OBEX.BSF.16WH 6 900 × 600 - - - OBEX.P.90X60WH 7 2000 × 600 - - - OBEX.P.200X60WH Mounting accessories Material Connecting angle Regulation Installation Code 8 plastic 90O - pressed OBEX.LACZ.90 9 plastic - - pressed OBEX.LACZ.POD 10 plastic 180O - pressed OBEX.LACZ.180 11 plastic - yes pressed OBEX.STO.BL

Bathtub panels

1. Panel for tile installation for rectangular bathtubs up to 1800 x 850 mm

OBEX.P.18X85WH

2. Panel for tile installation for rectangular bathtubs up to 2000 x 900 mm

OBEX.P.20X90WH

4. Panel for tile installation

Arana 1790 × 845 mm

OBEX.N.250WH

Be Spot

OBEX.BSF.16WH

7. Panel for tile installation front 2000 × 600 mm

OBEX.P.200X60WH

OBEX.LACZ.POD

OBEX.LACZ.180

OBEX.ARA.18WH

6. Side panel for tile installation

900 × 600 mm

OBEX.P.90X60WH

OBEX.LACZ.90

11. Adjustable panel leg

OBEX.STO.BL

5. Panel for tile installation 8. Bottom panel fastener 9. Panel fastener 90° 10. Panel fastener 180°

Panel

For rectangular bathtubs For corner bathtubs For Arana bathtub Panel type A01 For rectangular bathtubs Panel type D

For front bathtub

Panel type A02 Panel type B 01

type C 01

3. Panel for tile installation for corner bathtubs

Panel type C 02 Panel type D 01 For Be Spot bathtub For side bathtub

Bathtub panels

Izi System

Bathtub panels

Panels for bathtub installation in fast assembly system

White panel for Arana bathtub

White panel for Be Spot bathtub

Light panels, made of plastic similar to the tub itself

dimensions

dedicated to bathtubs

adjusting to the required length

Varied in terms of

and shapes —

Possibly

Mounted by clamps

White side panel White front panel White corner panel

*LE for left bathtubs, PR for right bathtubs.

Staight panels for selected bathtubs may require adjustment by cutting them to required length. Please pay special attention to the selection of panels for hydro-massage bathtubs. Due to the technology of hydro-massage production, it is necessary to apply panels

therefore we recommend to consult selection of panel with our Hydro-Massage Production Department.

51 IZI SYSTEM FLEX SYSTEM Length of the bathtub arch for tiling OBEX.140.56WH OBEX.150.56WH OBEX.160.56WH OBEX.170.56WH OBEX.180.56WH OBEX.070.56WH OBEX.075.56WH OBEX.080.56WH OBEX.180.58WH OBEX.190.58WH OBEX.200.58WH OBEX.080.58WH OBEX.090.58WH OBEX.190.65WH OBEX.120.65WH OBEX.AVB.15WH OBEX.AV*.15WH OBEX.AQ*.15WH OBEX.AQ*.16WH OBEX.KM*.17WH OBEX.MG2.15WH OBEX.MG2.16WH OBEX.CRY.15WH OBEX.CRY.16WH OBEX.GLA.14WH OBEX.GLA.15WH OBEX.AR2.18WH OBEX.BS*.16WH OBEX.BSB.16WH OBEX.P.18X85WH OBEX.P.20X90WH OBEX.N.250WH OBEX.ARA.18WH OBEX.BSF.16WH OBEX.P.90X60WH OBEX.P.200X60WH Bath screen name & code Bathtub series & size Heaven Slim 1600x750 - × × × Heaven Slim 1700x750 - × × × Heaven Slim 1800x800 - × × × Aurum Slim 1495x700 - × × × Aurum Slim 1595x700 - × × × Aurum Slim 1695x695 - × × × Oceana Slim 1600x750 - × × × Oceana Slim 1700x750 - × × × Oceana Slim 1795x795 - × × × Pryzmat Slim 1605x755 - × × × Pryzmat Slim 1700x755 - × × × Pryzmat Slim 1800x805 - × × × Wave Slim 1195x700 - × × × Wave Slim 1295x700 - × × × Wave Slim 1395x700 - × × × Wave Slim 1495x700 - × × × Wave Slim 1595x700 × × × Wave Slim 1595x790 × × × Wave Slim 1695x750 × × × Wave Slim 1795x795 × × × Lamia Slim 1500x750 - × × × Lamia Slim 1600x750 - × × × Lamia Slim 1700x750 - × × × Savia 1495 × 700 - × × × Savia 1605 × 700 - × × × Savia 1695 × 700 - × × × Savia 1700 × 750 - × × × Clesis Lux 1695x755 × × - × × × Canyon II 1690x750 × × - × × × Canyon II 1785x800 × × - × × × Crown Lux 1900x1200 × × - × × Crown Grand 1895x900 × × - × Pryzmat 1500x755 × × - × × × Pryzmat 1605x755 × × - × × × Pryzmat 1695x745 × × - × × × Pryzmat 1800x805 × × - × × × Pryzmat 1900x900 × × - × × × Pryzmat 2000x900 × × - × × × Arana 1790x845 × - × Aquaria 1395x700 × × - × × × Aquaria 1500x700 × × - × × × Aquaria 1600x705 × × - × × × Aquaria 1700x750 × × - × × × Aquaria Lux 1795x795 × × - × × × Sekwana 1495x710 × × - × × × Sekwana 1595x705 × × - × × × Sekwana 1700x755 × × - × × × Ava 1500x705 × × - × × × Ava 1600x705 × × - × × × Ava 1700x705 × × - × × × Sfera Slim* 1700x1005 1750 × × M-Sfera Slim* 1600x950 1650 × × Kameleon* 1700x1100 × 2400 × Magnus* 1500x855 × 1600 × Magnus* 1600x950 × 1700 × Vesper* 1600x1000 1650 × Aquaria Comfort* 1500x955 × 2050 × Aquaria Comfort* 1600x1000 × 2250 × Newa Plus* 1500x950 × 2100 × Newa Plus* 1600x950 × 2150 × Ava Side* 1500x805 × × 1550 × Be Spot* 1600x800 × × 1650 × Glamour 1405x1405 × 2250 × Glamour 1500x1500 × 2450 × Lumina 1900x955 - 2x Great Arc Φ1600Panels of selected corner bathtubs may differ in terms of shape.

of different height

standard ones,

The dimensions of FLEX SYSTEM panels may be larger even by 30 mm in some cases. I t provides a better possibility to adapt it.

than the

Options

Services

Assembly of the Hansgrohe Exafill system (58123000). Does not include the overflow price

Drilling holes for the installation of a bathtub mixer (price for 1 hole)*

Bathtub frames

Rectangular bathtubs up to 180 x 80 cm inclusive

Corner bathtubs

Oval bathtubs

Crown Lux, Great Arc, Pryzmat 2000x900 bathtubs

Flex System panels for tile cover

Great Arc bathtub panel

Permanent panel fitting

Permanent Great Arc panel fitting

Please note! In case of ordering a Flex System panel for the bathtub with hydro massage, the panel can protrude up to 30 mm beyond the bathtub outline.

* It is necessary for the customer to provide the mixer

Instruction for baths dimensioning

L Total length — external (dimension measured below edge)

W Total width — external (dimension measured below edge)

H Total, maximum bathtub height (including the board)

G Maximum depth (measured from the bottom of the overflow hole to the place of drainage)

D Bottom width (measure approx. 1.5 cm over the bottom)

R Edge height

Panel height — standard height of assembly (measured from the floor to the lower edge). In case of lack of panel, it is the assembly height (it is necessary to yese into account the standard bathtub overflow from the height of 130 mm)

S Bottom width at the marked spot (measured approx. 1.5 cm over the bottom)

E Maximum length of the upper part of the bowl

F Maximum width of the upper part of the bowl

F 1,2 Edge width

Z Placement of the drain (lower)

Please note!

Dimension measured in mm. (It should be rounded: 2 mm — down, 3 mm — up). Volume measured in liters (to be rounded to 5 l).

Please note!

All the technical drawings of the products contain the necessary measurements allowing for their selection and appropriate fitting. Please note that the dimensions are given in mm and are subject to standard size deviation. The exact dimensions can be given only on the basis of a finished product.

52 Acrylic bathtubs

/ 1 / 1

53 Max. screen width after folding Liner KAEX.2930.1100.LP Liner KAEX.2930.1100.LP Liner KAEX.2920.1100.LP Fabrika KAEX.4030.730.LP Fliper KAAX.1309.1200.LE/PR Fliper KAAX.1309.800.LE/PR Be Spot KAEX.2309.750.LE/PR Seria 900 KAAC.1609.1000.LP Seria 900 KAAC.1609.730.LP Seria 900 KAAC.1619.730.LP Overflow length Hover ARIN.3410CR Hover ARIN.3410BL Hover ARIN.3410WH Hover ARIN.3410GL Moli ARIN.3210CR Moli ARIN.3210BL Moli ARIN.3210WH Moli ARIN.3210GL Simple AREX.A55BL Simple AREX.A65B Simple AREX.A55KM Level WAPO.LEVEL-SZARY Long WAZA.LONG-SZARY Prim WAZA.PRIM-SZARY Karo WAZA.KARO-SZARY Zen DOEX.1102.750.TR Zen DOEX.1101.750.TR Lila 2.0 wall-mounted 1500x720 - - × Lila 2.0 wall-mounted 1600x730 - - × Lila 2.0 wall-mounted 1700x750 - - × × × Lila 2.0 freestanding 1600x730 - - × Lila 2.0 corner 1600x730 720 × × × × × × × × × - × Heaven Slim 1600x750 740 × × × × × × × × × - × × × Heaven Slim 1700x750 740 × × × × × × × × × - × × × Heaven Slim 1800x800 790 × × × × × × × × ×Aurum Slim 1495x700 690 × × × × × × × × × 570 × × × × × × Aurum Slim 1595x700 690 × × × × × × × × × 570 × × × × × × Aurum Slim 1695x695 685 × × × × × × × × × 570 × × × × × × Oceana Slim 1600x750 740 × × × × × × × × × 570 × × × × × × × × Oceana Slim 1700x750 740 × × × × × × × × × 570 × × × × × × × × Oceana Slim 1795x795 785 × × × × × × × × × 570 × × × × × × Pryzmat Slim 1605x755 745 × × × × × × × × × 570 × × × × × × × × Pryzmat Slim 1700x755 745 × × × × × × × × × 570 × × × × × × × × Pryzmat Slim 1800x805 795 × × × × × × × × × 570 × × × × × × Wave Slim 1495x700 690 × × × × × × × × × 570 × × × × × × Wave Slim 1595x700 690 × × × × × × × × × 570 × × × × × × Wave Slim 1695x700 690 × × × × × × × × × 570 × × × × × × Wave Slim 1795x795 785 × × × × × × × × × 570 × × × × × × Lamia Slim 1500x750 740 × × × × × × × × × 570 × × × × × × × Lamia Slim 1600x750 740 × × × × × × × × × 570 × × × × × × × Lamia Slim 1700x750 740 × × × × × × × × × 570 × × × × × × × Clesis Lux 1695x755 745 570 × × × × × × × × Canyon II 1690x750 740 570 × × × × × × × × Canyon II 1785x800 790 570 × × × × × × Crown Lux 1900x1200 1190 × × × × × × × × × 1000 × × × × × Crown Grand 1895x900 890 × × × × × × × × × 800 × × × × × × Pryzmat 1500x755 745 × × × × × × × × × 570 × × × × × × × × × Pryzmat 1605x755 745 × × × × × × × × × 570 × × × × × × × × × Pryzmat 1695x745 735 × × × × × × × × × 570 × × × × × × × × × Pryzmat 1800x805 795 × × × × × × × × × 570 × × × × × × × Pryzmat 1900x900 890 × × × × × × × × × 570 × × × × × × × Pryzmat 2000x900 890 × × × × × × × × × 570 × × × × × × × Arana 1790x845 835 800 × × × × × × Aquaria 1395x700 690 570 × × × × × × × Aquaria 1500x700 690 570 × × × × × × × Aquaria 1600x705 695 570 × × × × × × × Aquaria 1700x750 740 570 × × × × × × × × × × Aquaria Lux 1795x795 785 800 × × × × × × Sekwana 1495x710 700 570 × × × × × Sekwana 1595x705 695 570 × × × × × Sekwana 1700x755 745 570 × × × × × × Ava 1500x705 695 × × × × × × × × × 570 × × × × × × × Ava 1600x705 695 × × × × × × × × × 570 × × × × × × × Ava 1700x705 695 × × × × × × × × × 570 × × × × × × × Sfera Slim 1700x1005 995 570 × × × × × × × M-Sfera Slim 1600x950 940 570 × × × × × × × Kameleon 1700x1100 - 570 × × × × × × Magnus 1500x855 - 570 × × × × × × Magnus 1600x950 - 800 × × × × × Vesper 1600x1000 990 570 × Aquaria Comfort 1500x955 - 570 × × × × × × × Aquaria Comfort 1600x1000 - 570 × × × × × × × Newa Plus 1500x950 - 570 × × × × × Newa Plus 1600x950 - 570 × × × × × Ava Side 1500x805 795 × × × × × × × × × 570 × × × × × × × Be Spot 1600x800 790 × 570 × × × × × × Glamour 1405x1405 - 570 × × × × × Glamour 1500x1500 - 570 × × × × × Lumina 1900x955 - 800 × × × × Gear Arc Φ1600 - 1000 × × × × Screens Bathtub overflows Headrests & Bathtub shelf Bathtub series & size Name & code of product

Hydromassage Systems in bathtubs

Matching free-standing bathtubs and built-in bathtubs to Excellent hydromassage and chromotherapy systems.

Discovery Premium Optima Relax Inspire Inspire XL Inspire Air Inspire Aqua Pearl Light Chromotherapy Holi 2.0 1600 × 760 WAEX.HOL2.16WH Holi 2.0 1700 × 760 WAEX.HOL2.17WH Lila 2.0 1600 × 730 WAEX.LIL2.160.WHW* × × Lila 2.0 1500 × 720 WAEX.LIL2.150.WHP* × × Lila 2.0 1600 × 730 WAEX.LIL2.160.WHP* × × Lila 2.0 1700 × 750 WAEX.LIL2.170.WHP* × × Lila 2.0 1600 × 730 WAEX.LIL2.160L.WHN* × × Lila 2.0 1600 × 730 WAEX.LIL2.160P.WHN* × × Comfort 2.0 1740 × 750 WAEX.CMP2.17WH Comfort 2.0 1740 × 750 WAEX.CMP2.17WB Olia 2.0 1500 × 730 WAEX.OLI2.15WH Heaven Slim 1600 × 750 WAEX.HEV16WHS × × × × Heaven Slim 1700 × 750 WAEX.HEV17WHS × × × × Heaven Slim 1800 × 800 WAEX.HEV18WHS × × × × Aurum Slim 1495 × 700 WAEX.AUR15WHS × × × × Aurum Slim 1595 × 700 WAEX.AUR16WHS × × × × Aurum Slim 1695 × 695 WAEX.AUR17WHS × × × × Oceana Slim 1600 × 750 WAEX.OCE16WHS × × × × × × × Oceana Slim 1700 × 750 WAEX.OCE17WHS × × × × × × × Oceana Slim 1795 × 795 WAEX.OCE18WHS × × × × × × × Pryzmat Slim 1605 × 755 WAEX.PRY16WHS × × × × × × × Pryzmat Slim 1700 × 755 WAEX.PRY17WHS × × × × × × × Pryzmat Slim 1800 × 805 WAEX.PRY18WHS × × × × × × × Wave Slim 1195 × 700 WAEX.WAV12WHS × Wave Slim 1295 × 700 WAEX.WAV13WHS × Wave Slim 1395 × 700 WAEX.WAV14WHS × × × × Wave Slim 1495 × 700 WAEX.WAV15WHS × × × × Wave Slim 1595 × 700 WAEX.WAV16WHS × × × × Wave Slim 1595 × 790 WAEX.WAV160.80WHS × × × × Wave Slim 1695 × 700 WAEX.WAV17WHS × × × × Wave Slim 1695 × 750 WAEX.WAV170.75WHS × × × × Wave Slim 1795 × 795 WAEX.WAV18WHS × × × × Lamia Slim 1500 × 750 WAEX.LAM15WHS × × × × Lamia Slim 1600 × 750 WAEX.LAM16WHS × × × × Lamia Slim 1700 × 750 WAEX.LAM17WHS × × × × Savia 1495 × 700 WAEX.SA15WH × × × × Savia 1605 × 700 WAEX.SA16WH × × × × Savia 1695 × 700 WAEX.SA17WH × × × × Savia 1700 × 750 WAEX.SA175WH × × × × Canyon II 1690 × 750 WAEX.CNN17WHC × × × × × × × Canyon II 1785 × 800 WAEX.CNN18WHC × × × × × × × Crown Lux 1900 × 1200 WAEX.CRO19WH × × × × × × × Crown Grand 1895 × 900 WAEX.CRG19WH × × × × × × × Pryzmat 1500 × 755 WAEX.PRY15WH × × × × × × × Pryzmat 1605 × 755 WAEX.PRY16WH × × × × × × × Pryzmat 1695 × 745 WAEX.PRY17WH × × × × × × × Pryzmat 1800 × 805 WAEX.PRY18WH × × × × × × × Pryzmat 1900 × 900 WAEX.PRY19WH × × × × × × × Pryzmat 2000 × 900 WAEX.PRY20WH × × × × × × × Arana 1790 × 845 WAEX.ARA18WH × × × × × × × Aquaria 1395 × 700 WAEX.AQU14WH × × × × Aquaria 1500 × 700 WAEX.AQU15WH × × × × Aquaria 1600 × 705 WAEX.AQU16WH × × × × × Aquaria 1700 × 750 WAEX.AQU17WH × × × × × × × Aquaria Lux 1795 × 795 WAEX.AQU18WH × × × × × × × Sekwana 1495 × 710 WAEX.SEK15WH × × × × × × × Sekwana 1595 × 705 WAEX.SEK16WH × × × × × × × Sekwana 1700 × 755 WAEX.SEK17WH × × × × × × × Ava 1500 × 705 WAEX.AVA15WH × × × × × Ava 1600 × 705 WAEX.AVA16WH × × × × × × × Ava 1700 × 705 WAEX.AVA17WH × × × × × × × Sfera Slim 1700 × 1005 WAEX.SFL17WHS × × × × × × × Sfera Slim 1700 × 1005 WAEX.SFP17WHS × × × × × × × Bathtub series Size Code Hydromassage system

Acrylic bathtubs

bathtubs Discovery Premium Optima Relax Inspire Inspire XL Inspire Air Inspire Aqua Pearl Light Chromotherapy Bathtub series Size Code Hydromassage System M-Sfera Slim 1600 × 950 WAEX.MSL16WHS × × × × M-Sfera Slim 1600 × 950 WAEX.MSP16WHS × × × × Kameleon 1700 × 1100 WAEX.KML17WH × × × × × × × Kameleon 1700 × 1100 WAEX.KMP17WH × × × × × × × Magnus 1500 × 855 WAEX.MGL15WH × × × × × × × Magnus 1500 × 855 WAEX.MGP15WH × × × × × × × Magnus 1600 × 950 WAEX.MGL16WH × × × × × × × Magnus 1600 × 950 WAEX.MGP16WH × × × × × × × Vesper 1600 × 1000 WAEX.VEL16WH × × × × × × × Vesper 1600 × 1000 WAEX.VEP16WH × × × × × × × Aquaria Comfort 1500 × 955 WAEX.AQL15WH × × × × × × × Aquaria Comfort 1500 × 955 WAEX.AQP15WH × × × × × × × Aquaria Comfort 1600 × 1000 WAEX.AQL16WH × × × × × × × Aquaria Comfort 1600 × 1000 WAEX.AQP16WH × × × × × × × Newa Plus 1500 × 950 WAEX.NEL15WH × × × × × Newa Plus 1500 × 950 WAEX.NEP15WH × × × × × Newa Plus 1600 × 950 WAEX.NEL16WH × × × × × Newa Plus 1600 × 950 WAEX.NEP16WH × × × × × Ava Side 1500 × 805 WAEX.AVL15WH × × Ava Side 1500 × 805 WAEX.AVP15WH × × Glamour 1405 × 1405 WAEX.GLA14WH × × × × × × × Glamour 1500 × 1500 WAEX.GLA15WH × × × × × × × Clesis Lux 1695 × 755 WAEX.CLE17WHC × × × × × × × Be Spot 1600 × 800 WAEX.BSL16WH × × Be Spot 1600 × 800 WAEX.BSP16WH × × Lumina 1900 × 955 WAEX.LUM19WH × × × × × × × Great Arc 1600 Φ WAEX.GRE16WH × × × × × × × Hydromassage system Optima Relax in bathtub Vesper 1600 × 1000mm.

Acrylic

Zen bathtub accessories

HANDLE

For convenont removal

SMOOTH EDGES

All edges are finely curved

100% ACRILIC

It will remain transparent for years

56 Bathtub accessories

Tailored to bathtubs: Aquaria, Clesis Lux, Heaven Slim

Zen Flat bath shelf

Tailored to bathtubs: Aquaria, Clesis Lux, Heaven Slim, Oceana Slim, Pryzmat, Pryzmat Slim, Sekwana

Size (mm) Colour Code 750 × 200 × 72 transparent DOEX.1102.750.TR 350 750 750 450 200 200 72 15 15 15 265

Size (mm) Colour Code 350 × 450 × 265 transparent DOEX.1103.350.TR 350 450 15 15 265 350 750 750 450 200 200 72 15 15 265

Zen Bent bath shelf

Zen Acrylic seat

Size (mm) Colour Code 750 × 200 × 15 transparent DOEX.1101.750.TR

150 kg Weight load capacity: 150kg Comfortable handle Comfortable handle Comfortable handle

Bathtub accessories

Bathtub straight handle

Metal handle

Features:

chrome Brass

Colour Quantity Code

chrome 1 WAEX.U320.CR

chrome 2 WAEX.U320.CR-2

The price of the handle includes drilling holes in the bathtub for its installation.

Level

Bathtub shelf

Bathtub accessories 150 kg

Features:

Weight load capacity: 150kg Slip-proof pad Comfortable handle

Width (mm) Length Thickness Colour Code

200 750 30 gray WAPO.LEVEL-SZARY

Tailored to bathtubs:

Aquaria, Clesis Lux, Heaven Slim, Oceana Slim, Pryzmat, Pryzmat Slim, Sekwana

Bathtub accessories

Long

Bathtub

Prim

Bathtub headrest

Tailored to bathtubs: Arana, Aquaria, Aquaria Lux , Ava, Ava Side, Crown Grand, Crown Lux, Heaven Slim, Magnus, M-Sfera Slim, Pryzmat, Pryzmat Slim, Sfera, Wave Slim

Tailored to bathtubs: Arana, Aquaria, Aquaria Lux, Aquaria Comfort, Aurum Slim, Ava, Ava Side, Crown Grand, Crown Lux, Heaven Slim, Lila 2.0, Pryzmat, Pryzmat Slim, Vesper

Karo

Bathtub headrest

Tailored to bathtubs: Aquaria Comfort, Be Spot, Canyon II, Great Arc, Kameleon, M-Sfera Slim, Oceana, Sfera Slim

Width (mm) Colour Code 240-300 gray WAZA.KARO-SZARY

Width (mm) Colour Code 375 gray WAZA.PRIM-SZARY

headrest

Width

Colour

475 gray WAZA.LONG-SZARY

(mm)

Code

Moli

Bath waste with overflow

Features:

Size of overflow pipe (mm) Colour Closing method Material Code

400 - 1000 chrome Click-Clack brass ARIN.3210CR

400 - 1000 black matt Click-Clack brass ARIN.3210BL

400 - 1000 white matt Click-Clack brass ARIN.3210WH

400 - 1000 gold gloss Click-Clack brass ARIN.3210GL

60 Bathtub accessories MORE INFORMATION Φ50 101 219 287 Φ50 101 Φ48 Φ69 219 818 Φ55 Φ71

plug Top access for cleaning Available in 4 colours NEW

Click-Clack

Hover

Bath waste with overflow filler

Features:

Filling through overflow

Click-Clack plug Top access for cleaning

Available in 4 colours

Size of overflow pipe (mm) Colour Closing method Material Code

od 400 do 1000 chrome Click-Clack brass ARIN.3410CR

od 400 do 1000 black matt

Click-Clack brass ARIN.3410BL

od 400 do 1000 white matt Click-Clack brass ARIN.3410WH

od 400 do 1000 gold gloss

Simple

Standard automatic overflow

Click-Clack brass ARIN.3410GL

Features:

Automatic overflow

Size (mm) Colour Code

570 chrome AREX.A55KM

570 black matt AREX.A55BL

800 black matt AREX.A65BL

61 279 Φ55 Φ50 101 Φ48 Φ69 219 807 Φ70 287 Φ50 101 Φ48 Φ69 219 818 Φ55 Φ71

Bathtub accessories

Available in 2 colours NEW

Pop-ups

Pop-ups for

Features:

Universal use for Excellent freestanding bathtubs

· White Color matched to bathtubs

Top access for cleaning

freestanding

Φ70 G1/2″ 39 45,5 52,5 Features: Top access for cleaning Click-Clack pop-up Brass Hole cover size (mm) Closing method Material Colour Code Φ 70 Click-Clack brass chrome ARIN.3485.01CR Φ 70 Click-Clack brass black matt ARIN.3485.01BL Φ 70 Click-Clack brass white matt ARIN.3485.01WH Φ 70 Click-Clack brass gold gloss ARIN.3485.01GL NEW

bathtubs

POP-UP for bathtubs

High quality materials Metal elements of pop-up made of high quality brass material

2 Close Click-Clack mechanism

Allows silent and smooth pop-up operation

Top access for cleaning

Dedicated strainer allows for easy cleaning, which protects against clogging of the drain system

4 Colour versions

Excellent bathtub pop-ups are available in 4 colour versions, which allows for a perfect match to the fittings used

Bathtub pop-up chrome ARIN.3485.01CR*

Bathtub pop-up black matt ARIN.3485.01BL

*pop-up added in standard to each freestanding bathtub

Bathtub pop-up white matt ARIN.3485.01WH

Bathtub pop-up gold glossy ARIN.3485.01GL

Hydromassage systems

Lila 2.0 Pearl Lila 2.0 Light Lila 2.0 Inspire Air

Lila 2.0 chrome 4 LED

72 73 74 75 76 78 80 81 82 83 87

Chromotherapy 64

Discovery Premium Optima Relax Inspire Inspire XL Inspire Air Inspire Aqua

YOUR PRIVATE MASSAGE THERAPIST,

and the effect of massage on human body

Tired, stressed out, overtrained, looking for new ways to regain balance. Have you ever wondered over having permanent access to your own private relaxation centre? Change your fatigue, stress and tiredness in a pleasant experience, owing to a bath in a bathtub with a hydromassage system.

Excellent solution to treat common ailments

Placed in the back rest of the tub are finely calibrated in order for the water jet to treat just the right part of the neck and back.

Placed at the bottom of the tub, the jets distribute air bubbles to gently massage your body.

Spread symmetrically on the sides of the tub, the jets treat a tense body and enhance the regenerative effect.

Two jets placed just right to allow sooth and regenerating foot hydro-massage.

66 Hydromassage

1. The Shiatsu jets

Back pain Neck pain Muscle pain

3. Air bubble jets 2. Side massage jets 4. Foot massage jets

ADVANTAGES

Unique innovations

· technologically advanced Discovery Premium system with an impressive colour touch screen

· automatic Wellness programs, controling the operation of the device

· extended Relax and Turbo Jet systems

· innovative series of systems based on touch buttons

Silent operation

· well-planned systems, effectively cushioning both the bathtub and the connections of all single devices an optimal selection of all components (including, among others, a water pump and an air blower) to the dimensions of the chosen bathtub, that guarantees maximum performance and possibly low power consumption

· silent water massage aeration system

Flat RGB Power LEDs

· discreet and imperceptible, levelled with the surface

· energy-saving and highly efficient to ensure the full experience and unique bathing comfort wide choice of colours

a system for automatic operation of the selected colours

We care for hygiene

· automatic air system drying, additionally water system drying in selected systems (Extra Dry) automatic disinfection system, which helps to keep the bath clean

· arrangement of smooth and rigid pipes to facilitate the water drainage

Eco - environmentally friendly

we use components of renowned manufacturers, with high efficiency at relatively low power consumption

· energy efficient underwater lighting. In the 8-LED lighting system (RGB Power LED), the power consumption is only 24W

· each system indicates the appropriate water level in order to avoid overfilling the bathtub

· all waste resulting from the acrylic bathtubs production are subject to full recycling - they are re-used for production of other plastic components

67 Hydromassage

Standard jet arrangement* for the following systems

68 * Standard arrangement for rectangular Pryzmat 170 cm bathtub. Differences may occur, mainly in the air jets depending on the tub size Inspire Air Inspire Inspire Aqua Discovery Premium

Bathtub bottom/bed massage Side massage Shiatsu back bassage Foot massage Hydromassage

Relax

Optima

Standard settings for Excellent hydro-massage systems

*Inspire Air system for Lila 2.0 bathtub, **Available for Inspire XL version

Water jets Air jets Control Massage programs Light points Chromotherapy programs

Inspire Air Inspire Aqua Inspire Optima Relax Discovery Pearl 8 - 13 (8*) - 8 - 13 8 - 13 8 - 13 810 (4 x back, 4 x side, 2 x foot) 10 / 14** (4or6 x back, 4or6 x side, 2 x foot) 14 (6 x back, 6 x side, 2 x foot) 14 (6 x back, 6 x side, 2 x foot)Touch keyboard Touch keyboard Touch keyboard Membrane keyboard with screen Touch panel Remote control 3 3 3 3 3 3 programs i 3 effects - -Massage settings, Variable pulsating, 3 Wellness programs Massage settings, Variable pulsating, 8 Wellness programs6 (4*) 6 6 / 8 8 8 4-6 Hydromassage

INSPIRE XL, OPTIMA RELAX, DISCOVERY PREMIUM

70 Hydromassage Side

Shiatsu

Air-water

massage nozzles

pcs Foot massage nozzles

pcs

nozzles for back massage

pcs Suction strainer

pcs

massage nozzles Relax* 8-13 pcs

* not available for Inspire XL System

SLIM NOOZLES FOR SYSTEMS: INSPIRE AIR , INSPIRE AQUA, INSPIRE

pcs

71 Hydromassage Side massage nozzles Foot

Air massage nozzles Shiatsu nozzles for back massage 1-2

8-13

massage nozzles

pcs

pc 2 pcs

Suction strainer

LILA 2.0 PEARL

System of relaxing air massage and chromotherapy installed in freestanding bathtub, controlled by remote control.

Control method

· electronic with a remote control

Air massage

· 3-level massage intensity adjustment heating of the massaging air

· automatic drying of the air system

Underwater lighting

4-point Chromotherapy with individually

· adjustable LEDs*

· 3-level intensity adjustment

3 automatic chromotherapy programs

· 3 light effects

Additional information

· 8 Slim air jets

· time massage and light switch water level sensor

· air blower with heater

INSPIRE AIR CH-4

System Code

Pearl hydromassage with Lila 2.0 160 cm bathtub

WAEX.LIL2.PEARL160WHW

AIR CH-4

Hydromassage INSPIRE

Lila 2.0 przyścienna 160x73 Lila 2.0 wolnostojąca 160x73 Pearl Light Lila 2.0 freestanding bathtub * LED light points located on one side of bathtub Power

Led RGB

INSPIRE AIR CH-4

Chromotherapy

LILA 2.0 LIGHT

System of chromotherapy installed in freestanding bathtub, controlled by remote control.

Control method

· electronic with a remote control

Underwater lighting

· 4-point Chromotherapy with individually adjustable LEDs*

· 3-level intensity adjustment

3 automatic chromotherapy programs

· 3 light effects

Additional information time light switch

System Code

chromotherapy

WAEX.LIL2.LIGHT160WHW

Light with Lila 2.0 160 cm bathtub Lila 2.0 przyścienna 160x73 INSPIRE AIR CH-4 Lila 2.0 wolnostojąca 160x73 Pearl Light Lila 2.0 freestanding bathtub * LED light points located on one side of bathtub Power Led RGB

Hydromassage

LILA 2.0 INSPIRE AIR

System of relaxing air massage and chromotherapy installed in wall mounded or corner freestanding bathtub Lila 2.0

Control method

· electronic, via a touch control panel time switch of massage and lighting

· water level sensor with signalling the minimum level

Air massage

3-step regulation of massage intensity with an intensity indicator

· heating of the massaging air

· automatic drying of the air system

Underwater lighting

4-point Excellent RGB Power LED chromotherapy*

· 3-step regulation of lighting intensity

3 automatic chromotherapy programs

System Code

Inspire Air hydromassage with wall mounted bathtub Lila 2.0 150 cm WAEX.LIL2.INSPAIR150WHP

Inspire Air hydromassage with wall mounted bathtub Lila 2.0 160 cm WAEX.LIL2.INSPAIR160WHP

Inspire Air hydromassage with wall mounted bathtub Lila 2.0 170 cm WAEX.LIL2.INSPAIR170WHP

Inspire Air hydromassage with corner bathtub Lila 2.0 left WAEX.LIL2.INSPAIR160LWHN

Inspire Air hydromassage with corner bathtub Lila 2.0 right WAEX.LIL2.INSPAIR160PWHN

Power Led RGB

Lila

CH-4 Lila

CH-4

Pearl

D i s cov e r y P r e m iu m Lila

CH-4 Lila

INSPIRE

CH-4

Pearl

2.0 narożna 160x73 INSPIRE AIR

2.0 przyścienna 160x73 INSPIRE AIR

Lila 2.0 wolnostojąca 160x73

Light

2.0 narożna 160x73 INSPIRE AIR

2.0 przyścienna 160x73

AIR

Lila 2.0 wolnostojąca 160x73

Light Lila 2.0 corner bathtub Lila 2.0 wall mounted bathtub * LED light points located on one side of bathtub

Chromotherapy

LILA 2.0 CHROME 4-LED

System of 4 LED-point chromotherapy installed in wall mounted or corner freestanding bathtub Lila 2.0

Control method

· touch control panel lighting switch timer

Underwater lighting

· 4-point Excellent RGB Power LED chromotherapy

3-step regulation of lighting intensity

· 3 automatic chromotherapy programs

System Code

4 LED point chromotherapy with wall mounted bathtub Lila 2.0 150 cm WAEX.LIL2.LED4150WHP

4 LED point chromotherapy with wall mounted bathtub Lila 2.0 160 cm WAEX.LIL2.LED4160WHP

4 LED point chromotherapy with wall mounted bathtub Lila 2.0 170 cm WAEX.LIL2.LED4170WHP

4 LED point chromotherapy with corner bathtub Lila 2.0 160 cm left WAEX.LIL2.LED4160LWHN

4 LED point chromotherapy with corner bathtub Lila 2.0 160 cm right WAEX.LIL2.LED4160PWHN

Power Led RGB

D i s cov e r y P r e m iu m Lila 2.0 narożna 160x73 INSPIRE AIR CH-4 Lila 2.0 przyścienna 160x73 INSPIRE AIR CH-4 Lila 2.0 wolnostojąca 160x73 Pearl Light Lila 2.0 narożna 160x73 INSPIRE AIR CH-4 Lila 2.0 przyścienna 160x73 INSPIRE AIR CH-4 Lila 2.0 wolnostojąca 160x73 Pearl Light

Lila 2.0 corner bathtub Lila 2.0 wall mounted bathtub

* LED light points located on one side of bathtub

DISCOVERY PREMIUM

This is a highly innovative solution. Systems, as the first ones in the market, are fully controlled by a 5-inch touch panel with OLED display. Owing to the touch technology, in a very friendly, almost intuitive way, it is possible to control the various functions of the system.

• touch control panel

• OLED colour display

• additional Wellness functions

Please note!

76 Hydromassage

The Discovery systems have an unique option of installing the control panel in the wall. Power Led RGB air massage x 8-13 Nozzles for side massage x 6 Shiatsu nozzles for back massage x 6 Nozzles for foot massage x 2 Suction strainer x 2

Discovery Premium

Relax water and air system with 8 RGB Power LED chromotherapy

Control

· touch panel with a colour OLED display water temperature display

· programming and displaying: water temperature and bathing time

animated indicators, icons, acoustic signals indicating the current state of the system

· built-in quick reference guide for the user adjustment of the light brightness of the touch panel

· a counter indicating the need for disinfection a massage time switch and the main switch of the system

· water level sensors with signalling the minimum level

Water massage

· 8-step regulation of massage intensity

indication of the massage intensity level with animated indicators on the display turning on/off the aeration of the Shiatsu nozzles water massage with variable intensity with adjustable maximum intensity of massage, along with the cycle time control

· pulsating operation of water massage with adjustable maximum intensity of the massage, and adjustable cycle time

· full adjustment of other parameters and the types of water massage

automatic regulation of aeration

· water heater

Extra Dry system (water system drainage after bathing)

System

Discovery Premium

Options

Bathtub filling through nozzles

Assembly of the Hansgrohe Exafill system (58123000)*

Adaptation of the panel for wall mounting

Additional Shiatsu nozzles (2x4)

Additional charges

Assembly in a large bathtub

Crown Lux , Great Arc, Pryzmat 200 x 90 cm

*Does not include the overflow price.

Air massage

· 8-step regulation of massage intensity

indication of the massage intensity level with animated indicators on the display

· air massage of varying intensity with the possibility of adjusting the maximum intensity of the massage and adjustable cycle time

· pulsating operation of air massage with adjustable maximum massage intensity and adjustable cycle time

· heating of the massaging air

· automatic drying of the air system

Underwater lighting

· 8-point excellent RGB Power LED chromotherapy with an adjustment of lighting intensity and 3 light therapy programs

Additional functions

relax system (a water-air massage system from the bathtub bottom)

· turbo Jet system (additional increase of the water massage power by increasing aeration)

· Extra Dry system (drying of the water system after the bath is finished)

8 Wellness bath programs

· ozone bath system

· automatic disinfection system

77 Hydromassage

OPTIMA RELAX

This system is referred to as the optimal solution not without the reason. It offers all the most popular hydro-massage functions for the users, while allowing its expansion through the many options available.

• water temperature display

• water-and-air massage from the bathtub bottom

• available options to expand the system

78 Hydromassage

Nozzles for side massage x 6 Shiatsu nozzles for back massage x 6 Nozzles for foot massage x 2 Suction strainer x 2 Power Led RGB air massage x 8-13

System

Optima Relax

Options

Bathtub filling through nozzles

Assembly of the Hansgrohe Exafill system

(58123000)*

Additional Shiatsu nozzles (2x4)

Ozone generator

Automatic disinfection system

Water heater with temperature control

Additional charges

Assembly in a large bathtub

Crown Lux , Great Arc, Pryzmat 200 x 90 cm

*Does not include the overflow price.

OPTIMA RELAX

Water and air system with 8 RGB Power LED chromotherapy

Control

· electronic by means of a panel with illuminated buttons water temperature display

· a massage time switch and the main switch of the system water level sensor with signalling the minimum level

Water massage

5-step regulation of massage intensity with an intensity indicator

· variable and pulsating operation of water massage with adjustable maximum flow

· automatic regulation of aeration

Air massage

· 5-step regulation of massage intensity with an intensity indicator variable and pulsating operation of air massage with adjustable maximum flow massaging air heating

· automatic drying of the air system

Additional system functions

· possibility of setting the variable and pulsating mode of water and air massage in a simultaneous or alternating ways

· water-air massage system from the bathtub bottom

· 3 wellness bath programs

Underwater lighting

· 8-point Excellent RGB Power LED chromotherapy

3 automatic chromotherapy programs

· lighting intensity regulation

Options

ozone bath system

· water heater with temperature control

automatic disinfection system

79 Hydromassage

ON OFF ON CHROMOTHERAPY OFF P

INSPIRE

Inspire is a minimalist water and air system controlled with a flat, touch keyboard. New air nozzles whose diameter is only 18 mm were used in this system. The aesthetic experience is provided by 6 RGB Power LED chromotherapy with the use of 3 automatic lighting programs

• touch control panel

• chromotherapy as a standard

• minimalistic design

80 Hydromassage

Nozzles for side massage x 4 Shiatsu nozzles for back massage x 4 Nozzles for foot massage x 2 Nozzles for air massage x 8-13 Suction strainer x 1 Power Led RGB

Inspire

Water and air system with 6 RGB Power LED chromotherapy

Control electronic, with the use of a touch control panel

· time switch of massage and lighting water level sensor with signalling the minimum level

Water massage

· 3-step regulation of massage intensity with its indicator

· automatic regulation of aeration

Air massage

3-step regulation of massage intensity with an intensity indicator heating of the massaging air automatic drying of the air system

Underwater lighting

6-point Excellent RGB Power LED chromotherapy

3 automatic chromotherapy programs

· 3-step regulation of lighting intensity

Options*

· ozone bath system

· water heater

automatic disinfection system

Inspire XL

Configuration for demanding customers. Difference from the standard system is as follows:

System includes:

· 6x Shiatsu nozzles for back massage

6 nozzles for side massage

· 8-point RGB Power LED chromotherapy

· 2x Suction strainers

Higher pump power

System

Inspire

Options

Bathtub filling through nozzles

Assembly of the Hansgrohe Exafill system (58123000)*

Additional Shiatsu nozzles (2x4)

Ozone generator

Automatic disinfection system

Water heater

* Does not include the overflow price

Additional charges

Assembly in a large bathtub

Crown Lux , Great Arc, Pryzmat 200 x 90 cm

*possibility to install the maximum of one selected option

Characteristics

Water pump with 950W power

2 extra nozzles for back massage

2 extra nozzles for side massage

8-13 air massage nozzles

LED-8 chromotherapy

System upgrade

Inspire XL

Note! Not all bathtubs suitable for Inspire system may be expanded to Inspire XL

Hydromassage

Inspire Air

Air system with 6 RGB Power LED chromotherapy

Control method

· electronic, via a touch control panel time switch of massage and lighting

· water level sensor with signalling the minimum level

Air massage

3-step regulation of massage intensity with an intensity indicator heating of the massaging air

· automatic drying of the air system

Underwater lighting

4-point Excellent RGB Power LED chromotherapy

· 3-step regulation of lighting intensity

· 3 automatic chromotherapy programs

System

Inspire Air

Options

Assembly of the Hansgrohe Exafill system (58123000)*

Ozone generator

Additional charges

Assembly in a large bathtub

Crown Lux , Great Arc, Pryzmat 200 x 90 cm

*Does not include the overflow price.

Power Led RGB

Hydromassage

Inspire Aqua

Water system with 6 RGB Power LED chromotherapy

Control method

electronic, via a touch control panel

· time switch of massage and lighting water level sensor with signalling the minimum level

Aqua massage

· 3-step massage intensity adjustment with intensity indicator

· automatic aeration control

Underwater lighting

4-point Excellent RGB Power LED chromotherapy

· 3-step regulation of lighting intensity

· 3 automatic chromotherapy programs

System

Inspire Aqua

Options

Bathtub filling through nozzles (Inspire Aqua, Inspire)

Assembly of the Hansgrohe Exafill system (58123000)*

Additional Shiatsu nozzles (2x4) **

Ozone generator ***

Automatic disinfection system ***

Water heater ***

Additional charges

Assembly in a large bathtub

Crown Lux, Great Arc, Pryzmat 200 x 90 cm

* Does not include the overflow price.

** Available in selected bathtub models *** Possibility to install the maximum of one selected option

Power Led RGB

Functions of particular systems

standard equipment optional equipment

Control

electronic control

touch control panel

2,8’’ OLED colourful display

signalling the appropriate (minimum) water level

water level sensor

automatic main switch

remote control

Water massage

automatic regulation of water massage aeration

3-step regulation of water massage intensity with an intensity indicator

5-step regulation of water massage intensity with an intensity indicator

8-step regulation of water massage intensity with an intensity indicator

variable and pulsating operation of the water massage

Turbo Jet system

Air massage

3-step regulation of air massage intensity with an intensity indicator

5-step regulation of air massage intensity with an intensity indicator

8-step regulation of air massage intensity with an intensity indicator

variable and pulsating operation of the air massage

massaging air heating

Additional charges

adjustment of phase (frequency) changeability of water and air massage

water and air massage system from the bottom — Relax system

autonomous control of aeration of Shiatsu nozzles

Wellness zone

3 automatic Wellness bath programs

8 automatic Wellness bath programs

Underwater lighting

4-point Excellent RGB Power LED chromotherapy

6-point Excellent RGB Power LED chromotherapy

8-point Excellent RGB Power LED chromotherapy

lighting intensity regulation

1 automatic lighting program

3 automatic lighting programs

3 light effects

Bath time

massage time switch

bath time programming

Water temperature

water temperature display

water heater

automatic system controlling bath temperature

Bathing hygiene

automatic drying of the air system

ozone bath system

Extra Dry system

automatic disinfection system

84 Joy Air Joy Aqua Joy Max Inspire Optima Relax Discovery Premium Mirage Pearl Mirage Light

Additional installation options for bathtubs and hydro-massage systems

Function

Additional services

Drilling holes for the installation of a bathtub mixer (price for 1 hole)*

Installation of a bathtub handle

Assembly of the mixer (price per 1 hole, with drilling)*

Assembly of 4-hole deck mounted mixer: Oxalia AREX.9033CR, Keria AREX.2033CR, Keria AREX.2033BL

Acrylic panel muting

Additional charge for system in bathtubs: Crown Lux, Great Arc and Pryzmat for 200 x 90 cm size

Installation of a circuit-breaker and a differential switch in IP66 panel

Options for bathtubs without hydro-massage system:

Assembly of Hansgrohe Exafill system (58123000). Does not include the overflow price

Drilling holes for the installation of a bathtub mixer (price for 1 hole)*

Assembly of the mixer (price per 1 hole, with drilling)*

Frames for bathtubs without hydro-massage system:

Rectangular bathtubs up to 180 x 80 cm inclusive

Corner bathtubs

Oval bathtubs

Crown Lux, Great Arc, Pryzmat 2000x900 bathtubs

Flex System panels for the tile installation

Panel for Great Arc bathtubs

Permanent fitting of the panel

Permanent fitting of the Great Arc panel

Note! In case of ordering a FLEX SYSTEM panel for bathtub with hydro-massage system, the panel may protrude up to 30 mm beyond the bathtub outline.

FORTE bathtub disinfection liquid 300 ml

A composition of disinfectants with degreasers recommended to maintain the desired hygiene of the hydro-massage system.

Efficiency: Bottle of 300 ml is sufficient for up to 6 applications (depending on the bathtub size).

Installation of hydro-massage system in bathtub outside of the Excellent offer. An additional payment is charged, depending on the type of the installed system:

Water system

Water and air system

The price is additionally increased by: 10% of the value of the bathtub provided for installation

Bathtub price

* It is necessary for the customer to provide the mixer

Chromotherapy

Underwater lighting

Red is the colour of love. It warms us up, revives and strengthens. It is perfect for all forms of blood diseases. It is recommended for liver diseases, excessive body emaciation, anaemia, rheumatism and lack of appetite.

The colour of vitality and warmth. Makes us optimistic and motivated. It has a very good impact on the condition of hair, skin, nails, bones, and teeth. It accelerates the metabolism, therefore it is applied in slimming treatments.

It is the colour of intellect and wisdom. It has an inspiring and stimulating effect for the body. The yellow colour is very optimistic. It stimulates the mind, mobilises shy persons for action, increases the feeling of safety.

It is the colour of balance and harmony. It soothes and makes us relaxed. It is recommended for people experiencing depression, suffering from nervous disorders and headaches. It cures heart ailments caused by long-term nervous tension. It removes fatigue and cures insomnia. It lowers blood pressure and regulates heart function.

Chromotherapy

System RGB Power LED

Control

· touch control panel

· lighting time switch

Underwater lighting

· 4-8-point Excellent RGB Power LED chromotherapy with a 3-step adjustment 3 automatic light therapy programs

It has a calming effect and helps falling asleep. It facilitates concentration and is conducive to meditation. It improves immunity and reduces blood pressure. It alleviates headaches, throat aches and back pain. Blue soothes agitated thoughts and feelings, brings peaceful and deep sleep.

This colour is especially beneficial for the nervous system and is recommended to people engaged in creative work. It inspires, increases mental effort, makes us relaxed. It relieves tension and stress. Applied in the treatment of serious infectious diseases, rheumatism and epilepsy.

Power Led RGB

Chromotherapy

4-point

6-point

8-point

88 Fabrika Vidoq Mazo Rols 600 201 92 94 100 110 116 122 Shower enclosure

WALK-IN SHOWER ENCLOSURES

In Vidoq series we applied a minimalist, frameless straight glass wall and a bent glass wall systems, which can be combined each other in any configuration. This combination allows to get futuristic, unusually aesthetic Vidoq shower enclosure, awarded with distinction in the „Bathroom Selection of the Year” competition. This year, we have extended walk-in series with FABRIKA model - a loft and industrial designed shower enclosure with black profiles, which corresponds well with modern, elegant bathroom style.

VARIANTS AVAILABLE

CROSS-SECTION OF VIDOQ WALL PROFILE CROSS-SECTION OF FABRIKA WALL PROFILE 9 7 boczna 1,5 64 6,5 Mazo 13,5 35 1,5 Mazo Rols 16 33,4 16 10,5 30 22 7,5 WALK-IN 30,7 15,7 34 28,3 （P0151C+P015R side panel) Seria 600 kabina półokrągła Fabrika 28,3 13,8 43,3 11 33,35 17,70 2,70 13,80

Shower enclosures

Fabrika

Walk-in side panel

* Support bar to be cut - included in the set.

Side wall Size (mm) Side wall width (W) (mm) Support bar length (E) (mm) Height (H1) (mm) Glass thickness (mm) Code 1000 990 - 1000 max. 1180* 2000 6 KAEX.4006.1000.LP 1200 1190 - 1200 max. 1180* 2000 6 KAEX.4006.1200.LP

C L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3

Universal assembly Clean Control coating Glass 6mm Features: Coating black matt Detailed dimensions (mm) For size Width (R) (mm) Height (L1) (mm) Height (L2) (mm) Width (P1) (mm) Width (P2) (mm) Width (P3) (mm) Width (H2) (mm) Width (H3) (mm) Width (H4) (mm) 1000 490 441,5 490 25 33,6 38 1502,5 987,5 472,5 1200 551 541,5 490 25 33,6 38 1502,5 987,5 472,5

Fabrika

Connector of bracing bars for Walk-in panel

Fabrika

Ceiling bracing bar for Walk-in panel

FABRIKA

Fabrika

Wall bracing bar for Walk-in panel

93 Shower enclosures Size (mm) Colour Description Code 1180 black matt installation without angle position regulation KAEX.CZ.WSPO.1200

Code KAEX.4008.CON.BL Length (mm) Code 1000 KAEX.4009.1000.BL

1225 20 6-8 1000 1180 30 6-8 120,7 120,7 6-8

1225 20 6-8 1000 1180 30 6-8 6-8

FABRIKA

NEW NEW

Shower enclosures

Vidoq

Walk-in cabin, bent glass

Bent side wall Size (mm) Side wall width (W) (mm) Support bar length (E1) (mm) Height (H) (mm) Glass thickness (mm) Profiles colour Code 831 × 360 831 - 846 max. 900* 2000 6 chrome KAEX.1507.830.LP.CR 831 × 360 831 - 846 max. 900* 2000 6 black matt KAEX.1507.830.LP.BL 831 × 360 831 - 846 max. 900* 2000 6 gold gloss KAEX.1507.830.LP.GL 931 × 360 931 - 946 max. 900* 2000 6 chrome KAEX.1507.930.LP.CR 931 × 360 931 - 946 max. 900* 2000 6 black matt KAEX.1507.930.LP.BL 931 × 360 931 - 946 max. 900* 2000 6 gold gloss KAEX.1507.930.LP.GL * Support bars to be cut - included in the set. E2 L1 L2 E1 A C C C C L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3 E2 L1 L2 E1 E1 A C C C C L1 H1 L2 L2 P1 P2 P3 Universal assembly Slim support bars Clean Control coating Glass 6mm Features: Wall assembly elements included NEW

95 Shower enclosures

* Bracing bar to cut included in set with walk-in, longer bracing bar available as: - KAEX.1599.1200.CR

Side wall Size (mm) Side wall width (W) (mm) Support bar length (E) (mm) Height (H) (mm) Glass thickness (mm) Code 900 890 - 905 max. 900* 2000 6 KAEX.1506.900.LP.CR 1000 990 - 1005 max. 900* 2000 6 KAEX.1506.1000.LP.CR 1200 1190 - 1205 max. 900* 2000 8 KAEX.1506.1200.LP.CR Universal assembly Slim support bars Glass 6/8 mm Features: C C L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3 Clean Control coating Wall assembly elements included

Vidoq Side panel, chrome

Size (mm) Colour Description Code 1225 chrome installation without angle position regulation (glass 6-8mm) KAEX.1599.1200.CR 40 320 20 10 6-8 525 20 10 6-8 1025 20 6-8 1225 20 6-8 6-8 82 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 320 20 10 6-8 525 20 10 6-8 1025 20 6-8 1225 20 6-8 1000 30 82 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 Glass fitting 6-8mm Wall assembly elements included NEW

Vidoq Bracing bar for walk-in

Vidoq Side panel, black

Vidoq

Shower enclosures

Side wall Size (mm) Side wall width (W) (mm) Support bar length (E) (mm) Height (H) (mm) Glass thickness (mm) Code 900 890 - 905 max. 900* 2000 6 KAEX.1506.900.LP.BL 1000 990 - 1005 max. 900* 2000 6 KAEX.1506.1000.LP.BL 1200 1190 - 1205 max. 900* 2000 8 KAEX.1506.1200.LP.BL Universal assembly *Bracing bar to cut included in set with walk-in, longer bracing bar available as: - KAEX.1599.1200.BL Slim support bars Glass 6/8 mm Features: C L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3 Clean Control coating Wall assembly elements included

Size (mm) Colour Description Code 1225 black matt Mocowano bez regulacji kąta położenia (ściana/glass gr 6-8 mm) KAEX.1599.1200.BL 40 320 20 10 6-8 525 20 10 6-8 1025 20 6-8 1225 20 6-8 1000 30 6-8 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 320 20 10 6-8 525 20 10 6-8 1025 20 6-8 1225 20 6-8 1000 30 6-8 82 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 Glass fitting 6-8mm Wall assembly elements included NEW

Bracing bar for walk-in

Vidoq Side panel, gold

Vidoq Bracing bar for walk-in

Shower enclosures

- KAEX.1599.1200.GL Slim support bars Glass 6/8 mm Features: C L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3 Clean Control coating Wall assembly elements included

*Bracing bar to cut included in set with walk-in, longer bracing bar available as:

Size (mm) Colour Description Code 1225 gold gloss Mocowano bez regulacji kąta położenia (ściana/glass gr 6-8 mm) KAEX.1599.1200.GL 40 320 20 10 6-8 525 20 10 6-8 1025 20 6-8 1225 20 6-8 1000 30 6-8 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 320 20 10 6-8 525 20 10 6-8 1025 20 6-8 1225 20 6-8 1000 30 6-8 82 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 Glass fitting 6-8mm Wall assembly elements included NEW

Stainless steel handles Up&Down lifted hinges

MAZO SERIES

Mazo doors opens comfortably, inside and outside. The minimalist appearance of the cavity doors is underlined aesthetic handles in stainless steel. 6 mm thick tempered glass was covered with a coating Clean Control that makes cleaning easier. We’ve added a slim hinge you can not see and which one is! Additionally, in aluminum profiles we used magnetic gaskets that discreetly close the cabin.

VARIANTS AVAILABLE

design

Magnetic seal in aluminium profiles

Minimalistic

CROSS-SECTION OF WALL PROFILE OF THE SIDE WALL

9 7 boczna 1,5 64 6,5 Mazo 13,5 35 1,5 Mazo Rols 16 33,4 16 10,5 30 22 7,5 WALK-IN 30,7 34 28,3 9 7 boczna 1,5 6,5 Mazo 13,5 35 1,5 Mazo Rols 16 33,4 16 10,5 30 22 7,5 WALK-IN 30,7 15,7 3,7 34 28,3

CROSS-SECTION OF WALL PROFILE OF THE DOOR

Shower enclosures

Mazo

Quadrant shower enclosure, double swinging doors with fixed panel

* For the order please provide code of cabin door and fixed panels.

100

Cabin Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Cabin door code* Fixed panels code* 900 × 900 870-885 738 325,5-340,5 1950 KAEX.3001.2D.0400.LP KAEX.3000.2S.9090.LP x2 1000 × 1000 970-985 738 425,5-440,5 1950 KAEX.3001.2D.0400.LP KAEX.3000.2S.1010.LP x2 H H E L W L L L E C C L E Universal assembly Clean Control coating Glass 6mm Lifted hinge Features: 180° hinge Example set configuration Product Code Quantity (pcs) Door for cabin 900 KAEX.3001.2D.0400.LP 1 Fixed panel KAEX.3000.2S.9090.LP 2

Shower enclosures

Mazo

Corner shower enclosure, double swinging doors with fixed panel

* For the order please provide code of cabin door and fixed panels.

101 H H W E L C E L W L L C E C C L E E

Cabin Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Cabin door code* Fixed panels code* 900 × 900 870-885 738 325,5-340,5 1950 KAEX.3023.2D.0500.LP KAEX.3000.2S.9090.LP x2 1000 × 1000 970-985 738 425,5-440,5 1950 KAEX.3023.2D.0500.LP KAEX.3000.2S.1010.LP x2 Universal assembly Example set configuration Product Code Quantity (pcs) Door for cabin 900 KAEX.3023.2D.0500.LP 1 Fixed panel KAEX.3000.2S.9090.LP 2 Clean Control coating Glass 6mm Lifted hinge Features: 180° hinge

Shower enclosures

Mazo

Corner shower enclosure with single swinging door

* It is necessary to order the support bar (to be cut) for assembly.

102

Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Height (H) (mm) Glass thickness (mm) Code 800 786-793 705 1950 6 KAEX.3005.1010.8000.LP 900 886-893 805 1950 6 KAEX.3005.1010.9000.LP Universal assembly Side panel Size (mm) Installation depth (W) (mm) Height (H) (mm) Glass thickness (mm) Code 800 774-782 1950 6 KAEX.3006.1010.8000.LP 900 874-882 1950 6 KAEX.3006.1010.9000.LP 1000 974-982 1950 6 KAEX.3006.1010.1000.LP H H H H H E L E W E L L L E C C L E Support bar* Size (mm) Colour Description Code 1000 chrome / aluminium Fitting without a position angle adjustment (wall/glass of 6-8 mm) KAEX.3099.1000 Clean Control coating Glass 6mm Lifted hinge Features: 180° hinge

Mazo

Corner shower enclosure with double swinging doors

Support bar Mazo

103 Shower enclosures

Cabin Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Height (H) (mm) Glass thickness (mm) Code 900 × 900 872-887 1147 1950 6 KAEX.3022.1010.9090.LP H H H W E L C E L W L L L C L E C C L E E Universal assembly Clean Control coating Glass 6mm Lifted hinge Features: 180° hinge Size (mm) Colour Description Code 1000 chrome / aluminium Fitting without a position angle adjustment (wall/glass of 6-8 mm) KAEX.3099.1000 6-8 1225 20 6-8 1000 30 6-8 82 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 1225 20 6-8 1000 30 6-8 82 120,7 124 120,7 Ø 40 50 6-8 Ø 40 50 Wall assembly elements included

bar dedicated to Mazo cabins

Support

Shower enclosures

Mazo

Corner shower enclosure, single swinging door with fixed panel

104

Universal assembly Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Cabin door code* Fixed panel code* 800 786-794 538 247-255 1950 KAEX.3025.1D.0538.LP KAEX.3025.1S.8000.LP 900 886-894 538 347-355 1950 KAEX.3025.1D.0538.LP KAEX.3025.1S.9000.LP 1000 986-994 695 290-298 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1000.LP 1200 1186-1194 695 490-498 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1200.LP 1300 1286-1294 695 590-598 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1300.LP 1400 1386-1394 695 690-698 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1400.LP 1500 1486-1494 695 790-798 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1500.LP H H H H H W E L C E L E W L L C E C C L E E Side panel Size (mm) Installation depth (W) (mm) Height (H) (mm) Code 800 774-782 1950 KAEX.3006.1010.8000.LP 900 874-882 1950 KAEX.3006.1010.9000.LP 1000 974-982 1950 KAEX.3006.1010.1000.LP * For the order please provide code of cabin door, fixed panel and side panel. Clean Control coating Glass 6mm Lifted hinge Features: 180° hinge

Code KAEX.3090.CR Mazo Extension profile 15 13,5 15 15,7 KAEX 3090 CR profil poszerzający MAZO KAEX 2690 CR profil poszerzający ROLS 15 13,5 15 15,7 KAEX 3090 CR profil poszerzający MAZO KAEX 2690 CR profil poszerzający ROLS

Extends the wall profile of 15 mm

105

Shower enclosures

Mazo

Single swinging shower door with fixed panel for built in

* For the order please provide code of cabin door and fixed panel.

106

Universal assembly H H H H H H H W E L C E L E W E L L L C L E C C L E E Glass 6mm Lifted hinge Features: Clean Control coating 180° hinge Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Cabin door code* Fixed panel code* 800 785-800 538 247-262 1950 KAEX.3025.1D.0538.LP KAEX.3025.1S.8000.LP 900 885-900 538 347-362 1950 KAEX.3025.1D.0538.LP KAEX.3025.1S.9000.LP 1000 985-1000 695 290-305 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1000.LP 1200 1185-1200 695 490-505 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1200.LP 1300 1285-1300 695 590-605 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1300.LP 1400 1385-1400 695 690-705 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1400.LP 1500 1485-1500 695 790-805 1950 KAEX.3025.1D.0650.LP KAEX.3025.1S.1500.LP

Mazo

Single swinging shower door for built in

107

Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Height (H) (mm) Glass thickness (mm) Code 800 785-800 705 1950 6 KAEX.3005.1010.8000.LP 900 885-900 805 1950 6 KAEX.3005.1010.9000.LP Universal assembly H H H E W E L L E C L Glass 6mm Lifted hinge Features: Clean Control coating 180° hinge

enclosures

Shower

Flat fastening easy to clean

108

Stainless steel handles Magnet tightening cabin door Detachable door Integrated sealing threshold Refined masking details

ROLS SERIES

The sliding door system of the SLIM shower enclosure, this year is presented in a new version. We present ROLS series with the best available solutions: 8 mm thick tempered glass, covered with a double-sided Clean Control coating, making clean maintanance of cabin easier. We made a high cabin, with convenont 200 cm height and durable sliding rolls system tested for 30,000 cycles of opening and closing.

VARIANTS AVAILABLE

Please note!

Cabin may be mounted on tiles or on a shower tray. Required width of the shower rim or tile width: minimum 80mm.

109

OF LOWER

9 7 boczna 1,5 6,5 Mazo 13,5 35 1,5 Mazo Rols 16 33,4 16 10,5 30 22 7,5 WALK-IN 30,7 15,7 3,7 34 28,3 Rols KAAC.1609.730.LP + KAAC.1609.1000.LP KAAC.1901.900.LP 30,7 68,2 39,9 10,1 60 28,3 43,3 11 51,5 35,3 19,3 35,3 54,1

CROSS-SECTION OF WALL PROFILE OF THE SIDE WALL CROSS-SECTION

SLIDING SYSTEM

Shower enclosures

Rols

Wall-adjacent shower enclosure with sliding door

Extends the wall profile of 15 mm

110

Sliding door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Code Sliding door 1/2* Code Sliding door 2/2* 1000 992-1007 404 460 2000 KAEX.2612.1000.LP1/2 KAEX.2612.1000.LP2/2 1200 1192-1207 504 560 2000 KAEX.2612.1200.LP1/2 KAEX.2612.1200.LP2/2 1300 1292-1307 554 610 2000 KAEX.2612.1300.LP1/2 KAEX.2612.1300.LP2/2 1400 1392-1407 604 660 2000 KAEX.2612.1400.LP1/2 KAEX.2612.1400.LP2/2 W H E 2 C L 1 Universal assembly Side wall 1 Size (mm) Installation depth (W) (mm) Height (H) (mm) Code 800 784,5-799,5 2000 KAEX.2606.800.LP 900 884,5-899,5 2000 KAEX.2606.900.LP 1000 984,5-999,5 2000 KAEX.2606.1000.LP Side wall 2 Size (mm) Installation depth (W) (mm) Height (H) (mm) Code 800 784,5-799,5 2000 KAEX.2626.800.LP 900 884,5-899,5 2000 KAEX.2626.900.LP 1000 984,5-999,5 2000 KAEX.2626.1000.LP Glass 8mm Detachable door Door with magnet Features: Double-sided Clean Control coating Example set configuration Product Code Sliding door 1200 KAEX.2612.1200.LP1/2 + KAEX.2612.1200.LP2/2 Right side wall 800 KAEX.2606.800.LP Left side wall 800 KAEX.2626.800.LP

Code KAEX.2690.CR Rols Extension profile 15 13,5 15 15,7 KAEX.3090.CR profil poszerzający MAZO KAEX.2690.CR profil poszerzający ROLS 15 13,5 KAEX 3090 CR profil poszerzający MAZO

111

Shower enclosures

Rols

Corner shower enclosure with sliding door

*For the order please provide code of cabin door and side panel.

112

Sliding door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Code Sliding door 1/2* Code Sliding door 2/2* 1000 983-1013 404 460 2000 KAEX.2612.1000.LP1/2 KAEX.2612.1000.LP2/2 1200 1183-1213 504 560 2000 KAEX.2612.1200.LP1/2 KAEX.2612.1200.LP2/2 1300 1283-1313 554 610 2000 KAEX.2612.1300.LP1/2 KAEX.2612.1300.LP2/2 1400 1383-1413 604 660 2000 KAEX.2612.1400.LP1/2 KAEX.2612.1400.LP2/2 W H E C L Universal assembly Side panel Size (mm) Installation depth (W) (mm) Height (H) (mm) Code 800 784,5-799,5 2000 KAEX.2606.800.LP 900 884,5-899,5 2000 KAEX.2606.900.LP 1000 984,5-999,5 2000 KAEX.2606.1000.LP

Glass 8mm Detachable door Door with magnet Features: Double-sided Clean Control coating

Rols

Sliding shower door for built in

*For the order please provide booth codes of doors.

113

Shower enclosures

E C L H Universal assembly Sliding

Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Code Sliding door 1/2* Code Sliding door 2/2* 1000 970-1000 404 460 2000 KAEX.2612.1000.LP1/2 KAEX.2612.1000.LP2/2 1200 1170-1200 504 560 2000 KAEX.2612.1200.LP1/2 KAEX.2612.1200.LP2/2 1300 1270-1300 554 610 2000 KAEX.2612.1300.LP1/2 KAEX.2612.1300.LP2/2 1400 1370-1400 604 660 2000 KAEX.2612.1400.LP1/2 KAEX.2612.1400.LP2/2

door for built in

Glass 8mm Detachable door Door with magnet Features: Double-sided Clean Control coating

114 Durable profiles Hinges integrated with profile Refined details

600 SERIES

The shower enclosure available within this series have glass with a Clean Control coating, covered by a robust aluminium frame. Massive and elegant elements provide the reliability of these cabins and also fit perfectly into the style of modern bathrooms. It is a series particularly appreciated by customers for its quality and a wide range of applications.

CROSS-SECTION OF WALL PROFILE OF THE DOOR

CROSS-SECTION OF WALL PROFILE OF THE SIDE WALL

CROSS-SECTION OF WALL PROFILE OF THE QUADRANT CABIN

VARIANTS AVAILABLE

115

KAAC.1905+KAAC.1906（P0151C+P015R side panel) Seria 600 kabina półokrągła Fabrika Be spot 51,5 28,3 35,3 19,3 49 67 +13 13,8 - 2 64,1 35, 43,3 3 49,3 54,1 33,35 17,70 2,70 KAAC.1905+KAAC.1906（P0151C+P015R side panel) Seria 600 kabina półokrągła Fabrika Be spot 51,5 28,3 35,3 19,3 49 67 +13 13,8 - 2 64,1 35, 43,3 11 3 49,3 54,1 33,35 17,70 2,70 （P0151C+P015R side panel) Seria 600 kabina półokrągła Fabrika 28,3 43,3 11 33,35 17,70 2,70 13,80

Seria 600

Quadrant shower enclosure with double sliding doors

Please note!

To be completed with shower trays with a radius of 550mm. We recommend shower tray model: Sense.

116

Shower enclosures

Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Glass thickness (mm) Code 900 × 900 880-910 540 310 1950 6 KAAC.1901.900.LP

Universal assembly Clean Control coating Glass 6mm Features: Detachable door C

117

Shower enclosures

Seria 600

Square shower enclosure with single outwards opening door

118

Side wall Size (mm) Installation depth (W) (mm) Height (mm) Glass thickness (mm) Code 900 880 - 900 1950 6 KAAC.1906.900.LP Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Height (H) (mm) Glass thickness (mm) Code 900 880-920 730 1950 8 KAAC.1905.900.LP Universal assembly Glass 8mm Features: Glass 6mm Clean Control coating C

Seria 600

Single outwards opening door for built in

119 Universal assembly Shower enclosures

Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Height (H) (mm) Glass thickness (mm) Code 900 875 - 915 730 1950 8 KAAC.1905.900.LP Glass 8mm Features: Clean Control coating C

High quality profiles

120

Universal handles Removable sliding rolls

201 SERIES

Timeless minimalism and high practicality are the basic features of the 201 shower enclosure series. The cabins of this range are equipped with a Clean Control coating, which is easy to clean, and the durable double rolls ensure long shelf life of the cabin.

CROSS-SECTION OF WALL PROFILE OF THE DOOR

CROSS-SECTION OF WALL PROFILE OF THE SIDE WALL

121

40 38 9 201 drzwi 21 34 7 201 ścianka boczna Colors 1,5 14 46 16 64 LINER 6,5 34 Mazo 13,5 35 1,5 Mazo 16 33,4 10,5 30 22 7,5 WALK-IN 15,7 3,7 34 40 38 9 201 drzwi 21 34 7 201 ścianka boczna Colors 1,5 14 46 16 64 LINER 6,5 34 Mazo 13,5 35 1,5 Mazo 16 33,4 10,5 30 22 7,5 WALK-IN 15,7 3,7 34

AVAILABLE

VARIANTS

Seria 201

Quadrant shower enclosure with double sliding doors

122

Size (mm) Enclosure width (L) (mm) Side wall width (C) (mm) Entrance width (E) (mm) Height (H) (mm) Glass thickness (mm) Code 800 × 800 772-795 259 475 1900 5 KAAC.1801.800/N 900 × 900 872-895 325 565 1900 5 KAAC.1801.900/N

Universal assembly Clean Control coating Glass 5 mm Features: Detachable door C C L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3

Shower enclosures

Seria 201

Square shower enclosure with double sliding doors

123 Size (mm) Side wall width (L) (mm) Side wall width (C) (mm) Entrance width (E) (mm) Height (H) (mm) Panel glass thickness(mm) Door glass thickness (mm) Code 800 × 800 772-795 331 397 1900 5 6 KAAC.1802.800/N 900 × 900 872-895 381 467 1900 5 6 KAAC.1802.900/N

Universal assembly Clean Control coating Glass 5 mm Features: Detachable door Door glass 6 mm E2 L1 L2 E1 E1 C C C C

Shower enclosures

Seria 201

Corner shower enclosure with single sliding door

124

Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Panel glass thickness (mm) Door glass thickness (mm) Code 1200 1198-1221 480 538 1900 5 6 KAAC.1805.1200.LP/N Universal assembly Clean Control coating Glass 5 mm Features: Detachable door Door glass 6 mm Side panel Size (mm) Installation width (W) (mm) Height (H) (mm) Glass thickness (mm) Code 800 775-795 1900 5 KAAC.1806.800.LP 900 875-895 1900 5 KAAC.1806.900.LP E2 L1 L2 E1 C C C

Seria 201

Shower Clean Control coating Glass 5 mm

C

L1 C

Features: Detachable door Door glass 6 mm

P2 P3

P1

L1

C L1 H1 H2 H3 H4

L2 L2 R R

125 Door Size (mm) Side wall width (L) (mm) Entrance width (E) (mm) Side wall width (C) (mm) Height (H) (mm) Panel glass thickness (mm) Door glass thickness (mm) Code 1200 1182-1205 480 538 1900 5 6 KAAC.1805.1200.LP/N

Sliding shower door for built in enclosures Universal assembly

Bath screens

126

127

WALL PROFILE

CROSS-SECTION OF SERIES 900

SPOT

PROFILE

CROSS-SECTION OF BE

WALL

PROFILE

OF LINER WALL PROFILE Colors 1,5 14 46 16 64 LINER 6,5 34 10,5 30 22 7,5 WALK-IN 15,7 3,7 34 40 38 9 201 drzwi 21 34 7 201 ścianka boczna Colors 1,5 14 46 16 64 LINER 6,5 34 Mazo 13,5 35 1,5 Mazo 16 33,4 10,5 30 22 7,5 WALK-IN 15,7 3,7 34 9 7 boczna 1,5 6,5 Mazo 13,5 35 1,5 Mazo Rols 16 33,4 16 10,5 30 22 7,5 WALK-IN 30,7 15,7 3,7 34 28,3 Rols KAAC.1609.730.LP + KAAC.1609.1000.LP KAAC.1901.900.LP 30,7 68,2 39,9 10,1 60 28,3 43,3 11 54, VARIANTS AVAILABLE NEW

CROSS-SECTION OF FLIPER WALL

CROSS-SECTION

Liner Gold

Sliding bathtub screen

128 Features: L H C Universal assembly Size (mm) Width (L) (mm) Panel (C) (mm) Size after folding (mm) Height (H) (mm) Movement range Glass thickness (mm) Code 1100 630 -1100 565 615 1400 180° 6 KAEX.2940.1100.LP

Glass 6mm Sliding screen Water squeegee in the set Double-sided Clean Control coating Lifted hinge Coating gold gloss

screens NEW

Bath

Bath screens

Liner

Sliding bathtub screen

129

Size (mm) Width (L) (mm) Panel (C) (mm) Size after folding (mm) Height (H) (mm) Movement range Glass thickness (mm) Code 1100 630 -1100 565 615 1400 180° 6 KAEX.2920.1100.LP L H C Universal assembly Features: Glass 6mm Sliding screen Water squeegee in the set Double-sided Clean Control coating Lifted hinge Coating chrome

Bath screens

Liner Black

Sliding bathtub screen

130

Size (mm) Width (L) (mm) Panel (C) (mm) Size after folding (mm) Height (H) (mm) Movement range Glass thickness (mm) Code 1100 630 -1100 565 615 1400 180° 6 KAEX.2930.1100.LP Features: Glass 6mm Sliding screen Water squeegee in the set Double-sided Clean Control coating Lifted hinge Coating black matt Universal assembly L H C

Bath screens

Fabrika

Bathtub screen

131

Size (mm) Width (L) (mm) Size after folding (mm) Height (H) (mm) Movement range Glass thickness (mm) Code 730 722,5-737,5 686 1450 180° 6 KAEX.4030.730.LP Universal assembly Glass 6mm Features: L H Coating black matt Lifted hinge Double-sided Clean Control coating

Bath screens

Fliper Triple bathtub screen

132

Size (mm) Width (L) (mm) Panel (L1) (mm) Panel (L2) (mm) Panel (L3) (mm) Height (H) (mm) Glass thickness (mm) Code 1200 left 1185 - 1200 470 +0/-15 392 337 1400 4 KAAX.1309.1200.LE 1200 right 1185 - 1200 470 +0/-15 392 337 1400 4 KAAX.1309.1200.PR

Left Folding scheme: Right L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3 Coating chrome Double Safe Glass Features: Glass 4 mm Clean Control coating Lifted hinge

Bath screens

Fliper

Double bathtub screen

Folding scheme:

133

Size (mm) Width (L) (mm) Panel (L1) (mm) Panel (L2) (mm) Height (H) (mm) Glass thickness (mm) Code 800 left 790 - 800 415 +0/-15 385 1400 4 KAAX.1309.800.LE 800 right 790 - 800 415 +0/-15 385 1400 4 KAAX.1309.800.PR Left

Right E2 L1 L2 E1 E1 A Coating chrome Double Safe Glass Features: Glass 4 mm Clean Control coating Lifted hinge

Bath screens

Seria 900

Single bathtub screen with towel rail

134

Size (mm) Width (L) (mm) Height (H) (mm) Handle (A) (mm) Size after folding (mm) Movement range Glass thickness (mm) Code 730 710-730 1450 550 680 180° 6 KAAC.1609.730.LP Universal assembly A H2 H3 H4 P2 P3 Coating chrome Towel handle Features: Glass 6mm Clean Control coating Lifted hinge

Bath screens

Seria 900

Single bathtub screen

135

Size (mm) Width (L) (mm) Height (H) (mm) Size after folding (mm) Movement range Glass thickness (mm) Code 730 710-730 1450 680 180° 6 KAAC.1619.730.LP Universal assembly H2 H3 H4 P2 P3 Features: Glass 6mm Clean Control coating Lifted hinge Coating chrome

Bath screens

Seria 900

Double bathtub screen

Size (mm) Width (L) (mm) Fixed element (L1) (mm) Movable element (L2) (mm) Size after folding (mm) Height (H) (mm) Movement range Glass thickness (mm) Code 1000 1000 - 1020 300 700 735 1450 180° 6 KAAC.1609.1000.LP Universal assembly A L1 H1 H2 H3 L1 L2 L2 R R P1 P2 P3 Features: Glass 6mm Clean Control coating Lifted hinge Coating chrome

Be Spot

Bathtub screen

137

Bath screens

Size (mm) Width (L) (mm) Height (H) (mm) Movement range Glass thickness (mm) Code 750 left 730 - 745 1440 180° 6 KAEX.2309.750.LE 750 right 730 - 745 1440 180° 6 KAEX.2309.750.PR Left Right E2 L1 L2 E1 A L1 H1 H2 H3 H4 L1 L2 L2 R R P1 P2 P3 Features: Glass 6mm Clean Control coating Lifted hinge Coating chrome

Shower trays

139

Arda Arda Lavano Zero Sense Forma Sense X Forma X N N NEW NEW

7 reasons

to choose a composite shower tray

Height low than 20 mm

Anti-slip surface, easy to clean

Arda i Lavano

available in 4 colors

1 4 5 6 7 2 3 Can be cut to desired size or shape

Four colors to choose Universal installation Available in many sizes

Light and easy to install

140

RAL 1019

White (WHN) Cappucino (CAN) RAL 9016

Concrete

(CON)

Black

(BLN)

RAL 7040 RAL 9005

Less than 20 mm thickness

Surface

Lite

Features of the shower trays:

141

structure

minerals low layer EnaCoat polimer composit Lavano Arda

ULight construction On the tiles installation Flush with tiles installation Warm surface Non-slip structure Abrasion resistant Impact resistant UV rays resistant Recycled Installation on mortar adhesive Installation on heating surfaces Can be cut easily

Innovative technology

The shower trays are made in the new PLM (Poly Lite Minerals) technology, which has been developed in the laboratories of Excellent. The shower trays are made of the Lite Minerals load-bearing layer, which contains mineral components. The supporting layer is covered with a polymer composite EnaCoat, which is durable, impact and UV resistant.

installation posiibilities:

Create your own shower tray

142

Flush with the tiles Partially recessed into the floor On tiles 2. Choose a color 1. Choose a shape

Arda

3. Choose a size

900 × 900 1200 × 900 1400 × 900 1600 × 900 1800 × 900

4. Choose a drain cover

Matched to any surface

Lavano and Arda shower tray has a special cut zone (J) - it is a flat surface of the shower tray, that the cutting of which leaves all external sides at the same level. Cutting outside this zone is allowed and it doesn’t affect its functional properties in any way.

143

J1 J2 J2 J3 J3 J J J1

Examples of cutting composite shower trays: Arda Lavano

A R

144

Arda Composite shower trays

Arda composite shower trays are available in 3 shapes square, rectangular and semicircular, and in 4 fashionable colors: white, black, concrete and cappucino. The quantity of available sizes guarantee that they will be perfect Arda Composite shower trays in every bathroom. They are modern. elegant and minimalistic. The Arda composite shower trays are amazing quiet, that mean that they significantly increase the comfort

of use. The number of orderable sizes available ensure that they will be perfect fit to every bathroom. When ordering an Arda shower tray, you must choose 1 of 6 colors siphon cover equipped with a unique, organic pattern of the siphon cover. The Arda concept fits perfectly into the character and style of a fashionable bathroom

145

5 YEARS WARRANTY

Shower trays

Arda

Rectangular composite shower tray, without the drain cover, low

146

Size L W C D E1 F H H2 J J2 J3 Φ Code 1200 × 900 1200 900 141 180 300 210 16 29 150 50 80 90 BREX.1503.120.090.WHN 1400 × 900 1400 900 141 180 350 260 17 30 150 50 80 90 BREX.1503.140.090.WHN 1600 × 900 1600 900 141 180 400 310 18 31 150 50 80 90 BREX.1503.160.090.WHN 1800 × 900 1800 900 141 180 450 360 20 33 150 50 80 90 BREX.1503.180.090.WHN Size L W C D E1 F H H2 J J2 J3 Φ Code 1200 × 900 1200 900 141 180 300 210 16 29 150 50 80 90 BREX.1503.120.090.CAN 1400 × 900 1400 900 141 180 350 260 17 30 150 50 80 90 BREX.1503.140.090.CAN 1600 × 900 1600 900 141 180 400 310 18 31 150 50 80 90 BREX.1503.160.090.CAN 1800 × 900 1800 900 141 180 450 360 20 33 150 50 80 90 BREX.1503.180.090.CAN Size L W C D E1 F H H2 J J2 J3 Φ Code 1200 × 900 1200 900 141 180 300 210 16 29 150 50 80 90 BREX.1503.120.090.CON 1400 × 900 1400 900 141 180 350 260 17 30 150 50 80 90 BREX.1503.140.090.CON 1600 × 900 1600 900 141 180 400 310 18 31 150 50 80 90 BREX.1503.160.090.CON 1800 × 900 1800 900 141 180 450 360 20 33 150 50 80 90 BREX.1503.180.090.CON Size L W C D E1 F H H2 J J2 J3 Φ Code 1200 × 900 1200 900 141 180 300 210 16 29 150 50 80 90 BREX.1503.120.090.BLN 1400 × 900 1400 900 141 180 350 260 17 30 150 50 80 90 BREX.1503.140.090.BLN 1600 × 900 1600 900 141 180 400 310 18 31 150 50 80 90 BREX.1503.160.090.BLN 1800 × 900 1800 900 141 180 450 360 20 33 150 50 80 90 BREX.1503.180.090.BLN White - RAL 9016 Cappucino - RAL 1019 Concrete - RAL 7040 Black - RAL 9005 W J2 L J J3 E1 H H2 F D C E1 Φ W J2 L J J3 E1 H H2 F D C E1 Φ

Shower trays

Arda

Quadrant composite shower tray, without the drain cover, low

Arda

Square composite shower tray, without the drain cover, low

Arda

147

Size Colour Material L W Code 141 × 141 white matt painted stainless steel 141 141 BREX.1509.WHN 141 × 141 cappucino painted stainless steel 141 141 BREX.1509.CAN 141 × 141 concrete painted stainless steel 141 141 BREX.1509.CON 141 × 141 black matt painted stainless steel 141 141 BREX.1509.BLN 141 × 141 chrome polished stainless steel 141 141 BREX.1509.CR 141 × 141 gold gloss polished stainless steel 141 141 BREX.1509.GL N L W N

Drain cover

900 450 50 141 Φ90 355 16 190 37 Size Colour Material Code 900 × 900 white composite BREX.1502.090.090.WHN 900 × 900 black composite BREX.1502.090.090.BLN 900 × 900 cappucino composite BREX.1502.090.090.CAN 900 × 900 concrete composite BREX.1502.090.090.CON

20 50 900 16 29 141 141 180 900 180 Size Colour Material Code 900 × 900 white composite BREX.1504.090.090.WHN 900 × 900 black composite BREX.1504.090.090.BLN 900 × 900 cappucino composite BREX.1504.090.090.CAN 900 × 900 concrete composite BREX.1504.090.090.CON NEW

Shower trays

Lavano

Square composite shower tray, with the drain cover, low

148 For size L W C D E E1 F H H2 J J2 Code 900 × 900 900 900 200 235 170 150 65 15 35 100 50 BREX.1102.090.090.WHN 1000 × 1000 1000 1000 200 235 170 150 65 15 35 100 50 BREX.1102.100.100.WHN For size L W C D E E1 F H H2 J J2 Code 900 × 900 900 900 200 235 170 150 65 15 35 100 50 BREX.1102.090.090.CAN 1000 × 1000 1000 1000 200 235 170 150 65 15 35 100 50 BREX.1102.100.100.CAN For size L W C D E E1 F H H2 J J2 Code 900 × 900 900 900 200 235 170 150 65 15 35 100 50 BREX.1102.090.090.CON 1000 × 1000 1000 1000 200 235 170 150 65 15 35 100 50 BREX.1102.100.100.CON For size L W C D E E1 F H H2 J J2 Code 900 × 900 900 900 200 235 170 150 65 15 35 100 50 BREX.1102.090.090.BLN 1000 × 1000 1000 1000 200 235 170 150 65 15 35 100 50 BREX.1102.100.100.BLN

W E1 C D E F L W E1 C D E F J H H2 H H2 L J2 J2 J White - RAL 9016 Cappucino - RAL 1019 Concrete - RAL 7040 Black - RAL 9005

W E1 C D E F L W E1 C D E F J L J2 J2 J

Shower trays

Lavano

Rectangular composite shower tray, with the drain cover, low

Cappucino - RAL 1019

Concrete - RAL 7040

149

For size L W C D E E1 F H H2 J J2 Code 800 × 900 800 900 200 235 170 150 65 15 35 100 50 BREX.1103.090.080.WHN 800 × 1000 800 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.080.WHN 900 × 1000 900 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.090.WHN 1200 × 800 1200 800 200 235 170 150 65 15 35 100 50 BREX.1103.120.080.WHN 1200 × 900 1200 900 200 235 170 150 65 15 35 100 50 BREX.1103.120.090.WHN 1400 × 800 1400 800 200 235 170 150 65 16 35 100 50 BREX.1103.140.080.WHN 1400 × 900 1400 900 200 235 170 150 65 16 35 100 50 BREX.1103.140.090.WHN 1400 × 1000 1400 1000 200 235 170 150 65 16 35 100 50 BREX.1103.140.100.WHN White - RAL 9016 For size L W C D E E1 F H H2 J J2 Code 800 × 900 800 900 200 235 170 150 65 15 35 100 50 BREX.1103.090.080.CAN 800 × 1000 800 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.080.CAN 900 × 1000 900 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.090.CAN 1200 × 800 1200 800 200 235 170 150 65 15 35 100 50 BREX.1103.120.080.CAN 1200 × 900 1200 900 200 235 170 150 65 15 35 100 50 BREX.1103.120.090.CAN 1400 × 800 1400 800 200 235 170 150 65 16 35 100 50 BREX.1103.140.080.CAN 1400 × 900 1400 900 200 235 170 150 65 16 35 100 50 BREX.1103.140.090.CAN 1400 × 1000 1400 1000 200 235 170 150 65 16 35 100 50 BREX.1103.140.100.CAN

For size L W C D E E1 F H H2 J J2 Code 800 × 900 800 900 200 235 170 150 65 15 35 100 50 BREX.1103.090.080.CON 800 × 1000 800 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.080.CON 900 × 1000 900 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.090.CON 1200 × 800 1200 800 200 235 170 150 65 15 35 100 50 BREX.1103.120.080.CON 1200 × 900 1200 900 200 235 170 150 65 15 35 100 50 BREX.1103.120.090.CON 1400 × 800 1400 800 200 235 170 150 65 16 35 100 50 BREX.1103.140.080.CON 1400 × 900 1400 900 200 235 170 150 65 16 35 100 50 BREX.1103.140.090.CON 1400 × 1000 1400 1000 200 235 170 150 65 16 35 100 50 BREX.1103.140.100.CON

For size L W C D E E1 F H H2 J J2 Code 800 × 900 800 900 200 235 170 150 65 15 35 100 50 BREX.1103.090.080.BLN 800 × 1000 800 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.080.BLN 900 × 1000 900 1000 200 235 170 150 65 15 35 100 50 BREX.1103.100.090.BLN 1200 × 800 1200 800 200 235 170 150 65 15 35 100 50 BREX.1103.120.080.BLN 1200 × 900 1200 900 200 235 170 150 65 15 35 100 50 BREX.1103.120.090.BLN 1400 × 800 1400 800 200 235 170 150 65 16 35 100 50 BREX.1103.140.080.BLN 1400 × 900 1400 900 200 235 170 150 65 16 35 100 50 BREX.1103.140.090.BLN 1400 × 1000 1400 1000 200 235 170 150 65 16 35 100 50 BREX.1103.140.100.BLN Black - RAL 9005

L W E1 C D E F J2 J E1 F L W E1 C D E F H H2 H H2 L J

Shower trays

Zero

Square acrylic white shower tray, low

We recommend siphon: ZERO INEX.1616.90

150

For size L W C H H2 E S Φ Code 800 × 800 800 800 204 40 90 400 150 90 BREX.1202.080.080.WHN 900 × 900 900 900 204 40 90 450 150 90 BREX.1202.090.090.WHN 1000 × 1000 1000 1000 204 40 90 500 150 90 BREX.1202.100.100.WHN

H H2 L S C E W H L S E W H2 C

Shower trays

Zero

Rectangular acrylic white shower tray, low

We recommend siphon: ZERO INEX.1616.90

151 H H2 W H L S E W H2 C

For size L W C H H2 E S Φ Code 800 × 900 900 800 204 40 90 500 150 90 BREX.1203.080.090.WHN 1000 × 800 800 1000 204 40 90 500 150 90 BREX.1203.100.080.WHN 1000 × 900 900 1000 204 40 90 500 150 90 BREX.1203.100.090.WHN 1200 × 800 800 1200 204 40 90 600 150 90 BREX.1203.120.080.WHN 1200 × 900 900 1200 204 40 90 600 150 90 BREX.1203.120.090.WHN 1400 × 800 800 1400 204 40 90 700 150 90 BREX.1203.140.080.WHN 1400 × 900 900 1400 204 40 90 700 150 90 BREX.1203.140.090.WHN 1500 × 900 900 1500 204 40 90 700 150 90 BREX.1203.150.090.WHN 1600 × 800 800 1600 204 40 90 800 150 90 BREX.1203.160.080.WHN 1600 × 900 900 1600 204 40 90 800 150 90 BREX.1203.160.090.WHN 1700 × 800 800 1700 204 40 90 850 150 90 BREX.1203.170.080.WHN 1700 × 900 900 1700 204 40 90 850 150 90 BREX.1203.170.090.WHN 1800 × 800 800 1800 204 40 90 900 150 90 BREX.1203.180.080.WHN 1800 × 900 900 1800 204 40 90 900 150 90 BREX.1203.180.090.WHN

Shower trays

Sense

Quadrant acrylic white shower tray, low

Sense Compact

Quadrant acrylic white shower tray, high

152

Detailed dimensions of shower tray (mm) For size L W H R RL E S Φ 800 × 800 800 800 40 550 1045 55 180 90 900 × 900 900 900 40 550 1045 55 180 90 1000 × 1000 1000 1000 40 550 1045 55 180 90 L S S E H RL R Size (mm) Radius (mm) Drain diameter (mm) Integrated panel Legs Code 800 × 800 550 90 no no BREX.SEN08WHN 900 × 900 550 90 no no BREX.SEN09WHN 1000 × 1000 550 90 no no BREX.SEN10WHN

H H1 L RL R S S E Detailed dimensions of shower tray (mm) For size L W H H1 R RL E Φ 800 × 800 800 800 110 70 550 1045 55 90 900 × 900 900 900 110 70 550 1045 55 90 1000 × 1000 1000 1000 110 70 550 1045 55 90 Size (mm) Radius (mm) Drain diameter (mm) Integrated panel Legs Code 800 × 800 550 90 yes yes BREX.SEN08WHC 900 × 900 550 90 yes yes BREX.SEN09WHC 1000 × 1000 550 90 yes yes BREX.SEN10WHC

Shower trays

Forma

Square acrylic white shower tray, low

Forma Compact

Square acrylic white shower tray, high

153 Size (mm) Drain diameter (mm) Integrated panel Legs Code 800 × 800 90 yes yes BREX.FOR08WHC 900 × 900 90 yes yes BREX.FOR09WHC 1000 × 1000 90 yes yes BREX.FOR10WHC

Detailed dimensions of shower tray (mm) For size L W H H1 E S Φ 800 × 800 800 800 110 70 55 180 90 900 × 900 900 900 110 70 55 180 90 1000 × 1000 1000 1000 110 70 55 180 90 H H1 W S L E Size (mm) Drain diameter (mm) Integrated panel Legs Code 800 × 800 90 no no BREX.FOR08WHN 900 × 900 90 no no BREX.FOR09WHN 1000 × 1000 90 no no BREX.FOR10WHN

Detailed dimensions of shower tray (mm) For size L W H E S Φ 800 × 800 800 800 40 55 180 90 900 × 900 900 900 40 55 180 90 1000 × 1000 1000 1000 40 55 180 90 H W S L E

Shower trays

Forma

Rectangular acrylic white shower tray, low

154

Size (mm) Drain diameter (mm) Integrated panel Legs Code 800 × 900 90 no no BREX.FOR098WHN 800 × 1000 90 no no BREX.FOR108WHN 800 × 1100 90 no no BREX.FOR118WHN 800 × 1200 90 no no BREX.FOR128WHN 900 × 1200 90 no no BREX.FOR12WHN 900 × 1400 90 no no BREX.FOR149WHN Detailed dimensions of shower tray (mm) For size L W H E S Φ 800 × 900 800 900 40 70 180 90 800 × 1000 800 1000 40 70 180 90 800 × 1100 800 1100 40 70 180 90 800 × 1200 800 1200 40 70 180 90 900 × 1200 900 1200 40 70 180 90 900 × 1400 900 1400 40 70 180 90 N N N N N N N N H W S L E

Shower trays

Forma Compact

Rectangular acrylic white shower tray, high

155

Size (mm) Drain diameter (mm) Integrated panel Legs Code 800 × 900 90 yes yes BREX.FOR098WHC 800 × 1000 90 yes yes BREX.FOR108WHC 800 × 1100 90 yes yes BREX.FOR118WHC 800 × 1200 90 yes yes BREX.FOR128WHC 900 × 1200 90 yes yes BREX.FOR12WHC 900 × 1400 90 yes yes BREX.FOR149WHC Detailed dimensions of shower tray (mm) For size L W H H1 E S Φ 800 × 900 800 900 110 70 70 180 90 800 × 1000 800 1000 110 70 70 180 90 800 × 1100 800 1100 110 70 70 180 90 800 × 1200 800 1200 110 70 70 180 90 900 × 1200 900 1200 110 70 70 180 90 900 × 1400 900 1400 110 70 70 180 90

N N N N N N N N H H1 W S L E

Shower trays

Sense X

Quadrant structure white shower tray, low

Forma X

Square structure white shower tray, low

156

Detailed dimensions of shower tray (mm) For size L W H R RL E S Φ 800 × 800 800 800 40 550 1045 55 180 90 900 × 900 900 900 40 550 1045 55 180 90 1000 × 1000 1000 1000 40 550 1045 55 180 90 Size (mm) Radius (mm) Drain diameter (mm) Integrated panel Legs Colour Code 800 × 800 550 90 yes no white BREX.1404.080.080.WHN 800 × 800 550 90 yes no black BREX.1404.080.080.BLN 900 × 900 550 90 yes no white BREX.1404.090.090.WHN 900 × 900 550 90 yes no black BREX.1404.090.090.BLN 1000 × 1000 550 90 yes no white BREX.1404.100.100.WHN 1000 × 1000 550 90 yes no black BREX.1404.100.100.BLN L S S E H RL R NEW

Size (mm) Drain diameter (mm) Integrated panel Legs Colour Code 800 × 800 90 yes yes white BREX.1402.080.080.WHN 800 × 800 90 yes yes black BREX.1402.080.080.BLN 900 × 900 90 yes yes white BREX.1402.090.090.WHN 900 × 900 90 yes yes black BREX.1402.090.090.BLN 1000 × 1000 90 yes yes white BREX.1402.100.100.WHN 1000 × 1000 90 yes yes black BREX.1402.100.100.BLN Detailed dimensions of shower tray (mm) For size L W H1 E S Φ 800 × 800 800 800 40 55 180 90 900 × 900 900 900 40 55 180 90 1000 × 1000 1000 1000 40 55 180 90 H W S L E NEW

Shower trays

Sense Compact X

Quadrant structure white shower tray, high

Forma Compact X

Square structure white shower tray, high

157

Detailed dimensions of shower tray (mm) For size L W H1 H2 R RL E S Φ 800 × 800 800 800 110 70 550 1045 55 180 90 900 × 900 900 900 110 70 550 1045 55 180 90 1000 × 1000 1000 1000 110 70 550 1045 55 180 90 Size (mm) Radius (mm) Drain diameter (mm) Integrated panel Legs Colour Code 800 × 800 550 90 yes yes white BREX.1404.080.080.WHC 800 × 800 550 90 yes yes black BREX.1404.080.080.BLC 900 × 900 550 90 yes yes white BREX.1404.090.090.WHC 900 × 900 550 90 yes yes black BREX.1404.090.090.BLC 1000 × 1000 550 90 yes yes white BREX.1404.100.100.WHC 1000 × 1000 550 90 yes yes black BREX.1404.100.100.BLC

H H1 L RL R S S E NEW

Size (mm) Drain diameter (mm) Integrated panel Legs Colour Code 800 × 800 90 yes yes white BREX.1402.080.080.WHC 800 × 800 90 yes yes black BREX.1402.080.080.BLC 900 × 900 90 yes yes white BREX.1402.090.090.WHC 900 × 900 90 yes yes black BREX.1402.090.090.BLC 1000 × 1000 90 yes yes white BREX.1402.100.100.WHC 1000 × 1000 90 yes yes black BREX.1402.100.100.BLC Detailed dimensions of shower tray (mm) For size L W H1 H2 E S Φ 800 × 800 800 800 110 70 55 180 90 900 × 900 900 900 110 70 55 180 90 1000 × 1000 1000 1000 110 70 55 180 90 H H1 W S L E NEW

Shower trays

Forma X

Rectangular structure white shower tray, low

158

Size (mm) Drain diameter (mm) Integrated panel Legs Colour Code 800 × 900 90 yes no white BREX.1403.090.080.WHN 800 × 900 90 yes no black BREX.1403.090.080.BLN 800 × 1000 90 yes no white BREX.1403.100.080.WHN 800 × 1000 90 yes no black BREX.1403.100.080.BLN 800 × 1100 90 yes no white BREX.1403.110.080.WHN 800 × 1100 90 yes no black BREX.1403.110.080.BLN 800 × 1200 90 yes no white BREX.1403.120.080.WHN 800 × 1200 90 yes no black BREX.1403.120.080.BLN 900 × 1200 90 yes no white BREX.1403.120.090.WHN 900 × 1200 90 yes no black BREX.1403.120.090.BLN 900 × 1400 90 yes no white BREX.1403.140.090.WHN 900 × 1400 90 yes no black BREX.1403.140.090.BLN

Detailed dimensions of shower tray (mm) For size L W H1 E S Φ 800 × 900 800 900 40 70 180 90 800 × 1000 800 1000 40 70 180 90 800 × 1100 800 1100 40 70 180 90 800 × 1200 800 1200 40 70 180 90 900 × 1200 900 1200 40 70 180 90 900 × 1400 900 1400 40 70 180 90 H W S L E NEW

Shower trays

Forma Compact X

Rectangular structure white shower tray, high

159

Size (mm) Drain diameter (mm) Integrated panel Legs Colour Code 800 × 900 90 yes yes white BREX.1403.090.080.WHC 800 × 900 90 yes yes black BREX.1403.090.080.BLC 800 × 1000 90 yes yes white BREX.1403.100.080.WHC 800 × 1000 90 yes yes black BREX.1403.100.080.BLC 800 × 1100 90 yes yes white BREX.1403.110.080.WHC 800 × 1100 90 yes yes black BREX.1403.110.080.BLC 800 × 1200 90 yes yes white BREX.1403.120.080.WHC 800 × 1200 90 yes yes black BREX.1403.120.080.BLC 900 × 1200 90 yes yes white BREX.1403.120.090.WHC 900 × 1200 90 yes yes black BREX.1403.120.090.BLC 900 × 1400 90 yes yes white BREX.1403.140.090.WHC 900 × 1400 90 yes yes black BREX.1403.140.090.BLC

Detailed dimensions of shower tray (mm) For size L W H1 H2 E S Φ 800 × 900 800 900 110 70 70 180 90 800 × 1000 800 1000 110 70 70 180 90 800 × 1100 800 1100 110 70 70 180 90 800 × 1200 800 1200 110 70 70 180 90 900 × 1200 900 1200 110 70 70 180 90 900 × 1400 900 1400 110 70 70 180 90 H H1 W S L E NEW

A key element of the shower area is the siphon. The siphon parameters should ensure quick drainage of water. We recommend the Fast siphon for Arda and Lavano shower trays.

features of the Fast siphon:

■ high water flow - 43 l/min

■ made of high quality materials

■ perfect tightness thanks to permanent connection of gaskets and siphon during the production

■ cleanable from above

■ only 80 mm high

Fast 90 mm, low without cover

160

Height (mm) Drain diameter (mm) Flow (l/min) Code 80 90 43 INEX.1918.90

Flow 43 l/min 80 244 158

Features:

FAST SIPHON

Recommended

Shower tray siphon Zero

Drain diameter (mm) Flow (l/min) Code 90 42 INEX.1416.90 Drain diameter (mm) Flow (l/min) Code 90 24 INEX.1716.90 Height (mm) Drain diameter (mm) Flow (l/min) Code 66 90 24 INEX.1616.90 1000 30 124 120,7 Ø 40 50 Φ 90 115 Φ 40 Φ 90 Φ 40 Φ 90 115 Φ 40 Φ 90 66 Φ 40 Flow 42 l/min Flow 24 l/min Flow 24 l/min Features: Features: Features: Top access for cleaning Top access for cleaning

162 Drains Torvi Point drain Φ197 130 130 70 50 Φ197 130 130 70 50 N N Flow 48 l/min Grate 2 in 1 Features: 2 w1 Top access for cleaning Flow (l/min) Colour Drain grate (mm) Waterproof membrane Material Code 48 l/min chrome 130 × 130 yes PP / stainless steel INEX.TO130.50CR 48 l/min black matt 130 × 130 yes PP / stainless steel INEX.TO130.50BL 48 l/min gold gloss 130 × 130 yes PP / stainless steel INEX.TO130.50GL N N

Drains

Features:

· stainless steel grate - available in 3 colors

waterproof membrane included

· dry siphon stops unpleasant odors from the sewage system

high water flow: min. 48 l/min

suitable for tiles with a thickness of 8-10mm

· recommended for installation on wooden structures

low construction - 70 mm

Set includes:

Code INEX.TO.N130

163

1. Universal grate 2. Drain grate Double 3. Dry siphon 4. Clamping ring 5. Waterproof membrane

1 2 3 6 5 4

6. Siphon Maxflow Torvi Mat cutter for Torvi 130 mm Stainless steel grate Tile ready grate Universal grate

Stilio Gold

164

TILE READY GRATING

Drains

STAINLESS STEEL GRATING

Linear drain Flow (l/min) Outflow length (mm) Waterproof membrane Material Code 36 l/min 600 yes stainless steel INEX.1515.600.R.GL 36 l/min 700 yes stainless steel INEX.1515.700.R.GL 36 l/min 800 yes stainless steel INEX.1515.800.R.GL 36 l/min 900 yes stainless steel INEX.1515.900.R.GL 600 / 700 / 800 900 640 / 740 / 840 / 940 72 110 59-76 60 155 40 15 27 109 110 59-76 60 155 40 15 27 109 265 600 / 700 / 800 / 900 640 740 / 840 / 940 72 110 59-76 60 155 40 15 27 109 Flow (l/min) Outflow length (mm) Waterproof membrane Material Code 36 l/min 600 yes stainless steel INEX.1515.600.P.GL 36 l/min 700 yes stainless steel INEX.1515.700.P.GL 36 l/min 800 yes stainless steel INEX.1515.800.P.GL 36 l/min 900 yes stainless steel INEX.1515.900.P.GL Tile ready grating Stainless steel grating Top access for cleaning Adjustable legs Flow 36l / min Gold gloss Features: NEW

Stilio Linear drain

Stilio, Stilio Gold

Features:

· grating: polished stainless steel or tile ready adjustable riser blocks / legs waterproof membrane included modern, low, high capacity siphon

· suitable for tiles of 8-10mm thickness

Dry siphon

Features:

stops unpleasant odors from the sewage system · used optionally instead · inspection tube

165

Flow (l/min) Outflow length (mm) Waterproof membrane Material Code 36 l/min 600 yes stainless steel INEX.1515.600.R.SNP 36 l/min 700 yes stainless steel INEX.1515.700.R.SNP 36 l/min 800 yes stainless steel INEX.1515.800.R.SNP 36 l/min 900 yes stainless steel INEX.1515.900.R.SNP 600 / 700 800 / 900 640 / 740 / 840 940 72 110 59-76 60 155 40 15 27 109 110 59-76 60 40 15 27 109 265 600 / 700 / 800 / 900 640 / 740 / 840 / 940 72 110 59-76 60 155 40 15 27 109 Flow (l/min) Outflow

Waterproof

Material Code 36 l/min 600 yes stainless steel INEX.1515.600.P.SNP 36 l/min 700 yes stainless steel INEX.1515.700.P.SNP 36 l/min 800 yes stainless steel INEX.1515.800.P.SNP 36 l/min 900 yes stainless steel INEX.1515.900.P.SNP Tile ready grating Stainless steel grating Top access for cleaning Adjustable legs Flow 36l / min Chrome Features: Drains

length (mm)

membrane

Flow (l/min) Type of flow Code 22 mechanical ratchet INEX.1515.SS Closed pose Open pose 9 Flow 22 l/min Top access for cleaning Set includes: 1. Waterproof membrane 2. Grating * 3. Hair catcher 4. Bottom groove 1 2 4 5. Raser blocks / legs 6. Inspection tube 7. Siphon 8. Reductor 40/50 mm 9. Dry siphon (enable to buy)

Bath Furniture

167

Tuto Blanko NEW

Finli

Wall-hung high cabinet

It's practical wall-hung cabinet with universal installation (open on right or left side). In this model you don't have to choose handle, it has a Push to Open mechanism.

Blanko series is available in 3 colour versions.

168

Wall-hung cabinet

2 Cabinet sizes

3 Washbasin sizes

3 Cabinet colours

3 Handle colours

27 Available combinations

169

Blanko

Set washbasin with cabinet with 2 drawers and handles

170 W1 L H2 H W H1 H1 W1 L H2 H W H1 H1

Organiser included Soft-close drawers

Features: Laquered surface

Dimensions (mm) Size (mm) Width (W) (mm) Width (W1) (mm) Height. (H) (mm) Height. (H1) (mm) Height. (H2) (mm) Depth (L) (mm) 500 × 635 × 370 500 490 585 256 50 370 650 × 635 × 370 650 640 585 256 50 370 Washbasin Cabinet Size (mm) Colour Hole for mixer Material Code 500 × 370 white yes ceramic CENL.6317.500.WH 650 × 370 white yes ceramic CENL.6317.650.WH 650 × 370 white no ceramic CENL.6327.650.WH Size (mm) Colour System Soft Close Material Code 490 × 585 × 370 white gloss yes Laquered MDF MLEX.6301.490.WH 650 × 585 × 370 white gloss yes Laquered MDF MLEX.6301.640.WH 490 × 585 × 370 sage yes Laquered MDF MLEX.6301.490.GN 650 × 585 × 370 sage yes Laquered MDF MLEX.6301.640.GN 490 × 585 × 370 black soft yes Laquered MDF MLEX.6301.490.BL 650 × 585 × 370 black soft yes Laquered MDF MLEX.6301.640.BL Size (mm) Colour Quantity Material Code 168 × 41 chrome 2 aluminium MLEX.6303.SET.CR 168 × 41 black matt 2 aluminium MLEX.6303.SET.BL 168 × 41 gold gloss 2 aluminium MLEX.6303.SET.GL Handles Bath furniture NEW

Blanko Wall-hung high cabinet

171 Size (mm) Colour Width (W) (mm) Height (H) (mm) Depth (L) (mm) Material Code 330 × 1100 white 330 1100 330 Laquered MDF MLEX.6302.330.WH 330 × 1100 sage 330 1100 330 Laquered MDF MLEX.6302.330.GN 330 × 1100 black soft 330 1100 330 Laquered MDF MLEX.6302.330.BL H L W

Features: Laquered surface System Push to Open Universal installation L/R Bath furniture NEW

Finli

Cabinet with 2 drawers for countertop washbasin

Finli

Wall-hung high cabinet

172

Bath furniture

Size (mm) Colour Width (L) (mm) Height (H) (mm) Depth (W) (mm) Material Coating Code 400 × 1500 white / oak inside 400 1500 300 Egger board laquer gloss/board MLEX.1201.400.WHWH Dimensions (mm) H W R H W L L H W R H W L L

Dimensions (mm) Size (mm) Colour Width (L) (mm) Height (H) (mm) Depth (W) (mm) Hole diameter (R) (mm) Material Coating Code 800 × 500 white / oak inside 800 487 500 200 Egger board laquer gloss / board MLEX.1102.800.WHWH

173

Bath furniture

Tuto

Wall-hung open high cabinet

Tuto

Wall-hung cabinet with door

174 H W W2 W L L H H W W L L H H W W2 W L

Size (mm) Colour Width (L) (mm) Height (H) (mm) Depth (W) (mm) Material Coating Code 200 × 800 oak 200 800 200 Egger board board MLEX.0106.200.BLBL Size (mm) Colour Hinges Width (L) (mm) Height (H) (mm) Depth (W) (mm) Depth (W2) (mm) Coating Code 400 × 800 oak/white right 400 800 200 218 board / laquer glossy MLEX.0107.400.BLWH 400 × 800 oak/gray right 400 800 200 218 board/board MLEX.0107.400.BLGR 400 × 800 oak/white left 400 800 200 218 board / laquer glossy MLEX.0105.400.BLWH 400 × 800 oak/gray left 400 800 200 218 board/board MLEX.0105.400.BLGR Dimensions (mm) Dimensions (mm) Left Left Right Right

175

Bath furniture

Tuto

Cabinet with 2 drawers for countertop washbasin

176

Size (mm) Colour Width (L) (mm) Height (H) (mm) Depth (W) (mm) Diameter otworu (R) (mm) Material Coating Code 600 × 494 white/oak 600 494 457 200 Egger board laquer gloss / board MLEX.0104.600.WHBL 800 × 494 white/oak 800 494 457 200 Egger board laquer gloss / board MLEX.0104.800.WHBL 600 × 500 gray/oak 600 500 457 200 Egger board board/board MLEX.0104.600.GRBL 800 × 500 gray/oak 800 500 457 200 Egger board board/board MLEX.0104.800.GRBL 600 × 500 black/oak 600 500 457 200 Egger board board/board MLEX.0104.600.BKBL 800 × 500 black/oak 800 500 457 200 Egger board board/board MLEX.0104.800.BKBL Dimensions (mm) H W L R H W L R *Set does not include basin mixer, siphon and pop-up.

Tuto

Set washbasin As* with cabinet with 2 drawers

177

Size (mm) Colour Width (L) (mm) Height (H) (mm) Depth (W) (mm) Material Coating Cabinet code Washbasin code 600 × 500 white/oak 600 500 457 Egger board laquer gloss / board MLEX.0103.600.WHBL CEEX.3617.600.WH 800 × 500 white/oak 800 500 457 Egger board laquer gloss / board MLEX.0103.800.WHBL CEEX.3617.800.WH 600 × 500 gray/oak 600 500 457 Egger board board/board MLEX.0103.600.GRBL CEEX.3617.600.WH 800 × 500 gray/oak 800 500 457 Egger board board/board MLEX.0103.800.GRBL CEEX.3617.800.WH 600 × 500 black/oak 600 500 457 Egger board board/board MLEX.0103.600.BKBL CEEX.3617.600.WH 800 × 500 black/oak 800 500 457 Egger board board/board MLEX.0103.800.BKBL CEEX.3617.800.WH Washbasin dimensions (mm) Size (mm) Colour Width (L) (mm) Depth (W2) (mm) Height with edge (H2) (mm) Height without edge (P) (mm) Material 610 × 465 white 610 465 137 118 ceramic 810 × 465 white 810 465 137 118 ceramic Dimensions (mm) *Set

Bath furniture

does not include basin mixer, siphon and pop-up.

L W2 H2 P L W2 H2 P H W L H W L

Bath furniture

Tuto

Cabinet with 2 drawers for countertop washbasin

Tuto

Wall-hung high cabinet

Dimensions słupka według schematu (mm)

178

Size (mm) Colour Width (L) (mm) Height (H) (mm) Depth (W) (mm) Material Coating Code 400 × 1600 white/oak 400 1600 320 Egger board laquer gloss / board MLEX.0201.400.WHBL 400 × 1600 gray/oak 400 1600 320 Egger board board/board MLEX.0201.400.GRBL 400 × 1600 Black/oak 400 1600 320 Egger board board/board MLEX.0201.400.BKBL

Tuto

Set washbasin As* with cabinet with 1 drawer

Washbasin for cabinet

179

L W2 H2 P L W L1 W3 W4 W2 W1 H2 H H1 W5 L W2 H2 P H W L H W L Size (mm) Colour Width (L) (mm) Height (H) (mm) Depth (W) (mm) Material Coating Cabinet code Washbasin code 600 × 500 white/oak 600 500 457 Egger board laquer gloss / board MLEX.0101.600.WHBL CEEX.3617.600.WH 700 × 500 white/oak 700 500 457 Egger board laquer gloss / board MLEX.0101.700.WHBL CEEX.3617.700.WH 800 × 500 white/oak 800 500 457 Egger board laquer gloss / board MLEX.0101.800.WHBL CEEX.3617.800.WH 600 × 500 gray/oak 600 500 457 Egger board board/board MLEX.0101.600.GRBL CEEX.3617.600.WH 700 × 500 gray/oak 700 500 457 Egger board board/board MLEX.0101.700.GRBL CEEX.3617.700.WH 800 × 500 gray/oak 800 500 457 Egger board board/board MLEX.0101.800.GRBL CEEX.3617.800.WH Size (mm) Colour Material Code 610 × 465 white ceramic CEEX.3617.600.WH 710 × 465 white ceramic CEEX.3617.700.WH 810 × 465 white ceramic CEEX.3617.800.WH Size (mm) Colour Width (L) (mm) Depth (W2) (mm) Height with edge (H2) (mm) Height without edge (P) (mm) Material 610 × 465 white 610 465 137 118 ceramic 710 × 465 white 710 465 137 118 ceramic 810 × 465 white 810 465 137 118 ceramic Size (mm) Width (L) (mm) (L1) (mm) Depth (W) (mm) (W1) (mm) (W2) (mm) (W3) (mm) (W4) (mm) (W5) (mm) Height (H) (mm) 610 × 465 610 430 465 225 63 275 100 220 170 710 × 465 710 470 465 220 63 275 105 220 170 810 × 465 810 470 465 220 63 270 105 220 170 Dimensions (mm) Washbasin dimensions (mm) Washbasin dimensions (mm) Bath furniture

Bath

Mirrors

181

Lumiro Lumiro Virro Kuadro Revia NEW NEW

Corido

Oval bathroom mirror with LED light

182 Bath mirrors 7,5 15 Φ18 125 1000 500 21,5 31,5 36,5

Features: Size (mm) Frame material Frame colour Light temp. range (K) Power including demister mat (W) Control method Code 1000 × 500 aluminium black matt range 3000-6000 47 touch sensor DOEX.CO100.050.BL 1000 × 500 aluminium gold gloss range 3000-6000 47 touch sensor DOEX.CO100.050.GL Light intensity changing Installation kit included Touch sensor Light temperature changing Aluminium frame Protection film Demister mat Vertical or horizontal installation IP protection rate IP 44 LED lighting NEW

Corido Round bathroom mirror with LED light

183 125 Φ18 21,5 31,5 36,5 15 Φ 800 7,5

Features: Size (mm) Frame material Frame colour Light temp. range (K) Power including demister mat (W) Control method Code Φ 800 aluminium black matt range 3000-6000 53 touch sensor DOEX.CO080.BL Φ 800 aluminium gold gloss range 3000-6000 53 touch sensor DOEX.CO080.GL Light intensity changing Installation kit included Touch sensor Light temperature changing Aluminium frame Protection film Demister mat IP protection rate IP 44 LED lighting NEW

Bath mirrors

184 Bath mirrors Lumiro Oval bathroom mirror with LED light 800 5 30 8 Φ16 Φ18 144 144 4-R100 15 600 5 60 800 680 30 8 Φ16 Φ18 120 15 500 1000 R250 Size (mm) Frame material Light temp. range (K) Power including demister mat (W) Control method Code 1000 × 500 acrylic range 3000-6000 58,9 touch sensor DOEX.LU100.050.AC MORE INFORMATIONS Features: Installation kit included Touch sensor Light temperature changing Acrylic frame Protection film Demister mat Vertical or horizontal installation IP protection rate IP 44 LED lighting NEW

Lumiro

Round bathroom mirror with LED light

185 Bath mirrors Φ 1000 125 15 5 8 30 500 Φ18

Size (mm) Frame material Light temp. range (K) Power including demister mat (W) Control method Code Φ 1000 acrylic range 3000-6000 69 touch sensor DOEX.LU100.AC Features: Installation kit included Touch sensor Light temperature changing Acrylic frame Protection film Demister mat IP protection rate IP 44 LED lighting NEW

Lumiro

186 Φ 600 115 15 5 8 30 360 Φ18 Φ 800 125 15 5 8 30 380 Φ18

Bath mirrors Size (mm) Frame material Light temp. range (K) Power including demister mat (W) Control method Code Φ 600 acrylic range 3000-6000 32 touch sensor DOEX.LU060.AC Φ 800 acrylic range 3000-6000 58 touch sensor DOEX.LU080.AC Features: Installation kit included Touch sensor Light temperature changing Acrylic frame Protection film Demister mat LED lighting IP protection rate IP 44

Round bathroom mirror with LED light

Bath mirrors

Lumiro

Rectangular rounded bathroom mirror with LED light

187

500 Φ18 800 144 144 15 5 8 30 680 60 5 8 30 680 60 600 Φ18 800 144 144 15 Size (mm) Frame material Light temp. range (K) Power including demister mat (W) Control method Code 800 × 500 acrylic range 3000-6000 45 touch sensor DOEX.LU080.050.AC 800 × 600 acrylic range 3000-6000 47 touch sensor DOEX.LU080.060.AC Vertical or horizontal installation Features: Installation kit included Touch sensor Light temperature changing Acrylic frame Protection film Demister mat LED lighting IP protection rate IP 44

188 800 20 20 600 Size (mm) Frame material Colour Code Φ 600 alumiunium white matt DOEX.VI060.WH Φ 600 alumiunium black matt DOEX.VI060.BL

Round bathroom mirror Features: Aluminium frame Available in 2 colours Installation kit included Protection film

mirrors

Virro

Bath

Bath mirrors

Virro

Round bathroom mirror

189 Features: Aluminium frame Available in 2 colours Installation kit included Protection film 800 20 20 600 Size (mm) Frame material Colour Code Φ 800 alumiunium white matt DOEX.VI080.WH Φ 800 alumiunium black matt DOEX.VI080.BL

Bath mirrors

Revia

190 20 500 1000 Height (mm) Width (mm) Frame material Colour Code 1000 500 alumiunium white matt DOEX.RE100.050.WH 1000 500 alumiunium black matt DOEX.RE100.050.BL

Features: Aluminium frame Protection film Available in 2 colours Vertical or horizontal installation Installation kit included

Oval bathroom mirror

Bath mirrors

Kuadro

Rectangular bathroom mirror

191 1000 500 20 800 600 20 Features: Aluminium frame Protection film Available in 2 colours Vertical or horizontal installation Installation kit included 1000 500 20 800 600 20 Height (mm) Width (mm) Frame material Colour Code 1000 500 alumiunium white matt DOEX.KU100.050.WH 1000 500 alumiunium black matt DOEX.KU100.050.BL 800 600 alumiunium white matt DOEX.KU080.060.WH 800 600 alumiunium black matt DOEX.KU080.060.BL

Ceramics

192

193 Candera Hasko Jima Cori 38 Ronity 50s Forka Ovia Be Spot Holmi 59 Jima 60 Cori 51 Jima 82 Cori 61 Lupio Filina 2.0 Rima 2.0 NEW

194 Features: Ceramics Candera Undercounter washbasin Size (mm) Material Colour Overflow Tap hole Code 565 × 400 ceramic white yes no CEEX.5121.565.WH 565 155 400 195 163 565 155 400 195 163 White gloss With overflow, without tap hole NEW

195

Built-in basin Size (mm) Material Colour Overflow Tap hole Code 570 × 390 ceramic white yes no CEAC.3718.570.WH Features: 820 130 60 40 615 135 135 280 605 805 1000 HASKO 57 570 390 180 400 170 600 135 280 140 420 Ceramics White gloss With overflow, without tap hole

Hasko

Rima 2.0

Countertop basin

Rima 2.0

196

Countertop

basin

Countertop

Size (mm) Material Colour Overflow Tap hole Code 400 × 400 ceramic pure-white no yes CEEX.4901.400.WH Size (mm) Material Colour Overflow Tap hole Code 500 × 400 ceramic pure-white no yes CEEX.4901.500.WH Size (mm) Material Colour Overflow Tap hole Code 600 × 400 ceramic pure-white no yes CEEX.4901.600.WH

400 400 80 55 200 100 86 112 Features: Slim rim Pure-white Colour Different sizes Glazed back 400 400 80 55 200 100 86 112 500 400 80 55 200 100 86 112 500 400 80 55 200 100 86 112 600 400 80 55 200 100 86 112 600 400 80 55 200 100 86 112 Without overflow with tap hole Features: Slim rim Pure-white Colour Different sizes Glazed back Without overflow with tap hole Features: Slim rim Pure-white Colour Different sizes Glazed back Without overflow with tap hole

basin

Ceramics

Rima 2.0

Countertop basin without tap hole

197

Size (mm) Material Colour Overflow Tap hole Code 600 × 400 ceramic pure-white no no CEEX.4902.600.WH Ceramics 600 400 80 200 100 86 112 600 400 80 200 100 86 112 Features: Slim rim Pure-white Colour Different sizes Glazed back Without overflow and tap hole

198

Size (mm) Material Colour Overflow Tap hole Code 605 × 410 ceramic white no no CEAC.3818.600.WH 135 37 110 410 605 135 37 110 410 605 Ceramics White gloss Without overflow and tap hole Features:

Lupio Built-in basin

Filina 2.0 Countertop basin

199

Size (mm) Material Colour Overflow Tap hole Code 640 × 415 ceramic white no no CEAC.630.420.WH White gloss 415 640 140 165 395 415 640 140 165 395 Ceramics Without overflow and tap hole Features:

Jima Countertop basin

200

Size (mm) Material Colour Overflow Tap hole Code 465 × 375 ceramic white no no CEAC.2001.465.WH Without overflow and tap hole Features: Slim rim White gloss Different sizes 120 86 375 465 120 86 375 465 Ceramics

Jima 60 Countertop basin

201

Size (mm) Material Colour Overflow Tap hole Code 615 × 415 ceramic white no no CEAC.2001.615.WH 415 615 490 138 98 415 615 490 138 98 Ceramics Without overflow and tap hole Features: Slim rim White gloss Different sizes

Jima 82 Countertop basin

202

Size (mm) Material Colour Overflow Tap hole Code 810 × 410 ceramic white no no CEAC.2001.820.WH Without overflow and tap hole Features: Slim rim White gloss Different sizes 810 410 690 135 100 810 410 690 135 100 Ceramics

Holmi 59

203

Recommended hole size for washbasin installation Size (mm) Material Colour Overflow Tap hole Code 600 × 477 ceramic white yes yes CEAC.3201.590.WH 590mm 470 mm 75 mm 95 mm 500mm 400mm 580mm R=185mm 380mm 565mm R=122,5mm 385mm Features: Slim rim White gloss 600 477 80 105 292 63 177 600 477 80 105 292 63 177 Ceramics Glazed back Without overflow with tap hole

Built-in basin

Cori 38 Countertop basin

Cori 51 Countertop basin

204

Size (mm) Material Colour Overflow Tap hole Code 380 × 380 ceramic white no no CEAC.2201.WH Size (mm) Material Colour Overflow Tap hole Code 510 × 400 ceramic white no no CEAC.2401.WH 380 380 120 270 140 115 370 135 400 510 380 380 120 270 140 115 370 135 400 510 Ceramics Without overflow and tap hole Features: Slim rim White gloss Different sizes Without overflow and tap hole Features: Slim rim White gloss Different sizes

Cori 61 Countertop basin

205

Size (mm) Material Colour Overflow Tap hole Code 625 × 360 ceramic white no no CEAC.3301.610.WH 625 90 115 360 625 90 115 360 Ceramics Without overflow and tap hole Features: Slim rim White gloss Different sizes

Ronity 50S Countertop basin

206

Size (mm) Material Colour Overflow Tap hole Code 505 × 380 ceramic white no yes CEAC.2901.500.WH 505 88 120 380 110 70 188 505 88 120 380 110 70 188 Ceramics Without overflow, with tap hole Features: Slim rim White gloss Different sizes

Ovia 35 Countertop basin

207

Size (mm) Material Colour Overflow Tap hole Code 360 ceramic white no no CEAC.2501.WH 118 92 360 118 92 360 Ceramics Without overflow and tap hole Features: Slim rim White gloss

Forka Countertop basin

208

Size (mm) Material Colour Overflow Tap hole Code 485 × 380 ceramic white no no CEAC.3401.475.WH Slim rim White gloss 485 380 138 110 485 380 138 110 Ceramics Without overflow and tap hole Features:

Be Spot

Wall-hung / countertop basin

Size (mm) Material Colour Overflow Tap hole Code 600 × 345 × 80 synthetic marble white no yes CEEX.2301.600.WH 145 287 294 224 280 600 345 100 340 Features: White gloss Without overflow, with tap hole Ceramics

Brass pop-up for washbasins and bidets

Pop-ups Opening

Ceramic pop-up for washbasins and bidets

Features:

· universal for washbasins both with and without the overflow can be used also in bidets

Features: universal for washbasins both with and without the overflow

· white colour well matched for washbasins colour

· can be used also in bidets

210

cover size (mm) Closing Material Colour Code

Click-Clack brass chrome ARIN.1485.01CR

Click-Clack

Opening cover size (mm) Closing Material Colour Code Φ 71 Click-Clack ceramic white gloss ARIN.1485.01WH

Click-Clack ceramic pure-white ARIN.1485.02WH

Click-Clack ceramic

Φ 63

brass gold gloss ARIN.1485.01GL

Φ 71

black matt ARIN.1485.01BL

Ø 63 korek ceramiczny korek mosiężny 8 - 46 52 10 G 1˝1/4 Ø 62 Ø71 Ø63 11.5 Min. 0 Max.63 G1" 1/4 25 Ø62 11.5 Min. 0Max.63 G1" 1/4 25 Ø62 Ø 63 korek ceramiczny korek mosiężny 8 - 46 52 10 G 1˝1/4 Ø 62 Ø71 Ø63 11.5 Min. 0 Max.63 G1" 1/4 25 Ø62 11.5 Min. 0 Max.63 G1" 1/4 25 Ø62

POP-UP for washbasins and bidets

High quality materials

Excellent pop-ups are available in 5 colour versions, which allows for a perfect match to the fittings and ceramics used. Depending on the colour version, they are made of brass or ceramic.

2in1 system

Depending on needs, the pop-up can be closed by "clicking" its cover, or be in the always open position, using the close-locker included in the set.

Easy to match

The material of the pop-up body allows to cut the length, so you can be sure that its length will be correct regardless of the washbasin used.

Top access for cleaning

Dedicated strainer allows for easy cleaning, which protects against clogging of the drain system.

Universal purpose

Excellent pop-ups can be used for washbasins both with and without overflow.

Brass cap

Allows for perfect matching the colour with washbasin siphons.

Ceramic pop-up White glossy ARIN.1485.01WH Ceramic pop-up Snow-white ARIN.1485.02WH* Brass pop-up chrome ARIN.1485.01CR Brass pop-up gold glossy ARIN.1485.01GL Ceramic pop-up black matt ARIN.1485.01BL

211 Recommended for Rima 2.0 washbasins

212 Connection height (mm) Bottle size (mm) Material Colour Code 170 96 stainless steel 304 chrome INEX.2018CR 170 96 stainless steel 304 black matt INEX.2018BL 170 96 stainless steel 304 white INEX.2018WH 170 96 stainless steel 304 Gold INEX.2018GL Siphons D54 Washbasin bottle trap 1’’1/4 110-190 186-266 354 Φ 70 Φ 32 Φ 54

Siphon

Low level basin-bidet

Low siphon

Set: low siphon + elastic pipe

Low siphon

Set:

Additional information:

· new technology allowing to save more spacewithout reducing flow capacity suitable both for basins and bidets

· resistant to potent detergents and extreme temperatures

· patented design with dry siphon with 36 l/min flow

Additional information: new technology allowing to save more space without reducing flow capacity resistant to potent detergents and extreme temperatures

· dry siphon with 36 l/min flow full set ready for installation (without basin pop-up)

· can be cut and adjusted to existing connections (angle connector included)

213

Height (mm) Drainage size (mm) Material Colour Code 58 40 PP white INPU.8075409.WH Element Drainage size (mm) Material Colour Code elastic pipe 32/40 ABS white INPU.8075628.WH

A G1½ lub G1¼ 58 40 55 115 A-A

1000 Φ32/40 G1½ lub G1¼ 115

Siphons

Element Drainage size (mm) Material Colour Code stiff pipe 40 ABS chrome INPU.8075537P.CR stiff pipe 40 ABS white INPU.8075536P.WH 270 115 90 270 40 G1½ lub G1¼

low siphon + stiff pipe Flow 36 l/min Flow 36 l/min Flow 36 l/min

Ceramics

214

Seat covers

215 N

Dakota 2.0 Ness Joker

N NEW

Doto

Dakota 2.0 Shower toilet

It's the perfect way to save space every bathroom. Modern toilet bowl with bidet, operated in an intuitive and friendly way, thanks to the conveniently located metal control knob.

Five washing mode, control water temperature, spray force and nozzle position guarantee a comfort during use. Rimless toilet bowl in two shapes, with detachable, soft-close seat cover assure easy cleanliness of the toilet.

Metal knob with an unique design, three colors available - chrome, gold and black matt.

Remote control

216

5 YEARS WARRANTY

1 Night light LED seat cover and the knob

2 Fresh Air Control neutralization of unpleasant odors

Automatic descaling comfortabe way for remove the negative impact of water on the smart toilet During descaling the knob

217

flash on red

Dakota 2.0 D2 shower toilet, white

218

Soft-close seat Soft-close seat Rim-free Rim-free Female wash Female wash Rare wash Rare wash Temperature regulation Temperature regulation Descaling Descaling Bight light Bight light Nozzle position adjustment Nozzle position adjustment Descaling filter Descaling filter OC OC

Ceramics

396 370 215 290 52 80 30 410 593 396 370 215 290 320 320 135 Φ102 52 80 30 410 593 180 Φ55 396 370 215 290 52 30 410 300 593 396 370 215 290 52 30 410 300 135 Φ102 220 320 593 180 Φ55

Dakota 2.0 S2 shower toilet, white

Size (mm) Knob color Functions Material Bowl code Knob code 593 × 370 chrome wash ceramic CEEX.4024.593.D2.WH CEEX.4022.D2.CR 593 × 370 black matt wash ceramic CEEX.4024.593.D2.WH CEEX.4022.D2.BL 593 × 370 gold gloss wash ceramic CEEX.4024.593.D2.WH CEEX.4022.D2.GL Features: Features: Size (mm) Knob color Functions Material Bowl code Knob code 593 × 370 chrome wash ceramic CEEX.4124.593.S2.WH CEEX.4022.D2.CR 593 × 370 black matt wash ceramic CEEX.4124.593.S2.WH CEEX.4022.D2.BL 593 × 370 gold gloss wash ceramic CEEX.4124.593.S2.WH CEEX.4022.D2.GL NEW NEW

DAKOTA 2.0

219

Ceramics Remote control Dedicated to shower toilet Dakota 2.0 45 130 Size (mm) Colour Material Code 130 × 45 white ABS CEEX.4023.D2.WH Powered with batteries (in set) Fastened to wall in complete 3 colors of the knob Night light LED Heated water Easy to operate the remote control as an option Automatic descaling Universal installation Rimmfree wall-hung ceramic bowl The control of the strength of the spray Automatic descaling Fresh Air Control Function Rare washing Female washing NEW

SURFACE Clean Control

The additional glazing layer on our ceramic with Clean Control coating reduces surface porosity compare to uncoated ceramic. Thanks to this surface ceramics surfaces exhibits better hydrophobic properties as well as increasing the standard of hygiene.

CLEANCONTROLSURFACE

Hygiene

Lime deposits and other impurities they are easily removed from the surface, which limits proliferation of bacteria.

Durability

The coating is more resistant for scratches and damages.

Ecology

Less use of resources chemicals and water to remove impurities.

ECAFRUS LORTNOCNAELCTUOHTIW 220

Doto S Pure Rim 49

Wall-hung toilet with soft close seat cover

221

Ceramics

Size (mm) Colour Material Flushing (l) Code 495 × 345 white ceramic 6/4 l CEEX.1609.495.WH Features: Duo-pack safe packaging White gloss Eko Flushing 6/4 l Concealed mounting Rimless toilet Scratch resistance Slim cover Soft-close seat Removable toilet seat 495 180 150 270 100 135 420 Φ15 Φ102 75 180 345 330 Clean Control NEW

Ceramics

Doto Pure Rim 54

Wall-hung toilet with soft close seat cover

Doto Pure Rim 48

Wall-hung toilet with soft close seat cover

222

Size (mm) Colour Material Flushing (l) Code 545 × 360 white ceramic 4,5/3 l CEEX.1404.545.WH Size (mm) Colour Material Flushing (l) Code 485 × 360 white ceramic 4,5/3 l CEEX.1404.485.WH Features: Duo-pack safe packaging White gloss Eco Flushing 4,5 l Concealed mounting Rimless toilet Scratch resistance Slim cover Slim cover Soft-close seat Features: Duo-pack safe packaging White gloss Eco Flushing 4,5 l Concealed mounting Rimless toilet Removable toilet seat Scratch resistance Soft-close seat Removable toilet seat 180 180 317 345 217 365 285 370 0 5 5 Ø55 Ø100 140 400 180 317 352 217 400 148 360 285 335 180 485 Ø55 Ø100 Clean Control Clean Control

Doto

Wall-hung bidet

* find out the offer of bidet siphons and plugs

223

Ceramics

Size (mm) Colour Material Code 537 × 368 white ceramic CEEX.1506.537.WH Features: White gloss Scratch resistance 535 370 76 180 320 230-250 288 225 230 100 400 150 80 365 225

Clean Control

Joker

Wall-hung toilet with soft close seat cover

Ness

Wall-hung toilet with soft close seat cover

Ness

Wall-hung bidet

224

Ceramics

Size (mm) Colour Material Flushing (l) Code 500 × 345 White ceramic od 3,5 CENL.3509.500.WH

Size (mm) Colour Material Code 500 × 345 White ceramic CENL.3506.500.WH Features: White gloss 180 310 140 190 80 100 235 400 165 300 500 345 255 185 65 120 Ø35 Ø45 180 310 140 190 80 100 235 400 165 300 500 345 255 185 65 120 Ø35 Ø45 180 310 140 190 80 165 300 500 345 255 185 65 120 Ø35 Ø45 180 310 345 210 400 100 Ø55 Ø100 345 280 500 160 330 Features: Duo-pack safe packaging White gloss Eko Flushing 3,5 l Concealed mounting Rimless toilet Scratch resistance Soft-close seat Removable toilet seat Size (mm) Colour Material Flushing (l) Code 470 × 360 White ceramic 6 / 4,5 CENL.4504.470.WH

180 300 200 330 390 40 190 360 315 270 470 420 Ø100 Ø50 White gloss Concealed mounting Rimless toilet Scratch resistance Soft-close seat Wypinana deska Features: Duo-pack safe packaging

225

Joker

Soft-close white toilet seat cover

Doto 48 D

Slim soft-close white toilet seat cover

Doto 54 D

Slim soft-close white toilet seat cover

226

Size (mm) Code 358 × 442 CENL.4515.470.WH

Ceramics

Features: Scratch resistance Soft-close seat Removable toilet seat 358 442 29 290 118-206 50 365 227 43 420 - 445 436 474 300 460 ± 25 210 180 ± 50 50 43 420 - 445 474 300 460 ± 25 210 180 ± 50 362 436 290 118-206 227 365 Size (mm) Code 466 × 360 CEEX.1405.485.WH Features: Features:

Size (mm) Code 474 × 362 CEEX.1405.545.WH

43 25 43 25 Slim cover Slim cover Scratch resistance Scratch resistance Soft-close seat Soft-close seat Removable toilet seat Removable toilet seat NEW

Ness D

Soft-close white toilet seat cover

227 Ceramics Size (mm) Code 360 × 434 CENL.3515.500.WH

Features: Scratch resistance Soft-close seat Removable toilet seat 434 360 186 211 290 36 25

Flush plates

In-wall installation systems

229 Aurro Fresh Aurro Ringo Platto Trago Flaro Expert Gravio Shiro Premium Shiro 2.0 N N Shiro Fresh box NEW NEW NEW

Concealed systems & flush plates

Flaro Expert

In-wall WC installation system

FLAROExpert

1. Top or left side brass water supply connection

2. Dual flush cistern (3/6 litres) with Water Stop function

3. Cistern fully insulated against condensation

4. Narrow frame size - 425 mm

5. Height regulation - 1120-1290 mm

230

2 1 3 4 5

Size (mm) Height regulation (mm) Depth (mm) Flushing Installation WC installation spacing (mm) Code 1120 - 1290 × 425 170 155-235 3/6 & 2/4 L In-Wall installation 180/230 INEX.FL1120.425 Cistern with anti-condensation protection Valve with Water Stop function Thermal stress-resistant cistern Top and side water connection option Vertical beams supporting ceramic bowls Steel, powder coated, anticorrosive frame Features: 425 11201290 1000 320 max 60 155-235 0-170 135 180 230 190 120 NEW

Concealed systems & flush plates

Gravio Flush plate

Fresh box WC block dispenser

Additional information:

· Dedicated to Flaro Expert WC systems Helps to maintain hygiene in toilet

· Refreshing block in set with dispenser

231 Flush

plates indended for Flaro Expert.

Size (mm) Colour Material Type Code 220 × 150 × 13 white ABS mechanical INEX.GR220.150.WH 220 × 150 × 13 chrome ABS mechanical INEX.GR220.150.CR 220 × 150 × 13 black ABS mechanical INEX.GR220.150.BL Two flush modes: full/water-save Features: 150 1 13 220 150 13 1 13 25

Available in 3 colours NEW NEW

Code INEX.FB1000

Concealed systems & flush plates

Shiro Premium In-wall WC installation system

Pure Power

Washlet - Fix

232

Refreshing liquid*

Connection kit* Pure Power refreshing system Size (mm) Height regulation (mm) Depth (mm) Flushing Installation WC installation spacing (mm) Code 1150 × 500 200 120-170 3/6 & 3/4,5L in-Wall installation 180/230 INEX.SP1150.500 Capacity (ml) Code 450 CHEX.PURE.450 Assembly set included 500 120-170 0-90.5 184 230 180 1 1 50 0-200 1 000 120 35 1 00 220 1 70 85 Ø90/110 100 % eco Anti-limestone protection Aurro Fresh flush plates, Pure Power liquid and Washlet-Fix set are intended for Shiro Premium. For connection cistern with smart bidet or external bidet mixer Length (mm) Code 1200 INEX.FX1200 Features: Foot locker integrated Vertical beams supporting ceramic bowls Steel, powder coated, anticorrosive frame I acoustic class Easy-Click system click Cistern with anti-condensation protection Thermal stress-resistant cistern

Concealed systems & flush plates

Shiro 2.0

In-wall WC installation system

Acoustic mat

VERSATILE SIZE excesses might be cut after ceramics mounting

SECURES ceramics against brekage while mounting

SOUNDPROOFING suppresses

233

Size (mm) Height regulation (mm) Depth (mm) Flushing Installation WC installation spacing (mm) Code 1150 × 500 200 120-170 3/6 & 3/4,5L in-Wall installation 180/230 INEX.SH2.1110.500 500 40 185 180 230 180 ø90 85 100 1150-1350 35 645 1000 0 Features: Foot locker integrated Assembly set included Vertical beams supporting ceramic bowls Steel, powder coated, anticorrosive frame I acoustic class Easy-Click system click Cistern with anti-condensation protection Thermal stress-resistant cistern

Size (mm) Height (mm) Width (mm) Installation Code 430 × 380 430 380 To cut INEX.430.380

For toilet or bidet bowls

PROTECTS against the formation of impurities and fungus PREVENTS tiles breakage in mounting place

flow

of material

noises and prevents occurring

sounds

Concealed systems & flush plates

Shiro

In-wall bidet installation system

234

Size (mm) Height regulation (mm) Depth (mm) Installation Installation spacing (mm) Code 505 × 420 200 80-120 in-wall installation 180/230 INEX.SH505.420 420 230 180 45-98 75-275 0 505-705 Features: Steel, powder coated, anticorrosive frame Height regulation range: 200mm Assembly set included

Concealed systems & flush plates

Trago

In-wall frame for shower seats

235 Size (mm) Height regulation (mm) Depth (mm) Installation Code 570 × 340 220 80-120 in-wall installation INEX.TR570.335

Narrow size 340mm Height regulation range: 220mm Steel, powder coated, anticorrosive frame Load tested for over 300kg Frame is intended for shower seats: Seduro and Seduro Premium, p. 350, 351 55 335 220 340 110 110 365 40-260 104 570 80-120 Features:

Concealed systems & flush plates

Aurro Fresh

Flush plate

236

Size (mm) Colour Material Type Code 230 × 150 × 6,5 white soft ABS mechanical INEX.AF230.150.WH 230 × 150 × 6,5 chrome ABS mechanical INEX.AF230.150.CR 230 × 150 × 6,5 black soft ABS mechanical INEX.AF230.150.BL 230 × 150 × 6,5 gold gloss ABS mechanical INEX.AF230.150.GL Features: Two flush modes: full/water-save Dispenser for Pure Power system Plates are intended for Shiro Premium WC systems 230 150 6,5 1 13 25 150 Aurro fresh / Aurro

230 150 25 6,5 1 13 N Available in 4 colours

Platto

Concealed systems & flush plates

Aurro Flush plate

237

Size (mm) Colour Material Type Code 230 × 150 × 6,5 white soft ABS mechanical INEX.AU230.150.WH 230 × 150 × 6,5 chrome ABS mechanical INEX.AU230.150.CR 230 × 150 × 6,5 black soft ABS mechanical INEX.AU230.150.BL 230 × 150 × 6,5 gold gloss ABS mechanical INEX.AU230.150.GL Two flush modes: full/water-save Features: Plates are intended for Shiro 2.0 WC systems. 230 150 6,5 1 13 25 150 Aurro fresh / Aurro Platto 230 150 25 6,5 1 13

N Available in 4 colours

Concealed systems & flush plates

Ringo Flush plate

238

Size (mm) Colour Material Typ Code 230 × 150 × 6,5 white soft ABS mechanical INEX.RI230.150.WH 230 × 150 × 6,5 chrome ABS mechanical INEX.RI230.150.CR 230 × 150 × 6,5 black soft ABS mechanical INEX.RI230.150.BL Plates are intended for Shiro 2.0 WC systems. 230 150 6,5 1 13 25 150 230 23,5 6,5

Platto

230 150 25 6,5 1 13

Aurro fresh / Aurro

Ringo

Two flush modes: full/water-save Features: Available in 3 colours

Concealed systems & flush plates

Platto Flush plate

Platto

239

Size (mm) Colour Material Typ Code 230 × 150 × 6,5 white soft ABS mechanical INEX.PL230.150.WH 230 × 150 × 6,5 chrome ABS mechanical INEX.PL230.150.CR 230 × 150 × 6,5 black soft ABS mechanical INEX.PL230.150.BL Plates are intended for Shiro 2.0 WC systems. 230 150 6,5 1 13 25 150

230 150 25 6,5 1 13 Two flush modes: full/water-save Features: Available in 3 colours

Fittings

241 Pi Krotos Keria Pride Glad 246 262 274 288 294 SERIES

Easy and stable installation due to the use of an underfloor mounting element, which also provides access for inspection.

FIXBOX

Excellent Fix-box solution enables inspection access after installation. The mounting element contain the spirit level for easy instalation on wall or floor.

Concealed installation element for mixers with Easy-Click system, greatly helps with the assembly of concealed shower and bath mixer with 2 or 3 water outlets.

Concealed installation element which makes the assembly of the surface-mounted basin mixer much easier.

CONCEALED

Freestanding bathtub mixer Concealed shower and bathtub mixer Concealed shower mixer

FIXBOX SYSTEM

Concealed installation element which makes the assembly of the surface-mounted basin mixer much easier.

Concealed installation element makes it much easier to install a concealed shower and bath mixer with 2 water outlets.

Concealed installation element makes it much easier to install a concealed shower and bath mixer with 2 or 3 water outlets.

Concealed basin mixer Concealed shower and bathtub mixer Concealed shower and bathtub mixer

244

245 Pi N N N

Fittings

Pi

Basin mixer

Pi

246

High basin mixer Height (mm) Spout length (mm) Body material Colour Code 172 116 brass chrome AREX.1201CR 172 116 brass black matt AREX.1201BL 172 116 brass white matt AREX.1201WH 172 116 brass gold gloss AREX.1201GL Height (mm) Spout length (mm) Body material Colour Code 290 174 brass chrome AREX.1202CR 290 174 brass black matt AREX.1202BL 290 174 brass white matt AREX.1202WH 290 174 brass gold gloss AREX.1202GL Pi 277 235 Φ30 147 1201 1233 1255 111 Φ8 16 172 3 Φ36 Φ45 116 Φ25 92,5 Φ36 Φ45 32 180 196 170 160 117 Φ42 4 Φ60 Φ48 22 62 Φ60 Pi 95 16 3 290 Φ36 Φ36 Φ45 174 169 Φ8 Φ25 Φ45 205 92,5 147 1202 1205 1233 11 172 3 Φ36 Φ45 116 Φ25 Φ36 Φ45 32 196 117 Available in 4 colours Features: Neoperl Slim aerator Brass Upright mounting Kerox ceramic cartridge

Available in 4 colours Features: Neoperl Slim aerator Brass Upright mounting Kerox ceramic cartridge

Fittings

Pi

Concealed basin mixer

247

150 5O 178 5 190 Φ40 Φ25 Φ19 28-45 245.2 103 2-Φ60 100 29.5 28-45 5O 1214 1225 1281 G1/2 164.5 Φ35 180 35 5 Φ60 Φ75 34.5 92

Features:

2-G1/2"

Cover plate (mm) Spout length (mm) Body material Colour Code Φ 60 188 brass chrome AREX.1214CR Φ 60 188 brass black matt AREX.1214BL Φ 60 188 brass white matt AREX.1214WH Φ 60 188 brass gold gloss AREX.1214GL Installation: wall, concealed Available in 4 colours Neoperl Slim aerator Brass Kerox ceramic cartridge

Fittings

Pi Bidet mixer

248

Height (mm) Spout length (mm) Body material Colour Code 172 116 brass chrome AREX.1203CR 172 116 brass black matt AREX.1203BL 172 116 brass gold gloss AREX.1203GL Features: Neoperl Slim aerator Brass Available in 3 colours Upright mounting Kerox ceramic cartridge Pi Bidet mixer bidetta 150 5O 178 5 190 Φ40 Φ25 Φ19 28-45 138 Φ32 245.2 103 2-Φ60 100 29.5 28-45 5O 1225 1204 1281 1245 G1/2 164.5 Φ35 180 35 5 Φ60 Φ25 1245-1580 188 97 Φ25 300 58 Φ41 47.5 130 Φ27 37.5 Φ20 140 112 57 78.5 37.5 Φ75 34.5 Φ8 92 2-G1/2" Φ21.5 Φ170 Φ40 190 5O 1225 1204 G1/2 164.5 Φ35 180 35 5 Φ60 47.5 130 Φ27 37.5 Φ20 140 112 57 78.5 37.5 Φ75 34.5 Φ8 92 2-G1/2" Φ21.5 Features: Brass Kerox ceramic cartridge Cover plate (mm) Distance to wall (mm) Hose length (mm) Hose type Material Colour Code Φ75 102,5 120 regular brass chrome AREX.1204CR Φ75 102,5 120 regular brass black matt AREX.1204BL Φ75 102,5 120 regular brass gold gloss AREX.1204GL Installation: wall, concealed N N N N Available in 3 colours 146 36 45 36 45 < 35 92 25 142 86 NEW

Bathtub spout

249

Fittings Pi

Height (mm) Spout length (mm) Body material Colour Code 172 116 brass chrome AREX.1225CR 172 116 brass black matt AREX.1225BL 172 116 brass white AREX.1225WH 172 116 brass gold gloss AREX.1225GL 5O 1225 1204 G1/2 164.5 Φ35 180 35 5 Φ60 47.5 130 Φ27 37.5 Φ20 140 112 57 78.5 37.5 Φ75 34.5 Φ8 92 2-G1/2" Φ21.5 Features: Neoperl aerator Brass Installation: wall, surface N N N N N N Available in 4 colours

Bathtub mixer

250 Fittings 150 299 16 16 95 Φ34 Φ40 95 158 277 235 Φ30 784 1255 32 196 117 Φ30 4 Φ60 180 150 299 16 16 95 Φ34 Φ40 95 158 958 3 Φ36 Φ36 Φ45 174 Φ45 1205 Φ36 Φ45 116 Φ36 Φ45 180 170 160 22 62 Pi

Mixer width (mm) Installation spacing (mm) Body material Colour Code 299 150 brass chrome AREX.1205CR 299 150 brass black matt AREX.1205BL 299 150 brass white matt AREX.1205WH 299 150 brass gold gloss AREX.1205GL Features: Kerox ceramic cartridge Neoperl aerator Brass Installation: wall, surface Available in 4 colours Mechanical switch

Fittings

Pi

Freestanding bathtub mixer

251

Mixer height (mm) Spout height (mm) Spout range (mm) Hose length (mm) Hose type Body material Colour Code 871 784 277 1500 Silver brass chrome AREX.1255CR 871 784 277 1500 Silver brass black matt AREX.1255BL 871 784 277 1500 Silver brass white matt AREX.1255WH 871 784 277 1500 Silver brass gold gloss AREX.1255GL Features: Neoperl aerator Brass Floormounted assembly Fix-box Pressure switch Hydroplast ceramic cartridge 958 871 277 235 Φ30 784 Φ125 Φ48 1255 Available in 4 colours

Fittings Pi

3-hole deck mounted bath mixer

Additional installation option or

Each bathtub mixer comes with 2 types of shower head holders: angular (60O) and straight. Available in all color options.

252

Spout height (mm) Spout range (mm) Assembly holes diameter (mm) Max edge thickness (mm) Min. edge width for installation (mm) Edge length for mixer assembly (mm) Hose length (mm) Hose type Shower hand functions 170 196 35-40 40 80 370 - 420 1500 Regular 1 Features: Mechanical switch Spout Brass Deck mounting Hydroplast ceramic cartridge Neoperl aerator Colour Code chrome AREX.1233CR black matt AREX.1233BL white matt AREX.1233WH gold gloss AREX.1233GL 1233 1255 32 180 196 170 160 117 Φ42 Φ30 4 5 4 Φ60 Φ60 Φ48 180 22 62 Φ60 Foldable spout Available in 4 colours 90O

Fittings

Rain Pi

Shower column

253

Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Rail length (mm) 180 150 - brass 1500 910-1530 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) 380 brass Regular brass 1 Ø 200 Features: Mechanical switch Brass Installation: wall, surface Kerox ceramic cartridge Pure-calc system Colour Code chrome AREX.1281CR black matt AREX.1281BL white matt AREX.1281WH gold gloss AREX.1281GL Available in 4 colours 1204 1281 123 495 385 Φ25 Φ200 Φ60 1245-1580 188 97 Φ25 150 300 58 47.5 130 Φ20 Φ27 37.5 Φ20 140 112 57 78.5 37.5 Φ75 34.5 Φ8 92 2-G1/2" Φ21.5 110 2-G1/2" 2-G1/2" 2-Φ60 Φ40 85

Fittings

Pi

Concealed shower - bath mixer, 2 functions

Cover plate (mm) Body material Colour Code

brass chrome AREX.1245CR

brass black matt AREX.1245CR

brass white matt AREX.1245CR

brass gold gloss AREX.1245CR

Pi

Concealed shower - bath mixer set, 2 functions

Features:

Cover plate (mm) Body material Colour Code Φ170 brass chrome AREX.SET.1245CR

Φ170 brass black matt AREX.SET.1245BL

Φ170 brass white matt AREX.SET.1245WH

Φ170 brass gold gloss AREX.SET.1245GL

254

Φ170

5O 1225 1204 1281 1245 G1/2 Φ35 Φ60 68 117 3 16 123 495 385 Φ25 Φ200 Φ60 1245-1580 188 97 Φ25 150 300 58 95 60-80 Φ41 47.5 130 Φ20 Φ27 37.5 Φ20 140 112 57 78.5 37.5 Φ75 34.5 Φ8 92 2-G1/2" Φ21.5 Φ170 110 2-G1/2" 2-G1/2" 2-Φ60 Φ40 85

Φ170

Pi 150 5 178 5 190 Φ40 Φ25 Φ19 28-45 196 230 120 3-Φ55 138 60 O Φ32 245.2 103 2-Φ60 100 29.5 28-45 1214 1233 krzywe 1225 1204 1281 1245 G1/2 35 5 Φ60 68 117 3 16 123 495 385 Φ25 Φ200 Φ60 1245-1580 188 97 58 95 60-80 Φ41 130 Φ20 Φ27 37.5 Φ20 140 112 57 78.5 37.5 Φ75 34.5 2-G1/2" Φ21.5 Φ170 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 82 12 400 387,5 51 2 5 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 8 0 330 G1/2 10 6 5 G1/2 400 22 12 5 4 G1/2 G1/2 22 Available in 4 colours Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box Coating chrome Ls Hs Ls1 Hs1 25 180 80 Φ50 Ls Hs Ls1 Hs1 Ws N N N N N

255

Fittings

Pi

Concealed shower - bath mixer, 3 functions

Pi

Concealed shower - bath mixer set, 3 functions

Size

256

387,5 2 3 81-106 Φ180 G1/2 Φ60 Φ25 Φ250 Φ40 68 96 Φ25 140 205 80 G1/2

Installation: wall, concealed Kerox ceramic cartridge Brass 387,5 2 3 81-106 Φ180 G1/2 Φ60 Φ25 Φ250 Φ40 68 96 Φ25 140 205 80 G1/2

Size rozety (mm) Colour Code Φ 180 chrome AREX.1247CR Φ 180 black matt AREX.1247BL Φ 180 gold gloss AREX.1247GL Features:

rozety

Colour Code

(mm)

Φ 180 chrome AREX.SET.1247CR

matt

Φ 180 black

AREX.SET.1247BL

Concealed fix-box Installation: wall, concealed Vernet ceramic cartridge Brass Available in 3 colours Mechanical switch

Φ 180 gold gloss AREX.SET.1247GL Features:

Available in 3 colours NEW NEW

257

Pi

Thermostatic concealed shower - bath mixer, 3 functions

Features:

Pi

Thermostatic concealed shower - bath mixer set, 3 functions

Features:

Installation: wall, concealed

Size rozety (mm) Colour Code Φ 180 chrome AREX.SET.1248CR

258

Φ180 5 - G1/2 65 90-102 154 3 387,5 2 G1/2 Φ60 Φ25 Φ250 Φ25 205 80 G1/2

Size rozety (mm) Colour Code Φ 180 chrome AREX.1248CR

Installation:

Kerox ceramic

Brass Concealed fix-box Φ180 5 - G1/2 65 90-102 154 3 387,5 2 G1/2 Φ60 Φ25 Φ250 Φ25 205 80 G1/2

wall, concealed

cartridge

NEW NEW

Concealed fix-box Vernet ceramic cartridge Brass Mechanical switch Thermostatic cardirdge Thermostatic cardirdge Fittings

259

260

261 Krotos

Fittings

Krotos

262

Basin mixer Krotos High basin mixer Height (mm) Spout length (mm) Body material Colour Code 155 120 brass chrome AREX.8001CR Height (mm) Spout length (mm) Body material Colour Code 297 172 brass chrome AREX.8002CR

1245 1201 1202 167 220 297 68 117 3 16 123 95 60-80 Φ170 Φ41 261 13 R20 13 155 40 46 120 3 45 82 O R15 119 82 O 172 40 46 3 45 1245 1201 1202 167 220 297 261 13 R20 13 155 40 119 82 O 172 40 46 3 45

Krotos

Coating chrome Features: Neoperl Slim aerator Brass Upright mounting Ceramic cartridge System Easy-Click Temperature regulation Coating chrome Features: Neoperl Slim aerator Brass Upright mounting Ceramic cartridge System Easy-Click Temperature regulation Water pressure control Water pressure control

Fittings

Krotos

Shower-bath cascading spout

263

Features: Size (mm) Length (mm) Body material Colour Code 75 × 225 125 brass chrome AREX.8025CR 75 × 225 125 brass black matt AREX.8025BL 1825 225 58-68 68 3 60 75 156 G1/2" 4-R10 28 3 2-R15 125 185 Φ 30 Brass Cascade stream Available in 2 colours Shelf

Fittings

Krotos

Concealed shower - bath mixer, 2 functions

Krotos

Concealed shower - bath mixer, 3 functions

264

Cover plate (mm) Body material Colour Code 400 × 100 brass chrome AREX.8036CR

Cover plate (mm) Body material Colour Code 400 × 100 brass chrome AREX.8035CR Coating chrome Features: Installation: wall, concealed Mechanical switch Concealed fix-box System Easy-Click

G1/2 100 104 58-65 26 71 400 G1/2 100 104 58-65 26 71 400 G1/2 100 104 58-65 26 71 400 G1/2 100 104 58-65 26 71 400 Głowica Kerox Brass Water pressure control Temperature regulation Coating chrome Features: Installation: wall, concealed Mechanical switch Concealed fix-box System Easy-Click Głowica Kerox Brass Water pressure control Temperature regulation

Fittings

Krotos

Thermostatic

Krotos

Thermostatic

265 190 150 103,7 146 190 88-96 103,7 146

concealed mixer, 3 functions Cover plate (mm) Body material Colour Code 150 × 190 brass chrome AREX.8046CR Coating chrome Features: Brass Installation: wall, concealed Vernet ceramic cartridge Mechanical switch System Easy-Click Concealed fix-box 180 150 50 35 50 28,5 150 757 190 150 150 88-96 103,7 Ø 24 Ø 20 9,5 405 146 190 88-96 382 200x300 1050 G1/2 400 110 700 30 15

mixer, 2 functions Cover plate (mm) Body material Colour Code 150 × 190 brass chrome AREX.8045CR Coating chrome Features: Brass Installation: wall, concealed Vernet ceramic cartridge Mechanical switch Concealed fix-box System Easy-Click Thermostatic cardirdge Thermostatic cardirdge

concealed

Water pressure control Water pressure control

Fittings

Krotos

Concealed shower - bath mixer, 2 functions

Krotos

Concealed shower - bath mixer, 3 functions

266

Cover plate (mm) Body material Colour Code 400 × 100 brass chrome AREX.SET.8035CR

Body

Colour Code 400 × 100 brass chrome AREX.SET.8036CR Features: Features: Brass Brass Installation: wall, concealed Installation: wall, concealed Ceramic cartridge Ceramic cartridge Mechanical switch Mechanical switch Concealed fix-box Concealed fix-box Coating chrome Coating chrome G1/2 100 104 58-65 26 71 400 G1/2 100 104 58-65 26 71 400 G1/2 100 104 58-65 26 71 400 G1/2 100 104 58-65 26 71 400 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 300 2 51 G1/2 300 2 51 G1/2 200 400 2 51 G1/2 400 200 200 300 400 437 200 x 300 G1/2 2 51 G1/2 200 2 51 G1/2 300 300 2 51 G1/2 G1/2 200 200 200 300 437 200 x 300 G1/2 System Easy-Click System Easy-Click Water pressure control Water pressure control Temperature regulation Temperature regulation 180 25 40 20 Ø1/2″ Ø1/2″ 195 180 25 40 20 Ø1/2″ Ø1/2″ 195

Cover plate (mm)

material

267

Fittings

Krotos

Thermostatic concealed shower - bath mixer, 2 functions

Krotos

Thermostatic concealed shower - bath mixer , 3 functions

268

Cover plate (mm) Body material Colour Code 150 × 190 brass chrome AREX.SET.8045CR 150 × 190 brass black matt AREX.SET.8045BL Cover plate (mm) Body material Colour Code 150 × 190 brass chrome AREX.SET.8046CR 150 × 190 brass black matt AREX.SET.8046BL Features: Brass Installation: wall, concealed Vernet ceramic cartridge Mechanical switch Concealed fix-box Available in 2 colours 190 150 150 88-96 103,7 Ø 24 146 190 88-96 103,7 146 G1/2 400 110 196 78 44 60x60 161 184 G 1/2 14 68 130 103 100 60 20 67 60 G 1/2 G 1/2 35 15 4 166 155 150 74 60 Ø 48 Ø 32 Ø 180 180 150 50 35 35 50 28,5 28,5 150 757 190 150 150 88-96 103,7 Ø 24 Ø 20 109 ~ 479 180 9,5 9,5 405 146 190 88-96 103,7 382 200x300 1050 G1/2 400 110 700 30 15 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 300 2 51 G1/2 300 2 51 G1/2 200 400 2 51 G1/2 400 200 200 300 400 437 200 x 300 G1/2 2 51 G1/2 200 2 51 G1/2 300 300 2 51 G1/2 2 51 G1/2 200 200 200 300 437 200 x 300 G1/2 Thermostatic cardirdge Features: Brass Installation: wall, concealed Vernet ceramic cartridge Mechanical switch Concealed fix-box Available in 2 colours Thermostatic cardirdge Water pressure control Water pressure control Ls Hs Ls1 Hs1 25 20.5 180 194.5 80 71 Φ50 45 Ls Hs Ls1 Hs1 40 Ws Ls Hs Ls1 Hs1 25 20.5 180 194.5 80 71 Φ50 45 Ls Hs Ls1 Hs1 40 Ws

269

Fittings

Rain Krotos

Shower column Rain

270

Features: Brass Mechanical switch Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 355 150 - brass 1500 chrome 1310 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 406 brass Regular brass 1 200 × 300 AREX.8080CR System Easy-Click Rain Soft Ø 20 175 406 300 355 66 9,5 200 Ø 25 714 780-1310 149 Shelf Coating chrome Water pressure control

Fittings

Rain Krotos

Krotos

271

Freestanding bathtub mixer Mixer height (mm) Spout height (mm) Spout range (mm) Hose length (mm) Body material Colour Code 850 828 180 1500 brass chrome AREX.8055CR 180 828 850 48 148 50 20 115 115 86 1/2" 48 115 115 50 20 86 1/2" 180 828 850 48 140 Coating chrome Features: Neoperl aerator Brass Floormounted assembly Fix-box Mechanical switch Kerox ceramic cartridge Progressive cartridge Water pressure control 180 150 50 50 28,5 150 190 150 150 88-96 103,7 405 146 190 88-96 103,7 146 382 200x300 1050 G1/2 400 110 700 30 15

Thermostatic shower column Rain Coating chrome Features: Brass Installation: wall, concealed Vernet ceramic cartridge Mechanical switch Concealed fix-box Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 400 150 - brass 1500 chrome 1050 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 382 brass Regular brass 1 200 × 300 AREX.8081CR System Easy-Click Rain Soft Thermostatic cardirdge Water pressure control

272

273 N N N N Keria

Fittings

Keria Q

Keria

274

basin mixer Height (mm) Spout length (mm) Body material Colour Code 303 189 brass chrome AREX.2012CR Coating chrome Features: Neoperl Slim aerator Brass Upright mounting Kerox ceramic cartridge 168 45 125 Max 35 46 54 108 45 54 46 44 164 M32x1,5 233 45 46 44 189 303 46 54 246 46 54 M32x1,5 Max 35 150 196 78 44 3-G 1/2 30 60 60 60 60 60x60 161 184 G 1/2 14 68 130 103 100 60 60 G 1/2 1/2 35 166 155 150 74 60 Ø 48 Ø 32 Ø 180 180 50 35 35 50 28,5 28,5 180 9,5 9,5

High

basin mixer Cover plate (mm) Spout length (mm) Body material Colour Code 200 × 80 196 brass chrome AREX.2016CR Coating chrome Features: Neoperl Slim aerator Concealed fix-box Brass Installation: wall, surface Kerox ceramic cartridge

Concealed

Fittings

Keria

275

168 45 125 Max 35 46 54 108 45 54 46 44 164 M32x1,5 233 45 46 44 189 303 46 54 246 46 54 M32x1,5 Max 35 150 196 78 44 3-G 1/2 30 60 60 60 60 60x60 161 184 G 1/2 125 Max 35 46 54 108 45 54 46 44 164 M32x1,5 233 45 46 44 189 303 46 54 246 46 54 M32x1,5 Max 35 150 196 78 44 3-G 1/2 30 60 60 60 60 60x60 161 184 G 1/2 14 68 100 60 20 67 60 G 1/2 15 4 166 155 150

Basin mixer

High basin mixer Height (mm) Spout length (mm) Body material Colour Code 164 125 brass chrome AREX.2001CR 164 125 brass black matt AREX.2001BL Height (mm) Spout length (mm) Body material Colour Code 303 189 brass chrome AREX.2002CR 303 189 brass black matt AREX.2002BL 120 46,3 54 71 45 52 71 52 45 Max 35 Hot Cold Mixed 210 52 52 52 52 52 54 168 111 125 Max 35 46 54 108 45 54 46 44 164 M32x1,5 177 72 4 45 4-G1/2 210 190 60x60 140-160 2-G1/2 111 G1/2 36 53 146 122 60 111 129 4-G1/2 150 100 2-G1/2 40 195 233 111 46 44 189 303 46 54 246 46 54 M32x1,5 Max 35 100-700 815 2-G1/2 120 46,3 54 71 45 52 71 52 45 Max 35 Hot Cold Mixed 210 52 52 52 168 111 125 Max 35 46 54 108 45 54 46 44 164 M32x1,5 146 111 46 46 164 54 46 116 46 54 Max 35 177 217 44 200 120 72 4 45 76 196 80 111 46 4-G1/2 210 190 60x60 140-160 60x60 28x28 G1/2 135 180 2-G1/2 40 195 233 111 46 44 189 303 46 54 246 46 54 M32x1,5 Max 35 Features: Neoperl Slim aerator Brass Upright mounting Kerox ceramic cartridge Features: Neoperl Slim aerator Brass Upright mounting Kerox ceramic cartridge

Keria

basin mixer Cover plate (mm) Spout length (mm) Body material Colour Code 60 × 60 196 brass chrome AREX.2014CR 60 × 60 196 brass black matt AREX.2014BL Features: Neoperl Slim aerator Brass Kerox ceramic cartridge Installation: wall, concealed Available in 2 colours Available in 2 colours Available in 2 colours

Concealed

Fittings

Keria

276

Bidet mixer

Bathtub mixer Mixer width (mm) Installation spacing (mm) Body material Colour Code 190 150 brass chrome AREX.2005CR 190 150 brass black matt AREX.2005BL 71 45 52 71 52 45 Max 35 Hot Cold Mixed 52 52 168 125 Max 35 108 44 M32x1,5 146 111 46 46 164 54 46 116 46 54 Max 35 177 217 44 200 120 72 4 45 76 196 80 111 46 4-G1/2 210 190 60x60 140-160 2-G1/2 111 G1/2 146 140-160 60x60 28x28 G1/2 135 180 2-G1/2 195 233 111 46 44 189 303 46 54 246 46 54 M32x1,5 Max 35 200x200 100-700 Max 35 146 111 46 46 164 54 46 116 46 54 Max 35 177 217 44 200 120 72 4 45 76 196 80 111 46 4-G1/2 60x60 2-G1/2 140-160 60x60 28x28 2-G1/2 44 189 303 46 54 246 46 54 M32x1,5 Max 35 200x200 22 100-700 815 Height (mm) Spout length (mm) Body material Colour Code 164 146 brass chrome AREX.2003CR 164 146 brass black matt AREX.2003BL Max 35 52 146 111 46 46 164 54 46 116 46 54 Max 35 177 217 44 200 120 72 4 45 76 196 80 111 46 4-G1/2 60x60 2-G1/2 140-160 60x60 150 100 28x28 G1/2 135 180 2-G1/2 40 233 111 46 44 246 46 54 200x200 22 25 46 150 100-700 815 111 146 2-G1/2 Features: Neoperl aerator Brass Upright mounting Kerox ceramic cartridge Features: Brass Installation: wall, surface Kerox ceramic cartridge Neoperl Slim aerator Pressure switch with a lock

Shower mixer Mixer width (mm) Installation spacing (mm) Body material Colour Code 190 150 brass chrome AREX.2008CR 120 46,3 54 71 45 52 71 52 45 Max 35 Hot Cold Mixed 210 52 52 52 52 52 54 177 217 72 4 45 76 196 4-G1/2 210 190 60x60 140-160 2-G1/2 111 G1/2 36 53 146 122 60 111 129 4-G1/2 150 100 28x28 G1/2 135 180 2-G1/2 40 195 100-700 815 111 146 2-G1/2 Coating chrome Features: Brass Installation: wall, surface Kerox ceramic cartridge Available in 2 colours Available in 2 colours

Fittings

Keria

4-hole deck-mounted bath mixer

277

120 46,3 54 71 45 52 71 52 45 Max 35 Hot Cold Mixed 210 52 52 52 52 52 54 Max 54 54 M32x1,5 210 190 60x60 111 G1/2 36 53 146 150 40 195 Spout height (mm) Spout range (mm) Assembly holes diameter (mm) Max edge thickness (mm) Min. edge width for assembly (mm) Edge length for mixer assembly (mm) Hose length (mm) 120 210 35-40 40 80 370 - 420 1500 Hose type Shower hand functions Colour Code Regular 1 chrome AREX.2033CR Regular 1 black matt AREX.2033BL Features: Mechanical switch Spout Brass Deckmounting Kerox ceramic cartridge Neoperl aerator Available in 2 colours

Fittings

Keria

278

Features: Floormounted assembly Fix-Box Pressure switch Hydroplast ceramic cartridge Neoperl aerator Brass 150 15 185 203 G1/2" 55 33 85 150 15 185 138 250 862 899,5 140 46 140 58 115 115 50 20 86 1/2" 950 Mixer height (mm) Spout height (mm) Spout range (mm) Hose type Hose length (mm) Body material Colour Code 900 862 250 Silver 1500 brass chrome AREX.2055CR 900 862 250 Silver 1500 brass black matt AREX.2055BL Available in 2 colours

Freestanding bathtub mixer

Fittings

Keria

279 196 78 44 30 60 60 60 60 60x60 201 219 G 1/2 14 68 130 103 100 60 20 60 G 1/2 G 1/2 35 166 155 150 74 60 Ø 48 28,5 757 109 ~ 479 180 9,5 G1/2 110

spout Cover plate (mm) Spout length (mm) Body material Colour Code 60 × 60 219 brass chrome AREX.2025CR 60 × 60 219 brass black matt AREX.2025BL Features: Brass Installation: wall, surface Neoperl Slim aerator Available in 2 colours

Bathtub

Installation: wall, concealed 125 Max 35 46 54 108 45 54 46 44 164 M32x1,5 189 303 46 54 M32x1,5 Max 35 150 60 60 60 60 60x60 G 103 100 60 20 67 60 G 1/2 G 1/2 35 15 4 166 155 150 Ø 48 Ø 32 Ø 180 180 150 50 35 35 50 150 180 405

bathtub set Cover plate (mm) Spout length (mm) Body material Colour Code 60 × 60 | 100 × 150 | 60x60 219 brass chrome AREX.SET.2025CR Coating chrome Features: Neoperl Slim aerator Concealed fix-box Brass Kerox ceramic cartridge 68 20 120 80 60 100 103 45,75 111 166 150 68 127 80 60 120 42 110 157 150 10 20 68 128 80 60 103 157 10 20 68 143,59 84 60 105 166 155 10 41 110,5 14 68 122 80 60 100 105 29,5 110,5 166 150 20 180 25 40 20 Ø1/2″ Ø1/2″ 195 168 45 125 Max 35 46 54 108 45 54 44 M32x1,5 233 45 46 44 189 303 46 54 246 46 54 M32x1,5 Max 35 150 196 78 44 3-G 1/2 30 60 60 60 60 60x60 201 219 G 1/2 14 68 130 103 100 60 60 G 1/2 35 166 155 150 74 60 Ø 48 Ø 32 Ø 180 180 50 35 35 50 28,5 28,5 180 9,5 9,5

Concealed

Fittings

Keria

Concealed shower and bathtub mixer, 2 functions

Keria Q

Rain Keria

280

Cover plate (mm) Body material Colour Code 100 × 150 brass chrome AREX.2045CR 100 × 150 brass black matt AREX.2045BL 68 20 120 80 60 100 103 45,75 111 166 150 127 80 60 42 110 10 128 80 60 10 68 143,59 84 60 105 166 155 10 41 110,5 14 68 122 80 60 100 105 29,5 110,5 166 150 20 Coating chrome Features: Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box

Shower column Φ22 Φ25 46 190 414 124 358 200x200 2-G1/2 110 147 70-420 905 Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Rail length (mm) 180 150 - brass 1500 915-1515 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) 414 brass Regular brass 1 200 × 200 Colour Code chrome AREX.2081CR black matt AREX.2081BL Features: Mechanical switch Brass Installation: wall, surface Kerox ceramic cartridge Pure-calc system

shower and bathtub

Cover plate (mm) Body material Colour Code 100 × 150 brass chrome AREX.2046CR Coating chrome Features: Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box 45 125 Max 35 46 54 108 45 54 46 44 164 M32x1,5 189 303 46 54 246 46 54 M32x1,5 Max 35 150 196 78 44 3-G 1/2 30 60 60 60 60 60x60 161 184 G 1/2 20 68 122 103 100 60 20 67 60 G 1/2 G 1/2 35 4 166 155 150 80 60 Ø 48 Ø 32 Ø 180 180 150 50 35 35 50 28,5 28,5 150 757 Ø 24 Ø 20 109 ~ 479 180 9,5 9,5 405 382 200x300 1050 110 700 30 15 68 20 120 80 60 100 103 45,75 111 166 150 127 80 60 42 110 10 128 80 60 10 68 143,59 84 60 105 166 155 10 41 110,5 14 68 122 80 60 100 105 29,5 110,5 166 150 20 Available in 2 colours Φ22 Φ25 414 124 358 200x200 2-G1/2 110 147 70-420 905 46 190

Concealed

mixer, 2 functions

Fittings

Keria

Concealed shower - bath mixer, 2 functions

Cover plate (mm) Body material Colour 100 × 150 brass chrome 100 × 150 brass black matt

281

Features: Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box 68 20 120 80 60 100 103 45,75 111 166 150 68 127 80 60 120 42 110 157 150 10 20 68 128 80 60 103 157 10 20 68 143,59 84 60 105 166 155 10 41 110,5 14 68 122 80 60 100 105 29,5 110,5 166 150 20 82 12 400 387,5 51 2 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 8 0 30 10 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 5 4 G1/2 G1/2 22 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 300 2 51 G1/2 300 300 51 G1/2 200 400 2 51 G1/2 400 200 2 51 G1/2 200 200 300 300 400 Code AREX.SET.2045CR AREX.SET.2045BL Available in 2 colours 25 20.5 180 194.5 80 71 Φ50 45 Ls Hs Ls1 Hs1 40 Ws

Fittings

Keria

Concealed shower - bath mixer, 3 functions

Features:

Installation: wall, concealed

Keria

Kerox ceramic cartridge NEW NEW

Brass

Concealed shower - bath mixer, 3 functions

Features:

Vernet ceramic cartridge

Concealed fix-box

Brass Mechanical switch

Available in 2 colours Available in 2 colours

Size rozety (mm) Colour Code

150 × 190 chrome AREX.SET.2047CR

150 × 190 black matt AREX.SET.2047BL

282

81-99 68 5xG1/2 3 140 40,5 20,5 45 35 45 35 150 190 230,5 G1/2 6 71 403 2 113 250 Φ60 G1/2 81-99 68 5xG1/2 3 140 40,5 20,5 45 35 45 35 150 190 230,5 G1/2 6 71 403 2 113 250 Φ60 G1/2

rozety (mm) Colour Code 150 × 190 chrome AREX.2047CR 150 × 190

AREX.2047BL

Size

black matt

Installation: wall, concealed

283

Fittings

Keria

Concealed thermostatic shower - bath mixer, 3 functions

Keria

Concealed thermostatic shower - bath mixer, 3 functions

284 150 190 5XG1/2 90-102 154 3 403 2 113 250 Φ60 G1/2 40,5 20,5 45 35 45 35 230,5 G1/2 6 71 150 190 5XG1/2 90-102 154 3 403 2 113 250 Φ60 G1/2 40,5 20,5 45 35 45 35 230,5 G1/2 6 71 Size rozety (mm) Colour Code 150 × 190 chrome AREX.2048CR 150 × 190 black matt AREX.2048BL

Features:

Colour Code

Features: Concealed fix-box Vernet ceramic

Brass Mechanical switch Thermostatic cardirdge Thermostatic cardirdge Available in 2 colours Installation: wall, concealed Kerox ceramic cartridge Brass Available in 2 colours

Size rozety (mm)

150 × 190 chrome AREX.SET.2048CR 150 × 190 black matt AREX.SET.2048BL Installation: wall, concealed

cartridge

NEW NEW

285

286

287 Pride

Fittings Pride

288

Basin mixer Pride High basin mixer Height (mm) Spout length (mm) Body material Colour Code 146 100 brass chrome AREX.4001CR Height (mm) Spout length (mm) Body material Colour Code 290 205 brass chrome AREX.4002CR 40 2-G1/2 205 252,8 228 16 32,5 290,71 122,8 32,5 240 32,3 242 108 20 97 33 150 2-G1/2 18 56,7 68 G3/8 G3/8 G3/8 G3/8 40 2-G1/2 205 252,8 2-G1/2 146,1 40 28,8 105 100 122,8 32,5 32,5 59,5 56 79 33 240 32,3 32,5 97 33 2-G1/2 18 56,7 68 G3/8 G3/8 Features: Features: Neoperl Slim aerator Neoperl Slim aerator Brass Brass Upright mounting Upright mounting Kerox ceramic cartridge Kerox ceramic cartridge Pride Concealed basin mixer Cover plate (mm) Spout length (mm) Body material Colour Code 200 × 80 190 brass chrome AREX.4015CR 100 200 80 177 198 100 200 80 3 165 190 3 Features: Neoperl Slim aerator Brass Installation: wall, surface Ceramic cartridge Sedal Coating chrome Coating chrome Coating chrome

Fittings

Pride

289

Bidet mixer Height (mm) Spout length (mm) Body material Colour Code 121 116 brass chrome AREX.4003CR G3/8 G3/8 G3/8 G3/8 127,5 85,5 87,5 113,5 G3/8 G3/8 G3/8 G3/8 74,4 116,4 121,2 78,1 40 32,5 45 G3/8 G3/8 G3/8 G3/8 134 107,5 77,8 Features: Neoperl aerator Brass Upright mounting Kerox ceramic cartridge

shower and bathtub mixer,

functions Cover plate (mm) Body material Colour Code 120 × 150 brass chrome AREX.4045CR 100 68 127 80 60 120 42 110 157 150 10 20 68 128 80 60 103 157 10 20 105 100 68 127 80 60 120 42 110 157 150 10 20 68 128 80 60 103 157 10 20 105 Features: 40 2-G1/2 205 252,8 2-G1/2 146,1 40 28,8 105 100 122,8 32,5 32,5 59,5 56 79 33 240 32,3 32,5 97 33 2-G1/2 18 56,7 68 G3/8 G3/8 40 2-G1/2 205 252,8 2-G1/2 146,1 40 28,8 105 100 122,8 32,5 32,5 59,5 56 79 33 240 32,3 32,5 97 33 2-G1/2 18 56,7 68 G3/8 G3/8

Shower mixer Mixer width (mm) Installation spacing (mm) Body material Colour Code 240 150 brass chrome AREX.4008CR Features: Brass Installation: wall, surface Kerox ceramic cartridge Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box Coating chrome Coating chrome Coating chrome

Pride Concealed

Pride

290 Fittings 2-G1/2 205 242 108 20 97 33 150 2-G1/2 18 56,7 68 G3/8 G3/8

Bathtub mixer Mixer width (mm) Installation spacing (mm) Spout length (mm) Body material Colour Code 242 150 149 brass chrome AREX.4005CR Features: Neoperl aerator Mechanical switch Installation: wall, surface Foldable spout Kerox ceramic cartridge Brass Coating chrome

Fittings

Pride

Concealed shower - bath mixer, 2 functions

291

Cover plate (mm) Body material Colour 120 × 150 brass chrome 82 12 51 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 8 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 5 4 G1/2 G1/2 22 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 300 2 51 G1/2 300 300 2 51 G1/2 200 400 2 51 G1/2 400 200 2 51 G1/2 200 200 300 300 400 Code AREX.SET.4045CR

68 20 120 80 60 100 103 45,75 111 166 150 68 127 80 60 120 42 110 157 150 10 20 68 128 80 60 103 157 10 20 68 143,59 84 60 105 166 155 10 41 110,5 14 68 100 166 150 20 68 20 120 80 60 100 103 45,75 111 166 150 68 127 80 60 120 42 110 157 150 10 20 68 128 80 60 103 157 10 20 68 143,59 84 60 105 166 155 10 41 110,5 14 68 100 166 150 20 Features: Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box 25 20.5 180 194.5 80 71 Φ50 45 Ls Hs Ls1 Hs1 40 Ws

292

293 Glad

294

Basin mixer Glad High basin mixer Height (mm) Spout length (mm) Body material Colour Code 149 115 brass chrome ARAC.1101CR Height (mm) Spout length (mm) Body material Colour Code 265 170 brass chrome ARAC.1102CR M32x1,5 2xG3/8 Max 30 G3/8 G3/8 M32x1,5 2xG3/8 Max 30 G3/8 G3/8 M32x1,5 2xG3/8 Max 30 G3/8 152 115 99 40 149 207 170 214 2 65 40 2 26 2 40 42 178 M32x1,5 2xG3/8 Max 30 G3/8 G3/8 M32x1,5 2xG3/8 Max 30 G3/8 G3/8 M32x1,5 2xG3/8 Max 30 G3/8 G3/8 152 115 99 40 149 207 170 214 2 65 40 2 26 2 40 42 178 91 Coating chrome Coating chrome Features: Features: Neoperl Slim aerator Neoperl Slim aerator Brass Brass Upright mounting Upright mounting Ceramic cartridge Sedal Ceramic cartridge Sedal Height (mm) Spout length (mm) Body material Colour Code 240 190 brass chrome ARAC.1160CR Glad Kitchen high mixer 2xG3/8 Max 30 M32x1,5 2xG3/8 Max 30 G3/8 G3/8 207 2 26 2 40 42 178 91 Coating chrome Foldable spout Features: Brass Upright mounting Ceramic cartridge Sedal

Fittings Glad

Fittings

295

mixer Height (mm) Installation spacing (mm) Body material Colour Code 185 150 brass chrome ARAC.1108CR 150 15 185 203 G1/2" 55 33 85 150 15 185 138 250 862 899,5 950 140 46 140 123 80 G1/2" 55 33 85 150 15 185 138 862 899,5 950 140 46 140 Coating chrome Features: Brass Installation: wall, surface Ceramic cartridge Sedal

Glad Shower

G1/2" 70 150 185 203 119 168 250 123 80 60 20 68 Glad Concealed shower and bathtub mixer, 2 functions Cover plate (mm) Body material Colour Code 119 × 168 brass chrome ARAC.1145CR Features: Coating chrome Brass Installation: wall, concealed Ceramic cartridge Sedal Mechanical switch Concealed fix-box G1/2" 70 123 186 150 15 185 203 G1/2" G1/2" 55 33 85 150 15 185 138 119 168 250 862 899,5 950 140 46 140 123 80 60 20 68 G1/2" 70 123 186 150 15 185 203 G1/2" G1/2" 55 33 85 150 15 185 138 119 168 250 862 899,5 950 140 46 140 123 80 60 20 68 Glad Bathtub mixer Mixer width (mm) Installation spacing (mm) Spout length (mm) Body material Colour Code 185 150 203 brass chrome ARAC.1105CR Coating chrome Features: Neoperl aerator Pressure switch Brass Installation: wall, surface Ceramic cartridge Sedal

296 Rain Glad Shower column 150 150 757 Ø 24 Ø 20 109 ~ 479 405 103,7 382 132 200x300 1050 G1/2 700 15 Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 155 150 - brass 1500 chrome 866-1234 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 405 brass Regular brass 1 200 × 200 ARAC.1181CR Coating chrome Features: Mechanical switch Brass Installation: wall, surface Ceramic cartridge Sedal Pure-calc system Fittings

Fittings

Glad

Concealed shower - bath mixer, 2 functions

297

Cover plate (mm) Body material Colour 119 × 168 brass chrome Code ARAC.SET.1145CR 185 G1/2" 119 168 250 862 899,5 950 140 46 140 123 80 60 20 68 82 12 400 387,5 51 2 5 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 8 0 330 G1/2 10 6 5 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 5 4 G1/2 G1/2 22 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 300 2 51 G1/2 300 300 2 51 G1/2 200 400 2 51 G1/2 400 200 2 51 G1/2 200 200 300 300 400 Features: Brass Installation: wall, concealed Kerox ceramic cartridge Mechanical switch Concealed fix-box 25 20.5 180 194.5 80 71 Φ50 45 Ls Hs Ls1 Hs1 40 Ws

298

Shower Columns

299

Round Termo Krotos Termo Pi Altar Square Termo Krotos Keria Glad

Round Termo

Thermostatic shower column Rain

300

125 80-470 78 436 Ø22 Ø25 Ø 200 Ø 25 1083 272 188 150 2-G1/2

Fittings

Features: Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Rail length (mm) 272 150 - brass 1500 1163 - 1553 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) 436 brass Regular brass 1 Φ 200 Brass Ceramic cartridge Mechanical switch Rain Soft Thermostatic cardirdge Installation: wall, surface Cold system Colour Code chrome ARAC.SY.107CR black matt ARAC.SY.107BL gold gloss ARAC.SY.107GL Available in 3 colours N N N N

Fittings

Square Termo

Thermostatic shower column Rain

301

Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 284 150 - brass 1500 chrome 1030-1500 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 434 brass Regular brass 1 200 × 200 ARAC.SY.108CR 27 30 18 14 78 434 72 200×200 950 80-550 284 150 2-G1/2 Features: Coating chrome Brass Ceramic cartridge Mechanical switch Rain Soft Thermostatic cardirdge Installation: wall, surface Cold system

Krotos Termo

302 Fittings 180 150 50 50 28,5 150 190 150 88-96 405 190 382 200x300 1050 G1/2 400 110 700 30 15

Coating chrome Features: Brass Installation: wall, concealed Vernet ceramic cartridge Mechanical switch Concealed fix-box Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 400 150 - brass 1500 chrome 1050 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 382 brass Regular brass 1 200 × 300 AREX.8081CR System Easy-Click Rain Soft Thermostatic cardirdge Water pressure control

Thermostatic shower column Rain

Fittings

Krotos

Shower column Rain

303

Coating chrome Features: Brass Installation: wall, concealed Mechanical switch Concealed fix-box Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 355 150 - brass 1500 chrome 780 - 1310 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 405 brass Silver brass 1 200 × 300 AREX.8080CR System Easy-Click Rain Soft Ø 20 175 406 300 355 66 9,5 200 Ø 25 714 780-1310 149 Temperature regulation Water pressure control

Shower column Rain

304

Fittings Pi

Fittings

Keria

305

Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 180 150 - brass 1500 chrome 975-1325 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 414 brass Regular brass 1 200 × 200 AREX.2081CR Φ22 Φ25 46 190 414 124 358 200x200 2-G1/2 110 147 70-420 905 Φ22 Φ25 414 124 358 200x200 2-G1/2 110 147 70-420 905 46 190

Shower column Rain

column Rain Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 180 150 - brass 1500 black matt 975-1325 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 414 brass Regular brass 1 200 × 200 AREX.2081BL Features: Mechanical switch Brass Installation: wall, surface Kerox ceramic cartridge Pure-calc system Coating chrome Features: Mechanical switch Brass Installation: wall, surface Kerox ceramic cartridge Pure-calc system Coating black matt

Shower

306 Fittings 424 200 126 892 100-700 150 85 210 870-1500 870-1500 424 200 Altar Shower-bath column Rain Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 210 150 85 brass 1500 chrome 870 - 1500 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 424 brass Regular brass 3 Ø 200 AREX.SY.781BL Features: Mechanical switch Brass Installation: wall, surface spout Kerox ceramic cartridge Pure-calc system Coating black matt Shelf NEW

Fittings

307

424 200 126 892 100-700 150 85 210 150 210 870-1500 870-1500 424 200

Shower-bath column Rain Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 210 150 85 brass 1500 chrome 870 - 1500 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 424 brass Regular brass 3 Ø 200 AREX.SY.781CR Coating chrome Features: Mechanical switch Brass Installation: wall, surface spout Kerox ceramic cartridge Pure-calc system

Shower column Rain Mixer width (mm) Installation spacing (mm) Spout range (mm) Body material Hose length (mm) Colour Rail length (mm) 155 150 - brass 1500 chrome 866-1234 Rail range (mm) Rail material Hose type Shower hand Shower hand functions Upper head (mm) Code 405 brass Regular brass 1 200 × 200 ARAC.1181CR Coating chrome Features: Mechanical switch Brass Installation: wall, surface Ceramic cartridge Sedal Pure-calc system 130 103 35 74 60 Ø 48 Ø 32 Ø 180 180 150 50 35 35 50 28,5 28,5 150 757 88-96 Ø 24 Ø 20 109 ~ 479 180 9,5 9,5 405 382 132 200x300 1050 G1/2 110 700 15

Altar

Glad

Shower panels

308

Shower sets

309

More Termo Thermostatic shower panel

310

Panel width (mm) Panel height (mm) Panel range (mm) Body material Upper jets amount Side jets amount Shower hand functions 220 1400 526 stainless steel 1: integrated 2 integrated 1 Shower hand mounting Hose type Hose length (mm) Code to panel Regular 1500 ARAC.GR8401 Glas Shower panel 526 200 700 1400 220 190 120 190 60 610 76 44 526 200 700 1400 220 190 120 190 60 610 76 44 Panel width (mm) Panel height (mm) Panel range (mm) Body material Upper jets amount Side jets amount Shower hand functions 200 1500 450 stainless steel 2: integrated + cascade 3 integrated 3 Shower hand mounting Hose type Hose length (mm) Code wall Regular 1500 ARAC.ML9304T

Fittings

450 210 810 1500 200 70 68 160 160 160 120 450 210 810 1500 200 70 68 160 160 160 120 Coating chrome Coating chrome Features: Features: Stainless steel Stainless steel Glass front Corner installation possible Pure-calc system Pure-calc system Mechanical switch Mechanical switch Installation: wall, surface Installation: wall, surface Vernet ceramic cartridge Ceramic cartridge Sedal Thermostatic cardirdge Spout Spout

Fittings

More Shower panel

311 Panel width (mm) Panel height (mm) Panel range (mm) Body material Upper jets amount Side jets amount Shower hand functions 200 1500 440 stainless steel 2: integrated + cascade 3 integrated 3 Shower hand mounting Hose type Hose length (mm) Code wall Regular 1500 ARAC.ML9304E

440 180 70 200 160 160 160 160 1500 810 350 120 44 440 180 70 200 160 160 160 160 1500 810 350 120 44

Coating chrome Features: Stainless steel Corner installation possible Pure-calc system Mechanical switch Installation: wall, surface Ceramic cartridge spout

312

Fittings

Frost Quatro Termo

Concealed thermostatic shower and bathtub set for 2/3 water outlets

Shower arm

Shower head

Mixer shower and bathtub mixer, 2/3 water outlets

Tor shower hand

Fix-fit with shower hand holder Shover hose

313 Arm length (mm) Cross-section Material Colour 400 square brass chrome

82 12 400 387,5 51 2 5 G1/2 15 60 G1/2 72 12 51 400 387,5 5 10 55 G1/2 G1/2 8 330 G1/2 10 6 5 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 4 G1/2 G1/2 22 180 150 131,9 40 126 143,2 92 67 9,5 102 180 150 131,9 40 126 141,18 92 67 9,5 102 180 180 132 40 126 140,7 92 67 9,5 102 65 180 180 133 40 126 141 92 67 9,5 102 65 1/2” 1500

Size (mm) Shape Material Colour 200 × 200 square stainless steel chrome Cover plate (mm) Shape Material Colour 150 × 180 rectangular brass chrome Cover plate (mm) Shape Material Colour 70 × 190 rectangular stainless steel chrome Length (mm) Shower hand functions Material Colour 195 1 brass chrome Length (mm) Cross-section Material Colour 1500 round plastic chrome 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 300 2 51 G1/2 300 300 2 51 G1/2 200 400 2 51 G1/2 400 200 2 51 G1/2 200 200 300 300 400 70 120 190 15 42 30 50 59,4 3 G1/2 3 G1/2 58 70 120 190 28 28 180 25 40 20 Ø1/2″ Ø1/2″ 195 Code Material Coating AREX.4403CR brass chrome Features: Water flow reducer Concealed fix-box 2/3 outlets Pure-calc system Installation: wall, concealed Mechanical switch Sedal cartridge Thermostatic cardirdge Additional assembly element Coating chrome Brass

314

Fittings

Frost

Concealed shower and bathtub set for 2/3 water outlets

Shower arm

Shower head

Mixer shower and bathtub mixer, 2/3 water outlets

Fix-fit with shower hand holder

Loka shower hand

Shower hose

315

Code Material Coating AREX.4400CR

chrome

brass

Arm length (mm) Cross-section Material Colour 400 round brass chrome Size (mm) Shape Material Colour Ø 200 round stainless steel chrome Cover plate (mm) Shape Material Colour Ø 180 round brass chrome Cover plate (mm) Shape Material Colour 70 × 190 square stainless steel chrome Length (mm) Shower hand functions Material Colour 180 1 brass chrome Length (mm) Cross-section Material Colour 1500 round plastic chrome 82 12 400 387,5 51 2 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 0 330 G1/2 10 5 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 5 4 G1/2 G1/2 22 180 150 131,9 40 126 143,2 92 67 9,5 102 102 180 180 132 40 126 140,7 92 67 9,5 102 65 2 51 G1/2 200 2 51 G1/2 300 2 51 G1/2 400 300 2 51 G1/2 300 300 2 51 G1/2 200 400 2 51 G1/2 400 200 2 51 G1/2 200 200 300 300 400 1/2” 1500 180 25 40 20 Ø1/2″ Ø1/2″ 195 Water flow reducer Concealed fix-box 2/3 outlets Pure-calc system Installation: wall, concealed Features: Mechanical switch Kerox ceramic cartridge 70 120 190 15 42 30 50 59,4 3 G1/2 3 G1/2 58 70 120 190 28 28 Additional assembly element Coating chrome Brass

316

Fittings

Frost Quatro

Concealed thermostatic shower and bathtub set for 2/3 water outlets

Mixer shower and bathtub mixer, 2/3 water outlets

317 Arm length (mm) Cross-section Material Colour 400 square brass chrome

Tor shower hand Fix-fit with shower

hand holder

Water flow reducer Concealed fix-box 2/3 outlets Pure-calc system Installation: wall, concealed Features: Mechanical switch Kerox ceramic cartridge Additional assembly element Coating chrome Brass

hose Shower arm Shower head

Shover

Shower hand point set

318 Shower hand functions Type of fastening Hose type Hose length (mm) Colour Code 1 point Silver 1500 black matt AREX.SET.023BL 1 point Silver 1500 white matt AREX.SET.023WH 1 point Silver 1500 gold gloss AREX.SET.023GL Pure-calc system Features: Point mount

Loka

Fittings Available in 3 colours Brass Ls Hs Ls1 Hs1 25 180 80 Φ50 Ls Hs Ls1 Hs1 Ws

Ursa

Shower hand point set

Point Square

Shower hand point set

Features:

Vit

Shower hand point set

Shower hand functions Type of fastening Hose type Hose length (mm) Colour Code 1 point Silver 1500 chrome ARAC.SY.300

Features:

Material: Point mount Point mount Point mount

Material: ABS ABS ABS Coating chrome / white

Shower hand functions Type of fastening Hose type Hose length (mm) Colour Code 1 point Silver 1500 chrome/white ARAC.SY.180

319 Fittings

ABS Material: ABS

ABS Pure-calc system Pure-calc system Pure-calc system

Features:

Shower hand functions Type of fastening Hose type Hose length (mm) Colour Code 5 point Regular 1500 chrome ARAC.SY.500 Coating chrome Coating chrome

Ursa

Shower hand set with bar holder

Features:

Coating chrome Pure-calc system

Square 2.0

Shower hand set with bar holder

Features:

Shower hand functions Rail length (mm) Hose type Hose length (mm) Colour Code 5 700 Silver 1500 chrome ARAC.SY.505

Vit

Shower hand set with bar holder

Pure-calc system Stainless steel

Coating chrome

Shower hand functions Rail length (mm) Hose type Hose length (mm) Colour Code 1 700 Silver Square 1500 chrome ARAC.SY.308

Features:

Pure-calc system

Stainless steel Stainless steel

Coating chrome

Shower hand functions Rail length (mm) Hose type Hose length (mm) Colour Code 1 700 Silver 1500 chrome ARAC.SY.181

320

Fittings

Clif

Shower column with fix-fit

Pure-calc system

Features: Coating chrome

Stainless steel Brass

Powierzchnia odkładcza

Shower hand functions Bathtub shelf size (mm) Hose type Hose length (mm) Colour Code

1 100 × 300 Regular 1500 chrome AREX.SS.040CR

Lino

Shower hand set with bar holder

Features: Coating chrome Pure-calc system

Stainless steel Brass

Shower hand functions Rail length (mm) Hose type Hose length (mm) Colour Code

1 700 Regular 1500 chrome AREX.SS.060CR

321

Showerheads & shower arms

REGULAR RAIN

SOFT RAIN

323

CREATE YOUR OWN SHOWERHEAD

1.Select shower arm

Wall shower arms

2. Select shower head type & size

Shape Regular shower heads (cm)

Ceiling shower arms

All heads without information on the type of flow are characterized by a laminar flow.

Slim shower heads (cm)

324

Ø 200 Ø 300 Ø 200 Ø 300 Ø 400 200 × 200 300 × 300 200 × 200 300 × 300 400 × 400200 × 300

Soft Rain

3. Chosen shower head set: shower arm: AREX.3142BL + shower head: AREX.3062BL

Fittings

Wall rectangular shower head with cascade function

For proper operation, the head requires connection to 2 independent flush-mounted outputs.

325

Size (mm) Cover plate (mm) Shape Thickness (mm) Material Colour Functions Code 580 × 220 240 × 120 rectangular 9,2 stainless steel chrome 2 AREX.3080CR Features: Concealed fix-box Laminar stream Cascade stream

186 128 240 71,7 87 120 580 150 220 11,3

Rectangular shower head Slim

Square shower head Slim

Round shower head Slim

326 Fittings Size (mm) Shape Thickness (mm) Material Colour Code 200 × 300 rectangular 2 stainless steel chrome AREX.3062CR 200 × 300 rectangular 2 stainless steel black matt AREX.3062BL

Features: Water flow reducer Pure-calc system Stainless steel Laminar stream Available in 2 colours

Size (mm) Shape Thickness (mm) Material Colour Code 200 × 200 square 2 stainless steel chrome AREX.3022CR 200 × 200 square 2 stainless steel black matt AREX.3022BL 300 × 300 square 2 stainless steel chrome AREX.3032CR 300 × 300 square 2 stainless steel black matt AREX.3032BL 400 × 400 square 2 stainless steel chrome AREX.3042CR Water flow reducer Pure-calc system Stainless steel Features: Laminar stream Available in 2 colours

Size (mm) Shape Thickness (mm) Material Colour Code Φ 200 round 2 stainless steel chrome AREX.3020CR Φ 300 round 2 stainless steel chrome AREX.3030CR Φ 400 round 2 stainless steel chrome AREX.3040CR Water flow reducer Pure-calc system Stainless steel Features: Coating chrome Laminar stream

Rectangular shower head Soft Slim

Square shower head Regular

Round shower head Regular

327 Fittings

Size (mm) Shape Thickness (mm) Material Colour Code Φ 200 round 8 stainless steel chrome ARAC.3020CR Φ 300 round 8 stainless steel chrome ARAC.3030CR Pure-calc system Coating chrome Stainless steel Features: Laminar stream

Size (mm) Shape Thickness (mm) Material Colour Code 200 × 200 square 8 stainless steel chrome ARAC.3022CR 300 × 300 square 10 stainless steel chrome ARAC.3032CR Pure-calc system Coating chrome Stal szlachetna Features: Laminar stream Size (mm) Shape Thickness (mm) Material Colour Code 200 × 300 rectangular 2 stainless steel chrome AREX.3064CR

Features: Water flow reducer Pure-calc system Coating chrome Stainless steel Soft Rain

Round ceiling shower arm 200 mm

Square ceiling shower arm 200 mm

328 82 12 51 2 5 G1/2 72 12 51 400 387,5 2 5 G1/2 12 G1/2 25 200 12 G1/2 25 15 G1/2 200 60 400 22 G1/2 22 82 12 400 387,5 51 2 5 G1/2 72 12 51 400 387,5 2 5 G1/2 8 0 330 G1/2 55 12 G1/2 25 10 200 G1/2 55 15 G1/2 200 60 400 22

Arm length (mm) Cross-section Material Colour Code 200 round brass chrome AREX.3120CR Arm length (mm) Cross-section Material Colour Code 200 square brass chrome AREX.3122CR Fittings Coating chrome Features: Features: Ceiling installation Additional assembly element Brass Coating chrome Ceiling installation Additional assembly element Brass

Round wall shower arm 400 mm

Square wall shower arm 400 mm

329 Fittings 82 12 400 387,5 51 2 5 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 8 0 330 G1/2 10 6 5 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 5 4 G1/2 G1/2 22 82 12 400 387,5 51 2 5 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 8 0 330 G1/2 10 6 5 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 5 4 G1/2 G1/2 22 82 12 400 387,5 51 2 5 G1/2 15 60 G1/2 72 12 51 400 387,5 2 5 10 55 G1/2 G1/2 8 0 330 G1/2 10 6 5 G1/2 55 12 G1/2 25 10 200 G1/2 55 12 G1/2 25 15 G1/2 200 60 400 22 12 5 4 G1/2 G1/2 22

Arm length (mm) Cross-section Material Colour Code 400 round brass chrome AREX.3140CR Arm length (mm) Cross-section Material Colour Code 400 square brass chrome AREX.3142CR Arm length (mm) Cross-section Material Colour Code 400 square brass black matt AREX.3142BL Wall surface installation Wall surface installation Wall surface installation Coating chrome Features: Features: Features: Additional assembly element Additional assembly element Brass Brass Coating chrome Additional assembly element Brass Coating black matt

Fittings

Tor

Shower hand

Loka

Shower hand

Square

Shower hand

Ursa

Shower hand

Brass

Pure-calc system

Features: Coating chrome Coating black matt

Colour Shower hand functions Head diameter (mm) Code chrome 1 20 × 40 AREX.SH.017CR black matt 1 20 × 40 AREX.SH.017BL

Features: Coating chrome Pure-calc system

Brass

Colour Shower hand functions Head diameter (mm) Code chrome 1 25 AREX.SH.023CR

Features:

ABS

Pure-calc system Material: ABS

Coating chrome

Colour Shower hand functions Head diameter (mm) Code chrome 1 130 × 160 ARAC.SH.SQ1590

Features:

ABS

Pure-calc system Material: ABS

Coating chrome

Colour Shower hand functions Head diameter (mm) Code chrome 5 100 ARAC.SH.S3125

330

Round Black

Shower hose

Round Silver

Shower hose

Square Silver

Shower hose

Regular

Shower hose

Features:

Length (mm) Braid type Colour Cross-section Code

1200 plastic black matt round AREX.SHB.R120BL

1500 plastic black matt round AREX.SHB.R150BL

Length (mm) Braid type Colour Cross-section Code

1200 plastic gray round AREX.SHS.R120SL

1500 plastic gray round AREX.SHS.R150SL

Features:

Length (mm) Braid type Colour Cross-section Code

1500 plastic gray square AREX.SHS.S150SL

Features:

Coating chrome

Length (mm) Braid type Colour Cross-section Code

1500 metalic chrome round AREX.SHR.R150CR

331 Fittings

ABS

Gray Colour Square Cross-section Material: ABS

ABS

Round Cross-section Material: ABS

ABS

Black mat Round Cross-section Material: ABS

Round Cross-section

Material: ABS ABS

Features: Gray Colour

Shower outlet elbow with shower hand holder

Shower hand holder

Shower outlet elbow

332 Fittings

Body material Colour Code brass chrome AREX.1021CR brass black matt AREX.1021BL

Body material Colour Code brass chrome AREX.1020CR

Body material Colour Code brass chrome AREX.1022CR brass black matt AREX.1022BL 43 G1/2 44 10 12 13 6 G1/2 71 98 45 45 15 35 G1/2 15 15 43 12 1021 1022 1020 44 75 65 35 8 43 G1/2 44 10 12 13 6 G1/2 G1/2 G1/2 65 71 98 45 45 Φ50 Φ50 Φ30 63 15 35 G1/2 15 15 43 12 1021 1022 1030 1031 1020 44 75 65 35 8 G1/2 44 10 12 13 6 G1/2 G1/2 G1/2 65 80 10 71 98 45 45 Φ50 Φ50 Φ30 63 15 35 G1/2 15 43 1022 1030 1031

Shower outlet elbow with shower hand holder

Shower hand holder

Shower outlet elbow

333

Body material Colour Code brass chrome AREX.1032CR

Fittings

Body material Colour Code brass chrome AREX.1031CR

Body material Colour Code brass chrome AREX.1030CR G1/2 65 80 10 Φ50 Φ30 63 1031 10 12 13 6 G1/2 Φ50 Φ30 10 71 98 G1/2 80 65 43 G1/2 44 10 12 13 6 G1/2 G1/2 G1/2 65 80 10 71 98 45 45 Φ50 Φ50 Φ30 63 15 35 G1/2 15 15 43 12 1021 1022 1030 1031 1020 44 75 65 35 8

Bathroom radiators

334

335 Italic Meteor Horos Volaro 2.0 Volaro Electric heater NEW N

Bathroom radiators

Italic 95

Italic 113

336 6270 G1/2" 50 G1/2" 2 x G1/2" 82-90 470 6270 G1/2" 50 G1/2" 2 x G1/2" 470 6270 G1/2" 50 G1/2" 2 x G1/2" 470 82-90 945 500 1125 500 6270 G1/2" 50 G1/2" 2 x G1/2" 82-90 470 6270 G1/2" 50 G1/2" 2 x G1/2" 470 6270 G1/2" 50 G1/2" 2 x G1/2" 470 82-90 945 500 1125 1305 500 500 82-90

Bathroom radiator

Bathroom radiator Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 945 × 500 × 90 black soft RAL9005 ZS 553 444 240 GREX.IT95.BL 945 × 500 × 90 gray metalic ZS 553 444 240 GREX.IT95.GR 945 × 500 × 90 white soft RAL9016 ZS 553 444 240 GREX.IT95.WH Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 1125 × 500 × 90 black soft RAL9005 ZS 651 522 281 GREX.IT113.BL 1125 × 500 × 90 gray metalic ZS 651 522 281 GREX.IT113.GR 1125 × 500 × 90 white soft RAL9016 ZS 651 522 281 GREX.IT113.WH ZS ZS Bottom connection 5 or 47cm Bottom connection 5 or 47cm 3 colours available 3 colours available Features: Features: Possible heater installing Possible heater installing 3 sizes available 3 sizes available

Italic 131

Bathroom radiator

337 62 70 G1/2" 50 G1/2" 2 x G1/2" 470 1305 500 82-90

Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 1305 × 500 × 90 black soft RAL9005 ZS 746 598 322 GREX.IT131.BL 1305 × 500 × 90 gray metalic ZS 746 598 322 GREX.IT131.GR 1305 × 500 × 90 white soft RAL9016 ZS 746 598 322 GREX.IT131.WH

Bathroom radiators

ZS Bottom connection 5 or 47cm 3 colours available Features: Possible heater installing 3 sizes available

Bathroom radiators

Meteor 85

Bathroom radiator

338 1110 500 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 850 500

Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 850 × 500 × 120 black soft RAL9005 ZS 437 351 190 GREX.ME85.BL 850 × 500 × 120 gray metalic ZS 437 351 190 GREX.ME85.GR 850 × 500 × 120 white soft RAL9016 ZS 437 351 190 GREX.ME85.WH ZS Bottom connection 5 or 47cm Features: Possible heater installing 3 sizes available 3 colours available

Bathroom radiators

Meteor 111

Meteor 137

339 1110 500 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 112-120 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 500 1370 500 1110 500 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 500 1370 850 500

Bathroom radiator Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency (W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 1110 × 500 × 120 black soft RAL9005 ZS 563 452 244 GREX.ME111BL 1110 × 500 × 120 gray metalic ZS 563 452 244 GREX.ME111GR 1110 × 500 × 120 white soft RAL9016 ZS 563 452 244 GREX.ME111.WH ZS Bottom connection 5 or 47cm Features: Possible heater installing 3 sizes available 3 colours available Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 1370 × 500 × 120 black soft RAL9005 ZS 690 554 299 GREX.ME137.BL 1370 × 500 × 120 gray metalic ZS 690 554 299 GREX.ME137.GR 1370 × 500 × 120 white soft RAL9016 ZS 690 554 299 GREX.ME137.WH

Bathroom radiator ZS Bottom connection 5 or 47cm Features: Possible heater installing 3 sizes available 3 colours available

Bathroom radiators

Meteor

Electric

340 Size (mm) Connection Radiator colour Heater colour Heater power (W) Heating medium Code 850 × 500 × 120 electric black soft RAL9005 black matt 400 oil GREX.ME85.SET.BL 850 × 500 × 120 electric gray metalic black matt 400 oil GREX.ME85.SET.GR 850 × 500 × 120 electric white soft RAL9016 white 400 oil GREX.ME85.SET.WH

radiator with heater set 1110 500 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 112-120 470 57-65 G1/2" G1/2" 112-120 470 50 57-65 91-99 G1/2" G1/2" G1/2" G1/2" 500 1370 850 500 G1/2" 55 66 365 5 Features: Electric heater in set 3 colours available Built-in electric heater - 400W Radiator filled with heating oil

Bathroom radiators

Meteor

Bathtub radiator

341

Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 460 × 800 × 120 black soft RAL9005 ZS 353 284 154 GREX.MEW46.BL 460 × 800 × 120 gray metalic ZS 353 284 154 GREX.MEW46.GR 460 × 800 × 120 white soft RAL9016 ZS 353 284 154 GREX.MEW46.WH 800 72-80 G1/2” G1/2” 91-99 57-65 112-120 5 460 800 72-80 G1/2” G1/2” 50 770 91-99 57-65 112-120 5 460 800 72-80 G1/2” G1/2” G1/2” 50 770 91-99 57-65 G1/2” 112-120 5 460 ZS Bottom connection 5 or 77 cm Epoxy primer 3 colours available Features:

Meteor Side

342 720 / 1110 500 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1210 2xG1/2" 112-120 57-65 50 15

NEW Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 720 × 500 × 120 black soft RAL9005 GD 621 497 266 GREX.MES72.BL 720 × 500 × 120 white soft RAL9016 GD 621 497 266 GREX.MES72.WH 1110 × 500 × 120 black soft RAL9005 GD 906 724 386 GREX.MES111.BL 1110 × 500 × 120 white soft RAL9016 GD 906 724 386 GREX.MES111.WH Bottom connection 5 cm Features: Possible heater installing 2 sizes available 2 colours available GD

Bathroom radiator Bathroom radiators

Bathroom radiators

Horos

Electric radiator with heater set

343 Size (mm) Connection Radiator colour Heater colour Heater power (W) Heating medium Code 850 × 500 × 120 electric black matt RAL9005 black matt 400 oil GREX.HO96.SET.BL 850 × 500 × 120 electric gray metalic black matt 400 oil GREX.HO96.SET.GR 850 × 500 × 120 electric white soft RAL9016 white 400 oil GREX.HO96.SET.WH

G1/2" 55 66 365 5 Features: Electric heater in set 3 colours available Built-in electric heater - 400W Radiator filled with heating oil 72-80 470 50 41-49 57-65 G1/2" G1/2" G1/2" 960 500 72-80 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1210 500 72-80 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1460 500 NEW

Bathroom radiators

Horos 96

Bathroom radiator

Horos 121

Bathroom radiator

344

Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 960 × 500 × 80 black matt RAL9005 ZS 523 418 224 GREX.HO96.BL 960 × 500 × 80 gray metalic ZS 523 418 224 GREX.HO96.GR 960 × 500 × 80 white soft RAL9016 ZS 523 418 224 GREX.HO96.WH 960 × 350 × 80 black matt RAL9005 ZS 383 307 165 GREX.HO96.35.BL 960 × 350 × 80 white soft RAL9016 ZS 383 307 165 GREX.HO96.35.WH Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 1210 × 500 × 80 black matt RAL9005 ZS 645 516 276 GREX.HO121.BL 1210 × 500 × 80 gray metalic ZS 645 516 276 GREX.HO121.GR 1210 × 500 × 80 white soft RAL9016 ZS 645 516 276 GREX.HO121.WH 1210 × 350 × 80 black matt RAL9005 ZS 472 378 203 GREX.HO121.35.BL 1210 × 350 × 80 white soft RAL9016 ZS 472 378 203 GREX.HO121.35.WH 72-80 320 / 470 50 41-49 57-65 G1/2" G1/2" G1/2" 960 350 / 500 72-80 320 / 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1210 350 / 500 72-80 320 / 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1460 350 / 500 72-80 320 / 470 50 41-49 57-65 G1/2" G1/2" G1/2" 960 350 / 500 72-80 320 / 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1210 350 / 500 320 / 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1460 ZS ZS Bottom connection 5 or 47cm 5 or 32cm Features: Features: Possible heater installing Possible heater installing 3 sizes available 3 sizes available N N N N N N N N 3 colours available 3 colours available Bottom connection 5 or 47cm 5 or 32cm

Bathroom radiators

Horos 146

345

Size (mm) Colour Connection Efficiency W (OC) 90/70/20 Efficiency W (OC) 75/65/20 Efficiency W (OC) 55/45/20 Code 1460 × 500 × 80 black matt RAL9005 ZS 770 615 327 GREX.HO146.BL 1460 × 500 × 80 gray metalic ZS 770 615 327 GREX.HO146.GR 1460 × 500 × 80 white soft RAL9016 ZS 770 615 327 GREX.HO146.WH 1460 × 350 × 80 black matt RAL9005 ZS 578 462 247 GREX.HO146.35.BL 1460 × 350 × 80 white soft RAL9016 ZS 578 462 247 GREX.HO146.35.WH

72-80 350 / 500 72-80 320 / 470 50 41-49 57-65 G1/2" G1/2" G1/2" 1460 350 / 500 ZS Features: Possible heater installing 3 sizes available N N N N 3 colours available Bottom connection 5 or 47cm 5 or 32cm

Bathroom radiator

Volaro 2.0 Integrated thermostatic valve set

346 Bathroom radiators

Size with thermostatic head (mm) Surface Connection Adapters Material Code 194-198 × 65 × 40* left chrome GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50L.CR 194-198 × 65 × 40* right chrome GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50P.CR 194-198 × 65 × 40* left black matt GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50L.BL 194-198 × 65 × 40* right black matt GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50P.BL 194-198 × 65 × 40* left white matt GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50L.WH 194-198 × 65 × 40* right white matt GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50P.WH 194-198 × 65 × 40* left gold gloss GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50L.GL 194-198 × 65 × 40* right gold gloss GZ 1/2" PEX 16x2 / CU 15mm Brass GREX.VO2.50P.GL * depth without size of Alu-PEX / CU adapters. / ** Adapters for Alu-PEX and CU included. 50 35 70 35 Φ18 10 Φ17 Φ39 Φ33 Φ32,5 75-79 M30x1,5 137 50 34 26 52 24x19 24x19 1/2” 1/2” 28 Features: Brass Pipe spacing 50 mm right left Thermostatic head in set Available in 4 colours NEW

Bathroom radiators

Volaro Cover plate set

Electric heater

347

Size (mm) Coating Pipe spacing (mm) Material Code 120 × 70 × 10 chrome 50 Brass GREX.VO127.CR 120 × 70 × 10 black matt 50 Brass GREX.VO127.BL 120 × 70 × 10 white matt 50 Brass GREX.VO127.WH 120 × 70 × 10 gold gloss 50 Brass GREX.VO127.GL

120 50 35 70 35 Φ18 10 Φ17 MAX 75 Φ32,5 M30x1,5 137 50 34 26 52 24x19 24x19 1/2” 1/2” 28

Size (mm) Coating Cable Power (W) Code 66 × 55 × 39 chrome spiral with plug 600 GREX.600W.CR 66 × 55 × 39 black matt spiral with plug 600 GREX.600W.BL 66 × 55 × 39 white spiral with plug 600 GREX.600W.WH G1/2" 55 66 365 5 Features: Brass Universal pipe spacing 50 mm ZS Spiral cable with plug Available in 3 colours Features: 600 W N N Available in 4 colours

348 Seduro Premium Seduro Hendi Riko Gold Riko Kobo Rolo Kros 350 351 352 356 359 366 370 371 SERIES Bathroom accessories N N

349

Bathroom accessories

Seduro Premium

Shower seat

Additional information:

· Just 5 cm distance from the wall after folding

· Aluminium wall bracket - recommended load up to 160 kg

· Recommended installation height: 40-45 cm

· Perfect supplement for Excellent walk-in panels and shower trays

Soft-close mechanism installed

Available in 2 colours

Material Colour Code

Fischer installation kit

white/silver DOEX.SP365.306.WH

black matt DOEX.SP365.306.BL

To support installation safety we recommend dedicated concealed frame Trago, p. 235

350

Duroplast

306 365 52,4 4± 2 101,5 288 360 101,5 39,8 174± 2 101,5

Duroplast

Antibacterial

Features: Scratching resistant Max recommended load 160 kg NEW

surface

Bathroom

Additional information:

· Just 5 cm distance from the wall after folding

· Wall bracket cover made of ABS in chrome or black matt colour

· Recommended installation height: 40-45 cm

· Perfect supplement for Excellent walk-in panels and shower trays

Features:

Material Colour Code

Duroplast white/chrome DOAC.1501WH

Duroplast black matt DOAC.1501BL

351

accessories

50 ± 2 275 ± 2 51 350 ± 2 26,5 392 ± 2 105 ± 6 174 ± 3 50 ± 2 275 ± 2 51 350 ± 2 105 ± 6 174 ± 3

Seduro Shower seat

Scratching resistant Max recommended load 160 kg Available in 2 colours Fischer installation kit Tested in TÜV Rheinland Antibacterial surface kg

Bathroom accessories

Hendi

Straight grab bar

Without cover plates*

Max load up to 200 kg

Hendi Angle grab bar

Without cover plates*

load up to 200 kg

Hendi Straight shower grab bar with built-in shower outlet

352

Features: Material

Colour

Brass

chrome

Brass

Material

Colour

Brass

chrome

Brass

black

Material Length

Colour

Brass

chrome DOEX.1875CR Brass

black

DOEX.1875BL

Length (mm)

Code

450

DOEX.1845CR

450 black matt DOEX.1845BL

Length (mm)

Code

730

DOEX.1873CR

730

matt DOEX.1873BL

(mm)

Code

750

matt

Features:

Brass

Features: Max

Brass

*Cover plate only on shower outlet connection Φ25 Φ28 80 20 450 320 108 Φ25 Φ28 G1/2” Φ60 44 20 9 725 750 G1/2” 730,8 705,8 390 300,8 20 80 275,8 320402,5 320 442,5 Φ28 Φ25 135O Φ25 Φ28 80 20 450 320 730,8 705,8 390 320402,5 320 442,5 Φ28 135O Φ25 Φ28 80 20 450 320 108 Φ25 Φ28 G1/2” Φ60 44 20 9 725 750 G1/2” 730,8 300,8 20 275,8 320402,5 Φ28 135O Φ25 Φ28 80 20 450 320 108 Φ25 Φ28 G1/2” Φ60 44 20 9 725 750 G1/2” 730,8 705,8 390 300,8 20 80 275,8 320402,5 320 442,5 Φ28 Φ25 135O Available in 2 colours Available in 2 colours Available in 2 colours

Brass

Max

load up to 200 kg

Without cover plates*

353 Bathroom accessories

Shower holder with regulation Shower hose connection Silicone antislip pad Without cover plates

354

Riko Gold

355

NEW

Riko Gold Single hook

Riko Gold Double hook

Riko Gold

356

Toilet paper holder

Freestanding glass soap dish Material Colour Code brass gold gloss DOEX.1608GL Material Colour Code brass gold gloss / matt glass DOEX.1613GL Material Colour Code brass gold gloss DOEX.1601GL Material Colour Code brass gold gloss DOEX.1602GL 14 65 27 35 6 4 40 14 100 60 16 14 26,5 100 18 26,5 14 140 220 92 75 12 26,5 92 75 14 16 16 49 81 4 40 27 14 63 80 16 60 26,5 14 63 60 6 237 80 80 130 16 5 16 49 81 4 40 27 14 63 80 16 60 26,5 14 63 60 140 237 80 80 5 Gold gloss Gold gloss Gold gloss Gold gloss 20 28 27 60 95 60 27 65 14 60 65 26,5 119 95 70 14 181 16 29 13 15 61 14 600 16 61,5 61,5 14 5 20 28 27 60 27 65 14 60 65 26,5 119 95 70 14 181 16 29 13 15 61 14 600 16 61,5 61,5 14 600 16 110 14 5 100 100 2 0 3 3 65 75 3 80 60 33 20 28 27 65 3 65 100 100 2 0 3 3 65 75 3 80 60 33 20 28 27 Glass elements Bathroom accessories NEW NEW NEW NEW

357

Freestanding cup

Freestanding soap dispenser Riko Gold Freestanding / wall-mounted toilet brush Riko Gold Freestanding toilet paper holder with brush Material Colour Code brass gold gloss DOEX.1617GL Material Colour Code brass gold gloss DOEX.1650GL Material Colour Code brass gold gloss / matt glass DOEX.1614GL Material Colour Code brass gold gloss / matt glass DOEX.1616GL Gold gloss Gold gloss 114 121 210 29 16 1 3 66 14 120 120 13 34 27 6 100 100 2 0 3 3 65 75 3 33 75 75 63 77 3 65 75 20 28 27 65 75 3 114 121 210 29 16 1 3 66 14 520 120 6 33 75 75 63 77 3 65 75 20 28 520 120 13 34 100 100 2 0 3 3 65 75 3 80 60 33 20 28 27 65 75 3 65 75 Gold gloss Glass elements Gold gloss Glass elements 120 80 21 20 14 384 80 135 10 148 20 200 662,5 Bathroom accessories NEW NEW NEW NEW

Riko Gold

Riko

358

359

Riko Freestanding soap dispenser Riko Freestanding cup Material Colour Code brass / glass chrome / matt glass DOEX.1613CR brass / glass black matt / matt glass DOEX.1613BL Material Colour Code brass / glass chrome / matt glass DOEX.1614CR brass / glass black matt / matt glass DOEX.1614BL Material Colour Code brass / glass chrome / matt glass DOEX.1616CR brass / glass black matt / matt glass DOEX.1616BL 114 121 210 29 16 13 66 14 520 120 120 13 34 27 6 100 100 20 33 65 75 3 33 75 75 63 77 3 65 75 20 28 27 65 75 3 65 75 114 121 210 29 16 13 66 14 520 120 120 13 34 27 6 100 100 20 33 65 75 3 33 75 75 63 77 3 65 75 80 60 33 20 28 27 65 75 3 65 75 114 121 210 29 16 13 66 14 520 120 120 13 34 27 6 100 100 20 33 65 75 3 33 75 75 63 77 3 65 75 80 60 33 20 28 27 65 75 3 65 75 114 121 210 29 16 13 66 14 520 120 120 13 34 27 6 100 100 20 33 65 75 3 33 75 75 63 77 3 65 75 80 60 33 20 27 65 75 3 114 121 210 29 16 13 66 14 520 120 120 13 34 27 6 100 65 75 3 33 75 75 63 77 3 65 75 20 28 27 3 65 75 Features: Features: Features: Glass elements Glass elements Glass elements Available in 2 colours Available in 2 colours Available in 2 colours

Bathroom accessories Riko Freestanding glass soap dish

360 Bathroom accessories Riko Single hook Riko Double hook Riko Wall-hung cup Riko Wall-hung soap dish Material Colour Code brass chrome DOEX.1601CR brass black matt DOEX.1601BL Material Colour Code brass chrome DOEX.1602CR brass black matt DOEX.1602BL Material Colour Code brass / glass chrome / matt glass DOEX.1603CR Material Colour Code brass / glass chrome / matt glass DOEX.1604CR 14 65 27 35 6 16 49 81 4 14 100 60 60 16 14 26,5 100 18 63 80 16 60 26,5 14 63 60 140 220 92 75 12 26,5 92 75 14 6 237 80 80 130 16 5 14 65 27 35 6 16 49 81 4 40 27 14 100 60 60 16 14 26,5 100 18 63 80 16 60 26,5 14 63 60 140 220 92 75 12 26,5 92 75 14 6 237 80 80 130 16 5 14 65 27 35 6 16 49 81 4 40 27 14 100 60 60 16 14 26,5 100 18 63 80 16 60 26,5 14 63 60 140 220 92 75 12 26,5 92 75 14 6 237 80 80 130 16 5 14 65 27 35 6 49 81 4 40 14 100 60 60 16 14 26,5 100 18 63 60 26,5 14 63 60 140 220 92 75 12 26,5 92 75 14 6 237 80 80 130 16 5 14 65 27 35 6 16 49 81 4 40 27 14 100 60 60 16 14 26,5 100 18 63 80 16 60 26,5 14 63 60 140 220 92 75 12 26,5 92 75 14 6 237 80 80 130 16 5 Features: Features: Features: Features: Glass elements Glass elements Available in 2 colours Available in 2 colours

Riko

Wall-hung toilet brush

361 Features: Bathroom accessories Riko Freestanding soap dispenser Material Colour Code brass / glass chrome / matt glass DOEX.1606CR 20 28 27 60 95 60 27 65 14 60 65 26,5 119 95 70 14 181 16 29 13 15 61 14 600 16 61,5 61,5 14 110 600 16 110 14 5 5 45 12

Material Colour Code brass / glass chrome / matt glass DOEX.1605CR 40 14 60 60 16 14 26,5 26,5 14 63 60 140 220 92 75 12 26,5 92 75 14 Riko Toilet paper holder with a lid Material Colour Code brass chrome DOEX.1607CR 20 28 27 60 95 60 27 65 14 60 65 26,5 119 95 70 14 181 16 29 13 15 61 14 61,5 14 600 110 5 Riko Toilet paper holder Material Colour Code brass chrome DOEX.1608CR brass black matt DOEX.1608BL 20 28 27 60 95 60 27 65 14 60 65 26,5 119 95 70 14 181 16 29 13 15 61 14 600 16 61,5 61,5 14 Features: Glass elements Features: Glass elements Available in 2 colours White brush chrome Features:

362

Riko

Material Colour Code brass chrome DOEX.1609CR Material Colour Code brass chrome DOEX.1611CR Material Colour Code brass chrome DOEX.1612CR 20 28 27 60 27 65 14 60 65 26,5 119 95 70 14 181 16 29 13 15 61 14 600 16 61,5 61,5 14 110 600 16 110 14 5 5 45 12 20 28 27 60 95 60 27 65 14 60 65 26,5 119 95 70 14 181 16 29 13 15 61 14 600 16 61,5 61,5 14 110 600 16 110 14 5 5 45 12 114 121 210 29 16 13 66 14 520 120 13 34 6 100 100 65 75 3 33 75 75 3 65 75 80 60 33 20 28 27 65 75 3 65 75 Bathroom accessories Riko Wall-hung glass shelf 52

Material Colour Code brass / glass chrome / matt glass DOEX.1610CR 114 121 210 29 16 13 66 14 520 120 120 13 34 27 6 100 100 33 65 75 3 33 75 75 3 65 75 80 60 33 20 28 27 65 75 3 65 75 Features: Glass elements chrome chrome chrome Features: Features: Features:

Riko Towel rail

Single towel rail 60 cm Riko Double towel rail 60 cm

Freestanding toilet paper holder with brush

Freestanding / wall-mounted toilet brush

Freestanding holder for spare toilet paper

363

Bathroom accessories

Riko Riko Riko

Material Colour Code brass chrome DOEX.1650CR brass black matt DOEX.1650BL Material Colour Code brass chrome DOEX.1617CR brass black matt DOEX.1617BL Material Colour Code brass chrome DOEX.1651CR 80 135 10 148 20 200 662,5 120 80 21 20 14 384 200 135 170 19 82 554 200 135 170 19 82 554 Features: Features: Black brush Black brush Available in 2 colours Available in 2 colours chrome Features:

Kobo

364

365 Bathroom accessories 75 38 14 12 115 38 14 12 43 57 115 25 35 100 63 35 3 66 70 80 80 600 75 600 38 14 75 12 115 38 14 12 43 57 115 25 35 3 66 80 100 63 35 3 66 70 80 80 600 115 38 14 12 43 57 115 25 35 3 66 80 100 100 63 35 3 66 70 80 80 600 57 115 25 35 3 66 80 100 100 63 35 3 66 70 80 80 600 Kobo Freestanding glass soap dish Kobo Freestanding cup Material Colour Code brass/glass chrome / matt glass DOEX.1713CR Material Colour Code brass/glass chrome / matt glass DOEX.1714CR Kobo Freestanding soap dispenser Material Colour Code brass / glass chrome / matt glass DOEX.1716CR 13 130 5 94 60 27 66 80 65 72 35 3 chrome chrome chrome Features: Features: Features: Glass elements Glass elements Glass elements

Kobo Single hook

366

Kobo Double hook Kobo Wall-hung cup Kobo Wall-hung soap dish Material Colour Code brass chrome DOEX.1701CR Material Colour Code brass chrome DOEX.1702CR Material Colour Code brass chrome DOEX.1703CR Material Colour Code brass / glass chrome / matt glass DOEX.1704CR 45 38 75 14 23 38 35 14 45 14 130 100 38 8 35 79,5 64 84 38 13 245 122 8 4 35 38 35 38 50 45 38 75 23 38 35 14 45 14 130 100 38 8 35 38 13 245 122 8 4 35 38 35 38 50 45 38 75 14 23 38 35 14 45 14 130 100 38 8 35 79,5 64 84 38 13 245 122 8 4 35 38 35 38 50 45 38 75 14 23 38 35 14 45 14 130 100 38 8 35 79,5 64 84 38 13 245 122 8 4 35 38 35 38 50 Bathroom accessories chrome Features: chrome chrome chrome Features: Features: Features: Glass elements

Kobo Wall-hung toilet brush

367

Material Colour Code brass / glass chrome / matt glass DOEX.1705CR 130 100 38 38 13 245 122 8 4 35 38 35 38 Kobo Freestanding soap dispenser Material Colour Code brass / glass chrome / matt glass DOEX.1706CR 75 38 25 130 27 60 60 82 100 35 38 75 18 119 137 7 145 75 258 38 10 520 118 8 14 38

accessories Kobo Toilet paper holder Material Colour Code brass chrome DOEX.1708CR 75 38 25 14 12 130 27 60 60 82 100 35 38 75 18 119 137 7 145 75 258 38 10 8 14 38 Kobo Toilet paper holder with a lid Material Colour Code brass chrome DOEX.1707CR 75 38 25 130 27 60 82 100 35 38 75 18 119 137 7 145 75 258 38 10 14 chrome White brush Features: chrome chrome chrome Features: Features: Features: Glass elements Glass elements

Bathroom

Kobo Towel rail

368

Kobo Double towel rail 60 cm Kobo Wall-hung glass shelf 52 cm Material Colour Code brass chrome DOEX.1709CR Material Colour Code brass/glass chrome / matt glass DOEX.1710CR Material Colour Code brass chrome DOEX.1712CR 75 38 25 130 60 82 100 145 75 258 38 10 520 14 38 75 38 25 14 12 130 27 60 60 82 100 35 38 75 18 119 137 7 145 75 258 38 10 520 118 8 14 38 75 600 38 14 75 12 115 38 14 12 43 57 115 25 35 3 66 80 63 70 600 Bathroom accessories Kobo Single towel rail 60 cm Material Colour Code brass chrome DOEX.1711CR 75 600 38 14 75 12 115 38 14 12 43 57 115 25 35 3 66 80 100 100 63 35 3 66 70 80 600 chrome Features: chrome chrome chrome Features: Features: Glass elements Features:

Kobo

Freestanding toilet paper holder with brush

Kobo

Freestanding / wall-mounted toilet brush

Kobo

Freestanding holder for spare toilet paper

369

Bathroom accessories

Material Colour Code brass chrome DOEX.1750CR Material Colour Code brass chrome DOEX.1717CR Material Colour Code brass chrome DOEX.1751CR 650 154,4 15,8 195 195 72 85 195 21 20 15,8 376,3 123 85 170 19 82 553,5 175 175 170 19 82 553,5 175 175 chrome chrome chrome Features: Features: Features: Black brush Black brush

370 Bathroom accessories Diameter (mm) Material Function Colour Code Φ 200 metal make-up magnifying x3 white matt DOEX.1520WH Φ 200 metal make-up magnifying x3 black matt DOEX.1520BL Rolo Make-up magnifying mirror Features: Available in 2 colours Powiększeno x3 Φ200 Φ16 Φ12 Φ150 Φ150 Φ200 405 Φ6 3x

Kros

Freestanding black towel rail

Material Colour Code

brass / stainless steel chrome DOEX.1800SN

brass / stainless steel black matt DOEX.1800BL

371

Bathroom accessories 503 800 300 Features: Stainless steel Available in 2 colours Brass

Profiles

372

373

T Joint profile

Available colours: Installation + technical drawing:

374 24ct gold

square H=7mm LIPOSLEDSR.23/250 LIPMOLCRK.10 LIPMOLCRO.10 LIPOSLEDIN.23/250 H S S H H S1 H1 H=7mm LIPOSLEDSR.23/250 LIPMOLCRK.10 LIPOSLEDIN.23/250 H H S S H H S1 H1

Profiles

Wall installation Floor installation To separate areas Features: Dilatation Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces Material Colour Length (mm) Width (S) (mm) Height (H) (mm) Code brass chrome 2000 5 10 LIPMOLCRFK.0,5/200 brass chrome 2500 5 10 LIPMOLCRFK.0,5/250 brass 24ct gold 2000 5 10 LIPMOLAUFK.0,5/200 brass raw brass 2000 5 10 LIPMFK.5/200 brass raw brass 2500 5 10 LIPMFK.5/250 N N

U profile, polished stainless steel

Profiles

Profile U

Listello

375 Wall installation Features: Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces LIPLAPEP.08 LIPMOLCRFK.0,5 LIPMOLCRL.10 LIPMOLCRK.10 H=8mm S =8mm 1 S =8mm S S S H H S H H1max S H S S H H H H

ground steel super polished steel

To separate areas

Available colours: Installation + technical drawing:

profile,

Steel thickness 0,8 mm electroplated gold Material Colour Length (mm) Width (S) (mm) Height (H) (mm) Code stainless steel ground steel 2500 12 8 LIPSOWSZ.12/250 stainless steel polished steel 2500 12 8 LIPSOWP.12/250 stainless steel polished steel 2500 25 8 LIPSOWP.25/250 stainless steel polished steel 2500 50 8 LIPSOWP.50/250 stainless steel electroplated gold 2500 12 8 LIPSOWPZ.12/250 stainless steel electroplated gold 2500 25 8 LIPSOWPZ.25/250

U polished stainless steel

U profile

Listello

Code: Installation + technical drawing:

LIPOAS.08/12/250

LIPOEPS.08/12/250

LIPOASSZSR.08/12/250

LIPOASSZIN.08/12/250

LIPOEPCZ.08/12/250

LIPOEPZ.08/12/250

LIPOEPCZ.08/25/250

LIPOEPZ.08/25/250

LIPOEPS.07/15/250

Available colours:

LIPOAS.09/30/250

LIPOEPS.09/30/250

LIPOASSZSR.09/30/250

LIPOASSZIN.09/30/250

Due to the influence of long exposure to UV light, profiles with dark colours may become partially discolored.

376 S H H S S H S H H S S H S H H S S H S H H S S H

silver silver anodized brushed anodized brushed inox electroplated black matt

anodized

Wall installation Features: Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces To separate areas anodized silver silver silver anodized brushed inox

U shape profile aluminium silver electroplated

Profiles

S H H S S H S H H S S H electroplated gold

silver Material Colour Length (mm) Width (S) (mm) Height (H) (mm) Code aluminium anodized silver 2500 12 8 LIPOAS.08/12/250 aluminium anodized silver 2500 30 9 LIPOAS.09/30/250 aluminium electroplated silver 2500 12 8 LIPOEPS.08/12/250 aluminium electroplated silver 2500 15 7 LIPOEPS.07/15/250 aluminium electroplated silver 2500 30 9 LIPOEPS.09/30/250 aluminium anodized brushed silver 2500 12 8 LIPOASSZSR.08/12/250 aluminium anodized brushed silver 2500 30 9 LIPOASSZSR.09/30/250 aluminium anodized brushed inox 2500 12 8 LIPOASSZIN.08/12/250 aluminium anodized brushed inox 2500 30 9 LIPOASSZIN.09/30/250 aluminium electroplated black matt 2500 12 8 LIPOEPCZ.08/12/250 aluminium electroplated gold 2500 12 8 LIPOEPZ.08/12/250 aluminium electroplated black matt 2500 25 8 LIPOEPCZ.08/25/250 aluminium electroplated gold 2500 25 8 LIPOEPZ.08/25/250

Profiles

Q profile

Finishing / decorative

Code:

LIPMOLCRO.10/250

Installation + technical drawing:

LIPSOL.12/250

LIPSOLSZ.12/250

377

nikiel

colours: ground steel S S H S S H S S H S S H S S H S S H S S Wall installation Installation on edges To separate areas Features: Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces ground steel chrome polished steel

Installation on stairs Steel thickness 0,8 mm Steel thickness 0,8 mm *Steel thickness 0,8 mm Material Colour Length (mm) Width (S) (mm) Height (H) (mm) Code brass chrome 2500 11 10 LIPMOLCRO.10/250 stainless steel* polished steel 2500 11 10 LIPSOL.10/250 stainless steel* polished steel 2500 13 12 LIPSOL.12/250 stainless steel* ground steel 2500 11 10 LIPSOLSZ.10/250 stainless steel* ground steel 2500 13 12 LIPSOLSZ.12/250

LIPSOL.10/250 LIPSOLSZ.10/250

Available

Q brass profile chrome plated

Profiles

L-shape profile

straight

Code:

LIPMOLCRL.10/250

LIPMOLCRL.12/250

LIPML.08/...

LIPML.10/...

LIPML.12/...

Available colours:

Installation + technical drawing:

LIPSNLP.10/250

LIPSNLP.12/250

378

raw steel raw alumi anodized gold anodized brushed inox brushed silver electroplated black matt anodized

H H H S H S G S H H H H S H S H S S = ~ 11 mm S S H H H S H S G S H H H H S H S H S S = ~ 11 mm S S H H H S H S G S H H H H S H S H S S = ~ 11 mm S S

OTHER Features: Wall installation Installation on edges To separate areas Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces chrome

ted silver electroplated gold Material Colour Length (mm) Height (H) (mm) Code brass chrome 2500 10 LIPMOLCRL.10/250 brass chrome 2500 12 LIPMOLCRL.12/250 brass raw brass 2500 8 LIPML.08/250 brass raw brass 2500 10 LIPML.10/250 brass raw brass 2500 12 LIPML.12/250 stainless steel* raw steel 2500 10 LIPSNLP.10/250 stainless steel* raw steel 2500 12 LIPSNLP.12/250 aluminium raw aluminium 2000 8 LIPLSP.08/200 aluminium raw aluminium 2500 8 LIPLSP.08/250 aluminium raw aluminium 2000 10 LIPLSP.10/200 aluminium raw aluminium 2500 10 LIPLSP.10/250 aluminium raw aluminium 2000 12 LIPLSP.12/200 aluminium raw aluminium 2500 12 LIPLSP.12/250 aluminium raw aluminium 2000 15 LIPLSP.15/200 aluminium raw aluminium 2500 15 LIPLSP.15/250 aluminium anodized silver 2000 8 LIPLAP.08/200 aluminium anodized silver 2500 8 LIPLAP.08/250 aluminium anodized silver 2000 10 LIPLAP.10/200 aluminium anodized silver 2500 10 LIPLAP.10/250 aluminium anodized silver 2000 12 LIPLAP.12/200 aluminium anodized silver 2500 12 LIPLAP.12/250 aluminium anodized silver 2000 15 LIPLAP.15/200 aluminium anodized silver 2500 15 LIPLAP.15/250 aluminium anodized gold 2500 8 LIPLAPZ.08/250

Due to the influence of long exposure to UV light, profiles with dark colours may become partially discolored.

379

*Steel thickness 0,8 mm

Profiles

aluminium anodized gold 2500 10 LIPLAPZ.10/250 aluminium anodized graphite 2500 8 LIPLAPGR.08/250 aluminium anodized graphite 2500 10 LIPLAPGR.10/250 aluminium anodized graphite 2500 12 LIPLAPGR.12/250 aluminium electroplated silver 2500 8 LIPLAPEP.08/250 aluminium electroplated silver 2500 10 LIPLAPEP.10/250 aluminium electroplated silver 2500 12 LIPLAPEP.12/250 aluminium anodized brushed silver 2500 8 LIPLAPSZSR.08/250 aluminium anodized brushed silver 2500 10 LIPLAPSZSR.10/250 aluminium anodized brushed silver 2500 12 LIPLAPSZSR.12/250 aluminium anodized brushed inox 2500 8 LIPLAPSZIN.08/250 aluminium anodized brushed inox 2500 10 LIPLAPSZIN.10/250 aluminium anodized brushed inox 2500 12 LIPLAPSZIN.12/250 aluminium electroplated brushed silver 2500 8 LIPLAPSZSREP.08/250 aluminium electroplated brushed silver 2500 10 LIPLAPSZSREP.10/250 aluminium electroplated brushed silver 2500 12 LIPLAPSZSREP.12/250 aluminium electroplated black matt 2500 8 LIPLAPEPCZ.08/250 aluminium electroplated black matt 2500 10 LIPLAPEPCZ.10/250 aluminium electroplated black matt 2500 12 LIPLAPEPCZ.12/250 aluminium electroplated gold 2500 8 LIPLAPEPZ.08/250 aluminium electroplated gold 2500 10 LIPLAPEPZ.10/250 aluminium electroplated gold 2500 12 LIPLAPEPZ.12/250

L Profile, brass, chrome

Due

J profile

380 Profiles

rounded Available colours: Installation + technical drawing: Features: Wall installation Installation on edges To separate areas Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces H S H S S1 S S1 S1 H H H H H S H S H S raw aluminium anodized silver

corner LIPSOL.10 LIPSOLSZ.10/250 S=11mm H S S H S H S = ~ 19 H LIPSOL.10 LIPSOLSZ.10/250 S=11mm H S S H H S = ~ 19 H anodized silver electroplated black matt Available colours: Installation + technical drawing: Wall installation Installation on edges To separate areas Features: Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces electroplated

Profile QN

exposure to UV light, profiles with dark colours

become partially discolored. Material Colour Length (mm) Height (H) (mm) Code aluminium raw aluminium 2500 8 LIPLSO.08/250 aluminium raw aluminium 2500 10 LIPLSO.10/250 aluminium anodized silver 2500 8 LIPLAO.08/250 aluminium anodized silver 2000 10 LIPLAO.10/200 aluminium anodized silver 2500 10 LIPLAO.10/250 Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code aluminium anodized silver 2500 10 4 LIPNA.10/250 aluminium anodized silver 2500 12 4 LIPNA.12/250 aluminium chrome electroplated 2500 10 4 LIPNACR.10/250 aluminium chrome electroplated 2500 12 4 LIPNACR.12/250 aluminium electroplated black matt 2500 10 4 LIPNACZ.10/250 aluminium electroplated black matt 2500 12 4 LIPNACZ.12/250

to the influence

long

may

Profiles

C profile

LIPMOLCRK.10/250

LIPMK.10/250

Available colours:

LIPSNK.08/250

LIPSNK.10/250

LIPSNK.12/250

Code: Installation + technical drawing: Wall installation

Hides irregulations of tile edges

Levelling slight height differences between surfaces

381

OTHER

Features: To separate areas

Connection

H S H S1 S1 H H H H S H S H S H S H S1 S1 H H H H S H S H S H S H S S1 S S1 S1 H H H H S H S H S raw steel chrome raw aluminium anodized graphite anodized gold anodized elektropoler Gold electroplated silver

of surfaces

Możliwość gięcia anoda inox

thickness 0,8 mm Material Colour Length (mm) Height (H) (mm) Code brass chrome 2500 10 LIPMOLCRK.10/250 brass raw brass 2500 10 LIPMK.10/250 stainless steel* raw steel 2500 8 LIPSNK.08/250 stainless steel* raw steel 2500 10 LIPSNK.10/250 stainless steel* raw steel 2500 12 LIPSNK.12/250 aluminium raw aluminium 2500 8 LIPKS.08/250 aluminium raw aluminium 2500 10 LIPKS.10/250 aluminium raw aluminium 2500 12 LIPKS.12/250 aluminium anodized silver 2500 8 LIPKA.08/250 aluminium anodized silver 2500 10 LIPKA.10/250 aluminium anodized silver 2500 12 LIPKA.12/250 aluminium anodized gold 2500 8 LIPKAZ.08/250 aluminium anodized gold 2500 10 LIPKAZ.10/250 aluminium anodized gold 2500 12 LIPKAZ.12/250 aluminium anoda inox 2500 10 LIPKAIN.10/250 aluminium anoda inox 2500 12 LIPKAIN.12/250 aluminium anodized graphite 2500 10 LIPKAGR.10/250 aluminium anodized graphite 2500 12 LIPKAGR.12/250 aluminium electroplated silver 2500 8 LIPKAEP.08/250 aluminium electroplated silver 2500 10 LIPKAEP.10/250 aluminium electroplated silver 2500 12 LIPKAEP.12/250 aluminium electroplated gold 2500 8 LIPKAEPZ.08/250 aluminium electroplated gold 2500 10 LIPKAEPZ.10/250

*Steel

V profile

382

corner ground steel Available colours: Hides irregulations of tile edges Installation + technical drawing: Code: H S H S S1 S S1 S1 H H H H S H S G S H H H S H S H S H S S = ~ 11 mm S S H S H S S1 S S1 S1 H H H H S H S G S H H H S H S H S H S S = ~ 11 mm S S H S H S S1 S S1 S1 H H H H S H S G S H H H S H S H S H S S = ~ 11 mm S S Features: Wall installation Installation on edges To separate areas Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces LIPSK.30X30/250 LIPBAKA1,5x20x20/250 LIPBAKA2x30x30/250 LIPBAK.250 LIPBAKA.250 anodized silver raw aluminium anodized silver

Profiles

*Steel thickness 0,8 mm Material Colour Length (mm) Width (S, S/G) (mm) Code stainless steel* ground steel 2500 30 LIPSK.30X30/250 aluminium anodized silver 2500 20/1,5 LIPBAKA1,5x20x20/250 aluminium anodized silver 2500 30/2 LIPBAKA2x30x30/250 aluminium raw aluminium 2500 24 LIPBAK.250 aluminium anodized silver 2500 24 LIPBAKA.250

V profile ground stainless steel

W Profile

inner Available colours: Installation + technical drawing:

W profile aluminium silver anodized

L profile aluminium silver anodized

383

Features: To inner edges raw aluminium S S1 H S anodized silver Profiles

Material Colour Length (mm) Width (S) (mm) Code brass raw brass 2500 10 LIPMWE.250 aluminium raw aluminium 2500 10 LIPBAWE.10/250 aluminium anodized silver 2500 10 LIPBAWEA.10/250

T joint profile

Available colours: Installation + technical drawing: Code:

384 anodized gold

H S H S S1 S1 H H S H S H S OTHER S H S H S LIPSF.14/250 LIPSF.25/250 raw steel ted silver Floor installation To separate areas Features: Dilatation Not levelling height differences between surfaces Connection of surfaces Hides irregulations of tile edges Profiles raw aluminium

T profile aluminium silver anodized

thickness 0,4

black

Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code brass raw brass 2500 8 14 LIPMF.14/250 brass raw brass 2000 8 18 LIPMF.18/200 brass raw brass 2500 8 18 LIPMF.18/250 stainless steel* raw steel 2500 6 14 LIPSF.14/250 stainless steel* raw steel 2500 6 25 LIPSF.25/250 aluminium raw aluminium 2000 8 14 LIPBAF.14/200 aluminium raw aluminium 2500 8 14 LIPBAF.14/250 aluminium raw aluminium 2500 8 18 LIPBAF.18/250 aluminium anodized silver 2500 8 14 LIPBAFA.14/250 aluminium anodized silver 2500 8 18 LIPBAFA.18/250 aluminium black matt powder coated 2500 8 14 LIPBAFLCZ.14/250 aluminium anodized gold 2500 8 14 LIPBAFAZ.14/250 aluminium electroplated silver 2500 8 14 LIPBAFAEP.14/250 aluminium anodized brushed silver 2500 8 14 LIPBAFASZSR.14/250 aluminium anodized brushed inox 2500 8 14 LIPBAFASZIN.14/250

*Steel

matt powder coated

Profiles

PSA profile joint / transition

Available colours: Installation + technical drawing:

Features: Floor

385 H S H S anodized silver silver

instalation

irregulations of tile edges

slight height differences between surfaces

To separate areas Hides

Levelling

Connection of surfaces

PSA profile aluminium electroplated silver

Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code aluminium anodized silver 2500 12-15 19 LIPBAPSA.15/250 aluminium electroplated silver 2500 12-15 19 LIPBAPSAEP.15/250

QN profile aluminium black matt

PS profile

joint / transition Available

N ramp profile

Available

386

colours: Installation + technical drawing: anodized gold raw aluminium anodized silver silver

colours: Installation + technical drawing: raw aluminium Floor instalation To separate areas Hides irregulations of tile edges Levelling slight height differences between surfaces Connection of surfaces Features: Features: Floor instalation To separate areas Hides irregulations of tile edges Levelling slight height differences between surfaces Connection of surfaces

S H S S1 H H H1 S S S S S H H S S S1 S H H S H H H1 H H1 S H S S S H H S S S1 H H H1 S S H H1 S H Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code brass raw brass 2500 14 10 LIPMN.10/250 aluminium raw aluminium 2500 14 10 LIPBAN.250 Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code brass raw brass 2500 10 11 LIPMPS.10/250 aluminium raw aluminium 2500 10 11 LIPBAPS.250 aluminium anodized silver 2500 10 11 LIPBAPSA.250 aluminium anodized gold 2500 10 11 LIPBAPSAZ.250 aluminium electroplated silver 2500 10 11 LIPBAPSEP.250

Profiles

Z stairs profile

ZA stairs profile

Note!

Installation + technical drawing:

387

Profiles

Features: Floor installation Connection of surfaces Hides irregulations of tile edges Installation on stairs Available colours: raw alumiium S S S H H S S S1 S H S S H H S H H1 S H H1

Installation

+ dark gray + Black

Available colours:

+ technical drawing:

clients

aluminium

and PVC insert in prefered colour Floor instalation Hides irregulations of tile edges Features: Connection of surfaces Requires precise tile cutting Installation on stairs S H S S1 H H H1 S Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Width (S1) (mm) Code aluminium raw aluminium 3000 10 40 30 LIPBSB.300 PVC bright brown 3000 10 40 30 LIPBSG.300/03 PVC dark brown 3000 10 40 30 LIPBSG.300/04 PVC dark gray 3000 10 40 30 LIPBSG.300/06 PVC black 3000 10 40 30 LIPBSG.300/07 Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code brass raw brass 2500 10 20 LIPMSZE.250 aluminium raw aluminium 2000 10 20 LIPBASE.200 aluminium raw aluminium 2500 10 20 LIPBASE.250 aluminium raw aluminium 3000 10 20 LIPBASE.300 aluminium anodized gold 2500 10 20 LIPBASEAZ.250 anodized gold

order

profile

K profile

Due to the influence of long exposure to UV light, profiles with dark colours may become partially discolored.

LQ profile

388

Profiles

drain drip Available colours: Installation + technical drawing: raw aluminium anodized brown anodized black anodized silver anodized gold anodized graphite graphite metallic with texture Installation on balcony or window sill Features: Requires precise tile cutting S H H S S1 H H H1 S S H H1

For mirrors

for mirrors Installation + technical drawing: Features: Do łączenia materialów Requires precise tile cutting Not levelling height differences between surfaces To separate areas Wall installation Available colours: silver anodized brushed inox S H S S1 H H H1 S S H S S1 H H H1 S Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code aluminium raw aluminium 2500 8 15 LIPBAOK.250 aluminium anodized silver 2500 8 15 LIPBAOKA.250 aluminium anodized gold 2500 8 15 LIPBAOKAZ.250 aluminium anodized brown 2500 8 15 LIPBAOKAB.250 aluminium anodized graphite 2500 8 15 LIPBAOKAGR.250 aluminium graphite metallic with texture 2500 8 15 LIPBAOKTGR.250 aluminium electroplated black matt 2500 8 15 LIPBAOKEPCZ.250 Material Colour Length (mm) Height (H) (mm) (H2) (mm) Width (S) (mm) Code aluminium anodized silver 2650 9,5 4 12 LIPOAS.09,5/12/265 aluminium electroplated silver 2650 9,5 4 12 LIPOEPS.09,5/12/265 aluminium anodized brushed silver 2650 9,5 4 12 LIPOASSZSR.09,5/12/265 aluminium anodized brushed inox 2650 9,5 4 12 LIPOASSZIN.09,5/12/265

LL profile

dilatation

Installation + technical drawing: Code:

LIPDS.08/250

LIPDS.10/250

LIPDS.12,5/250

LIPDA.08/250

LIPDA.10/250

LIPDA.12/250

U profile aluminium silver electroplated

389 stainless steel + gray EPDM

Available colours:

Dilatation Features: Floor installation Connection of surfaces Requires precise tile cutting Not levelling height differences between surfaces To separate areas aluminium + gray EPDM

S H S S1 S H H S H H H1 S S H H1 S H S S1 S H H S H H H1 S S H H1 S H S S1 S H H S H H H1 S S H H1

Profiles

LL profile aluminium + gray insert

thickness 0,8 mm Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code stainless steel + EPDM* stainless steel + gray EPDM 2500 8 10 LIPDS.08/250 stainless steel + EPDM* stainless steel + gray EPDM 2500 10 10 LIPDS.10/250 stainless steel + EPDM* stainless steel + gray EPDM 2500 12 10 LIPDS.12,5/250 aluminium + EPDM aluminium + gray EPDM 2500 8 9 LIPDA.08/250 aluminium + EPDM aluminium + gray EPDM 2500 10 9 LIPDA.10/250 aluminium + EPDM aluminium + gray EPDM 2500 12 9 LIPDA.12/250

*Steel

Profiles

LED strip profile straight profile with PC diffuser

Code:

LIPOSLED.15/250

Available colours:

Installation + technical drawing:

LIPOSLEDSR.23/250 LIPOSLEDIN.23/250

Features: Wall installation Corner mounting To separate areas Requires precise tile cutting Not levelling height differences between surfaces Connection of surfaces

390

LIPOSLED.15/250 LIPSOWP.25 LIPSOWP.50 LIPOSLEDSR.23/250 LIPOEPS.07/15/250 LIPOSLEDIN.23/250 H=7mm 1 S =12mm H =9mm 1 LIPOEPS.08/12/250 LIPMOLCRFK.0,5 LIPOEPCZ.08 LIPOASSZIN.08 H=8mm S =8mm 1 S =8mm H=9mm S =20mm 1 H S S S S H H H S LIPOSLED.15/250 LIPSOWP.25 LIPSOWP.50 LIPOSLEDSR.23/250 LIPOEPS.07/15/250 LIPOSLEDIN.23/250 H=7mm 1 S =12mm H =9mm 1 LIPOEPS.08/12/250 LIPMOLCRFK.0,5 LIPOEPCZ.08 LIPOASSZIN.08 H=8mm S =8mm 1 S =8mm H=9mm S =20mm 1 H S S H H H S LIPOSLEDSR.23/250 LIPOEPS.07/15/250 LIPOSLEDIN.23/250 H=9mm S =20mm 1 LIPMOLCRK.10 H LIPOSLEDSR.23/250 LIPOSLEDIN.23/250 LIPSOL.10 LIPSOLSZ.10/250 H S LIPOSLEDSR.23/250 LIPOEPS.07/15/250 LIPOSLEDIN.23/250 H=9mm S =20mm 1 LIPMOLCRK.10 H LIPOSLEDSR.23/250 LIPOSLEDIN.23/250 LIPSOL.10 LIPSOLSZ.10/250 H H S S

anodized inox / semi-clear diffuser LED strip profile silver / semi-clear diffuser Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code aluminium / polycarbonate anodized silver / semi-clear diffuser 2500 7 15 LIPOSLED.15/250 aluminium / polycarbonate anodized silver / semi-clear diffuser 2500 7 23 LIPOSLEDSR.23/250 aluminium / polycarbonate anodized inox / semi-clear diffuser 2500 7 23 LIPOSLEDIN.23/250

EN profile

LL profile

391

Installation + technical drawing:

Profiles

corner Available colours: H H S H H H 00 Wall installation Features: To separate areas Connection of surfaces Installation on edges Installation + technical drawing: gray - graphite caramelbrown Available colours: gray - gray caramel - beige H S S H S S H H H H H H S Floor installation To separate areas Features: Dilatation Not levelling height differences between surfaces Connection of surfaces Hides irregulations of tile edges Note! Only for interior use

dilatation Material Colour Length (mm) Height (H) (mm) Width (S) (mm) Code PVC gray - gray 2500 9,5 9 LIED.9,5/05 PVC gray - gray 2500 11,5 9 LIED.11,5/05 PVC gray - graphite 2500 9,5 9 LIED.9,5/06 PVC gray - graphite 2500 11,5 9 LIED.11,5/06 PVC caramel - beige 2500 9,5 9 LIED.9,5/01 PVC caramel - beige 2500 11,5 9 LIED.11,5/01 PVC caramel - brown 2500 9,5 9 LIED.9,5/04 PVC caramel - brown 2500 11,5 9 LIED.11,5/04 Material Colour Length (mm) Width (S) (mm) Height (H) (mm) Code PVC marked above 2500 7 7 LIEN.07/* PVC marked above 2500 8,5 8,5 LIEN.08,5/* PVC marked above 2500 10 10 LIEN.10/* 001 002 01 141 02 05 112 143 06 03 04 14 02ST

LONGER WARRANTY AVAILABLE!

We have confidence in what we do. That’s why we have extended the warranty time on our products.

2 YEARS WARRANTY

2+3 YEARS WARRANTY

3 YEARS WARRANTY

5 YEARS WARRANTY

8 YEARS

10 YEARS WARRANTY WARRANTY

20 YEARS WARRANTY

392

EXCELLENT IN POLAND

Now, in over 60 brand showrooms and in almost 1000 contractors outlets all across Poland, you will find Excellent products. There are over 100 experts at your disposal to provide advice and assisstance in Polish market and abroad. Feel absolutely free to get in touch with our export department to get more information.

EXCELLENT ON LINE

www.excellent.com.pl

The base of excellent products in one place. Using the website www.excellent.com.pl, you have the access to all the information that is helpful when selecting the product you are looking for. Our website offers full assembly instructions of the products as well as files for designing in CAD Decor and base of 3D files.

393

32-003 Podłęże 662, Poland

Tel: +48 695 891 256

Tel: +48 601 443 903

e-mail: export@excellent.com.pl

excellent.com.pl

EXPORT
