Justice & Civic DLR Group

3

Orange County Youth Treatment Center

3

Los Padrinos Juvenile Hall

7

NYC Borough-Based Jails: Manhattan

9

Check out my Academic Work!

Click or Scan

1

EVAN WILSON

Evan Wilson (651) 341-0950 // erwilson360@gmail.com // Los Angeles, CA Education

University of Southern California, School of Architecture // May 2025 - Master of Architecture

University of Minnesota - Twin Cities, College of Design // May 2023 - Bachelor of Science in Architecture

Experience

DLR Group, Intern // May 2024 - April 2025 (1 yr.)

- Justice & Civic // (1 yr.)

- Worked in Pre-Design, Schematic Design, and Design Development phases to deliver correctional facilities through the creation and development of area analysis plans, circulation diagrams, interior and exterior renderings, floor plans, site plans, section drawings, detail drawings, reflected ceiling plans, and digital models.

- Used grasshopper to conduct area analysis, test circulation efficiency, and streamline the digital modeling process for several projects.

- Led an internal presentation to introduce parametric and generative design tools to the Los Angeles Justice & Civic team.

- Documented projects through 3D printing and model photography.

- Attended site visits for internal marketing photography.

- Attended client coordination meetings and assisted in the presentation of design options.

JLG Architects, Intern // June 2022 - July 2023 (1 yr, 2 mo.)

- Sport // (3 mo.)

- Assisted in project design and delivery of collegiate-level sports facilities. Responsibilities included the development of preliminary floor plans, site plans, sections, and massings in both the Pre-Design and Schematic Design phases. Deliverables were created using Revit, Rhino, and/or Bluebeam.

- Developed proprietary tools in Grasshopper for building facade and site context generation, as well as streamlined modeling for the purpose of creating conceptual renderings.

- Conducted C-value studies using Revit.

- Attended site visits and conducted field photography and measurements.

- Design Technology // (9 mo.)

- Created market-quality renderings for projects in each of the firm’s eight sectors. Renders were shown to clients and used in promotional materials.

- Developed proprietary tools for custom object asset creation using Grasshopper. These tools were used during the rendering process to allow for rapid iteration and future use.

- Delivered a firm-wide presentation to 100+ employees regarding the use of computational tools in the architectural design process.

- Led effort to develop onboarding activities in Enscape3D for 15+ new employees and returning junior staff.

- Created and organized an asset library for the firm’s existing collection of material textures and CAD models.

- Developed basemaps using Mapbox and ArcGIS to be used in proprietary client-facing software tools intended for monitoring project performance.

- Used Enscape3D and Kuula to create virtual tours of company projects

- Healthcare // (2 mo.)

- Worked in Pre-Design, Schematic Design, and Design Development phases to deliver small to large scale clinical projects through the creation and develop ment of area analysis plans, circulation diagrams, interior and exterior renderings, floor plans, site plans, section drawings, detail drawings, reflected ceiling plans, and digital models.

HLW, Extern // March 2025 (1 wk.)

- Selected to participate in a week-long externship to represent USC alongside three other students.

- Developed proposals for an adaptive re-use project in Santa Monica, CA including plans, sections, and renderings created using Rhino, Grasshopper, and Midjourney.

Lehrer Architects LA, Extern // March 2024 (1 wk.)

- Selected to participate in a week-long externship alongside two other USC students.

- Tasked with modeling and testing a 1:1 scale mockup of a seating installation.

- Final mockup was reviewed and approved by the project client.

USC NOMAS, Member // August 2023 - May 2025 (2 yr.)

- Participated in the Barbara G. Laurie Student Design Competition. Responsible for the facade design, rendering, and titling of the project.

- Placed 3rd of 39 participating universities - Featured by NOMA National

Skills

Revit, Rhino3D, Grasshopper, Python for Grasshopper, C# for Grasshopper, Digital Fabrication, 3D Printing, Midjourney, Firefly, Runway, Woodworking, Lasercutting, Hand Modeling, Hand Drafting, Adobe Suite, V-Ray, Enscape, Microsoft Office, Bluebeam, AutoCAD, SketchUp, Mapbox, ArcGIS, Kuula.

Awards

UMN, College of Design

- Dean’s List: Fall 2019, Spring 2020, Fall 2020, Fall 2021, Spring 2022, Fall 2022, Fall 2023 - Project entered by professor into school archive for outstanding work, 2023 (Rain Refuge)

USC, School of Architecture

- Barbara G Laurie Student Design Competition, 2023: 3rd Place, 2023 (Growing Forward) - Project featured on noma.net and NOMA National Instagram, 2024 (Growing Forward) - Project featured on USC School of Architecture website, 2024 (From Waste to Wilderness) - USC Merit Scholarship recipient

2

ORANGE COUNTY YTC CONTENTS / RESUME

Justice & Civic

01

Rendering - Diagramming - Concept/Schematic Design During my internship at DLR Group, I worked in their Justice & Civic sector on medium to large-scale correctional facilities. Many of these projects were in Southern California, while others were out-of-state or international. The majority of the work that I produced during this internhip was created during the Concept and Schematic design phases of each project, with occasional work during the Design Development phase. Each of the images presented here were produced by me and are from the primary projects that I contributed to during my internship, with specific contributions listed in the image descriptions.

Working in this team was a special experience that allowed me to work along-side a talented team of designers who share the vision of reshaping what correctional facilities ought to be, and improving the standard of care with each new project. Working in this team was a well-rounded, thorough experience that helped me to be detail-oriented with my work, without losing sight of the big-picture.

Company: DLR Group Sector: Justice & Civic Created: May 2024 - April 2025

3

EVAN WILSON NEXT PROJECT

ORANGE COUNTY YOUTH TREATMENT CENTER Exterior rendering of a double housing unit. I modeled and rendered this image referencing concept imagery and client feedback.

4

ORANGE COUNTY YTC CONTENTS / RESUME 5

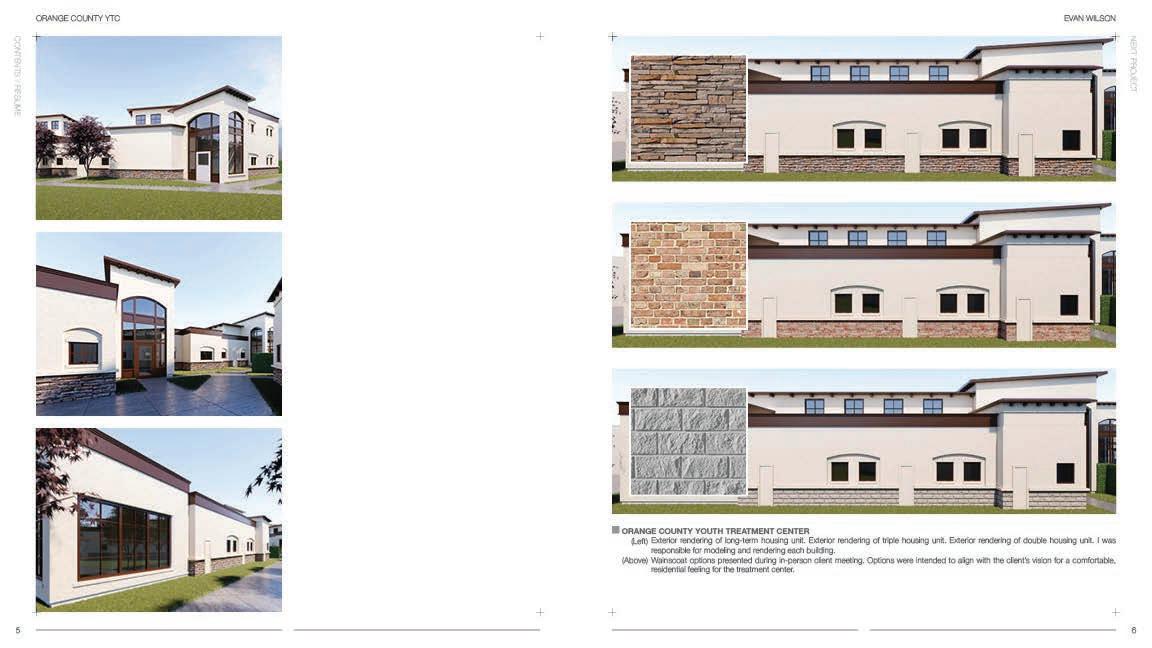

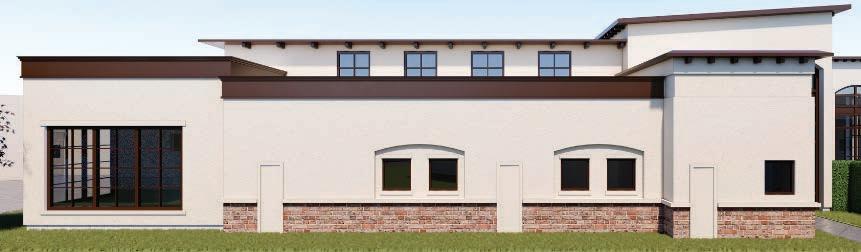

EVAN WILSON NEXT PROJECT ORANGE COUNTY YOUTH TREATMENT CENTER (Left) Exterior rendering of long-term housing unit. Exterior rendering of triple housing unit. Exterior rendering of double housing unit. I was responsible for modeling and rendering each building.

(Above) Wainscoat options presented during in-person client meeting. Options were intended to align with the client’s vision for a comfortable, residential feeling for the treatment center.

6

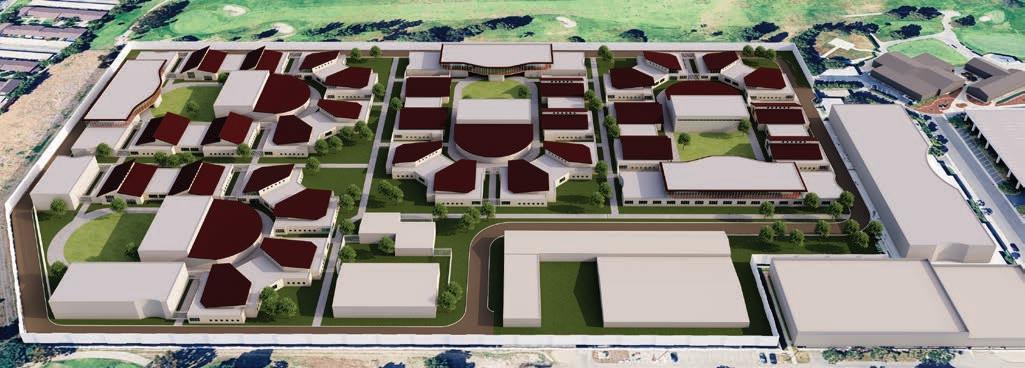

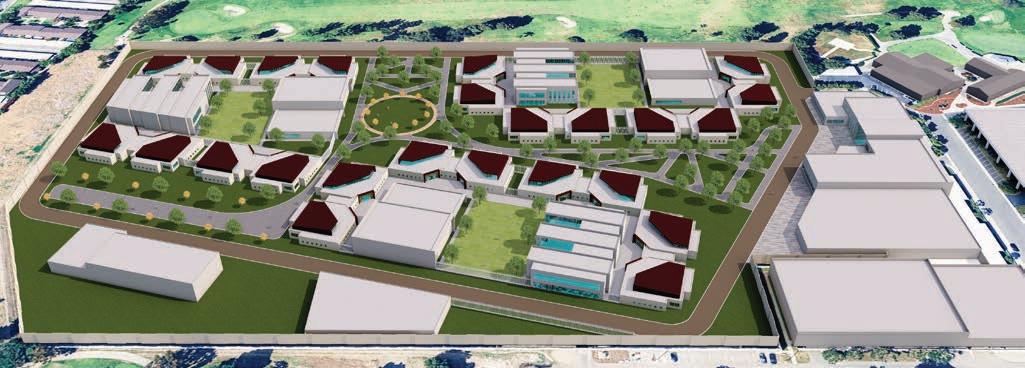

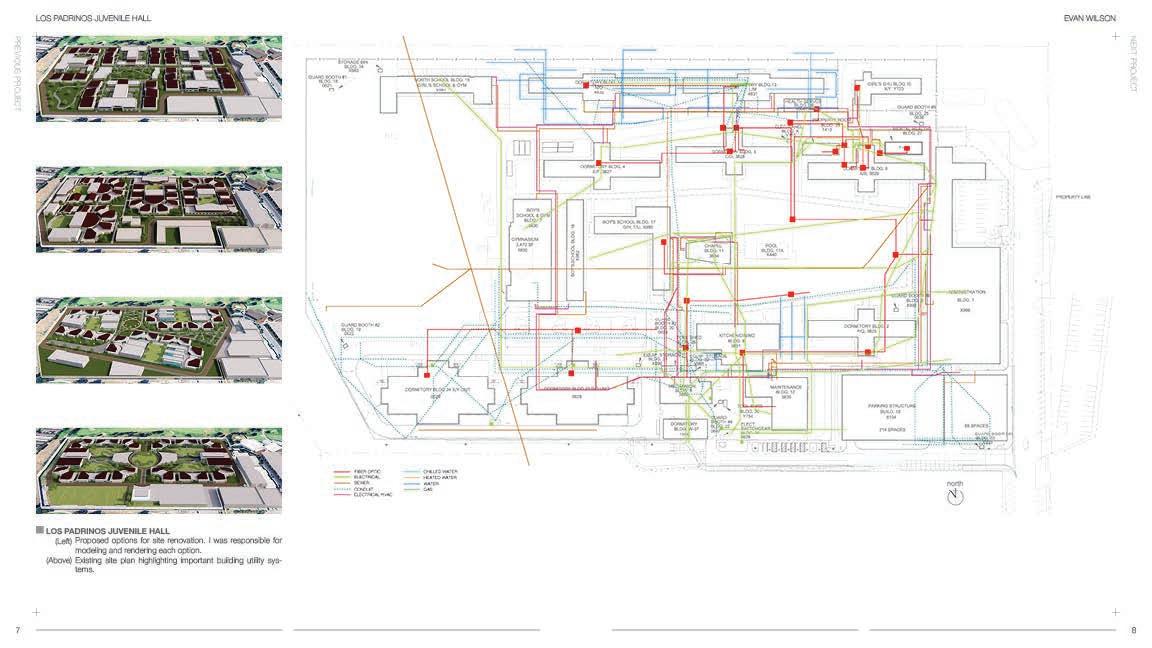

LOS PADRINOS JUVENILE HALL PREVIOUS PROJECT LOS PADRINOS JUVENILE HALL (Left) Proposed options for site renovation. I was responsible for modeling and rendering each option.

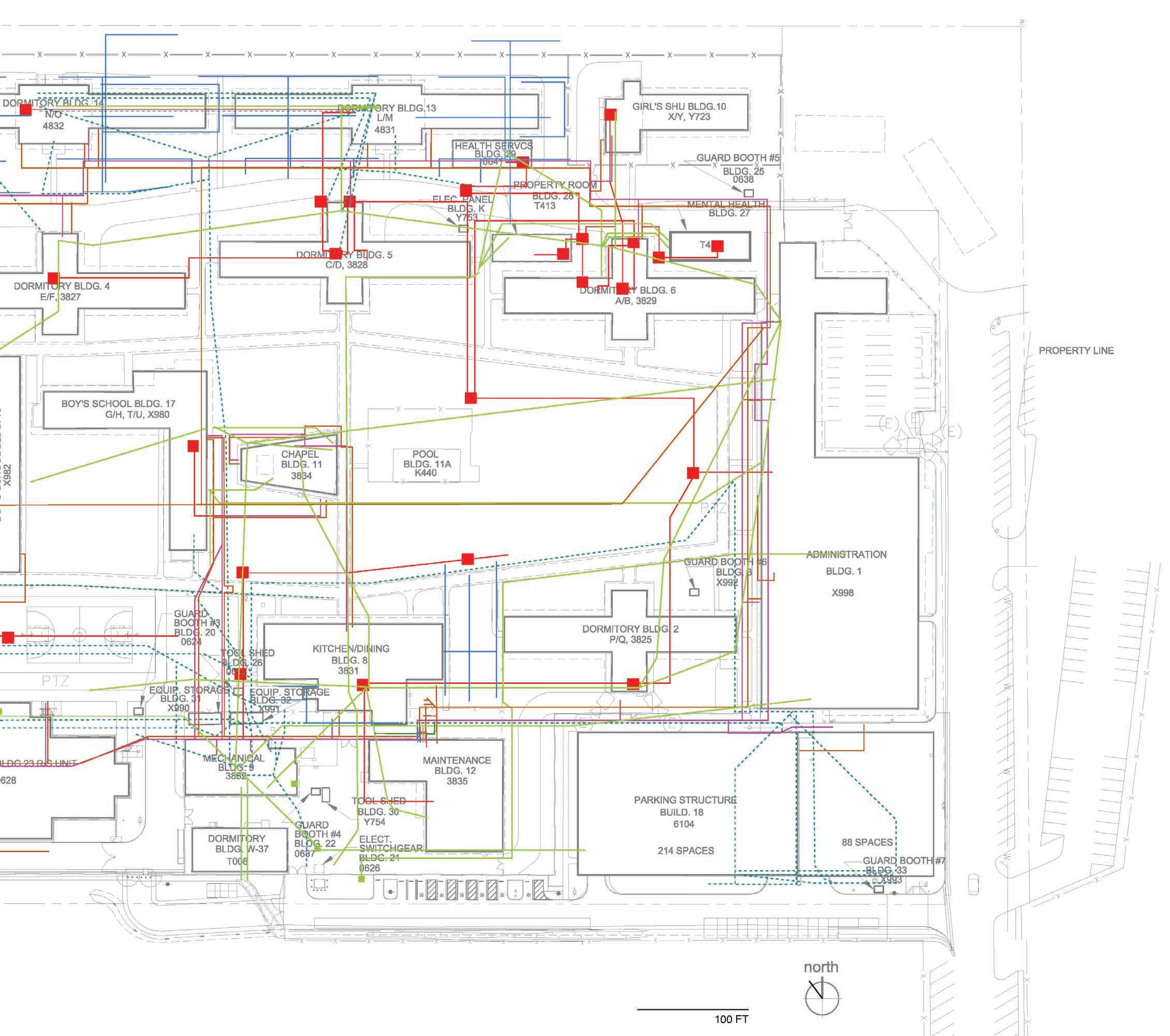

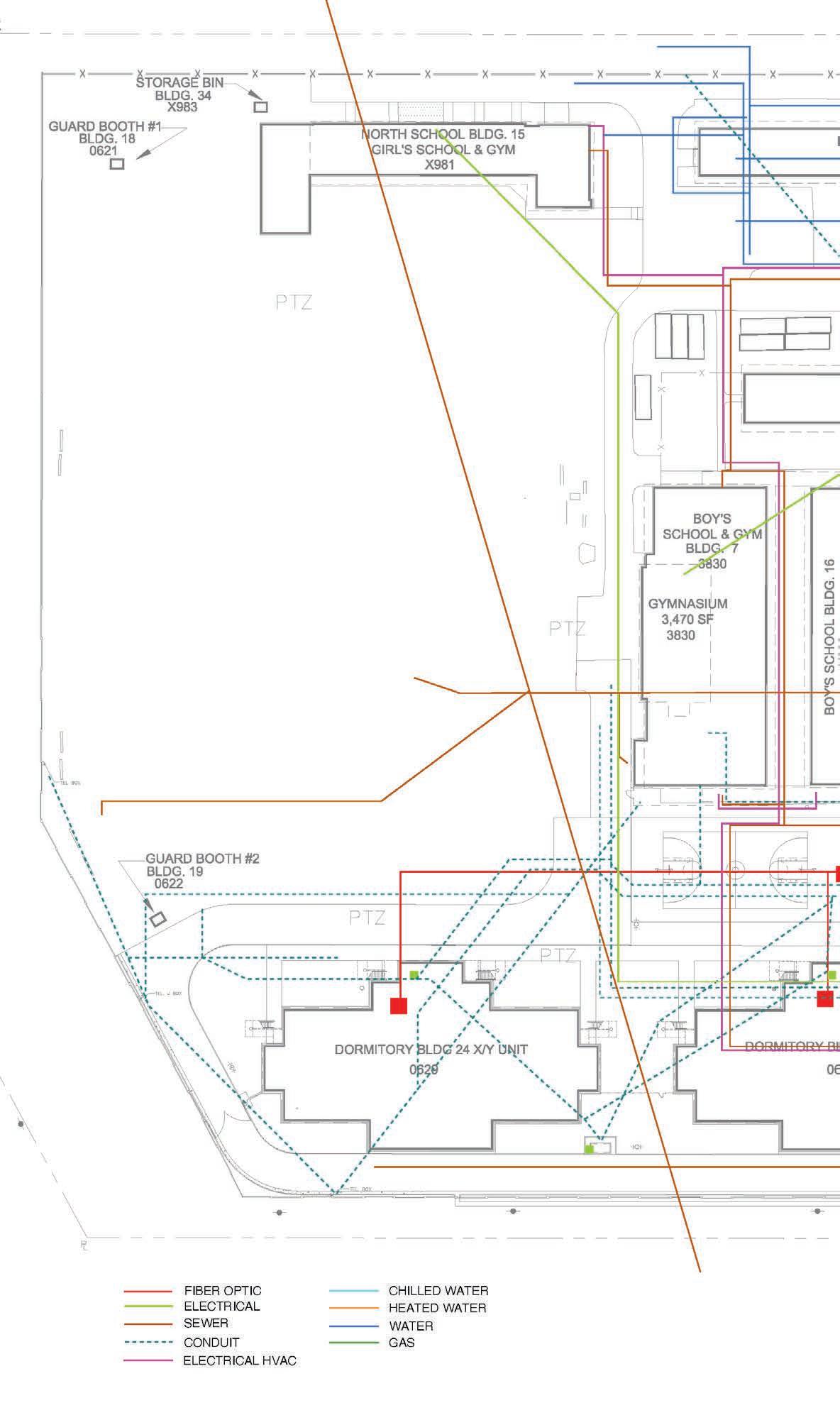

(Above) Existing site plan highlighting important building utility systems.

7

EVAN WILSON NEXT PROJECT 8

NYC BBJ MANHATTAN PREVIOUS PROJECT 9

STAFF DINING

EVAN WILSON INDEX

BBJ-MFAC / Technical Proposal / Part 1: Design Solutions / 1.2 Design Quality in the Public Realm Transformative Reform Group / 5 Hanover Square, 17th Floor New York, NY 10004 DATE SUBMITTED: SEPTEMBER 12, 2024

333

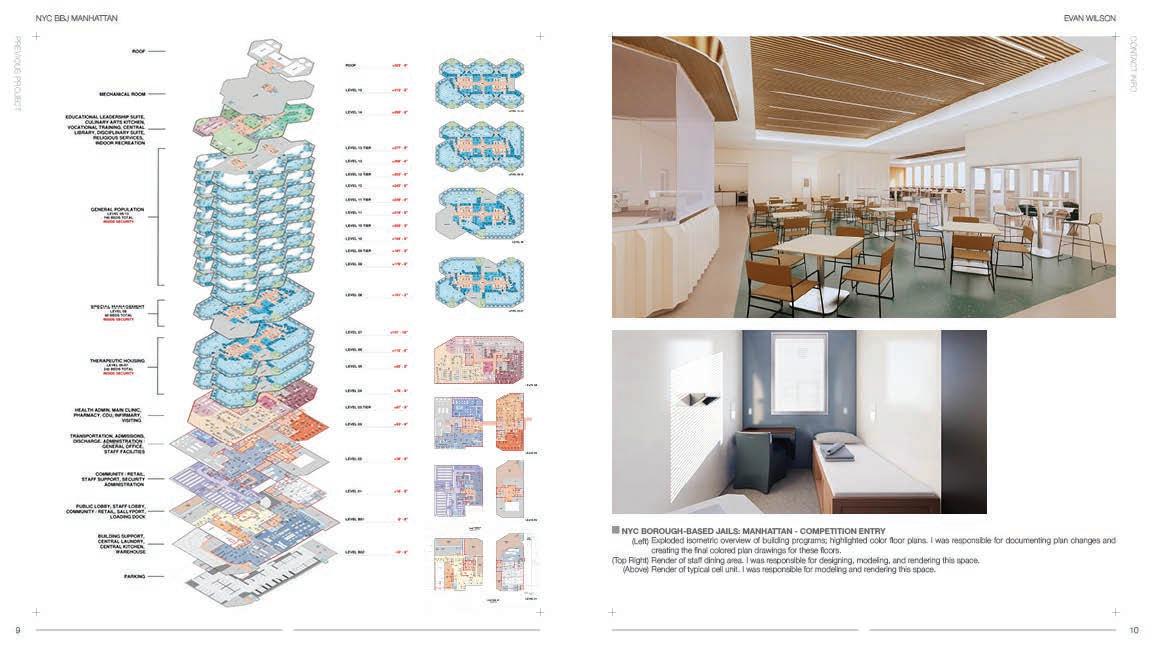

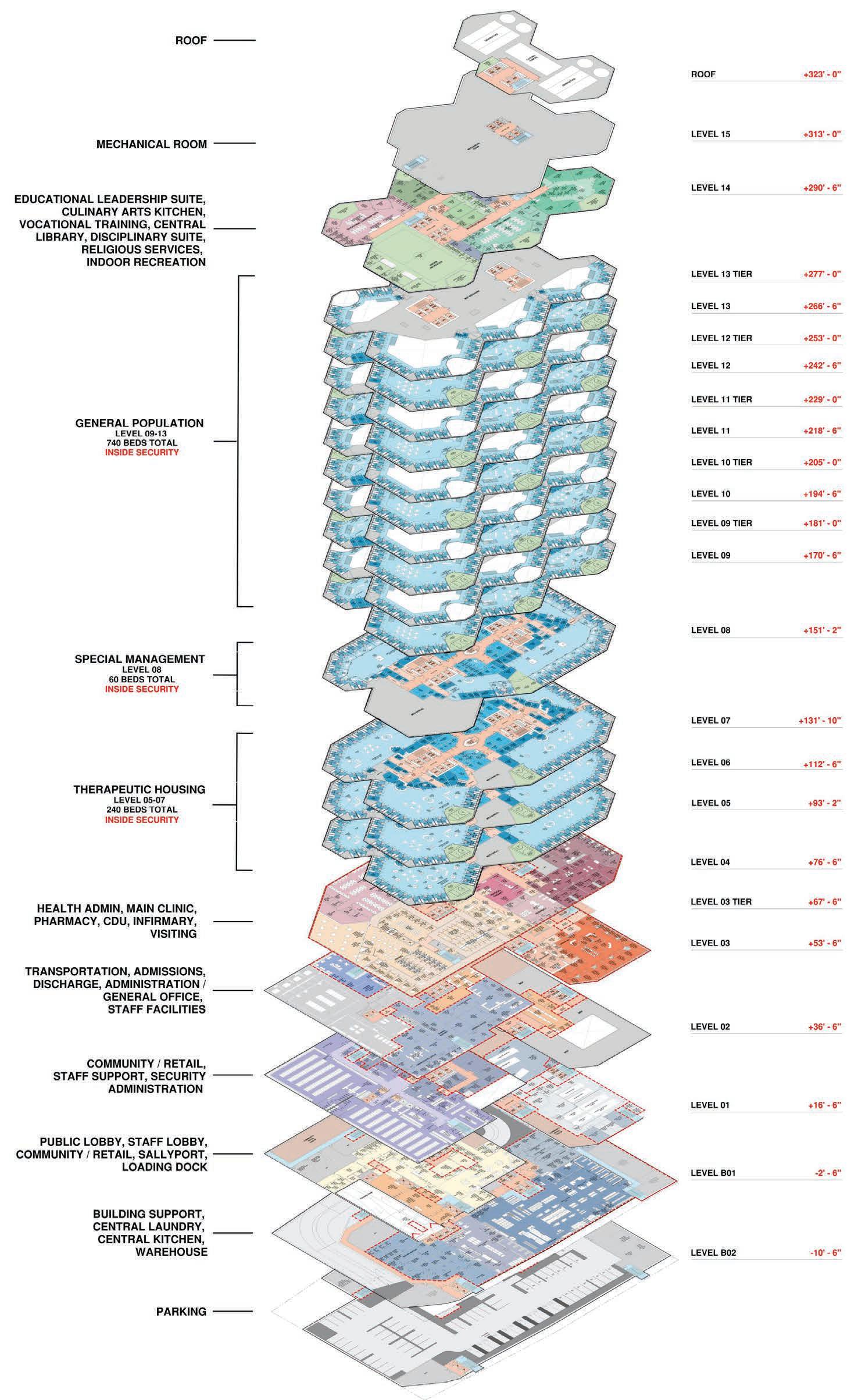

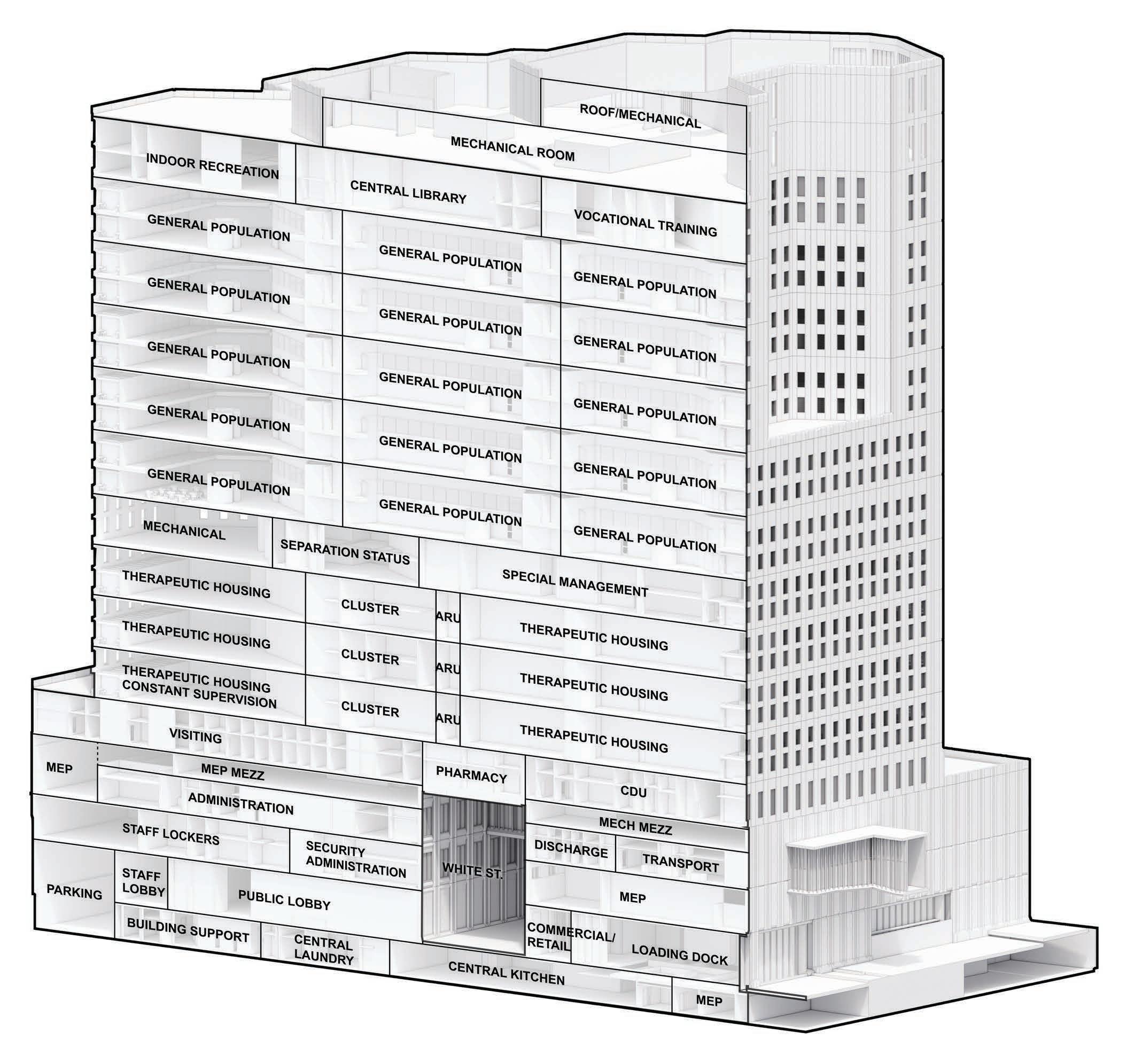

NYC BOROUGH-BASED JAILS: MANHATTAN - COMPETITION ENTRY (Left) Exploded isometric overview of building programs; highlighted color floor plans. I was responsible for documenting plan changes and creating the final colored plan drawings for these floors.

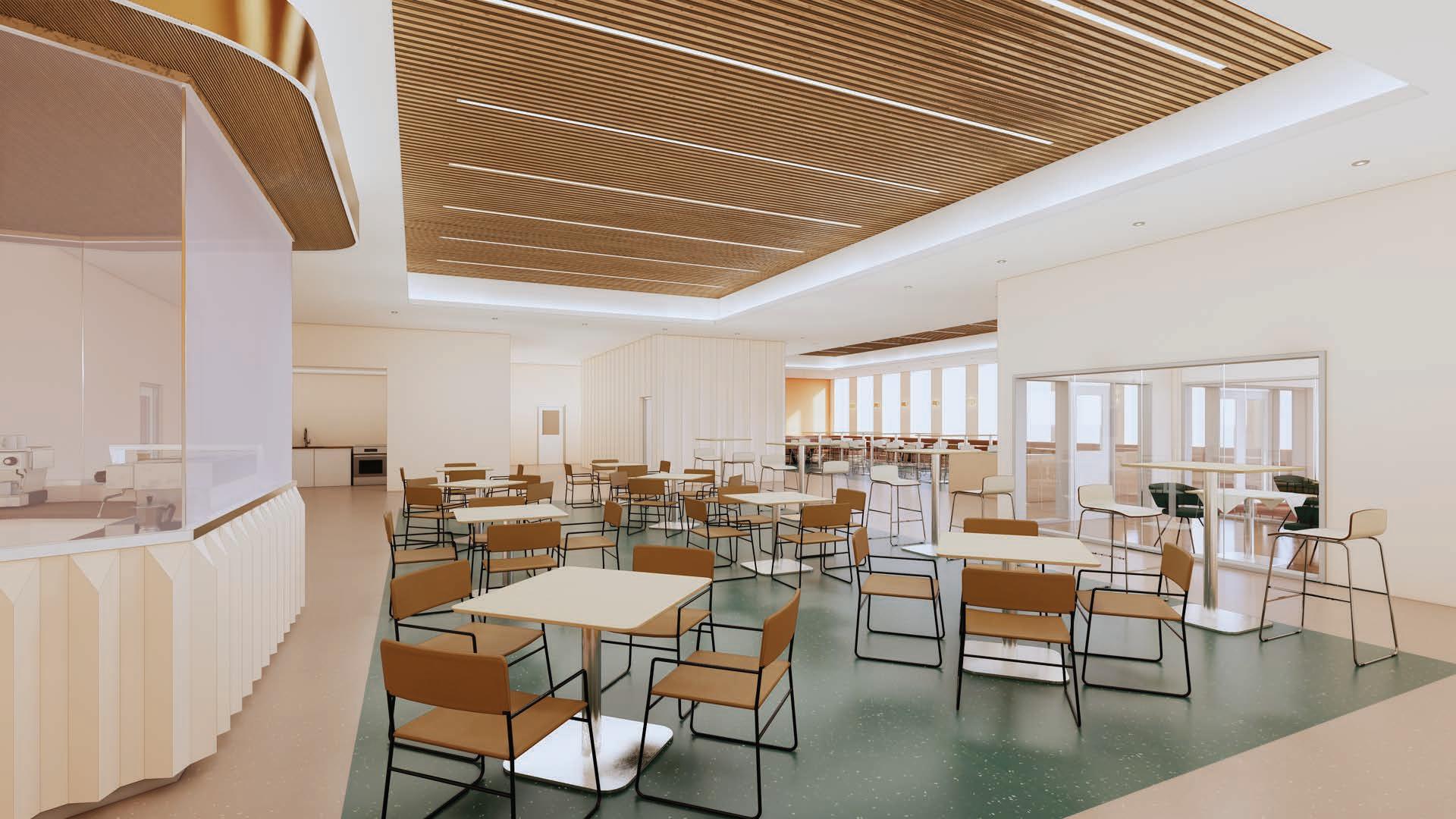

(Top Right) Render of staff dining area. I was responsible for designing, modeling, and rendering this space.

(Above) Render of typical cell unit. I was responsible for modeling and rendering this space.

10

TYP. TYP. 2 1 BBJ MANHATTAN NYC

2

Structure - Concrete Slabs with 2" step down created at cell locations. Then scarify and add a 2" topping slab of high slump slurry or ADREX. Finish surface at housing: TYP. stained concrete and 16-17 wax.

A511 Alternative for other locations, with an opaque gray anti-slip PU or epoxy PNT.

3

Cells - Prefab Steel Units with Stained Concrete floors w/ Wax Finish.

PIC KIOSKS

BE DR P.I.C OO .

75 M SF

BE DR P.I.C OO .

75 M SF

P.I.C. BEDROOM 75 SF

TYP.

storefront framed with laminated insulated glazing & steel plate above ceiling to structure.

DAYROOM 9

BE DR P.I.C OO .

75 M SF

TYP.

PIC KIOSKS

I/R

EXIT

19 A511

OFFICER STATION

TYP.

DIVISION OF PUBLIC BUILDINGS CAPITAL PROJECT NUMBER:

TYP.

PROJECT: STAFF ONLY

STAFF RR

P.I.C. BEDROOM 75 SF

NYC BOROUGH BASED JAIL PROGRAM CL MANHATTAN FACILITY

124-125 WHITE ST, NEW YORK, NY 10013 SECURE SUBMISSION

TYP.

RESPITE ROOM

22 A513 P.I.C. BEDROOM 75 SF

FS

DAYROOM

98 .0 5

BBJ-MN

P.I.C. BEDROOM 75 SF

VESTIBULE

REFUSE ROOM

SCALE

SECONARY SECURITY PERIMETER IMPACT RESISTANT TERTIARY SECURITY PERIMETER PRIMARY SECURITY PERIMETER GLASS AND MESH PERIMETER IMPERVIOUS/WATER RESISTANT STAFF

GENERAL POPULATION 40 HOUSING INTERVIEW/ COUNSELING AND FINISHES TYP. - CONSTRUCTION ROOM (7 UNITS)

STAFF ONLY

S/ FSE

INTERVIEW/ COUNSELING ROOM

P.I.C. BEDROOM 75 SF

TYP. 4

P.I.C. BEDROOM 75 SF

PROPOSAL SET SET TECHNICAL DRAWING

TYP.

23 A513

MULTIPURPOSE DATE: PROGRAM ROOM PROJECT NO: MEP/IT/SEC STAFF RR

Issue Date 09/12/2024 Project Number

DRAWN BY:

Author

CHECKED BY:

Checker

DRAWING NUMBER:

. .C P.I M OO F DR 75 S

P.I.C. BEDROOM 75 SF

FOOD CART ROOM

MEDICAL EQUIPMENT STORAGE

DRAWING TITLE

AFF

11 A511

P.I.C. BEDROOM 75 SF

19 A511

MEDICAL DIST ROOM

REFUSE ROOM

S/ SE

DATE

TYP.

TYP.

11.004A

FS

5

P.I.C. BEDROOM 75 SF

MEDICAL PROCEDURE ROOM

AL G

DESCRIPTION

PANTRY/BEVERAGE COUNTER

CL

23 A513

Dayroom - Stained Concrete w/ Wax Finish.

MEP/IT/SEC Cell - Stained Concrete w/ Wax Finish.

STAFFSecure Vestibule - Stained Concrete w/ Wax Finish.

RR Medication Distribution Booth - Resilient Flooring.

SECURERoom - Stained Concrete w/ Wax Finish.

Food Cart VESTIBULE MULTIPURPOSE Staff Restroom - Epoxy Floor Anti-slip Finish.

Shower Room - Epoxy Floor Anti-slip Finish.

Clinicians Workstation Area - Resilient Flooring.

Procedure Room - Resilient Flooring.

Respite Room - Resilient Flooring.

Multi-Purpose / Program Room - Stained Concrete w/ Wax Finish.

Interview / Counseling Room - Resilient Flooring.

Supply/ Winter Coat Closet - Stained Concrete w/ Wax Finish.

Janitor Closet - Concrete w/ Wax Finish.

Outdoor Recreation - Concrete Sealed.

BE DR P.I.C OO .

75 M SF

P.I.C. BEDROOM 75 SF

STAFF ONLY

16-17 A511

REVISIONS:

P.I.C. BEDROOM 75 SF

. .C OM P.I RO D BE S F 75

BE

STAFF ONLY

. .C P.I M OO F DR 75 S BE

TYP.

P.I.C. BEDROOM 75 SF

REFUSE ROOM

MULTIPURPOSE PROGRAM ROOM

P.I BE .C. D 75 RO SF OM

. .C P.I M OO F DR 75 S BE

11.004

INTERVIEW/ COUNSELING ROOM

TYP.

TYP.

P.I.C. BEDROOM 75 SF

7

RESPITE

ROOM SECURE resistant finishes, 1" thick full height solid plastic VESTIBULE partition between showers with a PREA-approved INTERVIEW/ translucent polycarbonate partial privacy swing out door COUNSELING ROOM with integrated hinge on an anti-ligature stainless steel frame.

REFUSE ROOM

TYPICAL FLOOR FINISHES

. .C P.I M OO F DR 75 S

STAFF

. .C OM P.I RO D BE SF 75

22 TYP. Showers - CMU perimeter walls with impervious A513 water

TYP. 4

S/ FSE

. .C OM P.I RO D BE SF 75

P.I.C. BEDROOM 75 SF

6' Concrete base precast exterior 2x2 security wire mesh and perforatedCLmetal w/ tube steel frame above.

STAFF RR

7

3

. .C P.I OM O DR A BE AD

8.

05

P.I.C. BEDROOM 75 SF

11.004A

TYP.

6

TYP.

P.I.C. BEDROOM 75 SF

6

11 A511

P.I.C. BEDROOM 75 SF

MEDICAL EQUIPMENT STORAGE

FS

19 OFFICER STATION TYP. A511 Yard Wall (Dayroom side) - Full height aluminum Rec.

FOOD CART ROOM

TYP.

2

P.I.C. BEDROOM 75 SF

5

TYP.

1

15 A511

Interior Walls - CMU blocks grout filed with 16" o.c. reinforcing bars. All surfaces observable from the interior PANTRY/BEVERAGE COUNTER 4 covered with a skim coat. Alternative, impact resistant 19 TYP.drywall with steel security mesh on steel studs.

A511 MEDICAL DIST ROOM

TYP.

BE

P.I BE .C. D 75 RO SF OM

. .C P.I M OO F DR 75 S BE

5

CL

GENERAL POPULATION H L09 - TYP. 40 SINGLE CELLS INCL. 1 ADA CELLS (TWO TIER)

Exterior - Precast Concrete Panels

. .C OM P.I RO D BE SF 75 . .C P.I M OO F DR 75 S BE

TYP.

. .C OM P.I RO D BE S F 75

1

3

. .C P.I OM O DR A BE AD

. .C M OO A AD

15 A511

TYPICAL CONSTRUCTION TYPES

TYP.

6

. .C P.I OM O DR A BE AD

PREVIOUS PROJECT

. .C OM P.I RO D BE SF 75

TYP.

A3.06 SECURE VESTIBULE

CADO FILE NO: SHEET NO: MULTIPURPOSE

SECONARY SECU IMPACT RESISTAN TERTIARY SECUR PRIMARY SECURI GLASS AND MESH IMPERVIOUS/WAT

11

EVAN WILSON INDEX

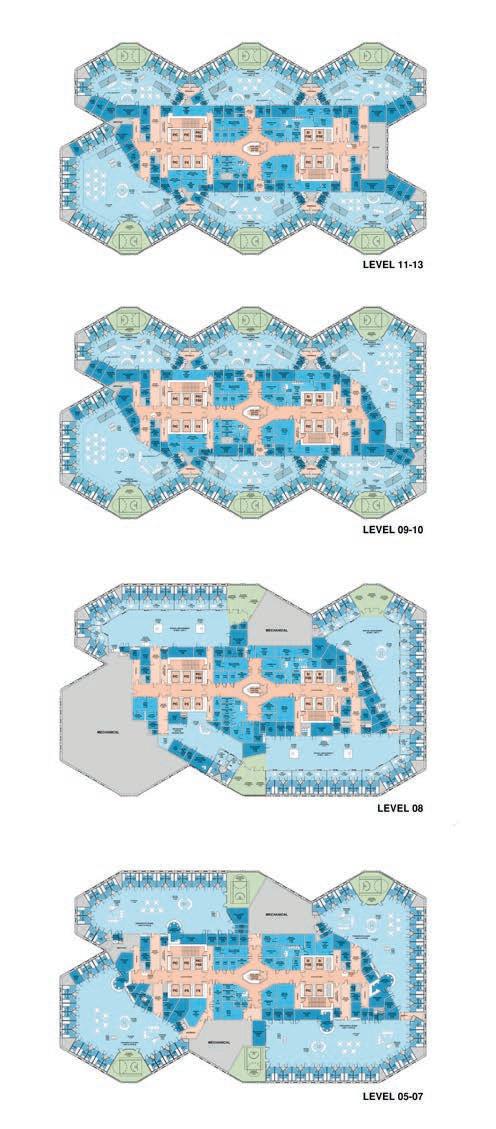

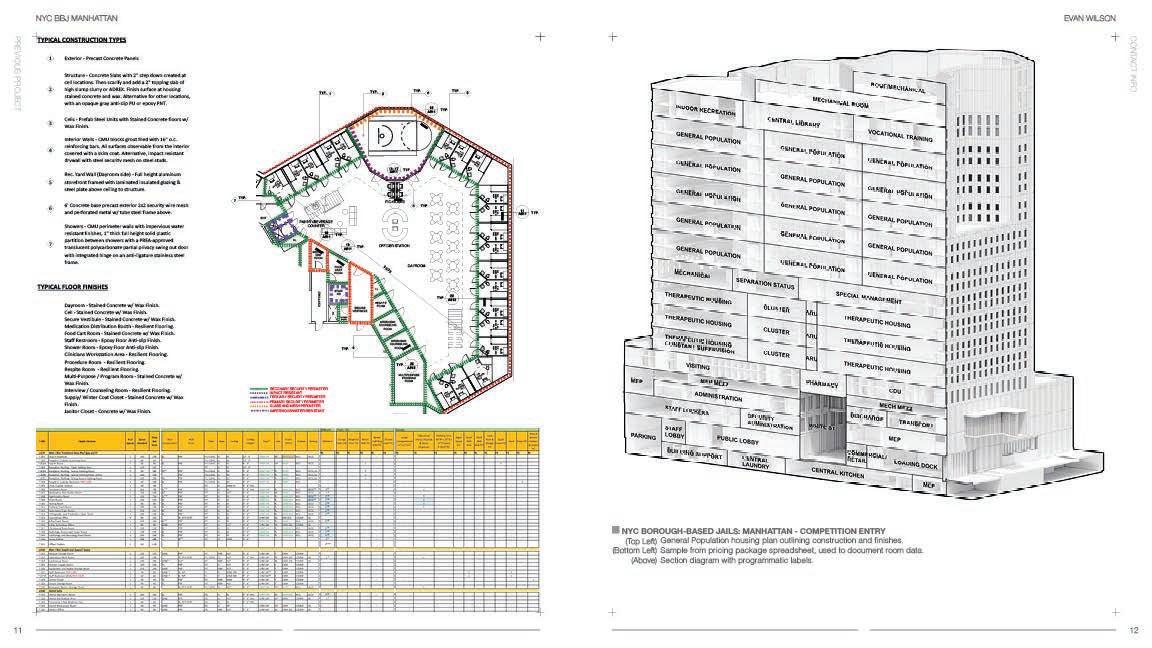

NYC BOROUGH-BASED JAILS: MANHATTAN - COMPETITION ENTRY (Top Left) General Population housing plan outlining construction and finishes.

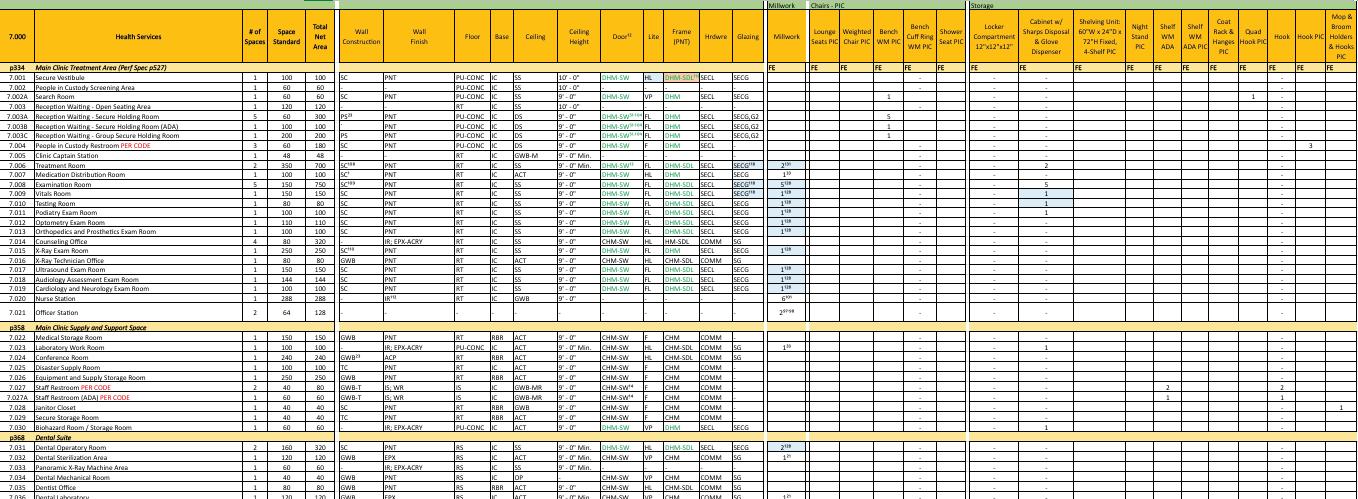

(Bottom Left) Sample from pricing package spreadsheet, used to document room data.

(Above) Section diagram with programmatic labels.

12

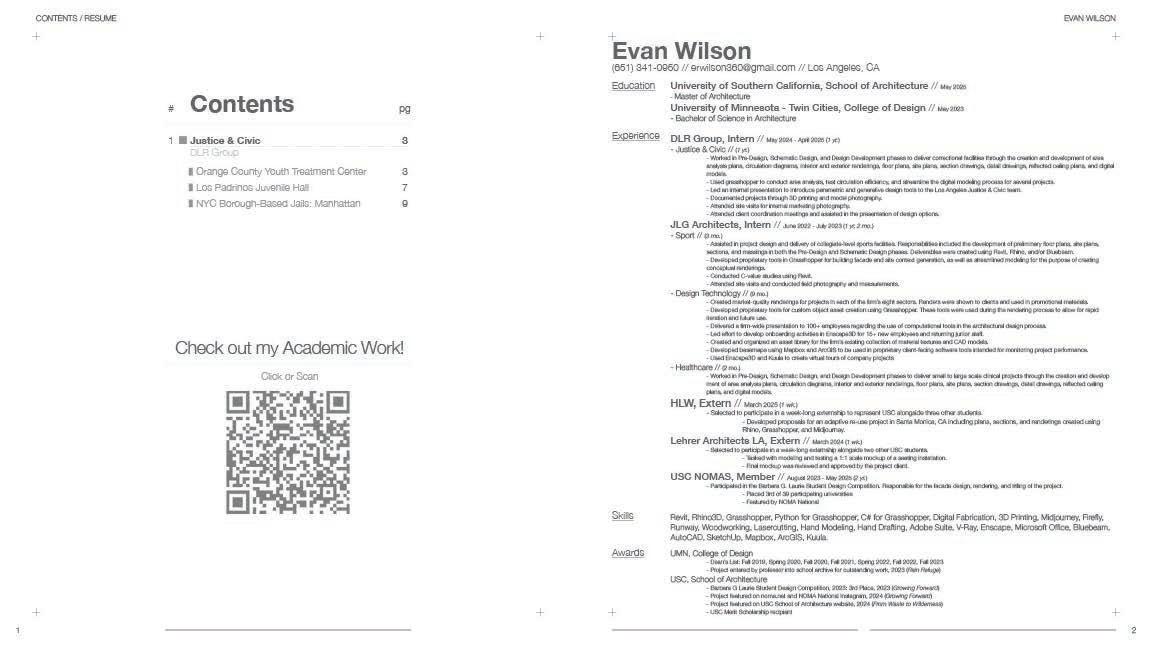

INDEX PREVIOUS PROJECT Page 1: Table of contents Page 2: Resume
