Everloy descaling nozzle new series
MINI DNEXR
KYORITSU GOKIN CO., LTD.

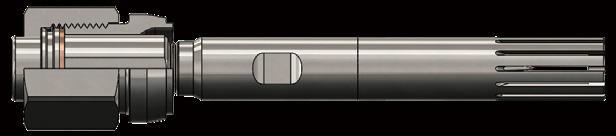

Descaling nozzle MINI DNEXR
Features of MINI DNEXR Powered by DNEX Technology Delivering superior descaling performance with steel mills worldwide.
Enhanced Durability with Trumpet-type Orifice High hardness and innovatively designed carbide tip is adopted.
Special Designed Adapter Upgraded internal design improves durability. More than 5M shots with pressure 30MPa *1 0.8M shots with pressure 45MPa *1
Compact Nozzle Design
175
DNEX
41
φ32
47.5
φ40
32
φ18.5
MINI DNEXR
φ21
Nozzle spacing of 40mm can be achieved thanks to compact design. Higher impact force is available with closer spray distance.
91.5 175
*1 The number of shots is calculated based on our simulations, and the actual lifespan may vary depending on usage conditions.
EVERLOY SPRAY NOZZLES
Descaling nozzle MINI DNEXR
Shapes and dimensions With Long filter, Standard cap and Weld adapter L=32
φ18.5
φ32 φ32
47.5
32
φ18.5
φ36
32
175
With Long filter, Hexagon socket cap and Weld adapter L=32 15°
32
22
φ32
47.5
Packing
Short filter
Adapter
97.5
L
φ25
φ32
Nozzle tip
φ36
Standard Cap
175 188.5
45
28
L = 32/39/58/70/80
Long filter
φ32
Hexagon socket cap
142.5
45
Check Valve
143
Parts list Parts Nozzle tip
Type
Material
Weight [g]
MINI DNEXR ****
Hardened tungsten carbide + Stainless steel
78
MINI DNEX ****
Tungsten carbide + Stainless steel
78
Copper
2
Long filter
Stainless steel
140
Short filter
Stainless steel
85
Extra long filter (Upon request)
Stainless steel
More than 140
Check valve (Operating pressure: 1.0MPa)
Stainless steel
180
Standard cap
Stainless steel
90
Hexagon socket cap
Stainless steel
125
Weld adapter L=32 / 39 / 58 / 70 / 80
Stainless steel
65 / 85 / 140 / 170 / 200
Packing
Filter
Cap Adapter
-
EVERLOY SPRAY NOZZLES
Descaling nozzle MINI DNEXR
Standard model number list Model
MINI DNEXR
Model number
Spray angle [ °] at *2 following pressure [MPa]
Flow rate [L/min] at following pressure [MPa] 10
15
20
25
30
35
40
45
15
45
0222
12.0
14.7
17.0
19.0
20.8
22.4
24.0
25.5
24
25
0226
12.0
14.7
17.0
19.0
20.8
22.4
24.0
25.5
28
29
0230
12.0
14.7
17.0
19.0
20.8
22.4
24.0
25.5
33
35
0232
12.0
14.7
17.0
19.0
20.8
22.4
24.0
25.5
35
37
0240
12.0
14.7
17.0
19.0
20.8
22.4
24.0
25.5
43
45
0322
18.0
22.0
25.5
28.5
31.2
33.7
36.0
38.2
24
25
0326
18.0
22.0
25.5
28.5
31.2
33.7
36.0
38.2
28
29
0330
18.0
22.0
25.5
28.5
31.2
33.7
36.0
38.2
33
35
0332
18.0
22.0
25.5
28.5
31.2
33.7
36.0
38.2
35
37
0340
18.0
22.0
25.5
28.5
31.2
33.7
36.0
38.2
43
45
0422
24.0
29.6
33.9
37.9
41.6
44.9
48.0
50.9
24
25
0426
24.0
29.6
33.9
37.9
41.6
44.9
48.0
50.9
28
29
0430
24.0
29.6
33.9
37.9
41.6
44.9
48.0
50.9
33
35
0432
24.0
29.6
33.9
37.9
41.6
44.9
48.0
50.9
35
37
0440
24.0
29.6
33.9
37.9
41.6
44.9
48.0
50.9
43
45
0522
30.0
36.7
42.4
47.4
52.0
56.1
60.0
63.6
24
25
0526
30.0
36.7
42.4
47.4
52.0
56.1
60.0
63.6
28
29
0530
30.0
36.7
42.4
47.4
52.0
56.1
60.0
63.6
33
35
0532
30.0
36.7
42.4
47.4
52.0
56.1
60.0
63.6
35
37
0540
30.0
36.7
42.4
47.4
52.0
56.1
60.0
63.6
43
45
*2 The spray angle shown in the list is calculated from the spray width at 300 mm. A spray angle varies according to a spray distance.
