Juice Booster 2 | Fleet Charging | 7kW Mobile Compact Wall Box | CEE BLUE

Page 1

Whats in your Case?

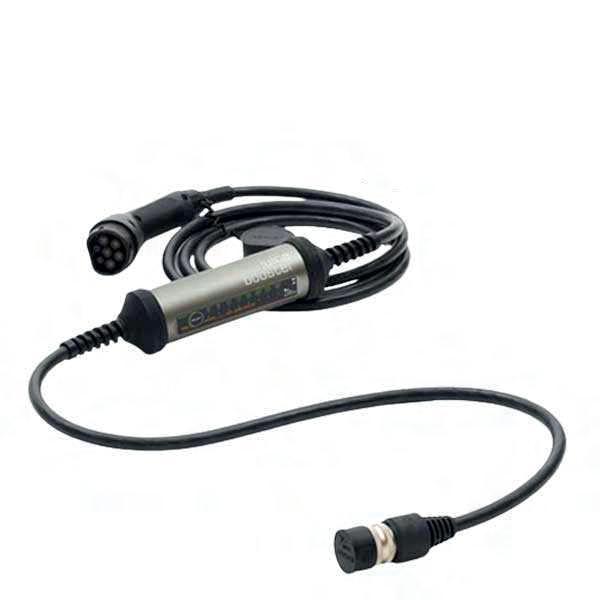

•Juice Booster 2 Mobile Wall Box

•Type 2 32A 3Phase Female Vehicle Plug with 5m cable

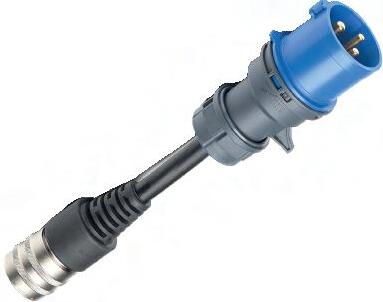

•32A CEE Blue Power Adaptor

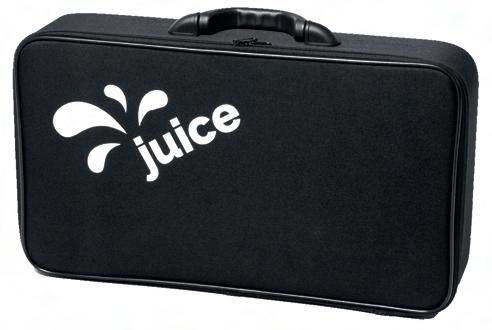

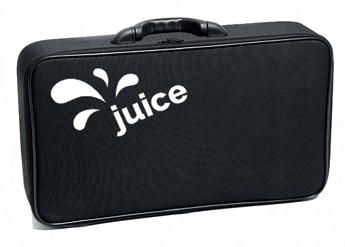

•Carry Case

•3 Years Warranty

Additional Adaptors Available

**Sold Separately

Smart Charging App 7kW

Juice Booster 2

Adaptable and Scalable for Any Fleet Size or Purpose

Our system has been designed by fleet operators with operators, fleet manager drivers and end customers in mind. Get in touch to learn how our system can be adapted to meet your needs.

Houses & Listed Buildings Flats/Apartments Leasehold Properties Garage Hotels and Bed & Breakfast Fleet Agricultural Commercial Emergency Services
Office
On Street Parking
Workshop
& Warehouse

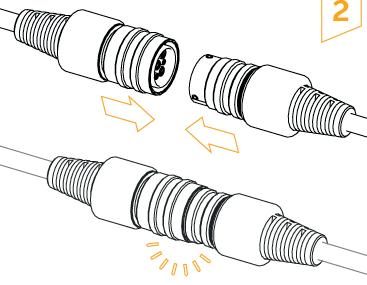

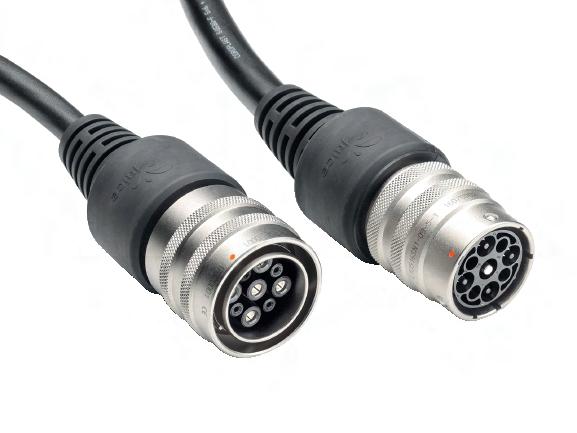

JB2 Automatic Adaptor Recognition

The Juice Connector with automatic adapter recognition is the proprietary interface for all Juice adapter plugs and extension cables. The Connecting parts are coded and therefore protected against polarity reversal. The Juice Connector has leading contacts to the earth conductor and CP (Control Pilot connection for the transmission of control signals between the electric vehicle and the charging station) this gives maximum application safety. The Plug-In connection is designed in such a way that it can also cover future functions

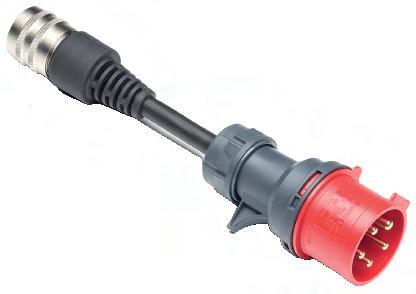

16A RED

| 11kW 3Phase

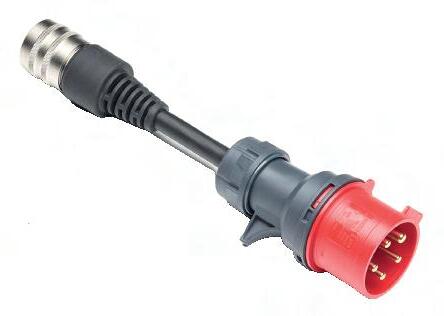

32A RED

| 22kW 3Phase

16A BLUE CEE | 3kW Single Phase

32A BLUE CEE | 7kW Single Phase

CEE CEE 13A UK 16A EURO
TYPE 2

KEY FEATURES

Sturdy construction

Made of aluminium, the device can withstand a wheel load of up to 3 tonnes. Fully protected against dirt and water (IP67). From +50 °C to -30 °C.

36 MONTHS

36 Months Warranty

Free replacement device

If a warranty claim is made for the JUICE BOOSTER 2, the device will be replaced free of charge.

Matching accessories

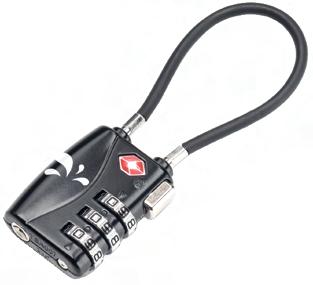

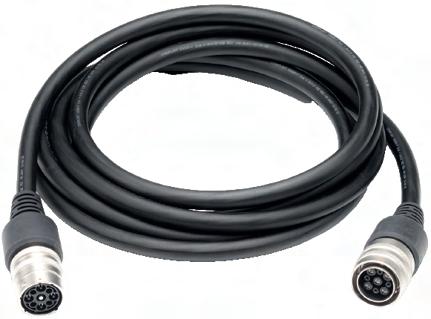

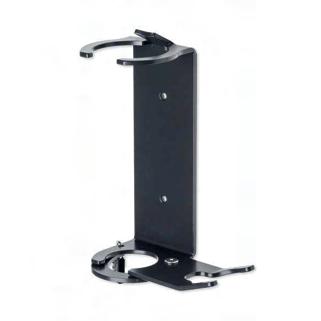

From wall brackets to safety locks and extension cables, there is an optional accessory for every charging situation.

Lightweight and compact

Weighing just under 1 kg, the JUICE BOOSTER 2 can be easily taken along on trips, and the 5 m cable allows for worry. free charging on the go.

Smart Charging App

Juice Booster 2 works with all vehicle apps

If your vehicle does not have a Smart App, we can supply a Rail Switch with Smart Life Phone App to set daily charging & metering to benefit for your low tariff rate.

Solar This charger is solar compatible

Earthing

Removes the need for an earth rod as its integrates into the RCD protection and current earthing arrangement

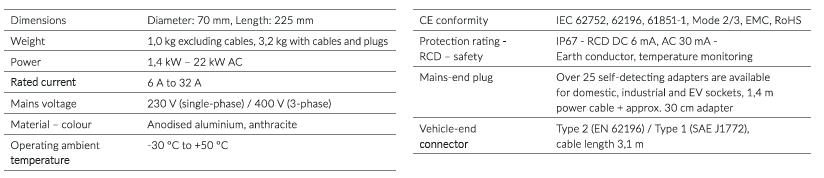

Product Details & Specification

Housing Dimensions Length: 280mm, Diameter: 70mm

Weight 1.0kg excluding cables, 3.2kg with cables and plugs

Power 1.4kw - 22kw AC

Rated Current 6A to 32A

Mains Voltage 230V (Single Phase) / 400V (3Phase)

Residual Current Device RCD DC 6mA, AC/DC 30mA with protective conductor monitoring

Protection Class I

IP protection rating IP67 (Protects against damaging quantities of dust and immersion in water for short periods)

Vehicle-end connector Type 2 (EN 62196) Cable length 5m

Mains-end plug Over 30 self-detecting adapters are available for domestic, industrial and EV sockets, 1.4m power cable + approx 30cm adapter

Total Cable Length Approx 5m

Temperature Range Storage: -30°C to + 60°C Operation: -30°C to + 50°C

Operating elecvation limit Up to 3,000m above sea level

Impact and drop proof Able to withstand a wheel load of 2000kg should you drive over it by mistake (the rubber casing may burst, and the housing and plug may be scratched or bent, but live components will not be exposed) Drop proof from heights up to 100cm

Colour Metallic anthracite, black rubber caps and cables

Material Anodised aluminium with rubber caps

Standards IEC 62752, IEC 62196, 61851-Mode 2, 61851 - Mode 3 (with Type 2 and Type 3c adapters) EMC, RoHS

Product Service
Contact Us +44 (0)1371 811 230 sales@evconnectors.com www.evconnectors.com
