Product catalogue USA 2023 EN

WE DEVELOP ROOFING IDEAS

› About Eurovent® Eurovent® is a long time experience in designing, manufacturing and distributing products dedicated to the insulation and ventilation of pitched roofs and facades in traditional, timber-frame, CLT, prefabricated and modular constructions.

In our offer you can find more than 350 products include roof membranes, housewraps, vapour barrier membranes and foils, adhesive tapes and other roof and wall accessories.

Our product portfolio also includes products for horizontal and vertical insulation of foundations.

› Eurovent® World Wide

Company head office - Poland Sales Partners

We create and develop innovative building solutions.

WITH NATURE IN MIND

› Tatra National Park, Poland.

WE ARE THERE

GERMANY

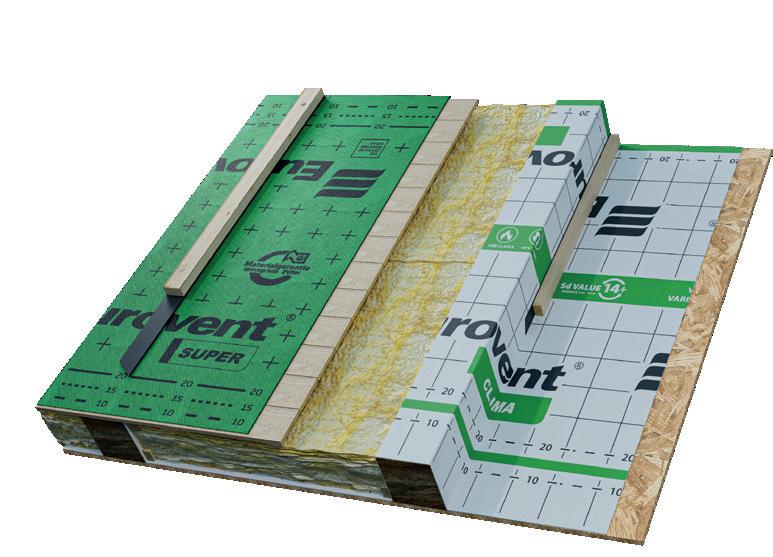

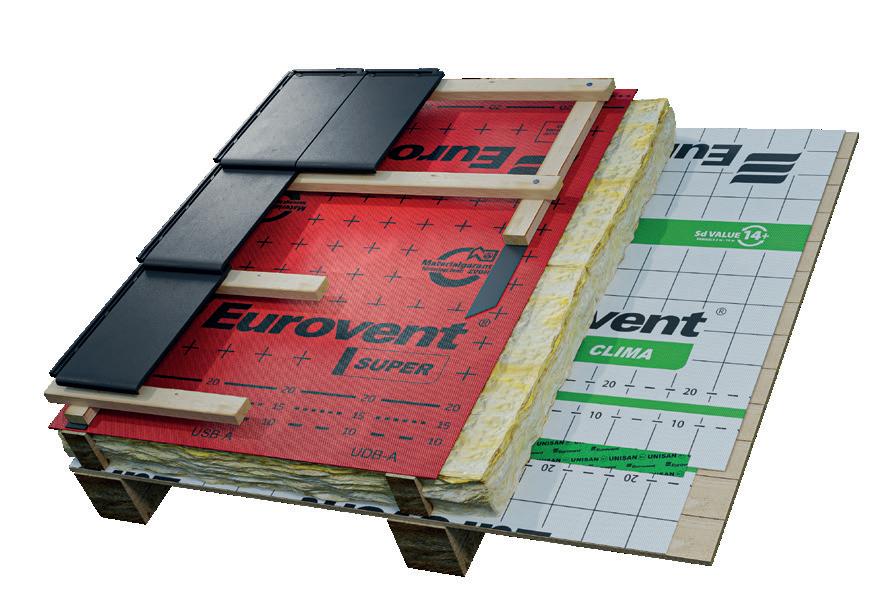

COMPLETE SYSTEM

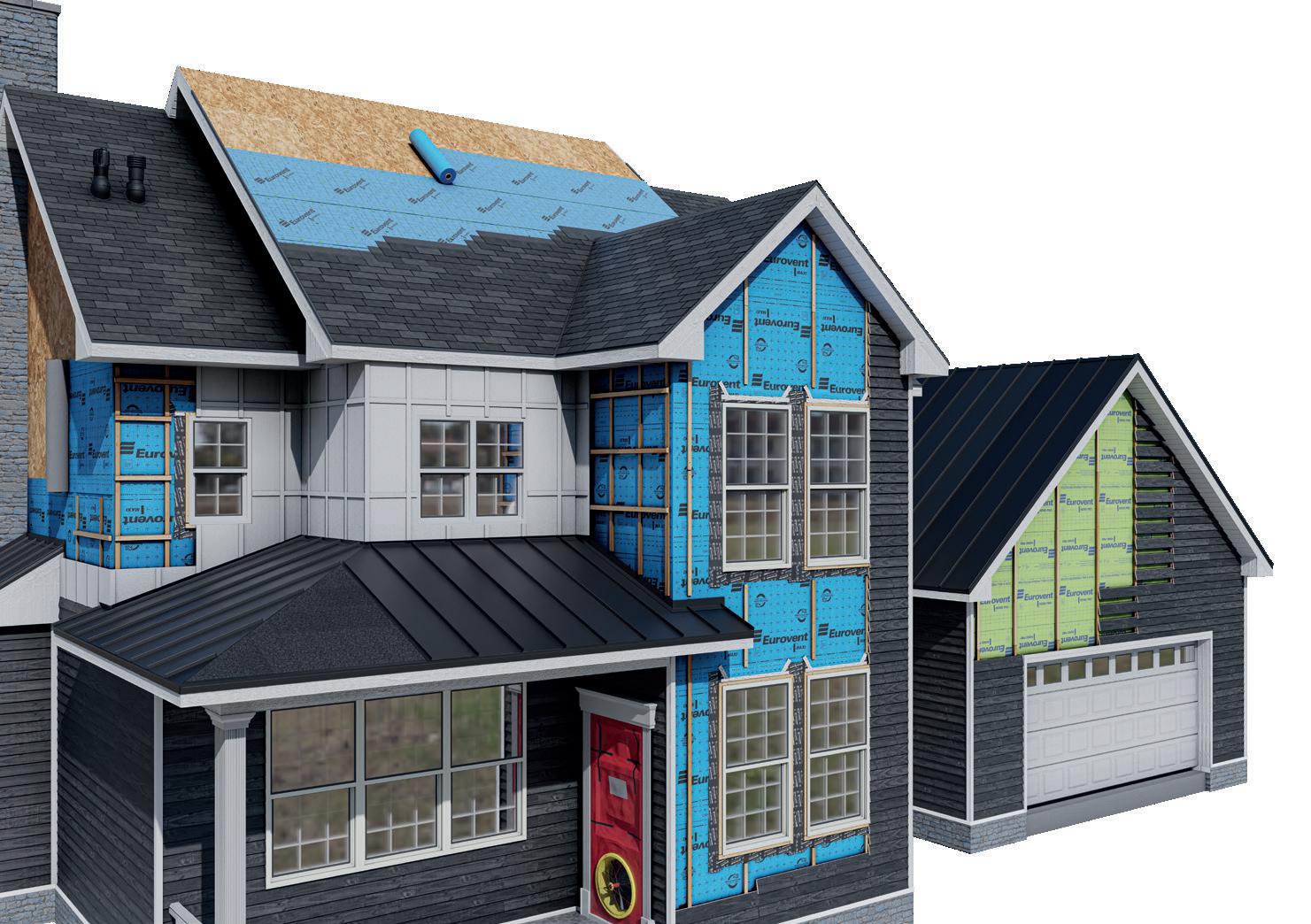

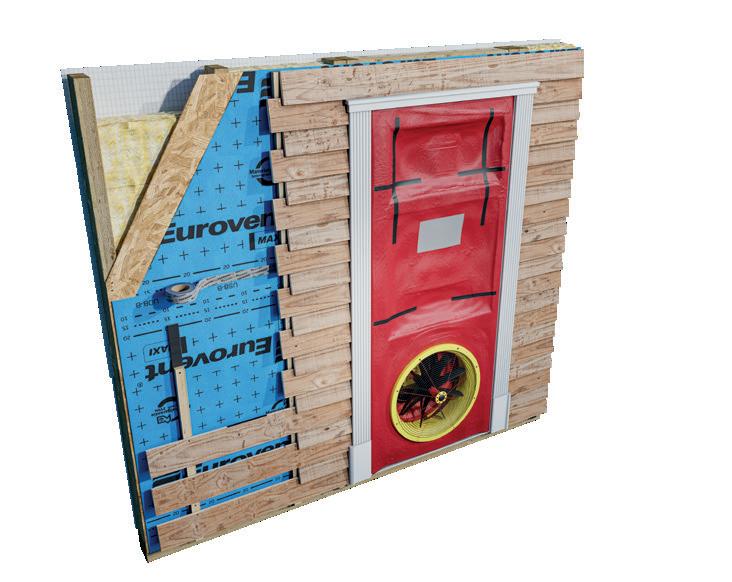

› The complete Eurovent® system provides airtightness, proper ventilation, windproofing and structural protection.

Our products are used in almost every area of the building, from roof insulation to wall, window and foundation insulation including the building ventilation.

› Advantages of the Eurovent system:

• Prevents condensation.

• Prevents heat loss - saves energy.

• Ensures a healthy climate in the building.

• Improves acoustic comfort.

• Prevents cooling of thermal insulation.

• Protection of the structure against water and moisture.

› Key areas of insulation:

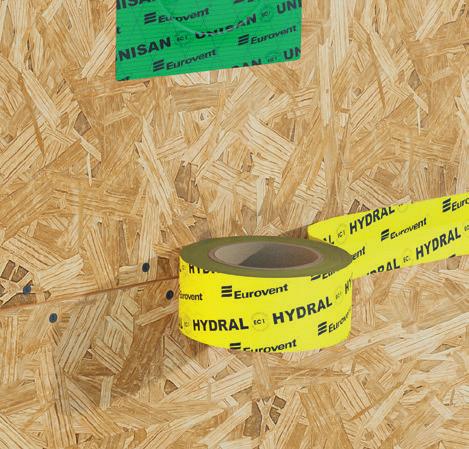

1 Roof - Roof membranes & tapes.

2 Wall - Housewraps, vapour barrier membranes & tapes.

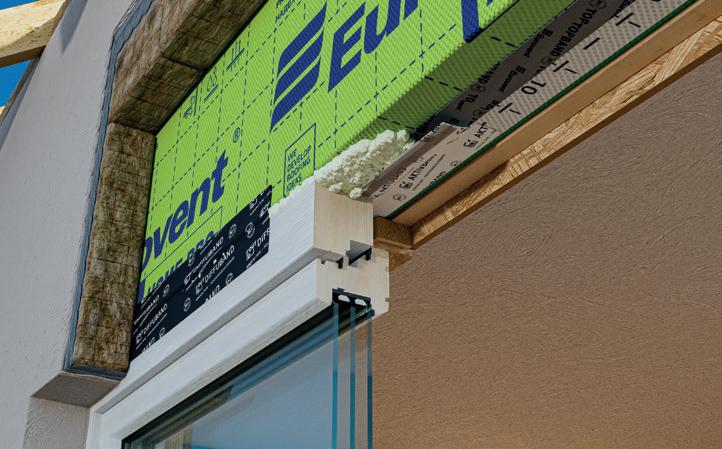

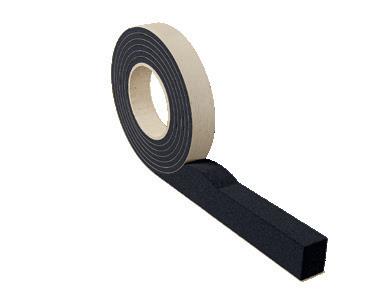

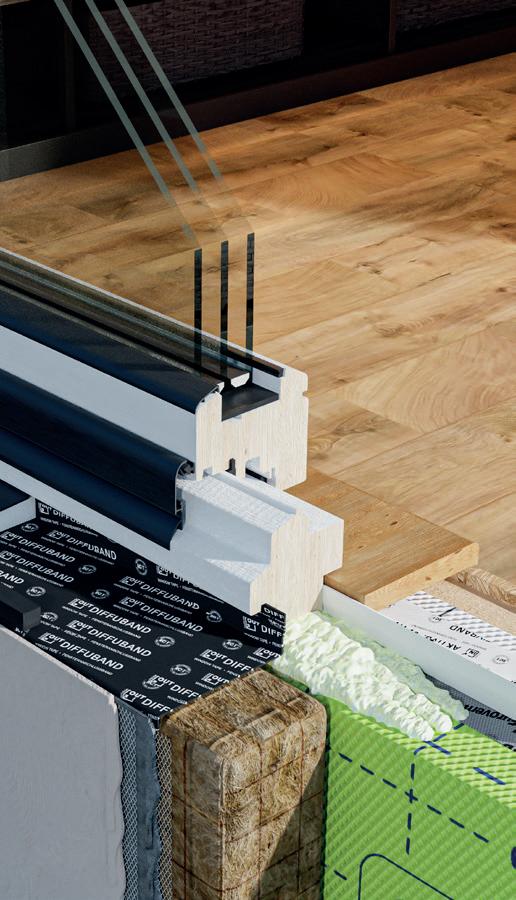

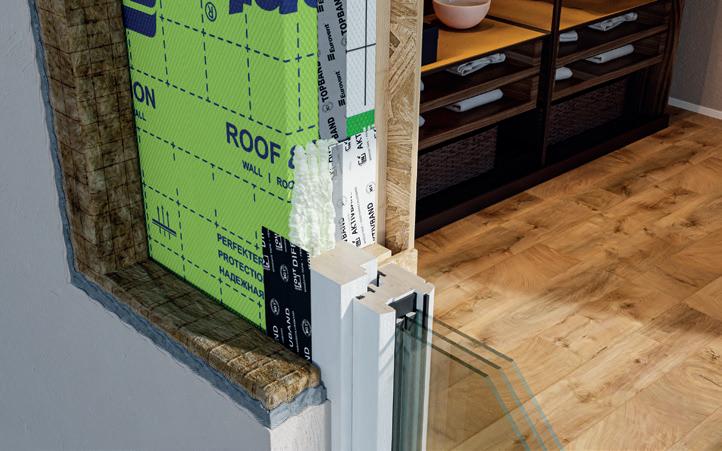

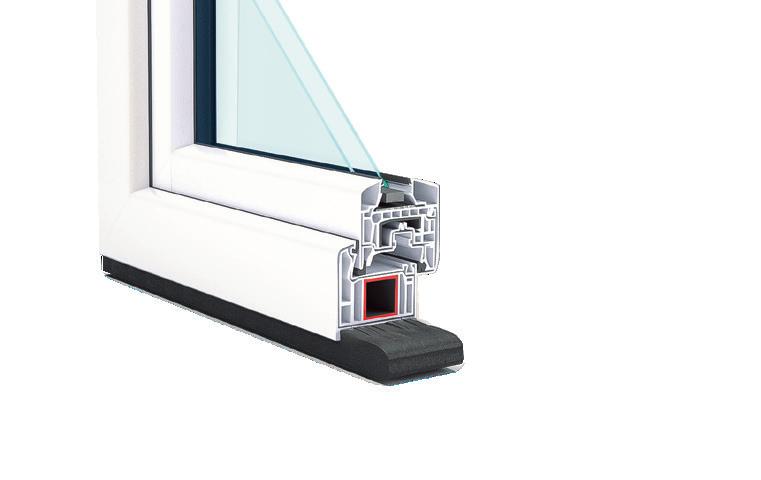

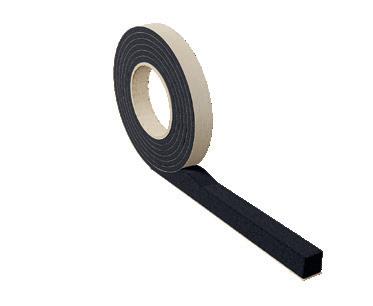

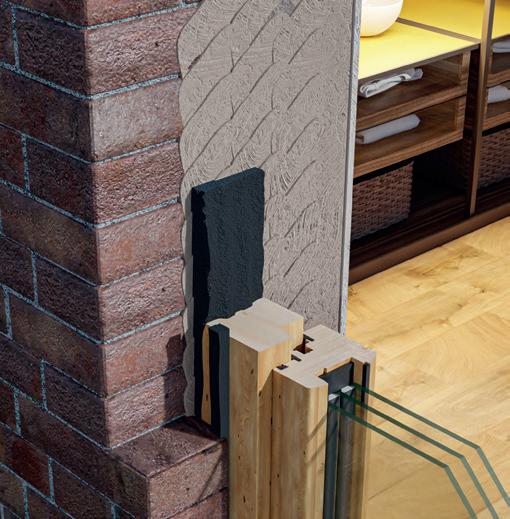

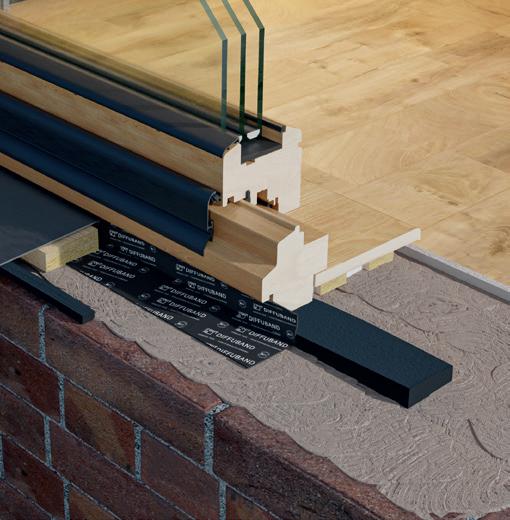

3 Windows and doors - Window tapes and expansion tapes.

4 Protection and ventilation - Venting system and accessories.

Passive house - The Eurovent insulation system meets the requirements of modern passive building technology.

Energy efficiency - Proper insulation of a building provides airtightness and protection against wind, moisture and heat loss - reduces energy costs.

PRIVATE LABEL

› From design to it’s implementation

According a client’s desires, we are able to perform individual indications on products, as well as labelling and a package corresponding to the presented demands.

The Your Brand program is dedicated to the most demanding clients, who we offer preparation of products from our portfolio in accordance with their private brand.

› Join to the best ones

There are manufacturers of roof coverings, independent distributors, sales networks and building markets among our clients, who we prepare membranes and roof accessories for.

FACADE

high performance housewraps

SLOPE ROOF

highly vapour-permeable roof membranes

ACCESORIES

various solutions for roof, wall and facade

ATTIC AND WALL

Vapour insulating smart membranes

ROOF INSULATION

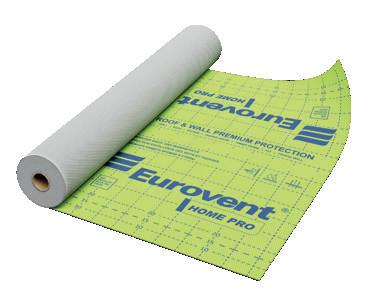

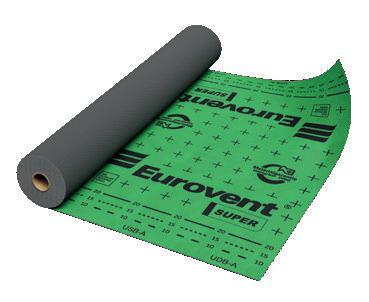

HOME PRO SUPER SUPER SA

Roof membrane

• Three-layer membrane.

• Airtight, water vapour highly permeable premium housewrap and roofing underlay.

• Used as an underlay on the slope roof and as a housewrap on the facade, in the timber frame, CLT, brick, concrete and prefabricated construction.

• Recomended for passive houses.

• Also for full sarking

• Available with two adhesive tapes - SYSTEM SK2.

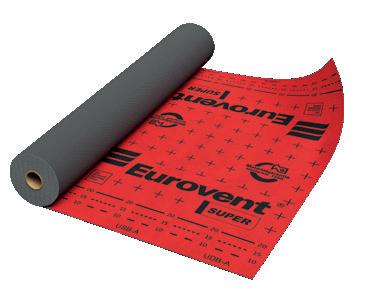

Roof membrane

• Three-layer membrane.

• Highly vapour-permeable.

• Resistant to tearing.

• Available in three different colours.

• Designed for insulated and ventilated pitched roofs.

• Recommended for timber frame, CLT, prefabricated and modular constructions.

• Also for full sarking

• Available with two adhesive tapes - SYSTEM SK2.

Self adhesive membrane

• Three-layer, self adhesive membrane.

• Highly vapour-permeable.

• Available in two different colours.

• Used as a roof underlay and housewrap provides a high-performance watertight and airtight barrier.

• Recommended for timber frame, CLT, prefabricated and modular constructions.

• Suitable for insulating or protecting multi-storey structures during construction.

• SYSTEM SA - self-adhesive membrane.

ca. 135 g/m2 ca. 0,02 m 1,5 m x 50 rm 50 Rolls ca. 170 g/m2 ca. 0,02 m 1,5 m x 50 rm 40 Rolls ca. 270 g/m2 ca. 0,19 m 1,5 m x 30 rm 36 Rolls 0.44 oz/ft2 174.825 US perm 5 ft x 164 ft 50 Rolls 0.56 oz/ft2 174.825 US perm 5 ft x 164 ft 40 Rolls 0.88 oz/ft2 18.403 US perm 5 ft x 164 ft 36 Rolls

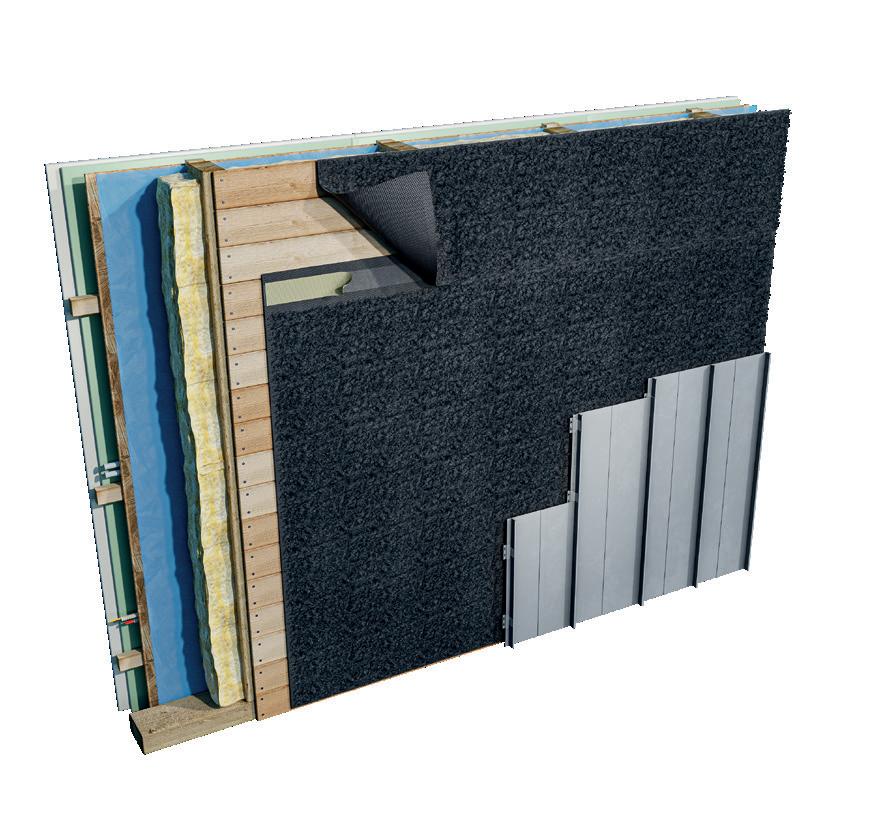

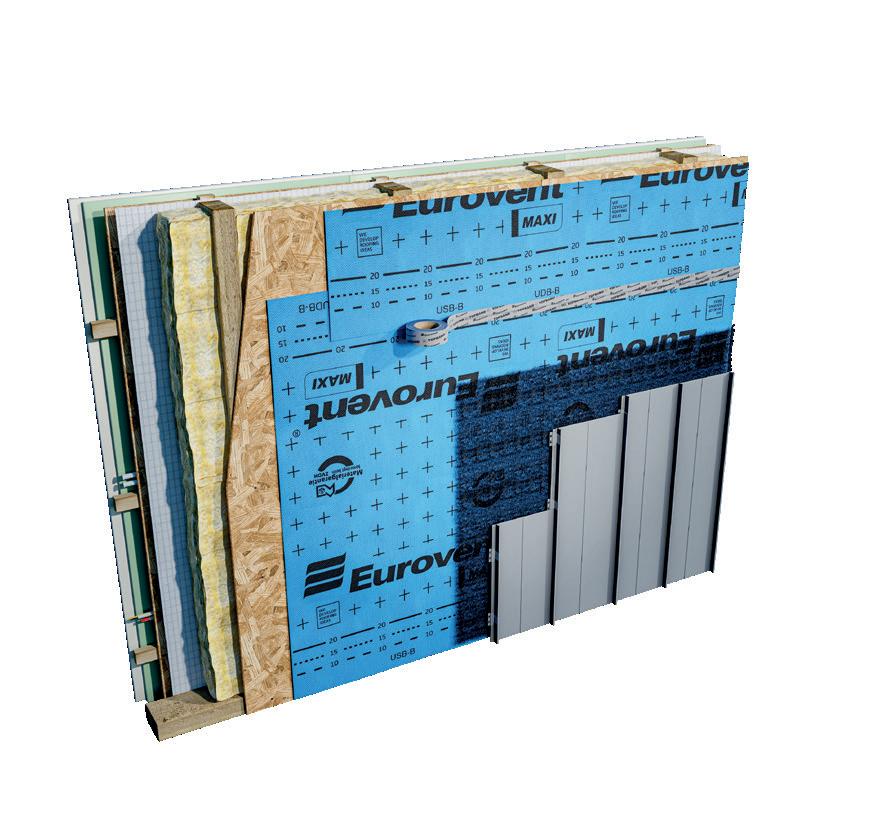

STANDING SEAM SOLUTION

Membrane designed for use as un underlayment under standing seam metal roofs and is also suitable for use in ventilated and non-ventilated metal facades.

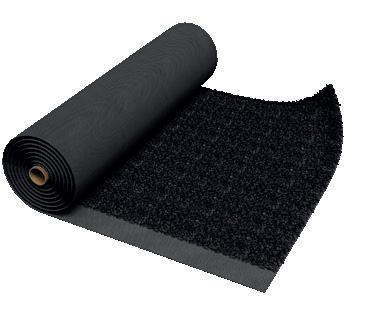

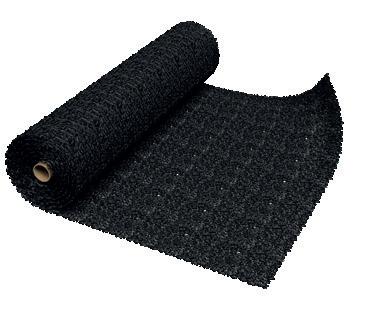

Roofing membrane integrated with an 8mm high separation mat. This solution provides acoustic insulation and drains condensation from under the roofing sheet. In addition, the membrane is highly vapour-permeable and tear-resistant. › Application of Eurovent® METALLIC as a housewrap in timber frame wall with facade of metal panel finished with standing seam.

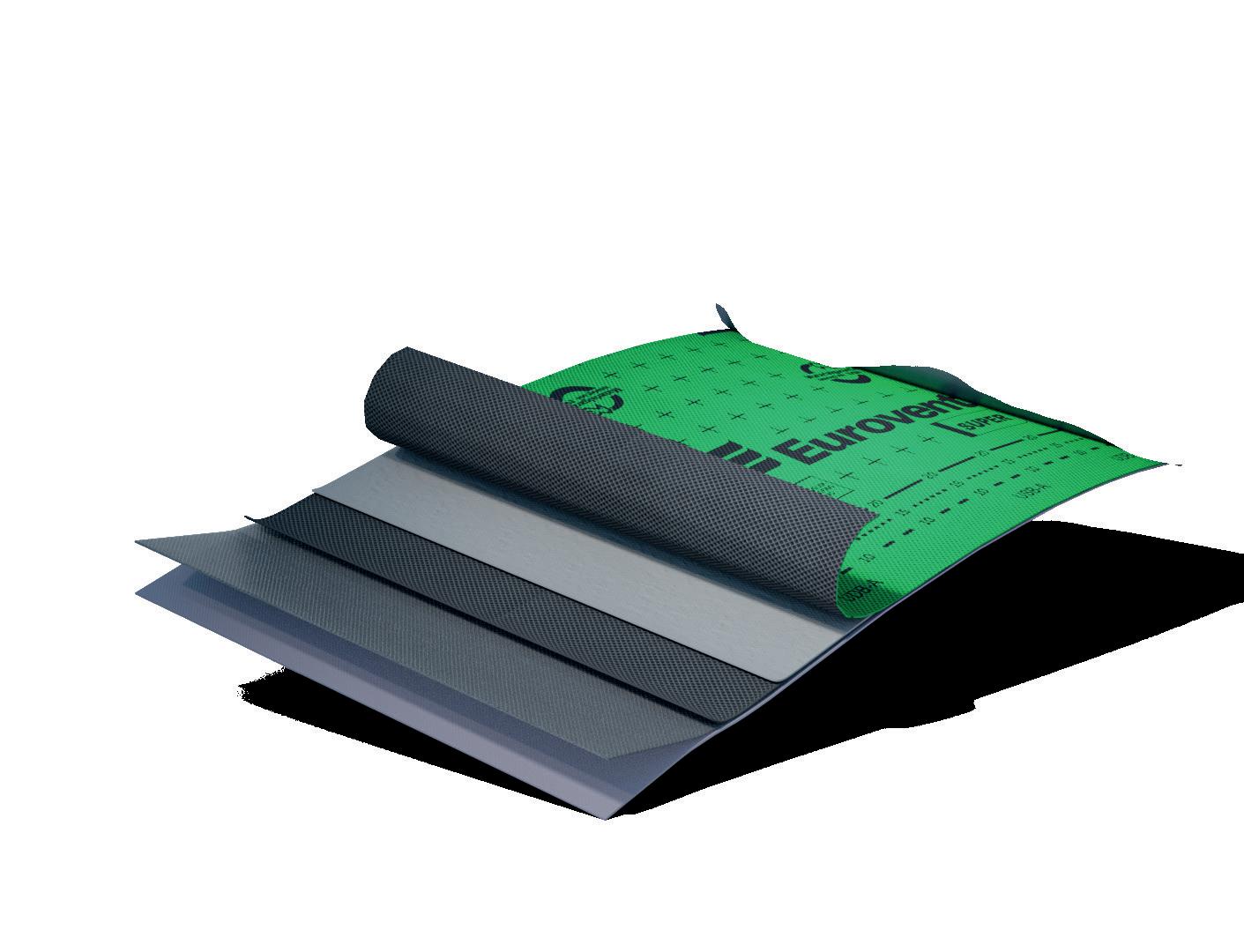

METALLIC

• Three-layer roof membrane.

• Integrated with separation mat, 8 mm high.

• Highly vapour-permeable.

• Drains condensate.

• Provides micro-ventilation under metal covering to prevent corrosion

• Designed to use under metal coverings in pitched roofs and facade systems.

• Acoustic insulation, reduces noise from heavy rain or strong wind.

• Sound reduction of around 25 dB.

• Available in the SYSTEM SK.

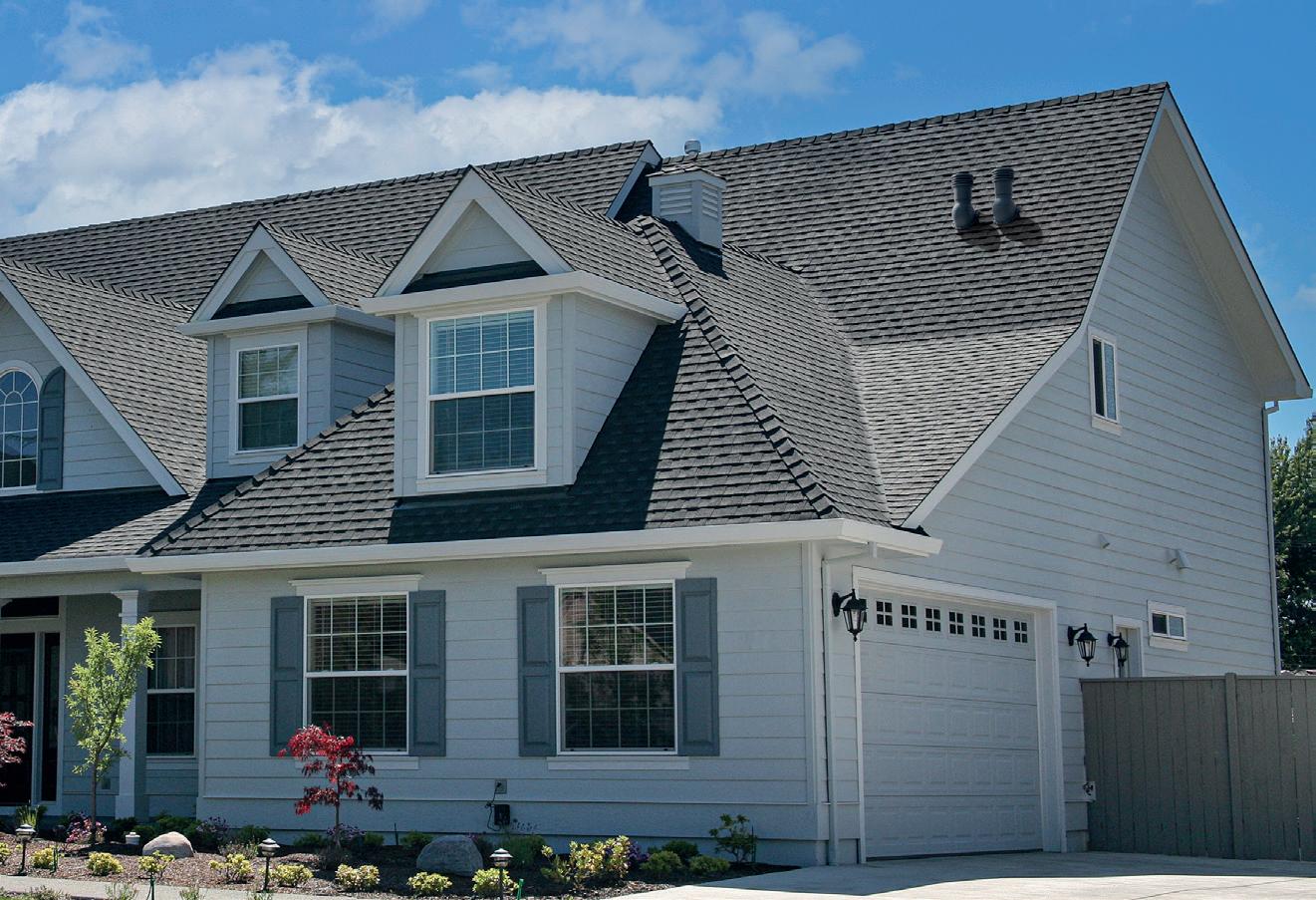

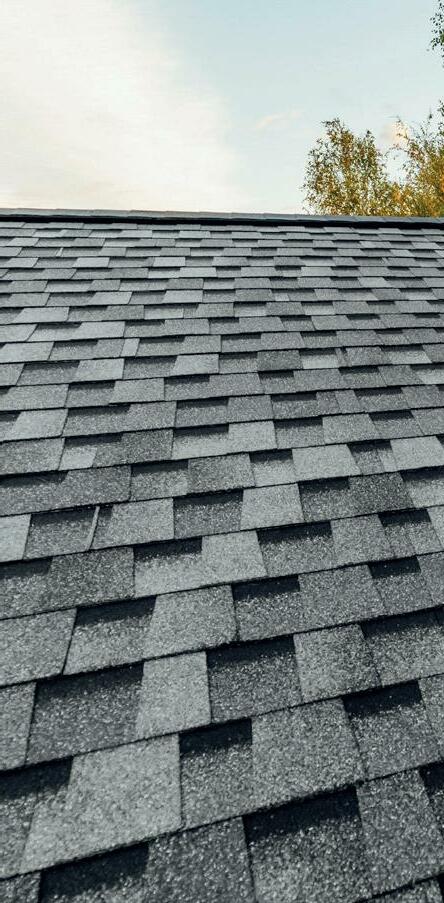

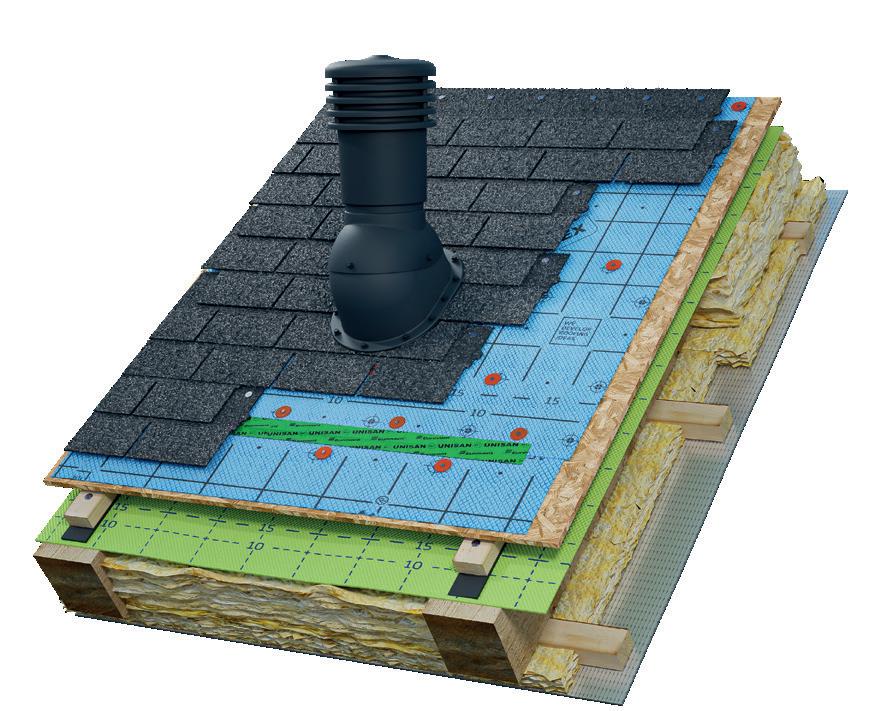

SLATES & SHINGLES SOLUTION

Membranes designed specially for application with bitumen and wooden shingles as well as slates.

are characterised by enhanced waterproofing performance and exceptional tear resistance. They contain special stabilising additives that provide excellent UV resistance.

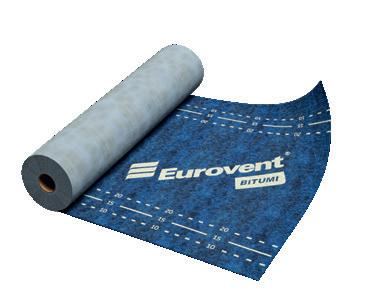

BITUMI SYNTEX

Synthetic roof underlay

• Three-layer, bitumen roof membrane.

• Designed for for application with bitumen and wooden shingles as well as slates.

• Recomended for pitched, ventilated roofs with full sheathing only.

• UV resistance.

• High water-tightness resistance.

• Tear resistance.

• Self-sealing of nail penetrations thanks to bitumen layer.

• Available with two adhesive tapes - SYSTEM SK2.

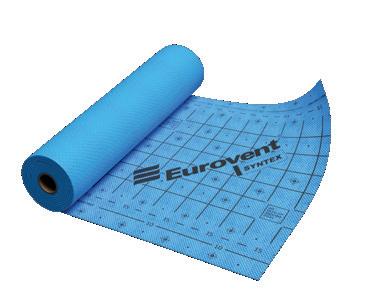

• Four-layer, synthetic roof underlay.

• Designed for for application with shingles as well as slates.

• Recomended for pitched, ventilated roofs with full sheathing only.

• Increased water-tightness parameter.

• Extreme resistance to tearing.

• Excellent UV resistance - up to 6 months.

• Anti-slip surface.

• Available with two adhesive tapes - SYSTEM SK2.

Bitumen roof membrane ca. 450 g/m2 ca. 50 m 1,0 m x 30 rm 30 Rolls ca. 170 g/m2 ca. 40 m 1,1 m x 50 rm 40 Rolls 1.47 oz/ft2 0.07 US perm 3.3 ft x 98.4 ft 30 Rolls 0.56 oz/ft2 0.087 US perm 3.6 ft x 164 ft 40 Rolls

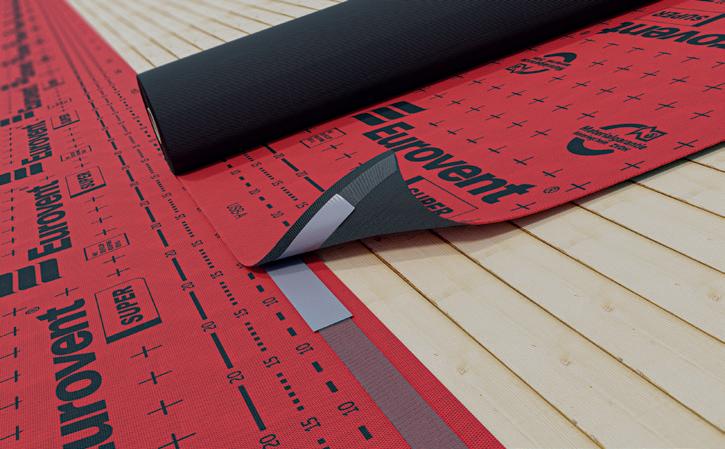

SYSTEM SK2

Fast and effective membranes joining is now possible thanks to the SYSTEM SK2.

The SK2 system is an innovative system of joining the laps by the use of two self-adhesive tapes.

The SK2 system enables easier installation as well as guarantees proper overlaps adhesion.

Effective membranes joining is possible only in case of using two overlapping tapes, which join membranes durably in all weather conditions.

Advantages of SYSTEM SK2:

+ Adhesion possible at all weather conditions.

+ Effective roof insulation.

+ Improved protection against wind and moisture.

+ Thermal energy saving.

Effective waterproofing walls, ceilings and roofs with a self-adhesive membrane.

The SA system is a self-adhering glue coating applied on the entire membrane surface. The membrane is specifically designed for self-adhering to a prepared substrate and provides a high-performance watertight and airtight barrier.

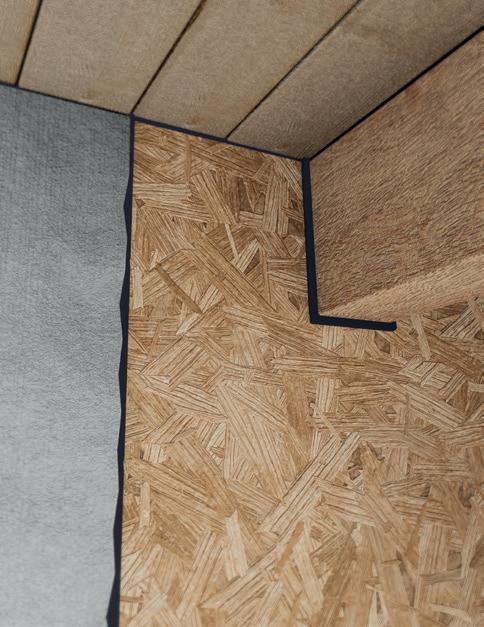

SYSTEM SA provides a watertight seal even on rough OSB boards, prevents moisture penetration under the membrane in the event of damage and cracks.

The SA system provides reliable protection for roofs, walls and ceilings both during construction work and in insulation as a pre-cover layer.

Advantages of SYSTEM SA:

+ Adhesion possible at all weather conditions.

+ Perfect adhesion to walls and big surfaces.

+ High wind and moisture protection..

+ Thermal energy saving.

We develop

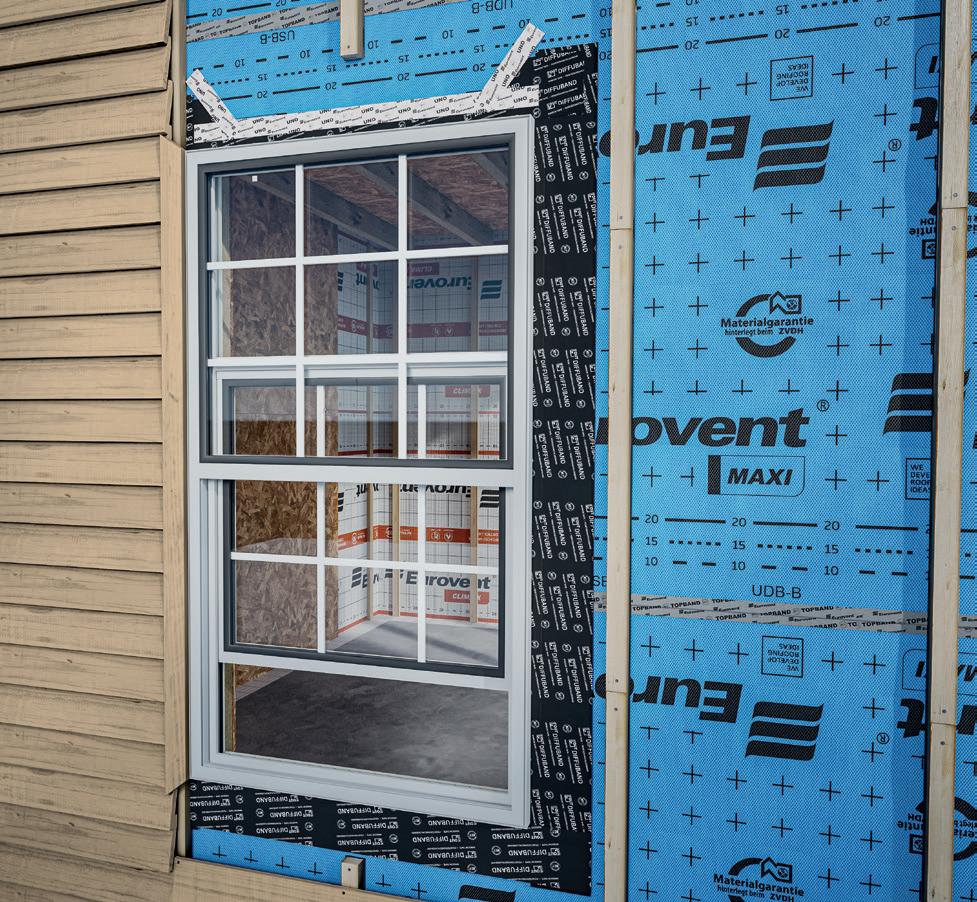

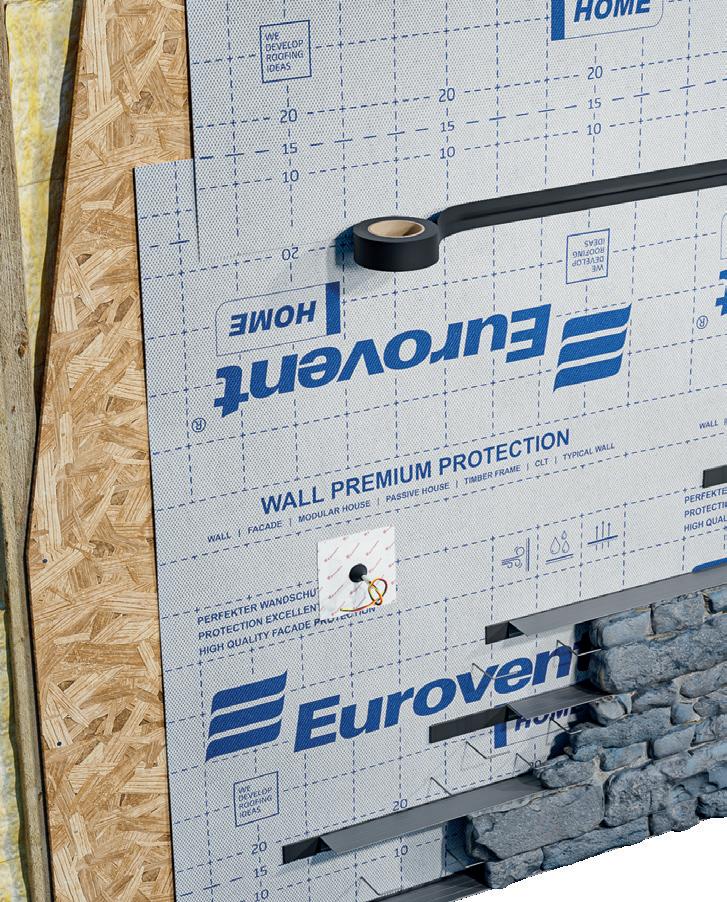

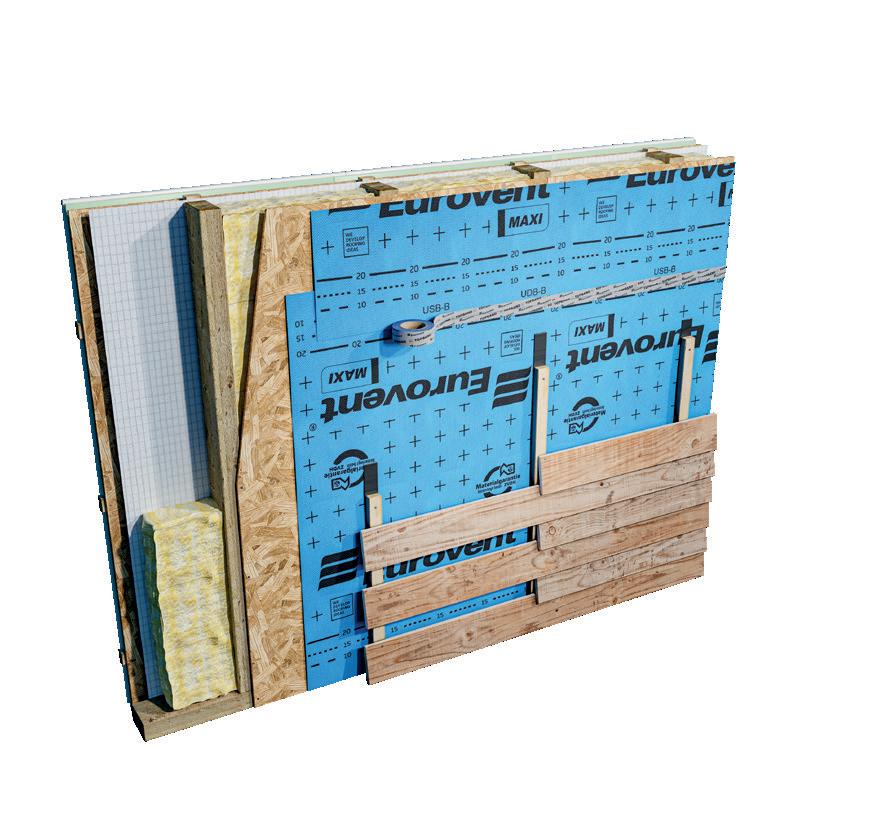

WALL INSULATION

› Wind barrier membranes, also call housewrap.

WALL INSULATION

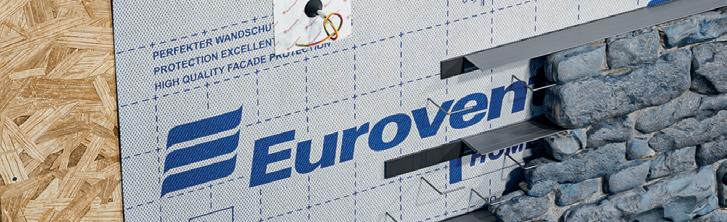

Wind barrier membranes, also call housewraps are used for the protection of facades against wind, rain and moisture. They are used in facade insulation and protection systems. Particular for metal, timber, composite facades in timber frame, CLT-prefabricated or brick construction, as well as for log houses.

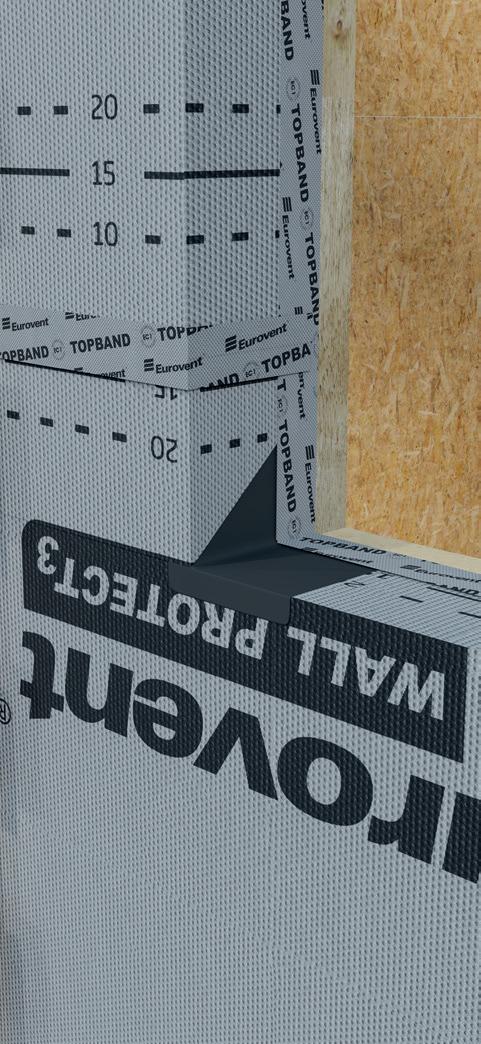

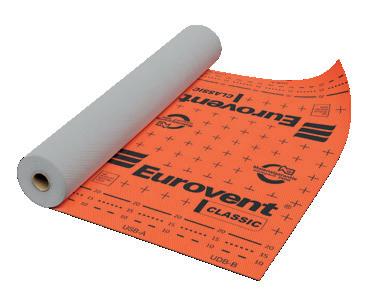

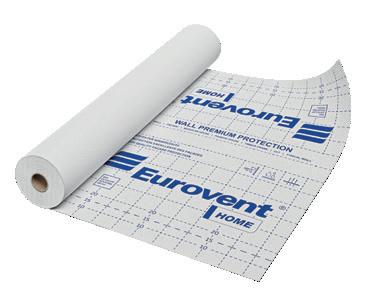

WALL PROTECT 3 HOME CLASSIC

Housewrap

• Three-layer membrane.

• Highly vapour-permeable, wind and water proof.

• Waterproof > 2500mm H2O

• Designed to protect facade constructions against wind, rain and moisture.

• Used as a housewrap for insulation of facade systems in prefabricated buildings, timber frame wall.

• Recommended for modular houses.

• Available with two adhesive tapes - SYSTEM SK2.

Housewrap

• Three-layer membrane.

• Windproof, watertight, highly vapour-permeable.

• Waterproof > 2000mm H2O

• Resistant to UV radiation.

• Designed to protect facade constructions against wind, rain and moisture.

• Used as a housewrap to protect facade systems in brick, timber frame, CLT, prefabricated and modular constructions.

• Recomended for passive houses.

• Available with two adhesive tapes - SYSTEM SK2.

• Three-layer membrane.

• Windproof, watertight, highly vapour-permeable.

• Watertightness > 2500mm H2O

• Resistant to tearing and UV radiation.

• Designed to protect facade constructions against wind, rain and moisture.

• Used as a housewrap to protect facade systems in brick, timber frame, CLT, prefabricated and modular constructions.

• Recomended for passive houses.

• Available with two adhesive tapes - SYSTEM SK2.

Housewrap ca. 80 g/m2 ca. 0,02 m 1,5 m x 50 rm 70 Rolls ca. 90 g/m2 ca. 0,02 m 1,5 m x 50 rm 50 Rolls ca. 120 g/m2 ca. 0,02 m 1,5 m x 50 rm 50 Rolls 0.26 oz/ft2 174.825 US perm 5 ft x 164 ft 70 Rolls 0.29 oz/ft2 174.825 US perm 5 ft x 164 ft 50 Rolls 0.39 oz/ft2 174.825 US perm 5 ft x 164 ft 50 Rolls

• Three-layer membrane.

• Windproof, watertight, highly vapour-permeable.

• Watertightness > 3000mm H2O

• Resistant to tearing and UV radiation.

• Designed to protect facade constructions against wind, rain and moisture.

• Used as a housewrap to protect facade systems in brick, timber frame, CLT, prefabricated and modular constructions.

• Recomended for passive houses.

• Available with two adhesive tapes - SYSTEM SK2.

ca. 140 g/m2 ca. 0,02 m 1,5 m x 50 rm 50 Rolls 0.46 oz/ft2 174.825 US perm 5 ft x 164 ft 50 Rolls

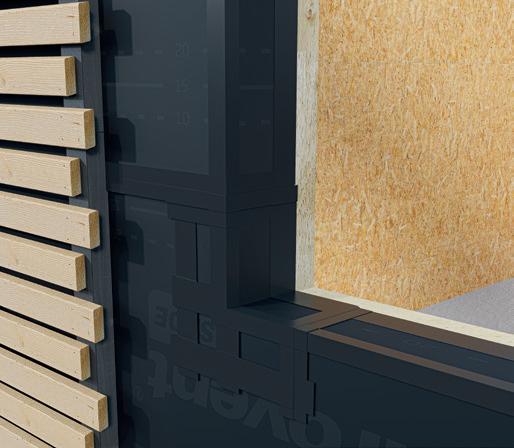

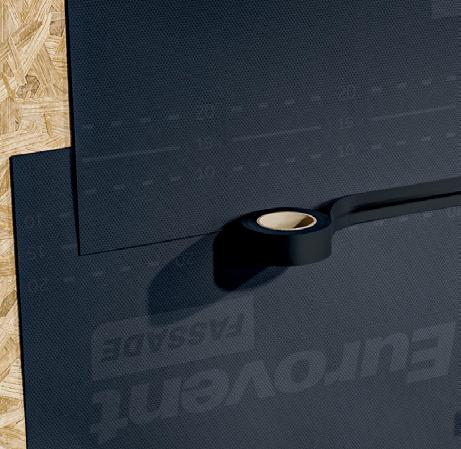

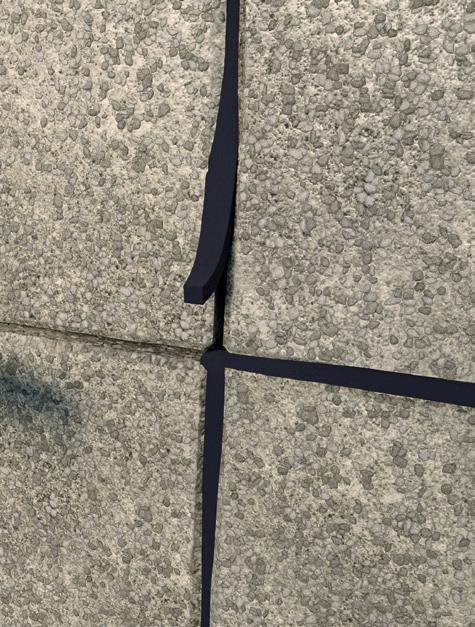

FACADE WITH OPEN JOINTS

Windproofing membranes designed for use in an open joint facade system. They are characterised by extremely high UV resistance, so they can be exposed to partial UV radiation penetrating through the open joints of the facade. Membranes subjected to an artificial ageing test – 5000 hours An additional advantage is their fire resistance according to Euroclasse classification in fire class B-s1,d0.

1

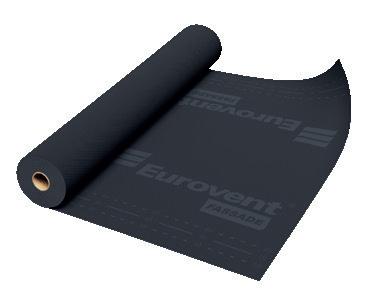

FASSADE

UV resistance housewrap

• Two-layer, airtight, watertight and highly vapour-permeable membrane.

• Protects facade constructions against wind, rain and moisture.

• For use with open-joint cladding systems.

• Flammability class - B-s1, d0.

• Extremely UV resistant up to 12 months.

• UV protection with exposure of open joints up to 30 mm wide and 30 % of the exposed surface.

• Available also without prints*.

• Available with two adhesive tapes - SYSTEM SK2.

Fire classB Fire classB 2 3 8

FASSADE X

• Two-layer, airtight, watertight and highly vapour-permeable membrane.

• Protects facade constructions against wind, rain and moisture.

• For use with open-joint cladding systems.

• Flammability class - B-s1, d0.

• Extremely UV resistant up to 12 months.

• UV protection with exposure of open joints up to 50 mm wide and 40 % of the exposed surface.

• Available also without prints*.

• Available with two adhesive tapes - SYSTEM SK2.

ca. 210 g/m2 ca. 0,02 m 1,5 m x 50 rm 50 Rolls ca. 270 g/m2 ca. 0,02 m 1,5 m x 50 rm 50 Rolls 0.69 oz/ft2 174.825 US perm 5 ft x 164 ft 50 Rolls 0.88 oz/ft2 174.825 US perm 5 ft x 164 ft 50 Rolls

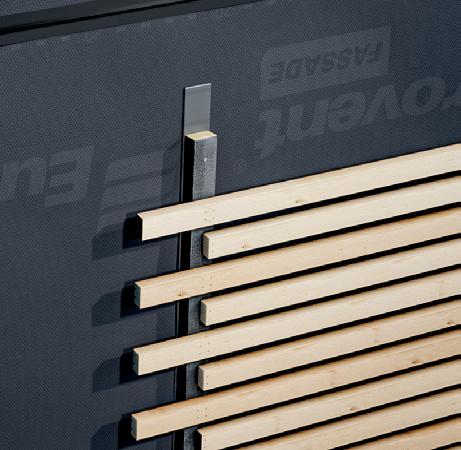

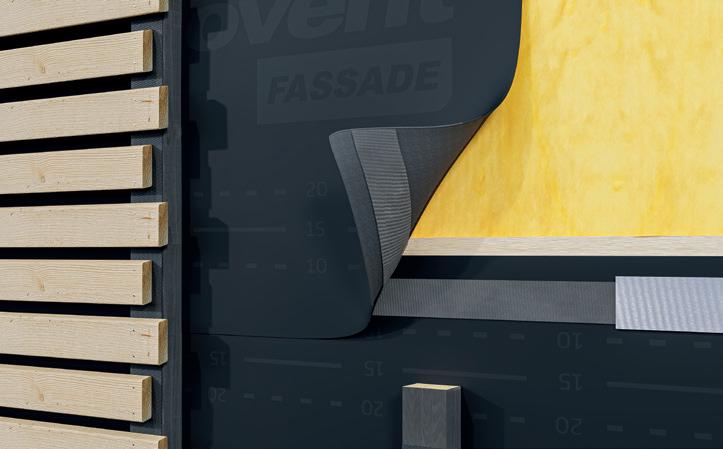

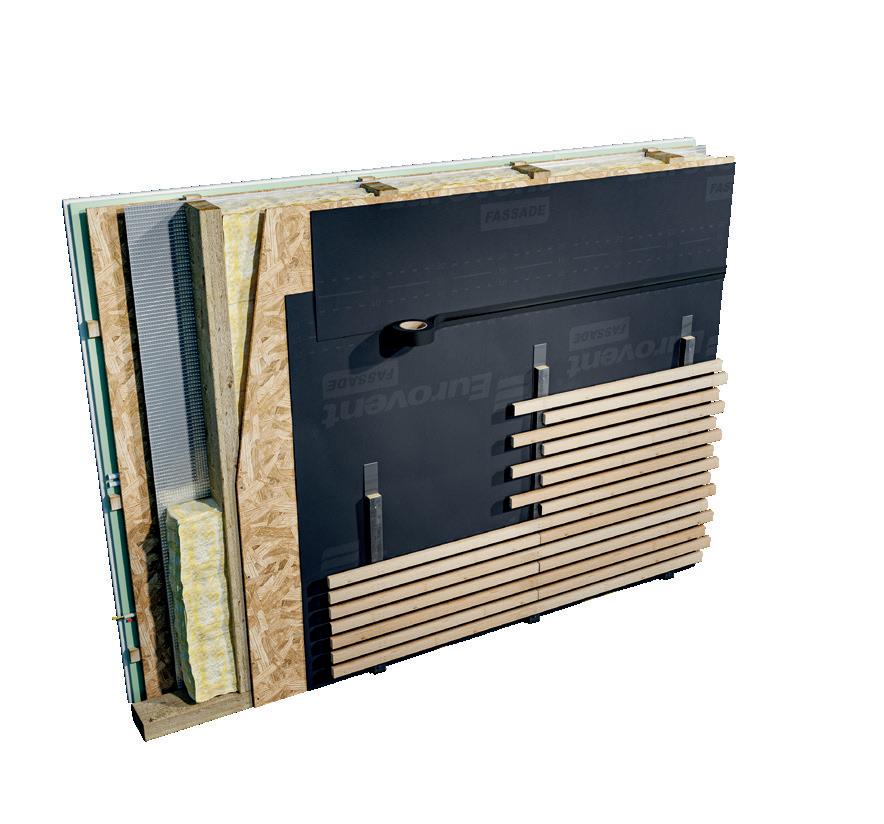

Open joint facade system.

Eurovent® FASSADE and Eurovent® FASSADE X are designed for use in open joint façade systems. They provide UV stability with an exposure of between 30% and 40% of the total facade area.

1 Eurovent® FASSADE 5 Thermal insulation

2 Eurovent® FASSADE X 6 Plasterboard

3 Eurovent® Vapour insulation 7 Open joint facade 4 Construction

› Facade with open joints with uncover 30 % of total area.

› Facade with open joints with uncover 40 % of total area. 5 cm / 2 in 3 cm / 1.2 in

We develop

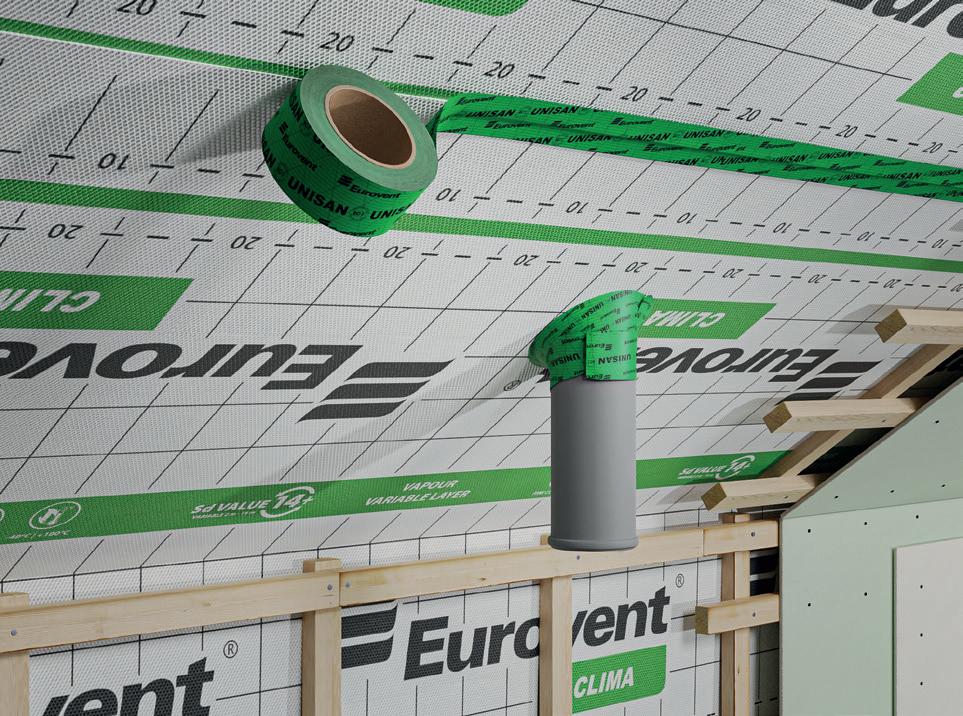

VAPOUR INSULATION

› Vapour barrier membranes and foils.

VAPOUR INSULATION

Active vapour barrier membranes used as a vapour barrier layer for attics, walls and ceilings in residential and commercial buildings in timber frame, masonry, prefabricated construction and passive technology. › Application of Eurovent® CLIMA as a vapour insulation layer in timber frame wall construction.

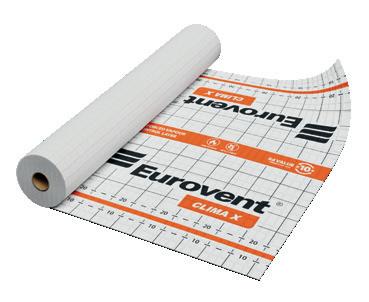

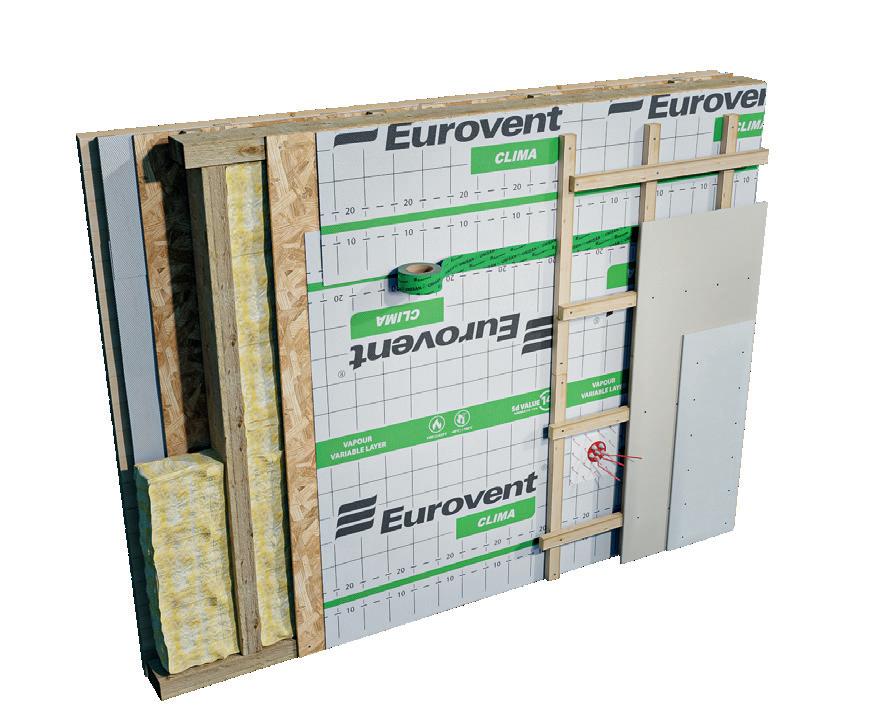

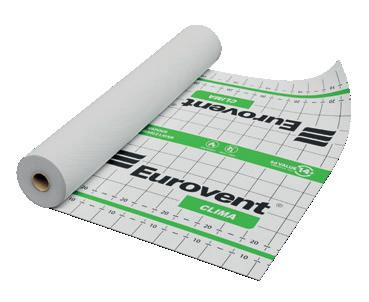

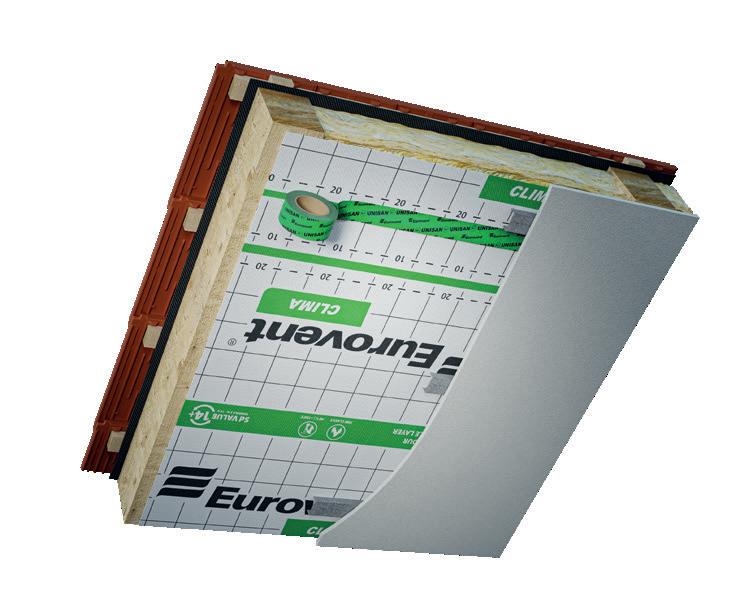

CLIMA X CLIMA

Active vapour control membrane Active vapour control membrane

• Three-layer active vapour control membrane.

• Prevents vapor condensation.

• Variable sd value of ca.2-16 .m

• The active properties of the membrane support moisture removal depending on the hygrometric conditions.

• Suitable for new constructions and renovations of old buildings.

• Used in roofs, walls and ceilings in timber frame, masonry, prefabricated, modular and passive buildings.

• Available in the SYSTEM SK2.

• Three-layer active vapour control membrane reinforced with PE mesh.

• Highly resistant to tearing.

• Prevents vapor condensation.

• Variable sd value of ca.2-16 m.

• Used in roofs and walls in timber frame, prefabricated, modular and passive buildings.

• Recommended for use with injected thermal insulation, e.g. cellulose in timber frame constructions.

• Available with two adhesive tapes - SYSTEM SK2.

ca. 115 g/m2 ca. 10 m 1,5 m x 50 rm 50 Rolls ca. 85 g/m2 ca. 10 m 1,5 m x 50 rm 50 Rolls 0.38 oz/ft2 0.35 US perm 5 ft x 164 ft 50 Rolls 0.27 oz/ft2 0.35 US perm 5 ft x 164 ft 50 Rolls

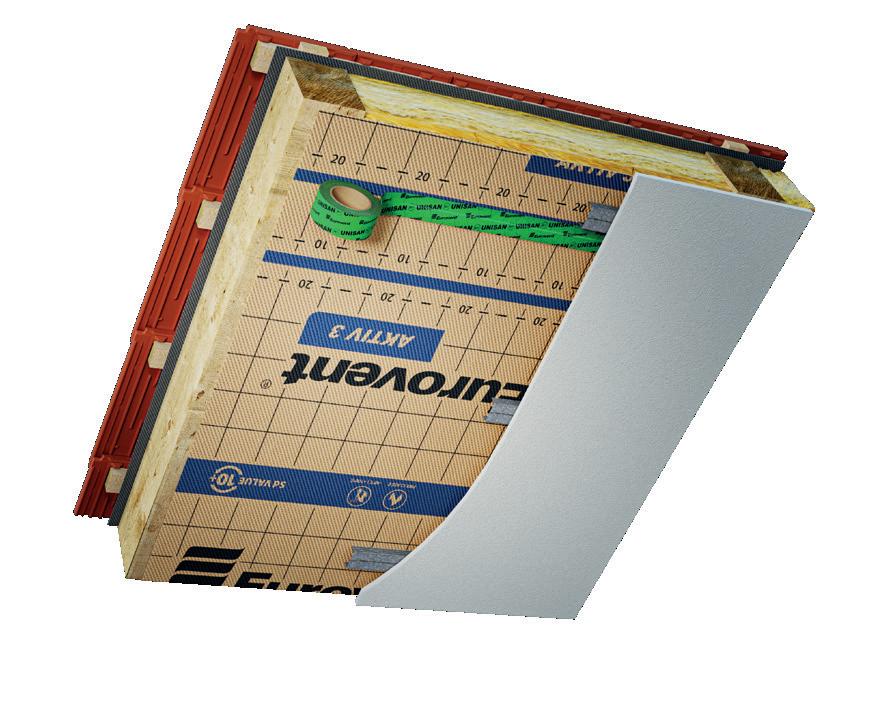

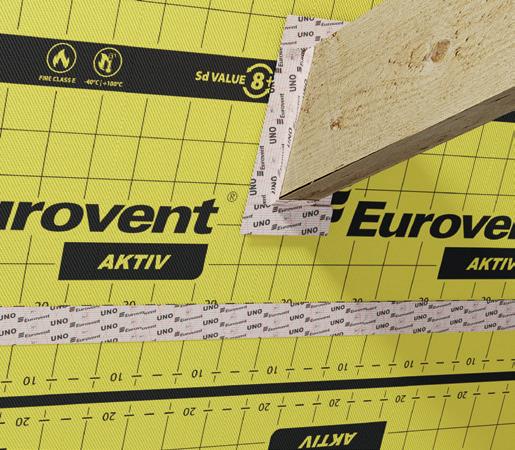

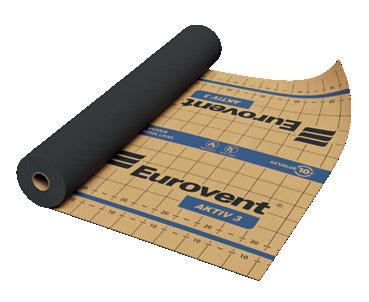

AKTIV 3

Active vapour control membrane

• Three-layer active vapour control membrane.

• Designed to prevent condensation.

• Variable sd value of ca.2-16 m

• The active properties of the membrane support moisture removal depending on the hygrometric conditions of the layers in construction.

• Used in roofs, walls and ceilings in timber frame, masonry, prefabricated, modular and passive buildings.

• Available with two adhesive tapes - SYSTEM SK2.

ca. 140 g/m2 ca. 10 m 1,5 m x 50 rm 50 Rolls 0.46 oz/ft2 0.35 US perm 5 ft x 164 ft 50 Rolls

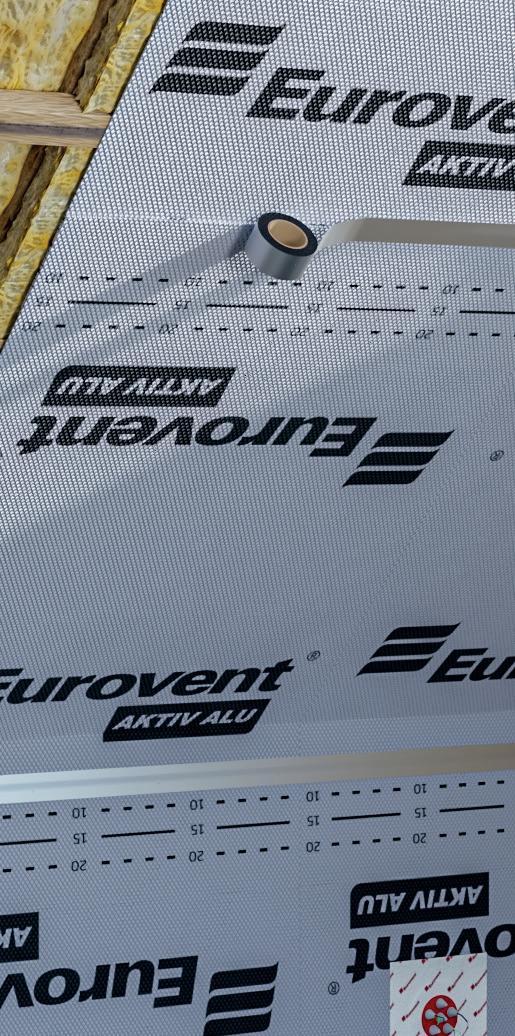

AKTIV ALU STANDARD ALU

Metalized vapour barrier foil Metalized vapour control membrane

• Three-layer aluminum vapour control membrane.

• It has a metallised surface thanks to this it reflects heat rays.

• Designed to prevent condensation, it also protects the thermal insulation from moisture.

• Suitable for pitched roofs, ceilings and walls in timber houses, passive houses and specialist building structures.

• Available with two adhesive tapes - SYSTEM SK2.

• Three layer vapour barrier foil reinforced with PE mesh.

• It has a metallised surface thanks to this it reflects heat rays.

• Thanks to PE reinforcement, it has high resistance to tearing

• Designed to prevent condensation, it also protects the thermal insulation from moisture.

• Used as a vapour barrier in roofs, walls and ceilings in timber frame, masonry, prefabricated and modular buildings.

ca. 150 g/m2 ca. 180 g/m2 ca. 150 m 1,5 m x 50 rm 50 Rolls ca. 110 g/m2 ca. 40 m 1,5 m x 50 rm 40 Rolls 0.49 oz/ft2 0.59 oz/ft2 0.023 US perm 5 ft x 164 ft 50 Rolls 0.36 oz/ft2 0.087 US perm 5 ft x 164 ft 40 Rolls

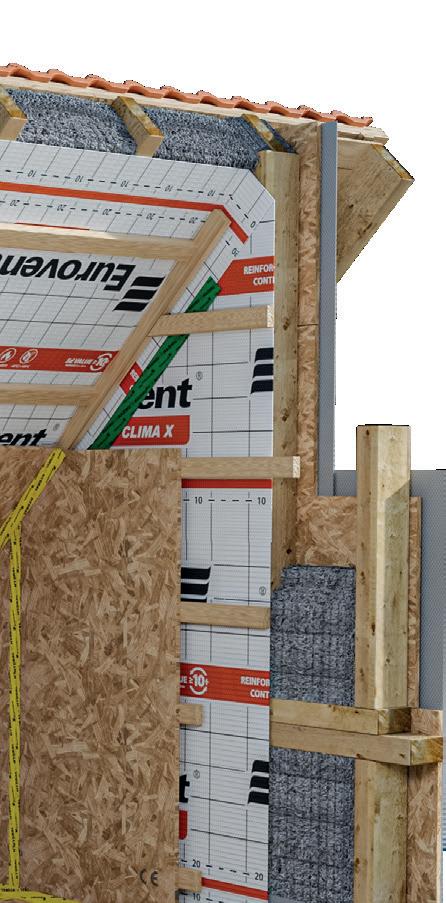

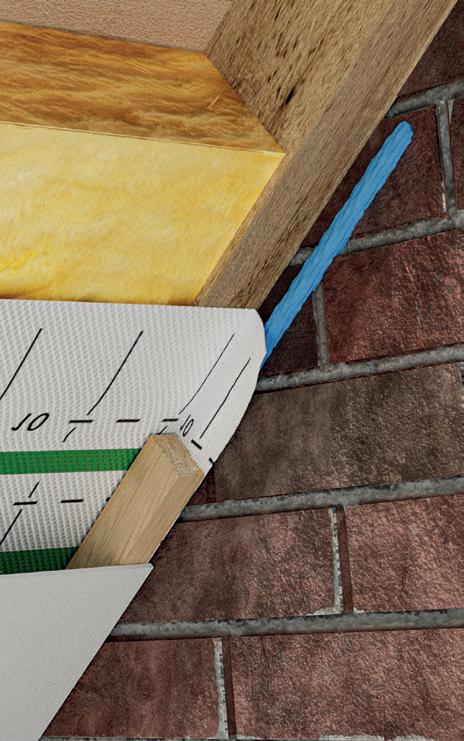

VAPOUR INSULATION SOLUTIONS

Vapour barrier layers for use in new construction, also for renovation work Vapour control membranes used to protect wall and attic as a layer to regulation of moisture level in construction. Moreover, they are is suitable in renovation of attic - thermo modernisation from the outer side on sarked and non-sarked roofs, as well as in case of roofs which require renovation or additional insulation and such a renovation is not possible to carry out from the inside of a building.

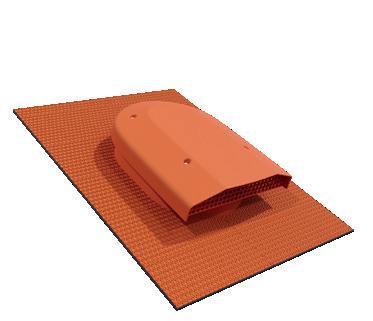

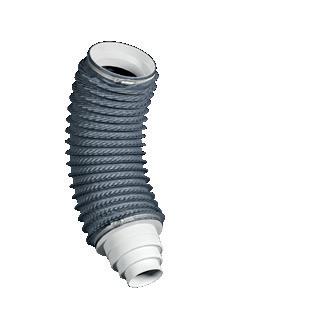

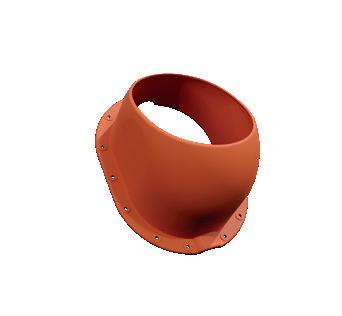

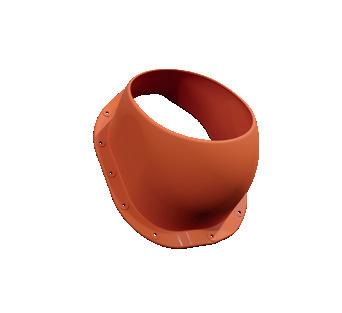

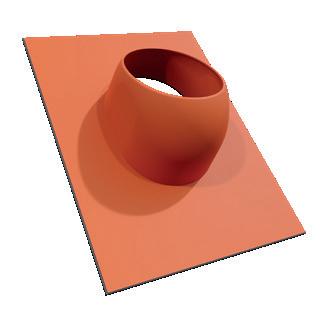

VENTING SYSTEM

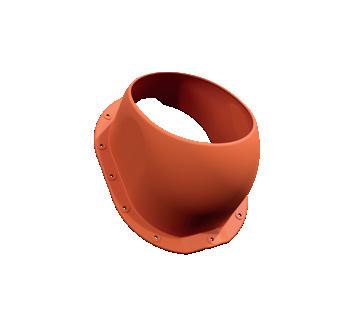

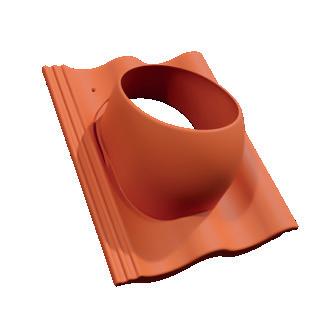

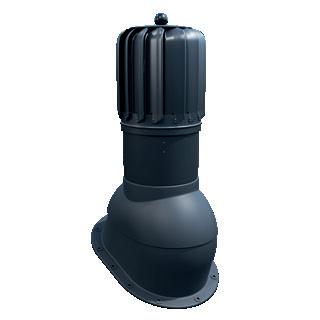

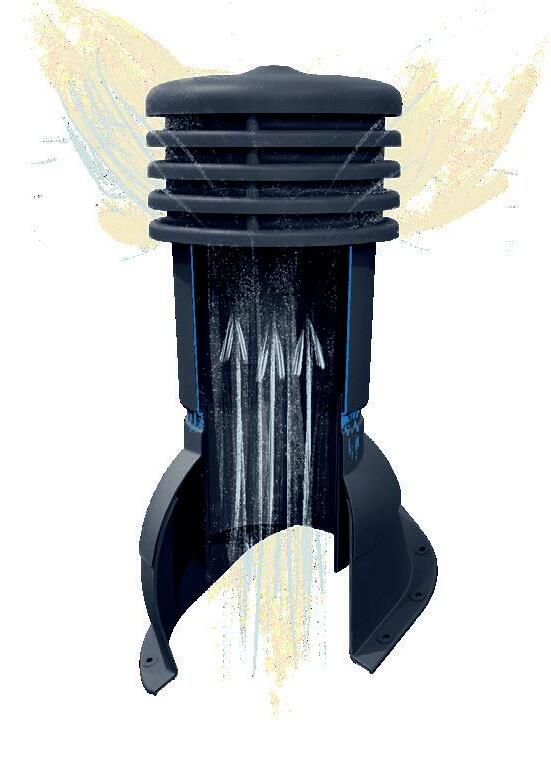

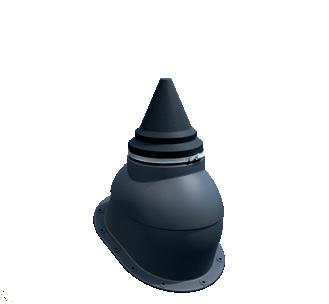

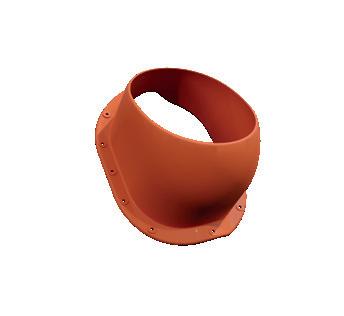

VENTING SYSTEM VENTOS X

Venting chimneys and accessories for the ventilation of residential and commercial buildings. In order to meet the requirements and needs of modern and energy-efficient construction, a ventilation system has been designed in accordance with the latest standards and experience

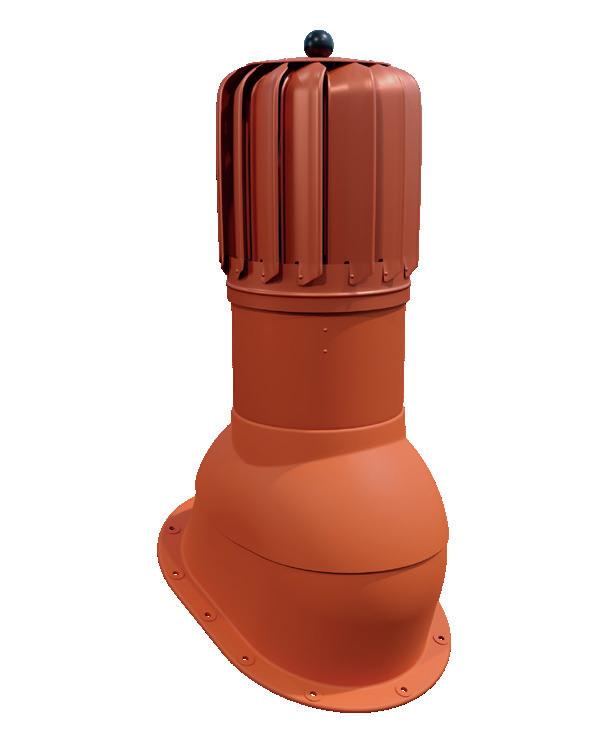

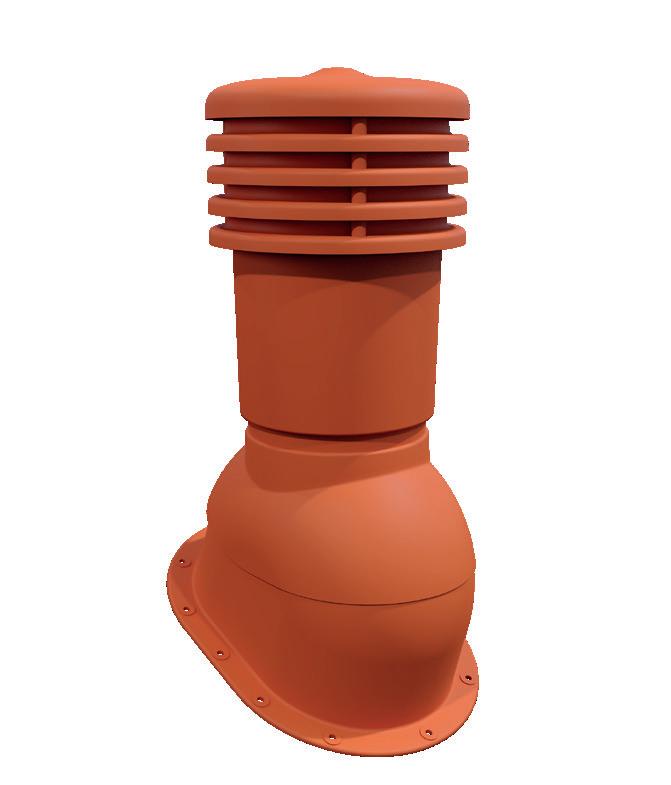

VENTOS X ROTO VENTOS X VENTOS X FLAT

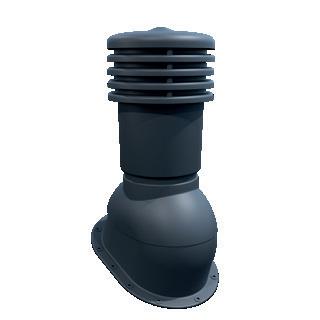

Venting chimney

• Venting chimney made of high-quality, uv resistance plastic.

• Connection diameter 150 mm.

• Anti-condensation system.

• The design of the vent chimney protects the ventilation duct and promotes ventilation.

• Ensures a proper chimney draught.

• According to PN-83/B-03430.

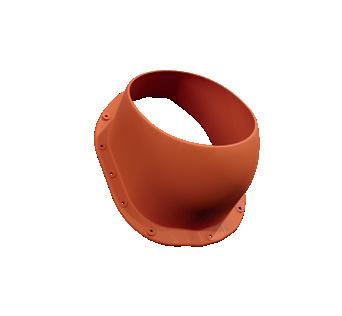

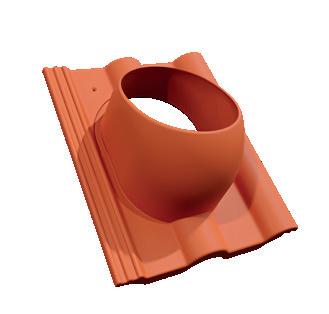

• Wide range of base plates adjusted to many different roof coverings.

150 mm

RAL: 8004; 3009; 8017; 6020; 8019; 9005; 7021; 7024

1 Set 36 Sets

5.9 in 1 Set 36 Sets

Roof vent Venting chimney with turbine

• Venting chimney made of high-quality, uv resistance plastic.

• Connection diameter 150 mm.

• Anti-condensation system.

• Construction of venting chimney supports ventilation using wind energy.

• It increases the correct chimney draught thanks to the used turbine.

• According to PN-83/B-03430.

• Wide range of base plates adjusted to many different roof coverings.

• Supports ventilation of the roof slope

• Provides temperature regulation under the roof covering.

• Allows ventilation of the roof slope in places where ventilation space is discontinued e.g. by chimney or roof window

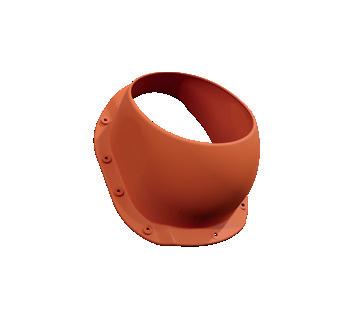

• Wide range of base plates adjusted to many different roof coverings.

150 mm

RAL: 8004; 3009; 8017; 6020; 8019; 9005; 7021; 7024

1 Set 36 Sets

5.9 in 1 Set 36 Sets

RAL: 8004; 3009; 8017; 6020; 8019; 9005; 7021; 7024 1 Set 36 Sets

1 Set 36 Sets

Certified by ITB.

FLEXOS X RING X SATTOS X

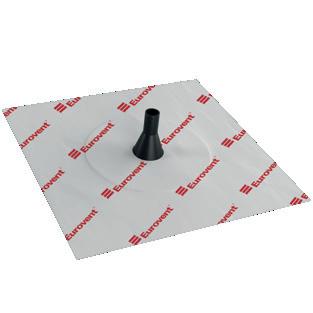

Roof antenna crossing

• Antenna adapter made of plastic and rubber cap.

• Resistant to weather conditions and uv radiation.

• Used for mounting antennas or masts with diameters from 15 mm to 90 mm on pitched roofs with slope from 5° to 45°.

• The wide range of base plates allows for tight installation on concrete tile roofing, profiled metal tiles ,flat sheets with standing seam finish and shingles.

Flexible connectors

• Flexible connection of the venting chimney to the ventilation system in the building.

• Recommended for difficult connections.

• Equipped with a ring to improve connection with the ventilation chimney.

• Wide range of diameters.

• Certified by PZH (National Institute of Hygiene), with hygienic certificate.

• Designed for use together with Eurovent® VENTOS X or VENTOS X ROTO

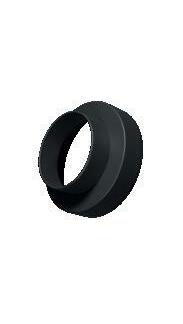

Reductions

• Reduction made from plastics

• Black: 150/110 mm White: 150/125 mm

• Reduction enables direct connection of the 150 mm duct with 110 mm or 125 mm diameter pipes.

• Designed for use together with Eurovent® VENTOS X or VENTOS X ROTO to reduce venting duct.

15-90 mm

RAL: 8004; 3009; 8017; 6020; 8019; 9005; 7021; 7024 1 Set 36 Sets

150/125/120/100/80 mm 60 cm 8 Pcs. 150/125 mm; 150/110 mm 1 Pcs.

5.9 in / 4.9 in / 4.7 in / 3.9 in / 3.15 in 2 ft 8 Pcs.

5.9 in/4.9 in; 5.9/4.3 in 1 Pcs. 0.6 in -3.5 in 1 Set 36 Sets

ROOF VENTILATION CHIMNEY

1 Anti-condensation

It features a system of anti-condensation holes through which the condensate drains outside the chimney. As a result, the Ventos X does not require additional insulation.

2 Ventilation

Thanks to its large and standard connection diameter, the chimney is suitable for gravity and mechanical ventilation, as well as for ventilation of sewage risers.

3 Quality

A classic look that matches all roof coverings. UV stabilisation ensures high colour durability.

4

Application

Angle adjustment from 5° to 45° allows quick and easy installation on tiles, sheet metal, flat and trapezoidal sheets and shingle roofs.

5

Profiled top

The profiled top of the VENTOS X chimney supports flue draught and protects against rainwater inflow. In the VENTOS X ROTO version, wind energy is used to further increase draught.

5

1 3 4

2

For profiled metal roofing

For profiled metal roofing

For profiled metal roofing

For profiled metal roofing

For profiled metal roofing

For profiled metal roofing

TAPES AND ADHESIVES

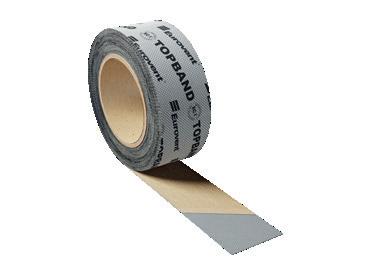

TOPBAND DUO PUR

One-sided sealing tape

• One-sided sealing tape.

• Made of polypropylene nonwoven and acrylic dispersion adhesive.

• High adhesive strength and tear resistance.

• Used for sealing and repairing roof membranes, housewraps and other polypropylene based products.

• Dedicated to seals the overlaps of roofing membranes and housewraps.

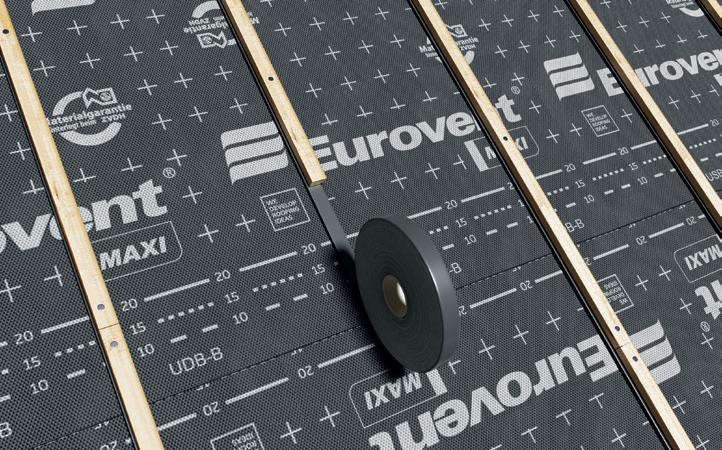

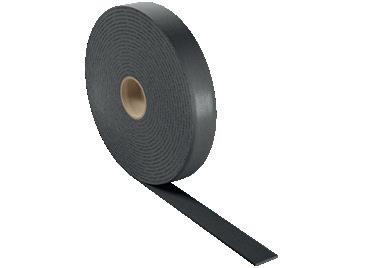

Insulating foam tape

• One-sided sealing tape

• Made of polyethylene foam with closed cells structure and coated on one side with adhesive based on acrylic dispersion

• Designed for sealing and insulating in roof works as well as general constructions.

• Elastic structure allows to align the counter-batten installed on the roof membrane or on housewrap.

• Insulates assembly punctures caused by fixing counter-battens or other materials to the structure, provides waterproofing.

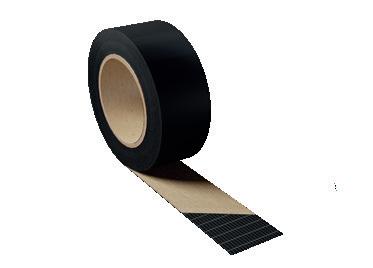

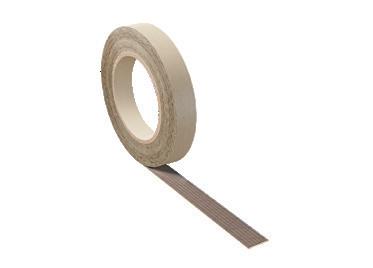

Double-sided tape

• Double-sided tape

• Made of polyester mesh, coated on both sides with special adhesive based on acrylic dispersion.

• High adhesive strength

• Used for joining vapour–barrier foils, roof membranes also housewraps and other construction products based on plastics.

• Recomended to sealing overlaps of vapour–barrier membranes and foils.

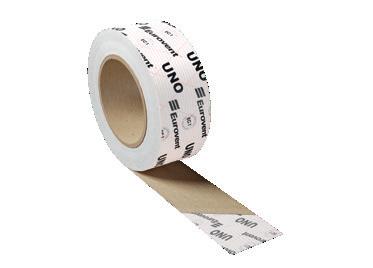

UNO UNO COLD UV

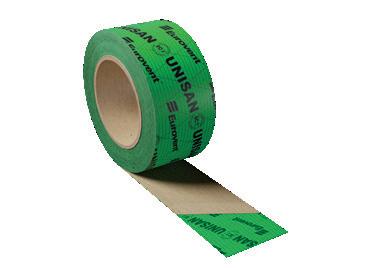

UNISAN

Reinforced sealing tape Cold & UV resistant sealing tape

• Single sided tape

• Made of PE foil reinforced with polyester film and a special adhesive based on acrylic dispersion.

• High adhesive strength.

• Used for the bonding and repair of roof membranes and foils, also bonding them to wood or metal elements

• Recommended for repairing all kinds of damages such as holes, cuts and installation punctures.

Universal, reinforced sealing tape

• Universal, single-sided tape

• Made of PE mesh, reinforced with polyester fiber and special acrylic dispersion adhesive.

• Excellent adhesive strength and resistance to ageing processes.

• For bonding and repairing vapour-barrier foils as well as roofing membranes, for fixing installation damages.

• Widely used in construction, including sealing OSB boards and other wood-based, metal, plastic or concrete building materials.

• Single-sided tape.

• Made of PE mesh, reinforced with polyester fiber and special acrylic dispersion adhesive, additionally UV-stabilised.

• Designed for the sealing and repairing roof membranes and housewraps, mainly in areas with increased UV exposure.

• Used also for insulation of technical passage and various plastic materials.

• Suitable for sealing at low temperatures from -10°C.

• High resistance to UV radiation – 12 months.

x

mm x 25 rm

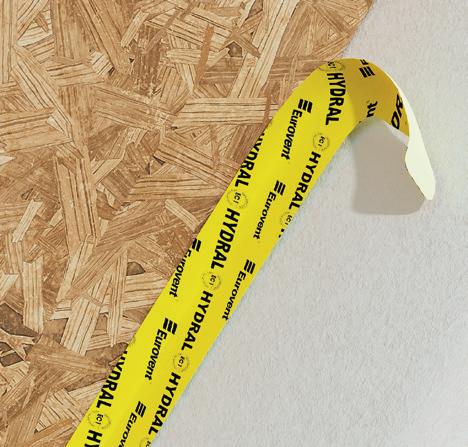

HYDRAL

Assembly sealing tape

• Single-sided assembly tape.

• Made of waterproof paper and a special glue based on acrylic dispersion.

• Solvent – free and chlorine – free.

• Designed for sealing joints of OSB boards, wood-based materials and plaster boards.

• Used for gluing and repairing foils and vapour-barrier membranes.

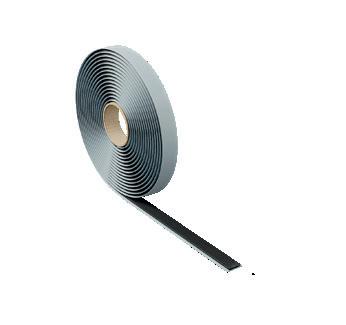

BUTYL

Double-sided tape

• Double-sided, solvent-free tape.

• Made on the basis of butyl with a separating silicon paper layer.

• Used for joining and sealing vapour-barrier, roof and foundation foils and other construction products.

• Provides grip in difficult weather conditions.

• Flexible, adaptable to structural movements.

• Strongly and permanently bonds the material, ensures a perfect seal of the joint.

• Recommended for sealing rough surfaces.

BUTYL PRO

Double-sided tape

• Double-sided, solvent-free tape.

• Made on the basis of butyl with a separating silicon paper layer.

• Used for joining and sealing vapour-barrier, roof and foundation foils and other construction products.

• Provides grip in difficult weather conditions.

• Flexible, adaptable to structural movements.

• Strongly and permanently bonds the material, ensures a perfect seal of the joint.

• Recommended for sealing rough surfaces.

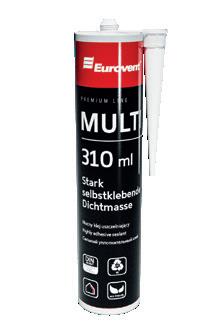

MULTI

General purpose adhesive

• Strongly adhesive.

• Solvent-free and odourless general purpose adhesive.

• Ideal for sealing vapor insulation membranes and foils inside buildings.

• Strongly resistant to aging.

• Flexible and stretchable, susceptible to building movements - dilatation sealing.

• Recommended for sealing membrane to wall or floor joints.

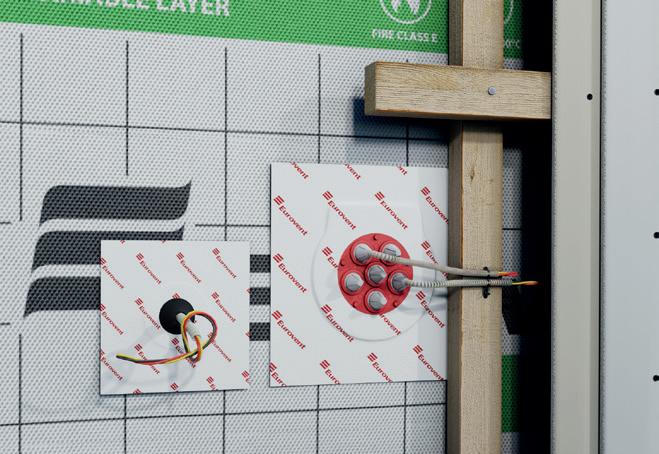

MINI SEAL MULTI SEAL

• Self-adhesive sealing collar.

• Designed for sealing cable penetrations through building partitions.

• Dedicated to sealing of all kinds of small diameter cables mounted in building partitions, most often as elements of electrical and control installations.

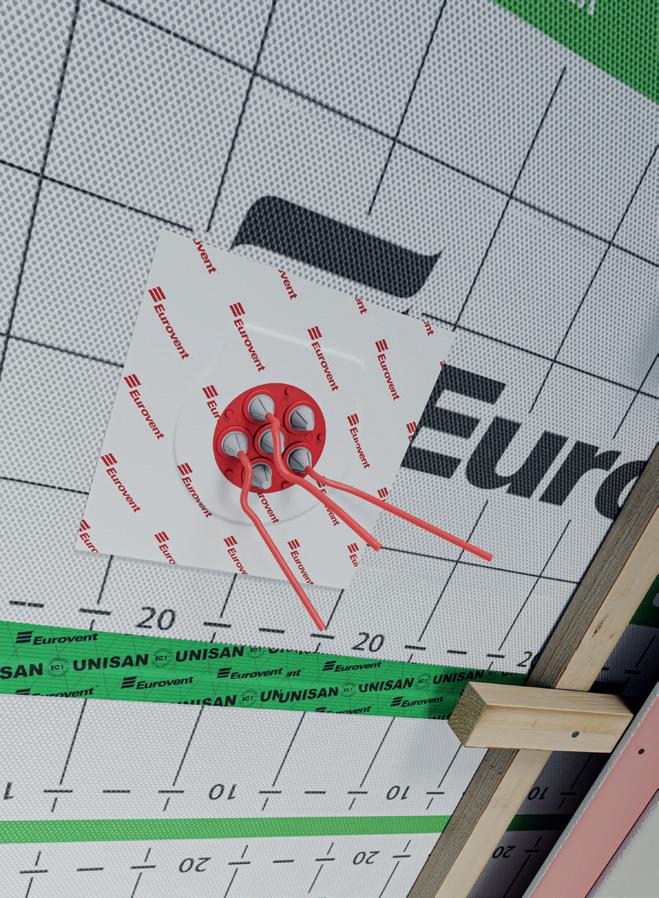

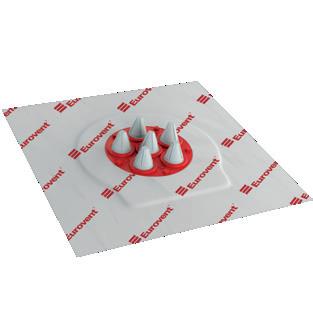

• Self-adhesive sealing collar.

• Designed for sealing multiple cable penetrations through building partitions.

• Dedicated to multiple cables mounted in building partitions, most often as elements of electrical and control installations.

• It has 6 cable entry points.

WINDOW TAPES

WINDOW

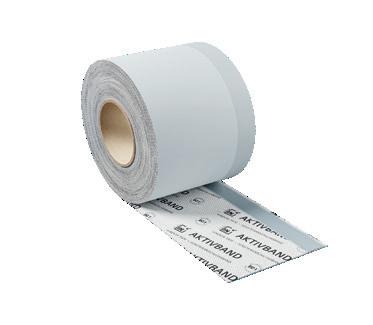

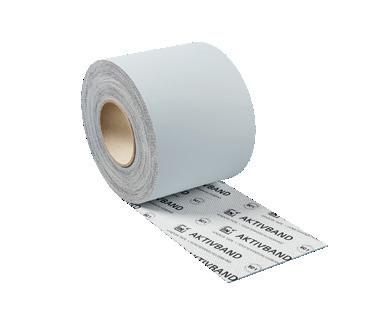

AKTIVBAND SK

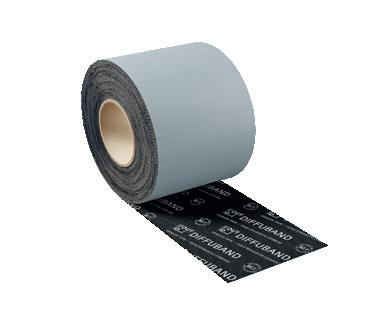

DIFFUBAND SK

Window tape - inside

• Interior vapour-barrier window tape.

• Suitable for the airtight insulation of window, blinds and doors.

• Made from special nonwoven fabric as well as vapour-barrier film, coated on one side with a layer of adhesive on the whole surface which facilitates it’s application to the window frame and to the wall.

• Does not require extra adhesive or preparation for grounds priming.

• Exterior vapour-permeable window tape.

• Suitable for the airtight insulation of window, blinds and doors.

• Made from special nonwoven fabric, coated on one side with a layer of adhesive on the whole surface which facilitates its application to the window frame and to the wall.

• Does not require extra adhesive or preparation for grounds priming.

Window tape - outside 100 mm x 25 rm 150 mm x 25 rm >5°C 6 Rolls 1 Roll 288 Rolls 240 Rolls 100 mm x 25 rm 150 mm x 25 rm >5°C 6 Rolls 1 Roll 288 Rolls 240 Rolls 3.9 in x 82 ft 5.9 in x 82 ft 41°F 6 Rolls 1 Roll 288 Rolls 240 Rolls 3.9 in x 82 ft 5.9 in x 82 ft 41°F 6 Rolls 1 Roll 288 Rolls 240 Rolls

AKTIVBAND SK2 EPDM PRO

DIFFUBAND SK2

Window tape - inside External sealing tape

• Interior vapour-barrier window tape.

• Suitable for the airtight insulation of window, blinds and doors.

• Made from special nonwoven fabric as well as vapour-barrier film, coated on one side with a layer of adhesive on the whole surface which facilitates it’s application to the window frame and to the wall.

• Does not require extra adhesive or preparation for grounds priming.

• Additional adhesive stripe (SK2)

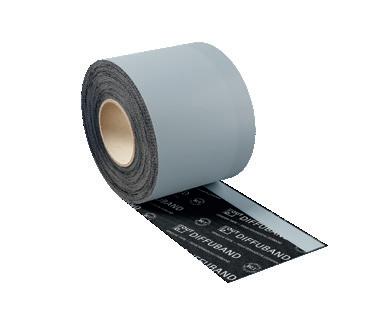

Window tape - outside

• Exterior vapour-permeable window tape.

• Suitable for the airtight insulation of window, blinds and doors.

• Made from special nonwoven fabric, coated on one side with a layer of adhesive on the whole surface which facilitates its application to the window frame and to the wall.

• Does not require extra adhesive or preparation for grounds priming.

• Additional adhesive stripe (SK2)

• External sealing tape from synthetic rubber of a structure increasing adhesiveness.

• Used for outside vertical and horizontal damp proof insulation.

• For sealing connections between doors, windows, windowsills, facades and a building construction.

• Recommended for insulation of terraces and balconies areas especially in the places exposed to increased moisture activity.

• May be applied in places of direct contact with base surface.

100 mm x 25 rm 150 mm x 25 rm >5°C 6 Rolls 1 Roll 288 Rolls 240 Rolls 1,1 mm 100; 150; 200 mm x 25 rm 300; 400; 500 mm x 25 rm 4 Rolls 2 Rolls 100 mm x 25 rm 150 mm x 25 rm >5°C 6 Rolls 1 Roll 288 Rolls 240 Rolls 3.9 in x 82 ft 5.9 in x 82 ft 41°F 6 Rolls 1 Roll 288 Rolls 240 Rolls 0.04 in 3.9; 5.9; 7.9 in x 82 ft 11.8; 15.8; 19.7 in x 82 ft 6 Rolls 2 Rolls 3.9 in x 82 ft 5.9 in x 82 ft 41°F

6 Rolls 1 Roll 288 Rolls 240 Rolls

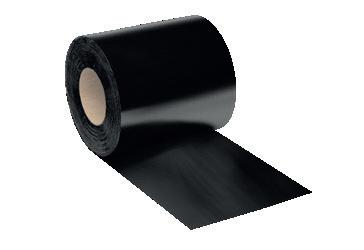

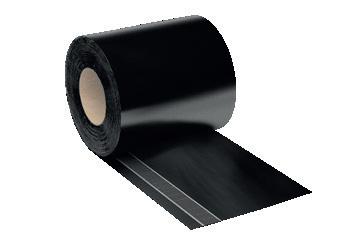

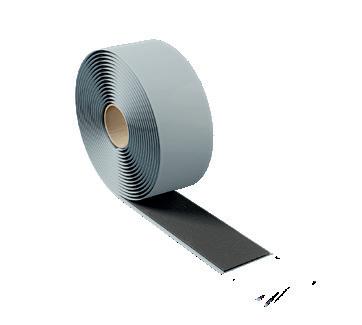

EPDM PRO SK

External sealing tape

• External sealing tape from synthetic rubber of a structure increasing adhesiveness.

• Used for outside vertical and horizontal damp proof insulation.

• For sealing connections between doors, windows, windowsills, facadesn and a building construction.

• Recommended for insulation of terraces and balconies areas especially in the places exposed to increased moisture activity.

• May be applied in places of direct contact with base surface.

• Additional adhesive stripe (SK)

1,1 mm 100; 150; 200 mm x 25 rm 300; 400; 500 mm x 25 rm 4 Rolls 2 Rolls 0.04 in 3.9; 5.9; 7.9 in x 82 ft 11.8; 15.8; 19.7 in x 82 ft 6 Rolls 2 Rolls

Tape Width [mm] Slit size [mm] Roll length [rm] Box

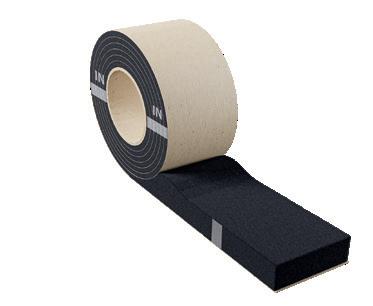

COMPRE 300 COMPRE 600

Expanding tape Expanding tape

• Expanding tape made of flexible polyurethane foam soaked with modified acrylic.

• Flammability class B2.

• Sealing class ≥ 300 hPa - BG2.

• Suitable for the installation of windows, doors and garage doors.

• Moreover, for sealing holes, cracks and grouts in roofs, windows and facades.

• It is recommended to protect it against long lasting activity of atmospheric factors.

• Especially recommended for the insulation of grouts in constructions with a jamb.

• Insulates against moisture, wind, rain, cold and acoustically.

10/2-3 10 2-3 12,5 48 15/2-3 15 2-3 12,5 32 20/2-3 20 2-3 12,5 24 15/3-6 15 3-6 10 32 20/3-6 20 3-6 10 24 15/4-8 15 4-8 8 32 20/4-8 20 4-8 8 24 15/5-10 15 5-10 8 32

20/5-10 20 5-10 8 24 15/7-12 15 7-12 6 32 20/7-12 20 7-12 6 24 25/7-12 25 7-12 6 19 30/7-12 30 7-12 6 16 20/9-15 20 9-15 4,3 19 25/9-15 25 9-15 4,3 19 30/9-15 30 9-15 4,3 16 40/10-18 40 10-18 4 18 30/14-24 30 14-24 4 16 40/14-24 40 14-24 4 12

• Expanding tape made of flexible polyurethane foam soaked with modified acrylic.

• Flammability class B1.

• Sealing class ≥ 600 hPa - BG1.

• Suitable for the installation of windows, doors and garage doors.

• Also for technical sealings in facade, windows, doors and roofs.

• Resistant to heavy rains as well as to UV radiation, does not require protection against the activity of atmospheric factors.

• Insulates against moisture, wind, rain, cold and acoustically.

• Especially recommended for frame construction, passive houses and for constructions with a jamb.

> 5°C black; grey > 300 hPa

Eurovent® COMPRE 600 Used as waterproof and windproof sealings in prefabricated elements built from concrete, metal and wood, clinker facades, as a joining of shutterings, or a sealing of outer joints. It is also suitable as an insulation of slits by window, door joinery, as well as in constructions with jamb. The tape in class > 600 hPa does not require to be covered after its installation, as it is completely resistant to long-lasting UV radiation.

Eurovent® COMPRE 600 2 Wall 3 Construction

Eurovent®

Fire classB

Inside Active vapour-barrier protects against moisture.

Outside

COMPRE 3W

Expanding tape

• Multifunctional expanding tape made of flexible polyurethane foam soaked with synthetic resin.

• Flammability class B1.

• Sealing class ≥ 600 hPa.

• Resistant to atmospheric factors and UV radiation.

• Dedicated for the installation of windows, doors and garage doors.

• Also for sealing grouts, gaps and installation cracks.

• Ensures thermal and acoustic insulation, insulates against moisture, wind and rain.

• Replaces installation foam and window tapes when installing windows, doors and garage doors too.

Wind and rain insulation, sealing ≥ 600 hPa.

Middle

Thermal and acoustic insulation up to 59 db. Filling of joints, elimination of thermal bridges.

› Technical data Eurovent® COMPRE 3W

Tape Window frame [mm] Width [mm] Slit size [mm] Roll length [rm] Box 64/5-10 70 64 5-10 8 7 74/5-10 80 74 5-10 8 6 84/5-10 90 84 5-10 8 5 64/10-20 70 64 10-20 6 7 74/10-20 80 74 10-20 6 6 84/10-20 90 84 10-20 6 5

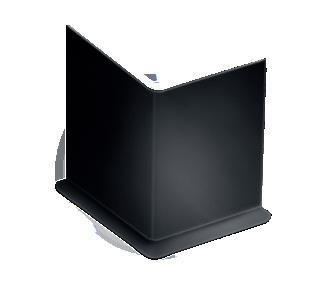

CORNER PRO

Sealing coin

• Sealing coin is used as a sealing element of membrane and foil joinings in doors and windows coignes.

• Recommended for frame and modular constructions, as a complementary element of insulating systems.

CERTIFICATE AND TEST

Our products have been tested under the most strict requirements, obtaining a number of certificates to confirm their high quality and performance.

Blower door test - measurement by pressure method. Measures the thermal performance of buildings and determines the air permeability of a building. According to ISO 9972:2015-10

EEA quality mark - CE

TU Berlin MPA HANNOVER

ÉMISSIONS

KOMO quality mark Hygienic Certificate

Airtight standard DIN 4108/7

All the information has been advertised in good faith, on the basis of our best knowledge, research and a whole range of experiences.

The information does not constitute any sales proposal within the meaning of Civil Code.

We reserve the right of possible technical changes as well as certain mistakes and errors in the print.

The reprint edition, also in the form of extracts, only with the Eurosystem Polska Sp. z o.o. Sp. K consent.
