Etman Wall Box

ELECTRICAL INSTALLATION SYSTEMS

CONTENTS OUR COMPANY

4

ACCREDITATIONS & CERTIFICATIONS

8

CORRUGATED PIPES

10

ELECTRICAL INSTALLATION BOXES

16

UNIVERSAL SERIES

18

SINGLE

22

- Wall boxes

24

- Junction boxes

29

- Multi boxes

32

- Pocket boxes

33

- Spacers

35

ONE-AND-A-HALF

36

- Wall boxes

38

- Pocket boxes

42

- Multi boxes

43

DOUBLE

44

- Wall boxes

46

CEILING

48

- Ceiling/junction boxes

50

BIG BOXES

52

- Boxes

53

ACCESSORIES

54

CONCRETE BOXES

56

- Boxes for concrete casting

60

- Boxes for solid walls

65

SIMPLE SERIES

66

- Single wall boxes

68

- Junction boxes

70

LIME SERIES

72

- Outlet boxes

76

- Junction boxes

78

- Bushing insulators

80

- Accessories

81

TECHNICAL DRAWINGS

84

INSTALLATION MATERIALS

3

OUR COMPANY

NORWAY

FOUNDED IN 1990, ETMAN HAS ESTABLISHED ITSELF AS A TRAILBLAZER IN THE PROFESSIONAL ELECTRICAL PRODUCTS MARKET.

With our roots firmly planted in Oslo, Norway, and having gone public in 2007, we have evolved into one of the most distinguished international electrical organisations, specialising in the research, development, production, and sales of a diverse range of electrical, electronic, and lighting solutions.

Over the past three decades, we have meticulously crafted our brand’s presence across Norway, Sweden, and Finland, mirroring the dynamic growth of the Nordic electrical market. Today, Etman boasts an impressive network of 4 distribution companies, 13 stores in the Nordic countries, and a dedicated team of nearly 600 employees, spreading our reach throughout Europe and China.

4

ETMAN INTERNATIONAL

Etman International’s dedication to delivering safer, more energy-efficient, and intelligent electrical products has won the trust of professional consumers and end-users and positioned us uniquely in the global market. We take pride in being a brand that has gained recognition from professional electricians around the world, ranking alongside well-known global giants.

As we continue to innovate and lead, our vision remains clear – to empower the professional market with electrical solutions that are not just state-of-the-art but also echo our deep-rooted values of safety, environmental protection, and energy efficiency.

OUR LOCATIONS

CHINA

LITHUANIA

SWEDEN Etman has a well established global network comprising of two manufacturing hubs, four distribution companies, 13 stores and a dedicated team of nearly 600 employees.

FINLAND

INSTALLATION MATERIALS

5

WHY CHOOSE ETMAN INTERNATIONAL? Etman is a distinguished Nordic company with more than 35 years of expertise in the field. We proudly manufacture over 3000 high-quality electric and electronic products, continually investing in the latest technology to advance our market position.

Our commitment extends beyond manufacturing; we collaborate closely with other companies on OEM/ODM projects, helping them to enhance their products through innovative design solutions and advanced technology, such as our leading-edge USB fast charging modules. Trust Etman to deliver not only products but also strategic partnerships that empower and innovate, ensuring you stand out in the competitive market.

MILESTONES 2007 Etman International ASA was listed on the Norwegian Stock Market. The same year, it opened its first professional store in Trondheim, Norway.

1990 Etman founded by James Xu. Together with Hans Peter from Norway, they shaped the business it is today.

6

ETMAN INTERNATIONAL

1996

2013

Etman partnered up with IKEA. It was producing extension cords, sockets and power socket adaptors.

Etman Distribution AB in Sweden was established, introducing Etman’s products to professional and DIY markets.

CORE VALUES INTEGRITY Led by honesty, transparency and reliability, ensuring ethical behaviour and maintaining trust in every step.

PASSION FOR CHALLENGES We approach every challenge with enthusiasm and innovative thinking, embracing obstacles as opportunities.

SOLUTION SEEKING We find creative, resourceful solutions, addressing problems with openmindedness and analytical thinking.

COST CONSCIOUSNESS Maintain efficiency and optimising resources while ensuring sustainability and focusing on value.

TOGETHERNESS Fostering collaboration, building strong, supportive, inclusive teams that work harmoniously and embrace diversity.

2015 Etman further expanded and founded Etman Distribution OY in Finland, supplying high quality products to the professional market and savvy DIYers alike.

2021 New modern building for Etman International ASA headquarters built in Egersund, Norway.

2018 Brand new distribution and manufacturing hub opened in Klaipeda, Lithuania, stocking all Egant products for the DIY and semi-professional markets.

2023 Etman Distribution Norway launched Etman’s first online store conveniently serving tradespeople and homeowners.

INSTALLATION MATERIALS

7

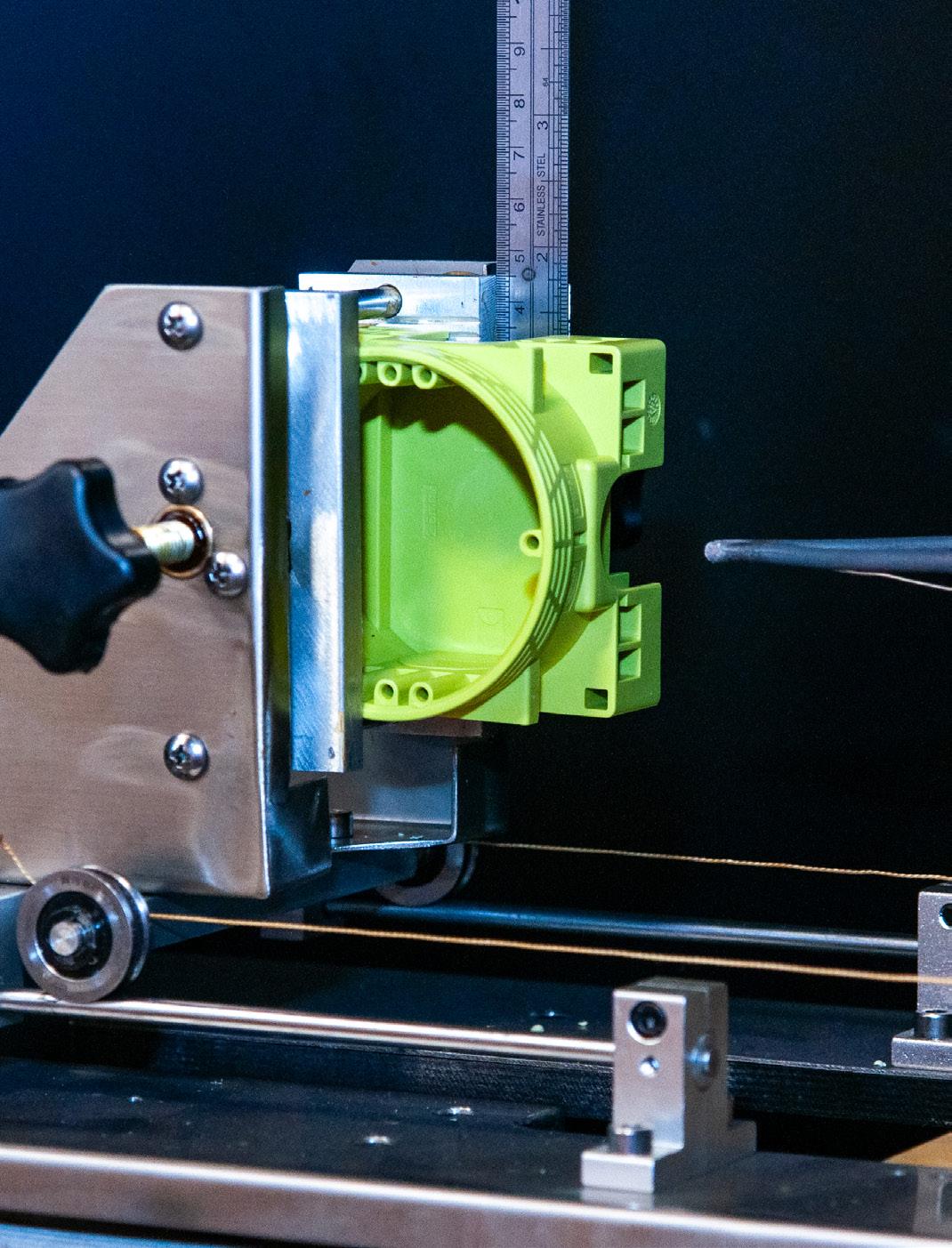

ACCREDITATIONS AND GLOBAL CERTIFICATIONS Etman is dedicated to ensuring that our products meet the stringent requirements set by the industry and various countries worldwide. To achieve this, we collaborate with international certification bodies such as Intertek, TUV, ISO, CE, RoHS, UKCA, Qi2, and many others. Our products undergo rigorous testing by these trusted organisations, ensuring they adhere to the highest standards of quality, safety, and performance. This commitment to working with respected certification bodies guarantees that our products not only comply with industry regulations but also meet the diverse needs of our global customer base, providing reliability and peace of mind.

8

ETMAN INTERNATIONAL

//EN STANDARD COMPLIANCE

//ISO CERTIFICATIONS

We ensure that all our products are meticulously designed to meet the strict requirements of current EN standards. This commitment guarantees safety, reliability, and high quality across its entire range, providing our customers with products that adhere to the highest European benchmarks.

Our organisation and the products are proudly certified according to ISO9001 and ISO14001, reflecting our commitment to quality management and environmental responsibility.

INSTALLATION MATERIALS

9

CORRUGATED PIPES

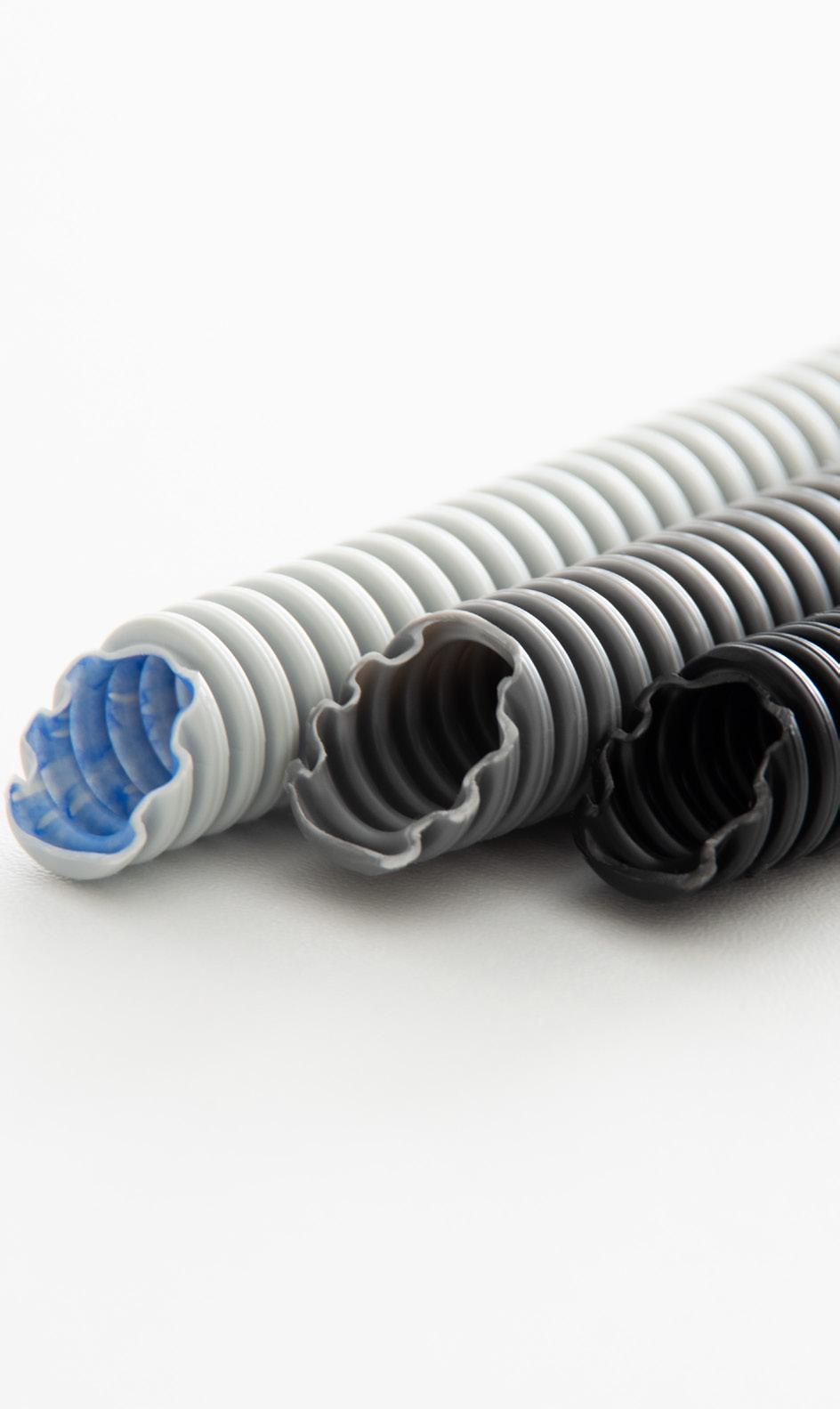

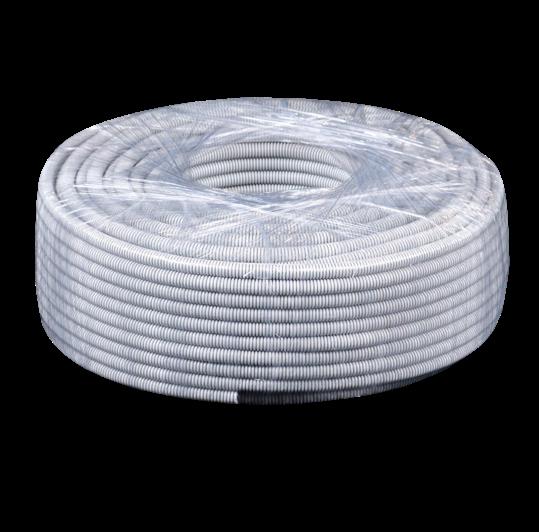

OUR CORRUGATED PIPES MEET THE RIGOROUS DEMANDS OF INDUSTRIAL AND DOMESTIC APPLICATIONS, OFFERING EXCEPTIONAL CABLE PROTECTION AND EASY INSTALLATION.

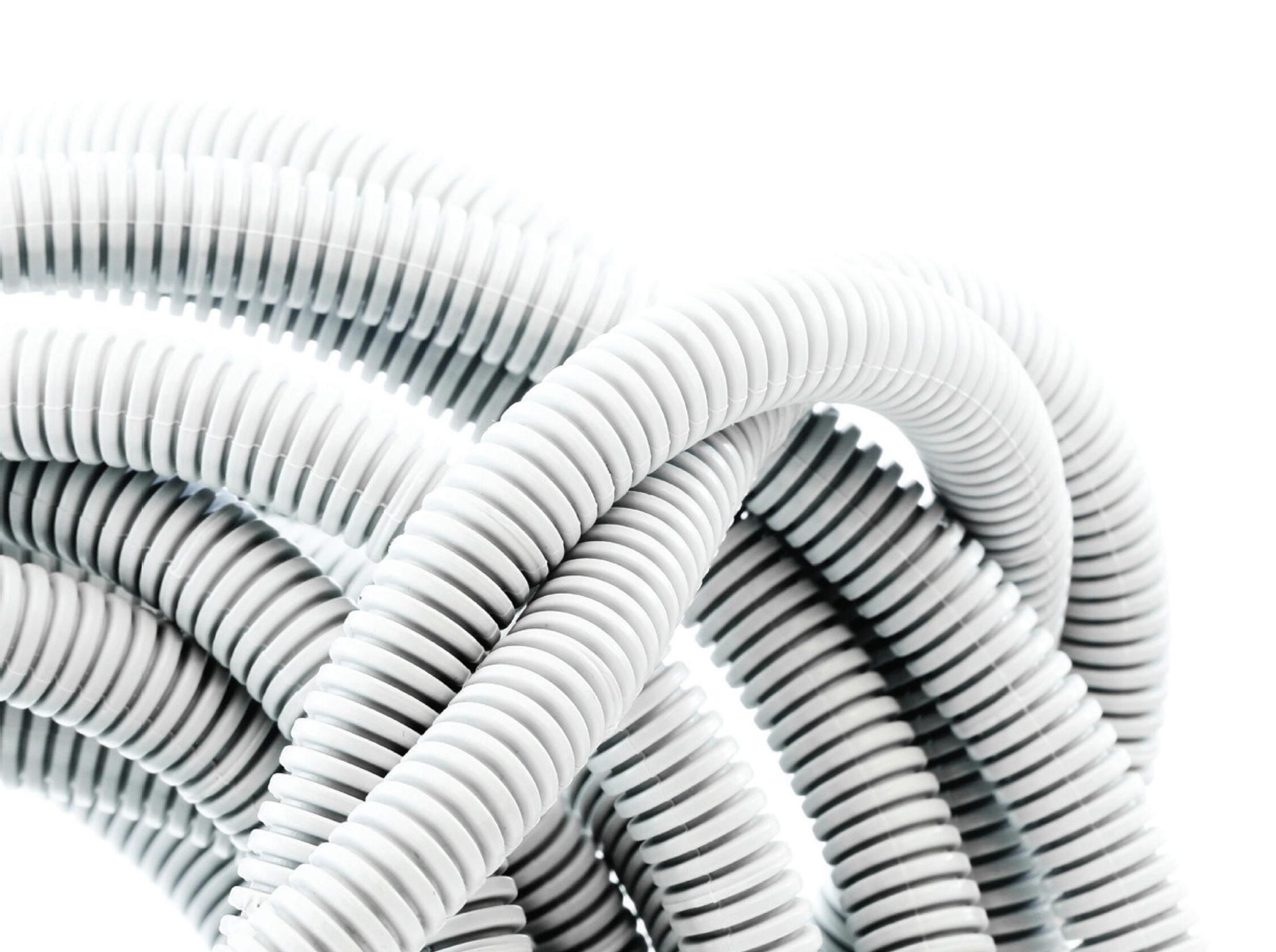

FLEXIBLE PACKAGING Our in-house fully automated corrugated pipe extrusion line ensures flexible packaging that meets diverse needs tailored to customer requirements. Standard lengths of 25m, 50m, and 100m rolls are available.

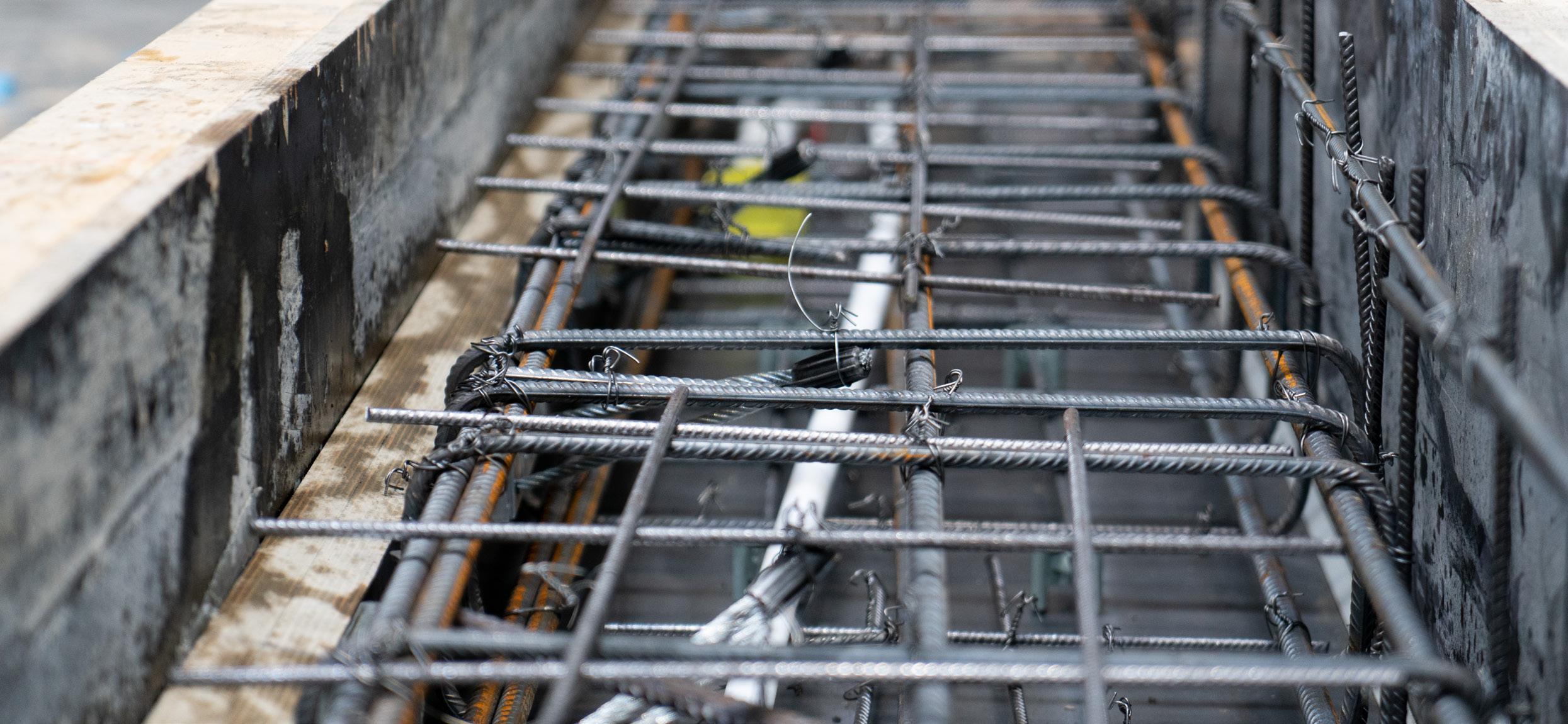

MULTIPLE APPLICATIONS Corrugated pipes are highly versatile, ideal for both domestic and industrial applications. They can be used in environments with increased fire risks, casted in concrete, or installed in cavity walls and ceilings.

10

ETMAN INTERNATIONAL

CO-EXTRUSION Our conduits can be manufactured with an inner layer that offers outstanding gliding properties, greatly improving wire threading and shortening installation times. This technology enhances the overall efficiency and functionality of our corrugated pipes.

INTERNATIONAL STANDARDS Our corrugated pipes adhere to international standards EN 61386-1 and EN 61386-22, ensuring top-tier quality and safety for cable protection. These standards provide consistent performance across a wide range of installation conditions.

1

2

3

1

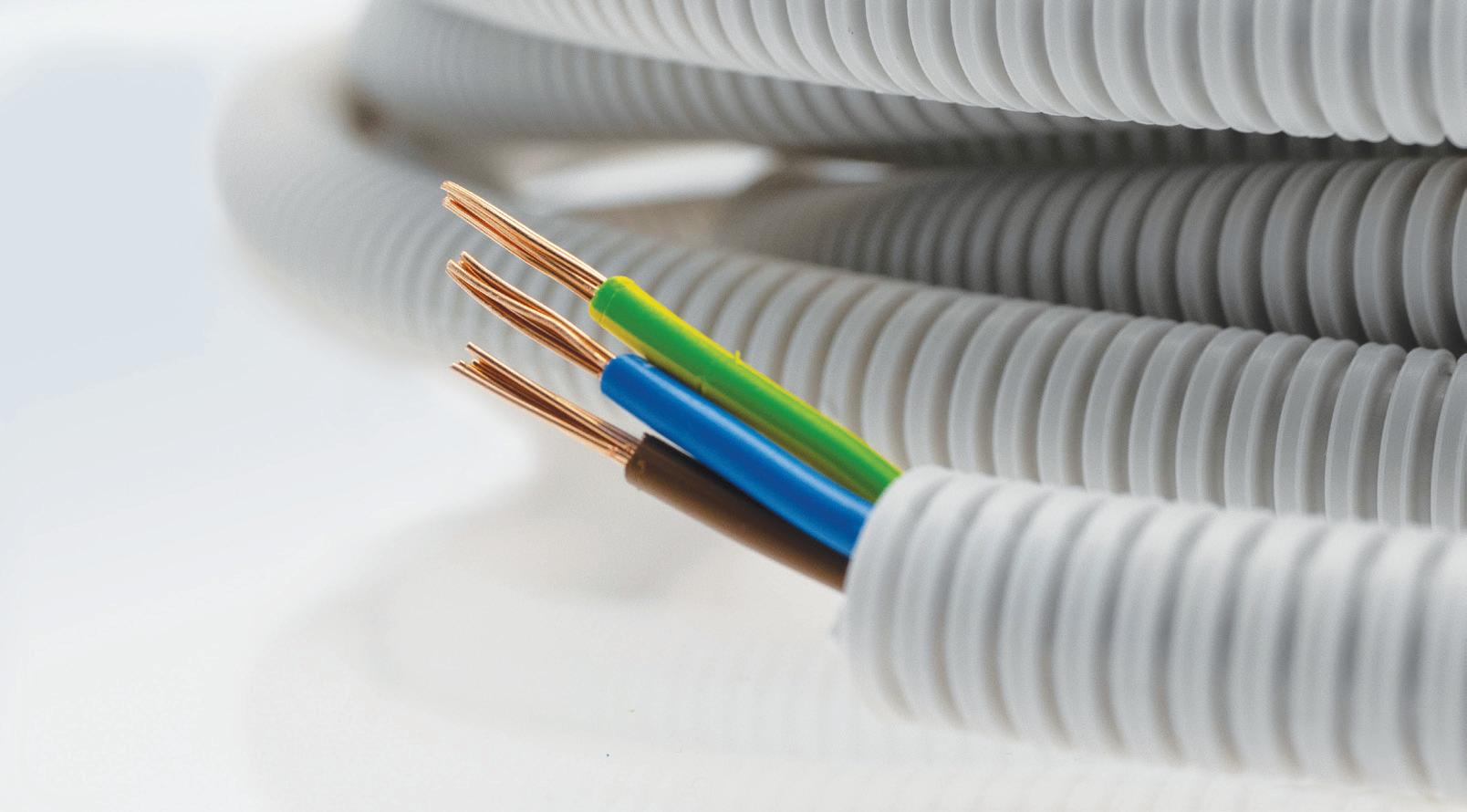

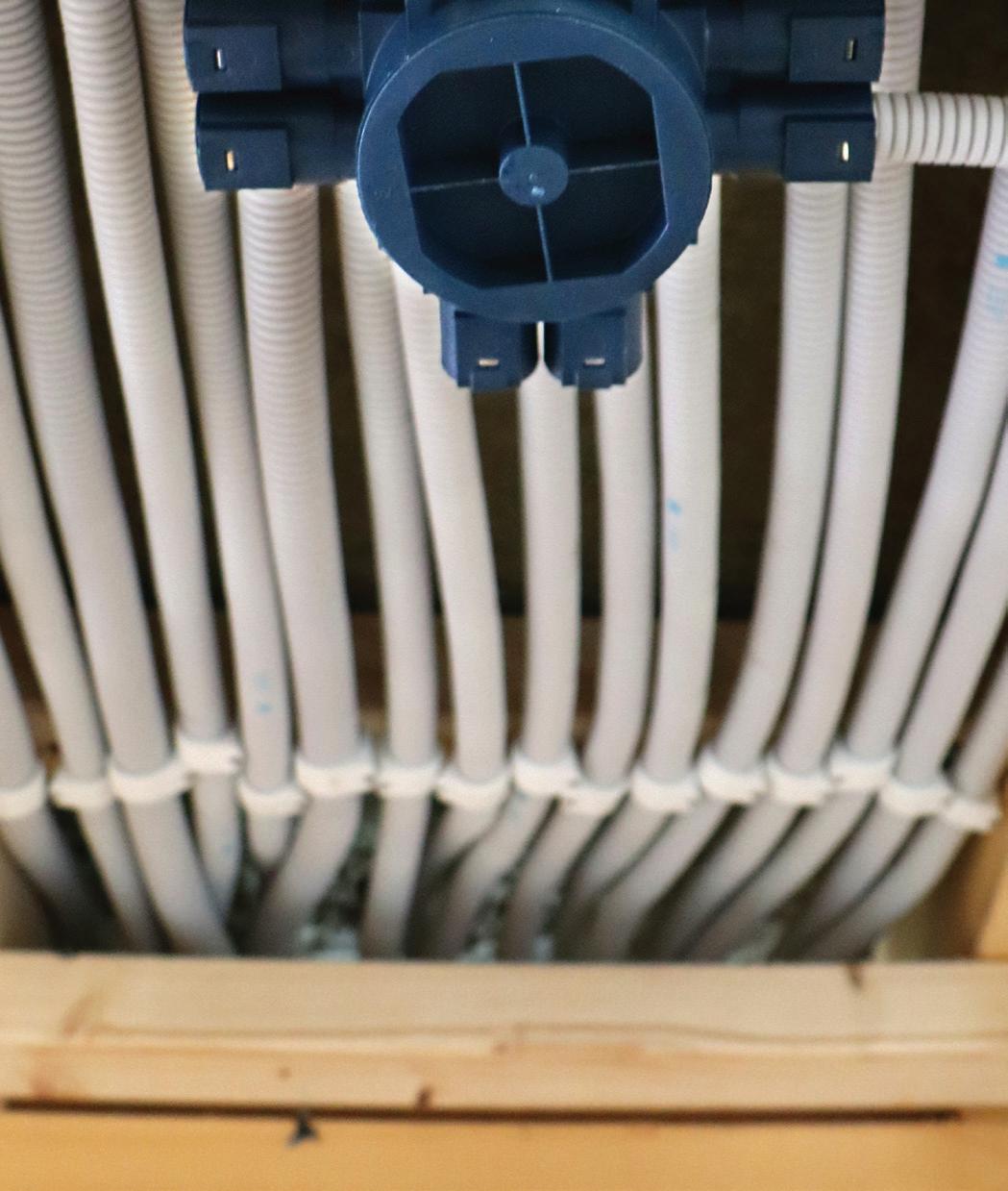

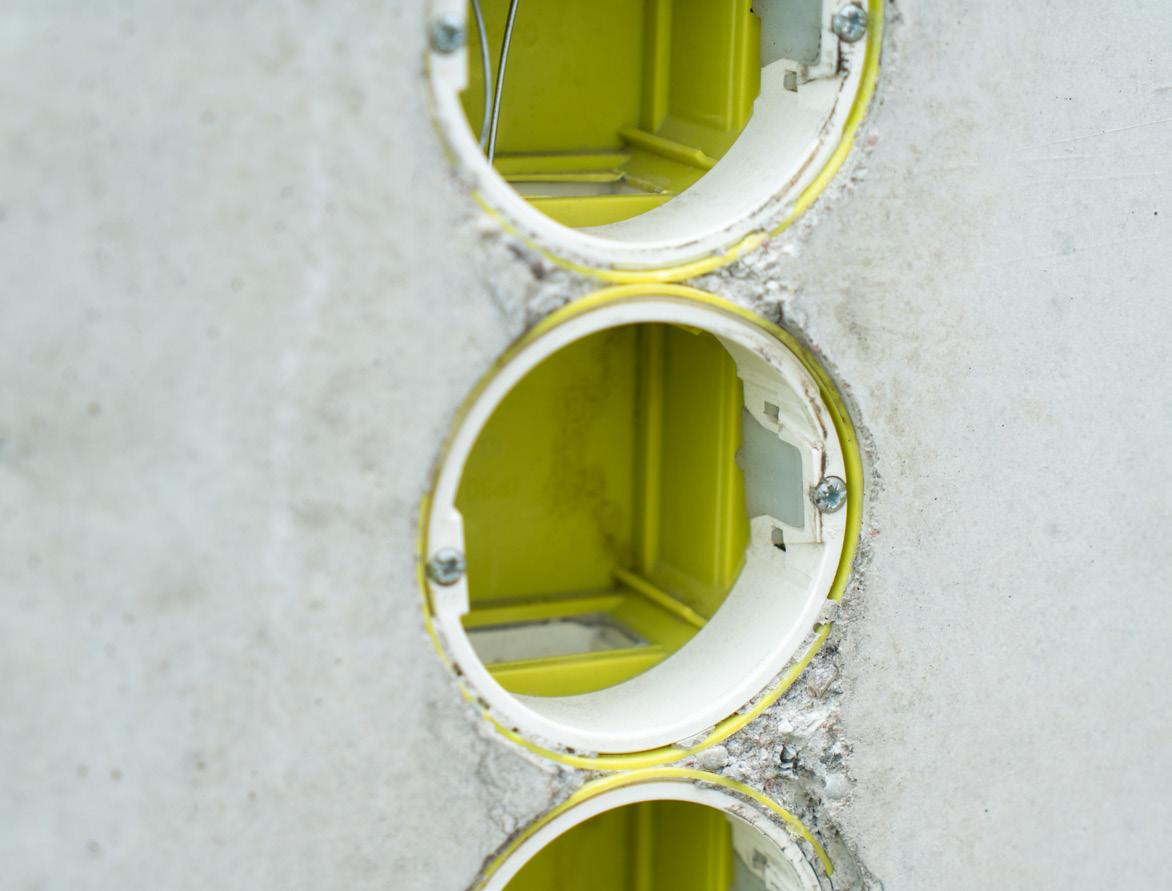

FULL INSTALLATION SYSTEM Corrugated pipes are compatible with our wall and concrete boxes.

2

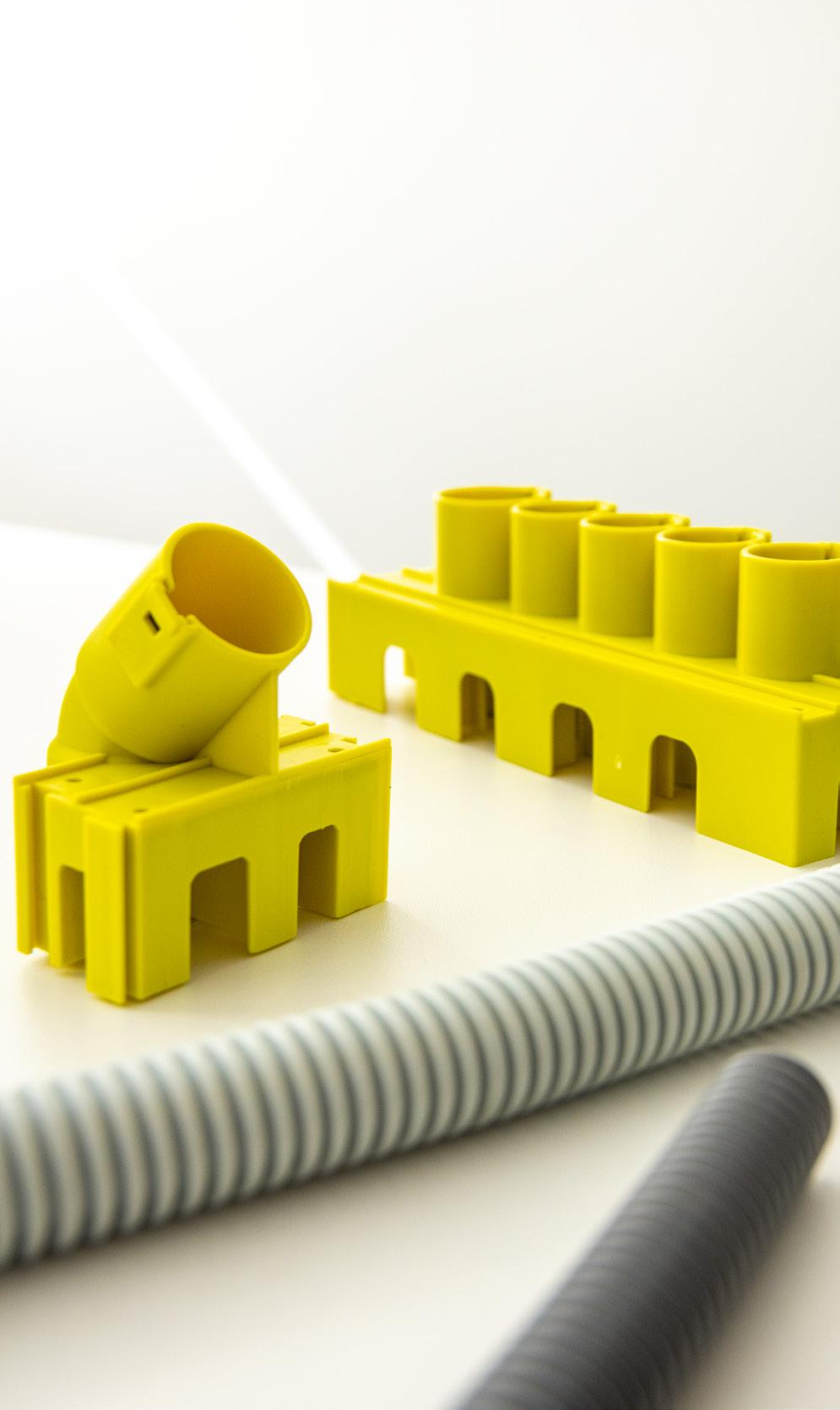

ACCESSORIES A wide range of accessories are available for a quick and easy installations.

3

PRE-WIRED OPTION Our pre-wired conduit options maximise safety by eliminating the risk of cable damage.

INSTALLATION MATERIALS

11

TECHNICAL INFORMATION

12

EN 61386-1

Made using 100% green energy

EN 61386-22

Compresion strength up to 1000N

Intertek Semko certified

Operating temperature -5°C - +90°C

Various colour options available

Made from polypropylene (PP)

LSFOH

Diameter up to 50mm

INTERTEK SEMKO CERTIFIED

HALOGEN-FREE

Our corrugated pipes have been certified by Intertek Semko, ensuring they meet rigorous quality and safety standards.

Our pipes are halogen-free, making sure they do not release toxic gases when exposed to heat or fire, promoting a safer environment.

SELF-EXTINGUISHING

UV-PROTECTED RANGE

The conduits are self-extinguishing, providing enhanced safety by preventing the spread of flames in case of fire.

The UV resistant range is available, offering long-lasting durability and performance even when exposed to prolonged sunlight.

ETMAN INTERNATIONAL

100% GREEN ENERGY

COMPRESSION STRENGTH

The pipes are produced using 100% green energy, emphasising our commitment to environmental sustainability.

The compression strength of our pipes reaches up to 1000N, providing robust protection against crushing and deformation under heavy loads.

ECO-FRIENDLY

WORKING TEMPERATURE

Our LSF0H (Low Smoke Flame Zero Halogen) pipes are ideal for installations in schools, hospitals, stations, museums & shopping centres.

Our pipes are designed to perform reliably in a wide range of temperatures, from -5 to +90 degrees Celsius.

INSTALLATION MATERIALS

13

CORRUGATED PIPES PRODUCT CODE

DESCRIPTION

WIRE

PACKAGING

GL100

empty

-

100 m

GL100LF

empty, low friction

-

100 m

GL100W

with wire puller

steel wire puller

100 m

GL100UV

empty, UV protected

-

100 m

GL101

empty

-

50 m

GL101W

with wire puller

steel wire puller

50 m

GL102

empty

-

25 m

GL111HF

prewired

3xH07Z1-R 1,5mm2, halogen free

100 m

GL111HFG25

prewired

3xH07Z1-R 1,5mm2, halogen free

25 m

GL111HFG50

prewired

3xH07Z1-R 1,5mm2, halogen free

50 m

GL111HFTW

prewired

3xH07Z1-R 1,5mm2, halogen free, twin

100 m

GL111P

prewired

3xH07V-R 1,5mm2, PVC

100 m

GL111PTW

prewired

3xH07V-R 1,5mm2, PVC, twin

100 m

GL112HF

prewired

4xH07Z1-R 1,5mm², halogen free

100 m

GL112HFTW

prewired

4xH07Z1-R 1,5mm2, halogen free, twin

100 m

GL112P

prewired

4xH07V-R 1,5mm2, PVC

100 m

GL112PTW

prewired

4xH07V-R 1,5mm2, PVC, twin

100 m

GL113HF

prewired

5xH07Z1-R 1,5mm2, halogen free

100 m

GL113HFTW

prewired

5xH07Z1-R 1,5mm2, halogen free, twin

100 m

GL113P

prewired

5xH07V-R 1,5mm2, PVC

100 m

GL113PTW

prewired

5xH07V-R 1,5mm2, PVC, twin

100 m

GL114HF

prewired

3xH07Z1-R 2,5mm2, halogen free

100 m

GL114P

prewired

3xH07V-R 2,5mm2, PVC

100 m

GL115P

prewired

4xH07V-R 2,5mm2, PVC

100 m

GL116P

prewired

1xH07V-R 6mm2, PVC

100 m

GL121HF

prewired

3xH07Z1-U 1,5mm2, halogen free

100 m

GL121HFG25

prewired

3xH07Z1-R 2,5mm2, halogen free

25 m

GL121HFG50

prewired

3xH07Z1-R 2,5mm2, halogen free

50 m

GL121HFTW

prewired

3xH07Z1-U 1,5mm2, halogen free, twin

100 m

GL121P

prewired

3xH07V-U 1,5mm², PVC

100 m

GL122HF

prewired

5xH07Z1-U 1,5mm², halogen free

100 m

GL122HFTW

prewired

5xH07Z1-U 1,5mm², halogen free, twin

100 m

GL122P

prewired

5xH07V-U 1,5mm2, PVC

100 m

GL123P

prewired

3xH07V-U 2,5mm2, PVC

100 m

GL131TP

prewired

TP90

100 m

GL132PR

prewired

PR 2x1,5mm²

100 m

GL133PR

prewired

PR 2x2,5mm2

100 m

GL134HF

prewired

CAT6 U/UTP, halogen free

100 m

GL134P

prewired

CAT6 U/UTP

100 m

GL135HF

prewired

LS 2x2,5 mm2, halogen free

100 m

GL136HF

prewired

ELQYB 2x1, halogen free

100 m

GL137HF

prewired

KNX/EIB 2x2x0,8, halogen free

100 m

GL138HF

prewired

LQXB 2x2x0,5, halogen free

100 m

GL139HF

prewired

ELQXB 4x2x0,5, halogen free

100 m

GL140HF

prewired

RQUB 2x0,75, halogen free

100 m

GL140HFPVUV100

prewired, UV protected 1xH1Z2Z2-K 4mm², halogen free

100 m

GL160HFPVUV100

prewired, UV protected 1xH1Z2Z2-K 6mm², halogen free

100 m

Ø16mm diameter

14

ETMAN INTERNATIONAL

PRODUCT CODE

DESCRIPTION

WIRE

PACKAGING

GL200

empty

-

100 m

GL200LF

empty, low friction

-

100 m

GL200UV

empty, UV protected

-

100 m

GL200W

with wire puller

steel wire puller

100 m

GL201

empty

-

50 m

GL201W

with wire puller

steel wire puller

50 m

GL202

empty

-

25 m

GL211P

prewired

7xH07V-R 1,5mm², PVC

100 m

GL212HF

prewired

7xH07Z1-R 1,5mm², halogen free

100 m

GL212HFTW

prewired

5xH07Z1-R 2,5mm², halogen free, twin

100 m

GL212P

prewired

3xH07V-R 2,5mm², PVC

100 m

GL213P

prewired

3xH07V-R 4mm², PVC

100 m

GL214P

prewired

3xH07V-R 6mm², PVC

100 m

GL221P

prewired

3xH07V-U 1,5mm², PVC

100 m

GL222P

prewired

5xH07V-U 1,5mm², PVC

100 m

GL223P

prewired

3xH07V-U 2,5mm2, PVC

100 m

GL224HF

prewired

5xH07Z1-R 2,5mm², halogen free

100 m

GL224P

prewired

5xH07V-U 2,5mm², PVC

100 m

GL231P

prewired

2xCAT6 U/UTP

100 m

GL232HF

prewired

2xCAT6 U/UTP, halogen free

100 m

GL233P

prewired

2xCAT6 U/UTP+ COAX

100 m

GL241HFPVUV100

prewired, UV protected

2xH1Z2Z2-K 4mm², halogen free

100 m

GL261HFPVUV100

prewired, UV protected

2xH1Z2Z2-K 6mm², halogen free

100 m

GL300W

with wire puller

steel wire puller

100 m

GL301

empty

-

50 m

GL301W

with wire puller

steel wire puller

50 m

GL302

empty

-

100 m

GL401

empty

-

50 m

GL401W

with wire puller

steel wire puller

50 m

GL402W

with wire puller

steel wire puller

25 m

GL501

empty

-

25 m

GL501W

with wire puller

steel wire puller

25 m

GL502

empty

-

50 m

GL502W

with wire puller

steel wire puller

50 m

GL601

empty

-

25 m

GL601W

with wire puller

steel wire puller

25 m

GL602W

with wire puller

steel wire puller

50 m

Ø20mm diameter

Ø25mm diameter

Ø32mm diameter

Ø40mm diameter

Ø50mm diameter

INSTALLATION MATERIALS

15

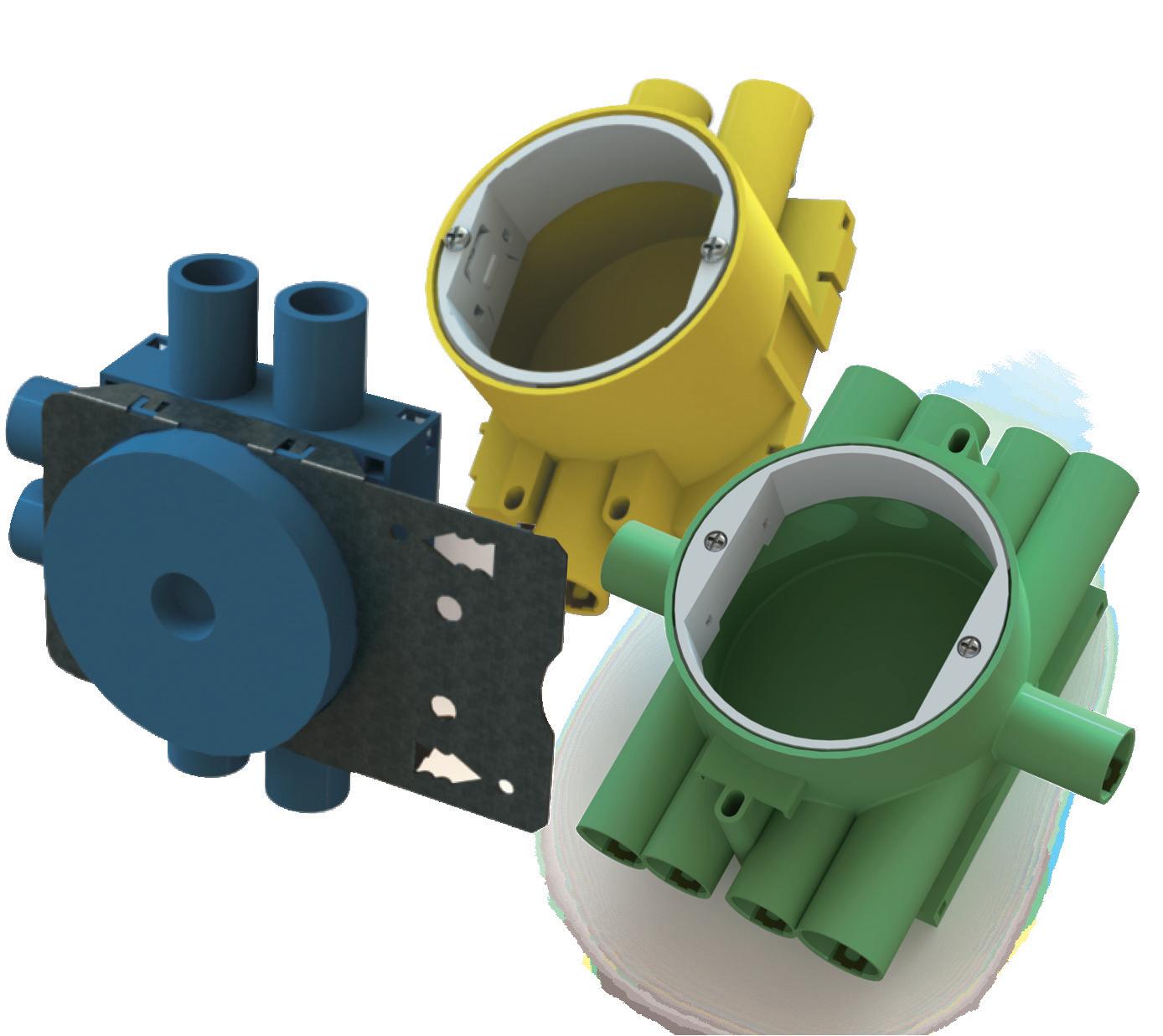

ELECTRICAL INSTALLATION BOXES

OUR ELECTRICAL INSTALLATION SYSTEMS ARE DESIGNED TO MEET THE DEMANDS OF ALL TYPES OF CONSTRUCTION PROJECTS, OFFERING BOXES WITH A WIDE RANGE OF ACCESSORIES THAT CAN BE TAILORED TO SPECIFIC REQUIREMENTS. DURABILITY AND RELIABILITY Our boxes are crafted from high-quality, durable materials designed to withstand the demands of any installation. With varying IP ratings, they offer reliable protection against dust, moisture, and other environmental factors, ensuring long-lasting performance.

USER-FRIENDLY DESIGN Our user-friendly design is the result of extensive feedback from professional installers. We've crafted our products to be as easy to install as they are reliable, incorporating features that address real-world challenges on the job. By listening to the experts, we've created boxes that not only simplify the installation process but also save valuable time.

16

ETMAN INTERNATIONAL

PROFESSIONAL & DIY RANGES We have developed a range of installation systems tailored to meet the needs of professional installers, DIY enthusiasts and prefabrication organisations. Each system is designed with ease of use, efficiency, and reliability in mind.

OUR PRODUCT LINES

UNIVERSAL SERIES

SIMPLE SERIES

LIME SERIES

Our Universal Series is our most comprehensive range, featuring over 80 different wall and junction boxes designed for both concrete casting and installation on wooden and metal studs.

The Simple Series offers a streamlined selection of wall and junction boxes with fixed inlets, designed to cover all the essential needs of any installation.

This simplified range is perfect for those seeking cost-effective solutions without compromising on quality.

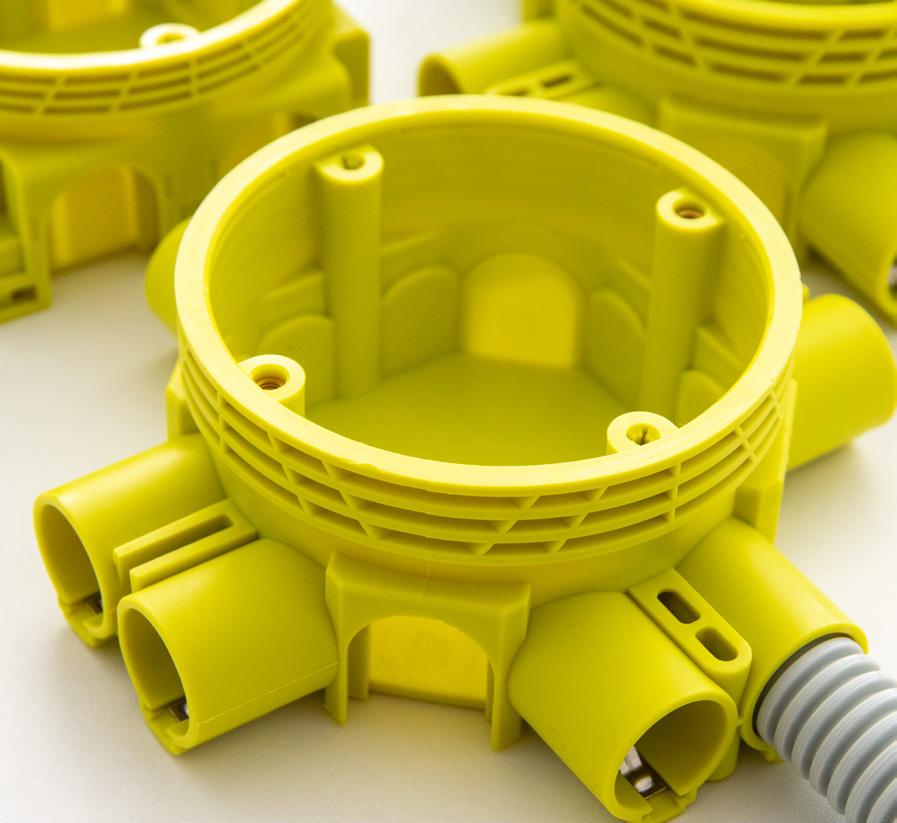

The Lime Series features boxes designed for both concrete casting and shallow wall installations. With an IP30 rating, these boxes provide reliable protection against dust, ensuring durability in various environments.

INSTALLATION MATERIALS

17

UNIVERSAL SERIES

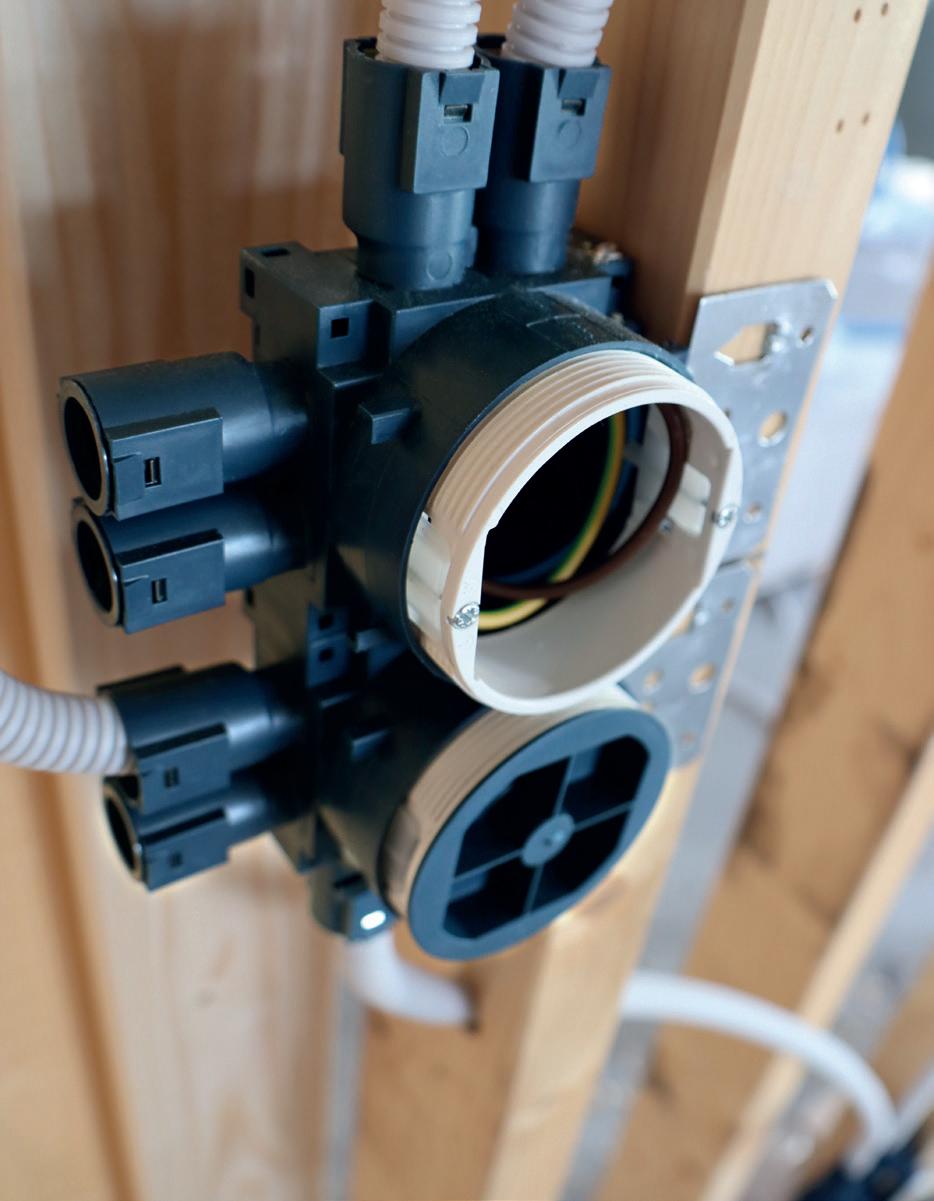

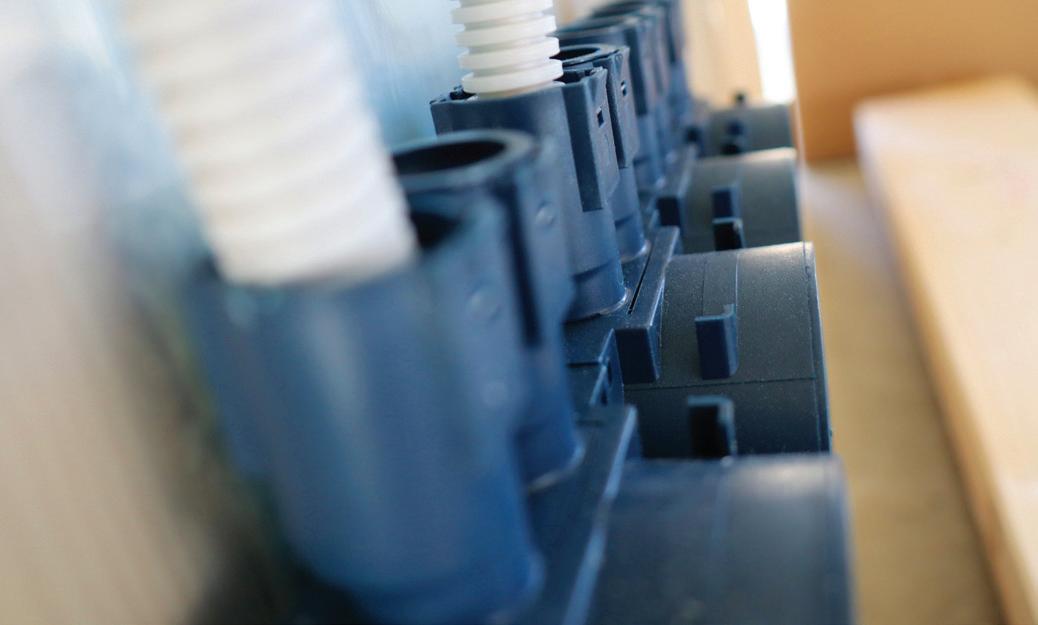

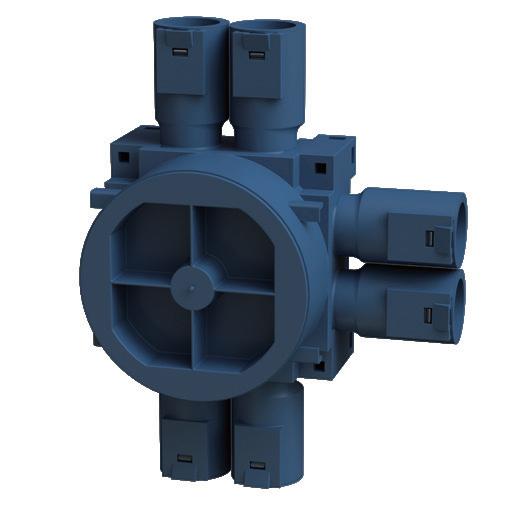

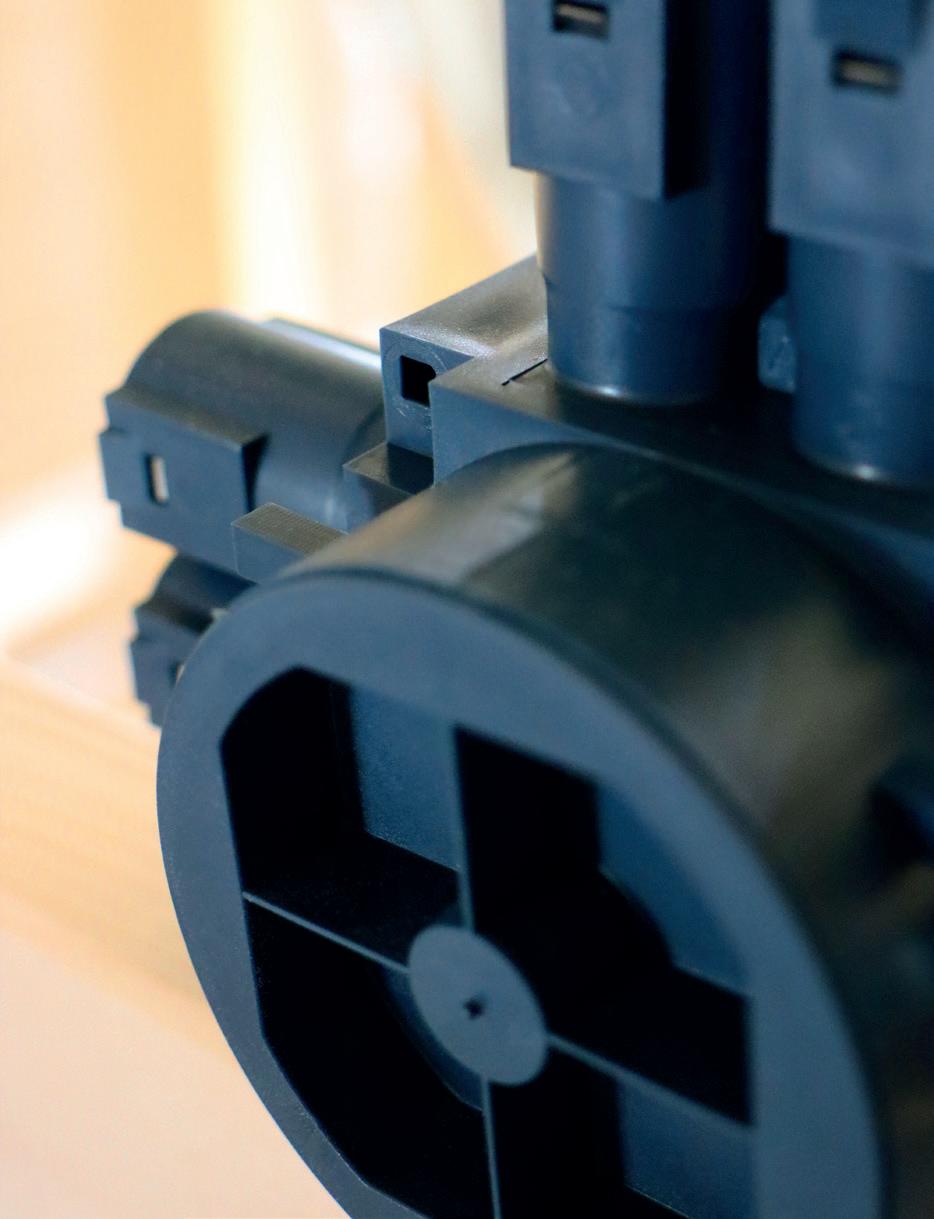

MODULAR SYSTEM THAT ’S EASY TO USE

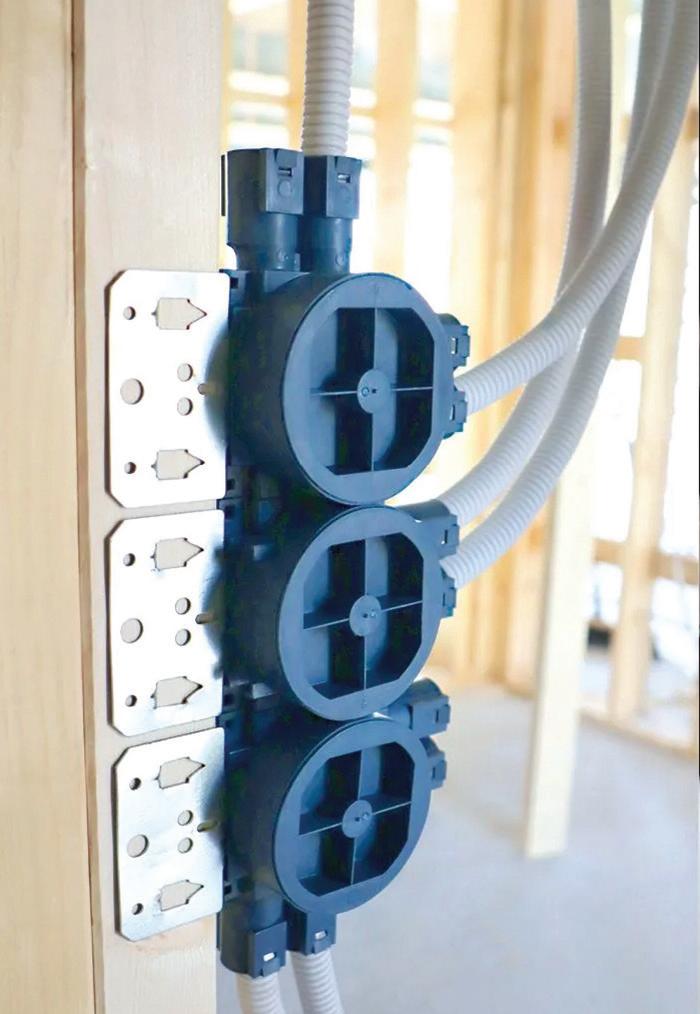

FOR WOODEN AND METAL STUDS AN EXTENSIVE COLLECTION OF FLUSH MOUNTING BOXES FOR WALLS AND CEILINGS. THE RANGE IS ENHANCED BY AN ARRAY OF ACCESSORIES, ALLOWING TO CUSTOMISE BOXES FOR ANY PROJECT. Pipe inlets are always fitted with sealing caps to protect wires and cables.

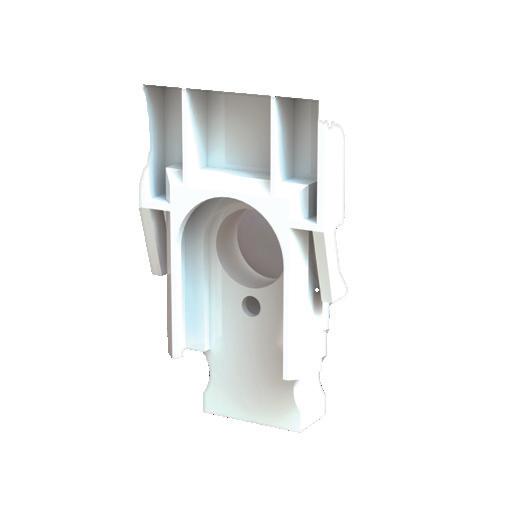

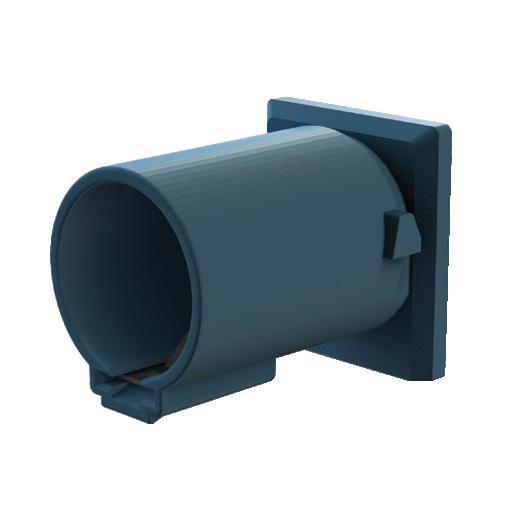

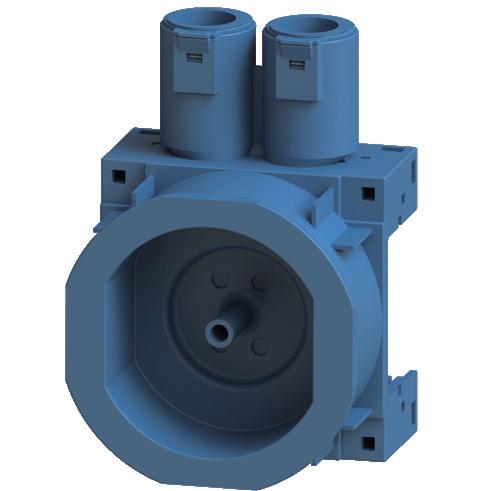

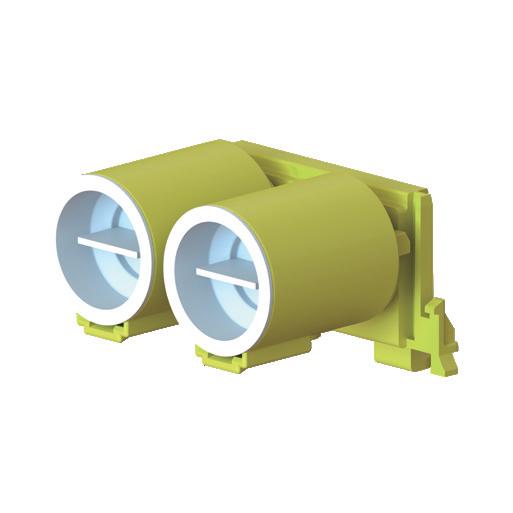

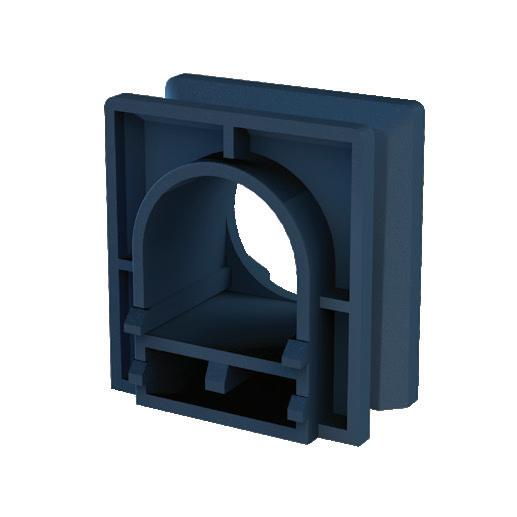

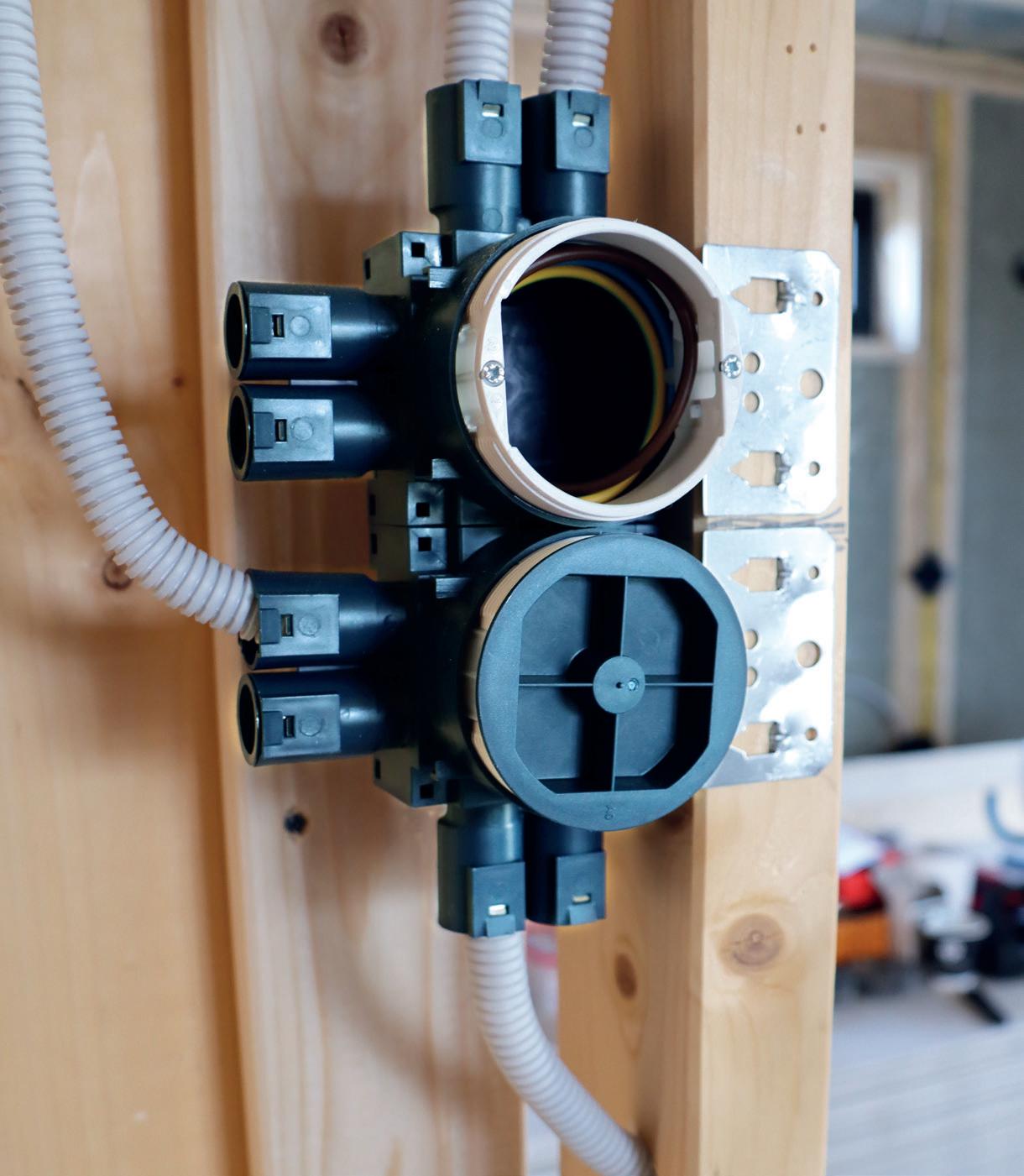

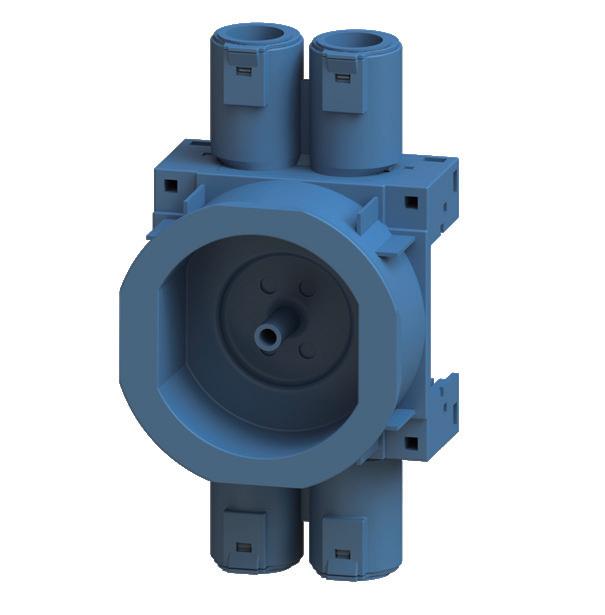

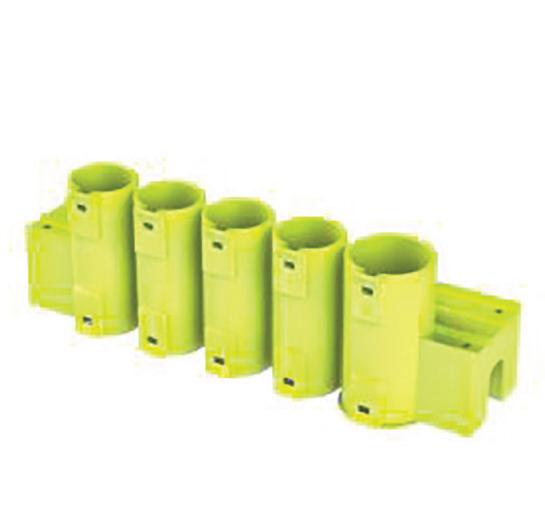

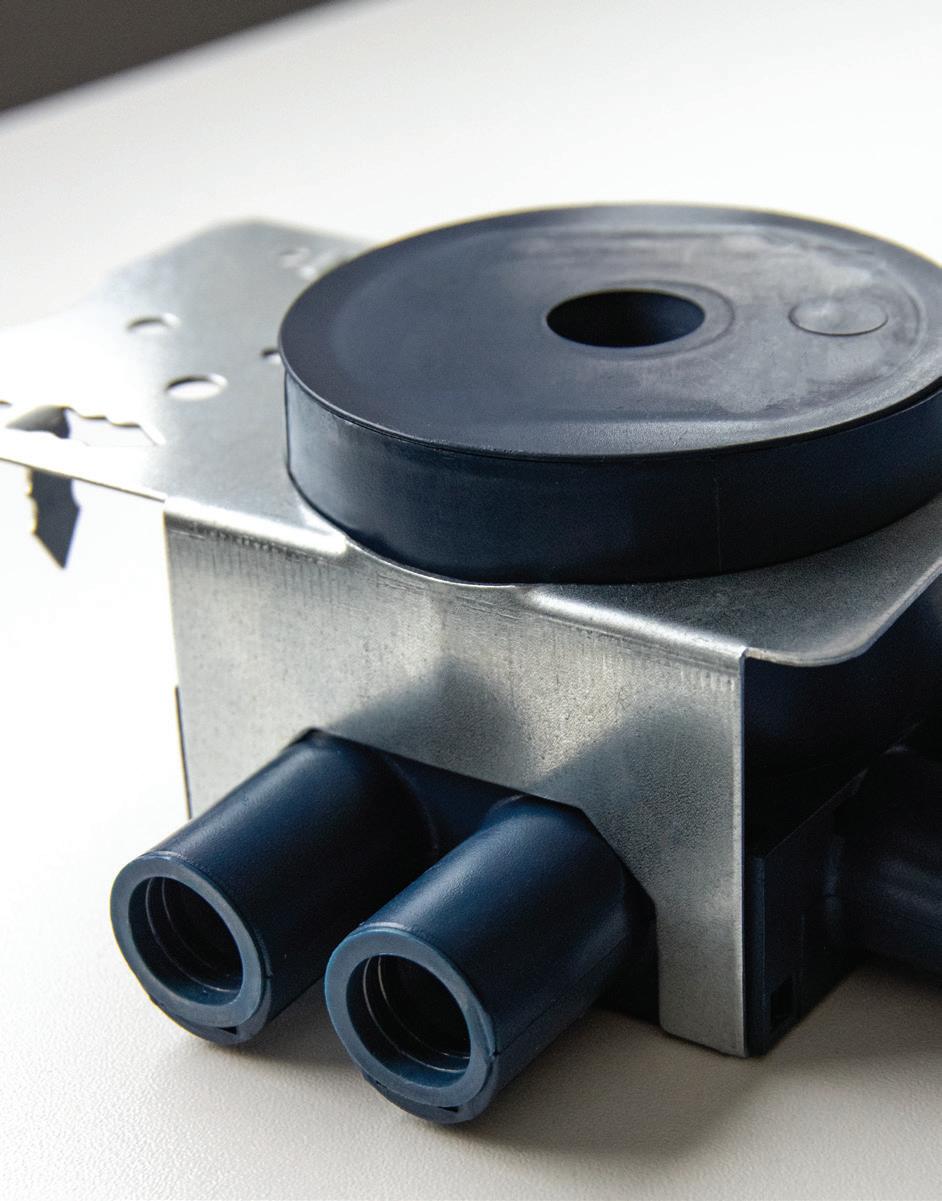

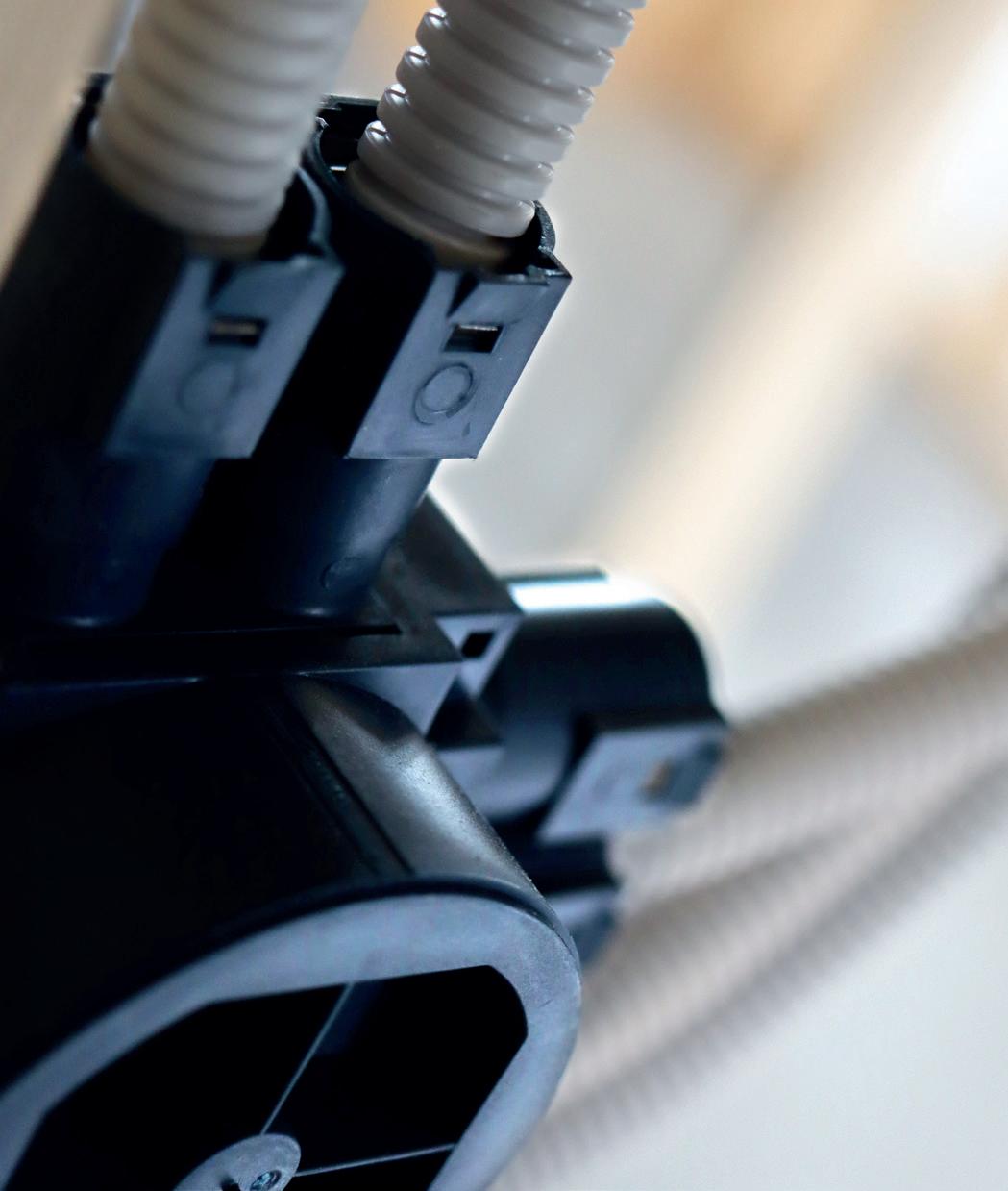

Inlets come with locking springs that keep corrugated pipes in place.

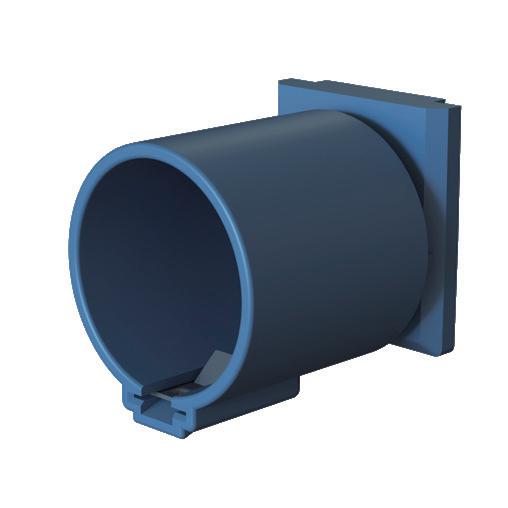

Inlet attachments fit ⌀16 and ⌀20mm electrical conduits.

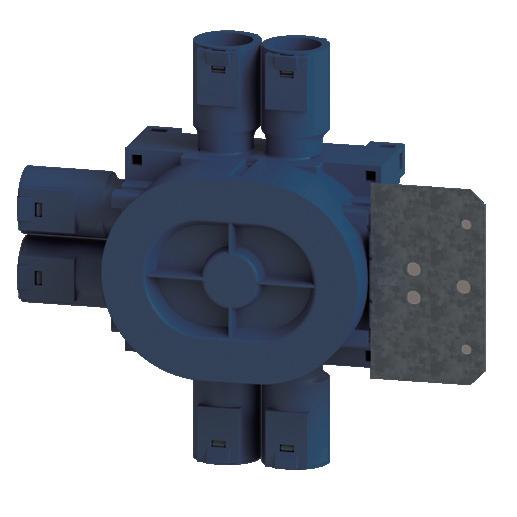

Side lid can be replaced with additional inlets, steel plate for easy fixing or frame connectors for joining boxes together.

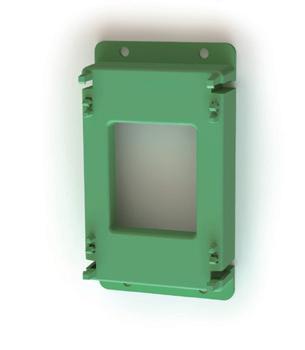

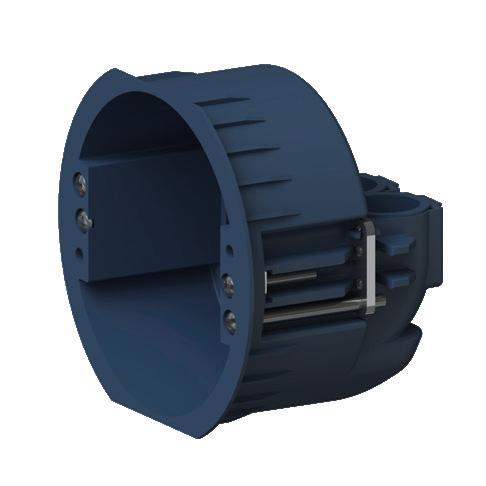

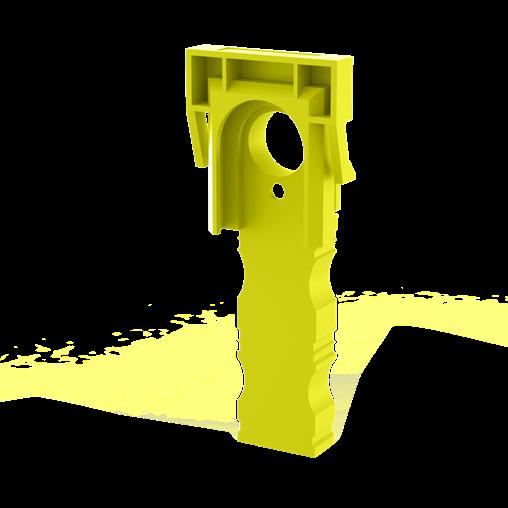

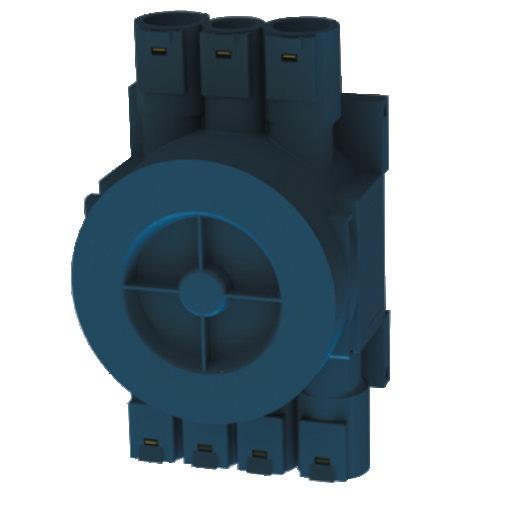

Single plasterboard holders.

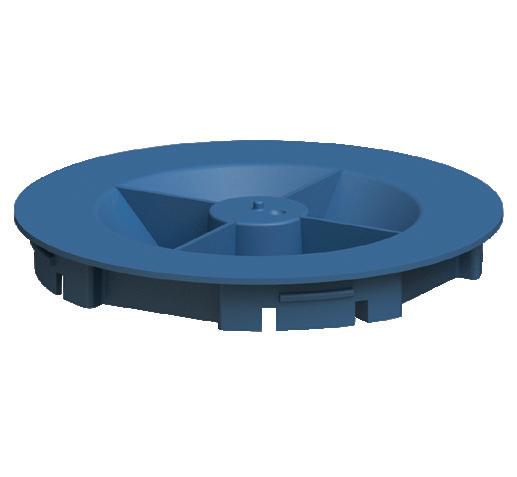

Inner ring available for adjusting the box height.

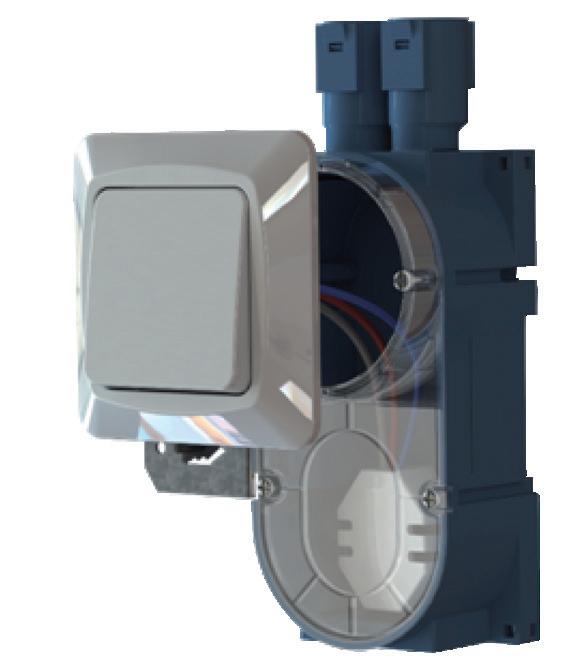

Plastic lid keeps wires and cables safe during installation.

Plenty of space inside the box.

Multiple fixing points allow for an easy installation.

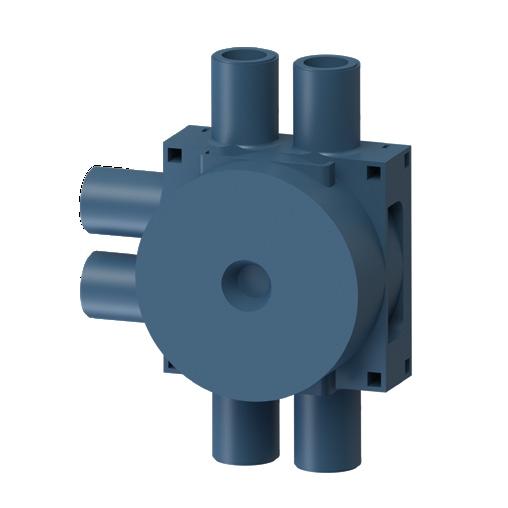

1

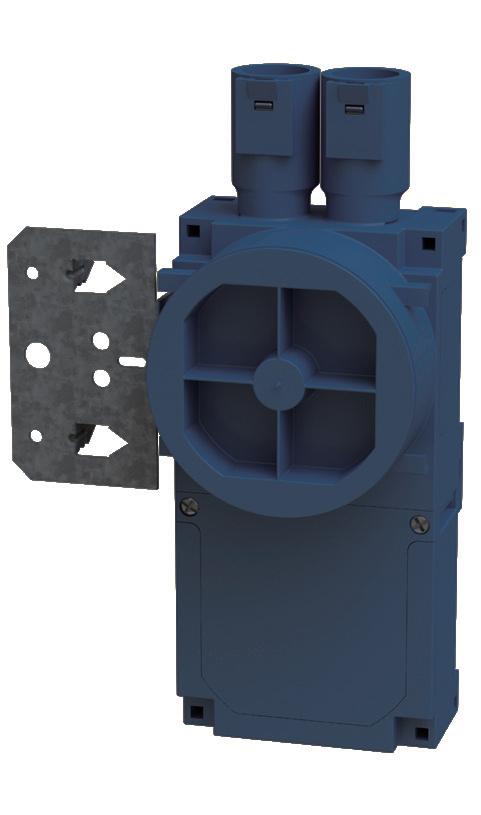

SINGLE

18

ETMAN INTERNATIONAL

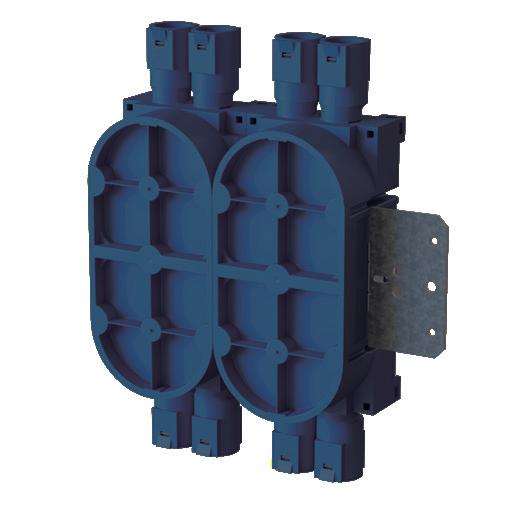

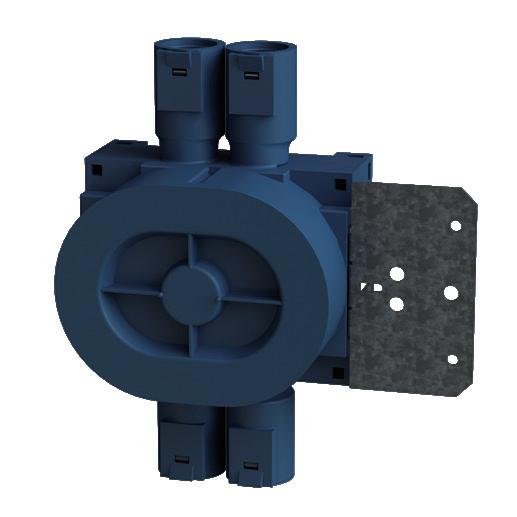

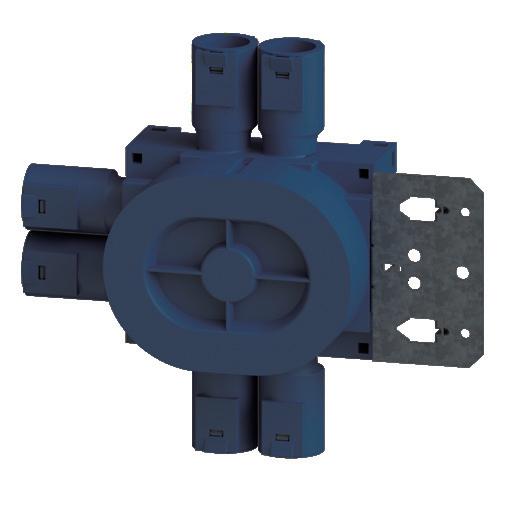

ONE AND A HALF

2

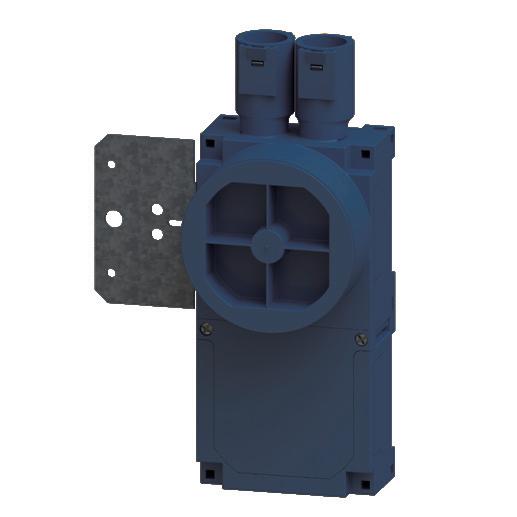

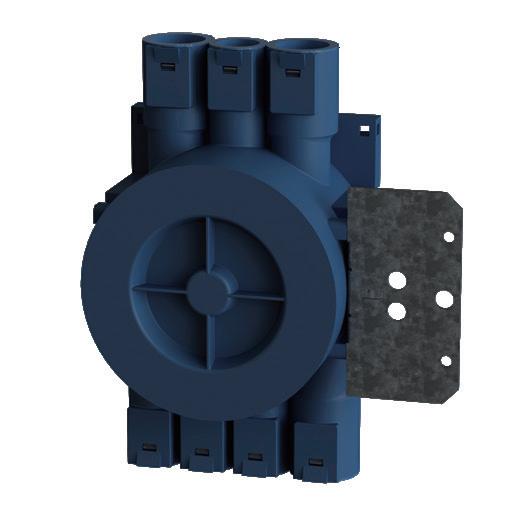

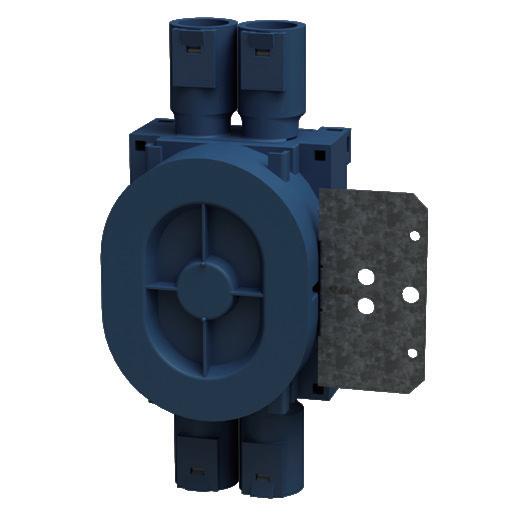

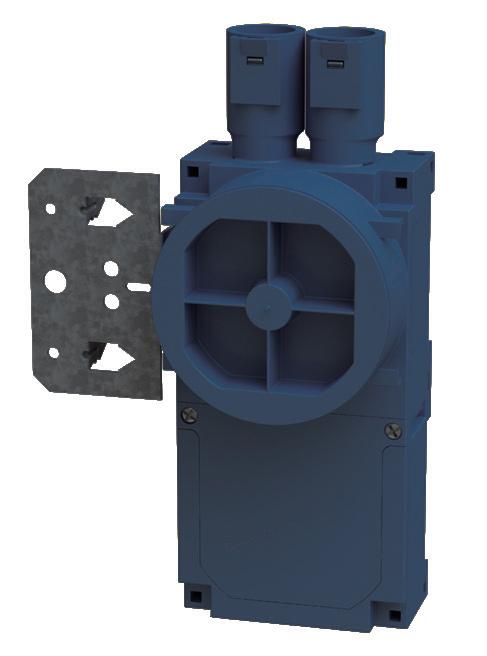

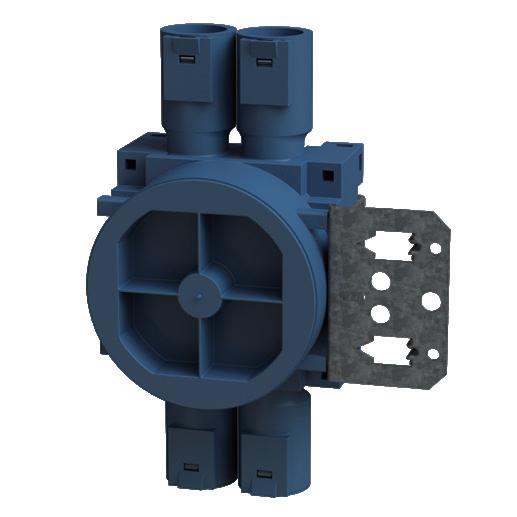

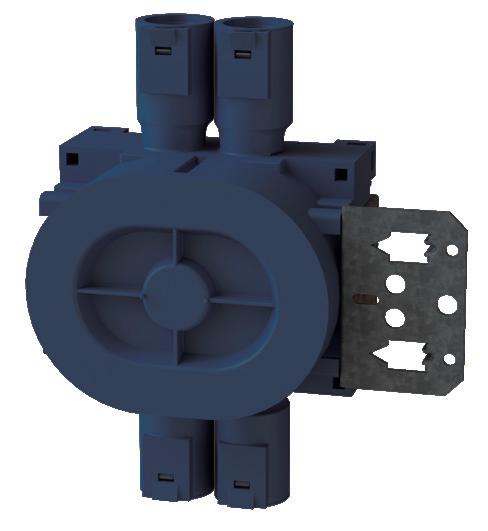

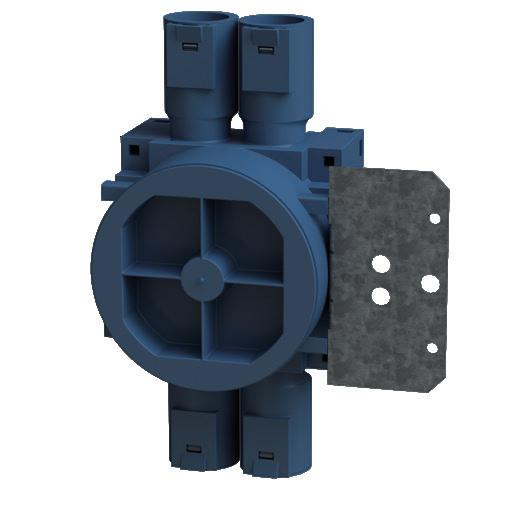

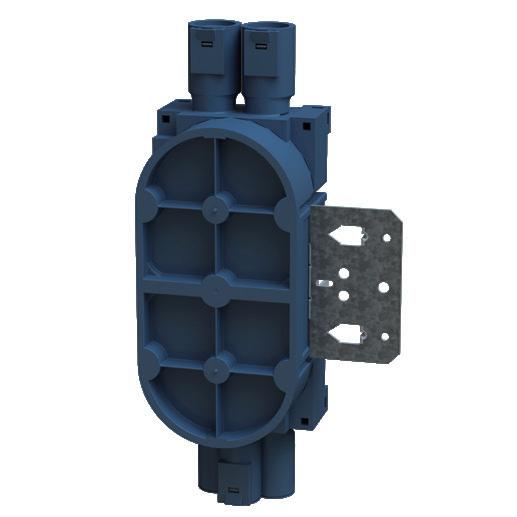

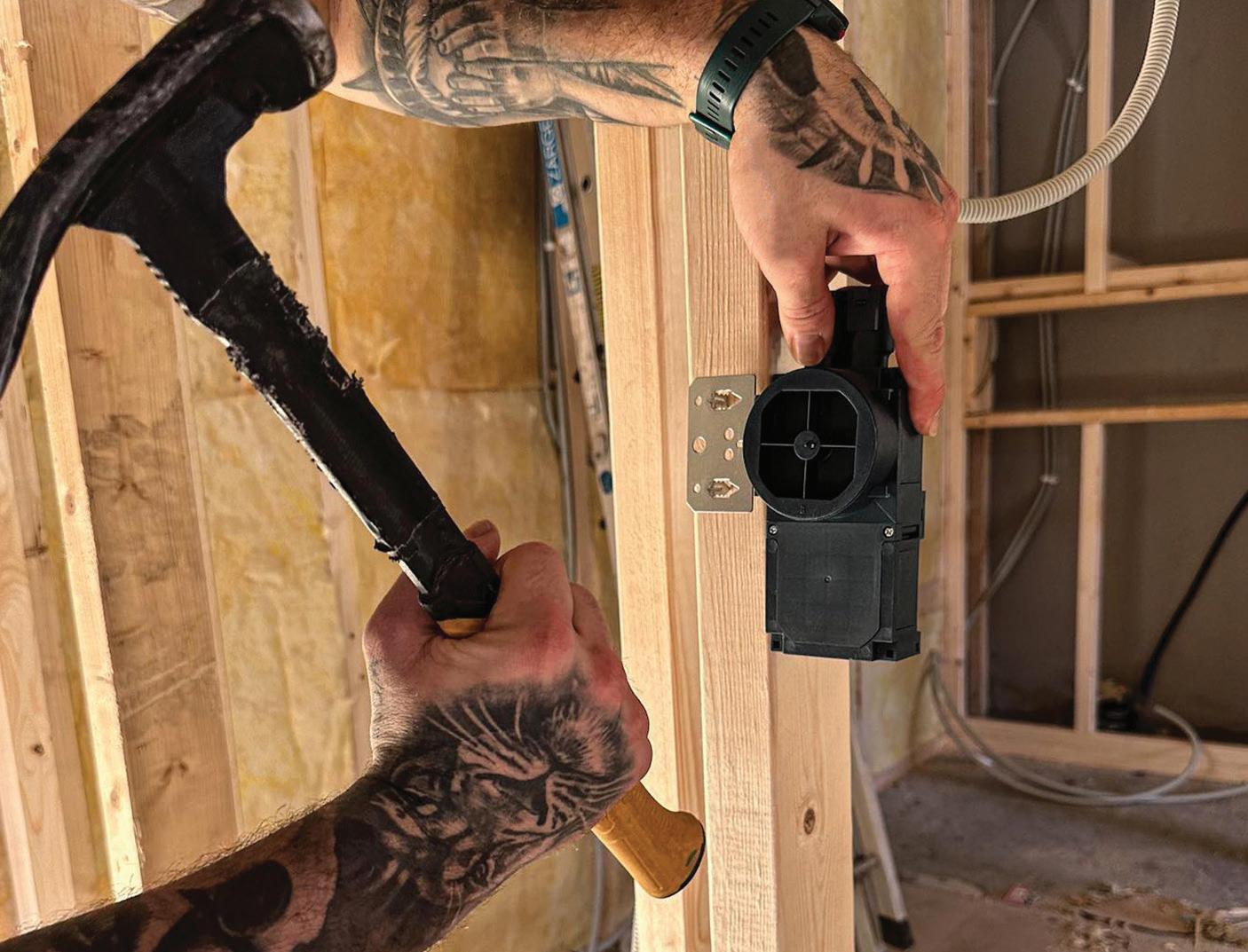

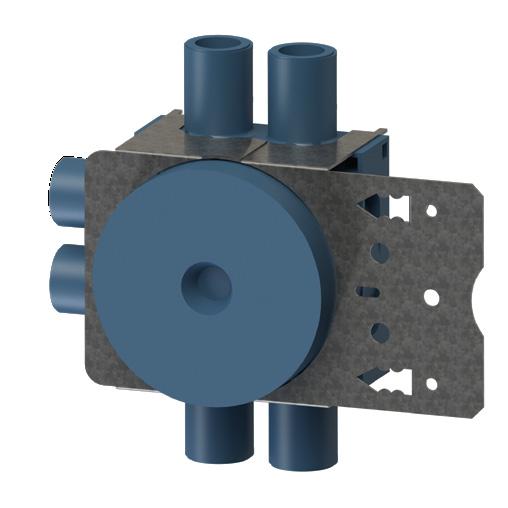

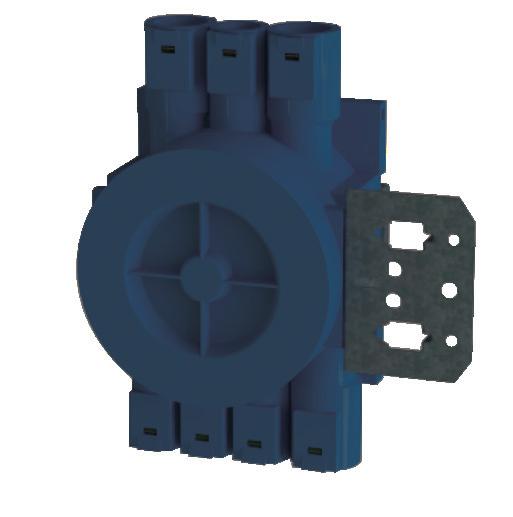

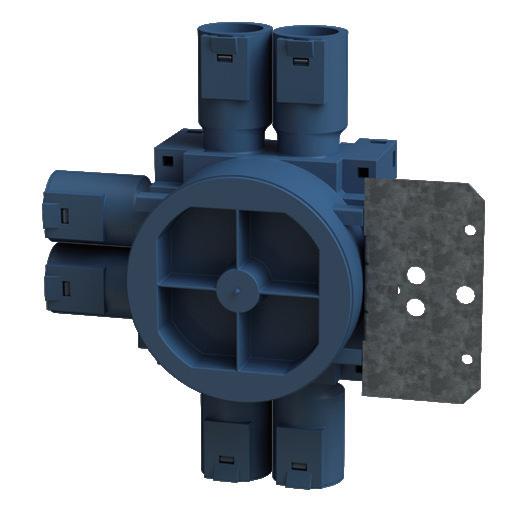

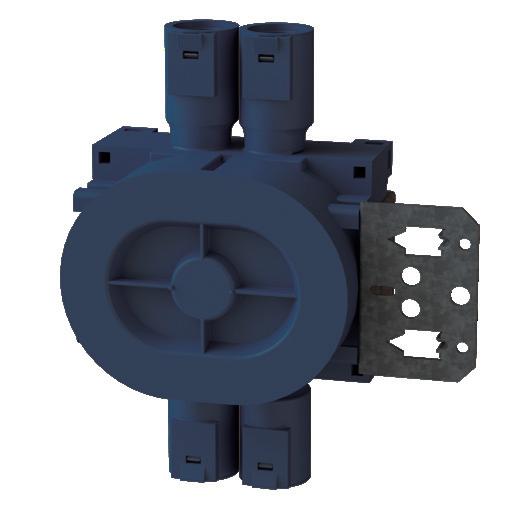

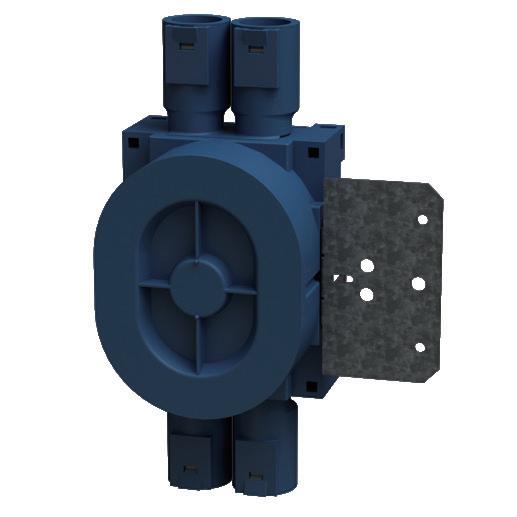

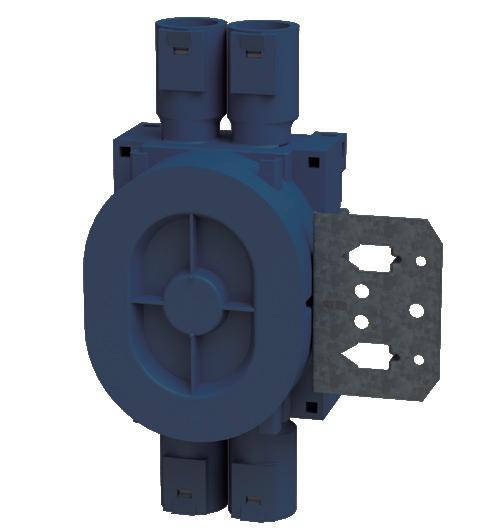

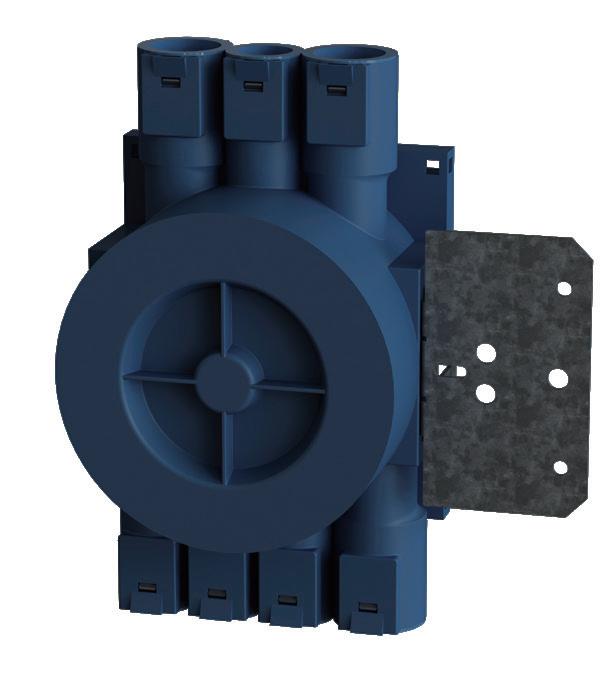

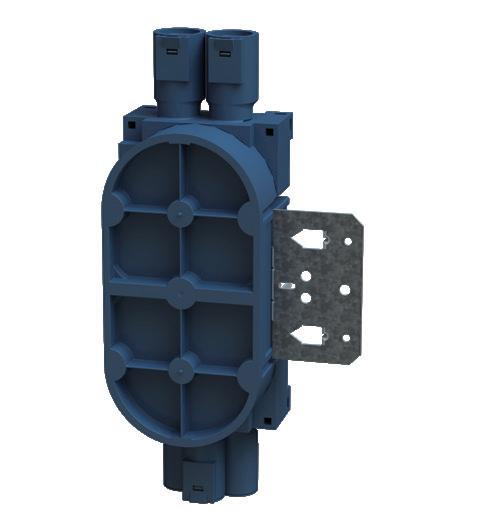

Two types of steel plates available: with pegs for hammering straight into place (1), with pre-cut holes for screws (2).

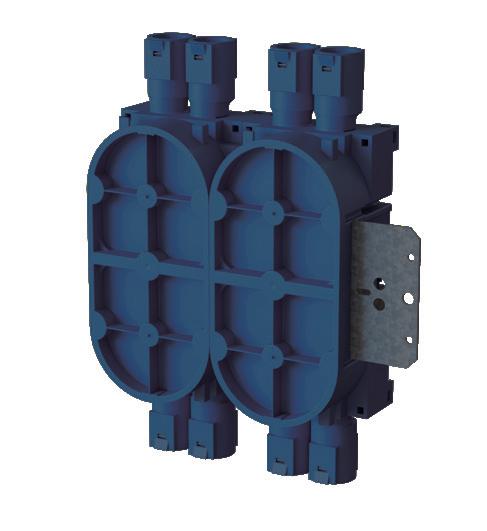

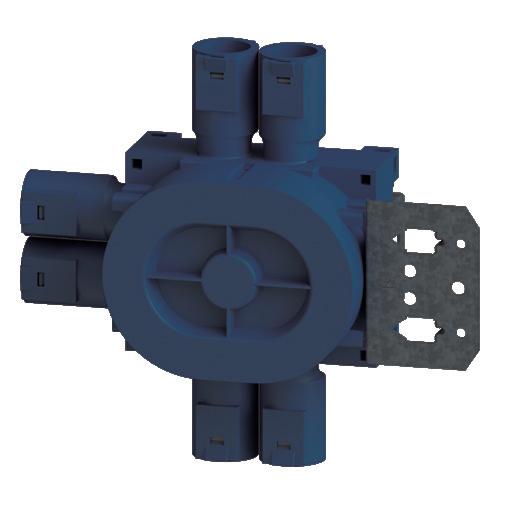

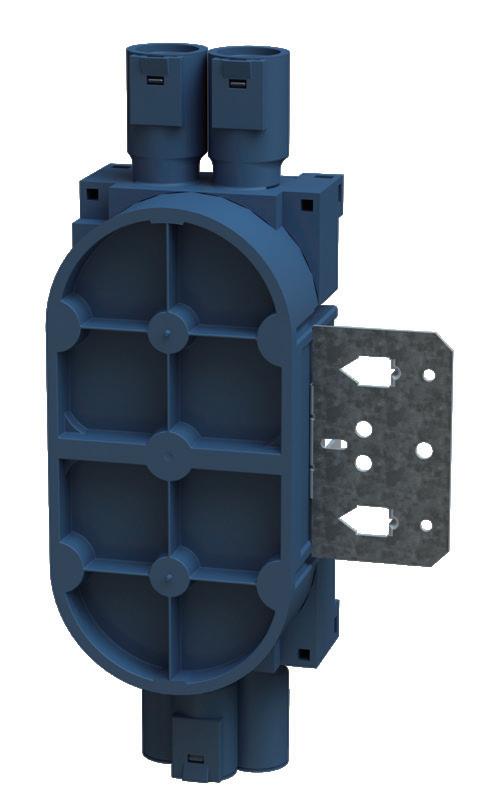

DOUBLE

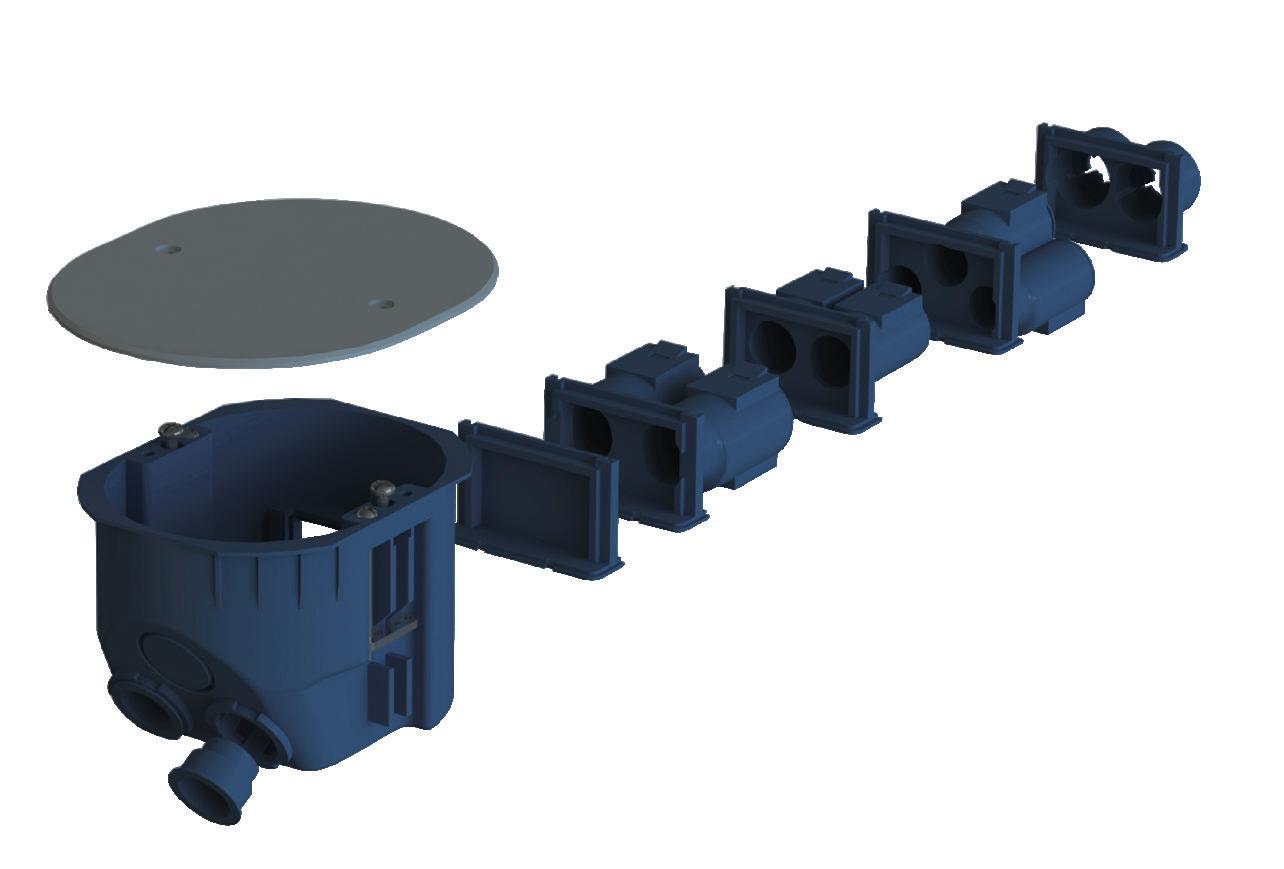

//MODULAR DESIGN The modular system of wall boxes for electrical installation offers unparalleled flexibility to meet diverse project requirements. With various heights and dimensions, these boxes can be customised using a range of inlet attachments, joining frames, and different fixing plates. Boxes can also be joined together, ensuring seamless integration and adaptability in any project.

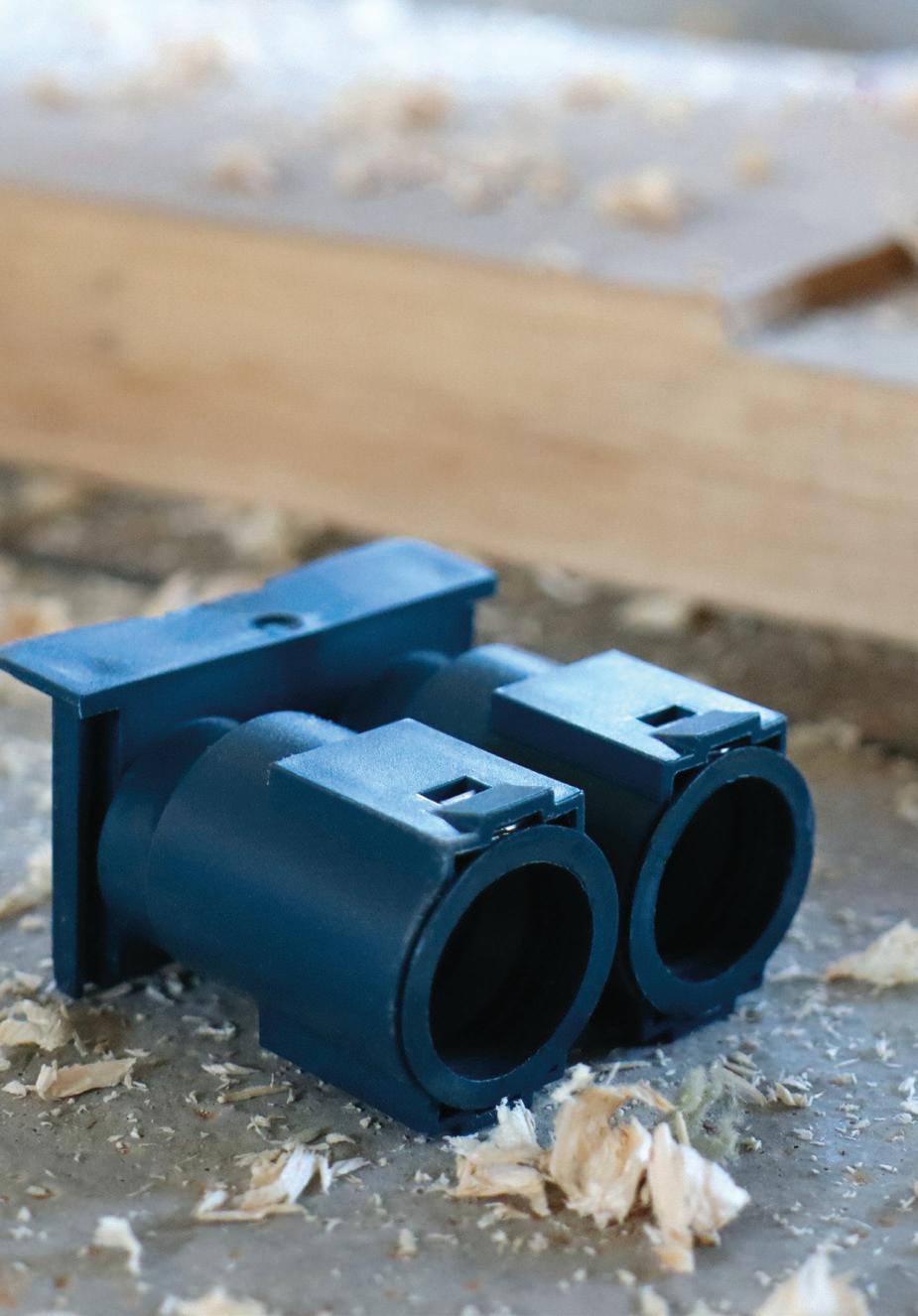

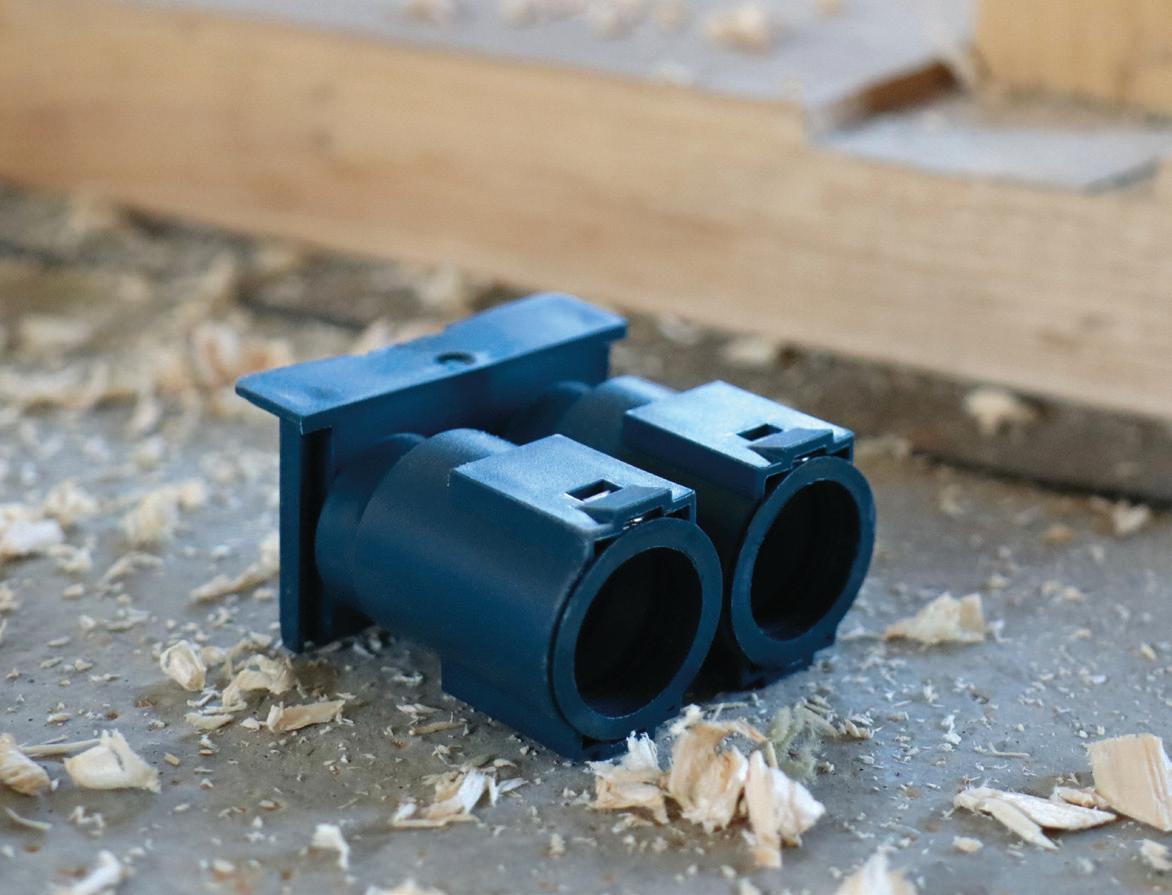

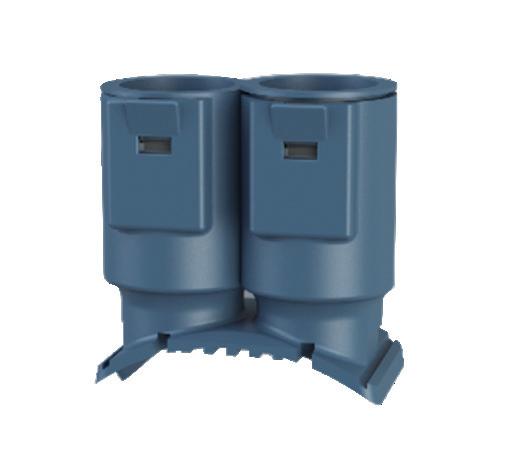

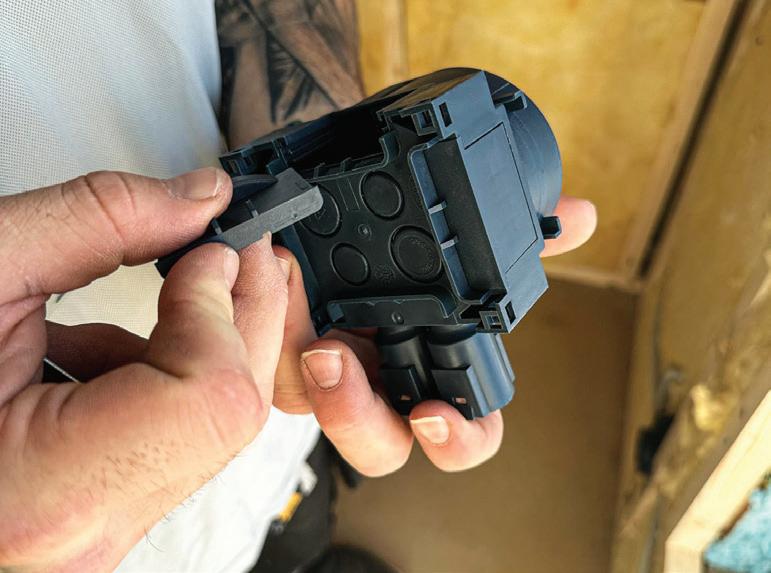

//INLET ATTACHMENTS Inlet attachments for wall boxes feature locking springs that securely hold conduits in place. Each conduit entry point is equipped with a removable cap, protecting the interior from debris and dust to ensure a safe installation. These inlets accommodate different conduit diameters, available in 16mm, 20mm, and 25mm sizes.

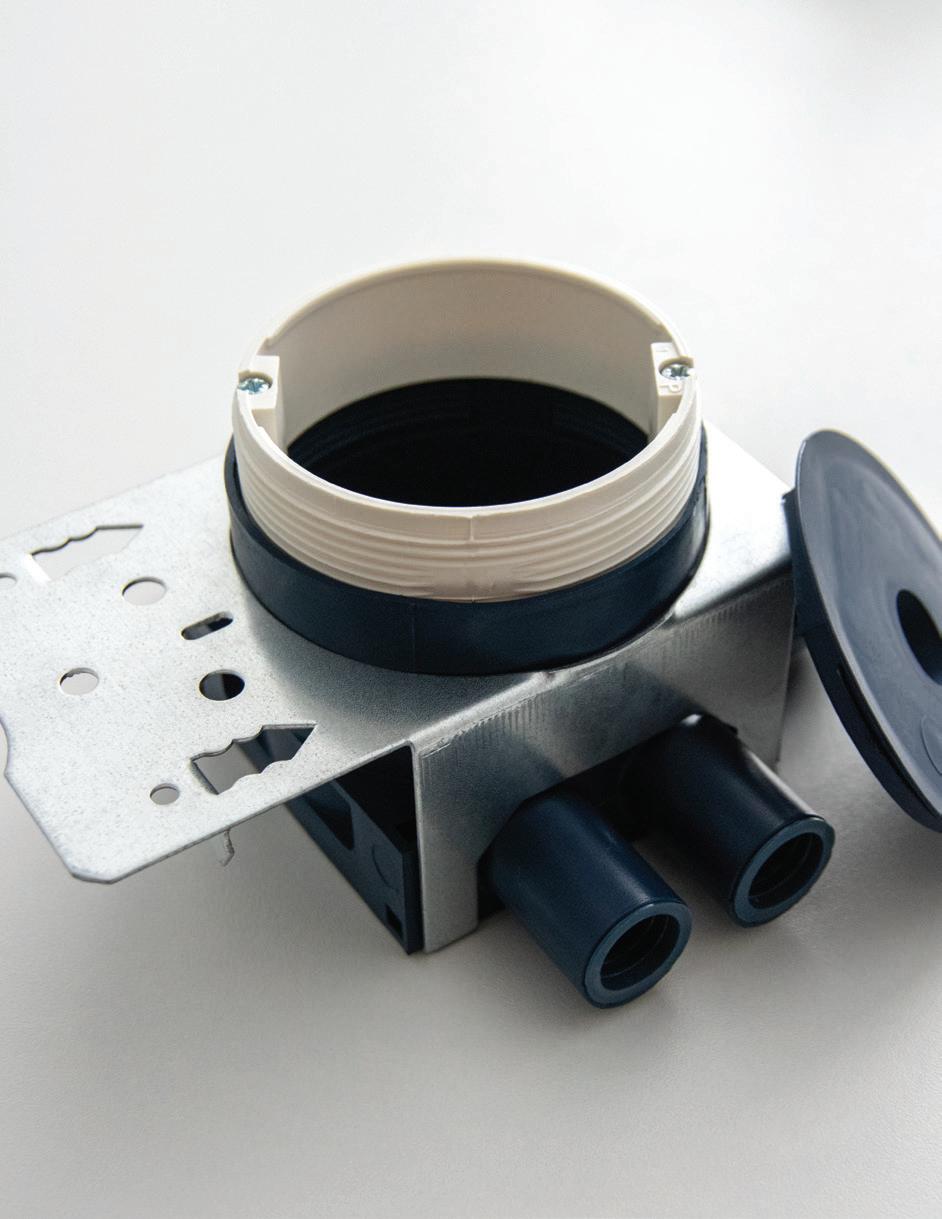

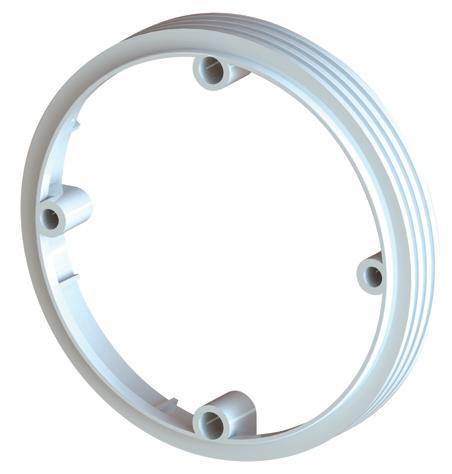

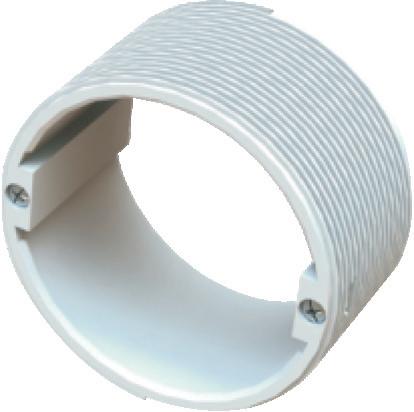

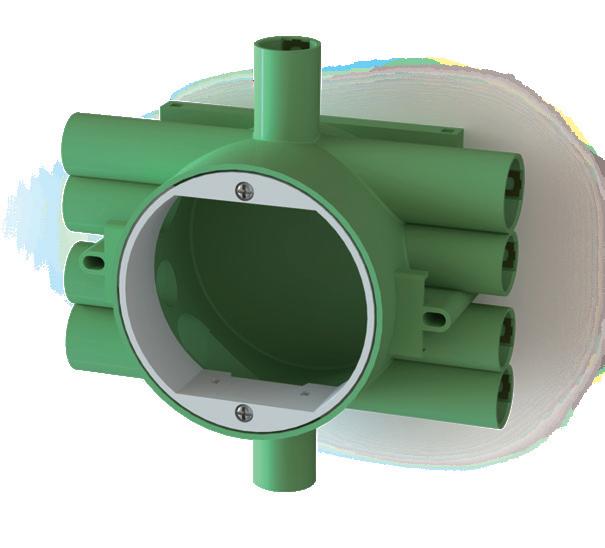

//INNER RING FOR HEIGH ADJUSTMENT Single wall boxes feature inner rings that allow easy height adjustments, adding up to an additional 15mm.

These inner rings are user-friendly and enhance the box’s adaptability to various installation needs.

Additionally, a range of rings in different heights is available separately for one-and-a-half and double boxes, ensuring all boxes can be customised to the project’s specifications.

INSTALLATION MATERIALS

19

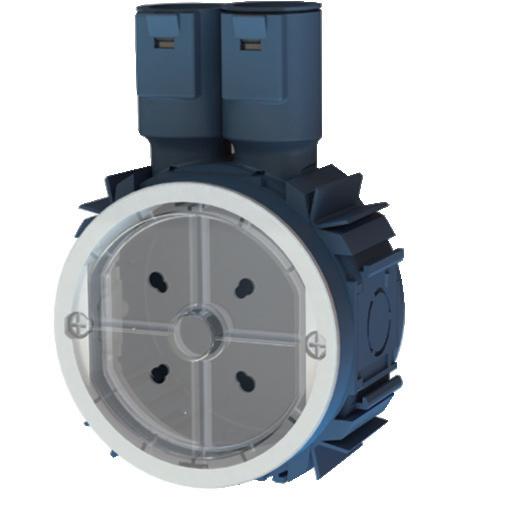

//PLASTIC LID Each wall box includes a versatile plastic lid that safeguards wiring during construction. This lid also functions as a turning tool for adjusting the inner ring in single wall boxes, ensuring precise height customisation. After installation, the lid can be recycled, promoting environmental sustainability. This dual-purpose design enhances both the functionality and eco-friendliness of the wall boxes, making them an ideal choice for conscientious installers.

//MULTIPLE FIXING OPTIONS Our wall boxes offer versatile fixing options to suit any wall set-up. With three main methods, you can choose the best fit for your project. Option 1: steel plates with holes allow screwing into wooden or metal studs. Option 2: steel plates with metal pegs enable quick hammering into wooden studs. Option 3: boxes without steel plates can be screwed or nailed directly to studs through side holes. These adaptable solutions ensure secure and quick installation every time.

OPTION 3

OPTION 1

OPTION 2

20

ETMAN INTERNATIONAL

THE UNIVERSAL SERIES HAS BEEN ADAPTED TO SUIT EVERY ASPECT OF ALL TYPES OF PROJECTS. CEILING BOX CC 70MM Choose between boxes with 6, 8 and 10 inlets.

Different heights available for single, double and triple plasterboards.

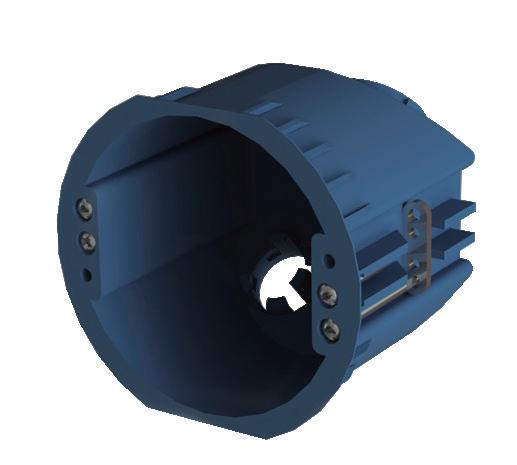

Designed for the DCL system and can hold lighting fixtures up to 15kg.

Adjustable fixing points allow for an easy installation.

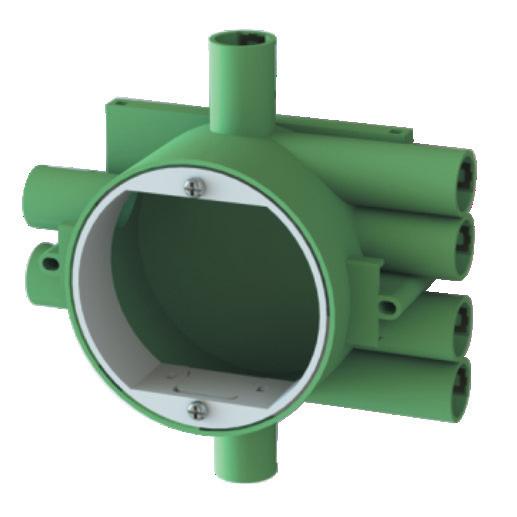

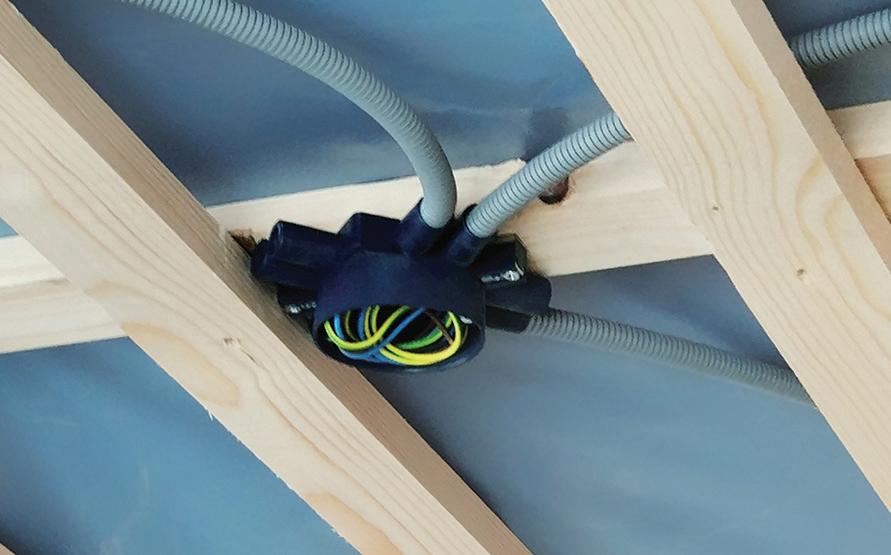

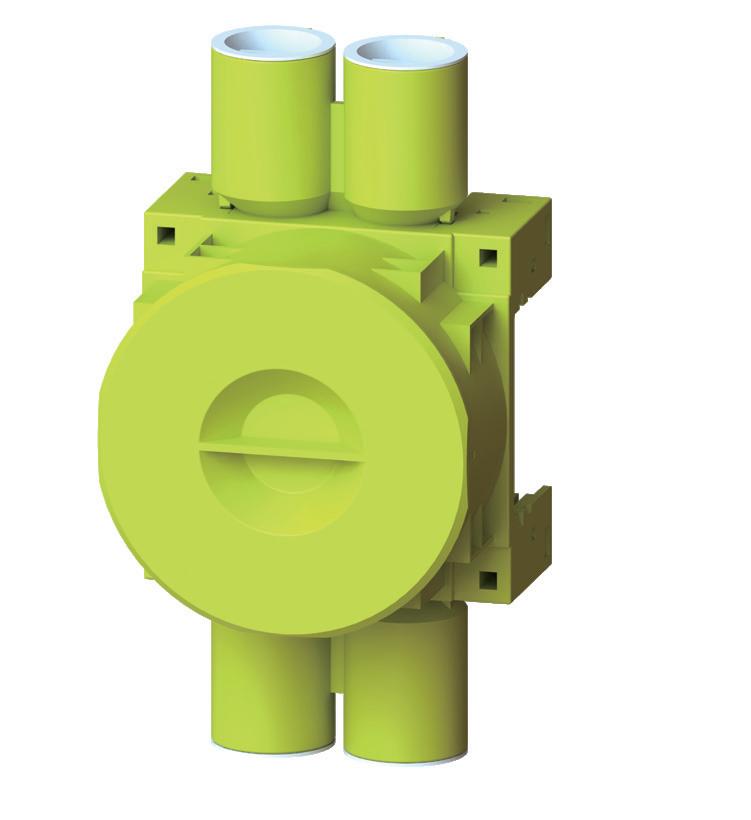

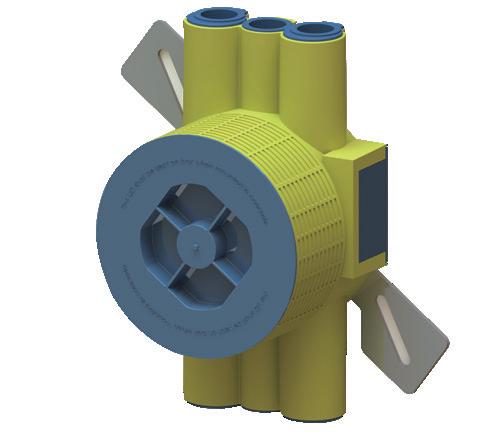

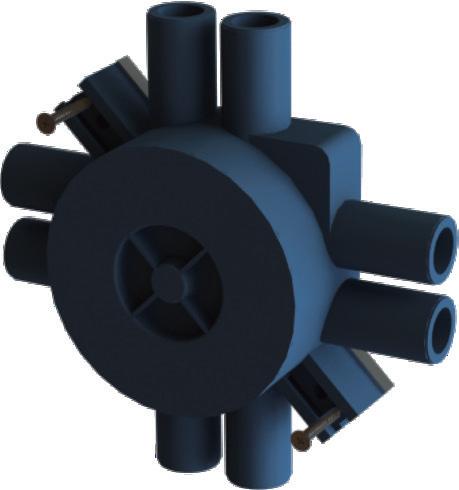

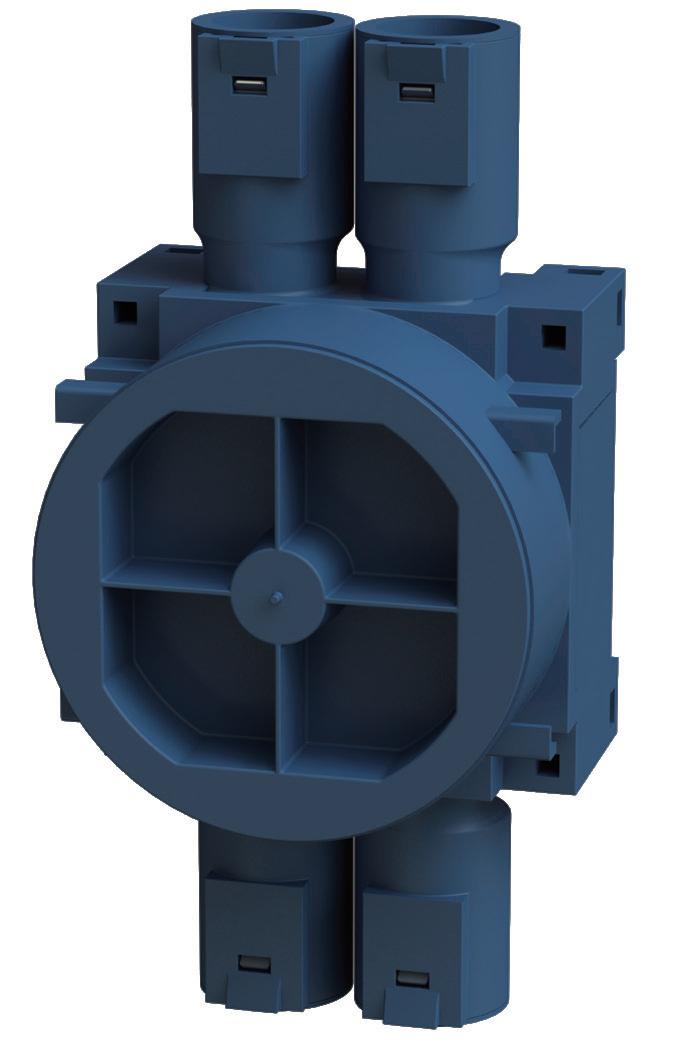

JUNCTION BOX CC 67MM

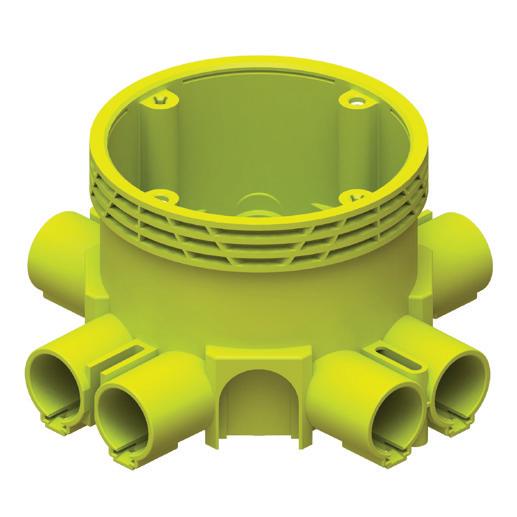

JUNCTION BOX CC 78MM

Boxes come with 7 built-in inlets.

Additional inlets can be attached.

Different heights available for single, double plasterboards.

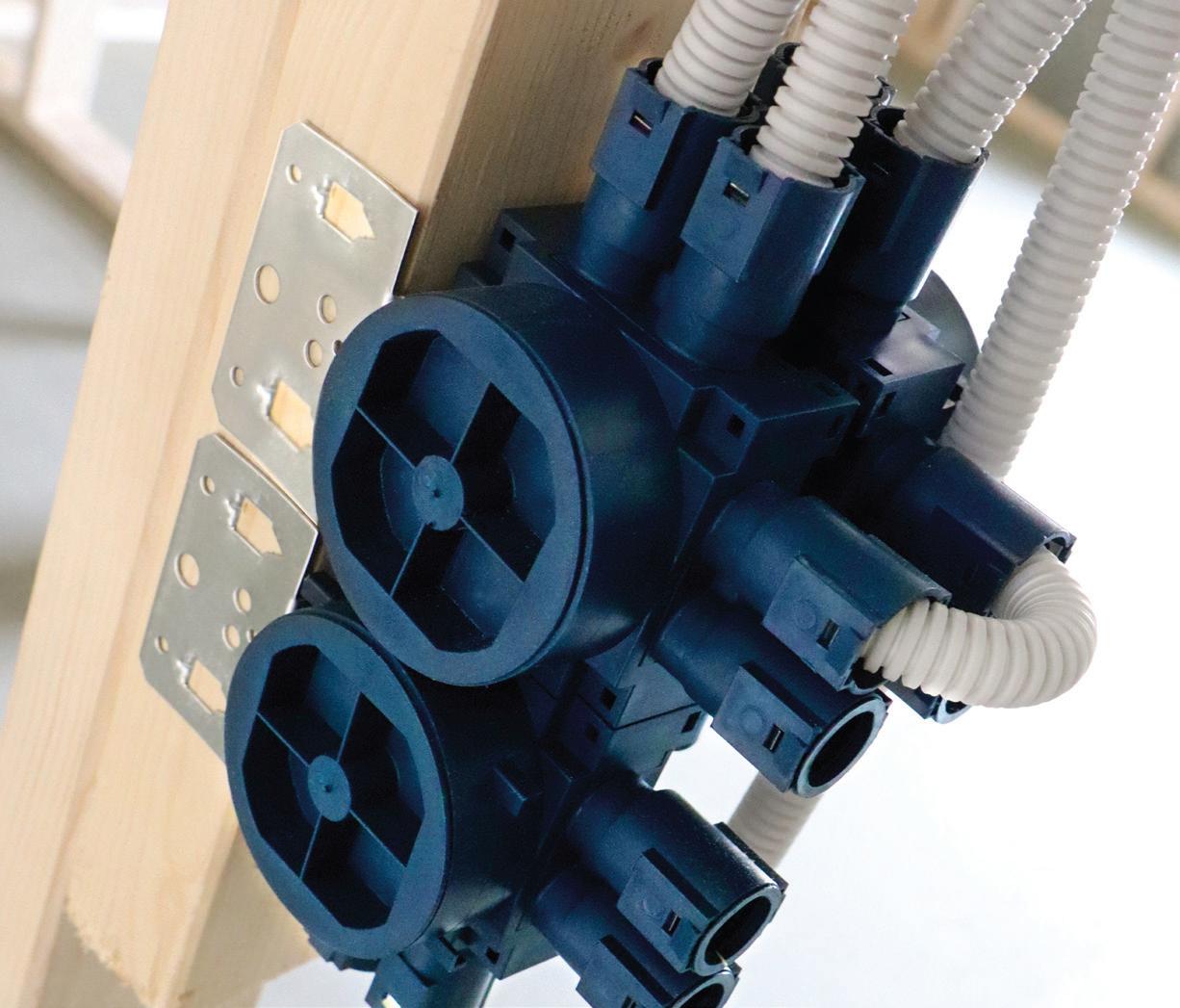

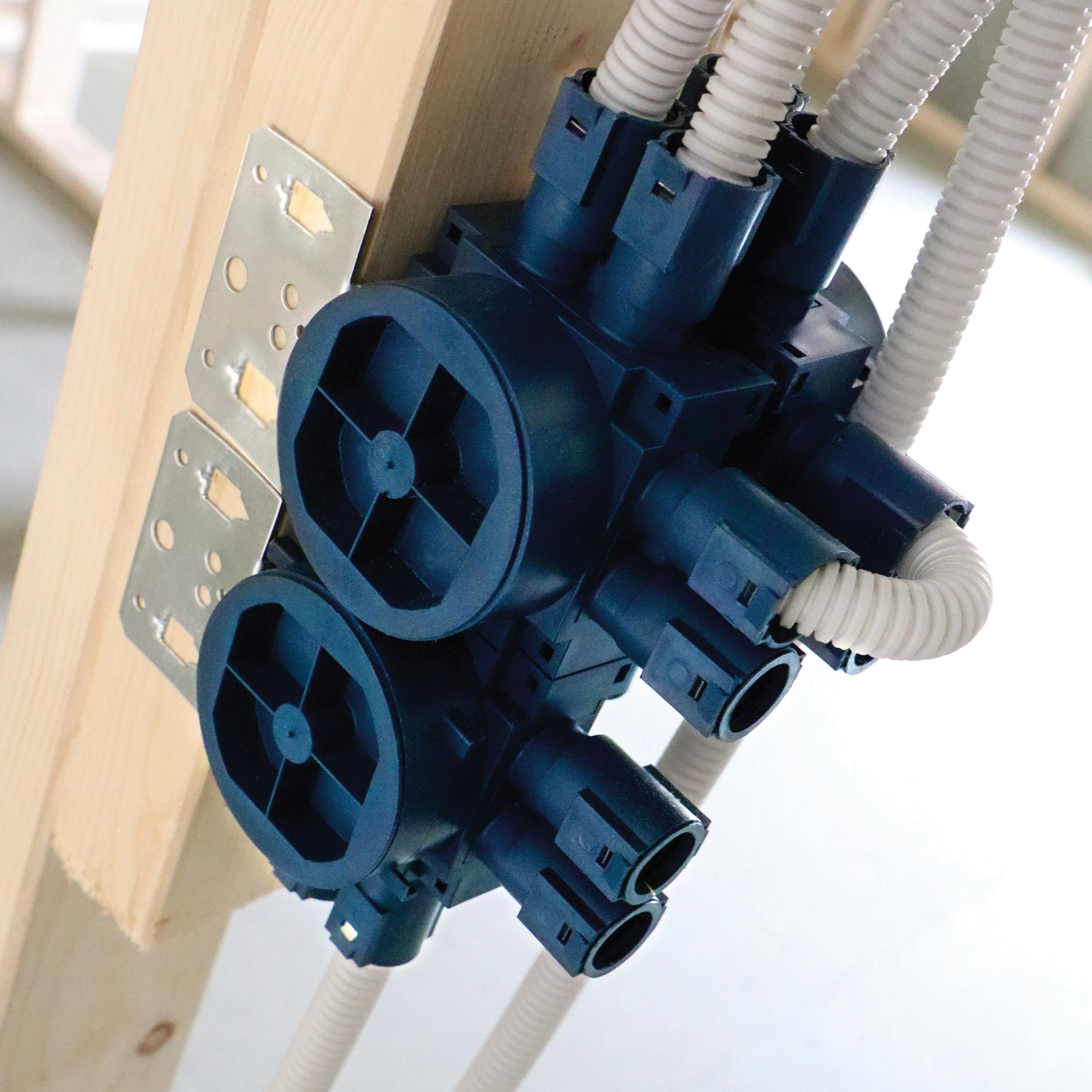

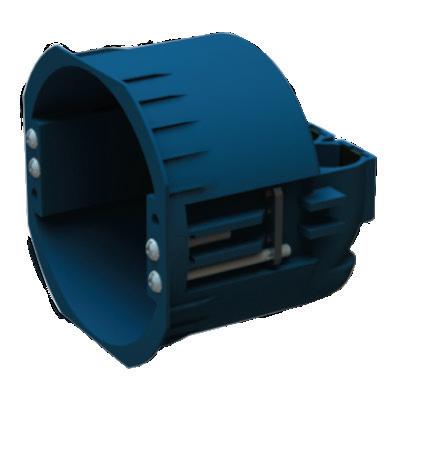

Two types of steel plates available for fixing boxes to wooden and metal studs.

A wider diameter junction box that can be tailored with a wide range of inlets and attachment plates. Suitable for double plasterboards.

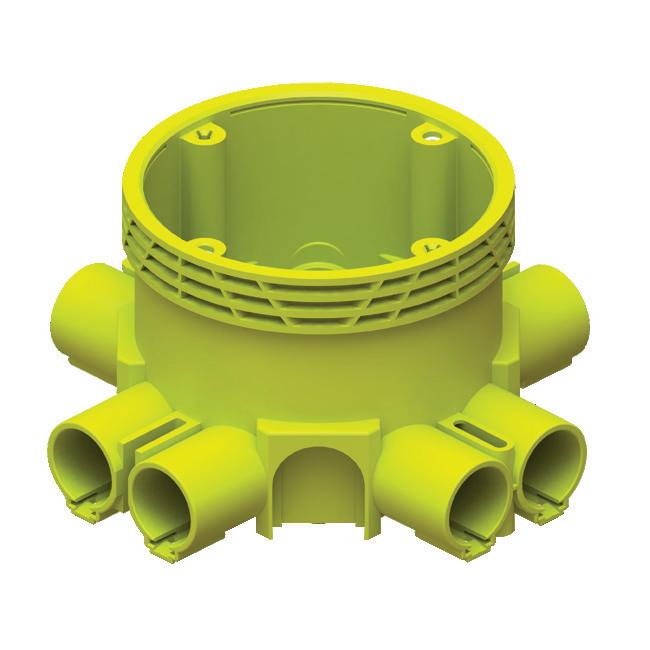

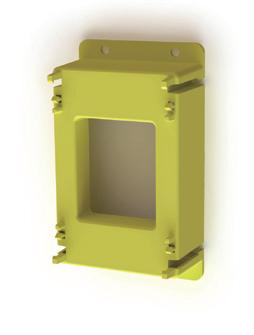

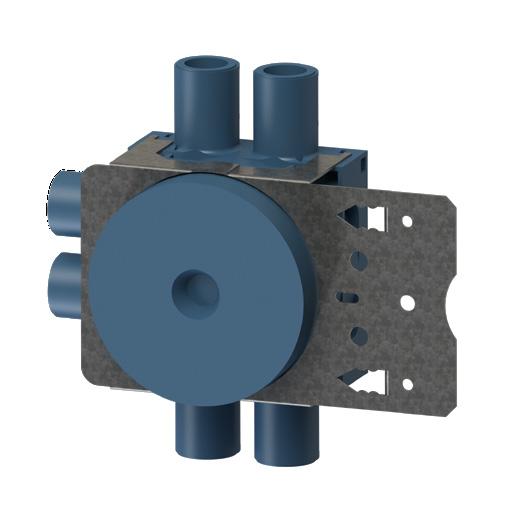

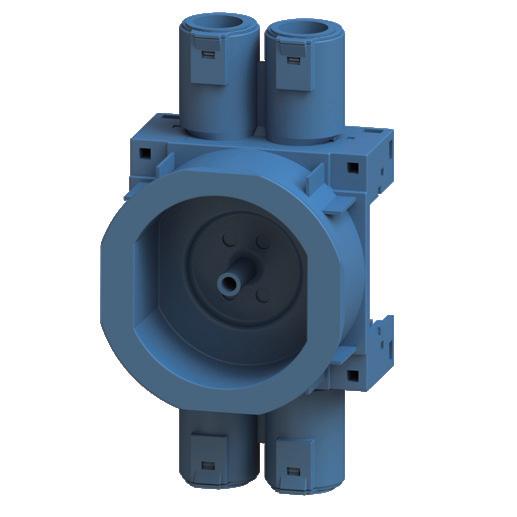

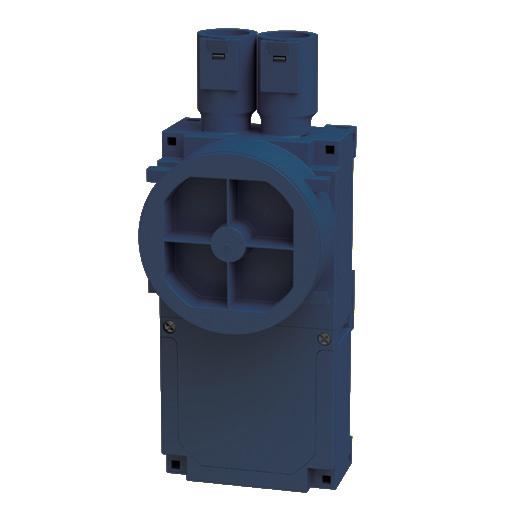

SINGLE ‘POCKET’ BOX

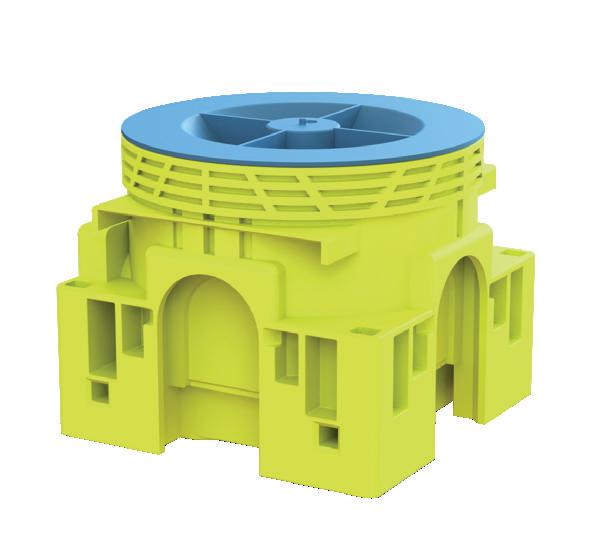

ONE AND A HALF BOX

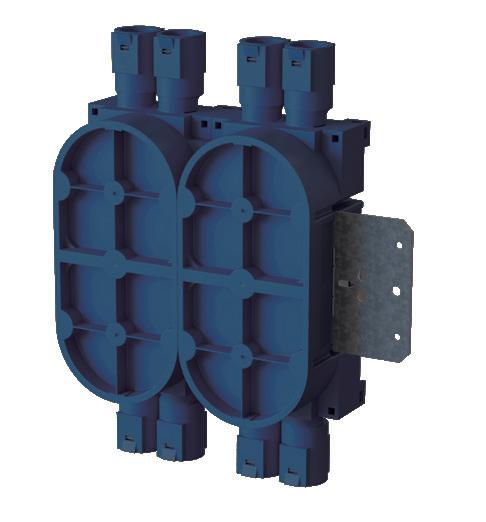

DOUBLE BOX

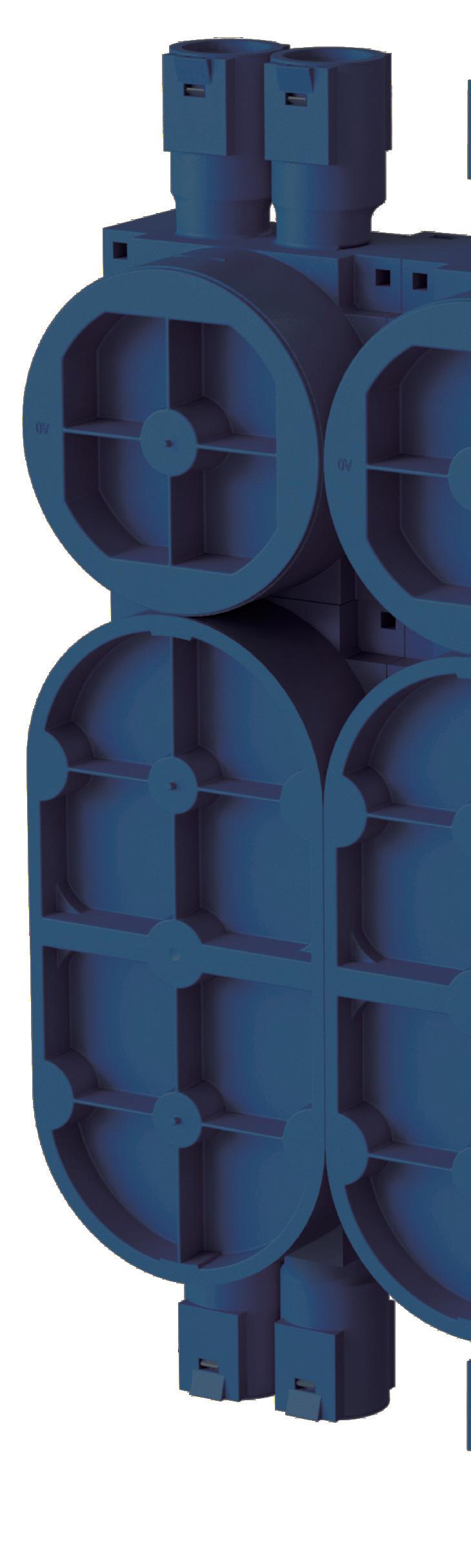

The single box offers additional space often required by smart home electronics such as relays, transformers, transmitters and other.

The 1.5 wall box is designed to be more compact than a single box, making it suitable for installations where space is limited but where more than a single gang is needed.

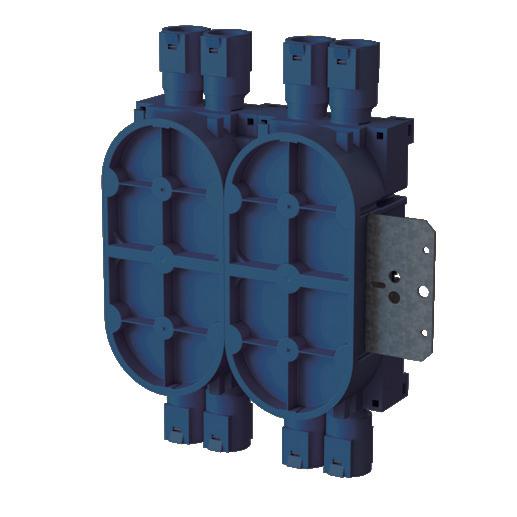

Double boxes simplify installation by reducing the need for multiple single boxes and wiring runs. They allow for easier future expansion if additional devices or upgrades are needed.

INSTALLATION MATERIALS

21

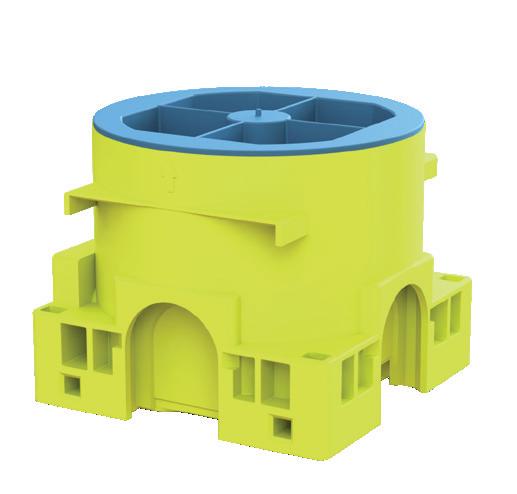

SINGLE 60MM DEPTH RANGE

22

BOX WITHOUT INLETS & STEEL PLATE

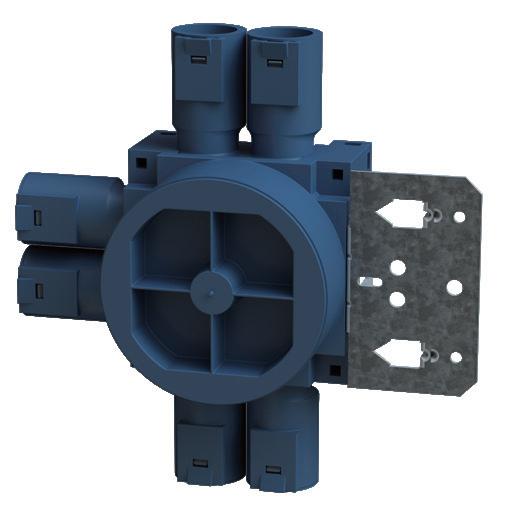

BOXES WITH INLETS

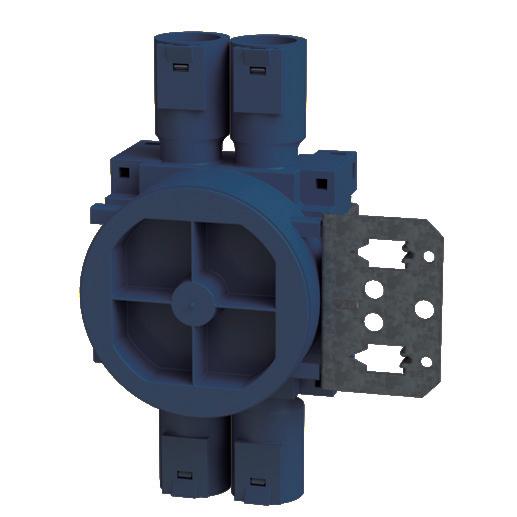

WITH STEEL FASTENING PLATES

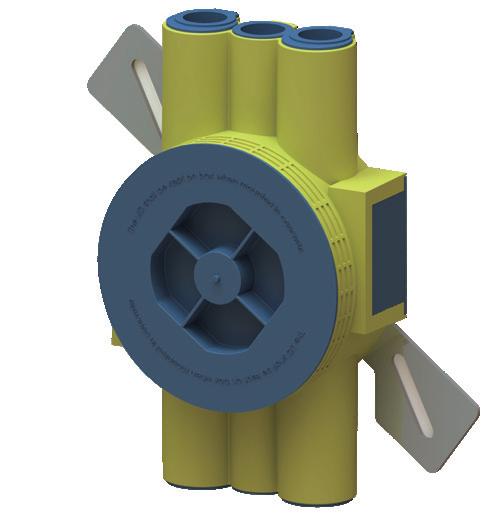

JUNCTION BOXES

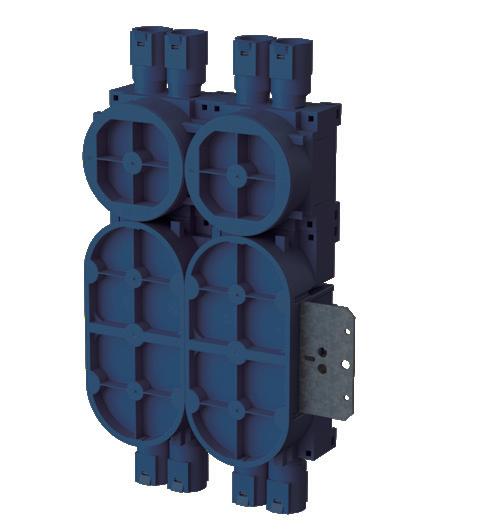

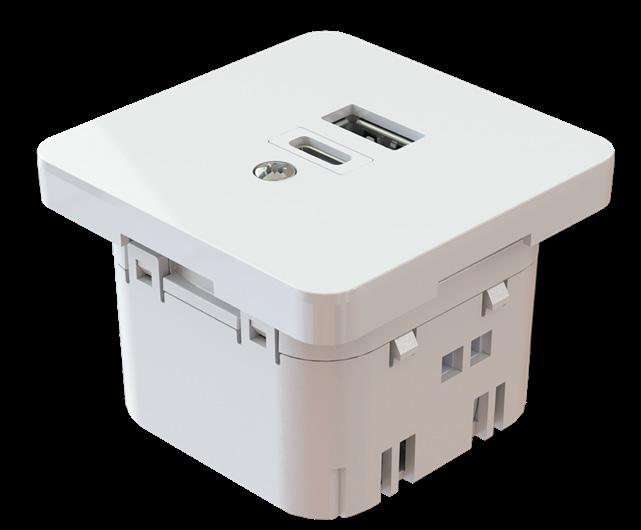

MULTI BOXES

ADDITIONAL SPACE FOR SMART HOME ITEMS

ETMAN INTERNATIONAL

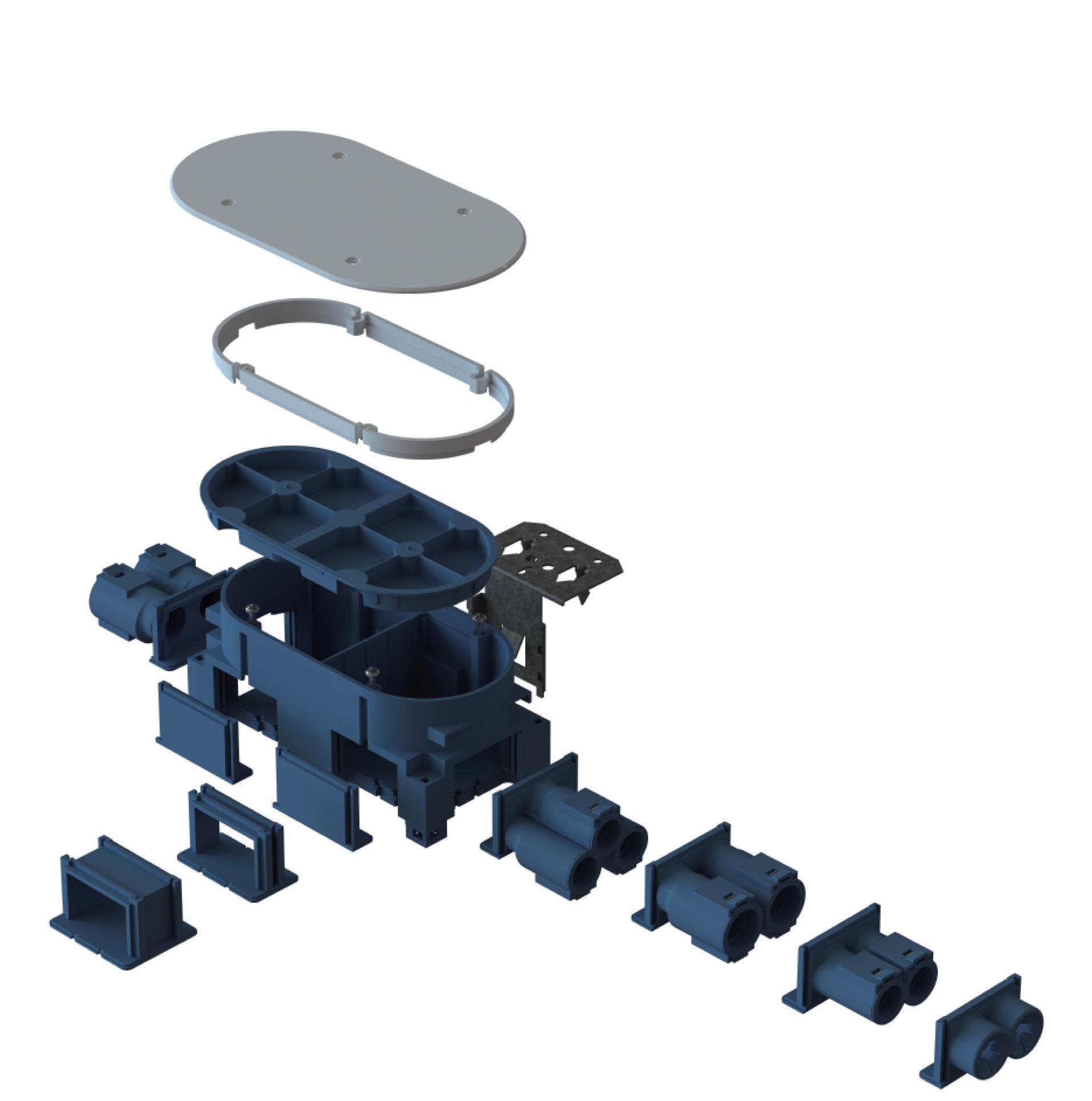

//A SYSTEM THAT FITS EVERY PROJECT Our single wall box range, with a 71mm diameter and 60mm depth, is designed to accommodate all types of sockets and switches. These boxes can be easily tailored thanks to a wide range of accessories, and joined together using connection pieces ETM332S and ETM333S, allowing flexibility in spacing. This versatility makes them a favourite among professional contractors.

1

1

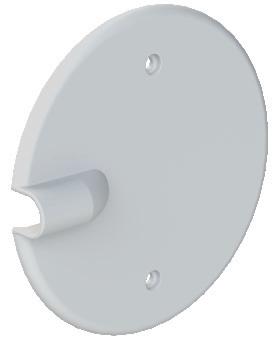

Box cover, ⌀90mm, with screw covers.

2

Extension ring, height 6mm

3

Additional inner ring, height 37mm

4

Connection piece for joining boxes together with cc distance of 71mm between them. Product code ETM332S.

5

Connection piece for joining boxes together with cc distance of 84mm between them. Product code ETM333S.

6

Box cover, ⌀90mm

7

Extension ring, height 12mm. It can be stacked to height of 24mm.

8

Plastic lid included with every box.

9

Turnable inner ring with fixing centre 60mm and 3M.

10

Boxes comes in two sizes. Single plasterboard boxes 1213mm and double plasterboard boxes 24-26mm.

11

Steel fastening plate. Two versions available - one with pins for hammering to wooden studs & another used with screws.

12

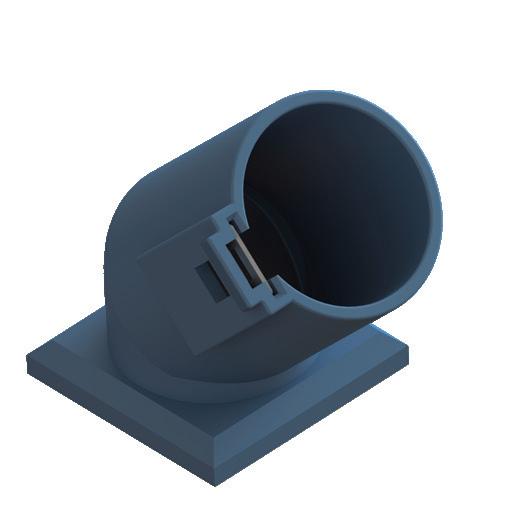

Inlet attachment for ⌀16 and ⌀20 conduits. It features locking springs and sealing caps.

13

Inlet attachment for two ⌀16 conduits. It features locking springs and sealing caps.

14

Inlet attachment for three ⌀16 conduits. It features locking springs and sealing caps.

6

2 7

8 15

3

Coupling bushes with tension reliefs for MMJ and EKK cables: 3G1.5mm² and 3G2.5mm². The diameter for those two are 9mm and 10mm.

9

10

11 12

16

13

4

14 15

5

17

16 17

3.5x3.5 square nails can be used to hammer wall boxes directly to wooden studs.

Spaces with 18, 22, 25, 30 and 34mm height available. Can be stacked to 66, 70, 95 and 120mm to adjust to different height wooden studs.

INSTALLATION MATERIALS

23

SINGLE 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Base box Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

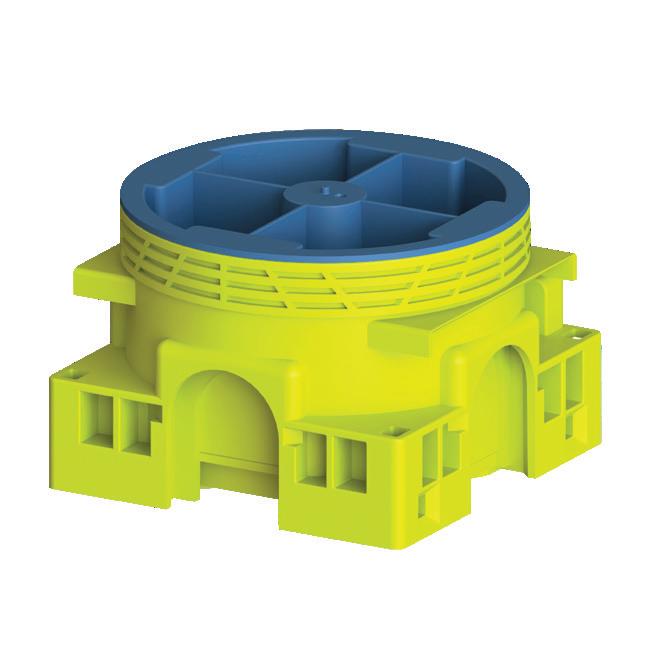

This base wall box is designed for single plasterboard installations (12mm) and comes without inlet attachments. It features an adjustable inner ring, allowing you to customise the height for a perfect fit. The included lid protects wiring during construction and can be recycled post-installation. Equipped with 2x Ø16mm and 2x Ø20mm knockout inlets at the back.

For a single plasterboard

71/71/60

ETM676S

IP30

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

This base wall box is designed for double plasterboard installations (24mm) and comes without inlet attachments. It features an adjustable inner ring, allowing you to customise the height for a perfect fit. The included lid protects wiring during construction and can be recycled post-installation. Equipped with 2x Ø16mm and 2x Ø20mm knockout inlets at the back.

For a double plasterboard

71/71/60

ETM606S

IP30

PP, halogen free

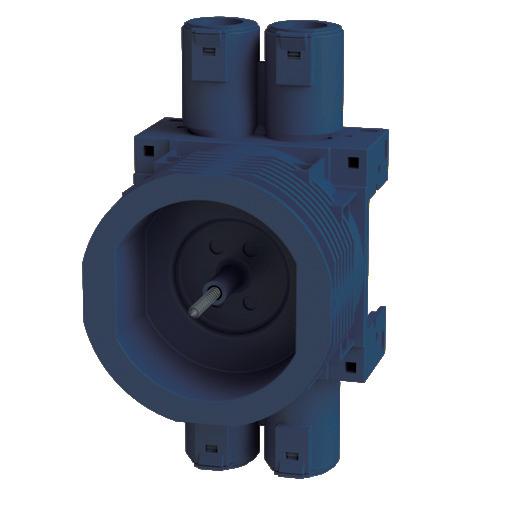

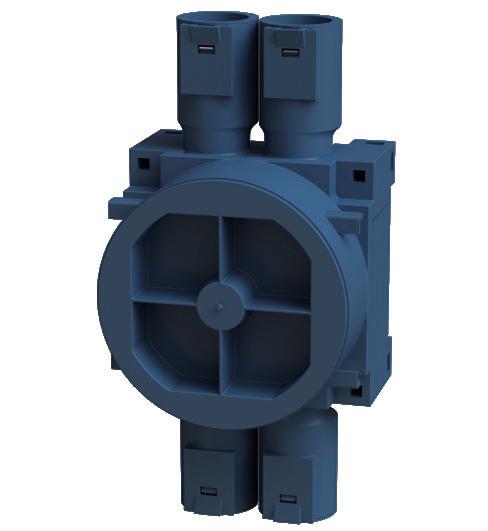

Boxes with double 2xØ16/Ø20mm inlets Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

This single plasterboard (12mm) wall box features an inner ring for precise height adjustment and includes two double inlet attachments compatible with Ø16mm and Ø20mm conduits. It comes with a protective lid and the attachments are equipped with conduit locking springs and entry plugs for secure and convenient installation.

For a single plasterboard

146/71/60

ETM672S

IP30

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

Designed for double plasterboard walls (24mm), this wall box features an inner ring for height adjustment and includes two double inlet attachments compatible with Ø16mm and Ø20mm conduits. The box comes with a protective lid, while the attachments feature conduit locking springs and entry plugs for secure and easy installation.

For a double plasterboard

24

ETMAN INTERNATIONAL

146/71/60

ETM631S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Boxes with triple 2xØ16/Ø20mm inlets Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

This wall box is designed with an inner ring for precise height adjustment and includes three double inlet attachments suitable for Ø16mm and Ø20mm conduits. It comes with a protective lid, and the attachments are equipped with conduit locking springs and entry plugs for secure installation. Suitable for single plasterboard walls (12mm).

For a single plasterboard

146/109/60

ETM678S

IP30

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

This wall box is designed with an inner ring for precise height adjustment and includes three double inlet attachments suitable for Ø16mm and Ø20mm conduits. It comes with a protective lid, and the attachments are equipped with conduit locking springs and entry plugs for secure installation. Suitable for double plasterboard walls (24mm).

For a double plasterboard

146/109/60

ETM387S

IP30

PP, halogen free

Boxes with double 2xØ16/Ø20mm inlets and a steel plate Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

This single (12mm) plasterboard wall box features an inner ring for precise height adjustment and includes two double inlet attachments compatible with Ø16mm and Ø20mm conduits. It is equipped with a steel plate attachment with pins for easy hammering directly onto wooden studs. The box also comes with a protective lid, and the attachments feature conduit locking springs and entry plugs for secure and convenient installation.

For a single plasterboard

146/107/60

ETM336S

IP30

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

A double (24mm) plasterboard wall box features an inner ring for precise height adjustment and includes two double inlet attachments compatible with Ø16mm and Ø20mm conduits. It is equipped with a steel plate attachment with pins for easy hammering directly onto wooden studs. The box also comes with a protective lid, and the attachments feature conduit locking springs and entry plugs for secure and convenient installation.

For a double plasterboard

146/107/60

ETM335S

IP30

PP, halogen free

INSTALLATION MATERIALS

25

SINGLE 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Boxes with triple 2xØ16/Ø20mm inlets and a steel plate Colour: blue; Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

The single (12mm) plasterboard wall box has an inner ring for height adjustment and includes three double inlets for Ø16mm and Ø20mm conduits. It comes with a steel plate attachment with pins, allowing for easy hammering directly onto wooden studs.

For a single plasterboard

146/144/60

ETM338S

IP30

Colour: blue; Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

The single (12mm) plasterboard wall box has an inner ring for height adjustment and includes three double inlets for Ø16mm and Ø20mm conduits. It comes with a steel plate attachment with pins, allowing for easy hammering directly onto wooden studs.

For a double plasterboard

146/144/60

ETM337S

IP30

PP, halogen free

Boxes with double 2xØ16/Ø20mm inlets and a steel plate Colour: blue; Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

This single (12mm) plasterboard wall box features an inner ring for precise height adjustment and includes two double inlets for Ø16mm and Ø20mm conduits. It is equipped with a steel plate for screwing onto wooden or metal studs. The box also comes with a protective lid.

For a single plasterboard

146/107/60

ETM336SF

IP30

Colour: blue; Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE; Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

This double (24mm) plasterboard wall box features an inner ring for precise height adjustment and includes two double inlets for Ø16mm and Ø20mm conduits. It is equipped with a steel plate for screwing onto wooden or metal studs. The box also comes with a protective lid.

For a double plasterboard

146/107/60

ETM335SF

IP30

PP, halogen free

Boxes with triple 2xØ16/Ø20mm inlets and a steel plate Colour: blue; Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

The single (12mm) plasterboard wall box features an inner ring for height adjustment and includes three double inlets with locking springs for Ø16mm and Ø20mm conduits. It has a steel plate for screwing onto wooden or metal studs. The box also comes with a protective lid.

For a single plasterboard

26

ETMAN INTERNATIONAL

146/144/60

ETM338SF

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

Colour: blue; Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

MATERIAL

Ø73-74mm

The double (24mm) plasterboard wall box features an inner ring for height adjustment and includes three double inlets with locking springs for Ø16mm and Ø20mm conduits. It has a steel plate for screwing onto wooden or metal studs. The box also comes with a protective lid.

For a double plasterboard

146/144/60

ETM337SF

IP30

PP, halogen free

Single wall box covers Colour: white; Certificates: CE, Semko Conforms with: RoHS; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box cover features a 90mm diameter and a fixing distance of cc 60mm. Designed for a clean and unobtrusive finish, it provides a precise fit, ensuring a seamless appearance. The cover is easy to install.

For single wall boxes cc Ø60mm

Ø90/2

ETM003S

IP20

PP, halogen free

Colour: white; Certificates: CE, Semko Conforms with: RoHS; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box cover, with a 90mm diameter and a fixing distance of cc 60mm, is compatible with single wall boxes. It features three screw covers, concealing fasteners and providing a clean look.

For single wall boxes cc Ø60mm

Ø90/5

ETM540S

IP20

PP, halogen free

Colour: white; Certificates: CE, Semko Conforms with: RoHS; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box cover, with a 90mm diameter, is compatible with single wall boxes. It is a screwless version and provides quick and easy installation.

For single wall boxes cc Ø60mm

Ø90/26.9

ETM003S-1

IP20

PP, halogen free

Colour: white; Certificates: CE, Semko Conforms with: RoHS; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box cover, with a 90mm diameter and a strain relief, is compatible with single wall boxes. It is fixed with two screws cc60mm.

For single wall boxes cc Ø60mm

Ø82/14.1

ETM003S-3

IP20

PP, halogen free

INSTALLATION MATERIALS

27

SINGLE WALL BOX RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Colour: white; Certificates: CE, Semko Conforms with: RoHS; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box cover, with a 90mm diameter and a fixing distance of cc 60mm, is compatible with single wall boxes. It features two fixing points and a cable entry hole.

For single wall boxes cc Ø60mm

Ø90/12.4

ETM003S-2 IP20

PP, halogen free

Single wall box ring extensions Colour: white Certificates: CE, Semko Conforms with: RoHS; Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This white extension ring, designed for single wall boxes, adds 6mm in height to accommodate various installation needs. It attaches securely with two screws, featuring a fixing distance of cc 60mm.

For single wall boxes cc Ø60mm

Ø71/6

ETM013S

IP20

PP, halogen free

Colour: white; Certificates: CE, Semko Conforms with: RoHS, Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This extension ring is designed for single wall boxes and provides a 12mm height increase. It can be stacked to achieve a total height of 24mm, offering customisable options. The ring attaches securely with two screws (included), featuring a fixing distance of cc 60mm.

For single wall boxes cc Ø60mm

Ø71/12

ETM543S

IP20

PP, halogen free

Colour: white; Certificates: CE, Semko Conforms with: RoHS, Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC An extended white inner ring is designed for single wall boxes and adds up to 37mm in depth, making it ideal for projects with extra thick walls. It attaches securely with two screws, featuring a fixing distance of cc 60mm.

Perfect for accommodating deeper wall cavities.

For single wall boxes cc Ø60mm

Ø65/37

ETM339S

IP20

PP, halogen free

Boxes with adjustable steel plate and double 2xØ16/Ø20mm inlets Colour: blue; Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

This wall box features adjustable steel plate and has two double inlets with locking plates for Ø16mm and Ø20mm conduits, and a steel plate with pins for easy hammering onto wooden studs. The lid is included.

For a single plasterboard

28

ETMAN INTERNATIONAL

146/112/73

ETM335SA

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

MATERIAL

Ø73-74mm

This wall box, with an IP30 rating, is a great choice for environments prioritising enhanced safety and protection for internal components. It includes two double inlet attachments for Ø16mm and Ø20mm conduits, and a steel plate with pins for easy hammering onto wooden studs. The box comes with a lid, and the inlets feature conduit locking springs and entry sealing plugs, ensuring secure and dust-free installation.

For a double plasterboard

146/112/73

ETM336SA

IP30

PP, halogen free

Boxes with adjustable steel plate and triple 2xØ16/Ø20mm inlets Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

Boasting a high IP30 rating, this box is a great choice for environments prioritising enhanced safety and protection for internal components. It includes three double inlet attachments for Ø16mm and Ø20mm conduits, and a steel plate with pins for easy hammering onto wooden studs. The box comes with a lid. The inlets feature conduit locking springs and entry sealing plugs.

For a single plasterboard

146/150/73

ETM337SA

IP30

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

Boasting a high IP30 rating, this box is a great choice for environments prioritising enhanced safety and protection for internal components. It includes three double inlet attachments for Ø16mm and Ø20mm conduits, and a steel plate with pins for easy hammering onto wooden studs. The box comes with a lid. The inlets feature conduit locking springs and entry sealing plugs.

For a double plasterboard

146/150/73

ETM338SA

IP30

PP, halogen free

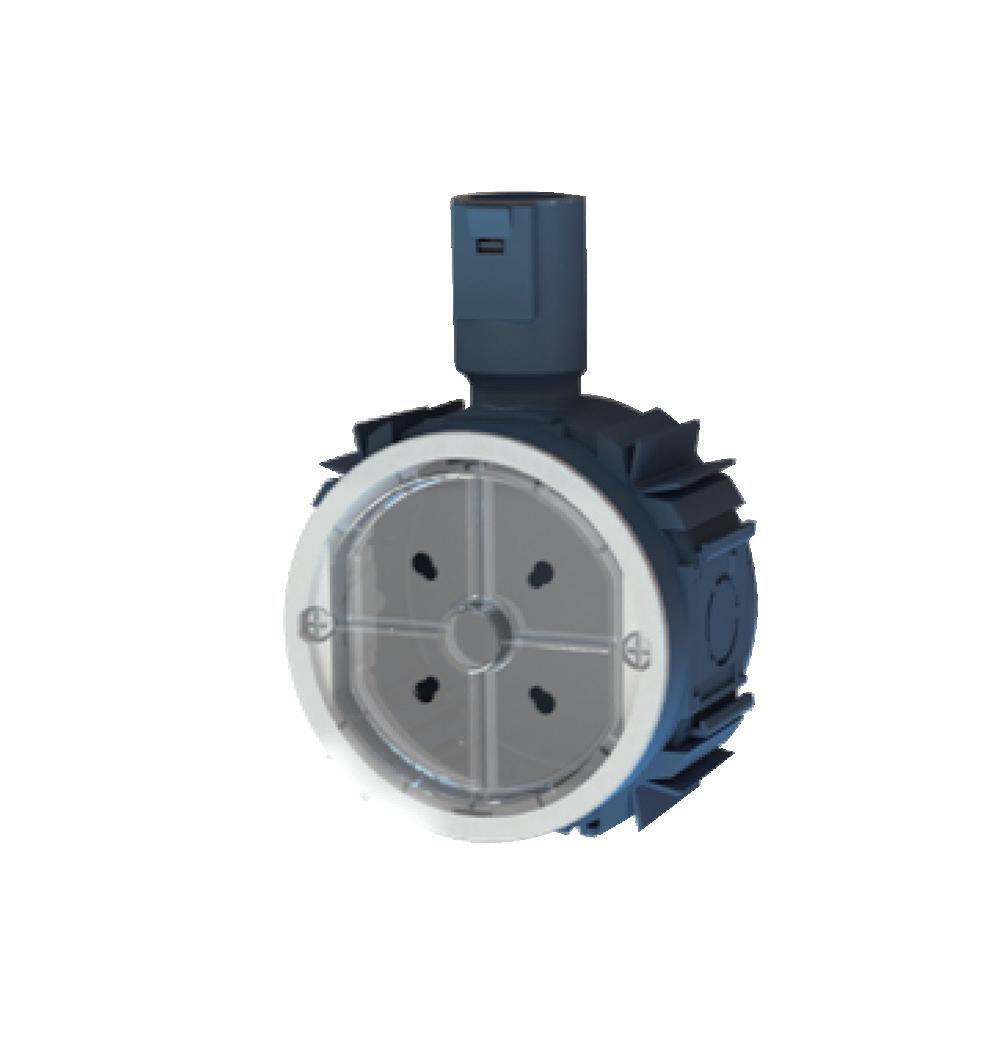

Junction boxes Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø86mm

The junction box, with an 83mm diameter and 60mm depth, features an inner ring with a cc67mm attachment using M3 screws. Secure the ring in place by tightening the screws on each side. The box includes seven built-in inlets: 4x Ø16mm and 3x Ø16/20mm, with the option to add additional inlets on each side using accessory attachments. A protective lid is included.

For a single plasterboard

142/83/60

ETM394S

IP30

PP, halogen free

INSTALLATION MATERIALS

29

SINGLE 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

MATERIAL

Ø86mm

The junction box, with an 83mm diameter and 60mm depth, features an inner ring with a cc 67mm attachment using M3 screws. Secure the ring in place by tightening the screws on each side. The box includes 7 built-in inlets: 4x Ø16mm and 3x Ø16/20mm, with the option to add additional inlets on each side using accessory attachments. A protective lid is included.

For a double plasterboard

142/83/60

ETM395S

IP30

PP, halogen free

Junction boxes with a steel plate for wooden studs Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø86mm

The junction box, with an 83mm diameter and 60mm depth, has an inner ring with a cc 67mm attachment using M3 screws. Secure the ring in place by tightening the screws on each side. The box includes 7 built-in inlets: 4x Ø16mm and 3x Ø16/20mm, with the option to add additional inlet on the side. It also has a steel plate with pins for easy hammering onto wooden studs. A protective lid is included.

For a single plasterboard

142/124.3/60

ETM398S

IP30

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø86mm

The junction box, with an 83mm diameter and 60mm depth, has an inner ring with a cc 67mm attachment using M3 screws. Secure the ring in place by tightening the screws on each side. The box includes 7 built-in inlets: 4x Ø16mm and 3x Ø16/20mm, with the option to add additional inlet on the side. It also has a steel plate with pins for easy hammering onto wooden studs. A protective lid is included.

For a double plasterboard

142/124.3/60

ETM399S

IP30

PP, halogen free

Junction boxes with a steel plate for wooden/metal studs Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø86mm

The junction box, with an 83mm diameter and 60mm depth, has an inner ring with a cc 67mm attachment using M3 screws. Secure the ring in place by tightening the screws on each side. The box includes 7 built-in inlets: 4x Ø16mm and 3x Ø16/20mm, with the option to add additional inlet on the side. It also has a steel plate for screwing onto wooden or metal studs. A protective lid is included.

For a single plasterboard

30

ETMAN INTERNATIONAL

142/124/60

ETM398SF

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

MATERIAL

Ø86mm

The junction box, with an 83mm diameter and 60mm depth, has an inner ring with a cc 67mm attachment using M3 screws. Secure the ring in place by tightening the screws on each side. The box includes 7 built-in inlets: 4x Ø16mm and 3x Ø16/20mm, with the option to add additional inlet on the side. It also has a steel plate for screwing onto wooden or metal studs. A protective lid is included.

For a double plasterboard

142/124/60

ETM399SF

IP30

PP, halogen free

Junction box covers Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This white junction box cover, with a 100mm diameter, offers a clean and seamless finish. Designed for convenience, it is screwless and easily fixed in place by simply pushing the lid on.

For junction boxes cc 67mm

Ø100/28.2

ETM526S

IP20

PP, halogen free

Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The junction box cover, with a 100mm diameter, provides a sleek and seamless finish. Designed for convenience, it is screwless and easily fixed in place by simply pushing the lid on. The cover also features a cable entry point, offering a practical solution for wiring needs.

For junction boxes cc 67mm

Ø100/28.2

ETM527S

IP20

PP, halogen free

Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Featuring a 100mm diameter, this junction box cover is secured with two screws, spaced at cc 67mm, ensuring a firm and stable attachment. The cover’s white finish offers a neat and professional look while providing reliable protection for the junction box.

For junction boxes cc 67mm

Ø100/3

ETM004S-1

IP20

PP, halogen free

INSTALLATION MATERIALS

31

SINGLE 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Featuring a 100mm diameter, this junction box cover is secured with two screws, spaced at cc 67mm, ensuring a firm and stable attachment. The cover’s white finish offers a neat and professional look while providing reliable protection for the junction box. The lid also features a cable entry point, catering for different wiring requirements.

For junction boxes cc 67mm

Ø100/12.4

ETM528S

IP20

PP, halogen free

Junction box cc 78mm Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø100mm

This junction box is designed for double plasterboard walls (24-26mm) and features a fixing center of cc 78mm, making it ideal for projects that require extra wiring space. Its design supports customisation with the ability to add conduit inlet attachments from a range of accessories, allowing for tailored solutions to meet specific project needs.

For a double plasterboard

95/95/60

ETM601S

IP30

PP, halogen free

Junction box cover cc 67-78mm Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC A junction box cover that fits a wide range of boxes thanks to its adjustable fixing points. The lid has a diameter of 110mm and comes with three screw covers for a seamless, polished finish, concealing fasteners and providing a clean look.

For junction boxes cc 67-78mm

Ø110/5

ETM541S

IP20

PP, halogen free

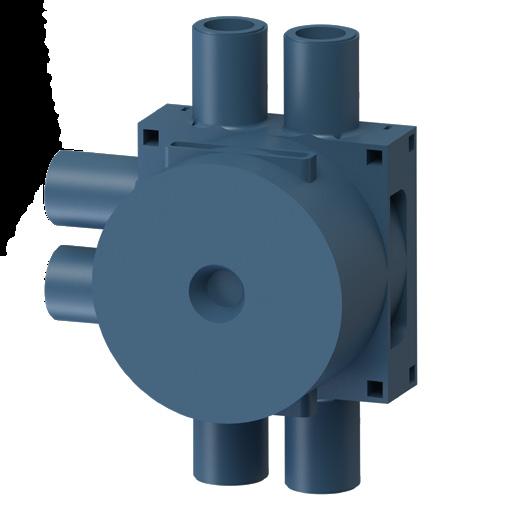

Multi boxes Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

The multi box is ideal for use in prefabricated or hollow walls, allowing for installation from the outside of the wall when an extra flush wall box is needed. It requires a minimum wall panel thickness of 6mm. Equipped with two fixed Ø16mm entries, it includes locking springs, sealing plugs, and a plastic lid to ensure a secure and protected installation. The box features a screw distance of cc 60mm and is secured with M3 screws.

For prefab and hollow walls

32

ETMAN INTERNATIONAL

77/70.5/60

ETM220S

IP20

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

MATERIAL

Ø73-74mm

The box with 90-degree inlets is designed for use in prefabricated or hollow walls, where installation can be carried out from the outside of the wall. This box is particularly suited for situations where tight spaces and pipes are routed from above. With a depth of 65mm and minimum 6mm wall thickness, it provides lots of room for wiring. The box has 3x Ø16mm fixed conduits and two knockout inlets 1xØ16mm and 1xØ20mm.

For prefab and hollow walls

71/71/67

ETM546S

IP20

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

The box with 90-degree inlets is particularly suited for situations where installation can be carried out from the outside of the wall and where pipes are routed from above. This low multi box has a depth of 48mm and features 3x Ø16mm fixed conduits and two knockout inlets - 1xØ16mm and 1xØ20mm, which can be opened as needed.

For prefab and hollow walls

79/71/56

ETM647S

IP20

PP, halogen free

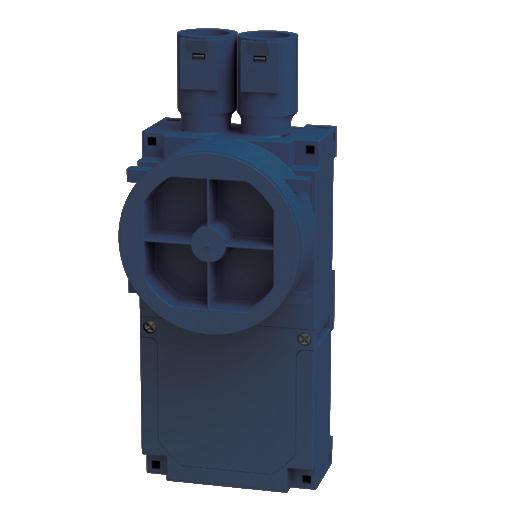

Single boxes with ‘pocket’ space Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE, REACH Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

The single wall box with additional ‘pocket’ space is designed to provide extra room for components like dimmers, relays, transformers, and smart home connections. This box features a single 2xØ16/20mm conduit inlet. It includes a lid and the inlets are equipped with conduit locking plates and seal plugs.

For a single plasterboard

216/111/60

ETM740S

IP30

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE, REACH Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

The single wall box with additional ‘pocket’ space is designed to provide extra room for components like dimmers, relays, transformers, and smart home connections. This box features a single 2xØ16/20mm conduit inlet. It includes a lid and the inlets are equipped with conduit locking plates and seal plugs.

For a double plasterboard

216/111/60

ETM741S

IP30

PP, halogen free

INSTALLATION MATERIALS

33

SINGLE 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

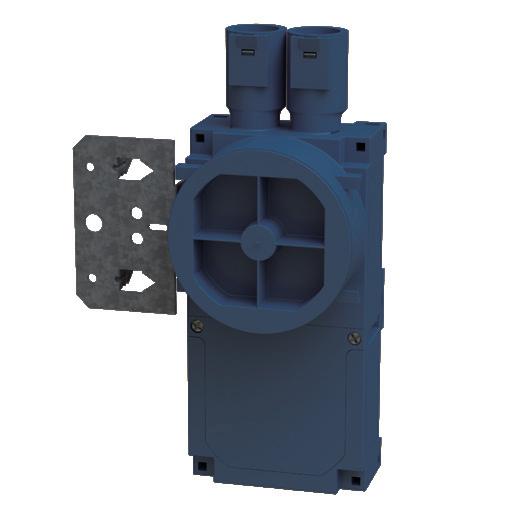

Single boxes with ‘pocket’ space and a steel plate for wooden studs Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE, REACH Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

The single wall box with additional space is perfect for accommodating dimmers, relays, transformers and other smart home connections. It features a single double inlet compatible with Ø16mm and Ø20mm conduits. The box includes a steel plate with metal pins for easy hammering into wooden studs. A protective lid is provided, and the inlets are equipped with conduit locking plates and seal plugs.

For a single plasterboard

179/71/60

ETM742S

IP30

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE, REACH Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

The single wall box with additional space is perfect for accommodating dimmers, relays, transformers and other smart home connections. It features a single double inlet compatible with Ø16mm and Ø20mm conduits. The box includes a steel plate with metal pins for easy hammering into wooden studs. A protective lid is provided, and the inlets are equipped with conduit locking plates and seal plugs.

For a double plasterboard

179/71/60

ETM743S

IP30

PP, halogen free

Single boxes with ‘pocket’ space and a steel plate for wooden/metal studs Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE, REACH Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

The single wall box with extra space is perfect for housing dimmers, relays, transformers and smart home connections. It includes a double inlet compatible with Ø16mm and Ø20mm conduits and features a steel plate for attachment to metal or wooden studs using screws. The box also comes with a lid, and the inlets are equipped with conduit locking plates and seal plugs.

For a single plasterboard

179/71/60

ETM742SF

IP30

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE, REACH Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø73-74mm

The single wall box with extra space is perfect for housing dimmers, relays, transformers and smart home connections. It includes a double inlet compatible with Ø16mm and Ø20mm conduits and features a steel plate for attachment to metal or wooden studs using screws. The box also comes with a lid, and the inlets are equipped with conduit locking plates and seal plugs.

For a double plasterboard

34

ETMAN INTERNATIONAL

179/71/60

ETM743SF

IP30

PP, halogen free

n/Remark

urn inner ring of wall boxes

Type

ETM397S

Description/Remark

Plastic piece to FIX that box fells out from a´wall + Fix bigger gluing part SIZE + FIX thinner wall plates PRODUCT

H/W/D mm

Plastic piece for connection box Wall fixture piece suitable for all universal boxes

ETM397S-1

to FIX that box fells out from a´wall + Fix bigger gluing part For all Universal wall boxes r wall plates

ETM397S 60

for connection box

PP, halogen free

IP20

Plastic piece for connection box.

Universal Series

Universal Series For all Universal wall Universal boxes Series 60 Universal Series Spacers suitable for all universal boxes

ETM396S

ETM396S

ETM641S ETM641S ETM641S ETM641S

ETM641S

Single Single gypsum Single gypsum gypsum Single gypsum Single gypsum

Double Double gypsum Double gypsum gypsum Double gypsum

ETM649S ETM649S Spac all for w er ererSpac Spac all all for for xx x bo bo wbo wDouble ETM649S gypsum

63

Red wall spacer with the height of 25mm.

70mm

95mm

For all Universal wall boxes 70mm 95mm

66mm

66mm

ETM640S ETM640S ETM640S ETM396S ETM396S ETM396S ETM641S ETM641S ETM641S ETM649S ETM649S ETM649S ETM650S ETM650S ETM650S

Grey wall spacer with the height of 17mm.

For all Universal wall boxes

Description/Remark Description/Remark Description/Remark

ETM650S

70mm 70mm 70mm 70mm

66mm 66mm 66mm 66mm

DOUBLE PLASTERBOARD

ETM649S ETM649S ETM649S

71 40

39 30

ETM650S ETM650S ETM650S

ETM650S

70mm

Double Double Double gypsum gypsum gypsum

Single Single Single gypsum gypsum gypsum

43 34

71 7171 40 4040

For all Universal wall boxes

95mm 95mm 95mm 95mm

43 43 34 34 43 34 43 34

40 Height 21mm, green Height 21mm, green Height 21mm, green Height 25mm, red Height 25mm, red Height 25mm, red ETM641S IP20 Height 34mm, yellow Height 34mm, yellow Height 34mm, yellow Height 17mm, grey Height 17mm, grey Height 17mm, grey Height 30mm, black Height 30mm, black Height 30mm, black ETM641S ETM641S ETM641S 71 39 71 39 30 40 ETM641S 30 40 71 39 30 40 70mm 95mm 70mm 70mm 95mm ETM641S 7195mm 39 40 ETM649S IP20 30

Height 25mm, Height Height 25mm, 25mm, red redred Height 34mm, yellow Height Height 34mm, 34mm, yellow yellow Black wall spacer with the height of Single 30mm.

ETM650S Single Single ETM396S ETM650S ETM396S ETM396S Height 17mm, grey Height Height 17mm, 17mm, grey grey gypsum gypsum gypsum ETM650S Height 30mm, black Height Height 30mm, 30mm, black black

ETM641S ETM641S ETM641S

SINGLE PLASTERBOARD

Description/Remark Description/Remark Description/Remark 71

Height 21mm, green ETM649S Height Height 21mm, 21mm, green green

ETM650S

71 71 ETM640S 40 40 71 40 ETM640S 71 40

Drawing: Drawing: Drawing:

ETM649S

PP, halogen free

71 71 40 40 71 40 71 40 71 40

UniversalSeSeries Series ries Universal Universal

ETM640S ETM640S

Type Type Type Yellow wall spacer with the height of 34mm.

UniversalSeSeries S eETM640S ries Universal Universal ries ETM640S ETM640S

31 21

ETM640S IP20 ETM396S

Spac all for bo erererSpac all for x x x bo w Spac all for bo ww

For all Universal wall boxes

71 40

31 2131 21 31 21 IP20 31 21

127 127 127 127 127 117 117 117 117 117

66mm 66mm 66mm

127 127 117 127 117 117

63

For all Universal wall boxes

127 127 127 127 127 117 117 117 117 117

ETM649S ETM650S

Height 25mm, red Height Height21mm, 25mm,green red Height 34mm, yellow Spac allfor x Description/Remark bow25mm, Height Height 34mm,red yellow Height 17mm, grey Height Height 34mm, yellow Height21mm, 17mm,green grey Height 30mm, black Height Height 17mm, grey Height25mm, 30mm,red black Description/Remark Height Height34mm, 30mm,yellow black Height 21mm, green Height Height17mm, 25mm,grey red Height Height30mm, 34mm,black yellow 70mm 95mm 70mm Height 17mm, grey 95mm Height 30mm, black 95mm 70mm

IP20

ETM650S

95mm

71 7171 40 4040

PP, halogen free

ETM396 ETM396 ETM396

2 ETM396 2

71 71 40 40 71 40 71 40

17 12

1 ETM396

2 17

2 17

71 40

ETM649S

ETM649S S Universal S er Universal Universal eSerie ri ETM649S 66mm 66mm 66mm

PP, halogen free

ETM649S

ETM649S

31 3131 21 2121

ETM650S

ETM640S ETM640S ETM640S

PP, halogen free

71 7171 40 4040

PP, halogen free

127 127 117 127 117 117

ETM396S ETM396S ETM396S

ETM396S ETM640S ETM396S ETM641S Type er ETM396S ETM641S ETM649S ETM640S ETM641S ETM649S ETM650S ETM396S ETM649S ETM650S Type ETM641S ETM650S ETM640S ETM649S ETM396S ETM650S ETM641S

Universal Series

71 71 40 Drawing: 40 71 40 Drawing: ETM640S71 40

127 127 127 127 127 117 117 117 117 117

ETM640S

63 63 63

Universal Series

127 127 127 127 127 117 117 117 117 117

ETM640S

ETM640S ETM640S ETM640S ETM396S ETM396S ETM396S ETM641S ETM641S ETM641S ETM649S ETM649S ETM649S ETM650S ETM650S ETM650S

Universal Series Drawing: Drawing: Drawing:

Type Description/Remark Type Description/Remark ETM640S Height green with the height of 21mm.

Green wall spacer er Spac all for x bow21mm, Type Description/Remark ETM640S Height 21mm, green

ETM640S ETM640S ETM640S

Type Type Type

bow bow bow

PP, Universal halogen Universal SeSeries ries eries freeUniversal S

ETM397S-1 IP20

66mm

43 4343 34 3434

71 7171 40 4040

127 127 117 127 117 117

er Spac allfor x er Spac allfor x er Spac allfor x

Installation Installation Installation Materials Materials Materials

M641S 41S S

MATERIAL

Connection box piece suitable for all universal boxes

Installation Installation Installation Installation Installation Materials Materials Materials Materials Materials

M396S 96S S

IP CLASS

Plastic piece to help wall box fit snuggly into cut out holes. Can be used with wall boards thinner than standard plasterboards.

n/Remark

M640S 40S S

CODE

INSTALLATION MATERIALS

35

ONE AND A HALF 60MM DEPTH RANGE BOXES WITH INLETS

WITH STEEL FASTENING PLATES

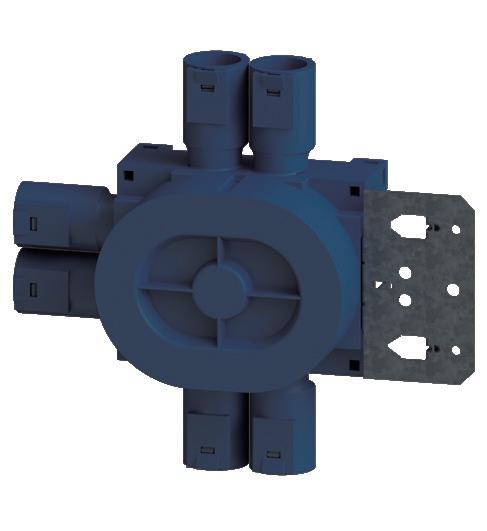

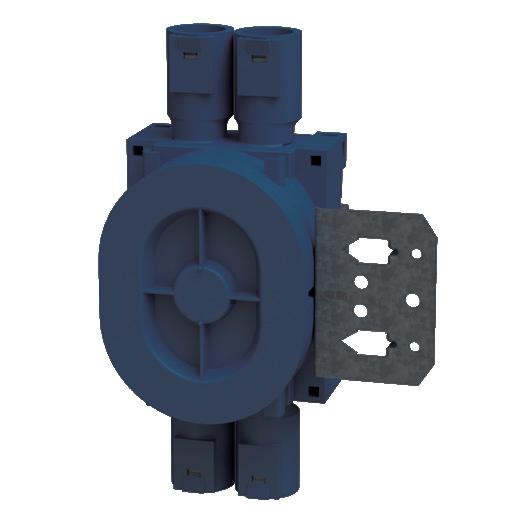

VERTICAL AND HORIZONTAL BOXES

ADDITIONAL SPACE

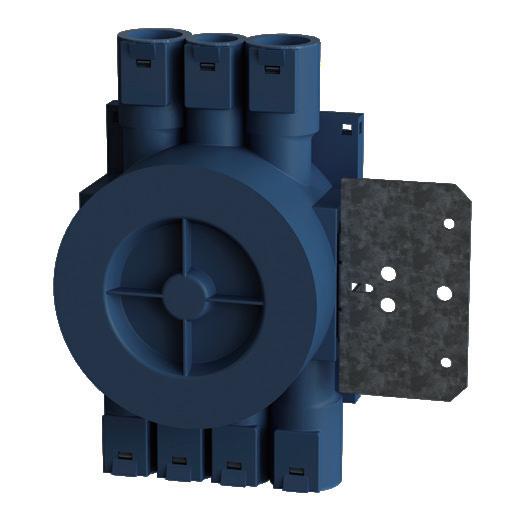

THREE INLETS AND STEEL PLATE

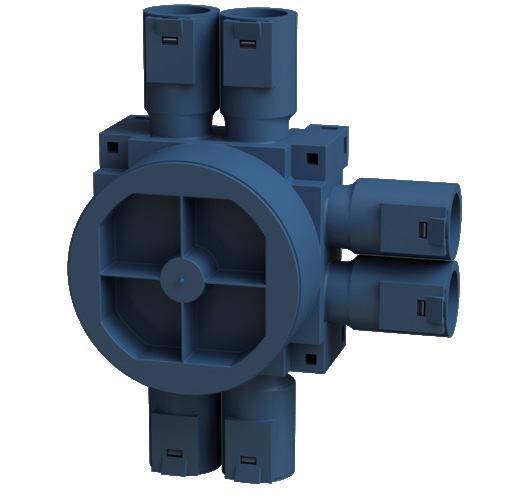

MULTI BOX

The one-and-a-half box with additional space is designed to accommodate dimmers, relays, transformers, and other smart home connections.

36

ETMAN INTERNATIONAL

//A SPACIOUS BOX FOR EFFICIENT ELECTRICAL INSTALLATIONS The one-and-a-half box is a versatile modular system designed to meet diverse project requirements. It offers ample space for wiring and device accommodation, enhancing safety and practicality. This system allows tailoring with conduit inlets, fixing plates, and joining pieces, making it adaptable for various electrical installations. The box is ideal for retrofit situations and provides a balance between single and double-gang boxes, ensuring both ease of installation and versatility.

1

Cover

2

Extension ring, height 6mm. Can be stacked to 12mm height.

3

Connection piece ETM332S for cc distance of 71mm between the boxes.

4

Connection piece ETM333S for cc distance of 84mm between the boxes.

5

Plastic lid, which included with every box.

6

Fixing centre cc 60mm with M3 screws.

7

Boxes for single (12mm) and double (24mm) plasterboards.

8

Steel plate with pins for fastening to wooden studs. Different plate available for fixing it to metal studs using screws.

9

Double inlet attachment with 2x Ø16/20mm conduit entries, locking plates and sealing plugs.

1

2

5

6

7

8

9

3 13

10 11

4 12

10

Double inlet attachment with 2x Ø16mm conduit entries, locking plates and sealing plugs.

12

Coupling bushes Ø9mm and Ø10mm with tension reliefs for MMJ and EKK cables: 3G1.5mm² and 3G2.5mm².

11

Triple inlet attachment with 3x Ø16mm conduit entries, locking plates and sealing plugs.

13

The holes can be used to attach boxes onto wooden studs with 3.5x3.5 square nails.

INSTALLATION MATERIALS

37

ONE AND A HALF 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

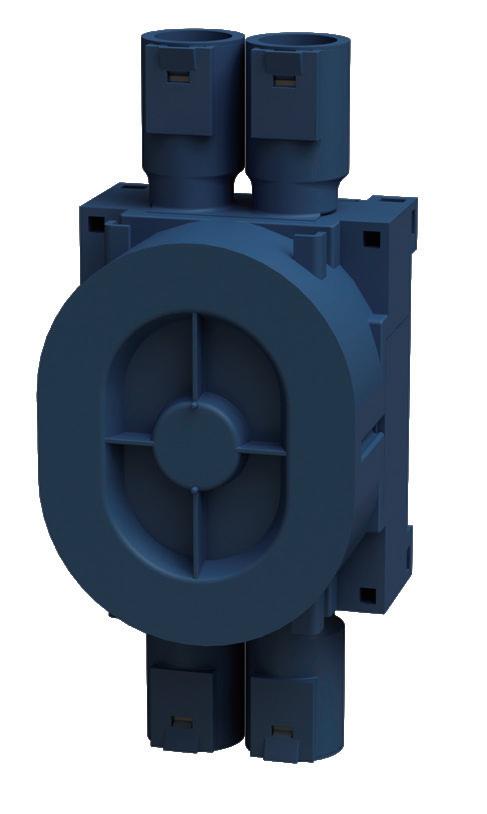

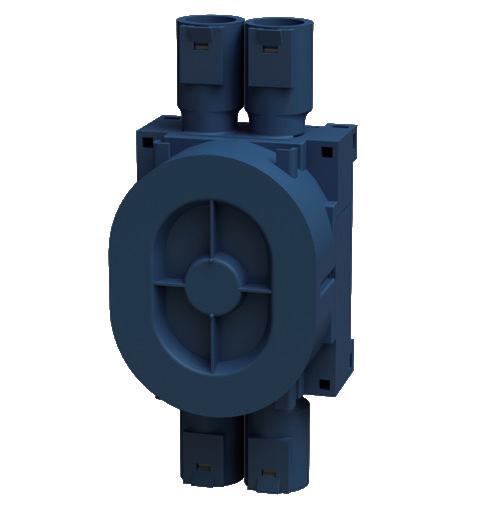

1.5 box with two double inlets 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This blue 1.5 wall box is designed for single plasterboard walls (12mm) and features a 60mm depth. It includes two inlets for Ø16mm and Ø20mm conduits, each fitted with locking plates to securely hold the conduits in place. The box comes with a protective lid and inlet sealing plugs to ensure a dust-proof and secure installation.

For a single plasterboard

165/71/60

ETM673S

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This blue 1.5 box is designed for double plasterboard walls (24mm) and features a 60mm depth. It includes two inlets for Ø16mm and Ø20mm conduits, each fitted with locking plates to securely hold the conduits in place. The box comes with a protective lid and inlet sealing plugs to ensure a dust-proof and secure installation.

For a double plasterboard

165/71/60

ETM633S

IP30

PP, halogen free

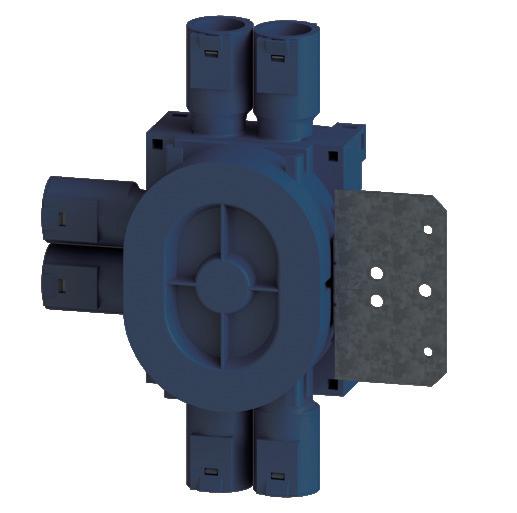

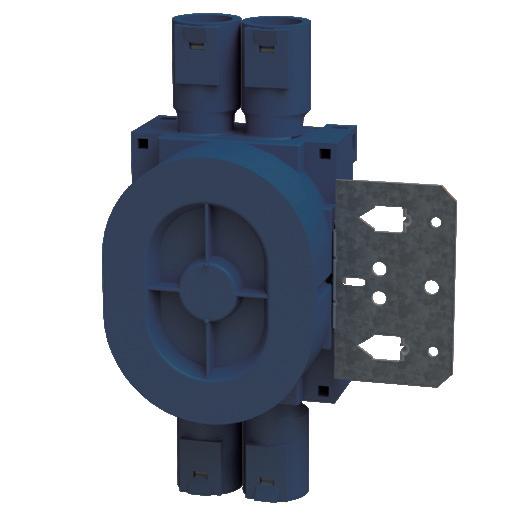

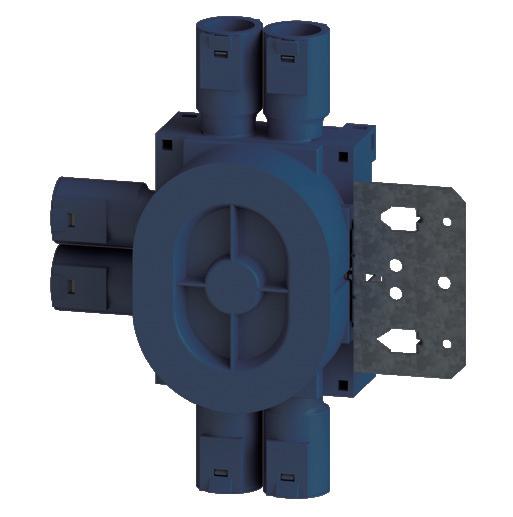

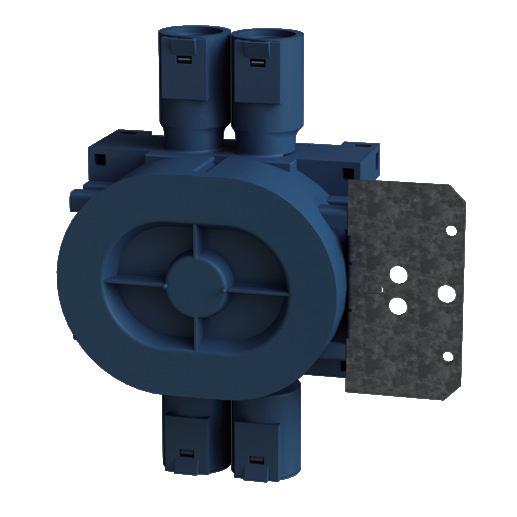

1.5 box with two double inlets and a steel plate for wooden studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The wall box, designed for single plasterboard walls, features a 60mm depth and includes two inlets for Ø16mm and Ø20mm conduits. Each inlet is equipped with locking plates to securely hold conduits in place, and the box comes with sealing plugs to prevent dust ingress. The box also includes a protective lid and a steel plate with pins, allowing for easy hammering directly into wooden studs.

For a single plasterboard

165/112/60

ETM613S

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The wall box, designed for double plasterboard walls, features a 60mm depth and includes two inlets for Ø16mm and Ø20mm conduits. Each inlet is equipped with locking plates to securely hold conduits in place, and the box comes with sealing plugs to prevent dust ingress. The box also includes a protective lid and a steel plate with pins, allowing for easy hammering directly into wooden studs.

For a double plasterboard

38

ETMAN INTERNATIONAL

165/112/60

ETM614S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Horizontal 1.5 box with two double inlets and a steel plate for wooden studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This horizontal 1.5 wall box is tailored for single plasterboard walls and features a 60mm depth. It includes two inlets for Ø16mm and Ø20mm conduits, each fitted with locking plates to securely hold the conduits in place. The box comes with a protective lid and sealing plugs to ensure a dust-free installation. Additionally, it has a steel plate with pins, making it easy to hammer the box securely into wooden studs.

For a single plasterboard

146/131/60

ETM615S

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This horizontal 1.5 wall box is tailored for double plasterboard walls and features a 60mm depth. It includes two inlets for Ø16mm and Ø20mm conduits, each fitted with locking plates to securely hold the conduits in place. The box comes with a protective lid and sealing plugs to ensure a dust-free installation. Additionally, it has a steel plate with pins, making it easy to hammer the box securely into wooden studs.

For a double plasterboard

146/131/60

ETM616S

IP30

PP, halogen free

1.5 box with two double inlets and a steel plate for wooden/metal studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The wall box is offering a 60mm depth to accommodate a range of wiring needs. It features two inlets for Ø16mm and Ø20mm conduits, each with locking plates to ensure a secure connection. The box includes a protective lid and inlet sealing plugs to prevent dust entry. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a single plasterboard

165/112/60

ETM613SF

IP20

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The wall box is offering a 60mm depth to accommodate a range of wiring needs. It features two inlets for Ø16mm and Ø20mm conduits, each with locking plates to ensure a secure connection. The box includes a protective lid and inlet sealing plugs to prevent dust entry. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a double plasterboard

165/112/60

ETM614SF

IP30

PP, halogen free

INSTALLATION MATERIALS

39

ONE AND A HALF 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Horizontal 1.5 box with two double inlets and a steel plate for wooden/metal studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The horizontal 1.5 wall box is offering a 60mm depth to accommodate a range of wiring needs. It features two 2xØ16/20mm conduit inlets, each with locking plates to ensure a secure connection. The box includes a protective lid and inlet sealing plugs to prevent dust entry. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a single plasterboard

146/126/60

ETM615SF

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The horizontal 1.5 wall box is offering a 60mm depth to accommodate a range of wiring needs. It features two 2xØ16/20mm conduit inlets, each with locking plates. The box includes a protective lid and inlet sealing plugs to prevent dust entry. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a double plasterboard

146/126/60

ETM616SF

IP20

PP, halogen free

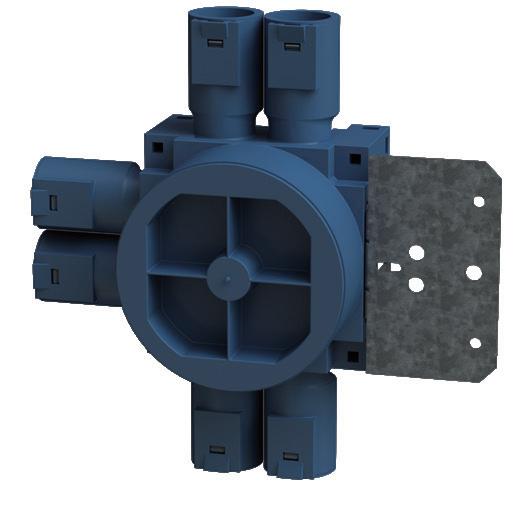

1.5 box with three double inlets and a steel plate for wooden studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This wall box is designed for single plasterboard walls, featuring three double inlets for Ø16mm and Ø20mm conduits. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. It also comes with a steel plate with pins for easy hammering into wooden studs.

For a single plasterboard

165/151/60

ETM693S

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This wall box is designed for double plasterboard walls, featuring three double inlets for Ø16mm and Ø20mm conduits. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. It also comes with a steel plate with pins for easy hammering into wooden studs.

For a double plasterboard

40

ETMAN INTERNATIONAL

165/151/60

ETM697S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

1.5 box with three double inlets and a steel plate for wooden/metal studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This wall box is designed for single plasterboard walls, featuring three double inlets for Ø16mm and Ø20mm conduits. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a single plasterboard

165/151/60

ETM693SF

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Designed for double plasterboard walls, the box features three 3xØ16/20mm conduit inlets. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a double plasterboard

165/151/60

ETM697SF

IP30

PP, halogen free

Horizontal 1.5 box with three double inlets and a steel plate for wooden studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This horizontal wall box is designed for single plasterboard walls, featuring three double inlets for Ø16mm and Ø20mm conduits. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. It also comes with a steel plate with pins for easy hammering into wooden studs.

For a single plasterboard

146/170/60

ETM698S

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This horizontal wall box is designed for double plasterboard walls, featuring three double inlets for Ø16mm and Ø20mm conduits. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. It also comes with a steel plate with pins for easy hammering into wooden studs.

For a double plasterboard

146/170/60

ETM699S

IP30

PP, halogen free

INSTALLATION MATERIALS

41

ONE AND A HALF 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Horizontal 1.5 box with three double inlets and a steel plate for wooden/metal studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This horizontal wall box features three 2xØ16/20mm conduit inlets. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a single plasterboard

146/170/60

ETM698SF

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This horizontal wall box features three 2xØ16/20mm conduit inlets. Each inlet is equipped with locking plates to secure the conduits, and the box includes a lid along with sealing plugs to prevent dust ingress. For versatile mounting, it comes with a steel plate that allows for secure attachment to both metal and wooden studs using screws.

For a double plasterboard

146/170/60

ETM699SF

IP30

PP, halogen free

1.5 box with ‘pocket’ space and a steel plate for wooden studs 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The 1.5 wall box with additional space is perfect for accommodating dimmers, relays, transformers and other smart home connections. It features a single double inlet compatible with Ø16mm and Ø20mm conduits. The box includes a steel plate with metal pins for easy hammering into wooden studs. A protective lid is provided, and the inlets are equipped with conduit locking plates and seal plugs.

For a single plasterboard

216/111/60

ETM662S

IP30

PP, halogen free

73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The 1.5 wall box with additional space is perfect for accommodating dimmers, relays, transformers and other smart home connections. It features a single double inlet compatible with Ø16mm and Ø20mm conduits. The box includes a steel plate with metal pins for easy hammering into wooden studs. A protective lid is provided, and the inlets are equipped with conduit locking plates and seal plugs.

For a double plasterboard

42

ETMAN INTERNATIONAL

216/111/60

ETM663S

IP30

PP, halogen free

SIZE H/W/D mm

PRODUCT

CODE

IP CLASS

MATERIAL

Extension ring for 1.5 box Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This 6mm high extension ring for the 1.5 wall box provides additional depth for enhanced flexibility in your installations. It can be stacked with another ring to achieve a total height of 12mm, accommodating various project requirements.

For 1.5 wall box

90/71/6

ETM617S

PP, halogen free

IP20

Cover for 1.5 box Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This cover for the 1.5 wall box provides a secure and clean finish, fixed in place with two screws spaced at cc 60mm. Designed to fit perfectly over the 1.5 wall box, it ensures a professional appearance while protecting internal components.

For 1.5 wall box

110/60/2

ETM618S

PP, halogen free

IP20

1.5 multi box 73mm 93mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

The box is designed for low model double Schuko socket outlets in the ICE series. Ideal for prefabricated or hollow walls, it allows installation from the outside and provides extra flush wall space. With a depth of 60mm and a minimum panel thickness of 6mm, it offers ample room for fittings. The box features fixed 2xØ16mm inlets and one Ø20mm knockout on one side, while the other side includes a blind cover that is compatible with all accessories in the universal assortment.

For prefab and hollow walls

90/71/60

ETM548S

1 4

7 8

5 6

2

5 6 7

9

3 4

10

1 2 3

1.5 multi box cover Fixing centre cc 60mm and M3 screws.

Knockout for Ø20mm inlet.

8 9 10

IP20

PP, halogen free

Two fixed 2x Ø16mm inlets.

Coupling bushes with tension reliefs for MMJ and EKK cables.

Triple inlet extension with 3x Ø16mm conduit entries.

Double inlet extension with 2x Ø16mm conduit entries.

Double inlet extension with two entries for Ø16mm and Ø20mm conduits.

A blind extension which comes as a standard with wall boxes.

Requires a minimum panel-thickness of 6mm.

INSTALLATION MATERIALS

43

DOUBLE 60MM DEPTH RANGE

44

BOX FOR SINGLE PLASTERBOARD

BOX FOR DOUBLE PLASTERBOARD

WITH STEEL PLATE FOR SINGLE PLASTERBOARD

WITH STEEL PLATE FOR DOUBLE PLASTERBOARD

ETMAN INTERNATIONAL

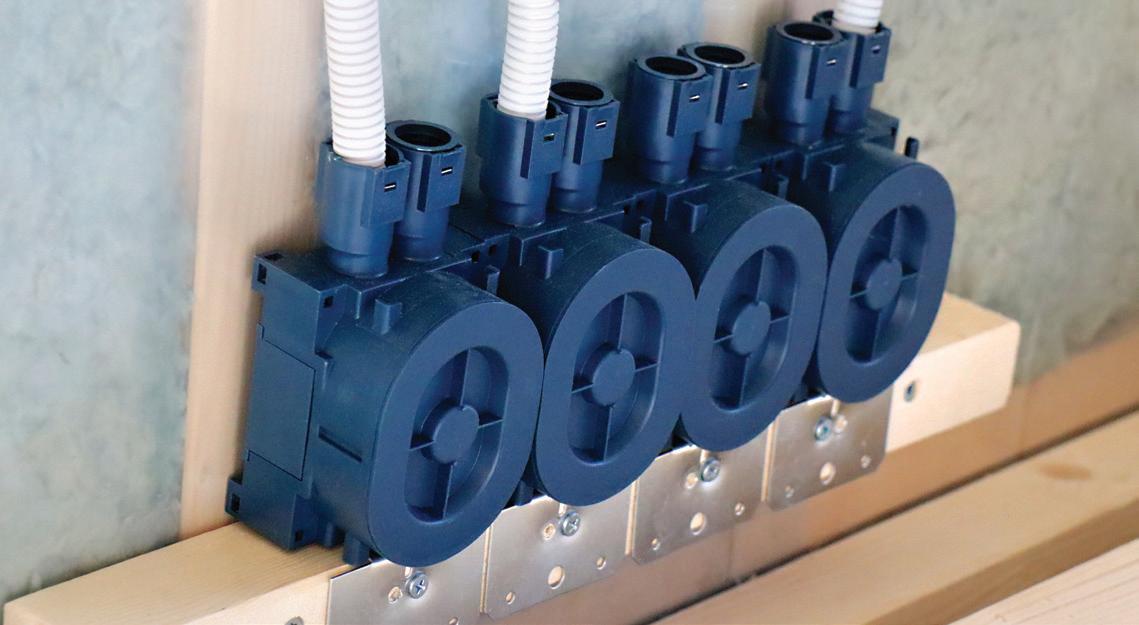

//A DOUBLE BOX WITH DOUBLE THE SPACE The double wall box provides numerous benefits for electrical installations. With plenty of space to accommodate multiple devices like switches and outlets within a single enclosure, it ensures a cleaner and more organised setup. Its increased capacity reduces clutter and simplifies complex wiring projects, making it perfect for residential and commercial applications. The robust design enhances durability and safety, while also allowing for easy upgrades and future expansions, improving overall efficiency and flexibility.

4

5

6

1

Fixing centre cc 60mm with M3 screws.

2

Joining piece ETM332S constructed for cc 71mm between the boxes.

3

Joining piece ETM333S constructed for cc 84mm between the boxes.

4

Plastic cover.

5

Extension ring, height 12mm. It can be stacked to height of 24mm.

6

Plastic lid included with every box.

7

Steel plate with pins for fastening directly to wooden studs.

Different plate available for fixing to metal/wooden studs.

8

Single plasterboard (12mm) and double plasterboard (24mm) box versions available.

9

Triple inlet extension with 3x Ø16mm conduit entries. Entries feature conduit locking plates and sealing caps.

7

1

8 9 2

13

10 11

3 12

10

Inlet attachment for two ⌀16 and ⌀20 conduits. It features locking springs and sealing caps.

12

Coupling bushes Ø9mm and Ø10mm with tension reliefs for MMJ and EKK cables: 3G1.5mm² and 3G2.5mm².

11

Inlet attachment for two ⌀16 conduits. It features locking springs and sealing caps.

13

The holes can be used to attach boxes onto wooden studs with 3.5x3.5 square nails.

INSTALLATION MATERIALS

45

DOUBLE 60MM DEPTH RANGE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

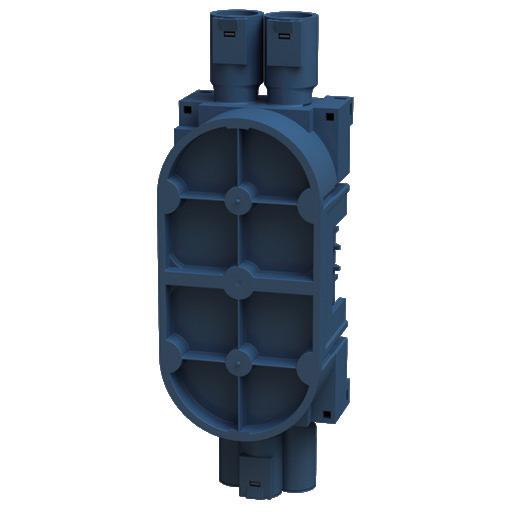

Double box without steel plate 73mm 145mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This double wall box is designed for single plasterboard walls. It features one double inlet compatible with Ø16mm and Ø20mm conduits, and one triple inlet for Ø16mm conduits. These inlets provide flexible wiring solutions, ensuring a secure and organised installation. Ideal for accommodating multiple devices. The lid is included.

For a single plasterboard

216/71/60

ETM638S

IP30

PP, halogen free

73mm 145mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This double wall box is designed for double plasterboard walls. It features one double inlet compatible with Ø16mm and Ø20mm conduits, and one triple inlet for Ø16mm conduits. These inlets provide flexible wiring solutions, ensuring a secure and organised installation. Ideal for accommodating multiple devices. The lid is included.

For a double plasterboard

216/71/60

ETM639S

IP30

PP, halogen free

Double box with a steel plate for wooden studs 73mm 145mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This double wall box is designed for single plasterboard walls. It features one double inlet compatible with Ø16mm and Ø20mm conduits, and one triple inlet for Ø16mm conduits. For secure and easy installation, the box includes a steel plate with a pin that can be hammered directly into wooden studs. The lid is included with the box.

For a single plasterboard

216/111/60

ETM610S

IP30

PP, halogen free

73mm 145mm

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

This double wall box is designed for double plasterboard walls. It features one double inlet compatible with Ø16mm and Ø20mm conduits, and one triple inlet for Ø16mm conduits. For secure and easy installation, the box includes a steel plate with a pin that can be hammered directly into wooden studs. The lid is included with the box.

For a double plasterboard

46

ETMAN INTERNATIONAL

216/111/60

ETM611S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Extension ring Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC A practical accessory for the double wall box, designed to provide additional height. With a height of 6mm, it can be conveniently stacked to reach a total height of 12mm. The ring attaches securely to the box using four screws.

For double wall boxes

142/71/6

ETM547S

IP20

PP, halogen free

Cover for a double box Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The double wall box cover is an essential accessory designed to provide a secure and tidy finish to any electrical installation. It is secured with four screws, resulting in a secure and snug fit. This cover protects internal components from dust and debris.

For double wall boxes

162/90/2

ETM619S

IP20

PP, halogen free

INSTALLATION MATERIALS

47

CEILING BOXES CEILING BOX WITH EIGHT INLETS

SIX-INLET SINGLE PLASTERBOARD BOX

SIX-INLET TRIPLE PLASTERBOARD BOX

INLET ATTACHMENT FOR SIX-INLET BOXES

SIX-INLET DOUBLE PLASTERBOARD BOX

The inlet attachment for ceiling boxes provides additional entry points, enhancing flexibility and convenience for complex installations.

48

ETMAN INTERNATIONAL

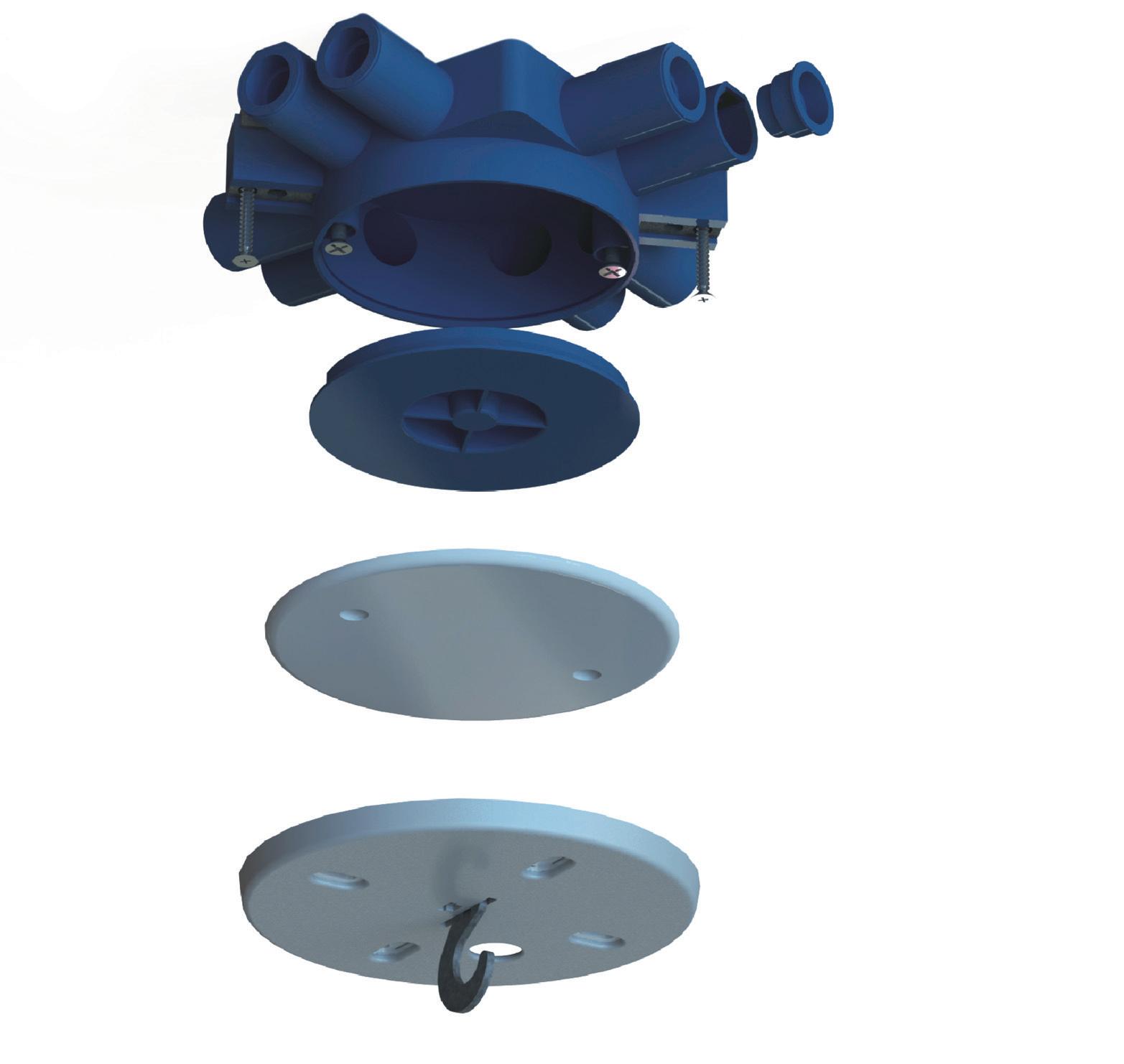

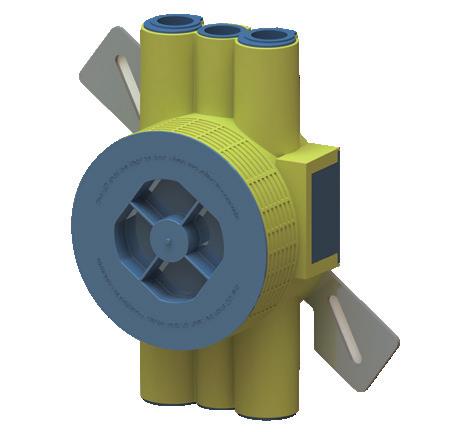

//FLUSH MOUNTING CEILING BOXES Our ceiling boxes provide secure and reliable installation, designed to withstand high loads for enhanced durability. Available in three different heights to meet various ceiling requirements, these boxes offer exceptional versatility for any project. With generous connection space, they facilitate easy and organised wiring, making them ideal for both residential and commercial applications. Each box comes with a fixed number of conduit entries that can be increased using inlet attachments.

4

8

1

1

The range has boxes for single (12mm), double (24mm) and triple (36mm) plasterboard walls.

2

Plastic lid included with every box.

3

Ceiling box cover with hook. Maximum load is 15kg.

5

2

4 6

3

7

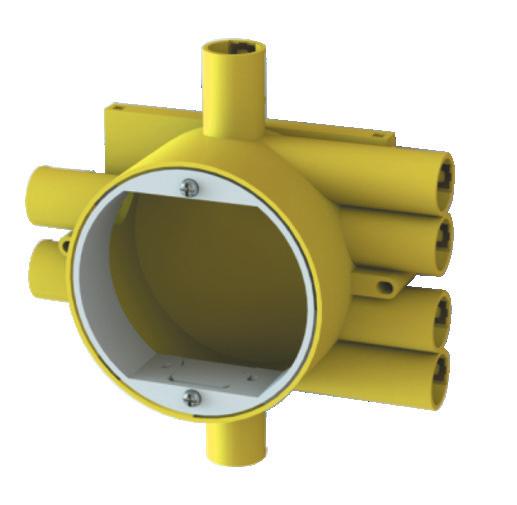

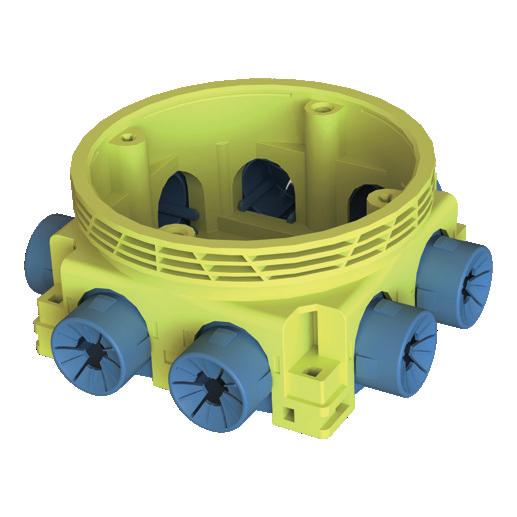

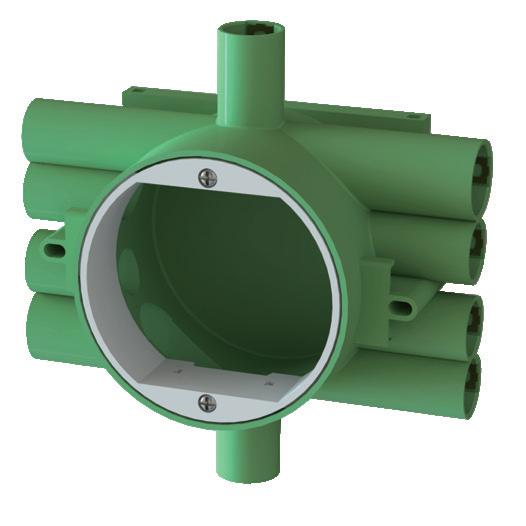

This box has 8x ⌀16mm inlets with locking springs and sealing caps. Possible to enter ⌀20mm conduit by using ⌀20mm sleeve ETM238S on the outside of the inlets..

5

Mounting screws M4 with the distance of 70mm between them. Maximum load is 15kg.

6

Box cover ⌀100mm ETM004S with mounting distance of 70mm.

7

The box cover has adjustable centre distance of 59-71mm for screws M3.

8

Inlets come with sealing caps to protect the installation.

//ROBUST SUPPORT Our ceiling boxes can support a weight load of up to 15kg, making them ideal for commercial installations with heavier luminaires. They’re also a great choice for domestic use, offering homeowners the flexibility to install more substantial lighting fixtures beyond just light lamps.

INSTALLATION MATERIALS

49

CEILING BOXES CC 70MM PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Ceiling box with built-in inlets Colour: blue Certificates: CE, Semko; Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø84-85mm

The ceiling box features 8x⌀16mm conduit entries, equipped with locking springs to ensure a tight fit. A box lid and conduit entry sealing caps are included for added protection. It is possible to attach a ⌀20mm conduit by using a ⌀20mm sleeve (ETM238S) on the outside of the conduit entries. Max load 15kg.

For a single plasterboard H=12mm

142.6/142.6/33

ETM002S

IP30

HDPE

Ceiling box compatible with accessories Colour: yellow Certificates: CE, Semko; Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø84-85mm

The box has 2x⌀16mm and 4x⌀20mm inlets. It includes a lid and sealing caps to ensure secure and protected connections. Additional inlets can be attached on each side using the ETM648S. Max load 15kg.

For a single plasterboard H=12mm

144.4/135.5/41

ETM002S-4 IP30

Colour: yellow Certificates: CE, Semko; Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø84-85mm

The box has 2x⌀16mm and 4x⌀20mm inlets. It includes a lid and sealing caps to ensure secure and protected connections. Additional inlets can be attached on each side using the ETM648S. Max load 15kg.

For a double plasterboard H=24mm

144.4/135.5/53

ETM002S-5 IP30

Colour: yellow Certificates: CE, Semko; Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø84-85mm

The box has 2x⌀16mm and 4x⌀20mm inlets. It includes a lid and sealing caps to ensure secure and protected connections. Additional inlets can be attached on each side using the ETM648S. Max load 15kg.

For a triple plasterboard H=36mm

144.4/135.5/65

ETM002S-6 IP30

Colour: yellow Certificates: CE, Semko; Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø84-85mm

The box has 2x⌀16mm and 4x⌀20mm inlets. It includes 6mm plastic bracket, a lid, fixing screws and inlet sealing caps. Additional inlets can be attached on each side using the ETM648S. Max load 15kg.

For 10mm plasterboard and 36mm wooden studs

50

ETMAN INTERNATIONAL

144.4/138.8/48

ETM002S-7 IP30

HDPE

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

Colour: yellow Certificates: CE, Semko; Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

MATERIAL

Ø84-85mm

The box has 2x⌀16mm and 4x⌀20mm inlets. It includes 6mm plastic bracket, a lid, fixing screws and inlet sealing caps. Additional inlets can be attached on each side using the ETM648S. Max load 15kg.

For 10mm plasterboard and 48mm wooden studs

144.4/138.8/60

ETM002S-8 IP30

HDPE

Ceiling box inlet attachment Colour: blue; Certificates: CE, Semko; Conforms with: RoHS Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Inlet attachments for ceiling boxes to provide additional conduit entry options. Available in two configurations 2x⌀16mm and 2x⌀20mm. Each inlet comes with sealing caps to ensure secure and protected connections.

For ceiling box

50/45.8/26.2

ETM648S

IP20

Straight extension pipe Colour: white; Certificates: CE, Semko; Conforms with: RoHS; Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The straight extension pipe designed to convert a 16mm conduit entry to a 20mm conduit entry. Featuring a locker on each end, it ensures a secure and stable connection, maintaining the reliability of the electrical installation.

Attachment for ceiling box ETM002S

20/80/⌀20

ETM238S

IP20

Ceiling box covers Colour: white; Certificates: CE, Semko; Conforms with: RoHS Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The cover, featuring a 70mm cc measurement, is equipped with a hook for hanging light fixtures (max 15kg).

Ceiling box cover cc 70mm

5/ ⌀100/ cc70

ETM539S

IP20

Colour: white; Certificates: CE, Semko; Conforms with: RoHS Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The ceiling box cover features a 70mm center-to-center (cc) measurement and a 100mm diameter.

Ceiling box cover cc 70mm

3.3/ ⌀100/ cc70

ETM004S

IP20

Colour: white; Certificates: CE, Semko; Conforms with: RoHS Complies with the standards: IEC 60670-1; Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The ceiling box cover for cables Ø 6 - 15mm and strain relief features a cc78mm fixing centre.

Ceiling box cover cc 78mm

34/ ⌀114/

ETM542S 44V2

IP44

INSTALLATION MATERIALS

51

BOX

BIG BOXES BOX FOR SINGLE PLASTERBOARD

Different box heights are available to fit a single (11mm) or double (24mm) plasterboards.

BOX FOR DOUBLE PLASTERBOARD

Boxes can be connected with available accessories including ETM332S (71mm) and ETM333S (84mm).

BOX FOR SINGLE PLASTERBOARD

The Big Box range offers extra space to conveniently fit electronics that need extra room such as dimmers, relays, transformers and smart home transmitters and receivers.

Fixing centre is cc 60mm

All boxes come with removable plastic lids to protect wires and cables.

BIG

BOX FOR SINGLE PLASTERBOARD

Inlets can be changed to suit project specifications. Available inlets are ETM331S (2x⌀16mm/⌀20mm), ETM393S (2x⌀16mm) and ETM389S (3x⌀16mm).

52

ETMAN INTERNATIONAL

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Big box Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC Installation temperature: -5oC to +25oC The wall box provides plenty of space for switches, sockets, and electronics like dimmers, thermostats, and USB charging ports. It includes a steel plate for easy attachment to wooden or metal studs, ensuring a secure and versatile setup for modern electrical installations.

For a single plasterboard

217/142/61

ETM621SF

IP30

PP, halogen free

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC Installation temperature: -5oC to +25oC The wall box provides plenty of space for switches, sockets, and electronics like dimmers, thermostats, and USB charging ports. It includes a steel plate for easy attachment to wooden or metal studs, ensuring a secure and versatile setup for modern electrical installations.

For a double plasterboard

217/142/61

ETM622SF

IP30

PP, halogen free

Ceiling box covers Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC Installation temperature: -5oC to +25oC Keep all switches, sockets, dimmers and other controls in one place with this big box. It features two additional wall boxes and a steel plate for easy fixing to wooden or metal studs.

For a single plasterboard

288/142/61

ETM623SF

IP30

PP, halogen free

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC Installation temperature: -5oC to +25oC Keep all switches, sockets, dimmers and other controls in one place with this big box. It features two additional wall boxes and a steel plate for easy fixing to wooden or metal studs.

For a double plasterboard

288/142/61

ETM624SF

IP30

PP, halogen free

INSTALLATION MATERIALS

53

ccessories A for Type

versal uni xes bo

Description/Remark

ETM612S Coupling bushes with tension reliefs for MMJ-type cables for versal uni xes bo ETM393S Two way extension 2xØ16 ETM331S Double extension 2xØ16 / Ø20mm ETM389S Triangle extension 3xØ16 Description/Remark ETM822S Triangle inlet 2xØ16mm+1xØ16/20mm Coupling bushes withETM646S tension reliefsConduit for MMJ-type cables entry 25mm PRODUCT ETM820S Conduit entry 32mm Two way extension 2xØ16 ETM821S Conduit entry 40mm

o

Type

ACCESSORIES

Universal Series

SIZE H/W/D mm

Universal Series

Type

ETM384S ETM332S ETM333S ETM332SC ETM333SC

Description/Remark

Blind extension Frame extension (71mm) Frame extension (84mm) Frame extension (71mm), closed Description/Remark Frame extension (84mm), closed

ETM384S Blind extensionMATERIAL CODE IP CLASS ETM332S Frame extension (71mm) ETM333S Frame extension (84mm) ETM332SC Frame extension (71mm), closed Coupling bushes with tension reliefs for MMJ and EKK type cablesETM333SC that are 3G1.5mm² 3G2.5mm².

Frameand extension (84mm),The closed

Double extension 2xØ16 / Ø20mm Coupling bushes Triangle extension 3xØ16 Triangle inlet 2xØ16mm+1xØ16/20mm ccessories A for versal uni xes bo outside diameters for bushes are ⌀9mm and ⌀10mm.

Conduit entry 25mm Conduit entry 32mm Type Description/Remark Type Description/Remark For tension wall boxes Conduit entry 40mm ETM612S Coupling bushes with reliefs for MMJ-type cables

Universal Series

Universal Series

ETM612S

Type

Description/Remark

PP, halogen IP20 ETM384S Blind extension free

Universal Series

ion reliefs for MMJ-type cables ETM384S Blind extension ETM393S Two way extension 2xØ16 ETM332S Frame extension (71mm 6 ETM332S Frame extension (71mm) Inlet attachments ETM331S Double extension 2xØ16 / Ø20mm ETM333S Frame extension (84mm Ø20mm ETM333S Frame extension (84mm) Type Description/Remark ETM389S Triangle extension 3xØ16 ETM332SC Frame extension (71mm Two-way inlet attachment withETM332SC 2x⌀16mm entries conduit.

Inletsclosed feature a locking spring, H=37mm which keeps Frame for extension (71mm), ETM339S Extra inner ring, ETM822S Triangle inlet 2xØ16mm+1xØ16/20mm ETM333SC Frame extension (84mm corrugated pipes in place.

Comes with sealing caps.

1xØ16/20mm ETM333SC Frame extension (84mm), closed s for versal uniETM646S xes bo Conduit entry 25mm ETM820S Conduit entry 32mm PP, halogen Description/Remark Type Description/Remark For wall boxes ETM393S IP20 ETM821S Conduit entry 40mm free Coupling bushes with tension reliefs for MMJ-type cables ETM384S Blind extension Two way extension 2xØ16 ETM332S Frame extension (71mm) Double extension 2xØ16 / Ø20mm ETM333S Frame (84mm) Type extensionDescription/Remark Two-way inlet attachment that fits ⌀16mm and ⌀20mmETM332SC entries for conduit.

Inlets feature a locking spring, Triangle extension 3xØ16 Frame extension (71mm), closed ETM670S Tooling for turn inner ring of wall boxes Type Frame extension Description/Remark ccessories A for versal uni which xes bo keeps corrugated pipes in place. Comes with sealing caps.

Triangle inlet 2xØ16mm+1xØ16/20mm ETM333SC (84mm), closed ring, H=37mm Conduit entry 25mm Type Description/RemarkETM339S Extra inner Type Description/Remark Type Description/Remark PP, halogen Conduit entry 32mm For wall boxes ETM331S IP20 n reliefs for MMJ-type cables ETM384S Blind extension free ETM612S Coupling bushes with tension reliefs for MMJ-type cables ETM384S Blind extension Conduit entry 40mm Type Description/Remark ETM332S Frame extension (71mm) ETM393S Two way extension 2xØ16 ETM332S Frame extension (71mm) Steel plate forextension singe wall plate with normal plastic connecting plate ETM642S 20mm ETM333S Frame extension (84mm) ETM331S Double 2xØ16 / Ø20mm ETM333S Frame extension (84mm) Steel plate for double wall plate with normal plastic connecting plate ETM643S ETM332SC Frame extension (71mm), closed ETM389S Triangle extension 3xØ16 ETM332SC Frame extension (71mm), close inlet with entries for conduit. Inlets feature a locking spring, which keeps Steel plate for singe wall plateThree-way with plastic connecting plateattachment for long side of oneType and half3x wall⌀ box16mm ETM644S Description/Remark Type Description/Remark Ø16/20mm ETM333SC Frame extension (84mm), closed Type Description/Remark ETM822S Triangle inlet 2xØ16mm+1xØ16/20mm ETM333SC Frame extension (84mm), close corrugated pipes in place.

Comes with sealing caps.

Steel plate for double wall plate with plastic connecting plate for long side of one and half wall box As for versal uni ETM645S xes bo ETM339S Extra inner ring, H=37mm Extra inner ETM339S Plastic piece to FIX that box fells outring, fromH=37mm a´wall + Fix bigg ETM646S Conduit entry 25mm

Universal Series

Universal Series

Universal Series

Universal Series

Installation Materials

Universal Series

U

Universal Series

ETM397S

+ FIX thinner wallPP, plates halogen Conduit entry 32mm Description/Remark Type Type Description/Remark For wall boxes ETM389S IP20 Plastic piece for connection ETM397S-1 free box ETM821S Conduit entry 40mm Coupling bushes with tension reliefs for MMJ-type cables ETM384SETM670S Blind extension Tooling for turn inner ring of wall boxes Two way extension 2xØ16 ETM332S Frame extension (71mm) Type Description/Remark Double extension 2xØ16 / Ø20mm ETM333S Frame extension (84mm) ETM384S Blind extension Three-way inlet attachment with two ⌀16mm and one ⌀ETM332SC 16mm/⌀20mm entries for (71mm), conduit.closed Inlets feature a Triangle extension 3xØ16 Frame extension Type Description/Remark ETM332S Frame extension (71mm) locking spring, which keeps corrugated pipes in place. ETM333SC Triangle inlet 2xØ16mm+1xØ16/20mm Frame extension (84mm), closed Type Description/Remark ETM339S Extra inner ring, H=37mm ETM333S Frame extension (84mm) Type Description/Remark Conduit entry 25mm ETM332SC Frame extension (71mm), closed Description/Remark PP, halogen ETM670S Tooling for turn inner ring of wall boxes Conduit entry 32mm For wall boxes ETM822S IP20 ETM670S Tooling for turn inner ring ETM333SC Frame extension (84mm), closed free Steel plate for singe wall40mm plate with normal plastic connecting plate Conduit entry

ETM820S Description/Remark

Steel plate for double wall plate with normal plastic connecting plate Steel plate for singe wall plate with plastic connecting plate for long side of one and half wall box Description/Remark inlet one ⌀25mm conduit entry. The inletType features a locking spring, which keeps Type Description/Remark Steel plate for double wall plate with plastic connecting plate for longSingle side of one andattachment half wall box with Type Description/Remark corrugated pipes in place.

Plastic piece to FIX that box fells out from a´wall + Type Description/Remark Extra inner ring, H=37mm ETM339S ETM339S Extra inner ring, H=37mm ETM397S ormal plastic connecting plate Type Description/Remark + FIX thinner wall plates

Steel plate for singe wall plate with normal plastic connecting plate ETM642S normal plastic connecting plate PP, halogen ETM670S Tooling for turn inner ring of wall boxes For wall boxes ETM646S IP20 piece for connection box Plastic Steel ETM397S-1 astic connecting plate forETM643S long side of one and half wallplate boxfor double wall plate with normal plastic connecting plate free Type Description/Remark plate plastic connecting plate ETM644S for long side of one and Steel half wall boxfor singe wall plate with plastic connecting plate for long side of one and half wall box Type Description/Remark Plastic Steel plate for double wall plate with plastic connecting plate for longETM397S side of one and half wall box piece to FIX that box fells out from a´wall + Fix bigger gluing part ETM645S + FIX thinner wall plates Plastic piece to FIX that bo ETM397S + FIX thinner wall plates Plastic piece forType connection box Description/Remark ETM397S-1 Description/Remark Single inlet attachment with one ⌀32mm conduit entry.

Type Description/Remark Plastic piece for connection ETM397S-1 ETM339S Extra inner ring, H=37mm Type Description/Remark Steel plate for singe wall plate with normal plastic connecting plate ETM670S Tooling for turn inner ring of wall PP, halogen double wall plate with normal plastic connecting plate ypeSteel plate for Description/Remark ETM670S Tooling for turn inner ring ofETM820S wall boxes For wall boxes IP20 free Steel plate for singeinner wall plate with plastic connecting plate for long side of one and half wall box Extra ring, H=37mm TM339S Type Description/Remark Steel plate for double wall plate with plastic connecting plate for long side of one and half wall box Plastic piece to FIX that box fells out from a´wall + Fix bigger gluing pa ETM397S + FIX thinner wall plates

Type

Description/Remark

Plastic piece for connection box ETM397S-1 Single inlet attachment with one ⌀40mm conduit entry.

Steel plate for singe wall plate with normal plastic connecting plate ETM642S Type Description/Remark mal plastic connecting plate Steel plate for double wall plate with normal plastic connecting plate ETM643S halogen ETM670S Tooling for turn inner ring of wallPP, boxes rmal plastic connecting plate ETM821S IP20 Steel plate for singe wall plateFor withwall plasticboxes connecting plate for long side of one and half wall box ETM644S free Type Description/Remark ic connecting plate Description/Remark for long side of one and halfSteel wallplate box for double wall plate with plastic connecting plate for long side of one and half wall box ype ETM645S Type Description/Remark Plastic piece to FIX that box fells o stic connecting plateTooling for long sideturn ofring oneinner and half wall box Inner turning TM670S for ring oftool wall boxes ETM397S Plastic piece to FIX that box fells out from a´wall + Fix bigger gluing partthinner wall plates + FIX ETM397S + FIX thinner wall plates Plastic piece for connection box ETM397S-1 Description/Remark Special tool to help easily turn inner rings inPlastic wallpiece boxes adjust their for to connection box height.

ETM397S-1 Steel plate for singe wall plate with normal plastic connecting plate PP, halogen Steel plate for double wall plate with normal plastic connecting plate For wall boxes ETM670S IP20 free Steel plate for singe wall plate with plastic connecting plate for long side of one and half wall box Type Description/Remark Steel plate for double wall plate with plastic connecting plate for long side of one and half wall box Plastic piece to FIX that box fells out from a´wall + Fix bigger gluing p ETM397S + FIX thinner wall plates

ype

TM397S

54Description/Remark ETMAN INTERNATIONAL

Plastic piece to FIX that box fells out from a´wall + Fix bigger gluing part

ETM397S-1

Plastic piece for connection box

Type

Type

ETM339S

Description/Remark

Description/Remark

Extra inner ring, H=37mm

Type

Description/Rem

Steel plate for singe wall plate with normal plastic connecting plate ETM642S ETM670S Tooling for turn in Steel plate for double wall plate with normal plastic connecting plate ETM643S Steel plate for singe wall plate with plastic connecting plate for long side of one and half wall box ETM644S T Type SIZE Description/Remark PRODUCT Steel plate for double wall plate with CODE MATERIAL plastic connectingmm plate for long side of one and half wall boxIP CLASS ETM645S H/W/D

ETM339S

Extra inner ring, H=37mm

Steel plate Type Description/Remark Type Description/Remark Steel a connecting single wall plasterboard.Tooling The steel plateinner features Steel plate for singe wall plate withplate normalfor plastic platebox 60mm with height for a single ETM642S ETM670S for turn ring ofpins wallfor boxes easy fixing it to wooden studs.

Steel plate for double wall plate with normal plastic connecting plate ETM643S Steel plate for singe wall plate with plastic connecting plate for long side of one and half wall box Single 60mm Steel plate for double wall plate withwall plasticbox connecting plate for long side of one and half wall box

ETM644S ETM645S

Type

escription/Remark 59

ETM642S

IP20

E

PP, halogen Description/Rem Type free ETM397S

Description/Remark

E

Plastic piece to FIX + FIX thinner wall

One and a half wall box 60mm

Universal Series

Description/Remark

Type

ETM397S

Description/Remark

384S 332S 333S 332SC 333SC

Blind extension Frame extension (71mm) Frame extension (84mm) Frame extension (71mm), closed Frame extension Frame extension (84mm), closed

Universal Series

Can be used to close box sides.

For single,double and 1.5 wall boxes

Universal Series

Type

Description/Remark

m) ETM384S m) ETM332S ETM333S m), closed ETM332SC m), closed on/Remark

PP, halogen ETM644S IP20 free Plastic piece to FIX that box fells out from a´wall + Fix bigger gluing part + FIX thinner wall plates

Plastic piece for connection box ETM397S-1 Steel plate for a one and half wall box 60mm with height for a double plasterboard. The steel plate features Blind extension pins for easy fixing it to wooden studs.

Frame extension (71mm) PP, halogen Frame extension (84mm) One and a half wall box 60mm ETM645S IP20 free Frame extension (71mm), closed Frame extension (84mm), closed

Universal Series

e

Description/Remark

ETM384S

Installation

ETM384S ETM332S ETM333S ETM332SC BlindETM333SC extension

Plastic piece for connection box

ETM397S-1

Materials Installation Materials

Type

Universal Series

Steel plate for a one and half wall box 60mm with height for a single plasterboard. The steel plate features pins for easy fixing it to wooden studs.

Installation Installation MaterialsMaterials

lastic connecting plate plastic connecting plate nnecting plate for long side of one and half wall box onnecting plate for long side of one and half wall box

Frame extension constructed for cc distance of 71mm between the boxes.

Blind extension Frame extension (71mm) For single,double and 1.5 wall boxes ETM332S Frame extension (84mm) Frame extension (71mm), closed Frame extension (84mm), closed

ETM333SC

nsion Type Description/Remark Frame extension constructed for cc distance of 84mm between the boxes. ension (71mm) ETM339S Extra inner ring, H=37mm ension (84mm) For single,double and 1.5 wall boxes ETM333S ension (71mm), closed ension (84mm), closed Closed frame extension

9S

0S

Description/Remark

Extra inner ring, H=37mm Type

mark

ETM670S

Type

ETM339S

Description/Remark

For single,double and 1.5 wall boxes Tooling for turn inner ring of wall boxes

Extra inner ring, H=37mm

ETM397S

PP, halogen free

IP20

PP, halogen free

IP20

PP, halogen free

ETM332SC

IP20

PP, halogen free

IP20

PP, halogen free

Closed frame extension constructed for cc distance of 84mm between the boxes.

For single,double and 1.5 wall boxes

Tooling for turn inner ring of wall boxes

Type

IP20

Closed frame extension constructed for cc distance of 71mm between the boxes.

Description/Remark

Description/Remark

Installation Materials

Plastic piece for co ETM397S-1 ETM670S Tooling for turn inner ring ofThe wall boxes el plate for singe wall plate with normal plastic connecting plate Steel plate for a single wall box 60mm with height for a double plasterboard. steel plate features pins for el plate for double wall plate with normal plastic connecting plate easy fixing it to wooden studs. el plate for singe wall plate with plastic connecting plate for long side of one and half wall box Type Description/RemarkPP, halogen el plate for double wall plate with plastic connecting plate for long sideSingle of one and halfbox wall box wall 60mm ETM643S IP20 Plastic piece to FIX thatfree box fells out from a´wall + Fix ETM397S + FIX thinner wall plates

Description/Remark

Plastic piece to FIX that box fells out from a´wall + Fix bigger gluing part

ETM333SC

INSTALLATION MATERIALS

55

UNIVERSAL SERIES FOR CONCRETE-CASTING AND SOLID SURFACES

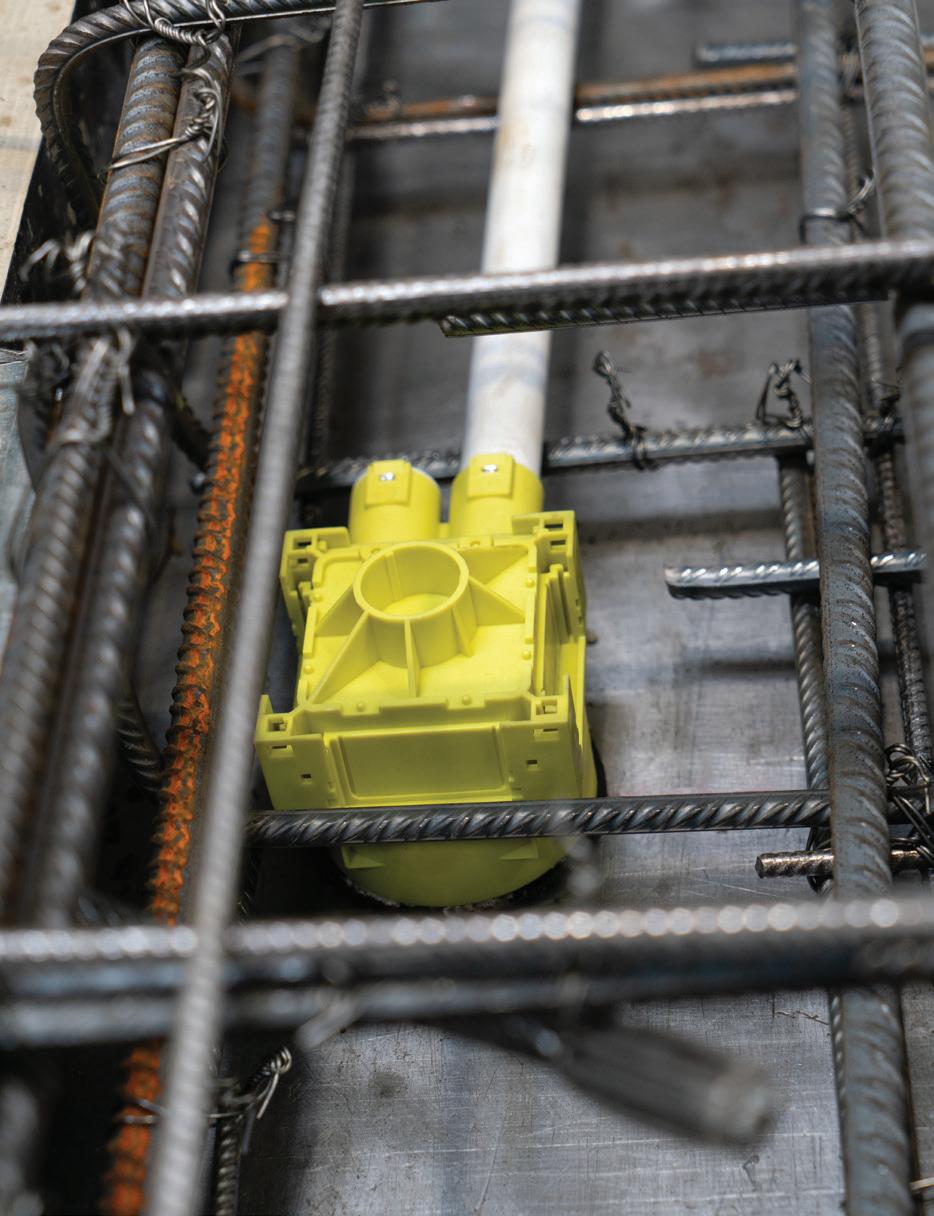

On-site concrete casting is a versatile and efficient method for creating large structures and surfaces, such as walls, floors, and slabs. This process involves filling moulds, which are prepared with reinforcement and installation components, with fresh concrete that is either delivered to or mixed on-site.

Once the concrete is poured into the mould, it is compacted to ensure uniformity and strength. After the concrete has cured, the mould is removed, and the surface slabs are finished to achieve the desired look and functionality.

The adaptability of on-site concrete casting makes it ideal for various construction projects, accommodating different design specifications and material requirements.

56

ETMAN INTERNATIONAL

//WOODEN MOULDS Wooden moulds are commonly used for on-site mixed concrete due to their ease of customisation. These formworks can be coated with plastics or synthetic resins to enhance durability and achieve a smoother finish. When it comes to electrical installation wall boxes, they are securely attached to the wooden moulds by simply nailing them on, ensuring they stay in place during the casting process.

//STEEL MOULDS Steel moulds are a durable option for prefabrication, providing precise and repeatable results for large structures and surfaces. Unlike wooden moulds, steel moulds are highly resistant to warping and can withstand multiple uses without compromising their shape or structural integrity. For the installation of electrical wall boxes, fastening methods are adapted to the unique properties of steel. Techniques such as using expansion dowels, magnets, adhesive foils, or hot glue ensure that wall boxes are securely attached to the steel moulds. These methods provide a strong hold, allowing for accurate placement and alignment of electrical components.

//COMPREHENSIVE RANGE A comprehensive range of boxes is available, including one-gang wall boxes and junction boxes, allowing for quick and precise preparation of installations for all types of flushmounted inserts such as sockets, switches, LED luminaires, and more.

MOISTURE RESISTANT

MULTI-PURPOSE LID

Boxes for concrete casting have been rigorously tested and rated IP30, ensuring a moistureresistant installation.

Our range includes a versatile lid that offers dual functionality. It can be secured using mounting magnets or glued to the formwork.

INDUSTRY STANDARDS

VERSATILE

Our boxes are compatible with the popular magnets used for steel moulds and mounting systems like BULO.

The range not only covers products for concrete casting but also flush mounting boxes for solid materials like bricks, Ytong and Leca.

FOR METAL MOULDS

FOR WOODEN MOULDS

FOR SOLID MATERIALS

INSTALLATION MATERIALS

57

//FUNCTIONAL DESIGNS Our wall boxes feature a functional design tailored to meet a variety of installation needs. Available in different heights, they include adjustable inner rings to ensure a precise fit for various flush-mounted inserts. These boxes are fully compatible with the BULO system, enhancing their versatility and ease of integration. Additionally, they support a wide range of accessories, allowing for customisation and flexibility in meeting specific project requirements.

//MODULAR SYSTEM Our wall boxes are an integral part of a modular system, allowing them to be easily ganged together to meet diverse project requirements. This flexibility enables the creation of custom configurations, accommodating multiple electrical components such as switches, sockets, and LED luminaires within a single, cohesive setup. The modular design ensures that our wall boxes can adapt to the specific needs of any construction project, providing a scalable and efficient solution that simplifies installation and enhances overall functionality.

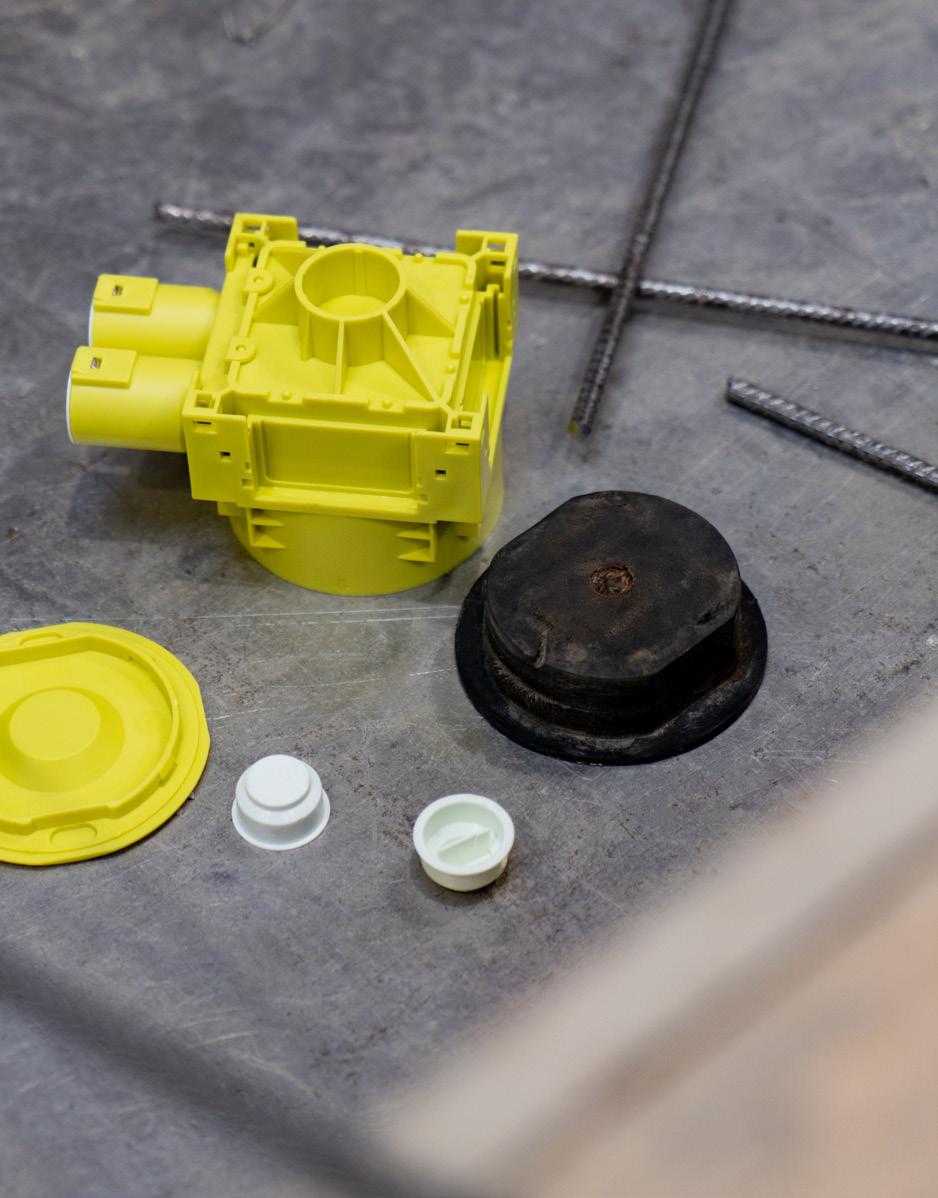

//MOUNTING MAGNETS Our wall boxes for concrete casting are designed to be fully compatible with mounting magnets, making them ideal for use with steel moulds. This compatibility ensures that organisations can seamlessly integrate our wall boxes into their existing steel mould setups without the need for costly modifications or replacements. By using our wall boxes, businesses can maintain their current mould infrastructure while benefiting from the secure and precise attachment provided by the mounting magnets.

58

ETMAN INTERNATIONAL

IP30

Concrete boxes come with changeable inlets, which are equipped with conduit locking plates and sealing caps.

Backs of concrete boxes have been designed to be compatible with the BULO system.

Boxes can be joined together with available attachments.

Lids can be purchased as separate accessories.

For height adjustment, boxes come with inner rings with fixing centre 60mm and M3 screws.

Inside of the box fits industry’s most popular magnets used with metal casting moulds.

Engineered to stand high temperatures during concrete casting processes (up to 900C)

IP30

Concrete boxes come with changeable inlets, which are equipped with conduit locking plates and sealing caps.

Backs of concrete boxes have been designed to be compatible with the BULO system.

Boxes can be joined together using connector ETM791S. Mould mounting lid is included with each box.

For height adjustment, boxes come with inner rings with fixing centre 60mm and M3 screws.

Engineered to stand high temperatures during concrete casting processes (up to 900C)

IP20

The lid fits magnets for metal moulds. For wooden ones, the lid can be attached using glue on the edge. The box can also be mounted onto wooden moulds using specially designed nails with plugs.

Box for flush mounting into brick, concrete, ytong and leca walls, including other solid materials.

Comes with single or double inlet attachments as standard.

Inlets can be added to all four sides.

Boxes can be connected without any additional attachments.

Transparent lid comes with each box and can be knocked out.

The box depth is 47mm, but with the inner ring, it the height can be adjusted to max 57mm.

Telescopic adjustable inner ring (10mm) included. It self-locks when the screws are tightened.

The box self-fixes once placed into a drilled hole using 82mm hole saw.

INSTALLATION MATERIALS

59

SINGLE WALL BOXES FOR CONCRETE 60MM DEPTH PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

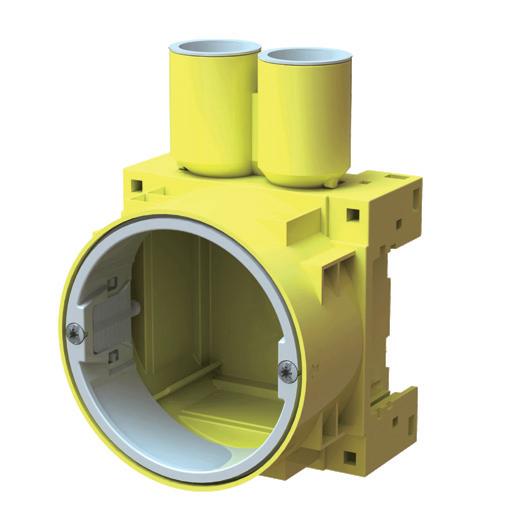

Boxes without lid with Ø20mm inlets Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This box features a top-mounted 2xØ20mm (ETM793S) inlet and comes without a lid. It is open from the box to the inlet, with plugs at the end of the inlets, and always requires at least one inlet to be used. The box is open on one side to accommodate this, while the other three sides are closed but allow for additional inlets to be mounted as needed. Comes with an inner ring for height adjustment.

For concrete casting

103/71/73.50

ETM780S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box for concrete casting, without a lid, features two top-mounted 2xØ20mm (ETM793S) inlets and open access from the box to the inlets. With plugs at the inlet ends, it requires at least one inlet to be used. It has one open side and three closed sides for additional inlets, and includes an inner ring for height adjustment.

For concrete casting

135/71/73.50

ETM781S

IP30

PP, halogen free

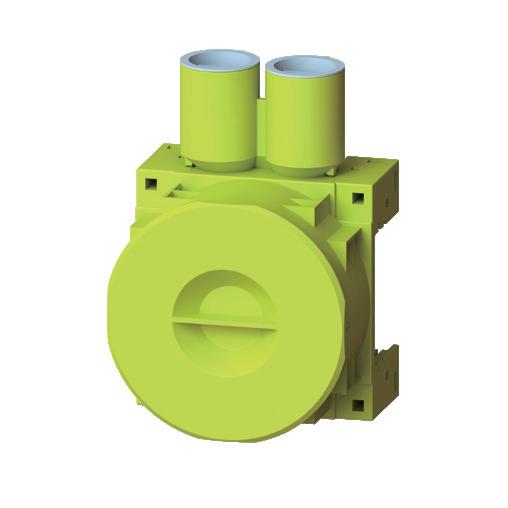

Boxes with lid and Ø20mm inlets Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box for concrete casting comes with a lid (ETM794S) and features a top-mounted 2xØ20mm (ETM793S) inlet. It has three closed sides with options to add more inlets and includes an inner ring for height adjustment.

For concrete casting

103/71/76

ETM812S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This wall box for concrete casting comes with a lid (ETM794S) and features two top-mounted 2xØ20mm (ETM793S) inlets. It has two closed sides with options to add more inlets and includes an inner ring for height adjustment.

For concrete casting

60

ETMAN INTERNATIONAL

135/71/76

ETM813S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Boxes with a mounting lid Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This concrete box is designed for maximum flexibility, coming with no pre-installed inlets but allowing for inlets to be added as needed. It features a multi-function mounting lid (ETM790S), providing versatile installation options.

For concrete casting

71/71/75

ETM782S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This concrete box is designed for maximum flexibility, featuring one 2xØ16/20mm inlet (ETM788S) compatible with Ø16mm and Ø20mm conduits. Additional inlets can be added as needed. It includes a multi-function mounting lid (ETM790S), providing versatile installation options.

For concrete casting

104/71/75

ETM784S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This concrete box is designed for maximum flexibility, featuring two 2xØ16/20mm inlets (ETM788S) compatible with Ø16mm and Ø20mm conduits. Additional inlets can be added as needed. It includes a multi-function mounting lid (ETM790S), providing versatile installation options.

For concrete casting

137/71/75

ETM786S

IP30

PP, halogen free

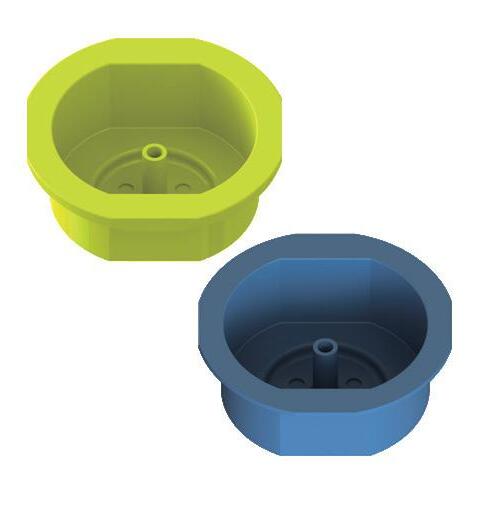

Accessories Colour: yellow or blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This mounting lid is compatible with the industry's widely used magnets, ensuring secure and versatile attachment. It can also be used with adhesive film or hot glue, offering additional flexibility for various installation methods for wall boxes for concrete casting.

For concrete casting

71/71/30.5

ETM790S

IP30

PP, halogen free

INSTALLATION MATERIALS

61

SINGLE WALL BOXES FOR CONCRETE PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Colour: yellow or blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This durable plastic lid is designed to protect the box until installation and safeguard wiring during the installation process. It ensures that the interior remains clean and free from debris, while also providing a secure cover that prevents damage to the wiring.

For concrete casting

71.4/71.4/7

ETM794S

IP30

PP, halogen free

Colour: yellow or blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box connection piece is a versatile accessory designed to seamlessly connect multiple wall boxes.

Available in vibrant yellow and blue colours, it provides a secure and reliable link, ensuring stability and coherence in any installation.

For concrete casting

30/54/27

ETM791S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The 2xØ20mm box inlet with sealing caps is designed for secure and efficient conduit connections. This inlet ensures a tight fit and reliable sealing, protecting against dust and moisture. The included sealing caps provide an extra layer of protection, maintaining the integrity of any electrical installation.

For concrete casting

32.4/54/45

ETM793S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Part of the concrete box accessory range, the 2xØ25mm conduit inlet is expertly designed for robust and secure conduit connections. It ensures a precise fit for Ø25mm conduits, providing reliable protection against dust and moisture.

For concrete casting

62

ETMAN INTERNATIONAL

35.4/56.4/46.3

ETM814S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Boxes for on-site concrete casting with mounting lid and nail Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC It comes with an inlet ETM788S 2xØ16/20mm mounted on top. The lid includes a nail and plastic fastening, with a nail plug on the back for secure installation. With a diameter of 71mm and a depth of 60mm, this box is built for versatility. Multiple boxes can be connected using the ETM791S, with cc distance of 71mm.

Additionally, it features a turnable ring with a fixing center of 60mm and M3 screws.

For concrete casting on-site

104/71/92

ETM785S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box has two inlets ETM788S 2xØ16/20mm. The lid includes a nail and plastic fastening, with a nail plug on the back for secure installation. With a diameter of 71mm and a depth of 60mm, this box is built for versatility. Multiple boxes can be connected using the ETM791S, with cc distance of 71mm. Additionally, it features a turnable ring with a fixing center of 60mm and M3 screws.

For concrete casting on-site

137/71/92

ETM787S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This concrete box is designed for flexibility, with no pre-installed inlets but the option to add them to any of its four sides. It features a secure LID ETM790S with a nail and plastic fastening, and a nail plug for easy installation. Measuring 71mm in diameter and 60.5mm in depth, it connects effortlessly with other boxes using ETM791S connecting pieces, maintaining a 71mm center-to-center distance.

For concrete casting on-site

71/71/92

ETM783S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This concrete box is taller than the ETM787S model, offering extra space for versatile installations. It comes equipped with two plugged inlets ETM788S (2xØ16/20mm) for secure conduit connections. The box features a mounted LID ETM790S, complete with a nail and plastic fastening, and a nail plug on the back for added security.

For concrete casting on-site

137/71/107

ETM795S

IP30

PP, halogen free

INSTALLATION MATERIALS

63

SINGLE WALL BOXES FOR CONCRETE 60MM DEPTH PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Same depth as ETM795S, comes with a single inlet ETM788S (2xØ16/20mm) and lid ETM790S. For concrete casting on-site

104/71/107

ETM796S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Same height as ETM796S and ETM795S. Inlets can be added. Comes with a lid ETM790S and a nail.

For concrete casting on-site

71/71/107

ETM797S

IP30

PP, halogen free

IP30

PP, halogen free

IP30

PP, halogen free

Accessories Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Inlet accessory 2xØ16/Ø20mm suitable for concrete boxes.

For concrete casting on-site

29.4/54/45

ETM788S

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Inlet accessory 2xØ20mm suitable for concrete boxes.

For concrete casting on-site

29.4/54/47

ETM792S

Colour: blue Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1, Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC Nail and a fastening plug for mounting boxes onto wooden moulds.

64

For concrete casting on-site

Ø28/92

ETM789S

IP30

PP, halogen free

For concrete casting on-site

Ø28/107

ETM798S

IP30

PP, halogen free

ETMAN INTERNATIONAL

SINGLE WALL BOXES FOR SOLID MATERIALS 47/57MM DEPTH PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Boxes for solid materials Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø82mm

This solid materials box features a Ø16/20mm inlet and an adjustable telescopic ring with a 10mm range. It offers a depth adjustment from 47mm to 57mm and includes 16mm knockouts on the sides and bottom. The transparent plastic lid can be easily knocked out, and the box fits securely in drilled holes without needing plaster. Use an 82mm hole saw for installation.

For solid materials

109/71/48

ETM680S

IP20

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

PP, halogen free

Ø82mm

This solid materials box features a 2xØ16/20mm inlet and an adjustable telescopic ring with a 10mm range.

It offers a depth adjustment from 47mm to 57mm and includes 16mm knockouts on the sides and bottom. The transparent plastic lid can be easily knocked out, and the box fits securely in drilled holes without needing plaster. Use an 82mm hole saw for installation.

For solid materials

109/71/48

ETM681S

IP20

PP, halogen free

Accessories Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This single inlet attachment features a 1xØ16/20mm conduit connection and can be added to any of the four sides of the box.

For solid materials

30/46/46.6

ETM682S

IP20

PP, halogen free

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This double inlet attachment features a 2xØ16/20mm conduit connection and can be added to any of the four sides of the box.

For solid materials

30/46/46.6

ETM683S

IP20

PP, halogen free

INSTALLATION MATERIALS

65

SIMPLE SERIES

BOXES FOR WOODEN AND METAL STUDS A COST-EFFECTIVE COLLECTION THAT DOESN'T COMPROMISE ON QUALITY. SIMPLE SERIES OFFERS WALL AND JUNCTION BOX ESSENTIALS THAT FIT INTO ANY PROJECT.

Fixed inlets for wall boxes are designed to fit 16mm corrugated pipes, providing a secure and stable connection. With the addition of an ETM238S sleeve, these inlets can also accommodate 20mm pipes.

The adjustable inner ring enables precise height adjustment of the box, ensuring a perfect fit within the wall.

Wall boxes equipped with steel fixing plates allow for easy and secure attachment to both wooden and metal studs.

6 INLET WALL BOX

66

ETMAN INTERNATIONAL

3 INLET WALL BOX

JUNCTION BOX

//DEPTH RANGE Simple series boxes offer versatile depth options ranging from 45 to 55mm, catering to various installation needs. By utilizing the adjustable inner ring, additional depth can be achieved, providing even greater flexibility for accommodating different wiring setups. This added feature ensures that the boxes can adapt to a wide range of wall thicknesses and electrical requirements.

//MULTIPLE FIXED INLETS The boxes come with a variety of fixed inlets, ranging from 3 to 10, allowing you to select the ideal configuration for your specific project. This range provides flexibility in accommodating different wiring needs, making it easier to choose the right box for efficient and organised cable management in any installation.

//FOR SINGLE AND DOUBLE PLASTERBOARD WALLS Simple series boxes are designed to fit seamlessly into both single and double plasterboard wall installations. Their adaptable design ensures a secure and flush fit, whether used in thinner single-layer walls or thicker double-layer setups. This versatility makes them a reliable choice for a wide range of construction and renovation projects, ensuring consistent and professional results every time.

INSTALLATION MATERIALS

67

SINGLE WALL BOXES CC 60MM PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Boxes with 6 inlets and a lid Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

The box features 6xØ16mm fixed inlets with caps. With a depth of 45mm and a diameter of 71mm, it ensures a compact yet spacious fit. The box had a center-to-center distance of 60mm. An included inner ring allows for easy height adjustment, and an additional ring (ETM013S) can be added to increase the height by 7mm.

The box also comes with a secure lid.

For single plasterboard

124/97.5/45

ETM001S

IP20

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø73-74mm

The box features 6xØ16mm fixed inlets with caps. With a depth of 55mm and a diameter of 71mm, it ensures a compact yet spacious fit. The box had a center-to-center distance of 60mm. An included inner ring allows for easy height adjustment, and an additional ring (ETM013S) can be added to increase the height by 6mm.

The box also comes with a secure lid.

For single plasterboard

124/97.5/55

ETM001S-2 IP20

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø73-74mm

This wall box has 6xØ16mm fixed inlets with caps. With a depth of 55mm and a diameter of 71mm, it offers a compact yet spacious fit. The box has a 60mm center-to-center distance and is designed to suit double plasterboard installations. An included inner ring allows for easy height adjustment, and an additional ring (ETM013S) can be added to increase the height by 6mm. The box also comes with a secure lid.

For double plasterboard

124/97.5/55

ETM001S-4 IP20

Boxes with 6 inlets, a lid and a steel plate Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø73-74mm

This wall box features 6xØ16mm fixed inlets with caps, a 45mm depth, and a 71mm diameter for a compact fit. It has a 60mm center-to-center distance and includes an inner ring for height adjustment, with the option to add an ETM013S ring for an extra 6mm. A steel plate ensures easy fixing to wooden or metal studs.

For single plasterboard

68

ETMAN INTERNATIONAL

124/143/45

ETM001S-1 IP20

HDPE

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

MATERIAL

Ø73-74mm

This wall box features 6xØ16mm fixed inlets with caps, a 55mm depth, and a 71mm diameter for a compact fit. It has a 60mm center-to-center distance and includes an inner ring for height adjustment, with the option to add an ETM013S ring for an extra 7mm. A steel plate ensures easy fixing to wooden or metal studs.

For single plasterboard

124/143/55

ETM001S-3 IP20

Colour: blue Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø73-74mm

This wall box features 6x16mm fixed inlets with caps, a 55mm depth, and a 71mm diameter for a compact fit.

It has a 60mm center-to-center distance and includes an inner ring for height adjustment, with the option to add an ETM013S ring for an extra 6mm. A steel plate ensures easy fixing to wooden or metal studs.

For double plasterboard

124/143/55

ETM001S-5 IP20

HDPE

Boxes with 3 inlets without a lid Colour: yellow or green Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø73-74mm

This wall box, designed for double plasterboards, features 3xØ16mm inlets with locking springs. With a 50mm depth, 71mm diameter, and 60mm center-to-center distance, it offers a precise and secure fit.

One inlet is open, while the other two can be easily opened as needed. Additionally, these boxes can be connected side by side for flexible installation options.

For double plasterboard

73.9/123/50

ETM522S

IP20

Colour: yellow or green Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø73-74mm

This wall box, designed for single plasterboards, features 3xØ16mm inlets with locking springs. With a 50mm depth, 71mm diameter, and 60mm center-to-center distance, it offers a precise and secure fit. One inlet is open, while the other two can be easily opened as needed. Additionally, these boxes can be connected side by side for flexible installation options.

For single plasterboard

73.9/123/50

ETM523S

IP20

HDPE

INSTALLATION MATERIALS

69

JUNCTION BOXES CC 67MM PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Boxes with 8 inlets without a lid Colour: yellow or green Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø86mm

This box is equipped with 8xØ16mm inlets, featuring locking springs. With an 82mm diameter and 48mm depth, it provides ample space for wiring. The cc distance is 67mm cc distance ensures proper alignment.

One inlet is open, while the remaining inlets can be easily opened using a screwdriver. Designed for double plasterboard installations.

For double plasterboard

135/135/50

ETM524S

IP20

Colour: yellow or green Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø86mm

This box is equipped with 8xØ16mm inlets, featuring locking springs. With an 82mm diameter and 48mm depth, it provides ample space for wiring. The cc distance is 67mm cc distance ensures proper alignment.

One inlet is open, while the remaining inlets can be easily opened using a screwdriver. Designed for single plasterboard installations.

For single plasterboard

135/135/50

ETM525S

IP20

HDPE

Boxes with 10 inlets without a lid Colour: yellow or green Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

Ø86mm

This junction box features 8xØ16mm inlets and 2xØ20mm inlets, all equipped with locking springs for secure connections. With an 82mm diameter and 48mm depth, it provides plenty of space for wiring. The 67mm cc distance ensures accurate alignment. One inlet is open, while the others can be easily accessed with a screwdriver. It is designed for double plasterboard installations.

For double plasterboard

137/137/60

ETM524SN

IP20

Colour: yellow or green Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC

HDPE

Ø86mm

This junction box features 8xØ16mm inlets and 2xØ20mm inlets, all equipped with locking springs for secure connections. With an 82mm diameter and 48mm depth, it provides plenty of space for wiring. The 67mm cc distance ensures accurate alignment. One inlet is open, while the others can be easily accessed with a screwdriver. It is designed for single plasterboard installations.

For single plasterboard

70

ETMAN INTERNATIONAL

137/137/60

ETM525SN

IP20

HDPE

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Accessories Colour: white Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The straight extension pipe designed to convert a 16mm conduit entry to a 20mm conduit entry. Featuring a locker on each end, it ensures a secure and stable connection, maintaining the reliability of the electrical installation.

Attachment for ceiling box ETM002S

20/80/⌀20

ETM238S

IP20

Colour: white Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This white extension ring, designed for single wall boxes, adds 6mm in height to accommodate various installation needs. It attaches securely with two screws, featuring a fixing distance of cc 60mm.

For single wall boxes cc Ø60mm

Ø71/6

ETM013S

IP20

PP, halogen free

INSTALLATION MATERIALS

71

LIME SERIES

THE MOST COMPREHENSIVE RANGE SUITED FOR HOLLOW WALLS AND CONCRETE-CASTING

The Lime series wall and junction boxes are versatile, halogen-free installation materials designed for a wide range of projects, from hollow wall and ceiling installations to concrete casting. These boxes, made from durable PP material, offer flexibility and adaptability, ensuring ease of installation and high-quality results in various construction environments.

//HOLLOWS WALLS For hollow wall and ceiling installations, the Lime series provides a robust solution with a range of box depths from 48 to 75 mm.

Designed to be mounted before the boards are installed, these boxes ensure a secure fit, supported by fixed or knockout inlets for convenient wiring access. The system's wide range of accessories, including conduit inlets and box supports, enhances its flexibility, allowing for easy adaptation to any project requirements.

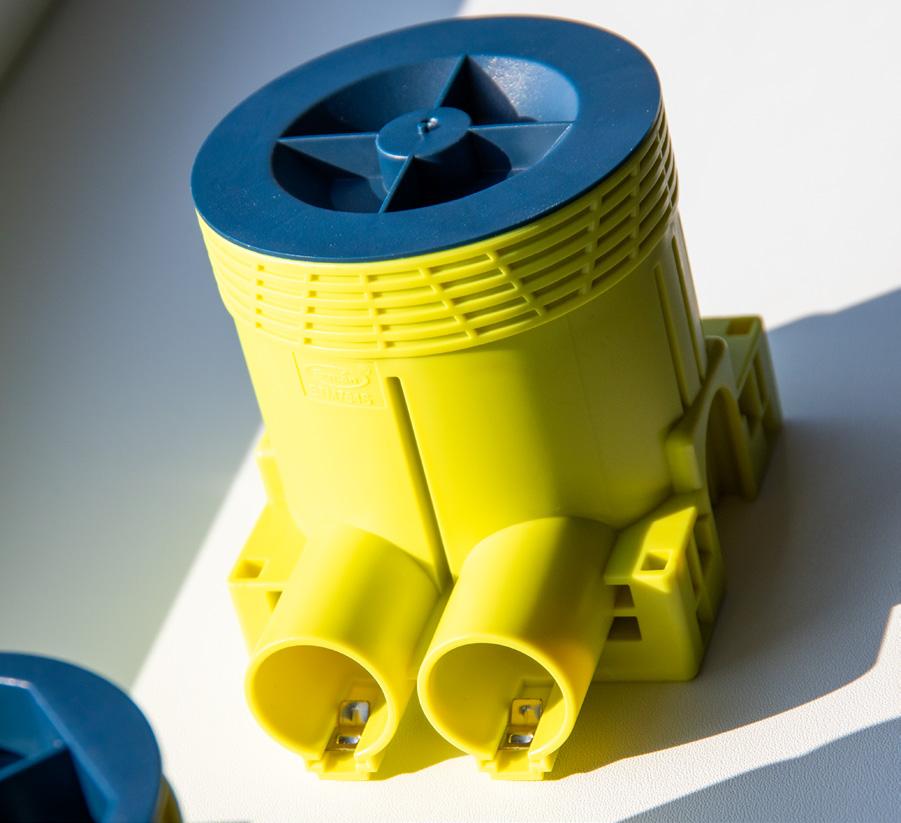

//CONCRETE-CASTING When it comes to concrete casting, the Lime series excels with deep versions of its boxes, specifically tailored for use in concrete walls and ceilings. Whether working with on-site concrete casting or prefabricated concrete elements, the Lime series offers reliable solutions. The range includes flush-mounted options, with various heights to accommodate different installation needs, making the Lime series suitable for any project requiring durable and adaptable installation materials.

72

ETMAN INTERNATIONAL

//SAFE, ADAPTABLE SOLUTIONS The products are crafted from halogen-free PP material, meeting the stringent requirements of the IEC 60695-2-11 glow wire test at 850 °C. Etman continuously develops these materials in collaboration with installers, ensuring they are easy to install and deliver high-quality results. The system's design allows for easy adaptation to various installation needs, providing reliable and safe solutions for any project.

MOISTURE RESISTANT

MULTIPLE ACCESSORIES

Boxes for concrete casting have been rigorously tested and rated IP30, ensuring a moistureresistant installation.

Includes conduit inlets, box supports, and other accessories for flexible, customised installations in concrete and modular settings.

VERSATILE INSTALLATION

FOCUSED DESIGN

Suitable for both hollow wall and concrete casting applications, with adaptable box depths and mounting options.

Developed in collaboration with installers for ease of installation and high-quality results every time.

HOLLOW WALL BOXES

HIGH BOXES

JUNCTION BOXES

INSTALLATION MATERIALS

73

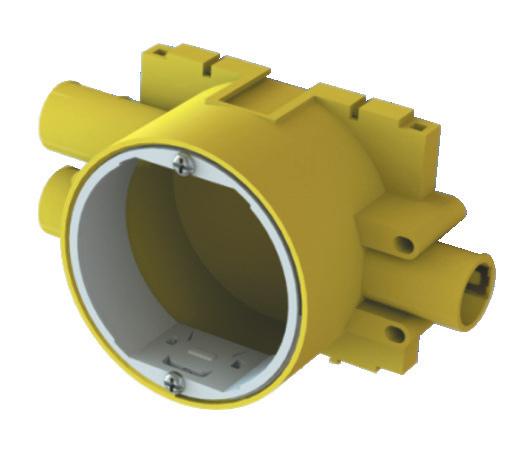

HOLLOW WALLS

COMBINE AND JOIN TOGETHER Combining different boxes is made easier with connection pieces, allowing for a versatile and efficient setup of switches, sockets, and other devices, ensuring seamless integration and organisation.

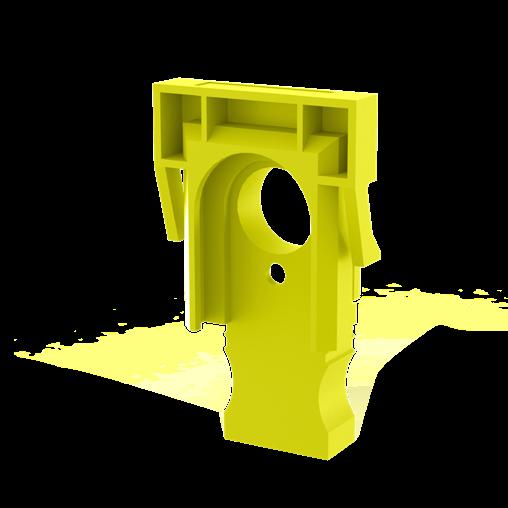

BOX SUPPORTS Box supports ETM773S, ETM774S, and ETM829S securely hold boxes between plasterboards, eliminating the need for additional fixing. Once the top plasterboard is mounted, the boxes are easily positioned in their final location without further adjustments.

SIDE NAILING

HOLLOW CEILINGS

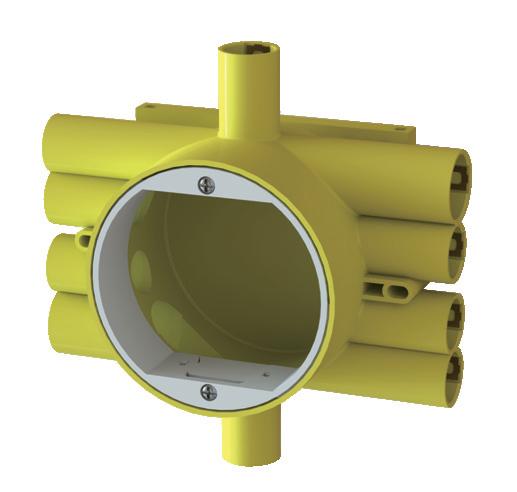

The wall boxes are designed for easy installation, featuring eight fixing points for a secure fit. They can be fastened to wall studs by side nailing, using nails for wooden studs and screws for light metal studs. This ensures a stable and reliable setup, making the installation process straightforward and efficient.

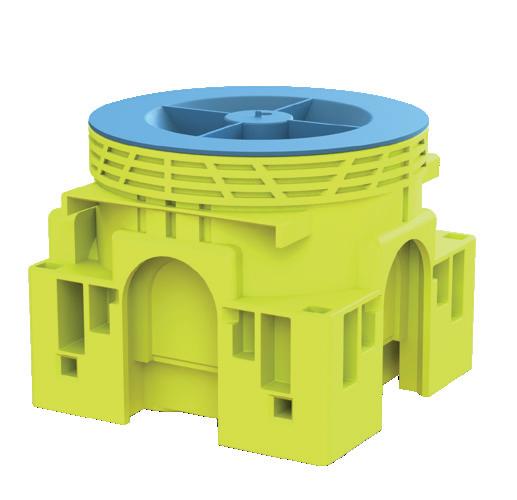

EASY INSTALLATION Junction boxes can be securely fixed in the ceiling by nailing or using box supports.

With a wide range of accessories, piping and insulated cables are easily connected, ensuring a streamlined installation.

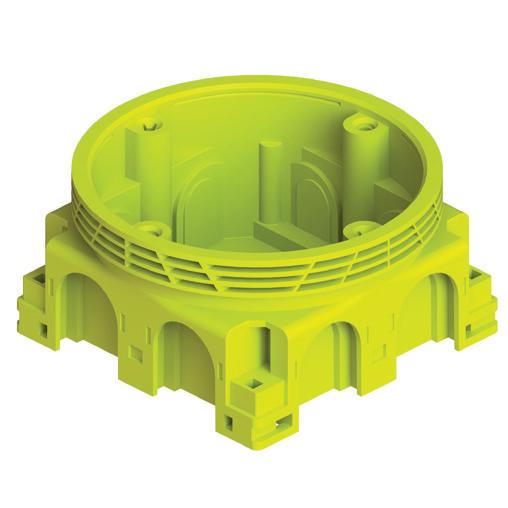

PARAMETERS The junction boxes, with a standard diameter of 95mm, are designed to accommodate various installation needs and are available in three distinct heights: 48mm, 53mm, and 73mm. Each box is engineered with four fixing points for securing the box with M4 or 3.5mm screws.

74

ETMAN INTERNATIONAL

CONCRETE CASTING

MULTI FUNCTION Lime series wall and ceiling boxes are designed for both on-site concrete casting and building with prefabricated concrete elements.

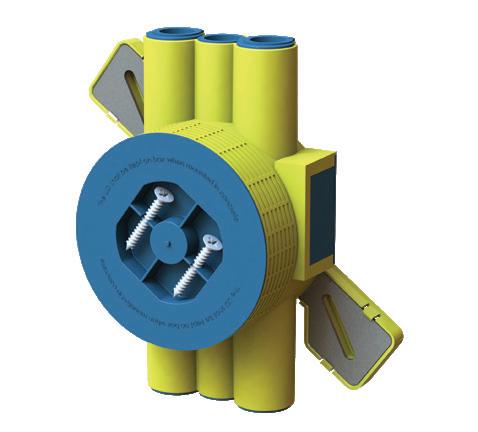

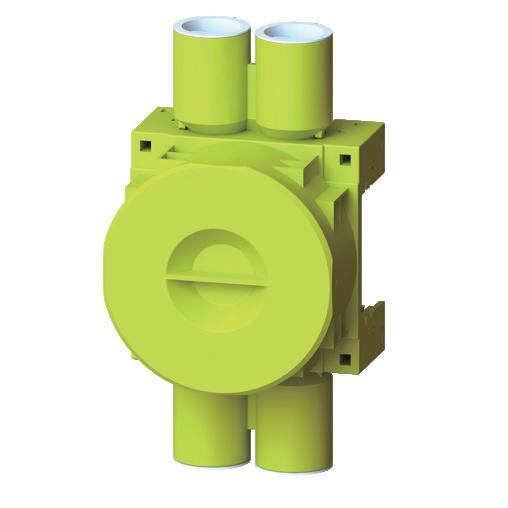

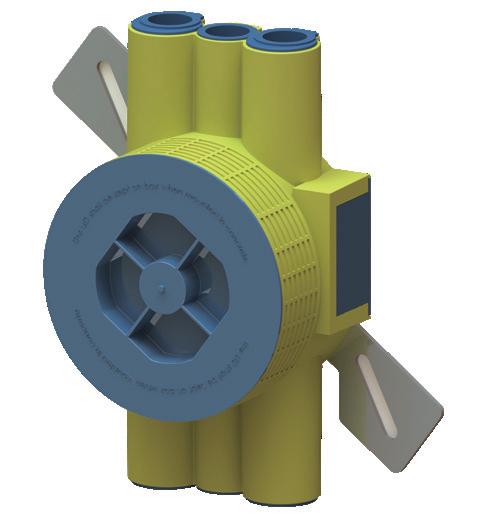

HIGH BOXES The series offers a variety of high boxes and junction/ceiling boxes in sizes ranging from 60mm to 75mm, providing ample space for connections. Some wall boxes include inner rings, allowing further height adjustments.

The ETM754S box, with a 45mm depth from inlet to edge, is ideal for installing piping above reinforcements, saving both time and effort during installation.

INLET ATTACHMENTS

BUSHING INSULATORS

The boxes offer versatile inlet options, including fixed inlets and attachment inlets designed for corrugated pipes with diameters of 20mm and 25mm. These sizes are commonly used in concrete casting.

EASY MOUNTING Bushing insulators are utilised in concrete casting to facilitate transitions from the ceiling to partition walls. Fastened by nailing to the mould, they remain securely in place during casting. Once the mould is removed, the nails detach along with it, simplifying the process.

PROTECTION CAP The casting cap, included with the bushing, effectively prevents concrete from entering the conduit during the casting process. This ensures that the conduit remains clear and unobstructed.

PRODUCT RANGE Bushing insulators are available in Ø16mm, Ø20mm, and Ø25mm sizes, including a specially designed 5-way bushing for distribution boxes. This versatile design ensures efficient conduit management and distribution.

INSTALLATION MATERIALS

75

OUTLET BOXES CC60MM PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

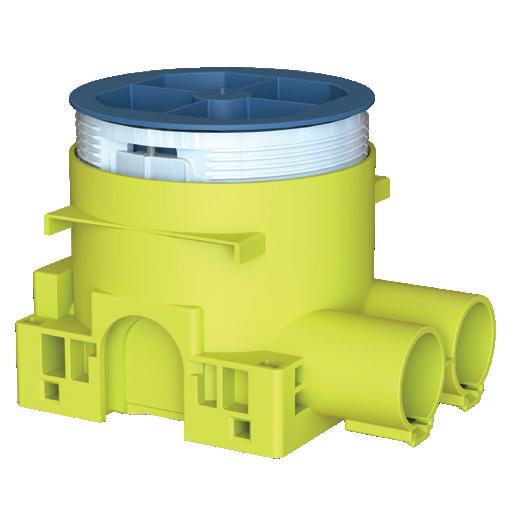

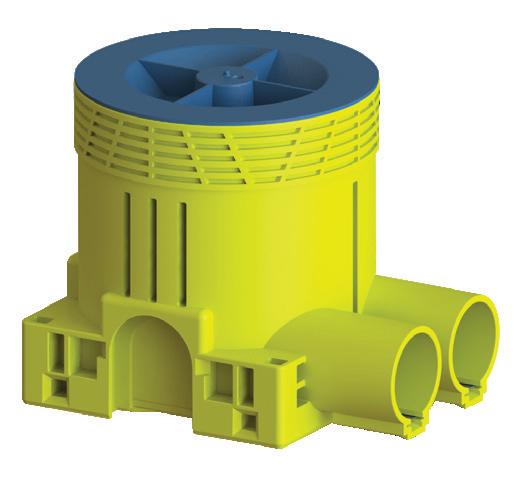

Wall boxes 71mm diameter Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box features 8 fixing points for wooden and metal studs, and has a 60mm cc distance. It comes with a lid and is suitable for concrete casting, withstanding temperatures up to +90°C. Use the ETM801S installation plug for concrete casting moulds. Boxes can be joined together with the ETM772S connection piece. The box includes 5 knock-out inlets on the sides and 4 additional Ø16mm knock-out inlets on the bottom.

For hollow walls and concrete casting 71/71/48

ETM750S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box features 8 fixing points for wooden and metal studs, and has a 60mm cc distance. It comes with a lid and is suitable for concrete casting, withstanding temperatures up to +90°C. Use the ETM801S installation plug for concrete casting moulds. Boxes can be joined together with the ETM772S connection piece. The box includes 3 knock-out inlets on the sides, 2xØ20mm inlets and 4xØ16mm knock-out inlets on the bottom.

For hollow walls and concrete casting 94.3/71/48

ETM751S

IP30

PP, halogen free

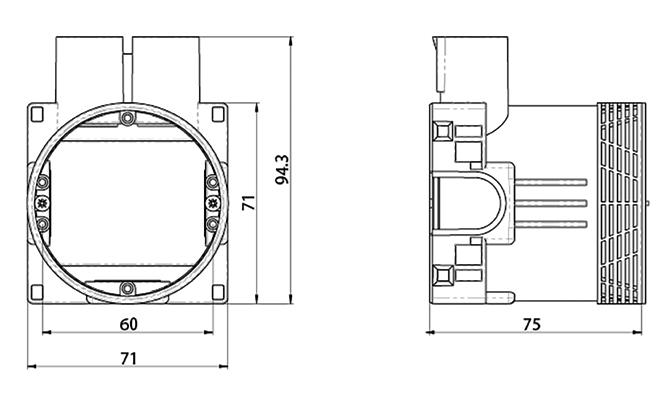

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box features 8 fixing points for wooden and metal studs, and boasts 75mm depth. It comes with a lid and is suitable for concrete casting, withstanding temperatures up to +90°C. Use the ETM801S installation plug for concrete casting moulds. Boxes can be joined together with the ETM772S connection piece. The box includes 3 knock-out inlets on the sides, 2xØ20mm inlets and 4xØ16mm knock-out inlets on the bottom.

For hollow walls and concrete casting 94.3/71/75

ETM754S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box features boasts 59.2mm depth and has an adjustable ring. It comes with a lid and is suitable for concrete casting, withstanding temperatures up to +90°C. Use the ETM801S installation plug for concrete casting moulds. Boxes can be joined together with the ETM772S connection piece. The box includes 5 knockout inlets on the sides and 4xØ16mm knock-out inlets on the bottom.

For hollow walls and concrete casting 71/71/59.2

76

ETMAN INTERNATIONAL

ETM755S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box features 8 fixing points for wooden and metal studs, and has a 60mm cc distance. It comes with a lid and is suitable for concrete casting, withstanding temperatures up to +90°C. Use the ETM801S installation plug for concrete casting moulds. Boxes can be joined together with the ETM772S connection piece. The box includes 5 knock-out inlets on the sides and 4 additional Ø16mm knock-out inlets on the bottom.

For hollow walls and concrete casting 71/71/59

ETM756S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The box features 8 fixing points for wooden and metal studs, and has an inner ring for height adjustment.

It comes with a lid and is suitable for concrete casting, withstanding temperatures up to +90°C. Use the ETM801S installation plug for concrete casting moulds. Boxes can be joined together with the ETM772S connection piece. The box includes 3 knock-out inlets on the sides, 2xØ20mm inlets and 4xØ16mm knockout inlets on the bottom.

For hollow walls and concrete casting 94.15/70.75/59.2

ETM757S

IP30

PP, halogen free

Accessories Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This lid, included with the lime boxes, is specifically designed for protection during concrete casting. It effectively shields the box’s interior, preventing debris and concrete from entering, ensuring a clean and secure installation.

For Lime Series outlet boxes

Ø71mm

ETM750S. LID

IP30

PP, halogen free

Colour: white Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This extension ring for lime boxes adds an additional 12mm of height, providing extra space for wiring and connections. It's designed to seamlessly integrate with lime outlet boxes, ensuring a secure fit and enhanced flexibility in installations. Perfect for situations where a deeper box is required, this ring offers a simple solution for adjusting box depth.

For Lime Series outlet boxes

Ø60mm/12

ETM543S

IP20

PP, halogen free

INSTALLATION MATERIALS

77

JUNCTION BOXES CC78MM PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Junction boxes Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This 95mm diameter junction box is versatile and durable, suitable for use with metal and wooden studs as well as in concrete casting, withstanding temperatures up to +90°C. It features eight Ø20mm knockout inlets on the sides, along with four Ø16mm and one Ø20mm knockout inlets on the bottom, providing ample options for wiring. For concrete installations, secure the box to the mould using the ETM801S installation plug.

For hollow walls and concrete casting 88/88/48

ETM760S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This 95mm diameter box is designed for adaptability, making it ideal for installations with metal or wooden studs, as well as concrete casting, enduring temperatures up to +90°C. It features 8xØ20mm fixed inlets, along with 4xØ16mm and 1xØ20mm knockout inlets on the bottom, providing multiple wiring configurations.

For concrete applications, the box can be securely fastened to the mould using the ETM801S installation plug.

For hollow walls and concrete casting 135/135/53

ETM761S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This Ø95mm box offers an extra 20mm depth compared to the ETM761S, providing additional space for complex wiring setups. It can be used with metal and wooden studs, as well as concrete casting, and withstands temperatures up to +90°C. The box includes 8xØ20mm fixed inlets, 4xØ16mm and 1xØ20mm knockout inlets on the bottom. For concrete installations, secure the box to the mould using ETM801S. For hollow walls and concrete casting 135/135/73

ETM762S

IP30

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This Ø 95mm junction box includes 8 ETM771S strain relief inlets, accommodating Ø6-11mm insulated cables. It can be used with metal and wooden studs, as well as in concrete casting. The box also has 4xØ16mm and 1xØ20mm knockout inlets on the bottom. For concrete installations, the ETM801S installation plug is recommended to securely attach the box to the mould.

For hollow walls and concrete casting 1113/113/48

78

ETMAN INTERNATIONAL

ETM764S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Junction box accessories Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The junction lid, available for separate purchase, is specifically designed to protect wiring during installation.

It ensures that the internal components remain secure and undamaged, providing an extra layer of safety and reliability throughout the installation process.

For Lime Series junction boxes

Ø95/8

ETM763S

IP30

PP, halogen free

Colour: blue Certificates: CE Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This extension ring adds an additional 12mm of depth junction boxes, providing extra space for more complex installations. It is easily secured with four screws, featuring a centre-to-centre distance of 78mm, ensuring a secure and stable fit. Ideal for situations where additional wiring space is needed.

For Lime Series junction boxes

Ø94/12

ETM549S

IP20

PP, halogen free

Colour: black Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This cap is specifically designed to fit ETM771S strain relief inlets, ensuring a secure and protective closure for Ø6-11mm insulated cables. It provides an added layer of protection during installation.

For Lime Series junction box ETM764S

Ø6/15

ETM765S

IP30

PP, halogen free

INSTALLATION MATERIALS

79

BUSHING INSULATORS PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Bushing insulators Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The Ø16mm bushing insulator is crafted for feed-through applications in electrical conduits within on-site cast concrete structures. It connects conduits in ceiling structures to those in non-bearing interior walls, directing wiring straight to a switch, plug socket, or junction box on the wall. This bushing includes a protective cast cover to ensure secure and safe installations. Ø16mm bushing insulator

60/61.8/30

ETM777S

IP20

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The Ø20mm bushing insulator is crafted for feed-through applications in electrical conduits within on-site cast concrete structures. It connects conduits in ceiling structures to those in non-bearing interior walls, directing wiring straight to a switch, plug socket, or junction box on the wall. This bushing includes a protective cast cover to ensure secure and safe installations. Ø20mm bushing insulator

56/61.8/30

ETM775S

IP20

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The Ø25mm bushing insulator is crafted for feed-through applications in electrical conduits within on-site cast concrete structures. It connects conduits in ceiling structures to those in non-bearing interior walls, directing wiring straight to a switch, plug socket, or junction box on the wall. This bushing includes a protective cast cover to ensure secure and safe installations. Ø25mm bushing insulator

70/65.8/30

ETM776S

IP20

PP, halogen free

Colour: yellow Certificates: CE, Semko Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This 5-way bushing insulator is designed for on-site cast houses, featuring 4xØ20mm and 1xØ25mm inlets.

Steel clips in the upper and lower pipe fittings ensure secure pipe placement during installation. It’s ideal for mounting on center partitions, with straight-up openings for easy routing to the distribution box. The lower fitting includes a pre-installed protective plug.

4xØ20mm and 1xØ25mm inlets

80

ETMAN INTERNATIONAL

54.1/169/46.8

ETM800S

IP20

PP, halogen free

LIME BOX ACCESSORIES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Extension inlets Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This 150mm long, Ø20mm conduit end piece is specifically designed for terminating plastic conduits in concrete casting. After casting, the end piece can be trimmed to the desired length using the built-in cut-off grooves, allowing for seamless continuation with a conduit of the same size. The included plug effectively protects the conduit from dirt, concrete, and other foreign particles Ø20mm conduit end piece

150/ Ø20mm

ETM802S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This 150mm long, Ø25mm conduit end piece is specifically designed for terminating plastic conduits in concrete casting. After casting, the end piece can be trimmed to the desired length using the built-in cut-off grooves, allowing for seamless continuation with a conduit of the same size. The included plug effectively protects the conduit from dirt, concrete, and other foreign particles Ø25mm conduit end piece

150/ Ø25mm

ETM803S

IP30

PP, halogen free

Box connectors Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The connecting piece ETM779S is designed for installations where low-voltage or high-current circuit box groups are mounted under separate cover plates. It ensures a precise alignment with a 102mm distance between the centers of the boxes, facilitating seamless integration and organisation of multiple circuits.

Closed connector cc 102mm

ETM779S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The internal connector is designed to link mounting boxes side by side with a precise centre-to-centre distance of 71mm. This connector ensures a secure and seamless connection between boxes, facilitating organised and efficient installations. Ideal for creating a uniform setup, it simplifies the alignment and assembly of multiple mounting boxes.

Open connector cc71mm

28/26/15.8

ETM772S

IP30

PP, halogen free

INSTALLATION MATERIALS

81

LIME BOX ACCESSORIES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Box support Colour: white Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This box support is designed for all knock-out inlets in the Lime series, providing reliable reinforcement with an available length of 66mm. It ensures stable and secure mounting, supporting the integrity of the installation and accommodating various conduit sizes for versatile applications.

66mm

65/38/18.2

ETM829S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This box support is designed for use with mounting and junction boxes featuring knock-out inlets. It is specifically engineered for installation in light, non-bearing walls that are constructed on-site, accommodating interlayers of 42mm, 45mm, and 65mm.

42mm, 45mm, and 65mm

64/38/18.2

ETM773S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC This box support is designed for use with mounting and junction boxes featuring knock-out inlets. It facilitates the installation of boxes into light, non-bearing walls constructed on-site, accommodating interlayers of 42mm, 45mm, 66mm, 70mm, 90mm, and 95mm. The support ensures a secure and stable fit across various wall thicknesses, providing flexibility and reliability in your installations.

42mm, 45mm, 66mm, 70mm, 90mm, 95/38/18.2 and 95mm

ETM774S

IP30

PP, halogen free

Installation plug Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The installation plug is designed for securely fastening outlet and junction boxes to surfaces like concrete casting moulds. It ensures a stable hold during the casting process. Once the casts are removed, the plug breaks cleanly at the pre-defined groove level with the base, leaving a flush and clean finish thanks to a plastic cap.

For concrete casting

82

ETMAN INTERNATIONAL

Ø41/40

ETM801S

IP30

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Strain relief inlet Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The strain-relief inlet is designed for conduitless flush mounting, securely fastening Ø6-11mm insulated cables to mounting or junction boxes. It provides reliable strain relief, ensuring that cables remain firmly attached and protected. The boxes are installed in the standard manner within boards or other structures, offering a seamless and professional finish.

Strain-relief inlet for Ø6-11mm insulated cables

24/26/18.3

ETM771S

IP30

PP, halogen free

Inlets Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The Ø20mm inlet features a locking plate that prevents conduit disconnection, ensuring a secure and stable connection. To release the conduit, simply push in the plate using a flat head screwdriver. This versatile inlet is suitable for use in both outlet boxes and junction boxes. Ø20mm inlet

27/28.5/38

ETM770S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The Ø25mm inlet features a locking plate that prevents conduit disconnection, ensuring a secure and stable connection. To release the conduit, simply push in the plate using a flat head screwdriver. This versatile inlet is suitable for use in both outlet boxes and junction boxes. Ø25mm inlet

27/28.5/33.8

ETM778S

IP30

PP, halogen free

Colour: blue Certificates: CE, Semko Conforms with: RoHS Complies with the standards: IEC 60670-1 Fire hazard test: 850oC (IEC60695-2-11) Working temperature: -25oC to +60oC; Installation temperature: -5oC to +25oC The Ø20mm angle inlet features a locking plate that prevents conduit disconnection, ensuring a secure and stable connection. To release the conduit, simply push in the plate using a flat head screwdriver. This versatile inlet is suitable for use in both outlet boxes and junction boxes. Ø20mm angle inlet

26/26/40.5

ETM769S

IP30

PP, halogen free

INSTALLATION MATERIALS

83

TECHNICAL DRAWINGS Universal series single boxes p.24 71

60 12

60

71

71

ETM676S

ETM606S

109

107

60

107

71

ETM387S

60

144

24

146 71

71

ETM336S

ETM335S

60

107

71

ETM337S

ETMAN INTERNATIONAL

ETM336SF

12

ETM338S

107

60

60 71

12

146

146 71

146 71

24

60

71

146

12

144 71

24

ETM678S

71

60

71

146

146 71

71

146

109

12

ETM631S

146

60

71

24

71

60

ETM672S

71

71

84

24

146

12

71

71

60

71

71

ETM335SF

24

TECHNICAL DRAWINGS

144 71

144

60

60

71

146

146 71

24

71 �

12

ETM338SF

ETM337SF

Single wall box covers and extension rings p.27

4.5

90

90.50 60

60

60

ETM540S

90

12.40

60

71

ETM013S

26.9

12

60

7

90 60

ETM003S

1.70 2.20

1.8

ETM543S

82

60

ETM003S-1

ETM003S-2

14.1

81.5

ETM003S-3

INSTALLATION MATERIALS

85

TECHNICAL DRAWINGS Universal series boxes with an adjustable steel plate p.28 112

24

73

71

146 71

150 71

12

ETM335SA

ETM336SA

150 71

73

146 71

73

71

146 71

112

ETM337SA

73

146 71

12

ETM338SA Universal series junction boxes p.29

142

ETM394S

ETM395S

60 24

ETM399S

ETMAN INTERNATIONAL

24

60 12

83

ETM398S

124 83

60 83

142

142

83

124

124.3

12

142

124.3

86

60

83

142

83

142

60 12

ETM398SF

ETM399SF

60 12

24

TECHNICAL DRAWINGS

ETM527S

1.80

ETM004S-1

60

95

3

78 67

24

5

95

110

100

100

9.70

ETM526S

67

101 67

28.20

28.20

101

12.4

ETM528S

ETM601S

ETM541S

Universal series multi boxes p.32

67

71

56

79 60

71

69

60

77

71

61

ETM220S

ETM546S

ETM647S

Universal series pocket boxes p.33 71

60

60

179 142

179 142

11

ETM740S

71

24

60

11

179 142

71

ETM741S

ETM742S

INSTALLATION MATERIALS

87

TECHNICAL DRAWINGS

71

24

71

60 11

60

179 142

179 142

60

179 142

71

ETM743S

ETM742SF

ETM743SF

Spacers p.35

71 40

31 21

ETM396S

71 40

27 17

ETM641S

39 30

127 117

71 40

43 34

127 117

127 117 ETM640S

71 40

34 25

127 117

71 40

ETM649S

ETM650S

Universal series one-and-a-half boxes p. 38

60 12

88

60 12

90 165

90 165

112 71

90 165

71

60 24

71

ETM673S

ETM633S

ETM613S

ETMAN INTERNATIONAL

24

TECHNICAL DRAWINGS

ETM615S

ETM616S

60 24

71

165 90

90

165

12

126

ETM614SF

24

12

165

ETM693S

151

60

71

12

ETM693SF

60 24

ETM697S

60 24

170

60

ETM697SF

12

71

90

146

90

165

165 90

71

12

151 71

60

90

146 71

151

60

ETM615SF

165

71

ETM616SF

90

90

151

60 90

24

146 71

112

60

ETM613SF

131

60

131 90

12 71

71

90 165 ETM614S

112 71

60

146

131 90

24

146

60

112 71

ETM698S

INSTALLATION MATERIALS

89

TECHNICAL DRAWINGS

170

170

60

90

90

146

146 71

12

ETM699S

ETM698SF

ETM699SF

Universal series one-and-a-half pocket boxes p. 42 12

90 142 179

24

90 142 179 71 112

ETM662S

71 112

45 57

ETM663S

45 67

90

6

ETM618S

ETM617S Universal series one-and-a-half multi box p.43

71 60 90

60

ETM548S

90

ETMAN INTERNATIONAL

110

2

71

60

Universal series one-and-a-half box accessories p.43

90

71

24

71

146

170

60

90

60 24

TECHNICAL DRAWINGS Universal series double boxes p. 46 71

71

60

111

60 24

ETM638S

ETM639S

ETM610S

162 71

60

142

24

71

12

2

6

216 142

60 90

71

111

60 71

216 142

142

142

216

216

12

ETM611S

ETM547S

ETM619S

Universal series ceiling/junction boxes p.50 11

41

53 25

135.5

13

142.60

33

88

88

ETM002S

ETM002S-4

138.80

65

135.5

144.4

144.4

142.60

135.5

ETM002S-5

48

138.80

12

60

24

144.40

144.40

144.4

37

88

ETM002S-6

ETM002S-7

ETM002S-8

INSTALLATION MATERIALS

91

TECHNICAL DRAWINGS

45.8

50

20

26.20

40.8

80

ETM648S

ETM238S

27.50

70

101 70

Universal series ceiling/junction boxes p.51

3 3.30

5

ETM539S

ETM004S

26

60 78 114

34

ETM542S44V2

71

142

11

71

71

288

71

217

24

142

11

71

217 142

Universal series big boxes p.47

71 142

71 142

61

ETM622SF

71

142

ETM621SF

71

71

288

24

71 142

ETM624SF

92

ETMAN INTERNATIONAL

61

61 71 142

ETM623SF

61

TECHNICAL DRAWINGS Universal series boxes for concrete casting p.60 70.75

70.75

ETM781S

70.75

71

ETM813S

70.75

75

ETM784S

30.5

71

137 70.75

ETM786S

ETM790S

27

53.80

32.40

23.80

ETM791S

29.40

17

7 5

71.40

ETM794S

56.40

45 37.75

35.40

46.30

54

32.5

71.40

71

32.5

75

104 70.75

ETM782S

75

76

ETM812S

71

135 70.75

76

70.75

70.75

103 70.75

103

ETM780S

29.40

73.50 60

135 70.75

73.50 60

ETM793S

ETM814S

INSTALLATION MATERIALS

93

TECHNICAL DRAWINGS

92

71

71

92 77

71

71

104

92 77

71

137 71

77

ETM785S

ETM787S

107 92

70.75

70.75

ETM783S

107 92

107 92

70.75

70.75

104

137 70.75

70.75

ETM795S

53.80

ETM796S

45

92

28

29.40

ETM788S

107

ETM798S

94

39

23.80

29.40

20

28

47

54

37.75

ETM797S

ETMAN INTERNATIONAL

ETM792S

ETM789S

TECHNICAL DRAWINGS Universal series boxes for solid walls p.65

71

71

48

48

46.6 ��

109

109

30 �

�� 46

ETM680S

ETM682S

46.60

30

46

ETM681S

ETM683S

INSTALLATION MATERIALS

95

TECHNICAL DRAWINGS

71 124

45

12

71 124

ETM001S

55

71 97.5

71

97.5

97.5

71

Simple series p.68

24

71 124

12

ETM001S-2

56 ETM001S-4

50

13

137

ETM524SN

60

13

71

106

106

ETMAN INTERNATIONAL

50

67

26 50

135

ETM524S

137

ETM525S

13

ETM523S

135 67 135

ETM001S-5

56

135 67 123

ETM522S

124

83

26 50

143

71

143 56

83

123

96

ETM001S-3

12

73.9 60

71 124

137

ETM001S-1

45

12

73.9 60

71 124

71

143

24

67

137

ETM525SN

60

13

TECHNICAL DRAWINGS

20

80

60

ETM238S

7 ETM013S

60

48

94.30

71

71

Lime series outlet boxes p. 76

60

71

48

71

ETM750S

ETM751S

ETM754S

70.75

59.20

70.75

94.15 70.75

70.75

60.70 59.20

59

70.75

70.75

ETM755S

ETM756S

ETM757S

Lime series junction boxes p.78

135 78

53

135

73

78 88 95

95

78

135

95

78 135

88 78

78

11 48

ETM760S

ETM761S

ETM762S

INSTALLATION MATERIALS

97

TECHNICAL DRAWINGS

8.10

113

78

12

94

94.6

48

113

78

ETM764S

ETM763S

26

ETM549S

15

ETM765S Lime series bushing insulators p.80

30

30

ETM777S

ETM775S

31.3 30.5 54.1

133

ETM800S

29

ETM776S

46.8

169

ETMAN INTERNATIONAL

70

25

25

98

65.80

49.30

56

61.80

46.50

30

60

44.50

61.80

TECHNICAL DRAWINGS

28.5

20.3

25.8

27.60

18

150.60

31.06

150

18

24

Lime series accessories p.81

18

23.80

43.5 46.95

ETM802S

38

ETM803S

38

18.20

ETM779S

95

18.2

64

65

�� ETM829S

38

18.2

ETM773S

ETM774S

8.85

4.90

18.30

15.8 ETM772S

10

26

10.7

24

40

28

26

20.1

41

ETM801S

28.50

25

ETM771S

33.8

�

26

40.5 26

27 36 38

ETM770S

ETM778S

ETM769S

INSTALLATION MATERIALS

99

NOTES

100

ETMAN INTERNATIONAL

SWITCH ON TO STYLE PLUG INTO INNOVATION EXPLORE OUR EXTENSIVE COLLECTION OF SOCKETS, SWITCHES, AND LED LIGHTING THAT BRINGS BRILLIANCE AND CONVENIENCE TO EVERY ROOM AND PROJECT!

USB CHARGING MODULES

SWITCHES

LED LIGHTING

ETM2024_09LT

SOCKETS

WWW.ETMANINTERNATIONAL.COM

INSTALLATION MATERIALS

101

ETMAN NORWAY

ETMAN SWEDEN

ETMAN FINLAND

Etman Distribution AS W: etman.no

Etman Distribution AB W: etman.se

Etman Distribution Oy W: etman.fi

ETMAN CHINA

ETMAN LITHUANIA

Etman Electric Co. Ltd. W: etman.cn

Etman UAB W: egant.eu

E: info@etmaninternational.com
