USB Charging Modules & Trunking Systems

USB CHARGING MODULES & TRUNKING SYSTEMS

OUR COMPANY

NORWAY

FOUNDED IN 1990, ETMAN HAS ESTABLISHED ITSELF AS A TRAILBLAZER IN THE PROFESSIONAL ELECTRICAL PRODUCTS MARKET.

With our roots firmly planted in Oslo, Norway, and having gone public in 2007, we have evolved into one of the most distinguished international electrical organisations, specialising in the research, development, production, and sales of a diverse range of electrical, electronic, and lighting solutions.

Over the past three decades, we have meticulously crafted our brand’s presence across Norway, Sweden, and Finland, mirroring the dynamic growth of the Nordic electrical market. Today, Etman boasts an impressive network of 4 distribution companies, 13 stores in the Nordic countries, and a dedicated team of nearly 600 employees, spreading our reach throughout Europe and China.

2

ETMAN INTERNATIONAL

Etman International’s dedication to delivering safer, more energy-efficient, and intelligent electrical products has won the trust of professional consumers and end-users and positioned us uniquely in the global market. We take pride in being a brand that has gained recognition from professional electricians around the world, ranking alongside well-known global giants.

As we continue to innovate and lead, our vision remains clear – to empower the professional market with electrical solutions that are not just state-of-the-art but also echo our deep-rooted values of safety, environmental protection, and energy efficiency.

OUR LOCATIONS

CHINA

LITHUANIA

SWEDEN Etman has a well established global network comprising of two manufacturing hubs, four distribution companies, 13 stores and a dedicated team of nearly 600 employees.

FINLAND

USB AND TRUNKING MODULES

3

WHY CHOOSE ETMAN INTERNATIONAL? Etman is a distinguished Nordic company with more than 35 years of expertise in the field. We proudly manufacture over 3000 high-quality electric and electronic products, continually investing in the latest technology to advance our market position.

Our commitment extends beyond manufacturing; we collaborate closely with other companies on OEM/ODM projects, helping them to enhance their products through innovative design solutions and advanced technology, such as our leading-edge USB fast charging modules. Trust Etman to deliver not only products but also strategic partnerships that empower and innovate, ensuring you stand out in the competitive market.

MILESTONES 2007 Etman International ASA was listed on the Norwegian Stock Market. The same year, it opened its first professional store in Trondheim, Norway.

1990 Etman founded by James Xu. Together with Hans Peter from Norway, they shaped the business it is today.

4

ETMAN INTERNATIONAL

1996

2013

Etman partnered up with IKEA. It was producing extension cords, sockets and power socket adaptors.

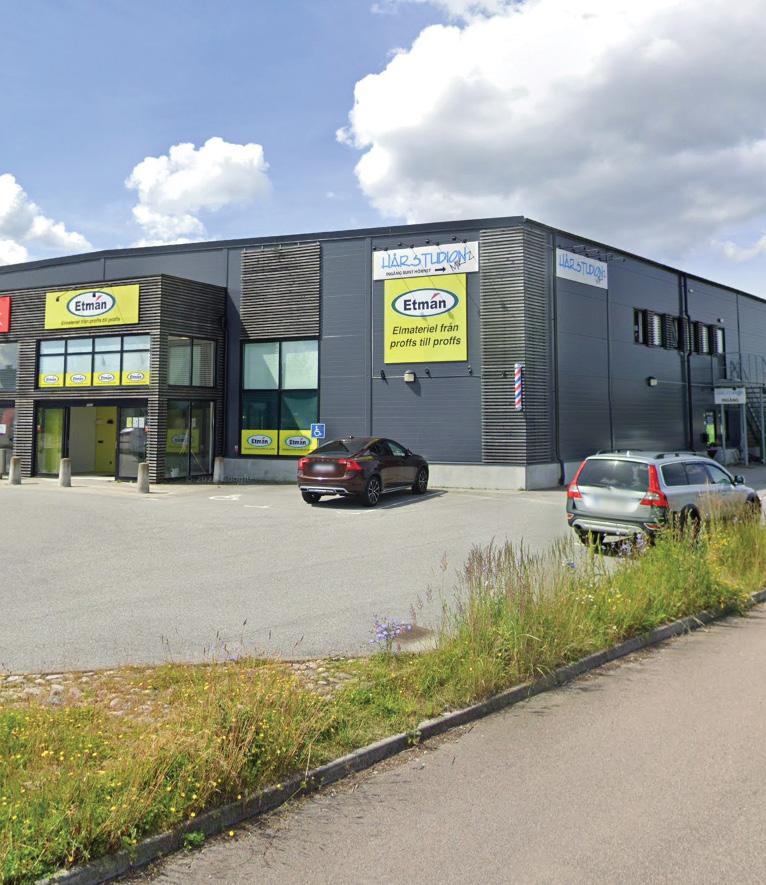

Etman Distribution AB in Sweden was established, introducing Etman’s products to professional and DIY markets.

CORE VALUES INTEGRITY Led by honesty, transparency and reliability, ensuring ethical behaviour and maintaining trust in every step.

PASSION FOR CHALLENGES We approach every challenge with enthusiasm and innovative thinking, embracing obstacles as opportunities.

SOLUTION SEEKING We find creative, resourceful solutions, addressing problems with openmindedness and analytical thinking.

COST CONSCIOUSNESS Maintain efficiency and optimising resources while ensuring sustainability and focusing on value.

TOGETHERNESS Fostering collaboration, building strong, supportive, inclusive teams that work harmoniously and embrace diversity.

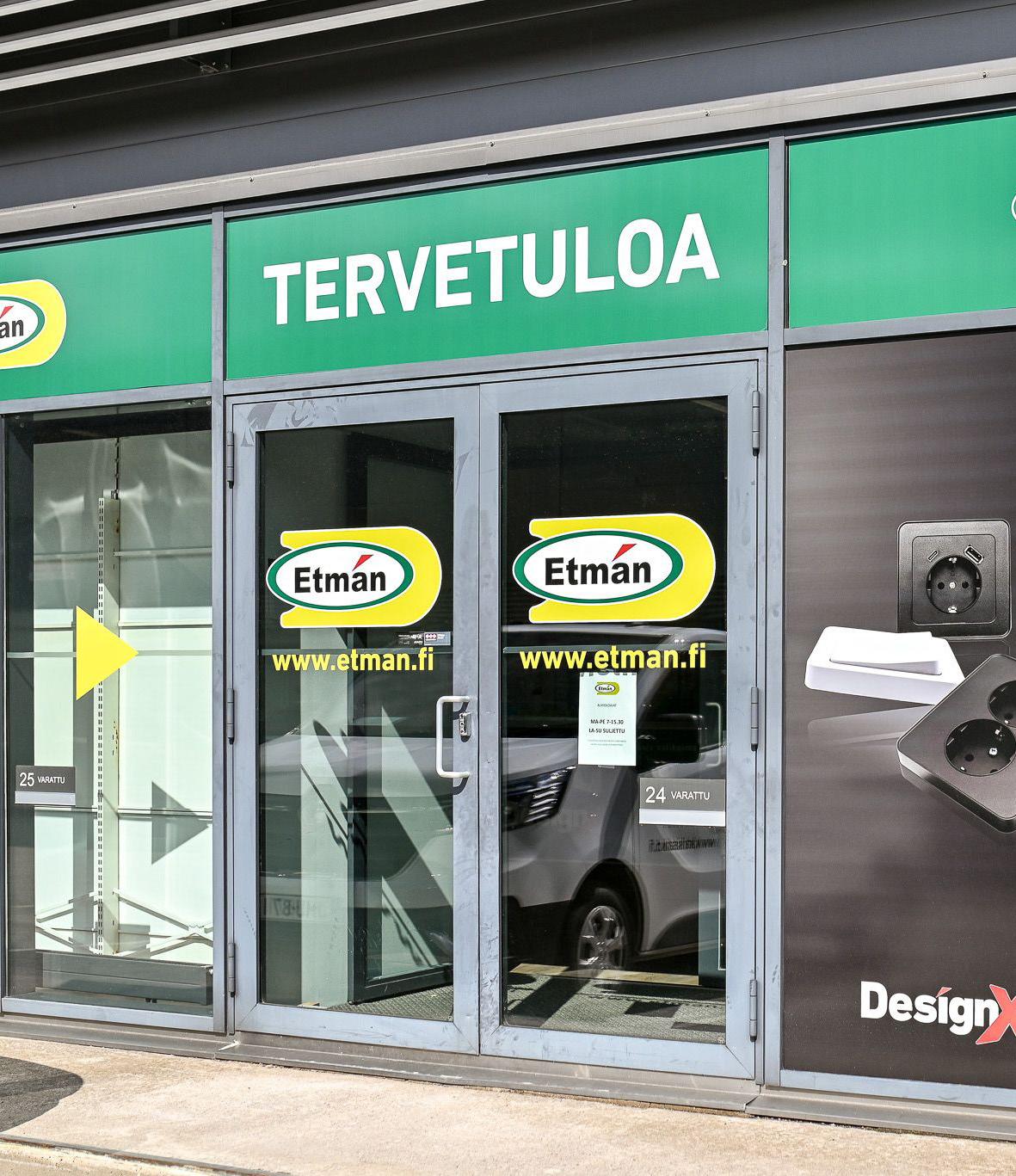

2015 Etman further expanded and founded Etman Distribution OY in Finland, supplying high quality products to the professional market and savvy DIYers alike.

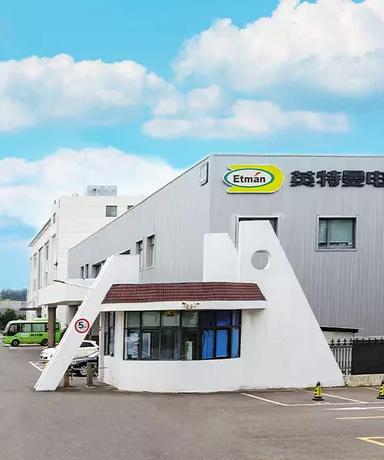

2021 New modern building for Etman International ASA headquarters built in Egersund, Norway.

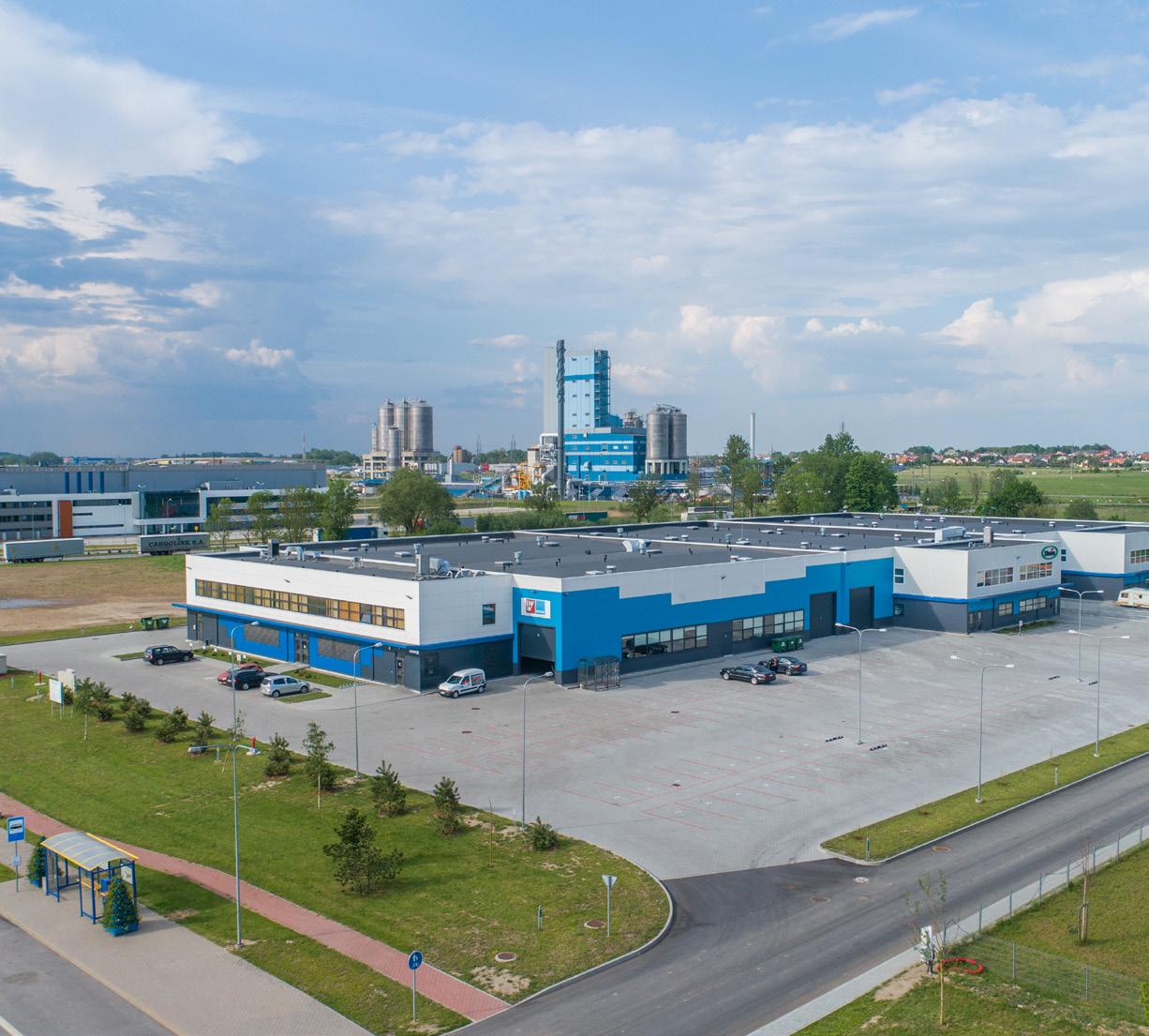

2018 Brand new distribution and manufacturing hub opened in Klaipeda, Lithuania, stocking all Egant products for the DIY and semi-professional markets.

2023 Etman Distribution Norway launched Etman’s first online store conveniently serving tradespeople and homeowners.

USB AND TRUNKING MODULES

5

ACCREDITATIONS AND GLOBAL CERTIFICATIONS Etman is dedicated to ensuring that our products meet the stringent requirements set by the industry and various countries worldwide. To achieve this, we collaborate with international certification bodies such as Intertek, TUV, ISO, CE, RoHS, UKCA, Qi2, and many others. Our products undergo rigorous testing by these trusted organisations, ensuring they adhere to the highest standards of quality, safety, and performance. This commitment to working with respected certification bodies guarantees that our products not only comply with industry regulations but also meet the diverse needs of our global customer base, providing reliability and peace of mind.

6

ETMAN INTERNATIONAL

//EN STANDARD COMPLIANCE

//ISO CERTIFICATIONS

We ensure that all our products are meticulously designed to meet the strict requirements of current EN standards. This commitment guarantees safety, reliability, and high quality across its entire range, providing our customers with products that adhere to the highest European benchmarks.

Our organisation and the products are proudly certified according to ISO9001 and ISO14001, reflecting our commitment to quality management and environmental responsibility.

USB AND TRUNKING MODULES

7

USB CHARGING MODULES WE OFFER A WIDE RANGE OF USB CHARGERS WITH VARYING SPECIFICATIONS AND CUSTOMISATIONS TO MEET THE NEEDS OF DIFFERENT DEVICES. SO, WHETHER YOU’RE LOOKING TO CHARGE YOUR SMART PHONE, TABLET, LAPTOP OR OTHER PORTABLE DEVICES, WE HAVE A USB CHARGER THAT WILL SUIT YOUR NEEDS.

SERVICE Above all else, our customers come first, & that’s why they love working with us. From first contact right through to delivery, we are committed to elevating customer experience beyond all expectations.

QUALITY At Etman, compromising on quality is out of the question. Our expert design team excels at reducing costs without sacrificing quality, ensuring our customers always receive the best solutions at the right price.

8

ETMAN INTERNATIONAL

DESIGN Since its inception, Etman has focused on collaborative design solutions, driven by a passionate commitment to innovation and customer-centric approaches in product development.

SAFETY We not only conduct internal testing on every unit we produce but also seek certification from international bodies to guarantee our products meet rigorous safety standards. Under our 100% testing policy, we ensure that all our products uphold the electrical safety excellence our customers expect from us.

USB modules offer the convenience of quickly and easily charging devices, providing efficient power delivery and compatibility with a wide range of gadgets.

CUSTOMISABLE

EASY INTEGRATION

The modules offer customisation options that allow for adapting the shape and size to precisely fit our customers’ specific needs and applications.

USB modules seamlessly integrate into various items such as furniture, trunking systems, and more, offering versatile applications and effortless installation.

FAST-CHARGING

RELIABLE

Our USB modules offer 65W and 100W charging speeds to keep devices powered efficiently and quickly.

Built to be long-lasting and reliable, ensuring durability and consistent performance across a wide range of environments and uses.

IN-BUILT SAFETY

FUTURE-PROOF

Modules are equipped with overcurrent protection, electrostatic discharge immunity and temperature control to ensure reliable and secure operation.

Our modules are designed to be long-lasting. No matter how quickly portable device echnology changes, our modules stay relevant and usable.

USB AND TRUNKING MODULES

9

Installing USB charging sockets in public spaces enhances accessibility by providing convenient charging options for everyone.

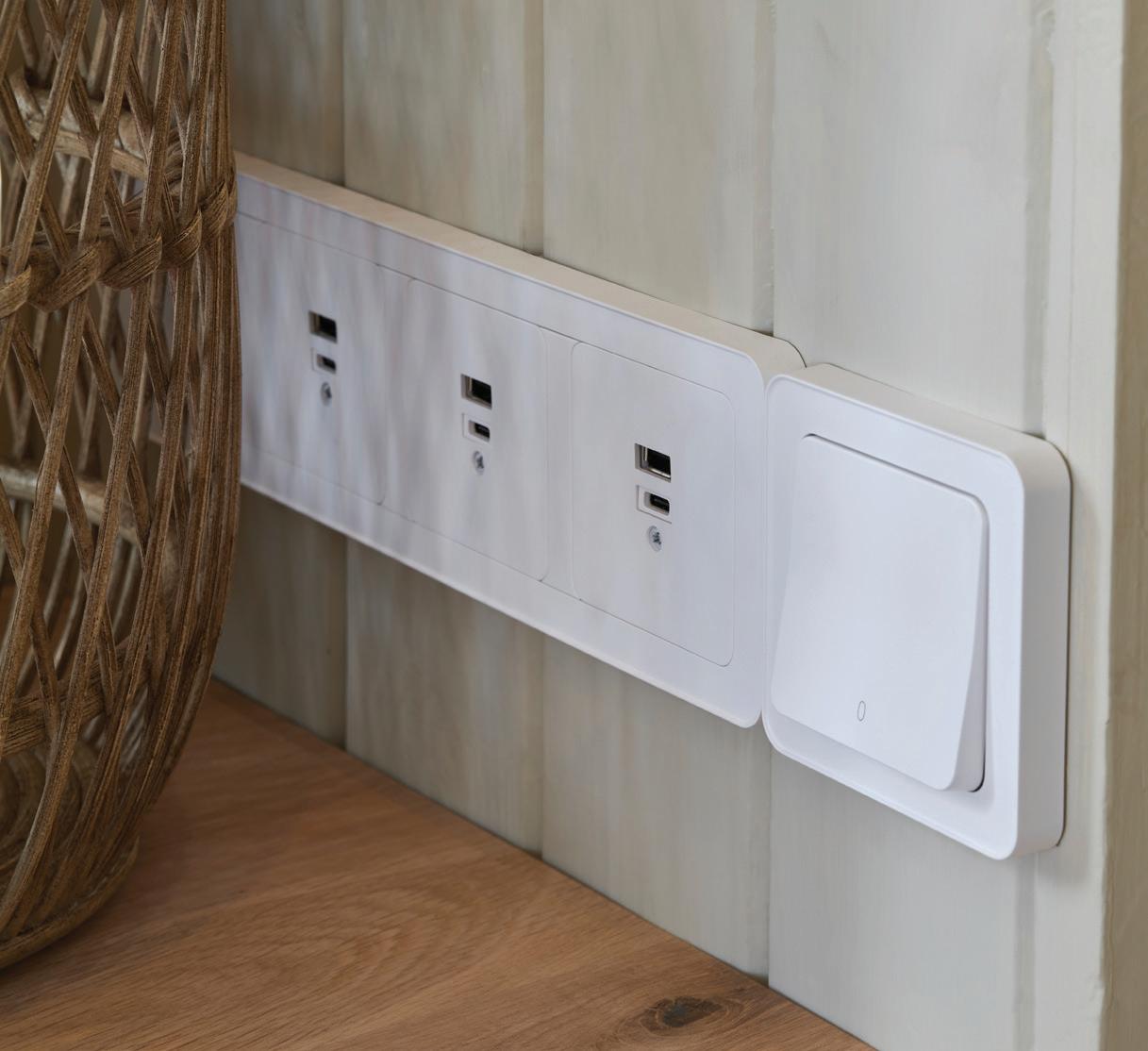

Placing USB sockets in strategic locations at home, such as near the bed or the bathroom, ensures convenient and efficient access to power where device charging is most needed.

10

ETMAN INTERNATIONAL

ACCESSIBLE POWER WITHIN REACH

NO MATTER WHERE YOU ARE, USB CHARGING MODULES HELP YOUR DEVICES CHARGED UP WITHOUT ANY DISRUPTIONS.

//THE FUTURE IS USB-C

//INVITING PUBLIC SPACES

The future of charging is USB-C, which is set to become mandatory for all chargeable devices in Europe. This universal standard simplifies device charging, allowing for faster power delivery and data transfer. The adoption of USB-C across all devices will streamline connectivity and ensure compatibility, making it easier for everyone to stay charged and connected.

In public spaces like airports, bus stations, and libraries, USB charging is revolutionising cable management. By incorporating USB ports, these areas can maintain cleaner, clutter-free environments. This approach not only enhances the aesthetic but also improves functionality, providing accessible charging points for the convenience of all visitors.

//ENHANCED HOME AREAS

//POWERED UP EDUCATION

At home, having USB charging ports in living areas significantly enhances convenience. These ports can be seamlessly integrated into walls or furniture, allowing for easy device charging in the spaces where you spend most of your time.

This setup ensures that your devices are always powered and ready when you need them, without disrupting the comfort and design of your home.

In the educational sector, USB charging stations are becoming a staple in universities and schools. These stations offer discreet and effective power solutions that meet the needs of students and teachers alike. Positioned strategically in classrooms and common areas, they facilitate continuous learning and interaction by keeping essential devices charged throughout the academic day.

USB AND TRUNKING MODULES

11

FAST CHARGING SOLUTIONS FOR ANY SPACE //HOME USB charging capabilities eliminate the constant search for adapter plugs, simplifying your living space. With USB modules integrated into furniture like sofas and armchairs, you can easily charge devices right from your seat, enhancing convenience and reducing the clutter of cables and adapters throughout your home.

//OFFICE In the workplace, embedding USB charging modules directly into desks or integrating them within trunking systems can significantly tidy up office spaces. This setup not only keeps desktops clear but also ensures that employees have easy and immediate access to power for their devices, reducing distractions and promoting a more organised and efficient workspace.

//ON THE GO USB charging facilities in cars, buses, and trains make it effortless to keep devices powered up during travels. This widespread availability ensures that your customers can stay connected and productive, whether they are commuting to work or embarking on a long journey, providing a seamless experience for accessing power wherever they are.

12

ETMAN INTERNATIONAL

1

2

4

3 5

1

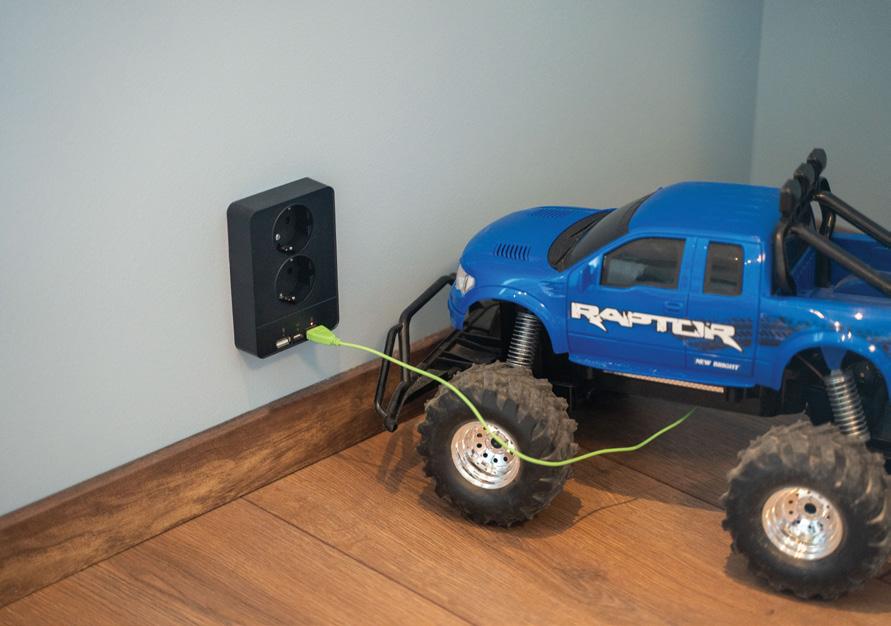

KIDS ROOMS With the help of USB sockets, keep all toys powered up and ready to go with ease.

2

OFFICE Say goodbye to the tangled cord mess - embedded USB modules is the way to go.

3

LIVING ROOMS USB modules offer the convenience of charging devices in most used rooms and areas.

4

VEHICLES Long car journeys made easier with accessible power for all your devices.

5

PUBLIC TRANSPORT Keep your customers plugged in during their daily commute.

USB AND TRUNKING MODULES

13

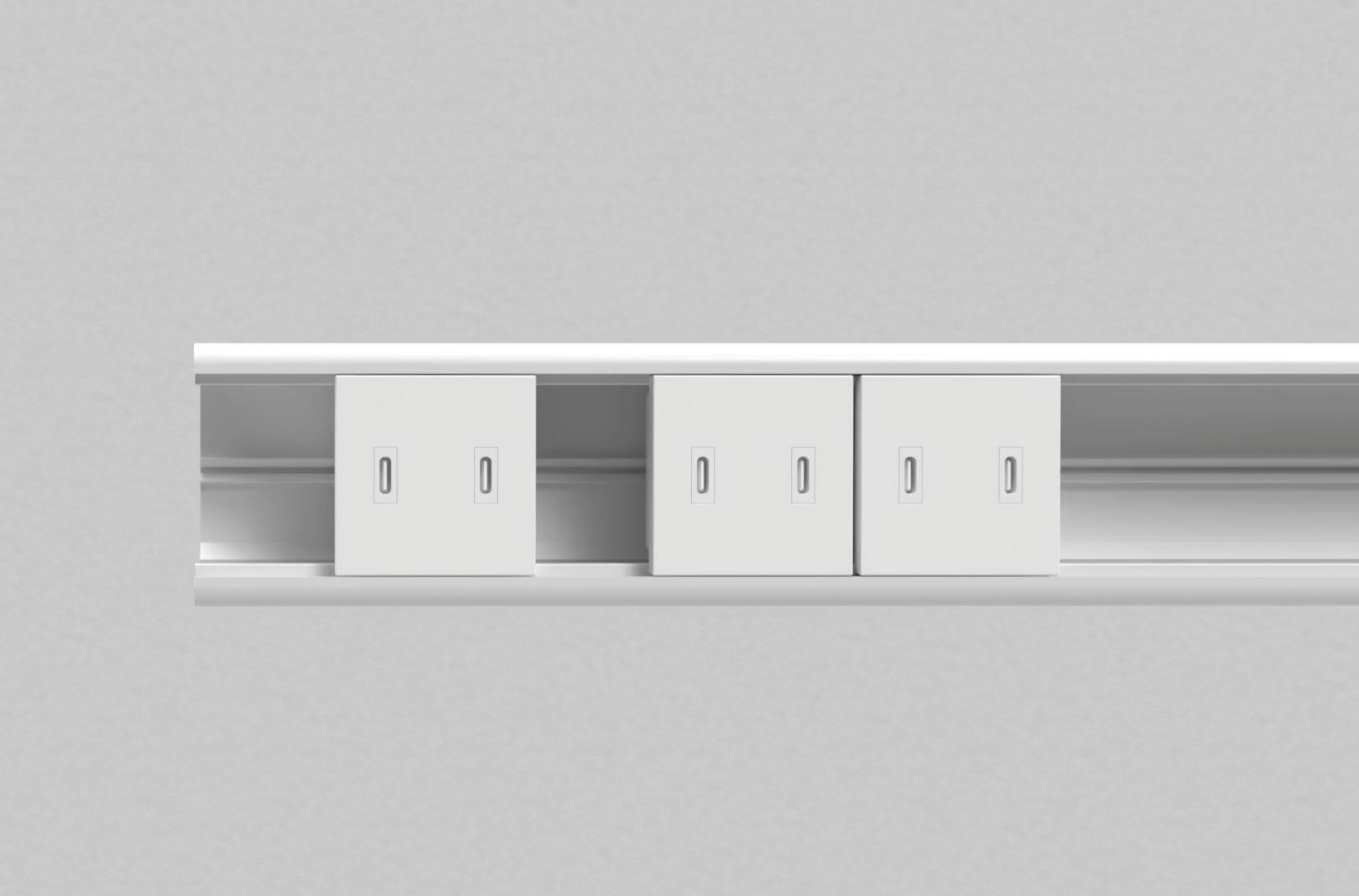

TRUNKING SYSTEM MODULES

MODERN SPACES DEMAND FLEXIBILITY, AND TRUNKING SYSTEMS DELIVER VERSATILE POWER SOLUTIONS TO MATCH THESE EVOLVING NEEDS. Our USB and socket modules are designed to fit seamlessly into most trunking systems, ensuring adaptability in any environment. Beyond compatibility, our USB modules offer fast-charging capabilities, making them ideal for powering today’s devices efficiently. Whether for office spaces, public areas, or furniture installations, our USB modules provide the perfect combination of flexibility and high-speed charging.

14

ETMAN INTERNATIONAL

1

WIDE RANGE OF INTEGRATED COMPONENTS

Our USB and socket modules offer a wide range of options, enhancing the flexibility of any trunking system. From single USB-C ports to combined USB and socket solutions, they can be tailored to suit any environment. These configurations provide practical solutions for various installation requirements.

2

EASY TO INSTALL AND MODIFY

The modules are designed for easy installation and modification within trunking systems. Their simple setup allows for quick integration, while their modular design makes it easy to adjust or swap components as needed. This ensures that the system remains adaptable to changing requirements without extensive rework.

3

VERSATILE DESIGN

Etman modules boast a versatile design that fits not only a wide range of trunking systems but also multi-outlet extensions, pop-up solutions, and furniture installations.

Their adaptability ensures seamless integration across various applications, offering a flexible and efficient solution for modern workspaces and environments with diverse power and connectivity needs.

4

SAFE AND RELIABLE

Our modules are the ideal solution for all your wiring needs, delivering IP20-rated safety and reliability across commercial buildings, offices, schools, warehouses and hospitals. Intertek and CE certified, they meet Europe’s safety standards, ensuring dependable performance.

USB AND TRUNKING MODULES

15

APPLICATIONS

THE MODULES ARE IDEAL FOR OFFICES AND MEETING ROOMS, OFFERING CONVENIENT AND EFFICIENT POWER AND CHARGING SOLUTIONS TO KEEP DEVICES RUNNING SMOOTHLY.

1

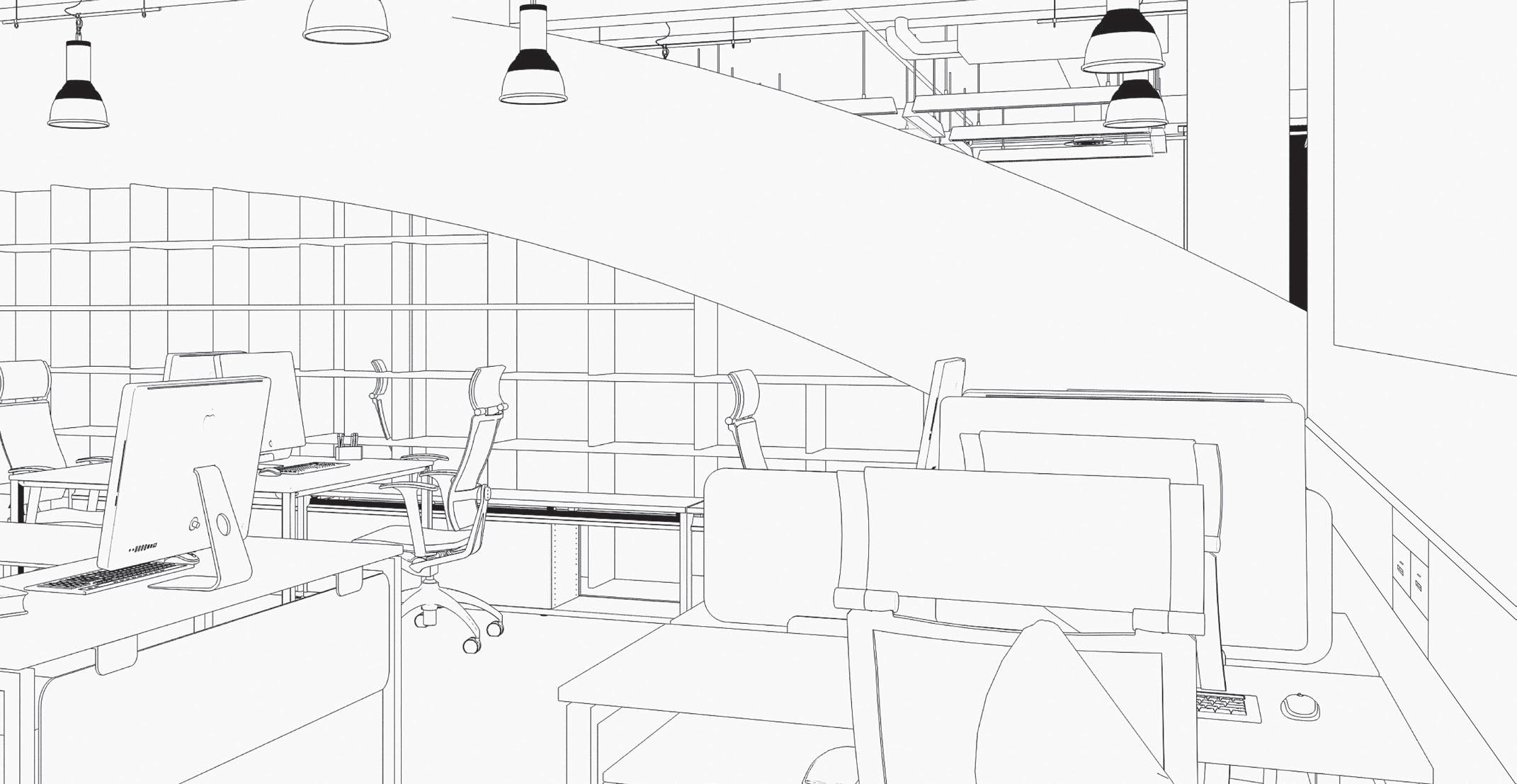

OFFICES

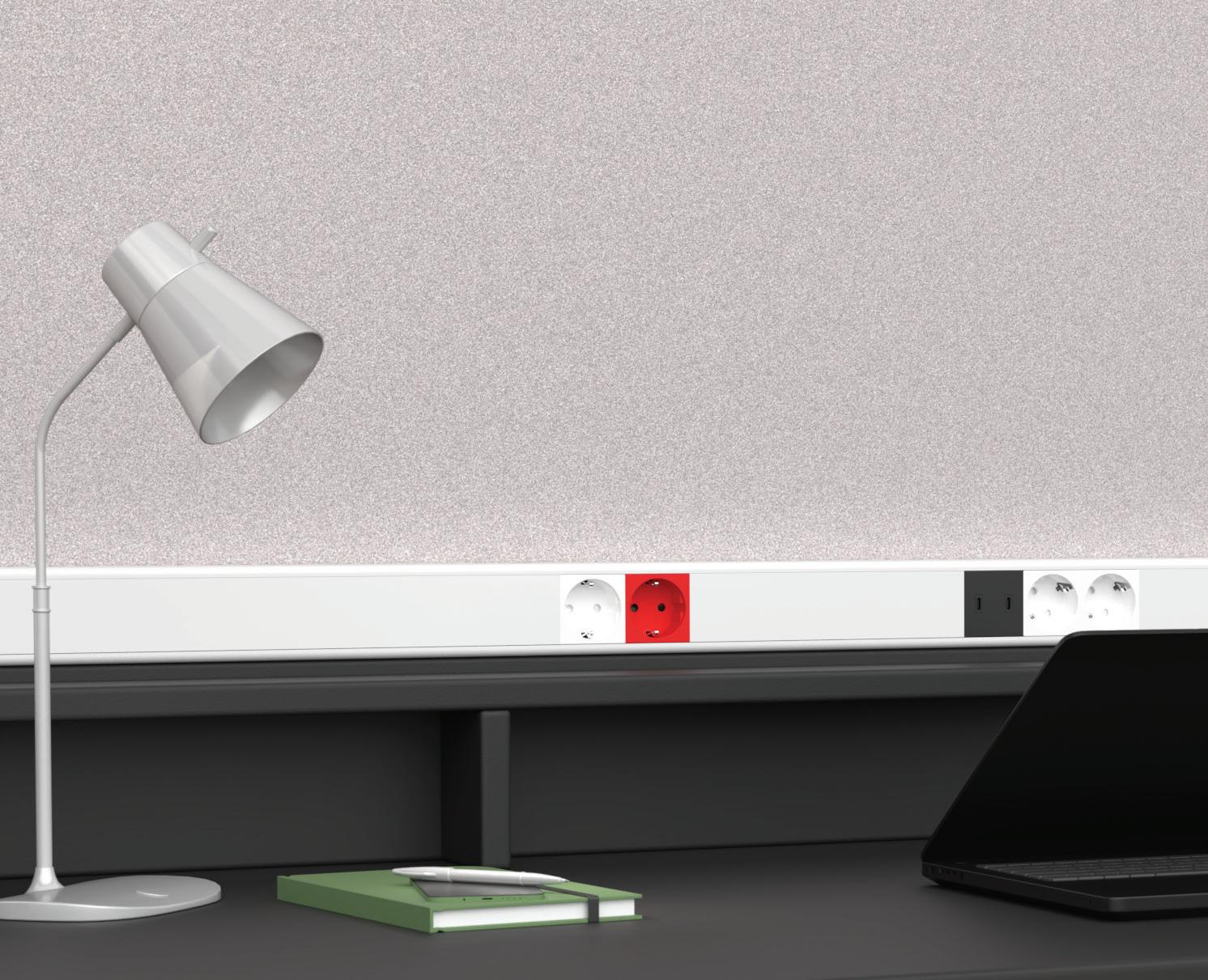

Integrating USB charging modules into an office trunking system offers convenient, space-efficient power access for employees.

It eliminates the need for bulky adapters, allowing users to charge devices directly from their desks. This setup streamlines cable management, reduces clutter, and supports modern work environments where multiple devices need charging. Additionally, it enhances productivity by providing easy access to power while maintaining a clean, organised workspace.

16

ETMAN INTERNATIONAL

2

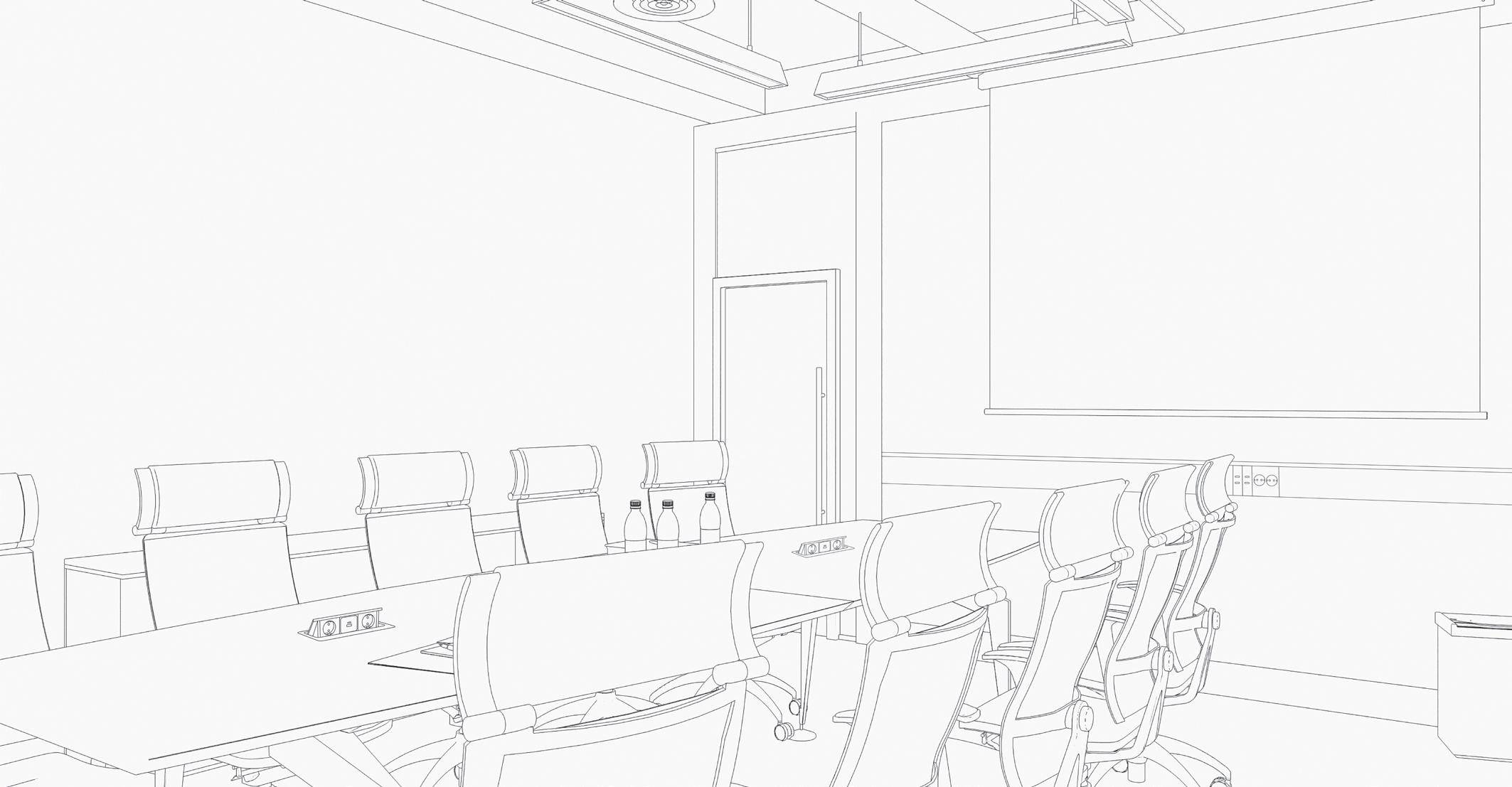

MEETING ROOMS

In-built USB modules in meeting rooms help reduce interruptions by providing direct charging for devices, keeping meetings running smoothly. With the growing popularity of video calls, this ensures that devices stay powered throughout lengthy sessions. The integrated design minimises cable clutter, creating a cleaner, more organised environment that enhances focus. It’s a practical solution for modern meetings, where reliable power access is essential for maintaining connectivity and productivity.

USB AND TRUNKING MODULES

17

APPLICATIONS

OUR TRUNKING SYSTEM COMPONENTS OFFER NUMEROUS BENEFITS FOR THE EDUCATION SECTOR AND COMMERCIAL SPACES.

3

LECTURE ROOMS

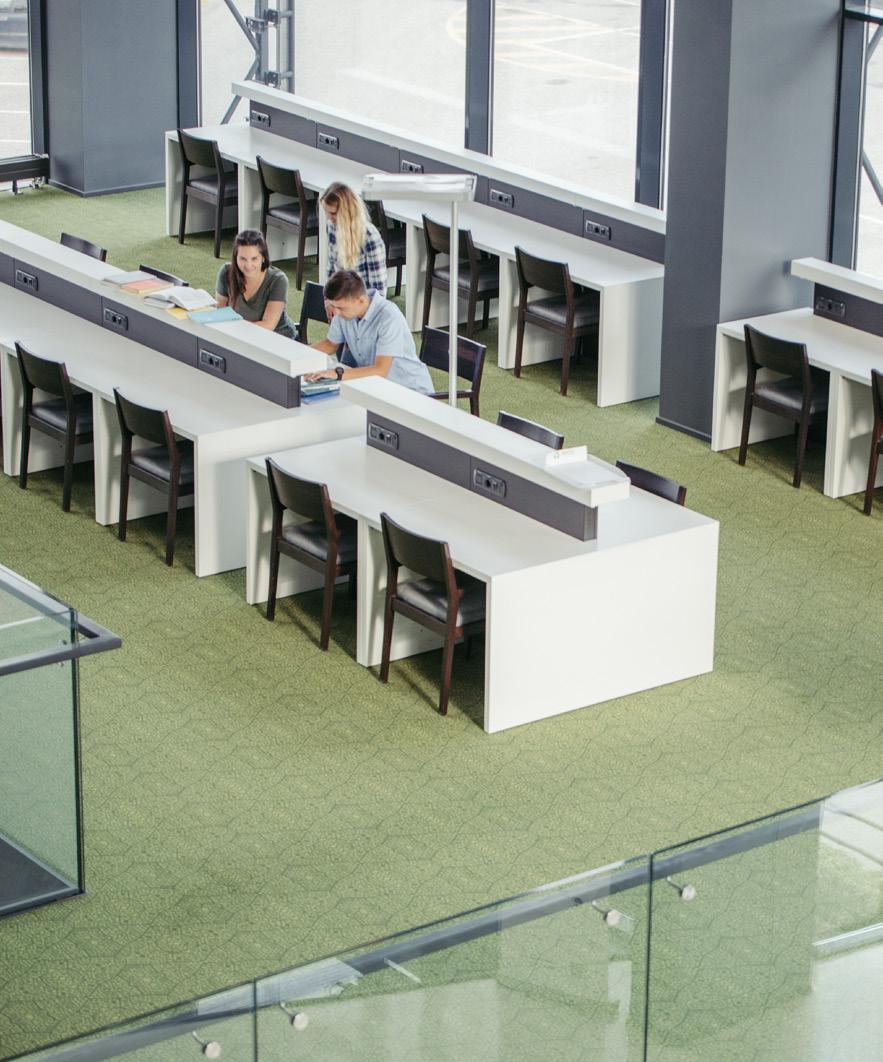

Integrating socket modules into trunking systems in lecture rooms and classrooms offers convenient power access for students and educators.

It is easily and quickly installed thanks to screwless terminals. allowing to seamlessly create a well-thought-out space for learning.

18

ETMAN INTERNATIONAL

4

COMMERCIAL PREMISES

Double socket modules for trunking systems offer both convenience and customisation, allowing users to power multiple devices simultaneously without extra installations. They fit seamlessly into the widely used trunking channels, enhancing workspace efficiency.

Customisable designs make them adaptable to diverse needs, ensuring streamlined power access while maintaining a tidy, organised environment in any setting.

USB AND TRUNKING MODULES

19

APPLICATIONS

NO MATTER WHERE YOU ARE, USB CHARGING MODULES HELP YOUR DEVICES CHARGED UP WITHOUT ANY DISRUPTIONS.

5

FURNITURE

Our versatile USB module technology is designed for a wide range of applications, making it ideal for both commercial and domestic settings. Perfect for modernising furniture, these USB modules can be integrated into sofas, nightstands, or desks, allowing people to charge their devices in their favourite spaces. This convenient solution enhances everyday living, ensuring easy access to power while maintaining a clean, modern aesthetic in any home environment.

20

ETMAN INTERNATIONAL

6

KITCHEN COUNTERTOPS

Integrating USB modules into kitchen countertops offers a convenient solution for powering and charging devices in one of the most frequently used spaces in the home. Whether following a recipe on a tablet, charging a phone, or powering small appliances, having accessible USB ports keeps devices ready while maintaining a clutter-free surface. This modern addition enhances the functionality of the kitchen, making it even more efficient and tech-friendly for daily use.

USB AND TRUNKING MODULES

21

USB MODULES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

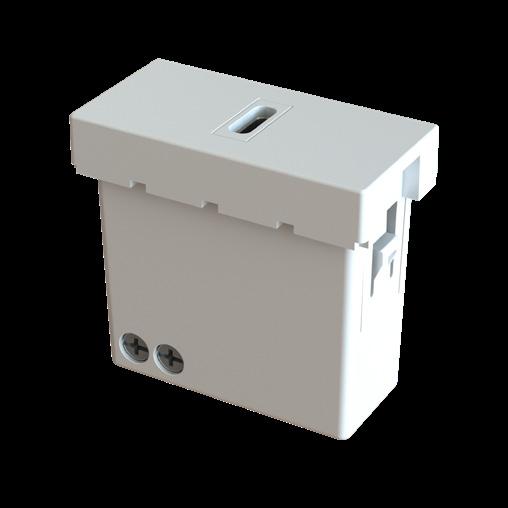

0.5 modules type C Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This is a compact, half-module (22.5x45x42mm) designed for seamless integration into trunking systems. It features a Type C port and provides reliable charging with an output of 5V-3A, 9V-2.22A, and 12V-1.67A, delivering up to 20W of power. The module operates on an input range of AC100-250V 50/60Hz and uses screw terminals for secure connections, supporting terminal capacities of 2 x 1 x 1.5mm².

20W

22.5x45x42mm

IP20

PP, halogen free

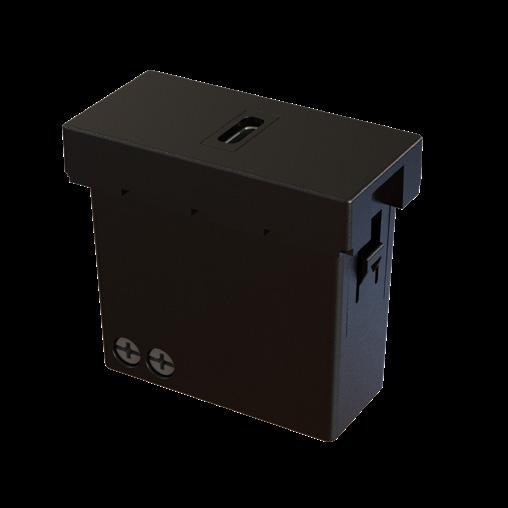

Colour: black Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This is a compact, half-module (22.5x45x42mm) designed for seamless integration into trunking systems. It features a Type C port and provides reliable charging with an output of 5V-3A, 9V-2.22A, and 12V-1.67A, delivering up to 20W of power. The module operates on an input range of AC100-250V 50/60Hz and uses screw terminals for secure connections, supporting terminal capacities of 2 x 1 x 1.5mm².

20W

22.5x45x42mm

IP20

PP, halogen free

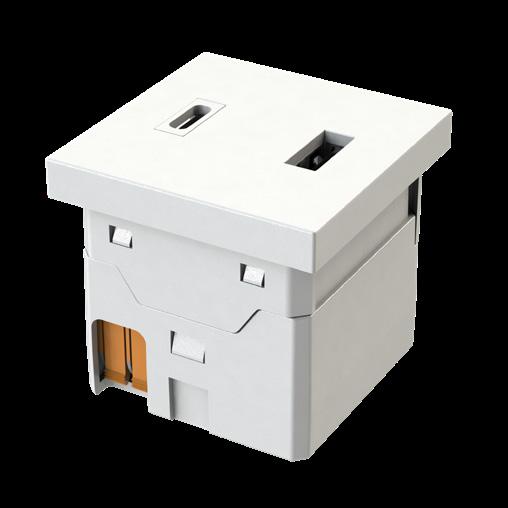

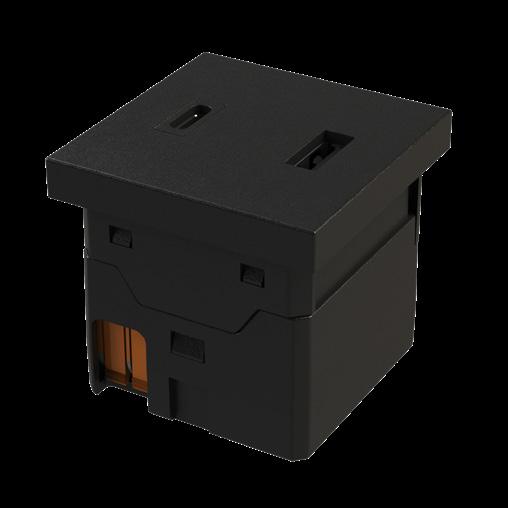

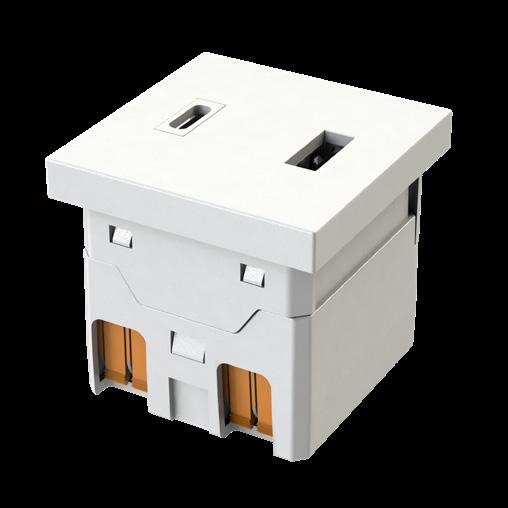

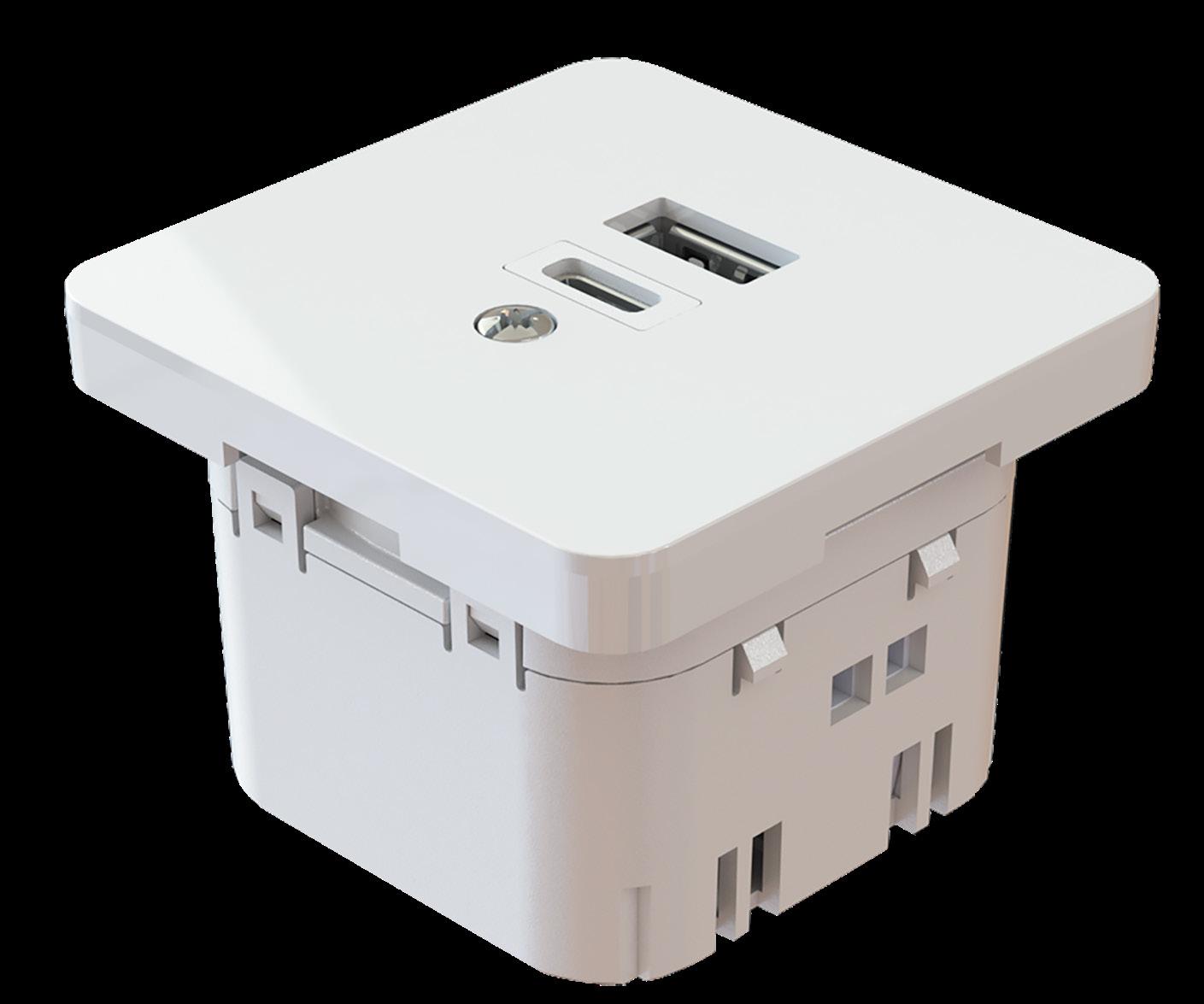

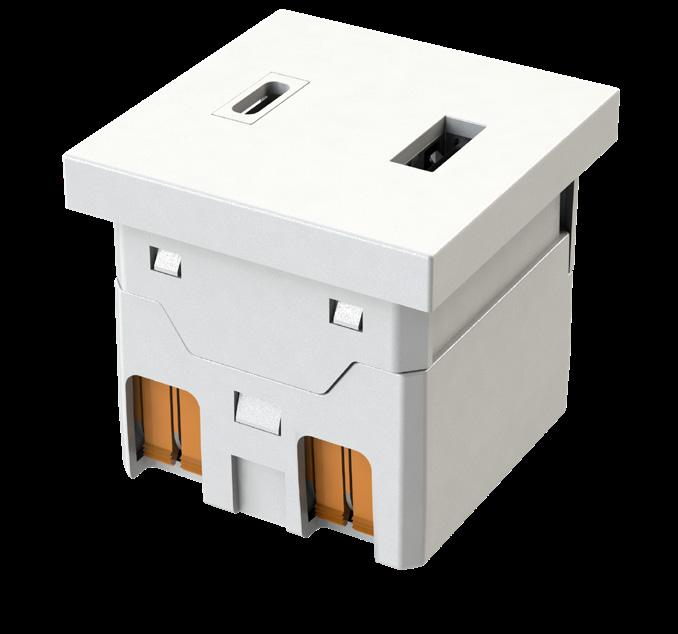

Full modules type A+C with two terminals Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module (45x45x42mm) provides versatile charging options with both Type A and Type C ports. It operates on AC100-250V 50/60Hz input, delivering a total power of 20W. The Type A port supports QC18W (5V-3A; 9V-2A; 12V-1.5A), while the Type C port offers PD20W (5V-3A; 9V-2.22A; 12V-1.67A).

When both ports are used simultaneously (A + C), the output is 5V-3A. The module features a screwless terminal with an operating lever, accommodating terminal capacities of 2 x 2 x 2.5 mm².

20W

45x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module (45x45x42mm) provides versatile charging options with both Type A and Type C ports. It operates on AC100-250V 50/60Hz input, delivering a total power of 20W. The Type A port supports QC18W (5V-3A; 9V-2A; 12V-1.5A), while the Type C port offers PD20W (5V-3A; 9V-2.22A; 12V-1.67A).

When both ports are used simultaneously (A + C), the output is 5V-3A. The module features a screwless terminal with an operating lever, accommodating terminal capacities of 2 x 2 x 2.5 mm².

20W

22

ETMAN INTERNATIONAL

45x45x42mm

IP20

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Full modules type A+C with one terminal Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This module provides versatile charging options with both Type A and Type C ports. It operates on AC100250V 50/60Hz input, delivering a total power of 45W. The Type A port supports QC36W (5V-3A; 9V-3A; 12V-3A), while the Type C port offers PD45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). When both ports are used, the output is split into A15W (5V-3A; 9V-1.67A; 12V-1.25A) and C30W (5V-3A; 9V-3A; 12V-2.5A; 15V-2A; 20V-1.5A). It has one screwless terminal, accommodating capacities of 2 x 1 x 2.5 mm².

45W

45x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This module provides versatile charging options with both Type A and Type C ports. It operates on AC100250V 50/60Hz input, delivering a total power of 45W. The Type A port supports QC36W (5V-3A; 9V-3A; 12V-3A), while the Type C port offers PD45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). When both ports are used, the output is split into A15W (5V-3A; 9V-1.67A; 12V-1.25A) and C30W (5V-3A; 9V-3A; 12V-2.5A; 15V-2A; 20V-1.5A). It has one screwless terminal, accommodating capacities of 2 x 1 x 2.5 mm².

45W

45x45x42mm

IP20

PP, halogen free

Full modules type A+C with one terminal Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module operates on AC230V 50/60Hz input, providing up to 65W of power. The Type A port delivers QC36W (5V-3A; 9V-3A; 12V-3A), while the Type C port supports PD65W (5V-3A; 9V-3A; 12V3A; 15V-3A; 20V-3.25A) for fast charging of a wide range of devices. When both ports are in use, the output is split into A18W (5V-3A; 9V-2A; 12V-1.5A) and C45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A).

The module features screwless terminals with a terminal capacity of 2 x 1 x 2.5 mm².

65W

45x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module operates on AC230V 50/60Hz input, providing up to 65W of power. The Type A port delivers QC36W (5V-3A; 9V-3A; 12V-3A), while the Type C port supports PD65W (5V-3A; 9V-3A; 12V3A; 15V-3A; 20V-3.25A) for fast charging of a wide range of devices. When both ports are in use, the output is split into A18W (5V-3A; 9V-2A; 12V-1.5A) and C45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A).

The module features screwless terminals with a terminal capacity of 2 x 1 x 2.5 mm².

65W

45x45x42mm

IP20

PP, halogen free

USB AND TRUNKING MODULES

23

USB MODULES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

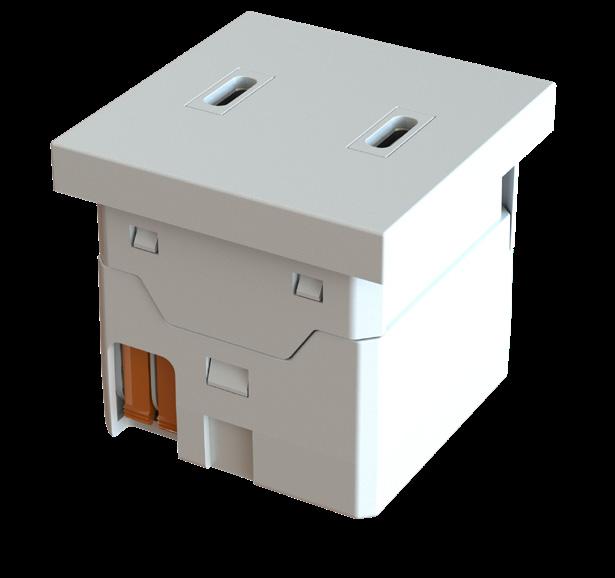

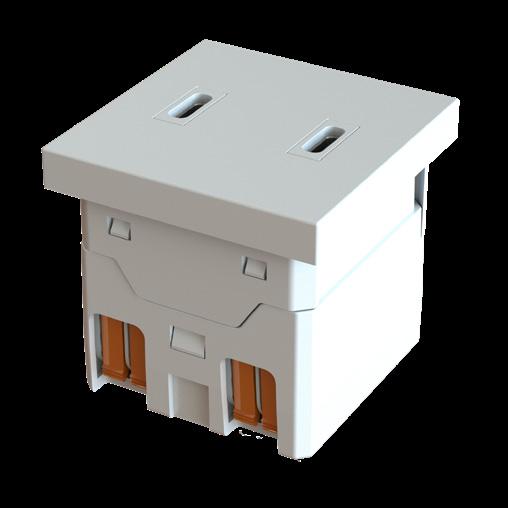

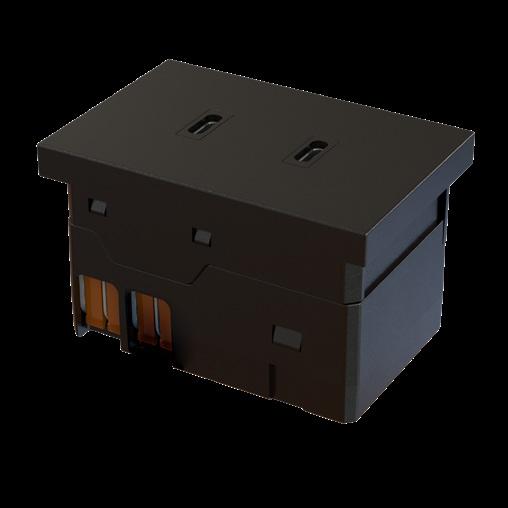

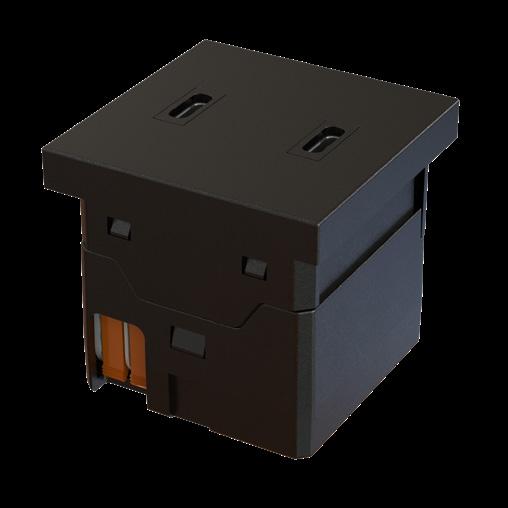

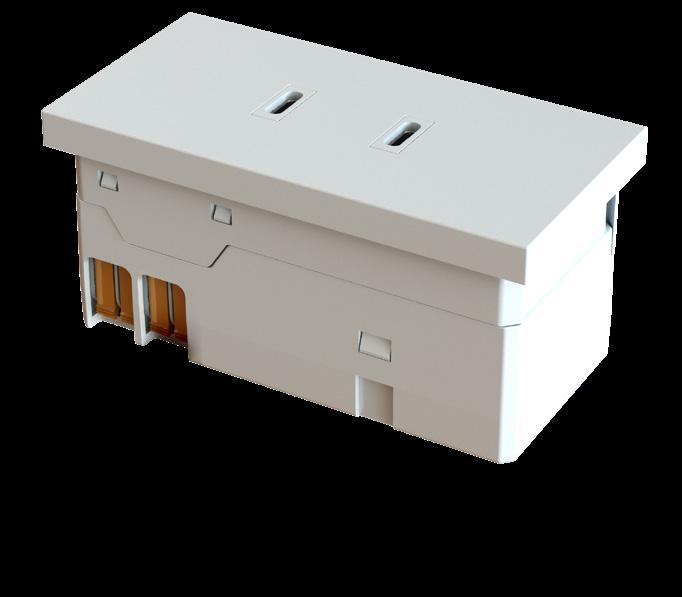

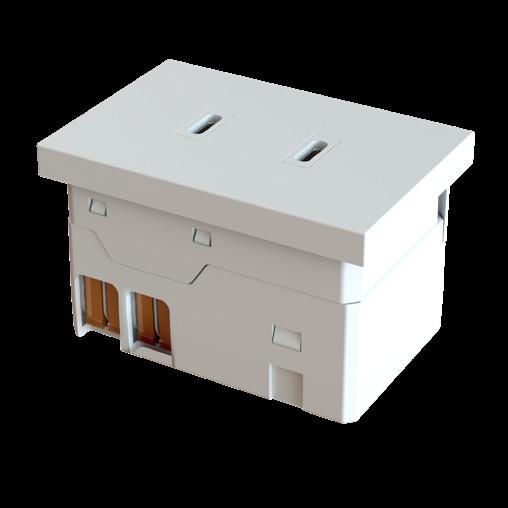

Full modules type C+C with two terminal Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module features dual Type C ports. Operating on an input of AC100-250V 50/60Hz, it provides a total power output of 20W. Each Type C port supports PD20W (5V-3A; 9V-2.22A; 12V-1.67A) for fast charging. When both ports are used simultaneously (C+C), the output is 5V-2A. The module is equipped with screwless terminals and an operating lever, allowing for quick and easy installation with a terminal capacity of 2 x 2 x 2.5 mm².

20W

45x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module features dual Type C ports. Operating on an input of AC100-250V 50/60Hz, it provides a total power output of 20W. Each Type C port supports PD20W (5V-3A; 9V-2.22A; 12V-1.67A) for fast charging. When both ports are used simultaneously (C+C), the output is 5V-2A. The module is equipped with screwless terminals and an operating lever, allowing for quick and easy installation with a terminal capacity of 2 x 2 x 2.5 mm².

20W

45x45x42mm

IP20

PP, halogen free

Full modules type C+C with one terminal Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module features dual Type C ports. With an input of AC100-250V 50/60Hz, it delivers up to 45W of power. A single Type C port provides PD45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A) for fast charging of high-demand devices. When both ports (C1+C2) are used simultaneously, each port delivers PD20W (5V-3A; 9V-2.22A; 12V-1.67A; 15V-1.33A; 20V-1A). The module features screwless terminals and supports a terminal capacity of 2 x 1 x 2.5 mm².

45W

45x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module features dual Type C ports. With an input of AC100-250V 50/60Hz, it delivers up to 45W of power. A single Type C port provides PD45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A) for fast charging of high-demand devices. When both ports (C1+C2) are used simultaneously, each port delivers PD20W (5V-3A; 9V-2.22A; 12V-1.67A; 15V-1.33A; 20V-1A). The module features screwless terminals and supports a terminal capacity of 2 x 1 x 2.5 mm².

45W

24

ETMAN INTERNATIONAL

45x45x42mm

IP20

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Full modules type C+C with one terminal Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module provides dual Type C ports. It operates on an input of AC230V 50/60Hz, delivering up to 65W of total power. A single Type C port offers PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A), ideal for charging high-powered devices. When both ports (C1 + C2) are used simultaneously, C1 provides PD18W (5V-3A; 9V-2A; 12V-1.5A) and C2 delivers PD45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). Featuring screwless terminals, this module supports a terminal capacity of 2 x 1 x 2.5 mm².

65W

45x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1-module provides dual Type C ports. It operates on an input of AC230V 50/60Hz, delivering up to 65W of total power. A single Type C port offers PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A), ideal for charging high-powered devices. When both ports (C1 + C2) are used simultaneously, C1 provides PD18W (5V-3A; 9V-2A; 12V-1.5A) and C2 delivers PD45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). Featuring screwless terminals, this module supports a terminal capacity of 2 x 1 x 2.5 mm².

65W

45x45x42mm

IP20

PP, halogen free

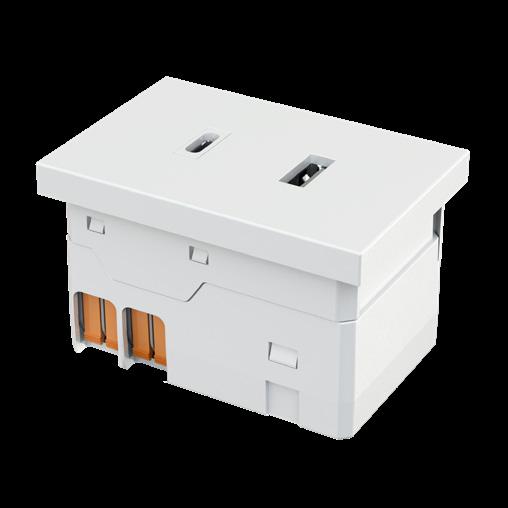

One-and-a-half modules type A+C with two terminals Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1.5-module operates on AC100-250V 50/60Hz input, providing up to 65W of total power. The Type A port delivers QC36W (5V-3A; 9V-3A; 12V-3A) for fast charging, while the Type C port supports PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A). When both ports are used simultaneously, the output is A18W (5V-3A; 9V-2A; 12V-1.5A) and C45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). The module features screwless terminals and supports a terminal capacity of 2 x 2 x 2.5 mm².

65W

67.5x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 1.5-module operates on AC100-250V 50/60Hz input, providing up to 65W of total power. The Type A port delivers QC36W (5V-3A; 9V-3A; 12V-3A) for fast charging, while the Type C port supports PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A). When both ports are used simultaneously, the output is A18W (5V-3A; 9V-2A; 12V-1.5A) and C45W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). The module features screwless terminals and supports a terminal capacity of 2 x 2 x 2.5 mm².

65W

67.5x45x42mm

IP20

PP, halogen free

USB AND TRUNKING MODULES

25

USB MODULES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

One-and-a-half modules type C+C with two terminals Colour: white Certificates: CE Conforms with: LVD, RoHS, WEEE Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This module offers dual Type C ports for powerful and flexible charging. It operates on an AC100-250V 50/60Hz input, providing up to 65W of total power. A single Type C port supports PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A). When both ports are used simultaneously, the output is split between C1 (PD18W, 5V-3A; 9V-2A; 12V-1.5A) and C2 (PD45W, 5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). The module features screwless terminals and supports a terminal capacity of 2 x 2 x 2.5 mm².

65W

67.5x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This module offers dual Type C ports for powerful and flexible charging. It operates on an AC100-250V 50/60Hz input, providing up to 65W of total power. A single Type C port supports PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A). When both ports are used simultaneously, the output is split between C1 (PD18W, 5V-3A; 9V-2A; 12V-1.5A) and C2 (PD45W, 5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-2.25A). The module features screwless terminals and supports a terminal capacity of 2 x 2 x 2.5 mm².

65W

67.5x45x42mm

IP20

PP, halogen free

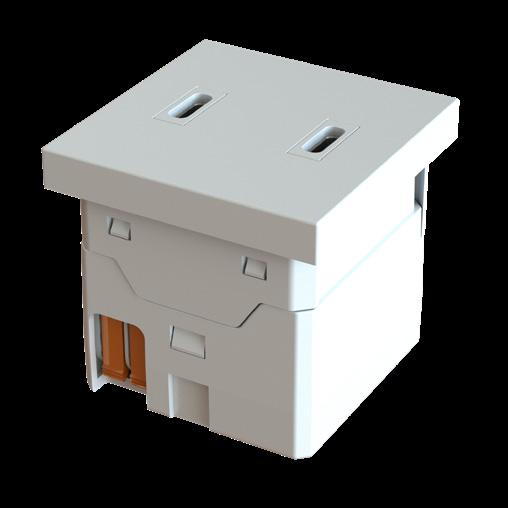

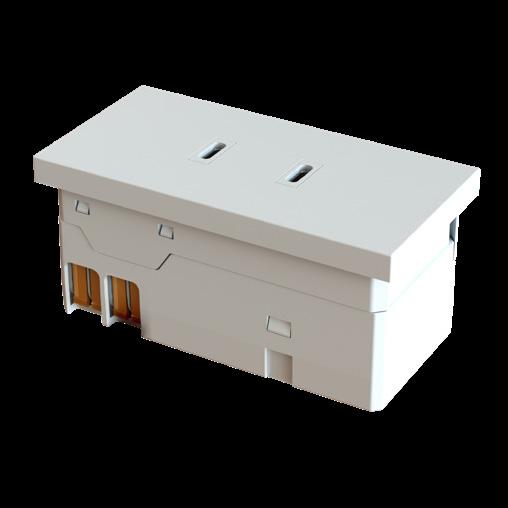

Two modules type C+C with two terminals Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 2-module has an input of AC100-250V 50/60Hz and a total power capacity of 100W. A single Type C port delivers up to PD100W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-5A). When both ports are used, C1 outputs PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A) and C2 delivers PD30W (5V-3A; 9V-3A; 12V-2.5A; 15V-2A; 20V-1.5A), ensuring optimal power distribution. The module features screwless terminals and a terminal capacity of 2 x 2 x 2.5 mm².

100W

90x45x42mm

IP20

PP, halogen free

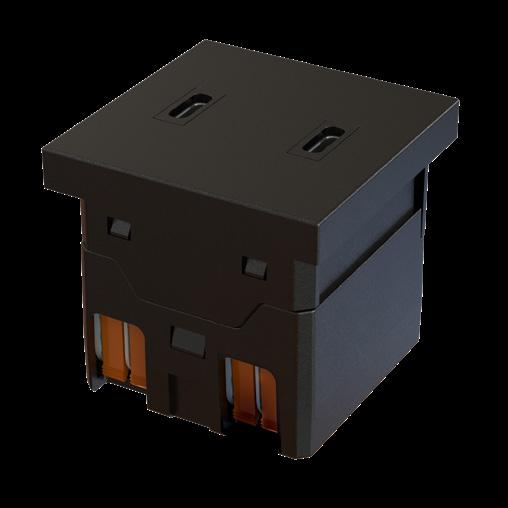

Colour: black Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 2-module has an input of AC100-250V 50/60Hz and a total power capacity of 100W. A single Type C port delivers up to PD100W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-5A). When both ports are used, C1 outputs PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A) and C2 delivers PD30W (5V-3A; 9V-3A; 12V-2.5A; 15V-2A; 20V-1.5A), ensuring optimal power distribution. The module features screwless terminals and a terminal capacity of 2 x 2 x 2.5 mm².

100W

26

ETMAN INTERNATIONAL

90x45x42mm

IP20

PP, halogen free

PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

Colour: white Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 2-module USB charging module has an input range of AC100-250V 50/60Hz and provides a total power capacity of 140W. A single Type C port can deliver up to PD140W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-5A; 28V-5A). When both ports are active, each Type C port (C1/C2) outputs PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A), ensuring balanced power distribution. This module also includes screwless terminals and supports a terminal capacity of 2 x 2 x 2.5 mm².

140W

90x45x42mm

IP20

PP, halogen free

Colour: black Certificates: CE Conforms with: RoHS Complies with the standards: IEC 62368-1 Fire hazard test: 850oC (IEC60695-2-11) This 2-module USB charging module has an input range of AC100-250V 50/60Hz and provides a total power capacity of 140W. A single Type C port can deliver up to PD140W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-5A; 28V-5A). When both ports are active, each Type C port (C1/C2) outputs PD65W (5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-3.25A), ensuring balanced power distribution. This module also includes screwless terminals and supports a terminal capacity of 2 x 2 x 2.5 mm².

140W

90x45x42mm

IP20

PP, halogen free

USB AND TRUNKING MODULES

27

SOCKET MODULES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

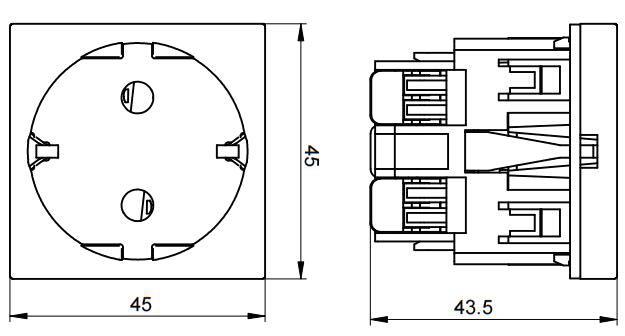

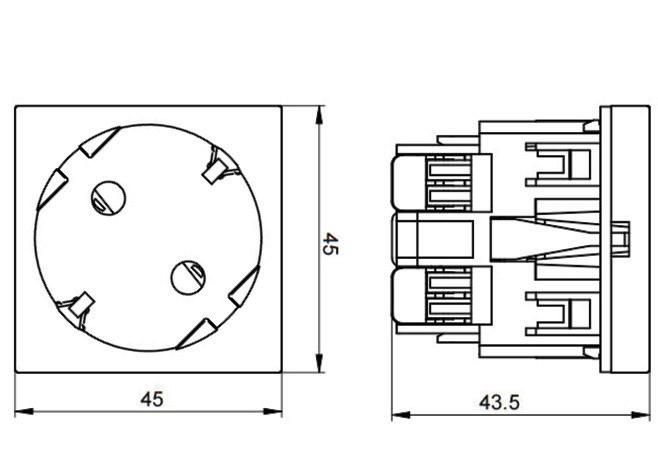

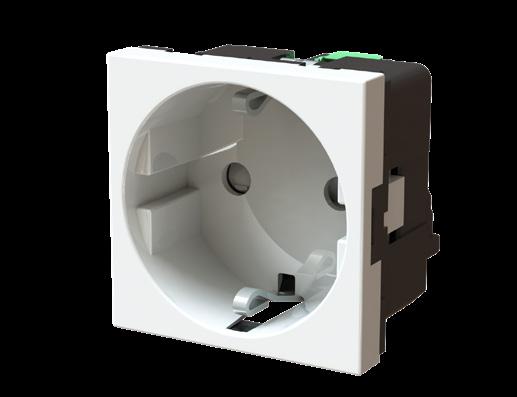

Sockets with shutter Colour: white Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Intensity and voltage: 16A 250V~ Frequency: 50Hz This socket module features screwless terminals for quick installation, a thermoplastic cover with shutter, and compatibility with OL45 and F80 profiles, making it ideal for office and meeting room trunking systems.

Socket orientation 0°

45x45x43.5mm

ETM880SQ

IP20

PC, halogen free

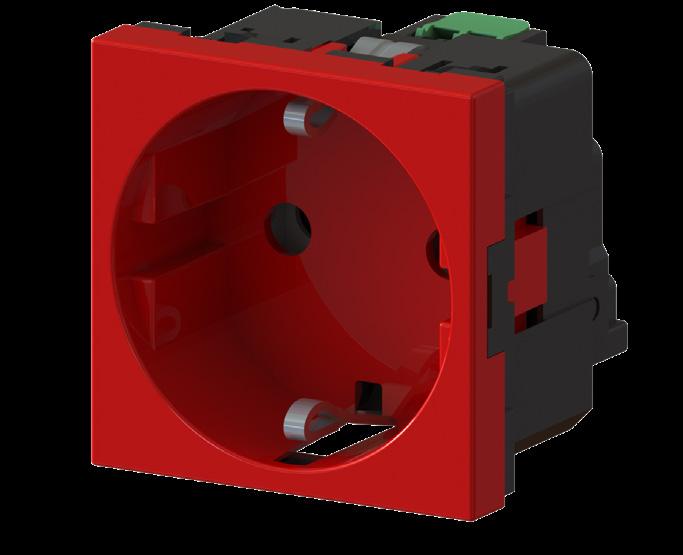

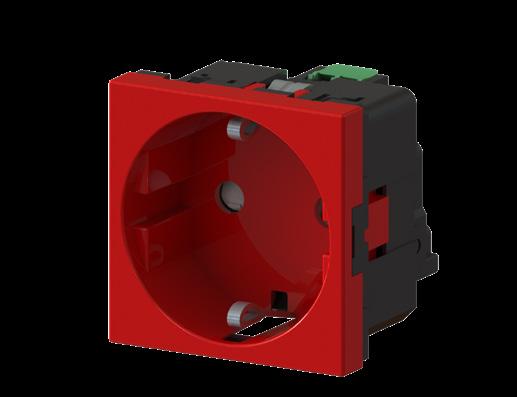

Colour: red Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Intensity and voltage: 16A 250V~ Frequency: 50Hz This socket module features screwless terminals for quick installation, a thermoplastic cover with shutter, and compatibility with OL45 and F80 profiles, making it ideal for office and meeting room trunking systems.

Socket orientation 0°

45x45x43.5mm

ETM880SQ

IP20

PC, halogen free

45 degree with shutter Colour: white Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Intensity and voltage: 16A 250V~ Frequency: 50Hz This socket module features screwless terminals for quick installation, a thermoplastic cover with shutter, and compatibility with OL45 and F80 profiles, making it ideal for office and meeting room trunking systems.

Socket orientation 45°

45x45x43.5mm

ETM881SQ

IP20

PC, halogen free

Colour: red Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Intensity and voltage: 16A 250V~ Frequency: 50Hz This socket module features screwless terminals for quick installation, a thermoplastic cover with shutter, and compatibility with OL45 and F80 profiles, making it ideal for office and meeting room trunking systems.

Socket orientation 45°

28

ETMAN INTERNATIONAL

45x45x43.5mm

ETM881SQ

IP20

PC, halogen free

SOCKET MODULES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

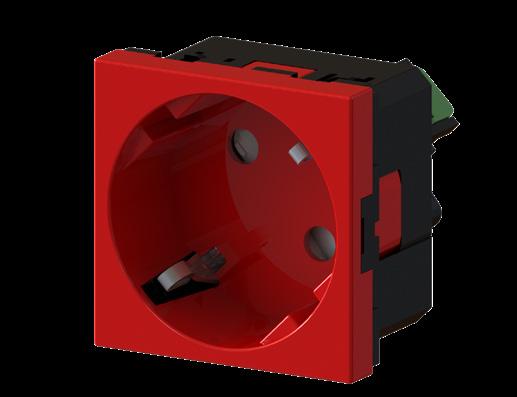

Emergency socket Colour: red Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Intensity and voltage: 16A 250V~ Frequency: 50Hz Emergency sockets ensure uninterrupted power in critical situations, such as power outages in hospitals or for emergency lighting. Designed to operate only with a special red accessory, they prevent accidental use by regular plugs. Install alongside regular sockets for optimal reliability in emergencies. This module features screwless terminals, a thermoplastic cover with shutter, and compatibility with OL45 and F80 profiles.

Socket orientation 0°

45x45x43.5mm

ETM882SQ

IP20

PC, halogen free

Colour: red Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Frequency: 50Hz Designed for use with emergency sockets, this special accessory attaches to standard plugs, enabling them to access reserve power during critical situations. Simply place it on the plug before inserting into the emergency socket to allow electricity flow.

PC, halogen free

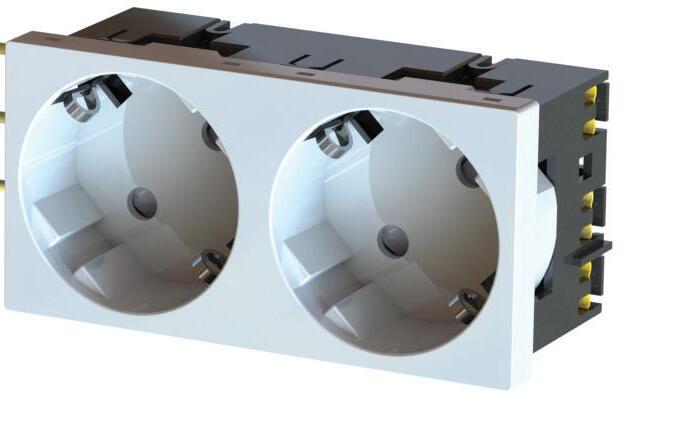

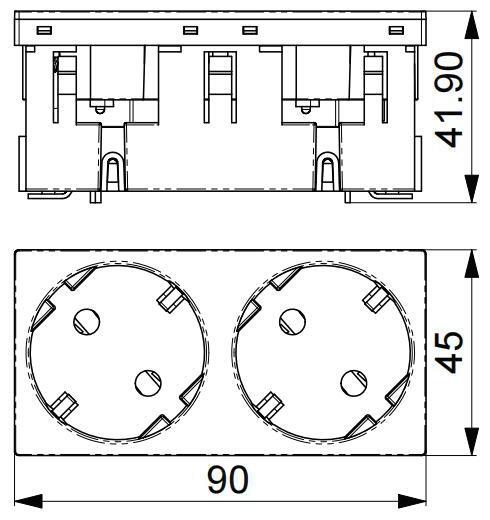

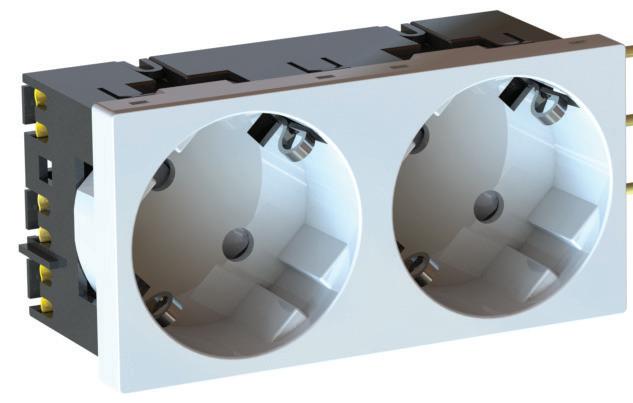

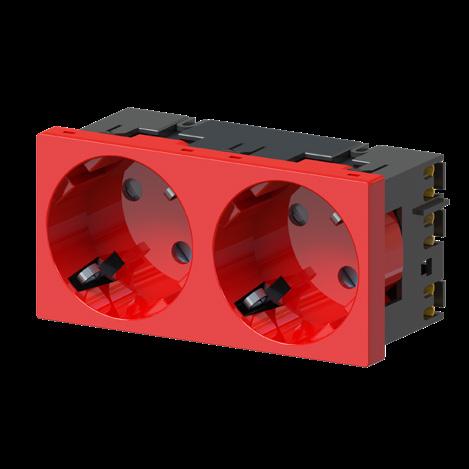

ETM883S Double sockets Colour: red Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Intensity and voltage: 16A 250V~ Frequency: 50Hz

This double socket module offers easy installation with improved screwless terminals, compatible with 0.75 to 2.5mm² rigid and flexible conductors. It features a thermoplastic cover with shutter for safety and a sleek look, perfectly suited for OL45 profiles in office spaces, meeting rooms, and more.

Socket orientation 45°

90x45x41.9mm

ETM884SQ

IP20

PC, halogen free

Colour: white Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) Intensity and voltage: 16A 250V~ Frequency: 50Hz This double socket module offers easy installation with improved screwless terminals, compatible with 0.75 to 2.5mm² rigid and flexible conductors. It features a thermoplastic cover with shutter for safety and a sleek look, perfectly suited for OL45 profiles in office spaces, meeting rooms, and more.

Socket orientation 45°

90x45x41.9mm

ETM884SQ

IP20

PC, halogen free

USB AND TRUNKING MODULES

29

SOCKET MODULES PRODUCT

SIZE H/W/D mm

CODE

IP CLASS

MATERIAL

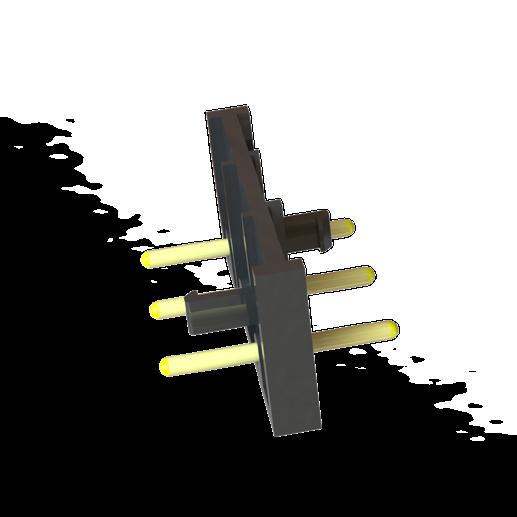

Socket connector Colour: black Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) This connector piece is designed to link two or more double socket modules in trunking systems, ensuring seamless alignment and secure connection. Its easy-to-use design simplifies the installation process, making it quicker and more efficient, ideal for professional setups in office environments.

IP20

PC, halogen free

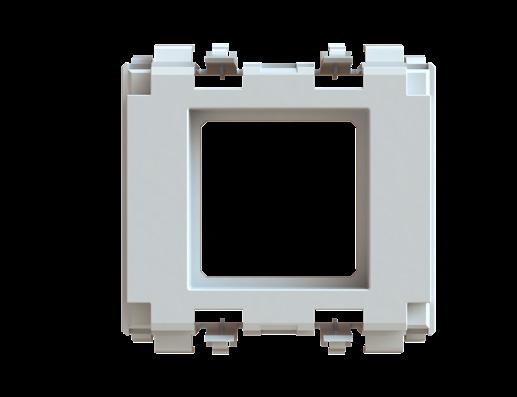

F80 frame adaptor Colour: white Certificates: Semko Conforms with: RoHS, WEEE Complies with the standards: EN 60884-1 Fire hazard test: 850oC (IEC60695-2-11) The F80 trunking frame adaptor enables seamless integration of our socket and USB modules into F80 trunking channels. Designed for quick and easy installation, it ensures a perfect fit while maintaining a clean, professional appearance in office and commercial environments.

IP20

30

ETMAN INTERNATIONAL

PC, halogen free

TECHNICAL DRAWINGS USB modules

0.5 module

1.0 module

1.5 module

ETM881SQ

ETM884SQ

2.0 module Socket modules

ETM880SQ

USB AND TRUNKING MODULES

31

NOTES

32

ETMAN INTERNATIONAL

NOTES

USB AND TRUNKING MODULES

33

ETMAN NORWAY

ETMAN SWEDEN

ETMAN FINLAND

Etman Distribution AS W: etman.no

Etman Distribution AB W: etman.se

Etman Distribution Oy W: etman.fi

ETMAN CHINA

ETMAN LITHUANIA

Etman Electric Co. Ltd. W: etman.cn

Etman UAB W: egant.eu

E: info@etmaninternational.com
