Project 2: Takoma-Langley Urban Replenish Park

1/3 : Site Analysis + Concepts

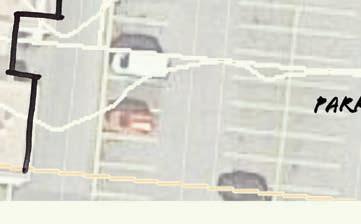

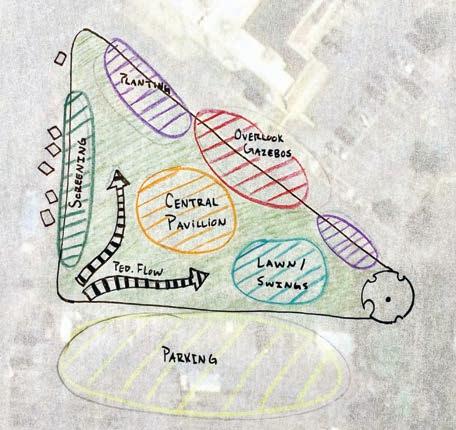

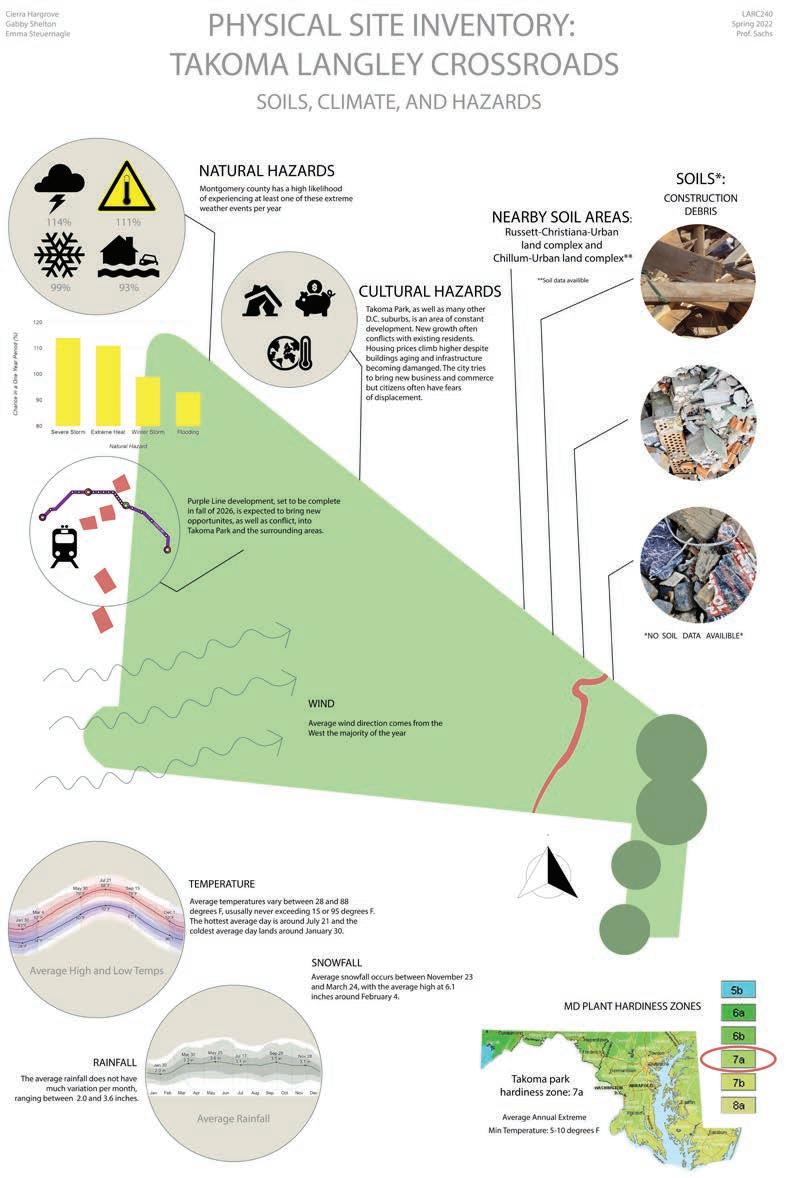

This is a real site located at 7645 New Hampshire Avenue in Takoma Park, Maryland. It is a severely sloped plot of disturbed urban land covered in grass. Clients who worked for the city gave advice and critiques. Pictured here are site analyses done in Photoshop, and two basic concepts done by hand. The board was part of a group project with two other members.

9

10

Project 2: Takoma-Langley Urban Replenish Park

2/3 : Concepts + Final Site Plan

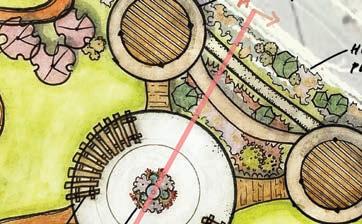

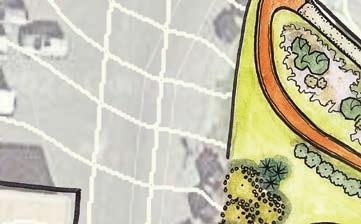

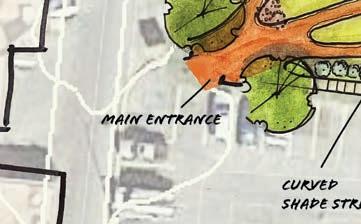

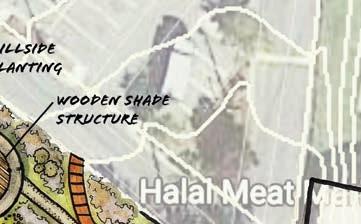

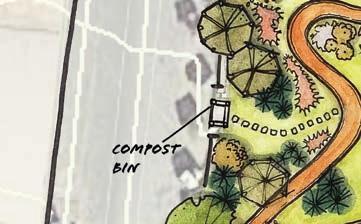

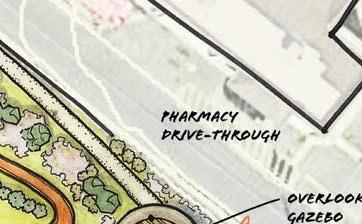

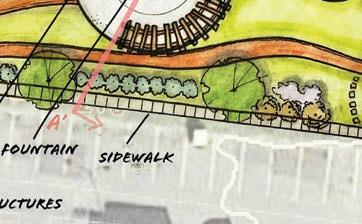

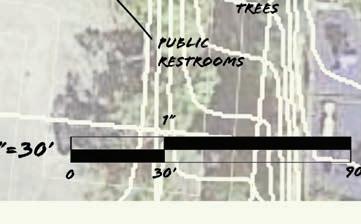

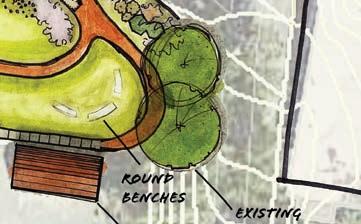

Multiple designs were considered before a final design was settled. Final features a central plaza with garden, two overlook pavillions, and naturalized planting. Done with alcohol markers on trace paper.

11

12

Project 2: Takoma-Langley Urban Replenish Park

3/3 : Concepts + Final Site Plan

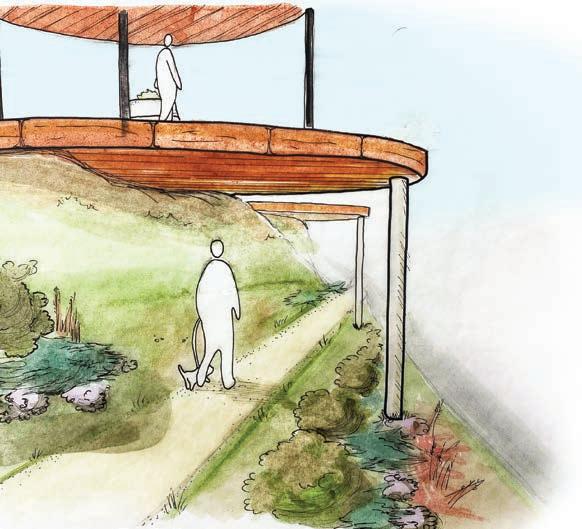

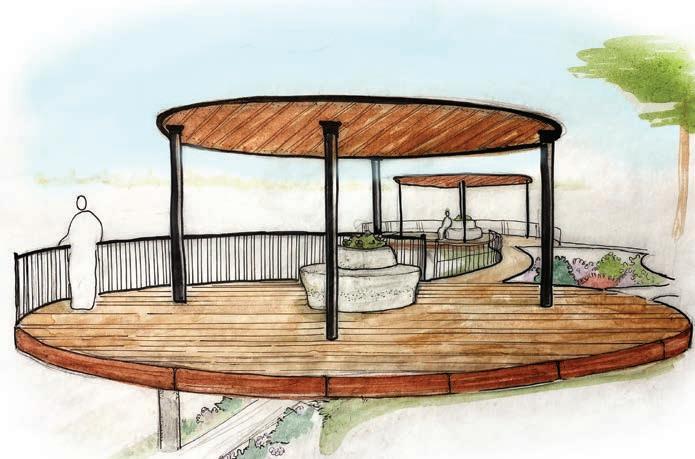

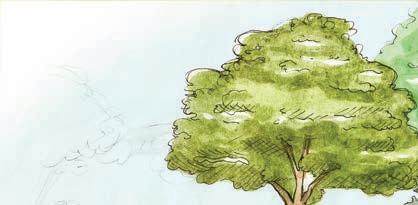

Accompanying the final site plan were multiple hand-drawn perspective views of various areas on the site, including the overlook pavillions and main entrance. A section was also cut to show elevation change, and preliminary sketches are to the left for comparison.
