Securely clamped A zero-point clamping system enables fast and precise workpiece changeovers while reducing setup and machine downtime. Workpieces are positioned accurately and clamped securely within seconds.

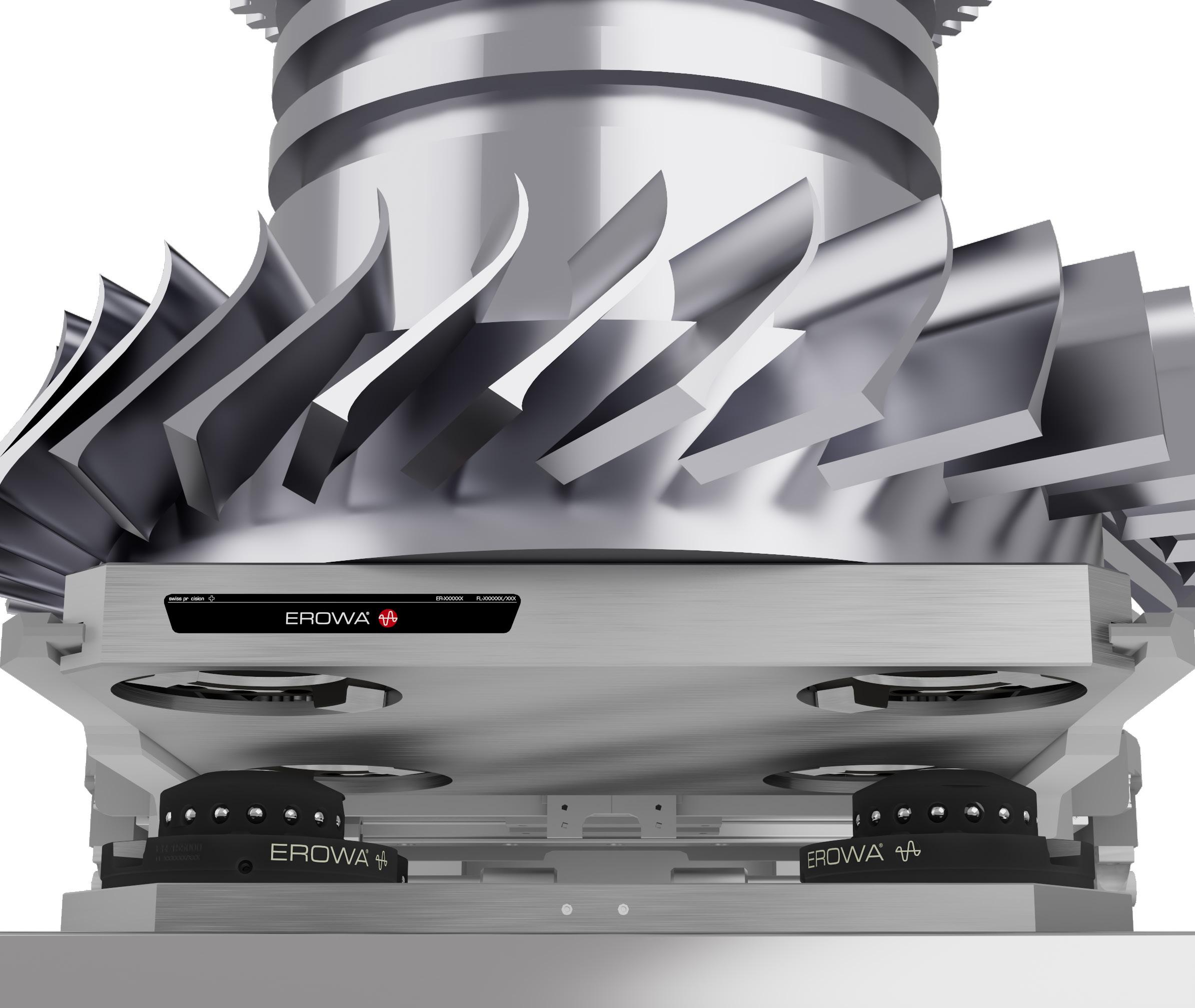

The patented EROWA Giant Tooling System (GTS) has been specifically developed for large and heavy workpieces in rotary applications. It combines precision, stability and process reliability for heavy-duty machining. Its robust geometry is ideally suited to automated manufacturing processes as well as the production of large workpieces with crane loading.

Standardized setup processes reduce machine downtime and increase productivity.

GTS GIANT TOOLING SYSTEM

Precision and stability for large workpieces Whether high machining forces, heavy workpieces or demanding mill-turn operations - the GTS delivers the required stability, precision and process reliability.

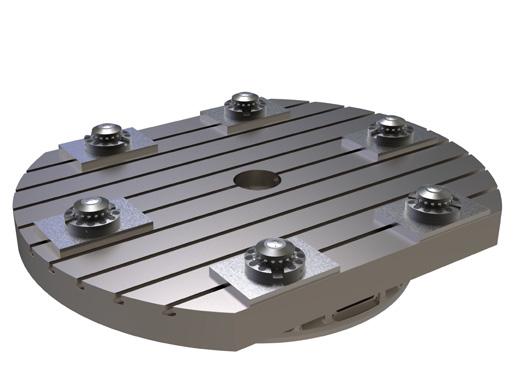

Precise positioning Flexible arrangement of the GTS chucks – tailored to the workpiece, the machine and the process requirements.

Secure clamping A clamping force of 80 kN per chuck provides the foundation for stable machining processes.

Reliable clamping force retention The self-locking clamping mechanism maintains the clamping force even if there‘s a loss in hydraulic pressure.

THE FACTS

• Modular clamping system • 80 kN clamping force per chuck • Pressure-free clamping for maximum safety Reliable process automation Locking and open-position monitoring, together with the integrated cleaning function, support reliable automated operation.

• Consistent precision despite temperature fluctuations • Optimized for rotary applications • Locking and open-position monitoring • Integrated cleaning and monitoring functions • Ideal for automated applications

3

4

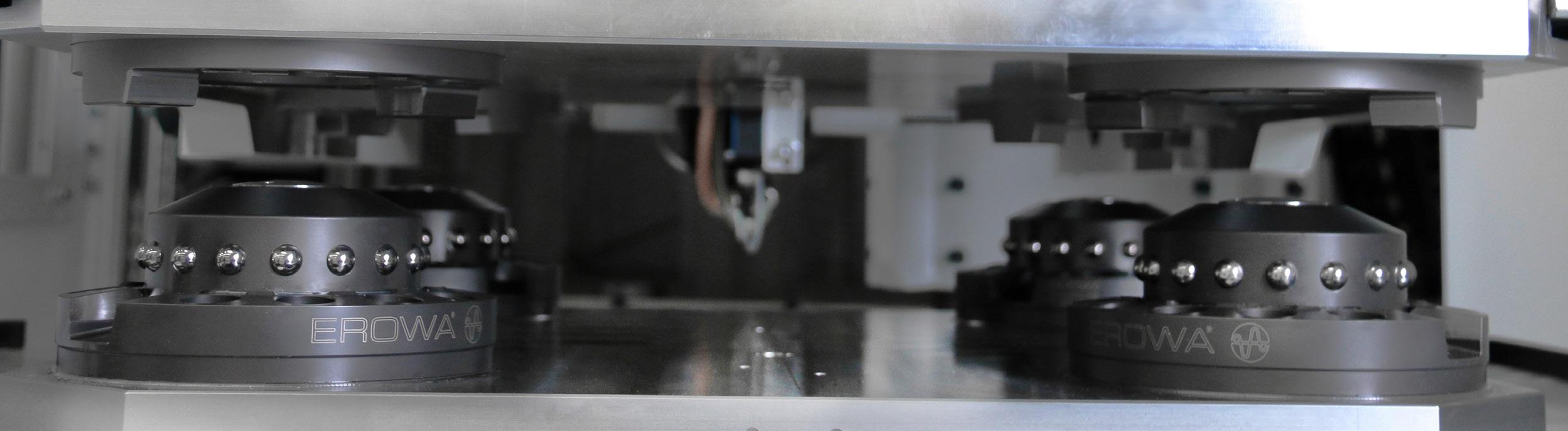

Process-safe, reliable & efficient The GTS adapts flexibly to different manufacturing concepts – from manual operation to fully monitored automation. Thanks to its modular design, the number of chucks can be individually adapted to the workpiece and process requirements.

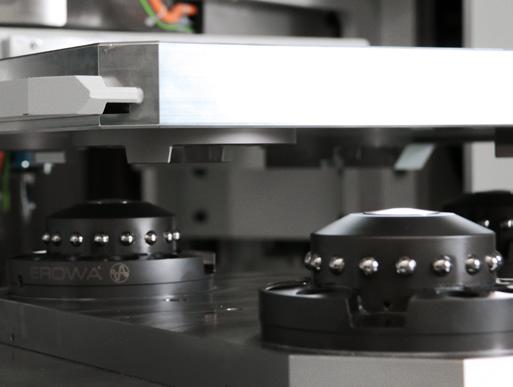

Clamped without hydraulic pressure, monitored and cleaned – for high process reliability and machine availability. The thermally compensating clamping technology ensures precise positioning even under temperature fluctuations.

GTS GIANT TOOLING SYSTEM

The Giant Tooling System stands out with:

Rear positioning pins for precise and time-saving assembly

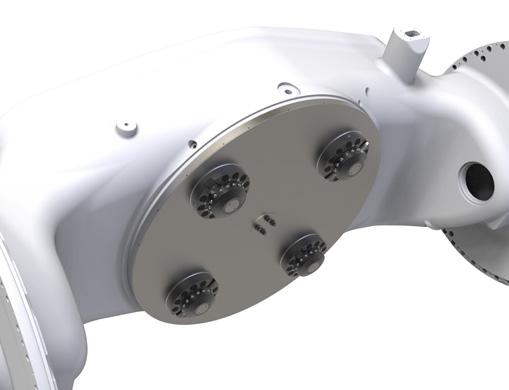

Mounting options for installation on pallets or workpieces

Hardened, corrosionresistant steel

Ground contact surfaces

Precise centering surfaces for high loads

Integrated soft loading and lifting function Maximum power transmission

Ground contact surfaces for precise Z-reference Cleaning and presence control for maximum process reliability

Precise centering surfaces for high loads

Thermally compensating clamping technology Mounting options for machine tables or base plates

Rear hydraulic and pneumatic connections

5

6

EROWA GTS

Chucks Technical Data Clamping force Repeatability Recommended workpiece size Workpiece weight Clamping Opening pressure Reclamping pressure Cleaning and monitoring functions

ER‑155000

GTS Giant Tooling System 80,000 kN per chuck < 0.003 mm from 500 x 500 x 500 mm up to 1,500 kg per chuck spring power (clamped without pressure) 60 bar hydraulic 60 bar hydraulic 6 bar pneumatic

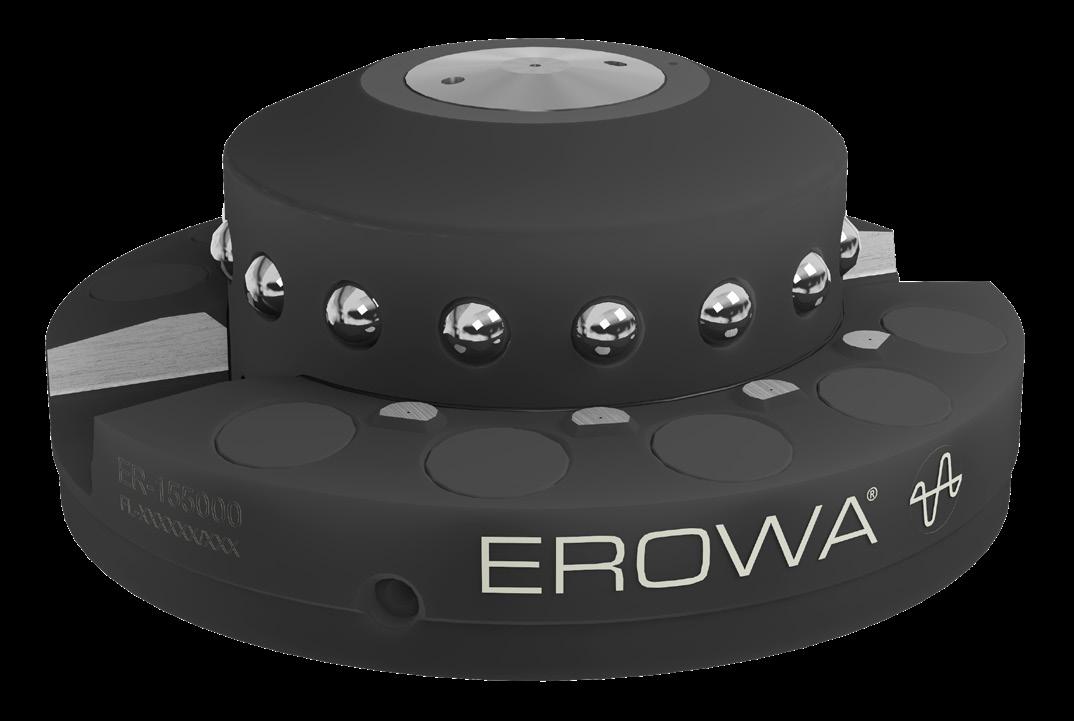

GTS Chuck

Description

Hydraulic zero‑point chuck for high machining forces in heavy‑duty machining as well as for milling and mill‑turn applications.

Application For holding GTS pallets, workpiece carriers and machine pallets.

Function Self‑locking clamping mechanism with thermally compensating clamping technology.

Special feature Soft‑landing and lift‑off function to protect the precision surfaces.

Scope of Includes M12 fastening screws and Ø 6 mm positioning delivery pins.

Note Designed to meet safety requirements in accordance with ISO 13849 PL d Cat. 3.

EROWA GTS

Base plates ER‑174100

GTS base plate 250 x 250 1‑fold

Description

Single base plate with mounted GTS chuck for modular setups.

For holding GTS pallets, workpiece carriers and machine pallets.

Lateral connections for simple plumbing to the machine table.

Mounting hole pattern with a hole spacing of 200 mm, M16.

Designed to meet safety requirements in accordance with ISO 13849 PL d Cat. 3.

Application Actuation Installation Note

7

EROWA GTS

Base plates ER‑175113

GTS Base plate 600 x 600 Universal, pitch 320

Description Application

4‑fold base plate with mounted GTS chucks.

For holding GTS pallets, workpiece carriers and machine pallets.

From below via adapter flange with Ø 57 mm pitch circle or via lateral connections for simple plumbing. Additional adapters on request.

Mounting hole pattern for machine tables with 63 mm T‑slot spacing and for star‑slot tables, M12.

Designed to meet safety requirements in accordance with ISO 13849 PL d Cat. 3.

Actuation Installation Note

ER‑180780

GTS Base plate 770 x 770 Universal, pitch 450

Description Application

4‑fold base plate with mounted GTS chucks.

For holding GTS pallets, workpiece carriers and machine pallets.

From below via adapter flange with Ø 57 mm pitch circle or via lateral connections for simple plumbing. Additional adapters on request.

Mounting hole pattern for machine tables with 63 mm T‑slot spacing and for star‑slot tables, M12.

Designed to meet safety requirements in accordance with ISO 13849 PL d Cat. 3.

Actuation Installation Note

ER‑180781

GTS Base plate 970 x 970 Universal, pitch 560

Description Application

4‑fold base plate with mounted GTS chucks.

For holding GTS pallets, workpiece carriers and machine pallets.

From below via adapter flange with Ø 57 mm pitch circle or via lateral connections for simple plumbing. Additional adapters on request.

Mounting hole pattern for machine tables with 63 mm T‑slot spacing and for star‑slot tables, M12.

Designed to meet safety requirements in accordance with ISO 13849 PL d Cat. 3.

Actuation Installation Note

8

EROWA GTS

Paletts ER‑155002

GTS Alignment Pallet Angle 45°

Description Application

Aluminum alignment pallet with ground alignment ruler.

For aligning the angular position of GTS chucks during installation and service.

Suitable for initial installation, inspection, and maintenance work.

Note

ER‑175175

GTS Pallet 630 x 630 / 320

Description Application Interface Interference diameter Workpiece weight Scope of delivery Note

Aluminum pallet with GTS clamping rings.

For clamping workpieces, fixtures, and clamping devices.

Integrated interface for LoadMaster fork. Ø 800 mm. max. 6,000 kg.

Includes 4 GTS clamping rings.

Suitable for automated and manual applications.

9

EROWA GTS

Paletts ER‑178455

GTS Pallet 800 x 800 / 450

Description Application Interface Interference diameter Workpiece weight Scope of delivery Note

Aluminum pallet with GTS clamping rings.

For clamping workpieces, fixtures, and clamping devices.

Integrated interface for LoadMaster fork. Ø 1,000 mm.

ER‑176817

GTS Pallet 1000 x 1000 / 560

Description Application Interface Interference diameter Workpiece weight Scope of delivery Note

Aluminum pallet with GTS clamping rings.

For clamping workpieces, fixtures, and clamping devices.

Integrated interface for LoadMaster fork. Ø 1,244 mm.

max. 6,000 kg.

Includes 4 GTS clamping rings.

Suitable for automated and manual applications.

max. 6,000 kg.

Includes 4 GTS clamping rings.

Suitable for automated and manual applications.

10

EROWA GTS

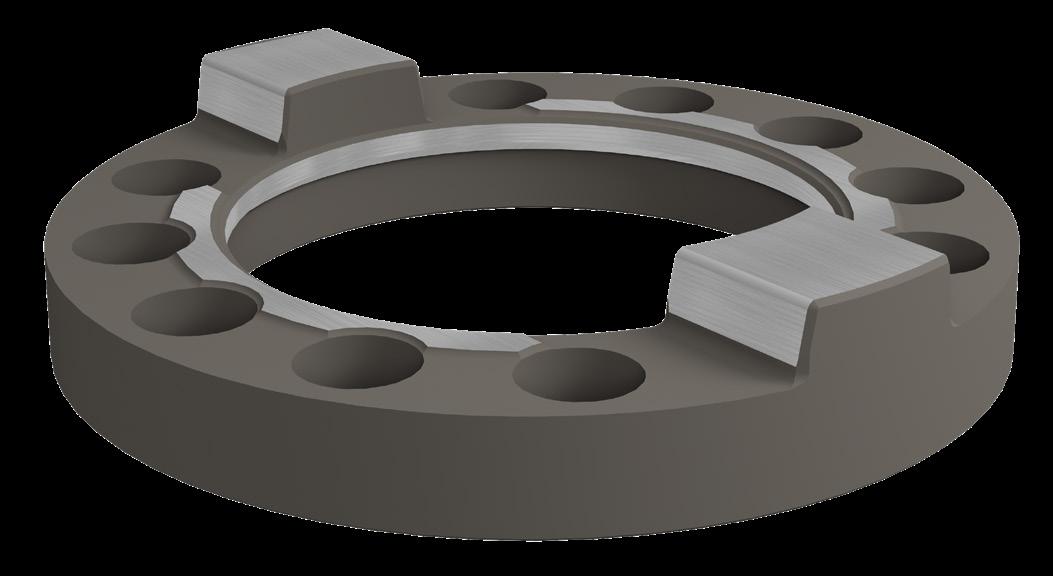

Clamping ring ER‑155004

GTS Clamping Ring

Description Application

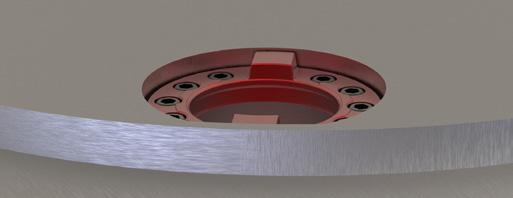

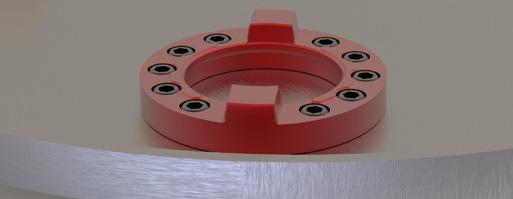

Clamping ring with centering function for GTS chucks.

As an interface between the GTS chuck and the pallet, workpiece carrier, or machine table.

Installation From the bottom of the pallet, workpiece carrier, or machine table.

Special feature Wide centering surfaces ensure high stability and repeatability.

Scope of Includes M12 fastening screws and Ø 6 mm positioning delivery pins.

EROWA GTS

Accessories ER‑171986

GTS Venting Set

Description Application

Bleeding adapter for GTS chucks.

For bleeding hydraulic lines and GTS chucks during installation and service.

Compatibility For GTS chucks and GTS base plates.

ER‑175971

GTS Repair Set Basic for 1 chuck

Description

Seal kit for maintaining the chuck assembly of a GTS chuck.

For preventive maintenance, repair work, and to fix leaks in the chuck assembly.

Seals for the internal clamping and operating mechanisms are not included.

Application Note

ER‑173763

Description

GTS Sealing Ring for 1 clamping ring

Sealing ring for additional sealing of one GTS clamping ring.

Application To protect the clamping area from chips, coolant, and debris.

Compatibility Use in combination with ER‑178802 GTS Sealing Set 4.

Note Recommended for automated applications.

11

EROWA GTS

Accessories ER‑178802

GTS Sealing Set 4 for 4 chucks

Description Application Compatibility Note

Seal kit for four GTS chucks.

To protect the clamping area from chips, coolant, and debris.

Use in combination with ER‑173763 GTS Sealing Ring.

Recommended for automated applications.

ER‑176091

GTS Hydraulic unit manual for manual control, 4‑fold

Description Hydraulic power unit for manual actuation of GTS chucks.

Application For manual GTS base plates and table setups.

Actuation For opening and reclamping up to four GTS chucks.

Operation Includes hand switch with 5 m cable length.

Special feature Simple and safe operation from outside the machine.

ER‑179044

Hose Set 2 / 5 m incl. quick couplings, for ER‑176091

Description

Hose set for connecting the GTS hydraulic power unit ER‑176091 to GTS base plates and table setups.

5 m.

2 hydraulic hoses, including quick‑connect couplings and fittings for the base plate.

Length Scope of delivery

ER‑179045

Hose Set 2 / 10 m incl. quick couplings, for ER‑176091

Description

Hose set for connecting the GTS hydraulic power unit ER‑176091 to GTS base plates and table setups.

10 m.

2 hydraulic hoses, including quick‑connect couplings and fittings for the base plate.

Length Scope of delivery
