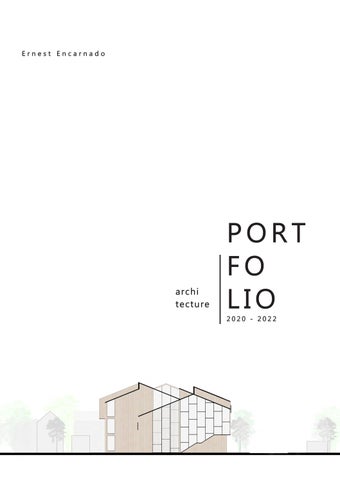

archi tecture
PORT FO LIO
2020 - 2022
ELEVATION FACING WORCESTER BLVD.
This portfolio contains my selected works from architectural design projects developed during my first three years (2020 - 2022) at Ara Institute of Canterbury, in pursuit of my Bachelor’s of Architectural Studies degree. The designs were chosen to showcase the diversity of the projects that I have worked on and my design approach.
CURRICULUM VITAE
04 - 05
305 Montreal Street, Christchurch Central City 06 - 21
YOUTH CENTRE FACILITY MIXED-USE BUILDING
163 - 165 High Street, Christchurch Central City 22 - 37
VILLA ON A HILL
9 Errol Lane, Hunstbury 38 - 47
PERFORMING ARTS CENTRE
132 Lichfield Street, Christchurch Central City 48 - 59 60 - 67
MODEL MAKING
CONTENTS.
Academic Project
01 02 03 04 05 06
HELLO!
enjoy this architecture design porfolio
+64 27 952 7413
encarnadoernest@gmail.com
78 Middleton Road, Upper Riccarton, Christchurch
https://www.linkedin.com/in/ ernest-encarnado-024110236/
ERNEST ENCARNADO ARCHITECTURE
GRADUATE
Hello, my name is Ernest Encarnado . I am a recent graduate of the Ara Institute of Canterbury’s Bachelor of Architectural Studies programme, who is currently seeking a position at a local architecture practice where I can gain experience and learn more about architecture and the design field. I consider myself as a fast and independent learner who is always open for growth and improvement. I’m reliable and very adaptive to various tasks given both individually and in groups. I find myself as a responsible and creative individual, who is quite attentive to details. I am passionate about architecture and would be interested in working on a residential projects, commercial projects and learning from industry mentors.
INTERESTS
BASKETBALL DRAWING MUSIC ONLINE GAMING PROBLEM SOLVING TRAVEL VOLLEYBALL
REFERENCE
Bernadette Muir
+64 21 403 635
Bernadette.Muir@ara.ac.nz
Kahukura Building, Level 2 Staff Offices
2007 - 2012
2020 - 2022 2015 - 2019 2013 - 2014 2020 - 2022 2022 2022
Ara Institute of Canterbury Bachelors of Architectural Studies
Ashburton College High School Education St Joseph’s School Ashburton Elementary Education St Mary’s College of Meycauayan Elementary Education
Construction Detailing Digital Modelling Drafting Model Making Rendering
Talley ’ s Group Ashburton working as a casual worker in the VegePack Department
SUPERHOME movement attending the pre-tour briefings and learning about what makes a superhome from the designers, architects, builders, and suppliers. volunteering and working on the superhome tours.
Elegant Kiwi HOMES working as an intern to gain industry experience and knowledge
ArchiCAD Adobe Illustrator Adobe Photoshop Autodesk Revit Lumion
INFO
FILIPINO (tagalog) ENGLISH LANGUAGES ABOUT ME
EDUCATION SKILLS AND EXPERTISE EXPERIENCE
Youth Centre Facility
305 Montreal Street, Christchurch Central City
6
02
Youth centres are created for a variety of purposes, some positive by helping youth achieve their full potential and some negative to keep youth off the streets and out of trouble. Youth centres can play an important preventative role, because for some young people in difficult personal or domestic circumstances, the centre is the one place where they can meet safely, obtain the support they need and a place they can call their home.
7
8
9
GSEducationalVersion 1 2 3 4 5 6 1 2 A B C D 4,30 0 6,10 0 6,60 0 12,000 7,50 8,750 3,850 7,250 600 2,000 6,150 3,850 7,050 8,750 32,00 ENTR Y FOYE FITNESS
UNISEX
1m 2m 3m 5m GROUND FLOORPLAN 10
ROO M
TOILE T
1 2 3 4 5 6 3 7,500 12,370 4,30
0
7,250 12,150 7,050 200 12,150 23,250 32,000 FOYE R CAF E' STORAG E ENTR Y 4 11

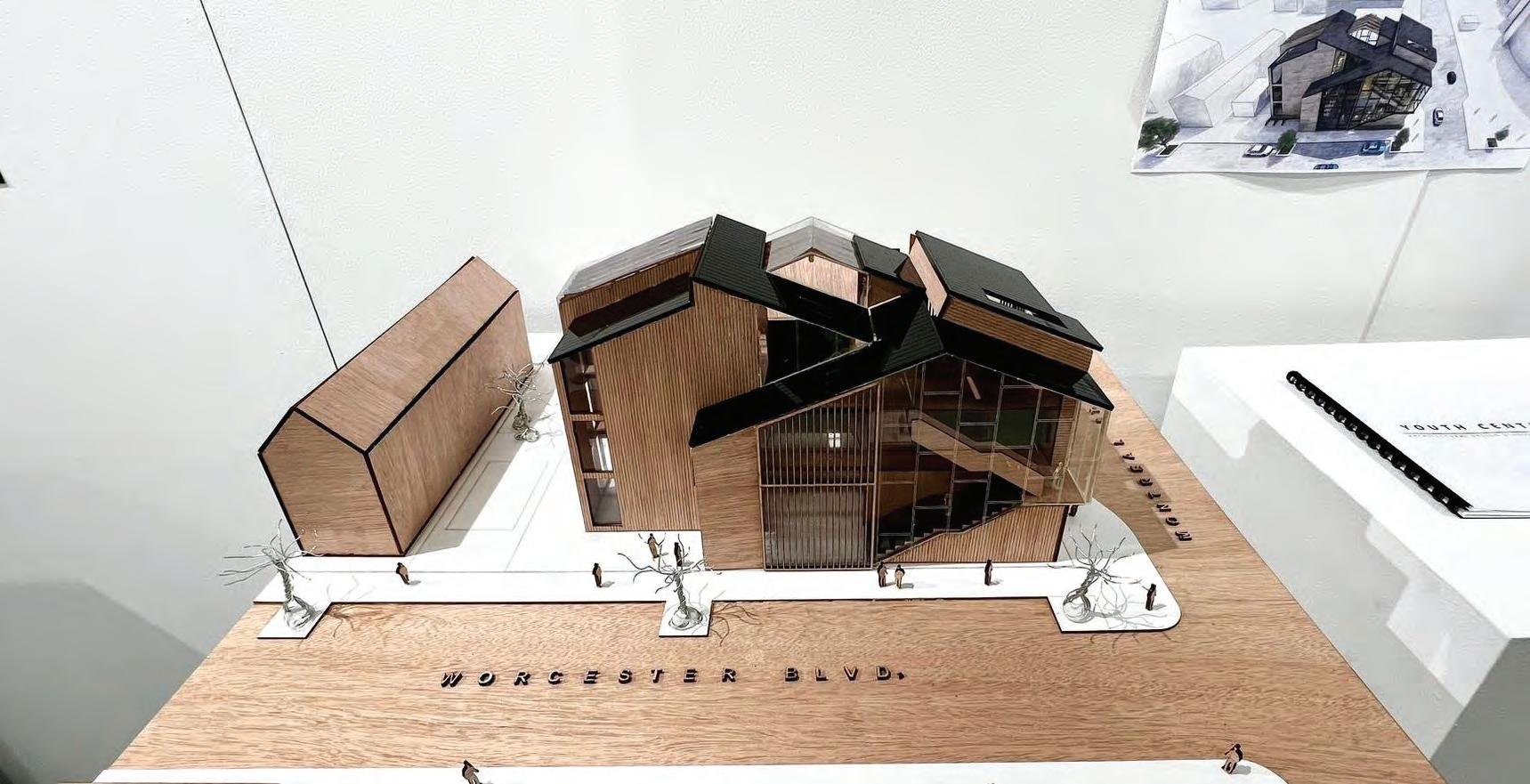

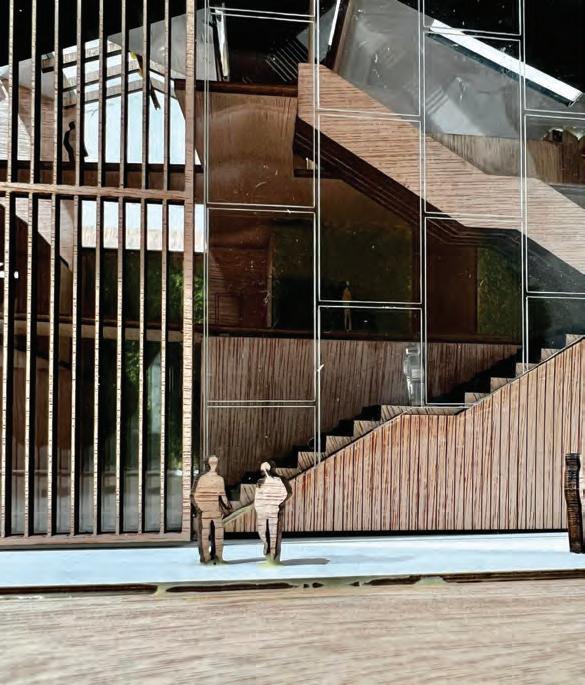

0 3,90 0 35 0 7,200 350 4,30
4,25 0 7,550 16,100
GSEducationalVersio 2 6 1 2 3 A B C D F 4,30 0 6,10 0 6,60 0 12,000 7,500 12,370 4,60 0 12,40 0 4,300 3,43 0 3,00 0 1,06 0 5,21 0 17,00 0 8,750 24,250 600 2,000 6,150 3,850 7,050 200 13,150 33,000 COUNSELLING ROO M SUPPORT ROO M MULTI PURPOSE ROO M RECEPTIO N LOBB Y UNISEX TOILE T STAFF ROO M SUPPORT ROO M 4 1m 2m 3m 5m FIRST FLOORPLAN GSEducationalVersion 1 2 3 A B C D RE 1,500 11,825 21,175 1,500 560 2,000 9,260 300 7,500 220 13,150 34,500 8,95 0 8,05 0 4,30 0 1,17 5 2,00 0 1,47 5 65 0 7,40 0 17,00 0 12,000 7,500 12,370 4,30 0 6,10 0 6,60 0 CO MMUNAL ARE A MINI LIBRAR Y UNISEX TOILE T 4 GARDEN RETREA T 1m 2m 3m 5m SECOND FLOORPLAN 12
13
EAST ELEVATION FACING MONTREAL ST.

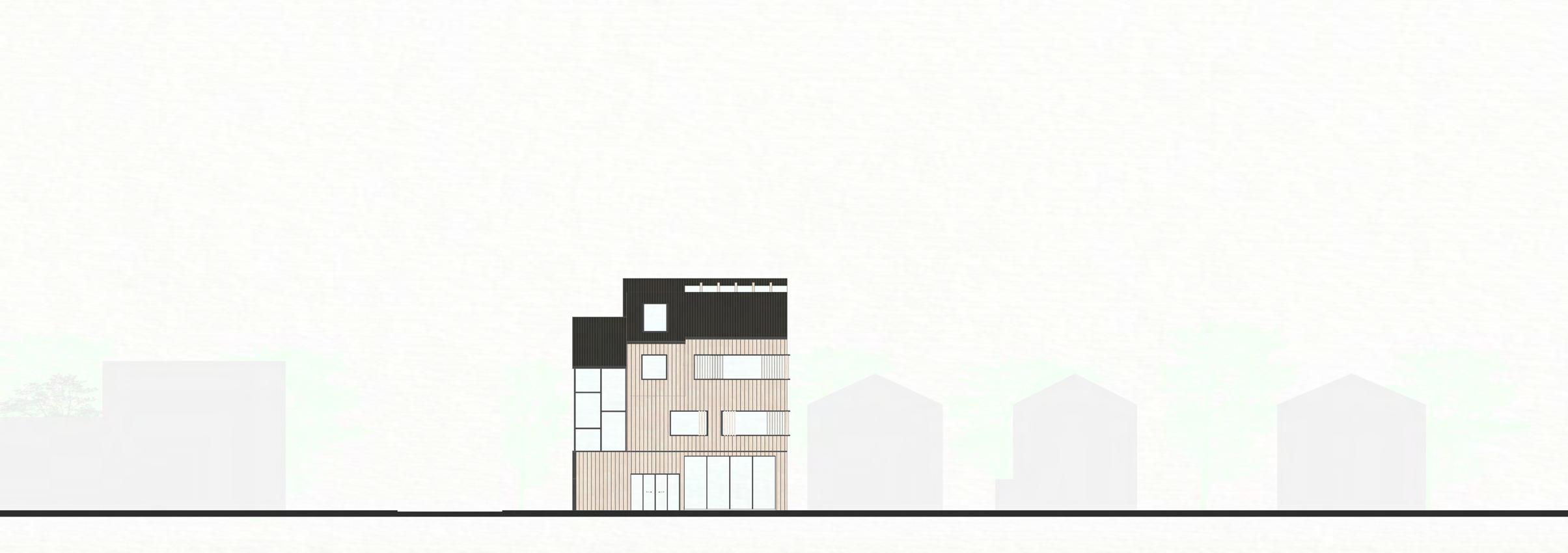

SOUTH ELEVATION FACING WORCESTER BLVD.
SECTION A-A 0 1 2 5
1 2
0
5
14
15
Eurotray angle seam roofing profile
Timber battens
Roof underlay
25mm sarking grade wood fibre board
Gutter
Timber battens
Damp proof membrane
140mm stud frame infilled with sheep wool insulation
190mm wood fibre insulation board
Weather resistant vapour control membrane
100mm (3 layers) CLT timber panels
20mm plywood ceiling
400mm timber beams
150mm (5 layers) CLT timber panels
Weather resistant vapour control membrane
20mm plywood
400 x 400mm glulam column
5mm thick marmoleum flooring Cedar vertical shiplap weatherboards
Timber battens
Damp proof membrane
140mm stud frame infilled with sheep wool insulation
Weather resistant vapour control membrane
150mm (5 layers) CLT timber panels
13mm gypsum board
150mm (5 layers) CLT timber panel
400mm timber beams
100mm flatiron broove
Rondo suspended ceiling battens
Rondo drywall grid ceiling system
30 x 60mm timber battens (grey wash rubio)
5mm thick marmoleum flooring Cedar vertical shiplap weatherboards
Timber battens
Damp proof membrane
140mm stud frame infilled with sheep wool insulation
Weather resistant vapour control membrane
150mm (5 layers) CLT timber panels
13mm gypsum board
150mm (5 layers) CLT timber panel
400mm timber beams
100mm flatiron broove
Rondo suspended ceiling battens
Rondo drywall grid ceiling system
30 x 60mm timber battens
10cm 50cm 30cm 20cm
FLOOR - WALL JUNCTION 1 DETAIL
Cedar vertical shiplap weatherboards
10cm 50cm 30cm 20cm ROOF
- WALL JUNCTION DETAIL 1:20
10cm 50cm 30cm 20cm
16
FLOOR - WALL JUNCTION 2 DETAIL
300mm reinforced concrete 700mm polystyrene pods Damp proof membrane Reinforced concrete footing 400 x 400mm glulam column 400 x 400 x 25mm steel plate Hollow strucutral steel 19 diameter cast in place anchor bolts 16 diametre x 140 long treaded rods glued into the glulam columns 10cm 50cm 30cm 20cm ROOF - WALL JUNCTION DETAIL 1:20 17
18
19
20
21
Building
163-165 High Street, Christchurch Central City
03 22
Mixed-Use

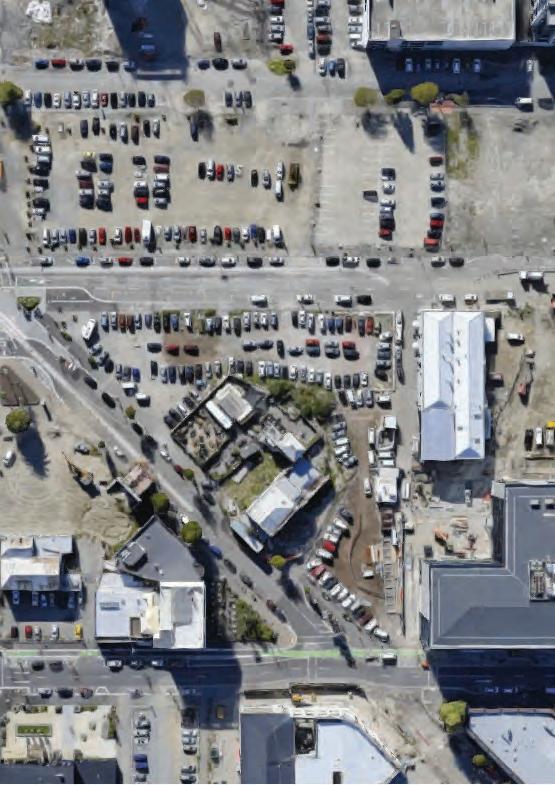

The Mixed-Use Building project is located at 163-165 High Street in the city centre of Christchurch. It includes retail, hospitality, offices and apartments. The building took careful consideration for its surrounding context its facade was built with the same materials as the Duncan Buildings.
23
24
25
26
GSEducationalVersio 10 17 24,50 9,80 1,56 3,00 6,62 5,20 6,62 3,00 High tStree GROUND FLOORPLAN 27
GSEducationalVersion 14 15 16 17 18 19 20 21
1m 2m 3m 5m GROUND FLOORPLAN
1. 2.
28
24,50 9,80 0 3,32 0 1,56 0 4,66 0 3,000 6,625 5,20 4 3 2 7 6 8
HOSPITALITY / CAFE’ RETAIL / CLOTHING FOYER UNISEX TOILETS
3. 4. KITCHEN COUNTER CHANGING ROOM ENTRY 5. 6. 7. 8.
1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 F DW 24,500 5,200 6,625 3,000 High Stree t 1 6 5 8 8 29
30
31
GSEducationalVersion UPSTAIRS CAF E' APARTMENT 1 UPSTAIR TERRAC LOBB RECEPTIO FOYE BEDROO M BALCON Y 10mm STANDARD GIB WALL BOARD ON 90 x 45 TIMBER WALL WITH FIBREGLASS INSULATION ON 10mm GIB WALL BOARD 90mm BRICK ON 150mm PRECAST INSULATED REINFORCED CONCRETE ON 90mm BRICK 0.55mm EUROTRAY ANGLESEAM ROOFING PROFILE ON DPM ON 50 x 120 METAL BATTENS 600@ CRS 20mm TIMBER CEILING ON 50 x 120 METAL BATTENS @600 CRS ON PITCHED WEB OPEN TRUSS RAFTER. 0 5m HOSPITALIT Y / CAF E' 1m 2m 3m 5m LONG SECTION 32
UPSTAIR S TERRAC E LOBB Y RECEPTIO N FOYE R OFFIC E APARTMENT 2 BALCON Y BEDR OO M RETAI L / CLOTIN G 200mm PRECAST INSULATED REINFORCED CONCRETE PANEL WITH 100mm CONCRETE ON 50mm POLYSTYRENE INSULATION ON 50mm CONCRETE 200mm REINFORCED CONCRETE ON STEEL PROFILE ON 250 x 300 STEEL BEAM AND 90 x 275 TIMBER JOIST 20mm TIMBER CEILING ON RONDO SUSPENDED CEILING BATTENS @900 CRS AND 90 x 275 TIMBER JOIST 33
GSEducationalVersion OFFIC E RETAI L MEETIN G ROO M LIVIN G KITCHEN & DININ G BEDROO M 250mm PRECAST INSULATED REINFORCED CONCRETE PANEL WITH 150mm CONCRETE ON 50mm POLYSTYRENE INSULATION ON 50mm CONCRETE 200mm PRECAST INSULATED REINFORCED CONCRETE PANEL WITH 100mm CONCRETE ON 50mm POLYSTYRENE INSULATION ON 50mm CONCRETE 10mm STANDARD GIB WALL BOARD ON 90 x 45 TIMBER WALL WITH FIBREGLASS INSULATION ON 10mm GIB WALL BOARD 90mm BRICK ON 150mm PRECAST INSULATED REINFORCED CONCRETE ON 90mm BRICK 200mm REINFORCED CONCRETE SLAB ON STEEL PROFILE ON 250 x 300 STEEL BEAM AND 90 x 275 TIMBER JOIST 20mm TIMBER CEILING ON RONDO SUSPENDED CEILING BATTENS @900 CRS AND 90 x 275 TIMBER JOIST 0.55mm EUROTRAY ANGLESEAM ROOFING PROFILE ON DPM ON 50 x 120 METAL BATTENS 600@ CRS 20mm TIMBER CEILING ON 50 x 120 METAL BATTENS @600 CRS ON PITCHED WEB OPEN TRUSS RAFTER. RIBRAFT CONCRETE SLAB SYSTEM: 250mm REINFORCED CONCRETE ON 750mm POLYSTYRENE PODS ON DPM ON HARDFILL 1m 2m 3m 5m CROSS SECTION A 34
35
COUNTE R UPSTAIRS CAF E' KITCHEN & DININ G BEDROO M LIVIN G CAF E' 250mm PRECAST INSULATED REINFORCED CONCRETE PANEL WITH 150mm CONCRETE ON 50mm POLYSTYRENE INSULATION ON 50mm CONCRETE 200mm PRECAST INSULATED REINFORCED CONCRETE PANEL WITH 100mm CONCRETE ON 50mm POLYSTYRENE INSULATION ON 50mm CONCRETE 90mm BRICK ON 150mm PRECAST INSULATED REINFORCED CONCRETE ON 90mm BRICK 200mm REINFORCED CONCRETE SLAB ON STEEL PROFILE ON 250 x 300 STEEL BEAM AND 90 x 275 TIMBER JOIST 20mm TIMBER CEILING ON RONDO SUSPENDED CEILING BATTENS @900 CRS AND 90 x 275 TIMBER JOIST 200mm REINFORCED CONCRETE SLAB ON STEEL PROFILE ON 250 x 300 STEEL BEAM AND 90 x 275 TIMBER JOIST 20mm TIMBER CEILING ON RONDO SUSPENDED CEILING BATTENS @900 CRS AND 90 x 275 TIMBER JOIST 100mm CUBE FLATIRON BROOVE ON 50 x 120 METAL BATTENS @600crs 0.55mm EUROTRAY ANGLESEAM ROOFING PROFILE ON DPM ON 50 x 120 METAL BATTENS 600@ CRS 20mm TIMBER CEILING ON 50 x 120 METAL BATTENS @600 CRS ON PITCHED WEB OPEN TRUSS RAFTER. 1m 2m 3m 5m CROSS SECTION A-A 36
37
Villa On A Hill
9 Errol Lane, Huntsbury
04 38

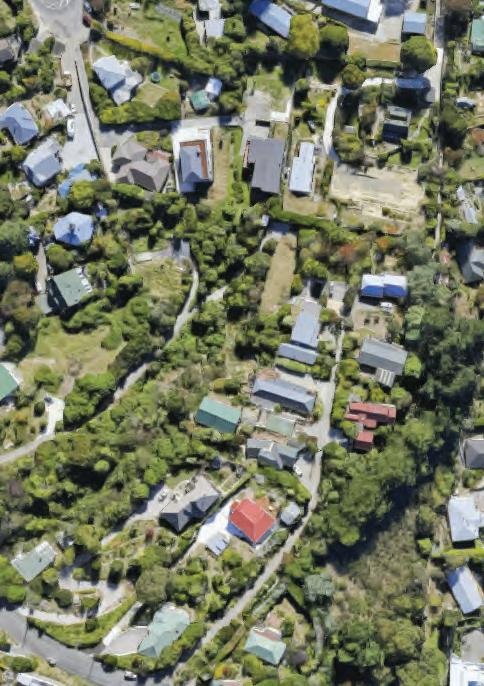

The objective was to design a conceptual single residential dwelling in Christchuch, on a sloping site. A villa for a family of four that will cater their needs and hobbies. The family enjoyed gardening and entertaining friends. The connection between the outdoor and indoor spaces was very important as they insisted to maximise outdoor experience.
39
40
5m FIRS FLOORPLA - LIVING ROOM 2 - DINING ROOM 3 KITCHEN 4 - LOUNGE 5 - FOYER 6 - ENTRY - GARAGE 8 - OFFICE 9 - DRIVE WAY 10 - TOILET 11 LAUNDR 12 OUTDOOR AREA 13 - BALCONY 6 9 10 11 13 41
W DR N 0 5m FIRST FLOORPLAN 1 - LIVING ROOM 2 - DINING ROOM 3 - KITCHEN 4 - LOUNGE 5 - FOYER 6 - ENTRY 7 - GARAGE 8 - OFFICE 9 - DRIVE WAY 10 - TOILET 11 -
12 - OUTDOOR
13 - BALCONY 1 8 10 11 12 1m 2m 3m 5m FIRST FLOORPLAN LIVING ROOM DINING ROOM KITCHEN LOUNGE FOYER ENTRY GARAGE 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. OFFICE DRIVE WAY
BALCONY 42
LAUNDRY
AREA
WC LAUNDRY OUTDOOR AREA
2 3 4 5 6 7 9 13 43
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 2 3 4 56 7
1. 2. 3. 4. 5. 6. 7. 1m 2m 3m 5m GROUND FLOORPLAN 44
MASTER BEDROOM BEDROOM 1 BEDROOM 2 BATH ENSUITE WALK-IN CLOSET OUTDOOR AREA
45
46
47
Performing Arts Centre
132 Lichfield Street, Christchurch Central City
48
05

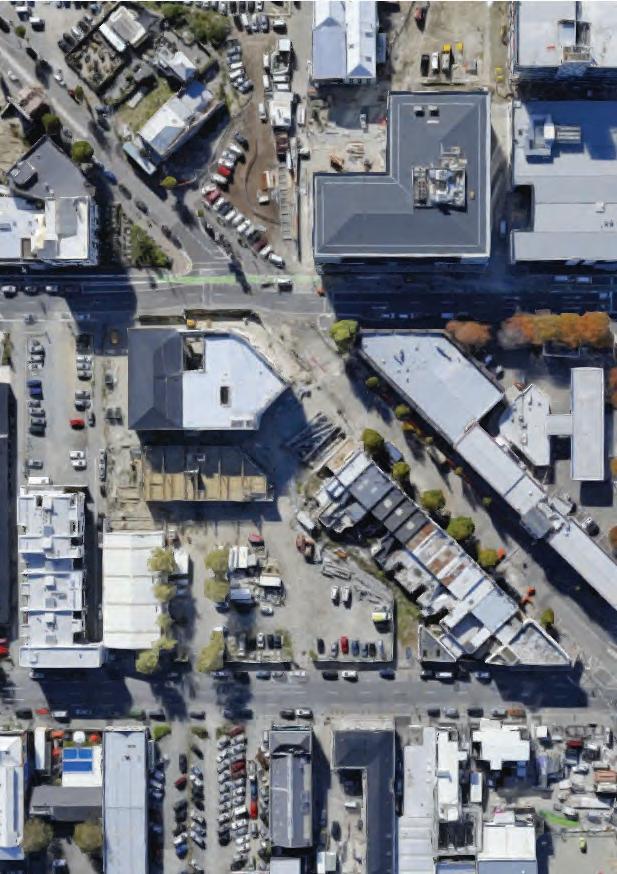

The Performing Arts Centre project is located in the city centre of Christchurch. The building is a musical and dance centre. The buildings purpose is to provide entertainment and to gather the people of the Christchurch community, young and old. Providing music and dance performances such as rock, pop, jazz and cultural.
49
50
128 130 LICHFIELD STREET 140 142 LICHFIELD STREET 172 HIGH STREET AUDITORIU CAFE KITCHE FOYE R RECEPTIO ADMIN OFFIC E TOILE CLEANER S EXISTING BUILDIN G FUTURE BUILDIN G 15 LOBB Y 1 2 3 45 6 7 10 11 1213 14 15 8 8 8 LICHFIELD STREE T REHCTUB SENAL BUTCHER'S LANE 2 N 51
GSEducationalVersion 128 - 130 LICHFIELD STREE T 172 HIG H STREE T 1 - AUDITORIU M 2 - CAFE / KITCHE N 3 - FOYE R 4 - RECEPTIO N 5 - ADMIN OFFIC E 6 - TOILE T 7 - CLEANER S 8 - EXISTING BUILDIN G 9 - FUTURE BUILDIN G 10 - GREEN ROO M 11 - STAG E 12 - BACKSTAG E 13 - STORAG E 14 - WORKSHOP & LOADING ZON E 15 - LOBB Y 2 3 45 8 8 8 LICHFIELD REHCTUB ' SENAL BUTCHER'S LANE 2 AUDITORIUM CAFE’ / KITCHEN FOYER RECEPTION ADMIN OFFICE TOILET SERVICE ROOM EXISTING BUILDING 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. FUTURE BUILDING GREEN ROOM MAIN STAGE BACKSTAGE STORAGE WORKSHOP LOBBY 52
140 - 142 LICHFIELD STREE T 1 45 6 7 9 10 11 1213 14 15 LICHFIELD STREE T N GROUND FLOORPLAN 0m 5m 1m 2m 3m 5m GROUND FLOORPLAN 53
NORTH ELEVATION no access to public F GSEducationalVersion 1m 2m 3m 5m 1m 2m 3m 5m
54
FIRST FLOORPLAN SECOND FLOORPLAN
GSEducationalVersion catwalk catwalk catwalk catwalk
55
FLOORPLAN THIRD FLOORPLAN
catwalk 1. 2. 3. 4. 5. 6. 7. 8. 1. 2. 3. 4. 5. 6. 9. 10. 11. 12. 13. 14. 15. 16. 7. 8. 9. 10. 11. 12. AUDITORIUM LOBBY SERVICES RECEPTION / ADMIN STORAGE EXISTING BUILDING GREEN ROOM HALLWAY TOILET WORKSHOP DRESSING ROOM BACKSTAGE AUDITORIUM LOBBY SERVICES UPSTAIRS TERRACE DANCE STUDIO FOYER EXISTING BUILDING CONTROL ROOM CATWALK ACCESS TOILET STUDIO ROOMS OFFICE SPACE DRESSING ROOM BACKSTAGE WORKSHOP STORAGE 6 1 4 2 7 7 1 2 10 68 12 4 16 10 56
0m 5m 0m 5m 1m 2m 3m 5m 7 12 10 12 6 6 9 8 3 5 16 14 7 15 7 13 11 3 5 9 CROSS SECTION 1 1m 2m 3m 5m CROSS
2 57
SECTION
58
59
Model Making 06
60

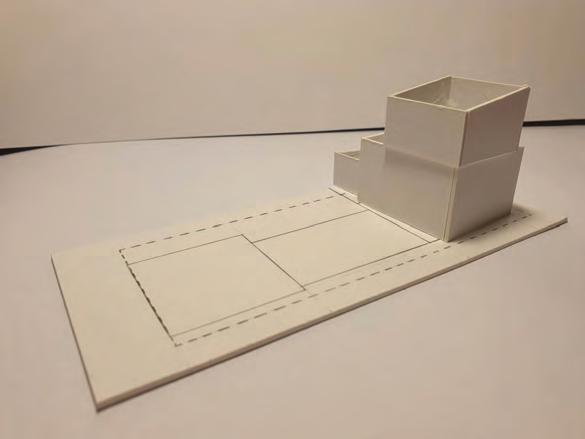

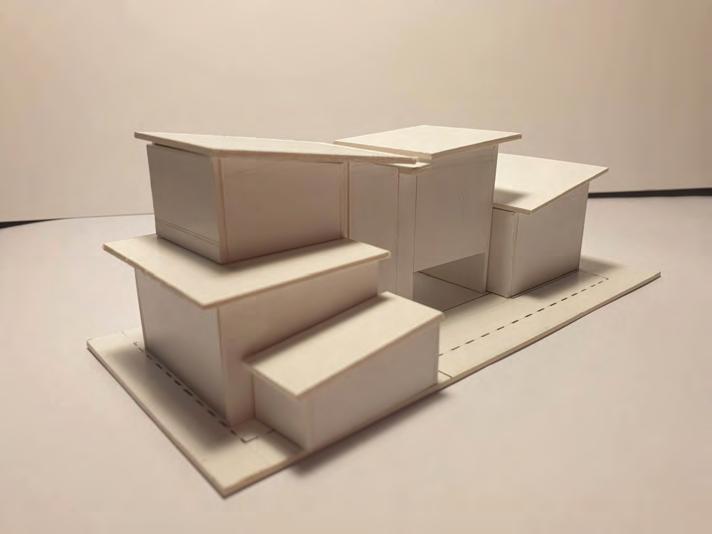

This content will contain all of the building models that i’ve made throughout my first three years at the Bachelor’s of Architectural Studies programme. The models range from scale models, building forms/shapes and mini maquettes.
61

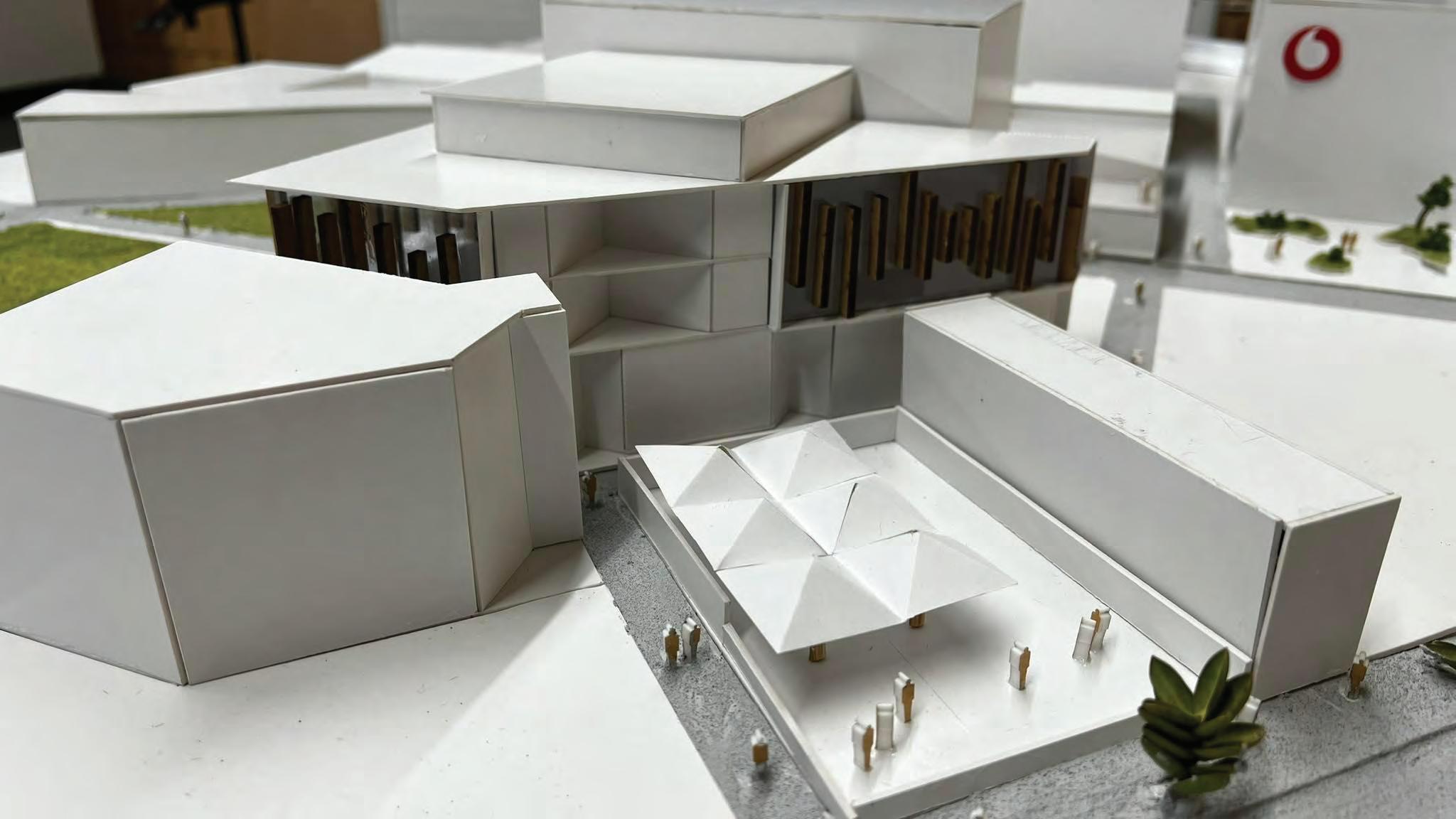

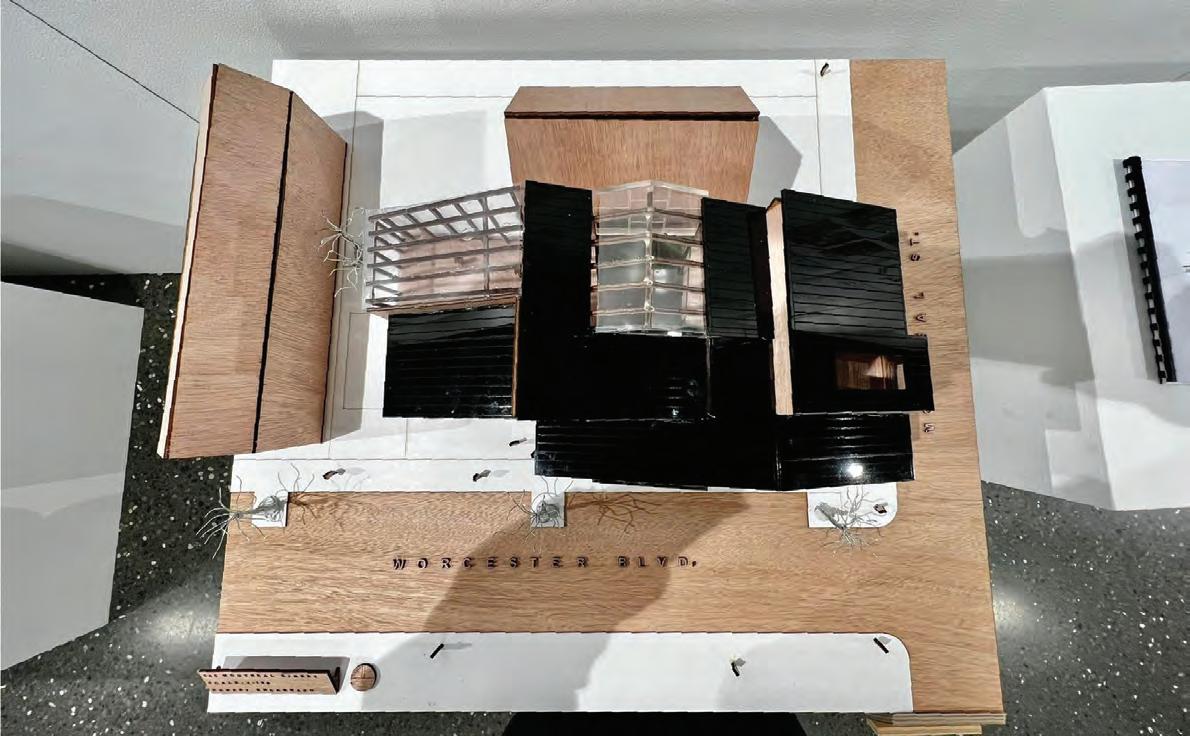

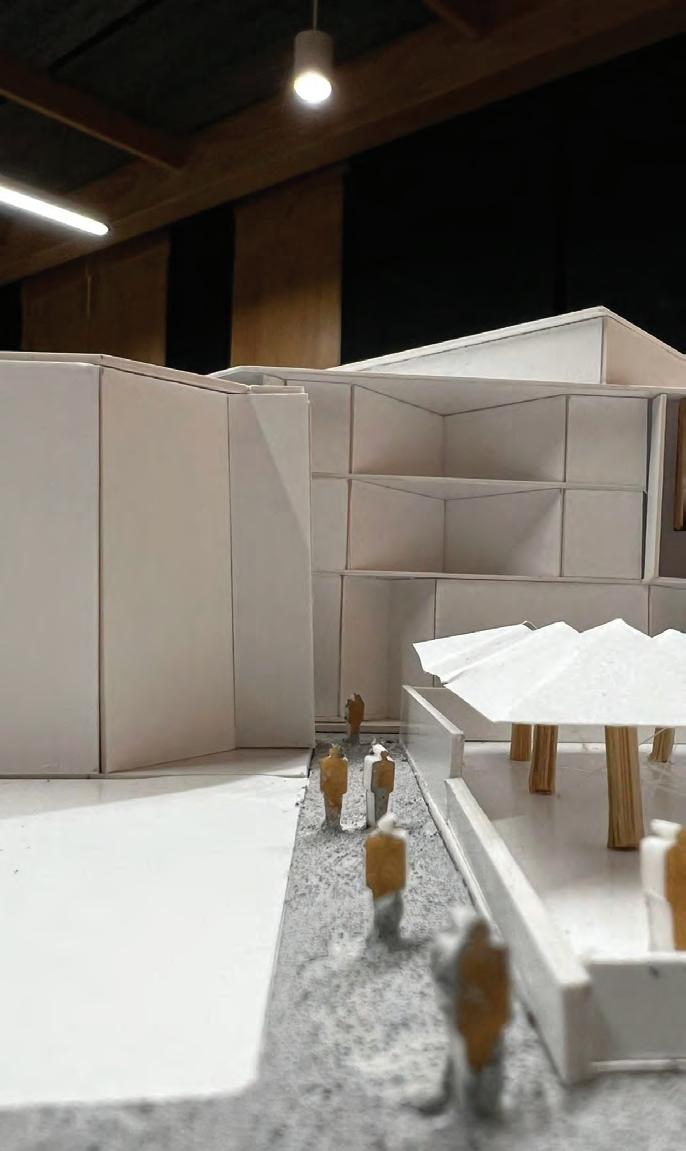

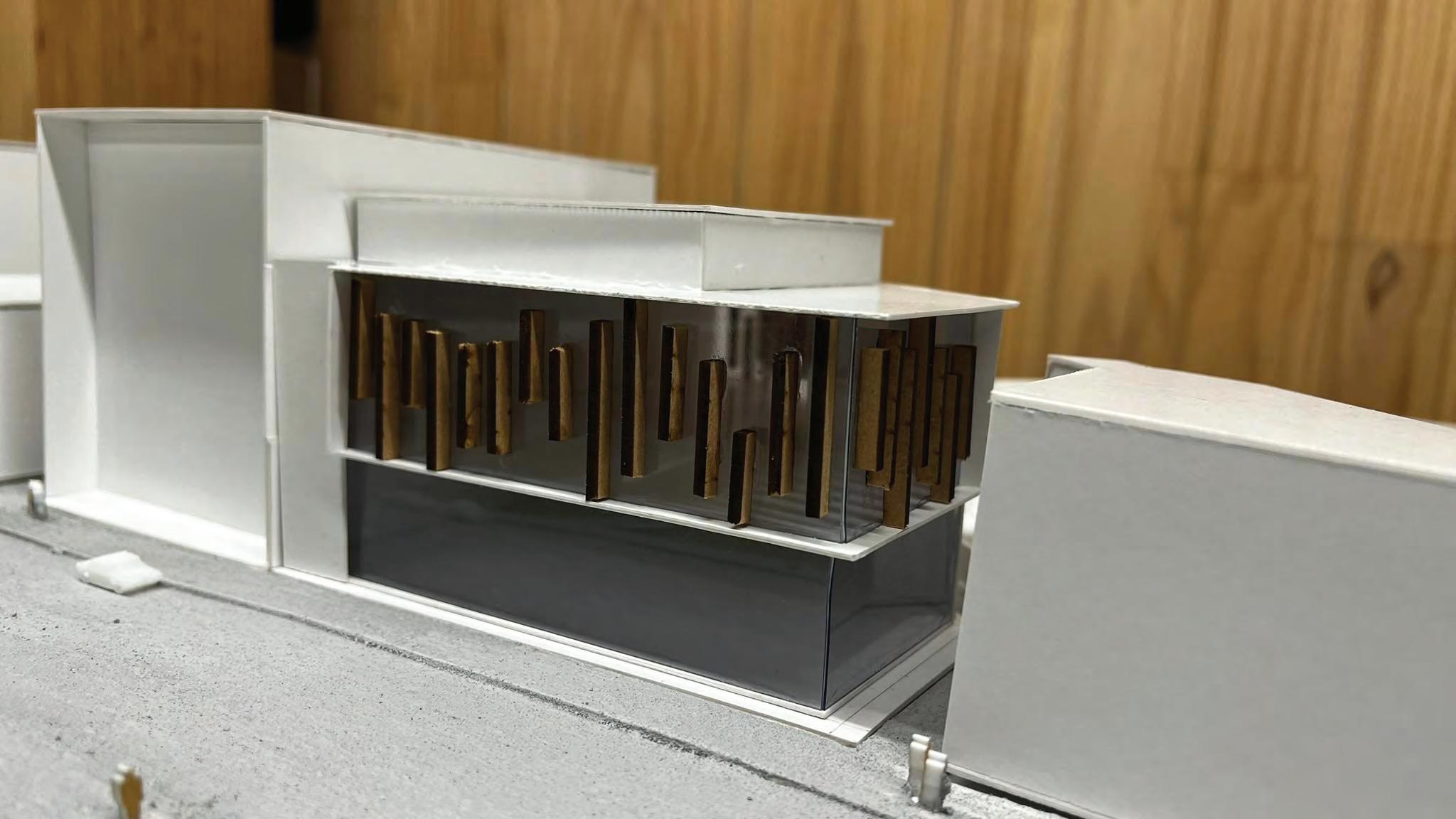

1:100 PHYSICAL MODEL SEMESTER 2 2022 62

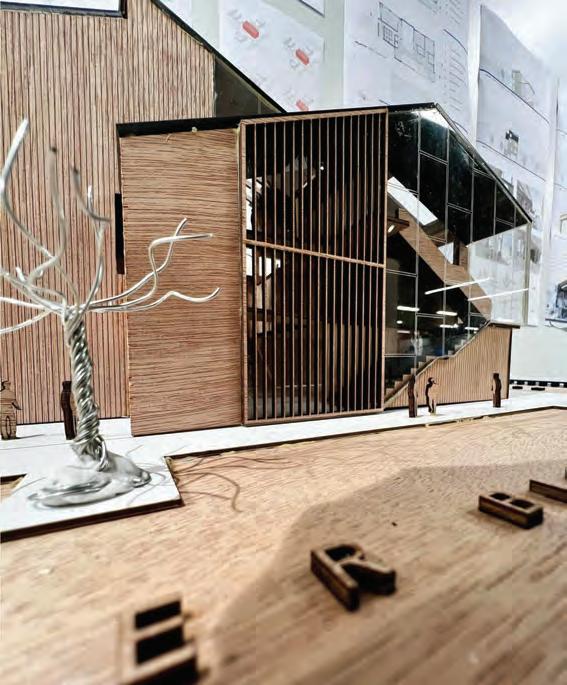

Youth Centre Facility

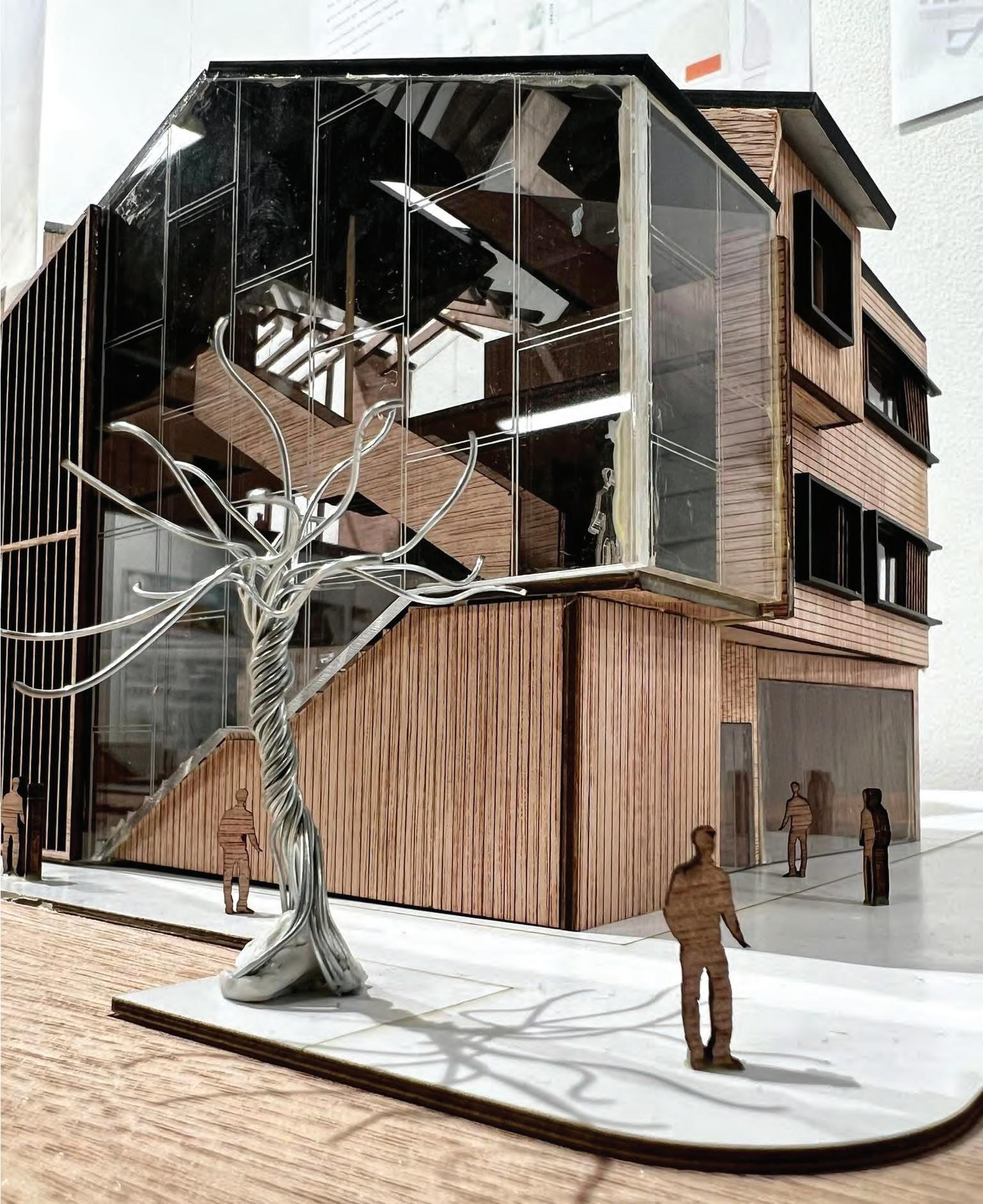

MATERIALS: plywood clear acrylic black acrylic white cardboard stainless steel wires 63
Performing Arts Centre

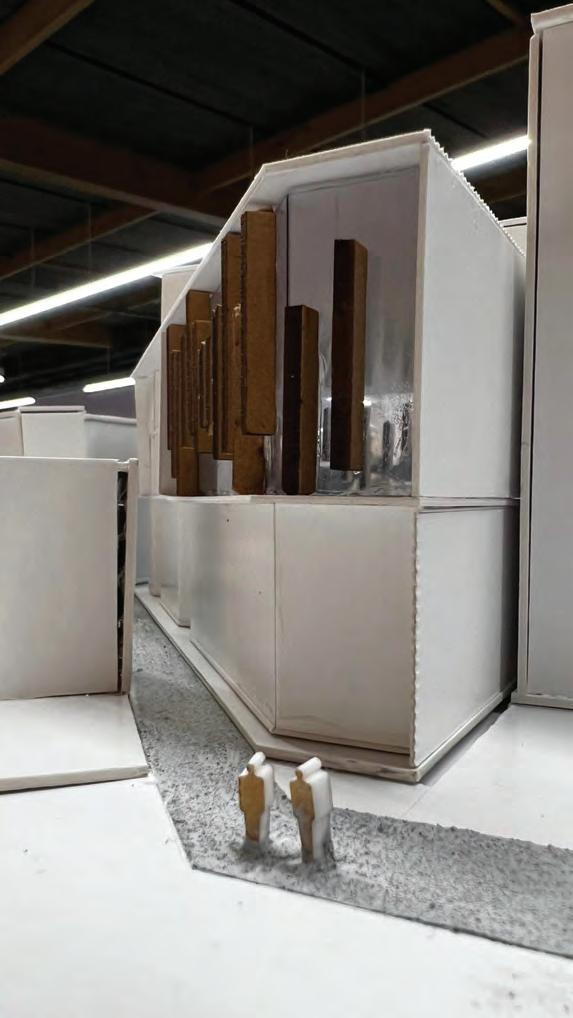

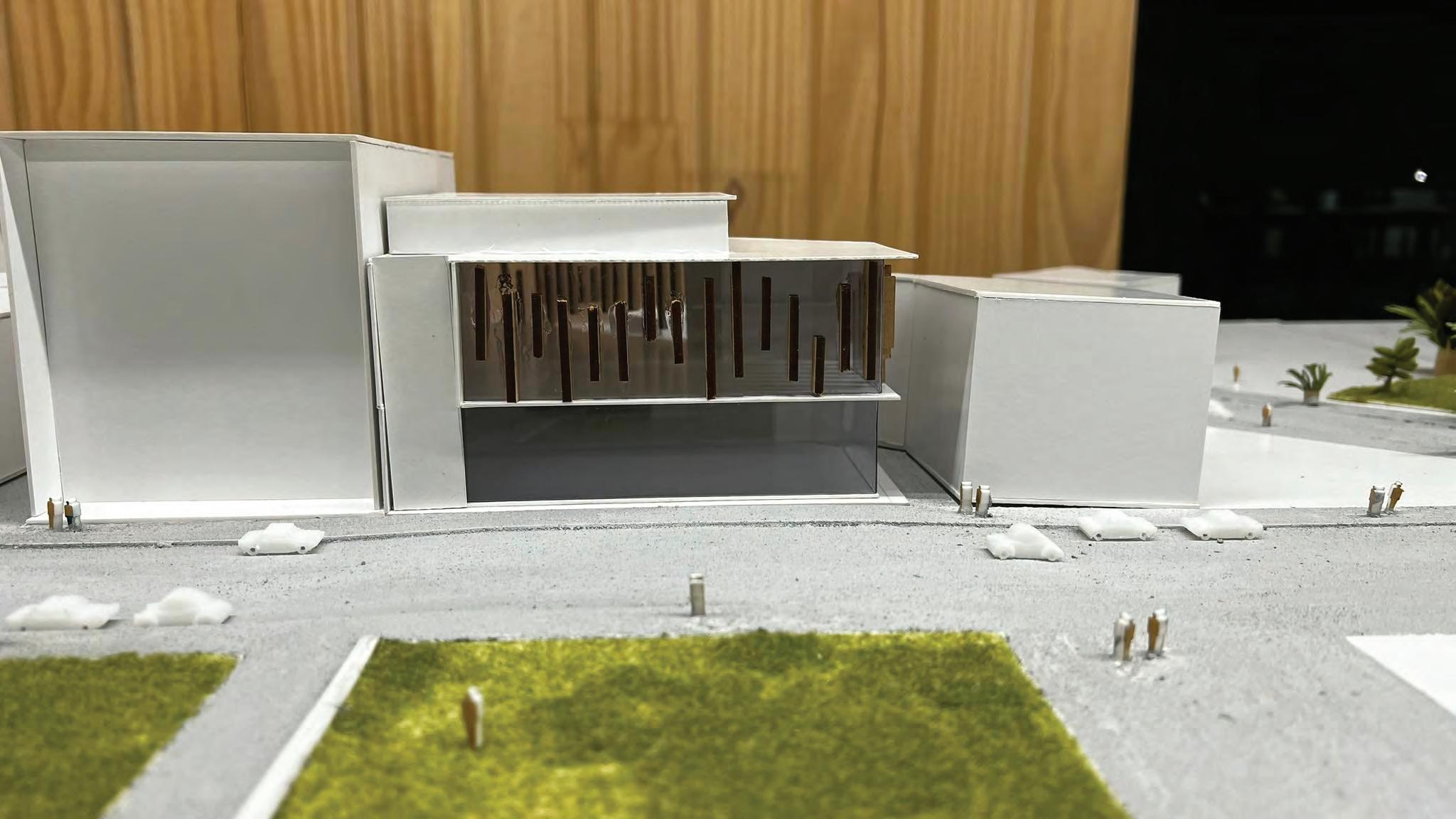

1:200 MAQUETTE MODEL SEMESTER 1 2022 64
MATERIALS: mdf white cardboard toothpicks clear film white paper 65

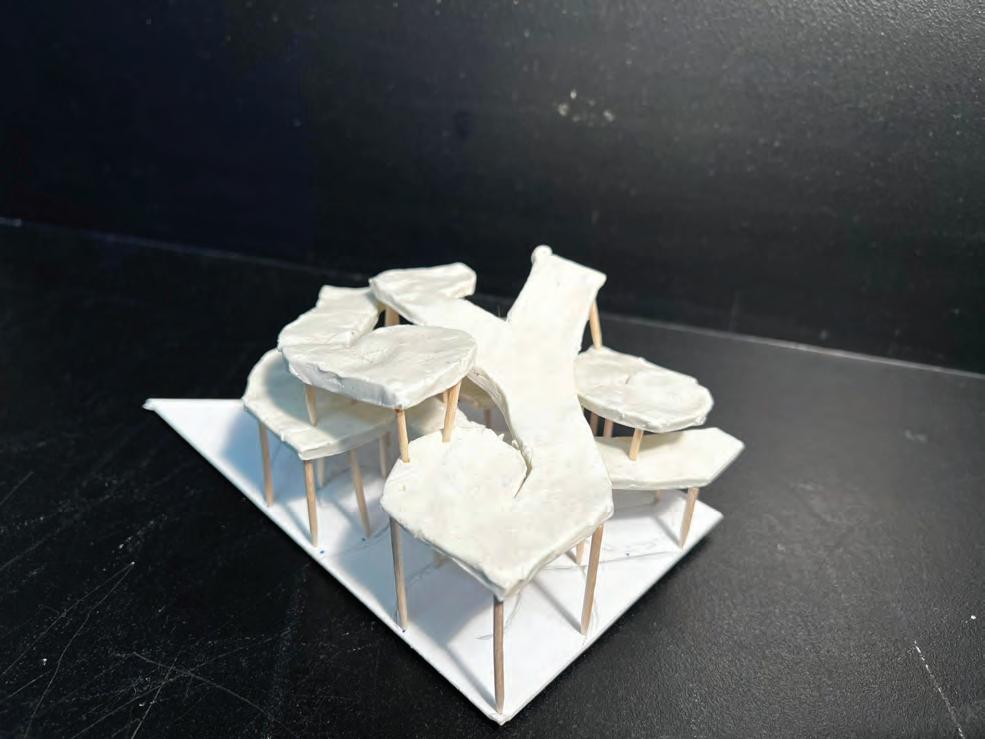

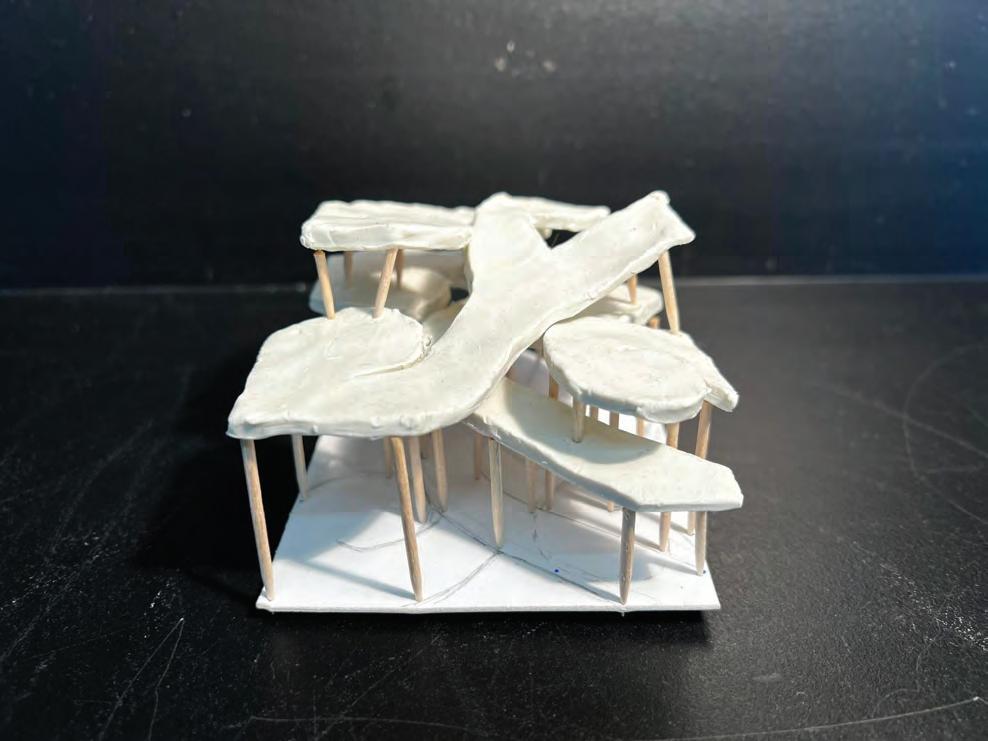

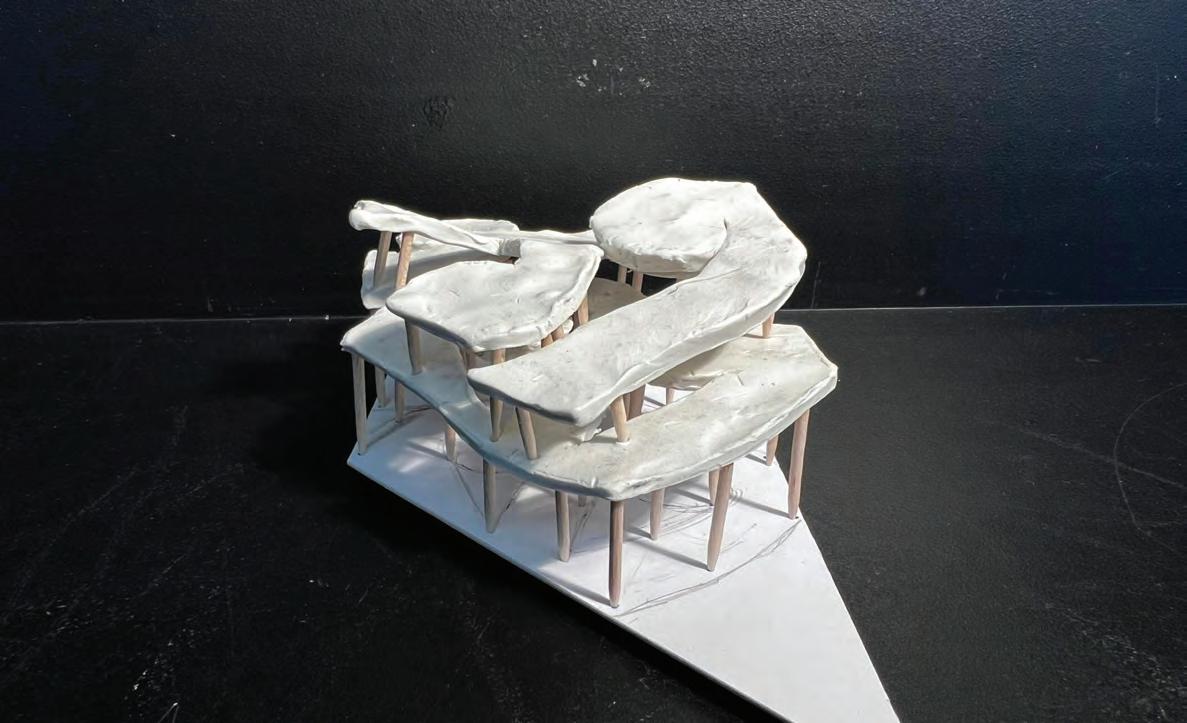

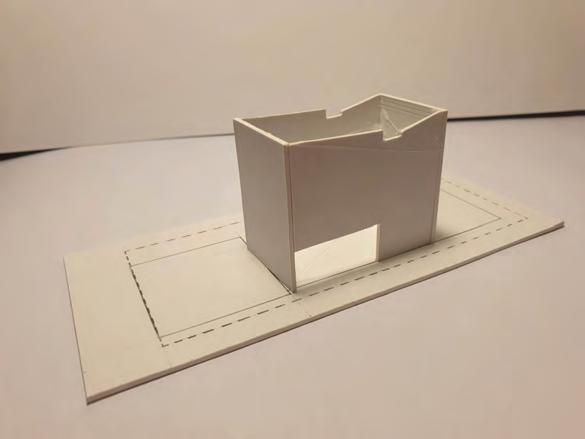

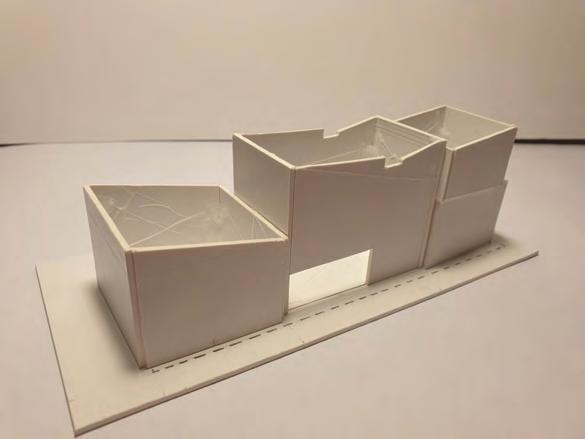

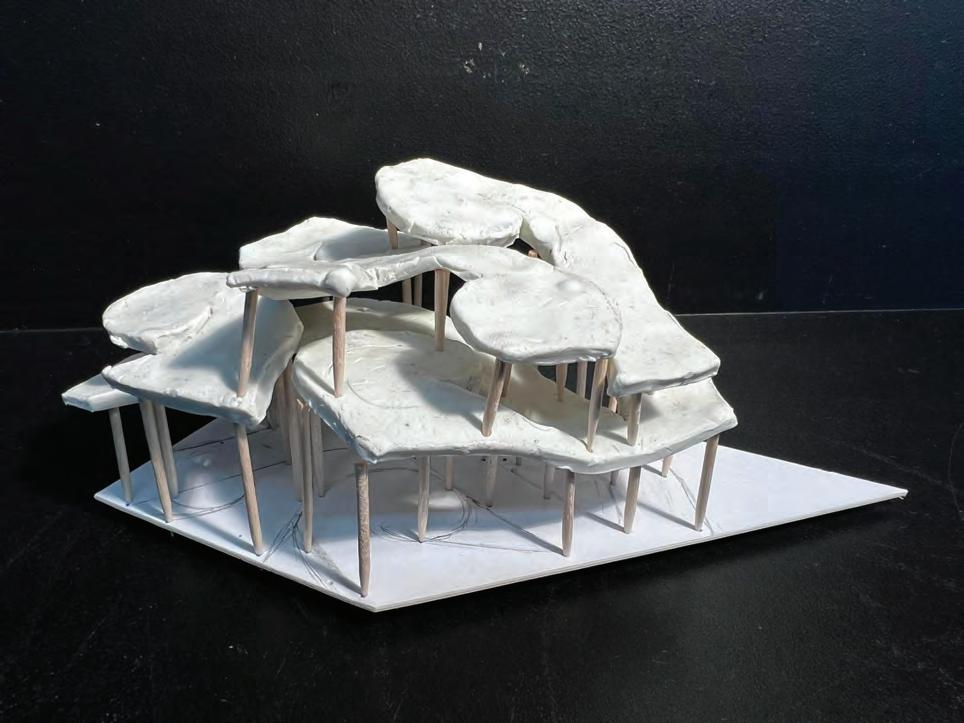

Pavillion Project - sem. 1 2022 1:200 MAQUETTE MODEL - BUILDING FORM MATERIALS: clay, toothpick, white cardboard 66

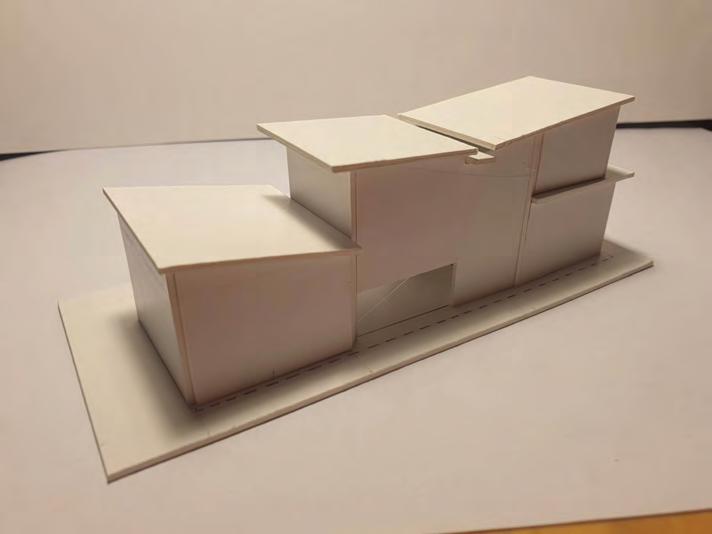

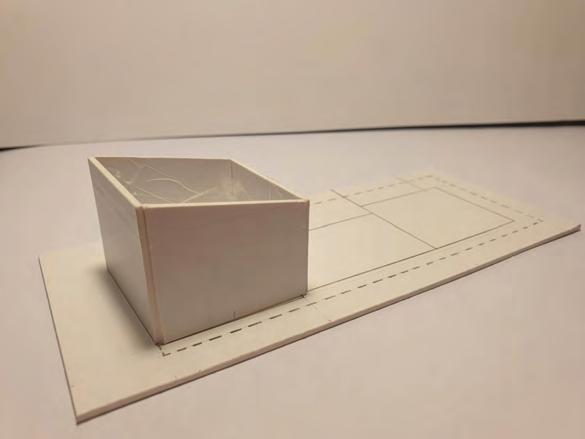

Townhouse Project - sem. 2 2021 1:200 MAQUETTE MODEL - BUILDING FORM MATERIALS: white cardboard 67
