Rectangular and Cylindrical Double Door Autoclave Manufacture in India

RECTANGULAR AND CYLINDRICAL DOUBLE

DOOR AUTOCLAVE MANUFACTURE IN INDIA

Labtronixed Inc is leading manufacturer of Double Door Autoclaves in India. Autoclaves in different sizes to meet diverse needs of our clients. An autoclave with two doors attached between two rooms. In these autoclaves, a worker on one side places the samples inside the chamber and starts the sterilization process. When the sterilization is finished, a buzzer sounds, and the worker on the other side opens the door and takes the sterilized samples out of the chamber. These sterilizers, often referred to as pass through autoclaves, are specifically employed in cleanroom environments and other settings where contamination applications are essential.

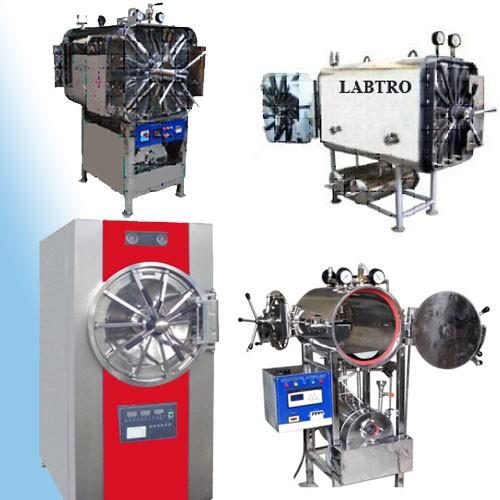

RECTANGULAR AND CYLINDRICAL DOUBLE DOOR

AUTOCLAVE MANUFACTURE IN INDIA

Our experience in creating pass-through autoclaves for contaminated laboratories is well-established. Labtronixed Inc™ Horizontal wall-mounted sterilizers with doors on both sides are called double door autoclaves. Depending on the needs, these autoclaves can be built in a cylindrical or rectangular shape. Additional features found in horizontal autoclaves include a printer, digital temperature controller, buzzer, and so forth. These are high-quality, reasonably priced, custom computers with exceptional performance. These units are the best alternative available in the present Indian market thanks to the availability of several options and fittings.

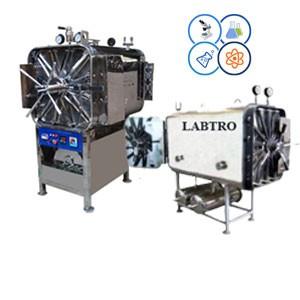

STANDARD DOUBLE DOOR

AUTOCLAVE

 A recessed jacket surrounding the chamber of the Triple Wall structure prevents steam condensation and distributes steam evenly.

 As per international requirements, the Chamber is composed of chemically resistant stainless steel 314 Grade. The argon welded chamber features two stainless steel guided rails for effortless trolley movement and a mirror-shine surface without any cleaning dead angles.

 The aluminosilicate 85 mm layers make the chamber insulated and avoid temperature loss from the chamber. This insulation layer is covered by a stainless steel sheet 304 / 316 grade to make the autoclave as per ISO quality certificate standard.

 A double door autoclave features two doors .which are interlock under pressure. The front door and the rear door.

 Doors have a radial locking system with a joint less heat-proof inflatable silicone gasket.

 The sterilization cycle will start when the Door is completely closed and locked.

CONTROL SYSTEM AUTOCLAVE

 PLC + HMI control micro-data printing for autoclave sterilization cycle provides stable and dependable regulating.

 The sterilization cycle status, running time, running temperature and pressure of the jacket and chamber, operation record, printing, high/low temperature alarm, door opening alarm, and other procedures are all displayed on the controller interface.

 An animated display, trouble-free operation, and data storage capacity characterize a passwordprotected HMI.

 We have the option of manual and automatic operation with the touchscreen control device.

 For record-keeping purposes, the printer prints a temperature and pressure graph in real time along with the temperature, time, and pressure values. The user records all of these graph papers on a daily basis in accordance with international criteria.

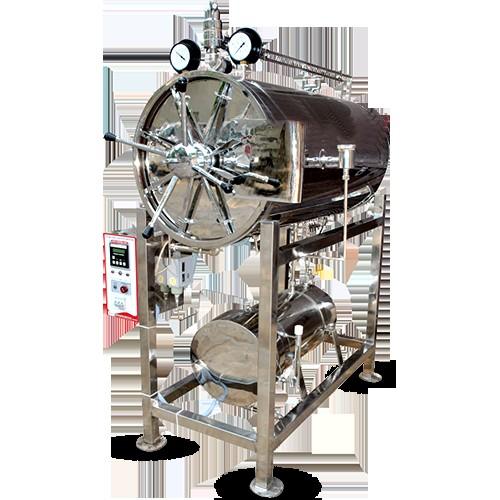

DOUBLE DOOR AUTOCLAVE

The emergency stop button on Labtronixed Inc. autoclaves is for user safety in an emergency. When the emergency button is pressed, the steam sterilizer will immediately cease moving physically and open all of its valves, releasing the steam from the chamber.

Please provide us the specs, information about your application, and the extras you would like to have in your double door autoclave if you're looking to purchase one for your lab. After speaking with you about your needs, our technical representative will create a cost-effective quote.

PLC / HMI (AUTOMATIC OPERATION OF THE PROGRAM

The Vertical Autoclave / horizontal autoclave is made in a way that eliminates the need for human intervention. There is no need for manual water replenishment because the water motor is integrated within the machine. There's no need to choose the program every day because, once the parameters are selected, it will pick off where it left off. Without requiring human labor, machinery may finish the entire cycle from injecting water to drying the samples. The doors are prepared to open when the cycle is finished, and an alert will buzz to discharge the steam from the chamber.

PLC / HMI (AUTOMATIC OPERATION OF THE PROGRAM

 7” Multi-color touch screen panel

 Touch Screen Panel

 Better User Experience

 Data Logging of Temperature and Time

 Real-Time Temperature and Pressure Graph

 Preset Programs

 USB Port

 Animation

 Real-Time Printing

 5” Multi-color screen with touch pad (for HSG)

 Keypad control panel on second door of two door autoclaves with Bacsoft controller

 Stores the last 200 cycles in built-in memory (Bacsoft)

 Multiple access levels and user passwords to control access/ operation of the autoclave

 Diagnostic In/Out test (enables technician to check each system component separately)

 Sterilization Temperature range 105°C to 138°C

AUTOCLAVE STANDARD ACCESSORIES

Accessories:

 Steam generator

 Rapid water re-cooling

 Digital temperature indicator

 PLC control system

 Digital chart recorder

 Cycle with pre-vacuum option

 Carriages, Trolleys, Trays & Baskets

 Steam trap

 Heavy-duty Lockable castor wheels

 Easy mobility

 User Friendly

 Vacuum drying pump

 Auto add water pump

 Low water protection device
