Agilent 3070

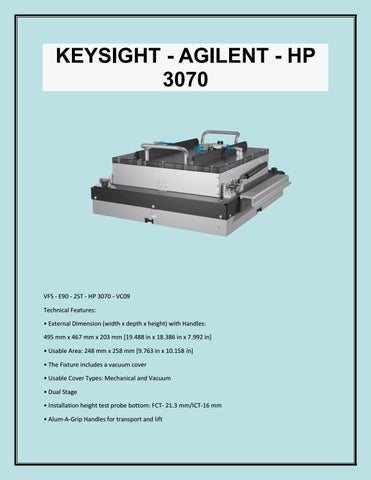

KEYSIGHT - AGILENT - HP 3070

VFS - E90 - 2ST - HP 3070 - VC09 Technical Features: • External Dimension (width x depth x height) with Handles: 495 mm x 467 mm x 203 mm [19.488 in x 18.386 in x 7.992 in] • Usable Area: 248 mm x 258 mm [9.763 in x 10.158 in] • The Fixture includes a vacuum cover • Usable Cover Types: Mechanical and Vacuum • Dual Stage • Installation height test probe bottom: FCT- 21.3 mm/ICT-16 mm • Alum-A-Grip Handles for transport and lift

KEYSIGHT - AGILENT - HP 3070 VFS - E90 - HP 3070

Technical Features: • External Dimension (width x depth x height) with Handles: 495 mm x 467 mm x 87 mm [19.488 in x 18.386 in x 3.425 in] • Usable Area (not DUT size): 320 mm x 400 mm [12.598 in x 15.748 in] • The Fixture doesn’t include a cover • Usable Cover Types: Mechanical and Vacuum • Installation height test probe bottom: 16 mm • Alum-A-Grip Handles for transport and lift

KEYSIGHT - AGILENT - HP 3070 DOUBLE - BANK

Technical Features: • External Dimension (width x depth x height) with Handles: 857 mm x 465 mm x 93 mm [33.740 in x 18.307 in x 3.661 in] • Usable Area (not DUT size): 680 mm x 400 mm [26.772 in x 15.748 in] • The Fixture doesn’t include a cover

Contact us: Address: H - 2220 Vecsés Vágóhíd u. 19,Hungary / Europe Phone: +36 1 533 3165 Email: info@equip-test.com
