Flextral Quick coupling Products

5th Edition

Quick Coupling Products

STANDARD SERIES couplings are the simplest and most commonly used. These poppet style couplers are specifically designed to satisfy a wide range of applications and conform to ISO 7241 A and B parts standards ensuring worldwide interchangeability. Sizes: 1/4” to 2”

FLAT FACE SERIES Designed to meet stringent performance requirements of the ISO 16028 specification. These non spill couplers eliminate hydraulic spillage and air inclusion when connecting and disconnecting. The mating halves are easily cleaned due to their flat surfaces, making them the ideal solution for limiting contamination. Popular in mobile construction, utility and anywhere where non spill performance is desired. Sizes: 1/8” to 1” SCREW SERIES couplings are suitable for all those heavy duty applications characterized by pressure and flow peaks and possibility of connection and disconnection under residual pressure. Threaded connection ensures a wider contact surface in the mating area with consequent higher resistance to pressure peaks, hoses bending and vibrations. Sizes: 1/4” to 1-1/2” BLOCK COUPLERS are designed for hydraulic quick change and are ideal for skid steer loaders, tractor backhoe loaders and utility vehicles.It allows changes from one attachment to another within seconds and provides for connection under pressure. The block valve offers greater flow capability than standard flat face couplers and provides for an overall reduced pressure drop. Sizes: 1/2” and 3/4”

DIAGNOSTIC COUPLERS have been purposely designed to make the maintenance of hydraulic systems and checking pressure within the circuit easier, quicker and more effective. Male couplings have to be assembled on the hydraulic line to be checked while the female parts have to be connected to the diagnostic and monitoring equipment. Conformity to ISO 15171-1 standards guarantees worldwide interchangeability. Sizes: 1/4” - 1/8” MULTIFASTER offers simultaneous connection of several lines and is an important feature extendable to various fields of application. The MULTIFASTER MULTICONNECTIONS allow a dramatic reduction of connection time, the absence of fluid spillage and air inclusion during connection and disconnection, even under pressure, without any risk of line misalignment.

PRESSURE WASH COUPLERS have been purposely designed for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steam washers, mold coolant lines and many other non-valved applications. Typical pressures realized are between 1,500 psi to 3,000 psi.

WATER BLAST COUPLERS are used in a wide variety of applications including refineries, petrochemical plants and paper and pulp mills for connecting hose lines for high pressure hydroblasting of boilers and pipe lines.

MOLDMATE STYLE COUPLERS are specifically designed for connecting coolant lines to molds and dies on injection molding machinery in the plastics and die casting industries. These couplings significantly reduce machine downtime by providing fast and easy connection of coolant lines during mold changes. Their short nipples can be recessed below the surface of the mold for more efficient storage of molds. Moldmate couplers are available with or without valves in the female half. Non-valved couplers provide maximum flow for efficient cooling. Valved couplers shut off when disconnected.

GENERAL PURPOSE AIR COUPLERS are primarily used for pneumatic applications, connecting air tools, hoses, or other implements to compressed air supplies. The coupler half contains a shut-off valve that is automatically opened when a mating nipple is inserted and automatically closes when the nipple is removed. Single Shut-Off couplings come in three basic designs: general purpose/manual connect, general purpose/push-to-connect, and special purpose.

INDEX HYDRAULIC QUICK COUPLERS

SERIES

PAGES

(Double Shut-Off) Nomenclature - Part Number Breakdown

1

Standard Series………….Poppet/Ball Style Industrial Interchange - ISO 7241 B- Sizes 1/4" - 2"

QB

2-3

ISO 7241 A - Sizes 1/4" - 2"

QA

4-5

Ag Interchange - Sizes 1/4" - 1"

QG

6-7

Ag Interchange w/ Double Acting Sleeve - Size 1/2"

QGP

8

H Series Interchange - Sizes 1/4" - 2"

QH

9 - 10

Tema Interchange 3/8” - 1”

QTE

11 - 12

Wing Nut Coupler - Sizes 3/4" - 1-1/2"

QWN

13 - 14

Hydraulic Jack Interchange - Sizes 1/4" - 3/8"

QJ

15 - 16

Threaded Poppet Valve - Sizes 1/4" - 1"

QV

17 - 18

Heavy Duty - Threaded Poppet Valve - Sizes 1/4" - 2"

QVS

19 - 20

75 Series Interchange - Sizes 3/4" - 2"

Q75

21 - 22

ISO 16028 Standard - Sizes 1/4" - 1"

QFF

23 - 24

ISO 16028 Standard - Connect Under Pressure - Sizes 3/8" - 3/4"

QFZ

25 - 26

Connect Under Pressure Threaded Flat Face - Sizes 1/4" - 2"

QVEP

27 - 28

QTP

29

QST

30 - 31

QWB

32

QBD

33 - 34

Screw On Series………...Thread to Connect

Flat Face Series…………..Dry Break Coupler

Diagnostics…………………Test Port Coupler ISO 15171-1 Interchange - Size 1/8" Straight Thru……………….Non Valved Pressure Wash Interchange - Size 1/8” - 2” Water Blast………………....Non Valved Water Blast Interchange - Size 1/2” Hydraulic Block Coupler…Skid Steer Application ISO 16028 Standard - Connect Under Pressure - Sizes 1/2" - 3/4" Multifaster…………………..Simultaneous Connection up to 12 Lines Multifaster

35 - 43

Mold Coolant Line…………………..Connecting Fluid Lines on Molds & Dies Mold Coolant Interchange - Size 1/4” - 1/2”

QMM

44 - 48

Industrial Interchange - Sizes 1/4” - 3/4”

QD

49

Swing - Industrial Interchange 1/4” - 1/2”

SD

50

Automotive Interchange - Sizes 1/4” - 1/2”

QJ

51

Aro Interchange - Sizes 1/4” - 3/8”

QM

52

Long Lincoln Interchange - Sizes 1/4” - 3/4”

QL

53

General Purpose Air Coupler

PART NUMBER BREAKDOWN - HYDRAULIC/PNEUMATIC

Q

B

C

8

Product Series B ISO B A ISO A G Ag Style GP Ag Style - Push/Pull H SnapTite H Interchange WN Wingnut J Enerpac Style V Threaded Poppet VS HD Threaded Poppet 75 SnapTite 75 Interchange FF Flat Face - ISO 16028 VEP Flat Face - Threaded TE Tema Interchange TP Diagnostic ST Straight Thru MM Moldmate Interchange WB Water Blast BD Block Valve 2P Multifaster - Standard 3P Multifaster - Connect Under Pressure

Q Quick Coupler

8

FP

Thread Size 2 4 6 8 10 12 16 20 24 32

1/8” 1/4” 3/8” 1/2” 5/8” 3/4” 1” 1-1/4” 1-1/2” 2”

S3 Material

Steel Brass 303Stainless 316Stainless

End Connection MP Male NPT FP Female NPT FBSPP Female BSPP MOB Male SAE FOB Female SAE MF Male ORFS FF Female ORFS MJ Male JIC MJB Male JIC Bulkhead MFB Male ORFS Bulkhead HB Hose Barb PL Push Loc Barb

C Couplers N Nipple Body Size 2 4 6 8 10 12 16 20 24 32

1/8” 1/4” 3/8” 1/2” 5/8” 3/4” 1” 1-1/4” 1-1/2” 2”

-BR S3 S6

QB SERIES - ISO B INTERCHANGEABILITY * Conforms to ISO 7241 Series B * Parker 60 Series, Snap-Tite 72 Series, Aeroquip FD45 Series, Stucchi IRB/RBO/RBX Series APPLICATIONS * Connecting hydraulic tools to equipment/machines * Connecting components in chemical plant * Fluid transfer lines - connect/disconnect for operation or maintenance of equipment FEATURES * Connection under pressure not allowed. * Increased number of latching balls to prevent brinelling * High grade carbon steel with heat treated wear parts * Nitrile seals/ PTFE back up rings

PERFORMANCE SPECIFICATIONS- QB SERIES ISO B INTERCHANGE (CONNECTED)

BODY

STEEL

BRASS

STAINLESS

Size (Inches)

Max Working (PSI)

Max Working (PSI)

Max Working (PSI)

1/8

5,075

3,000

3,500

1/4

4,350

3,000

3,500

3/8

3,625

2,500

3,500

1/2

3,625

2,500

3,500

3/4

3,335

2,000

3,000

1

3,335

1,500

2,000

1-1/4

2,500

1,000

2,000

1-1/2

2,500

1,000

1,500

2

1,500

700

1,000

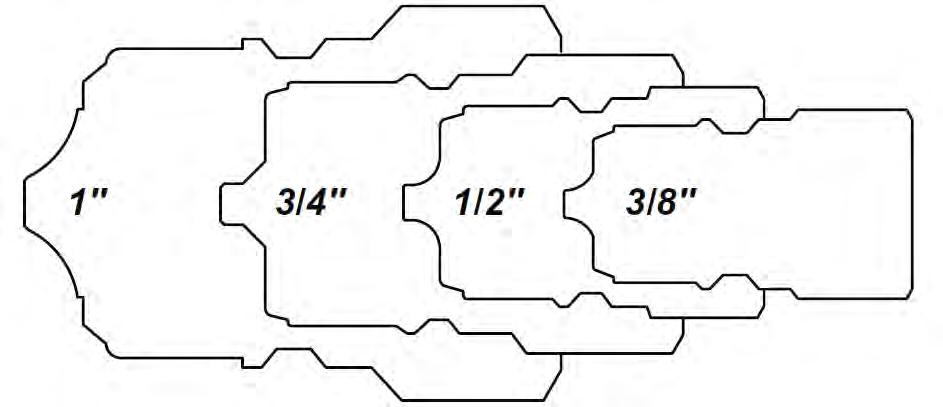

QB SERIES - ISO B PROFILE

w w w. f l e x t r a l . c o m

2

QB SERIES - ISO B

COUPLER - FEMALE ORB

COUPLER - FEMALE NPT BODY

STEEL

BRASS

STAINLESS

THREAD

BODY

STEEL

THREAD

1/8"

QBC22FP

QBC22FP-BR

QBC22FP-S*

1/8" NPTF

1/4"

QBC46FOB

9/16"-18 ORB

1/4"

QBC44FP

QBC44FP-BR

QBC44FP-S*

1/4" NPTF

3/8"

QBC66FOB

9/16”-18 ORB

3/8"

QBC66FP

QBC66FP-BR

QBC66FP-S*

3/8" NPTF

1/2"

QBC810FOB

7/8"-14 ORB

1/2"

QBC88FP

QBC88FP-BR

QBC88FP-S*

1/2" NPTF

3/4"

QBC1212FOB

1-1/16"-12 ORB

3/4"

QBC1212FP

QBC1212FP-BR

QBC1212FP-S*

3/4" NPTF

1"

QBC1616FOB

1-5/16"-12 ORB

1"

QBC1616FP

QBC1616FP-BR

QBC1616FP-S*

1" NPTF

1-1/4"

QBC2020FP

QBC2020FP-BR

QBC2020FP-S*

1-1/4" NPTF

1-1/2"

QBC2424FP

QBC2424FP-BR

QBC2424FP-S*

1-1/2" NPTF

2"

QBC3232FP

QBC3232FP-BR

QBC3232FP-S*

2" NPTF

NIPPLE - FEMALE ORB

NIPPLE - FEMALE NPT BODY

STEEL

BRASS

STAINLESS

THREAD

BODY

STEEL

THREAD

1/8"

QBN22FP

QBN22FP-BR

QBN22FP-S*

1/8" NPTF

1/8"

QBN24FOB

7/16”-20 ORB

1/4"

QBN44FP

QBN44FP-BR

QBN44FP-S*

1/4" NPTF

1/4"

QBN46FOB

9/16”-18 ORB

3/8"

QBN66FP

QBN66FP-BR

QBN66FP-S*

3/8" NPTF

3/8"

QBN66FOB

9/16”-18 ORB

1/2"

QBN88FP

QBN88FP-BR

QBN88FP-S*

1/2" NPTF

1/2"

QBN810FOB

7/8"-14 ORB

3/4"

QBN1212FP

QBN1212FP-BR

QBN1212FP-S*

3/4" NPTF

3/4"

QBN1212FOB

1-1/16"-12 ORB

1"

QBN1616FP

QBN1616FP-BR

QBN1616FP-S*

1" NPTF

1"

QBN1616FOB

1-5/16"-12 ORB

1-1/4"

QBN2020FP

QBN2020FP-BR

QBN2020FP-S*

1-1/4" NPTF

1-1/2"

QBN2424FOB

1-7/8"-12 ORB

1-1/2"

QBN2424FP

QBN2424FP-BR

QBN2424FP-S*

1-1/2" NPTF

2”

QBN3232FP

QBN3232FP-BR

QBN3232FP-S*

2" NPTF

DUST PLUG FOR COUPLER

3

DUST CAP FOR NIPPLE

SIZE

RUBBER

SIZE

RUBBER

1/8"

QB2DP

1/8"

QB2DC

1/4"

QB4DP

1/4"

QB4DC

3/8"

QB6DP

3/8"

QB6DC

1/2"

QB8DP

1/2"

QB8DC

3/4"

QB12DP

3/4"

QB12DC

1"

QB16DP

1"

QB16DC

1-1/4"

QB20DP

1-1/4"

QB20DC

1-1/2"

NA

1-1/2"

NA

2-1/2"

NA

2-1/2"

NA

w w w. f l e x t r a l . c o m

QA SERIES - ISO A INTERCHANGEABILITY * Conforms to ISO 7241 Series A * Parker 6600 Series, Snap-Tite 61 Series, Aeroquip FD 56 Series, Safeway S56 Series, Stucchi BIR Series APPLICATIONS * Mobile applications * Agricultural machinery * Fluid transfer lines - connect/disconnect for operation or maintenance of equipment FEATURES * Worldwide interchangeability. * Increased number of latching balls to prevent brinelling * High grade carbon steel with heat treated wear parts * Nitrile seals/ PTFE back up rings MATERIALS Steel - Temp. Range (-40°F to +250°F) (-40°C to +121°C) PERFORMANCE SPECIFICATIONS- QA SERIES ISO A INTERCHANGE (CONNECTED)

BODY

STEEL

Size (Inches) 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2

Max Working (PSI) 5,075 4,350 4,000 4,000 3,300 3,300 2,800 1,900

QA SERIES - ISO A PROFILE

w w w. f l e x t r a l . c o m

4

QA SERIES - ISO A

COUPLER FEMALE NPT

COUPLER FEMALE ORB

COUPLER FEMALE BSPP

BODY

STEEL

THREAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4"

QAC44FP

1/4" NPTF

1/4"

QAC44FOB

7/16"-20 ORB

1/4"

QAC44FBSPP

1/4" BSPP

3/8"

QAC66FP

3/8" NPTF

3/8"

QAC66FOB

9/16"-18 ORB

3/8"

QAC66FBSPP

3/8" BSPP

1/2"

QAC88FP

1/2" NPTF

1/2"

QAC88FOB

3/4"-16 ORB

1/2"

QAC88FBSPP

1/2" BSPP

3/4"

QAC1212FP

3/4" NPTF

3/4"

QAC1212FOB

1-1/16"-12 ORB

3/4"

QAC1212FBSPP

3/4" BSPP

1"

QAC1616FP

1" NPTF

1"

QAC1616FOB

1-5/16"-12 ORB

1"

QAC1616FBSPP

1" BSPP

1-1/4"

QAC2020FP

1-1/4" NPTF

1-1/2"

QAC2424FP

1-1/2" NPTF

2"

QAC3232FP

2" NPTF

NIPPLE FEMALE NPT

NIPPLE FEMALE ORB

NIPPLE FEMALE BSPP

BODY

STEEL

THREAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4"

QAN44FP

1/4" NPTF

1/4"

QAN44FOB

7/16"-20 ORB

1/4"

QAN44FBSPP

1/4"BSPP

3/8"

QAN66FP

3/8" NPTF

3/8"

QAN66FOB

9/16”-18 ORB

3/8"

QAN66FBSPP

3/8" BSPP

1/2"

QAN88FP

1/2" NPTF

1/2"

QAN88FOB

3/4"-16 ORB

1/2"

QAN88FBSPP

1/2" BSPP

QAN1212FOB

1-1/16"-12 ORB

3/4"

QAN1212FBSPP

3/4" BSPP

QAN1616FOB

1-5/16"-12 ORB

1"

QAN1616FBSPP

1" BSPP

3/4"

QAN1212FP

3/4" NPTF

3/4"

1"

QAN1616FP

1" NPTF

1"

1-1/4"

QAN2020FP

1-1/4" NPTF

1-1/2"

QAN2424FP

1-1/2" NPTF

2"

QAN3232FP

2" NPTF

DUST PLUG FOR COUPLER

5

DUST CAP FOR PLUG

SIZE

RUBBER

SIZE

RUBBER

1/4"

QA4DP

1/4"

QA4DC

3/8"

QA6DP

3/8"

QA6DC

1/2"

QA8DP

1/2"

QA8DC

3/4"

QA12DP

3/4"

QA12DC

1"

QA16DP

1"

QA16DC

1-1/4"

QA20DP

1-1/4"

QA20DC

1-1/2"

QA24DP

1-1/2"

QA24DC

2"

QA32DP

2"

QA32DC

w w w. f l e x t r a l . c o m

QG SERIES - AG INTERCHANGE

INTERCHANGEABILITY * Parker 4000 Series, Snap-Tite 60 Series, Aeroquip FD 56 Series, Safeway S20 Series, Stucchi IR Series * Conforms to ISO 7241-1 Part A Specs - size 1/2” only APPLICATIONS * Agricultural Machinery - Connecting attachments * Construction and forestry equipment * Fluid transfer lines - connect/disconnect for operation or maintenance of equipment FEATURES * Worldwide interchangeability * Increased number of latching balls to prevent brinelling * High grade carbon steel with heat treated wear parts * Nitrile Seals/ PTFE back up rings PERFORMANCE SPECIFICATIONS - QG SERIES - PIONEER 4000 INTERCHANGE (CONNECTED)

BODY

STEEL - QG SERIES (POPPET)

STEEL - QG SERIES (BALL)

Size (Inches) 1/4 3/8 1/2 3/4 1

Max Working (PSI) 4,000 4,000 4,000 3,000 3,000

Max Working (PSI) 4,000 4,000 4,000 3,000 3,000

QG SERIES - PROFILE

w w w. f l e x t r a l . c o m

6

QG SERIES - AG INTERCHANGE

COUPLER - FEMALE NPT - POPPET

COUPLER - FEMALE NPT - BALL

BODY

THREAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

QGC44FP-B

1/4" NPT

1/4"

QGC46FOB-P

9/16”-18 ORB

STEEL

1/4"

QGC44FP-P

1/4" NPTF

1/4”

3/8"

QGC66FP-P

3/8" NPTF

3/8”

QGC66FP-B

3/8” NPT

3/8"

QGC66FOB-P

9/16”-18 ORB

1/2"

QAC88FP

1/2" NPTF

1/2”

QGC88FP-B

1/2” NPT

1/2"

QAC88FOB

3/4"-16 ORB

3/4"

QGC1212FP-P

3/4" NPTF

3/4”

QGC1212FP-B

3/4” NPT

1/2"

QAC810FOB-P

7/8"-14 ORB

1"

QGC1616FP-P

1" NPTF

1”

QGC1616FP-B

1” NPT

NIPPLE - FEMALE NPT - POPPET BODY

7

COUPLER - FEMALE ORB - POPPET

STEEL

NIPPLE - FEMALE NPT - BALL

NIPPLE - FEMALE ORB - POPPET

THREAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

QGN44FP-B

1/4"NPT

1/4"

QGN46FOB-P

9/16”-18 ORB

1/4"

QGN44FP-P

1/4" NPTF

1/4"

3/8"

QGN66FP-P

3/8" NPTF

3/8"

QGN66FP-B

3/8" NPT

3/8"

QAN66FOB-P

9/16”-18 ORB

1/2"

QAN88FP

1/2" NPTF

1/2"

QGN88FP-B

1/2" NPT

1/2"

QAN88FOB

3/4"-16 ORB

3/4"

QGN1212FP-P

3/4" NPTF

3/4"

QGN1212FP-B

3/4" NPT

1/2"

QAN810FOB

7/8"-14 ORB

1"

QGN1616FP-P

1" NPTF

1"

QGN1616FP-B

1" NPT

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

RUBBER

SIZE

RUBBER

1/4"

QG4DP

1/4"

QG4DC

3/8"

QG6DP

3/8"

QG6DC

1/2"

QA8DP

1/2"

QA8DC

3/4"

QG12DP

3/4"

QG12DC

1"

QG16DP

1"

QG16DC

w w w. f l e x t r a l . c o m

QGP SERIES - AG STYLE - PUSH PULL

INTERCHANGEABILITY * Conforms to ISO 7241-1 Part A Specifications, Parker 4200 Series, Aeroquip FD 71 Series, Safeway S40 Series, Stucchi IRS Series APPLICATIONS * Popular in agricultural machinery for connecting attachments * Mobile equipment FEATURES * Double acting sleeve for one handed push to connect operation when coupler is clamp or bulkhead mounted * Increased number of latching balls to prevent brinelling * High grade carbon steel with heat treated wear parts * Nitrile seals/ PTFE back up rings MATERIAL Steel - Temp. Range (-13°F to +257°F) (-25°C to +125°C)

COUPLER - FEMALE - POPPET

COUPLER - FEMALE - BALL

BODY

RUBBER

THREAD

BODY

RUBBER

THREAD

1/2"

QGPC88FP-P

1/2" NPTF

1/2"

QGPC88FP-B

1/2" NPT

1/2"

QGPC88FBSPP-P

1/2” BSPP

*NIPPLE- POPPET/ BALL- SEE PAGE 7

w w w. f l e x t r a l . c o m

8

QH SERIES - H SERIES INTERCHANGE INTERCHANGEABILITY * Snap-Tite H Series * Conforms to MIL-C-51234 APPLICATIONS * General Industry * Fluid transfer lines - connect/disconnect for operation or maintenance of equipment * Construction FEATURES * High grade carbon steel with heat treated wear parts * Tubular valve designed for increased flow * Nitrile seals/ PTFE back up rings * Available in brass and 316 stainless steel upon request MATERIAL Steel - Temp. Range (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS - QH SERIES SNAPTITE H SERIES INTERCHANGE (CONNECTED)

9

BODY

STEEL

Size (Inches) 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2

Max Working (PSI) 4,200 4,500 4,000 3,500 2,000 1,750 1,500 1,500

w w w. f l e x t r a l . c o m

QH SERIES - H SERIES INTERCHANGE COUPLER - FEMALE NPT

NIPPLE - FEMALE NPT

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4"

QHC42FP

1/8" NPTF

1/4"

QHN42FP

1/8" NPTF

1/4"

QHC44FP

1/4" NPTF

1/4"

QHN44FP

1/4" NPTF

3/8"

QHC66FP

3/8" NPTF

3/8"

QHN66FP

3/8" NPTF

1/2"

QHC88FP

1/2" NPTF

1/2"

QHN88FP

1/2" NPTF

3/4" NPTF

3/4"

QHN1212FP

3/4" NPTF

3/4"

QHC1212FP

1"

QHC1616FP

1" NPTF

1"

QHN1616FP

1" NPTF

1-1/4"

QHC2020FP

1-1/4" NPTF

1-1/4"

QHN2020FP

1-1/4" NPTF

1-1/2"

QHC2424FP

1-1/2" NPTF

1-1/2"

QHN2424FP

1-1/2" NPTF

2"

QHC3232FP

2" NPTF

2"

QHN3232FP

2" NPTF

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

RUBBER

SIZE

RUBBER

1/4"

QH4DP

1/4"

QH4DC

3/8"

QH6DP

3/8"

QH6DC

1/2"

QH8DP

1/2"

QH8DC

3/4"

QH12DP

3/4"

QH12DC

1"

QH16DP

1"

QH16DC QH20DC

QH20DP

1-1/4"

1-1/2"

QH24DP

1-1/2"

QH24DC

2"

QH32DP

2"

QH32DC

1-1/4"

QH SERIES - PROFILE

w w w. f l e x t r a l . c o m

10

QTE SERIES - TEMA EUROPEAN INTERCHANGE INTERCHANGEABILITY * Tema 3800, 5000, 7500, 10000 Series

APPLICATIONS * Connecting hydraulic tools to equipment/machines

FEATURES * Connection under pressure not allowed * Increased number of latching balls to prevent brinelling * High grade carbon steel with heat treated wear parts * Nitrile seals/ PTFE back up rings

MATERIALS Steel - Temp. Range (-40°F to +250°F) (-40°C to +121°C)

BODY

STEEL

Size (Inches) 3/8 1/2 3/4 1

Max Working (PSI) 5,000 4,000 4,000 3,200

QTE SERIES - PROFILE

11

w w w. f l e x t r a l . c o m

QTE SERIES - TEMA EUROPEAN INTERCHANGE

COUPLER - FEMALE NPT

COUPLER - FEMALE BSPP

BODY

BRASS

THREAD

BODY

BRASS

3/8”

QTEC66FP

3/8” NPTF

3/8”

QTEC66FBSPP

3/8” BSPP

1/2”

QTEC88FP

1/2” NPTF

1/2”

QTEC88FBSPP

1/2” BSPP

3/4”

QTEC1212FP

3/4” NPTF

3/4”

QTEC1212FBSPP

3/4” BSPP

1”

QTEC1616FP

1” NPTF

1”

QTEC1616FBSPP

1” BSPP

NIPPLE - FEMALE NPT

THREAD

NIPPLE - FEMALE BSPP

BRASS

THREAD

BODY

BRASS

THREAD

3/8”

QTEN66FP

3/8” NPTF

3/8”

QTEN66FBSPP

3/8” BSPP

1/2”

QTEN88FP

1/2” NPTF

1/2”

QTEN88FBSPP

1/2” BSPP

3/4”

QTEN1212FP

3/4” NPTF

3/4”

QTEN1212FBSPP

3/4” BSPP

1”

QTEN1616FP

1” NPTF

1”

QTEN1616FBSPP

1” BSPP

BODY

w w w. f l e x t r a l . c o m

12

QWN SERIES - WING NUT COUPLER

INTERCHANGEABILITY * Parker 6100 Series, Snap-Tite 78 Series, Aeroquip 5100 Series, Safeway S51 Series, Stucchi VV Series APPLICATIONS * Dump trailers - connecting trailer to wet line hydraulic systems * Oilfield equipment - connecting power tongs and mobile drilling rigs FEATURES * Flat face valves to eliminate oil spillage during connection/disconnection * Stainless Steel retaining rings and springs maximize corrosion resistance * Rugged Steel cast wing nut for threaded connect and disconnect operation MATERIAL Steel - Temp. Range (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS- QWN SERIES WING NUT (CONNECTED)

13

BODY

STEEL

Size (Inches) 3/4 1 1-1/4 1-1/2

Max Working (PSI) 3,000 3,000 2,750 2,500

w w w. f l e x t r a l . c o m

QWN SERIES - WING NUT COUPLER

COUPLER - FEMALE NPT

NIPPLE - FEMALE NPT

BODY

BRASS

THREAD

BODY

3/4"

QWNC128FP

1/2" NPTF

3/4"

QWNC1212FP

3/4" NPTF

1"

QWNC1616FP

1" NPTF

1"

QWNN1616FP

1" NPTF

1-1/4"

QWNC2020FP

1-1/4" NPTF

1-1/4"

QWNN2020FP

1-1/4" NPTF

1-1/2"

QWNC2424FP

1-1/2" NPTF

1-1/2"

QWNN2424FP

1-1/2" NPTF

NIPPLE MOUNTING FLANGE

BRASS

THREAD

3/4"

QWNN128FP

1/2" NPTF

3/4"

QWNN1212FP

3/4" NPTF

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

STEEL

SIZE

STEEL

SIZE

STEEL

3/4"

QWN128MF

3/4"

QWN12DP

3/4"

QWN12DC

1"

QWN1616MF

1"

QWN16DP

1"

QWN16DC

1-1/4"

QWN2020MF

1-1/4"

QWN20DP

1-1/4"

QWN20DC

1-1/2"

QWN2424MF

1-1/2"

QWN24DP

1-1/2"

QWN24DC

w w w. f l e x t r a l . c o m

14

QJ SERIES - HYDRAULIC JACK COUPLER

INTERCHANGEABILITY * Enerpac A & C Series, Parker 3000 Series, Snap-Tite 76 Series, Aeroquip FD 31 Series, Safeway S30 Series, Stucchi IVHP Series APPLICATIONS * Connecting power source to portable hydraulic rams * Designed for extreme high pressure applications * High pressure test stands FEATURES * High pressure screw together interchange. * Chrome steel ball is mechanically seated to improve low pressure sealing.

TEMP. RANG (-40°F to +180°F) (-40°C to +82°C)

PERFORMANCE SPECIFICATIONS- QJ SERIES HYD JACK (CONNECTED)

BODY Size (Inches) 1/4 3/8

15

STEEL BALL COUPLER Max Working (PSI) 10,000 10,000

STEEL POPPET COUPLER Max Working (PSI) 10,000 10,000

w w w. f l e x t r a l . c o m

QJ SERIES - HYDRAULIC JACK COUPLER

COUPLER - POPPET (MALE NPT)

COUPLER - BALL (MALE NPT)

COUPLER - BALL (FEMALE NPT)

BODY

STEEL

THREAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4"

QJC44MP-P

1/4" NPTF - MALE

1/4"

QJC44MP-B

1/4" NPTF - MALE

1/4"

QJC66FP-B

1/4" NPTF - FEMALE

3/8"

QJC66MP-P

3/8" NPTF - MALE

3/8"

QJC66MP-B

3/8" NPTF - MALE

3/8"

QJC66FP-B

3/8" NPTF - FEMALE

NIPPLE - BALL (FEMALE NPT)

NIPPLE - POPPET (MALE NPT)

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4"

QJN44FP-B

1/4" NPTF - FEMALE

3/8"

QJN66FP-P

3/8" NPTF - MALE

3/8"

QJN66FP-B

3/8" NPTF - FEMALE

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

RUBBER

SIZE

RUBBER

1/4"

QJ4DP

1/4"

QJ4DC

3/8"

QJ6DP

3/8"

QJ6DC

w w w. f l e x t r a l . c o m

16

QV SERIES - SCREW TO CONNECT INTERCHANGEABILITY * FASTER VV Series APPLICATIONS * Snow plow * Construction * Agricultural FEATURES * Connect under residual pressure * Double function sleeve (coupler) to accept screw and ball bearing latching * Popular in high impulse applications TEMP. RANG (-13°F to +257°F) (-25°C to +125°C)

PERFORMANCE SPECIFICATIONS - QV SERIES SCREW TO CONNECT (CONNECTED)

BODY Size (Inches) 1/4 3/8 1/2 3/4 1

17

w w w. f l e x t r a l . c o m

STEEL BALL COUPLER Max Working (PSI) 5,075 4,350 4,350 3,625 3,325

QV SERIES - SCREW TO CONNECT

COUPLER - FEMALE NPT BODY

BRASS

THREAD

1/4"

QVC44FP

3/8"

QVC66FP

1/2" 3/4" 1"

QVC1616FP

NIPPLE - FEMALE NPT BODY

BRASS

THREAD

1/4" NPTF

1/4"

QVN44FP

1/4" NPTF

3/8" NPTF

3/8"

QVN66FP

3/8" NPTF

QVC88FP

1/2" NPTF

1/2"

QVN88FP

1/2" NPTF

QVC1212FP

3/4" NPTF

3/4"

QVN1212FP

3/4" NPTF

1" NPTF

1"

QVN1616FP

1" NPTF

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

STEEL

SIZE

STEEL

1/4"

QV4DP

1/4"

QV4DC

3/8"

QV6DP

3/8"

QV6DC

1/2"

QV8DP

1/2"

QV8DC

3/4"

QV12DP

3/4"

QV12DC

1"

QV16DP

1"

QV16DC

w w w. f l e x t r a l . c o m

18

QVS SERIES - HEAVY DUTY SCREW TO CONNECT INTERCHANGEABILITY * FASTER VVS Series APPLICATIONS * Oil & gas * Construction * General industrial * Earth moving FEATURES * Connect under residual pressure * Designed to handle high pressures and peaks. * Interchangeable with HV series * Available in 316 Stainless Steel upon request.

TEMP. RANG (-13°F to +257°F) (-25°C to +125°C)

PERFORMANCE SPECIFICATIONS- QVS SERIES SCREW TO CONNECT- HEAVY DUTY (CONNECTED)

19

BODY

STEEL

Size (Inches) 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2

Max Working (PSI) 11,600 11,600 10,600 10,600 9,150 8,700 5,800 5,000

w w w. f l e x t r a l . c o m

QVS SERIES - HEAVY DUTY SCREW TO CONNECT

COUPLER - FEMAL NPT

NIPPLE - FEMALE NPT

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4"

QVSC44FP

1/4" NPTF

1/4"

QVSN44FP

1/4" NPTF

3/8"

QVSC66FP

3/8" NPTF

3/8"

QVSN66FP

3/8" NPTF

1/2"

QVSC88FP

1/2" NPTF

1/2"

QVSN88FP

1/2" NPTF

3/4"

QVSC1212FP

3/4" NPTF

3/4"

QVSN1212FP

3/4" NPTF

1"

QVSC1616FP

1" NPTF

1"

QVSN1616FP

1" NPTF

1-1/4"

QVSC2020FP

1-1/4" NPTF

1-1/4"

QVSN2020FP

1-1/4" NPTF

1-1/2"

QVSC2424FP

1-1/2" NPTF

1-1/2"

QVSN2424FP

1-1/2" NPTF

2"

QVSC3232FP

2" NPTF

2"

QVSN3232FP

2" NPTF

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

STEEL

SIZE

STEEL

1/4"

QV4DP-S

1/4"

QV4DC-S

3/8"

QV6DP-S

3/8"

QV6DC-S

1/2"

QV8DP-S

1/2"

QV8DC-S

3/4"

QV12DP-S

3/4"

QV12DC-S

1"

QV16DP-S

1"

QV16DC-S

1-1/4"

QV20DP-S

1-1/4"

QV20DC-S

1-1/2"

QV24DP-S

1-1/2"

QV24DC-S

2"

QV32DP-S

2"

QV32DC-S

w w w. f l e x t r a l . c o m

20

Q75 SERIES - HIGH PRESSURE WING STYLE INTERCHANGEABILITY * Snap-Tite 75 Series, Hydraulic Inc. 5TV Series, Dixon WS Series APPLICATIONS * Oil & gas drilling * Mining * Mobile equipment * Pile driving equipment FEATURES * Connect under pressure capabilities * Designed for high flow and low pressure drop * Rugged high strength steel shell-cast wing nut for threaded connect and disconnect operation * Blow-out Prevention (BOP) couplings contain fire service grade Viton seals - coupling has been fire tested and Lloyd’s certified to 700 degrees C (1300 degrees F) in accordance with API 16D (Certificate #NAO 0601041/1) TEMP. RANG (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS- Q75 SERIES HIGH PRESSURE WING STYLE (CONNECTED)

21

BODY

STEEL - Q75 SERIES

316 STAINLESS Q75 SERIES

Size (Inches) 3/4 1 1-1/4 1-1/2 2

Max Working (PSI) 5,000 5,000 5,000 5,000 5,000

Max Working (PSI) 3,000 3,000 3,000 3,000 3,000

w w w. f l e x t r a l . c o m

Q75 SERIES - HIGH PRESSURE WING STYLE COUPLER - BLOWOUT PREVENTION SAFETY FEMALE NPT

COUPLER FEMALE NPT BODY

STEEL

THREAD

3/4”

Q75C1212FP

3/4" NPTF

BODY

STEEL

THREAD

1”

Q75C1616FP

1" NPTF

3/4”

Q75C1212FP-BOP

3/4" NPTF

1-1/4”

Q75C2020FP

1-1/4" NPTF

1”

Q75C1616FP-BOP

1" NPTF

1-1/2”

Q75C2424FP

1-1/2" NPTF

1-1/4”

Q75C2020FP-BOP

1-1/4" NPTF

2”

Q75C3232FP

2" NPTF

1-1/2”

Q75C2424FP-BOP

1-1/2" NPTF

2”

Q75C3232FP-BOP

2" NPTF

NIPPLE - BLOWOUT PREVENTION SAFETY COUPLER - FEMALE NPT

NIPPLE FEMALE NPT BODY

STEEL

THREAD

3/4”

Q75N1212FP

3/4" NPTF

BODY

STEEL

THREAD

1”

Q75N1616FP

1" NPTF

3/4”

Q75N1212FP-BOP

3/4" NPTF

1-1/4”

Q75N2020FP

1-1/4" NPTF

1”

Q75N1616FP-BOP

1" NPTF

1-1/2”

Q75N2424FP

1-1/2" NPTF

1-1/4”

Q75N2020FP-BOP

1-1/4" NPTF

2”

Q75N3232FP

2" NPTF

1-1/2”

Q75N2424FP-BOP

1-1/2" NPTF

2”

Q75N3232FP-BOP

2" NPTF

DUST CAP FOR PLUG

DUST PLUG FOR COUPLER

SIZE

ALUMINUM

SIZE

ALUMINUM

3/4"

Q7512DCAL

3/4"

Q7512DPAL

1"

Q7516DCAL

1"

Q7516DPAL

1-1/4"

Q7520DCAL

1-1/4"

Q7520DPAL

1-1/2"

Q7524DCAL

1-1/2"

Q7524DPAL

2"

Q7532DCAL

2"

Q7532DPAL

w w w. f l e x t r a l . c o m

22

QFF SERIES - FLAT FACE INTERCHANGEABILITY * Interchangeable to ISO 16028 interface, Parker FEM Series, Hansen FF Series, Snap-Tite 74 Series, Aeroquip FD89, Stucchi FIRG & A Series, Safeway FF49 Series APPLICATIONS * Construction * Skid steer equipment * Public utility- Lift trucks * Municipalities - Plows FEATURES * No spillage or air inclusion during connection and disconnection * Easy to clean flat surfaces * Nickel plating for superior corrosion resistance * 5000 psi working pressure for sizes 1/4” thru 1” TEMP. RANG (-13°F to +212°F) (-25°C to +100°C)

PERFORMANCE SPECIFICATIONS- QFF SERIES - FLAT FACE (CONNECTED)

23

BODY

STEEL QFF SERIES

STEEL - 316 STAINLESS QFF SERIES

Size (Inches) 1/4 3/8 1/2 5/8 3/4 1

Max Working (PSI) 5,000 5,000 5,000 5,000 5,000 4,600

Max Working (PSI) 3,500 3,400 2,920 2,920 2,920 2,920

w w w. f l e x t r a l . c o m

QFF SERIES - FLAT FACE

COUPLER FEMALE ORB

COUPLER FEMALE NPT

COUPLER MALE BULKHEAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

BODY

STEEL

1/4”

QFFC44FP

1/4" NPTF

3/8”

QFFC66FOB

9/16"-18 ORB

1/2”

QFFC810MFB

1"-14 ORFS

3/8”

QFFC66FP

3/8" NPTF

1/2”

QFFC88FOB

3/4"-16 ORB

1/2”

QFFC812MFB

1-3/16"-12 ORFS

3/8”

QFFC68FP

1/2" NPTF

1/2”

QFFC810FOB

7/8"-14 ORB

1/2”

QFFC810MJB

7/8"-14 JIC

1/2”

QFFC88FP

1/2" NPTF

1/2”

QFFC812FOB

1-1/16"-12 ORB

1/2”

QFFC812MJB

1-1/16"-12 JIC

1/2”

QFFC812FP

3/4" NPTF

5/8”

QFFC1010FOB

7/8"-14 ORB

3/4”

QFFC1212MJB

1-1/16"-12 JIC

5/8”

QFFC1012FP

3/4" NPTF

5/8”

QFFC1012FOB

1-1/16"-12 ORB

3/4”

QFFC1212FP

3/4" NPTF

3/4”

QFFC1210FOB

7/8"-14 ORB

1”

QFFC1616FP

1" NPTF

3/4”

QFFC1212FOB

1-1/16"-12 ORB

3/4”

QFFC1216FOB

1-5/16"-12 ORB

1”

QFFC1616FOB

1-5/16"-12 ORB

1”

QFFC1620FOB

1"-5/8 ORB

NIPPLE FEMALE NPT

NIPPLE FEMALE ORB

THREAD

NIPPLE MALE BULKHEAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

BODY

STEEL

1/4”

QFFN44FP

1/4" NPTF

3/8”

QFFN66FOB

9/16"-18 ORB

1/2”

QFFN810MFB

1"-14 ORFS

3/8”

QFFN66FP

3/8" NPTF

1/2”

QFFN88FOB

3/4"-16 ORB

1/2”

QFFN812MFB

1-3/16"-12 ORFS

3/8”

QFFN68FP

1/2" NPTF

1/2”

QFFN810FOB

7/8"-14 ORB

1/2”

QFFN810MJB

7/8"-14 JIC

1/2”

QFFN88FP

1/2" NPTF

1/2”

QFFN812FOB

1-1/16"-12 ORB

1/2”

QFFN812MJB

1-1/16"-12 JIC

1/2”

QFFN812FP

3/4" NPTF

5/8”

QFFN1010FOB

7/8"-14 ORB

3/4”

QFFN1212MJB

1-1/16"-12 JIC

5/8”

QFFN1012FP

3/4" NPTF

5/8”

QFFN1012FOB

1-1/16"-12 ORB

3/4”

QFFN1212FP

3/4" NPTF

3/4”

QFFN1210FOB

7/8"-14 ORB

1”

QFFN1616FP

1" NPTF

3/4”

QFFN1212FOB

1-1/16"-12 ORB

3/4”

QFFN1216FOB

1-5/16"-12 ORB

1”

QFFN1616FOB

1-5/16"-12 ORB

1”

QFFN1620FOB

1"-5/8 ORB

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

RUBBER

SIZE

1/4”

QFF4DP

1/4”

QFF4DC

3/8”

QFF6DP

3/8”

QFF6DC

1/2”

QFF8DP

1/2”

QFF8DC

5/8”

QFF10DP

5/8”

QFF10DC

3/4”

QFF12DP

3/4”

QFF12DC

QFF16DP

1”

QFF16DC Q

1” 1

THREAD

RUBBER

w w w. f l e x t r a l . c o m

24

QFZ SERIES - CONNECT UNDER PRESSURE - FLAT FACE

INTERCHANGEABILITY * Interchangeable to ISO 16028 interface, Parker FC Series, Stucchi APM & A-HD Series, CEJN 264 Series APPLICATIONS * Construction * Skid steer equipment * Public utility - Lift trucks * Municipalities - Plows FEATURES * Provides connect under pressure capability with up to 5,000 psi of trapped pressure in the plug. * No spillage or air inclusion during connection and disconnection * Easy to clean flat surfaces. * Nickel plating for superior corrosion resistance * 5000 psi working pressure for sizes 1/4” thru 1” TEMP. RANG (-13°F to +212°F) (-25°C to +100°C)

PERFORMANCE SPECIFICATIONS - QFZ SERIES FLAT FACE (CONNECTED)

25

BODY

STEEL - QFZ SERIES

Size (Inches) 3/8 1/2

Max Working (PSI) 5,000 5,000

w w w. f l e x t r a l . c o m

QFZ SERIES - CONNECT UNDER PRESSURE - FLAT FACE

NIPPLE FEMALE ORB

NIPPLE FEMALE NPT

NIPPLE - MALE ORFS BULKHEAD

BODY

STEEL

THREAD

BODY

STEEL

THREAD

BODY

STEEL

3/8”

QFZN66FP

3/8" NPTF

3/8”

QFZN66FOB

9-16”-18ORB

1/2”

QFZN810MFB

1"-14 ORFS

QFZN68FOB

3/4”-16ORB

1/2”

QFZN812MFB

1"-3/16 ORFS

3/8”

QFZN68FP

1/2” NPTF

3/8”

1/2”

QFZN88FP

1/2” NPTF

1/2”

QFZN812FOB

1-1/16”-12ORB

5/8”

QFZN1012FP

3/4” NPTF

5/8”

QFZN1010FOB

7/8”-14ORB

1”

QFZN1616FP

1” NPTF

3/4”

QFZN1212FOB

1-1/16”-12ORB

1”

QFZN1616FOB

1-5/16”-12ORB

THREAD

DUST CAP FOR PLUG

DUST PLUG FOR COUPLER SIZE

RUBBER

SIZE

RUBBER

1/4”

QFF4DP

1/4”

QFF4DC QFF6DC

QFF6DP

3/8”

1/2”

QFF8DP

1/2”

QFF8DC

5/8”

QFF10DP

5/8”

QFF10DC

3/4”

QFF12DP

3/4”

QFF12DC

1”

QFF16DP

1”

QFF16DC

3/8”

w w w. f l e x t r a l . c o m

26

QVEP SERIES - CONNECT UNDER PRESSURE - THREADED FLAT FACE INTERCHANGEABILITY * Stucchi VEP Series, DNP FSI Series APPLICATIONS * Drilling rigs * Oilfield - Well head drives, tongs and BOP units * Cranes * Hammer attachments * Trenching equipemnt FEATURES * High working pressures up to 6,000 psi range based on size * Connect under pressure feature on plug side * Low connection force VALVE FLAT

PERFORMANCE SPECIFICATIONS - QVEP SERIES FLAT FACE THREADED (CONNECTED)

27

BODY

QVEP SERIES

Size (Inches) 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2

Max Working (PSI) 6,000 5,100 5,100 5,100 5,100 5,100 4,500 4,500

w w w. f l e x t r a l . c o m

QVEP SERIES - CONNECT UNDER PRESSURE - THREADED FLAT FACE COUPLER FEMALE NPT

COUPLER FEMALE ORB

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4”

QVEPC44FP

1/4" NPTF

1/4”

QVEPC46FOB

9/16"-18 ORB

3/8”

QVEPC66FP

3/8" NPTF

3/8”

QVEPC68FOB

3/4”-16 ORB

3/8”

QVEPC68FP

1/2" NPTF

1/2”

QVEPC88FOB

3/4"-16 ORB

1/2”

QVEPC88FP

1/2" NPTF

1/2”

QVEPC812FOB

1-1/16"-12 ORB

1/2”

QVEPC812FP

3/4" NPTF

3/4”

QVEPC1212FOB

1-1/16"-12 ORB

3/4”

QVEPC1212FP

3/4" NPTF

1”

QVEPC1616FOB

1-5/16"-12 ORB 1-5/8"-12 ORB

1”

QVEPC1616FP

1" NPTF

1-1/4”

QVEPC2020FOB

1-1/4”

QVEPC2020FP

1-1/4" NPTF

1-1/2”

QVEPC2424FOB

1-7/8"-12 ORB

1-1/2”

QVEPC2424FP

1-1/2" NPTF

2”

QVEPC3232FOB

2-1/2"-12 ORB

2”

QVEPC3232FP

2" NPTF

NIPPLE - FEMALE NPT

NIPPLE - FEMALE ORB

BODY

STEEL

THREAD

BODY

STEEL

THREAD

1/4”

QVEPN44FP

1/4" NPTF

1/4”

QVEPN44FOB

9/16"-18 ORB

3/8”

QVEPN66FP

3/8" NPTF

3/8”

QVEPN68FOB

3/4"-16 ORB

3/8”

QVEPN68FP

1/2" NPTF

1/2”

QVEPN88FOB

3/4"-16 ORB

1/2”

QVEPN88FP

1/2" NPTF

1/2”

QVEPN812FOB

1-1/16"-12 ORB

1/2”

QVEPN812FP

3/4" NPTF

3/4”

QVEPN1212FOB

1-1/16"-12 ORB

3/4”

QVEPN1212FP

3/4" NPTF

1”

QVEPN1616FOB

1-5/16"-12 ORB

1”

QVEPN1616FP

1" NPTF

1-1/4”

QVEPN2020FOB

1-5/8"-12 ORB

1-1/4”

QVEPN2020FP

1-1/4" NPTF

1-1/2”

QVEPN2424FOB

1-7/8"-12 ORB

1-1/2”

QVEPN2424FP

1-1/2" NPTF

2”

QVEPN3232FOB

2-1/2"-12 ORB

2

QVEPN3232FP

2" NPTF

DUST PLUG FOR COUPLER

DUST CAP FOR PLUG

SIZE

ALUMINUM

SIZE

ALUMINUM

1/4"

QVEP4DPA

1/4"

QVEP4DCA

3/8"

QVEP6DPA

3/8"

QVEP6DCA

1/2"

QVEP8DPA

1/2"

QVEP8DCA

3/4"

QVEP12DPA

3/4"

QVEP12DCA

1"

QVEP16DPA

1"

QVEP16DCA

1-1/4"

QVEP20DPA

1-1/4"

QVEP20DCA

1-1/2"

QVEP24DPA

1-1/2"

QVEP24DCA

2"

QVEP32DPA

2"

QVEP32DCA

w w w. f l e x t r a l . c o m

28

QTP SERIES - DIAGNOSTIC COUPLER

INTERCHANGEABILITY * Interchangeable to ISO 15171-1 specification * Parker PD Series, Aeroquip FD90 Series, Tomco DK Series APPLICATIONS * Used to connect pressure gauges to hydraulic systems; this eliminates the need for permanent gauges.

FEATURES * Automatic sleeve for one and push to connect operaton * Flat face valving provides miminal fluid loss and low air inclusion.

TEMP. RANG (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS- QTP SERIES DIAGNOSTIC (CONNECTED)

BODY

STEEL - QTP SERIES

Size (Inches) 1/8

Max Working (PSI) 6,000

COUPLER MALE/FEMALE NPT

NIPPLE - MALE/FEMALE NPT/ORB

DUST CAP FOR PLUG

BODY

STEEL

THREAD

BODY

STEEL

THREAD

SIZE

RUBBER

1/8”

QTPC22FP

1/8" NPTF

1/8”

QTPN22FP

1/8" NPTF

1/8”

QTP2DC

1/8”

QTPC24FP

1/4" NPTF

1/8”

QTPN24FP

1/4" NPTF

1/8”

QTPC24MP

1/4" NPTF

1/8”

QTPN22MP

1/8" NPTF

1/8”

QTPN24MP

1/4" NPTF

1/8”

QTPN22MOB

5/16 - 24 ORB

1/8”

QTPN24MOB

7/16 - 20 ORB

29

w w w. f l e x t r a l . c o m

QST SERIES - STRAIGHT THRU INTERCHANGEABILITY * Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series APPLICATIONS * High pressure water and steam washers. * Many other applications where high flow is necessary.

FEATURES * Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. * 1-1/4” to 2” brass couplers have steel sleeves as standard to maximize service life, hardened to resist deformation.

TEMP. RANG (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS- QST SERIES STRAIGHT THRU (CONNECTED)

BODY

BRASS COUPLER/ STEEL PLUG

BRASS

316 SS COUPLER/ PLUG

SIZE (Inches)

Max Working (PSI)

Max Working (PSI)

Max Working (PSI)

1/8

4,000

2,800

5,000

1/4

5,500

3,800

7,500

3/8

4,500

3,000

7,500

1/2

3,500

2,400

3,500

3/4

3,100

2,000

3,000

1

2,500

1,600

2,000

1-1/4

2,500

1,800

2,000

1-1/2

2,500

1,800

2,000

2

2,500

1,800

2,000

QST SERIES - PROFILE

w w w. f l e x t r a l . c o m

30

QST SERIES - STRAIGHT THRU

COUPLER - FEMALE NPT

NIPPLE - FEMALE NPT

BODY

BRASS

303 SS

THREAD

BODY

BRASS

303 SS

STEEL

THREAD

1/8”

QSTC22FP-BR

QSTC22FP-SS

1/8" NPTF

1/8”

QSTN22FP-BR

QSTN22FP-SS

QSTN22FP

1/8" NPTF

1/4”

QSTC44FP-BR

QSTC44FP-SS

1/4" NPTF

1/4”

QSTN44FP-BR

QSTN44FP-SS

QSTN44FP

1/4" NPTF

3/8”

QSTC66FP-BR

QSTC66FP-SS

3/8" NPTF

3/8”

QSTN66FP-BR

QSTN66FP-SS

QSTN66FP

3/8" NPTF

1/2”

QSTC88FP-BR

QSTC88FP-SS

1/2" NPTF

1/2”

QSTN88FP-BR

QSTN88FP-SS

QSTN88FP

1/2" NPTF

3/4”

QSTC1212FP-BR

QSTC1212FP-SS

3/4" NPTF

3/4”

QSTN1212FP-BR

QSTN1212FP-SS

QSTN1212FP

3/4" NPTF

1”

QSTC1616FP-BR

QSTC1616FP-SS

1" NPTF

1”

QSTN1616FP-BR

QSTN1616FP-SS

QSTN1616FP

1" NPTF

1-1/4”

QSTC2020FP-BR

1-1/4" NPTF

1-1/4”

QSTN2020FP-BR

1-1/4" NPTF

1-1/2”

QSTC2424FP-BR

1-1/2" NPTF

1-1/2”

QSTN2424FP-BR

1-1/2" NPTF

2”

QSTC3232FP-BR

2" NPTF

2”

QSTN3232FP-BR

2" NPTF

NIPPLE - MALE NPT

COUPLER - MALE NPT BODY

BRASS

303 SS

THREAD

BODY

BRASS

303 SS

STEEL

THREAD

1/8”

QSTC22MP-BR

QSTC22MP-SS

1/8" NPTF

1/8”

QSTN22MP-BR

QSTN22MP-SS

QSTN22MP

1/8" NPTF

1/4”

QSTC44MP-BR

QSTC44MP-SS

1/4" NPTF

1/4”

QSTN44MP-BR

QSTN44MP-SS

QSTN44MP

1/4" NPTF

3/8”

QSTC66MP-BR

QSTC66MP-SS

3/8" NPTF

3/8”

QSTN66MP-BR

QSTN66MP-SS

QSTN66MP

3/8" NPTF

1/2”

QSTC88MP-BR

QSTC88MP-SS

1/2" NPTF

1/2”

QSTN88MP-BR

QSTN88MP-SS

QSTN88MP

1/2" NPTF

3/4”

QSTC1212MP-BR

QSTC1212MP-SS

3/4" NPTF

3/4”

QSTN1212MP-BR

QSTN1212MP-SS

QSTN1212MP

3/4" NPTF

1”

QSTC1616MP-BR

QSTC1616MP-SS

1" NPTF

1”

QSTN1616MP-BR

QSTN1616MP-SS

QSTN1616MP

1" NPTF

1-1/4”

QSTC2020MP-BR

1-1/4" NPTF

1-1/4”

QSTN2020MP-BR

1-1/4" NPTF

1-1/2”

QSTC2424MP-BR

1-1/2" NPTF

1-1/2”

QSTN2424MP-BR

1-1/2" NPTF

2”

QSTC3232MP-BR

2" NPTF

2”

QSTN3232MP-BR

2" NPTF

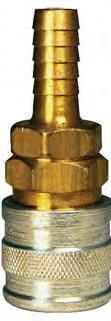

COUPLER - HOSE BARB

31

NIPPLE - HOSE BARB

BODY

BRASS

HOSE ID

BODY

BRASS

HOSE ID

1/4”

QSTC44HB-BR

1/4

1/4”

QSTN44HB-BR

1/4

3/8”

QSTC66HB-BR

3/8

3/8”

QSTN66HB-BR

3/8

1/2”

QSTC88HB-BR

1/2

1/2”

QSTN88HB-BR

1/2

3/4”

QSTC1212HB-BR

3/4

3/4”

QSTN1212HB-BR

3/4

1” 1

QSTC1616HB-BR QSTC1616HB BR

1

1” 1

QSTN1616HB-BR

1

w w w. f l e x t r a l . c o m

QWB SERIES - WATER BLAST

INTERCHANGEABILITY * Parker WB Series, Aeroquip FD69 Series, Snap-Tite 56 Series APPLICATIONS * High pressure water blast * Bridge/concrete repair * Shipyards FEATURES * Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. * Couplers have a teflon Anti-Extrusion ring providing resistance to o-ring dynamic impulse pressure damage.

TEMP. RANG (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS- QWB WATER BLAST (CONNECTED)

BODY

STEEL

Size (Inches) 1/2

Max Working (PSI) 10,000

QWB SERIES - PROFILE

NIPPLE FEMALE NPT

COUPLER FEMALE NPT SIZE

STEEL

HOSE ID

SIZE

STEEL

HOSE ID

1/2”

QWBC86FP

3/8" NPT

1/2"

QWBN86FP

3/8" NPT

1/2”

QWBC88FP

1/2" NPT

1/2"

QWBN88FP

1/2" NPT

w w w. f l e x t r a l . c o m

32

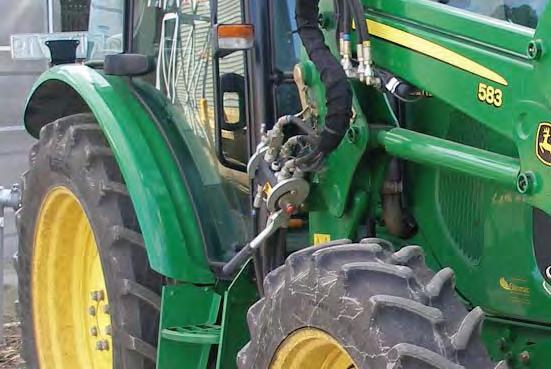

QBD SERIES- BLOCK VALVE

INTERCHANGEABILITY * FASTER Internal Standard APPLICATIONS * Skid steer loaders, mini skid steer loaders, and tractor backhoes loaders * Municipalities - plow trucks * Anywhere flat face couplers are used where connect under pressure capabilities are required FEATURES * Allows changes from one attachment to another within seconds and provides for connection under pressure. * Patented design equipped with flat face couplers conforming to ISO 16028 * FASTER block valve has been specified by majority of OEM manufacturers of skid steers throughout North America.

TEMP. RANG (-13°F to +212°F) (-25°C to +100°C)

PERFORMANCE SPECIFICATIONS- QBD SERIES BLOCK VALVE (CONNECTED)

33

BODY

STEEL - QBD SERIES

Size (Inches) 1/2 3/4

Max Working (PSI) 5,075 5,075

w w w. f l e x t r a l . c o m

QBD SERIES - BLOCK VALVE BLOCK VALVE - OLD BODY

PART NO.

CROSSOVER NO.

DESCRIPTION

BOX

1/2”

QBD812MJ-OLD

4BD4FI12-13/34S

1/2” OLD BLOCK VALVE X -12MALE JIC

1

SPARE PARTS - OLD 3/8”

QBDN6

KIT-4BD-FFH06M

3/8” CATRIDGE NIPPLE - NEW/OLD

20

1/2"

QBDC8

KIT-4FI12- F

1/2” CARTRIDGE COUPLER - OLD BLOCK VALVE

10

1/2"

QBDC8-K

KIT-4FSI12-F

1/2” CATRIDGE KIDNEY COUP - OLD BLOCK VALVE

10

1/2"

QBDN8

KIT-4FI12-M

1/2” CATRIDGE NIPPLE - OLD BLOCK VALVE

10

1/2"

QBD8SK

KIT-4FI12-OR

OLD BLOCK VALVE - SEAL KIT

25

DESCRIPTION

BOX

BLOCK VALVE - NEW BODY

PART NO.

CROSSOVER NO.

1/2”

QBD810FOB

4BD4FH08-58SAE

1/2” NEW BLOCK VALVE X -10 FOB

1

1/2”

QBD812MJ

4BD4FH08-13/34S

1/2” NEW BLOCK VALVE X -12 MALE JIC

1

3/4”

QBD1212MJ

4BD4FH12-13/34S

3/4” NEW BLOCK VALVE X -12 MALE JIC

1

SPARE PARTS - NEW 3/8”

QBDN6

KIT-4BD-FFH06M

3/8” CATRIDGE NIPPLE - NEW/OLD

20

1/2"

QBDC8-N

KIT-4FH08-F

1/2” CATRIDGE COUPLER - NEW BLOCK VALVE

6

1/2"

QBDN8-N

KIT-4FH08-M

1/2” CATRIDGE NIPPLE - NEW BLOCK VALVE

6

3/4"

QBDC12-N

KIT-4FH12-F

3/4” CATRIDGE COUPLER - NEW BLOCK VALVE

4

3/4"

QBDN12-N

KIT-4FH12-M

3/4” CATRIDGE NIPPLE - NEW BLOCK VALVE

4

3/4"

QBD12SK-N

N/A

NEW BLOCK VALVE - SEAL KIT

10

90 ELBOW - FLAT FACE BODY

PART NO.

CROSSOVER NO.

DESCRIPTION

BOX

1/2"

QFFN812-90

FFH08-61/34S M

90 DEG ELBOW FF 1/2” NIPPLE X -12 MALE JIC

5

1/2"

QFFN86-90

FFH08-61/38S M

91 DEG ELBOW FF 1/2” NIPPLE X -6 MALE JIC

5

1/2"

QFZC812-90

3FFH08-61/34SFS

UNDER PRESS 90 DEG FF 1/2” NIPPLE X -12 MJIC

5

1/2"

QFFZC86-90

3FFH08-61/38SFS

UNDER PRESS 90 DEG FF 1/2” NIPPLE X -6 MJIC

5

w w w. f l e x t r a l . c o m

34

MULTIFASTER INTERCHANGEABILITY * FASTER internal standard APPLICATIONS * Front end loaders - quick and easy way to connect loader to tractor * Construction machinery - connecting attachments * Harvesting equipment - changing out heads on a combine * Any application requiring quick connection of multiple lines under pressure FEATURES * Simultaneous connection of multiple lines * No risk of line misalignement due to reference pins on fixed half * Flat face couplers offer no spillage or air inclusion upon connection * Ease of cleaning resulting in reduction of dirt inclusion in circuit * Ease of connecton under residual pressure with use of 2P series * Effortless connecton under full working pressure with use of 3P series TEMP. RANG (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS - 2P/3P SERIES MULTIFASTER (CONNECTED)

35

BODY

2P/ 3P Series

Size (Inches) 3/8 1/2

Max Working (PSI) 3,625 3,625

w w w. f l e x t r a l . c o m

PART NUMBER BREAKDOWN - MULTIFASTER

2

P608

2 = Residual Pressure 3 = Connect under Pressure 3,625 PSI (Mobile Only)

A

4

7 Pin Electrical Connector if Required

Thread Size F = Fixed Half M = Mobile Half

1/2” Body Size Only

P206 = 2 Line 3/8” PB06 = 2 Line 3/8” Slim PS06 = 4 Line 3/8” (New Holland) P506 = 4 Line 3/8” P606 = 6 Line 3/8” P208 = 2 Line 1/2” PS08 = 4 Line 1/2” (New Holland) P508 = 4 Line 1/2” P608 = 6 Line 1/2” P808 = 8 Line 1/2”

F

12S

Number of Couplers Installed in Block Half

N = Female NPT S = Female ORB 11/12S = Male ORFS

w w w. f l e x t r a l . c o m

36

MULTIFASTER - 2P206/3P206 - 2 LINES- 3/8”

FIXED HALF MOBILE

FIXED

BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2P206-2-38N-F

3/8" FEMALE NPT

RESIDUAL

3/8”

2P206-2-12N-F

1/2" FEMALE NPT

RESIDUAL

3/8”

2P206-2-38S-F

-6 FEMALE ORB

RESIDUAL

3/8”

2P206-2-12S-F

-8 FEMALE ORB

RESIDUAL

MOBILE HALF BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2P206-2-38S-M

-6 FEMALE ORB

RESIDUAL

3/8”

2P206-2-12S-M

-8 FEMALE ORB

RESIDUAL

3/8”

2P206-2-12N-M

1/2” FEMALE NPT

RESIDUAL

3/8”

3P206-2-38S-M

-6 FEMALE ORB

3,625 PSI

3/8”

3P206-2-12S-M

-8 FEMALE ORB

3,625 PSI

MULTIFASTER - 2P208/3P208 - 2 LINES- 1/2” FIXED HALF FIXED

MOBILE

37

w w w. f l e x t r a l . c o m

BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P208-2-12N-F

1/2" FEMALE NPT

RESIDUAL

1/2”

2P208-2-12S-F

-8 FEMALE ORB

RESIDUAL

1/2”

2P208-2-34S-F

-12 FEMALE ORB

RESIDUAL

1/2”

2P208-2-11/12S-F

1/2” MORFS

RESIDUAL

MOBILE HALF BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P208-2-12N-M

1/2" FEMALE NPT

RESIDUAL

1/2”

2P208-2-12S-M

-8 FEMALE ORB

RESIDUAL

1/2”

2P208-2-34S-M

-12 FEMALE ORB

RESIDUAL

1/2”

2P208-2-11/12S-M

1/2” MORFS

RESIDUAL

1/2”

3P208-2-12N-M

1/2" FEMALE NPT

3,625 PSI

1/2”

3P208-2-12S-M

-8 FEMALE ORB

3,625 PSI

1/2”

3P208-2-11/12S-M

1/2” MORFS

3,625 PSI

MULTIFASTER- 2PB06 - 2 LINES- 3/8” - COMPACT

MOBILE

FIXED

FIXED HALF BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2PB06-2-38N-F

3/8" FEMALE NPT

RESIDUAL

3/8”

2PB06-2-38S-F

-6 FEMALE ORB

RESIDUAL

3/8”

2PB06-2-12N-F

1/2" FEMALE NPT

RESIDUAL

3/8”

2PB06-2-12S-F

-8 FEMALE ORB

RESIDUAL

MOBILE HALF BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2PB06-2-12N-M

1/2" FEMALE NPT

RESIDUAL

3/8”

2PB06-2-38S-M

-6 FEMALE ORB

RESIDUAL

3/8”

2PB06-2-12S-M

-8 FEMALE ORB

RESIDUAL

3/8”

3PB06-2-38S-M

-6 FEMALE ORB

3,625 PSI

3/8”

3PB06-2-12S-M

-8 FEMALE ORB

3,625 PSI

MULTIFASTER - 2P506/3P506 - 4 LINES- 3/8”

FIXED HALF

MOBILE

BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2P506-4*-38N-F

3/8" FEMALE NPT

RESIDUAL

3/8”

2P506-4*-38S-F

-6 FEMALE ORB

RESIDUAL

3/8”

2P506-4*-12N-F

1/2" FEMALE NPT

RESIDUAL

3/8”

2P506-4*-12S-F

-8 FEMALE ORB

RESIDUAL

MOBILE HALF FIXED

BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2P506-4*-12N-M

1/2" FEMALE NPT

RESIDUAL

3/8”

2P506-4*-38S-M

-6 FEMALE ORB

RESIDUAL

3/8”

2P506-4*-12S-M

-8 FEMALE ORB

RESIDUAL

3/8”

3P506-4*-38S-M

-6 FEMALE ORB

3,625 PSI

3/8”

3P506-4*-12S-M

-8 FEMALE ORB

3,625 PSI

* Specify number of couplings

w w w. f l e x t r a l . c o m

38

MULTIFASTER - 2P508/3P508 - 4 LINES- 1/2”

MOBILE

FIXED HALF BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P508-4*-12N-F

1/2" FEMALE NPT

RESIDUAL

1/2”

2P508-4*-12S-F

-8 FEMALE ORB

RESIDUAL

1/2”

2P508-4*-34S-F

-12 FEMALE ORB

RESIDUAL

1/2”

2P508-4*-11/12S-F

1/2” MORFS

RESIDUAL

MOBILE HALF

FIXED

BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P508-4*-12N-M

1/2" FEMALE NPT

RESIDUAL

1/2”

2P508-4*-12S-M

-8 FEMALE ORB

RESIDUAL

1/2”

2P508-4*-34S-M

-12 FEMALE ORB

RESIDUAL

1/2”

2P508-4*-11/12S-M

1/2” MORFS

RESIDUAL

1/2”

3P508-4*-12N-M

1/2" FEMALE NPT

3,625 PSI

1/2”

3P508-4*-12S-M

-8 FEMALE ORB

3,625 PSI

1/2”

3P508-4*-11/12S-M

1/2” MORFS

3,625 PSI

* Specify number of couplings

MULTIFASTER - 2P606/3P606 - 6 LINES- 3/8” FIXED HALF MOBILE

BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2P606-6*-38N-F

3/8" FEMALE NPT

RESIDUAL

3/8”

2P606-6*-38S-F

-6 FEMALE ORB

RESIDUAL

3/8”

2P606-6*-12N-F

1/2" FEMALE NPT

RESIDUAL

3/8”

2P606-6*-12S-F

-8 FEMALE ORB

RESIDUAL

MOBILE HALF FIXED

BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2P606-6*-12N-M

1/2” FEMALE NPT

RESIDUAL

3/8”

2P606-6*-38S-M

-6 FEMALE ORB

RESIDUAL

3/8”

2P606-6*-12S-M

-8 FEMALE ORB

RESIDUAL

3/8”

3P606-6*-12S-M

-8 FEMALE ORB

3,625 PSI

3/8”

3P606-6*-38S-M

-6 FEMALE ORB

3,625 PSI

* Specify number of couplings

39

w w w. f l e x t r a l . c o m

MULTIFASTER - 2P608/3P608 - 6 LINES - 1/2” FIXED HALF

MOBILE

BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P608-6*-12N-F

1/2" FEMALE NPT

RESIDUAL

1/2”

2P608-6*-12S-F

-8 FEMALE ORB

RESIDUAL

1/2”

2P608-6*-11/12S-F

1/2” FORMS

RESIDUAL

1/2”

2P608-6*-34S-F

-12 FEMALE ORB

RESIDUAL

MOBILE HALF FIXED

BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P608-6*-12N-M

1/2" FEMALE NPT

RESIDUAL

1/2”

2P608-6*-12S-M

-8 FEMALE ORB

RESIDUAL

1/2”

2P608-6*-11/12S-M

1/2” MORFS

RESIDUAL

1/2”

2P608-6*-34S-M

-12 FEMALE ORB

RESIDUAL

1/2”

3P608-6*-12N-M

1/2" FEMALE NPT

3,625 PSI

1/2”

3P608-6*-12S-M

-8 FEMALE ORB

3,625 PSI

1/2”

3P608-6*-11/12S-M

1/2” MORFS

3,625 PSI

* Specify number of couplings

MULTIFASTER - 2P808/3P808 - 8 LINES - 1/2” FIXED HALF BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P808-8*-12N-F

1/2" FEMALE NPT

RESIDUAL

1/2”

2P808-8*-12S-F

-8 FEMALE ORB

RESIDUAL

1/2”

2P808-8*-11/12S-F

1/2” MORFS

RESIDUAL

1/2”

2P808-8*-34S-F

-12 FEMALE ORB

RESIDUAL

MOBILE FIXED

MOBILE HALF BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2P808-8*-12N-M

1/2" FEMALE NPT

RESIDUAL

1/2”

2P808-8*-12S-M

-8 FEMALE ORB

RESIDUAL

1/2”

2P808-8*-11/12S-M

1/2” MORFS

RESIDUAL

1/2”

2P808-8*-34S-M

-12 FEMALE ORB

RESIDUAL

1/2”

3P808-8*-12N-M

1/2" FEMALE NPT

3,625 PSI

1/2”

3P808-8*-12S-M

-8 FEMALE ORB

3,625 PSI

1/2”

3P808-8*-11/12S-M

1/2” MORFS

3,625 PSI

p y number of couplings p g * Specify

w w w. f l e x t r a l . c o m

40

MULTIFASTER - 2PS06/3PS06 - 4 LINES- 3/8”

FIXED HALF MOBILE

FIXED

BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2PS06-4*-38N-F

3/8" FEMALE NPT

RESIDUAL

3/8”

2PS06-4*-38S-F

-6 FEMALE ORB

RESIDUAL

3/8”

2PS06-4*-12N-F

1/2" FEMALE NPT

RESIDUAL

3/8”

2PS06-4*-12S-F

-8 FEMALE ORB

RESIDUAL

MOBILE HALF BODY

STEEL

THREAD

CONNECT PRESSURE

3/8”

2PS06-4*-38N-M

3/8" FEMALE NPT

RESIDUAL

3/8”

2PS06-4*-38S-M

-6 FEMALE ORB

RESIDUAL

3/8”

2PS06-4*-12S-M

-8 FEMALE ORB

RESIDUAL

3/8”

3PS06-4*-38N-M

3/8" FEMALE NPT

3,625 PSI

3/8”

3PS06-4*-38S-M

-6 FEMALE ORB

3,625 PSI

* Specify number of couplings

MULTIFASTER - 2PS08/3PS08 - 4 LINES - 1/2” FIXED HALF MOBILE

BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2PS08-4*-12N-F

1/2" FEMALE NPT

RESIDUAL

1/2”

2PS08-4*-12S-F

-8 FEMALE ORB

RESIDUAL

1/2”

2PS08-4*-11/12S-F

1/2” MORFS

RESIDUAL

1/2”

2PS08-4*-34S-F

-12 FEMALE ORB

RESIDUAL

FIXED

MOBILE HALF BODY

STEEL

THREAD

CONNECT PRESSURE

1/2”

2PS08-4*-12N-M

1/2" FEMALE NPT

RESIDUAL

1/2”

2PS08-4*-12S-M

-8 FEMALE ORB

RESIDUAL

1/2”

2PS08-4*-11/12S-M

1/2” MORFS

RESIDUAL

1/2”

2PS08-4*-34S-M

-12 FEMALE ORB

RESIDUAL

1/2”

3PS08-4*-12N-M

1/2" FEMALE NPT

3,625 PSI

1/2”

3PS08-4*-12S-M

-8 FEMALE ORB

3,625 PSI

1/2

3PS08-4*-11/12S-M

1/2” MORFS

3,625 PSI

* Specify number of couplings

41

w w w. f l e x t r a l . c o m

MULTIFASTER - REPLACEMENT PARTS

FIXED HALF BLOCK STYLE

BLOCK PART NUMBER (A+D+E+F)

P206

KIT-P206-F L

PB06

KIT-PB06-F L

PS06

KIT-PS06-F L

P506

KIT-P506-F L

P606

KIT-P606-F L

P208

KIT-P208-F L

PS08

KIT-PS08-F L

P508

KIT-P508-F L

P608

KIT-P608-F L

P808

KIT-P808-F L

COUPLER PART NUMBER (L) KIT2FNB38-NPT-F KIT2FNB38-12N-F KIT2FNB38-38S-F KIT2FNB38-12S-F

KIT2FNB12-NPT-F KIT2FNB12-12S-F KIT2FNB12-34S-F KIT2FNB12-11/12S-F

SAFETY LOCK (A)

LEVER (D)

COVER (E)

KIT-SP5-S

KIT-LP206

KIT-TA-P2

KIT-SP5-S

KIT-LPB06

KIT-TA-PB

KIT-SP5-S

KIT-LP606

KIT-TA-P6

KIT-SP5-S

KIT-LP506

KIT-TA-P5

KIT-SP5-S

KIT-LP606

KIT-TA-P6

KIT-SP5-S

KIT-LP208

KIT-TA-P2

KIT-SP5-S

KIT-LPS08

KIT-TA-P8

KIT-SP5-S

KIT-LP508

KIT-TA-P5

KIT-SP5-S

KIT-LP608

KIT-TA-P608

KIT-SP5-S

KIT-LP808

KIT-TA-P8

ELECTRICAL CONNECTOR (H)

CABLE TERMINALS

N/A

N/A

KIT-SPEL08-7F

KIT-CC-SPEL08-7

w w w. f l e x t r a l . c o m

42

MULTIFASTER - REPLACEMENT PARTS

MOBILE HALF BLOCK STYLE

BLOCK PART NUMBER (G+B+C)

P206

KIT-P206-M

PB06

KIT-PB06-M

PS06

KIT-PS06-M

P506

KIT-P506-M

P606

KIT-P606-M

P208

KIT-P208-M

PS08

KIT-PS08-M

P508

KIT-P508-M

P608

KIT-P608-M

P808

43

KIT-P808-M

COUPLER PART NUMBER (M) KIT2FNP38-12N-M KIT2FNP38-38S-M KIT2FNP38-12S-M KIT3FNP38-38S-M KIT3FNP38-12S-M KIT2FNP12-NPT-M KIT2FNP12-12S-M KIT2FNP12-34S-M KIT2FNP12-11/12S-M KIT3FNP12-NPT-M KIT3FNP12-12S-M KIT3FNP12-11/12S-M

SCREW (B)

GUIDE PINS (C)

ELECTRICAL CONNECTOR (I)

CABLE TERMINALS

SEAL KIT (SK)

MOBILE PLATE SUPPORT

KIT-GP4

S-P2

KIT-GP4

S-PB

KIT-GP4

KIT-VP4

N/A

N/A

SK-MF-38

S-PS

KIT-GP4

S-P5

KIT-GP4

S-P6

KIT-GP4

S-P2

KIT-GP4

S-PS

KIT-GP4

KIT-VP8

KIT-SPEL08-7M

KIT-CC-SPEL08-7

SK-MF-12

S-P5

KIT-GP4

S-P608

KIT-GP8

S-P8

w w w. f l e x t r a l . c o m

QMM SERIES - MOLD COOLANT

INTERCHANGEABILITY * Parker Moldmate Series, Foster FJT Series, Hansen Flo-Temp, DME Jiffy-Tite Series APPLICATIONS * Connecting coolant lines to molds and dies on injection molding machinery in the plastics and die casting industries.

FEATURES * Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. * Couplers have a teflon anti-extrusion ring providing resistance to o-ring dynamic implulse pressure damage.

TEMP. RANG (-40°F to +250°F) (-40°C to +121°C)

PERFORMANCE SPECIFICATIONS- QHMM MOLD COOLANT (CONNECTED) UNVALVED UNVALVED VALVED BODY COUPLER/BRASS COUPLER/BRASS COUPLER/BRASS PLUG PLUG PLUG

VALVED COUPLER/STEEL PLUG

SIZE (Inches)

Max Working (PSI)

Max Working (PSI)

Max Working (PSI)

Max Working (PSI)

1/4

300

500

300

300

3/8

300

500

300

300

1/2

300

NA

NA

NA

w w w. f l e x t r a l . c o m

44

QMM SERIES - MOLD COOLANT - UNVALVED

NIPPLE - FEMALE NPT BODY

STEEL

BRASS

THREAD

1/4"

QMMN42FP

QMMN42FP-BR

1/8"

1/4"

QMMN44FP

QMMN44FP-BR

1/4"

1/4"

QMMN46FP

QMMN46FP-BR

3/8"

3/8"

QMMN64FP

QMMN64FP-BR

1/4"

3/8"

QMMN66FP

QMMN66FP-BR

3/8"

1/2"

NA

QMMN88FP-BR

1/2"

1/2"

NA

QMMN812FP-BR

3/4"

NIPPLE - MALE NPT BODY

BRASS

THREAD

1/4"

QMMN42MP-BR

1/8"

1/4"

QMMN44MP-BR

1/4"

1/4"

QMMN46MP-BR

3/8"

3/8"

QMMN64MP-BR

1/4"

3/8"

QMMN66MP-BR

3/8"

3/8"

QMMN68MP-BR

1/2"

1/2"

QMMN88MP-BR

1/2"

1/2"

QMMN812MP-BR

3/4"

NIPPLE EXTENSION - MALE NPT

45

BODY

BRASS

THREAD

1/4"

QMMN42MP-2.5-BR

1/8"

1/4"

QMMN42MP-4.0-BR

1/8"

1/4"

QMMN42MP-5.5-BR

1/8"

1/4"

QMMN44MP-2.5-BR

1/4"

1/4"

QMMN44MP-4.0-BR

1/4"

1/4"

QMMN44MP-5.5-BR

1/4"

1/4"

QMMN44MP-7.0-BR

1/4"

3/8"

QMMN62MP-2.5-BR

1/8"

3/8"

QMMN62MP-4.0-BR

1/8"

3/8"

QMMN62MP-5.5-BR

1/8"

3/8"

QMMN62MP-7.0-BR

1/8"

3/8"

QMMN64MP-2.5-BR

1/4"

3/8"

QMMN64MP-4.0-BR

1/4"

3/8"

QMMN64MP-5.5-BR

1/4"

3/8"

QMMN64MP-7.0-BR

1/4"

3/8"

QMMN64MP-8.5-BR

1/4"

3/8"

QMMN64MP-11.5-BR

1/4"

w w w. f l e x t r a l . c o m

QMM SERIES - MOLD COOLANT

COUPLER (UNVALVED) - FEMALE NPT BODY

BRASS

THREAD

1/4"

QMMC42FP-BR

1/8"

1/4"

QMMC44FP-BR

1/4"

3/8"

QMMC64FP-BR

1/4"

3/8"

QMMC66FP-BR

3/8"

1/2"

QMMC88FP-BR

1/2"

COUPLER (UNVALVED) - PUSH LOC BODY

BRASS

HOSE ID

1/4"

QMMC44PL-BR

1/4"

1/4"

QMMC46PL-BR

3/8"

3/8"

QMMC66PL-BR

3/8"

3/8"

QMMC68PL-BR

1/2"

1/2"

QMMC88PL-BR

1/2"

1/2"

QMMC812PL-BR

3/4"

COUPLER (UNVALVED) - HOSE BARB BODY

BRASS

HOSE ID

1/4"

QMMC44HB-BR

1/4"

1/4"

QMMC45HB-BR

5/16"

1/4"

QMMC46HB-BR

3/8"

3/8"

QMMC66HB-BR

3/8"

3/8"

QMMC68HB-BR

1/2"

1/2"

QMMC88HB-BR

1/2"

1/2"

QMMC812HB-BR

3/4"

w w w. f l e x t r a l . c o m

46

QMM SERIES - MOLD COOLANT - UNVALVED COUPLER (UNVALVED) 45 DEGREE PUSH LOC BARB BODY

BRASS

HOSE ID

1/4"

QMMC44-45PL-BR

1/4"

1/4"

QMMC46-45PL-BR

3/8"

3/8"

QMMC66-45PL-BR

3/8"

3/8"

QMMC68-45PL-BR

1/2"

1/2"

QMMC88-45PL-BR

1/2"

1/2"

QMMC812-45PL-BR

3/4"

COUPLER (UNVALVED) 45 DEGREE HOSE BARB BODY

BRASS

HOSE ID

1/4"

QMMC44-45HB-BR

1/4"

1/4"

QMMC45-45HB-BR

5/16"

1/4"

QMMC46-45HB-BR

3/8"

3/8"

QMMC66-45HB-BR

3/8"

3/8"

QMMC68-45HB-BR

1/2"

1/2"

QMMC88-45HB-BR

1/2"

1/2"

QMMC812-45HB-BR

3/4"

COUPLER (UNVALVED) 90 DEGREE PUSH LOC BODY

BRASS

HOSE ID

1/4"

QMMC44-90PL-BR

1/4"

1/4"

QMMC46-90PL-BR

3/8"

3/8"

QMMC66-90PL-BR

3/8"

3/8"

QMMC68-90PL-BR

1/2"

1/2"

QMMC88-90PL-BR

1/2"

1/2"

QMMC812-90PL-BR

3/4"

COUPLER (UNVALVED) 90 DEGREE HOSE BARB

47

BODY

BRASS

HOSE ID

1/4"

QMMC44-90HB-BR

1/4"

1/4"

QMMC45-90HB-BR

5/16"

1/4"

QMM46-90HB-BR

3/8"

3/8"

QMMC66-90HB-BR

3/8"

3/8"

QMMC68-90HB-BR

1/2"

1/2"

QMMC88-90HB-BR

1/2"

1/2" 1/2

QMMC812-90HB-BR QMMC812 90HB BR

3/4" 3/4

w w w. f l e x t r a l . c o m

QMM SERIES - MOLD COOLANT - VALVED

COUPLER (VALVED) - FEMALE NPT BODY

BRASS

THREAD

1/4"

QMMVC42FP-BR

1/8"

3/8"

QMMVC64FP-BR

1/4"

COUPLER (VALVED) - PUSH LOC BARB BODY

BRASS

THREAD

1/4"

QMMVC44PL-BR

1/4"

1/4"

QMMVC46PL-BR

3/8"

3/8"

QMMVC64PL-BR

1/4"

3/8"

QMMVC66PL-BR

3/8"

COUPLER (VALVED) - HOSE BARB BODY

BRASS

HOSE ID

1/4"

QMMV44HB-BR

1/4"

1/4"

QMMVC45HB-BR

5/16"

1/4"

QMMVC46HB-BR

3/8"

3/8"

QMMVC66HB-BR

3/8"

3/8"

QMMVC68HB-BR

1/2"

COUPLER (VALVED) - 45 DEGREE PUSH LOC BARB BODY

BRASS

THREAD

1/4"

QMMVC44-45PL-BR

1/4"

1/4"

QMMVC46-45PL-BR

3/8"

3/8"

QMMVC66-45PL-BR

3/8"

3/8"

QMMVC68-45PL-BR

1/2"

COUPLER (VALVED) 90 DEGREE PUSH LOC BARB BODY

BRASS

HOSE ID

1/4"

QMMVC44-90PL-BR

1/4"

1/4"

QMMVC46-90PL-BR

3/8"

3/8"

QMMVC66-90PL-BR

3/8"

3/8"

QMMVC68-90PL-BR

1/2"

w w w. f l e x t r a l . c o m

48

QD SERIES - INDUSTRIAL INTERCHANGE These couplers interchange with Parker 20 Series

49

Flow

Body Size

Male NPT

WP (PSI)

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₈

300

23 CFM

QDN42MP

QDC42MP

¹⁄₄”

¹⁄₄”

300

23 CFM

QDN44MP

QDC44MP

¹⁄₄”

³⁄₈”

300

23 CFM

QDN46MP

QDC46MP

³⁄₈”

¹⁄₄”

300

39 CFM

QDN64MP

QDC64MP

³⁄₈”

³⁄₈”

300

39 CFM

QDN66MP

QDC66MP

³⁄₈”

¹⁄₂”

300

39 CFM

QDN68MP

QDC68MP

¹⁄₂”

³⁄₈”

300

78 CFM

QDN86MP

QDC86MP

¹⁄₂”

¹⁄₂”

300

78 CFM

QDN88MP

QDC88MP

¹⁄₂”

³⁄₄”

300

78 CFM

QDN812MP

QDC812MP

Body Size

Female NPT

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₈”

300

23 CFM

QDN42FP

QDC42FP

¹⁄₄”

¹⁄₄”

300

23 CFM

QDN44FP

QDC44FP

¹⁄₄”

³⁄₈”

300

23 CFM

QDN46FP

QDC46FP

³⁄₈”

¹⁄₄”

300

39 CFM

QDN64FP

QDC64FP

³⁄₈”

³⁄₈”

300

39 CFM

QDN66FP

QDC66FP

³⁄₈”

¹⁄₂”

300

39 CFM

QDN68FP

QDC68FP

¹⁄₂”

³⁄₈”

300

78 CFM

QDN86FP

QDC86FP

¹⁄₂”

¹⁄₂”

300

78 CFM

QDN88FP

QDC88FP

¹⁄₂”

³⁄₄”

300

78 CFM

QDN812FP

QDC812FP

Body Size

Hose Barb

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

300

23 CFM

QDN44HB

QDC44HB

¹⁄₄”

⁵⁄₁₆”

300

23 CFM

QDN45HB

QDC45HB

¹⁄₄”

³⁄₈”

300

23 CFM

QDN46HB

QDC46HB

³⁄₈”

¹⁄₄”

300

39 CFM

QDN64HB

QDC64HB

³⁄₈”

³⁄₈”

300

39 CFM

QDN66HB

QDC66HB

³⁄₈”

¹⁄₂”

300

39 CFM

QDN68HB

QDC68HB

¹⁄₂”

³⁄₈”

300

78 CFM

QDN86HB

QDC86HB

¹⁄₂”

¹⁄₂”

300

78 CFM

QDN88HB

QDC88HB

¹⁄₂”

³⁄₄”

300

78 CFM

QDN812HB

QDC812HB

w w w. f l e x t r a l . c o m

Auto Coupler Part No.

QDC44MPAU

Auto Coupler Part No.

QDC44FPAU

Auto Coupler Part No.

SWING - INDUSTRIAL INTERCHANGE (SD SERIES) CONNECTION Push suitable plug into coupling and swing approximately 90º until the orange ring engages in the grove.

DISCONNECTION Pull back orange ring and swing plug to stop.

Remove plug from coupling.

FEATURES * Conforms to safety standard ISO 4414, EN 983 * Pressure always automatically off during the coupling process * Full flow, negligible loss of pressure * Simple operation, no force required Flow

Body Size

Male NPT

WP (PSI)

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄

360

37 CFM

QDN44MP

QSDC44MP

¹⁄₄”

³⁄₈”

360

37 CFM

QDN46MP

QSDC46MP

³⁄₈”

³⁄₈”

360

71 CFM

QDN66MP

QSDC66MP

³⁄₈”

¹⁄₂”

360

71 CFM

QDN68MP

QSDC68MP

¹⁄₂”

³⁄₈”

360

190 CFM

QDN86MP

QSDC86MP

¹⁄₂”

¹⁄₂”

360

190 CFM

QDN88MP

QSDC88MP

¹⁄₂”

³⁄₄”

360

190 CFM

QDN812MP

QSDC812MP

Body Size

Female NPT

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

360

37 CFM

QDN44FP

QSDC44FP

¹⁄₄”

³⁄₈”

360

37 CFM

QDN46FP

QSDC46FP

³⁄₈”

³⁄₈”

360

71 CFM

QDN66FP

QSDC66FP

³⁄₈”

¹⁄₂”

360

71 CFM

QDN68FP

QSDC68FP

¹⁄₂”

³⁄₈”

360

190 CFM

QDN86FP

QSDC86FP

¹⁄₂”

¹⁄₂”

360

190 CFM

QDN88FP

QSDC88FP

¹⁄₂”

³⁄₄”

360

190 CFM

QDN812FP

QSDC812FP

Body Size

Hose Barb

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

360

37 CFM

QDN44HB

QSDC44HB

¹⁄₄”

³⁄₈”

360

37 CFM

QDN46HB

QSDC46HB

³⁄₈”

³⁄₈”

360

71 CFM

QDN66HB

QSDC66HB

¹⁄₂”

¹⁄₂”

360

190 CFM

QDN88HB

QSDC88HB

w w w. f l e x t r a l . c o m

50

QJ SERIES - AUTOMOTIVE INTERCHANGE These couplers are fully interchangeable with Parker Truflate series 10.

51

Flow

Body Size

Male NPT

WP (PSI)

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

300

21 CFM

QJN44MP

QJC44MP

¹⁄₄”

³⁄₈”

300

21 CFM

QJN46MP

QJC46MP

³⁄₈”

¹⁄₄”

300

39 CFM

QJN64MP

QJC64MP

³⁄₈”

³⁄₈”

300

39 CFM

QJN66MP

QJC66MP

³⁄₈”

¹⁄₂”

300

39 CFM

QJN68MP

QJC68MP

¹⁄₂”

³⁄₈”

300

58 CFM

QJN86MP

QJC86MP

¹⁄₂”

¹⁄₂”

300

58 CFM

QJN88MP

QJC88MP

¹⁄₂”

³⁄₄”

300

58 CFM

QJN812MP

QJC812MP

Body Size

Female NPT

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

300

21 CFM

QJN44FP

QJC44FP

¹⁄₄”

³⁄₈”

300

21 CFM

QJN46FP

QJC46FP

³⁄₈”

¹⁄₄”

300

39 CFM

QJN64FP

QJC64FP

³⁄₈”

³⁄₈”

300

39 CFM

QJN66FP

QJC66FP

³⁄₈”

¹⁄₂”

300

39 CFM

QJN68FP

QJC68FP

¹⁄₂”

³⁄₈”

300

58 CFM

QJN86FP

QJC86FP

¹⁄₂”

¹⁄₂”

300

58 CFM

QJN88FP

QJC88FP

¹⁄₂”

³⁄₄”

300

58 CFM

QJN812FP

QJC812FP

Body Size

Hose Barb

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

300

21 CFM

QJN44HB

QJC44HB

¹⁄₄”

³⁄₈”

300

21 CFM

QJN46HB

QJC46HB

³⁄₈”

¹⁄₄”

300

39 CFM

QJN64HB

QJC64HB

³⁄₈”

³⁄₈”

300

39 CFM

QJN66HB

QJC66HB

³⁄₈”

¹⁄₂”

300

39 CFM

QJN68HB

QJC68HB

¹⁄₂”

³⁄₈”

300

58 CFM

QJN86HB

QJC86HB

¹⁄₂”

¹⁄₂”

300

58 CFM

QJN88HB

QJC88HB

¹⁄₂”

³⁄₄”

300

58 CFM

QJN812HB

QJC812HB

w w w. f l e x t r a l . c o m

Auto Coupler Part No.

Auto Coupler Part No.

Auto Coupler Part No.

QM SERIES - ARO INTERCHANGE

These couplers interchange with ARO 210 / 310 couplings.

Flow

Body Size

Male NPT

WP (PSI)

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

300

21 CFM

QMN44MP

QMC44MP

¹⁄₄”

³⁄₈”

300

21 CFM

QMN46MP

QMC46MP

³⁄₈”

³⁄₈”

300

36 CFM

QMN66MP

QMC66MP

Body Size

Female NPT

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

300

21 CFM

QMN44FP

QMC44FP

¹⁄₄”

³⁄₈”

300

21 CFM

QMN46FP

QMC46FP

³⁄₈”

³⁄₈”

300

36 CFM

QMN66FP

QMC66FP

Body Size

Hose Barb

WP (PSI)

Flow

∆P=10 PSI

Plug Part No.

Coupler Part No.

¹⁄₄”

¹⁄₄”

300

21 CFM

QMN44HB

QMC44HB

¹⁄₄”

³⁄₈”

300

21 CFM

QMN46HB

QMC46HB

w w w. f l e x t r a l . c o m

Auto Coupler Part No.

Auto Coupler Part No.

Auto Coupler Part No.

52

QL SERIES - LONG LINCOLN INTERCHANGE

Body Size

Male NPT

WP (PSI)

¹⁄₄”

¹⁄₄”

300

Flow

∆P=10 PSI

Coupler Part No.

Body Size

Female NPT

WP (PSI)

∆P=10 PSI

Plug Part No.

Coupler Part No.

19 CFM

QLN44MP

QLC44MP

¹⁄₄”

¹⁄₄”

300

19 CFM

QLN44FP

QLC44FP

D/SD SERIES - PROFILE

J SERIES - PROFILE

M SERIES - PROFILE

L SERIES - PROFILE

53

Flow

Plug Part No.

w w w. f l e x t r a l . c o m

NOTES

w w w. f l e x t r a l . c o m

NOTES

w w w. f l e x t r a l . c o m

NOTES

w w w. f l e x t r a l . c o m

www.flextral.com

FXQC-4ED
