ECAGen MD Series System Output Capacities

MD Series System Output Capacities

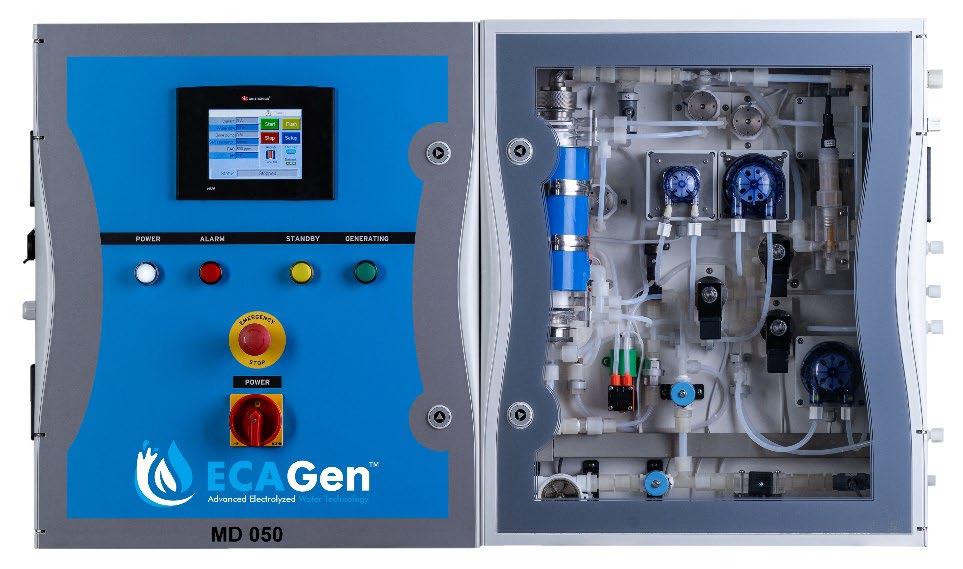

ECAGen MD 050

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 050

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

49 588 4,116 17,698 1 12 84 361

*Catholyte is in its concentrated form - dilute with clean potable water 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

588 4,116 17,698 1,940 13,580 58,394 58,800 411,600 1,769,880

www.ecagen.com 877.432.8548 - ECAGEN

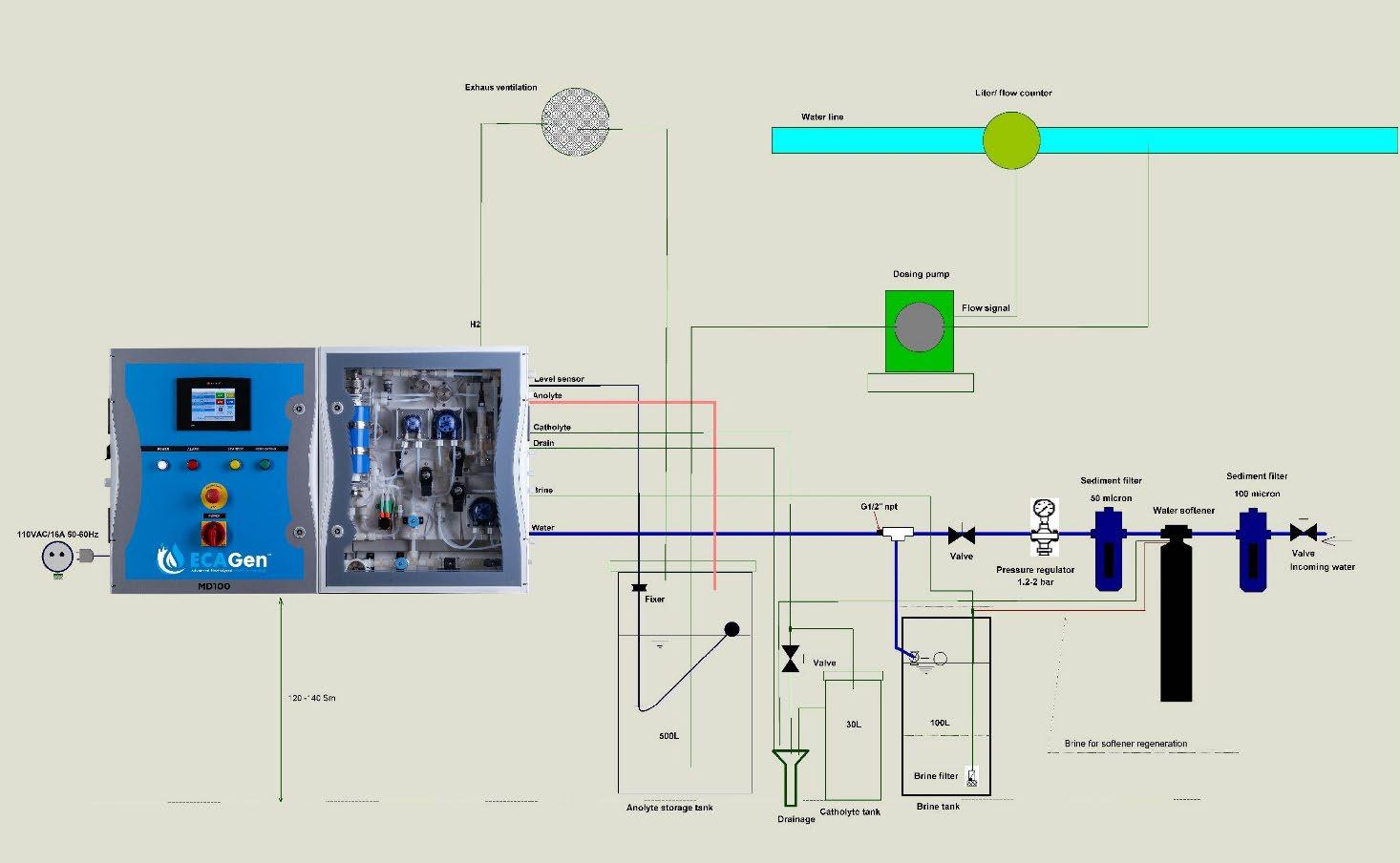

Schematic of a typical installation layout

MD Series System Output Capacities

ECAGen MD 100

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 100

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

103 1236 8652 37,203 2 24 168 722

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

1236 8652 37,203 4,078 28,546 122,747 123,600 865,200 3,720,360

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

MD Series System Output Capacities

ECAGen MD 200

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 200

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

202 2,424 16,968 72,962 3 36 252 1083

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

2,424 16,968 72,962 7,999 55,993 240,769 242,400 1,696,800 7,296,240

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

MD Series System Output Capacities

ECAGen MD 300

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 300

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

301 3,612 25,284 108,721 4 48 336 1,444

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

3,612 25,284 108,721 11,919 83,433 358,761 361,200 2,528,400 10,872,120

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

MD Series System Output Capacities

ECAGen MD 400

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 400

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

400 4,800 33,600 144,480 5 60 420 1,806

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

4,800 33,600 144,480 15,840 110,880 476,784 480,000 3,360,000 14,448,000

MD Series System Output Capacities

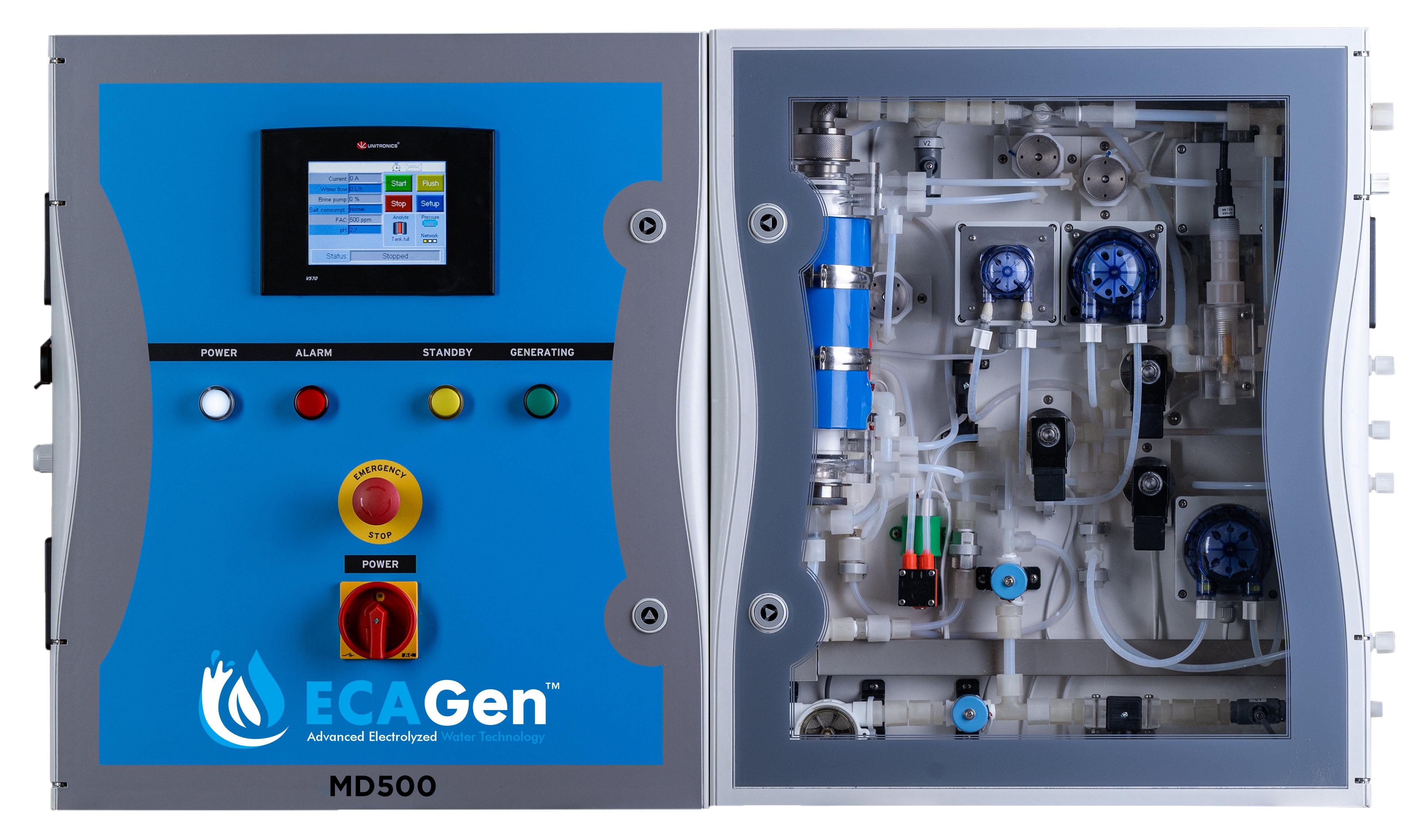

ECAGen MD 500

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 500

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

488 5,856 40,992 175,680 12 144 1,008 4,320

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

5,856 40,992 175,680 19,500 136,503 585,000 585,600 4,099,200 17,568,000

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

MD Series System Output Capacities

ECAGen MD 600

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 600

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

585 7,020 49,140 210,600 15 180 1,260 5,400

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

7,020 49,140 210,600 23,376 163,632 701,280 702,000 4,914,000 21,060,000

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

MD Series System Output Capacities

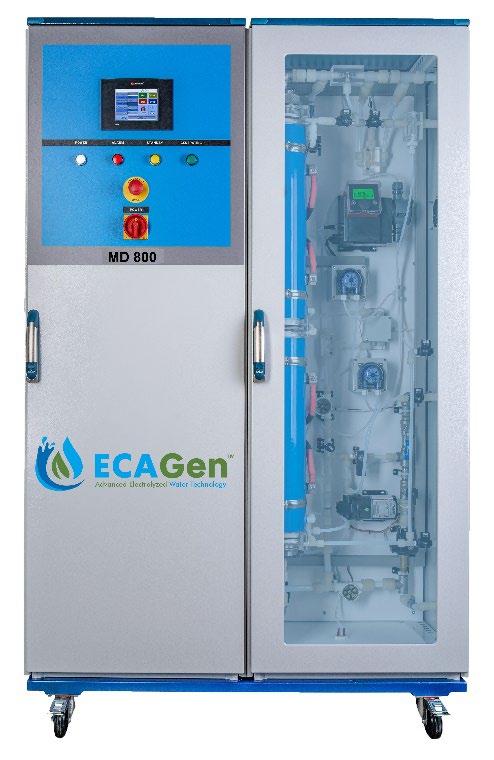

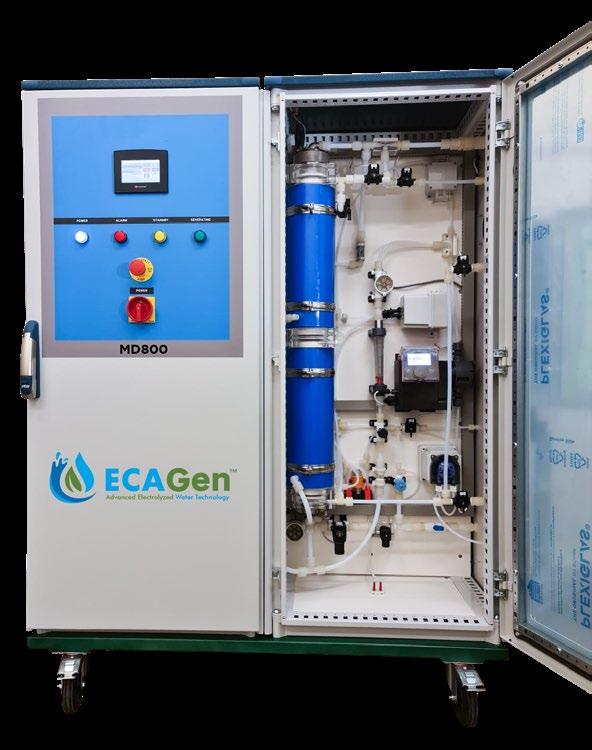

ECAGen MD 800

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 800

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

780 9,360 65,520 280,800 20 240 1,680 7,200

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

9,360 65,520 280,800 30,888 216,216 926,640 936,000 6,552,000 28,080,000

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

MD Series System Output Capacities

ECAGen MD 1000

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 1000

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

975 11,700 81,900 351,000 25 300 2,100 9,000

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

11,700 81,900 351,000 38,610 270,270 1,158,300 1,170,000 8,190,000 35,100,000

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout

MD Series System Output Capacities

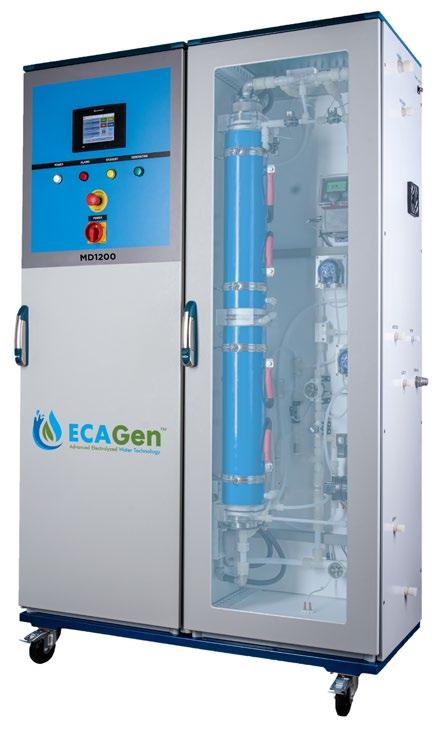

ECAGen MD 1200

www.ecagen.com 877.432.8548 - ECAGEN

Systems Capacities System:

*Active Hours Per Day

System Name

MD 1200

System Operating Parameters

12

*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering

System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 500ppm Anolyte/Day 500ppm Anolyte/Week 500ppm Anolyte/Month *Catholyte/HR *Catholyte/Day *Catholyte/Week *Catholyte/Month

1170 14,040 98,280 421,200 30 360 2,520 10,800

*Catholyte is in its concentrated form - dilute 3:1 to reach normal strength

System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) DIN Strength / Week (500 ppm) DIN Strength / Month (500 ppm) No Rinse Sanitizer / Day (150 ppm) No Rinse Sanitizer / Week (150 ppm) No Rinse Sanitizer / Month (150 ppm) Treated Water / Day (5 ppm) Treated Water / Week (5 ppm) Treated Water / Month (5 ppm)

14,040 98,280 421,200 46,332 324,324 1,389,960 1,404,000 9,828,000 42,120,000

www.ecagen.com 877.432.8548 - ECAGEN

Schematic of a typical installation layout
