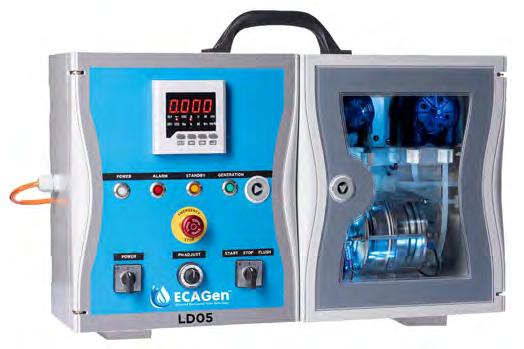

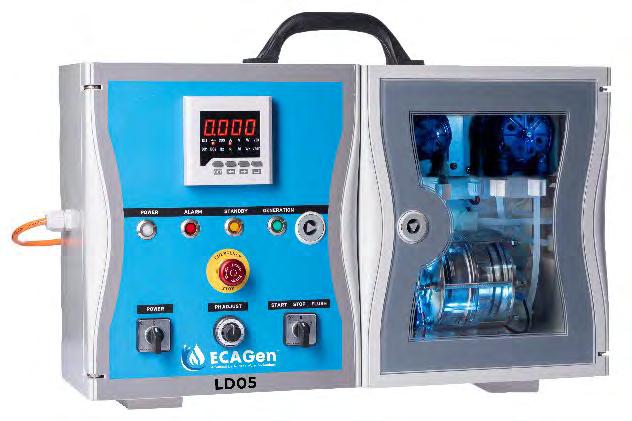

L D S eries System Output Capacities ECAGen LD 05
877.432.8548 - ECAGEN
Systems Capacities
*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering
*Catholyte is in its concentrated form - dilute with clean potable water 3:1 to reach normal strength
www.ecagen.com
System Name System: LD 05 System Operating Parameters *Active Hours Per Day 12
System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 4 500ppm Anolyte/Day 48 500ppm Anolyte/Week 336 500ppm Anolyte/Month 1444 *Catholyte/HR 1 *Catholyte/Day 12 *Catholyte/Week 84 *Catholyte/Month 361
System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) 4 DIN Strength / Week (500 ppm) 48 DIN Strength / Month (500 ppm) 336 No Rinse Sanitizer / Day (150 ppm) 13 No Rinse Sanitizer / Week (150 ppm) 91 No Rinse Sanitizer / Month (150 ppm) 391 Treated Water / Day (5 ppm) 400 Treated Water / Week (5 ppm) 2800 Treated Water / Month (5 ppm) 12000
www.ecagen.com 877.432.8548 - ECAGEN

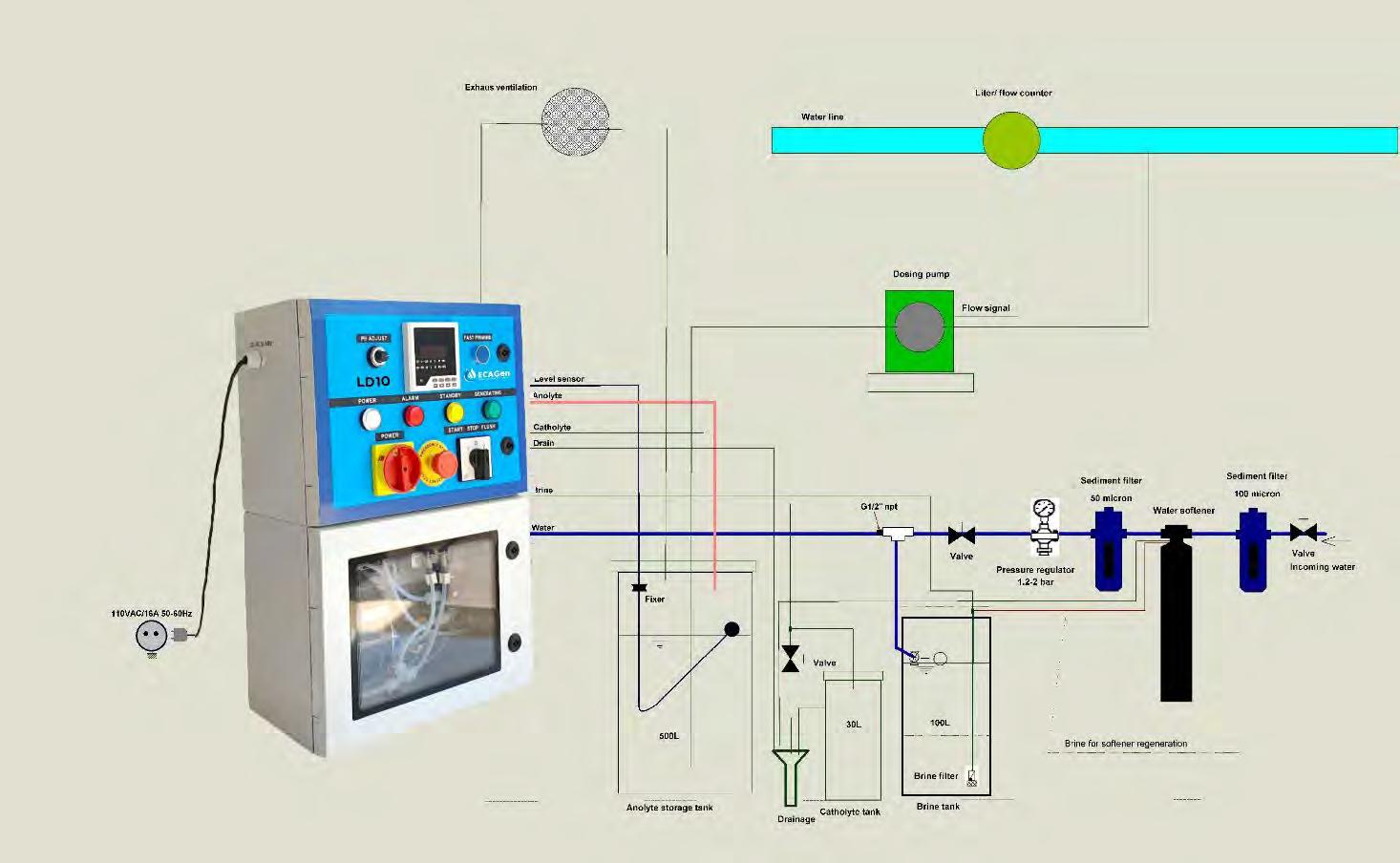

Schematic of a typical installation layout

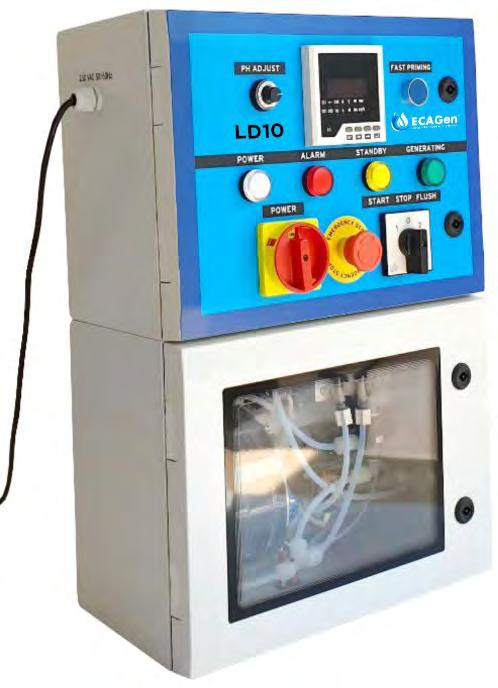

L D Series System Output Capacities ECAGen LD 10
877.432.8548 - ECAGEN
Systems Capacities
*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering
*Catholyte is in its concentrated form - dilute with clean potable water 3:1 to reach normal strength
www.ecagen.com
System Name System: LD 010 System Operating Parameters *Active Hours Per Day 12
System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 8 500ppm Anolyte/Day 96 500ppm Anolyte/Week 672 500ppm Anolyte/Month 2,880 *Catholyte/HR 2 *Catholyte/Day 24 *Catholyte/Week 168 *Catholyte/Month 722
System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) 96 DIN Strength / Week (500 ppm) 672 DIN Strength / Month (500 ppm) 2,880 No Rinse Sanitizer / Day (150 ppm) 320 No Rinse Sanitizer / Week (150 ppm) 2240 No Rinse Sanitizer / Month (150 ppm) 9,600 Treated Water / Day (5 ppm) 9,600 Treated Water / Week (5 ppm) 67,200 Treated Water / Month (5 ppm) 288,000
www.ecagen.com 877.432.8548 - ECAGEN
Schematic of a typical installation layout

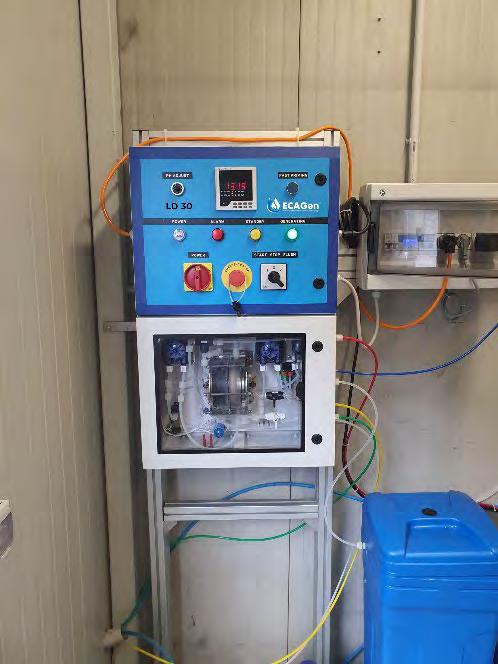

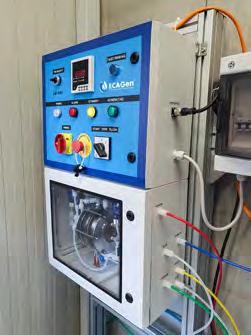

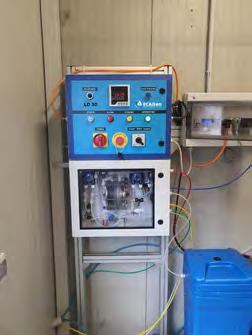

L D Series System Output Capacities ECAGen LD 30
877.432.8548 - ECAGEN
Systems Capacities
*If continuous run time is required to exceed 12 hours per day to max 18 hours per day consult OEM for special heavy-duty cell upgrade at time of system ordering
*Catholyte is in its concentrated form - dilute with clean potable water 3:1 to reach normal strength
www.ecagen.com
System Name System: LD 030 System Operating Parameters
Hours Per Day 12
*Active
System Max Output (Liters) 24/7 Production 500ppm Anolyte/HR 28 500ppm Anolyte/Day 336 500ppm Anolyte/Week 2352 500ppm Anolyte/Month 10,080 *Catholyte/HR 2 *Catholyte/Day 24 *Catholyte/Week 168 *Catholyte/Month 722
System Max Outputs by Anolyte Type (Liters) DIN Strength / Day (500 ppm) 336 DIN Strength / Week (500 ppm) 2352 DIN Strength / Month (500 ppm) 10,080 No Rinse Sanitizer / Day (150 ppm) 1118 No Rinse Sanitizer / Week (150 ppm) 7832 No Rinse Sanitizer / Month (150 ppm) 33566 Treated Water / Day (5 ppm) 33,600 Treated Water / Week (5 ppm) 235,200 Treated Water / Month (5 ppm) 1,008,000
www.ecagen.com 877.432.8548 - ECAGEN
Schematic of a typical installation layout
