JOHN DEERE SPORTS TURF

Equipment and Services

On the field or off, your John Deere dealer is always behind you.

The best stories are driven by people — in this case, people like your local John Deere dealer, and people like you.

Your distributor is always there, playing an essential role by offering an impressive range of parts and equipment and providing unbeatable service. And you? Whether your game is Friday night football or Sunday afternoon soccer, major league doubleheaders or rec league softball tournaments, you deserve it all: great looking locations, heroes who come through in the clutch, and satisfying conclusions every time.

A breadth and depth of knowledge is a great place to start. There’s a growing movement among high schools, colleges, minor league sports and local John Deere Distributors and Dealers to share best practices around agronomy, turf care and equipment usage and maintenance.

So, the answer to how to get your field to look as amazing as a John Deere equipped field may well be in your own back yard. Keep your eyes open for a local Turf Care event near you.

Your field deserves nothing less.

Meet our all-stars.

Flexible Lease Solutions

Lease solutions to help you get the latest equipment and provide low monthly payments, reduced equipment maintenance costs, and payment structure to fit your needs. Options include operating lease, capital lease or municipal lease.

Dedicated local dealer support

We’ve got more experienced local dealers than anyone in the field. Seasoned pros who can quote you chapter and verse on every piece of equipment, from A Models to ZTraks. They’re mission? Keep your story moving.

Industry-best cutting units

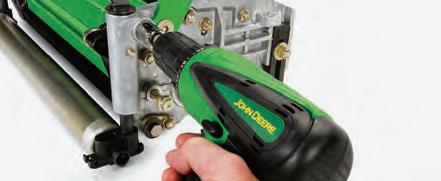

Nothing else cuts it like John Deere equipment. All our reel mowers now come standard with a Speed Link™system that turns adjusting heightof-cut into a simple task that can be done in seconds with a power drill.

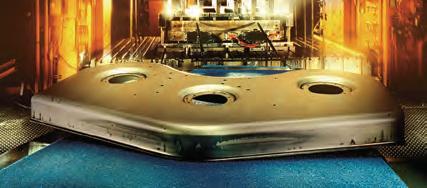

7-Iron™ strength

Our commercial zero-turn mowers feature 7-Iron™ mower decks – one of the best commercial decks ever built. With 18,000-fpm blade-tip speed, superior airflow, smooth undersides, deep cutting chambers and wide discharge chutes.

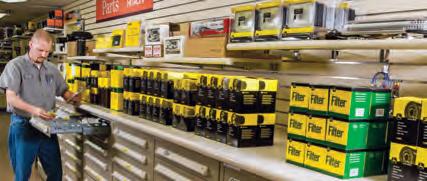

Fast parts support

Have you heard this one? It’s easy to get genuine Deere parts fast. Well, how about this: You can order online. Stock parts onsite. Even source maintenance and repair parts for all makes of commercial equipment right from your local dealer.

New and used equipment packages

Get top-notch new equipment, as well as hard-to-find, competitively priced used pieces sourced from across the country – to create the perfect fleet for your needs and budget.

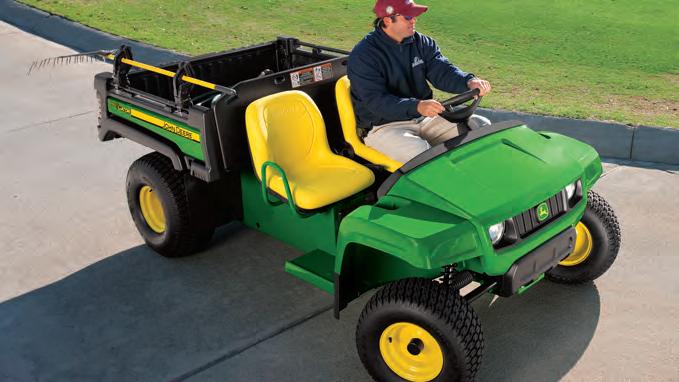

Carry on. And on.

A deluxe 16.4 cu. ft. cargo box? Pick-up style tailgate? 20 tie-down points? You’ve got it all, powered by whatever fuel moves you the most.

Gas or diesel engine, or 48-volt all-electric system

TE runs a full day on a single charge

Turf-ready and 6X4 models available

Up to 25 mph (40.2 km/h) and 18.5 hp (14 kW)2, 34.6 lb.-ft @ 2400 rpm with diesel engine

Gas-assist shock for easier lifting and dumping

Convert to flat bed in minutes

For the long haul.

With a 7-gauge steel frame, leaf spring suspension, and the option of the only 4-cylinder EFI gas engine in category, they’ll stick with you to the end.

Over two tons of payload capacity (with heavy duty suspension, wide rear tires and 4-post ROPS)

34 hp (25.4kW)1 gas engine or 24.7 hp (18.4 kW)2 diesel engine

Optional manual 4WD

Five-speed, synchro-mesh transmission

Hydraulic disk brakes and hydraulic power lift

Gator TX
Gator TE
Gator TH

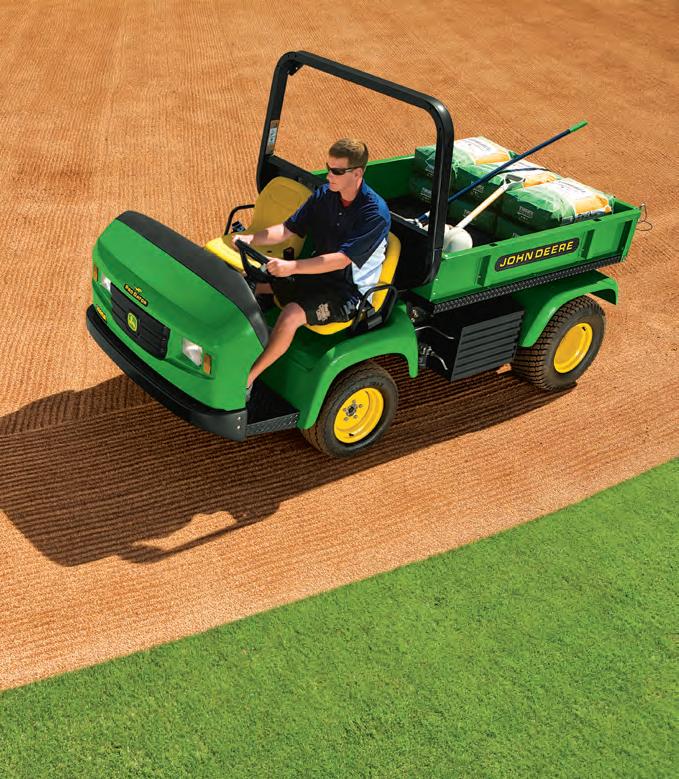

ProGator Utility Vehicle

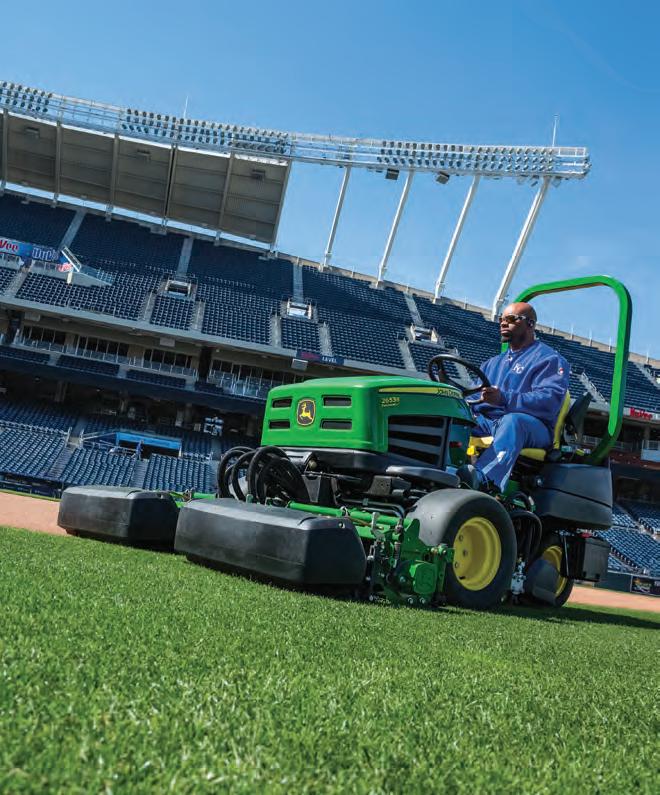

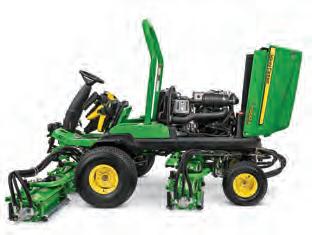

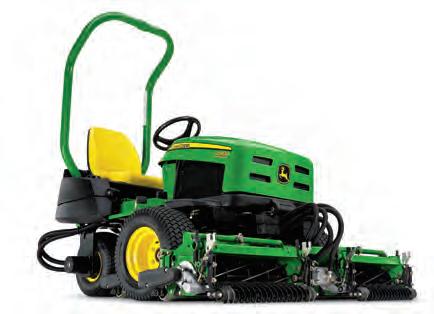

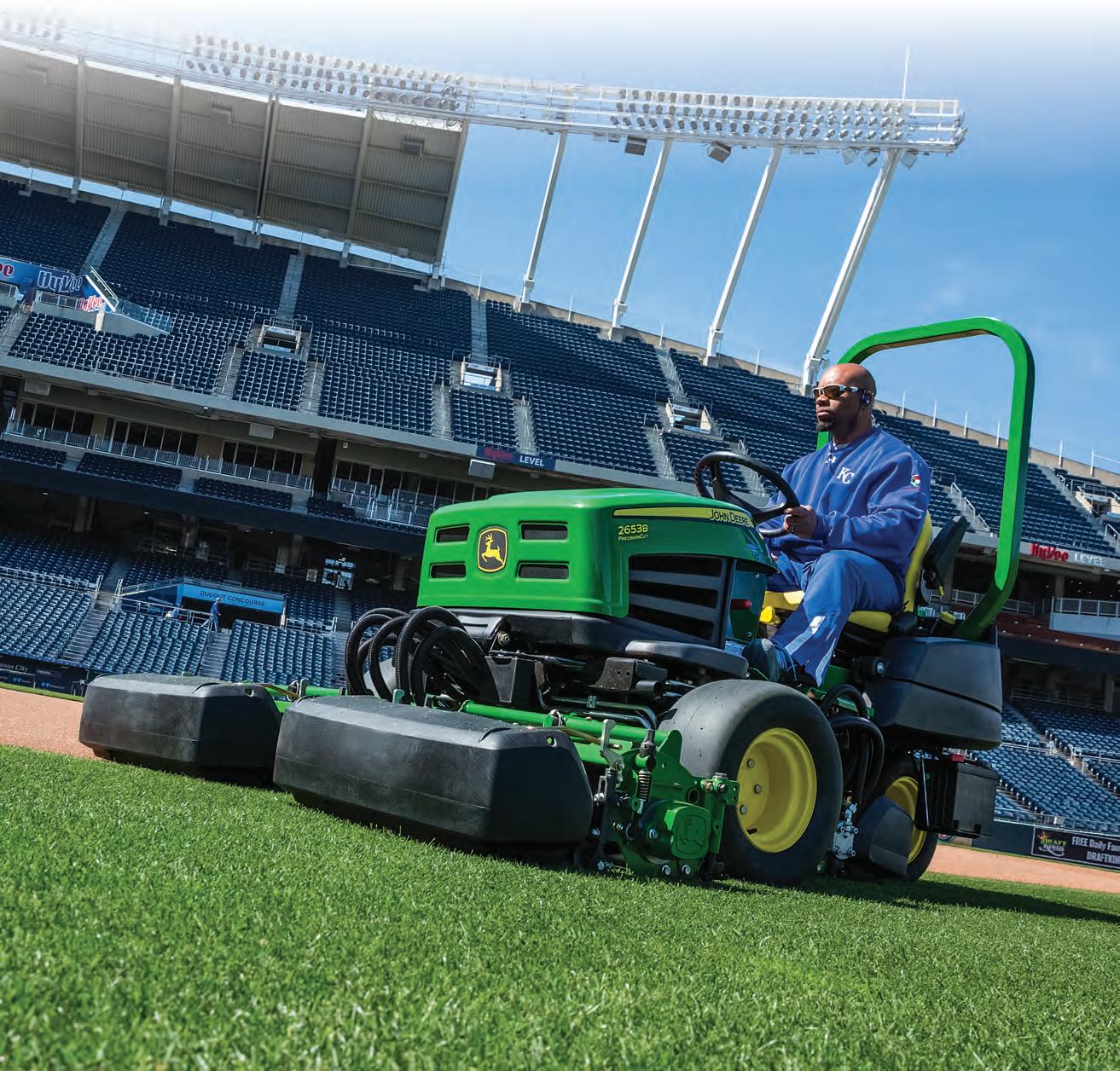

All-around all-star.

The QA7 Quick-Adjust cutting units –specially designed for lush, dense turf –ensure that these clutch performers always make the cut.

Full-time 3WD hydrostatic system for even traction

Wide stance, low center of gravity

Productive 72-in. or 84-in. Width of Cut

Fixed front roller

Dual pedal traction system for ease of use

White box electronic module for easy diagnostics

With the revolutionary Speed Link system, you can make height-of-cut adjustments in no time.

A step ahead.

Speed Link™ technology for easy height-of-cut adjustments, mean you can tinker less. And walk more.

Quiet, 3.2 hp (2.4 kW)1 engine

Simple operator controls and easy adjustments

Dual-traction rolls for the straightest possible tracking

Rubber isolated engine for reduced vibration

10-position height adjustable handlebar

Greens Tender Conditioner (GTC) and rotary brush options

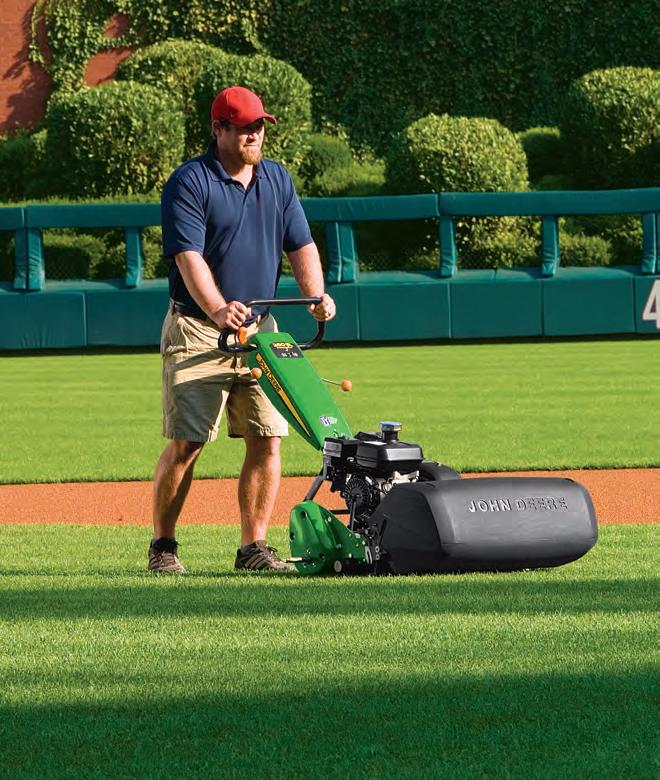

SL PrecisionCut™ Walk Mower

A Model Mowers

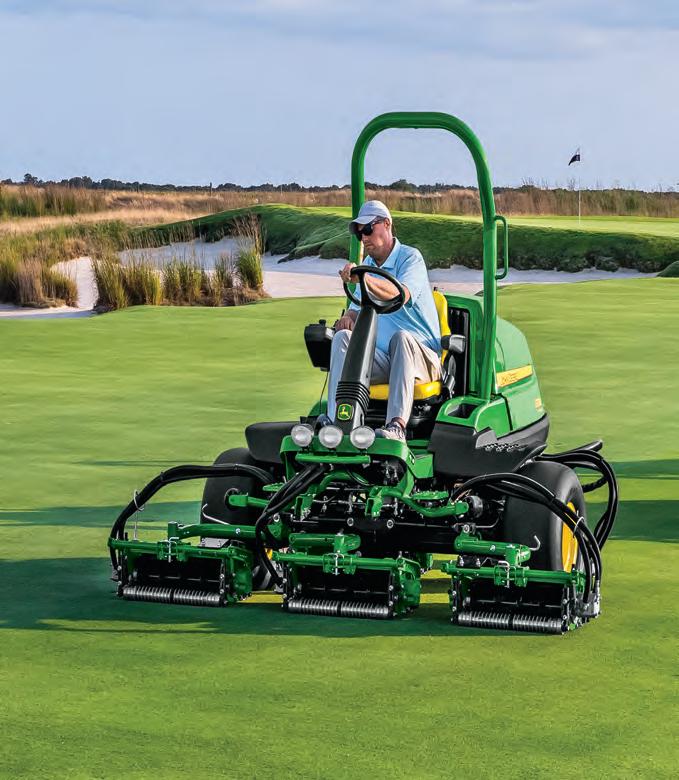

Take advantage of the light, wide cut of the 7700A PrecisionCut™ Reel Mower.

Smooth operator.

The A Models – PrecisionCut™ and E-Cut™ Hybrid Reel Mowers, Trim & Surround Mowers, and the award winning 8800A TerrainCut™ Rough Mower –offer more control and better results.

Passcode-protected TechControl Display locks in performance, and uptime

Up to 55.1 hp (41.1-kW)

Up to 100 in. (254 cm) cutting width

AutoPedal™ lowers fuel consumption and noise

TechControl allows you to quickly set or change mowing speed, turning speed, or transport speed.

Tackles tough stuff.

Thanks to a turbo-charged, intercooled diesel engine and available GRIP all- wheel drive, this top-of-the-line A Model mower can get to the bottom of any job.

Consistent turf engagement with hydraulic down pressure and rear attaching point

22-in (55.9 cm) QA7 reels with SpeedLinkTM Height of Cut system

51.1 hp (41.1 kW) @ 2800 rpm

Easy maintenance with Quick Adjust cutting units

100 in. (254 cm) cutting width

The optional GRIP All-Wheel Drive Traction System reduces wheel slip.

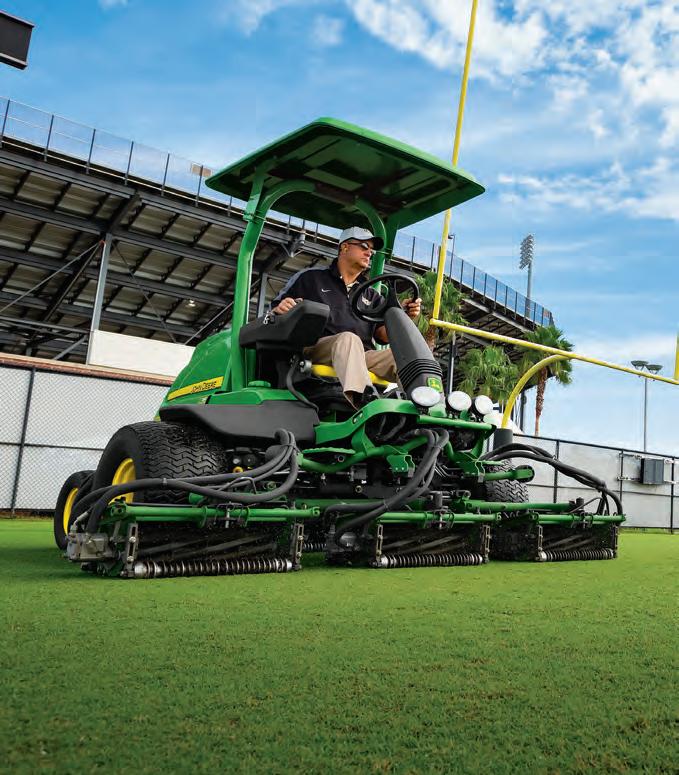

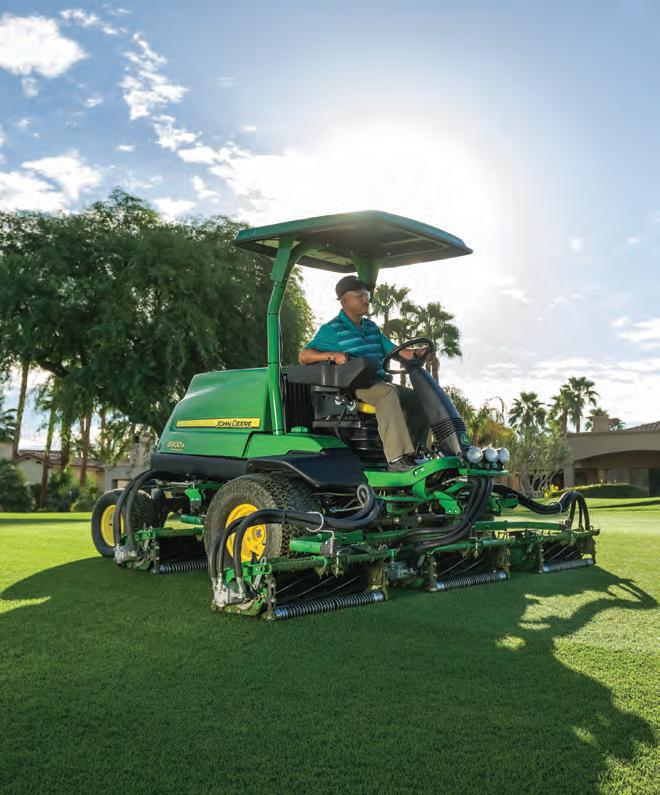

6000A PrecisionCut™ Reel Mower

Do more with less.

Get up to speed and cut a wide swath through the end zone or down the alley, with mowers that pack more versatility, productivity and performance into a light, hardworking frame.

26in or 30in (66 or 76cm) wide five-gang cutting units

8mph (12.8 km/h) mowing speed

TechControl for easy, effective operating, maintenance and diagnostics

Verticutters and large-capacity reel motors for scalping during over-seeding

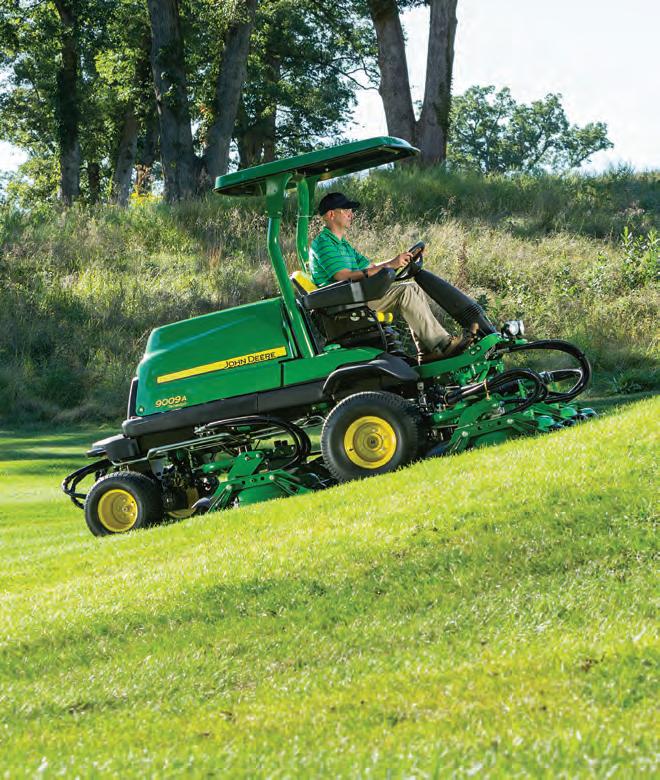

9009A TerrainCut™ Rotary Mower

Good and wide.

Maximize productivity and control all over the field — without sacrificing quality. It’s tough enough to keep mowing game after game, and offers a cut quality that’s second to none.

Five, 27-in. (68.58 cm) independent rotary decks with 9-foot cutting width

Deep shell deck design with innovative rear discharge chute

No-tool notch system for easy height-of-cut adjustments

LoadMatch™ for excellent climbing and cut quality

1500 Series TerrainCut™ Front Mowers

Take a few minutes and watch what these mowers can do all day: JohnDeere.com/MowPro

Miles ahead.

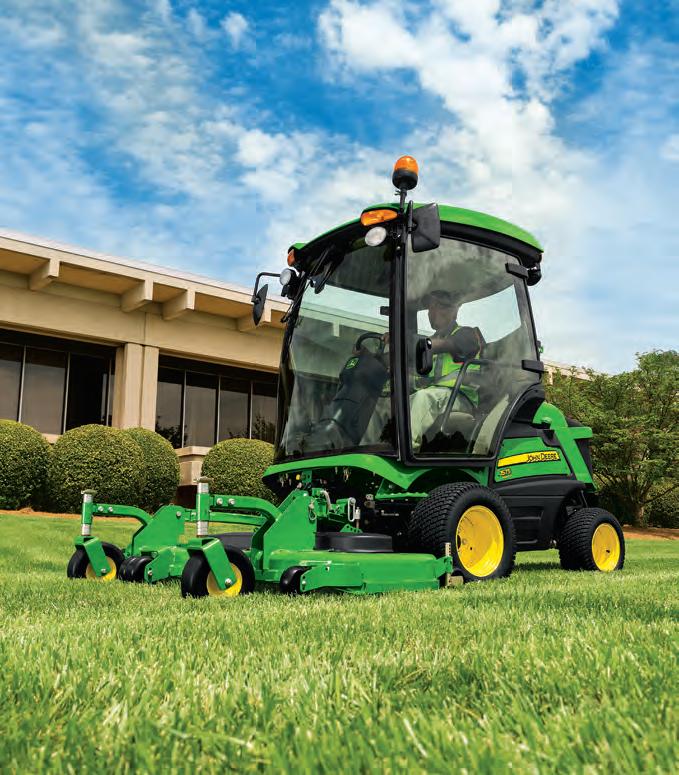

With powerful diesel engines, lots of implements and a factory-installed sealed cab, the new 1500 Series TerrainCut™ Front Mowers redefine what a front mower can do.

2WD or 4WD

Up to 37.4 hp (27.5 kW), B20 Biodiesel compatible

Up to 15 mph (24 km/h)

Available with factory-Installed ComfortCab 24-month Warranty

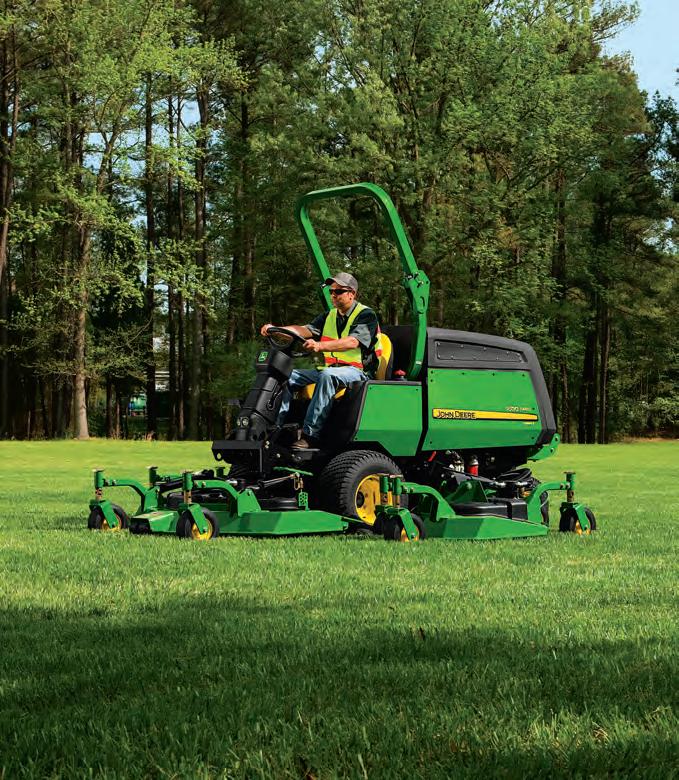

Wide Area Mowers

Add a blower, broom or blade for all-season versatility

Broad support.

Cut wide swaths down to size, and open up more possibilities, by taking advantage of the unmatched cutting power that the 1600 Series II delivers.

Liquid-cooled, 4-cylinder engine

Hydrostatic transmission

Exclusive air-intake system

Twin-touch pedals for speed and direction, keeping hands free for steering

Ergonomic controls and steering column

62-in (157.5-cm) center deck and two 42-in (106.7-cm) wings

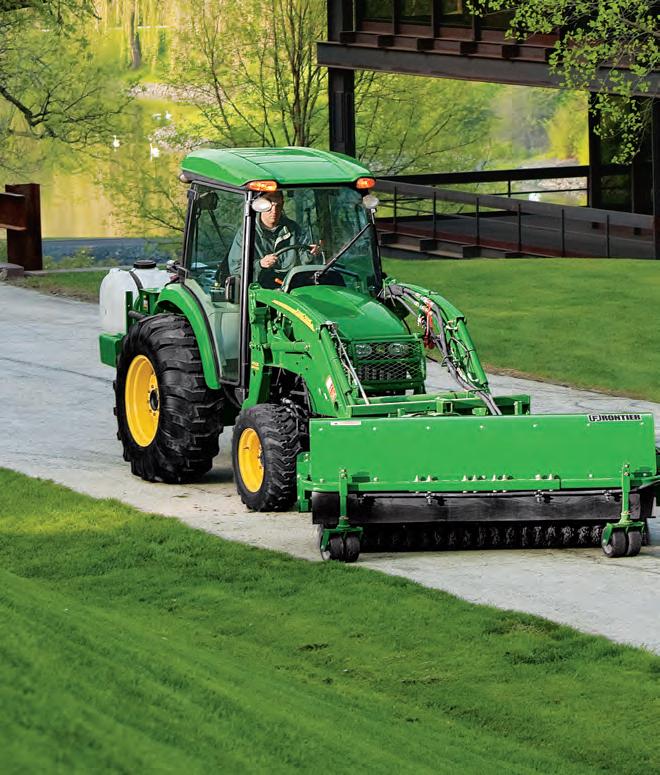

Compact Utility Tractors

Big performers.

Expert at everything from loading, digging and mowing to landscaping and snow removal, the 2000, 3000 and 4000 Series work bigger than they look.

Standard 4WD drive

Direct-inject diesel engines up to 99 hp (73.8kW)1

Economy PTO for better fuel economy and less fatigue

Revolutionary iMatch™ AutoHitch and Quick-Hitch

Exclusive LoadMatch to maximize torque

eHydro™ and PowrReverser™ transmissions

Stands apart.

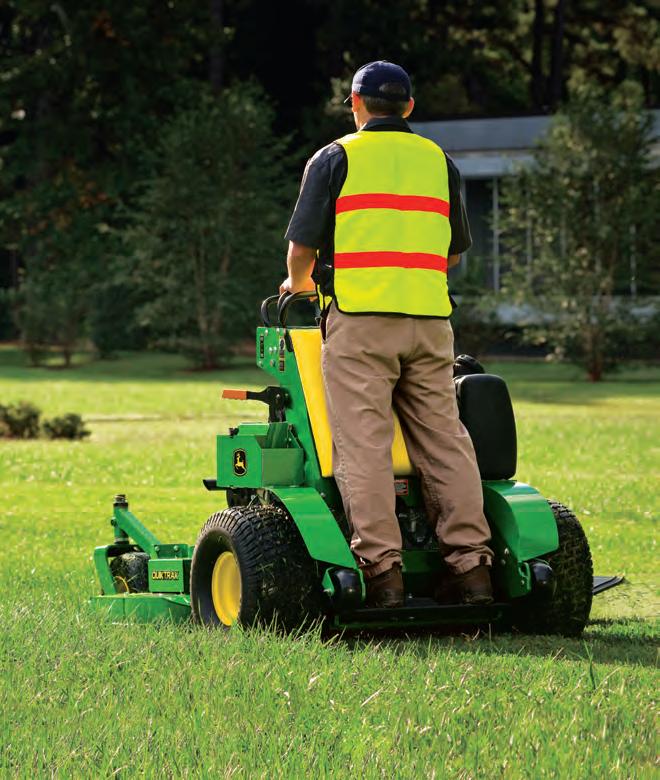

QuikTrak™ Mowers

QuikTrak stand-on mowers deliver the best of both worlds: industry exclusive stand-on technology combined with John Deere quality, durability, and support.

Excellent stability, even on tricky hills and mound

Excellent operator positioning, including an adjustable spring step and angled pad

Compact design for tight spaces

John Deere controls for superior maneuverability

7-gauge steel decks available from 36 to 62-in

Electronic Mulch On Demand™

High-back cushioned seats and auto-style controls

Get exactly the cut you want, in easy-to-adjust ¼” increments.

4000 Series Tractor
Series Tractor5D Series Tractor

Cleans up nicely.

Using this towed attachment, one person can smoothly pick up turf debris – and just as easily dump it, thanks to the hydraulic-powered lift cylinder.

Handles everything from aeration cores, sand and clippings to leaves, thatch, and pine straw

25-cubic-foot-capacity hopper with 48-inch collection swath

Adjustable roller height allows for varying turf conditions, prevents brush wear

By combining time-tested performance, efficient design and operator-friendly features, these hardworking machines have become the stuff of legend.

Drivetrains similar to the popular Gator™ T-Series

3,100-rpm engine, solid muffler and cowling design significantly reduce machine noise

Adjustable high-back seat

Standard power lift for the rear rake

Counterbalanced front- and mid-mounted implements

Timeless. Tireless.
Dumping all the debris? That’s as easy as pulling a lever.
1200A Field Rakes

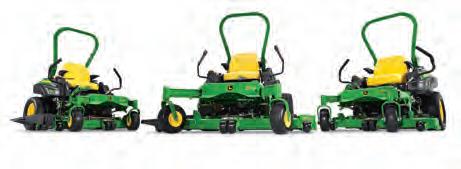

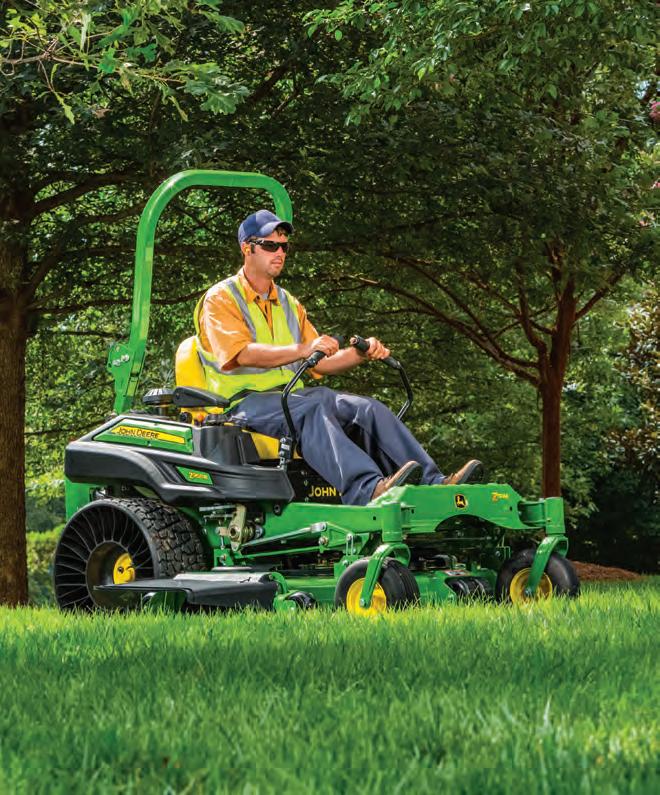

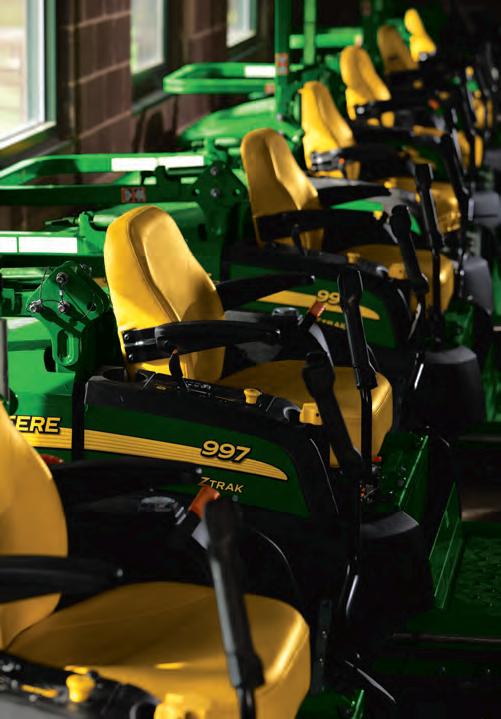

See the whole Z900 Series family

ZTrak R Diesel Series: visit

With this lineup, you can go from zero turn to infinite possibilities in no time flat, whether you’re in the market for a single workhorse or a fleet of thoroughbreds.

Choose the workhorse E Series, the efficient fleetready M series or the R Series – the zero turn that comes with everything

Exclusive, industry-leading 7-Iron™ Deck

EFI, FlexFuel, Propane and Diesel fuel options

Up to 12 mph

The MICHELIN® X® TWEEL® TURF™ available exclusively on John Deere ZTrak™ Z900 E, M, R Series Mowers*

The finish is now everything on your infield skin, thanks to the new TruFinish™ 1220 Utility Rake with a front blade, three mid-mount rake options, five rear rake choices, and a push-button shift between 2WD or 3WD and more. Keep mowing.

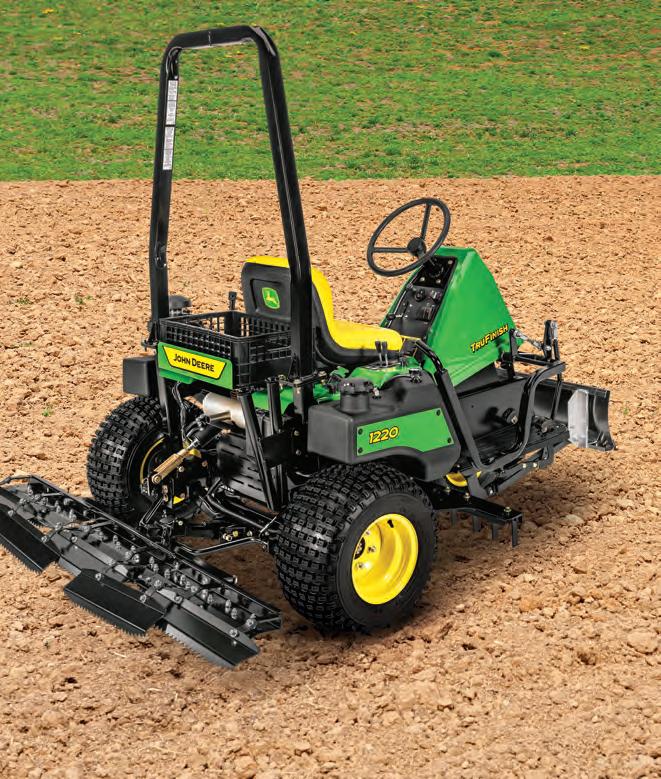

NEW TruFinish™1220 Utility Rake

The finish is everything.

The 18 hp (13.4 kW)*, 570-cc (34 cu in), air cooled overhead valve gas engine

2WD or 3WD. Shift between 2WD or 3WD with the push of a button

The front blade is lightweight, heavy-gauge aluminum for a true finish

Three Mid-Mount Rake options to adapt to any soil condition

Five Rear Rake Options for the ultimate well-groomed finish
