DRY APPLICATION
400R / 600R Dry Spreaders & 800R Floater
JOHN DEERE DRY APPLICATORS
Application quality. Integrated precision ag technology. Remote support. When it comes to nurturing and protecting your fields from weeds, diseases, and insects, no one brings it all together like John Deere. Our dry applicators provide consistent applications with minimal waste to save you time and money. And we’re giving you more comfort with new improvements to our cabs to make long days in the field seem shorter.

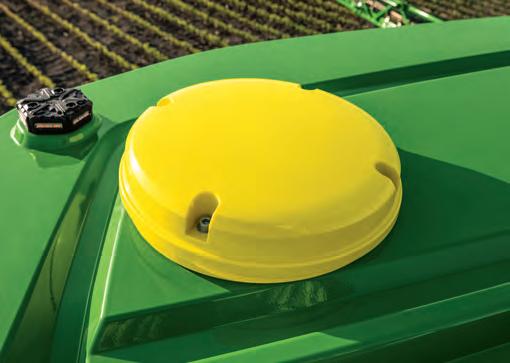

Integrated StarFire™ 7500 Receiver
Greater pass-to-pass accuracy—up to 2.5 cm. Fast pull-in times. Long-term repeatability. The StarFire 7500 Receiver now comes integrated in all John Deere and Hagie application machines.¹ It can give you fast recovery shading events and confidence in every boundary and guidance track.
AutoTrac™ Turn Automation
Those end-of-pass turns don’t have to be stressful, even for inexperienced operators. With automation technologies like AutoTrac Turn Automation², you can make complete accurate turns in a variety of field conditions. More efficiency. Less stress. All automatic.
1License required. See your John Deere dealer. ²Available as part of the Automation 4.0 Package and G5 Advanced Package.
INTEGRATED INTELLIGENCE FROM THE START
Gain confidence in every application with our new integrated lineup of precision ag technology. The intuitive G5Plus CommandCenter™ puts high-definition insights at your fingertips—ensuring you have every detail you need for precise, efficient operation.
Factory-ordered machines come with an integrated StarFire 7500 Receiver with SF-RTK for long-term repeatability up to 2.5 cm accuracy. And with updates to AutoTrac Turn Automation and AutoPath™, you can operate at higher speeds—along full-field guidance lines—for maximum productivity.
With JDLink™ connectivity3, John Deere dry spreaders can stream machine and field data to John Deere Operations Center™ anytime, anyplace. Simply turn on JDLink service in your Operations Center account.

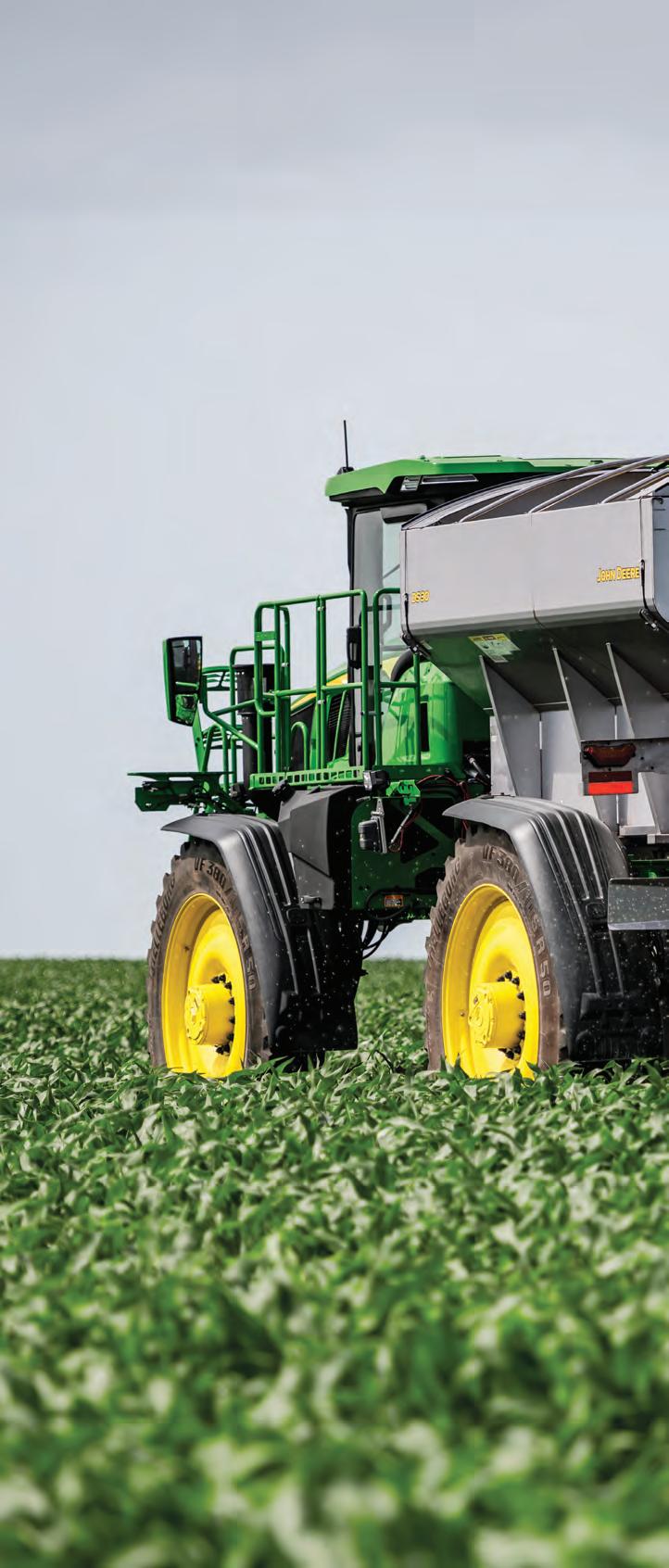

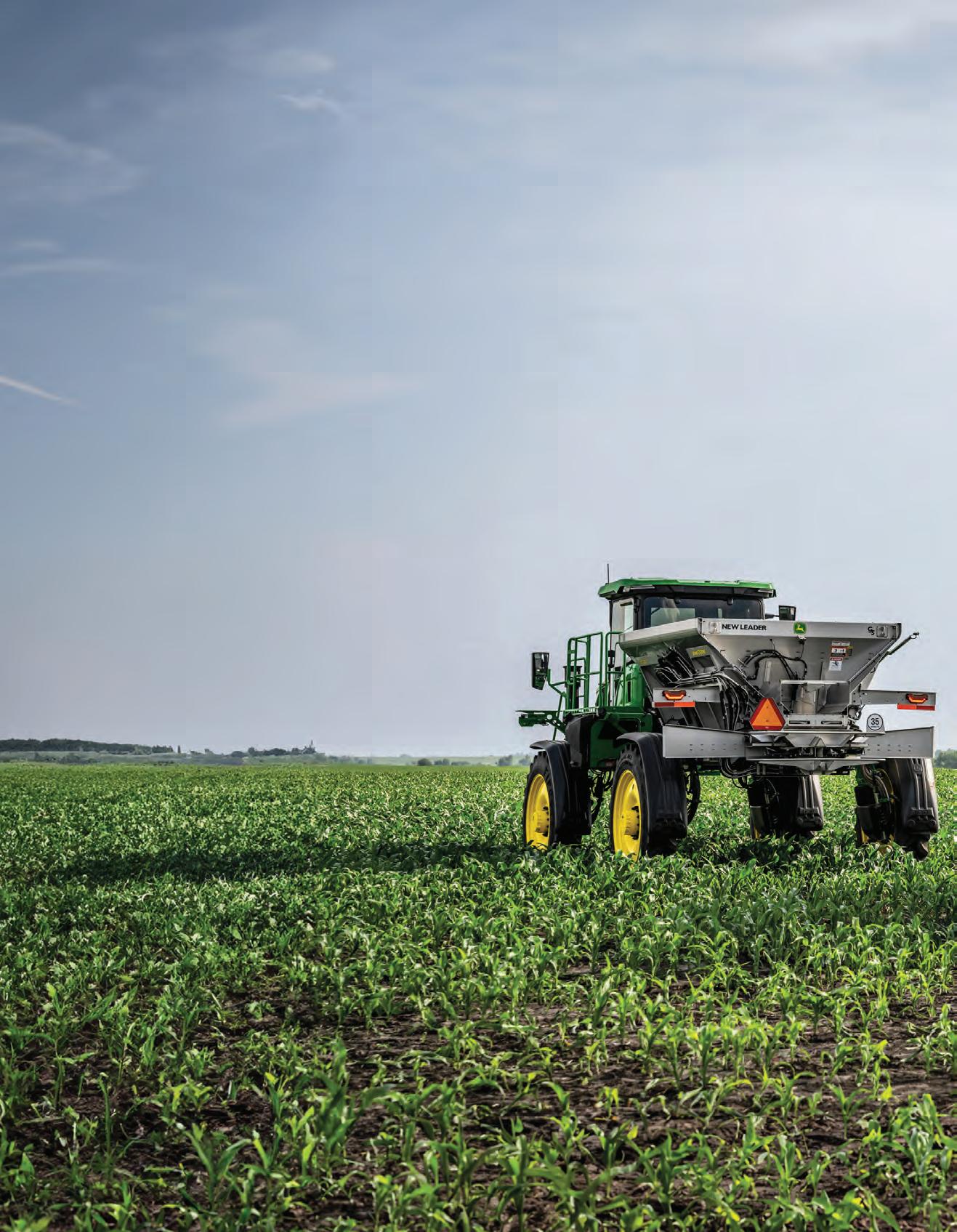

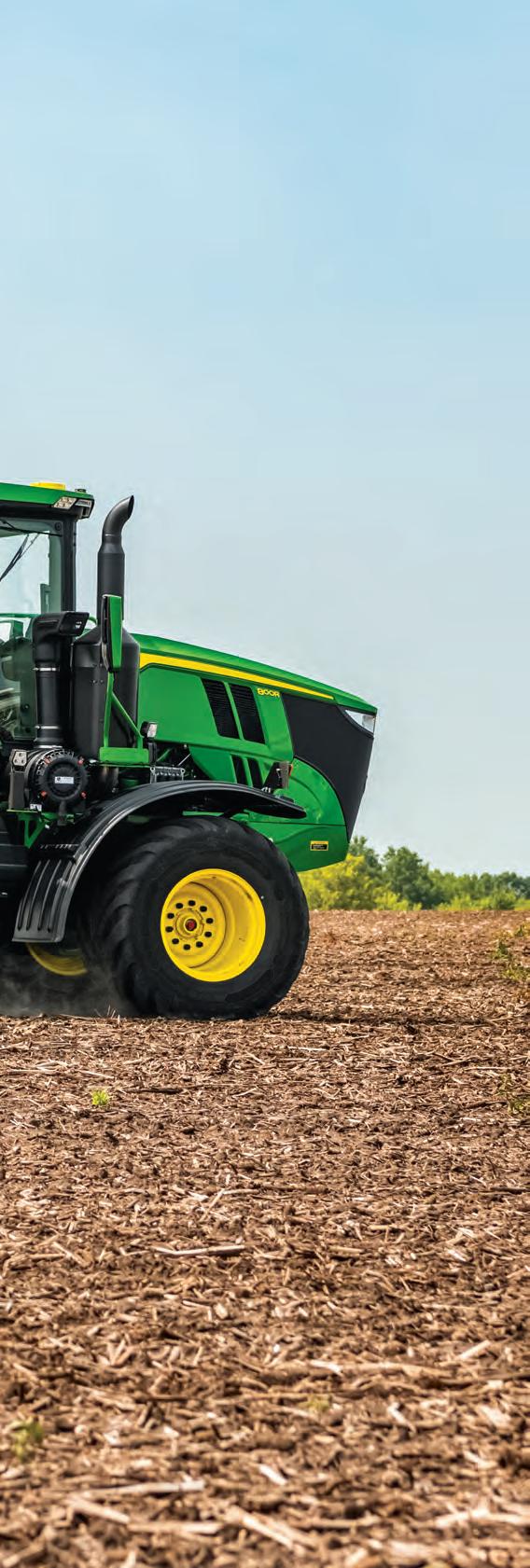

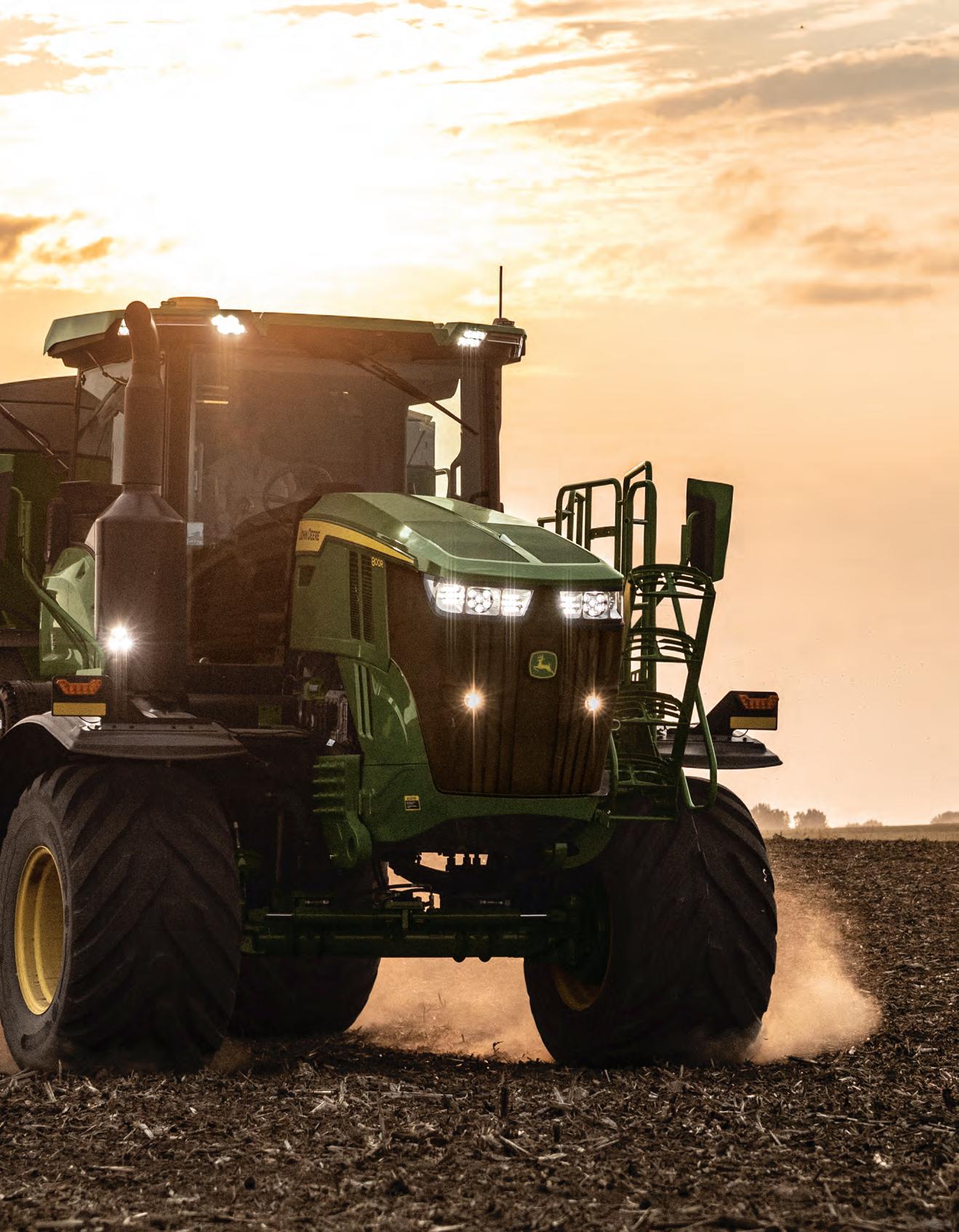

400R DRY SPREADER
Engineered to do more, the 400R Series chassis gives growers and Ag Service Providers unmatched flexibility to configure one machine as a liquid sprayer, a dry spreader, or a combination unit.¹ That means higher utilization, better asset efficiency, and more value from every pass.
With available Four-Wheel Steer (4WS) and Crab Steer, the 400R adds more capability in dry spreading applications by delivering tighter turning radiuses, improved maneuverability on headlands, and reduced crop damage—making it easier to navigate irregular field shapes, tight field entrances, and crowded tender sites.
With a peak 382 hp (285 kW), the 400R delivers muscle for demanding application windows. And the CommandDrive™ powertrain boosts productivity even more by improving fuel efficiency, reducing noise, and delivering superior traction in challenging field conditions.
When it’s time to spread, pair the 400R with the proven G-Series Dry Spreader lineup from New Leader®. In the DS20 configuration, you get a capacity of 200 cu ft (5.6 m³), with your choice of single bin or MultApplier™ dual bin setups. Coverage is fast and efficient with spread widths from 60 to 105 ft (18.3 to 32 m)—helping you cover more acres in less time.

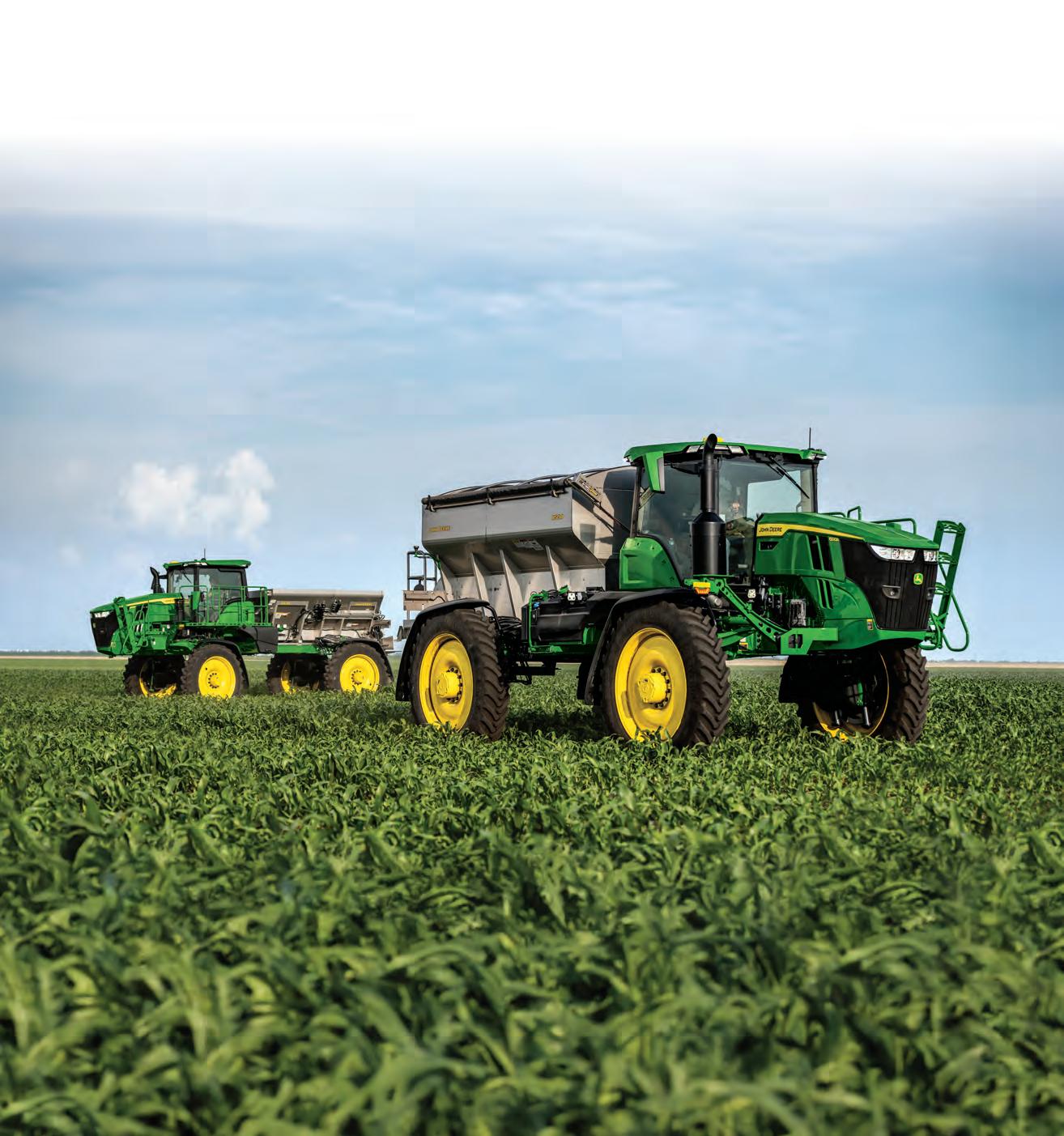

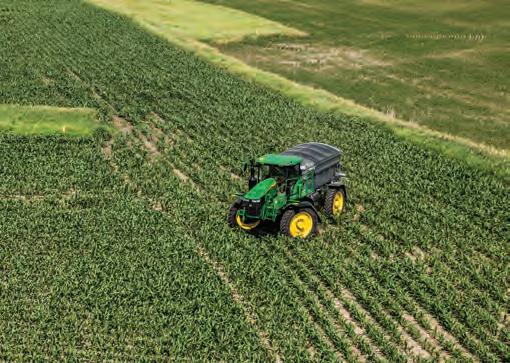

600R DRY SPREADER
With a peak 415 hp (309.4 kW), the John Deere 600R Series chassis delivers fast acceleration to cover more acres in less time—even with heavier payloads. Optional flotation tires help reduce soil compaction, so you can get into the field sooner and stay there longer, even in less-than-ideal conditions.
Designed to maximize productivity, the 600R seamlessly pairs with New Leader application systems. Choose from either the G-Series or NL7 Series Spreaders to match your operation’s needs:
• G-Series DS20: 200 cu ft (5.66 m³) capacity, spread widths from 60 to 105 ft (18.3 to 32 m)
• G-Series DS30: 300 cu ft (8.50 m³) capacity, spread widths from 60 to 105 ft (18.3 to 32 m)
• NL7 Series DS30 NL720: spread widths of up to 120 ft (36.6 m) for maximum productivity
Maximize your 600R’s versatility with an air boom system. The AB200DS Chassis-Mounted Air Boom from Salford® transforms the 600R into a highcapacity pneumatic applicator. With an 80 ft (24.38 m) application width, the AB200DS pneumatic applicator can comfortably cover more than 70 acres (28.3 hectares) per hour at 10 mph (16.1 km/h)—a 14% larger span than 70 ft (21.3 m) competitors.² The applicator is also capable of maintaining accurate application at speeds up to twice that. The patented row-crop boom can be equipped with application drop tubes on 30 in (76.2 cm) centers. This allows the AB200DS to deliver nutrients below the canopy mid-season, providing nutrients to crops when they’re needed most and preventing leaf-burn stress on growing crop.
Whether it is spring, summer, or fall—preplant or post-application— John Deere delivers the precision dry application systems to place nutrients that support soil health and help unlock yield potential.
²Compared to nearest competitor with 70 ft (21.3 m) maximum application width.

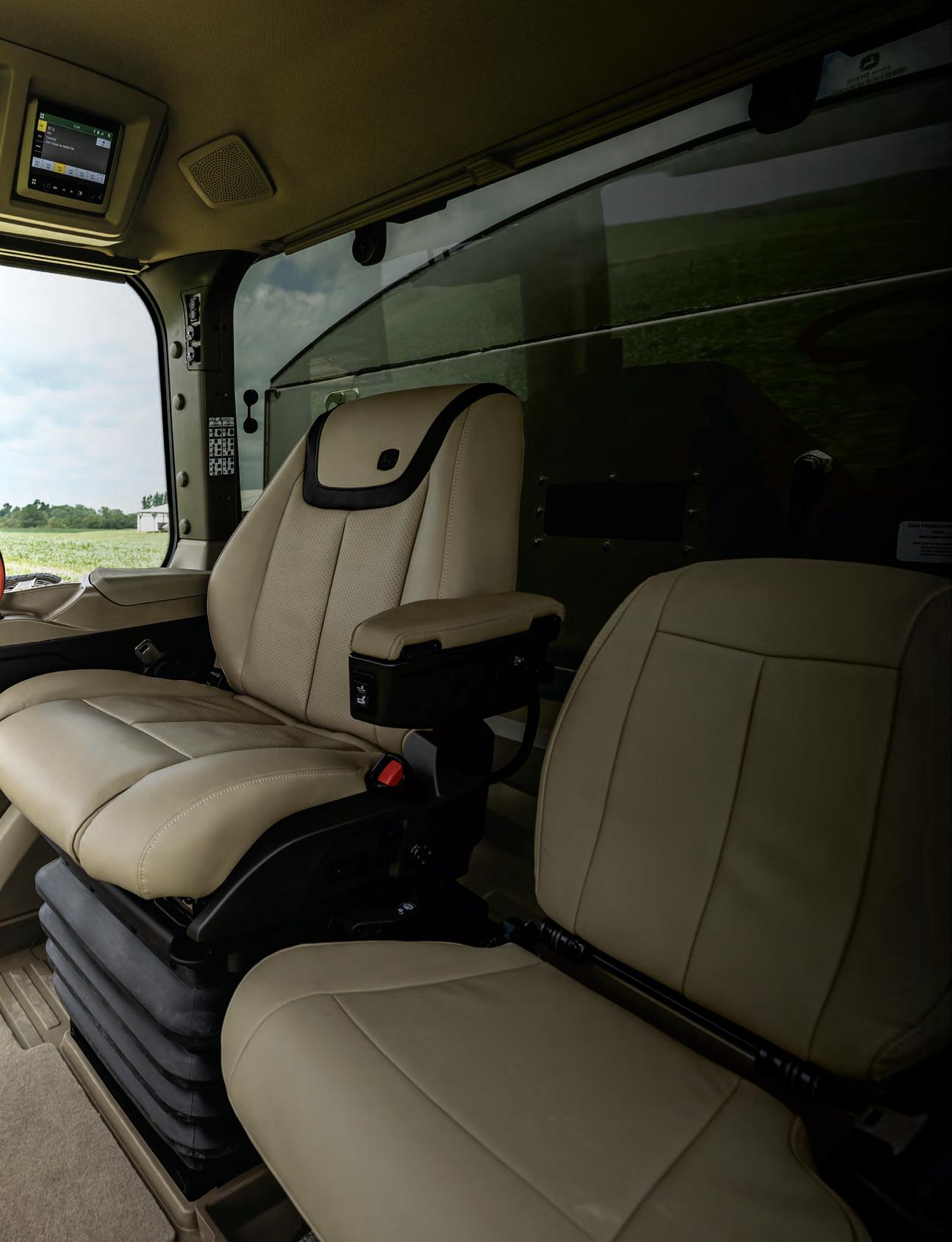

MORE SPACE. MORE COMFORT. MORE VISIBILITY.
When the hours are long and the terrain is tough, you deserve all the comfort you can get. Stretch out your legs using the footrests and focus on the rows ahead. Two visibility packages, with brighter exterior lighting, offer clear observation of your surroundings no matter the time of day. What’s more, the CommandDrive™ powertrain provides traction control in challenging conditions, all at reduced decibels for a quieter ride.

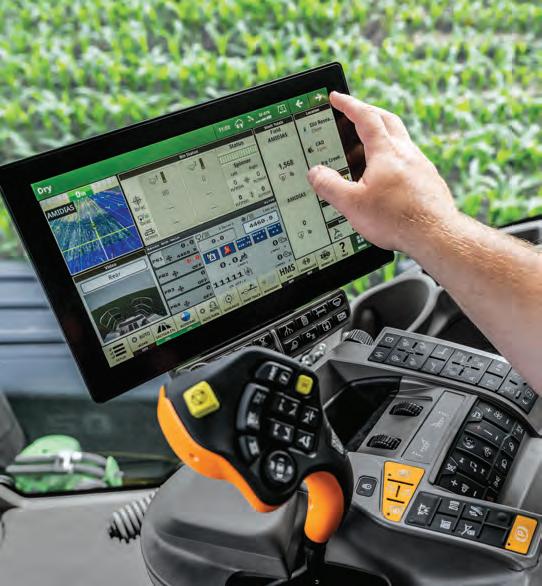

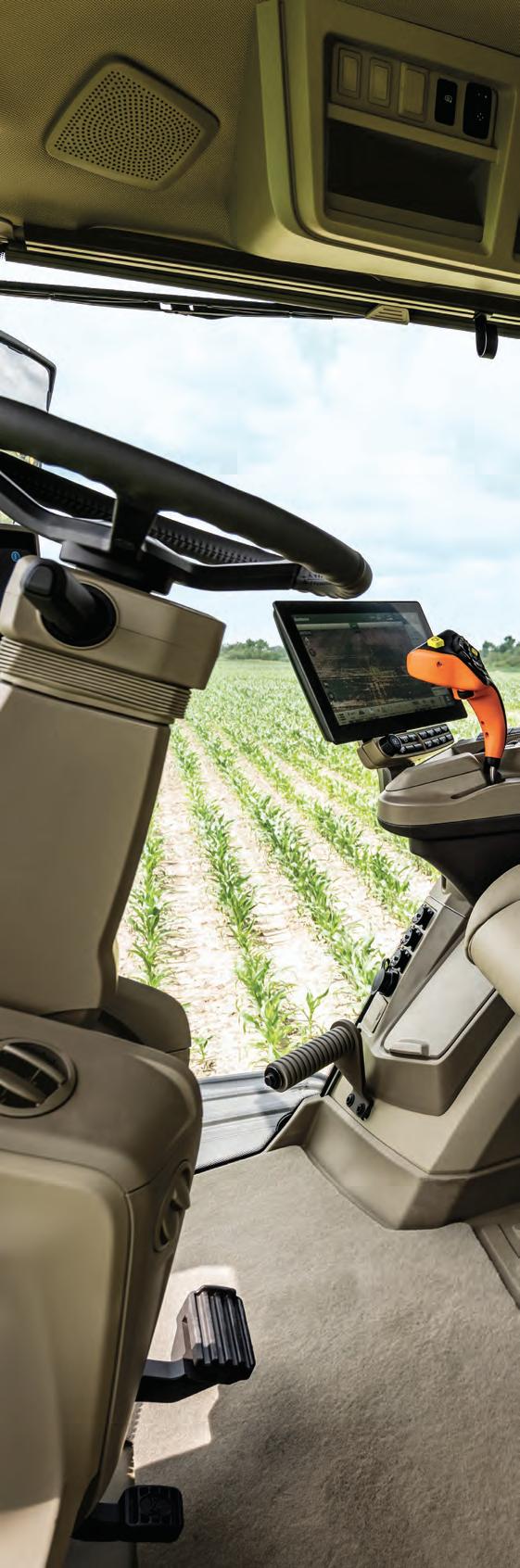

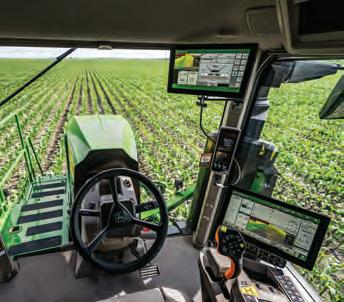

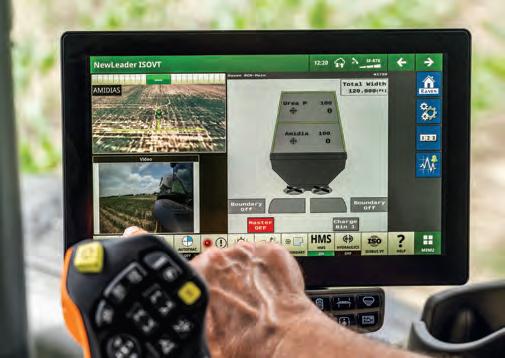

G5 Display with Extended Monitor
Do more without switching screens. The G5Plus Extended Monitor gives you a second 10 in (25.4 cm) display to simultaneously view maps, machine functions, and SpreadStar™ controls, so you can adjust on the go and reduce the risk of costly application mistakes. Plug-and-play installation makes setup fast and easy.

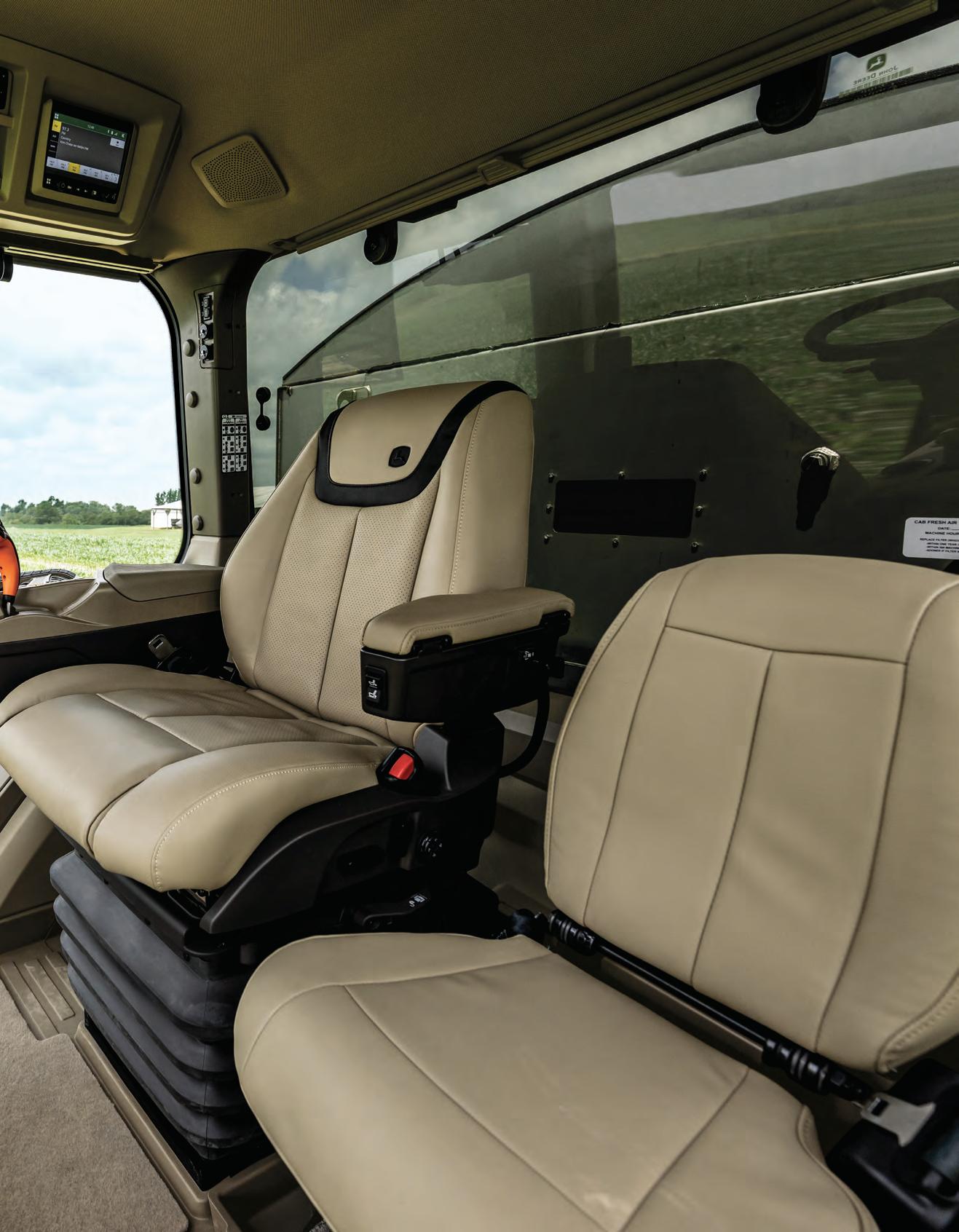

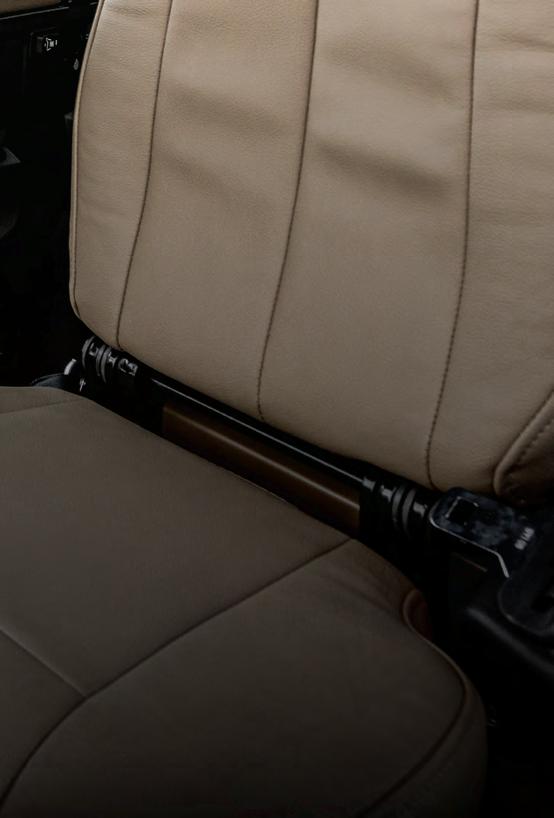

Comfort, Convenience, and Visibility Packages
Transform the cab of your John Deere Dry Spreader into a truly operator-focused workspace. Visibility packages include Premium and Ultimate options, featuring up to 17 LED lights, multiple beacons, heated and electrically adjustable mirrors, sunshades, wipers, and an integrated camera system with rear and side views to ensure confident operation day or night. Inside, choose from Select or fully loaded Ultimate Comfort & Convenience, moving from a well-equipped cloth seat and simple infotainment to an ActiveSeat™ II leather seat with heating, ventilation, and fatigue prevention, a 6.5 in (16.5 cm) touchscreen with premium audio, additional storage, and a refrigerator.

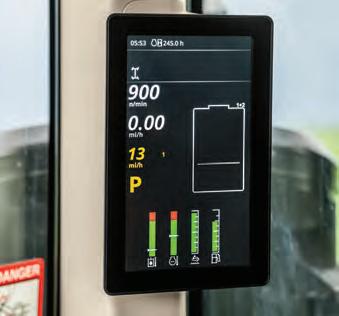

Next-Generation Corner Post Display
Get critical machine information at a glance. The bright, easy-to-read corner post display shows fuel level, temperatures, oil pressure, engine speed, gear selection, and ground speed—keeping operators informed and focused on the job at hand.

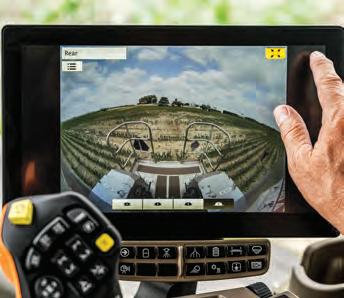

Integrated Cameras
See more of your machine and your surroundings with integrated camera technology. A standard backup camera displays directly on the G5Plus Display, while the Ultimate package adds leftand right-side cameras for enhanced visibility and maneuvering, giving operators greater confidence in tight or busy application environments.
ONE MACHINE. UNLIMITED PRODUCTIVITY. PROVEN PERFORMANCE.
When you choose the John Deere 400R or 600R chassis, you’ll have the ultimate multi-season application machine when you pair it with the New Leader DS20 or DS30 G-Series Dry Spreaders. As the exclusive John Deere spinner spreader partner, New Leader delivers factory-installed solutions that bring industry-leading spread performance, unmatched flexibility, and proven durability to every acre. Whether you’re applying fertilizer or dual products in a single pass, the DS20 and DS30 are built to help you cover more acres per day, apply more precisely, and reduce changeover time—all while maximizing your machine investment.
To give you even more flexibility, consider pairing the John Deere 600R with a Salford AB200DS ChassisMounted Air Boom. It offers enhanced airflow control across a wide range of rates, speeds, and conditions to deliver uniform product placement, even in the blustery days.
Proven Performance
Both the DS20 and DS30 feature New Leader’s fieldproven G4, G4 Edge, and G5 Spinner Technology, delivering:
• Faster, wider, and more consistent spread patterns
• Superior performance, even in challenging, windy conditions
• Accurate variable-rate application across the entire spread width
With Variable Rate Technology (VRT), you can automatically adjust rates across the field without stopping or manually changing settings—helping optimize input use and boost agronomic performance.
DS20 G-Series
Ultimate Versatility for 400R and 600R

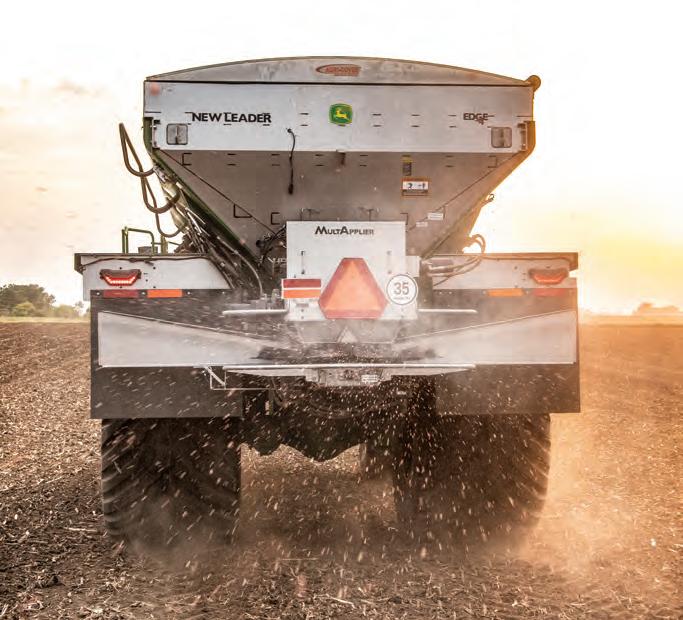

The DS20 is factory-installed on the 400R or 600R chassis, making it a perfect solution for operators who want a versatile spreader for both fertilizer and lime applications on a nimble row-crop chassis.¹ Pre-season or post-season, feed your soil and plants what they need when they need it most.
• Ideal for fertilizer and lime applications, including an 11 in (27.9 cm) feedgate option on 600R
Available in 304 stainless steel or 409 painted stainless steel
200 cu ft ( 5.66 m³) capacity with a 30 in (76.2 cm) #4 heavy-duty belt-over-chain conveyor
• Removable bolted-in rear endgate, inverted V, and electric chain oiler
• Designed for easy cleanout and fast changeover
Add the optional MultApplier to apply two products simultaneously using independent conveyors—perfect for blending nutrients or applying multiple products in one pass while maintaining precise rate control.
DS30 G-Series
Maximum Capacity and Coverage
When acres are many and time is short, the DS30 helps you cover more ground per load, per day, and per season. Exclusively factory-installed on the 600R chassis, the DS30 is built for high-volume, high-productivity operations.
• Holds up to 10 tons of material
• Spread widths up to 105 ft (32 m)—25-50% wider than many competitors
300 cu ft (8.5 m³) capacity with a 30 in (76.2 cm) heavy-duty belt-overchain conveyor
Same proven G-Series spinner performance for fast, even, consistent coverage
• Available in single bin or MultApplier dual bin configurations

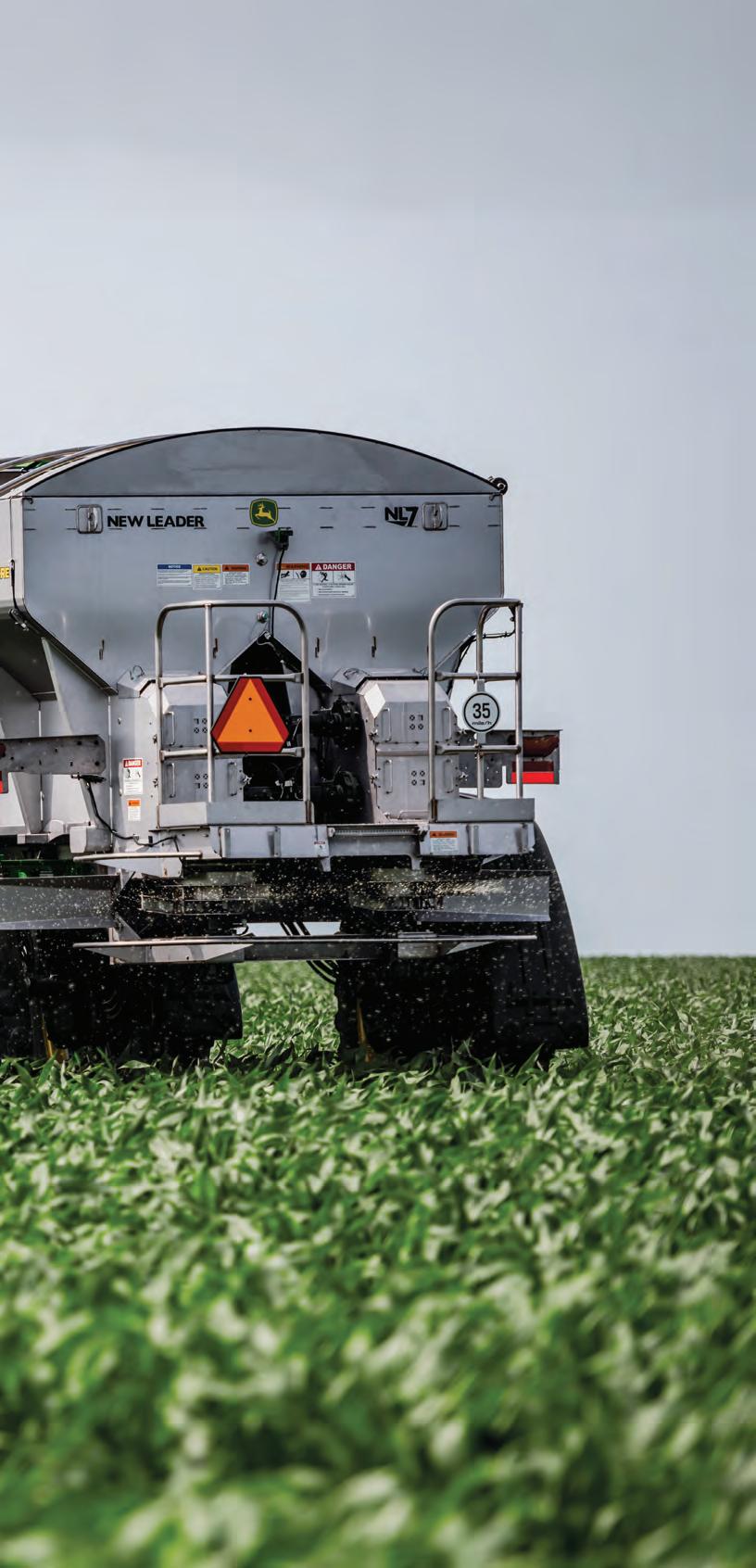

NEW LEADER NL720 FOR 600R CHASSIS
A powerful, intelligent chassis solution, the John Deere 600R Dry Spreader offers 300 cu ft (8.5 m³) spreaders from New Leader. A 375 hp (280 kW), 9.0 L (549 cu in) engine makes it capable of 25 mph (40.2 km/h) in the field and 35 mph (56.3 km/h) in transport. StarFire 7500 positioning and JDLink offer advanced, integrated connectivity¹ and two comfort and convenience cab options enhance operator experience.
The chassis-mounted New Leader NL720 adds precision and productivity for dry fertilizer application. It boasts an impressive 120 ft (36.6 m) spread pattern and delivers a 33% gain in output over previous designs. It also supports sophisticated section control with up to 16 sections, plus boundary and half-width spreading features. Its dual bin configuration allows simultaneous application of two products, and a user-friendly interface includes a built-in spread pattern wizard for quick calibration with just three pans.
The 600R brings reliable engine performance, high-speed coverage, and integrated fleet management with the NL720’s elevated application efficiency and uniformity, wide coverage, dual-product flexibility, and low maintenance.
Productivity
The New Leader NL720 spreader sets a new benchmark in agricultural productivity. Its expansive 120 ft (36.6 m) spread and optimized delivery system offers a 33% increase in output compared to predecessors. With high-speed application rates up to 25 mph (40.2 km/h), you can cover significantly more acres per day while preserving accuracy. The NL720 is also engineered to maximize uptime and simplify maintenance, with zero grease points, tool-free components, a positive-drive belt, and streamlined spread pattern testing that cuts setup time dramatically—startup can often be completed in approximately an hour.
¹JDLink hardware comes standard with the machine. You can turn on JDLink connected service in your John Deere Operations Center account for free. JDLink requires a cellular connection to transfer information from machine to Operations Center. Consult your John Deere Dealer for coverage availability.
Easy to Use and Maintain
The New Leader NL720 excels in operator experience, streamlining setup and calibration. An intuitive built-in spread pattern wizard helps you perform precise pattern testing using as few as three pans, simplifying calibration and conveyor adjustments. Tool-free components, zero grease points, and a maintenancelight positive-drive belt drastically reduces operator workload and maximizes uptime. And easy-to-replace stainless-steel fin overlays simplify wear part replacements and help keep the machine field-ready. Collectively, these features deliver a maintenance experience that’s fast, intuitive, and designed to keep operators in the field as long as they need.

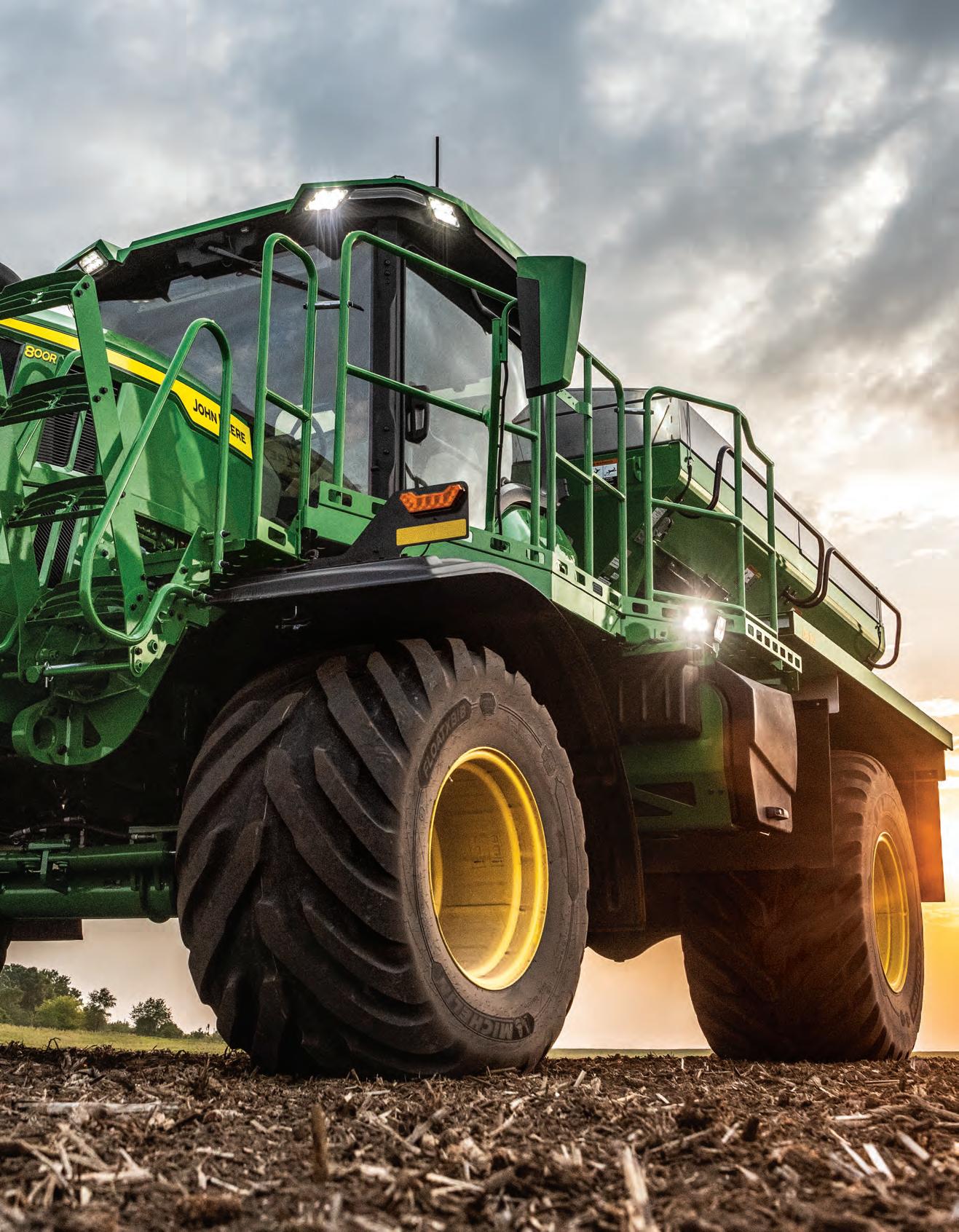

800R FLOATER
The John Deere 800R Floater is a versatile, high-productivity nutrient applicator built for today’s Ag Service Providers and large-scale producers. One chassis can be configured as a dry spreader, air boom applicator, or high-capacity liquid sprayer, with a common hydraulic implement pump that makes changeover fast and efficient as seasons and conditions change.

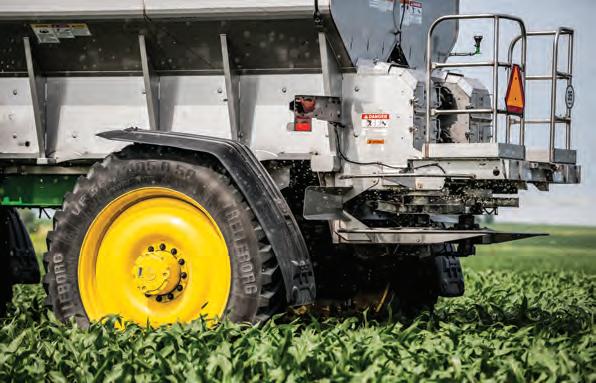

Specifically designed for the 800R, the Trelleborg VF850/45R26 front tires deliver a wider footprint that reduces compaction while improving flotation and ride quality. For dry spreading, the 800R pairs with the New Leader DS35 G-Series Spreaders with a capacity of 330 cu ft (9.34 m³) and spread widths from 60 to 90 ft (18.3 to 27.4 m). Options include the G4, G4 Edge, and G5 which can be upgraded with MultApplier or MultiBin™. For higher-capacity dry application, the John Deere AB30 and Salford AB320DF Air Booms offer capacity up to 320 cu ft (9.06 m³), working widths up to 90 ft (27.4 m), and multi-product capability for maximum daily productivity.
For liquid application, the 800R with the LS20 system delivers a 2,000 gal (7,570 L) stainless-steel tank, dual pumps, magnetic flow meters, and a 90 ft steel boom with John Deere Section Control to reduce overlap and maximize efficiency.
STAY FOCUSED FROM SUNRISE TO SUNSET
The John Deere 800R Floater is designed to keep you comfortable, productive, and focused. With Premium and Ultimate Comfort, Convenience, and Visibility packages, you can tailor your machine to match expectations. Visibility packages deliver outstanding all-around awareness with expansive LED lighting coverage, heated and electrically adjustable mirror systems, sunshades, and front and side wipers, while camera systems provide added confidence while maneuvering—ranging from a backup camera with camera-ready capability in Premium to a full digital side-camera system in Ultimate.
Inside, the Premium Comfort & Convenience package provides a wellequipped working environment with a Vision cloth seat, 6.5 in (16.5 cm) touchscreen infotainment system, premium sound system, refrigerator, footrests, accessory rail, and 120V outlet. The Ultimate Comfort & Convenience package elevates your experience with an ActiveSeat™ II leather seat featuring heating, ventilation, Active Fatigue Prevention, and adjustable bolsters, along with premium touches like a carpeted floor mat and leather-wrapped steering wheel.
When Ultimate Comfort & Convenience is paired with Ultimate Visibility, you can step into the John Deere Signature Edition— delivering a truly premium cab experience built for long days, late nights, and everything in between.
G5 Display with Extended Monitor
Do more without switching screens. The G5Plus Extended Monitor gives you a second 10 in (25.4 cm) display to simultaneously view maps, machine functions, and SpreadStar controls, so you can adjust on the go and reduce the risk of costly application mistakes. Plug-and-play installation makes setup fast and easy.

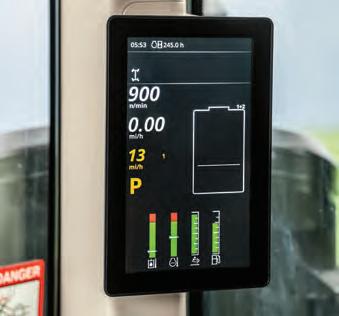

Next-Generation Corner Post Display
Get critical machine information at a glance. The bright, easy-to-read corner post display shows fuel level, temperatures, oil pressure, engine speed, gear selection, and ground speed—keeping operators informed and focused on the job at hand.
Superior Ride Quality
A dual, C-channel frame with leaf spring suspension provides a flexible but comfortable ride quality. The 549 cu in (9 L) PowerTech™ engine, paired with an Infinitely Variable Transmission (IVT™), delivers 365 rated hp (272 kW) and with a power bulge of up to 400 hp (298 kW).
PRO Dispatch
John Deere Operations Center PRO Dispatch provides an end-to-end fleet dispatching and logistics system. Tools in PRO Dispatch include the ability to send work order details directly to an in-cab connected John Deere display, saving time so that more acres can be covered.

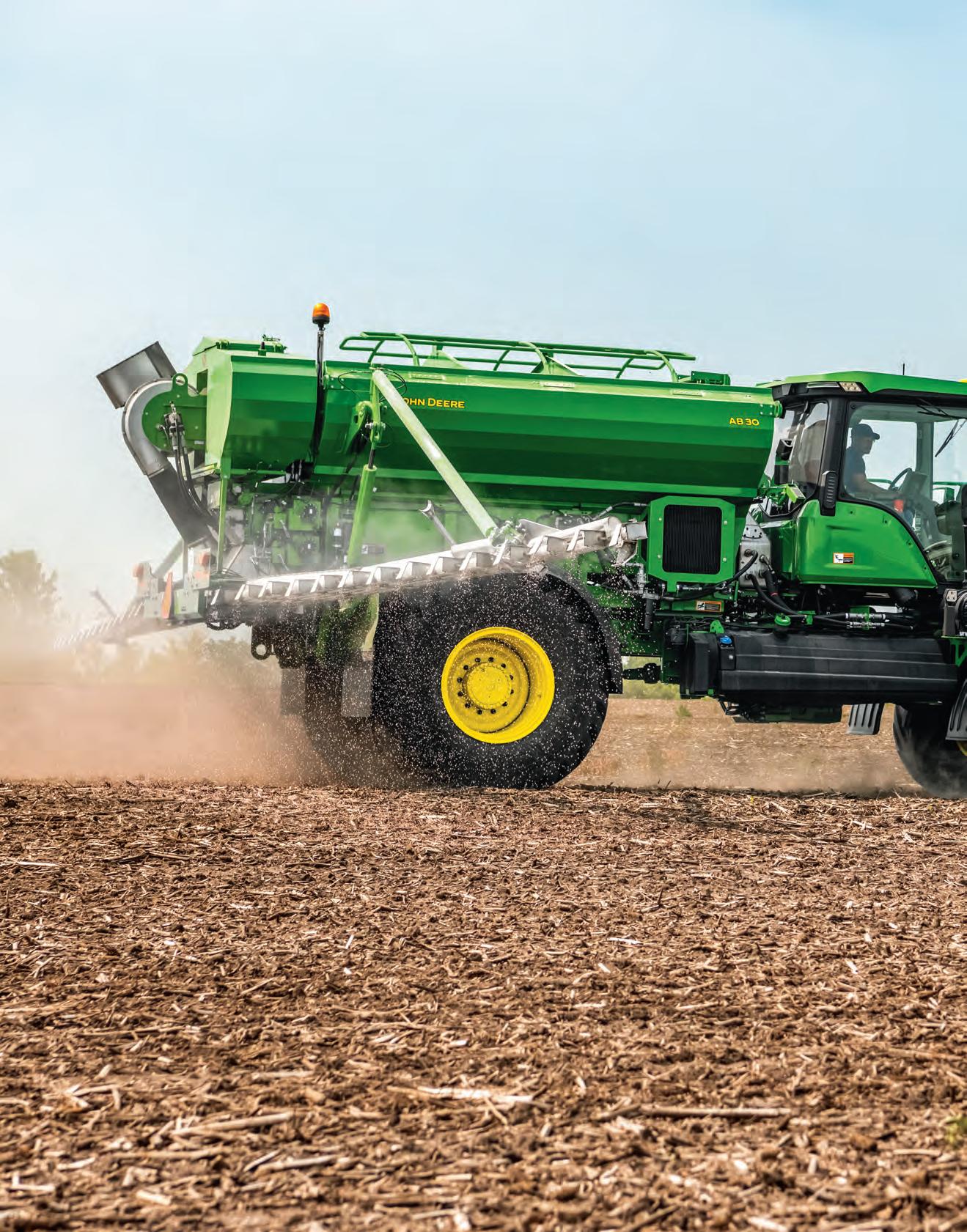

AB30 AIR BOOM SYSTEM
Increasing uptime is critical to profitability. The John Deere 800R with the AB30 Air Boom is built to deliver. Designed for higher performance and greater flexibility, the AB30's SpreadStar™dry rate control is fully integrated into the display and pairs a 300 cu ft (8.5 m³) dual bin with a 70 ft (21.3 m) air boom with optional 40 cu ft (1.1 m³) microbin.
Apply—in a single pass—dual products at rates up to 1,200 lb/ acre (1,345 kg/ha) or speeds up to 25 mph (40.2 km/h), with half-width section control to reduce overlap, minimize passes, and boost daily productivity. This can help you meet crop nutrient needs faster and more efficiently than ever before.
Want to push productivity even more? Equip your 800R with the Salford AB320DF Air Boom. With a massive 90 ft (27.4 m) working width and 320 cu ft (9.1 m³) total capacity, its unique three-bin design enables one-, two-, or three-product application, including micronutrients and cover crops.
Features such as hydraulic boom suspension, optional NORAC boom height control, compact folding, and an advanced rear-boom design deliver exceptional stability, visibility, and performance. Whether equipped with the John Deere AB30 or the Salford AB320DF, the 800R delivers the capacity, flexibility, and uptime needed to cover more acres, in fewer passes, every day.

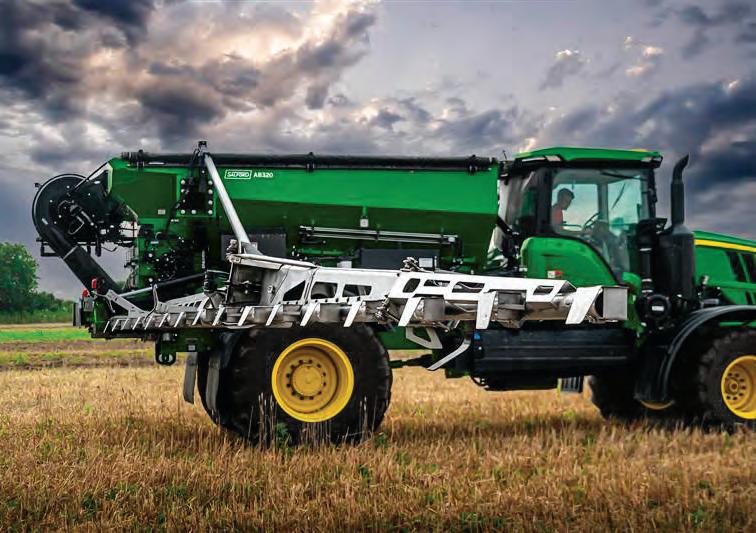

800R Floater with Salford AB320 Air Boom
Seeking extended boom reach? Our allied partnership with Salford offers expanded options with the 90 ft (27.4 m) AB320. These booms can be ordered and installed by Salford-approved John Deere dealerships.

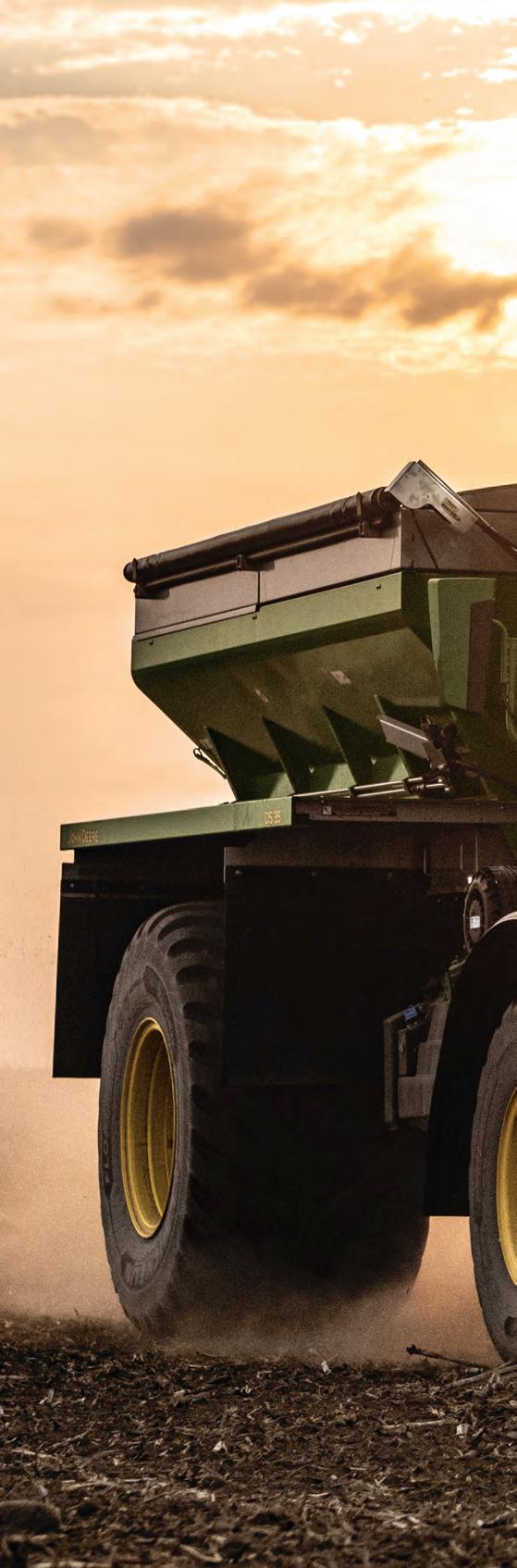

800R FLOATER WITH DS35
The New Leader G-Series Dry Spreaders lineup for the John Deere 800R delivers a powerful and flexible solution for high-capacity, high-precision dry application. Including the G4, G4 Edge, and G5, the DS35 New Leader Dry Spreaders are 14 ft (4.27 m) in length, with 330 cu ft (9.34 m³) of capacity. Available in 15 different configurations, the system supports spread widths from 60 to 90 ft (18.3 to 27.4 m) depending on product and setup.
Available in 304 stainless steel or 409 painted stainless steel, the G4 and G4 HP single bin options come standard with a removable end gate, inverted V, and electric oiler. They deliver outstanding productivity at 15 mph (24 km/h) with application rates up to 1,100 lb/ acre (499 kg/ha) for fertilizer or 6,600 lb/acre (2,994 kg/ha) for lime.
For added versatility, consider the 7-ft (2.1 m) 304 stainless-steel MultApplier insert. It allows you to apply two products at once. And with the 304 stainless-steel MultiBin insert, you can apply up to four products at once. Both use a belt-over stainless-steel conveyor chain that eliminates the need for oil. The MultiBin also includes two rear micronutrient bins with a removable divider, standard rate metering rollers, and a pneumatically controlled lid operated through the G5Plus CommandCenter Display.
High-Capacity Versatility for Every Application
Built to match the performance of our 800R, the New Leader DS35 Spreaders—including the G4, G4 Edge, and G5—deliver the flexibility to handle everything from high-rate fertilizer to multi-product applications. From single-bin simplicity to advanced multi-bin precision, the system adapts to your operation, not the other way around. It’s one platform designed to maximize productivity, accuracy, and uptime across every season.
CAPACITY, SPEED & VERSATILITY COMBINED

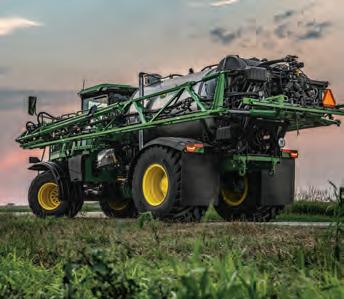

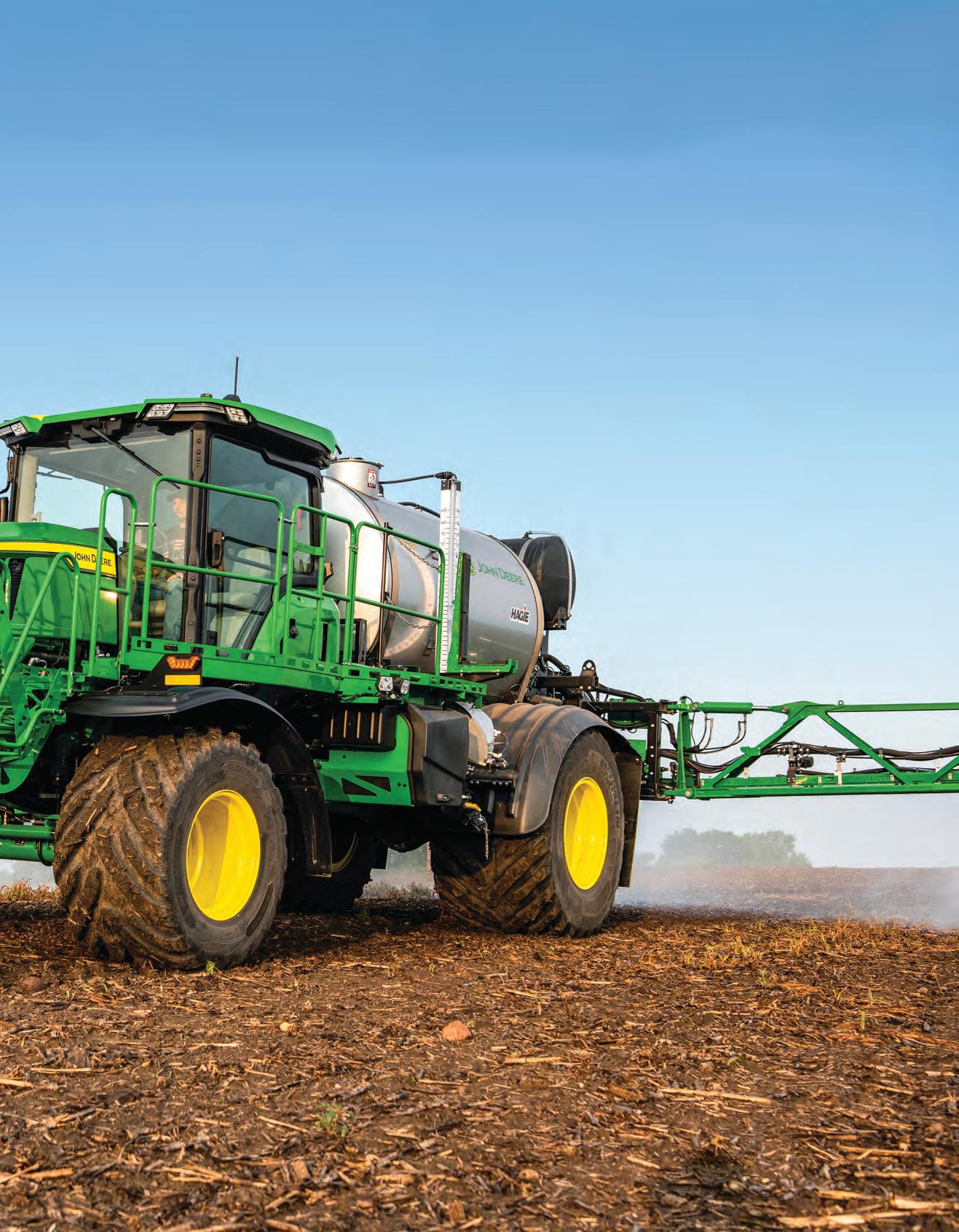

When paired with the Hagie™ LS20 Liquid System, the John Deere 800R is perfectly suited to dominate tight application windows with unmatched capacity, speed, and versatility.
A 2,000 gal (7,570 L) stainless-steel solution tank covers more acres between fills, and the PowrSpray™ system keeps you moving with refills at up to 300 gal/min (1,136 L/min). Dual centrifugal pumps with magnetic flow meters deliver pinpoint accuracy across an ultra-wide flow range, so you can seamlessly transition from high-rate fertilizer to low-rate crop protection without compromise.
Apply up to 80 gal/acre (302.8 L) at speeds up to 25 mph (40.2 km/h), reduce passes with the proven 90 ft (27.4 m) steel boom, and speed cleanout with the industry’s largest 200 gal (757.1 L) rinse tank. With fully automated fill and rinse functions, the 800R with LS20 maximizes uptime, seasonal flexibility, and acres covered per day.
REASSURANCE TO KEEP YOU IN THE FIELD
PowerGard™
Along with the purchase of a new dry spreader, John Deere offers additional peace of mind with PowerGard extended warranties. Our protection plans help you manage expenses, increase uptime, and maintain original performance related to the ownership and operation of 400R, 600R, and 800R dry spreaders.1
You can buy a PowerGard Protection Plan2 from the date of dry spreader delivery up to 6 months or 250 engine hours with no surcharges. After this period, you can still purchase a plan within 12 months or 1000 engine hours from the date of delivery.
Length of terms includes 24, 36, 48, 60, or 72 months for both Limited Plans (main components of engine and powertrain) and Comprehensive Plans (main components of entire machine).
PowerGard also offers the following benefits:
▪ No pre-approval of claims
▪ John Deere OEM parts for all repairs
Learn more about PowerGard plans at JohnDeere.com/PowerGard
▪ Availability of service at any authorized John Deere dealership
▪ Transferability to a new owner
1 All new John Deere dry spreaders come with a standard basic warranty of 12 months/unlimited hours (full machine) and 24 months/2000 hours (engine only) coverage.
2 The PowerGard Protection Plan (limited or comprehensive) does not cover headers, attachments, maintenance, or high-wear items, nor other non-covered components specifically mentioned in the contract terms.
RUN IT YOUR WAY
When you choose John Deere, you get more than just horsepower. You get game-changing technology that provides clear, reliable information for you to get the most out of your new 400R, 600R, or 800R dry spreader.
With digital tools like John Deere Operations Center and Equipment Mobile along with the convenience of purchasing parts, attachments, and accessories online at Shop.Deere.com it’s now easier to use, maintain, diagnose, repair, and protect your dry spreader for the long run.
Whether you perform the work yourself or partner with your local John Deere dealer and/or alternative service provider be sure to keep running with products and parts made for your new dry spreader. Learn more at JohnDeere.com/RunItYourWay ORDER FROM YOUR LOCAL JOHN DEERE DEALER
Oils
PLUS-50™ II SAE 15W-40 engine oil and Hy-Gard™ transmission/ hydraulic oil are specially formulated to enhance the performance of John Deere dry spreaders.
Hydraulic Hoses
Your local John Deere dealer can replace worn or damaged hydraulic hoses on your dry spreader with all new hoses.
Filters
From oil, fuel, and transmission filters to air and diesel exhaust fluid (DEF) filters, John Deere manufactures OEM replacements for dry spreaders.

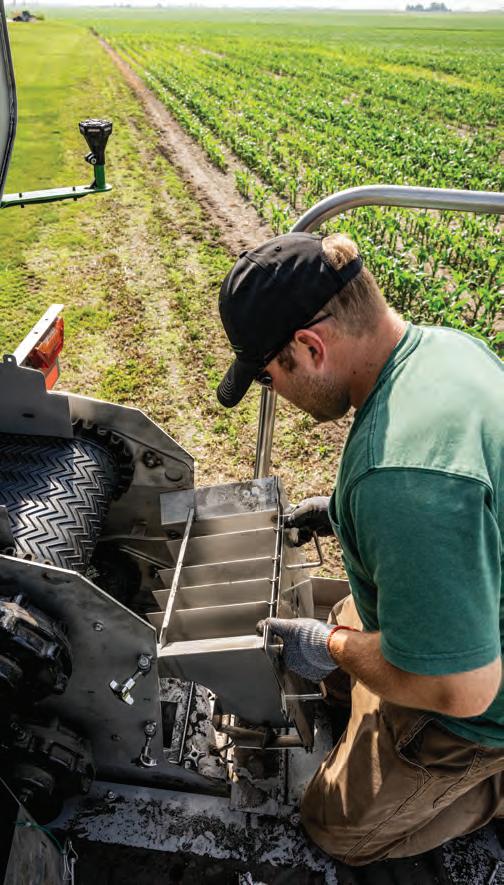

Rollers
Subject to abrasive material exposure and high-cycle movement, regularly inspect your rollers and replace when worn.
Greases & Lubricants
John Deere produces a proprietary line of greases and lubricants for its equipment to help owners keep up with routine maintenance.
Equipment Mobile
Download the free Equipment Mobile app to easily track service intervals, view Operator’s Manual, and access parts information for your dry spreader.
400R & 600R DRY SPREADER SPECIFICATIONS
ENGINE
Make
DRIVETRAIN
Type
CommandDrive™ - Hydrostatic 4WD
CommandDrive™ - Hydrostatic 4WD
Shifting Infinitely Variable – Operator Adjustable Infinitely Variable – Operator Adjustable Hydraulic
CHASSIS
Suspension
Crop clearance with standard tires
Front tires
Rear tires
Flotation tires
Dual-strut independent wheel air-ride suspension
in (152.4 cm)
320/90 R46, 380/90 R46, or 420/80 R46
320/90 R46, 380/90 R46, or 420/80 R46
VF520/85R38 – 680/55R42
Dual-strut independent wheel air-ride suspension
in (147.3 cm)
380/105 R50, 420/95 R50, or 480/80 R50
380/105 R50, 420/95 R50, or 480/80 R50
VF520/85R38 – 680/55R42
Hydraulic tread adjust Standard Standard
Wheel tread spacing
Wheelbase
Turning radius
Parking brake
120 to 160 in (305 to 406.4 cm)
in (430 cm)
ft (8.7 m)
Spring-engaged, hydraulically disengaged wet disk pack
120 to 160 in (305 to 406.4 cm), limited to 152 in (386.1 cm) in some configurations
in (430 cm)
ft (9.2 m)
Spring-engaged, hydraulically disengaged wet disk pack
Primary brakes Hydrostatic Hydrostatic
Ladder raise/lower Automatic Automatic
Weight (chassis only) 21,226 lb (9,262 kg) 25,860 lb (11,728 kg)
Weight (empty)
With DS20: 26,636 lb (12,082 kg)
With DS30: 31,691 lb (14,375 kg) NEW
Capacity 200 cu ft (5.66 m³) 200 cu ft (5.66 m³)
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
Feedgate
304 stainless-steel. Optional: 409 painted stainless-steel
Single bin and MultApplier: 60 to 105 ft
(18.3 to 32 m) boundary spreading
John Deere SpreadStar™ Dry Rate Control System
Single bin / Optional: MultApplier (Dual Bin) insert
#4 Belt-over-stainless-steel chain
Single Bin and MultApplier: 5 in (13 cm)
304 stainless-steel. Optional: 409 painted stainless-steel
Single bin and MultApplier: 60 to 105 ft
(18.3 to 32 m) boundary spreading
John Deere SpreadStar™ Dry Rate Control System
Single bin / Optional: MultApplier (Dual Bin) insert
#4 Belt-over-stainless-steel chain
Single Bin: 5 in (13 cm) and 11 in (28 cm) / MultApplier 5 in (13 cm)
NEW LEADER SPREADER – DS20 G4 EDGE
Capacity
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
Feedgate
NEW LEADER SPREADER – DS20 G5
Capacity
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
Feedgate
NEW LEADER SPREADER – DS30 G4
400R DRY SPREADER
200 cu ft (5.66 m³)
304 stainless-steel
Single bin and MultApplier: 60 to 105 ft
(18.3 to 32 m) boundary-spreading
New Leader ISO-VT dry rate control system
Single bin / Optional: MultApplier (Dual Bin) insert
#4 Belt-over-stainless-steel chain
Single Bin and MultApplier: 5 in (13 cm)
200 cu ft (5.66 m³)
304 stainless-steel
Single bin and MultApplier: 60 to 105 ft (18.3 to 32 m) 16-section
New Leader ISO-VT dry rate control system
600R DRY SPREADER
200 cu ft (5.66 m³)
304 stainless-steel
Single bin and MultApplier: 60 to 105 ft
(18.3 to 32 m) boundary-spreading
New Leader ISO-VT dry rate control system
Single bin / Optional: MultApplier (Dual Bin) insert
#4 Belt-over-stainless-steel chain
Single Bin: 5 in (13 cm) and 11 in (28 cm) / MultApplier 5 in (13 cm)
200 cu ft (5.66 m³)
304 stainless-steel
Single bin and MultApplier: 60 to 105 ft (18.3 to 32 m) 16-section
New Leader ISO-VT dry rate control system
Single bin / Optional: MultApplier (Dual Bin) insert Single bin / Optional: MultApplier (Dual Bin) insert
Belt-over-stainless-steel chain
Bin and MultApplier:
Deere SpreadStar™ dry rate control system
bin / Optional: MultApplier (Dual Bin) insert Conveyor belt
NEW LEADER SPREADER – DS30 G4
bin / Optional: MultApplier (Dual Bin)
Conveyor
bin / Optional: MultApplier (Dual Bin) insert
Integrated
Ordering and installation Through Salford Group - Installed by a Salford-Approved
800R FLOATER SPECIFICATIONS
FLOATER MODEL
ENGINE
Make
Peak rated power
Power bulge
Emissions
800R FLOATER
John Deere
365 hp (272 kW)
400 hp (298 kW)
Final Tier 4 (FT4)
Number of cylinders Six
Displacement
Alternator
Fuel tank capacity
Diesel exhaust fluid (DEF) tank capacity
DRIVETRAIN
Type
Drive
Shifting
Hydraulic reservoir capacity
Spread speed range
Transport speed, maximum
CHASSIS
Suspension
Front tires
Rear tires
Turning radius
Parking brake
Primary brakes
549 cu in (9.0 L)
250 amp
225 gal (852 L)
7.8 gal (29.5 L)
Infinitely Variable Transmission (IVT™)
Full-time, two-wheel drive (2WD)
Electrohydraulic
26 gal (98.4 L)
0 to 30 mph (0 to 48 km/h)
0 to 46 mph (0 to 74 km/h)
Four-wheel leaf spring and front axle dampers
850/45R26 tires – Trelleborg (option) + 750/50R26 tires – Alliance, Michelin , or Trelleborg (option)
1050/50R32 tires - Alliance or Michelin (option)
39 ft (10.5 m)
Infinitely Variable Transmission (IVT™) and two-wheel (rear) pneumatic parking brake
Infinitely Variable Transmission (IVT™)and four-wheel pneumatic brakes
Ladder raise/lower Automatic
Weight (chassis only)
Weight (empty)
JOHN DEERE AIR BOOM SYSTEM – AB30
Capacity
Bin material
Spread width range
Integrated technology
Bin options
Automatic section control
Conveyor belt type
Weight of AB30
Ordering and installation
25,067 lb (11,370 kg)
Single Bin: 31,000 lb (14,061 kg)
300 cu ft (8.5 m³)
409 painted stainless-steel
70 ft (21.3 m)
Integrated John Deere SpreadStar™ dry rate control system
Two-bin capable of 50/50 or 60/40 split
John Deere Section Control
Dual conveyor (left and right) with stainless-steel mesh chain
Dual Bin: 10,207 lb (4,630 kg) / Dual Bin and Micronutrient Bin: 10,803 lb (4,900 kg)
John Deere Build & Price - Factory installation
800R FLOATER SPECIFICATIONS
Bin
Integrated technology
Integrated
Deere
Ordering and installation Through Salford Group - Installed by a Salford-Approved John Deere Dealer
HAGIE LS20 LIQUID SYSTEM Tank
Rinse
Integrated
Effective spray pattern
ft (29 m)
NEW LEADER SPREADER – DS35 G4
Capacity
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
Feedgate
NEW LEADER SPREADER – DS35 G4 HP
Capacity
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
800R FLOATER
330 cu ft (9.34 m³)
304 stainless-steel. Optional: 409 painted stainless-steel
Single bin/ MultApplier/MultiBin: 60 to 90 ft (18.3 to 27.4 m)
Integrated John Deere SpreadStar™ dry rate control system
Single bin / Optional: MultApplier (Dual Bin) insert / Optional: MultiBin (4 Bin)
#4 Belt-over-stainless-steel chain
Single Bin: 11 in (28 cm) / MultApplier: 5 in (13 cm) / MultiBin: Fixed 1 in (2.54 cm) metering wheels
330 cu ft (9.34 m³)
304 stainless-steel. Optional: 409 painted stainless-steel
Single bin: 60 to 90 ft (18.3 to 27.4 m)
Integrated John Deere SpreadStar™ dry rate control system
Single bin
#3 and #4 Belt-over-stainless-steel chain
Feedgate Single Bin: 11 in (28 cm)
NEW LEADER SPREADER – DS35 G4 EDGE
Capacity
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
330 cu ft (9.34 m³)
304 stainless-steel
Single bin/ MultApplier/MultiBin: 60 to 90 ft (18.3 to 27.4 m) boundary spreading
New Leader ISO-VT dry rate control system
Single bin / Optional: MultApplier (Dual Bin) insert / Optional: MultiBin (4 Bin)
#4 Belt-over-stainless-steel chain
Feedgate Single Bin: 11 in (28 cm) / MultApplier: 5 in (13 cm) / MultiBin: Fixed 1 in (2.54 cm) metering wheels
Weight of spreader
NEW LEADER SPREADER – DS35 G4 EDGE HP
Capacity
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
Feedgate
NEW LEADER SPREADER – DS35 G5
Capacity
Spreader box material
Spread width range
Integrated technology
Bin options
Conveyor belt type
Feedgate
Weight of spreader
Single Bin: 5,004 lb (2,270 kg) / MultApplier: 5,997 lb (2,720 kg) / MultiBin: 6,393 lb (2,900 kg)
330 cu ft (9.34 m³)
304 stainless-steel
Single bin: 60 to 90 ft (18.3 to 27.4 m) boundary spreading
New Leader ISO-VT dry rate control system
Single bin
#3 and #4 Belt-over-stainless-steel chain
Single Bin: 11 in (28 cm)
330 cu ft (9.34 m³)
304 stainless-steel
Single bin/ MultApplier/MultiBin: 60 to 90 ft (18.3 to 27.4 m) 16-section
New Leader ISO-VT dry rate control system
Single bin / Optional: MultApplier (Dual Bin) insert / Optional: MultiBin (4 Bin) insert
#4 Belt-over-stainless-steel chain
Single Bin: 11 in (28 cm) / MultApplier: 5 in (13 cm) / MultiBin: Fixed 1 in (2.54 cm) metering wheels
Single Bin: 5,291 lb (2,400 kg) / MultApplier: 6,393 lb (2,900 kg) / MultiBin: 7,000 lb (3,175 kg)
SUPPORTED BY ONE OF THE MOST RESPONSIVE DEALER NETWORKS IN THE BUSINESS
Nobody cares more about keeping your equipment in solid working order than your John Deere dealer. With a complete inventory of genuine John Deere parts, highly trained service technicians, and a thorough understanding of your business, your John Deere dealer knows how to keep you and your equipment up and running.
A strong name in equipment, and a strong dealership network: get it all with John Deere.
JohnDeere.com/Spreaders
JohnDeere.ca/Spreaders
