Flex-Wing Rotary Cutters Brochure

FLEX WING ROTARY CUTTERS FC SERIES

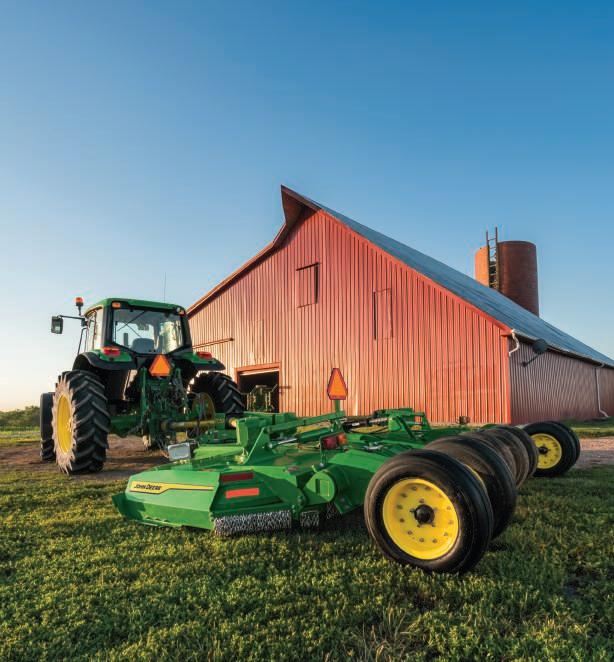

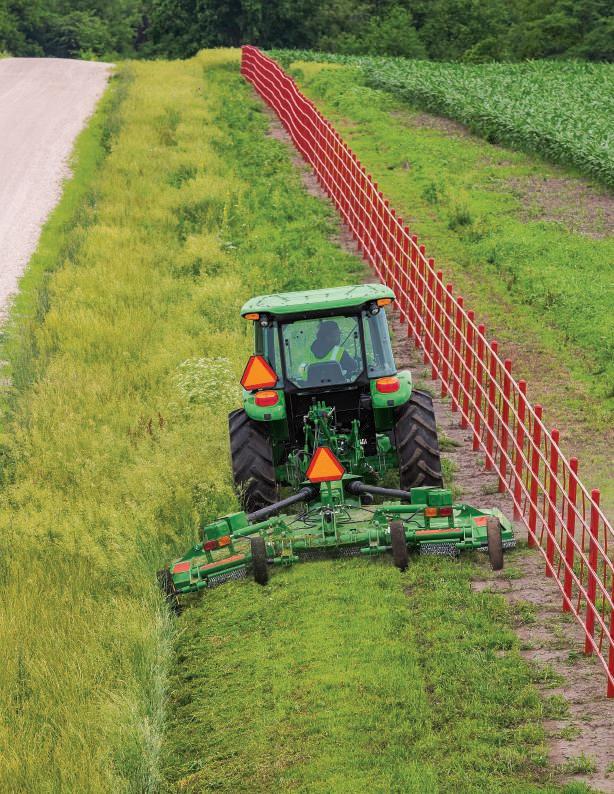

Flex Wing Rotary Cutters Make Thick Grass an Easy Pass Our Flex Cutter (FC) Series Rotary Cutters feature multiple cutting decks connected by hinged “wings” that flex independently over uneven ground, making them perfect for diverse environments like roadsides, farms, and commercial properties. With nine models to choose from, our Flex Cutter (FC) Series offers cutting widths of 10 ft (3 m), 12 ft (3.7 m), 15 ft (4.6 m), and 20 ft (6.1 m). They are designed to provide precision cutting for property owners, agricultural producers, commercial operators, and municipal contractors, so you can select the ideal Flex Wing model for your cutting applications.

2

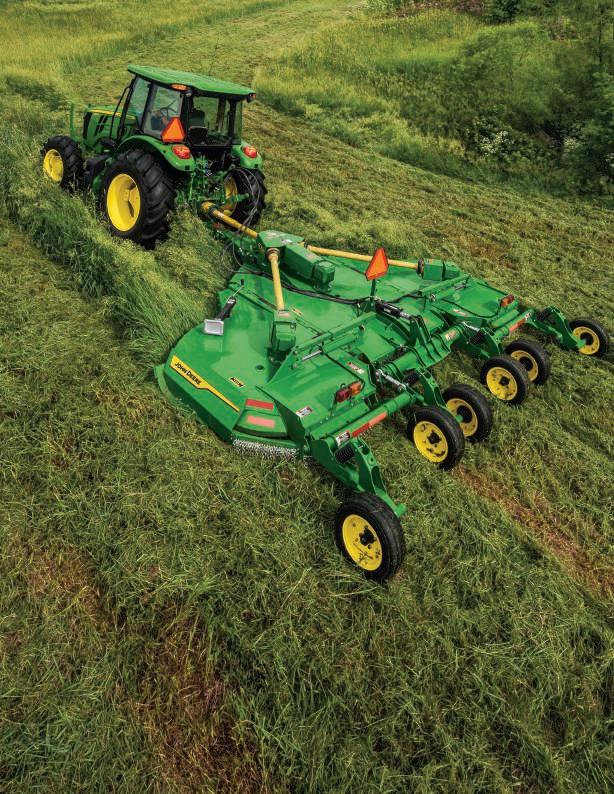

When the job requires next-level cutting capabilities, the FC HeavyDuty models are available in 10 ft (3 m) and 15 ft (4.6 m) widths and feature an upgraded suspension designed for improved durability and increased stability. In addition, the 250 HP-rated (186 kW) gearbox is ideal for high-demand cutting.

ROTARY CUTTERS • OVERVIEW

TABLE OF CONTENTS

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 HD Rotary Cutters . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 E Series, M Series, & R Series . . . . . . . . . . . . . . . . . . .5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7 Dealer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3

HD MODELS

Thick & Heavy Meets Strong & Ready • FC10R HD • FC15R HD Take on tough terrain with the FC Heavy Duty models built to power through thick grass and brush and provide long-lasting performance. Available in 10 ft (3 m) and 15 ft (4.6 m) widths, these cutters handle demanding roadside and rough terrain mowing with precision and efficiency. • Heavy-duty gearbox engineered for high-torque reliability in dense grass • Diamond-shaped deck is built to add structural strength while improving material flow • Phasing cylinders designed to help keep deck sections aligned for consistent cutting height

4

E SERIES

FLEX WING • E SERIES, M SERIES, & R SERIES

• FC12E • FC15E

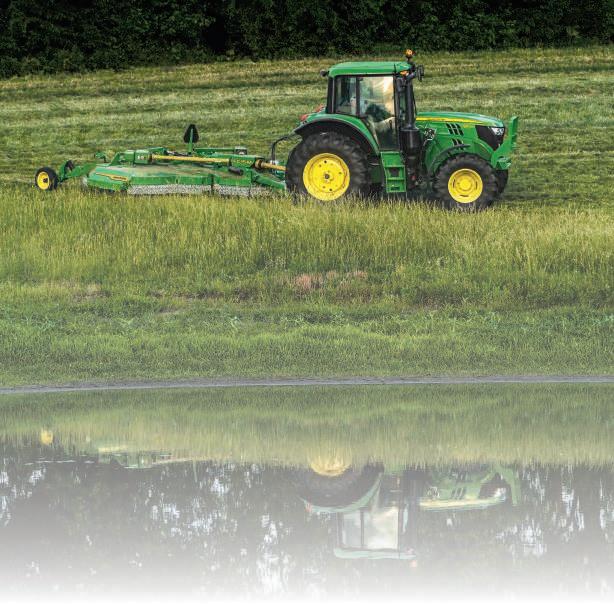

Power Through Thick Grass and Mowing Tasks When you need a dependable and durable rotary cutter, the E Series is the answer. Whether you are mowing along a road, a pasture, or around your property, the blades are designed to withstand tough conditions and provide a clean cut. Available in 12 ft (3.7 m) or 15 ft (4.6 m) cutting widths.

KEY FEATURES INCLUDE: • • •

Thick, heat-treated, high suction blades are designed to help make quick work of thick grass High blade-tip speed is engineered to help you mow faster without sacrificing cut quality Tall deck height is built to help ensure even, streak-free material dispersal using optimal airflow

M SERIES

• FC15M • FC20M

Cutting Heavy Greens Using Reliable Means Make quick work of large areas with two widths to choose from.Both the 15 ft (4.6 m) and 20 ft (6.1 m) cutting widths feature a coil spring suspension that can help ensure stability on challenging terrain. The M Series also boasts plenty of choices when it comes to gearboxes, drivelines, hitches, and tires.

OTHER FEATURES INCLUDE: • • •

Rear spring suspension to absorb the impacts of rocks, ruts, and other obstacles Dual deck, featuring a 10-gauge bottom layer for durability Inward blade rotation for a clean, uniform cut

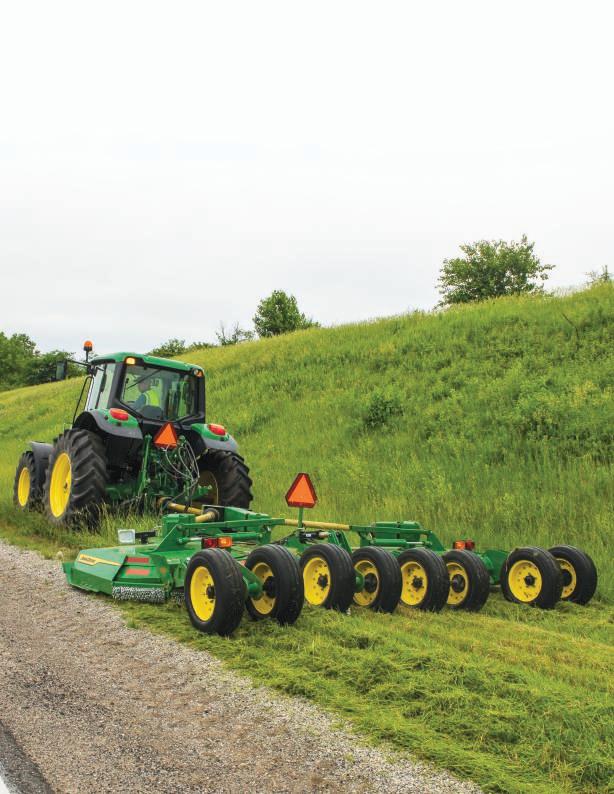

R SERIES • FC12R • FC15R • FC20R • FC10R HD • FC15R HD Built for Tough Cuts and Challenging Ruts Built for the toughest mowing jobs, the R Series delivers our most robust rotary cutters yet. Now available in two heavy duty models, the R Series combines durability with advanced performance features like rear rubber spring suspension and a precision cutting chamber. Cutting widths of 10 ft (3 m), 15 ft (4.6 m), or 20 ft (6.1 m) allow you to tackle challenging roadside mowing and commercial applications while ensuring a smooth, even cut across rough terrains.

R SERIES ALSO OFFERS OTHER KEY BENEFITS: • • •

Diamond-shaped deck to provide improved material flow Phasing cylinders for consistent cutting height across the entire mower Double-deck construction to provide exceptional deck protection and longevity 5

SPECIFICATIONS FC12E

FC15E

FC15M

FC20M

KEY SPECS CUTTING WIDTH CUTTING CAPACITY (DIAMETER) TRACTOR PTO HP RANGE TRANSPORT WIDTH

12 ft (3.7 m) 2 in. (50.8 mm) 40 HP (30 kW) At wing wheels: 7.5 ft (2.3 m)

15 ft (4.6 m) 2 in. (50.8 mm) 50 HP (37 kW) At wing wheels: 9.8 ft (3 m)

DECK THICKNESS

11 gauge - 0.12 in. (3 mm)

SIDE SKIRT THICKNESS APPROX. WEIGHT DRIVELINES - SIZE - MAIN

3 gauge - 0.24 in. (6 mm) 3,955 lb (1794 kg) CV ASAE Category 4, splined telescoping profiles

3 gauge - 0.24 in. (6 mm) 4,695 lb (2130 kg) CV ASAE Category 4, splined telescoping profiles

BLADE TIP SPEED - 540 RPM - 1000 RPM

540 rpm: 15,217 ft/min (77.3 m/s)

540 rpm: 17,303 ft/min (87.9 m/s)

GEARBOXES

5-year warranty

15 ft (4.6 m) 3 in. (76.2 mm) 55 HP (41 kW) At wing wheels: 9.8 ft (3 m) TOP: 11 gauge - 0.12 in. (3 mm), BOT: 10 gauge - 0.135 in. (3.4 mm) 3 gauge - 0.24 in. (6 mm) 5,185 lb (2352 kg) CV ASAE Category 5, splined telescoping profiles 540 rpm: 15,571 ft/min (79.1 m/s) 1000 rpm: 15,821 ft/min (80.4 m/s) 5-year warranty

20 ft (6.1 m) 3 in. (76.2 mm) 75 HP (56 kW) At wing wheels: 11 ft (3.3 m) TOP: 11 gauge - 0.12 in. (3 mm), BOT: 10 gauge - 0.135 in. (3.4 mm) 3 gauge - 0.24 in. (6 mm) 6,503 lb (2950 kg) CV ASAE Category 5, splined telescoping profiles 540 rpm: 16,073 ft/min (81.7 m/s) 1000 rpm: 16,331 ft/min (83 m/s) 5-year warranty

CAPACITY CUTTING WIDTH CUTTING HEIGHT CUTTING CAPACITY (DIAMETER) CUTTING CHAMBER DEPTH

12 ft (3.7 m) 1.5-17in. (38-432 mm) 2 in. (50.8 mm) 10 in. (254 mm)

15 ft (4.6 m) 1.5-17in. (38-432 mm) 2 in. (50.8 mm) 10 in. (254 mm)

15 ft (4.6 m) 1.5-17in. (38-432 mm) 3 in. (76.2 mm) 10 in. (254 mm)

20 ft (6.1 m) 1.5-17in. (38-432 mm) 3 in. (76.2 mm) 10 in. (254 mm)

TRACTOR COMPATIBILITY TRACTOR PTO HP RANGE TRACTOR PTO

40 HP (30 kW) 540 rpm

50 HP (37 kW) 540 rpm

55 HP (41 kW) 540 or 1,000 rpm

75 HP (56 kW) 540 or 1,000 rpm

HITCH Standard self-level tongue with 22.5-in. (57.2-cm) Standard self-level tongue with 22.5-in. (57.2-cm) narrow-profile with clevis hitch , Ball-type narrow-profile with clevis hitch , Ball-type self-level hitch , Swivel hitch, Articulated self-level hitch , Articulated Ring hitch Ring hitch Mechanical jack stand in base for all machines with Mechanical jack stand in base for all machines with Mechanical jack stand in base for all machines with Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while hydraulically operated height, stays vertical while hydraulically operated height, stays vertical while hydraulically operated height, stays vertical while raising/lowering raising/lowering raising/lowering raising/lowering

Standard self-level tongue with 22.5-in. (57.2-cm) narrow-profile with clevis hitch , Option to Balltype self-level hitch

OVERALL WIDTH OVERALL LENGTH DECK SHAPE DECK TYPE

At wing wheels: 8.5 ft (2.6 m) 12.7 ft (3.8 m) 16 ft (4.9 m) Flat Single

At wing wheels: 9.8 ft (3 m) 15.6 ft (4.8 m) 16.5 ft (5 m) Flat Single

DECK THICKNESS

11 gauge - 0.12 in. (3 mm)

SIDE SKIRT THICKNESS

3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

MAIN

TYPE

JACK STAND DIMENSIONS

3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

At wing wheels: 9.1 ft (2.8 m) 15.6 ft (4.8 m) 16.5 ft (5 m) Smooth top deck Double Deck in cutting chamber TOP: 11 gauge - 0.12 in. (3 mm), BOT: 10 gauge - 0.135 in. (3.4 mm) 3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

At wing wheels: 11 ft (3.3 m) 20.6 ft (6.3 m) 18.7 ft (5.7 m) Smooth top deck Double Deck in cutting chamber TOP: 11 gauge - 0.12 in. (3 mm), BOT: 10 gauge - 0.135 in. (3.4 mm) 3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

CV ASAE Category 4, splined telescoping profiles

CV ASAE Category 5, splined telescoping profiles

CONNECTING

ASAE Category 3, splined telescoping profiles

ASAE Category 4, splined telescoping profiles

CV ASAE Category 5, splined telescoping profiles ASAE Category 4, splined telescoping profiles

PROTECTION CONNECTING

No-seize, self-adjusting slip clutch Profile: Multispline/star No-seize, slip-clutch driveline No-seize, slip-clutch driveline

No-seize, slip-clutch driveline

GEARCASES NUMBER HP RATING

Four

OUTER

Continuous: 250 HP (186 kW) Peak: 300 HP (224 kW) Continuous: 75 HP (56 kW) Peak: 100 HP (75 kW) Continuous: 75 HP (56 kW) Peak: 100 HP (75 kW)

Continuous: 250 HP (186 kW) Peak: 300 HP (224 kW) Continuous: 100 HP (75 kW) Peak: 216 HP (161 kW) Continuous: 100 HP (75 kW) Peak: 216 HP (161 kW)

BLADES THICKNESS WIDTH TYPE OVERLAP

0.5 in. (13 mm) 4 in. (102 mm) Suction 6 in. (152 mm)

540 RPM 1000 RPM

540 rpm: 15,217 ft/min (77.3 m/s)

540 rpm: 17,303 ft/min (87.9 m/s)

BLADE HOLDER

Round pan (stump jumper)

16,083 ft/min (81.7 m/s) 16,339 ft/min (83 m/s) Round pan (stump jumper) or blade bar (double blade)

TYPE

Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 0.18 in. (4.55 mm) Blade bar: 1 x 4 in. (2.5 x 10.1 cm)

15,571 ft/min (79.1 m/s) 15,821 ft/min (80.4 m/s) Round pan (stump jumper) or blade bar (double blade) Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 0.18 in. (4.55 mm) Blade bar: 1 x 4 in. (2.5 x 10.1 cm)

One SCV connected to the tractor (machine height plus wing lift) , Option for 2 SCV for simultaneous operation For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

Two SCV connected to the tractor (machine height and wing lift) Simultaneous wing operation For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

OPTION 1

4-bolt, laminated: 21x5.25x9 in. (53x14x23 cm)

OPTION 2

4-bolt, 16PR severe-duty ag: 21x7x12 in. (53x18x30 cm)

SUSPENSION ROW WIDTH ADJUSTMENT WING-LEVELING ADJUSTMENT

Center deck coil spring suspension No Adjustable threaded clevis on wing lift cylinders

4-bolt, laminated: 21x5.25x9 in. (53x14x23 cm) 4-bolt, 16PR severe-duty ag: 21x7x12 in. (53x18x30 cm), 4-bolt, 16PR severe-duty ag foam filled: 21x7x12 in. (53x18x30 cm) Coil Spring suspension in center axle Yes Adjustable threaded clevis on wing lift cylinders

SHIELDING FRONT REAR

Single-row chain guard Single-row chain guard

TRANSPORT WIDTH

HINGES

DRIVELINES SIZE

TRANSFER CENTER

BLADE TIP SPEED

Round pan stump jumper for blade carrier protection against obstruction damage, Option of double blade bar for extra shredding

HYDRAULICS SCV CONNECTIONS

WING FLEX

WHEELS TYPE

6

FC12R KEY SPECS CUTTING WIDTH CUTTING CAPACITY (DIAMETER) TRACTOR PTO HP RANGE TRANSPORT WIDTH

FC15R

FC20R

FC10R HD

FC15R HD

GEARBOXES

12 ft (3.7 m) 15 ft (4.6 m) 20 ft (6.1 m) 10 ft (3 m) 15 ft (4.6 m) 4 in. (101.6 mm) 4 in. (101.6 mm) 4 in. (101.6 mm) 4 in. (101.6 mm) 4 in. (101.6 mm) 50 HP (37 kW) 55 HP (41 kW) 75 HP (56 kW) 55 HP (41 kW) 55 HP (41 kW) At wing wheels: 7.5 ft (2.3 m) At wing wheels: 8 ft (2.5 m) At wing wheels: 9.2 ft (2.8 m) At wing wheels: 7.7 ft (2.4 m) At wing wheels: 8 ft (2.5 m) TOP: 11 gauge - 0.12 in. (3 mm), TOP: 11 gauge - 0.12 in. (3 mm), TOP: 11 gauge - 0.12 in. (3 mm), TOP: 11 gauge - 0.12 in. (3 mm), TOP: 11 gauge - 0.12 in. (3 mm), BOT: 7 gauge - 0.17 in. (4.5 mm) BOT: 7 gauge - 0.17 in. (4.5 mm) BOT: 7 gauge - 0.17 in. (4.5 mm) BOT: 7 gauge - 0.17 in. (4.5 mm) BOT: 7 gauge - 0.17 in. (4.5 mm) 3 gauge - 0.24 in. (6 mm) 3 gauge - 0.24 in. (6 mm) 3 gauge - 0.24 in. (6 mm) 3 gauge - 0.24 in. (6 mm) 3 gauge - 0.24 in. (6 mm) 6,178 lb (2,802 kg) 6,571 lb (2,980 kg) 8,084 lb (3,666 kg) 6,800 lb (3,084 kg) 7,616 lb (3,454 kg) CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping profiles profiles profiles profiles profiles 540 rpm: 15,858 ft/min (80.6 m/s) 540 rpm: 16,073 ft/min (81.7 m/s) 540 rpm: 15,858 ft/min (80.6 m/s) 540 rpm: 15,858 ft/min (80.6 m/s) 540 rpm: 13,957 ft/min (70.9 m/s) 1000 rpm: 16,114 ft/min (81.9 m/s) 1000 rpm: 16,331 ft/min (83 m/s) 1000 rpm: 16,114 ft/min (81.9 m/s) 5-year warranty 5-year warranty 5-year warranty 5-year warranty 5-year warranty

CAPACITY CUTTING WIDTH CUTTING HEIGHT CUTTING CAPACITY (DIAMETER) CUTTING CHAMBER DEPTH

12 ft (3.7 m) 1.5-17in. (38-432 mm) 4 in. (101.6 mm) 10 in. (254 mm)

15 ft (4.6 m) 1.5-17in. (38-432 mm) 4 in. (101.6 mm) 10 in. (254 mm)

20 ft (6.1 m) 1.5-17in. (38-432 mm) 4 in. (101.6 mm) 10 in. (254 mm)

10 ft (3 m) 1.5-17in. (38-432 mm) 4 in. (101.6 mm) 10 in. (254 mm)

15 ft (4.6 m) 1.5-17in. (38-432 mm) 4 in. (101.6 mm) 10 in. (254 mm)

TRACTOR COMPATIBILITY TRACTOR PTO CUTTING HEIGHT

50 HP (37 kW) 540 rpm

55 HP (41 kW) 540 or 1,000 rpm

75 HP (56 kW) 540 or 1,000 rpm

55 HP (41 kW) 540 or 1,000 rpm

Standard self-level tongue with 22.5-in. (57.2-cm) narrow-profile with clevis hitch, Ball-type self-level hitch, Swivel hitch Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/ lowering

Standard self-level tongue with 22.5-in. (57.2-cm) narrow-profile with clevis hitch, Ball-type self-level hitch, Swivel hitch, Articulated Ring hitch Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/ lowering

Standard self-level tongue with 22.5-in. (57.2-cm) narrow-profile with clevis hitch, Ball-type self-level hitch, Articulated Ring hitch Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/ lowering

Standard narrow A-frame tongue with Swivel hitch

Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/ lowering

At wing wheels: 6.7 ft (2 m), allowing wing lift cylinders to retract tires 12.4 ft (3.8 m) 16.4 ft (5 m) Smooth top deck Partial Double Deck TOP: 11 gauge - 0.12 in. (3 mm), BOT: 7 gauge - 0.17 in. (4.5 mm) 3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

At wing wheels: 8 ft (2.5 m), allowing wing lift cylinders to retract tires 15.6 ft (4.7 m) 16.7 ft (5.1 m) Smooth top deck Full Double Deck TOP: 11 gauge - 0.12 in. (3 mm), BOT: 7 gauge - 0.17 in. (4.5 mm) 3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

At wing wheels: 9.2 ft (2.8 m), allowing wing lift cylinders to retract tires 20.7 ft (6.3 m) 18.9 ft (5.8 m) Smooth top deck Full Double Deck TOP: 11 gauge - 0.12 in. (3 mm), BOT: 7 gauge - 0.17 in. (4.5 mm) 3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm)diameter hinge pins

At wing wheels: 7.7 ft (2.4 m), allowing wing lift cylinders to retract tires 11.6 ft (3.5m) 17.3 ft (5.3 m) Smooth top deck Full Double Deck TOP: 11 gauge - 0.12 in. (3 mm), BOT: 7 gauge - 0.17 in. (4.5 mm) 3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

At wing wheels: 8 ft (2.5 m), allowing wing lift cylinders to retract tires 15.7 ft (4.8 m) 17.3 ft (5.3 m) Smooth top deck Full Double Deck TOP: 11 gauge - 0.12 in. (3 mm), BOT: 7 gauge - 0.17 in. (4.5 mm) 3 gauge - 0.24 in. (6 mm) Intermittent cast segments with segmented 1.25 in. (3.1 cm) diameter hinge pins

DECK THICKNESS SIDE SKIRT THICKNESS APPROX. WEIGHT DRIVELINES - SIZE - MAIN BLADE TIP SPEED - 540 RPM - 1000 RPM

HITCH TYPE

JACK STAND DIMENSIONS TRANSPORT WIDTH OVERALL WIDTH OVERALL LENGTH DECK SHAPE DECK TYPE DECK THICKNESS SIDE SKIRT THICKNESS HINGES

DRIVELINES SIZE

CONNECTING

CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping CV ASAE Category 6, splined telescoping profiles profiles profiles profiles profiles ASAE Category 5, splined telescoping ASAE Category 5, splined telescoping ASAE Category 5, splined telescoping ASAE Category 5, splined telescoping ASAE Category 5, splined telescoping profiles profiles profiles profiles profiles

PROTECTION CONNECTING

No-seize, slip-clutch driveline

MAIN

GEARCASES NUMBER HP RATING

No-seize, slip-clutch driveline

Four

Three

Four

OUTER

Continuous: 250 HP (186 kW) Peak: 300 HP (224 kW) Continuous: 250 HP (186 kW) Peak: 275 HP (205 kW) Continuous: 250 HP (186 kW) Peak: 275 HP (205 kW)

BLADES THICKNESS WIDTH TYPE OVERLAP

0.5 in. (13 mm) 4 in. (102 mm) Suction 6 in. (152 mm)

0.5 in. (13 mm) 4 in. (102 mm) Suction, inward rotation 6 in. (152 mm)

0.5 in. (13 mm) 4 in. (102 mm) Suction, outward rotation 6 in. (152 mm)

0.5 in. (13 mm) 4 in. (102 mm) Suction 6 in. (152 mm)

13,957 ft/min (70.9 m/s)

15,858 ft/min (80.6 m/s) 16,114 ft/min (81.9 m/s)

268.1 fps (81.7 m/s) 272.4 fps (83 m/s)

15,858 ft/min (80.6 m/s)

15,858 ft/min (80.6 m/s) 16,114 ft/min (81.9 m/s)

Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 0.18 in. (4.55 mm) Blade bar: 1 x 4.7 in. (2.5 x 12 cm)

Round pan stump jumper for blade carrier protection against obstruction damage, Option of double blade bar for extra shredding

Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 0.18 in. (4.55 mm) Blade bar: 1 x 4.7 in. (2.5 x 12 cm)

Three SCV connected to the tractor (machine height and wing lift) Independent wing operation For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

TRANSFER CENTER

BLADE TIP SPEED 540 RPM 1000 RPM BLADE HOLDER TYPE

HYDRAULICS SCV CONNECTIONS

WING FLEX WHEELS TYPE OPTION 1 OPTION 2 SUSPENSION ROW WIDTH ADJUSTMENT WING-LEVELING ADJUSTMENT

5-bolt, laminated: 21x5.25x9 in. 5-bolt, laminated: 21x5.25x9 in. 5-bolt, laminated: 21x5.25x9 in. 5-bolt, 16 PR Heavy-Duty Forklift Tires (53x14x23 cm) (53x14x23 cm) (53x14x23 cm) 29x11x15 in. (736x282x381 mm) 5-bolt, 24PR severe-duty ag: 5-bolt, 24PR severe-duty ag: 5-bolt, 24PR severe-duty ag: 26x9x14.5 in. (66x23x37 cm) 26x9x14.5 in. (66x23x37 cm) 26x9x14.5 in. (66x23x37 cm) 5-bolt, 24PR severe-duty ag foam filled: 5-bolt, 24PR severe-duty ag foam filled: 5-bolt, 24PR severe-duty ag foam filled: 26x9x14.5 in. (66x23x37 cm) 26x9x14.5 in. (66x23x37 cm) 26x9x14.5 in. (66x23x37 cm) Rubber spring suspension Rubber spring suspension Rubber spring suspension Poly spring suspension No Yes Yes No Adjustable threaded clevis on wing lift Adjustable threaded clevis on wing lift Adjustable threaded clevis on wing lift Adjustable threaded clevis on wing lift cylinders cylinders cylinders cylinders

5-bolt, 16 PR Heavy-Duty Forklift Tires 29x11x15 in. (736x282x381 mm)

Poly spring suspension No Adjustable threaded clevis on wing lift cylinders

Single-row chain guard Optional: double row Single-row chain guard Optional: double row

Double-row chain guard

SHIELDING FRONT REAR

Single-row chain guard Optional: double row Single-row chain guard Optional: double row

7
