2 Series 2032R and 2038R Compact Tractors

Get to know the 2 Series The 2032R and 2038R Compact Tractors are your top choice if you have bigger tasks to dig into: quickly clear snow from a park path, sweep clean a sidewalk, trim brush around your property, or stack small, square bales in the barn. Any way you work it, the 2 Series features great engineering, intuitive controls, and the capacity to handle large implements, so you can plow through tough jobs and whatever chores the day throws your way.

2032R 2032R Compact Tractor

2038R Compact Tractor

Your trench-digging, material-moving, mowing, and snow-clearing machine.

Your heavy-duty, chore-conquering, large property workhorse.

With plenty of power to handle daily property tasks, the 2032R features a rugged 30.7 hp (22.9 kW) Yanmar® diesel engine, an easy-to-use hydrostatic transmission (HST), and excellent maneuverability for dependable, everyday performance. Twin Touch™ foot pedals, tilt steering, and an ergonomic control layout keep you comfortable behind the wheel, so you can tackle mowing, landscaping, and light-PTO work with confidence.

Designed for more demanding jobs and larger acreage, the 2038R offers the same compact footprint, easy controls, and operator comfort as the 2032R – with even more capability. Powered by a 36.7 hp (27.4 kW) Yanmar® diesel engine and 30.4-horsepower (22.7 kW) PTO, it delivers strong, reliable performance under heavier workloads and implements while helping you achieve consistent results on repetitive tasks.

2038R

Compact size, serious capability

UNFOLDED ROPS HEIGHT: 7 feet 8.3 in. (234.4 cm)

Keep conquering chores, even in small spaces. A tight turning radius and compact footprint let you easily maneuver around buildings, trees, and landscaped areas.

CommandCut™ mower deck lift system Makes setting the mowing height down to the half inch (1.27 cm) fast, easy, and accurate with the turn of a dial and the bump of a lever. eThrottle™ Automatically adjusts engine speed as you press the pedals to provide the right power for the job.

WHEELBASE: 5 feet 7.8 in. (172.3 cm)

Time-saving serviceability

Convenient engine access Four quarter turn fasteners allow you to easily remove the engine side panels to access the engine compartment.

Air filter restriction indicator Alerts you when it’s time to clean or change the air filter to save you time and keep your tractor up and running.

The iMatch™ Quick-Hitch Provides easy hookup of Category 1 implements and attachments, so you can save time while taking the guesswork out of attaching and changing implements. Built with tubular, box-welded steel and heat-treated bushings and pins for durable, long-lasting performance. 1

When using Hy-Gard™ products.

Quick view oil port Check the engine oil and water separator without opening the hood or removing the tractor side panels.

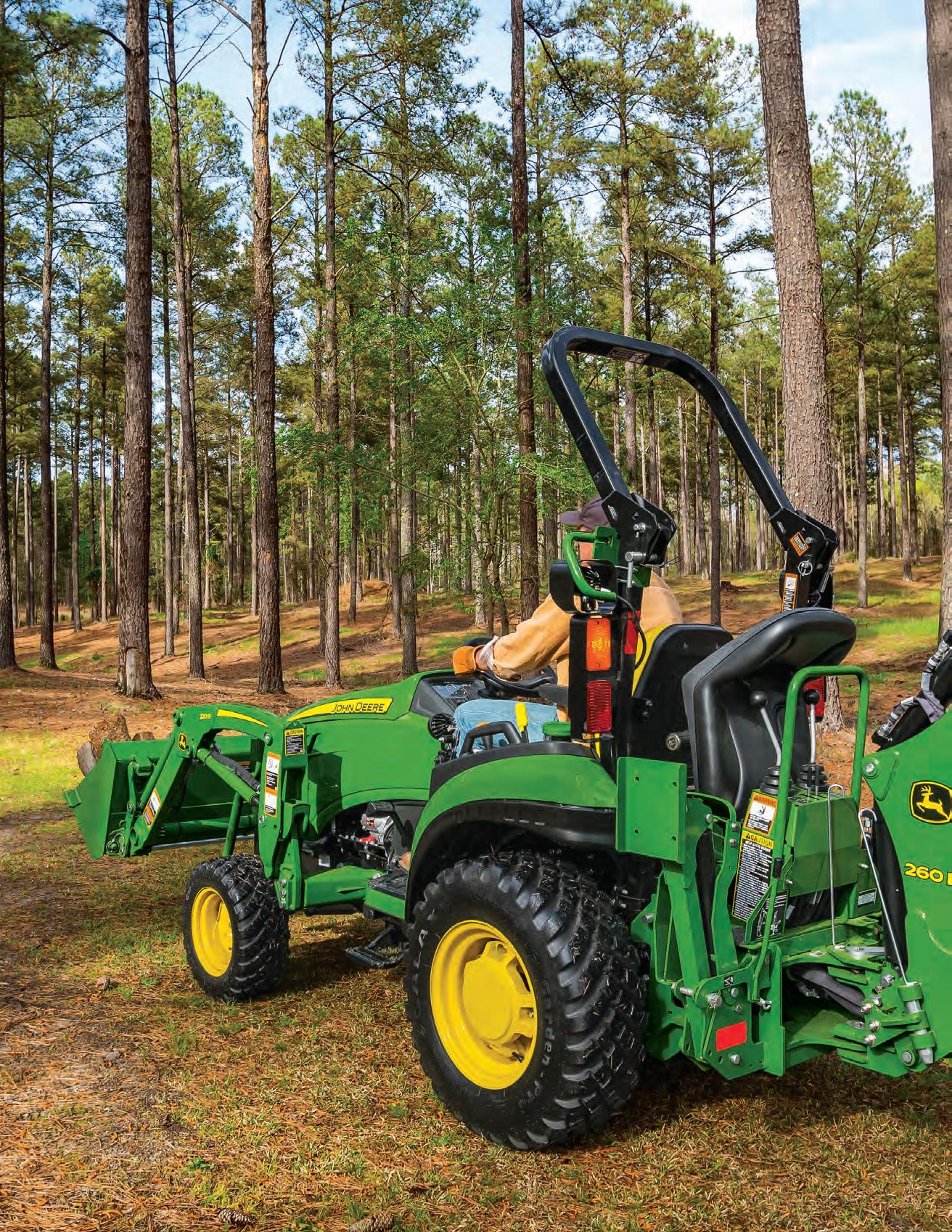

The 270B backhoe With a nearly 10-foot (3.1 m) reach, the 270B backhoe can dig up to seven feet (2.1 m) deep. Optional ripper, trenching bucket, and mechanical and hydraulic thumbs are also available.

Easy-to-read display Monitor tractor performance with a clear view of key machine functions, plus stay ahead of potential issues with diagnostic trouble codes. Optional rear-mounted light Provides excellent visibility at the rear of the tractor. Foldable rollover protective structure (ROPS) Folds down quickly, so you can use and store your 2 Series Tractor in low-clearance areas.

1,200-hour hydraulic oil change interval1 Extends your oil change intervals and helps reduce maintenance costs.

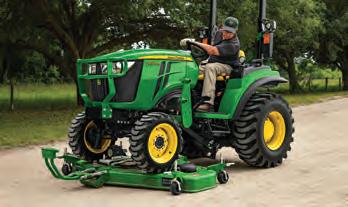

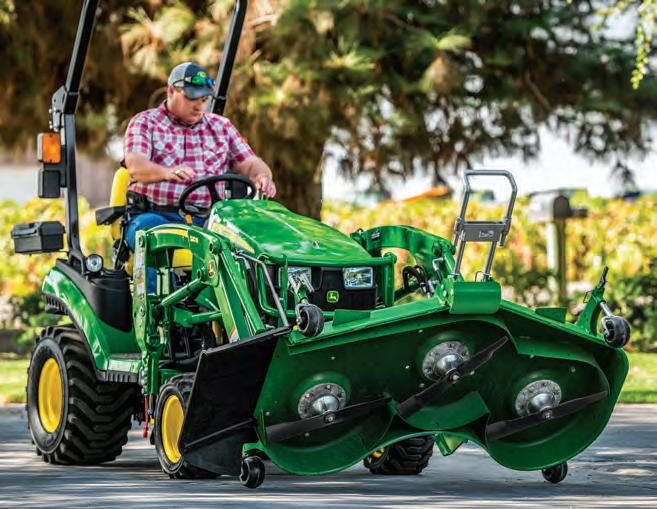

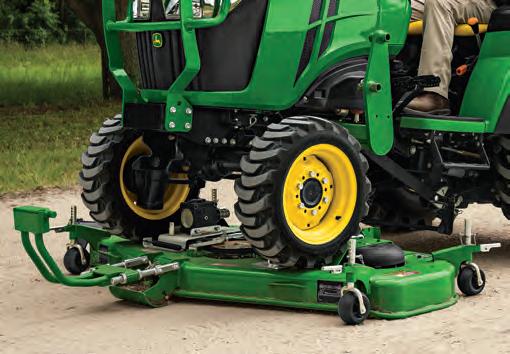

AutoConnect™ drive-over mower deck Features an independent lift system, so you can attach and mow even with your loader and rear implement installed. Not all compact tractors can do that.

Comfort built for the way you work This might just be your favorite seat on the property. Designed to keep you comfortable and productive on a hard day’s work, the 2 Series features an open operator station complete with Twin Touch foot pedals, supportive seating, ergonomic controls, and more. Just step in, settle in, and get to work.

Twin Touch™ foot pedals

Deluxe high-back seat

PTO on-the-go

Tilt steering

Twin Touch foot pedals Direction and speed changes are almost effortless with side-by-side forward and reverse foot pedals. Simply move your foot two inches (5.08 cm) to the right or left to quickly transition from one direction to the next. Tilt steering Adjusts through multiple angles to help operators of different sizes find the most comfortable driving position. Ergonomic control layout Work smoothly and confidently throughout the day with a color-coded control layout, conveniently placed loader controls on the right-hand console, and raised, easy-access levers on the left fender. PTO on-the-go Engage the electronic PTO without stopping or clutching to save time and get your work done fast.

Built-in storage

Deluxe high-back seat with armrests Thick, soft padding, adjustable armrests, and a high seat back provide a smooth and supportive ride. Made from marine-grade vinyl for easy cleaning and long-lasting durability. Cruise control Set and maintain your preferred speed for improved comfort and more consistent results during repetitive tasks. Built-in storage Stay organized while hard at work with multiple storage compartments, a cup holder, and 12-volt outlet. Easy mounting and dismounting A step-through operator platform and large, fender-mounted handrails make getting on and off the tractor easy and safe. Thick, rubberized floor mats Help reduce vibration and noise for a more enjoyable ride.

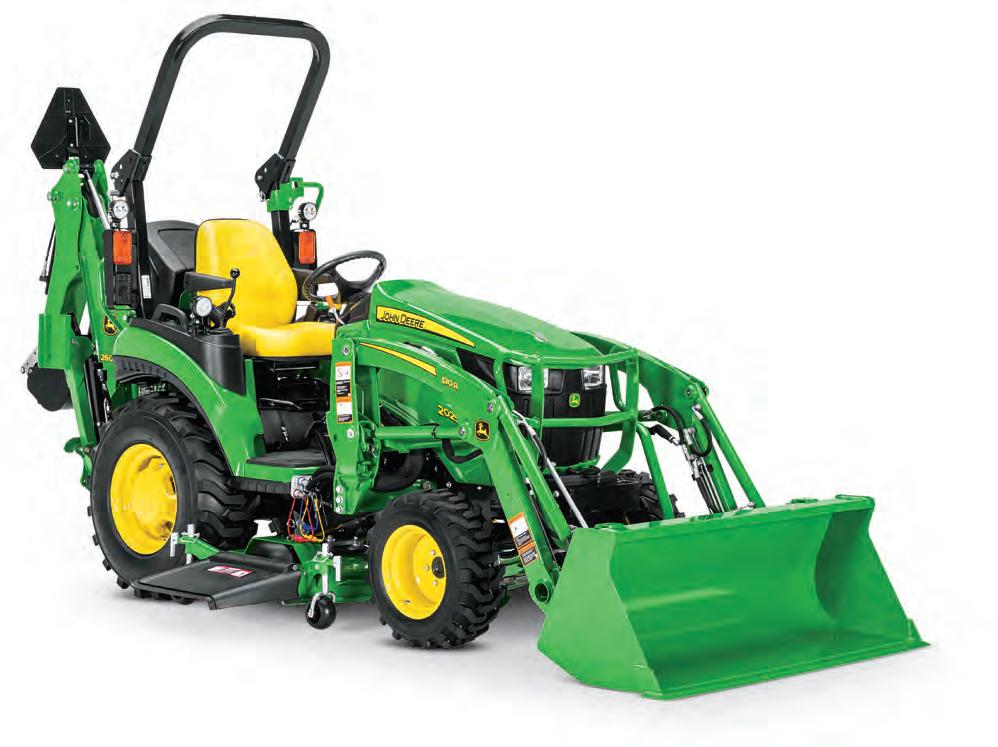

Make your own ultimate, tackle-any-task machine From backhoes and front loaders to wheel rakes and snow blowers, John Deere and Frontier™ implements and attachments have you covered for practically every type of chore.

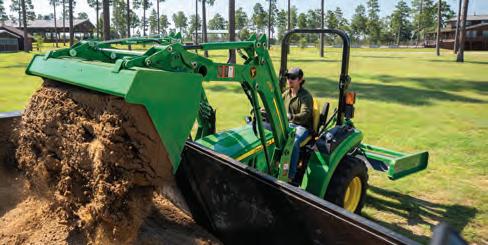

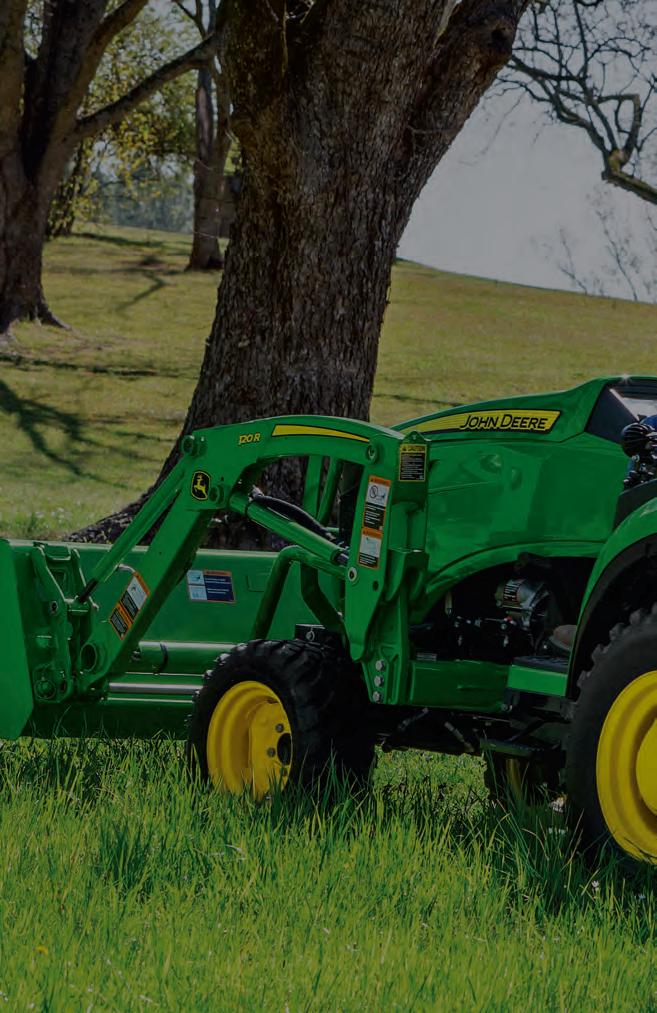

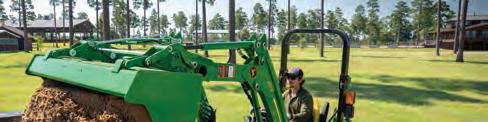

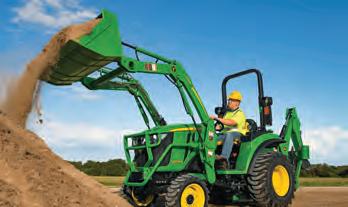

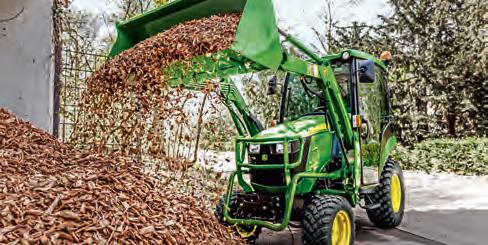

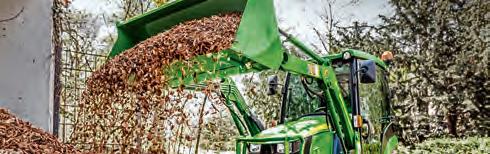

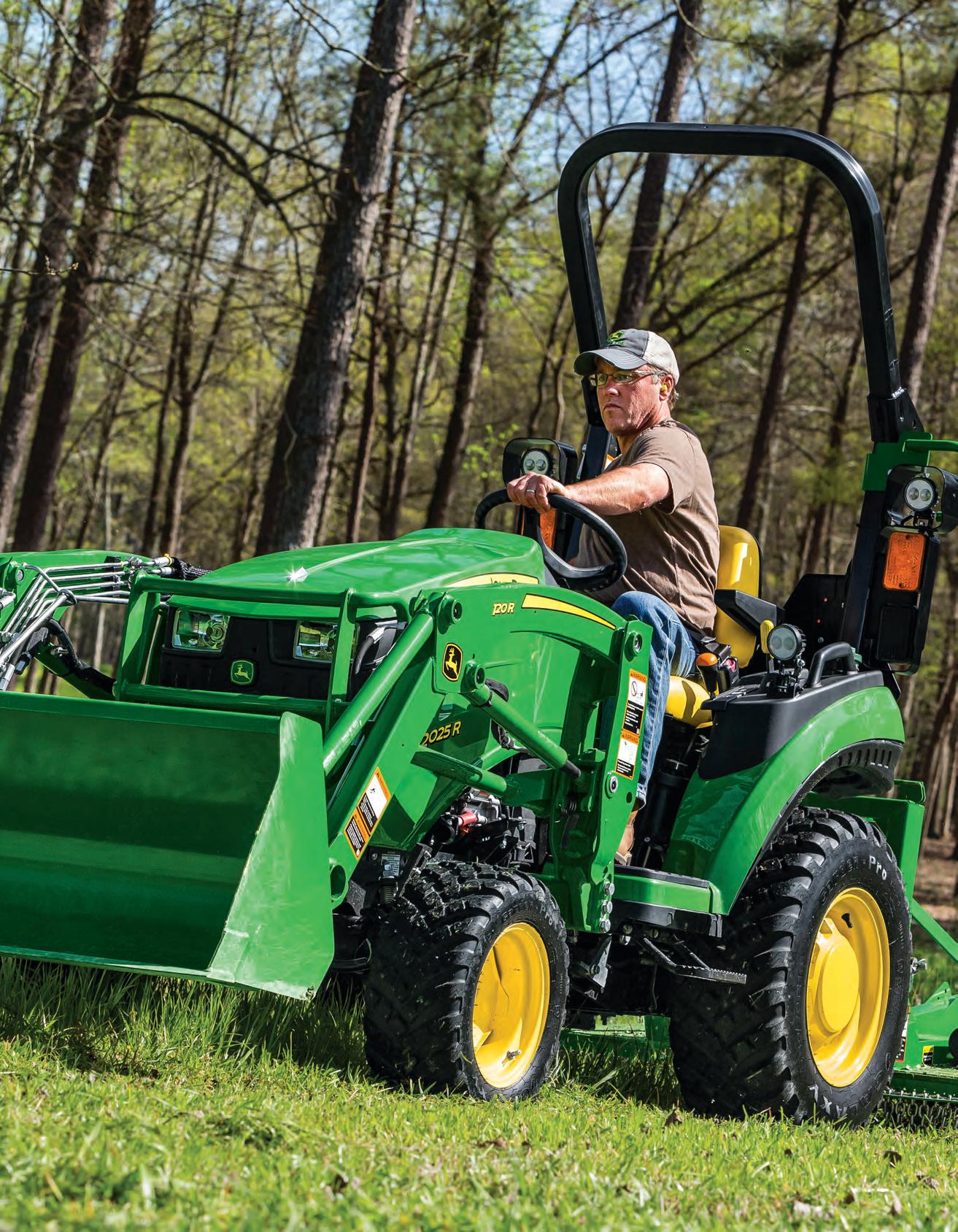

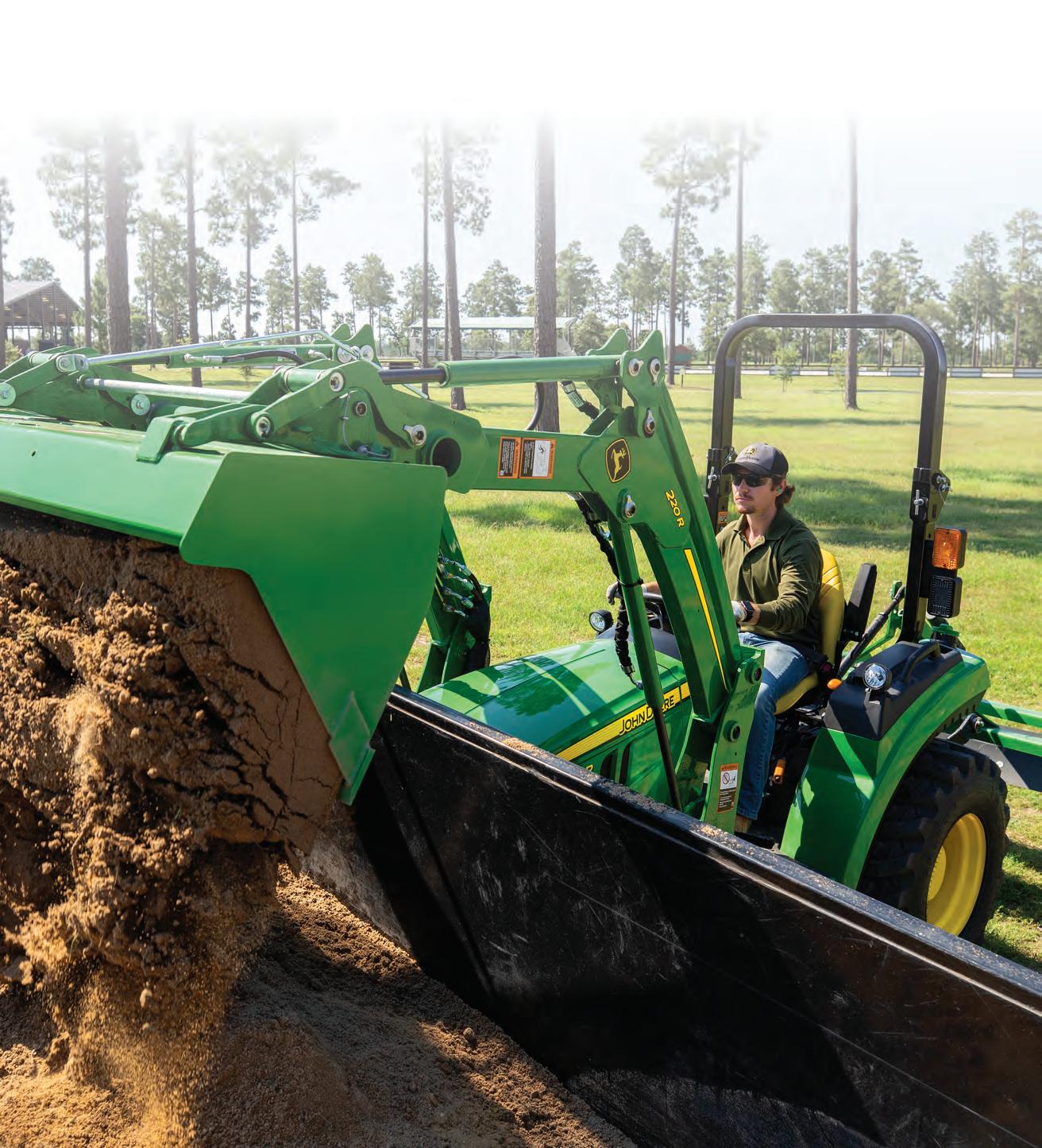

Front Loaders and attachments With options for buckets, pallet forks, and grapple attachments, loader work is 2 Series territory.

Non-self-leveling (NSL) loader Comes standard on 220R loaders and takes practice to keep loads level. Lift capacity is 803 pounds (364 kg)2 and max lift height is 72 inches (1,828 mm).2 Integrated Quik-Park™ mounting system included.

Mechanical self-leveling (MSL) loader Starts level and stays level. Available with a lift capacity of 1,377 pounds (626 kg).2

Quik-Park loader system Transition to and from loader work fast. An integrated parking stand and secure locking system let you attach and detach your loader quickly and safely, no tools required.

4-in-1 bucket The perfect grapple, scraper, or dozer. Move loose material, clear logs and debris, or grade and smooth driveways.

Lift capacity at full height measured at 19.7 inches (500 mm) ahead of pivot.

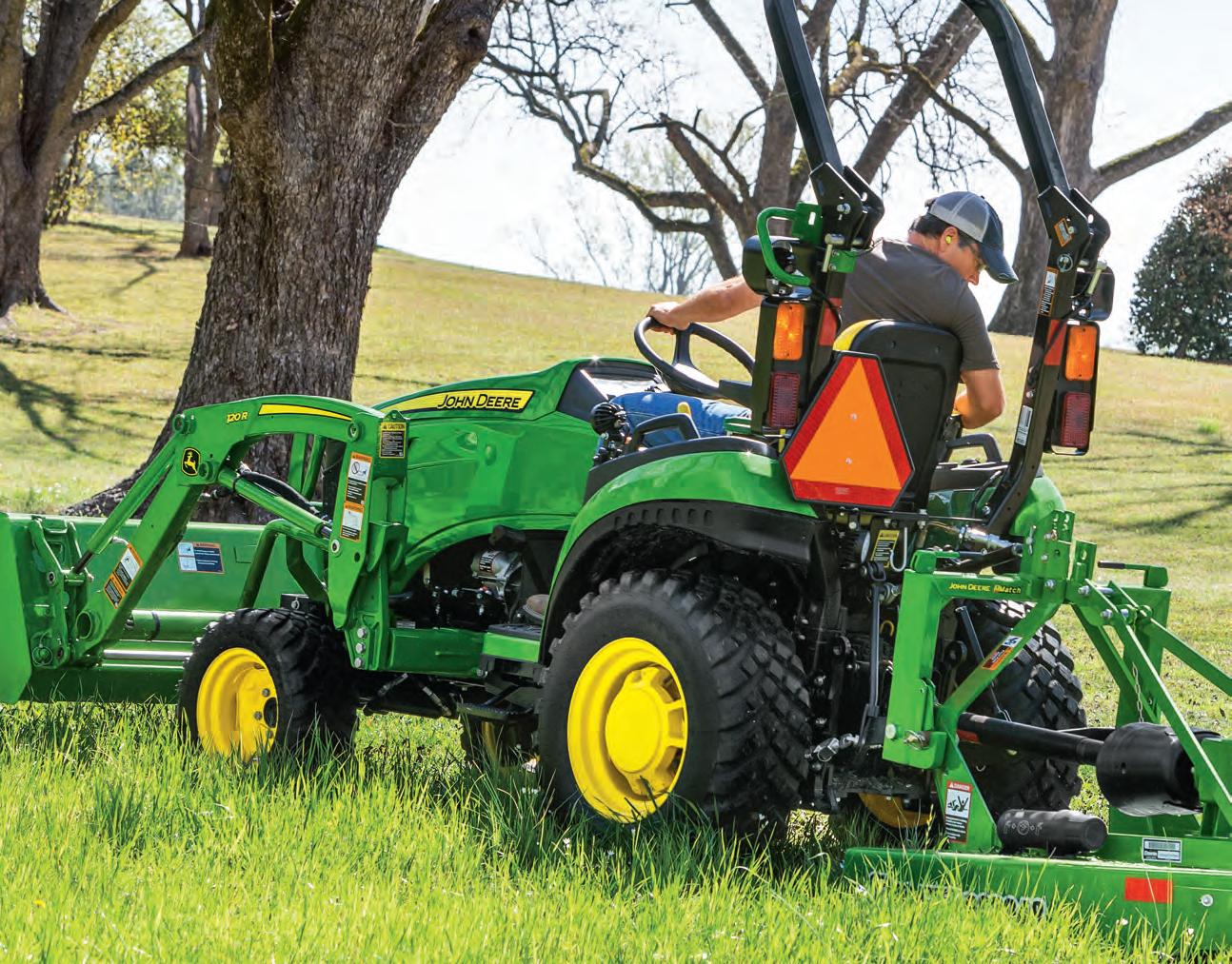

Implements Whether you need to tackle projects around your property or daily chores on the farm, 2 Series implements can help you turn to do into done. Rear mount grooming mower For a well-manicured lawn.

One-row cultivator Control weeds more easily. Adjustable row widths make this tool valuable for both gardeners and small farmers.

Front blade Clear snow and move dirt or gravel. Angle right or left to get the job done. Snow pushes also available.

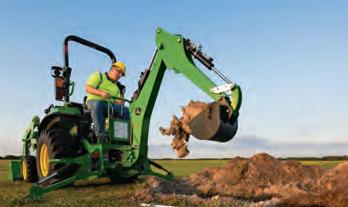

Backhoe Provides precise control and extra torque when backfilling with excellent visibility to the trench and powerful digging force.

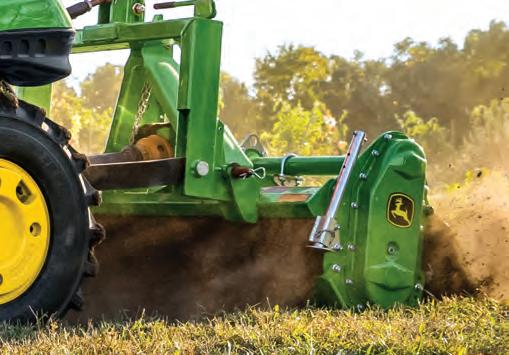

Rotary tiller Loosen soil to prepare garden beds and incorporate plant residue. A reverse tilling option easily breaks up compacted and rocky soils, sod, and hard clay.

Post hole digger and augers Bore holes from six inches (15.2 cm) to 12 inches (30.5 cm) in diameter.

Rotary cutter Cut heavy grass, thick brush, and weeds down to size.

Core aerator Keep your lawn healthy. Penetrates below heavy thatch and compacted soil for better air, water, and nutrient circulation.

Ground seeder Seed a new lawn or overseed your existing lawn to re-establish growth and restore bare spots.

Disk (3 point) Dig in to break up compacted soil and prepare seed beds for planting.

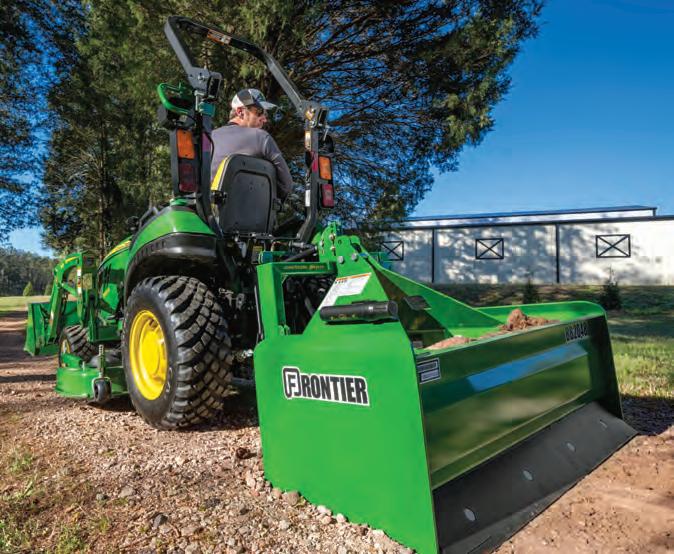

Rear box blade Level out soil, rip up dirt, and backfill areas. 3-point rear blade also available.

Land plane The perfect tool for leveling gravel and dirt to a fine finish.

Attachments For enhanced stability, visibility, or more productive hours in the field, these attachments will help you get the most out of your 2 Series Tractor.

Front and back attachments John Deere Quik-Knect™ Attach PTO-driven implements (115 PTO horsepower or less) to the back of your tractor with a simple click-and-lock connection.

Hood guard Protect your hood from tree limbs and brush.

iMatch Quick-Hitch Provides easy hookup for most Category 1 implements.3 Durably built to handle the increased lift capacity of today’s high-performance tractors.

Front fenders Guard against unwanted dirt and mud with sporty-looking front fenders.

iMatch bushing kit Lets you keep your iMatch Quick-Hitch on while using a ballast box or other implements.

Wheel spacer kit Extend the rear tread setting by 2.4 inches (60 mm) on each side for increased stability. The maximum overall width of the tractor with optional wheel spacers is 59.8 inches (1.5 m).

Receiver hitch and bushing kit Turn your tractor into a towing machine with this heavy-duty hitch. Includes a two-inch (5.1 cm) receiver to accept various ball mounts and is compatible with the three-point hitch or iMatch Quick-Hitch with busing kit.

Rear fender extension Stay free from mud and flying debris while adding extra coverage to the rear tires.

Designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches.

Snow attachments

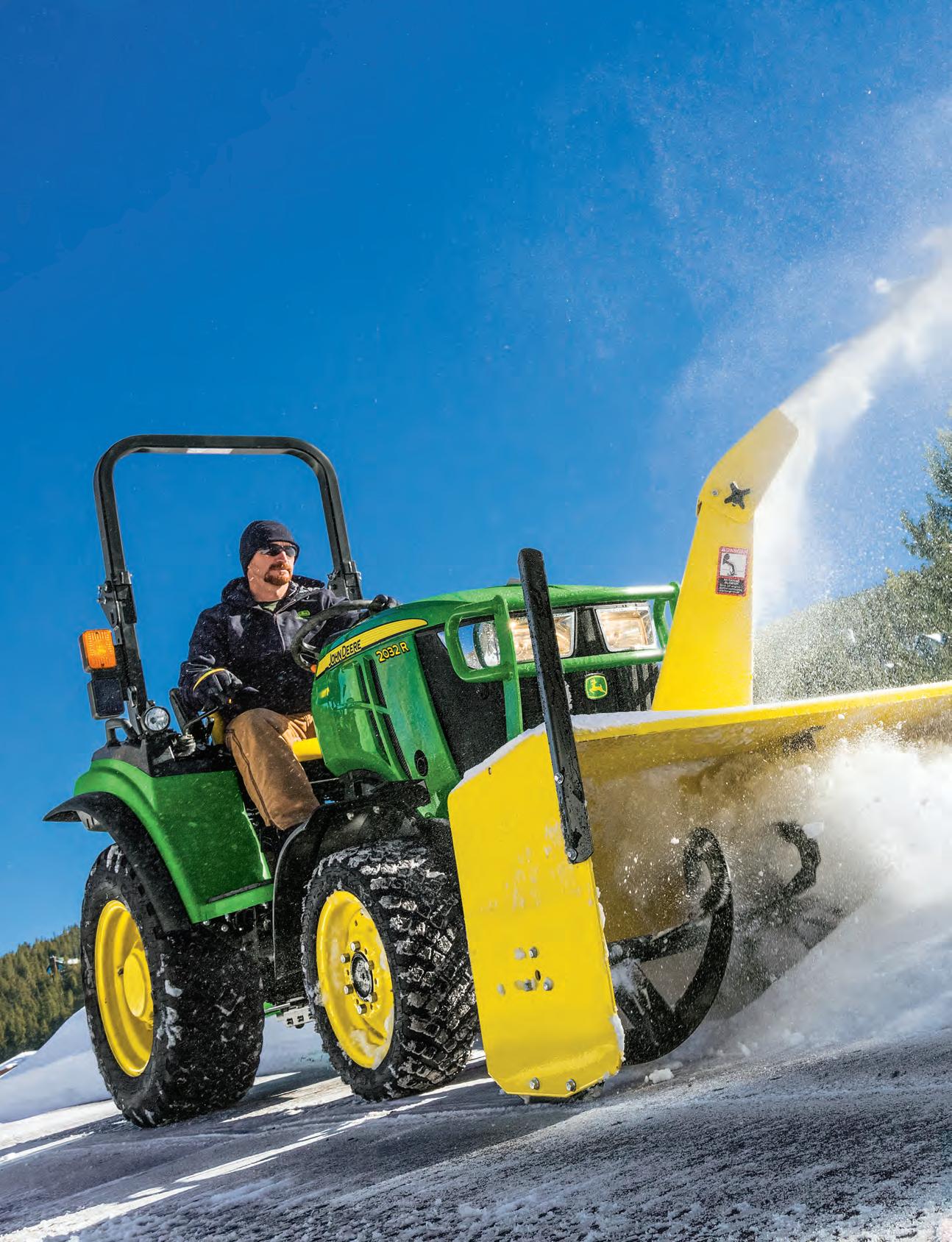

Snow blower Makes snow removal easier and more accurate with a chute deflector and adjustable chute rotation. 3-point hitch and pull type snow blowers also available.

Rotary broom Clear snow, sweep up dirt, or clean up leaves. Broom angles right and left 0-27 degrees.

Snow push Quickly remove heavy, wet, or packed snow from driveways and parking areas, then backdrag along garage doors, buildings, and fences for a polished finish.

Canopies and covers

Weights and ballast Rear wheel weights Help improve performance and stability while providing superior traction for jobs on slick surfaces. Available in 50or 60-pound (22.7 or 27.2 kg) weights to properly ballast your tractor.

Canopies Stay cool, dry, and productive in sunny and rainy conditions with extra overhead protection. The optional ShadePro™ Canopy includes a fan for additional cooling comfort on the hottest days.

Category 1 ballast box and optional extension Enhance loader performance in all conditions with proper ballasting with this heavy-duty box.

Seat covers Enjoy that brand-new look and feel with a tailor-made, cushioned John Deere seat cover. Tear resistant and water- and dirt-repellent for long-lasting durability.

Quik-Tatch™ Weights Add some extra weight to the front of your tractor easily and securely with 50-pound (23 kg) and 70-pound (32.7 kg) Quik-Tatch weights.

Tractor cover Provides heavy-duty protection from sun damage, rain, dust, birds, and tree sap. A reinforced air vent lets air circulate and helps prevent ballooning during windy conditions.

Front weighted bracket extension Lets you hold even more weight than your standard Quik-Tatch kit for additional stability and safety.

Four season versatility backed by six-year protection 6-year / 2,000-hour Powertrain Warranty4 All 2 Series Sub-Compact Tractors are backed by a reliable, six-year Powertrain Warranty. It’s standard, comes at no cost, and covers both residential AND commercial use. It’s just one more reason why Nothing Runs Like a Deere™.

All Compact Tractors purchased new from an authorized John Deere dealer come standard with a six-year/ 2,000-hour (whichever comes first) Powertrain Warranty. See the Limited Warranty for new John Deere Turf & Utility Equipment at an authorized John Deere dealer or at JohnDeere.com/TUWarranty or JohnDeere.ca/TUWarranty for details.

Add more to do more Tool storage Save time on projects with storage for your landscaping and power tools right on your tractor.

Third function loader hydraulics Provides hydraulic couplers at the front of the loader boom for operating implements, such as the Frontier four-in-one bucket, grapples, and hydraulically adjusted blades. Spark arrester screen for muffler Helps protect against sparking in various environments and for use where required by law.

Engine coolant heater kit Helps the engine start in cold weather.

Transmission oil heater Takes the chill out of your transmission oil during the winter months.

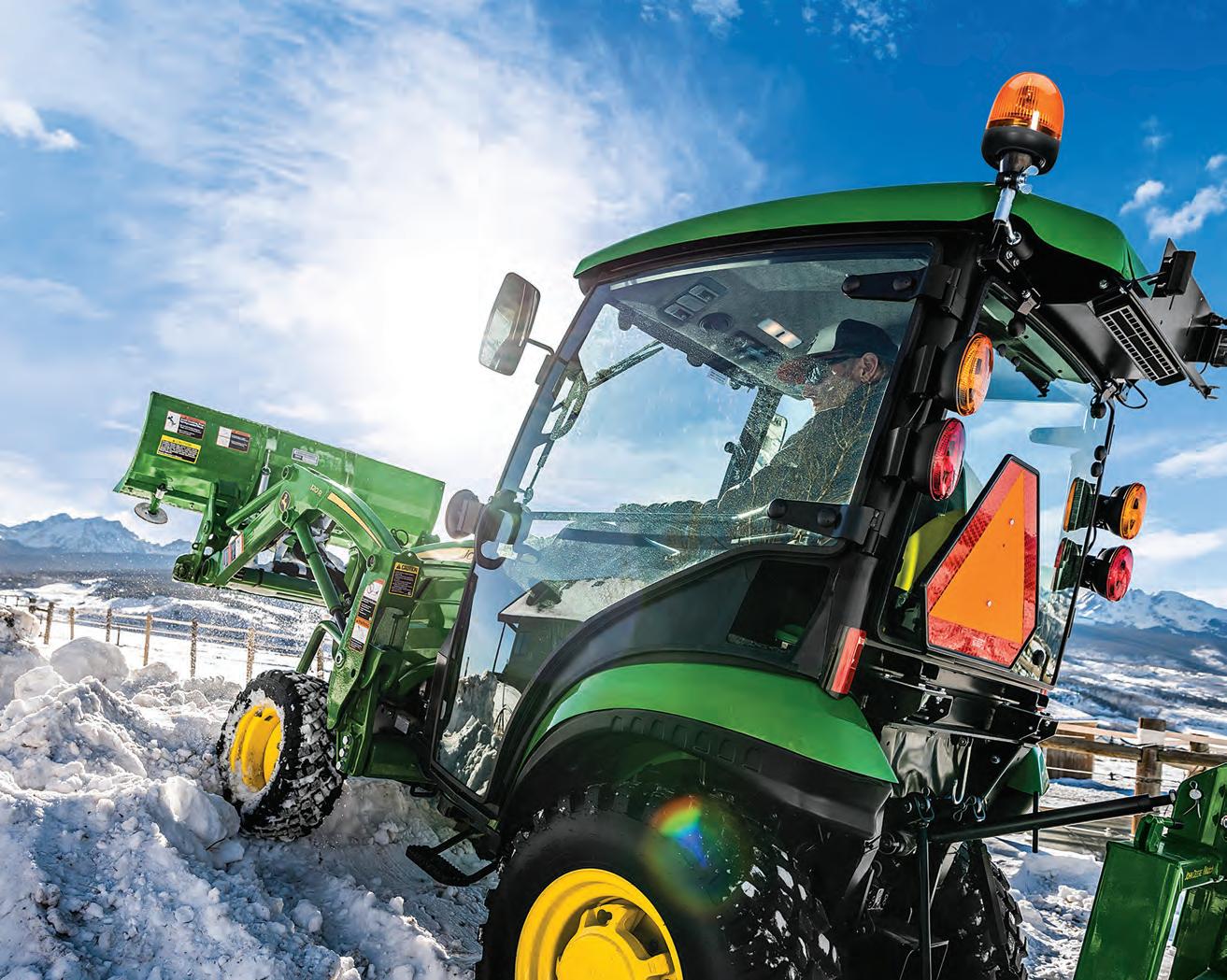

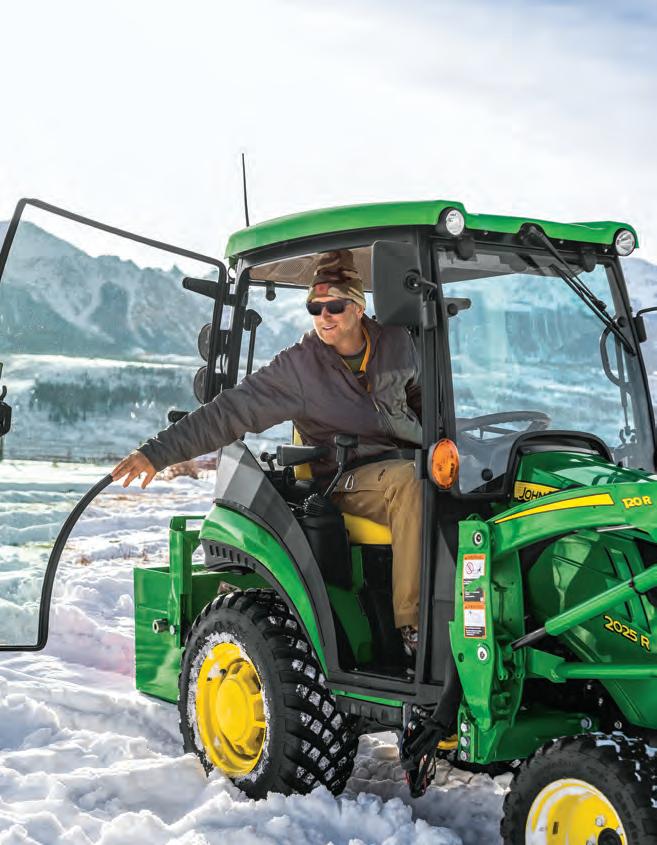

Year-round comfort for year-round jobs Perfect for snow removal, salting paths and roadways, transporting firewood, and moving materials on cold days, the optional factory-installed heated cab features four front vents, two rear vents, and an adjustable control knob, so you can stay warm and work in comfort even when the temperature drops. Get a 360-degree view of your work area, day or night, with full glass doors, large windows, rear view mirrors, front LED work lights, and a wiper and washer system. The front and rear windows open 90 degrees and the glass doors are removable with just a few easy steps to help keep you cool on hot days. Footwell glass also makes it easy to track your tires when mowing or maneuvering around tight spaces. The cab features an isolated design to help reduce vibration and noise, and is ROPS certified for safety. Additional attachments include rear work lights, a beacon light, radio and speakers, sun visor, and heated mirrors.

Lights LED work lights kit Enhance your visibility with brighter bulbs, 360-degree rotation, and a longer life compared to non-LED lighting options.

Lighting brush guard kits (two guards) Available for warning lights, work lights, and LED lighting options.

Hydraulic options Power beyond kit This kit provides hydraulic power at the rear of the tractor for operating implements equipped with an open-center control valve, such as a backhoe or woodchipper.

Dual outlet rear SCV kit with continuous flow Includes a continuous flow feature for operating hydraulic motors or implements that have a separate hydraulic control valve, such as a log splitter.

Help yourself Our full list of implements and attachments would rival the longest to-do list. Let TipsNotebook.com show you how to use them.

Maintenance parts Filter Paks Keep your tractor running at its peak. Contains almost every filter you need to maintain your tractor in one convenient package.

Plus-50 II Oil™ Specifically designed for John Deere equipment, premium Plus-50 II engine oil will give you great protection.

Automatic 1.5A battery charger and maintainer This fully automatic six- and 12-volt 1.5-amp battery charger and maintainer provides quick engine starts for compact tractors that are stored during the off-season.

John Deere grease Choose from a variety of high-quality John Deere grease products, including multipurpose SD polyuria grease, multi-purpose extreme-duty synthetic grease, multi-purpose lithium grease, heavy-duty water-resistant grease, heavy-duty moly grease, and more.

Hy-Gard Transmission & Hydraulic Oil™ Provides high-performance wear protection for John Deere hydraulic and transmission systems. Formulated with friction modifiers that provide smooth clutch engagement and high braking capacity with minimum chatter.

Pistol-grip grease gun Features a contoured design, non-slip finish, and large diameter piston for one-handed applications and easy discharge in cold conditions. Universally compatible with any type of grease cartridge and bulk grease.

Keep your equipment running Equipment Mobile makes it easy to setup, operate, and maintain your equipment. Prepare for work, access key information from your Operator’s Manual, find replacement parts quickly, and track routine maintenance all from the palm of your hand. Use the John Deere Smart Connector to link your 2 Series Tractor to Equipment Mobile via Bluetooth for insights on engine hours, fuel level, maintenance alerts, and more.

Financing to fit your budget Put the strength of John Deere Financial behind your purchase and get the equipment you need to maintain your property or grow your business. We know the landscape you work in and are committed to helping you get what you need with flexible financing options that fit your budget. You can bank on it.

Specifications 2032R

2038R

Type

Yanmar 3TNV88C-NJT2

Yanmar 3TNV88C-NJT

Engine horespower – gross

30.7 hp (22.9 kW)

36.7 hp (27.4 kW)

PTO horsepower – hydrostatic transmission5

24.2 hp (18 kW)

30.4 hp (22.7 kW)

Rated engine speed

2,500 rpm

Displacement

100.2 cu in. (1.642 L)

95.8 cu in. (1.568 L)

Battery power

500 CCA

Alternator – 12v

85 amp

Fuel type

Diesel

Fuel tank capacity

8.5 U.S. gal. (32 L)

Steering

4 gpm (15 L/min)

Implement

5.3 gpm (20.2 L/min)

Pump rated output

9.3 gpm (35.2 L/min)

Lift capacity, 24-in. (60.96 cm) behind link arms

1,356 lb. (615 kg)

Pump type

Dual gear

Standard

Hydrostatic

Final drive

Spur gear

Brakes

Wet disc

Steering

Power

Type

Independent

Standard

Rear: 543 rpm; mid: 1,998 rpm

Type

Category 1

Control type

Position

2,879 lb. (1,306 kg)

2,910 lb. (1,320 kg)

1,120 lb. (509 kg)

ENGINE

FUEL SYSTEM

HYDRAULICS

TRANSMISSION

POWER TAKE-OFF (PTO)

REAR HITCH

DIMENSIONS Approx. shipping weight 220 LOADER Max height lift capacity at pivot6 5

Manufacturer’s estimate of power (ISO) per 97/68/EC. For a complete list of loader specifications see your dealer.

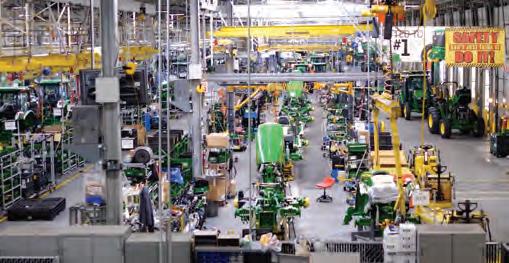

Assembled in Georgia All 2 Series Tractors are designed, assembled, tested, and distributed

Your dealer network is here, too Can’t decide which tractor is right for you? Your John Deere dealer is as knowledgeable about landscaping and property care as they are about our 2 Series Tractors. Together, you two will find what you need. Until then, check out the innovations and exceptional engineering that can help you tackle any task quickly and easily. Or visit us at JohnDeere.com/2Series or JohnDeere.ca/2Series.

This literature has been compiled for worldwide circulation. While general information, pictures, and descriptions are provided, some illustrations and text may include finance, credit, insurance, product options, and accessories NOT AVAILABLE in all countries or regions, and in some countries, products and accessories may require modifications or additions to ensure compliance with the local regulations of those countries. PLEASE CONTACT YOUR LOCAL DEALER FOR DETAILS. John Deere reserves the right to change specifications, design, and price of products described in the literature without notice. John Deere, the leaping deer symbol, and John Deere green and yellow trade dress are the trademarks of Deere & Company. Copyright © 2026 Deere & Company. All Rights Reserved.
