THE CONVEYOR SYSTEM THAT WILL GROW WITH YOU.
Mi-CON
is
the
first hygienically designed
full
wash
down
conveyor system ever to offer multiple standardised components. Delivered flat packed in a box.
For more than 40 years Enmin have built custom solutions for a myriad of products, applications and environments.
Recognising the industry demand for reliable, cost effective and proven equipment, we have now incorporated years of knowledge and design expertise into one exciting modular design!

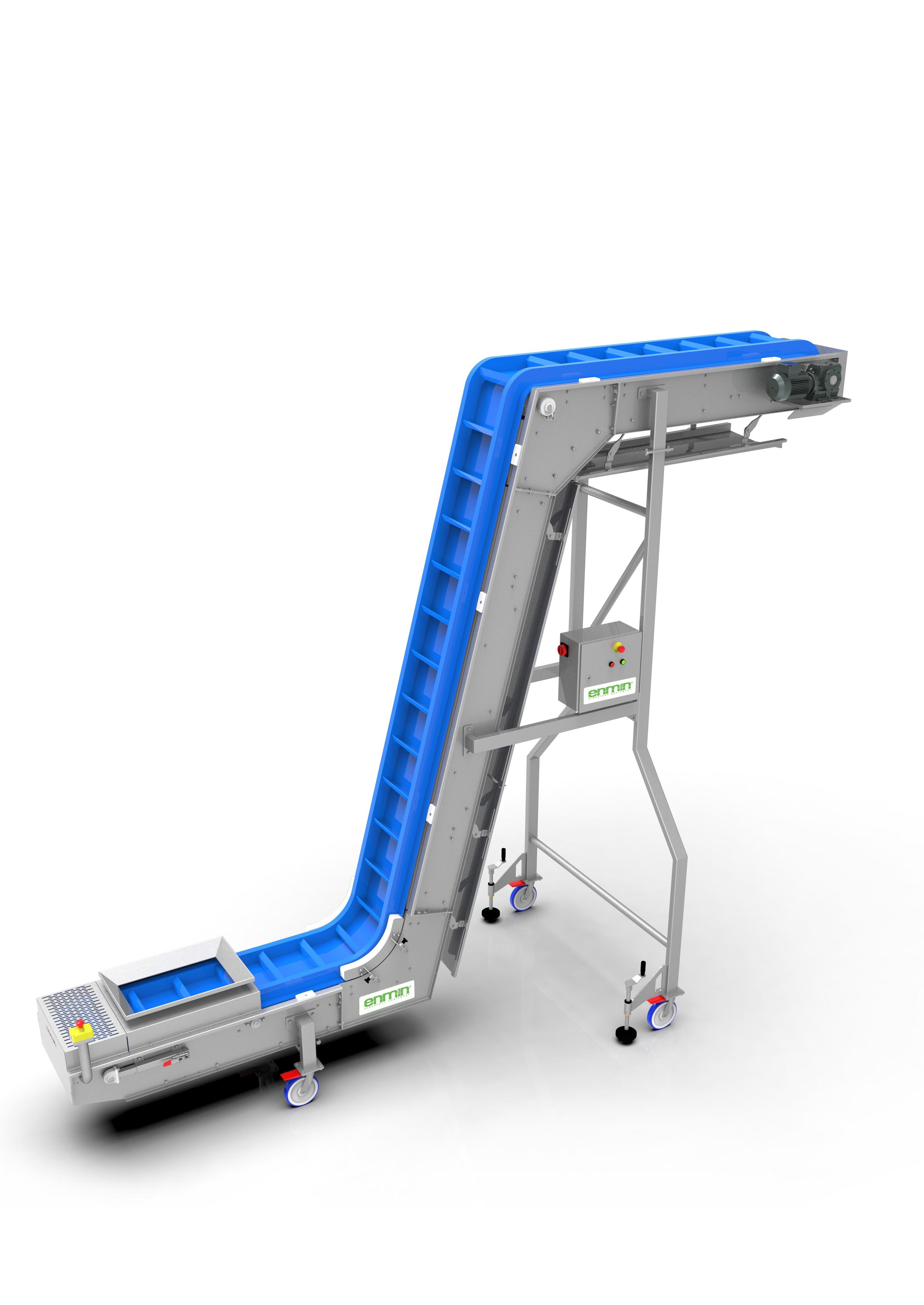

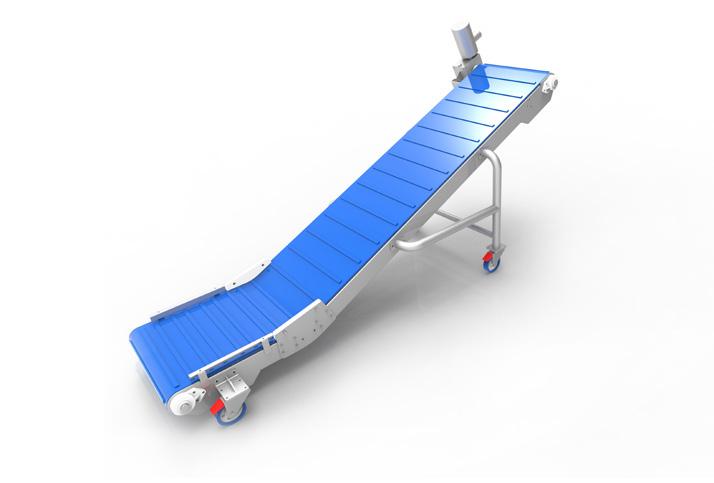

Enmin’s new Mi-CON (modular incline conveyor) system will revolutionize product conveying equipment and provide years of economical, trouble free operation for a multitude of product applications.
Enmin’s Mi-CON will eliminate equipment redundancy as it can be easily modified to suit new applications to meet the needs of the ever-changing product processing landscape. Standard off the shelf Enmin Mi-CON components ensures fast delivery and maintenance simplicity for years to come.
The only product conveying equipment that comes in a box, the Enmin Mi-CON can be supplied in three different assembly modes:

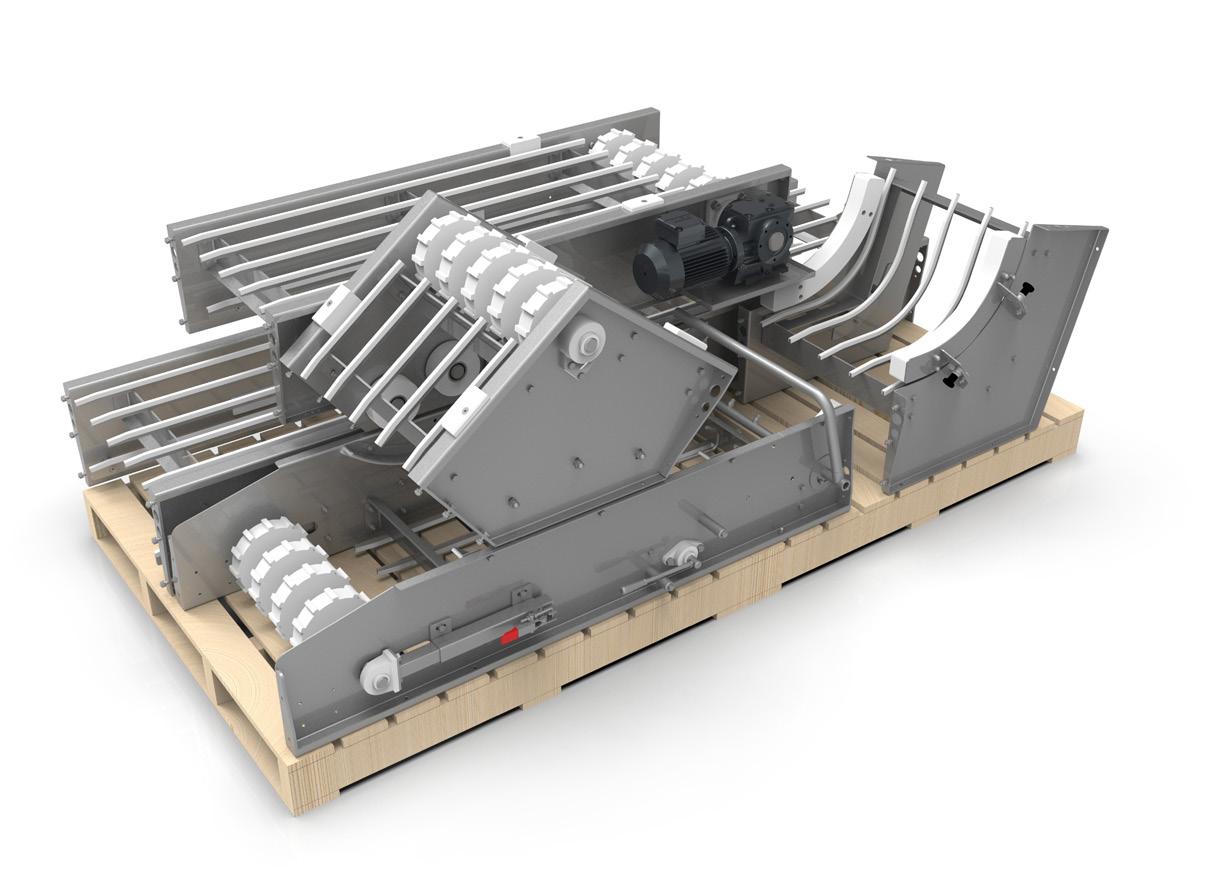

• Full flat pack
• Module part assembly
• Installation ready modes
This new and unparalleled modular incline conveyor system allows easy cost-effective delivery to any location. It caters to any mechanical resource situation and provides a unique installation benefit.
Mi-CON DIMENSIONS
All dimension provided are to be used as a reference guide only. Please consult with our team of experts when calculating best practice lengths and discharge heights.

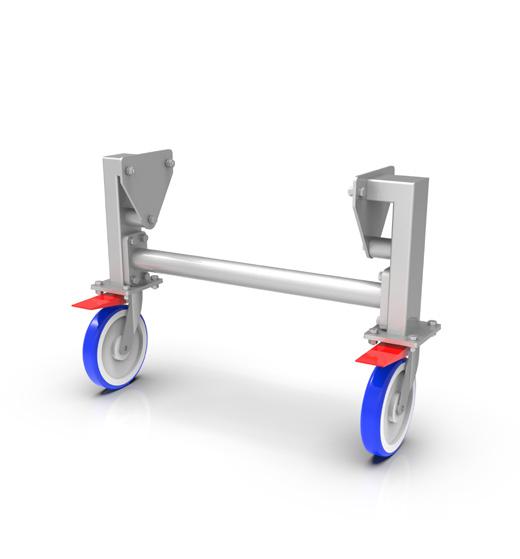

The Mi-CON system is constructed in full 304 stainless steel with all hardware and running gear suitable for a full wash-down environment. Support stands can be supplied as mobile or with bolt down provision.
Tail infeed module can be bolted to any or multiple intermediate sections.
• Maximum infeed length 4500 mm.
• 1000 mm Tail infeed cannot incorporate the belt lifter, please refer to the 1500 mm if required.
• CIP system can be used in any section except the transition modules.
• Drive as standard SEW right angle gearbox, additional brand options or full 304 stainless drive on request.
• Standard belt PU cleated wave wall, 500 mm O/A, 350 mm usable, 75 mm scoop cleat @ 250 mm pitch
Module
Tail Infeed (B)
Tail Transition (C)
Tail Transition (H1)
Intermediate (D)
Head Transition (E)
Head Transition (H2)
Head Outfeed (F)
BELT OPTIONS

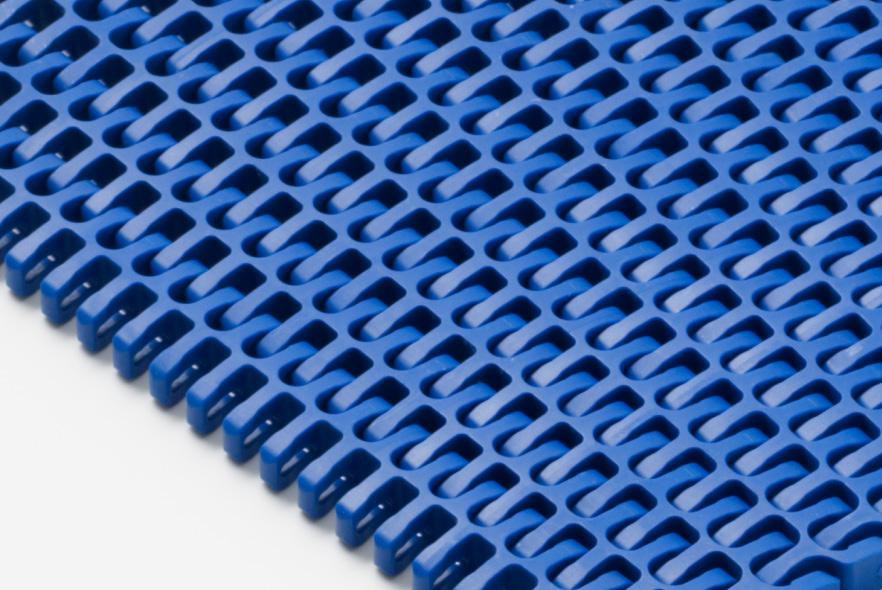

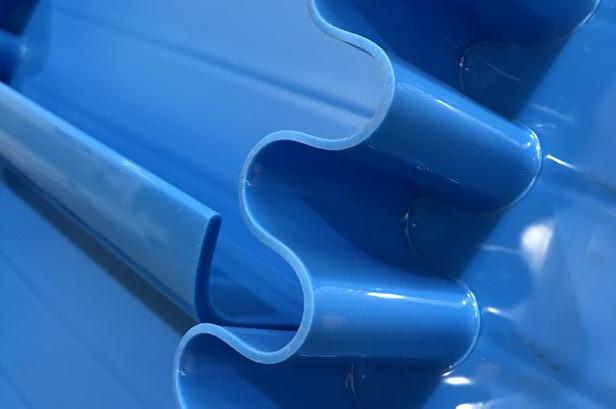

The Mi-CON system can utilise either a PU belt or plastic modular depending on the application. Our standard PU belt comes with 75 mm scooped cleats and wave wall sides. Please consult our team of professionals for additional belt options.

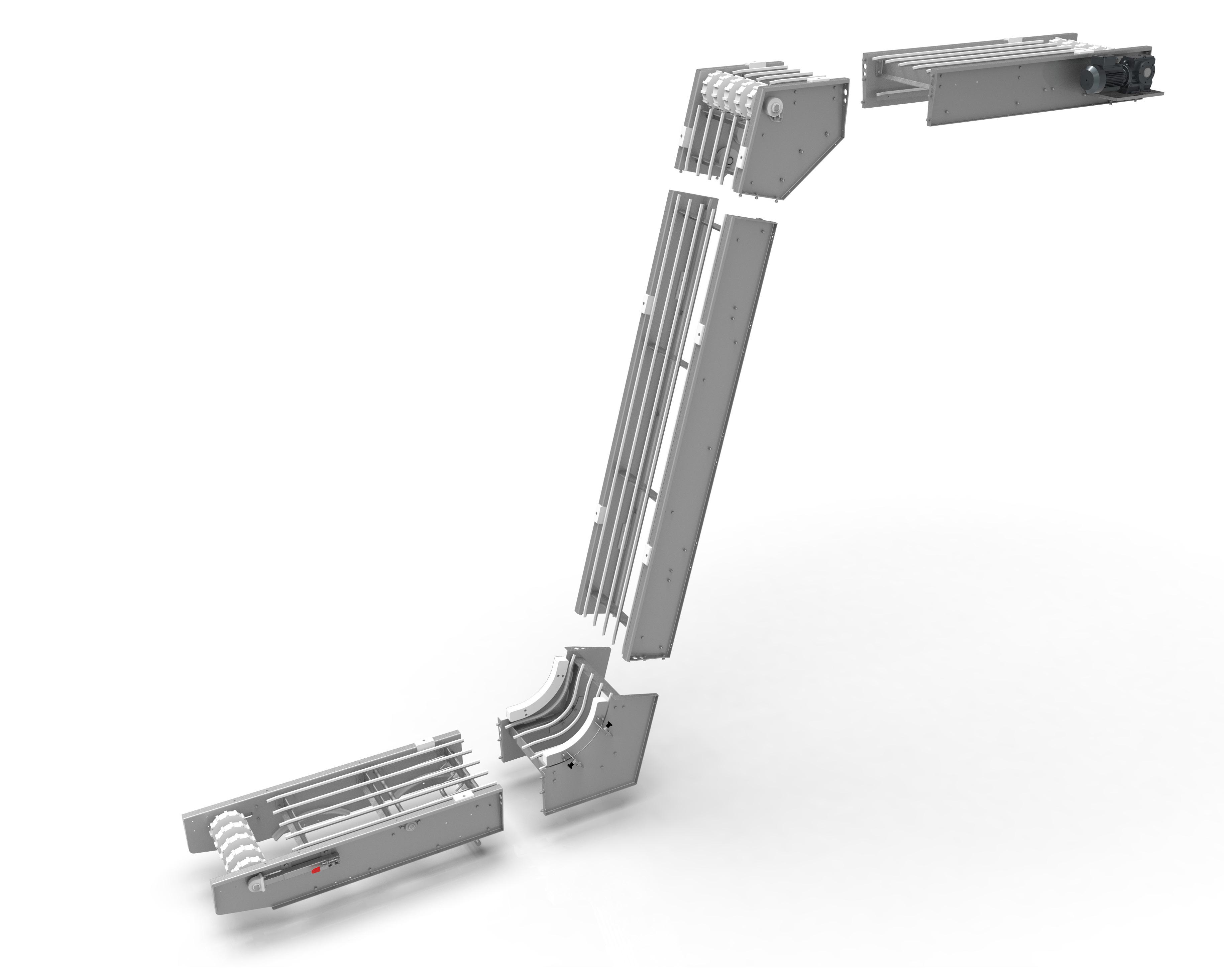

Mi-CON MODULES
Enmin’s Mi-CON system has been designed and built to meet the high standards of the Australian food industry. All components used are FDA approved and suitable for a full wash down environment.
The modular design, standard parts and components, accompanied with a flexible design ensures suitability for multiple applications.
TAIL/HEAD TRANSITION MODULE

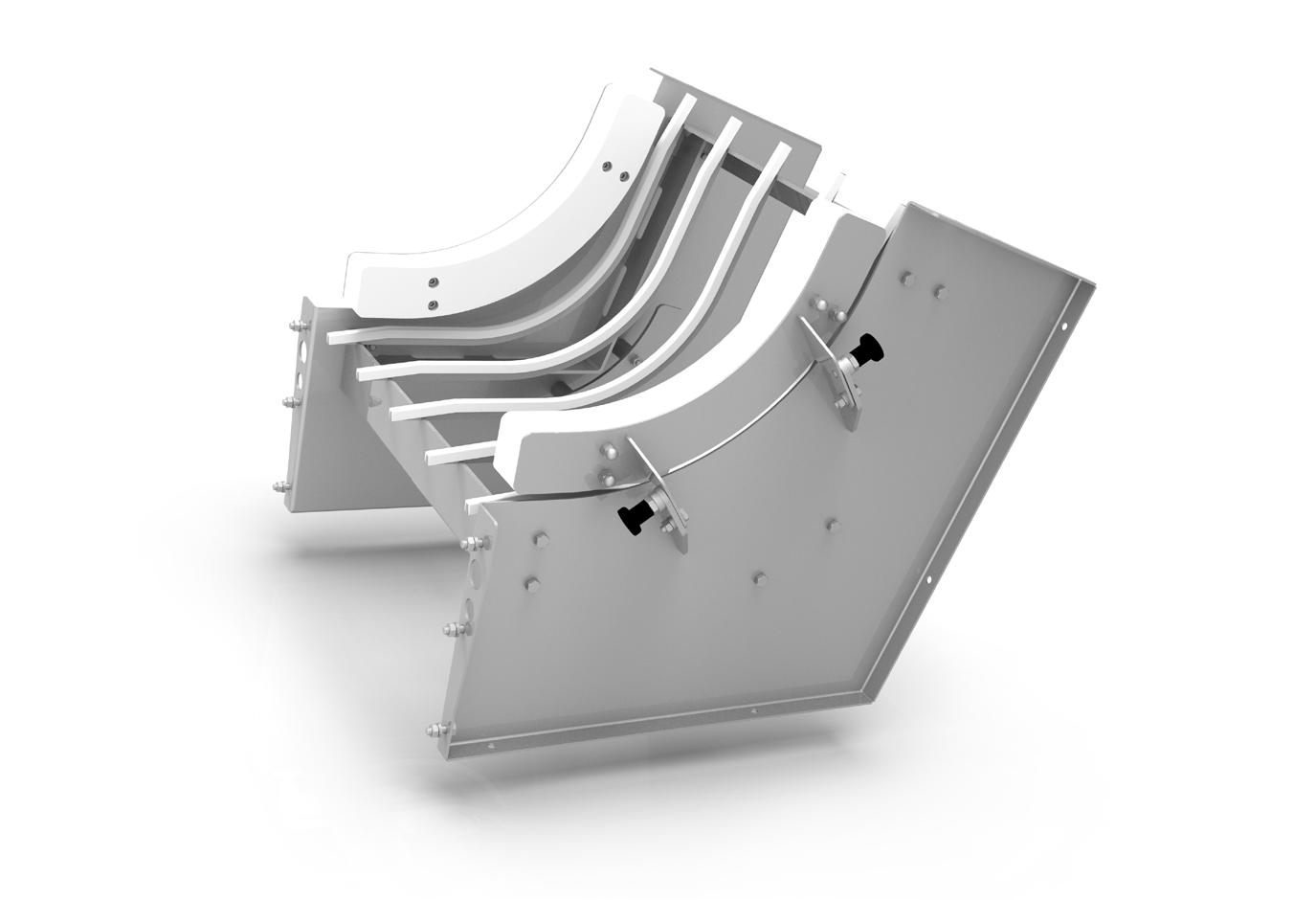

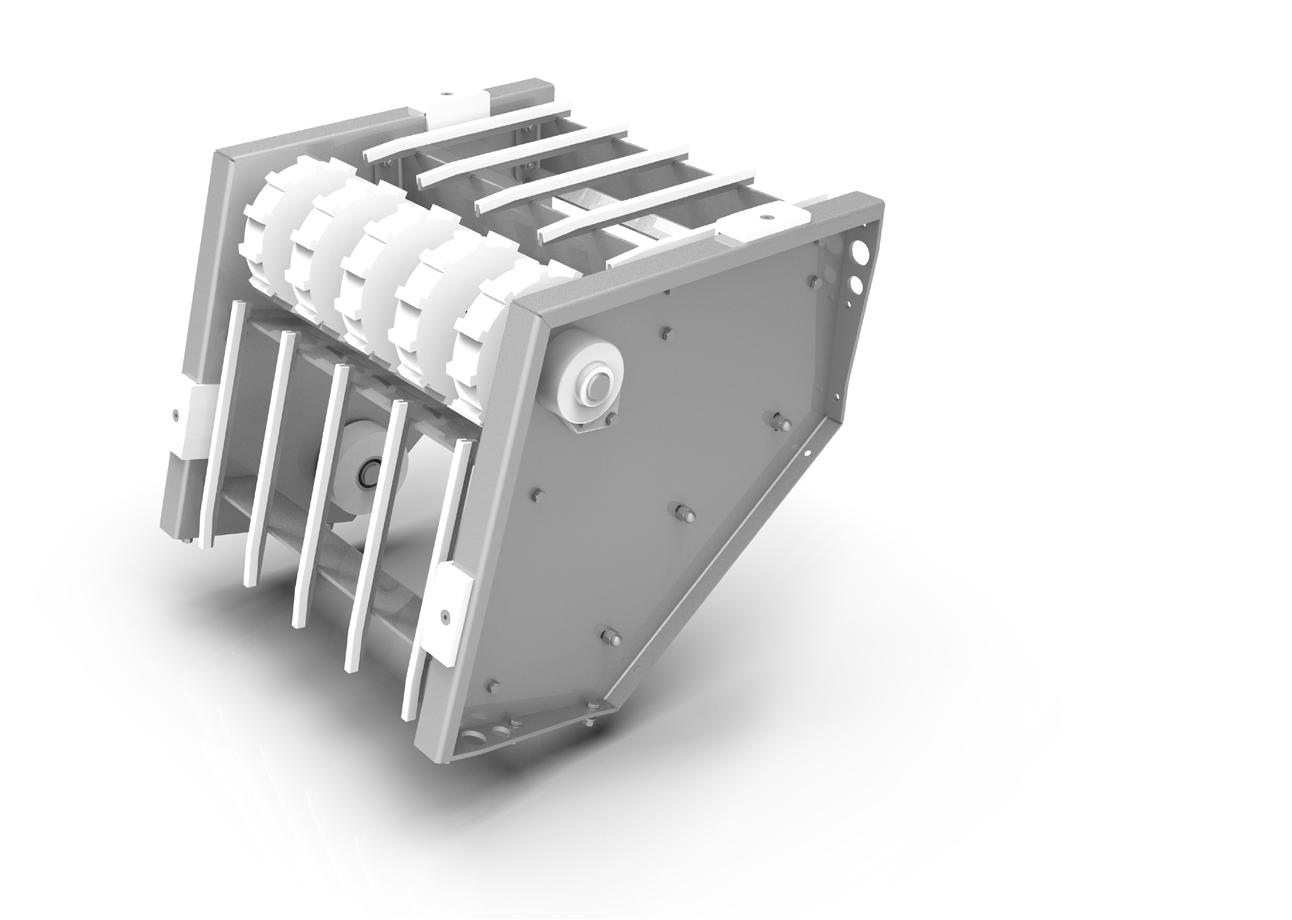

The modular infeed transition includes quick lock belt hold down. Standard transition section 500 mm wide, with optional angle of 60 and 75 degrees. The outfeed transition includes a set of drive sprockets to ensure simple tracking is maintained.
TAIL INFEED MODULE

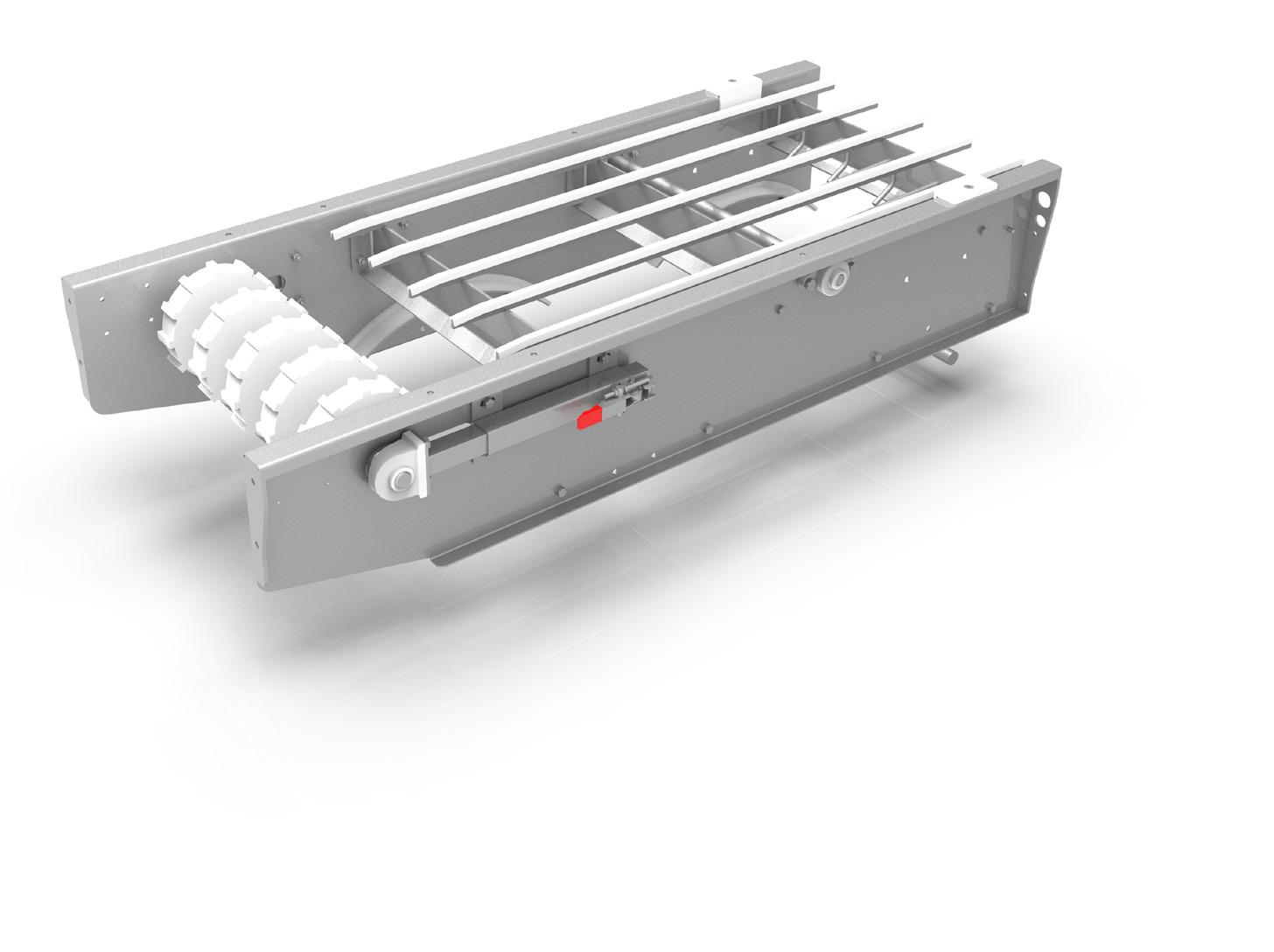

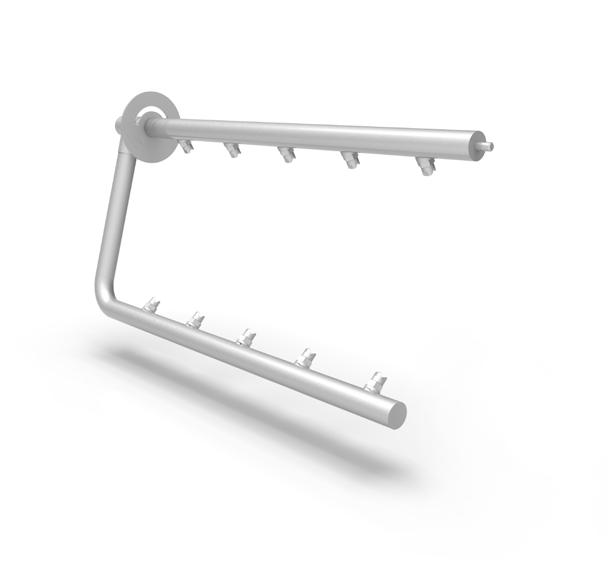

The modular tail infeed section includes quick lock belt tensioner, manual belt lifter for operator inspection and internal/external CIP spray bars. Standard infeed section 500 mm wide, overall length 1000 without belt lifter/1500 mm complete with belt lifter.

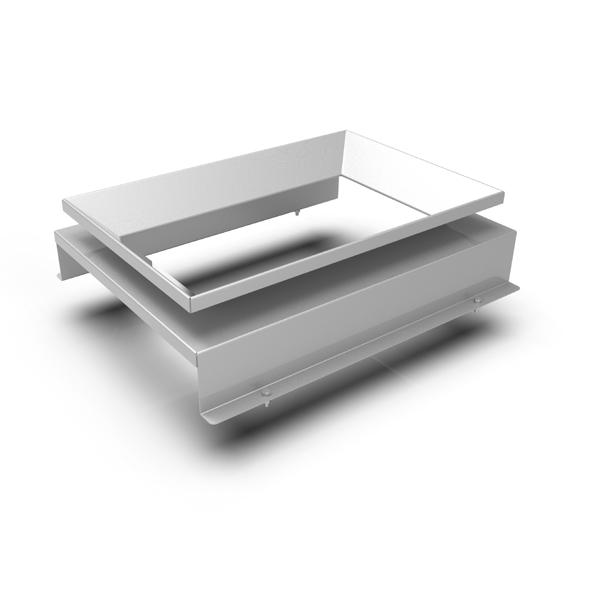

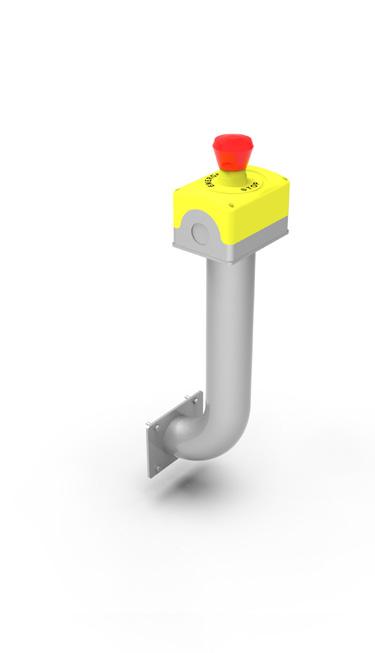

Mi-CON ACCESSORIES
Our range of accessories are designed to allow the customer to semi-customise the conveyor to suit the type of product you are handling or the site operational
requirement’s. All items have been designed to meet the toughest of OH&S standards, hygienic design whilst maintaining flexibility and quality.
INTERMEDIATE MODULE

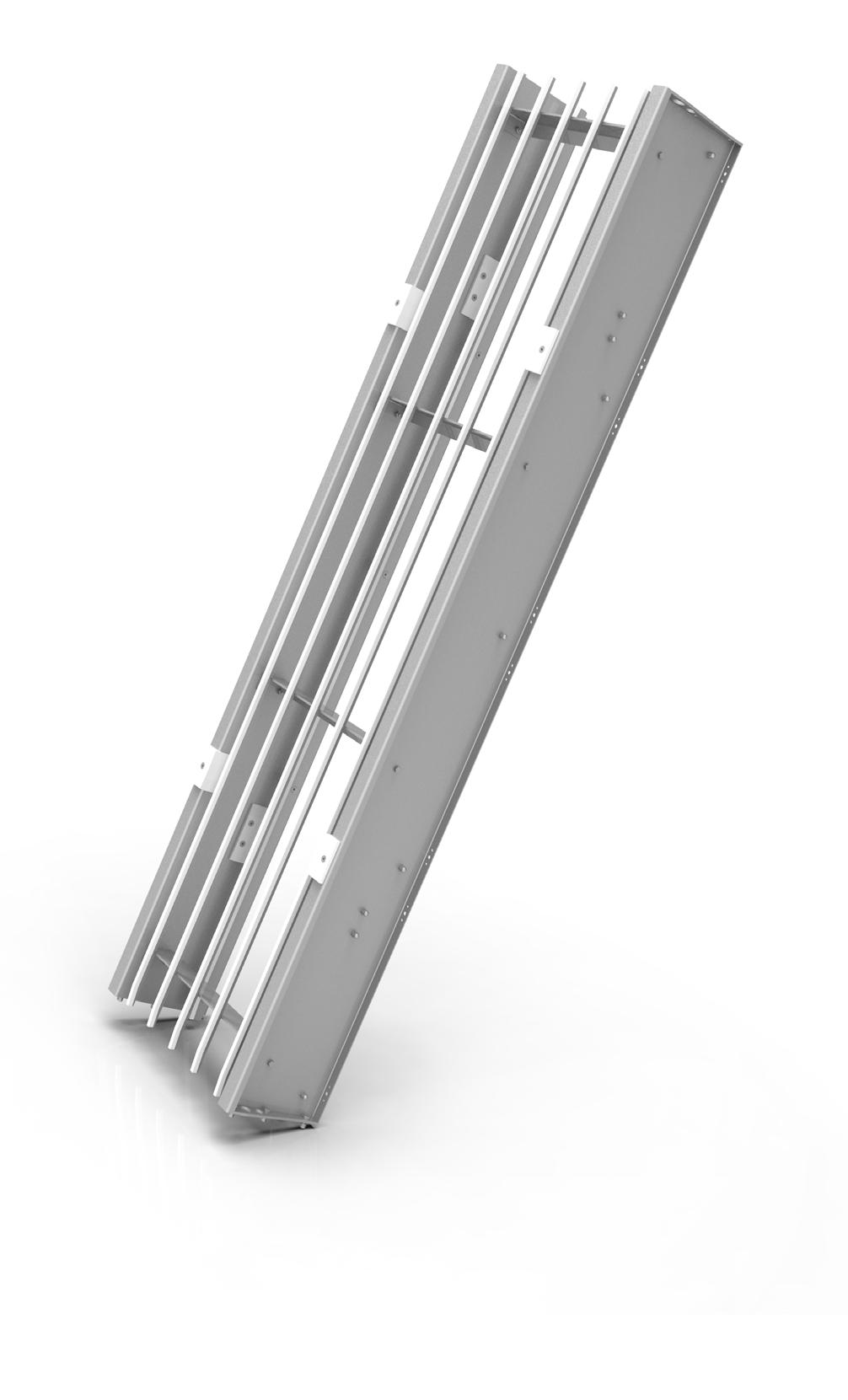

The modular intermediate section can be used to extend the available infeed/outfeed and also increase the overall discharge height of the conveyor. Standard infeed section 500 mm wide, available lengths 1200/ 1500/2400/3000 mm. Additional spray bars can also be fitted if required.
HEAD OUTFEED MODULE

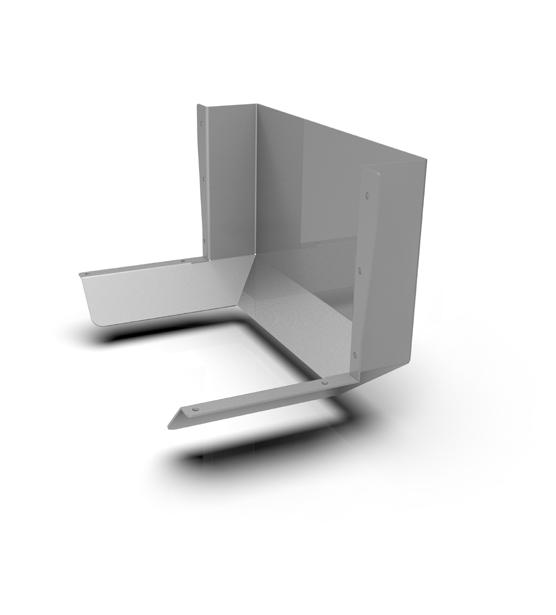

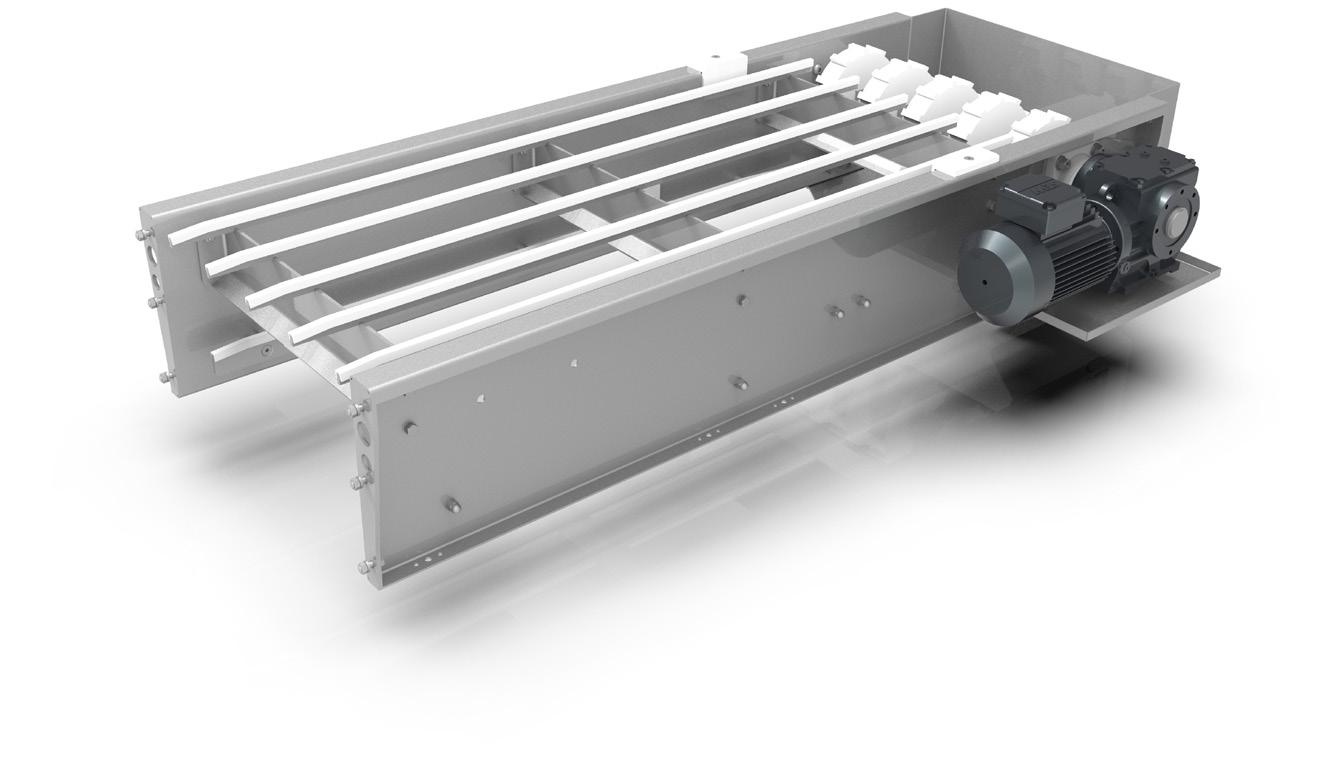

The modular head outfeed section includes a final set of drive sprockets, right angle gearbox and discharge chute. Standard outfeed section can be supplied as standard 500 mm wide and an overall length of 600 or 1200 mm.

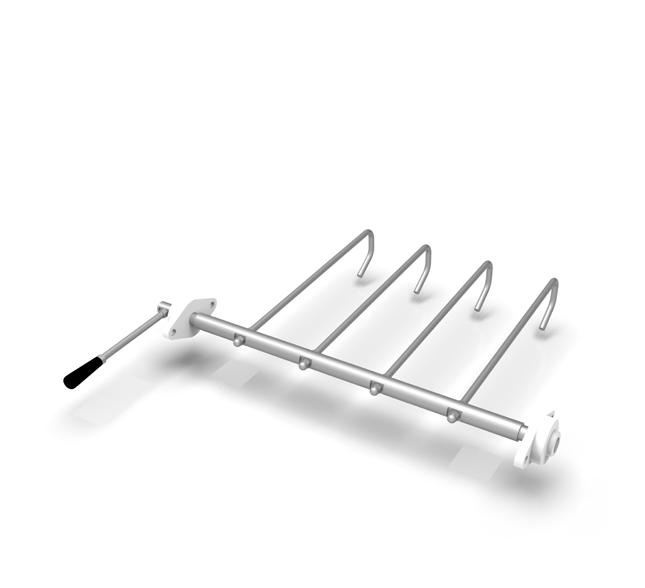

BELT LIFTER Manual belt lifter for internal inspection and cleaning.
CONVEYOR OPTIONS

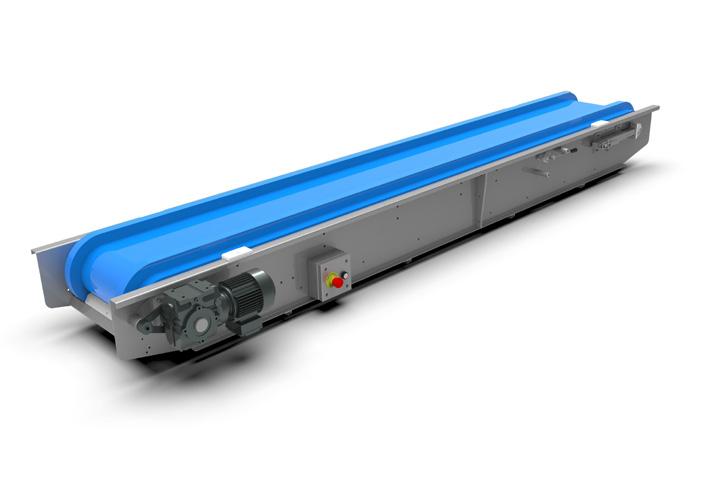

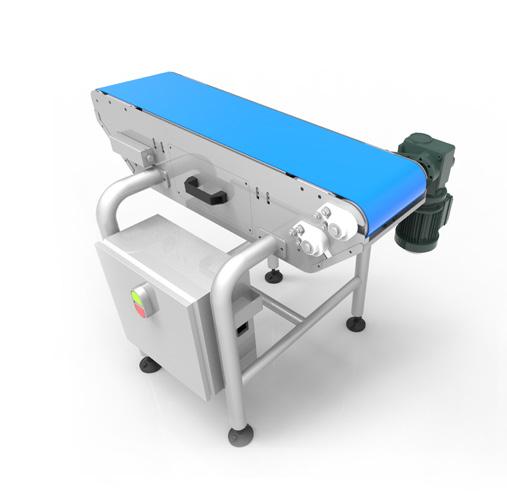

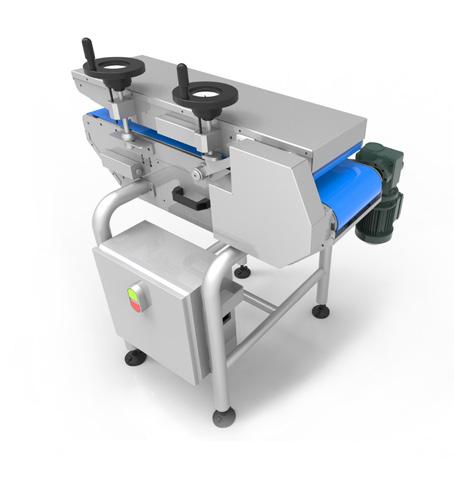

Other Enmin conveyor options include accumulation, takeaway, bag conditioning/flattening delivery conveyors and packing tables – all designed to fit perfectly with the mi-con system.
