7.5L DIESEL QUICK REFERENCE GUIDE
ENGINE TUNE-UP / ENGINE PARTS
7.5L SCHEDULED MAINTENANCE KIT 09246100PM
TORQUE SPECIFICATIONS

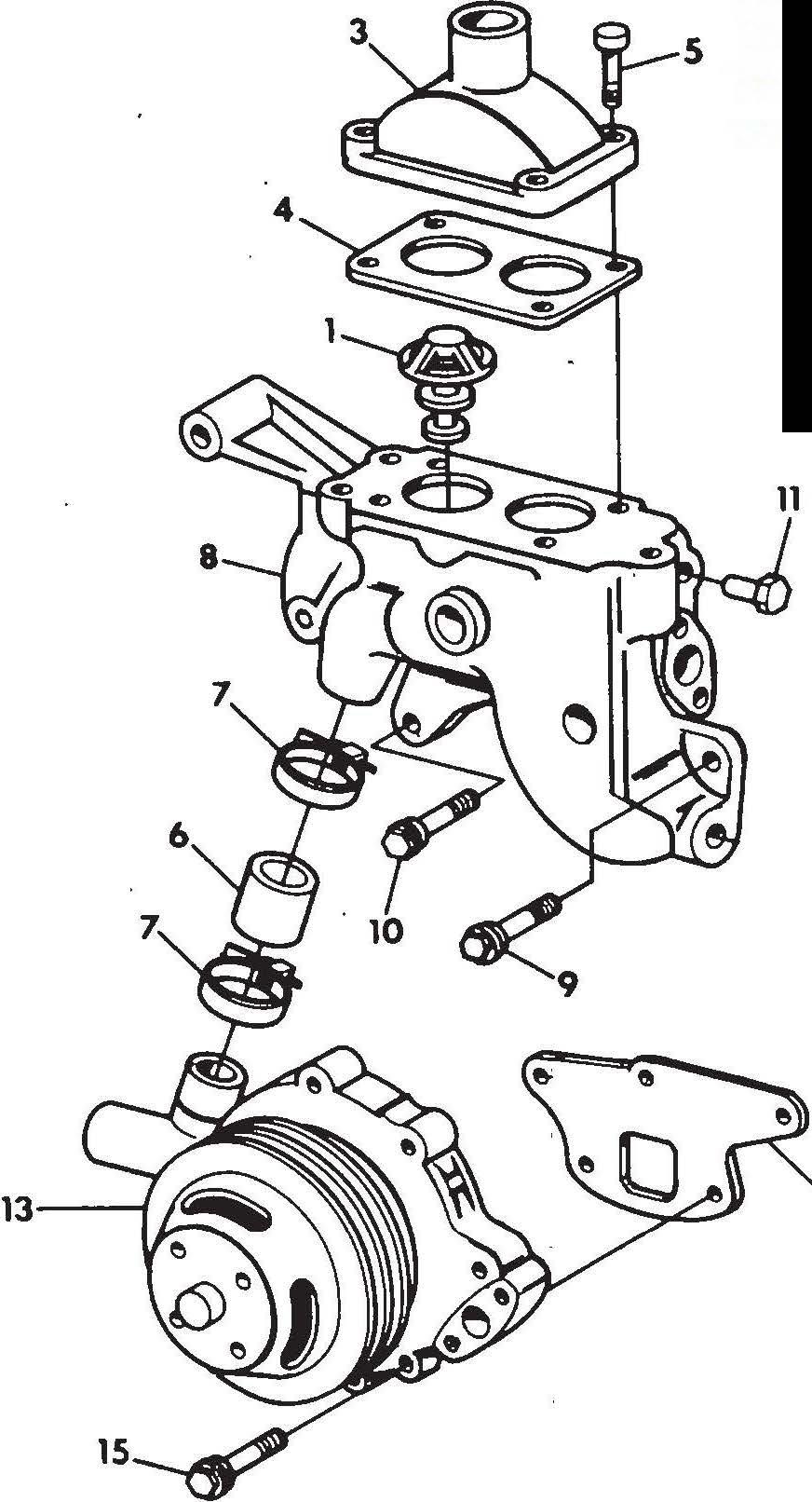

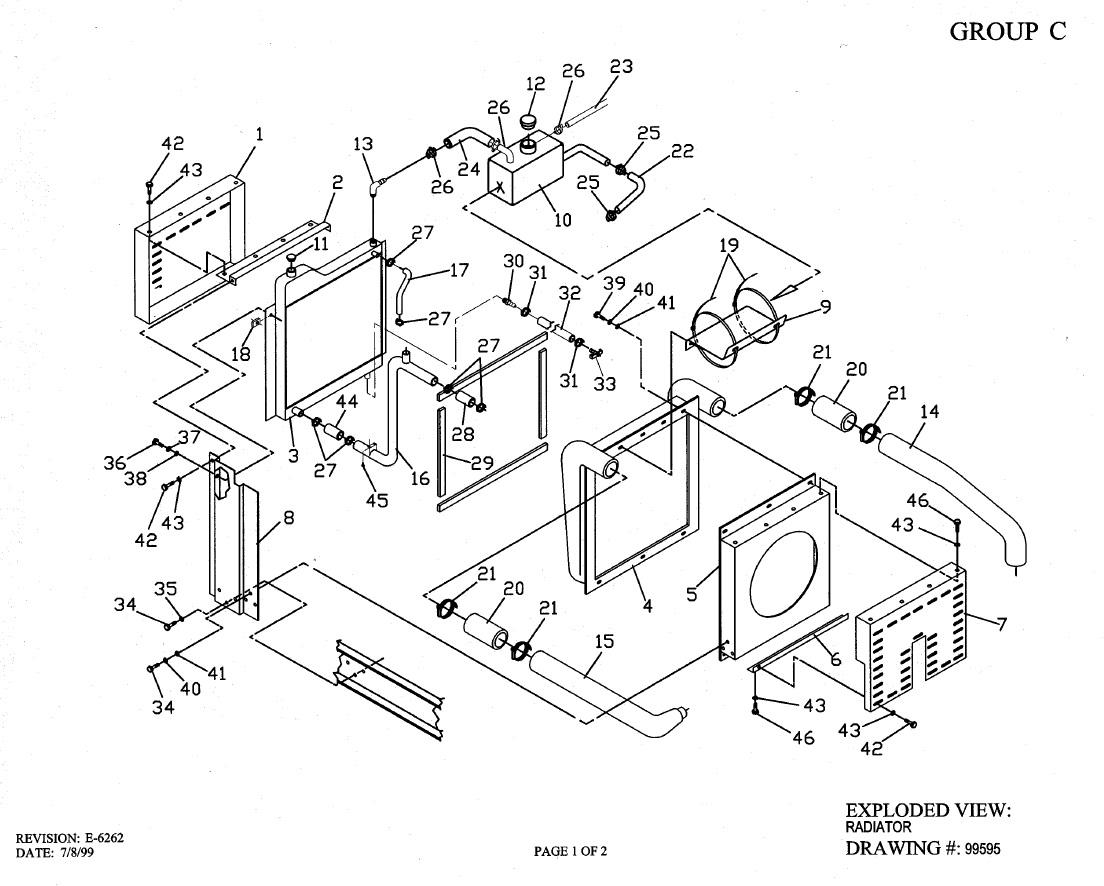

167-92461 Thermostat bypass hose, water pump to thermostat 409-92461 Upper radiator hose tube assembly 411-92461 Lower radiator hose tube assembly 172-92461 Water pump

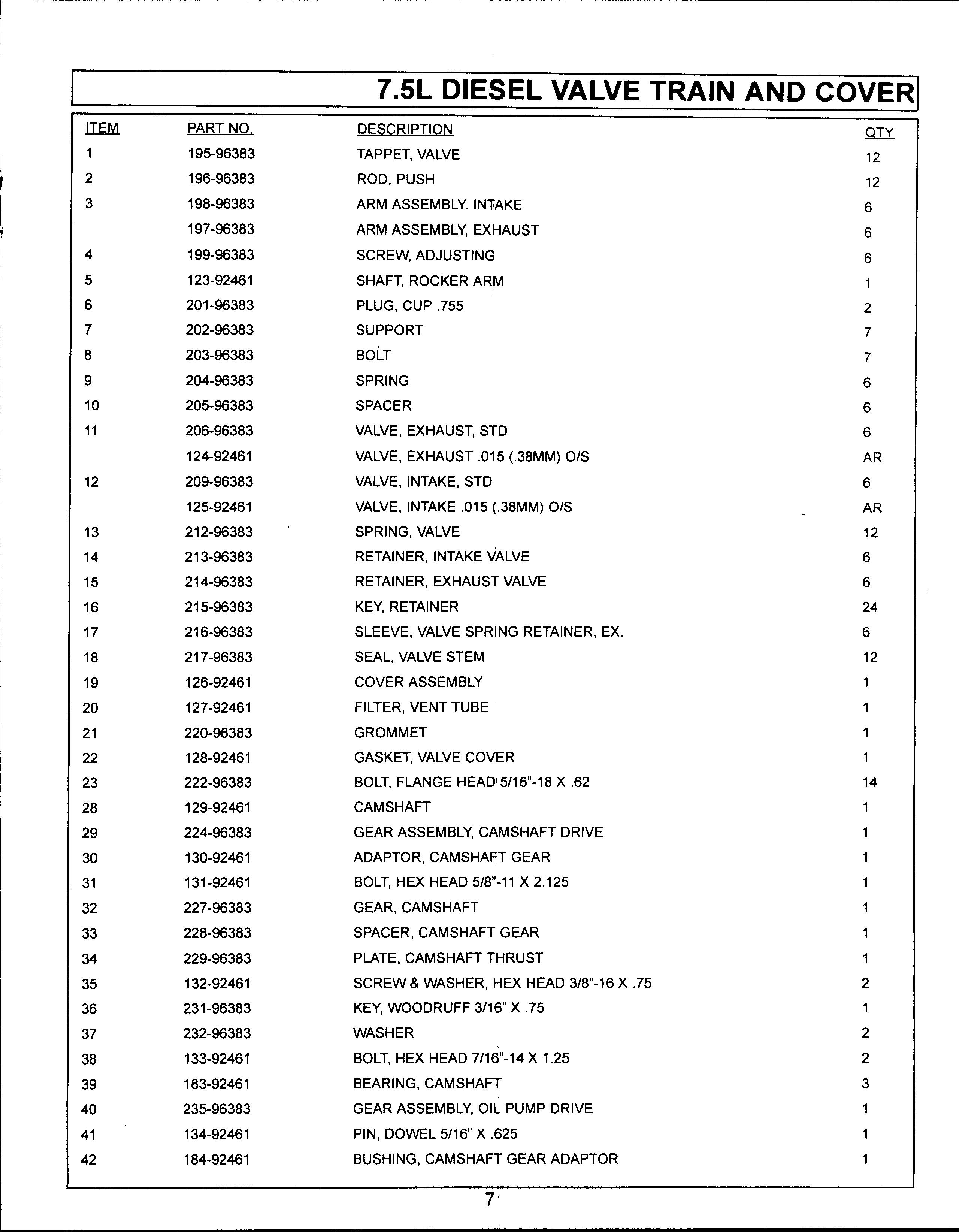

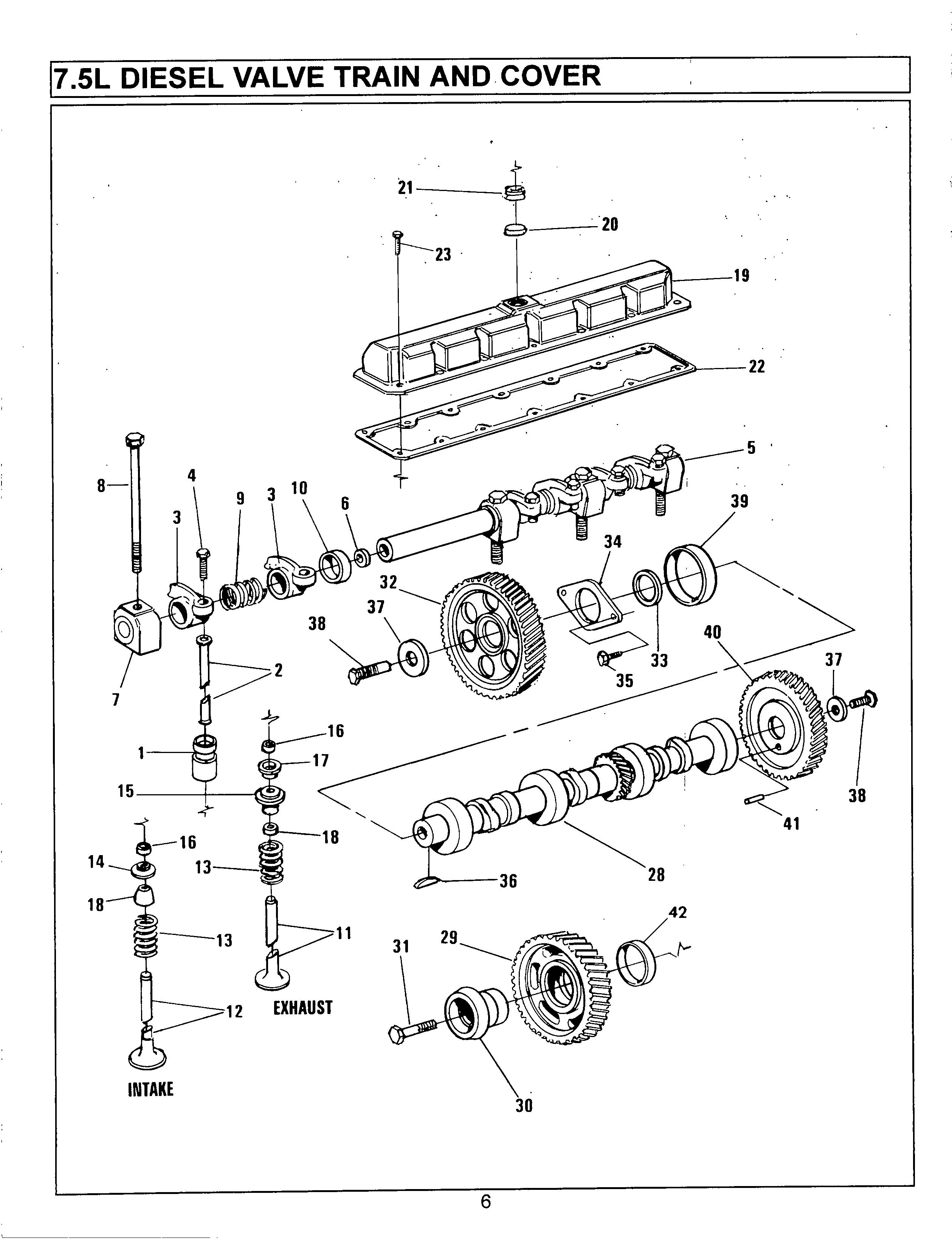

G096775 096775 96775 Fuel return line, connects to top of injectors, for six cylinder diesel, 128-92461 Valve cover gasket
G098184 098184 98184 Fan, engine cooling fan
Generac 7.5 Liter Iveco Ford Engine Parts contact: Phone: 269 673 1638 Email: engineparts2@gmail.com Website: www.Generac-Generator-Engine-Parts.com
7.5L DIESEL WATER PUMP/
