energystore TLA® case study - Leinster Hotel, Dublin

Page 1

Leinster Hotel, dUBLIN

The location meant site access was extremely limited and there was no space for storage making energystore TLA® an ideal solution for the project. By using energystore TLA® there was no waste and the speed of the install was superior to alternative insulation options available.

Project Details

Project Size 100m3

Main Contractor Pure Fitout

Installer ADM Floor Screed

Product Grade TLA110 Grade

“Energystore

floor insulation was batched on site, ensuring less vehicles on the road, less site traffic, and less room for logistical delays. Using TLA removed the need for PIR boards, as well as all associated labour involved in both fitting and levelling.

Cost effective

Reduced wastage

Quick drying times

Minimal lead time

Faster Installation

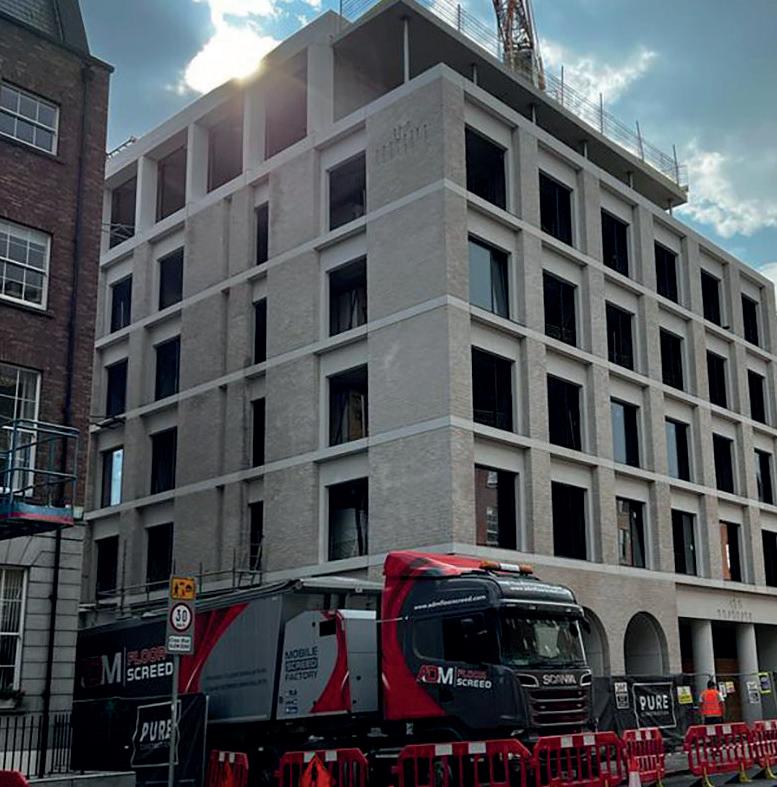

The Leinster Hotel is a luxury 52 bedroom hotel located just outside Dublin City Centre next to Merrion Square. Located in Georgian Dublin, the hotel was designed to compliment the surrounding buildings.

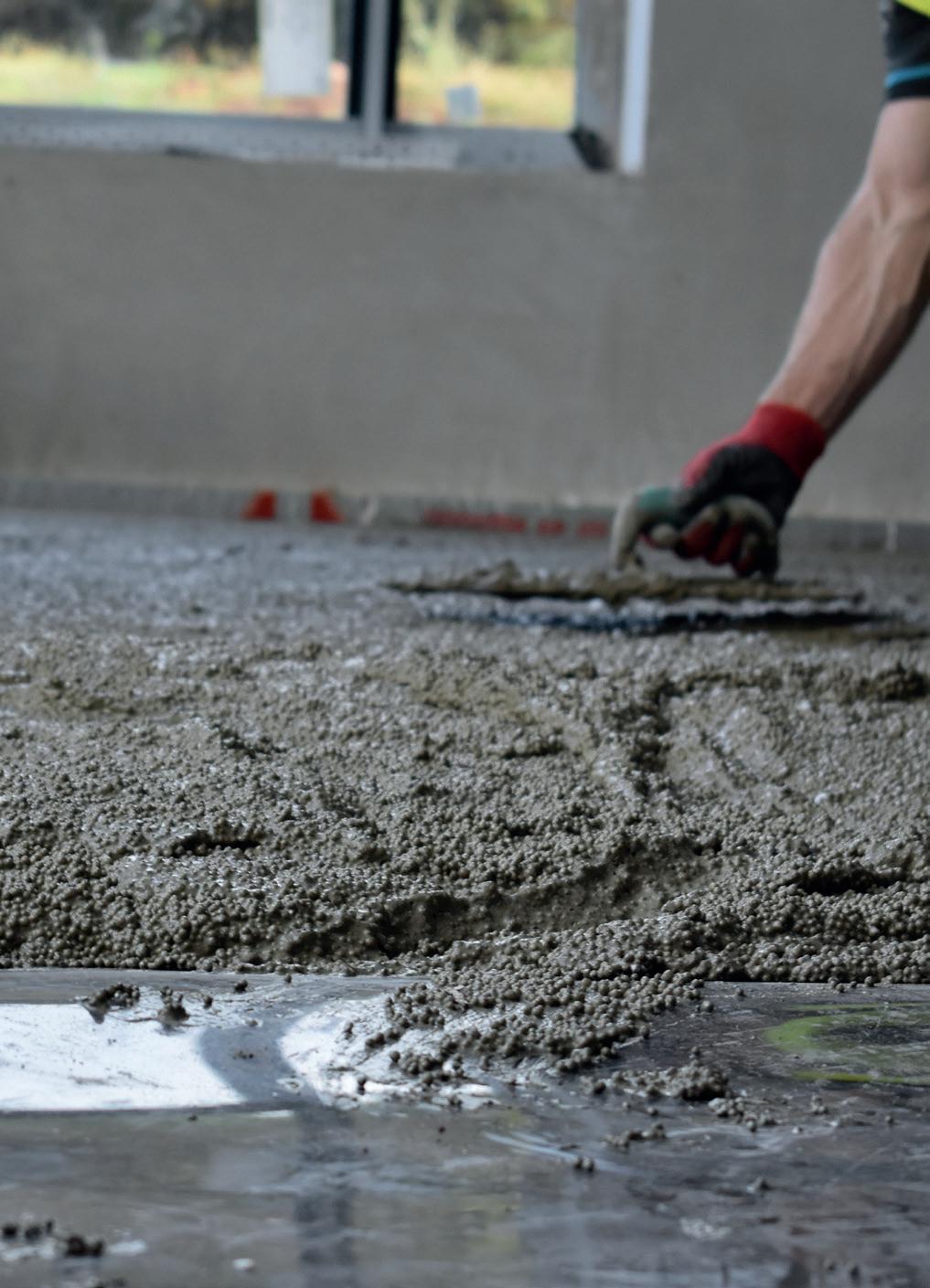

TLA pourable
Operations Manager

What is energystore TLA?

energystore TLA® is a high-performance insulated flooring solution. It’s free flowing properties mean a faster install and a completely level footprint. With more effective thermal bridging properties, energystore TLA® is a faster and more efficient solution.

energystore TLA® is made with expanded virgin graphite EPS beads mixed with EIA additive to form a thermal lightweight aggregate. Once mixed with cement and water the finished product can help achieve compliance with building regulations throughout the UK and Ireland.

Applications

contact us about your next project
High Strength Void Former Lightweight Levelling solution A2 Fire Rated Insulation Solution Suitable for Floor and Roof
info@energystoreltd.com T 0800 0283 046 250 280 app. 0.067 800 0.46 11.50 n.d. 300 330 app. 0.080 1500 0.95 12.00 0.35 Technical Characteristics A2-s1 do BSEN 13501-1 Cement Dosage (kg/m3) Density after 28 days (kg/m3) Thermal Conductivity (W/mK) Compressive Strength (kPa) Flexural Strength (N/mm2) Permeability to Water Vapour (μ) Shrinkage (NBN) (mm/m) Fire Reactivity Class 110 135 app. 0.043 200 0.12 n.d. n.d. 150 175 app. 0.051 300 0.12 n.d. n.d. 200 225 app. 0.054 600 0.37 10.11 0.427
