energystore TLA® Case Study - Porsche Centre, Belfast

Page 1

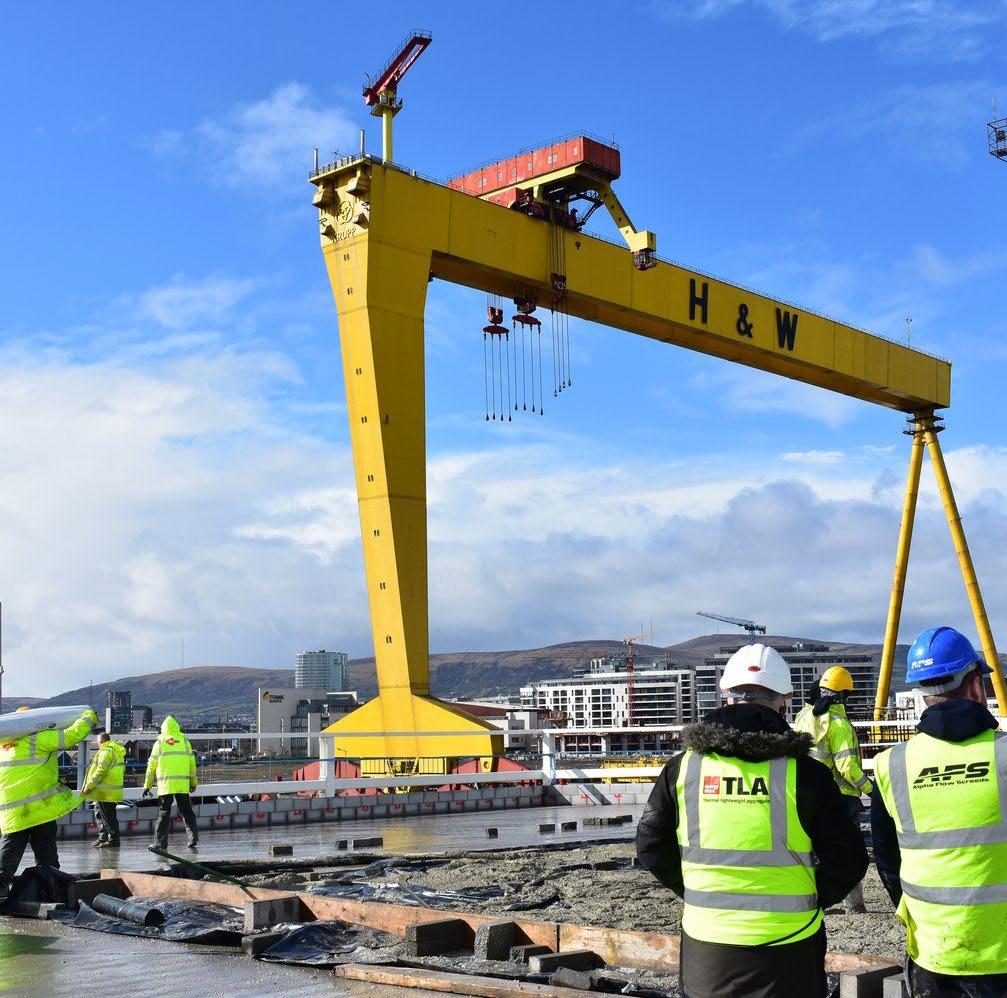

The Porsche Centre, Belfast

The plot was unused land in the former industrial area of Belfast and was an addition to the original £6million development completed in 2017. With limited space on site and a tight build programme to limit disruption to continued trade, energystore TLA® was an excellent fit.

Project Details

Project Size 1462m2

Main Contractor MSM Contracts Ltd

Installer Alpha Flow Screeds

Product Grade TLA150 Grade

“ Energystore TLA® was the perfect fit for this project. The site had limited space and the roof was very exposed so storing materials on site would not have been possible. We had the insulation batched to our requirements and brought to site and installed. The mix was consistent and helped keep our programme on schedule. The uniformity of TLA on the roof has provided a single continuous insulated layer reducing any thermal bridging concerns within the roof design.

Cost effective

Reduced wastage

Quick drying times

Minimal lead time

Faster Installation

The Porsche Centre Belfast is the official Porsche dealer in Northern Ireland and part of the Agnew Group. Located in the heart of the Titanic Quarter, the state of the art facility delivers an experience that lives up to the Porsche name.

What is energystore TLA?

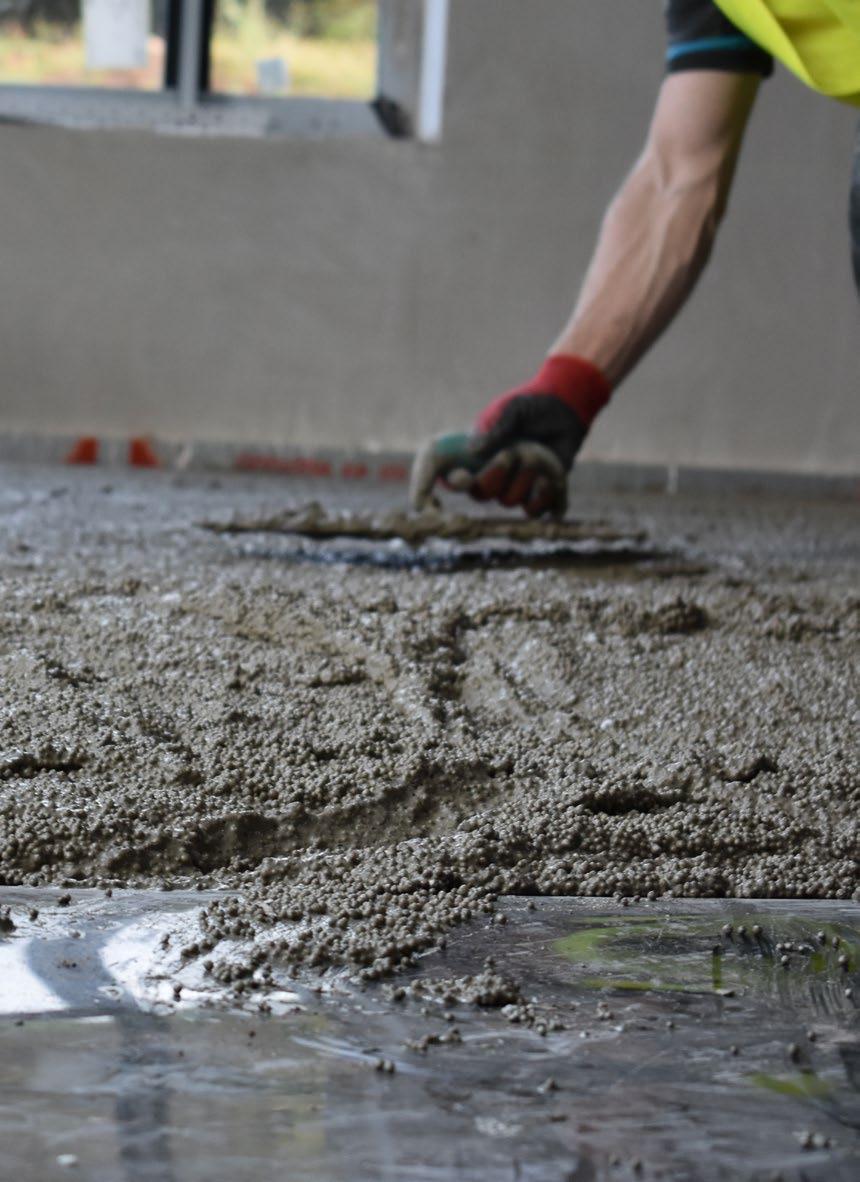

energystore TLA® is a high-performance insulated flooring solution. It’s free flowing properties mean a faster install and a completely level footprint. With more effective thermal bridging properties, energystore TLA® is a faster and more efficient solution.

energystore TLA® is made with expanded virgin graphite EPS beads mixed with EIA additive to form a thermal lightweight aggregate. Once mixed with cement and water the finished product can help achieve compliance with building regulations throughout the UK and Ireland.

Applications

contact us about your next project
High Strength Void Former Lightweight Levelling solution A2 Fire Rated Insulation Solution Suitable for Floor and Roof
info@energystoreltd.com T 0800 0283 046 250 280 app. 0.067 800 0.46 11.50 n.d. 300 330 app. 0.080 1500 0.95 12.00 0.35 Technical Characteristics A2-s1 do BSEN 13501-1 Cement Dosage (kg/m3) Density after 28 days (kg/m3) Thermal Conductivity (W/mK) Compressive Strength (kPa) Flexural Strength (N/mm2) Permeability to Water Vapour (μ) Shrinkage (NBN) (mm/m) Fire Reactivity Class 110 135 app. 0.043 200 0.12 n.d. n.d. 150 175 app. 0.051 300 0.12 n.d. n.d. 200 225 app. 0.054 600 0.37 10.11 0.427
