SEAMLESS

®

THE TECHNOLOGICAL SOLUTION FOR A DESIGN WINDOW performance, ergonomics, software interactivity

EN

SEAMLESS® FOR ALL The new European standard of PVC window corner finishing quality has led someco to develop technologies to achieve aesthetic results in line with market demands, which can be used by both industrial window manufacturers and small/medium sized companies.

Someco‘s technology adapts to the needs of each type of customer/manufacturer with an eye on investment, to achieve corner finishes without bead.

Thanks to the flexibility and scalability of the someco solution, the Seamless® corner can be achieved by virtually any window manufacturer.

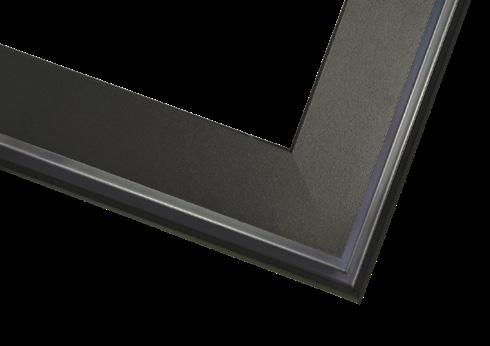

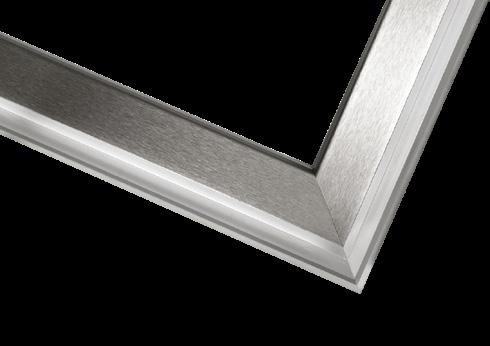

PVC - aluminium film

2

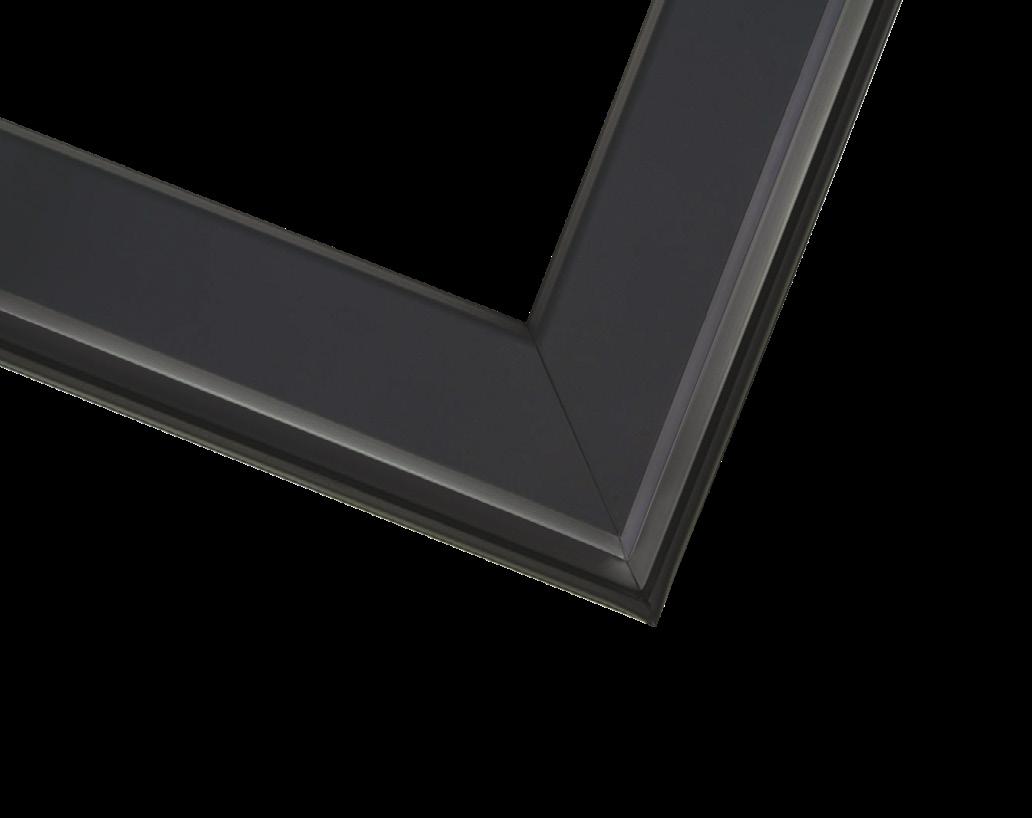

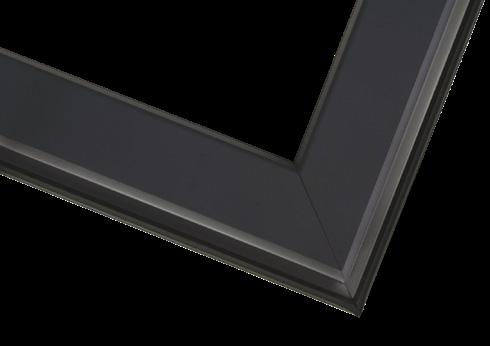

PVC - matt finish

THE FUTURE OF WINDOWS IS HYBRID New eco-sustainable architectural solutions have generated a new series of hybrid profiles combining different types of materials.

Someco‘s solution based on the experience of Seamless® technology allows the production of windows with these new aluminium profiles with a PVC core, which will be increasingly present on the market.

Both aluminium and PVC can be 100% recycled and therefore compatible with the new green economy.

The someco solution is also compatible with thermo-fibre profiles that guarantee a higher thermal performance and better resistance to weather agents.

Thanks to the someco system consisting of a contouring machine, welding machine and a series of modular counterblocks, there are no production limits for these new hybrid and ecological windows.

ALU - PVC

THERMOFIBRE

3

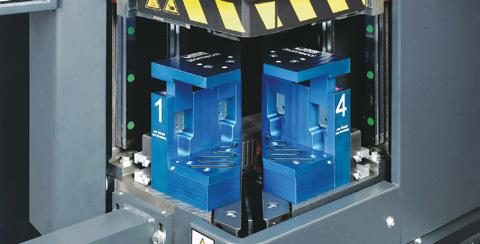

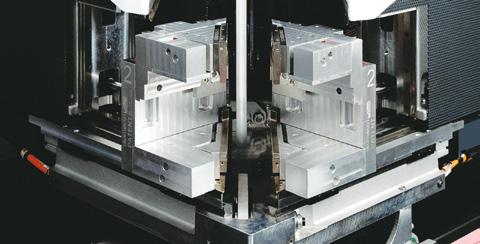

CM 1H + SM 2LV PRODUCTION CAPACITY UP TO MAX. 30 WINDOWS PER SHIFT Seamless® counterblocks

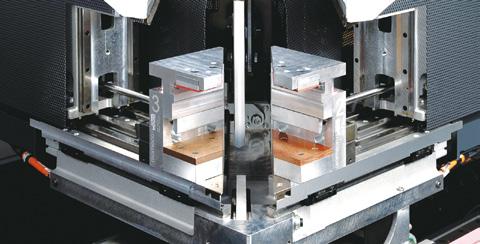

PVC counterblocks with aluminium - copper - leather film

4

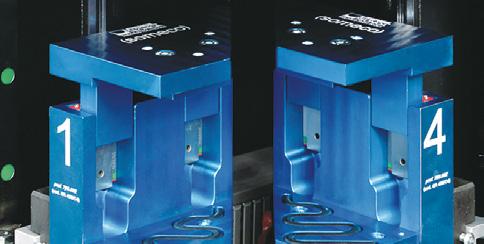

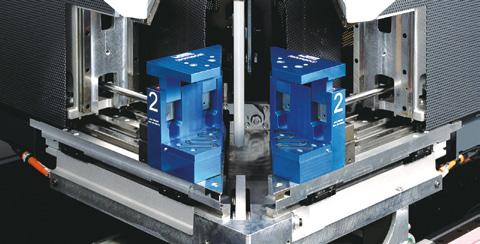

Seamless® modular counterblocks

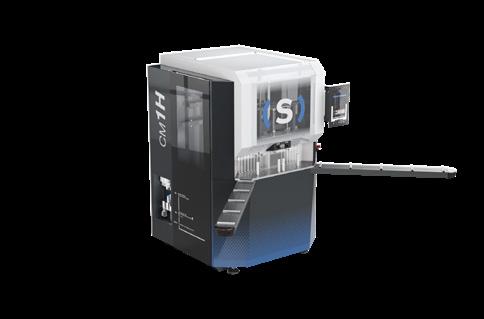

CM 1H

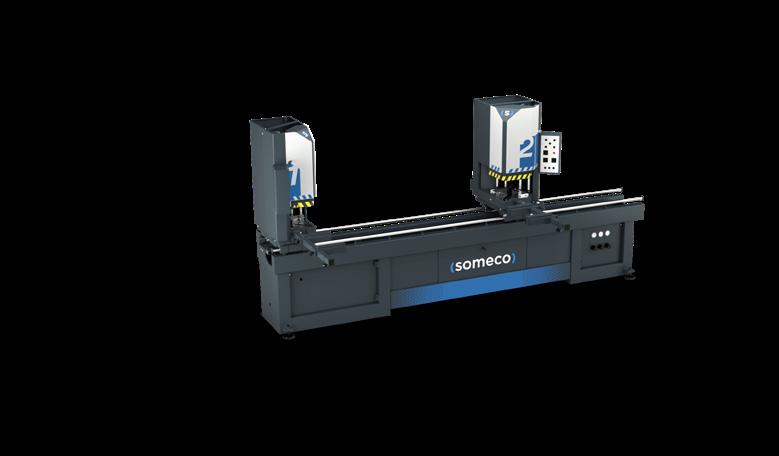

SM 2LV

WORK AREA

WORK AREA

Profile length (mm)

350 ÷ 3.500 (min-max)

Profile height (mm)

50 ÷ 100 (min-max)

Profile width (mm)

50 ÷ 130 (min-max)

TECHNICAL DATA Number of electrospindles

2

Blade motor power (kW)

2

Blade (mm)

Ø 150

Milling unit

1

Electrosplindle power in S1 (kW)

2

Maximum mill diameter (mm)

Ø 12

Maximum mill rpm (rpm)

Useful welding (mm)

3.440 / 2.440 (long / short ver.)

Welding minimum dimensions (mm)

420

Maximum profile width – welding at 90° (mm)

150

Maximum profile width – welding at 180° (mm)

230

Maximum height of the profile (mm)

200

Minimum height of the profile (mm)

40

Compatibility with Seamless counterblocks

included

Automatic distancing at the end of the welding

included

24.000 5

CM 4H + SM 4H PRODUCTION CAPACITY UP TO MAX. 120 WINDOWS PER SHIFT

6

Seamless® counterblocks

Seamless® modular counterblocks

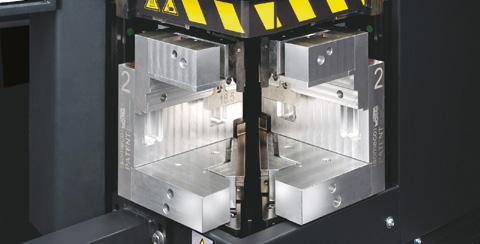

ALU - PVC counterblocks

PVC counterblocks with aluminium - copper - leather film

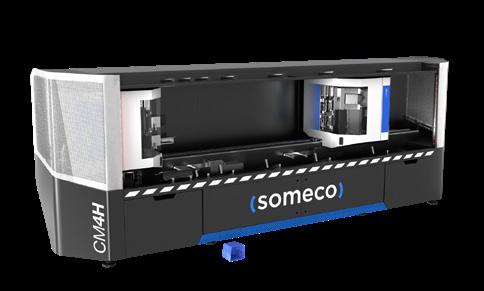

CM 4H

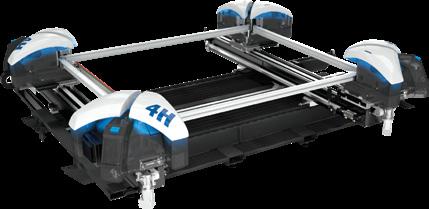

SM 4H

WORK AREA

WORK AREA

Profile length (mm)

365 ÷ 3.500 (min-max)

Profile height (mm) Profile width (mm)

35 ÷ 110 (min-max) 40 ÷ 130 (min-max)

TECHNICAL DATA Number of electrospindles

4

Electrospindle motor power (kW)

2

Cycle time in relation to frame/sash size (4 pieces)

Maximum square dimensions with automatic unload seamless mode (Y-X mm)

3430 x 2630

Minimum square dimensions with automatic unload seamless mode (Y-X mm) - Z frame

450 x 370

Minimum square dimensions with automatic unload seamless mode (Y-X mm) - L frame

420 x 300

Minimum square dimensions with automatic unload seamless mode (Y-X mm) - Sash

450 x 330

75-85 sec. (min-max)

Maximum profile height (mm)

Presetting for swarf exhauster system connection

included

Minimum profile height (mm)

35

Adjustable 15.6‘‘ touchscreen display

included

Maximum width of the profile (mm) - Frame

115

Maximum width of the profile (mm) - Sash

130

110

7
