FINAL COPY SITE DESIGN FINAL PROJECT copy

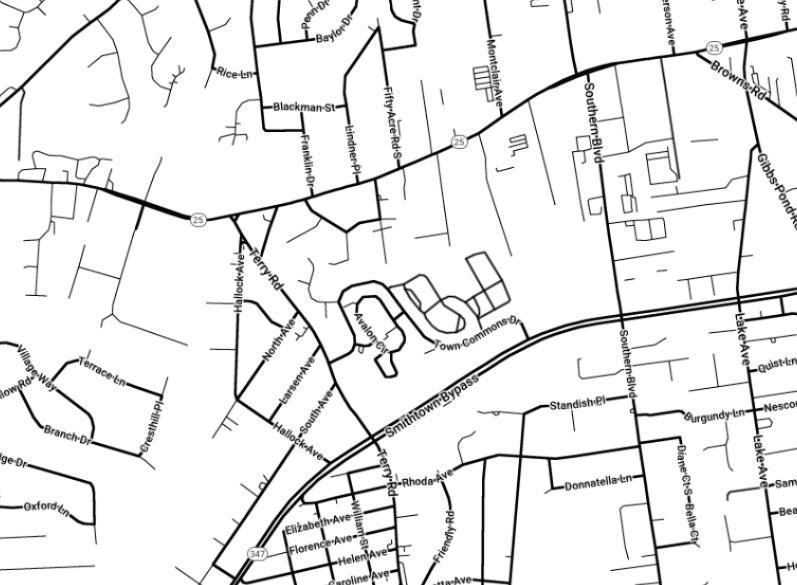

LOCATION MAP

SITE ANALYSIS

FAR 25% TOTAL LOT 78,979 SQ FT = 19,745 MAX BUILDING SIZE

BUILDING 19,745 SQ FT REQUIRES 133 PARKING SPACES

PROPOSED BUILDING SIZE 8,000 SQ FT WITH 65 PARKING SPACES

PARKING SPACES MEASURED AT 19’ LENGTH 10’ WIDTH 24’ BETWEEN AISLES

ENTRANCE 25’ WIDTH AND 40’ LENGTH BEFORE RADIUS

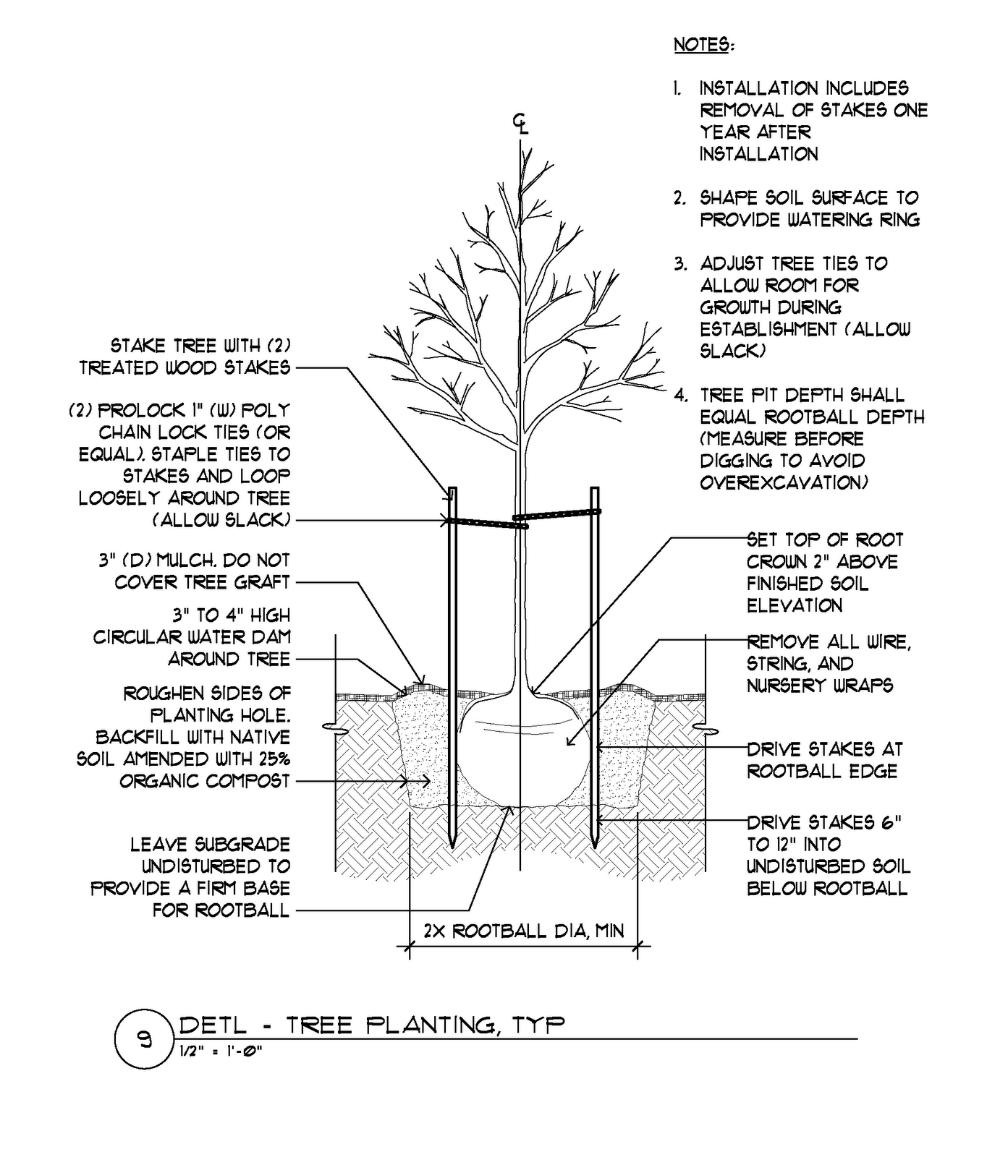

LANDSCAPING REQ 25% LOT SIZE OR 19,745 SQ FT

NATIVE TREES (MAPLE/WHITE OAK) SHRUBS (NORTHERN BAYBERRY) AND PERENNIALS (SWITCH GRASS, GROUND COVER)

WASTERWATER CALCULATIONS

0.1 GALLONS PER SQUARE FOOT OR 8,000 X 0.1 = 800 GALLONS DAILY FLOW

800 X 1.1 (BUFFER) = 880 DAILY GALLONS (ADJUSTED) SEPTIC TANK CAPACITY = 1.5 X DAILY FLOW OR 1.5 X 880 = 1,320 GALLON CAP

PAGE

0’-0” = 78’-0”

LEACHING POOL (ASSUME SANDY LOAM OR 5 GALLONS PER DAY)

880 GALLONS / 5 GALLONS = 176 SQ FT LEACHING POOL MIN AREA OR 2 POOLS

APPROX 5 X 10

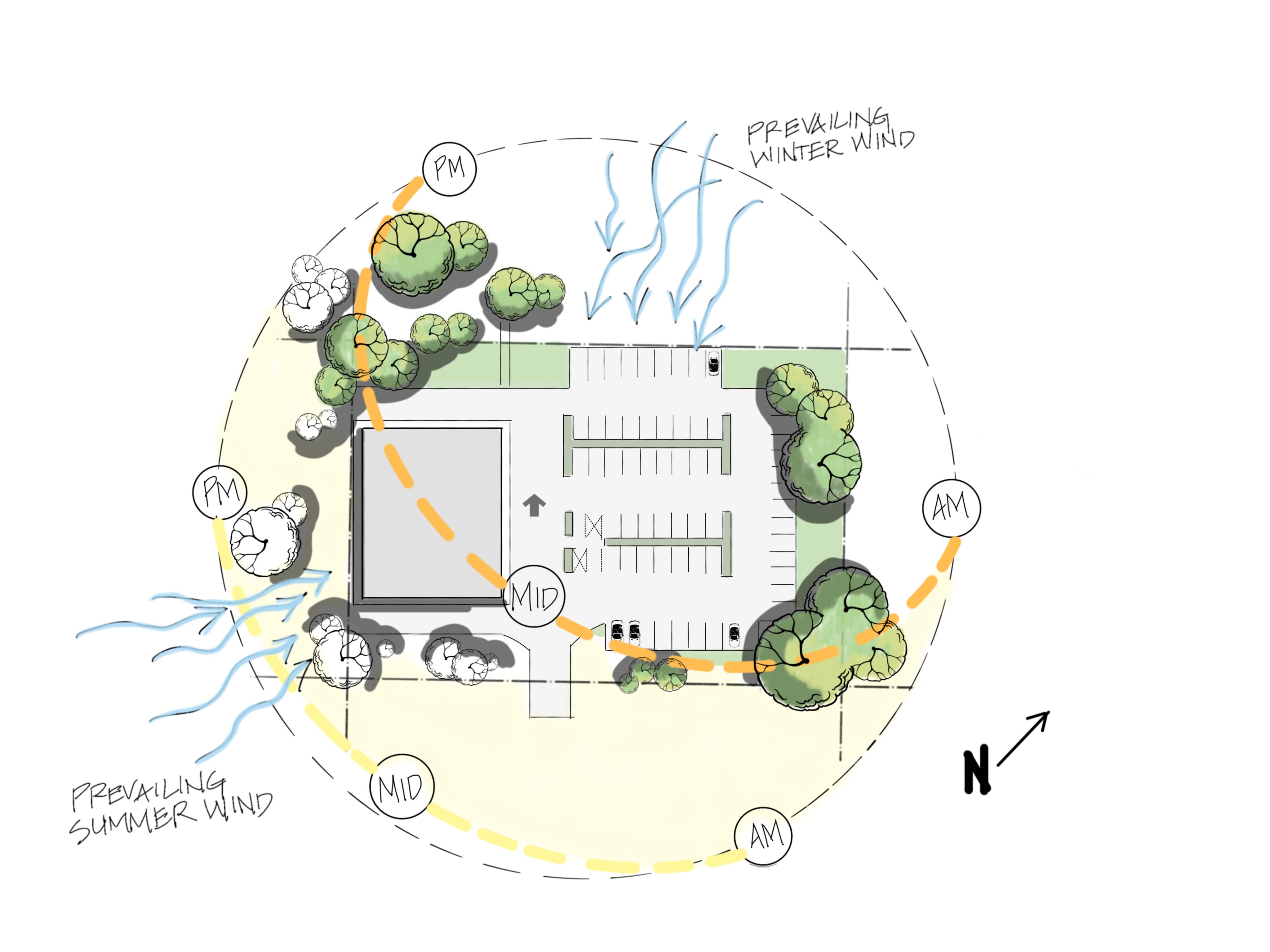

CONCEPTUAL SITE DIAGRAM

WIND

PROPOSED BUILDING

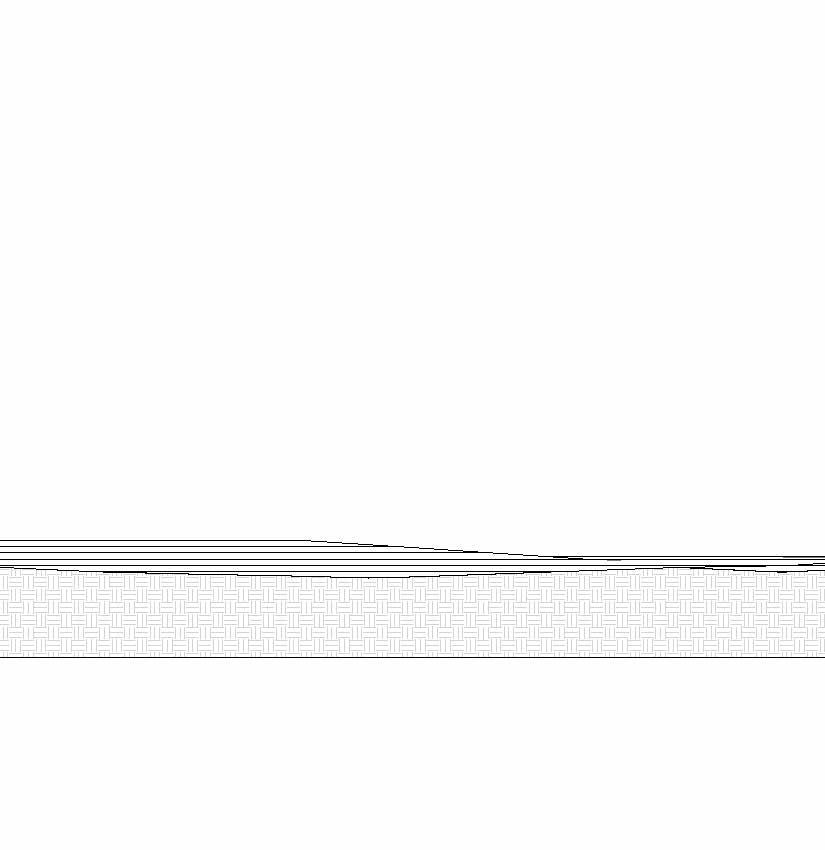

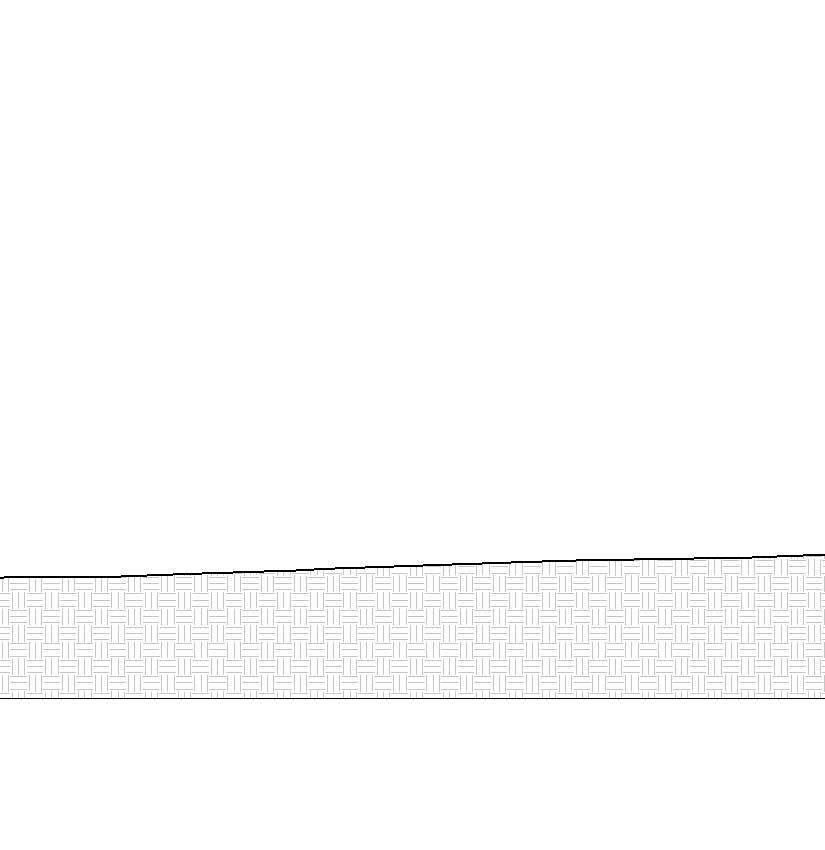

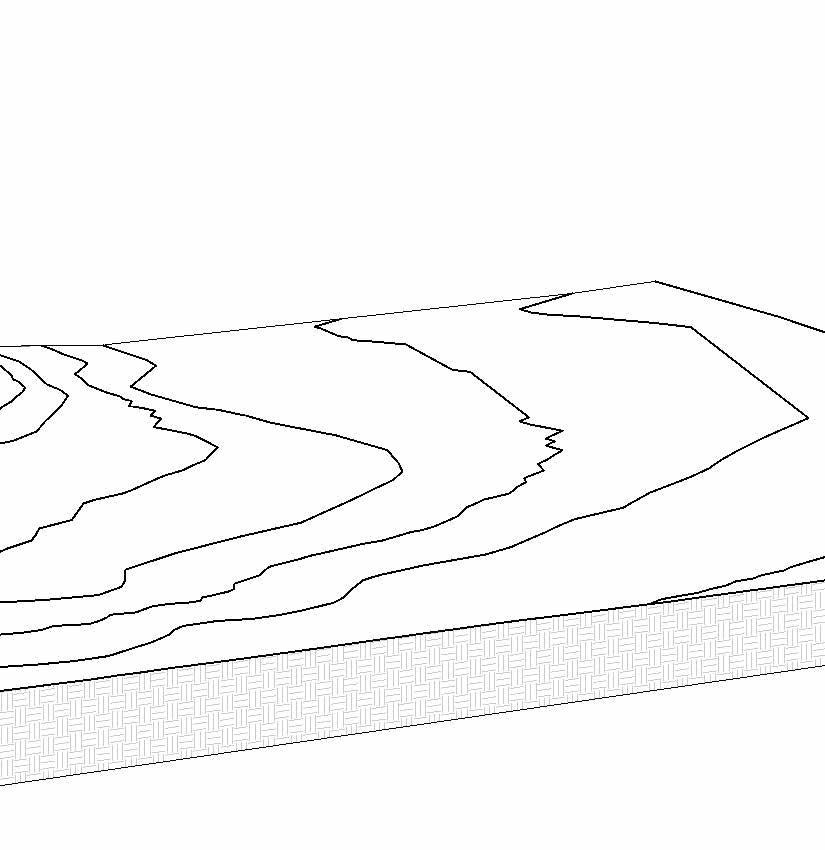

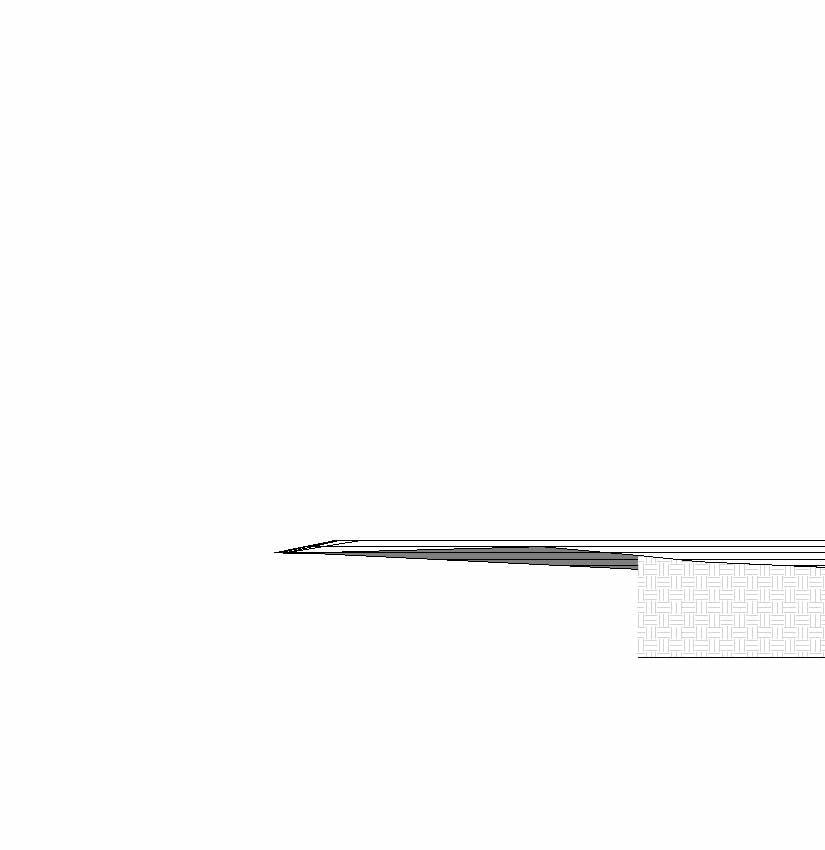

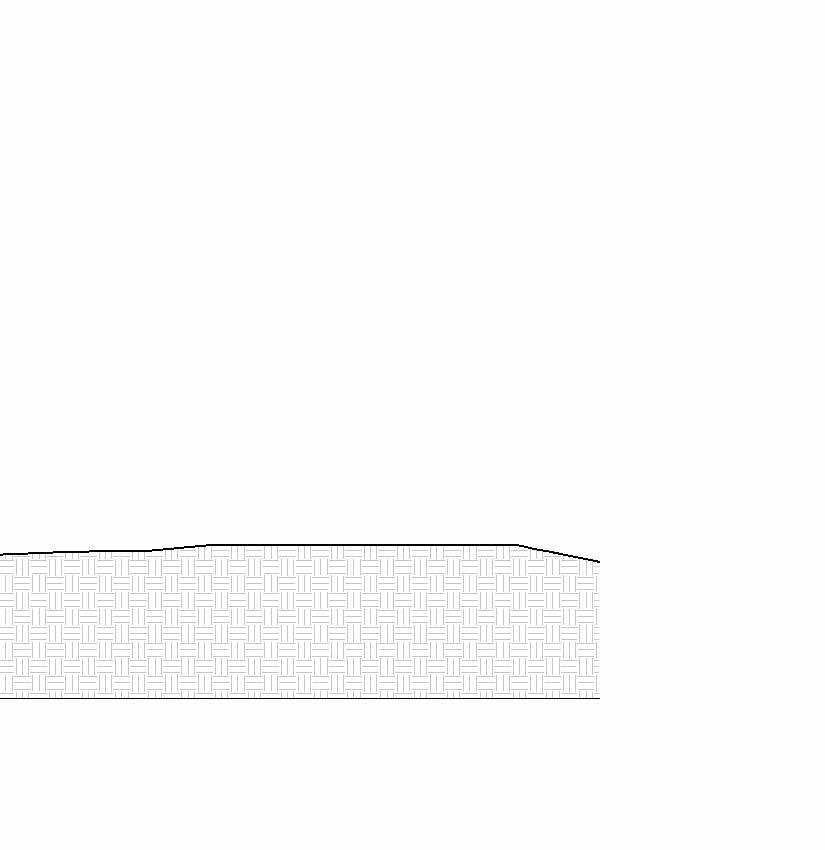

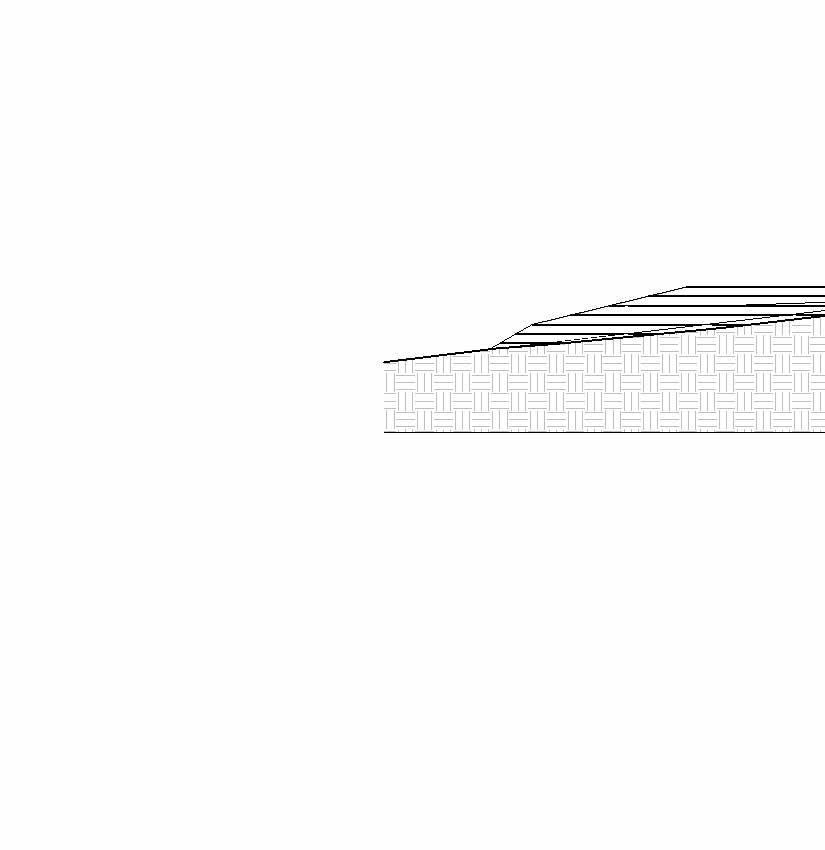

EXISTING TOPOGRAPHIC CONDITIONS

PROPOSED BUILDING

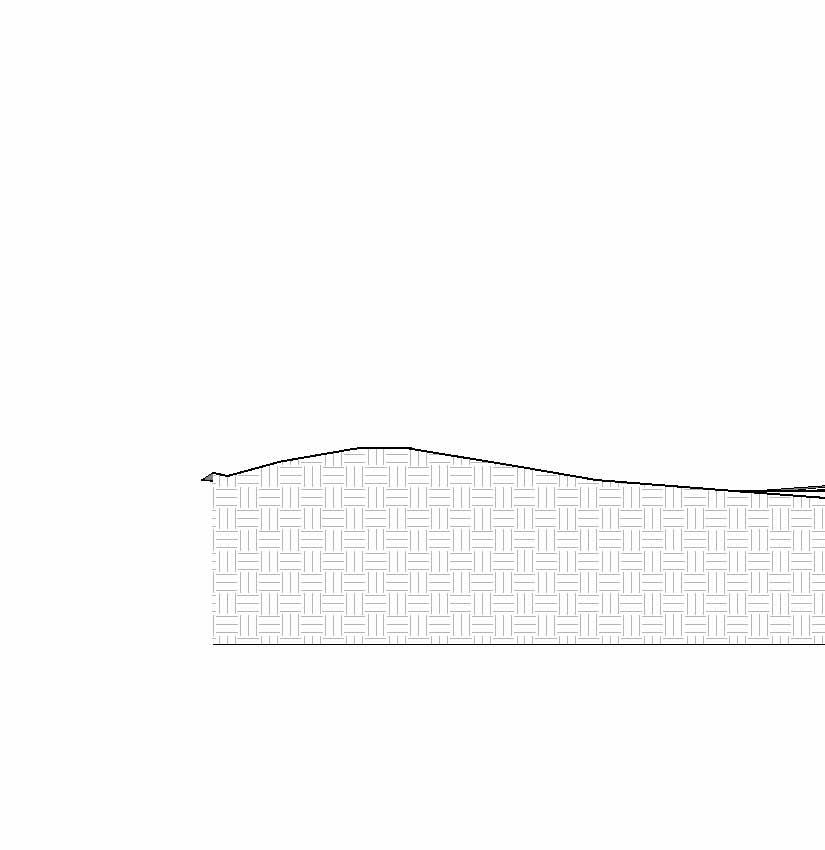

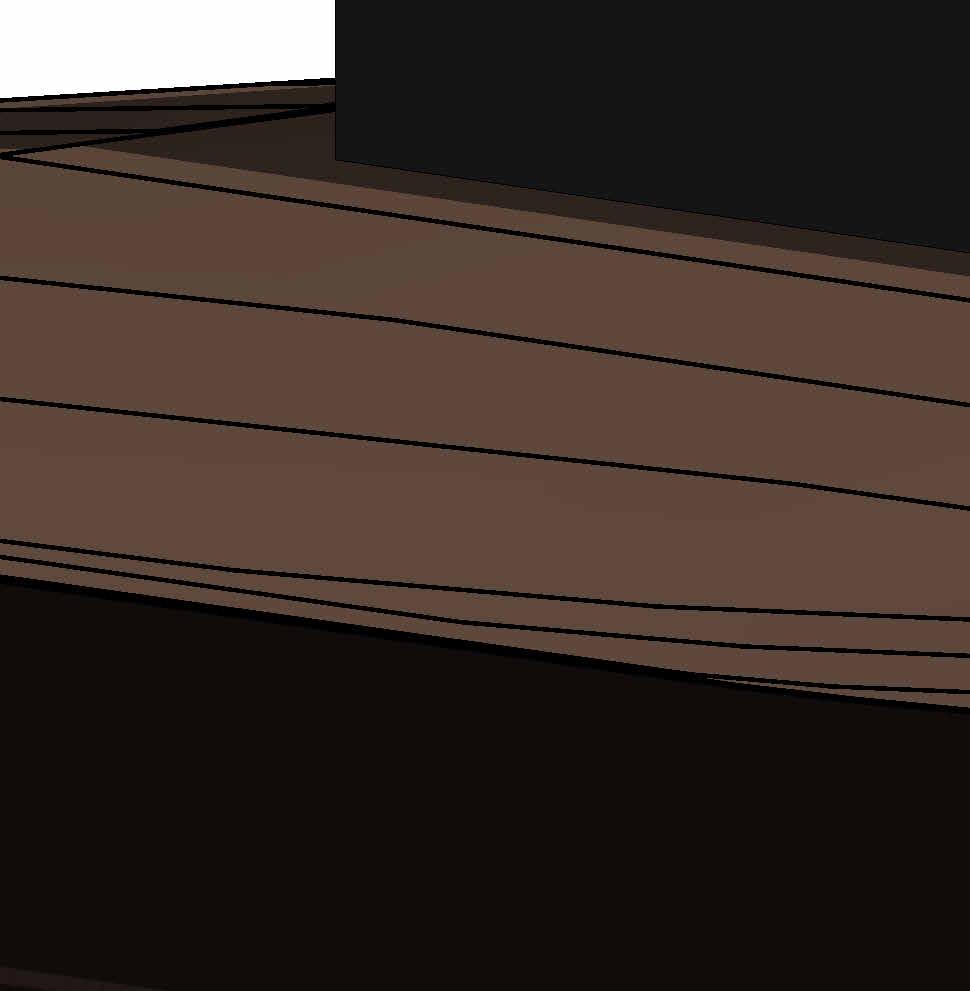

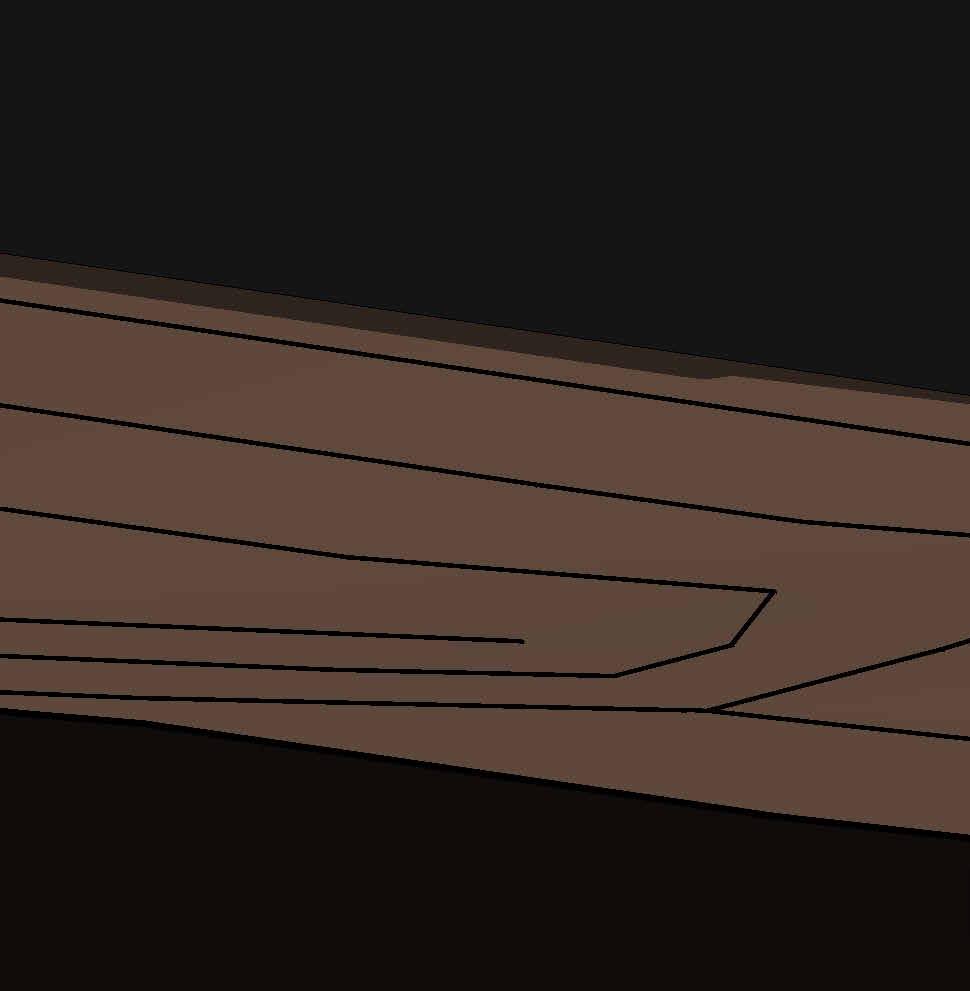

PROPOSED TOPOGRAPHIC CONDITIONS

PROPOSED BUILDING

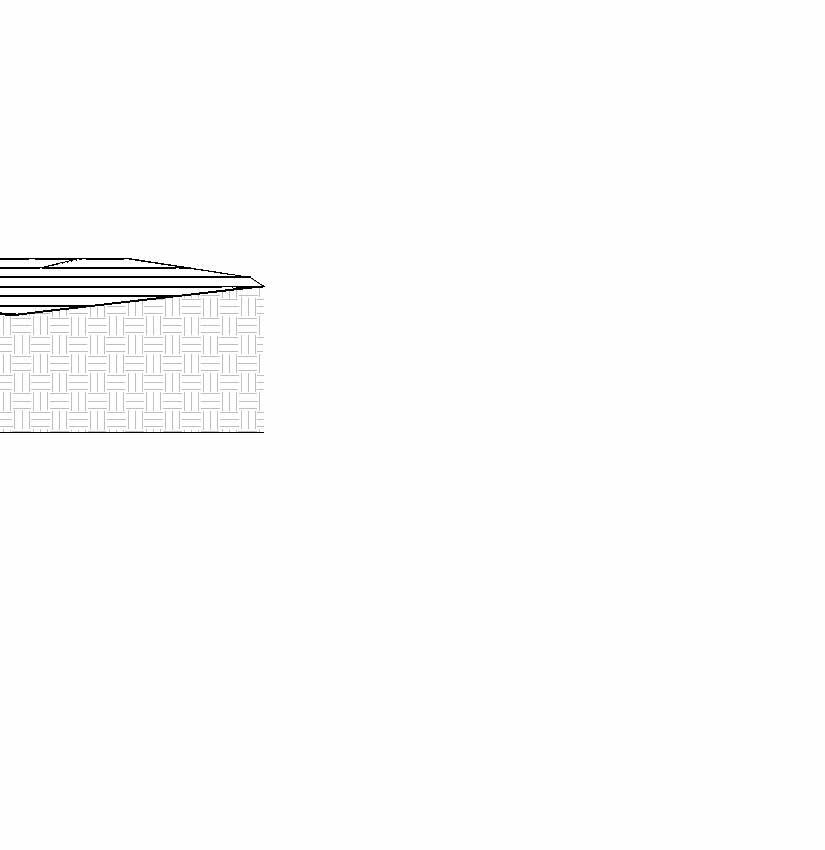

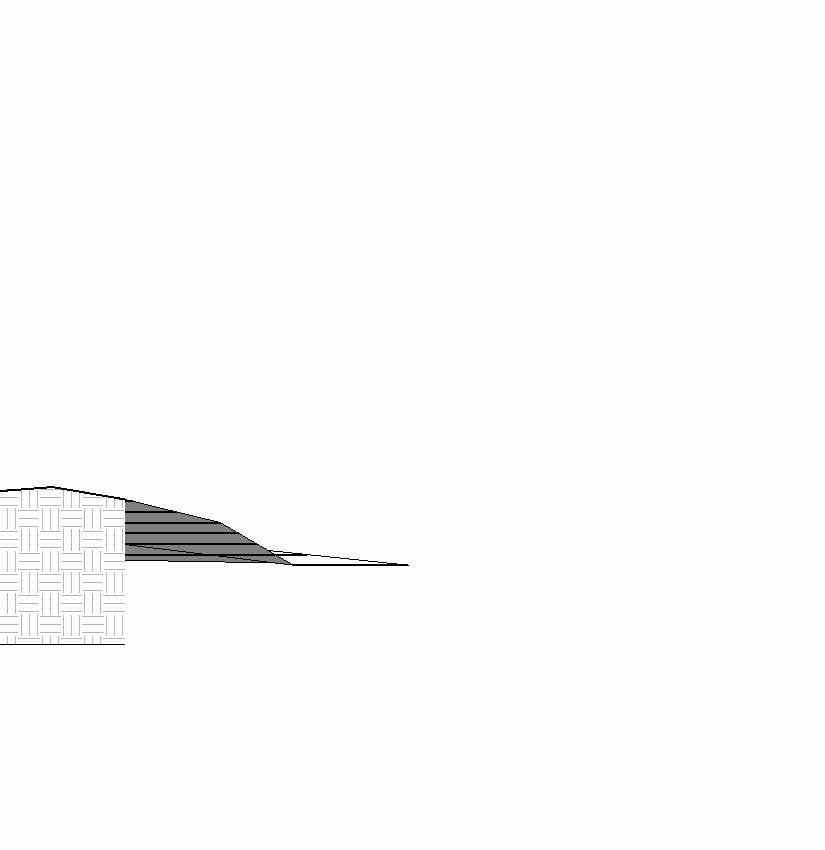

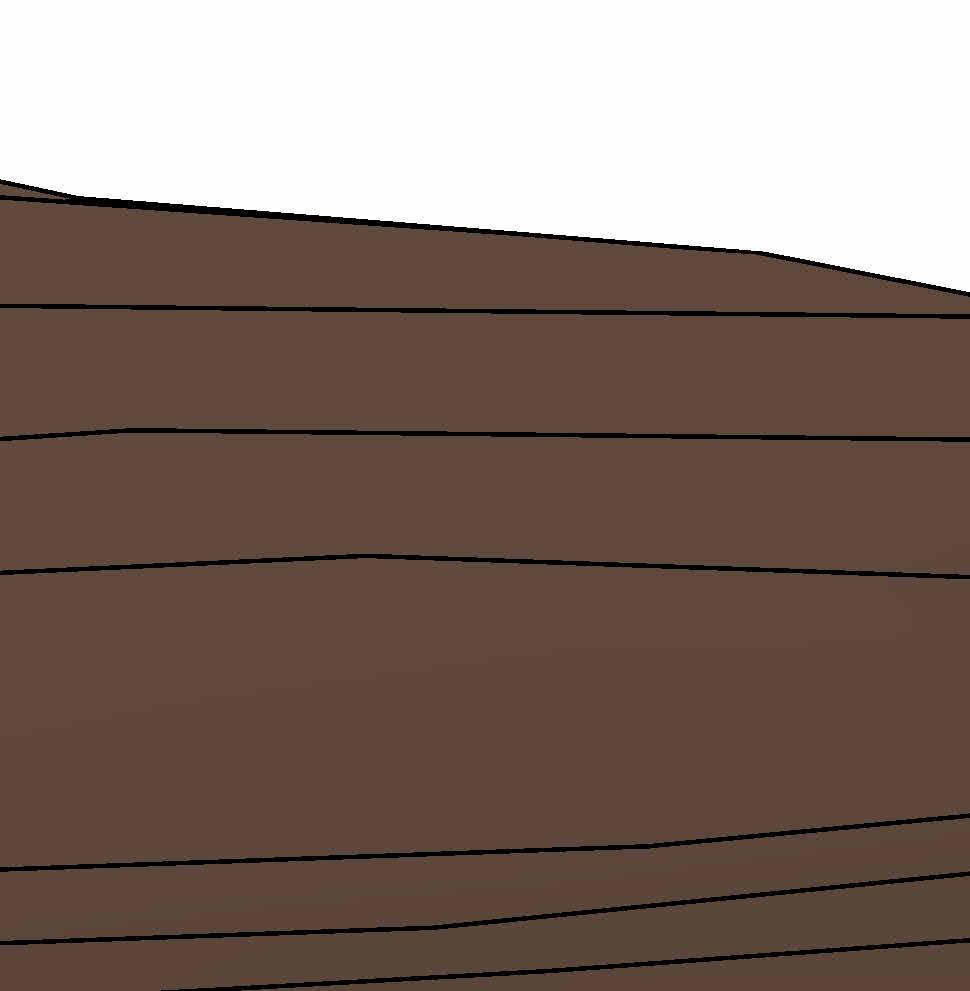

TOPOGRAPHIC CONDITIONS OVERLAY

PROPOSED EXISTING

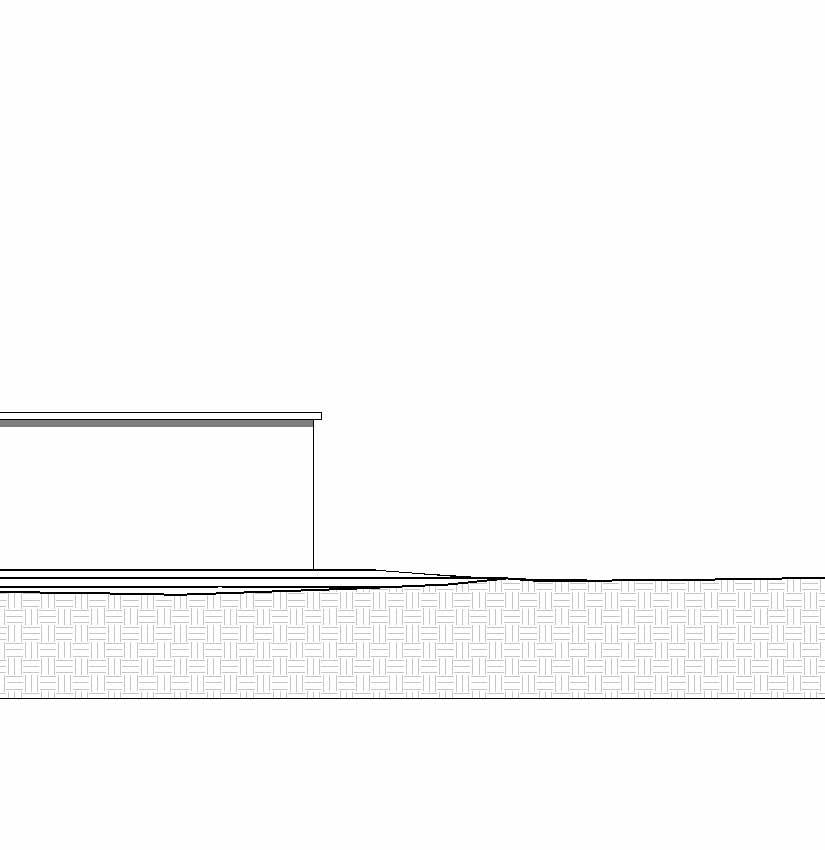

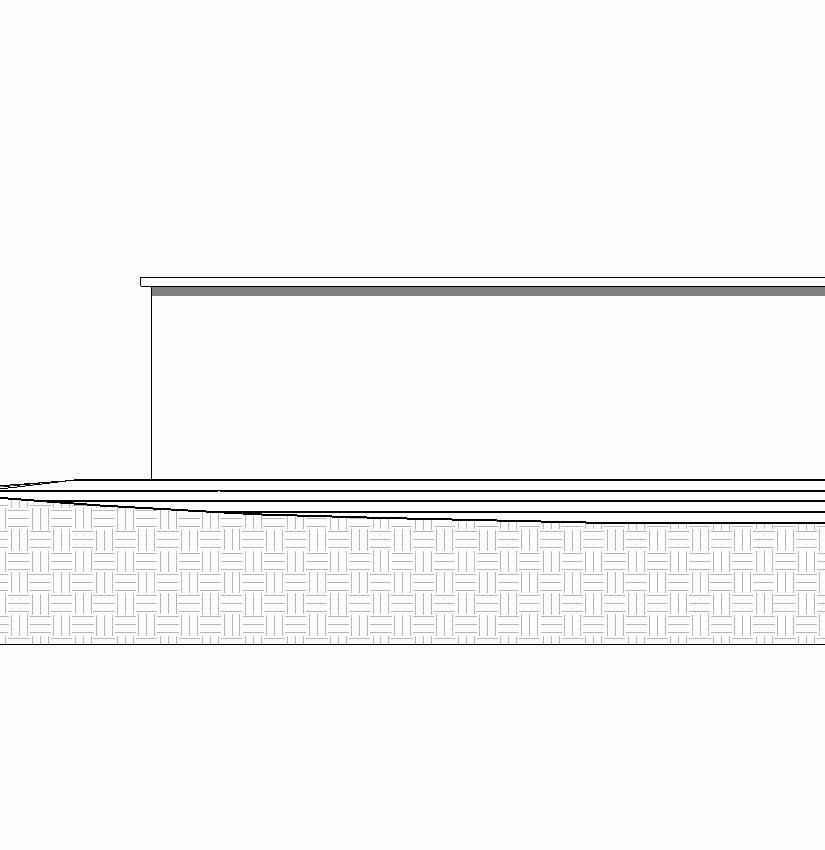

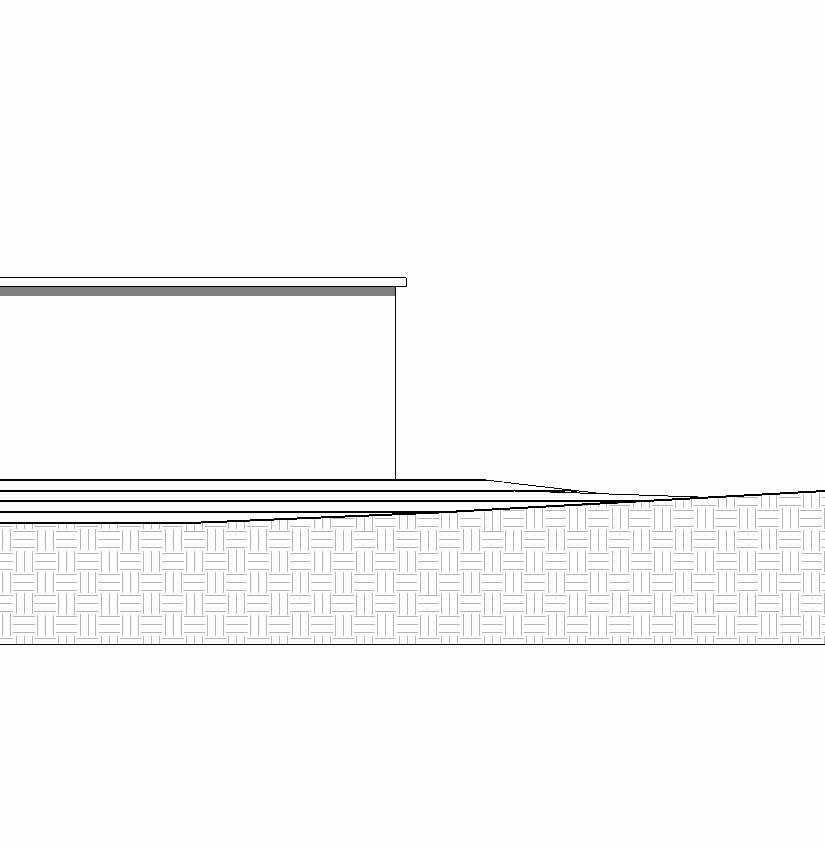

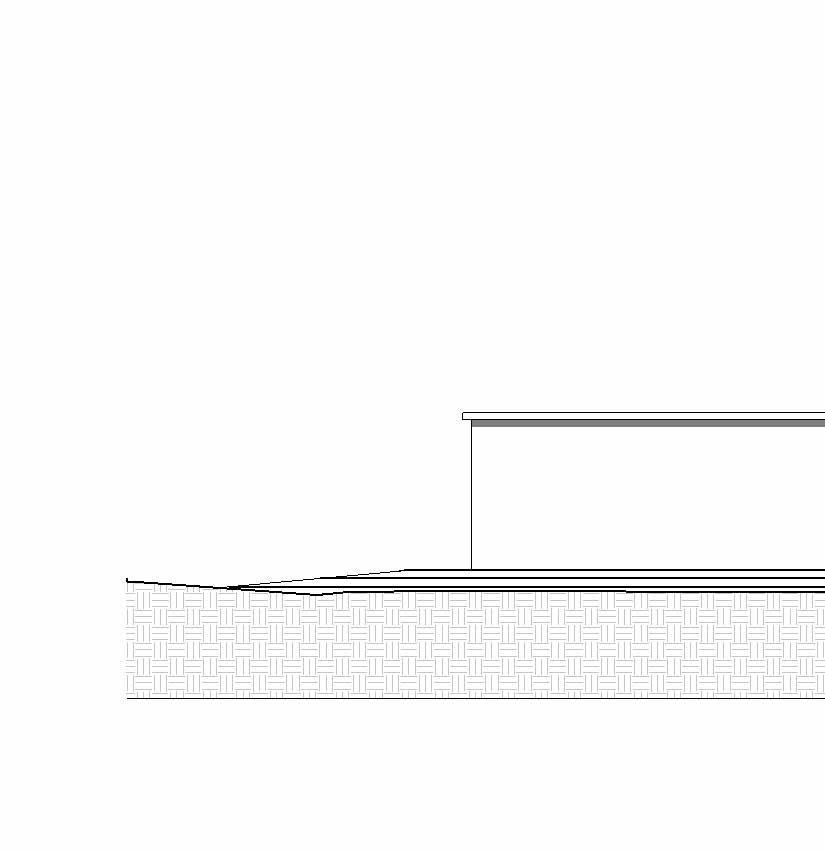

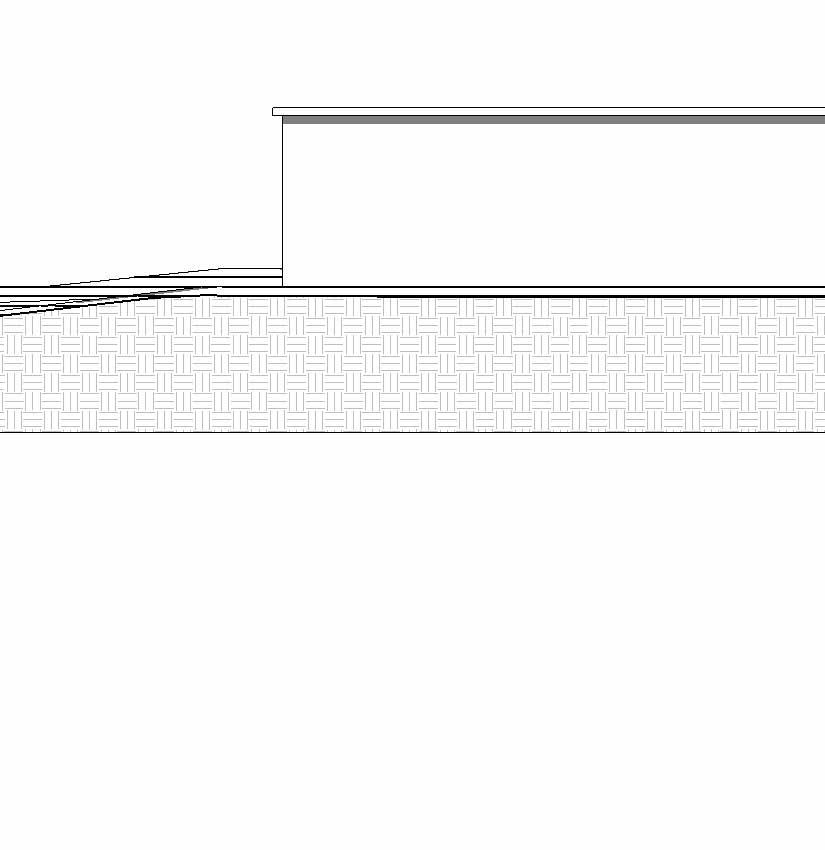

NORTH ELEVATION

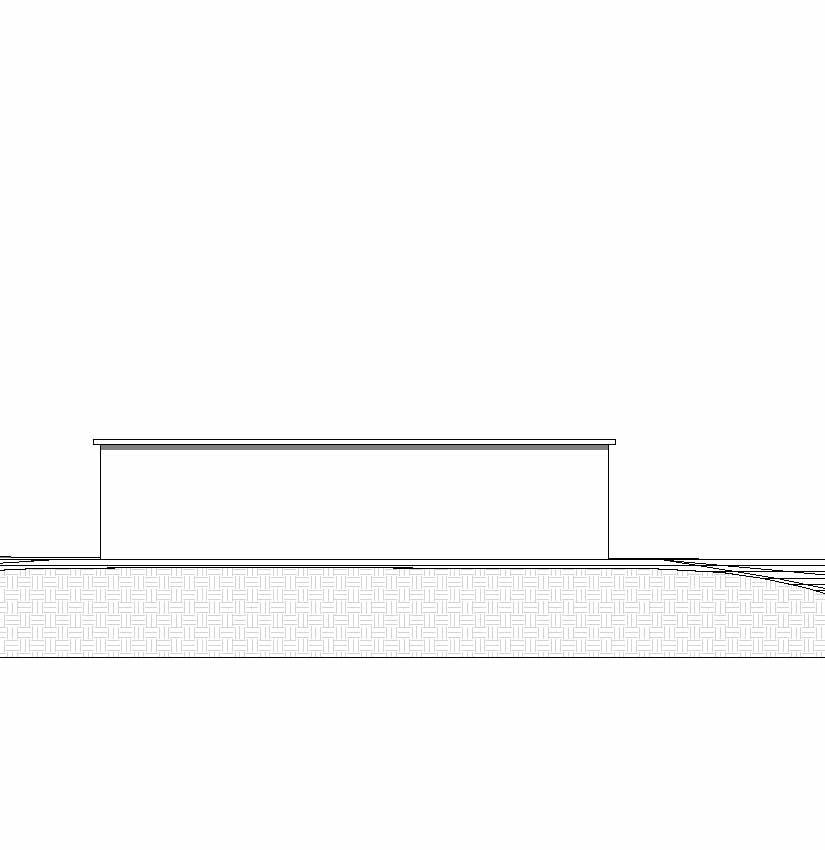

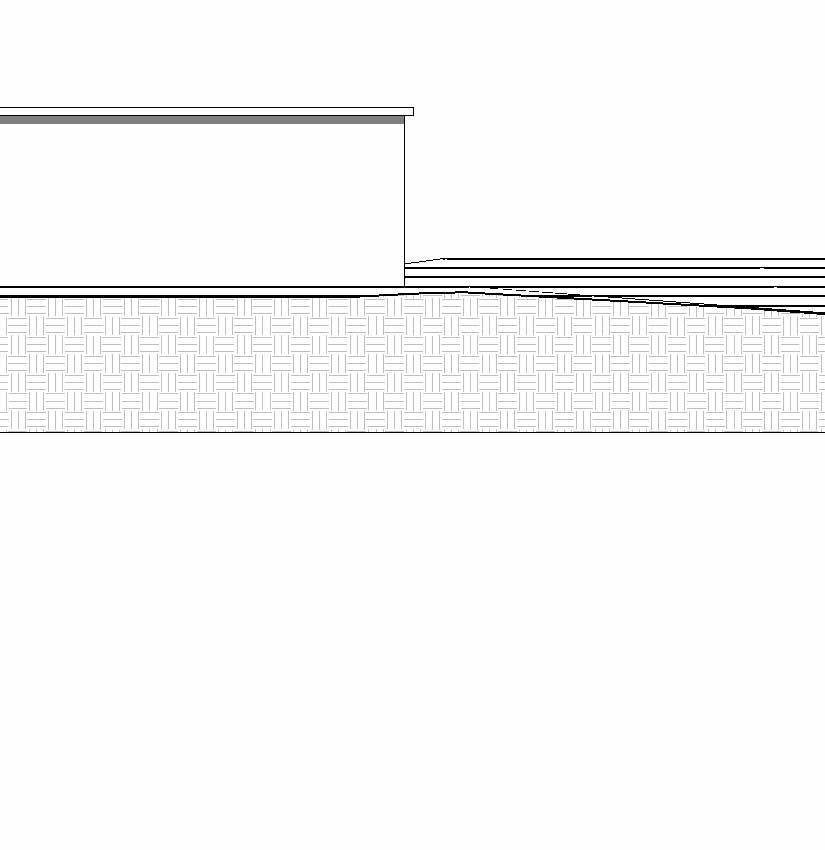

PROPOSED ELEVATIONS

BUILDING 20’ HEIGHT; PAD +12’-0” ELEVATION

SOUTH ELEVATION

EAST ELEVATION

WEST ELEVATION

12’-0” ELEVATION

20’-0” HEGHT

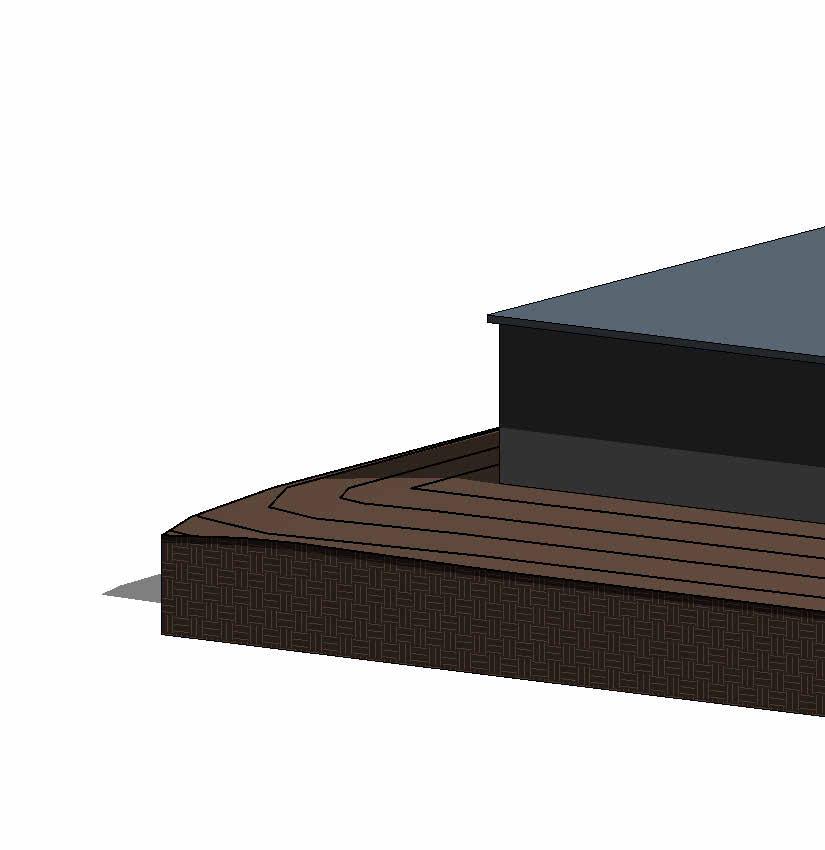

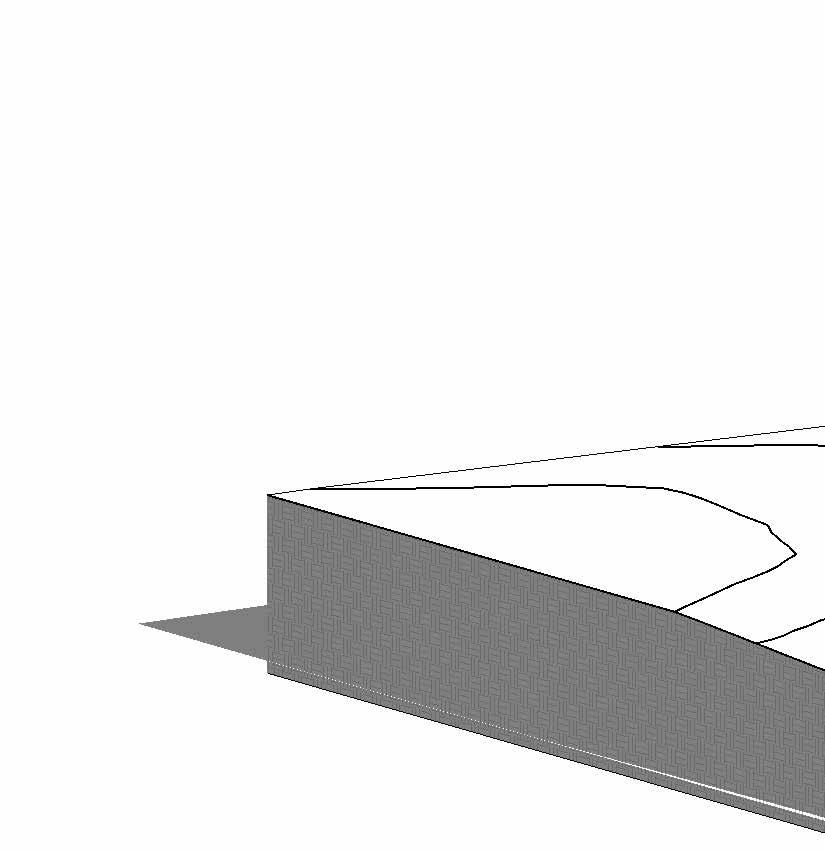

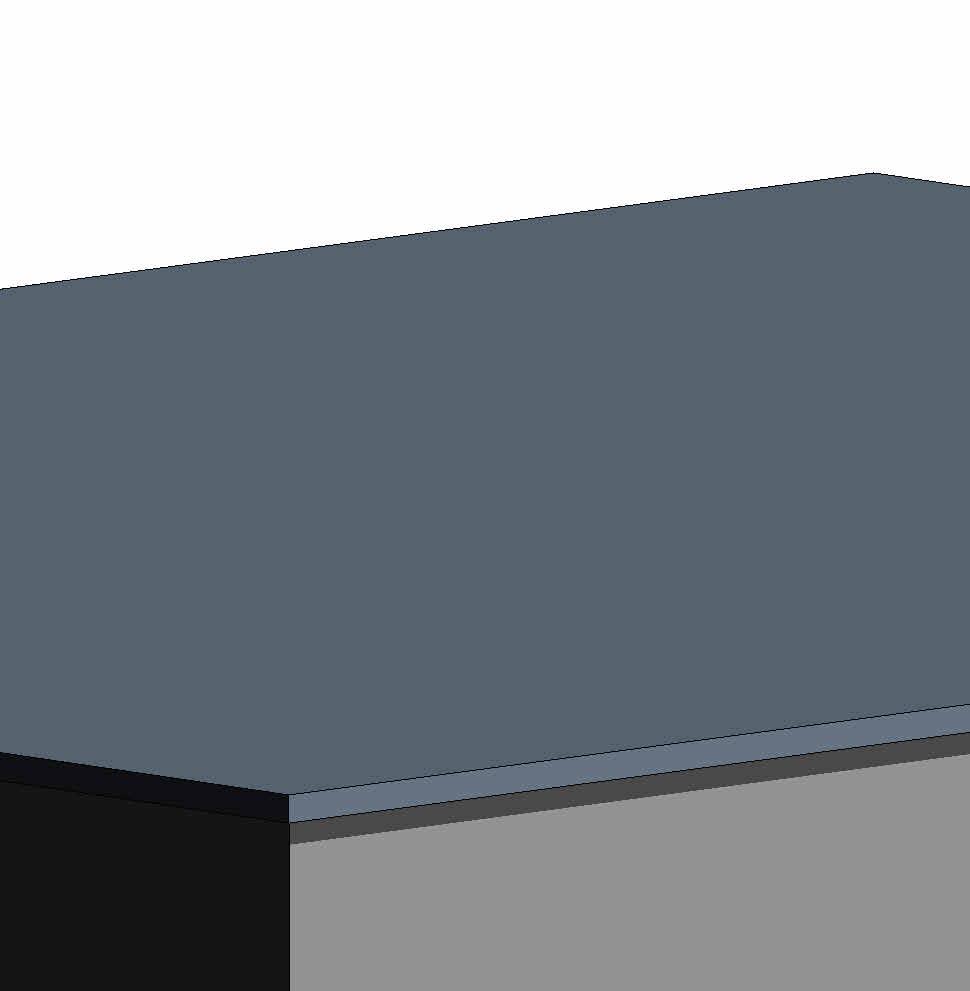

AXON SOUTHWEST

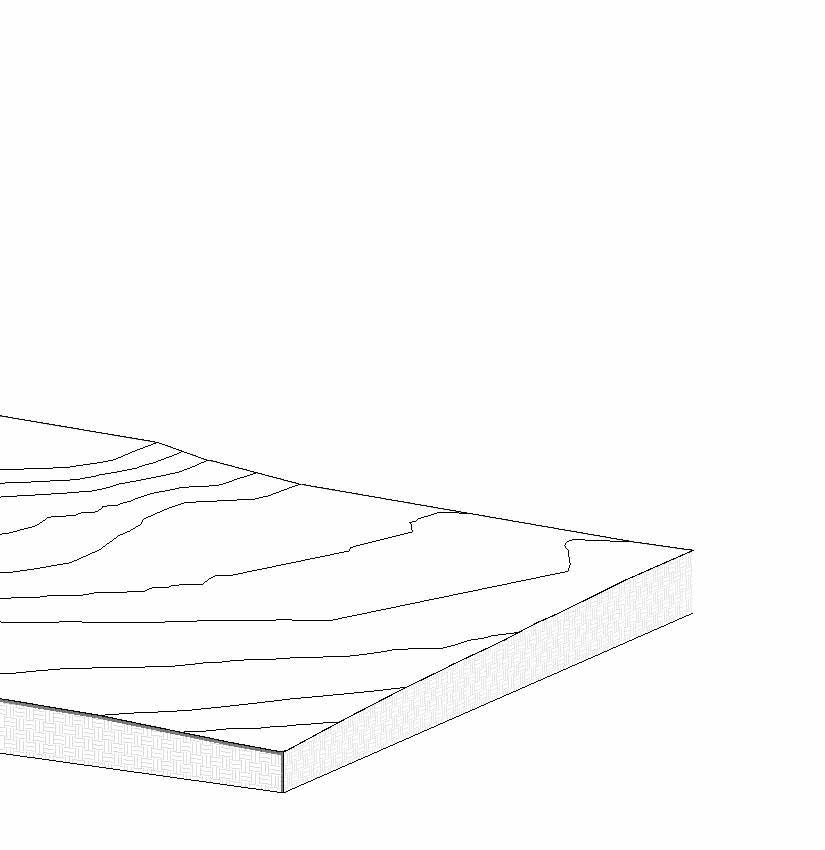

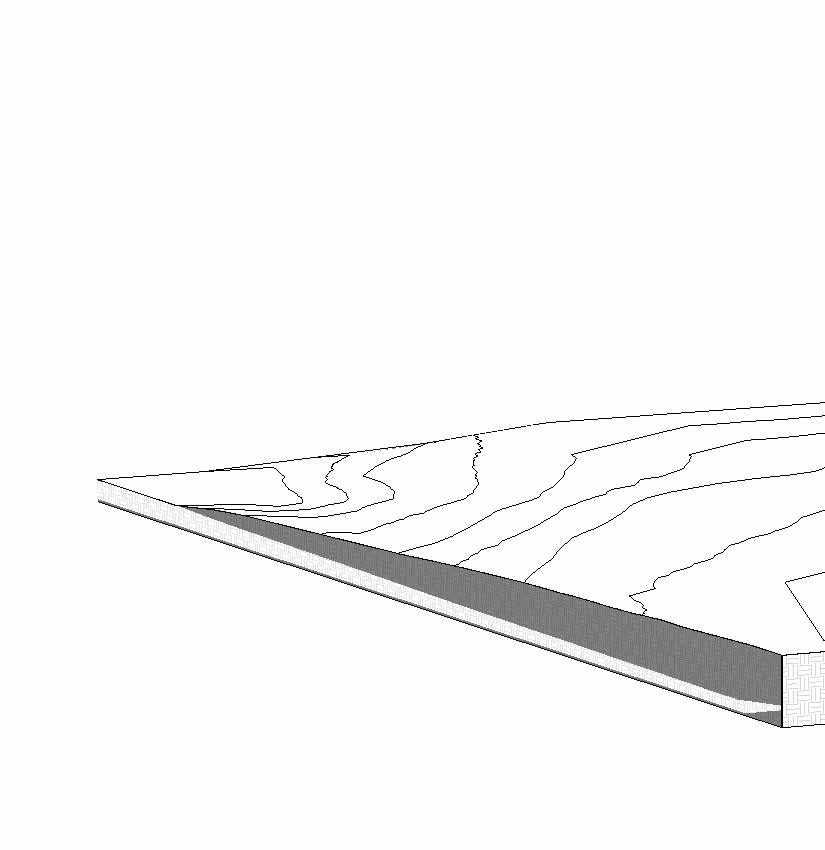

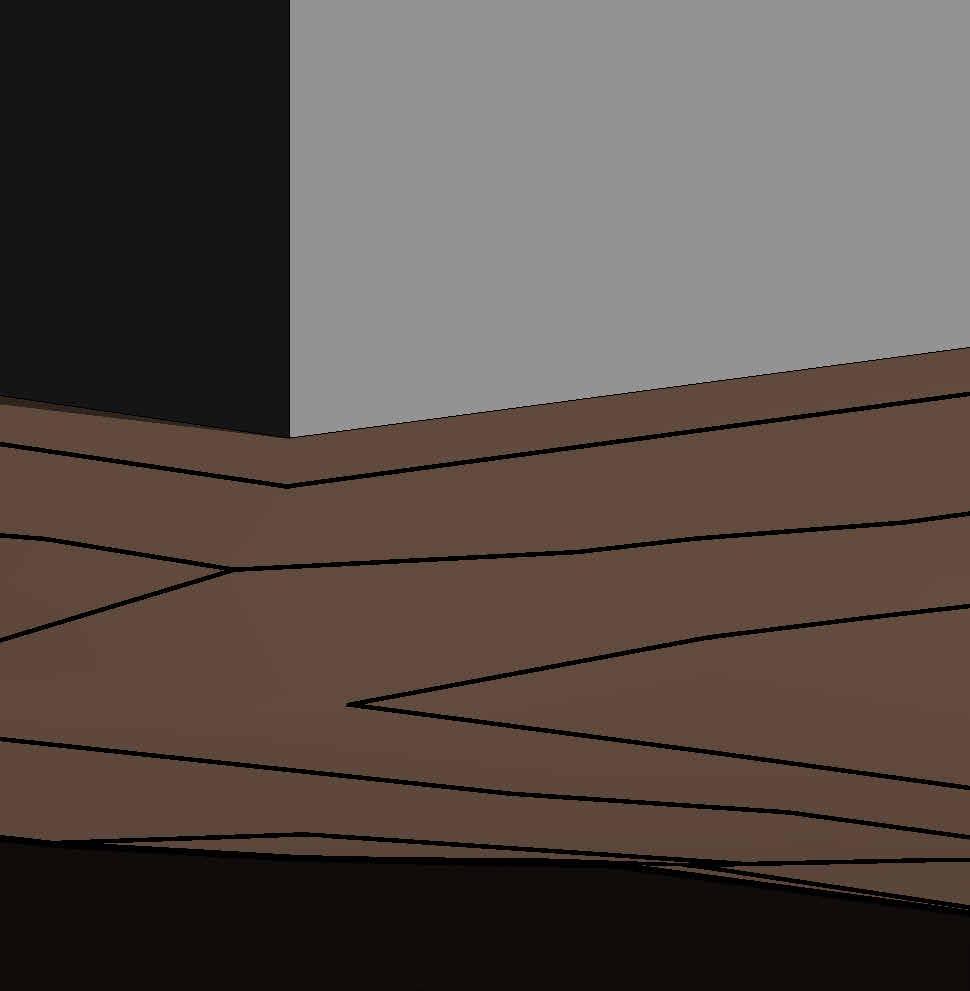

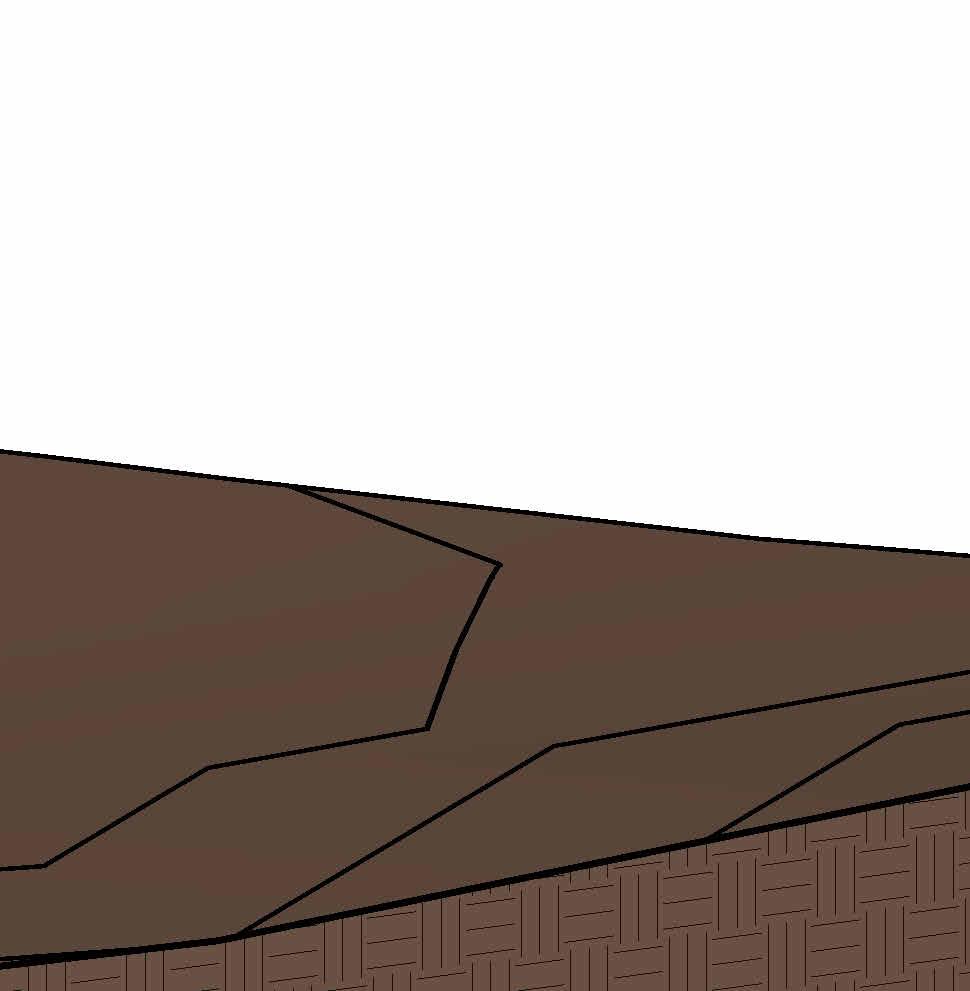

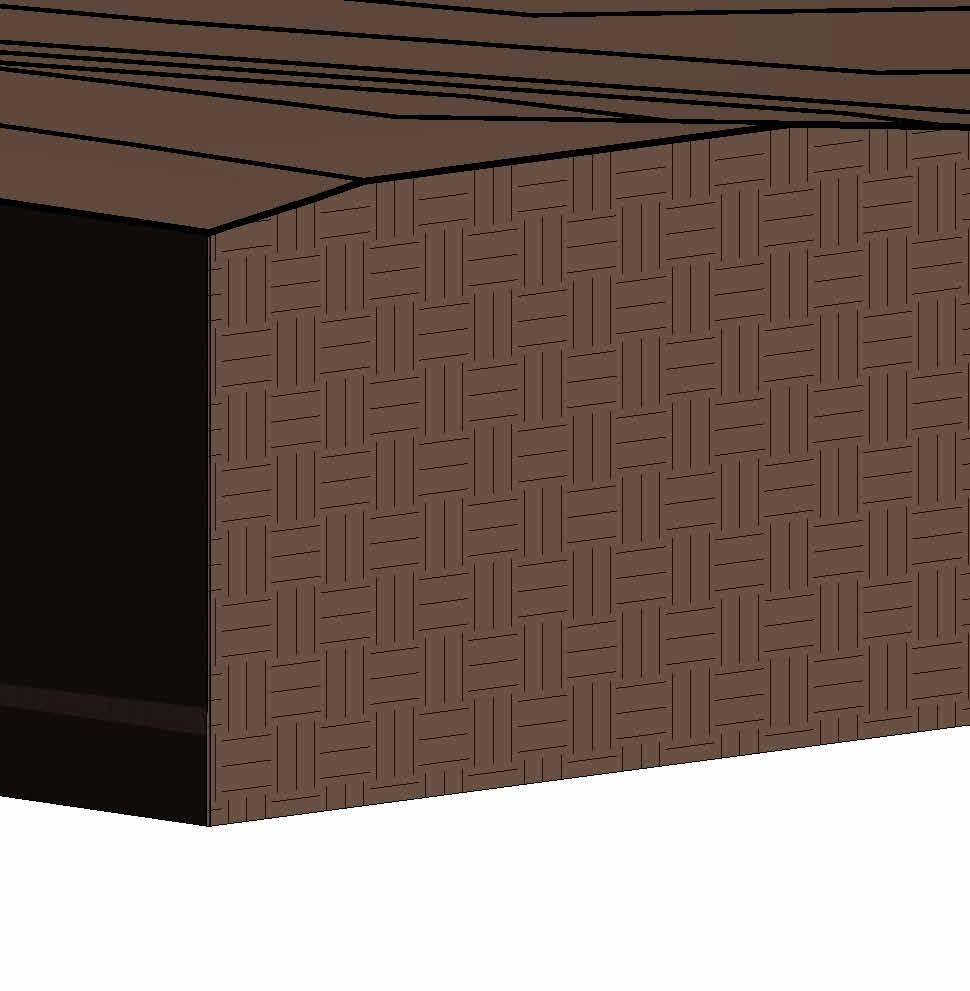

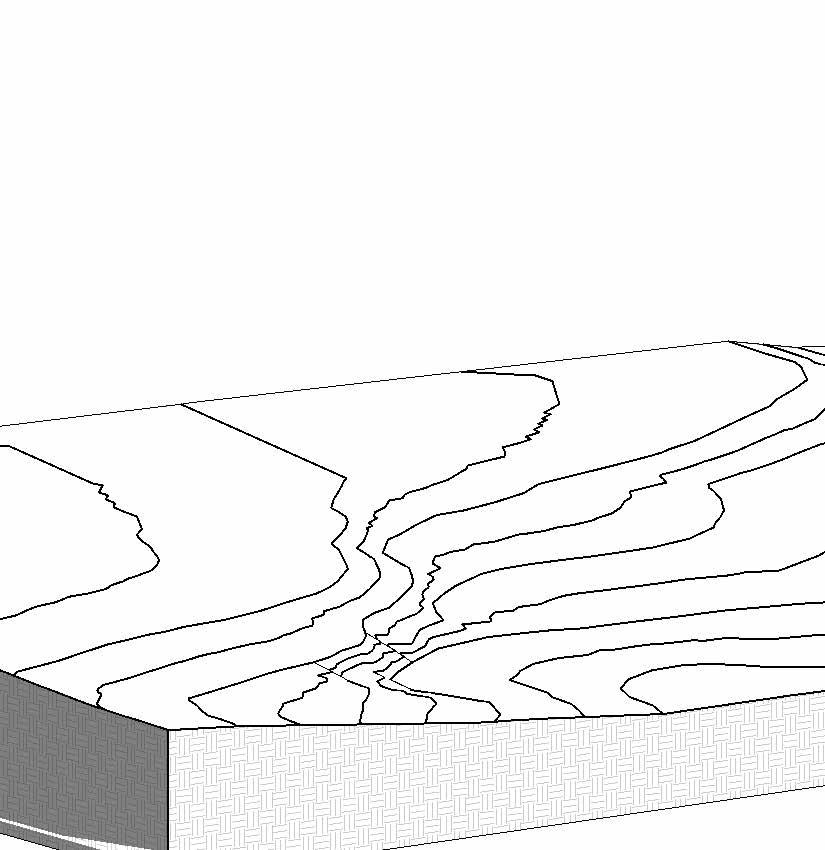

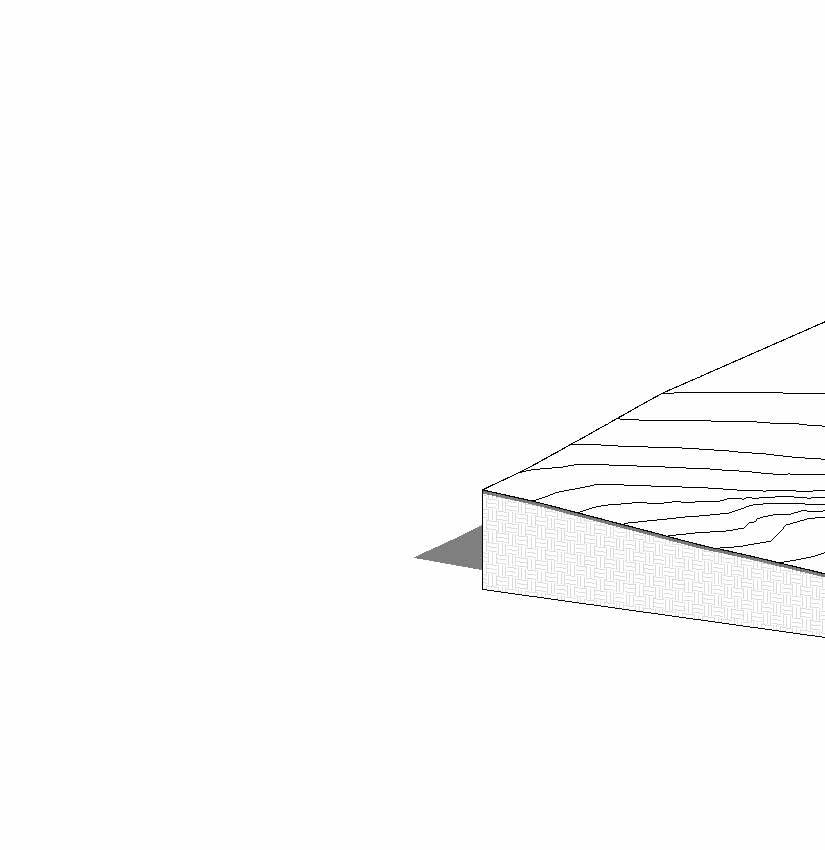

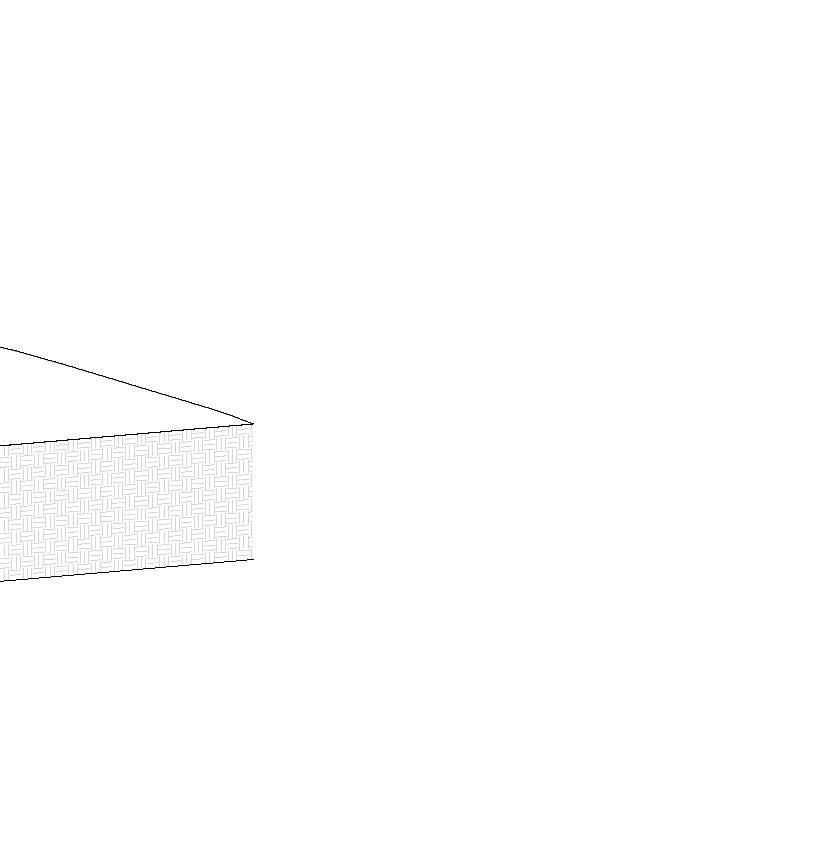

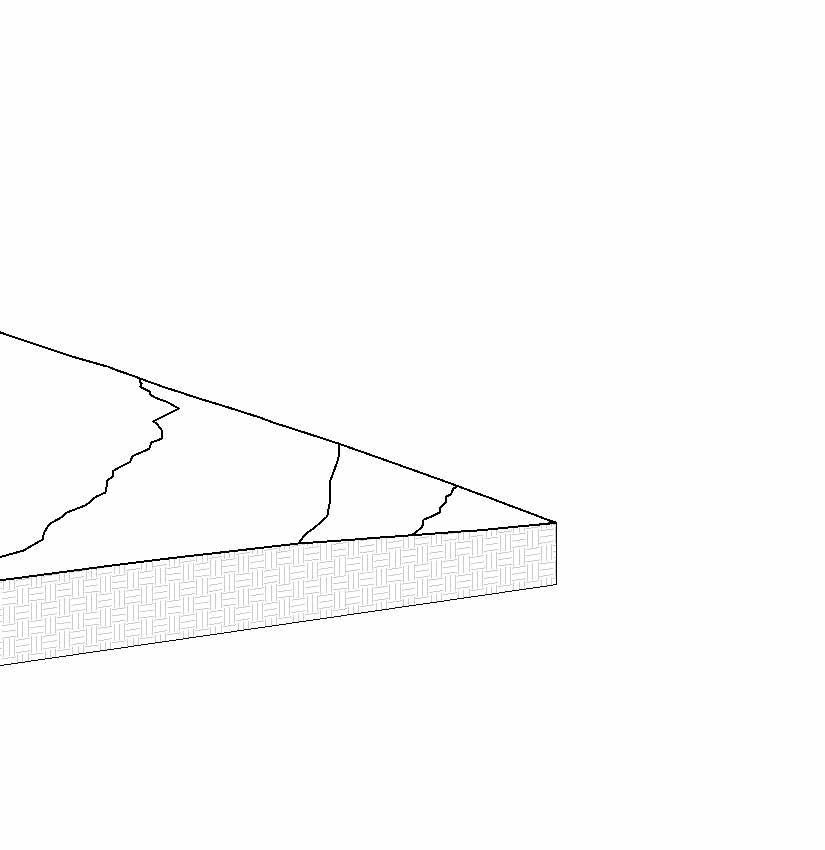

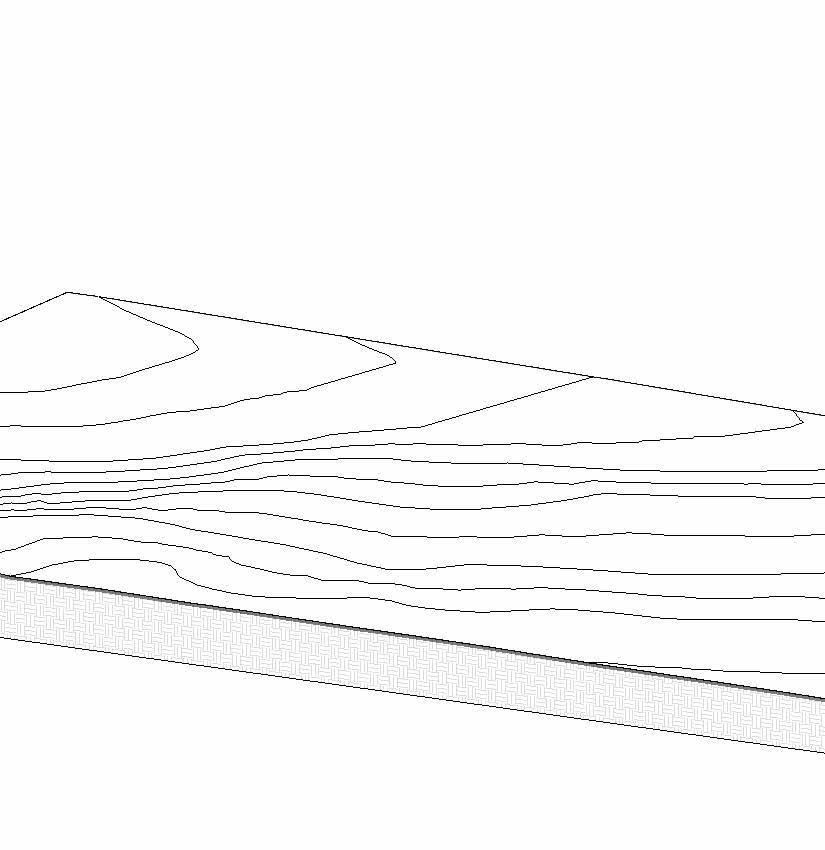

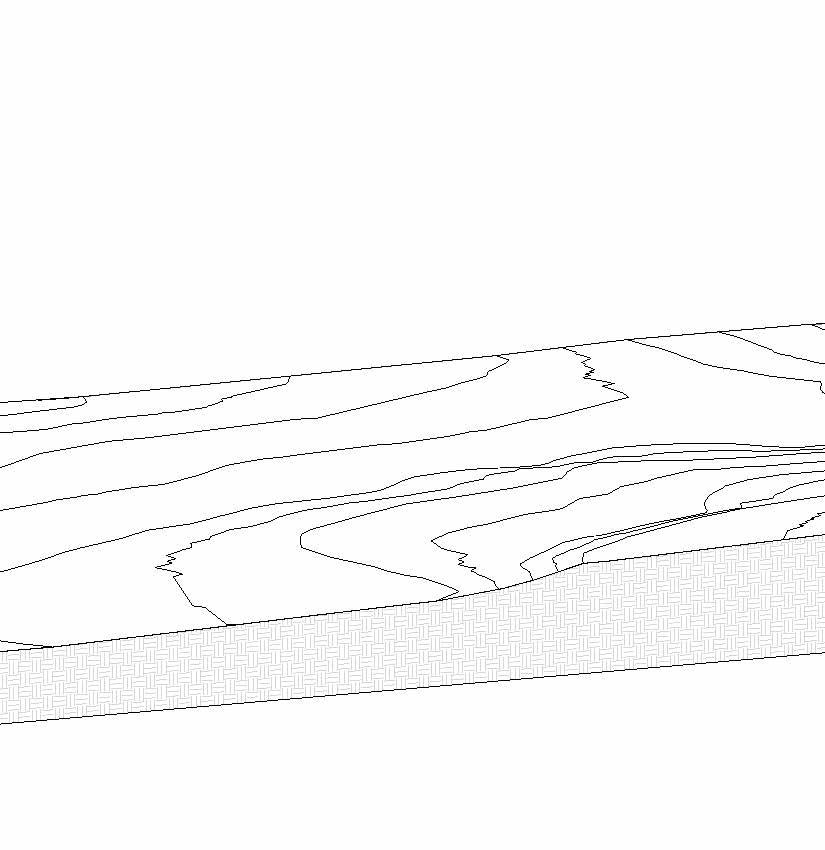

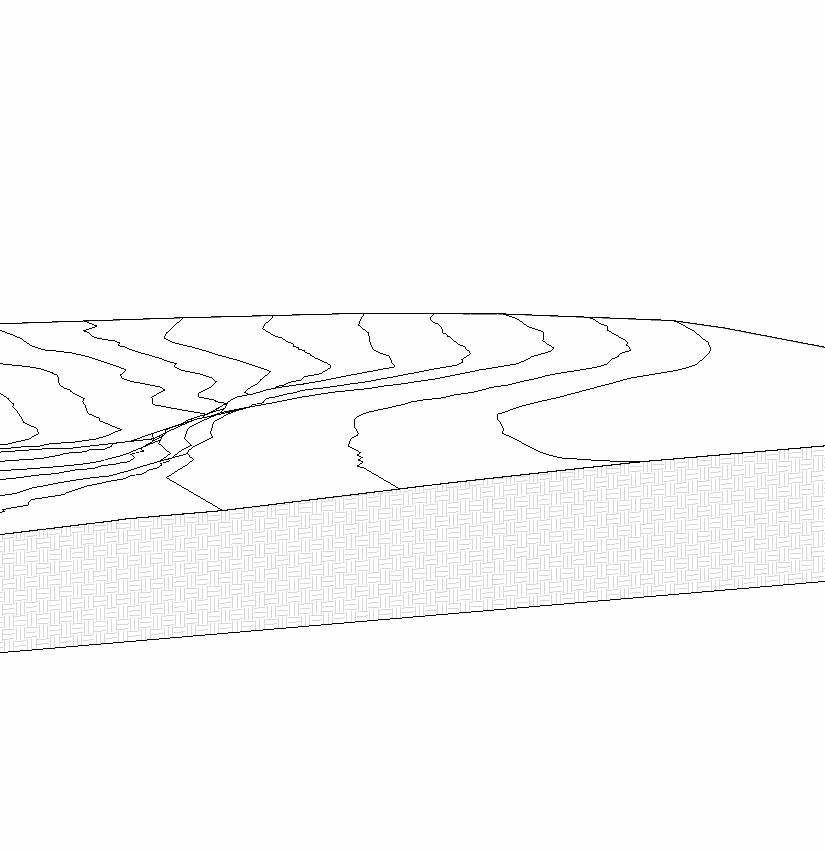

EXISTING 3D TOPOGRAPHIC CONDITIONS

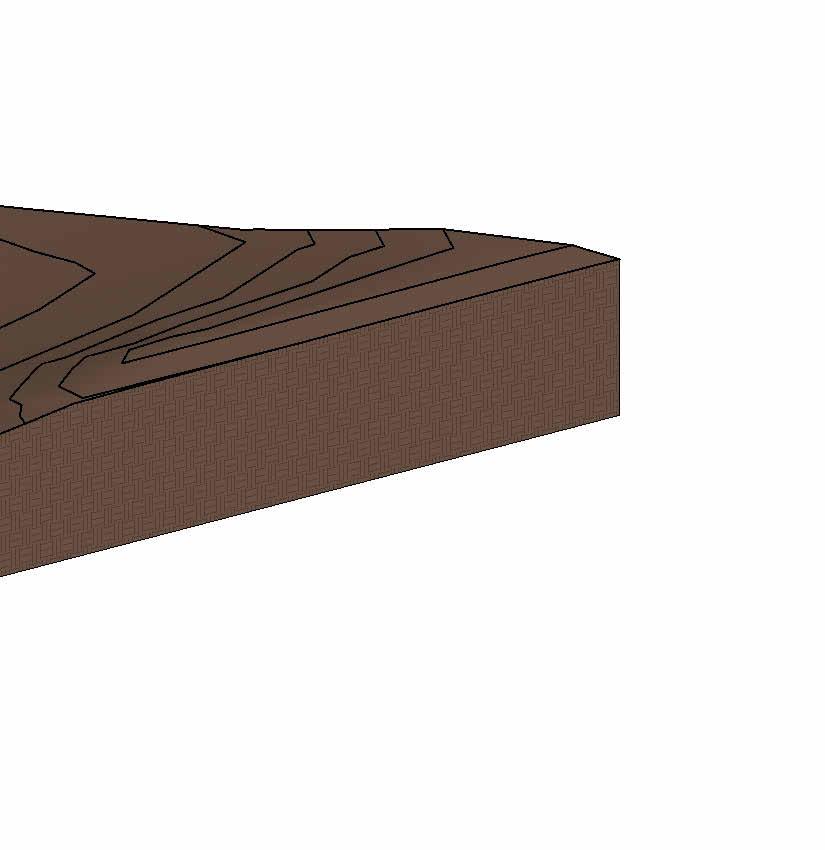

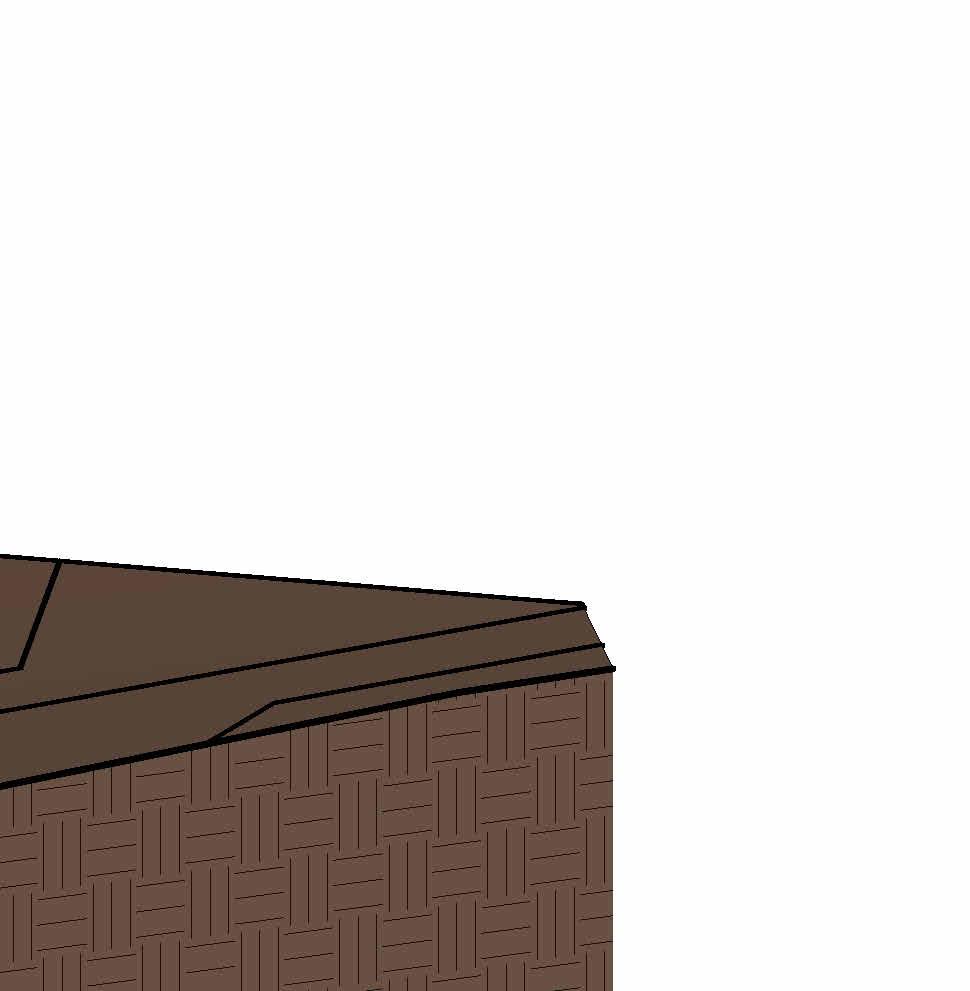

PROPOSED

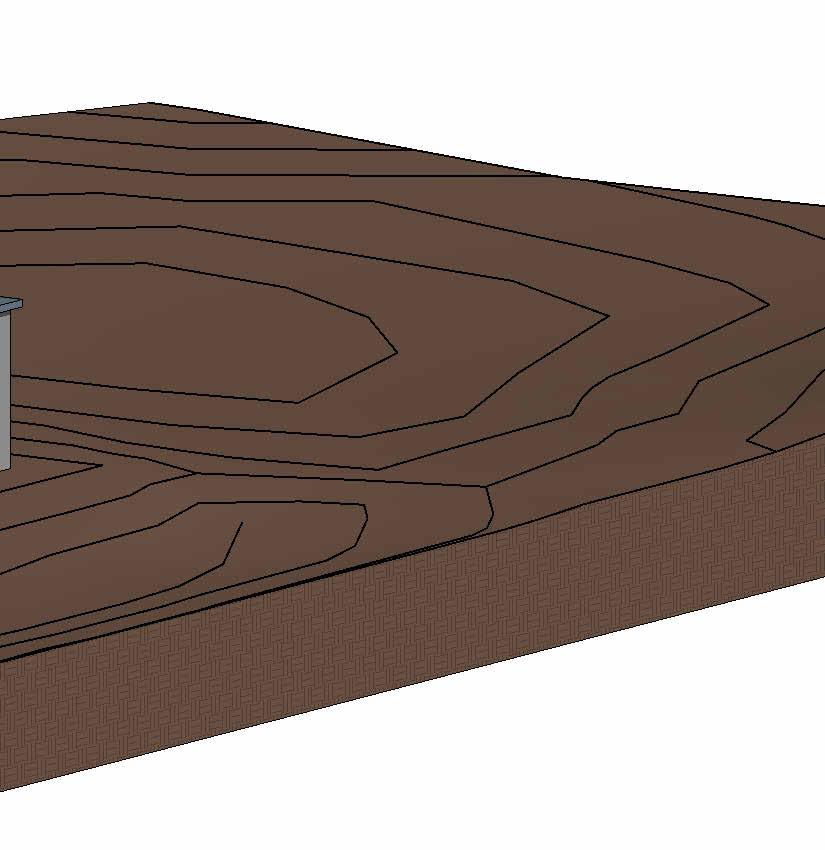

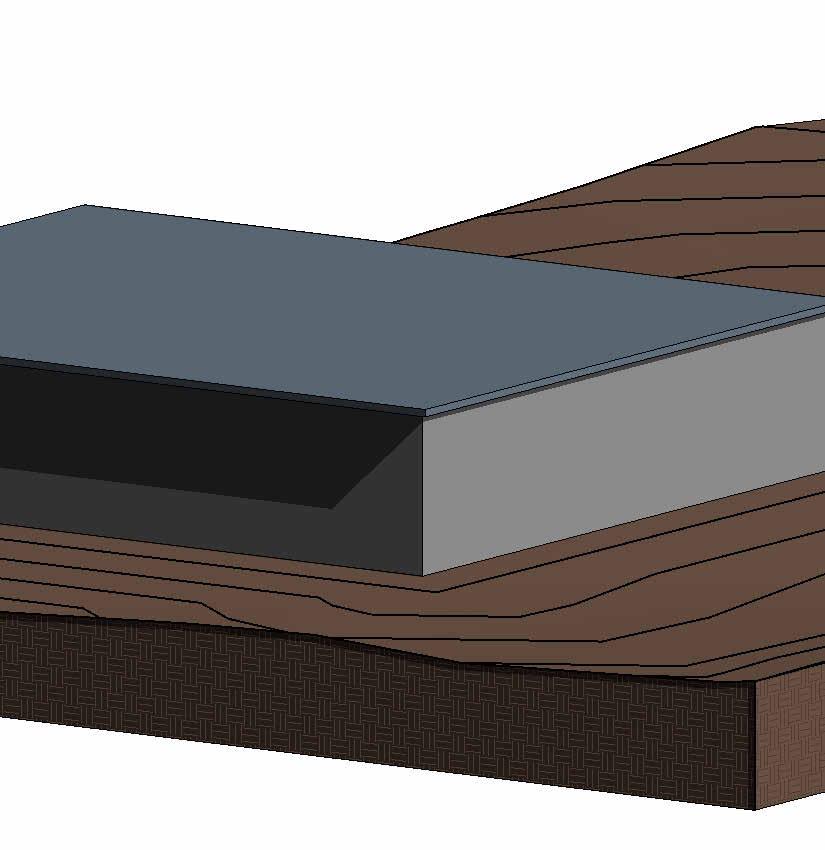

AXON SOUTHWEST

AXON SOUTHEAST

PEDESTRIAN SIDEWALK

GRASS

PROPOSED LIGHTING PLAN

BOLLARD/LIGHT POLE

OVERHANGING LIGHT FIXTURE

LIT STREET

SIGNAGE

CATCH BASIN DRAINAGE DETAIL

GUTTER AND CURB CUT DRAINAGE DETAIL

1” = 1’ - 0”

PARKING LOT ISLAND LIGHTING DETAIL
