USB & HDMI AOC Series

Page 1

USB & HDMI AOC Series H2H80OC30

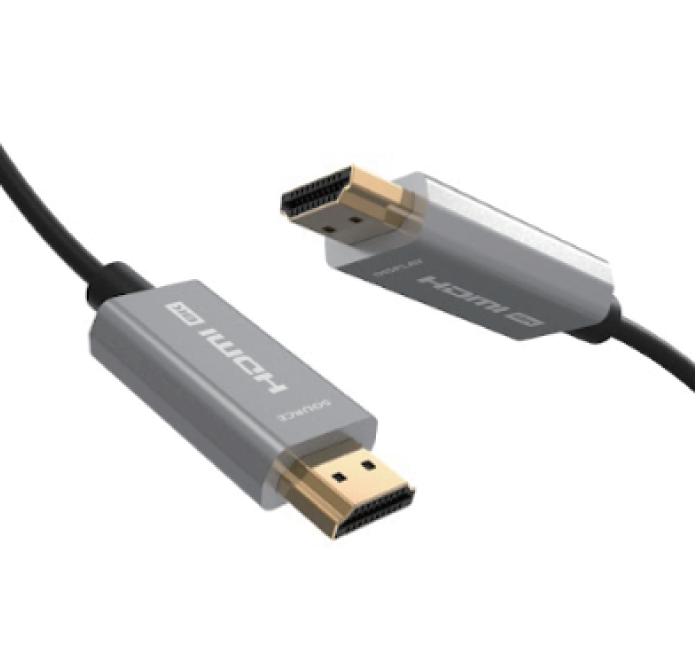

HDMI 8K Hybrid Active Optical Cable

AOC

30M

H2H80OC50

· · · · ·

H2H80OC100

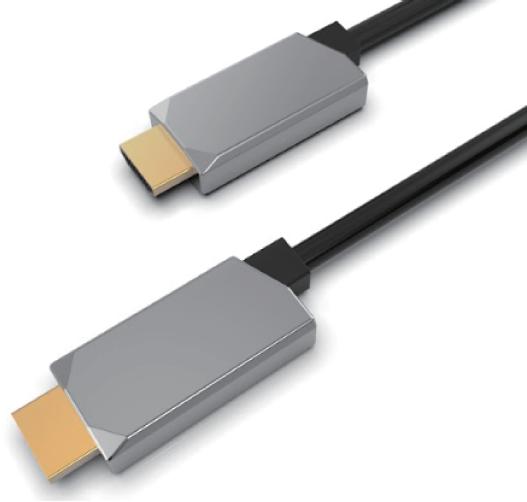

HDMI 8K Hybrid Active Optical Cable

· · · · ·

Band Width

HDMI 8K Hybrid Active Optical Cable

· · · · ·

Since 1974 Elka International Ltd.

HDMI

Copper wires and optical fibers HDMI 48Gbps, 8K@60Hz Enhanced Audio Return Channel 98Mbit/s based on 15m Dynamic HDR, DSC, HFR, VRR, QMS, QFT, ALLM Without external power

AOC

100M

Band Width

Copper wires and optical fibers HDMI 48Gbps, 8K@60Hz Enhanced Audio Return Channel 98Mbit/s based on 5m Dynamic HDR, DSC, HFR, VRR, QMS, QFT, ALLM Without external power

AOC

50M

HDMI

HDMI

Band Width

Copper wires and optical fibers HDMI 48Gbps, 8K@60Hz Enhanced Audio Return Channel 98Mbit/s based on 15m Dynamic HDR, DSC, HFR, VRR, QMS, QFT, ALLM DC Jack to USB Type-A external power


USB & HDMI AOC Series H2H80POC300

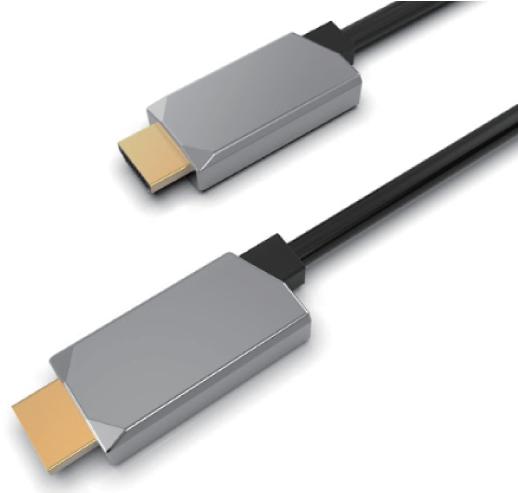

HDMI 8K Pure Fiber Active Optical Cable

AOC

· · · ·

HDMI

Band Width

Sound

Pure Fiber HDMI 48Gbps, 8K@60Hz Dynamic HDR, DSC, HFR, VRR, QMS, QFT, ALLM DC Jack to USB Type-A external power

300M

H2H80POE150

RX

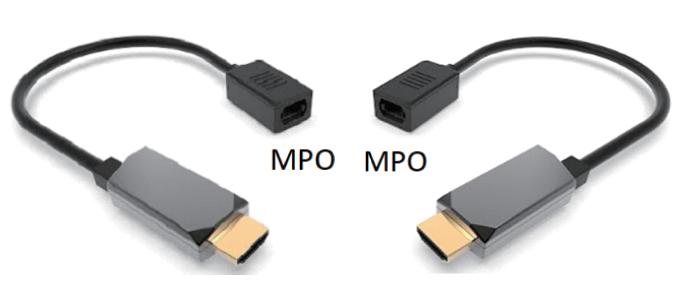

HDMI to MPO Pure Fiber Active Optical Extender

AOC

TX

150M

A2A10OE150

· · · · ·

HDMI

Band Width

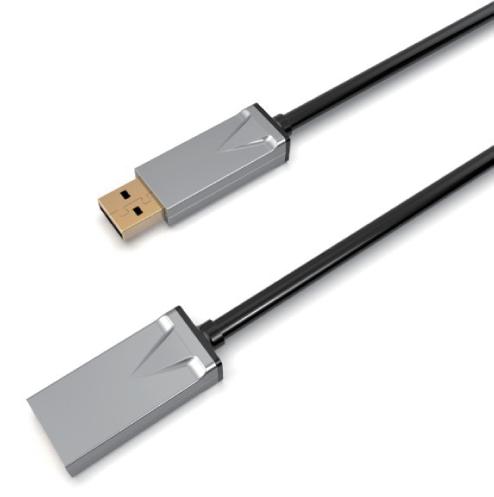

USB3.2 Gen2 Type A Hybrid Active Optical Extender

Backward

Extender

· USB3.2 Gen2 10Gbps · Copper wires and optical fibers · Backward USB2.0 480Mbps

Since 1974 Elka International Ltd.

Extender

Pure Fiber Extending HDMI signals through MPO Fiber Optic Cables up to 150m HDMI 48Gbps, 8K@60Hz Dynamic HDR, DSC, HFR, VRR, QMS, QFT, ALLM DC Jack to USB Type-A external power

Data Rate

15M

Sound


USB & HDMI AOC Series A2C10OC150

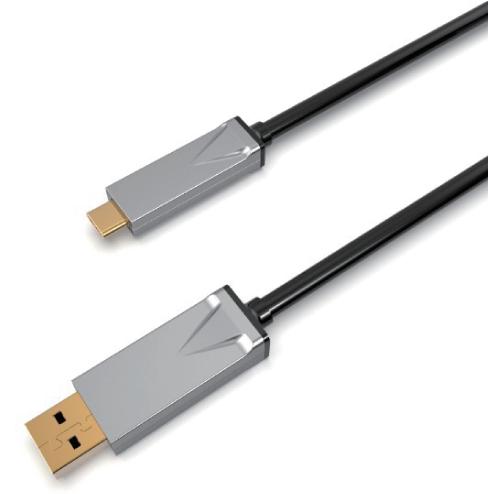

USB3.2 Gen2 A to C Hybrid Active Optical Cable

Data Rate

Backward

· USB3.2 Gen2 10Gbps · Copper wires and optical fibers · Backward USB2.0 480Mbps 15M

C2C10OC150

USB3.2 Gen2 C to C Hybrid Active Optical Cable

Data Rate

Backward

· USB3.2 Gen2 10Gbps · Copper wires and optical fibers · Backward USB2.0 480Mbps 15M

C2C10OC150

USB3.2 Gen2 & 4K C to C Hybrid Active Optical Cable

Data Rate

· · · · · 15M Since 1974 Elka International Ltd.

Backward

Alt Mode

USB3.2 Gen2 10Gbps Copper wires and optical fibers DP1.4 Alt Mode 4K@30Hz Power Delivery 60W 5m Backward USB2.0 480Mbps
