Product guide
Extraordinary Cooking.
Extraordinary
is an attitude, a way of being and thinking. It is inventiveness. It is pioneering spirit.
Extraordinary it’s an engine that ignites every day with new ideas, opportunities, and experiments. For us, being extraordinary it’s about thinking outside the box, creating beauty, value, and delivering increasingly functional, user- friendly products.
Being extraordinary is the art of inventing the future, in the kitchen and in life.
Design awards
A company, a group, a forward going enterprise.
Our brand’s history began in 1970 in Fabriano, Italy, driven by a passion for design and quality. Known for our distinctive style and meticulous air studies, we have always been inspired by Italian Design principles and innovative technologies in creating our range hoods. Over the years, we have transformed the image of hoods, and the Elica brand is now recognized globally. Our continuous evolution has led to groundbreaking solutions
in cooking appliances, earning numerous patents and shaping the future of the industry. At our global design center and Elica American Laboratory, experts research air, moisture, and heat to develop future products. As a market leader, we produce 20.7 million pieces annually, with a global presence in Italy, Poland, Mexico, India, China, and Russia.
Why Elica?
Index
Cooktops
Riserva
Disegno

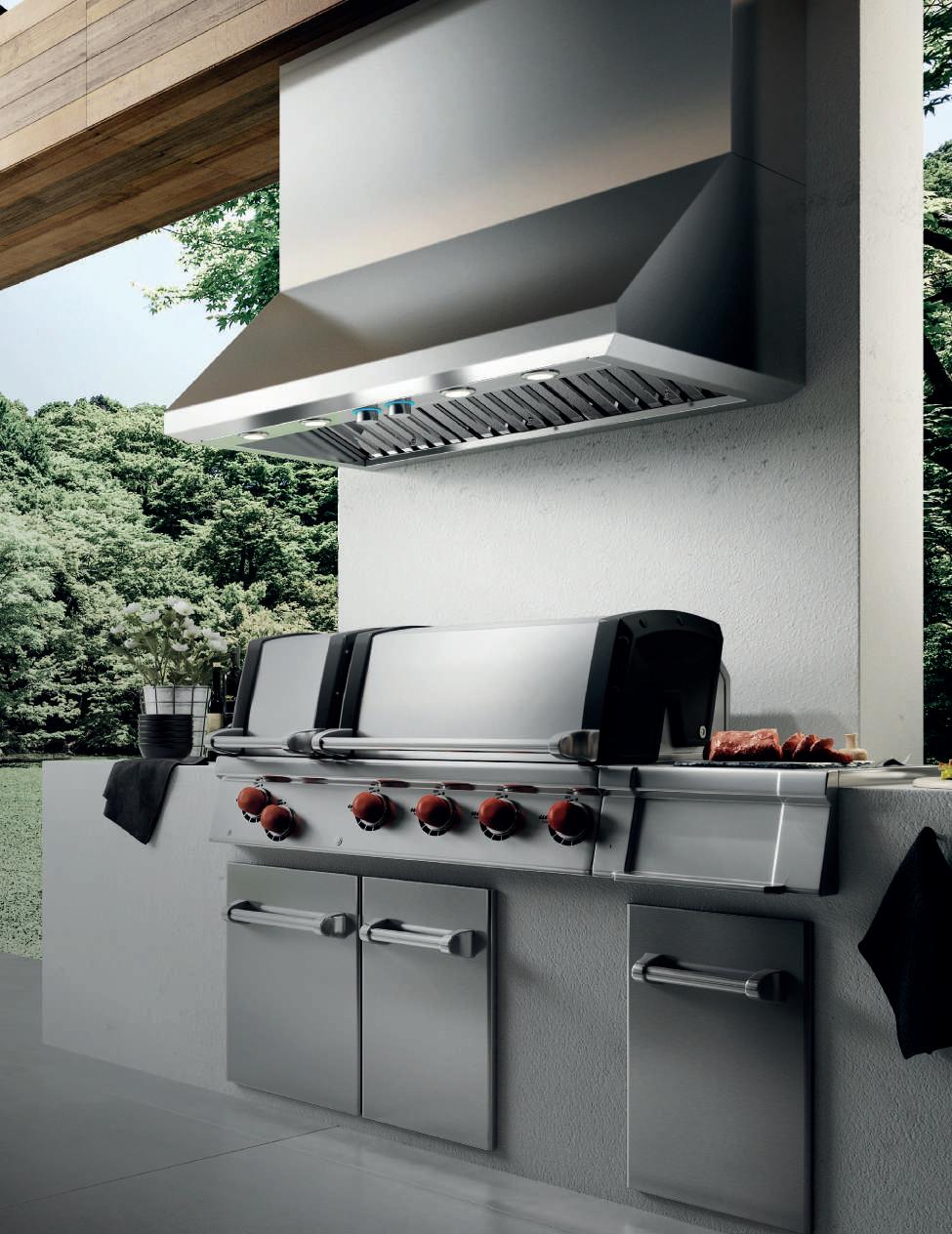

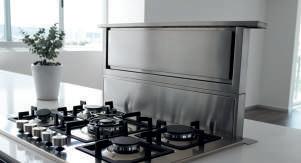

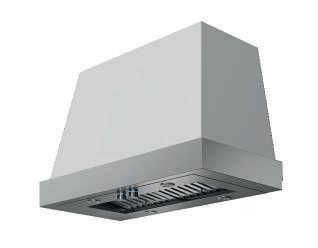

Outdoor hood
NikolaTesla Switch
EBD51SS1
EBS52PR1
Oristano
NikolaTesla Flux
EBF52SS1
Catania
EWS52SS1
EBS31SS1
EBS51SS1
Torino Black
EWS52PR1 EWS31SS1
EBS51PR1

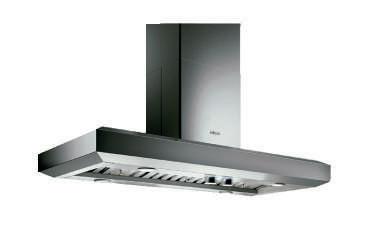

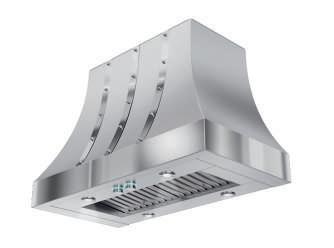

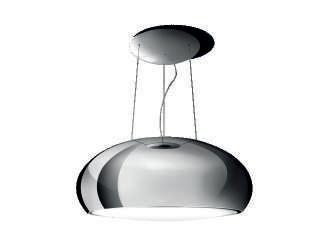

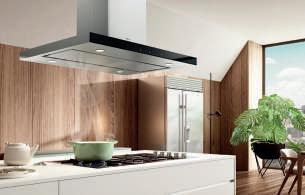

Island hoods

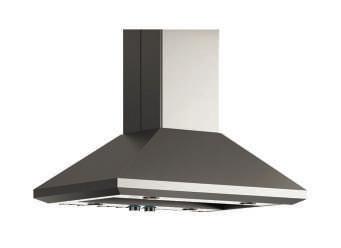

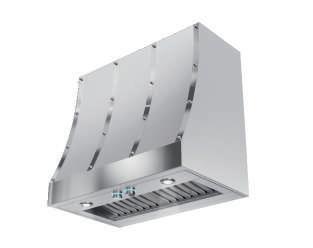

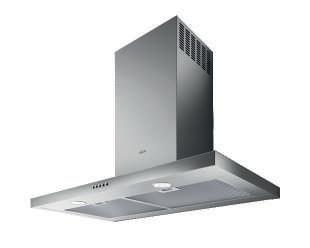

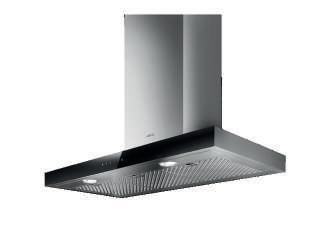

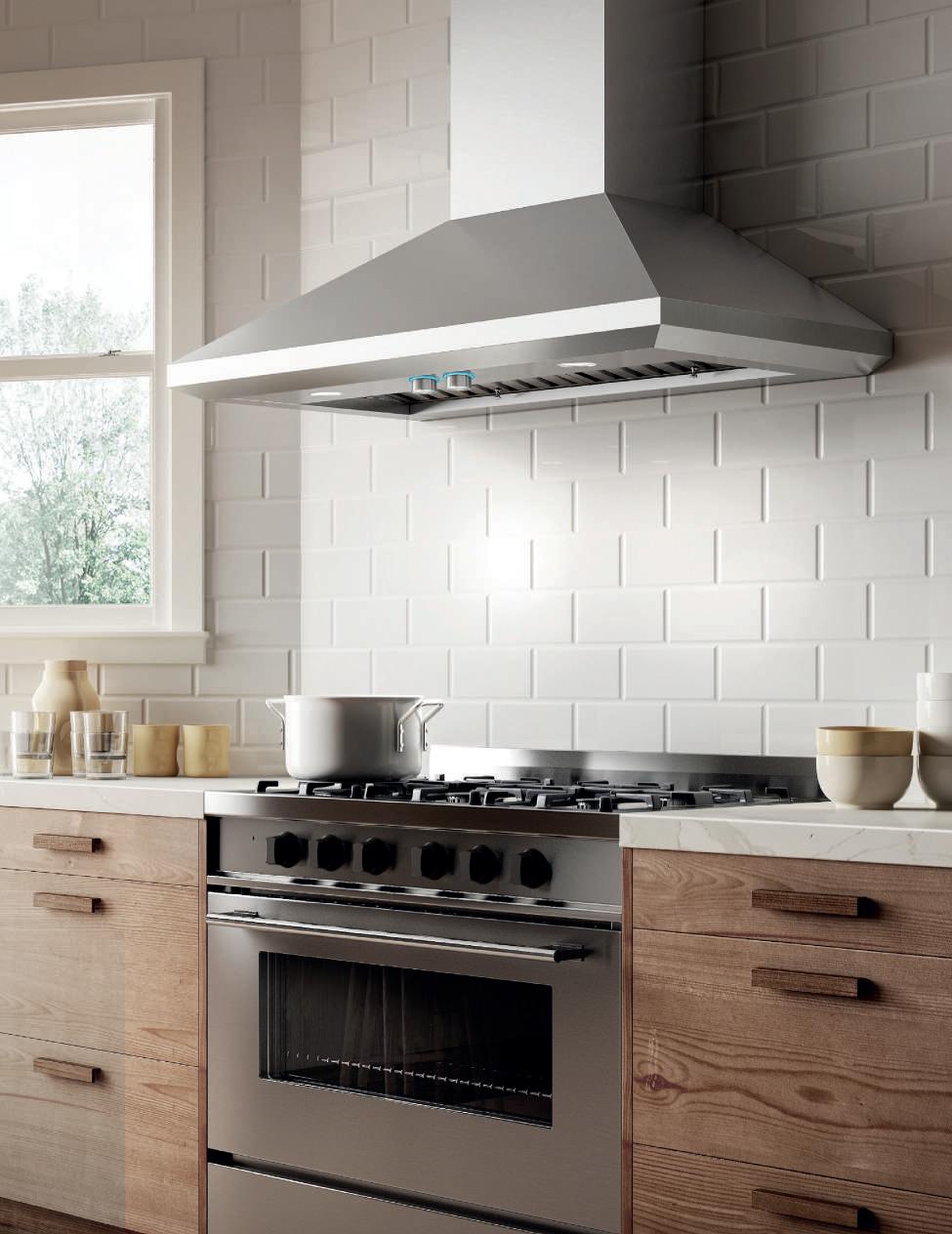

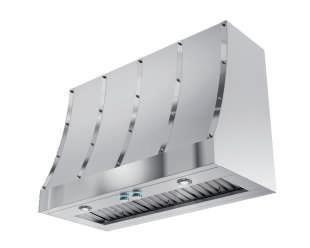

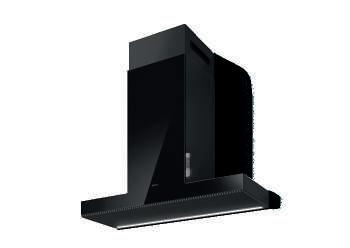

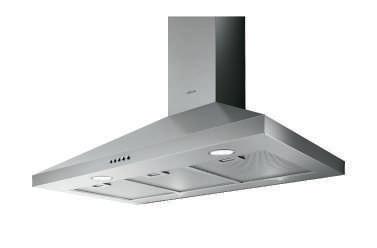

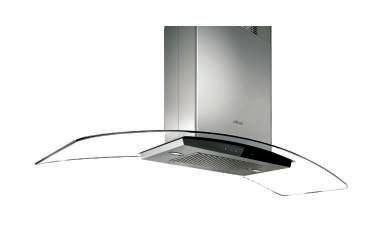

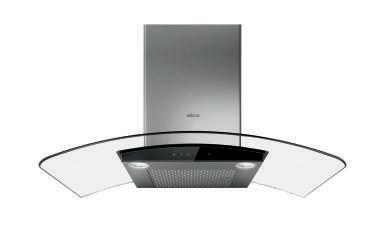

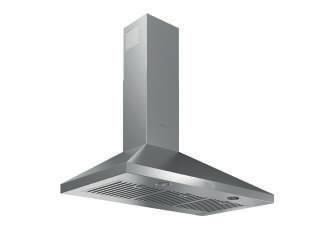

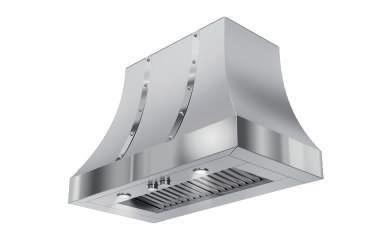

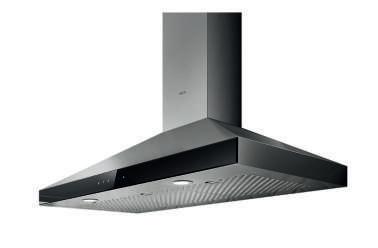

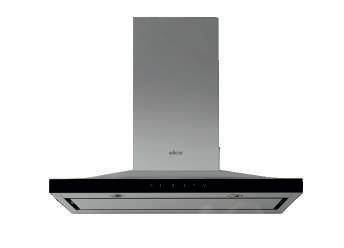

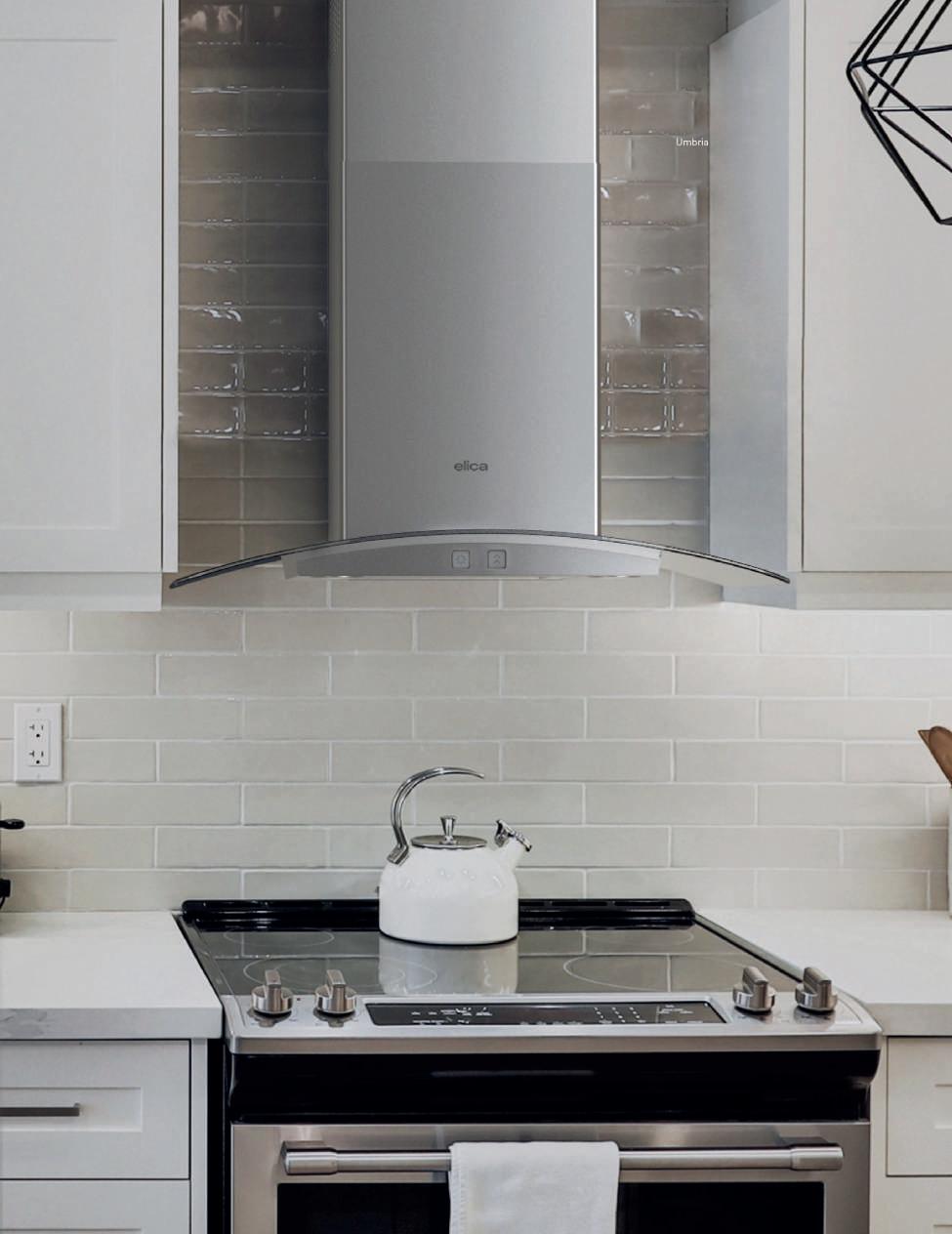

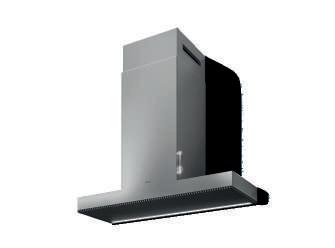

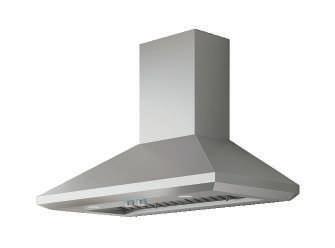

Wall mount hoods
Cingoli
Bolsena Lavello
Mezzano
Calabria
Seashell
Salice
Haiku Haiku Colors
Varna
Toblino 24”
Haiku colors
Maggiore
Haiku 13”
Foglia
Toblino
Haiku
Leone Is
Como
Leone
Potenza
Haiku 13”
Vavano Is

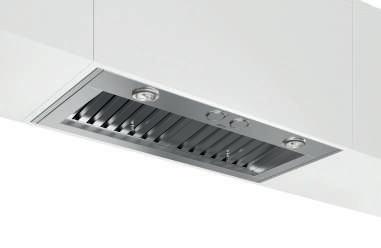

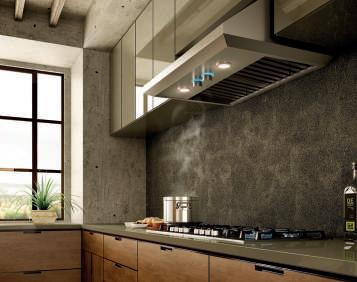

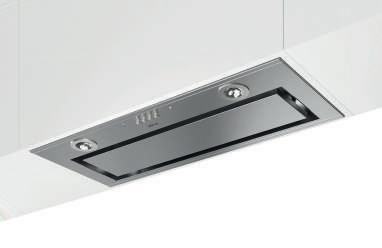

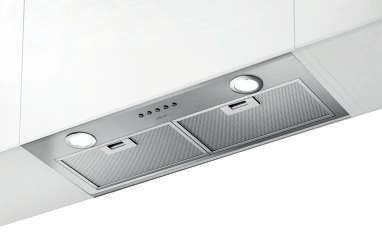

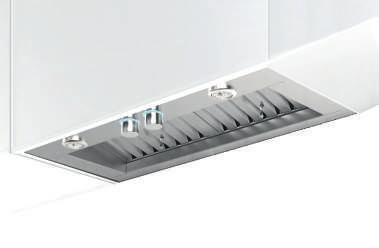

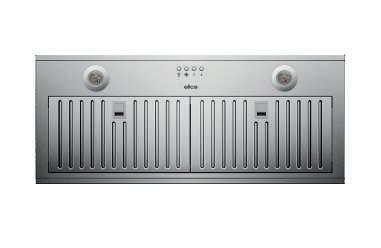

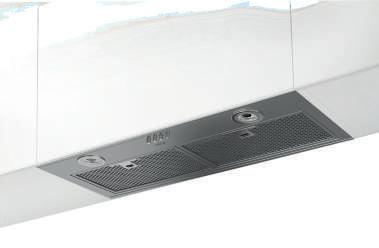

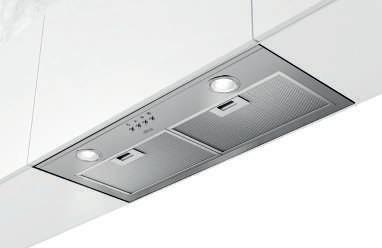

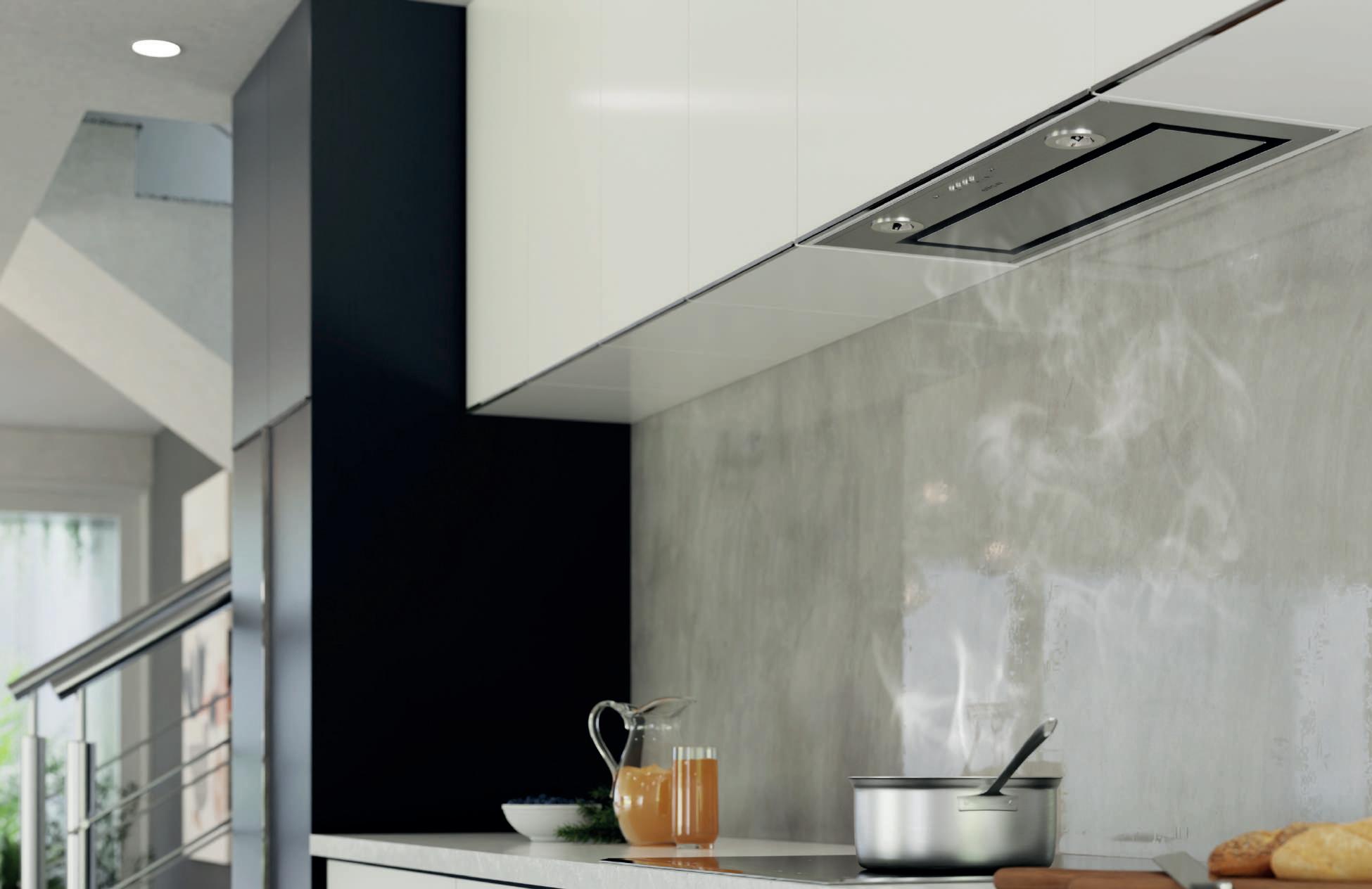

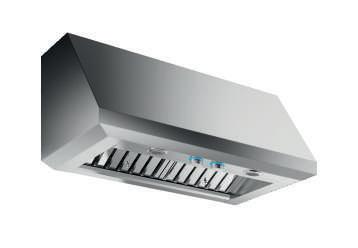

Insert hoods

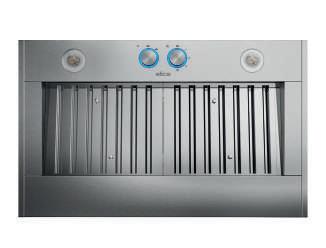

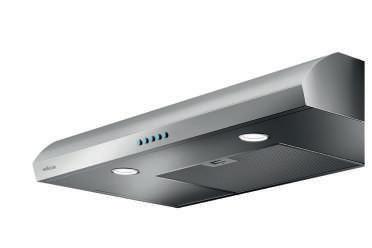

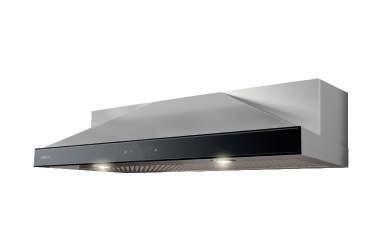

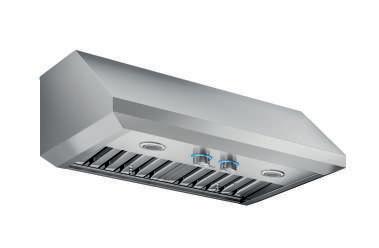

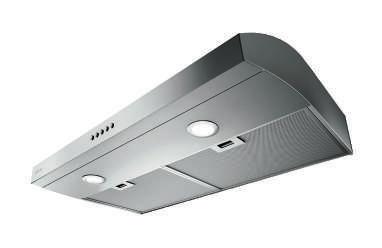

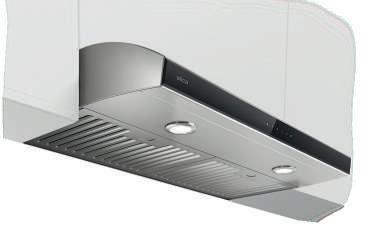

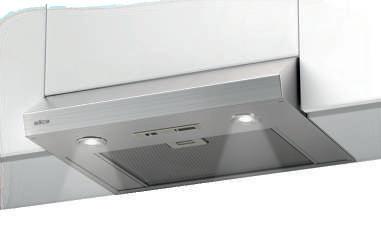

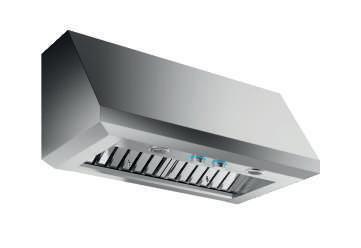

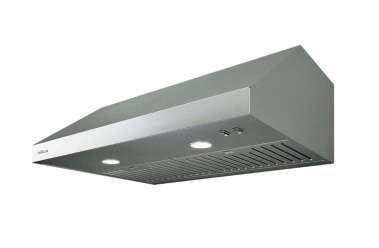

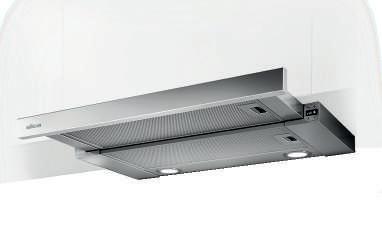

Undercabinet hoods
Palermo
Cooking series
No other cooking technology is as fast or precise as induction cooktops. This series makes it possible to boil 1 liter of water in under 60 seconds, offering all the benefits of induction: safety, cleanliness, and energy efficiency. In addition NIKOLATESLA series is the first Elica exclusive Aspiration Cooktop which combines the functionality of two technologies: Induction + Ventilation System into one single appliance. Save time and space, uncover this elegant hi-tech design.

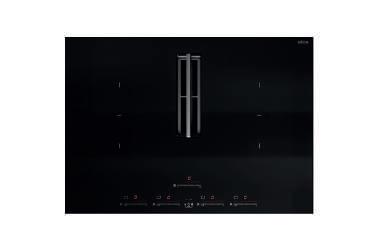

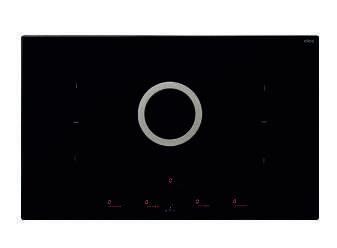

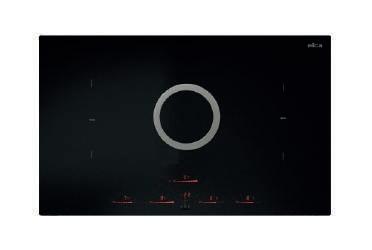

NikolaTesla Switch
Induction cooktop
Model Numbers
Cooking Zones 4 zones of 7.1” x 7.9”
Bridge Zones 2
Heating Level 9 levels + boost
Heating Type Induction
Ventilation system
Aspiration levels 3 speed + boost
Blower performance 400 CFM
Noise (sones) 1.5 - 6.8 sones
Duct transition 3 ¹/4” x 10” Rectangular
Filters 6 layer dishwashersafe anodized aluminum mesh
Recirculation filters 3 - Ceramic Carbon Filters *included in the box
Air cooking
Size 36”W x 20 ¹/4”D x 8 ¹/4”H
Type Finish Black glass
Installation Type Ducted or recirculating Self rimming or flush mounted
Controls Electronic glass touch & slide w/red illumination 3 speed + Boost ventilation switch
Features
Awards

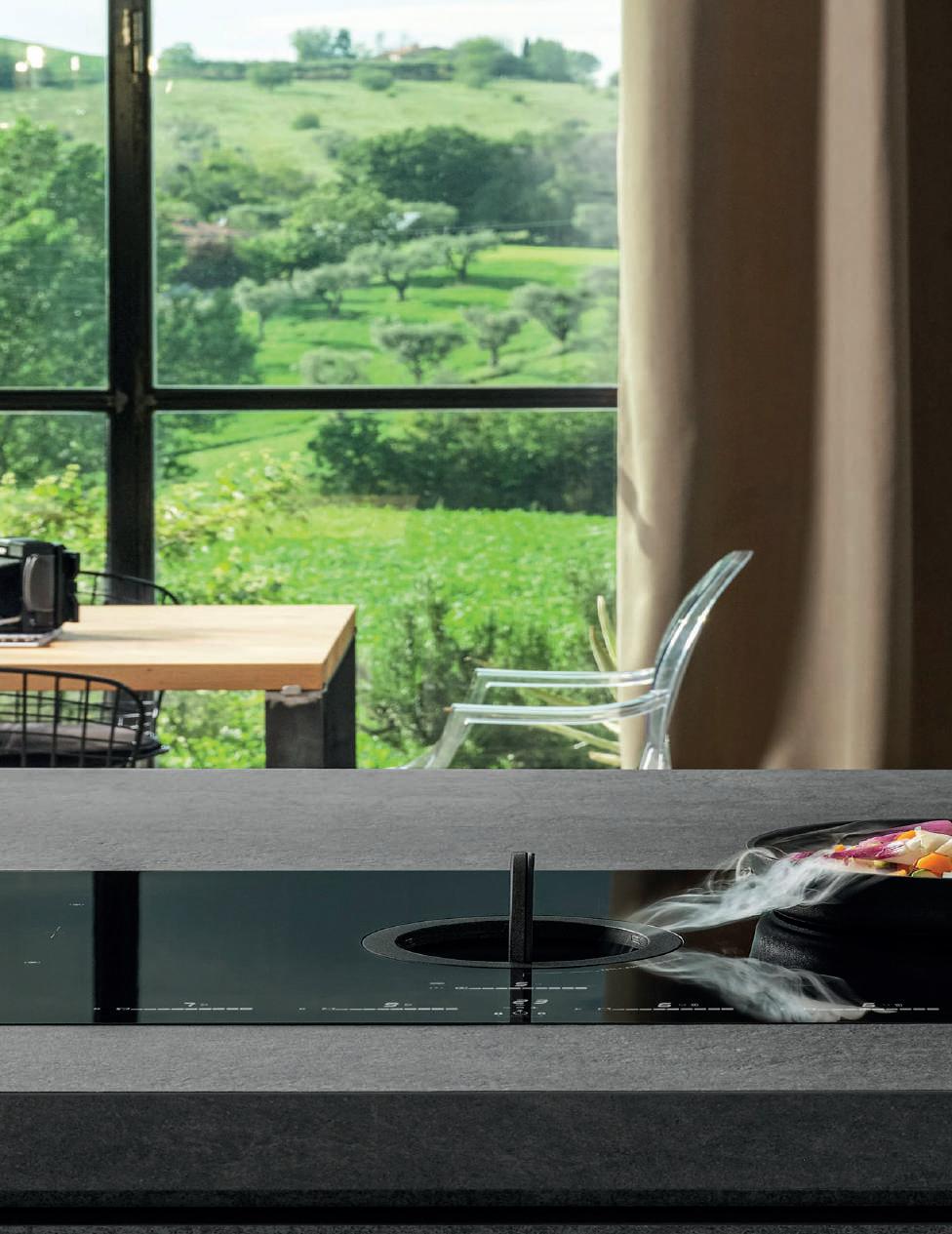

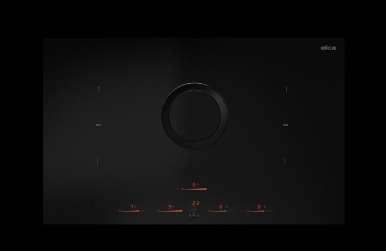

NikolaTesla Flux
Induction cooktop
Model Numbers ENF430BL, ENF436BL Amperage 32 A
60 Hz
220 V
14.8 kW
Cooking Zones 4 zones of 7 ¹/2” x 7.9”
Bridge Zones 2
Heating Level 9 levels + boost
Ventilation system
Aspiration levels 3 speed + boost
Blower performance 600 CFM
Noise (sones) 1.5 - 6.8 sones
Duct transition 3 ¹/4” x 10” Rectangular or 6” round
Filters 3 layer dishwashersafe anodized aluminum mesh
Recirculating Kit KIT0192385 (2 ceramic filters)
Air cooking
Size
30”W x 22 ⁹/16”D x 10 ³/16” H
36”W x 22 ⁹/16”D x 10 ³/16” H
Type Finish Black glass
Installation
Type Ducted or recirculating Self rimming or flush mounted
Controls Electronic glass touch & slide w/red illumination
Features

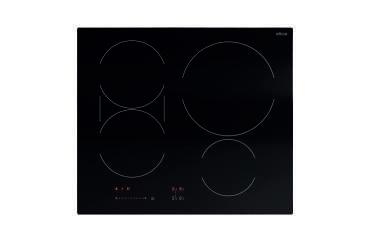

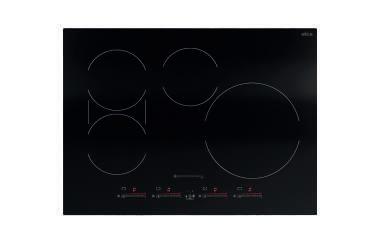

Volta 24” Induction cooktop
Volta 30” Induction cooktop
24 ³/4”W x 20 ³/4”D x 2 ¹/2”H
³/8”W x 22 ³/16”D x 2 ¹/2”H
Controls Electronic glass touch & slide w/red illumination
Features Features

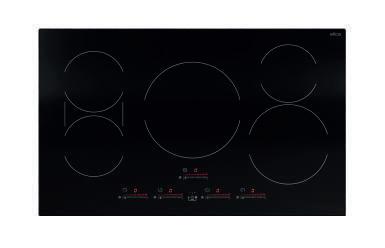

Volta 36”
Induction cooktop
Model Numbers EIV536BL
Amperage 32 A
Size 36 ¹/16”W x 22 ³/16”D x 2 ¹/2”H Frequency 60 Hz Voltage 220 V
Cooking Zones Burner 1 3.7kw Ø 7 ¹/4” Burner 2 3.7kw Ø 7 ¹/4”
3 2.2kw Ø 6 ⁷/8”
4 3.7kw Ø 9 ⁷/16”
5 3.7kw Ø 11 ⁷/16”
Bridge Zones 1
Heating Level 9 levels + boost
Type Finish Tempered, Ultra Deep Black Ceramic Glass
Controls Electronic glass touch & slide w/red illumination
Features

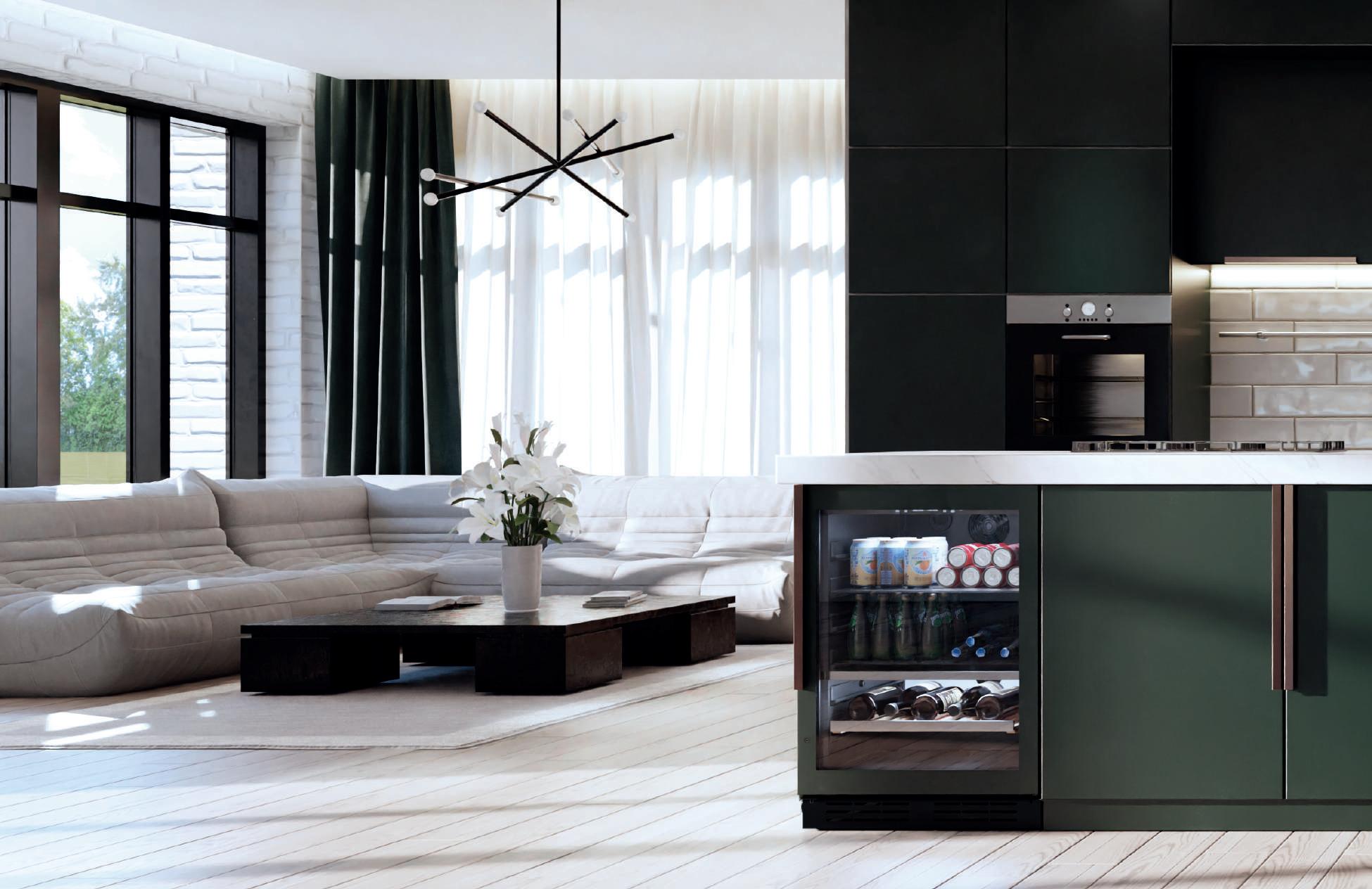

Riserva series
Fresh drinks as an alluring lifestyle. Life is best when you improvise, but when it comes to your favorite beverages and wines it is better to be prepared and have them always handy!
Meet Elica’s Series of Undercabinet Beverage Centers and Wine Cellars, exquisitely designed to preserve them fresh to accompany the best moments of your life. Now, seamlessly integrate into your kitchen space with the panel ready models that match your cabinetry, ensuring both style and functionality.
Beverage & Wine Center
SINGLE DOOR DUAL ZONE
EBS52SS1, EBS52PR1*
Width 24”
Dimension 23 ⁷/16”W x 33 ⁷/8”H x 23 ⁷/16”D 23 ⁷/16”W x 34 ¹/4”H x 23 ¹/4”D*
Weight
Door Handle
Door glass
128 lbs
Installation type Built-in and free standing
Volume
Sound level
Door finish
Tubular
Tinted dual panel, Low-e-Argon-Filled
Reversible door Yes
Electrical
4.8 cu ft (135L)
39 dBA
304 stainless steel or Panel ready frame* + tempered glass
Hinge design Concealed Articulated*
Lighting 3 level white LED
Controls
Capacitive touch display with white numbers
Cooling zone 1 - Beverages
Total capacity 72 cans (12 oz cans)
Temperature Range 34 to 50 °F
Shelving 2 adjustable slide-out Tempered glass shelves
Cooling zone 2 - Beverages
Total capacity 14 bottles of wine (25 oz)
Temperature Range 40 to 64 °F
Shelving 1 full extension rack of beechwood with metal front trim
PRO Handle Kit
KIT0175505
Others Anti damping system Sabbath mode
Beverage shelving made of tempered glass
Premium beechwood wine racks
Double panel glass door, UV coated 1 carbon filter Panel Ready*
Features
Quiet operation Eco-mode
Open door alarm
High e ciency carbon filters
EBS52SS1
EBS51SS1
EWS52SS1
EBFS52SS1
EPC technology
Concealed hinge
Articulated hinge* Panel ready*
Beverage Center
SINGLE DOOR SINGLE ZONE EBS51SS1, EBS51PR1*
Width 24”
Dimension 23 ⁷/16”W x 33 ⁷/8”H x 23 ⁷/16”D 23 ⁷/16”W x 34 ¹/4”H x 23 ¹/4”D*
Weight
128 lbs
Installation type Built-in and free standing
Volume
Sound level
Door finish
Hinge design
Door Handle Tubular
Door glass Tinted dual panel, Low-e-Argon-Filled
Reversible door Yes
Electrical
4.8 cu ft (135L)
39 dBA
304 stainless steel or Panel ready frame* + tempered glass
Concealed Articulated*
Lighting 3 level white LED
Controls
Capacitive touch display with white numbers
Cooling zone 1 - Beverages
Total capacity >120 cans (12 oz cans)
Temperature Range 34 to 65 °F
Shelving 3 adjustable slide-out
Tempered glass with shelves with metal front trim (without rollers)
PRO Handle Kit
Others Anti damping system
Sabbath mode
Beverage shelving made of tempered glass
Premium beechwood wine racks
Double panel glass door, UV coated 1 carbon filter Panel Ready*
Features
Quiet operation
Eco-mode
Open door alarm
High e ciency carbon filters
EBS52SS1
EBS51SS1
EWS52SS1
EBFS52SS1
EPC technology
Concealed hinge
Articulated hinge* Panel ready*
Wine Cellar
SINGLE DOOR DUAL ZONE EWS52SS1, EWS52PR1*
Width 24”
Dimension 23 ⁷/16”W x 33 ⁷/8”H x 23 ⁷/16”D 23 ⁷/16”W x 34 ¹/4”H x 23 ¹/4”D*
Weight 128 lbs
Installation type Built-in and free standing
Volume
Sound level
Door finish
Hinge design
Lighting
Controls
4.8 cu ft (135L)
39 dBA
304 stainless steel or Panel ready frame* + tempered glass
Concealed Articulated*
3 level white LED
Capacitive touch display with white numbers
Cooling zone 1 - White wines
Total capacity 16 bottles of wine (25 oz)
Temperature Range 40 to 50 °F
Shelving
2 full extension racks of beechwood with metal front trim
Cooling zone 2 - Red wines
Total capacity 36 bottles of wine (25 oz)
Temperature Range 50 to 64 °F
Shelving
3 full extension racks of beechwood with metal front trim
Door Handle
Door glass
Tubular
Tinted dual panel, Low-e-Argon-Filled
Reversible door Yes
Electrical
circuit
Carbon filter
PRO Handle Kit
L00114-1
KIT0175505
Others Anti damping system Sabbath mode
Beverage shelving made of tempered glass
Premium beechwood wine racks
Double panel glass door, UV coated 1 carbon filter Panel Ready*
Features
Quiet operation Eco-mode
Open door alarm
High e ciency carbon filters
EBS52SS1
EBS51SS1
EWS52SS1
EBFS52SS1
EPC technology
Concealed hinge
Articulated hinge* Panel ready*
Beverage & Wine Center
FRENCH DOOR DUAL ZONE
EBF52SS1
Width 24”
Dimension 23 ⁷/16”W x 34 ¹/4”H x 22 ⁵/16”D
Weight 117 lbs
Installation type Built-in and free standing
Volume 4.8 cu ft (135L)
Sound level 39 dBA
Door finish
Door Handle Tubular
Door glass
Tinted dual panel, Low-e-Argon-Filled
Reversible door No
Electrical Min. circuit required
304 stainless steel + tempered glass
Hinge design Concealed
Lighting 3 level white LED
Controls
Capacitive touch display with white numbers
Cooling zone 1 - Beverages
Total capacity
>60 cans (25 oz)
Temperature Range 34 to 68 °F
Shelving 3 adjustable slide-out tempered glass shelves with front trim
Cooling zone 2 - Wines
Total capacity 21 bottles of wine (25 oz)
Temperature Range 34 to 68 °F
Shelving 6 full extension racks of beechwood with metal front trim
PRO Handle Kit
L00114-1
KIT0175505 (2 kits needed)
Others Anti damping system Sabbath mode
Beverage shelving made of tempered glass
Premium beechwood wine racks
Double panel glass door, UV coated 1 carbon filter
Features
Quiet operation
Eco-mode
EPC technology
EBS52SS1
EBS51SS1
EWS52SS1
EBS52SS1
EBFS52SS1
EBS52SS1
EBS51SS1
EBS51SS1
EWS52SS1
EWS52SS1
EBFS52SS1
EBFS52SS1
Concealed hinge
Open door alarm
High e ciency carbon filters
Quiet operation Eco-mode
Quiet operation Eco-mode
Open door alarm
Open door alarm
High e ciency carbon filters
High e ciency carbon filters
Quiet operation Eco-mode
Articulated hinge*
EPC technology
EPC technology
Concealed hinge
Concealed hinge
Panel ready*
Open door alarm
Articulated hinge*
Articulated hinge*
High e ciency carbon filters
Panel ready*
Panel ready*
Refrigeration Drawer
TWO DRAWER SINGLE ZONE
EBD51SS1
Width 24”
Dimension 23 ⁷/16”W x 33 ⁷/8”H x 24”D
Weight 130 lbs
Installation type Built-in and free standing
Volume 4.7 cu ft (135L)
Sound level 40 dBA
Door finish 304 stainless steel/Panel ready
Lighting White LED
Controls Electronic control with whith LED readout
Top Drawer
Total capacity >54 cans (12 oz)
Temperature Range 34 to 64 °F
Shelving 3 adjustable stainless steel dividers
Bottom Drawer
Total capacity 59 cans (12 oz)
Temperature Range 34 to 64 °F
Shelving 1 fixed tubular divider
Electrical Min. circuit
15 A
Carbon filter
L00114-1
PRO Handle Kit KIT0200025 (2 kits needed for both drawers)
Others Anti damping system Sabbath mode Anti vibration technology Soft closing drawers Smart storage Full extension drawers with telescopic rollers Panel Ready
Features
Open door alarm Smart storage Quiet operation Eco-mode EPC technology Panel ready
EBDS52SS1
Wine Center
SINGLE DOOR SINGLE ZONE
EBS31SS1
Width 15”
Dimension 14 ¹⁵/16”W x 34 ¹/4”H x 22 ⁵/16”D
Weight 99 lbs
Installation type Built-in and free standing
Volume 2.9 cu ft (83L)
Sound level 40 dBA
Door finish
Hinge design
Lighting
Controls
304 stainless steel + tempered glass
Concealed
3 level white LED
Capacitive touch display with white numbers
Reversible door Yes
Cooling zone - Wines
Total capacity 27 bottles of wine (25 oz)
Temperature Range 34 to 65 °F
Shelving 6 full extension racks of beechwood with metal front trim
Electrical
Min. circuit required 15 A
AC Power 110 - 120 V /60 Hz
Amperage 1.25 A Plug Type B
Carbon filter
L00114-1
PRO Handle Kit KIT0175505
Features
Quiet operation
Eco-mode
EPC technology
Beverage & Wine Center
SINGLE DOOR SINGLE ZONE EBS31SS1
Width 15”
Dimension 14 ¹⁵/16”W x 34 ¹/4”H x 22 5/16”D
Weight 99 lbs
Installation type Built-in and free standing
Volume
2.9 cu ft (86L)
Sound level 40 dBA
Door finish
Hinge design
304 stainless steel + tempered glass
Concealed
Lighting 3 level white LED
Controls
Capacitive touch display with white numbers
Reversible door Yes
Cooling zone - Beverages
Total capacity 77 cans & 4 bottles of wine
Temperature Range 34 to 65 °F
Shelving 1 full extension beechwood wine shelves with metal front trim 2 adjustable slide-out tempered glass shelves with front trim
Electrical
Min. circuit required 15 A
AC Power 110 - 120 V /60 Hz
Amperage 1.25 A
EBS52SS1 EBS51SS1
Plug Type B
EBFS52SS1 EWS52SS1
Carbon filter
EBS52SS1
EBS51SS1
L00114-1
EBS52SS1 EBS51SS1
EBS52SS1 EBS51SS1
EWS52SS1
PRO Handle Kit KIT0175505
EBFS52SS1
Quiet operation
Concealed hinge
EBFS52SS1 EWS52SS1
EBFS52SS1 EWS52SS1
EPC technology
Quiet operation
Quiet operation
Open door alarm
Eco-mode
High e ciency carbon filters
Eco-mode
Open door alarm
Open door alarm
High e ciency carbon filters
High e ciency carbon filters
Eco-mode
Articulated hinge*
EPC technology
EPC technology
Concealed hinge
Open door alarm
Concealed hinge
Panel ready*
Concealed hinge
Articulated hinge*
Articulated hinge*
High e ciency carbon filters
Articulated hinge*
Panel ready*
Panel ready*
Panel ready*
Iconic series
Iconic line hoods are uniquely Italian, with a focus on design that makes a statement in any home, providing captivating beauty, complemented by innovative materials and technology that promotes curiosity, emotion and conversation.
Model Numbers
Color/material Stainless steel, White
Blower performance
355 CFM (3-speed + boost)
Controls Electronic push control with perimetral light
Lighting 3 LED Lights
Filter Aluminium grease filters + Perimeter aspiration
Installation type Recirculating
Installation
Sones (max-min) 1.3 - 6.0 sones
Others
Model
Color/material Mirror look stainless steel
Blower performance 400 CFM (4-speed)
Controls Remote control
Lighting 4 strip LED + LED disk
Filter Aluminium grease filters + perimeter aspiration
Installation type Recirculating only
Sones
0.4 - 5.0 sones
Others Timer

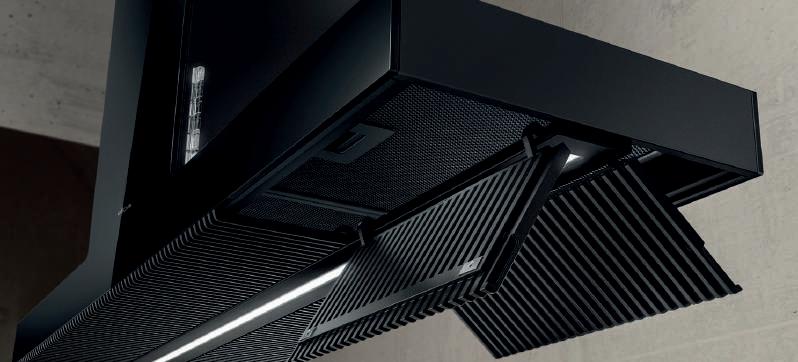

Haiku
Wallmount
Model Numbers
Width
Depth
EHK624SS, EHK636SS, EHK648SS
24”, 36”, 48”
Adjustable 12 ³/5” to 15”
Color/material Stainless steel
Blower 600 CFM (3-speed + boost)
Controls Sensitive touch control with backlight
Lighting Strip LED
Filter
Installation type
Sophisticated black iron grates + 6 layer mesh filters
Convertible with kit
Installation height For ceiling heights 7’3”9’10”(ducted) 7’3” - 10’1” (recirculating)
Transition 6” round
Sones (max-min)
Kits
Recirculating Kit
Features
1.8-6.8 sones
Haiku Color
Wallmount
Model Numbers
EHK636WH, EHK636BL
Width 36“
Depth
Adjustable 12 ³/5” to 15”
Color/material Black glass / White KRION®
Blower 600 CFM (3-speed + boost)
Controls Sensitive touch control with backlight
Lighting Strip LED
Filter
Installation type
Sophisticated black iron grates + 6 layer mesh filters
Convertible with kit
Installation height For ceiling heights 7’3“9’10”(ducted) 7’3“ - 10’1” (recirculating)
Transition 6” round
Sones (max-min) 1.8-6.8 sones
Kits
CFC0141725AUL
Haiku
Recirculating Kit
Features
EHK636WH
CFC0141725AUL
Haiku
Island
Model Numbers
EHI648SS, EHI670SS
Width 48”, 70”
Depth 13”
Color/material Stainless steel
Blower 600 CFM (3-speed + boost)
Controls Sensitive touch control with backlight
Lighting Strip LED
Filter Sophisticated black iron grates + 6 layer mesh filters
Installation type Convertible with kit
Installation height For ceiling heights 7’11”9’11”(ducted) 7’11” - 10’1” (recirculating)
Transition 6” round (top discharge)
Sones (max-min) 1.8 - 6.8 sones
Haiku
Color
Island
Model Numbers EHI648BL, EHI648WH
Width 48”
Depth 13”
Color/material Black glass / White KRION®
Blower 600 CFM (3-speed + boost)
Controls Sensitive touch control with backlight
Lighting Strip LED
Filter Sophisticated black iron grates + 6 layer mesh filters
Installation type Convertible with kit
Installation height For ceiling heights 7’3”9’10”(ducted) 7’3” - 10’1” (recirculating)
Transition 6” round (top discharge)
Sones (max-min) 1.8-6.8 sones
Kits Kits
Recirculating Kit
CFC0141725AUL
Recirculating Kit
Features Features
CFC0141725AUL
EHI648BL
Haiku Wallmount
Model Numbers
EHK613SS Width 13” Depth 12 ³/5” to 15”
Color/material
Stainless steel
Blower 600 CFM (3-speed + boost)
Controls Sensitive touch control with backlight
Lighting Strip LED
Filter Sophisticated black iron grates + 6 layer mesh filters
Installation type Convertible with kit
Installation height For ceiling heights 7’3”9’10”(ducted) 7’3” - 10’1” (recirculating)
Transition 6” round (top only)
Sones (max-min) 1.8 - 6.8 sones
Kits
Recirculating Kit
Features
CFC0141725AUL
Haiku Island
Model Numbers EHK613SS
Color/material
Stainless steel
Blower 600 CFM (3-speed + boost)
Controls Sensitive touch control with backlight
Lighting Strip LED
Filter
Sophisticated black iron grates + 6 layer mesh filters
Installation type Convertible with kit
Installation height For ceiling heights 7’3”9’10”(ducted) 7’3” - 10’1” (recirculating)
Transition 6” round (top only)
Sones (max-min) 1.8-6.8 sones
Kits
Recirculating Kit
Features
CFC0141725AUL

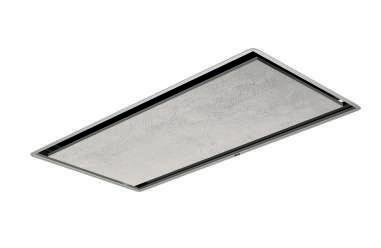

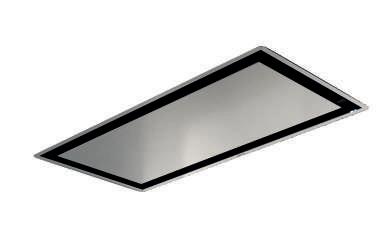

Illusion
Model Numbers
EIL640DW*, EIL640WH*
Width 40”
Depth 19 ¹¹/16”
Color/material
Naked Panel Ready Stainless Steel + Stainless Steel Frame Metal White with White Frame*
Blower 600 CFM (3-speed + boost)
Controls Remote control
Lighting Strip LED light with dimmable + tunable lighting
Filter
Installation type
Installation
Hilight Ceiling
Ceiling Illusion
Aluminum mesh filters + perimetral aspiration
Convertible with kit
height For ceiling heights up to 10’0”
Transition 6” round (multi directional)
Sones (max-min) 1.8 - 6.8 sones
Others Long strip LED Panel ready option
Kits
Recirculating Kit
White Remote Control
Black Remote Control
Features
Special materials
Total integration
Perimeter aspiration
Super easy installation
KIT0167875
KIT0121468
KIT0121469
Long life filter
Tune white
Dim light
Remote control
Model Numbers
EHL640SS, EHL640WH*
Width 40”
Depth 22”
Color/material
Stainless Steel Panel with Stainless Steel frame White Glass with Metal White Frame*
Blower 600 CFM (3-speed + boost)
Controls Remote control
Lighting Strip LED light with dimmable + tunable lighting
Filter
Installation type
Aluminum mesh filters + perimetral aspiration
Convertible with kit
Installation height For ceiling heights up to 10’0”
Transition 6” round (multi directional)
Sones (max-min) 1.8 - 6.8 sones
Others The white glass finish gives the appearance of being fully illuminated
Kits
Recirculating Kit
White Remote Control
Black Remote Control
Features
Special materials
Total integration
Perimeter aspiration
Super easy installation
KIT0167875
KIT0121468
KIT0121469

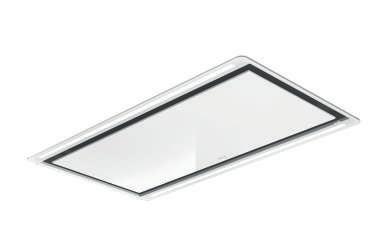

Hilight
Long life filter
Tune white
Dim light
Remote control

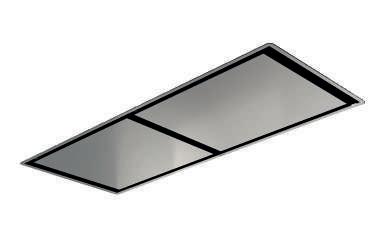

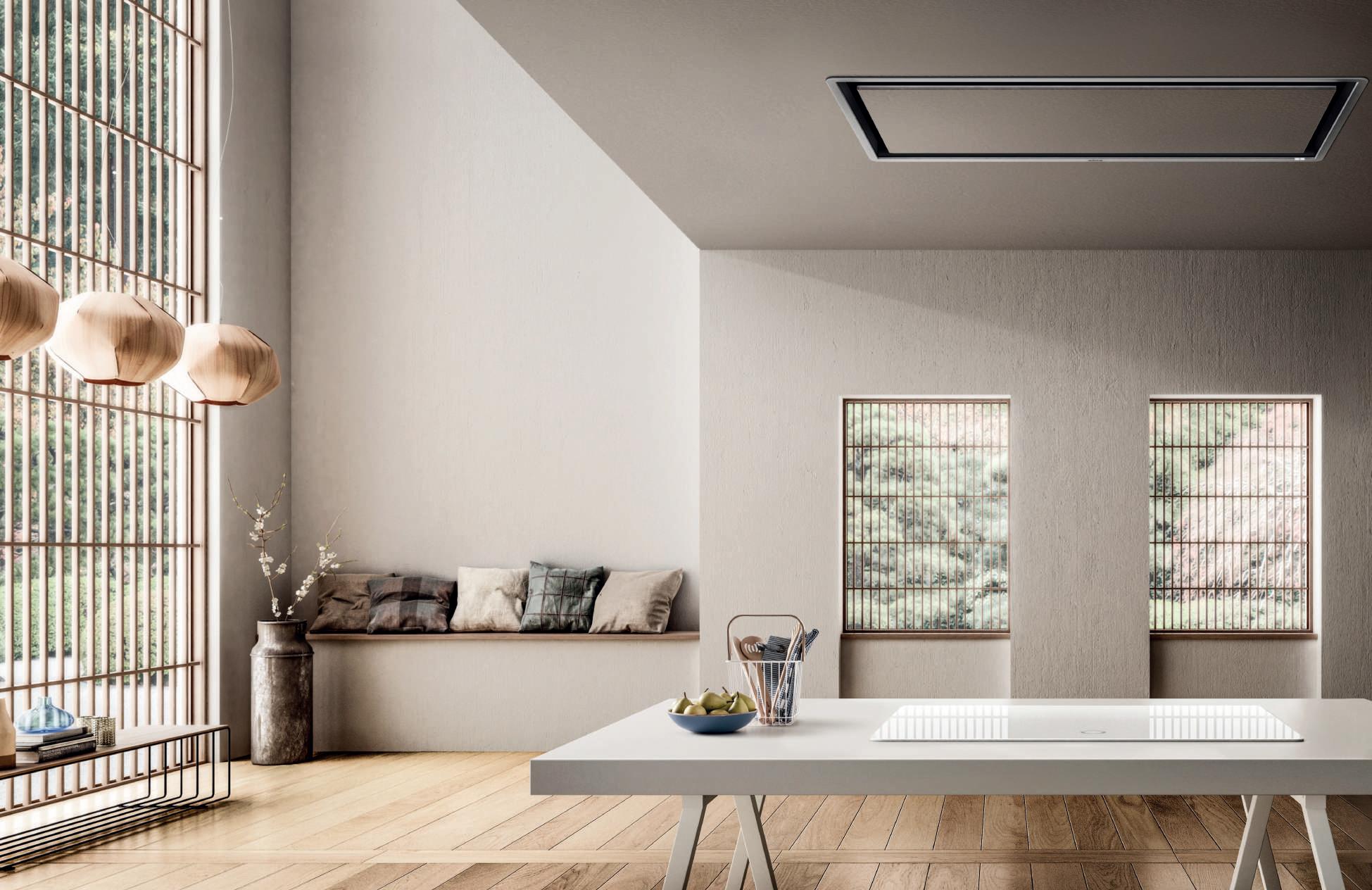

Cielo
Ceiling
Model Numbers
ECEX40SS, ECEX60SS*
Width 40”, 60”
Depth 20”, 24 ⁹/16”*
Color/material
Blower
Stainless Steel Panel and Frame with Panel Ready Capability
600 CFM / 1200 CFM (sold separately)
Controls Remote control
2 strip LED 14 W with dimmable and tunable lighting
Kits
1200 CFM External Blower Kit
1200 CFM Inline Blower Kit
1200 CFM Internal Blower Kit
Lighting
3 strip LED 14 W with dimmable and tunable lighting*
Filter Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration
Installation type
KIT0153054
KIT0154387
KIT0198146
600 CFM Internal Blower Kit KIT0198147
600 CFM Inline Blower Kit
White Remote Control
Black Remote Control
Recirculating Kit
CFM Reduction
Convertible with kit
Installation height For ceiling heights up to 10’0”
Transition
Round 6” multi directional (5 way for 600 CFM blower / 3 way for 1200 CFM blower)
Sones (max-min) 2 - 8 sones (600 CFM) 2.3 - 10.2 sones (1200 CFM)
Others Long strip LED Panel ready option
Features
Total integration
Perimeter aspiration
Super easy installation Remote control
Panel ready
KIT0198148
KIT0121468
KIT0121469
KIT0192765
600 CFM: KIT0185752
1200 CFM: KIT0185099
Disegno series
Elica’s statement hoods, inspired by traditional architecture. Disegno series combine performance and a bold design to complement the most exquisite kitchens. With seamless edges, mirrored stainless front rims, and decorative banding rivets deliver design to support those with a passion for gourmet cooking.

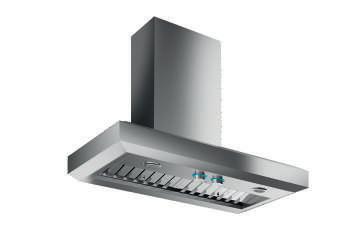

Catania 36”
Wallmount
Model Numbers
ECTX36SS
Catania 48”
Wallmount
Model Numbers
ECTX48SS
Color/material
Requires Trento insert
Stainless Steel + Front and Lateral Rim, Decorative Bands & Bolts Stainless Steel Mirror Look
ETR634SS, ETR134S1
Blower 600 CFM/1200 CFM

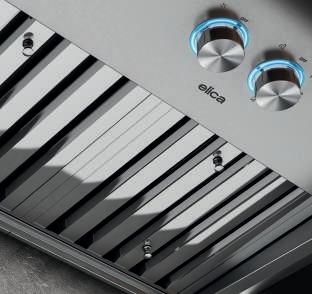

Controls Fully retractable rotating knobs with blue backlight
Lighting 2 LED lights
Filter
Installation type
Transition
Sones (max-min)
Dishwasher-safe, professional stainless steel angled baffle
Elica Easy Mounting
6”/8” Round with Back draft Damper (top & rear)
1.7 - 7.0 sones 1.7 - 8.5 sones
Color/material
Requires Trento insert
Blower
Stainless Steel + Front and Lateral Rim, Decorative Bands & Bolts Stainless Steel Mirror Look
ETR146SS
1200 CFM
Controls Fully retractable rotating knobs with blue backlight
Lighting 2 LED lights
Filter
Installation type
Dishwasher-safe, professional stainless steel angled baffle
Elica Easy Mounting
Transition 6”/8” Round with Back draft Damper (top & rear)
Sones (max-min) 1.7 - 8.5 sones
Kits
Duct cover extension 6” tall
KIT0182787
Duct cover extension 6” tall
Duct cover extension 18” tall
*Compatible with Trento Kits Kits
Features
Hush system
Heat guard
Seamless look
Grease collectors
KIT0182785
KIT0182786
Elica easy mounting
Top or rear outlet
Professional performance
Duct cover extension 18” tall
*Compatible with Trento Kits
Features
Hush system
Heat guard
Seamless look
Grease collectors
KIT0182788
DISEGNO
Elica easy mounting
Top or rear outlet
Professional performance
Oristano 36”
Oristano 48” Wallmount Wallmount
Model Numbers
EORX36SS
Model Numbers
EORX48SS
Color/material
Requires Arezzo insert
Stainless Steel + Front and Lateral Rim, Decorative Bands & Bolts Stainless Steel Mirror Look
EAR634SS, EAR134S4
Blower 600 CFM/1200 CFM
Controls Fully retractable rotating knobs with blue backlight
Lighting 2 LED lights
Filter
Installation type
Dishwasher-safe, professional stainless steel angled baffle
Elica Easy Mounting
Transition 6”/8” Round with Back draft Damper (top & rear)
Sones (max-min) 1.7 - 7.0 sones 1.7 - 8.5 sones
Kits
Duct cover extension 6” tall
Duct cover extension 18” tall
*Compatible with Arezzo Kits
Features
Hush system
Heat guard
Seamless look
Grease collectors
KIT0182781A
KIT0182782A
Elica easy mounting
Top or rear outlet
Professional performance
Color/material
Requires Arezzo insert
Stainless Steel + Front and Lateral Rim, Decorative Bands & Bolts Stainless Steel Mirror Look
EAR146S4
Controls 1200 CFM
Lighting Fully retractable rotating knobs with blue backlight
Filter 4 LED lights
Installation type Dishwasher-safe, professional stainless steel angled baffle
Installation height Elica Easy Mounting
Transition 6”/8” Round with Back draft Damper (top & rear)
Sones (max-min) 1.7 - 8.5 sones
Kits
Duct cover extension 6” tall
Duct cover extension 18” tall
*Compatible with Arezzo Kits
Features
Hush system
Heat guard
Seamless look
Grease collectors
KIT0182783A
KIT0182784A
DISEGNO
Elica easy mounting
Top or rear outlet
Professional performance
Torino black
Torino white Wallmount Wallmount
Model Numbers
ETNX36BL, ETNX48BL
48”
Model Numbers
ETNX36WH, ETNX48WH Width 36”, 48”
Color/material Matte Black with Stainless steel front trim
Requires Trento insert
Blower
EAR634SS(36”),EAR134S4(36”), EAR146S4(48”)
600 CFM/1200 CFM
Controls Fully retractable rotating knobs with blue backlight
Lighting
Filter
Installation type
Transition
Sones (max-min)
Kits
36”: 2 LED lights
48”: 4 LED lights
Dishwasher-safe, professional stainless steel angled baffle
Elica Easy Mounting
6”/8” Round with Back draft Damper (top & rear)
600 CFM: 1.7 - 7.0 sones
1200 CFM: 1.7 - 8.5 sones
Duct cover extension 6"(36") KIT0202859
Duct cover extension 18”(36”) KIT0203032
Duct cover extension 6”(48”) KIT0203030
Duct cover extension 18”(48”) KIT0203029
*Compatible with Arezzo Kits
Features
Hush system
Heat guard
Seamless look
Grease collectors
Elica easy mounting
Top or rear outlet
Professional performance
Color/material regular steel painted in customizable white matte
Requires Trento insert
Controls
EAR634SS(36”),EAR134S4(36”), EAR146S4(48”)
600 CFM/1200 CFM
Lighting Fully retractable rotating knobswith blue backlight
Filter
Installation type
36”: 2 LED lights
48”: 4 LED lights
Dishwasher-safe, professional stainless steel angled baffle
Installation height Elica Easy Mounting
Transition
Sones (max-min)
Kits
6”/8” Round with Back draft Damper (top & rear)
600 CFM: 1.7 - 7.0 sones
1200 CFM: 1.7 - 8.5 sones
Duct cover extension 6"(36") KIT0203068
Duct cover extension 18”(36”) KIT0203070
Duct cover extension 6”(48”) KIT0203069
Duct cover extension 18”(48”) KIT0203071
*Compatible with Arezzo Kits
Features
Hush system
Heat guard
Seamless look
Grease collectors
Elica easy mounting
Top or rear outlet
Professional performance
Disegno series plus features
Allowing flexibility with dual venting options. Choose between top or rear ducting to suit your kitchen’s layout and design. This feature ensures a seamless installation, allowing you to adapt the hood to your space with ease.
Elica easy mounting
Elica’s patented Easy Mounting System enables hood installation to be done in 6 easy steps, without ladders, without the added cost of purchasing a specialized duct transition, and without the added cost of purchasing a duct cover to hide ducting connection points.
Techne series
Techne Line brings everyday Italian living into your kitchen, featuring inspirational classic Italian designs, loaded with functional technologies that deliver convenience and high performance. Techne hoods come equipped with powerful blowers, hush sound suppression system, elegant glass touch countrols and the possibility to set the desired ilumination mood with long life LED lighting, where temperature and luminosity can be dimmed and adjusted.

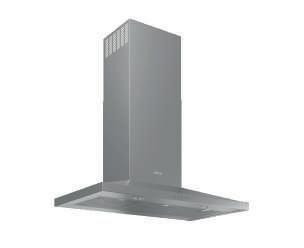

Como
Wall mount
Model Numbers
ECM630S3, ECM636S3
Width 30”, 36”
Depth 19 ¹¹/16”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Installation height
Dishwasher-safe, anodized stainless steel microhole filters
Convertible with kit
For ceiling heights 7’6”10’2” (ducted) 7’10” - 10’5” (recirculating)
Transition 6” round
Sones (max-min) 1.7 - 6.8 sones
Kits
Recirculating Kit
Long Chimney extension
Features
Hush system
Top performance
CFM reduction system
KIT02721
KIT0100315
Dim light
Touch controls
Led light
Cingoli Island
Model Numbers
ECN636S3, ECN642S3
Width 36”, 42“
Depth 25 ¹/4”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost)with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Dishwasher-Safe, stainless steel microhole grease filters
Convertible with kit
Installation height For ceiling heights 7’6”-9’8” (ducted) 7’6” - 10’1” (recirculating)
Transition 6” round (top only)
Sones (max-min) 1.7 - 6.8 sones
Kits
Recirculating Kit
Cingoli Como
KIT02665
KIT0100317
Modena Foglia
Long Chimney extension
Mezzano Maggiore
Varna
Features
Hush system
Top performance CFM reduction system
Dim light
Touch controls
Led light
Cingoli
Como
Mezzano Maggiore
Modena
Foglia
Varna
Mezzano Wall mount
Model Numbers
EMZ630S3, EMZ636S3
Width 30”, 36”
Depth 19 ¹¹/16”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Installation height
Dishwasher-safe, stainless steel microhole filters
Convertible with kit
For ceiling heights 7’6”10’2”(ducted) 7’10” - 10’6” (recirculating)
Transition 6” round
Sones (max-min) 1.7 - 6.8 sones
Kits
Recirculating Kit
Long Chimney extension
Features
Hush system
Top performance
CFM reduction system
KIT0184663
KIT02785
Dim light
Touch controls
Led light

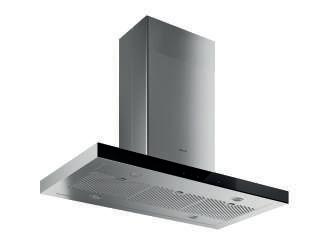

Maggiore Island
Model Numbers
EMG636S1, EMG642S1
Width 36”, 42”
Depth 27 ¹/8”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 4 LED premium dimmable lights
Filter
Installation type
Dishwasher-safe, stainless steel microhole filters
Convertible with kit
Installation height For ceiling heights 7’6”9’9” (ducted) 7’6” - 10’2” (recirculating)
Transition 6” round Sones (max-min) 1.7 - 6.8 sones
Kits
Recirculating Kit
Cingoli Como
Long Chimney extension
Mezzano
Varna
Features
Hush system
Top performance
CFM reduction system
KIT02665
KIT0100317
Dim light
Touch controls
Led light
Cingoli
Como
Mezzano Maggiore
Modena
Foglia
Varna
Lugano
Wall mount
Model Numbers
ELG630S3, ELG636S3
Width 30”, 36”
Depth 19 ⁷/8”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Installation height
Aluminum mesh filter + Perimeter aspiration
Convertible with kit
For ceiling heights 7’0”9’2”(ducted) 7’5” - 9’6” (recirculating)
Transition 6” round
Sones (max-min) 1.3 - 6.8 sones
Kits
Recirculating Kit
Long Chimney extension
Features
Hush system
Top performance
Perimeter aspiration
CFM reduction system

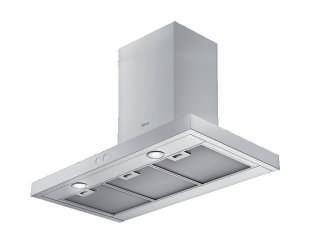

Salice
Island
Model Numbers
Width
ESL636S3, ESL642S3
36”, 42”
Depth 27 ⁷/16”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 4 LED premium dimmable lights
Filter
Installation type
KIT0141925
Lugano
KIT02785
KIT01935
Dim light
Touch controls
Led light
Aluminum mesh filter + Perimeter aspiration
Convertible with kit
Installation height For ceiling heights 7’9”9’11” (ducted) 7’9” - 10’4” (recirculating)
Transition 6” round
Sones (max-min) 1.7 - 6.8 sones
Kits
Recirculating Kit
Long Chimney extension
Features
Hush system
Top performance
Perimeter aspiration
CFM reduction system
KIT0141924
KIT0100317
Lugano
Dim light
Touch controls
Led light
Varna
Wall mount
Model Numbers
EVR630S2, EVR636S2
Width 30”, 36”
Depth 19 ⁷/16”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Installation height
Dishwasher-safe, stainless steel microhole filters
Convertible with kit
For ceiling heights 7’5”9’2”(ducted) 7’5” - 9’6” (recirculating)
Transition 6” round (top only)
Sones (max-min) 0.4 - 5.2 sones
Kits
Recirculating Kit
Long Chimney extension
Features
Hush system
Top performance
CFM reduction system
KIT02766
KIT02762
Dim light
Touch controls
Led light
Foglia
Wall mount
Model Numbers
EFG630S1, EFG636S1
Width 30”, 36”
Depth 19 ¹¹/16”
Color/material
Blower performance
Stainless Steel + Black Tempered Glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Dishwasher-safe, stainless steel microhole filters
Convertible with kit
Installation height For ceiling heights 7’5”9’2” (ducted) 7’5” - 9’6” (recirculating)
Transition 6” round(top only)
Sones (max-min)
Kits
Cingoli
Como
Recirculating Kit
Foglia
Maggiore
Mezzano
Long Chimney extension
Modena
Varna
Features
Hush system
Top performance
CFM reduction system
1.7 - 6.8 sones
KIT02766
KIT02784
Dim light
Touch controls
Led light
Cingoli
Como
Mezzano Maggiore
Modena
Foglia
Varna
Aria Undercabinet
Model Numbers
EAI430SS, EAI436SS
Width 30”, 36”
Depth 20”
Color/material
Blower performance
Stainless steel + black tempered glass
400 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Transition
Stainless Steel Baffle Slot Filters
Convertible with kit
3 1/4” x 10” top / Rear or 7” round top (sold separately)
Sones (max-min) 1.0 - 5.0 sones
Kits
CFM Reduction Kit
30”: KIT02178
36”: KIT02179
Back draft damper 7” round KIT02723
Features
Semi ba e filter Led light
CFM reduction system
Dim light
Touch controls
Modena Undercabinet
Model Numbers
Width
EMD530S3, EMD536S3
30”, 36”
Depth 19 ⁵/8”
Color/material
Blower performance
Stainless steel + black tempered glass
600 CFM (3-speed + boost) with CRS System to limit CFM
Controls Multi-function Electronic with black glass touch display
Lighting 2 LED premium dimmable lights
Filter
Installation type
Transition
Aria
Dishwasher-safe stainless steel microhole filters
Convertible with kit
3 1/4”x 10” rectangular (rear outlet) or 6”round (top outlet)
Sones (max-min) 1.3 - 6.8 sones
KIT02667 Kits
Recirculating Kit
Features
Hush system
Top performance
CFM reduction system
Dim light
Touch controls
Cingoli Como
Mezzano Maggiore
Modena Foglia Varna
Umbria Insert Umbria
Model Numbers
EUM628SS,EUM628S1*, EUM634S1*,EUM634SS
Width 28”, 34” Depth 10 ³/4”
Color/material
Blower performance
Stainless steel
600 CFM (3-Speed)
Controls Stainless Steel Push Buttons
Lighting 2 LED premium dimmable lights
Filter
Installation type
Anodized Aluminum, Mesh Filter + Perimeter Aspiration
Convertible with kit
Transition 6“ round (top or rear*/top)
Sones (max-min) 1.7 - 6.8 sones
Kits
Recirculating Kit
CFM Reduction Kit
Optional 30” hood liner
Optional 36” hood liner
Features
KIT02770
KIT0175561
28”:KIT02773
34”:KIT02774
Palermo Insert
Model Numbers
EPR628S1, EPR628S2*, EPR634S1*,EPR634SS
Width 28”, 34”
Depth 10 ³/4”
Color/material Stainless steel
Blower performance
600 CFM (3-speed)
Controls Stainless steel push buttons
Lighting 2 LED premium dimmable lights
Filter
Installation type
Dishwasher-safe, stainless steel baffle slot filters
Convertible with kit
Transition 6” round (top or rear*/top)
Sones (max-min) 1.7 - 6.8 sones
Kits
Recirculating Kit
CFM Reduction Kit
Optional 30” hood liner
Optional 36” hood liner
Features
KIT02770
KIT0175561
28”:KIT02773
34”:KIT02774
Top or rear outlet
Super easy installation
Model Numbers
ERS630S1, ERS636S1
Width 30”, 36”
Depth 2 ¹/2”
Color/material Stainless steel
Blower performance 600 CFM (3-speed + boost)
Controls External electronic rotating disk
Filter Dishwasher-Safe, Aluminum mesh filter + Perimeter aspiration
Installation type Ducted installation only
Transition 3 ¹/4” x 10” rectangular or round 6” discharge (3 way directional)
Sones (max-min) 1.7 - 6.8 sones Features CFM Reduction kit
Techne series plus features
Top performance
Models equipped with this feature offer excellent performance, with a high fume-capturing capacity and an average aspiration rate of 600 CFM, all while maintaining low noise levels of 1.2 to 1.7 sones at operating speed.
Super easy installation
Experience a seamless installation that combines simplicity and precision. Our system ensures a secure fit with minimal effort, while offering fine adjustments for a flawless, aesthetically pleasing result.
This extraction system is distributed along the entire perimeter of the hood, delivering exceptional efficiency. A concealed panel covers the extraction area, adding a touch of pure elegance to your kitchen hood.
Perimeter aspiration CFM reduction system
Enables users to reduce directly the maximum blower CFM to meet local code requirements.

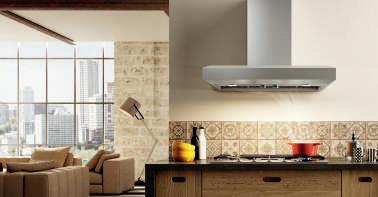

PRO series
For those inspired by the culinary arts and gourmet cooking, Elica Pro line range hoods deliver professional style cooking, with bold design coupled with unparalleled durability, quality and high performance that top chefs desire.
Leone Is Island Leone
Wall mount
Model Numbers
ELN630S2, ELN636SS, ELN136S2, ELN142S2, ELN148SS
Width 30”, 36”, 42”, 48”
Depth 24”
Color/material
Blower performance
Controls
Lighting
Filter
Installation type
Stainless steel
30”, 36”: 600 CFM (4-speed) 36”, 42”, 48”: 1200 CFM(4-speed)
Fully retractable rotating knobs with blue backlight
2 LED lights
Dishwasher-safe, professional stainless steel angled baffle
Convertible with kit
Installation height For ceiling heights 7’6”10’0”(over electric cooking), 8’0”-10’0”(over gas cooking)
Transition 6”/8” round (top)
Sones (max-min) 1.7 - 7.0 sones (600 CFM ) 1.7 - 8.5 sones (1200 CFM)
Kits
CFM Reduction Kit
KIT0185752,KIT0185099
Long Chimney extension KIT02785, KIT01935
1200 CFM External blower KIT0153054
1200 CFM Inline blower KIT0154387
Inline blower shell KIT0179549 (8”/10”) KIT0205342 (6”)
External blower shell KIT0179547 (8”/10”)
Recirculation filters
KIT0192765
6” Round deflector KIT0192767
8” Round deflector KIT0192759
Duct cover with grates KIT01936
Model Numbers
ELI136S2, ELI142S2
Width 36”, 42”
Depth 27”
Color/material
Blower performance
Controls
Stainless steel
1200 CFM (4-speed)
Fully retractable rotating knobs with blue backlight
Lighting 4 LED lights
Filter
Installation type
Dishwasher-safe, professional stainless steel angled baffle
Ducted installation only
Installation height For ceiling heights 7’9”9’10”(over electric cooking) 8’3” - 9’10” (over gas cooking)
Transition 8” round (top)
Sones (max-min) 1.7 - 8.5 sones
Kits
CFM Reduction Kit
KIT0185099
Long Chimney extension KIT0100317
Inline blower shell
KIT0179549(8”/10”)
External blower shell KIT0179547 (8”/10”)
Recirculation filters KIT0192765
Duct cover with grates KIT0205344
Features
Heat guard
Professional performance
Hush system Grease collectors
Seamless look
Vavano
Wall mount
Model Numbers
EVV636S1, EVV648S1
Width 36”, 48”
Depth 24”
Color/material Stainless steel
Blower performance
600 CFM (4-speed)
Controls Fully retractable rotating knobs with blue backlight
Lighting 2 LED lights
Filter
Installation type
Dishwasher-safe, professional stainless steel angled baffle
Convertible with kit
Installation height For ceiling heights 7’6”10’6”(over electric cooking), 8’0”-10’6”(over gas cooking)
Transition 6” round (top only)
Sones (max-min) 1.7 - 7.0 sones
Kits
1200 CFM Inline blower
1200 CFM External blower
Long Chimney Extension
600 CFM Inline shell
CFM Reduction kit
Recirculating filters
6” round deflector
Duct cover with grates
KIT0154387 (8”/10”)
KIT0153054 (8”/10”)
KIT0146881
KIT0205342
KIT0185752
KIT0192765
KIT0192767
KIT0184907
Vavano Is Island
Model Numbers
Width
EVI642S1, EVI648S1
42”, 48”
Depth 24”
Color/material Stainless steel
Blower performance
600 CFM (4-speed)
Controls Fully retractable rotating knobs with blue backlight
Lighting 4 LED lights
Filter
Installation type
Dishwasher-safe, professional stainless steel angled baffle
Ducted installation only
Installation height For ceiling heights 7’6”10’1”(over electric cooking) 8’0” - 10’1” (over gas cooking)
Transition 6” round (top)
Sones (max-min) 1.7 - 7.0 sones
Kits
1200 CFM Inline blower
1200 CFM External blower
Long Chimney Extension
CFM Reduction Kit
Recirculating filters
Duct Cover with grates
Features
Heat guard
KIT0154387
KIT0153054
KIT0145610
KIT0185752
KIT0192765
KIT0205345
Hush system Grease collectors
Professional performance
Seamless look
Calabria
Model Numbers
ECL630S4,ECL636SS,ECL136S4*, ECL142S4*,ECL148S4*
Width 30”, 36”, 42”, 48”
Depth 25”
Color/material
Blower performance
*duct extension available with kit
Kits
Wall mount calabria cervinia leone leone is vavano vavani is
Duct Cover Extension 6”
Stainless steel
30”,36”:600 CFM(4-speed)
36”,42”,48”:1200 CFM(4-speed)*
Controls Fully retractable rotating knobs with blue backlighting
Lighting
Filter
Installation type
30”,36” & 42”: 2 LED lights 48”: 4 LED lights
Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
Convertible with kit
Transition 6”/8”* with Back draft Damper(Top only)
Sones (max-min) 1.7 - 7.0 sones (600 CFM) 1.7 - 8.5 sones (1200 CFM)
Others Stackable ducts
Features
Hush system
Heat guard
Professional performance
Grease collectors
Seamless look
Duct Cover Extension 12”
Duct Cover Extension 6” with grates
Heat lamp w/2 75W bulbs
Stainless steel backsplash
30”:KIT02159
36”:KIT02158
42”:KIT02622
48”:KIT02164
30”:KIT02160
36”:KIT02161
42”:KIT02623
48”:KIT02165
30”:KIT0207167
36”:KIT0207164
42”:KIT0207169
48”:KIT0207171
30”:KIT0155106
36”:KIT0155107
42”:KIT0155110
48”:KIT0155111
30”:KIT0142864
36”:KIT0142867
42”:KIT0142868
48”:KIT0142870
1200 CFM Inline Blower KIT0154387(8”/10”)
1200 CFM External Blower KIT0153054(8”/10”)
Inline Blower Shell KIT0179549 (8”/10”) KIT0205342 (6”)
External Blower Shell KIT0179547 (8”/10”)
CFM Reduction
KIT0185099 (1200 CFM) KIT0185752 (600 CFM)
Recirculation Filters KIT0192765
8” Round deflector KIT0192763
6” Round deflector KIT0195736
Cervinia
Undercabinet
Model Numbers
ECV630S3, ECV636S3
Width 30”, 36”
Depth 23”
Color/material Stainless steel
Blower performance 600 CFM (4-speed)
Controls Fully retractable rotating knobs with blue backlighting
Lighting 2 LED lights
Filter
Installation type
Dishwasher-safe, professional stainless steel baffle
Convertible with kit
Transition 3 ¹/4 X 10” (top and rear)
Sones (max-min) 1.7 - 7.0 sones
Others Stackable ducts
Kits
1200 CFM Inline Blower Kit
KIT0154387
1200 CFM External Blower KIT0153054
CFM Reduction Kit KIT0185097
Duct Extension 6” KIT02159,KIT02158
Duct Extension 12” KIT02160,KIT02161
Duct cover with grates
Recirculation Filters
Stainless Backsplash
Features
Hush system
30”: KIT0207173
36”: KIT0207174
KIT02770
KIT0142864 KIT0142867
Arezzo
Insert
Model Numbers
EAR628S4, EAR634SS EAR134S4*, EAR140S4*, EAR146S4*
Width 28”, 34”, 40”, 46”
Depth 22”
Color/material Stainless steel
Blower performance 28”, 34”: 600 CFM (4-speed) 34”, 40”, 46”: 1200 CFM (4-speed)*
Controls Fully retractable rotating knobs with blue backlight
Lighting
Filter
Installation type
28”, 34”: 2 LED lights 40”, 46”: 4 LED lights
Dishwasher-safe, professional stainless steel angled baffle
Convertible with kit
Transition 6”/8”* round (top only)
Sones (max-min)
600 CFM: 1.7 - 7.0 sones
1200 CFM: 1.7 - 8.5 sones
Others Damp location approved
Kits
1200 CFM Inline Blower KIT0154387
1200 CFM External Blower KIT0153054
1200 CFM Inline Blower shell KIT0179549
1200 CFM External Blower shell KIT0179547
600 CFM Inline Blower shell
Recirculation Filters
KIT0205342
KIT0192765
8” Round deflector KIT0192763
6” Round deflector KIT0195736
CFM Reduction
KIT0185099(1200 CFM) KIT0185752(600 CFM)
Features
Hush system
arezzo trento scano
Professional performance
Grease collectors
Seamless look Heat guard
calabria cervinia leone leone is vavano vavani is
Professional performance
Grease collectors
Seamless look Heat guard
Super easy installation
Trento
Insert
Model Numbers
Width
ETR628SS, ETR634SS, ETR134S1*, ETR146SS*
28”, 34”, 46”
Depth 18”
Color/material Stainless steel
Blower performance
28”, 34”: 600 CFM (4-speed) 34”, 46”: 1200 CFM (4-speed)*
Controls Fully retractable rotating knobs with blue backlight
Lighting 2 LED lights
Filter
Dishwasher-safe, professional stainless steel baffle
Installation type Convertible with kit
Scanno Insert
Model Numbers
Width
ESC628SS, ESC134SS*, ESC128SS*, ESC146SS*
28”, 34”, 46"
Depth 15 ⁵/8”
Color/material Stainless steel
Blower performance
28”: 600 CFM (4-speed)
28”, 34”, 46”: 1200 CFM (4-speed)*
Controls Fully retractable rotating knobs with blue backlight
Lighting (28”, 34”) 2 LED lights (46”) 4 LED lights
Filter Dishwasher-safe, professional stainless steel baffle
Installation type
Convertible with kit
Transition 6”/8”* round (top only)
600 CFM: 1.7 - 7.0 sones
Transition 6”/8”* round (top only) Sones (max-min)
1200 CFM: 1.7 - 8.5 sones
Others Damp location approved
Kits
1200 CFM Inline Blower
KIT0154387
1200 CFM External Blower KIT0153054
1200 CFM Inline Blower shell KIT0179549
1200 CFM External Blower shell KIT0179547
600 CFM Inline Blower shell KIT0205342
Recirculation Filters
KIT0192765
8” Round deflector KIT0192763
6” Round deflector KIT0195736
CFM Reduction
Features
Hush system
Heat guard
Professional performance
Grease collectors
Seamless look
Super easy installation
KIT0185099(1200 CFM) KIT0185752(600 CFM)
Sones (max-min) 1.7 - 8.5 sones
Others Damp location approved
Kits
1200 CFM Inline Blower
KIT0154387
1200 CFM External Blower KIT0153054
1200 CFM Inline Blower shell KIT0179549
1200 CFM External Blower shell KIT0179547
600 CFM Inline Blower shell KIT0205342
Recirculation Filters KIT0192765
8” Round deflector KIT0192763
6” Round deflector KIT0195736
CFM Reduction KIT0185099(1200 CFM) KIT0185752(600 CFM)
Features
Hush system
Heat guard
Professional performance
Grease collectors
Seamless look
Super easy installation
arezzo trento scano
PRO series plus features
Grease collectors
A baffle stainless steel filter with a mesh backing allows air to flow through while trapping grease, which collects in the highcapacity baffle cavities.
Professional performance
Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s.
Hush system
An exclusive sound-deadening technology that effectively reduces sound levels by over 35%.
Heat guard
Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
Seamless look
Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
Outdoor series
Perfect BBQing is the result of a good combination between a grill and a powerful exterior hood. Our Outdoor line includes stainless steel grade 304 weather resistant materials, LED light and extra depth for better fume capturing, and it is even extendable with a spacer.
Capri
Wall mount
Model Numbers
ECP136SS, ECP148SS
Width 36”, 48”
Depth 32”
Color/material
Corrosion resistant 304 stainless steel
Blower performance Internal or external 1200 CFM (4-speed) sold separately
Controls Fully retractable rotating knobs with blue backlight
Lighting
Filter
36”: 2 LED lights 48”: 4 LED lights
Dishwasher-safe, professional stainless steel angled baffle filters
Installation type Ducted installation only
Transition 10” round (top or rear)
Sones (max-min) 1.7 - 8.5 sones
Others Stackable duct cover
Features
Kits
Telescopic Duct Cover 24”- 58” tall
KIT0205343
Spacer 36" KIT0153304
Spacer 48" KIT0153305
1200 CFM Inline Blower
KIT0154387
1200 CFM External Blower KIT0153054
1200 CFM Internal Blower KIT0156655
Duct Extension 12”
Duct Extension 6”
KIT0156645
KIT0156649
KIT0156637 KIT0156641
Professional performance
Grease collectors
Seamless look Heat guard
Capri
Comfort series
The Comfort line of range hoods features highly popular Italian design equipped with a core set of features that delivers functionality, performance, easy installation system and overall a very high level of value.
Potenza
Allasio Undercabinet
Model Numbers
Width
EAL330S1, EAL336S1, EAL330W1*, EAL330B1*
30”,36”
Depth 20”
Color/ material
Blower performance
Controls
30”, 36”: Stainless steel
30”: Black, white
300 CFM (3-speed)
Backlit Electronic Push Button Soft touch buttons w/blue illumination*
Lighting 2 LED lights
Filter
Installation type
Transition
Dishwasher-safe, anodized aluminum mesh
Convertible with kit
3 ¹/4“ x 10” top & rear or 7“ round top (sold separately)
Sones (max-min) 1.7 - 5.0 sones
Kits
Recirculating Kit 30"
Recirculating Kit 36"
Back Draft Damper 7"
Upgrade Filter 30”
Upgrade Filter 36"
Features
KIT02178
KIT02179
KIT02723
GRI0131086A
GRI0131087A
Nemi Undercabinet
Model Numbers
ENM230S1, ENM236S1 ENM230W1*, ENM230B1*
Width 30”, 36”
Depth
Color/material
Blower performance
18 ⁵/8”
30”, 36”: Stainless steel, 30”: Black, white
280 CFM (3-speed)
Controls Backlit Electronic Push Button Stainless Steel Push Button*
Lighting 2 LED lights
Filter
Installation type
Transition
Dishwasher-safe, anodized aluminum mesh
Convertible with kit
3 1/4” x 10” top & rear or 7” round top (sold separately)
Sones (max-min) 1.3 - 4.9 sones
Kits
Recirculating Kit
3x layer mesh Led light allasio gubbio nemi toblino volterra 3x layer mesh Led light
KIT02179
Back Draft Damper 7" KIT02723
Duct Transition 7" KIT02722
Features
Toblino 24”
Wall mount
Model Numbers
ETB424SS
Width 24”
Depth 19 ¹¹/16”
Color/material
Blower performance
Stainless steel
400 CFM (3-speed)
Controls Backlit electronic push buttons
Lighting 2 LED lights
Filter Dishwasher-safe, anodized aluminum mesh
Installation type
Convertible with kit
Installation height For ceiling heights 6’11”8’7”(ducted) 7’0” - 8’11” (recirculating)
Transition 6” round
Sones (max-min) 0.4 - 5.9 sones
Kits
Recirculating Kit
Chimney Extension Kit
Upgrade Filter
CFM Reduction Kit
Features
KIT0184663
KIT02785
KIT01935
GF04YB
KIT0175561
Toblino
Wall
Model Numbers
ETB430S3, ETB436S3
Width 30”, 36”
Depth 19 ¹¹/16”
Color/material
Blower performance
Stainless steel
400 CFM (4 -speed)
Controls Electronic Touch Buttons with adjustable color illumination
Lighting 2 LED lights (2 intensities)
Filter Dishwasher-safe, anodized aluminum mesh
Installation type
Convertible with kit
Installation height For ceiling heights 6’11”8’7”(ducted) 7’0”- 8’11” (recirculating)
Transition 6” round Sones (max-min) 0.4 - 5.9 sones
Kits
Recirculating Kit
Chimney Extension Kit
Upgrade filter
Features
KIT0184663
KIT02785
KIT01935
GF04YB
potenza
Potenza Volterra
Wall mount Wall mount
Model Numbers
EPT430S3, EPT436S3
Width 30”, 36“
Depth 19 ¹¹/16”
Color/material Stainless Steel
Blower performance
400 CFM (4-speed)
Controls Electronic Touch Controls with Adjustable Color Backlight
Lighting 2 LED lights (2 intensities)
Filter Dishwasher-safe, anodized aluminum mesh
Installation type
Convertible with kit
Installation height For ceiling heights 6’9”- 8’8” (ducted),7’0”-9’0” (recirculating)
Transition 6” round
Sones (max-min) 0.4 - 5.0 sones
Model Numbers EVL424SS, EVL430S2, EVL436S2
Width 24”, 30”, 36”
Depth 19 ¹¹/16”
Color/material Stainless steel
Blower performance
400 CFM (3-speed)
Controls Backlit electronic push buttons
Lighting 2 LED lights
Filter Dishwasher-safe anodized aluminum mesh
Installation type
Convertible with kit
Installation height For ceiling heights 7’5”9’2”(ducted) 7’5” - 9’6” (recirculating)
Transition 6” round (top)
Sones (max-min) 0.4 - 5.0 sones
Kits Kits
Recirculating Kit
Chimney Extension Kit
Upgrade filter
Features
KIT0102875
KIT0100315
KIT01609/1
GF04YB
Recirculating Kit
Chimney Extension Kit
CFM Reduction Kit
Upgrade filter
Features
KIT02766
KIT02762
KIT0175561
GF04YB
Bolsena
Wall mount
Model Numbers
Width
EBS630SS, EBS636SS
30”, 36”
Depth 19 ¹¹/16”
Color/material Stainless steel
Blower performance
600 CFM (4-speed)
Controls Electronic Touch Buttons with adjustable color backlight
Lighting 2 LED lights (2 intensities)
Filter Dishwasher-Safe, Stainless Steel Baffle Slot Filters
Installation type
Convertible with kit
Installation height For ceiling heights 7’5”9’2” (ducted),7’5” - 9’6” (recirculating)
Transition 6” round (top only)
Sones (max-min) 0.4 - 5.2 sones
Kits
Recirculating Kit
Chimney Extension Kit
Features
KIT02766
KIT02762
Lavello
Wall mount
Model Numbers
Width
ELV430SS, ELV436SS
30”, 36”
Depth 19 ¹¹/16”
Color/material Stainless steel
Blower performance
400 CFM (3-speed)
Controls Backlit Electronic Push Buttons
Lighting 2 LED lights
Filter
Installation type
Dishwasher Safe, Anodized Stainless Steel Mesh
Convertible with kit
Transition 6” round (top only)
Sones (max-min) 0.6 - 6.1 sones
Kits
Recirculating Kit
Chimney Extension Kit
CFM Reduction Kit
Features
KIT0102875
KIT02785
KIT01935
KIT0175561
Gubbio
Undercabinet
Model Numbers
EGB224SS
Width 24”
Depth 18 ⁷/8”
Color/material
Blower performance
Stainless steel
250 CFM (3-speed)
Controls Mechanical Slider
Lighting 2 LED lights
Filter
Installation type
Transition
Dish washer-safe, anodized aluminum mesh
Convertible with kit
3 ¹/4” x 10” top & rear or 7” round top
Sones (max-min) 0.4 - 4.5 sones
Kits
Recirculating kit
Back draft damper 7”
Duct transition 7”
Features
KIT0140997
KIT02723
KIT02722
Fusaro
Undercabinet
Model Numbers
EFS130SS,EFS130S1, EFS130BL, EFS130WH**
Width 30”
Depth 18 ⁵/8”
Color/material
Blower performance
Stainless Steel, Black or White
190 CFM (2-speed)
Controls Rocker Switches
Lighting Incandescent lamp (bulb not included)
Filter
Installation type
Dishwasher-safe, anodized aluminum mesh filter Double filter- grease anodized aluminum mesh filter & carbon filter**
Ducted* Recirculating**
Transition 3 ¹/4” x 10” top & rear or 7” round top (sold separately)
Sones (max-min) 0.3 - 4.1 sones
Kits
Duct transition 7”
Back draft damper 7”
Features
KIT02722
KIT02723
Sora
Undercabinet
Model Numbers
ESR430S1, ESR436S1
Width 30”, 36”
Depth 23”
Color/material Stainless steel
Blower performance
400 CFM (2-speed)
Controls Rocker switches
Lighting 2 LED lights
Filter
Dishwasher-safe, stainless steel baffle slot filter
Installation type Ducted or recirculating (kit sold separately)
Transition 3 1/4”x 10” (top & rear)
Sones (max-min) 0.4 - 5.0 sones
Kits
Recirculating kit
CFM Reduction kit
Features
KIT02770
KIT0175561
Kits Asti Insert
Model Numbers
EAS422SS,EAS422S1, EAS428S1,EAS428S2
Width 22”, 28”
Depth 10 ³/4”
Color/material
Blower performance
Stainless steel
400 CFM (3-speed)
Controls Backlit electronic push buttons
Lighting 2 LED lights
Filter
Dishwasher-safe, Anodized Aluminum Mesh Filter
Installation type Convertible with kit
Transition 6” round (top & rear)
Sones (max-min) 0.4 - 5.0 sones
Recirculating kit
CFM Reduction kit
30” hood liner
36” hood liner
Features
KIT02770
KIT0175561
KIT02773
KIT02774
Asti 300-28
Model Numbers EAS328SS, EAS328S1
Color/material Stainless steel
Blower performance 300 CFM (3-speed)
Controls Stainless steel push buttons
Lighting 2 LED lights
Filter Dishwasher-safe Anodized Aluminum Mesh
Installation type Convertible with kit
6” round (top & rear)
Color/material Stainless steel
Blower performance 400 CFM (3-speed)
Controls Mechanical push buttons
Lighting 2 LED lights
Filter
Dishwasher-safe, Anodized Aluminum Mesh Filter
Installation type Convertible with kit
Bellagio
Undercabinet
Model Numbers
Width
EBL430S2, EBL436S2
30”, 36”
Depth 20”
Color/material Stainless steel
Blower performance
400 CFM (4-speed)
Controls Electronic touch controls with adjustable color backlight
Lighting 2 LED lights
Filter
Installation type
Transition
Sones (max-min)
Kits
Recirculating kit
Upgrade filter kit
Dishwasher-safe, anodized aluminum mesh
Convertible with kit
3 1/4”x 10” top & rear or 7” round top (sold separately)
0.9 - 5.0 sones
KIT02178 KIT02179
30”: GRI0131086A
36”: GRI0131087A
7” Back draft damper KIT02723
Features
3x layer mesh Led light CFM reduction system
TT
Undercabinet
Model Numbers
Width
ETT424S1, ETT430SS, ETT436SS
24”, 30”, 36”
Depth 11”-17”
Color/material Stainless steel
Blower performance
400 CFM (3-speed)
Controls Hidden electronic touch controls
Lighting 2 LED lights
Filter
Installation type
Transition
Dishwasher-safe, anodized aluminum mesh
Convertible with kit
6” round (top)
Sones (max-min) 0.4 - 5.0 sones
Kits
Recirculating kit
CFC0038668
CFM Reduction kit KIT02748
6” Round deflector DF01EA
Features
3x layer mesh Led light potenza toblino bellagio
Elica exclusive features
We have developed appliances to enhance your kitchen experience, improving both your living space and cooking methods. Our advanced professional cooking solutions have been transformed into innovative, easy-to-use features tailored specifically for you.
Our household appliances are designed to maximize energy savings in both cooking and air extraction, making it easier for you to conserve energy and reduce consumption, especially in the kitchen.
Innovation in our product line allow us to offer the widest range of products available on the market in terms of types, size, design, layout and features.
We are ready to bet: there’s no way you won’t find the perfect solution for your kitchen.
A smart sensor detects the quantity of fumes and types of cooking, adjusting extraction power accordingly. A self-regulating system that gradually diminishes power once you finish cooking, getting rid of residual odours or humidity.
All the components, such as the grease and odor filters, can be easily accessed and removed so they can be washed or rapidly replaced. Making it a low-maintenance product.
E ciently disperse heat across longer or larger pans by combining two cooking areas into a single, larger zone, controlled by electronic touch controls. Experience consistent and uniform temperature distribution with the same power output.
All you need to do is set the minutes and the countdown starts. At the end, it will automatically switch the cooking zone o , emitting a sound signal. Just press the ‘touch’ control and independent timers will activate in more zones at the same time.
Multifunction electronic touch control behind sleek black glass illuminates red when activated.
To always ensure perfect cooking the cooktop can be used with two di erent standard programs. 107 F° for warming mode and 158 F° for melting mode
Protect the cooking and extraction areas from being accidentally switched on. The function can be enabled when the product is switched on but the cooking areas and extraction are switched o .
If the cooktop is accidentally switched o , the Recall feature is activated within 6 seconds: just one touch is all it takes to reset all of the previously set features, on all cooking zones and the ventilation system.
Cook using longer or larger pots & pans (up to 10” diameter), or prepare that special dish faster. Our high power levels surpass those of the average induction cooktops available on the market.
If you are interrupted while cooking, with just a single movement, pressing the Stop & Go button, you can switch o all the cooking zones and walk away with complete confidence and safety.
These filters have been designed to guarantee maximum performance and odour filtering e ciency far above than average filters. Thanks to their regenerating capacity, their durability is from 3 to 5 years. No more replacements, waste or troubles in their maintenance.
The smart timer feature enables you to schedule automatic shutdown of the product after a set duration. The delayed shutdown option allows you to keep the cooktop running even after cooking, e ectively eliminating stubborn odors and residual humidity.
The technology automatically detects the presence of pots in the cooking zone, activating a dedicated control. All you need to do is to select the power needed.
Our household appliances discreetly adapt to the design and features of your kitchen. The variety of solutions and finishing touches blend in perfectly whatever your taste in style may be.
Cooking
With this feature, you can adjust the lighting of your hood: bright light or dim light, as you prefer.
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
You can now regulate the LED colour tone of your hood from cold white to warm white. The colour of the light blends in perfectly with the other lights in your living space, thus creating a uniform atmosphere.
Our household appliances discreetly adapt to the design and features of your kitchen. The variety of solutions and finishing touches blend in perfectly whatever your taste in style may be.
The selection of beautiful materials that are functional, resistant and easy to clean, is our primary concern. The key factors for an appealing design, available in a wide range of colours and finishing touches, that perfectly fit in any kitchen space.
A warning light will switch on to signal out to you that grease filters and odor filters have reached their maximum saturation point. It’s time for you to wash or replace them.
Models equipped with this feature o er excellent performance, with a high fume-capturing capacity and an average aspiration rate of 600 CFM, all while maintaining low noise levels of 1.2 to 1.7 sones at operating speed.
Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s.
Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
Hoods
Aluminum mesh filters are steps above competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh.
A ba e stainless steel filter with a mesh backing allows air to flow through while trapping grease, which collects in the high-capacity ba e cavities.
Professional grade Stainless Steel Ba e Filters designed for high airflow cooking, trap volumes of grease which are collected in trays for easy removal and cleaning.
This extraction system is distributed along the entire perimeter of the hood, delivering exceptional e ciency. A concealed panel covers the extraction area, adding a touch of pure elegance to your kitchen hood.
Our easy to maintain odour filters, are now even more green: washable and regenerable, with a durability up to 3 years (as compared to -3/6 months of average filters on the market).
Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
Allowing flexibility with dual venting options. Choose between top or rear ducting to suit your kitchen's layout and design. This feature ensures a seamless installation, allowing you to adapt the hood to your space with ease.
Experience a seamless installation that combines simplicity and precision. Our system ensures a secure fit with minimal e ort, while o ering fine adjustments for a flawless, aesthetically pleasing result.
Seamlessly integrate your Elica product into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation, making it a perfect choice for those who value functionality and aesthetics.
Elica's patented Easy Mounting System simplifies hood installation with easy steps, eliminating the need for specialized duct transition purchases, or duct cover expenses to conceal connection points.
Seamlessly integrate your Elica product into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation, making it a perfect choice for those who value functionality and aesthetics.
An exclusive sound-deadening technology that e ectively reduces sound levels by over 35%
Elica's patented Easy Mounting System simplifies hood installation with easy steps, eliminating the need for specialized duct transition purchases, or duct cover expenses to conceal connection points.
An exclusive sound-deadening technology that e ectively reduces sound levels by over 35%
To save energy and ensure proper preservation of your beverages, all Elica Undercabinet Refrigeration products come with a Door-Open Alarm, that will repeatedly beep when the door has been left ajar for longer than 5 minutes.
Enables users to reduce directly the maximum blower CFM to meet local code requirements.
With this timer, you can set the automatic switching o of the hood following a prefixed time. Keeping it on even after having cooked will eliminate any odours or humidity. It’ll switch o on its own anyway!
Enables users to reduce directly the maximum blower CFM to meet local code requirements.
ADA-compliant Remote Control provides added convenience to the user, as well as full-function access for those with limited mobility.
With this timer, you can set the automatic switching o of the hood following a prefixed time. Keeping it on even after having cooked will eliminate any odours or humidity. It’ll switch o on its own anyway!
ADA-compliant Remote Control provides added convenience to the user, as well as full-function access for those with limited mobility.
Refrigeration
Elica’s articulated hinge is ideal for maximizing accessibility and usability in modern kitchen designs, o ering versatility and e ciency in everyday use. It enables the refrigerator to have a zero clearance built in installation and a smooth and e ortless movement, allowing doors or panels to pivot or swing open with ease.
To save energy and ensure proper preservation of your beverages, all Elica Undercabinet Refrigeration products come with a Door-Open Alarm, that will repeatedly beep when the door has been left ajar for longer than 5 minutes.
Door hinges are hidden within the door and do not extend above the top of the door, allowing for a cleaner, more refined appearance, plus enabling the refrigerator to fit tighter within cabinetry.
Elica’s articulated hinge is ideal for maximizing accessibility and usability in modern kitchen designs, o ering versatility and e ciency in everyday use. It enables the refrigerator to have a zero clearance built in installation and a smooth and e ortless movement, allowing doors or panels to pivot or swing open with ease.
Seamlessly integrate your Elica product into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation, making it a perfect choice for those who value functionality and aesthetics.
Door hinges are hidden within the door and do not extend above the top of the door, allowing for a cleaner, more refined appearance, plus enabling the refrigerator to fit tighter within cabinetry.
Seamlessly integrate your Elica product into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation, making it a perfect choice for those who value functionality and aesthetics.
This feature allows easy accommodation of larger items while ensuring their security, ideal for any modern kitchen. The lower drawer is e ciently designed to maximize storage usage.
A speed-control motor reduces exterior sound levels while o ering high ventilation performance to keep the interior temperature and dampening any possible vibration that could disturb the preservation of the wine or beverages.
This feature allows easy accommodation of larger items while ensuring their security, ideal for any modern kitchen. The lower drawer is e ciently designed to maximize storage usage.
Sustainable and environmentally friendly: Eco-Mode will maintain optimum interior temperature while saving energy consumption by turning the lights OFF.
A speed-control motor reduces exterior sound levels while o ering high ventilation performance to keep the interior temperature and dampening any possible vibration that could disturb the preservation of the wine or beverages.
Double air duct cooling system. Elica’s Intelligent System comes with sensors that deliver a precise and consistent temperature & humidity evenly throughout the entire compartment so that all stored bottles are preserved under the same conditions.
Sustainable and environmentally friendly: Eco-Mode will maintain optimum interior temperature while saving energy consumption by turning the lights OFF.
Elica’s advanced Carbon Filters remove odors and other gaseous pollutants from the air, ensuring a fresh and pure environment.
Double air duct cooling system. Elica’s Intelligent System comes with sensors that deliver a precise and consistent temperature & humidity evenly throughout the entire compartment so that all stored bottles are preserved under the same conditions.
Elica’s advanced Carbon Filters remove odors and other gaseous pollutants from the air, ensuring a fresh and pure environment.
For U.S. A & Canada users only
Enjoy a standard two-year warranty, and receive an additional year by registering your induction cooktop on elica.com
To qualify for the valid warranty extension, please complete the form within three months of purchase.
https://www.elica.com/US-en
