CAPITOL PARK

POLISH HILL

Infill FIRST YEAR WORKS Charcoal Still Life ModelingandHandDrafting MISCELLANEOUS WORK Chordophone Mixed Media 01 04 05 06 MIZU Water Installation 02

Non-profitHomelessShelter 03

Art Museum Detroit, Michigan Pittsburgh, Pennsylvania Land

OKUHOMU

REALM

ART MUSEUM

ENRIQUE LEDESMA WINTER 2022, SECOND YEAR

Location - Capitol Park, Detroit, Michigan

An art museum communicating experiences through a series of exhibitions, allowing the human senses to take play. Drawing from the surouding Capitol Park historic site, four colours are taken as a reflection to the space. A diverse realm on each floor forming different reactions.

01

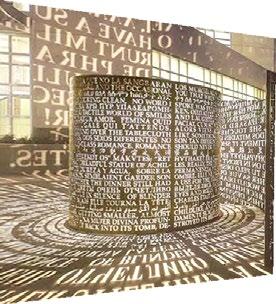

A book symbolizing series of paper that contain written stories and adventures

POLYCARBONATE CONCEPT

A book symbolizing series of paper that contain written stories and adventures

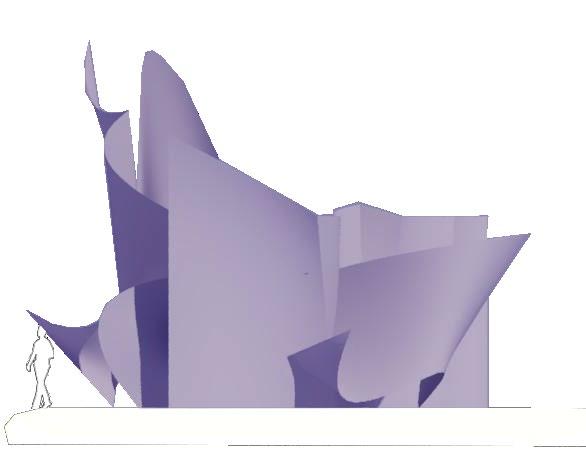

Folded “page” made into a wall

A book symbolizing series of paper that contain written stories and adventures

Folded “page” made into a wall

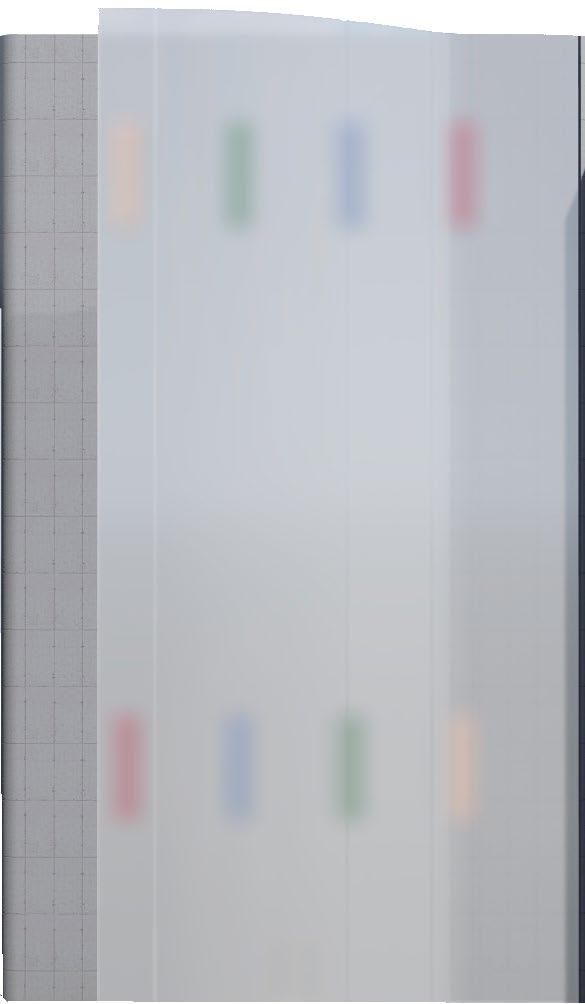

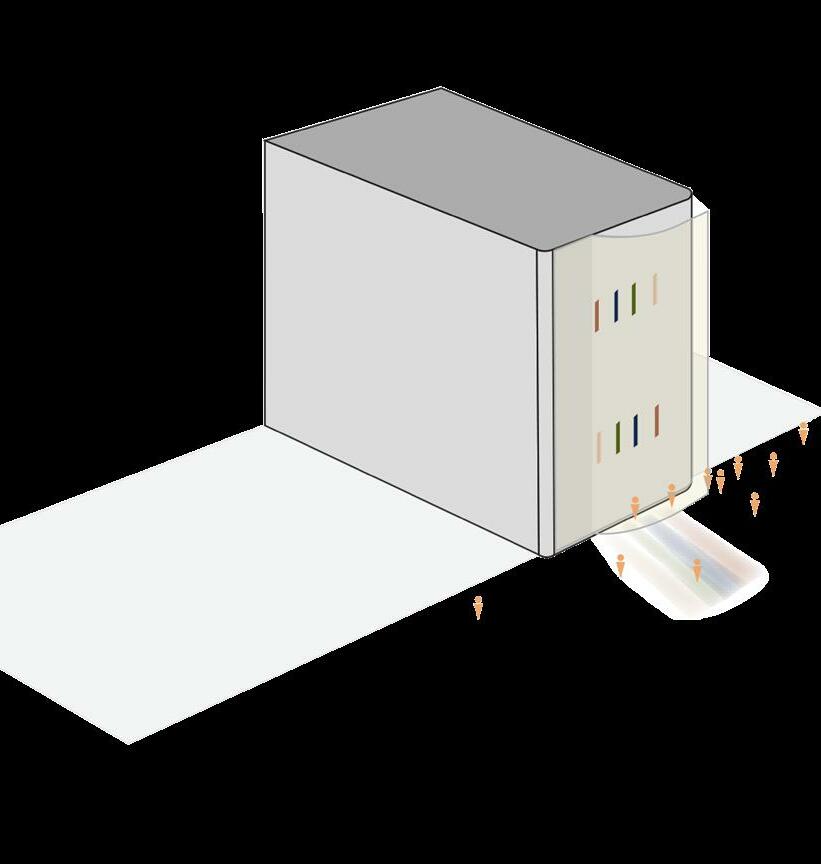

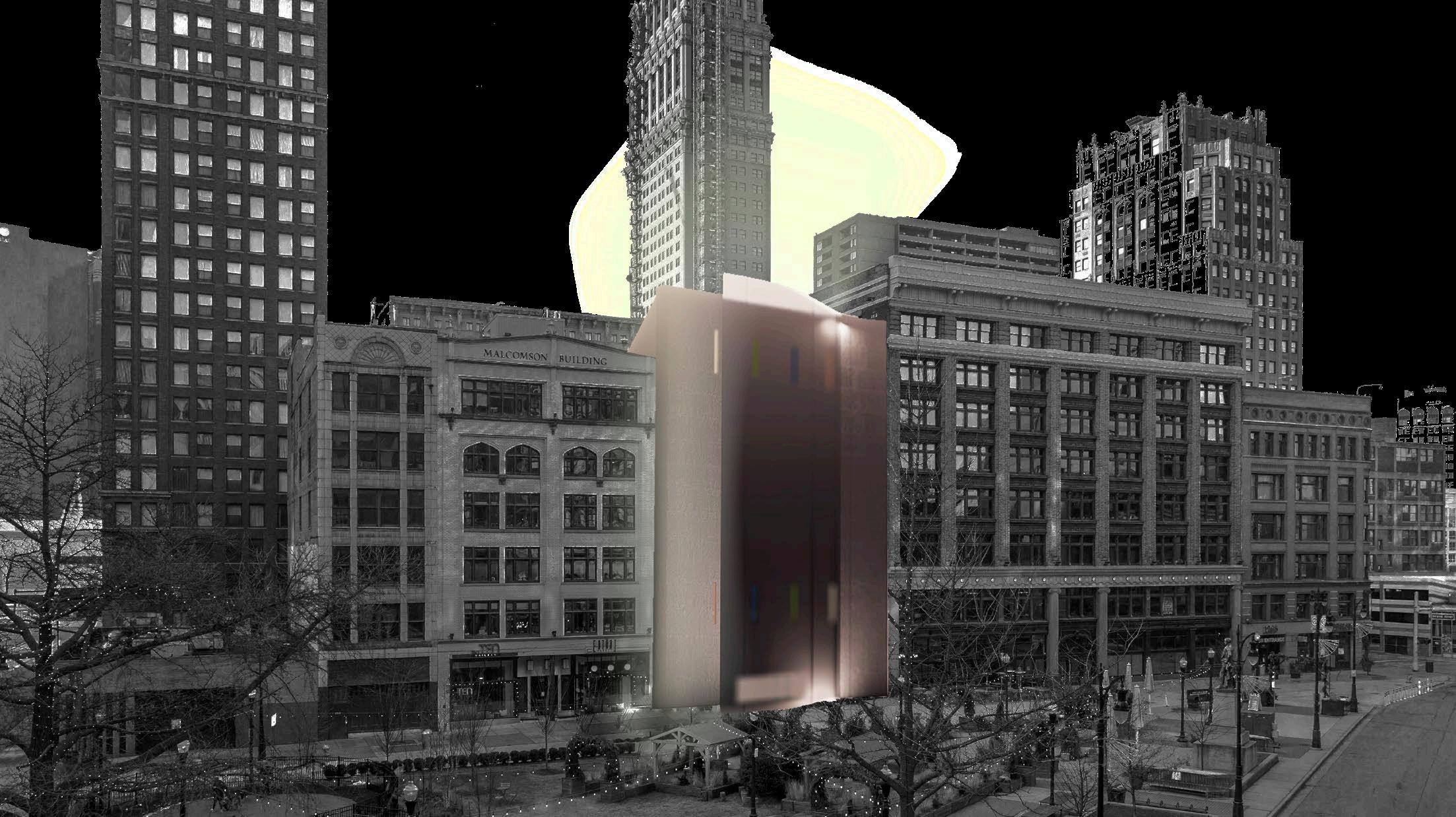

Polycarbonate used as material for day opaque and midnight transparency

COLORED GLASS CONCEPT

Polycarbonate used as material for day opaque and midnight transparency

FORM GENERATION

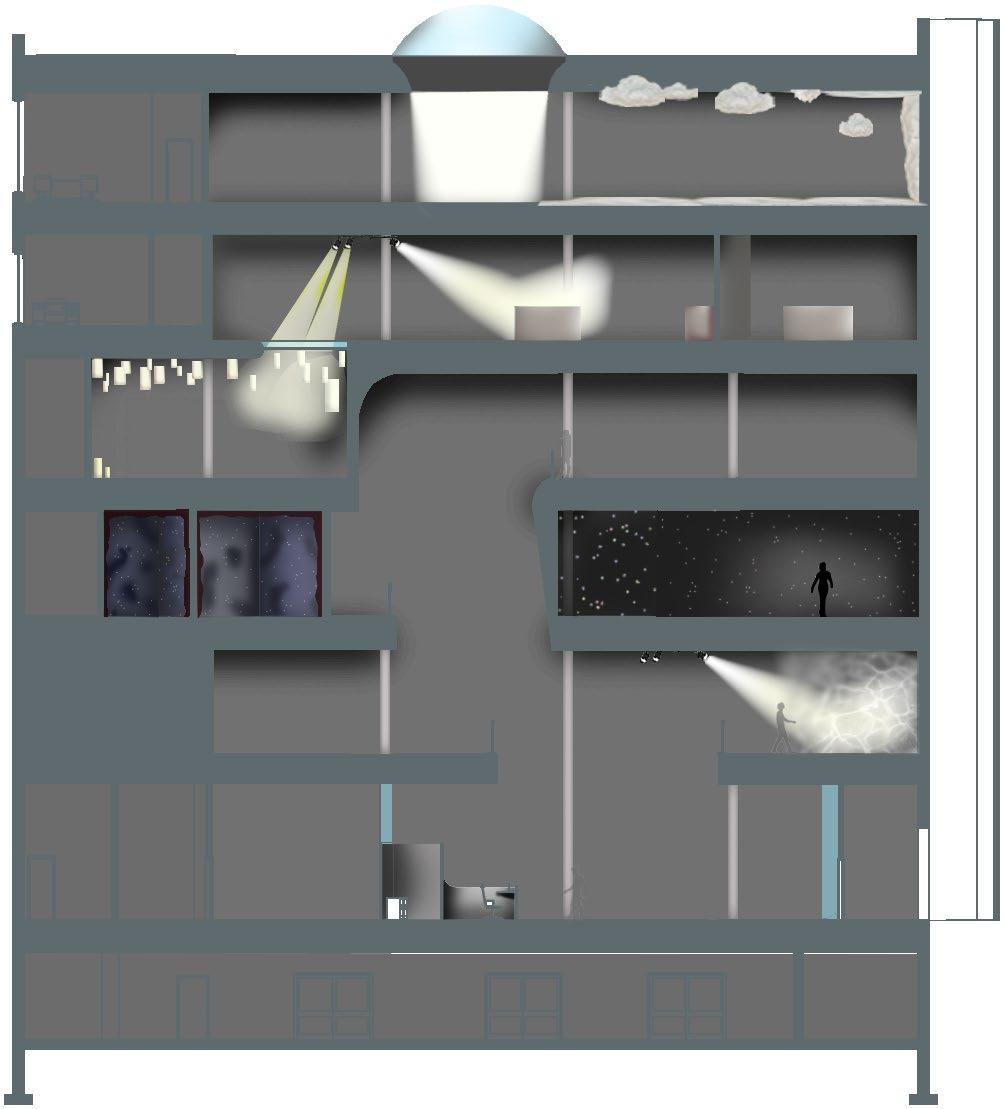

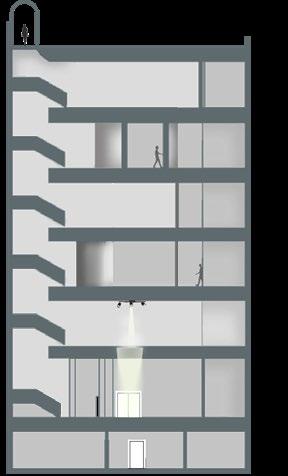

EXHIBITION SPACES

The human senses; vision and touch are embraced through each exhibition space. The vibrant colors are distributed throughout each space, with materials of touch enhances the users experience.

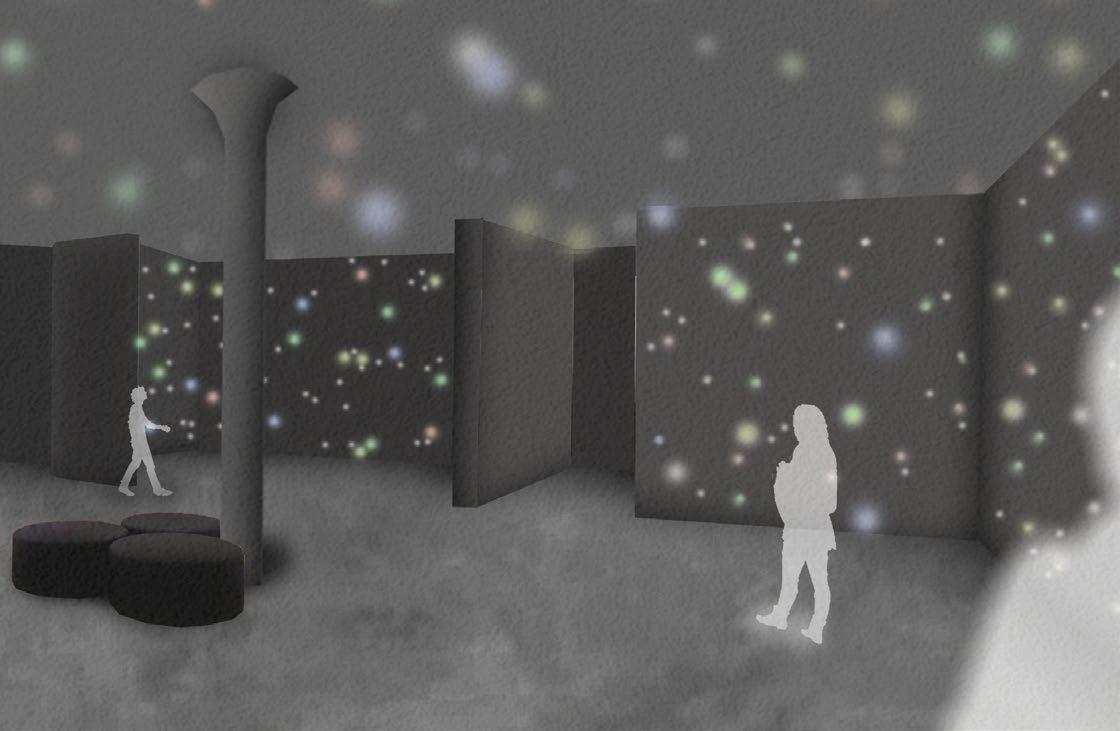

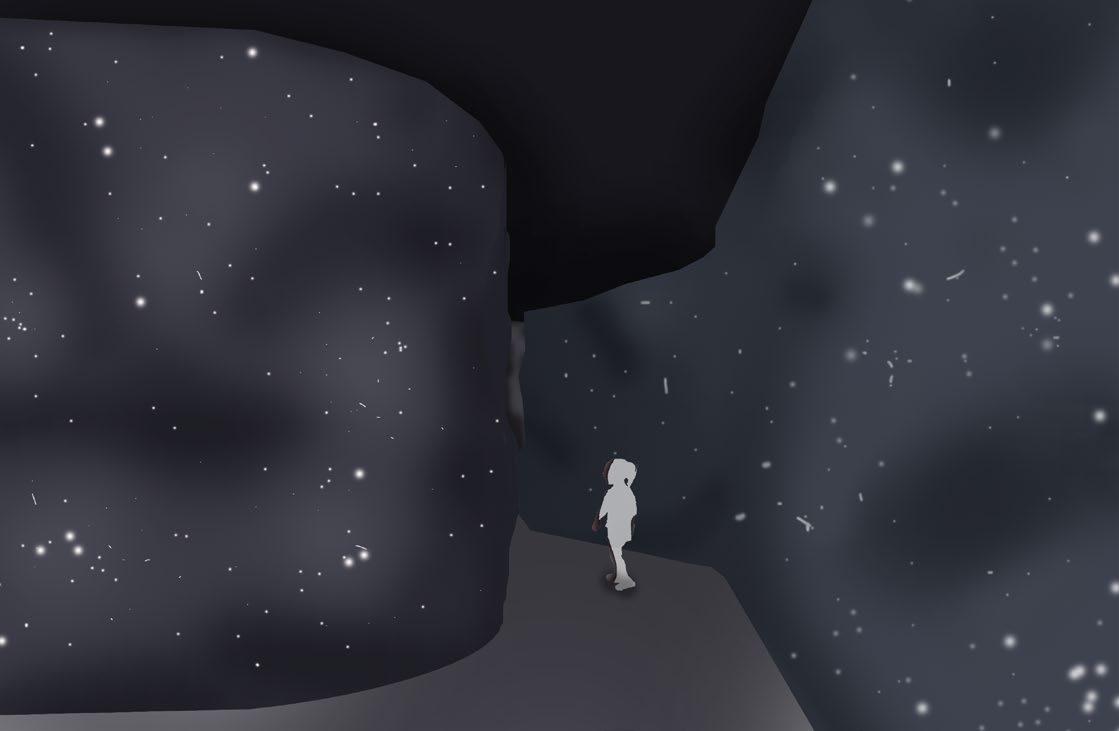

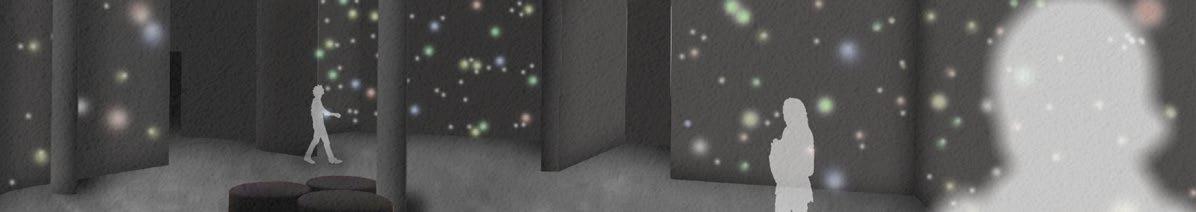

DARK TUNNEL FLOATING LIGHTS

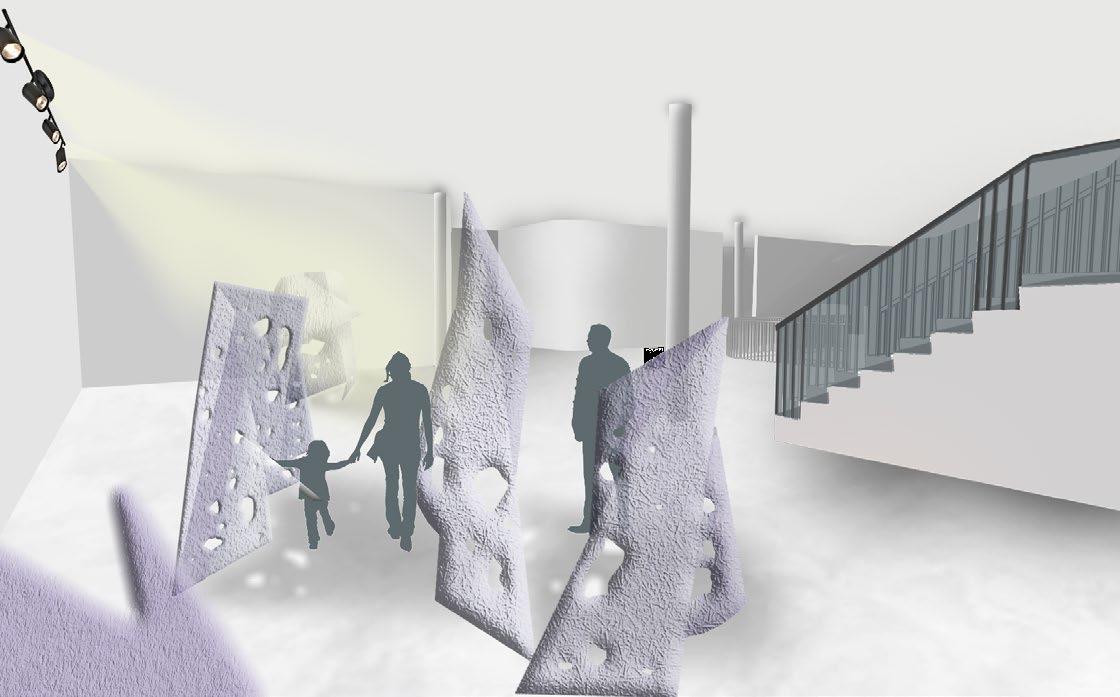

TEMPORARY EXHIBITION

Introduced to understanding and designing the structure and HVAC system for buildings.

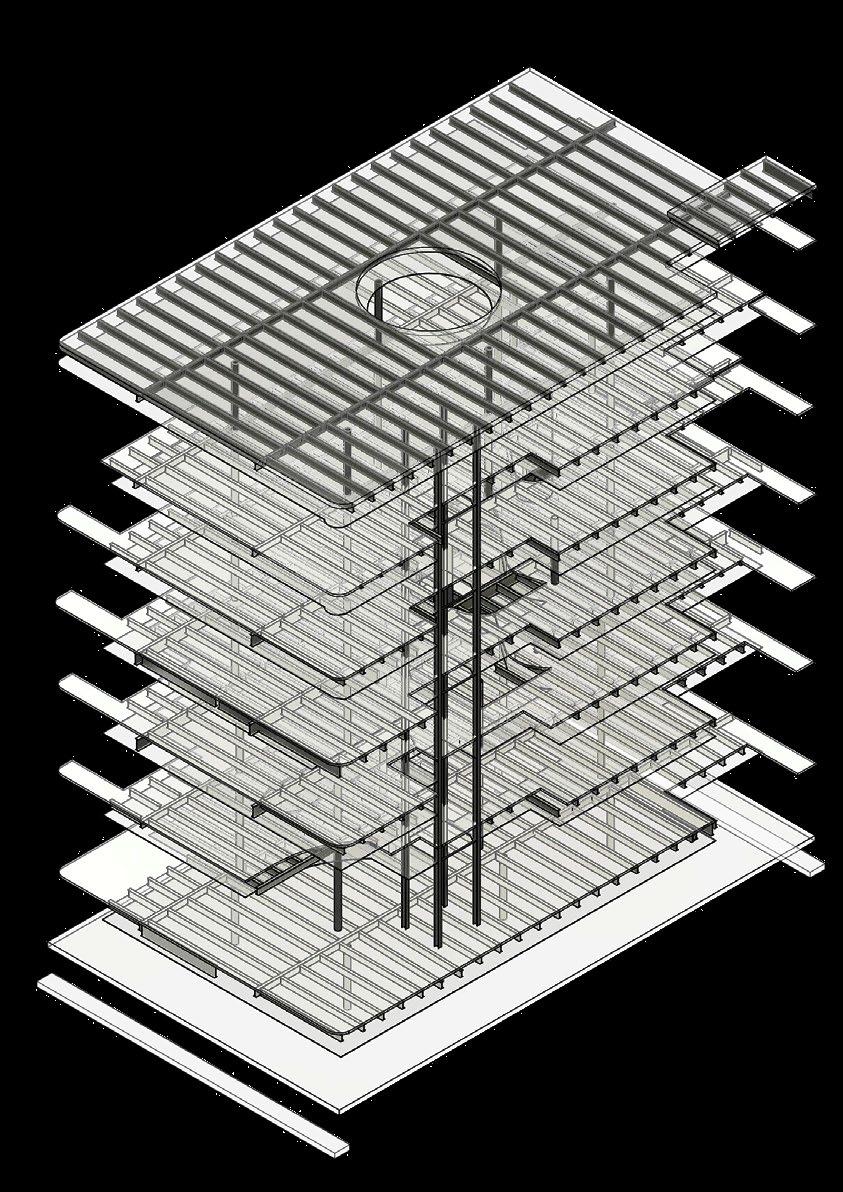

STEEL STRUCTURE

VAV HVAC SYSTEM

CONDENSER EXHAUST FANS

SUPPLY DUCTWORK RETURN DUCTWORK

FAN ROOM FURNACE

SUPPLY DUCTWORK RETURN DUCTWORK

CONDENSER EXHAUST FANS

FAN ROOM FURNACE

BUILDING DETAILS

WALL SECTION

DETAIL 02 DETAIL 01

CONCRETE PANEL 1 A R S PAC 3 R G D N SU LAT ON 3/4" PLYWOOD SHEATHING 6" INSULATION z BOX HEADER METAL STUD VAPOR BARRIER 4" METAL DECK 8" RIGID INSULATION ROOFING MEMBRANE FASCIA BOLT POLYCARBONATE BOARD WINDOW GLAZING WINDOW SILL STEEL BEAM 4" METAL DECK 1" CONRETE FINISH GYP. BOARD SOLID MATERIAL SPACE FRAME CONCRETE PANEL 1 A R S PAC E 3 R G D N SU LA ON 3/4" PLYWOOD SHEATHING 6" INSULATION BOX HEADER METAL STUD VAPOR BARRIER 4" METAL DECK 8" RIGID INSULATION ROOFING MEMBRANE FASCIA BO POLYCARBONATE BOARD WINDOW GLAZING WINDOW SILL STEEL BEAM 4" METAL DECK 1" CONRETE FINISH GYP. BOARD SOLID MATERIAL SPACE FRAME WINDOW GLAZING WINDOW SILL STEEL BEAM DETAIL 01 ROOF

COLORED GLA SS PANEL SOLID MATERIAL 1” CONCRETE FINISH 4” METAL DECK GYP. BOARD BOX HEADER METAL STUD 4” METAL DECK 8” RIGID INSULATION ROOFING MEMBRANE FASCIA BOLT 5/8” GYP. BOARD VAPOR BARRIER 6” INSULATION 3/4” PLYWOOD INSUL. 3” RIGID INSUL. 1” AIR SPACE CONC. PANEL POLYCARBONATE BOARD SPACE FRAME BOX HEADER METAL STUD

DETAIL 02

MIZU

WATER INSTALLATION ALLEGRA PITERA FALL

2022, THIRD YEAR

Group - Elena Moamar & Rees Cameron

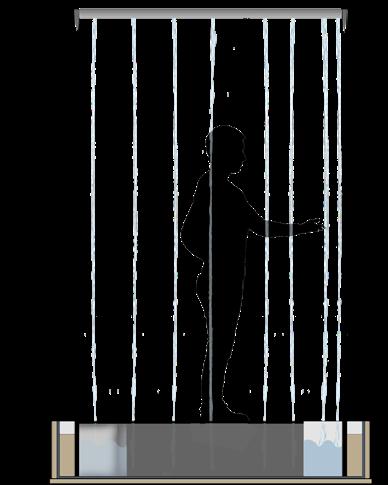

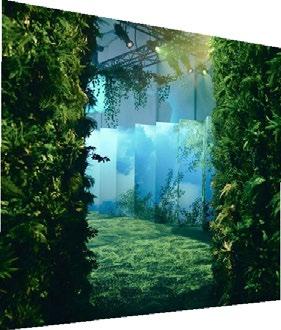

Water as an element is known to be transparent, and tranquil. An element that creates a sense of relaxation and awakeness. ‘LightinWater’ by DGT Architects influenced Mizu by its space of movement and interaction with falling water. The intent of MIZU is to allow the interaction with water which opens the path to the senses of vision, touch, sound, and smell.

02

“Water is an overlapping reflection of the space of the landscape outside as well as the virtual overlapping of the space inside.” (Juhani Pallasmaa in Phenomenal Zones)

A B

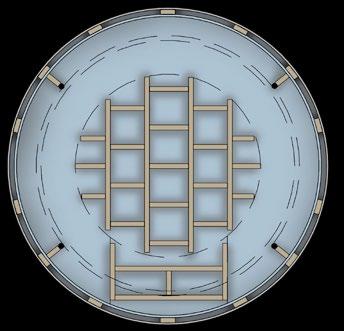

PLAN

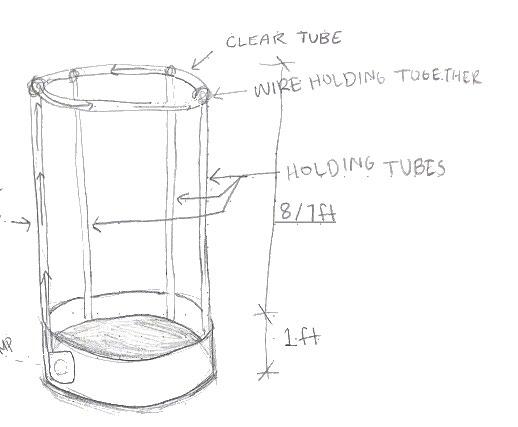

BASE FRAMING

ENTRANCE

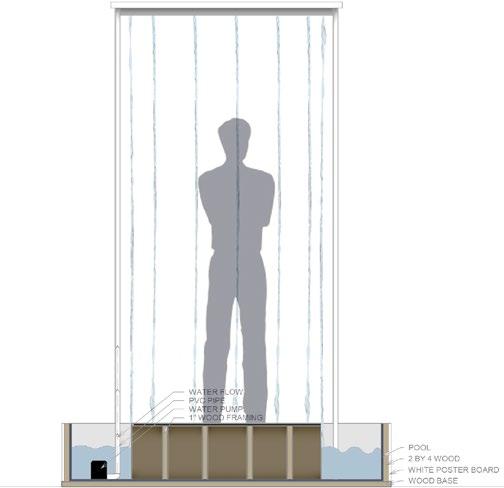

ELEVATION

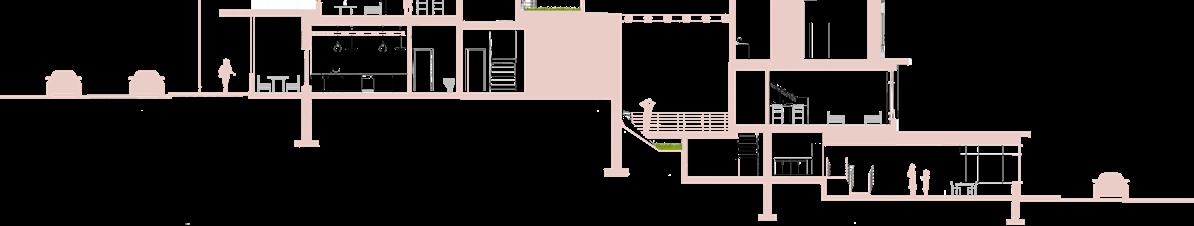

SECTION A SECTION B

Eucalyptus essential oil reflects to landscape outside

M I

Z U

OKUHOMU

ALLEGRA PITERA

NON-PROFIT HOME LESS

FALL 2022, THIRD YEAR

Group - Elena Moamar & Rees Cameron

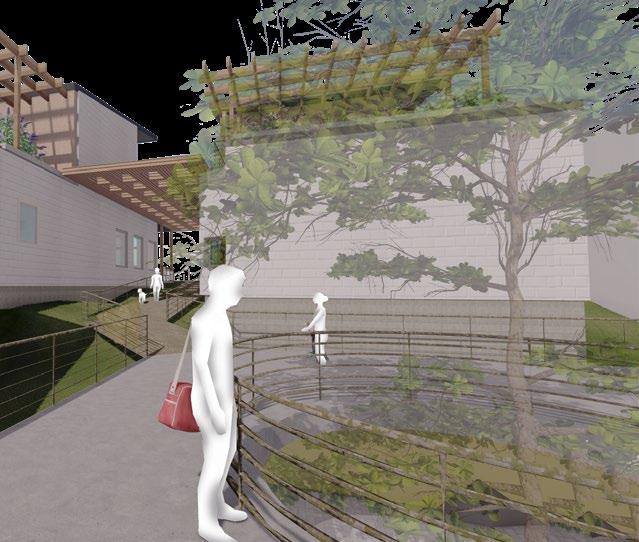

A non-profit shelter organization allowing young individuals of the ages 18-25 to experience new opportunities. The Covenant House in Detroit Michigan has influenced the design and intent for the community.

The symbolism of Oak is protection, which the name Okuhomu (Oak Home) intends for the individuals. The use of waterfalls, rivers, and oak material connect people to the surrounding landscape, which then leads you to confrontation with the building. This effect is dramatically assisted by the engagement of the auditory and visual senses through the exterior and interior (waterfalls, fountain, textile oak wood), creating an encounter that is going to be remembered.

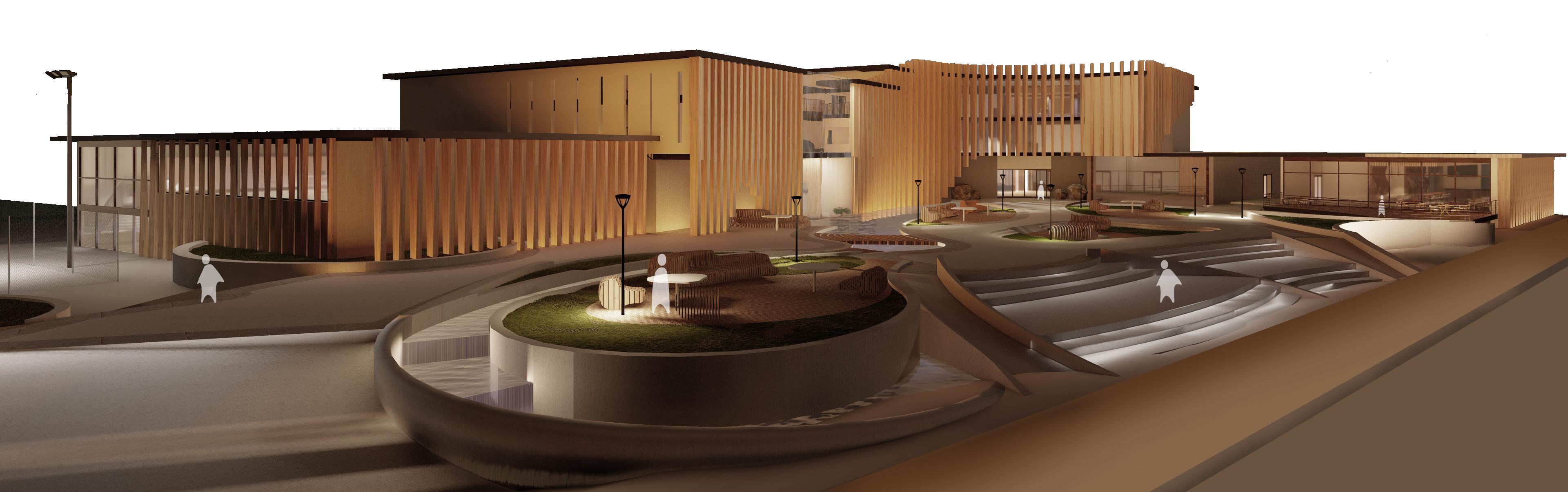

SHELTER

03

SHELTER

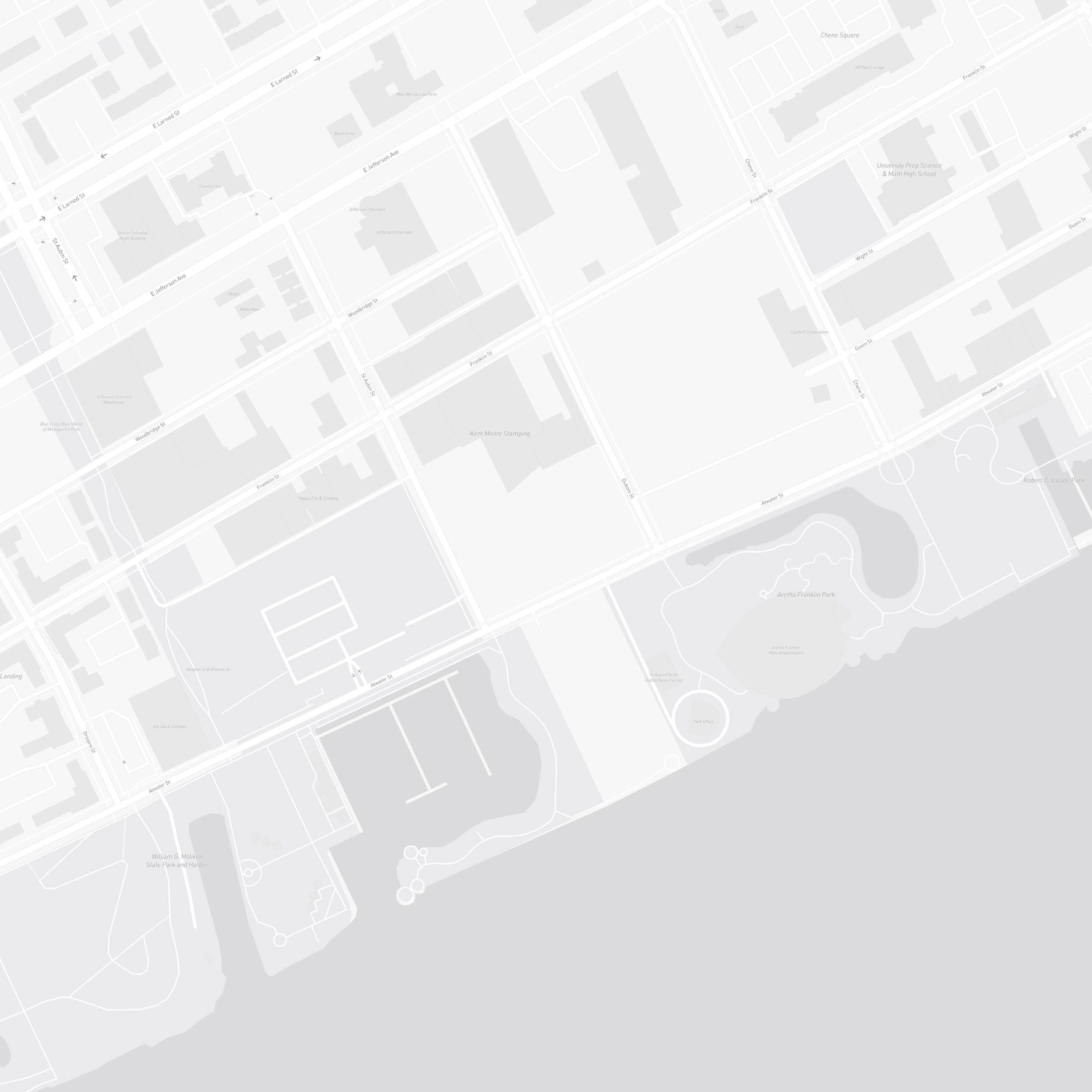

Milliken State Park Lighthouse

The Aretha Franklin Amphitheatre Robert C. Valade William G. Milliken State Park and Harbor

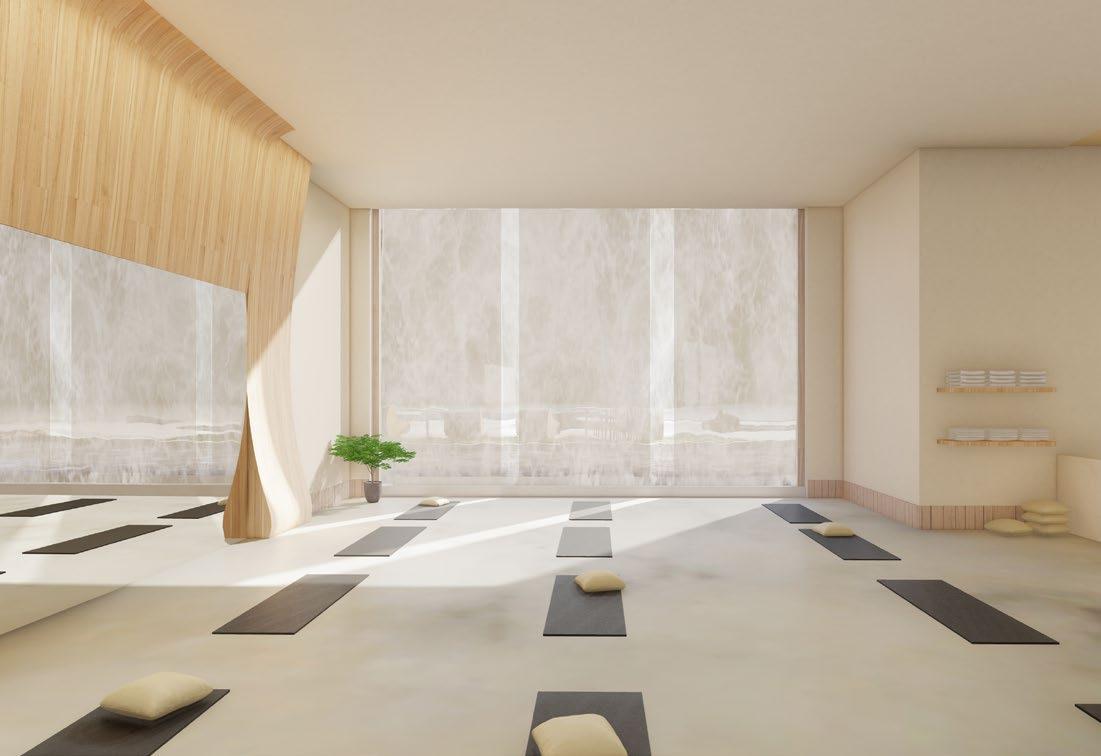

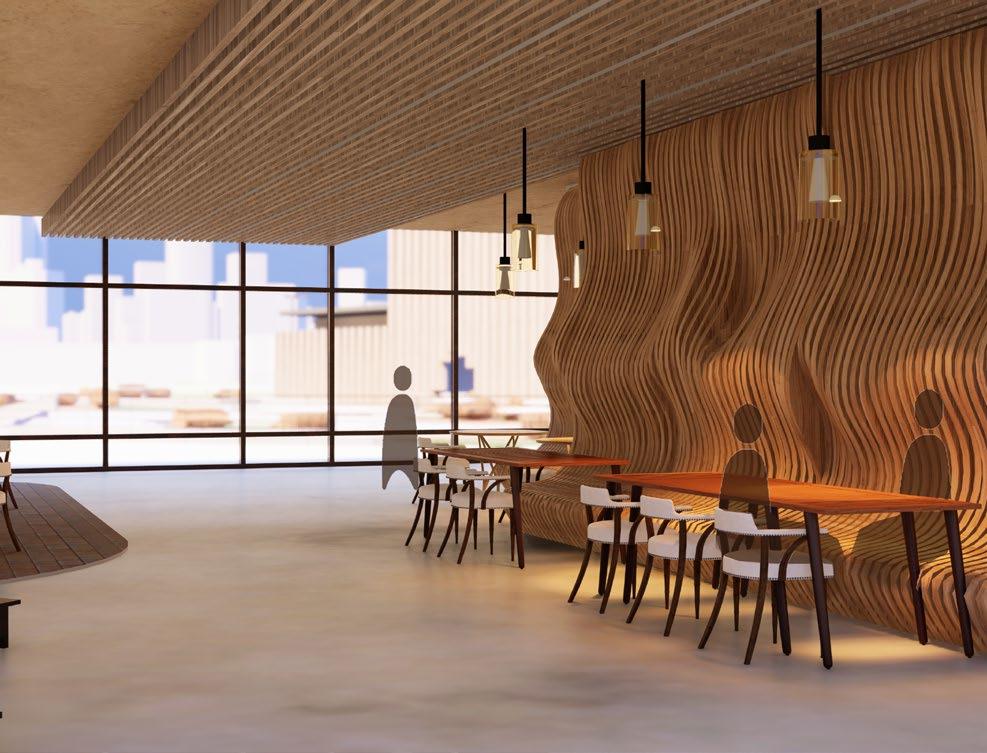

Valade CAFE/RESTAURANT YOGA ROOM

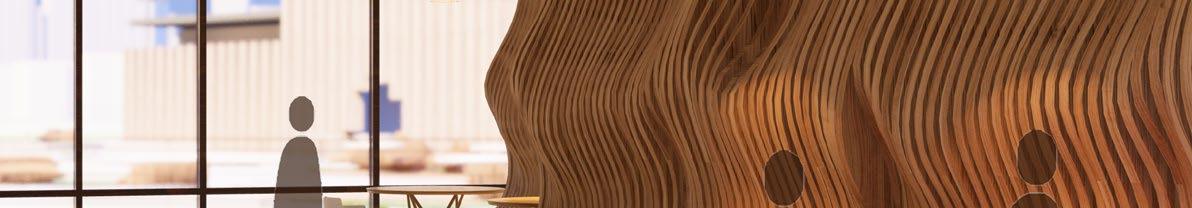

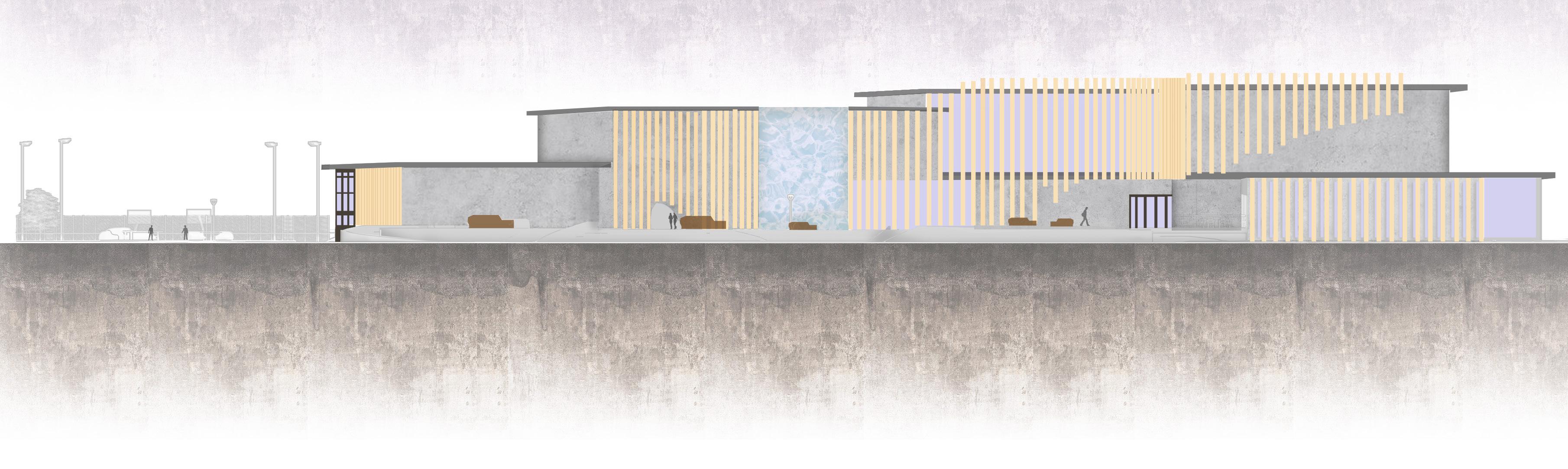

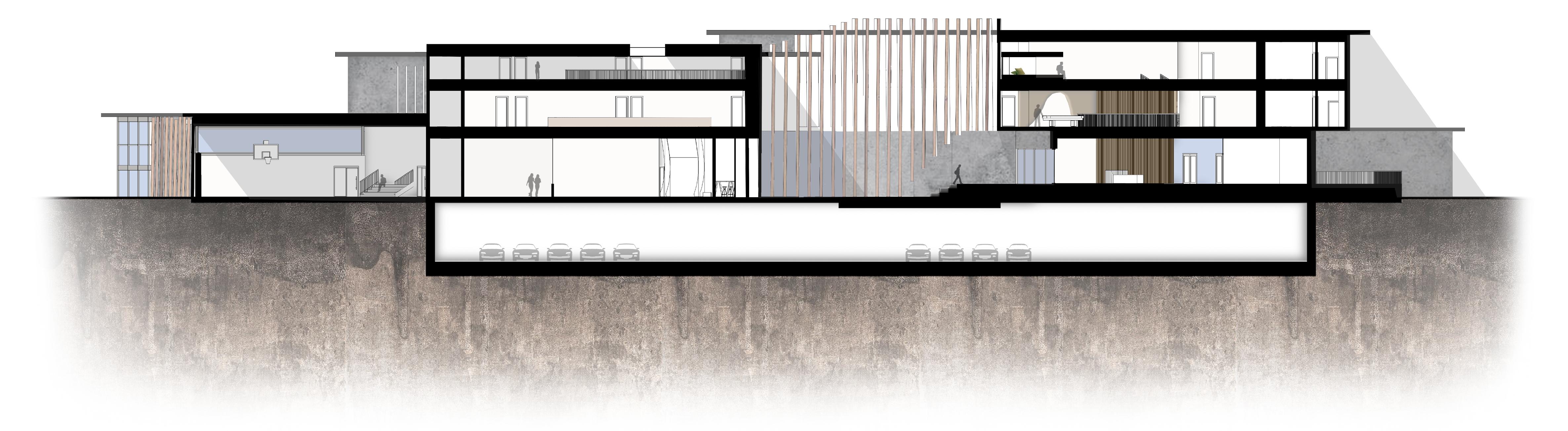

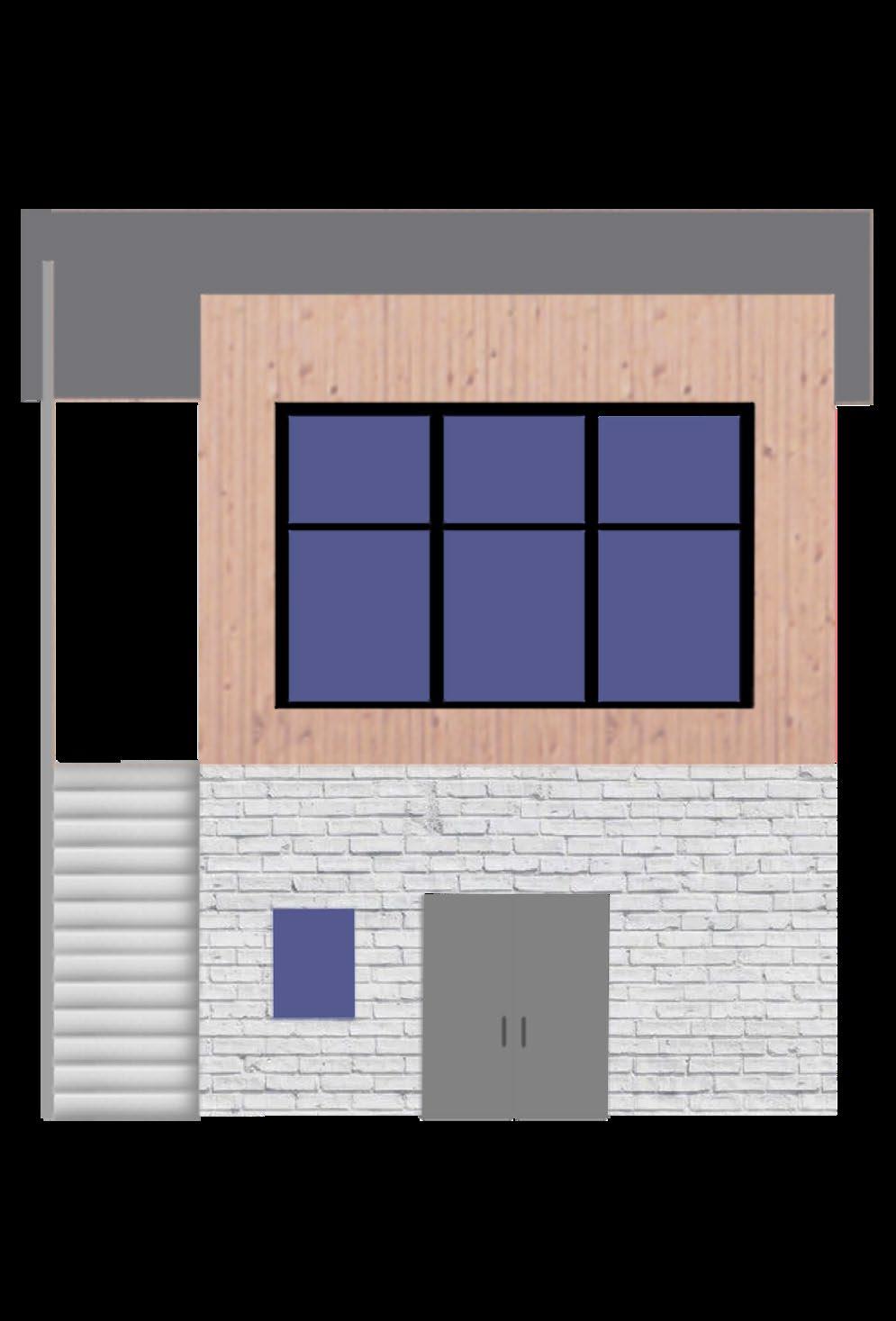

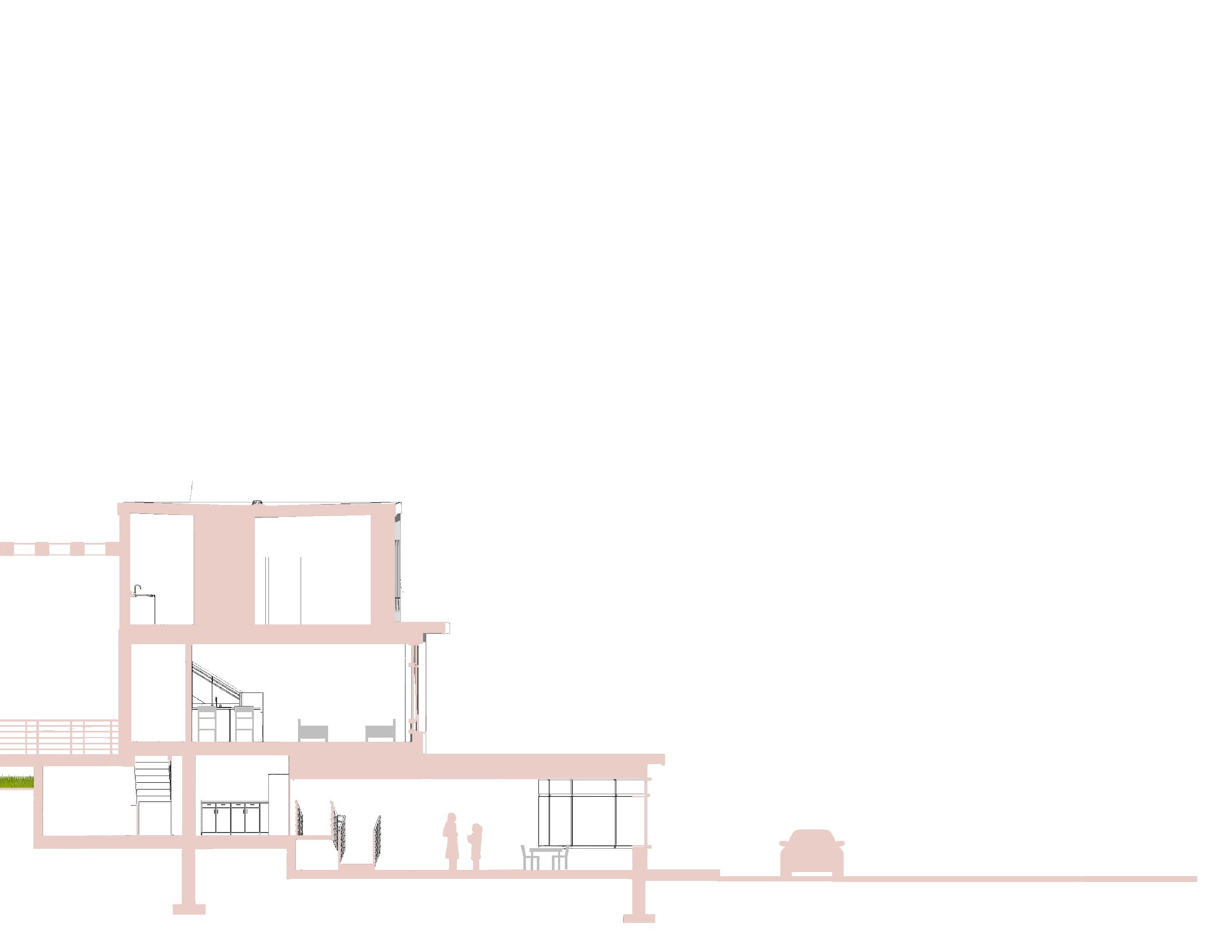

ATWATER ST ELEVATION

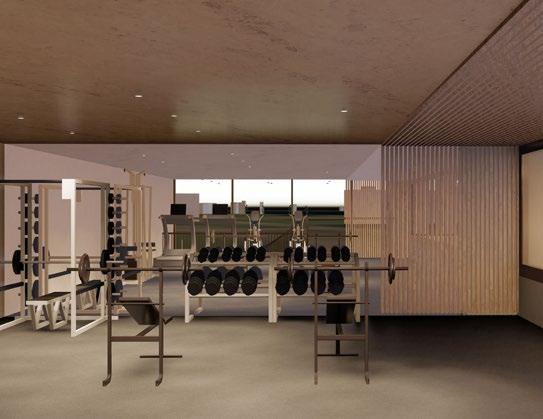

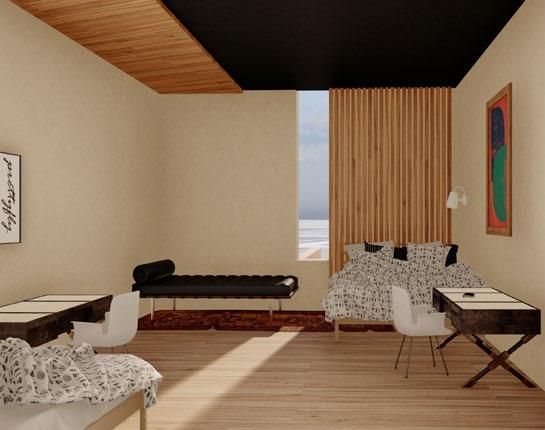

DORM ROOM FITNESS

UNDERGROUND PARKING LOBBY LIBRARY ADMINISTRATION ROOMS SHELTER KITCHEN AND DINING RESTAURANT / COFFEE SHOP YOGA ROOM 1 3 4 2 8 7 6 INDOOR GYM

7 - -

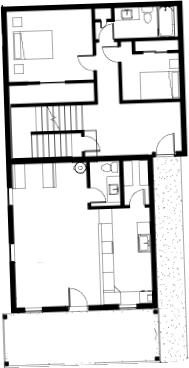

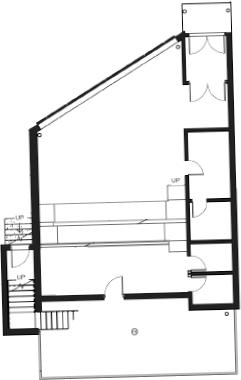

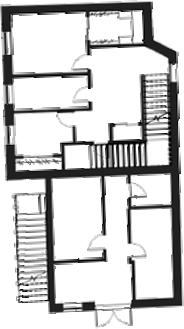

FIRST FLOOR PLAN

OUTDOOR SEATING AND GARDEN

STAFF DORM ROOM

ENTERTAINMENT ROOM

ISOLATED STUDY ROOM

LOUNGE AREA

GUEST DORM ROOM

FITNESS ROOM

-

4 5

-1 3 6 2

-

SECOND FLOOR PLAN -

-THIRD FLOOR PLAN

POLISH HILL

LAND

INFILL

JOSEPH ODOERFER FALL 2021, SECOND YEAR

Location - Pittsburgh, Pennsylvania

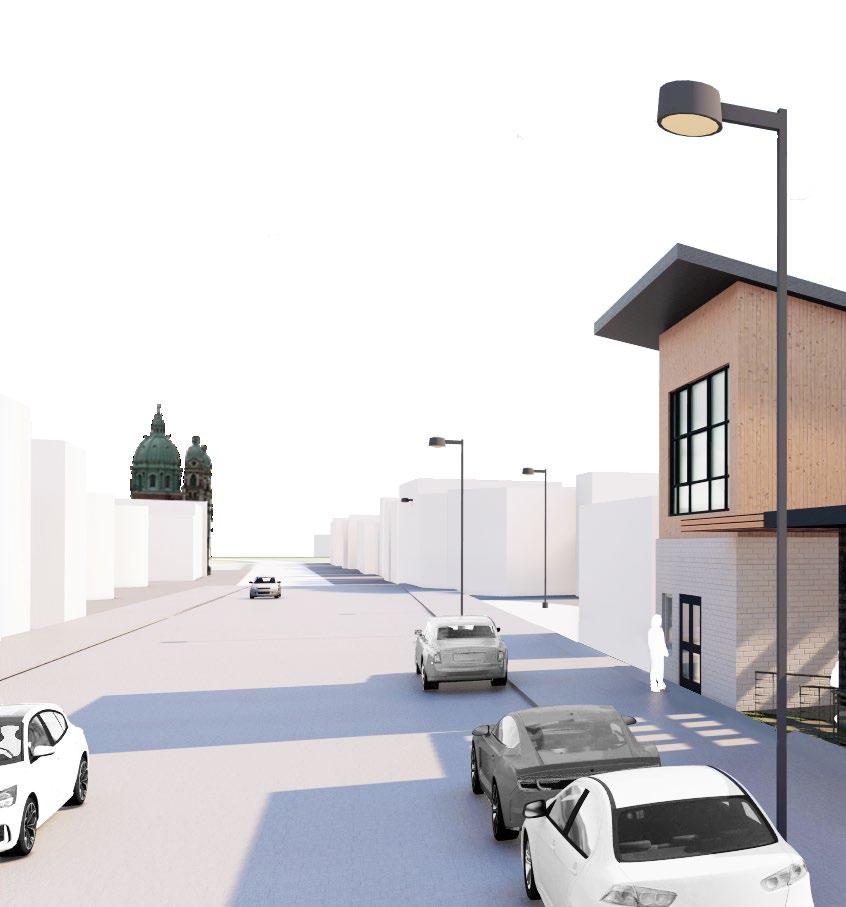

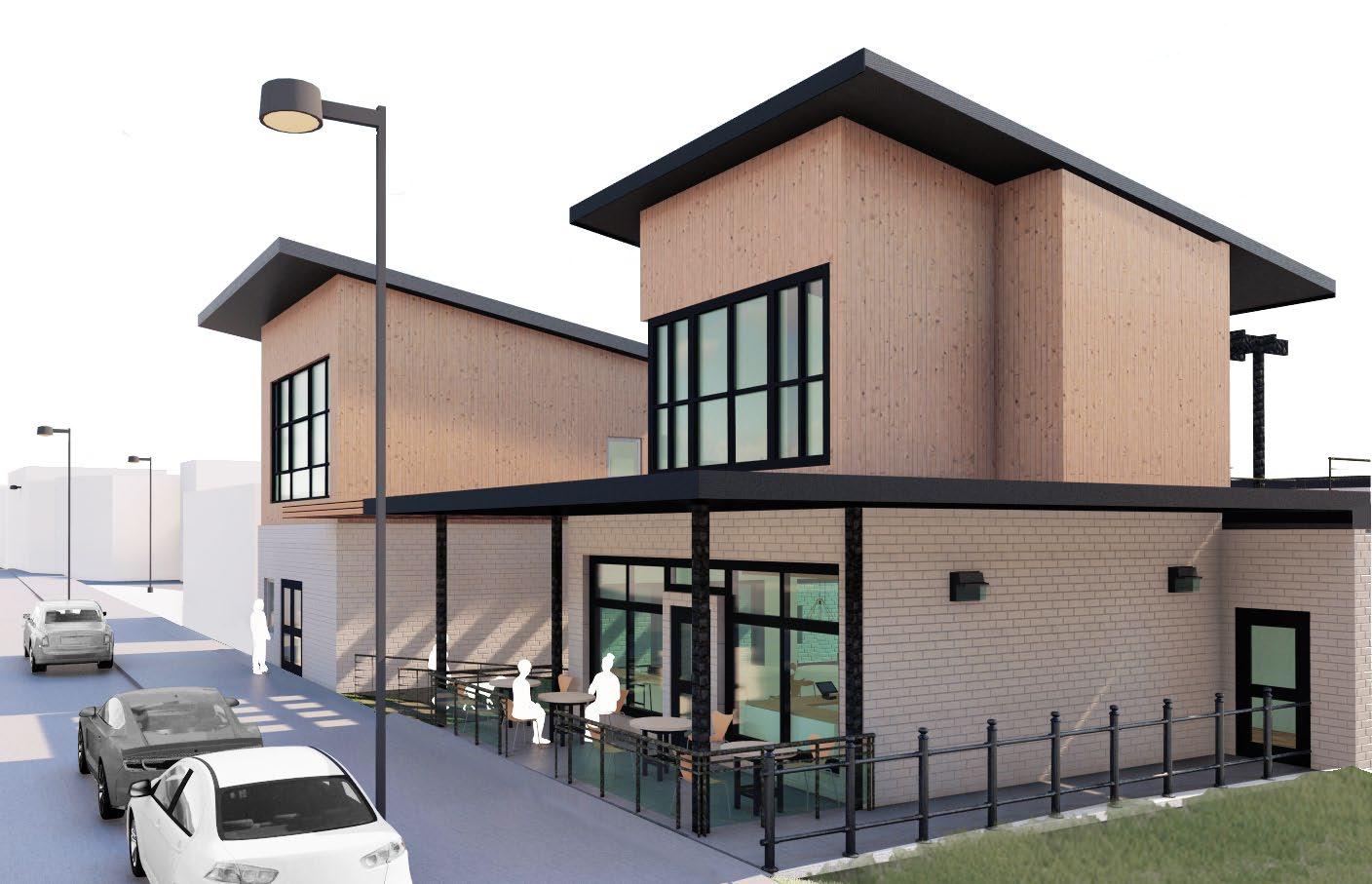

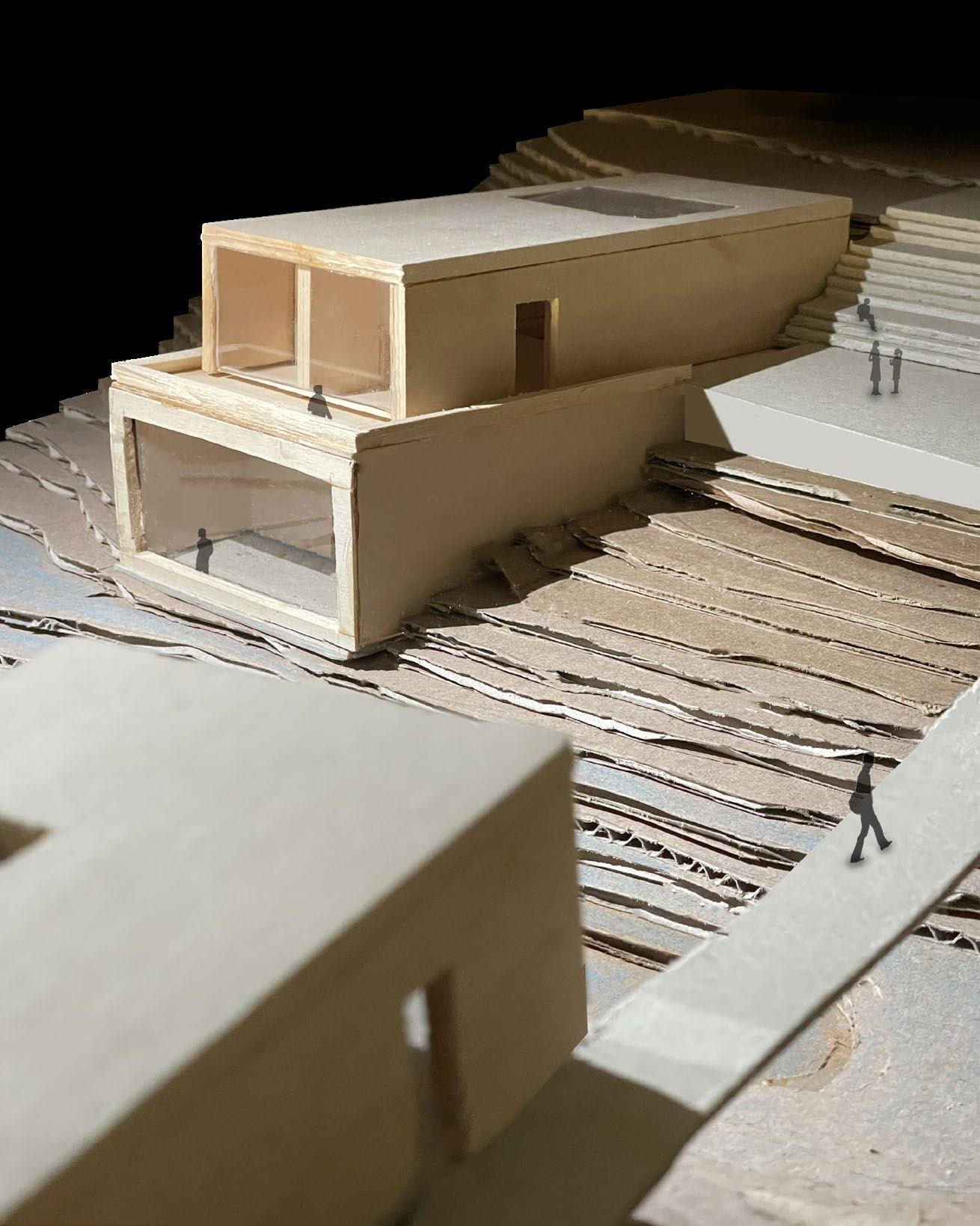

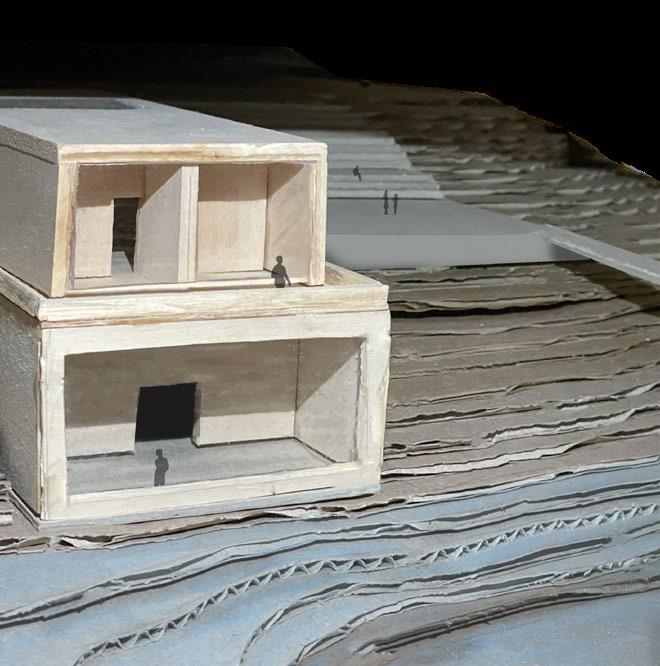

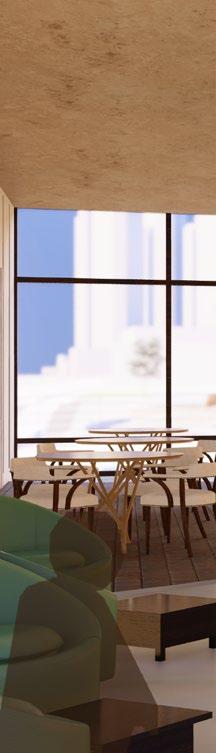

Three commercial units: daycare, office, and coffee shop, with use of an extended residential component.

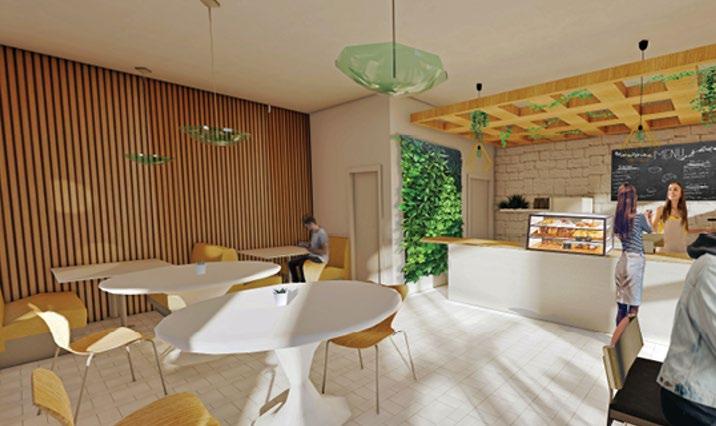

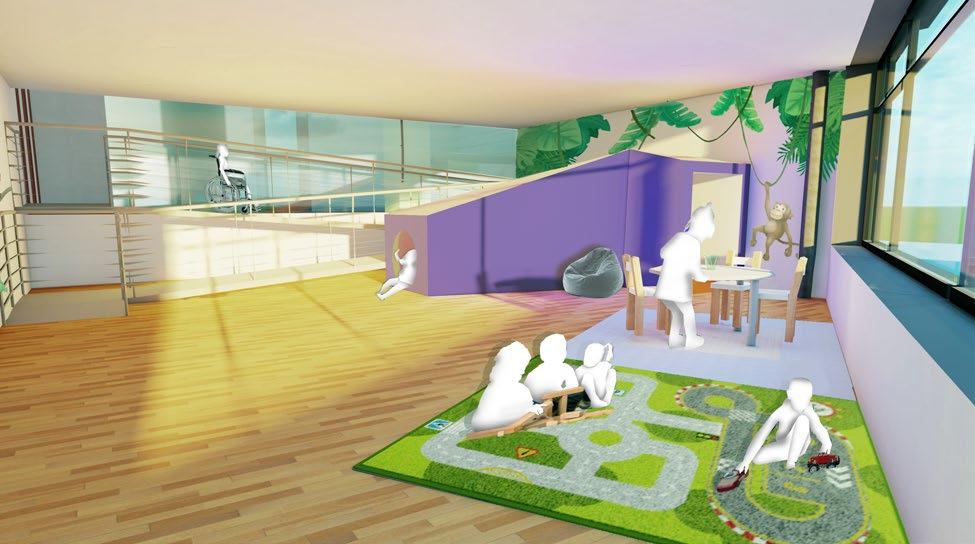

The material of pine wood creates a sustainable and warm atmosphere, allowing the coffee shop interior to be. The daycare has bright colors in the play den for the young to be creative and stay active.

04

DowningSt

DobsonSt

Brereton St

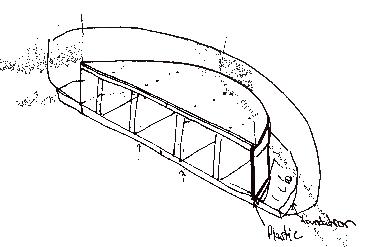

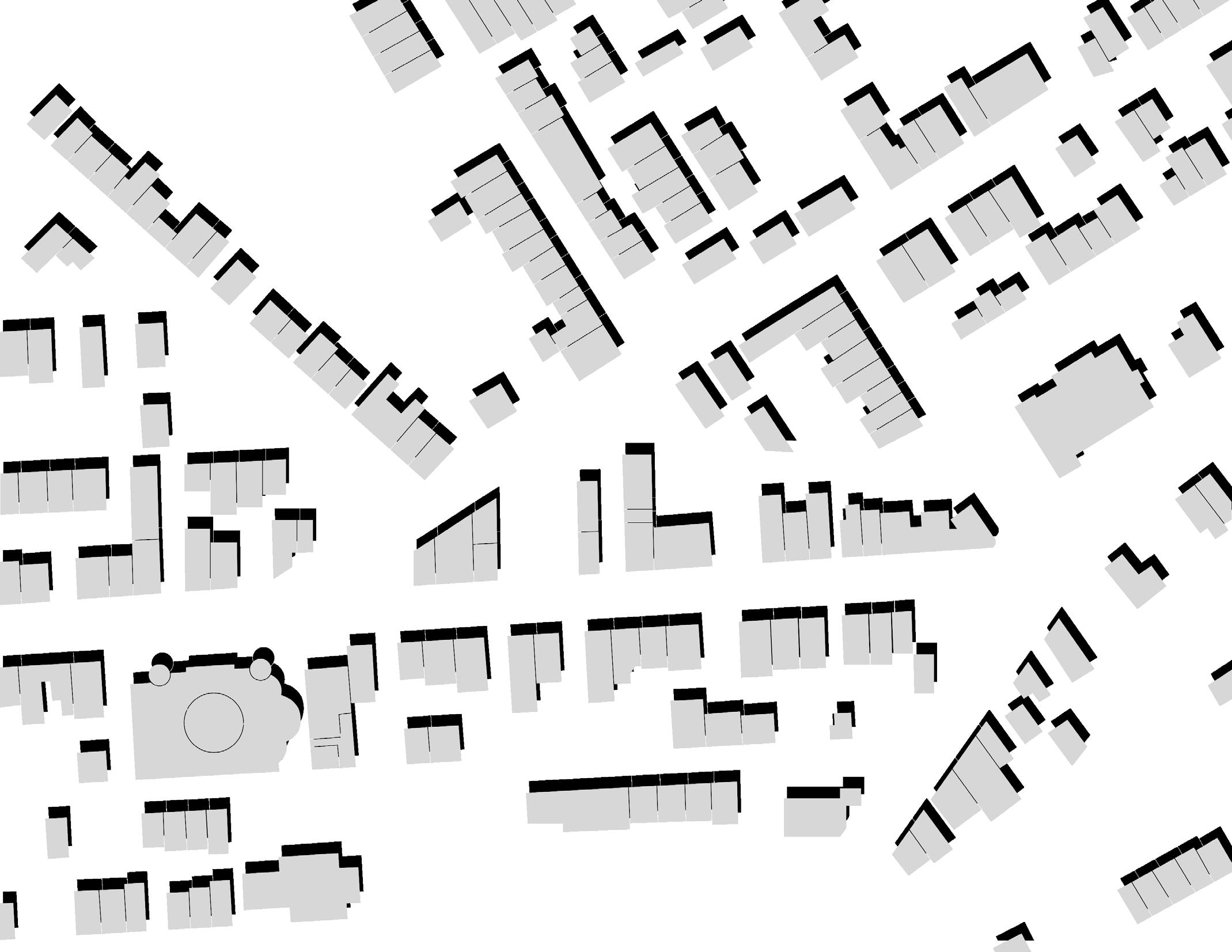

FORM GENERATION

10 20

DETAIL 01

DETAIL 02

FLOOR

DETAIL 02

1”

1/2” AIRSPACE 3/4” RIGID INSULATION INSULATION GYPSUM

4”

SLAB 1/2” TILE

MULLION CURTAIN WALL 2” X 6” GLULAM 5/8” GYPSUM BOARD 1 5/8” FURRING STRIP 7 5/8” CMU 1 1/2” RIGID INSULATION 1/2” AIR SPACE 3/8” MORTAR BRICK

DETAIL 01 ROOF FASCIA

PLYWOOD ASPHALT SHINGLES WOOD SIDING

BOARD BUILDING PAPER 3/4” PLYWOOD INSULATION WOOD FLOOR

CONC.

FLASHING

EARLY WORKS

JASON GROSSI FALL 2020 & WINTER 2021, FIRST YEAR

Windsor, Ontario, Canada

Charcoal Still Life Modeling

Hand Drafting

05

STILL LIFE BOTTLES AND GLASS CUPS

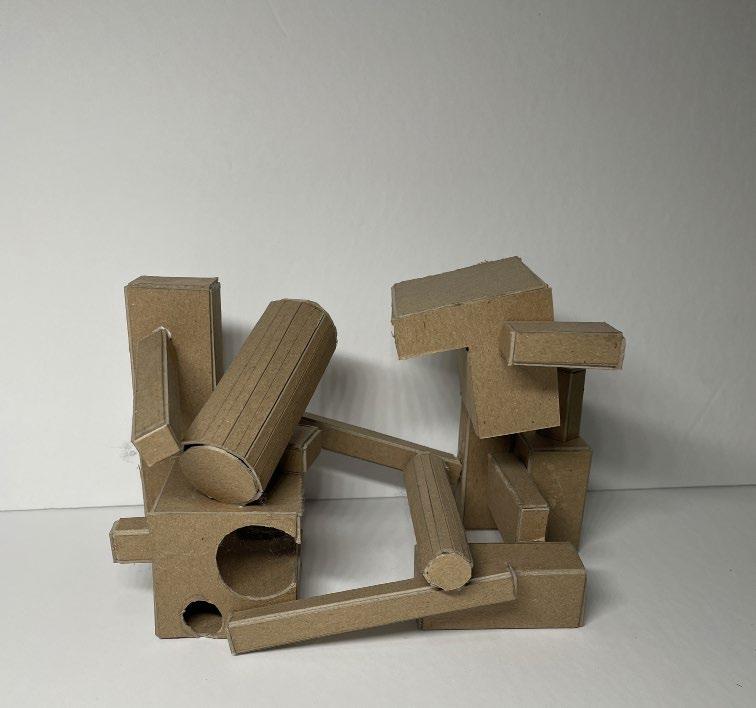

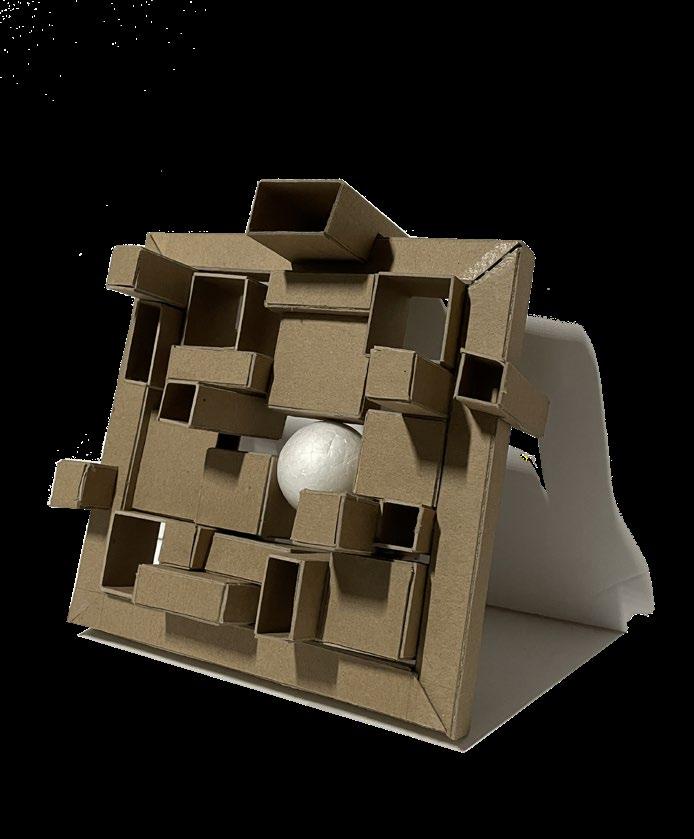

A cube seperated into different forms and positions.

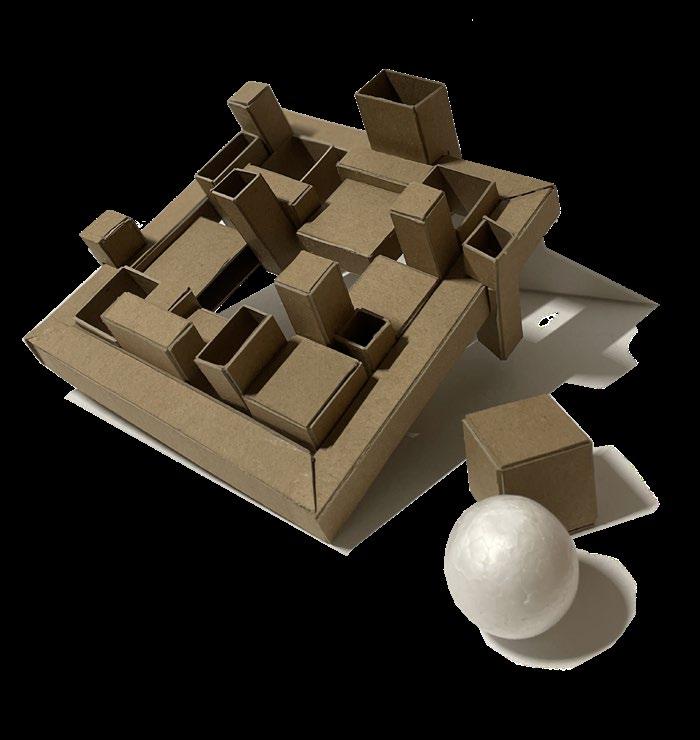

Designing a container that opens and closes but has no lid.

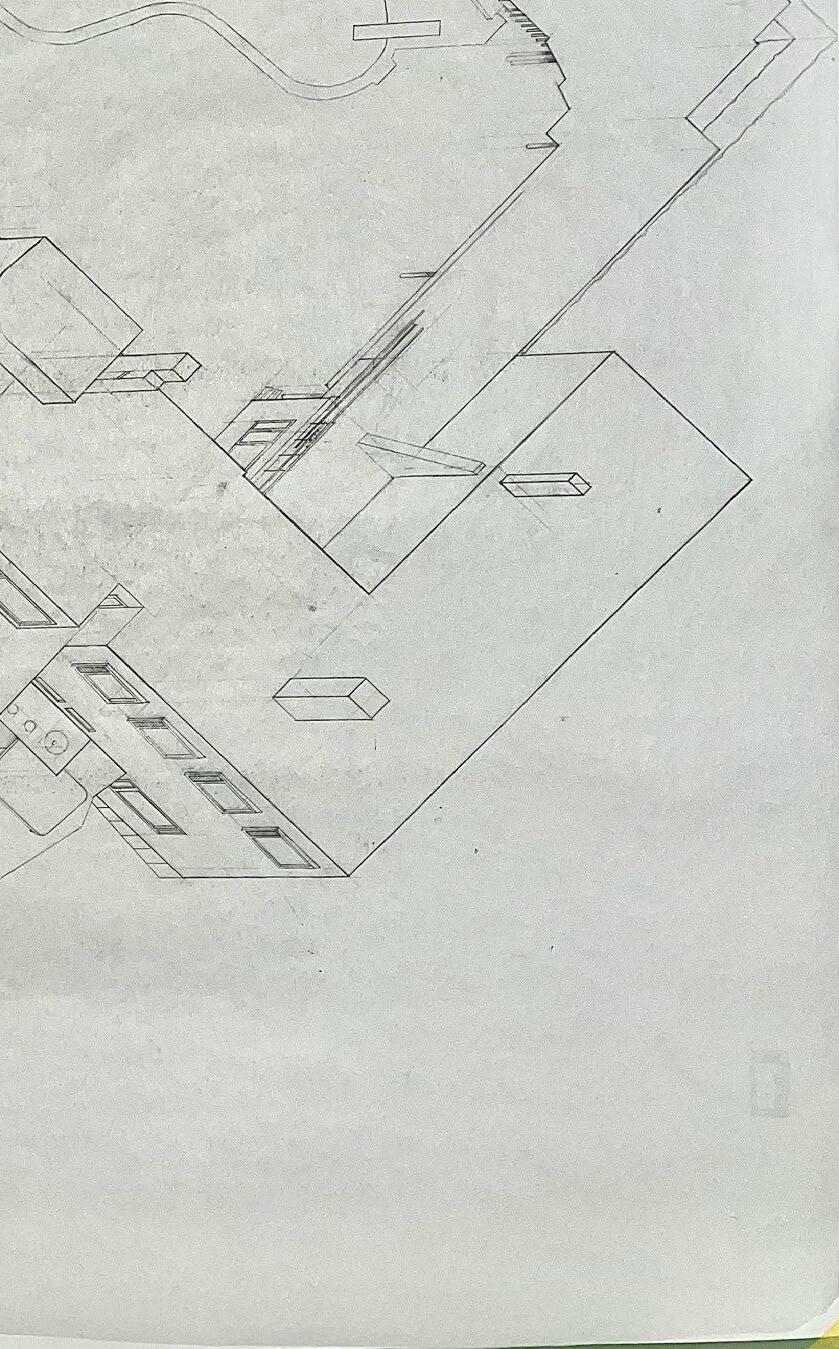

GROUND FLOOR & AXONOMETRIC

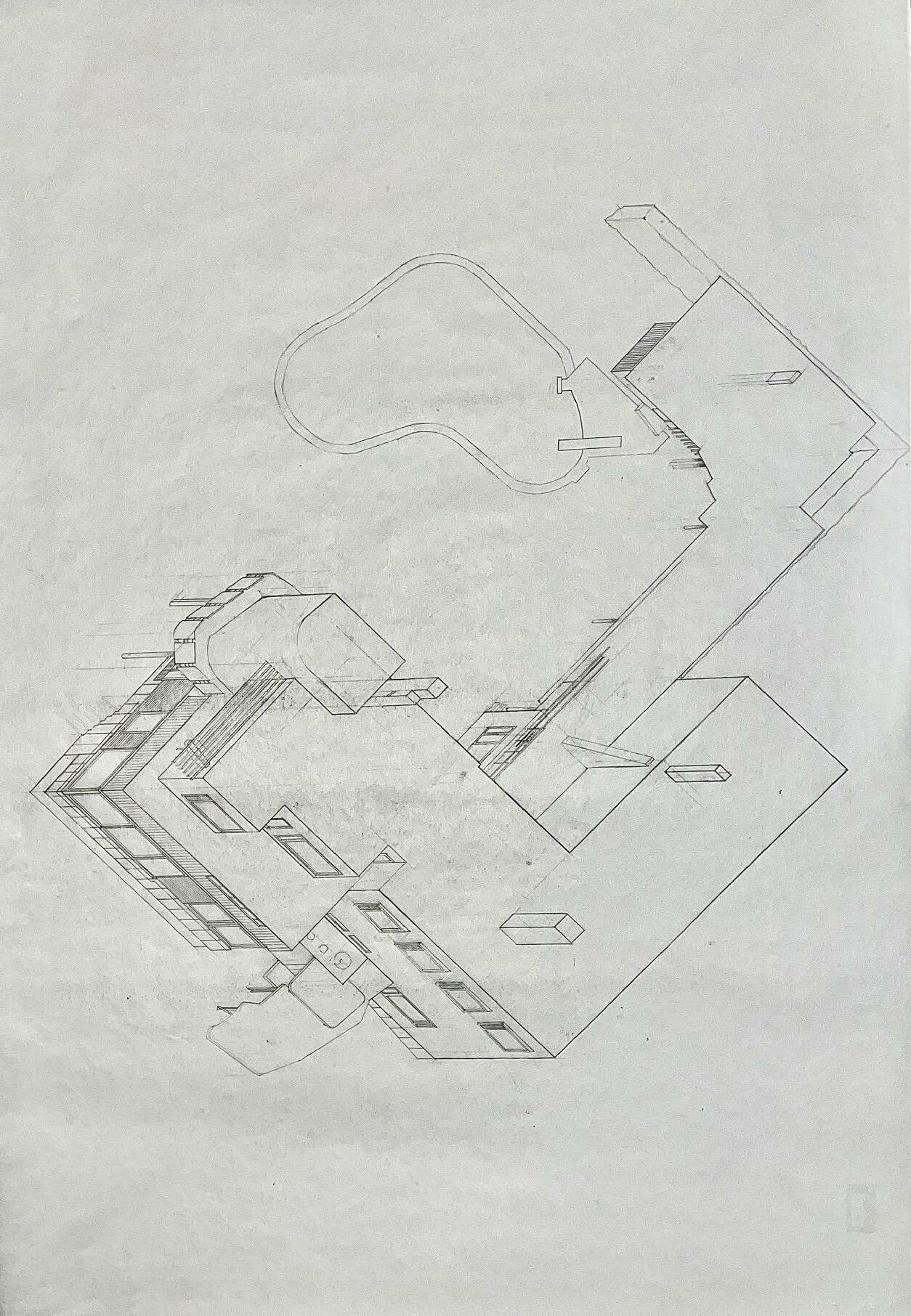

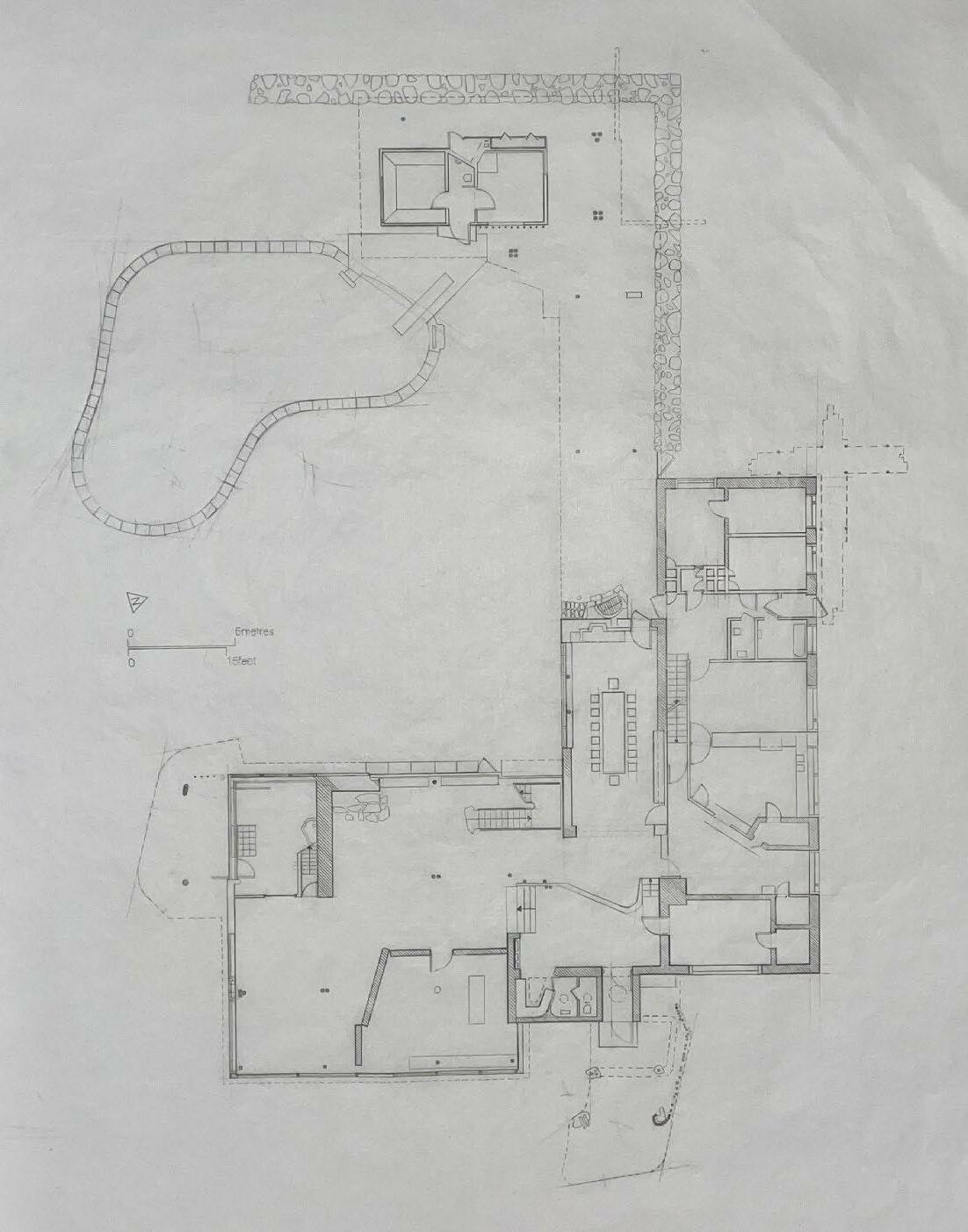

HAND DRAFTED ‘VILLA MAIREA’ BY ALVAR AALTO

HOUSE MODEL

LANDFORM

MISCELLANEOUS

Lead Drawing - Tupac Shakur

KIRK WELSH

CHORDOPHONE - Liquid Architecture

JOANNA MALDIS

WINTER 2022

SANCTUARY ON A HILL - Watercolor and Lead

SHAPES - Chalk Pastel

06

A glimpse of my passion for drawing and designing. Projects and free time work.

TUPAC SHAKUR - music artist

II Mondo by Jimmy Fontana. An Italian song that vibrates a calm, peaceful atmosphere. The see-through, translucent material allows the viewer to see all curves and folds of the sculpture.
